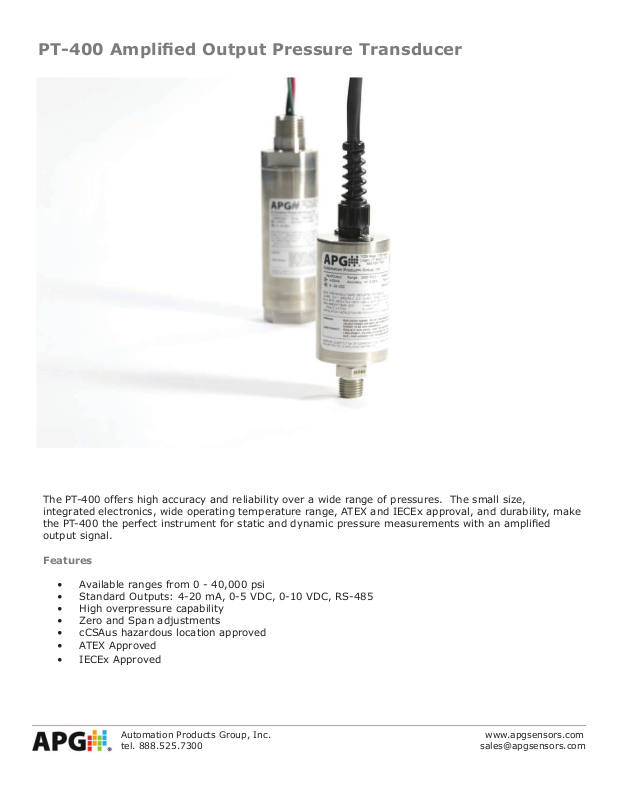

PT-400 Amplied Output Pressure Transducer

The PT-400 offers high accuracy and reliability over a wide range of pressures. The small size,
integrated electronics, wide operating temperature range, ATEX and IECEx approval, and durability, make

the PT-400 the perfect instrument for static and dynamic pressure measurements with an amplied

output signal.

Features

• Available ranges from 0 - 40,000 psi

• Standard Outputs: 4-20 mA, 0-5 VDC, 0-10 VDC, RS-485

• High overpressure capability

• Zero and Span adjustments

• cCSAus hazardous location approved

• ATEX Approved

• IECEx Approved

Automation Products Group, Inc. www.apgsensors.com

tel. [phone] [e-mail]

PT-400 Specications

6 pin

Connector

2.50”

63.5 mm

0.55”

13.97 mm

*Overall length may vary depending on process connecon.

99.06 mm

Performance

• Accuracy (linearity & hysteresis):
±0.25% of full scale (BFSL)

• Standard Pressure Ranges: 0 - 40,000 psi

• Stability - One Year Zero Drift:

17-4 / 316L: <±0.5% FS

• Overpressure: 2x full scale

• Burst Pressure: up to 3x full scale or limit of

process connection

• Frequency Response:

Less than 5mS

Connectivity

• Output:

4-20 mA (2 wire, loop-powered)
0-5 VDC, 0-10 VDC (non-isolated 3 wire)
Modbus/RTU (RS-485) with temp. output

Environmental

• Standard Compensated Temp.: 0º to 130ºF

(-17º to 54ºC)

• Storage Temp: -40º to 180º F (-40º to 82ºC)

• Operating Temp: -40º to 185º F (-40º to 82º C)

3.90”

1.50”

38.10 mm

Electrical

• Supply Voltage: 9-28 VDC

• Electrical Connection:

Pigtail with cable or connector

• Electrical Protection:

Protected against reverse polarity, surge

per IEC 61000-4-5

Certication

• CSA/cCSAus Contract #237484
Ambient: -40º to 85ºC
0-5 VDC, 0-10 VDC, 4-20mA

- IS: Class 1, Div. 2, Groups C & D; Ex nL IIB T4

- Class 1, Zone 2; AEx nL IIB T4
4-20 mA

- IS: Class 1, Div. 1; Groups C & D; Ex ia IIB T4

- Class 1, Zone 0; AEx ia IIB T4

• ATEX
4-20 mA

- Ex II 1G Ex ia IIB T4 Ga

• IECEx
4-20 mA

- Ex ia IIB T4 Ga

Physical

• Weight: 10 oz. (283 g) typical

• Wetted Materials: 17-4 SS, 316L SS
