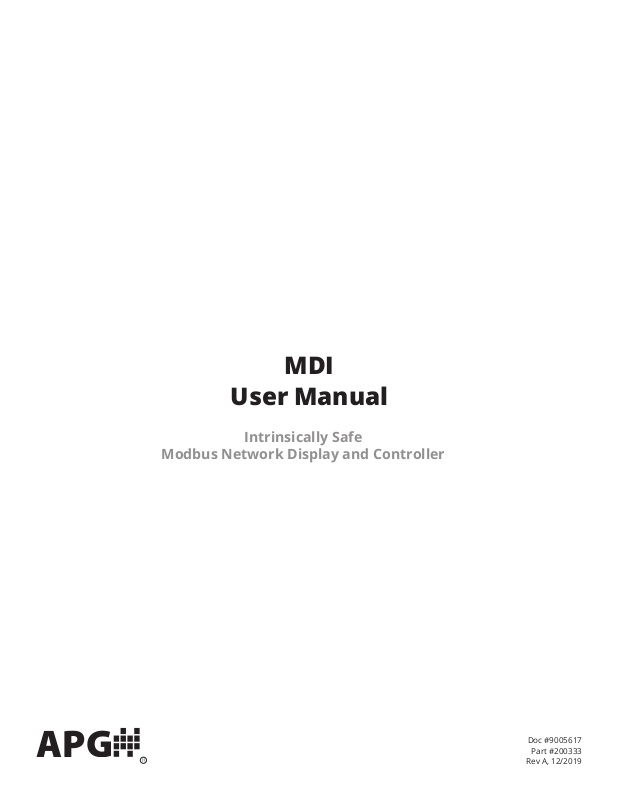

APG MDI User Manual

APG

MDI

User Manual

Intrinsically Safe

Modbus Network Display and Controller

Doc #9005617

R

Part #200333

Rev A, 12/2019

Table of Contents

Introduction ................................................................................................................ iii

Warranty and Warranty Restrictions .................................................................... iv

Chapter 1: Specications and Options.....................................................................1

Dimensions ........................................................................................................................................1

Specications ...................................................................................................................................2

Model Number Congurator .......................................................................................................... 3

Wiring Diagram For Slave Sensor Connection .......................................................................... 4

Wiring Diagram For Passive Control Connection ..................................................................... 4

Wiring Diagram For RST-6001 Programming ............................................................................4

IS Use Case Diagrams ..................................................................................................................... 5

Chapter 2: Installation and Removal Procedures and Notes ..............................6

Tools Needed .....................................................................................................................................6

Physical Installation Notes ...........................................................................................................6

Mounting Instructions ................................................................................................................... 6

Electrical Installation .....................................................................................................................7

Removal Instructions ..................................................................................................................... 7

Chapter 3: User Interface and Access Modes ........................................................8

User Interface ................................................................................................................................... 8

MDI Setup Menus ............................................................................................................................ 9

Accessing Mode Options .............................................................................................................. 10

Chapter 4: Modbus Programming Notes .............................................................. 11

Modbus Programming ...................................................................................................................11

Modbus Programming via Internet ............................................................................................11

Modbus Programming with RST-6001 and APG Modbus Software .....................................11

Chapter 5: Maintenance ...........................................................................................12

General Care .................................................................................................................................... 12

Replacing Lithium Batteries ........................................................................................................ 12

Troubleshooting ............................................................................................................................. 13

Resetting MDI to Factory Standard Defaults ........................................................................... 13

Repair and Returns ........................................................................................................................ 13

Chapter 6: Programming and Parameter Conguration ...................................14

MDI Programming Generalizations ........................................................................................... 14

UNITS (Volume Units Label) ....................................................................................................... 14

ENTR (Enter Button Function) .................................................................................................... 14

AdVEST (Advanced Settings) .................................................................................................15-16

OUTPUT (Output Congurations) ......................................................................................... 17-21

ii

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Table of Contents

COMM (Communications) .....................................................................................................22-25

SENLAB (Sensor Labels)...............................................................................................................26

PCTFUL (Percent Full) .................................................................................................................. 27

bLIGHT (Backlight) ........................................................................................................................ 28

Chapter 7: Hazardous Drawing & Certicate ........................................................29

Hazardous Installation Drawing .................................................................................................29

CSA Certicate of Compliance .............................................................................................. 30-32

IECEx Certicate of Conformity ........................................................................................... 33-36

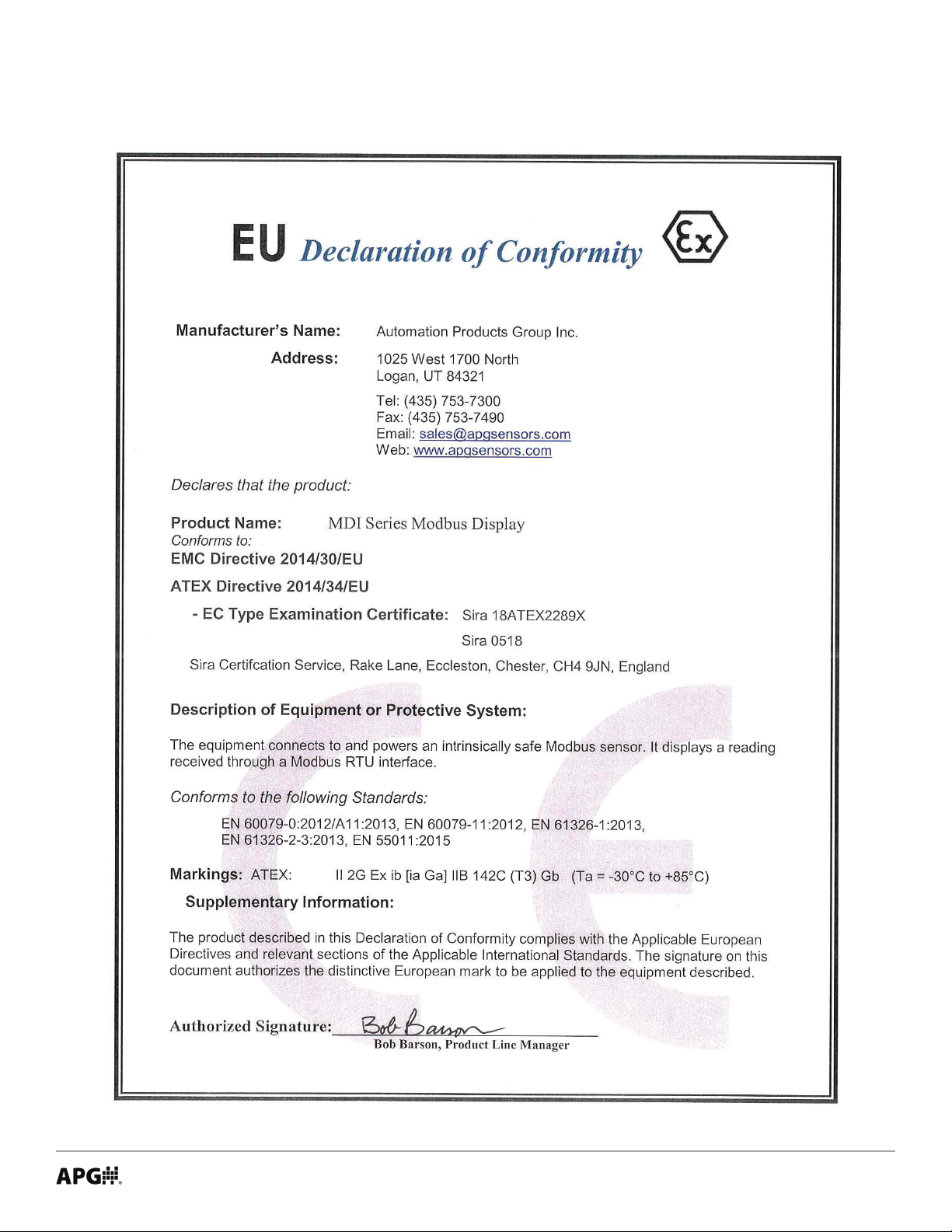

EU Declaration of Conformity ..................................................................................................... 37

Appendices ..................................................................................................................38

Appendix A: MDI Factory Default Settings ..............................................................................38

Appendix B: MNU IS Modbus Registers ...................................................................................39

Appendix C: MPI Modbus Registers ..........................................................................................40

Appendix D: MDI Modbus Registers .................................................................................... 41-42

Introduction

Thank you for purchasing an MDI Intrinsically Safe Modbus Network Display and Controller from APG. We
appreciate your business! Please take a few minutes to familiarize yourself with your MDI and this manual.

The MDI Intrinsically Safe Modbus Network Display and Controller provides a local display in a Class I, Zone
1 area that can monitor and control a sensor within a Class I, Zone 0 or Class I , Zone 1 hazardous area. The
MDI can supply power to the sensor it controls, creating a complete monitoring-and-control system within
the hazardous area. The MDI can also be connected to monitoring equipment outside the hazardous area
through an IS barrier, allowing readings from the sensor to be seen across a montioring or control network.

The MDI features a large 5-digit display, IP66-rated housing options, and user selectable units of measure.

Reading your label

Every APG instrument comes with a label that includes the instrument’s model number, part number, serial
number, and a wiring/pinout table. Please ensure that the part number and pinout table on your label
match your order. The following electrical ratings and approvals are also listed on the label. Please refer to

the Certicate of Compliance at the back of this manual for further details.

 IMPORTANT: Your MDI MUST be installed according to drawing 9005447 (Intrinsi-

cally Safe Installation Drawing For Hazardous Locations) to meet listed approvals. Faulty
installation will invalidate all safety approvals and ratings.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

iii

Electrical ratings

237484

Rated for Modbus Outputs and Battery Power only
Class I Zone 1
AEx ib [ia Ga] IIB 142°C (T3) Gb
Ex ib [ia Ga] IIB 142°C (T3) Gb, Ta: -30°C to 85°C

C

Vmax Ui= 12VDC, Imax Ii = 30mA, Pmax Pi = 100mW, Ci = 0.33μF, Li = 0mH
Uo= 12VDC, Io = 136mA, Po = 809mW, Co = 0.65μF, Lo = 7.7mH
Install in accordance with drawing 9005447

ATEX Certicate Number: Sira 18ATEX2289X

II 2G
Ex ib [ia Ga] IIB 142°C (T3) Gb
Ta = -30°C to 85°C
IP66

IECEx SIR 18.0076X
Ex ib [ia Ga] IIB 142°C (T3) Gb
Ta = -30°C to 85°C
IP66

US

Intrinsically Safe Wiring Requirements:

DANGER: OPEN CIRCUIT BEFORE REMOVING COVER or KEEP COVER TIGHT WHILE CIRCUIT IS ALIVE;

AVERTISSEMENT -- COUPER LE COURANT AVANT D’ENLEVER LE COUVERCLE, OU GARDER LE COUVERCLE
FERME TANT QUE LE CIRCUIT EST SOUS TENSION.

DANGER: WARNING -- EXPLOSION HAZARD -- DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS

BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS;
AVERTISSEMENT -- RISQUE D’EXPLOSION -- AVANT DE DECONNECTER L’EQUIPEMENT, COUPER LE COURANT
OU S’ASSURER QUE L’EMPLACEMENT EST DESIGNE NON DANGEREUX.

Warranty and Warranty Restrictions

This product is covered by APG’s warranty to be free from defects in material and workmanship under
normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit

https://www.apgsensors.com/about-us/terms-conditions. Contact Technical Support to receive a Return

Material Authorization before shipping your product back.

Scan the QR code below to read the full explanation of our Warranty on your tablet or smartphone.

iv

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Chapter 1: Specications and Options

• Dimensions

4.92”

125 mm

External

Decrease/Power

Button

105.5 mm

4.09”

104 mm

4.15”

Position 1

4.25”

108 mm

3” Aluminum Housing

Grounding Screw

Position 2

7 mm hole

External

Decrease/Power

Button

4.94”

125.5 mm

4.53”

115 mm

Position 1

4.96”

126 mm

4” Aluminum Housing

5.71”

145 mm

Grounding Screw

Position 2

7 mm hole

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

1

• Specications

Performance

Digital Communication RS-485 (Modbus RTU)

RS-485 Baud Rate 2400, 9600, 19200, 38400

Environmental

Operating Temperature -30 to 85°C (-22 to 185°F)
Storage Temperature -45 to 90°C (-49 to 194°F)
Enclosure Protection IP66 - 3” Ø or 4” Ø Aluminum Housing

Electrical

Battery Voltage (3) AA 3.6V Lithium

Masterials of Construction

Aluminum Housing Pressure die casting, 0.5% Mg
Chemically resistant paint

Mounting

Standard No mounting hardware provided

Compatible Intrinsically Safe APG Modbus Senors

Ultrasonic MNU IS
Magnetostrictive MPI-E, MPI-R, MPI-E Chemical, MPI-F, MPI-T

IMPORTANT: USE ONLY THREE (3) SAFT MODEL LS14500 OR THREE (3) XENO MODEL XL-060F BAT-

TERIES. FAILURE TO USE ONLY APPROVED BATTERIES WILL VOID INTRINSIC SAFETY RATING;
IMPORTANT -- UTILISEZ SEULEMENT TROIS (3) BATTERIES SAFT MODÈLE LS14500 OU TROIS (3) BATTERIES
XENO MODÈLE XL-060F. LA NON UTILISATION DE PILES APPROUVÉES ANNULERA LA CERTIFICATION DE
SÉCURITÉ INTRINSEQUE.

DANGER: DO NOT REPLACE BATTERIES WHEN EXPLOSIVE ATMOSPHERE IS PRESENT;

AVERTISSEMENT -- NE PAS REMPLACER LES PILES EN PRESENCE D’UNE ATMOSPHÈRE EXPLOSIVE.

2

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• Model Number Congurator

Model Number: MDI - __9__ __4__ __0__ _____ __0__ - _____ _____ - _____ _____ - _____ - __B0__
A B C D E F G H I J K

A. Power

▲

□ 9

Batteries (3) AA 3.6V Lithium Parallel

B. Output

□ 4▲ Modbus RTU, IS Rated

C. Relays

▲

□ 0

No Relays

D. Enclosure

□ 2▲ 3” Aluminum (1/2” NPT cable entry)

□ 3 4” Aluminum (3/4” NPT cable entry)

E. Mounting/Cover

▲

□ 0

Standard Mounting

F. Main Connection Location†

▲

□ 1

Position 1

□ 2 Position 2

H. Auxiliary Connection Location†

▲

□ 0

No Auxiliary Connection

□ 1 Position 1
□ 2 Position 2

I. Auxiliary Cable or Connector

▲

□ 0

No Auxiliary Connection

□ C_ Cable, in feet, with ying leads

(ex. C100 = 100 feet, 5 ft increments only)

□ M_ Cable, in feet, with connector

(ex. M5C5 = 4 pin M12 Female connector with
5 feet of cable, avail. in 5 ft increments only)
□ __ Connector only
(select from Connector Table below)

Connector Table

□ 2 4 pin M12 Male
□ 5 4 pin M12 Female

J. Backlight

▲

□ 0

No Backlight

□ 1 Backlight (decreases battery life)

G. Main Cable or Connector

□ C_ Cable, in feet, with ying leads

(ex. C100 = 100 feet, 5 ft increments only)

□ M_ Cable, in feet, with connector

(ex. M5C5 = 4 pin M12 Female connector with
5 feet of cable, avail. in 5 ft increments only)
□ __ Connector only
(select from Connector Table below)

Connector Table

□ 2 4 pin M12 Male
□ 5 4 pin M12 Female

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

K. Factory Use Only

▲

□ B0

▲

This option is standard.

†Note: Auxiliary Connection Location (when used) cannot

be the same as the Main Connection Location.

3

• Wiring Diagram For Slave Sensor Connection

MDI - Slave Sensor Connection

TX A

TX B

Slave

Sensor

+VDC

DC Gnd

M12

4 Pin

1 BRN

2 WHT

3 BLU

4 BLK

4/C

Red

White

Black

Green

Slave Pwr

TX A

DC Gnd

TX B

• Wiring Diagram For Passive Control Connection

MDI - Passive Control Connection

Auxilliary

Connection

M12

4 Pin

1 BRN

2 WHT

3 BLU

4 BLK

4/C

Red

White

Black

Green

SW+

TX A

SW-

TX B

IS

ControllerBarrier

TX A

TX B

SW+

SW-

Normally Open
Momentary Switch
For Remote Waking
of MDI.

• Wiring Diagram For RST-6001 Programming

Use Shielded Cable

-5V

+5V

A
B

MDI

4-Pin / Cable

Slave Out

A+

DC GND

B-

RST-6001

Modbus

Controller

USB to computer
with APG Modbus
software

Note: MDI must be removed from Hazardous
Location prior to connection to RST-6001,
and disconnected from RST-6001 prior to
installation in Hazardous Location.

4

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

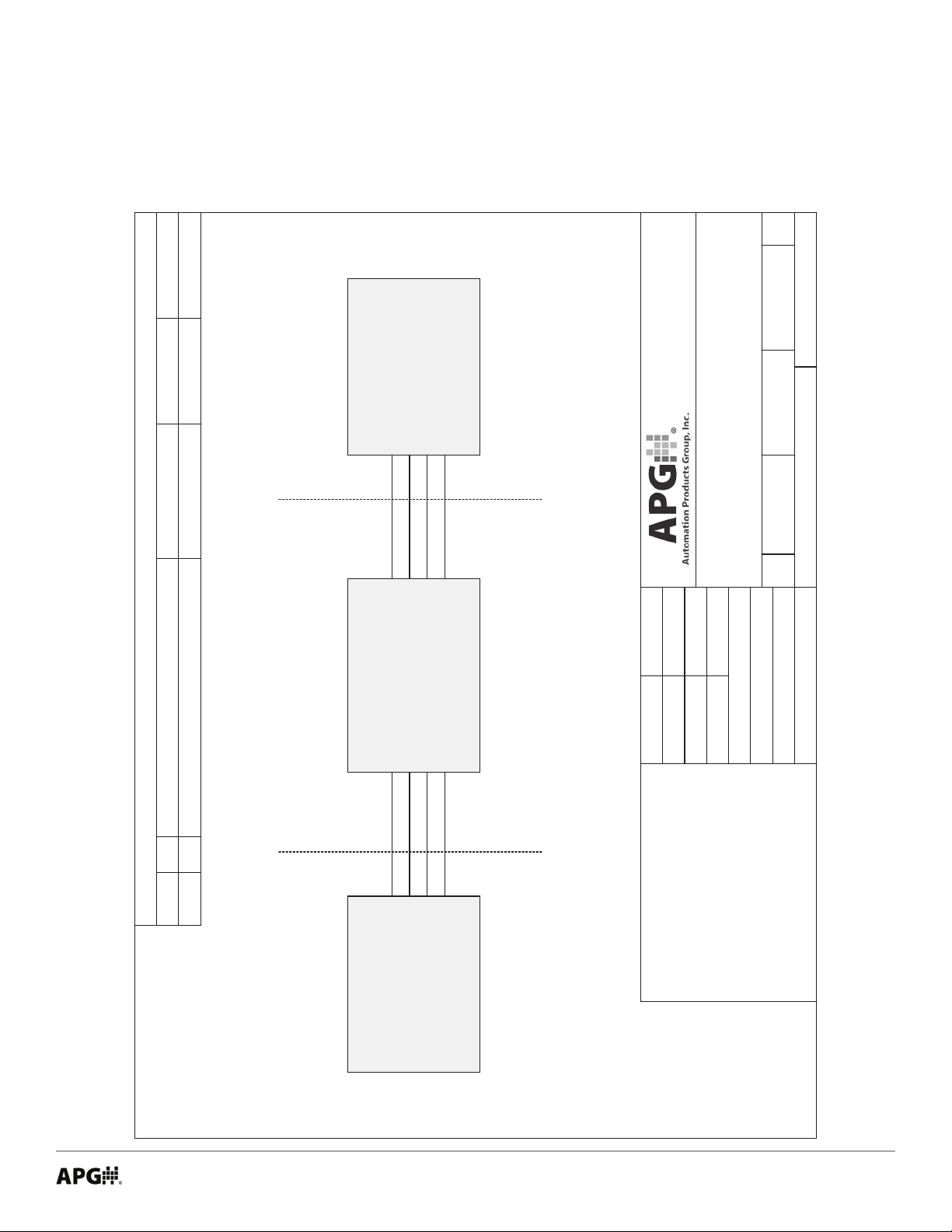

• IS Use Case Diagrams

MDI controlling single IS sensor

Hazardous Area

Zone 1

MDI
Modbus Address: Master
Controling: Sensor 1

Single MDI controlling a single IS sensor

• MDI is located in Zone 1 area. Sensor can be in Zone 0 or Zone 1 without additional barriers.

• MDI is battery powered; allows for software-based switchable power for sensor.

• No external controller.

• Any changes to sensor settings done via MDI buttons.

Zone 0 or Zone 1

Single IS Sensor
Modbus Address: 1

MDI controlling single IS sensor with Passive Control Equipment

Hazardous AreaNon-hazardous Area

Zone 1

MDI
Modbus Address: Master
Controling: Sensor 1

Passive Control Equipment

Modbus: Sniffer
Sniffing: MDI

Single MDI controlling a single IS sensor with Passive Control Equipment

• MDI is located in Zone 1 area. Sensor can be in Zone 0 or Zone 1 without additional barriers.

• MDI is battery powered; allows for software-based switchable power for sensor.

• External controller passively reads (Snis) readings from MDI.

• External controller can activate MDI.

• Approved IS Barrier required between Passive Control Equipment and MDI.

• Auxiliary connection required for MDI.

• Any changes to sensor settings done via MDI buttons.

Approved
IS Barrier

Zone 0 or Zone 1

Single IS Sensor
Modbus Address: 1

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

5

Chapter 2: Installation and Removal Procedures and Notes

• Tools Needed

Installing the MDI requires tools appropriate to the fasteners being used (screw driver, socket driver, etc.).

• ATEX Stated Conditions of Use

• Install per Document #9005447.

• Use only three-SAFT model LS14500 or three-Xeno model XL-060F battery cells.

• Do not replace batteries when an explosive atmosphere is present.

• The enclosure is manufactured from aluminum. In rare cases, ignition sources due to impact and
friction could occur. This shall be considered during installtion.

• Physical Installation Notes

The MDI should be installed in an area--indoors or outdoors--which meets the following conditions:

• Ambient temperature between -30°C and 85°C (-22°F to +185°F)

• Relative humidity up to 100%

• Altitude up to 2000 meters (6560 feet)

• IEC-664-1 Conductive Pollution Degree 1 or 2

• IEC 61010-1 Measurement Category II

• No chemicals corrosive to stainless steel (such as NH

• Ample space for maintenance and inspection



IMPORTANT: Your MDI MUST be installed according to drawing 9005447 (Intrinsical-

, SO2, Cl2 etc.) or aluminum

3

ly Safe Installation Drawing For Hazardous Locations) as indicated above to meet listed
approvals. Faulty installation will invalidate all safety approvals and ratings.

• Mounting Instructions

Specic mounting steps may vary based on mounting methods being used.

A general approach is as follows:

• Use fasteners through 7mm holes on either side of housing for surface mounting of MDI.

• For conduit mounting, make electrical connections (see Electrical Installation, below) prior to nal con­duit connections.

6

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• Electrical Installation

For MDI Controlling Single IS Sensor:

• For MDI with connector: Mate connector to sensor, or to connector attached to sensor.

• For MDI with ying leads: Connect the leads to terminal strip in junction box or on sensor.

• Ensure MDI enclosure is properly connected to Earth Ground.

For MDI Controlling Single IS Sensor with Passive Control Equipment:

• Connect MDI to sensor, using instructions above.

• Connect MDI to Approved IS Barrier using methods outlined above.

• Last, connect Passive Control Equipment to Approved IS Barrier.

• Ensure MDI enclosure is properly connected to Earth Ground.

Use care in selecting externally connected equipment to ensure that circuits are appropriately isolated from

hazardous live potentials (SELV or PELV), as specied in CAN/CSA C22.2 No. 61010-1.

• Software Installation

• Download the APG Modbus software ziple from http://apgsensors.com/support.

• Open the zip le.

• Choose “Install” from the options at the top of the zip le window.

• The installation process will prompt you as needed to complete the installation.

• The software will create APG_Modbus.exe which will run from a folder in your start menu titled “APG/

APG_Modbus”.

IMPORTANT: The MDI MUST be removed from hazardous location prior to program-



ming via APG Modbus. See Chapter 4 for programming instructions.

• Removal Instructions

• Ensure any external connections to or from the MDI are de-energized.

• Disconnect wires or connector on cable to MDI.

• Remove the MDI and store it in a dry place, at a temperature between -49° F and 194° F.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

7

Chapter 3: User Interface and Access Modes

• User Interface

External

Decrease/Power

Button

Battery Meter

Increase Button

Decrease/Power Button

Scalable Bar Graph

Units Label/Sensor Label

Enter Button

Figure 3.1

The operation of the MDI’s three buttons depends on whether the MDI is in normal operations or you are
navigating the MDI Setup Menus.

During MDI operation

Increase Button:

Cycles through sensor readings for multiple display conguration. (See Number of Sensors, page 24)

Decrease/Power Button:
Press to enter the Main Menu.

Press and hold for 1 second to power MDI on or o.

Enter Button:
Cycle between readings selected in ENTR menu. (See page 14)

Within MDI Menus

Increase Button:
Cycle upward through menu, or increase blinking value.
Decrease/Power Button:
Cycle downward through menu, or decrease blinking value.
Enter Button:
Press to enter selected menu, or accept blinking value.

DANGER: DO NOT OPEN ENCLOSURE WHEN EXPLOSIVE ATMOSPHERE IS PRESENT;

AVERTISSEMENT -- NE PAS OUVRIR LE BOÎTIER EN PRESENCE D’UNE ATMOSPHÈRE EXPLOSIVE.

8

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• MDI Setup Menus

T1TYPE

T1REAd

T1 WIN

EXIT

dEC PL

MASK

SHIFT

MLTPLR

bAR 0

bAR100

OVR-Ld

bAT EN

bATFUL

bATLOW

EXIT

MAXMIN

TEMP C

TEMP F

2 REAd

2Rd 1C

2Rd 1F

CU FT

MCU FT

GALLON

CU M

LITERS

CU IN

bARREL

PCTFUL

CUSTOM

OUTPUT

AdVSETAUTO

DISPLAYED VALUE

Main Menu

ENTR

UNITS

Main Menu

54321

GALLON

COMM

SENLAb

Main Menu

PCTFUL

bLIGHT

bAUd R

PARITY

STOPbT

C TYPE

SENAdR

NUMSEN

REGNUM

FUNCTN

REGTYP

SCANRT

WRITE

AdRCHG

EXIT

SEN 1

SEN 2

SEN 3

SEN 4

SEN 5

SEN 6

SEN 7

SEN 8

SEN 9

SEN 10

LOERST

EXIT

SEN 1

SEN 2

SEN 3

SEN 4

SEN 5

SEN 6

SEN 7

SEN 8

SEN 9

SEN 10

LOERST

EXIT

MOdE

bRTNES

EXIT

EXIT

Main Menu

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

9

• Accessing Mode Options

The MDI has several Operating Modes which will limit or lock access to the setup menus. To access the
Operating Mode setting, follow the steps below.

1. Simultaneously press and hold the Decrease button and the Enter button for approximately 5

seconds to bring up the 3-digit Mode Access Number.

2. Use the Increase/Decrease buttons to change the value of the ashing digit, and Enter button to

accept the value and advance to the next digit.

 NOTE: If a Mode Access Password has been set for your MDI, it must be entered be-

fore the Mode can be changed. To set the Mode Access Password, see “Sensor 10 Label”
on page 26.

The mode options are as follows:

Mode Description
000 Full Access. All menu options are accessible, including those that may not be applicable to

all MDI congurations.

001 Locks access to all setup menus. The Increase Button will scroll through sensor readings

when the MDI is congured for multiple sensors. The Decrease/Power Button will turn on/
o the display. The Enter button will scroll between the maximum, minimum and the current

reading.

002 Hides the Output menu. All other setup menus are accessible.

005 All menus are hidden and all buttons are locked, except the Decrease / Power button, which

will power on/o the MDI.

125 Reset to factory standard defaults

200 Test all segments of LCD

DANGER: DO NOT OPEN ENCLOSURE WHEN EXPLOSIVE ATMOSPHERE IS PRESENT;

AVERTISSEMENT -- NE PAS OUVRIR LE BOÎTIER EN PRESENCE D’UNE ATMOSPHÈRE EXPLOSIVE.

10

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Chapter 4: Modbus Programming Notes

• Modbus Programming

MDI Instrinsically Safe Modbus Network Display and Controllers use standard Modbus RTU protocol (RS-

485). MDIs operate as controllers of a single IS sensor when installed in a Hazardous Area. APG’s Modbus

devices’ default transmission settings are 9600 Baud, 8 Bits, 1 Stop Bit, No Parity. Since the MDI does not
actively poll the full register contents of slave sensors, transmission times are not controlled to the same
extent that transmission times for other sensors are.

See Appendix D for a full list of MDI Modbus Registers.

 NOTE: For more information about Modbus RTU, please visit www.modbus.org.

• Modbus Programming via Internet

Unlike several other APG Modbus devices, the MDI is not programmable via Internet or local Ethernet.

• Modbus Programming with RST-6001 and APG Modbus Software

The MDI cannot be connected to a PC running APG Modbus software while it is installed in a hazardous
area.

To use a PC running APG Modbus software to setup or program an MDI:

1. If the unit is installed in a hazardous location, remove it from service. (See Chapter 2 for removal in­structions.).

2. Remove enclosure lid.

3. Use buttons to navigate to the COMM menu and set the MDI C TYPE to Setup.

4. Connect MDI to RST-6001 (See Wiring Diagram For RST-6001 Programming on page 4).

5. Initiate APG Modbus software. Choose “MND” from the Sensor Type drop down menu on the Commu-

nication Conguration screen.

6. Use APG Modbus software to manage MDI settings as desired.

7. Disconnect MDI from RST-6001.

8. Use buttons to navigate to COMM menu and set the MDI C TYPE to Master.

9. Replace enclosure lid.

10. Install/reinstall MDI per instructions in Chapter 2.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

11

Chapter 5: Maintenance

• General Care

Your MDI is very low maintenance and will need little care as long as it is installed correctly. However, in
general, you should:

• Avoid applications for which the MDI was not designed, such as extreme temperatures, contact with
incompatible corrosive chemicals and fumes, or other damaging environments.

• For the MDI’s aluminum housing, inspect the threads whenever the MDI changes location.

• If necessary, clean the face of the MDI with a damp cloth.

• Replacing Lithium Batteries

Should you need to replace the lithium batteries in your MDI, follow these steps:

1. If the unit is installed in a hazardous location, remove it from service. (See Chapter 2 for removal in­structions.) Batteries must never be replaced in the presence of an explosive atmosphere.

2. Remove enclosure lid.

3. Pull display faceplate out to remove electronics from enclosure.

4. Remove two (2) screws from battery cover.

5. Slide battery holder out of cover.

6. Replace batteries with three (3) SAFT LS14500 or three (3) XENO XL-060F batteries. Using any other

battery types will void Intrinsic Safety certication. Do not mix battery types.

7. Slide battery holder back into cover.

8. Reposition battery holder in enclosure and reattach screws.

9. Place electronics back into enclosure, making sure display is straight.

10. Replace enclosure lid. Ensure lid is properly seated and enclosure is sealed.

11. If unit was removed from service, follow Mounting and Installation Instructions in chapter 2 to rein­stall unit.

DANGER: DO NOT OPEN ENCLOSURE WHEN EXPLOSIVE ATMOSPHERE IS PRESENT;

AVERTISSEMENT -- NE PAS OUVRIR LE BOÎTIER EN PRESENCE D’UNE ATMOSPHÈRE EXPLOSIVE.

12

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• Troubleshooting

Should you have problems with your MDI, here are some troubleshooting steps:

• Check connections between the MDI and your IS Modbus sensor.

• Verify that the register address the MDI is showing is correct. See register lists in Appendices B-D.

• Check battery status.

• Resetting MDI to Factory Standard Defaults

Follow the steps below to reset your MDI to the facory standard defaults (See Appendix A):

• Press and hold the Decrease/Power button and Enter button for approximately 5 seconds.

• When the Operating Mode number appears, change it to 125, and press enter (see page 10).



NOTE: This process will not restore custom factory defaults. To restore custom factory

defaults, please see contact the factory.

• Repair and Returns

Should your MDI controller require service, please contact the factory via phone, email, or online chat. We
will issue you a Return Material Authorization (RMA) number with instructions.

• Phone: [phone]

• Email: [e-mail]

• Online chat at www.apgsensors.com

Please have your MDI’s part number and serial number available. See Warranty and Warranty Restrictions
for more information.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

13

Chapter 6: Programming and Parameter Conguration

• MDI Programming Generalizations

The MDI can be programmed by using the buttons to navigate the on-board menus and set parameter
values. The buttons can only be accessed by removing the enclosure lid in a non-hazardous area.

The menus and parameters are shown in the order that they appear when cycling through the MDI’s
on-board menus (See page 9). Each parameter discription will include its Modbus register address. The
parameters can be seen in Modbus register order in Appendix D.

• UNITS (Volume Units Label)

Menu Parameter MDI Options Software Options

UNITS UNITS CU FT = Cubic Feet 0 = Cubic Feet
(Volume Units) MCU FT = Million Cubic Feet 1 = Million Cubic Feet

GALLON = Gallons 2 = Gallons

CU = Cubic Meters 3 = Cubic Meters

LITERS = Liters 4 = Liters

CU IN = Cubic Inches 5 = Cubic Inches

bARREL = Barrels 6 = Barrels
PCTFUL = Percent Full 7 = Percent Full

CUSTOM = Custom Units 8 = Custom Units
UNITS (40412) selects the units of measurement that will be used for the MDI display (See Figure 3.1). The

selected units is applied to ALL sensor readings, and cannot be set for individual sensors.

 NOTE: Every parameter setting dependent on “the reading” uses the units selected in

Units.

• ENTR (Enter Button Function)

Menu Parameter MDI Options

ENTR ENTR MAXMIN = cycle Present, Highest, Lowest readings
TEMP C = cycle Present reading, sensor temperature in °C
TEMP F = cycle Present reading, sensor temperature in °F
2 REAd = cycle Top and Bottom readings*
2RD IC = cycle Top, Bottom readings, sensor temperature in °C*
2RD IF = cycle Top, Bottom reading, sensor temperature in °F*

ENTR (No Modbus Register) selects the function of the ENTR button during MDI operation (See gure 3.1 on

page 8).

*Top & Bottom Readings for dual oat MPI/MPX sensors only.

14

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• AdVSET (Advanced Settings)

Menu Parameter MDI Options Software Options

AdVSET AUTO Default = 65,535 Default = 65,535

(Auto O) Range = 15 - 65,535 Range = 15 - 65,535

AUTO (40474) sets the number of seconds of inactivity before the MDI is powered down. Minimum time is 15

seconds. The default value, 65535, disables the Auto-O feature.

 NOTE: For MDI using the Timed Relay option, AUTO cannot be set less than the On-

Time for the relay. See TIME R on page 19.

Menu Parameter MDI Options Software Options

AdVSET dEC PL Default = 2 Default = 2
(Decimal Place) Range = 0 - 4 Range = 0 - 4
dEC PL (40411) sets the number of digits displayed to the right of the decimal on the MDI for registers
without decimals (e.g., Calculated Readings in Input Registers 30303-30304 do not have decimal places). This
setting is ignored for registers that include decimal places (e.g., Raw Readings in Input Register 30300).

Menu Parameter MDI Options Software Options

AdVSET MASK Default = 0 Default = 0

(Display Mask) 0 = O 0 = O

1 = 0 1 = 0
2 = 00 2 = 00
3 = 000 3= 000

MASK (40419) sets the number of least signicant digits to masked. Masked digits will always display 0, and

will not increment.

Menu Parameter MDI Options Software Options

AdVSET SHIFT Default = 0 Default = 0
(Decimal Shift) 0 = /1 0 = /1
1 = /10 1 = /10
2 = /100 2 = /100
3 = /1000 3 = /1000
SHIFT (40420) shifts the displayed reading to the right by dividing by 10, 100, or 1000.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

15

Menu Parameter MDI Options Software Options

AdVSET MLTPLR Default = 1000 Default = 1000
(Multiplier) Range = 0 - 99,999 Range = 0 - 99,999
MLTPLR (40436-40437) sets a multiplier value applied to readings. 1000 = 1.000.

Menu Parameter MDI Options Software Options

AdVSET bAR 0 Range = 0 - 99,999 Range = 0 - 99,999
(Bar Graph Zero)
bAR 0 (40438-40439) sets the reading associated with 0% on the display bar graph. (See Figure 3.1)

Menu Parameter MDI Options Software Options

AdVSET bAR 100 Range = 0 - 99,999 Range = 0 - 99,999
(Bar Graph Full)
bAR 100 (40440-40441) sets the reading associated with 100% on the display bar graph. (See Figure 3.1)

 NOTE: For MDI’s in non-hazardous areas monitoring mutiple sensors, bar graph limits

will be applied to ALL sensor readings, and cannot be set for individual sensors.

Menu Parameter MDI Options Software Options

AdVSET OVR-LD Default = 99,999 Default = 99,999
(Over Range) Range = 0 - 99,999 Range = 0 - 99,999

OVR-LD (40442-40443) species a maximum reading for triggering an overload warning. The default value,

99,999, ensures that the overload warning will only display for readings greater than the 5-digit limit of the
display.

Menu Parameter MDI Options Software Options

AdVSET bAT EN Default = 1 Default = 1
(Battery Enable) 0 = No Battery 0 = No Battery
1 = Internal 1 = Internal

2 = RST/LOE 2 = RST/LOE
bAT EN (40418) species power source to be represented by battery meter on the MDI’s display (See gure

3.1). “Internal” monitors the battery voltage for a battery powered MDI. RST/LOE monitors the supply voltage
from an RST-5000 series controller or LOE ultrasonic sensor Modbus master device (non-IS installation only).

Menu Parameter MDI Options Software Options

AdVSET bATFUL Default = 10.8 Default = 10.8

(Battery Full Level) Range = 0 - 999 Range = 0 - 999

bATFUL (40416) sets the voltage to be represented with a full battery by the battery meter. 999 = 99.9

Menu Parameter MDI Options Software Options

AdVSET bATLOW Default = 10.4 Default = 10.4

(Battery Empty Level) Range = 0 - 999 Range = 0 - 999

bATLOW (40417) sets the voltage to be represented with an empty battery by the battery meter. 999 = 99.9

 NOTE: Battery meter will display incorrectly while MDI is powering slave sensor. Meter

will be accurate again after slave sensor is powered down.

16

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• OUTPUT (Output Congurations)

Modbus Alarm and Slave Sensor Power Transistor Settings

The MDI has two digital outputs: Input Register 30309, which functions as a Modbus Alarm Status, and
an output transistor that can used as a controllable power source for the sensor the MDI is montioring/
controlling.

Menu Parameter MDI Options Software Options

OUTPUT T1TYPE Default = 6 Default = 6
(Trip 1 type) Range = 0 - 12 Range = 0 - 12
T1TYPE (40424) sets the logic control for the Alarm or output transistor. See pg 18 and 19 for Trip Type
explainations.

Menu Parameter MDI Options Software Options

OUTPUT T1READ Range = 0 - 99,999 Range = 0 - 99,999
(Trip 1 Start)
T1TYPE (40428-40429) sets the slave sensor reading for the primary trip position, which is closest to the Zero
Reading, for Trip 1. (See Figure 6.1)

Menu Parameter MDI Options Software Options

OUTPUT T1WIN Range = 0 - 99,999 Range = 0 - 99,999
(Trip 1 Window)
T1WIN (40430-40431) sets the slave sensor reading for the secondary trip position, which is further from the
Zero Reading, for Trip 1. (See Figure 6.1)

For Trip 1 Type setting 9 - TIME R (Timed Interval) T1READ and T1WIN change to:

Menu Parameter MDI Options Software Options

OUTPUT INTMIN Range = 0 - 99,999 Range = 0 - 99,999
(Interval Time)
INTMIN (40478-40479) sets the time (in minutes) between slave sensor power transistor activations. (See
Figures 6.2 and 6.3)

Menu Parameter MDI Options Software Options

OUTPUT ON SEC Range = 0 - 99,999 Range = 0 - 99,999
(On Time)
ON SEC (40476-40477) sets the length of time (in seconds) the slave sensor power transistor is activated. (See
Figures 6.2 and 6.3)

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

17

Trip Type

0 - Near

Near activates the Alarm (Input Register 30309) whenever

the slave sensor reading (Input Registers 30303-04) is less
than the Trip Reading setting.

Trip Type

1 - EXCLSV

EXCLSV (Exclusive) activates the Alarm whenever the reading
is less than the Trip Reading setting OR greater than the Trip
Reading + Trip Window settings.

Trip Type

2 - Hysteresis Near

READING

TRIP TYPE 0
NEAR

TRIP TYPE 1
EXCLUSIVE

TRIP TYPE 2
HYSTERESIS
NEAR

ZERO

TRIP

READING

ON

ON

ON

TRIP

WINDOW

OFF

OFF

ON

OFF

MAX

READING

ON

OFF

H NEAR (Hysteresis Near) activates the Alarm whenever the
reading becomes less than than the Trip Reading setting.

TRIP TYPE 3
FAR

OFF

ON

The Alarm remains activated until the reading becomes
greater than the Trip Reading + Trip Window settings. The

Alarm then remains o until the reading becomes less than

the Trip Reading setting again.

TRIP TYPE 4
INCLUSIVE

OFF

ON

OFF

Trip Type

3 - FAR

FAR (Far) activates the Alarm whenever the reading is
greater than the Trip Reading setting.

TRIP TYPE 5
HYSTERESIS
FAR

OFF

OFF

ON

ON

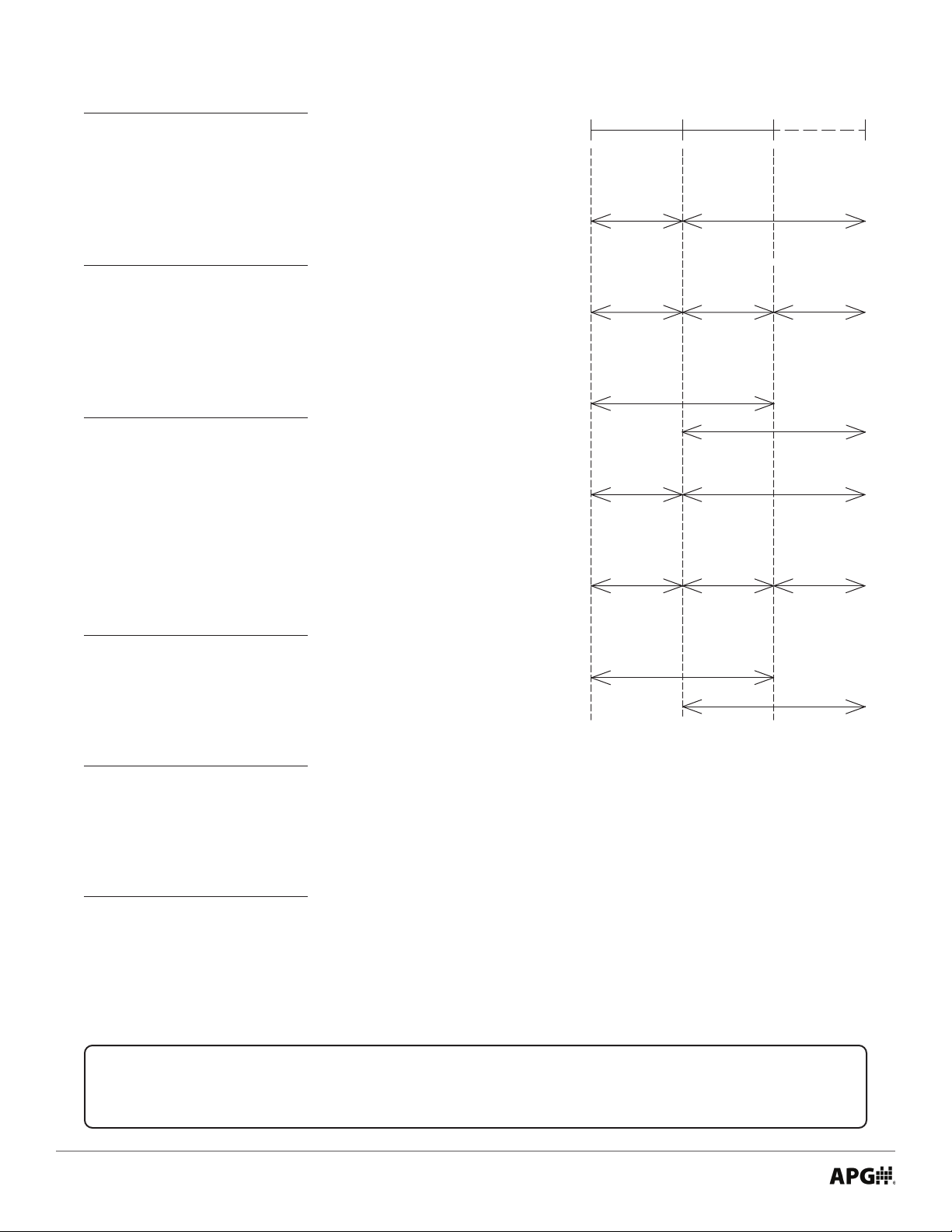

Figure 6.1

Trip Type

4 - INCLSV

INCLSV (Inclusive) activates the Alarm whenever the reading is greater than the Trip Reading setting AND less
than the Trip Reading + Trip Window settings.

Trip Type

5 - H FAR

H FAR (Hysteresis Far) activates the Alarm whenever the reading becomes greater than the Trip Reading + Trip
Window settings. The Alarm remains activated until the reading becomes less than the Trip Reading setting.
The Alarm remains o until the reading becomes greater than the Trip Reading + Trip Window settings again.

 NOTE: Trip Types 0 through 5 control only the Modbus Alarm based on the current

reading from slave sensor. The Slave Sensor Power Transistor cannot be used in conjunc­tion with these Trip Types.

18

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Trip Type

INTERVAL TIME

INTERVAL TIME

6 - OFF

OFF (O) de-activates the Alarm and the slave sensor power transistor, so that they remain o, regardless
of the reading.

Trip Type

7 - LOERST

LOERST (LOE/RST) forces the Alarm to follow the state of the corresponding relay of a Master LOE or RST.

(Non-hazardous installations only)

Trip Type

8 - ON

ON (On) activates the Alarm and the slave sensor power transistor, so that they remain on, regardless of

the reading.

Trip Type

9 - TIME R

TIME R (Timed Interval) activates the slave sensor power transistor for a set amount of seconds every set

amount of minutes (See Figure 6.2). When Trip Type is set to 9, Trip Reading and Trip Window are changed to
INTMIN (Interval Time, 40478) and ON SEC (On Time, 40476).

ON TIME
(in seconds)

(in minutes)

Relay “OFF”(open)

Timed Interval Output Configura�on

ON TIME

(in seconds)

Relay “ON” (closed)

Minimum time

to “Auto-Off”

Timed Interval Output with Auto-Off Function

(in minutes)

Relay “OFF” (open)

Maximum time

to “Auto-Off”

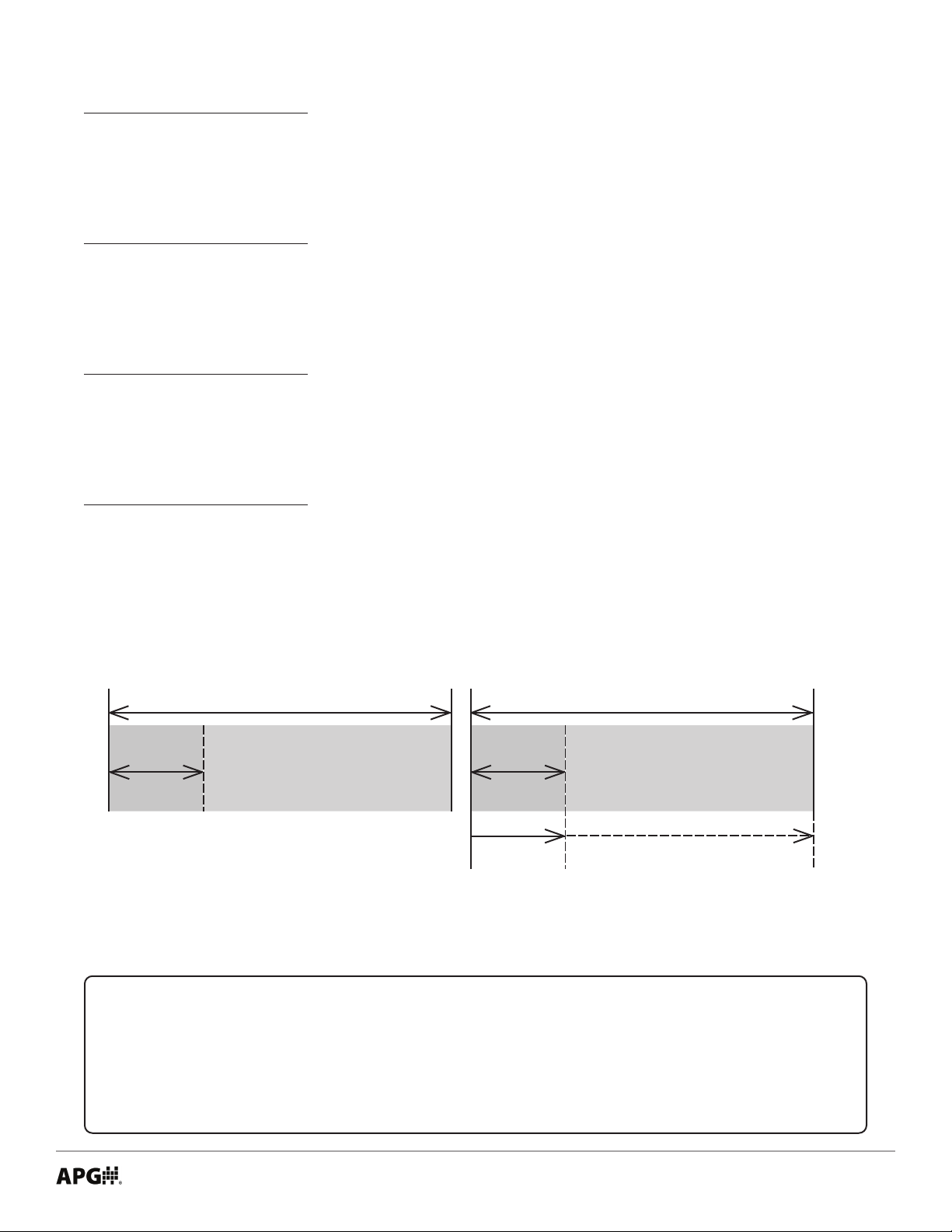

Figure 6.2 Figure 6.3

 NOTE: When using both the AUTO (Auto O) setting and TIME R (Timed Interval) set-

tings, the Auto O delay must be greater than the ON SEC (On Time) setting (See Figure

6.3). If Auto-O is less than On Time, the MDI and the slave sensor power transistor will
both turn o at Auto-O. In other words, the MDI cannot shut o and leave the slave sen-

sor power transistor on.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

19

Trip Type

12 - H TEMP

H TEMP (Hysteresis Temperature) controls the Alarm based on the internal temperature of the MDI. T1READ

sets the low temperature (temperature at which the Alarm turns on) in °C. T1WIN sets the number of
degrees above the low temperature at which the Alarm turns o (also in °C).

Slave Sensor Power Congurations

The MDI Slave Sensor Power Transistor allows you to use the MDI batteries to power your slave sensor. The

Slave Sensor Power Transistor is controlled by three trip types: Type 6 - O, Type 8 - On, and Type 9 - Timed

Interval. Trip Types can only be changed when the MDI is not in a hazardous location (or the hazardous
atmosphere has been cleared).

In these scenarios, Interval Time governs the time between each power up of the slave sensor, On Time

determines how long the slave sensor is powered up, and Auto-O determines how long the display is

powered on.

Self-Contained IS System - Intermitant to Infrequent Monitoring

For self-contained IS systems that are not regularly monitored, set the MDI to turn itself on and power up

the slave sensor only when the external Decrease/Power Button is pushed. Setting the Auto-O to 300
seconds means the reading will be displayed for ve minutes before the MDI turns itself and the slave
sensor o.

• Trip 1 Type: 9 - Timed Interval

• Interval Time: 0

• On Time: 120 seconds

• Auto-O: 300 seconds

Or

• Trip 1 Type: 8 - ON

• Auto-O: 300 seconds

Self-Contained IS System - Frequent Monitoring

For self-contained IS systems that are monitored regularly, set the MDI to turn itself on and power up the
slave sensor often enough that readings are likely to be displayed when monitoring occurs.

• Trip 1 Type: 9 - Timed Interval

• Interval Time: 45 minutes

• On Time: 120 seconds

• Auto-O: 300 seconds

20

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

IS System with Passive Control Equipment

For IS Systems with Passive Control Equipment, the Passive Control Equipment will be sning the slave

sensor reading from the MDI, so set the MDI to turn itself on and power up the slave sensor as often as you

want the control system to be updated. Auto-O time is less critical, as physical observation redundant to
the Passive Control Equipment sning of the MDI.

• Trip 1 Type: 9 - Timed Interval

• Interval Time: 15 minutes

• On Time: 30 seconds

• Auto-O: 90 seconds

 IMPORTANT: When Interval Time is set to 0 minutes, the MDI can only wakened by

pushing the external decrease/power button.

 NOTE: Higher settings for On Time and Auto-O will drain the battery faster. Use lower

settings to turn the sensor and display o sooner, which will extend battery life.

 NOTE: Battery meter will display incorrectly while MDI is powering slave sensor. Meter

will be accurate again after slave sensor is powered down.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

21

• COMM (Communications)

Modbus Network Communication Settings

Menu Parameter MDI Options Software Options

COMM bAUd R Default = 1 Default = 1
(Baud Rate) 0 = 2400 0 = 2400
1 = 9600 1 = 9600
2 = 19200 2 = 19200
3 = 38400 3 = 38400
bAUd R (40402) sets the baud rate for the MDI. APG Modbus sensors and controllors default to 9600.

Menu Parameter MDI Options Software Options

COMM PARITY Default = 0 Default = 0
(Parity) 0 = None 0 = None
1 = Even Parity 1 = Even Parity
2 = Odd Parity 2 = Odd Parity
PARITY (40403) sets the Modbus Parity. APG Modbus devices default to None.

Menu Parameter MDI Options Software Options

COMM STOPbT Default = 0 Default = 0
(Stop Bits) 0 = 1 Stop Bit 0 = 1 Stop Bit
1 = 2 Stop Bits 1 = 2 Stop Bits
STOPbT (40404) sets the number of Modbus Stop Bits. APG Modbus devices default to 1 stop bit.

Communication Type

Menu Parameter MDI Options Software Options

COMM C TYPE Default = MASTER Default = 0
(Communication) MASTER 0 = Master

SNIFER 1 = Snier
LRSNIF 2 = LOE/RST Snier

SETUP 3 = Setup
C TYPE (40401) sets the communication for the MND.

Communication Type

0 - MASTER

Master sets the MDI as the Master device of the Modbus network. For single-sensor, IS systems, the MDI

must be set as the Master device

Communication Type

1 - SNIFER

Snier sets the MDI to passively monitor a Modbus Network. Sniers are invisible to other devices. Sniers

do not actively poll devices, but “listen in” on the communications directed by the master device.

22

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Communication Type

2 - LRSNIF

LOE/RST Snier sets the MDI as a Snier, as described above, adding monitored readings from an LOE or

RST-5000 series master device.

Communication Type

3 - SETUP

Setup sets the MDI to operate as a slave device in order to be programmed using APG Modbus Software.

This setting must be made via the MDI’s on-board menu system, prior to connecting to APG Modbus
Software. An MDI installed in an IS area CANNOT be connected to APG Modbus Software.

 NOTE: Device Address is used to set the Modbus network address of a slave MDI in

Setup. (See SENAdR below)

Sensor and Register Communication Settings

Menu Parameter MDI Options Software Options

COMM SENAdR Default = 1 Default = 1
(Device Address) Range = 1 - 247 Range = 1 - 247
SENAdR (40400) sets the Modbus network address of the principle sensor of the MDI.

• For an MDI as Master over one sensor, this corresponds to the sensor address of that sensor.

• For an MDI as Snier (or LOE/RST Snier) over one sensor, this corresponds to the sensor address of

that sensor.

• For an MDI as Master over multiple sensors, this corresponds to the sensor address of the sensor

controlling the analog and/or relay outputs of the MDI.

• For an MDI as Snier (or LOE/RST Snier) over multiple sensors, this corresponds to the address of the

sensor controlling the analog and/or relay ouptus of the MDI.

• For an MDI as Slave to APG Modbus Software, this is the address of the MDI itself (usually 1).

 NOTE: MDI outputs cannot be tied to LOE or RST registers. The MDI Alarm can be tied

to corresponding LOE/RST output relay using Trip Type 7. (See Trip Types, pages 18-19.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

23

Menu Parameter MDI Options Software Options

COMM NUMSEN Default = 1 Default = 1
(Number of Sensors) Range = 0 - 11 Range = 0 - 11
NUMSEN (40408) sets the number sensors to be monitored or controlled by the MDI. When monitoring or
controlling multiple sensors, NUMSEN represents the highest sensor address to be monitored or controlled.
The MDI cannot skip sensor address numbers, so the MDI will monitor/control sensors with number 1 to
NUMSEN.

 IMPORTANT: An MDI installed in a Class I, Zone 1 area can only control ONE (1) Intrin-

sically Safe sensor.

Menu Parameter MDI Options Software Options

COMM REGNUM Default = 300 Default = 300
(Register Address) Range = 299 - 600 Range = 299 - 600

REGNUM (40407) sets the Modbus register address to be monitored by the MDI, using the nal three digits

of the register address. APG sensors use Input Register 0x04 30300 for raw readings and Input Register 0x04
30303 for calculated readings.

Menu Parameter MDI Options Software Options

COMM FUNCTN Default = 4 Default = 4
(Function Code) 3 = 0x03 Holding Register 3 = 0x03 Holding Register
4 = 0x04 Input Register 4 = 0x04 Input Register
[6 = Write to 16-bit Register]
[16 = Write to 32-bit Register]
FUNCTN (40406) sets the Modbus function code for the Modbus instruction (Read or Write). Only Read
functions (3 and 4) are directly controlable by users. Function settings 6 and 16 are hard coded into the
WRITE function (see below); they are observable, but cannot be directly set. 3 (0x03) sets the MDI to read
a sensor parameter from a Holding Register. 4 (0x04) sets the MDI to read a sensor reading from an Input
Register.

 IMPORTANT: Function Codes are not related to the rst two digits of a Modbus Regis-

ter’s address.

 NOTE: See Appendices B & C for full register lists for MNU IS and MPI sensors.

24

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Menu Parameter MDI Options Software Options

COMM REGTYP Default = U16 Default = 4
(Register Type) U8H = unsigned, 8 bit, high byte 0 = U8H

U8L = unsigned, 8 bit, low byte 1 = U8L

S8H = signed, 8 bit, high byte 2 = S8H

S8L = signed, 8 bit, low byte 3 = S8L

U16 = unsigned, 16 bit 4 = U16
S16 = signed, 16 bit 5 = S16
U32 = unsigned, 32 bit 6 = U32
S32 = signed, 32 bit 7 = S32
REGTYP (40410) sets bit type of the Modbus register to be monitored. Appendices B & C have full register
lists and types for MNU IS and MPI sensors.

Menu Parameter MDI Options Software Options

COMM SCANRT Default = 1 Default = 1
(Scan Rate) Range = 1 - 9999 (seconds) Range = 1 - 9999 (seconds)
SCANRT (40405) sets the time, in seconds, between each time the MND polls sensors it is controlling.

Menu Parameter MDI Steps

COMM WRITE SENAdR
REGNUM
REGTYP

REGVAL

WRT YN
WRITE allows an MDI to write a value to a Holding Register of a sensor it is controlling. The MDI steps
through the settings to be set.

• Sensor Address: the Modbus network address of the the target sensor.

• Register Number: the Modbus register address of the target register.

• Register Type: the type of register to be writen to (16-bit or 32-bit).

• Register Value: the value to be written.

• Write Yes/No: select Yes to write the value to the sensor and register indicated; select No to cancel and
return to the Comm menu.

Menu Parameter MDI Steps

COMM AdRCHG NOW
NEW
AdRCHG allows an MDI to change the Modbus network address of a sensor it is controlling. The MDI steps
through the settings to be set.

• Now: the current Modbus network address of the the target sensor.

• New: the new Modbus network address of the target sensor.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

25

• SENLAB (Sensor Labels)

Menu Parameter MDI Options Software Options

SENLAB SEN 1 - SEN 9 Default = SEN 1 Default = SEN 1
Sensor 1 - 9 Label Range = A-Z, 0-9, (*+,-./) Range = A-Z, 0-9, (*+,-./)

SEN 1 - SEN 9 (40480/2 - 40504/6) allows the user to create a custom, 6 character label for each sensor being

displayed. During MDI operation, the Sensor Label will alternate with the Units Label. (See User Interface,

page 8.)

Menu Parameter MDI Options Software Options

SENLAB LOERST Default = SEN 11 Default = SEN 11
Sensor 11 Label Range = A-Z, 0-9, (*+,-./) Range = A-Z, 0-9, (*+,-./)

LOERST (40510-40512) allows the user to create a custom, 6 character label for an analog sensor attached

to an LOE/RST Master. During MDI operation, the Sensor Label will alternate with the Units Label. (See User

Interface, page 8.)

Menu Parameter MDI Options Software Options

SENLAB SEN 10 Default = 10AAAA Default = SEN 10
Sensor 10 Label Range = A-Z, 0-9, (*+,-./) Range = A-Z, 0-9, (*+,-./)

SEN 10 (40507 - 40509) not only allows the user to create a custom, 6 character label for the tenth sensor
being displayed, it also functions as the Mode Access password (See Mode Access, page 10). As with other

sensor labels, during MDI operation, the Sensor Label will alternate with the Units Label. (See User Interface,

page 8.)
Any text saved here must be entered to gain access to the Modes Menu. The default setting of “10AAAA”
negates the need to enter a password.



NOTE: If you forget the Mode Access password, call the factory for assistance.

 IMPORTANT: The MDI can only be used to monitor or control multiple sensors in

non-hazardous areas.

26

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• PCTFUL (Percent Full)

Menu Parameter MDI Options Software Options

PCTFUL SEN 1 - SEN 10 Default = 0 Default = 0
Percent Full Sensor 1-10 Range = 0 - 99,999 Range = 0 - 99,999
SEN 1 - SEN 10 (40450/1 - 40468/9) designates a value (from the register being monitored) to be interpreted
as 100% full for that sensor. A reading of 0 is assumed to be 0% full.

Menu Parameter MDI Options Software Options

PCTFUL LOERST Default = SEN 11 Default = SEN 11
Percent Full Sensor 11 Range = 0 - 99,999 Range = 0 - 99,999
LOERST (40470-40471) designates a value to be interpreted as 100% full for an analog sensor attached to an

LOE/RST Master. A reading of 0 is assumed to be 0% full.

IMPORTANT: To enable Percent Full display, select PCTFUL from the Units menu.



Readings for all connected sensor will be displayed as Percent Full, based on full readings
for each entered in PCTFUL menu.

 NOTE: The MDI Alarm is based on sensor readings, not Percent Full displays. (See pag-

es 17-19)

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

27

• bLIGHT (Backlight)

Menu Parameter MDI Options Software Options

bLIGHT MOdE Default = OFF Default = 0
Backlight OFF 0 = OFF
ON 1 = ON
30 SEC 2 = 30 seconds
1 MIN 3 = 1 minute
2 MIN 4 = 2 minutes
4 MIN 5 = 4 minutes
8 MIN 6 = 8 minutes
16 MIN 7 = 16 minutes

MOdE (40426) determines how long the LCD backlight remains on.

IMPORTANT: The LCD back light is an optional feature which must be requested at



time of order.

Menu Parameter

bLIGHT bRTNES
bRTNES allows the user to adjust the LCD backlight intensity using the Up and Down arrows. There is no

corresponding Modbus Register for bRTNES, so it is not editable through APG Modbus Software.

28

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Chapter 7: Hazardous Installation Drawing & Certicates

• Hazardous Installation Drawing

VERON TNEMUCODON TRAPEDOC EGAC

APPROVEDDATECHANGE ORDERDESCRIPTIONREVZONE

1025 West 1700 North

888.525.7300

Logan, Utah USA

Pi ≥ Po

Ci + Ccable ≤ Ca (or Co)

Vmax (or Ui) ≥ Voc (or Uo)

Imax (or Ii) ≥ Isc (or Io)

Hazardous Location

Class I, Zone 0, Group IIB

Instinsically Safe Sensor

Li + Lcable ≤ La (or Lo)

MND

for Hazardous Locations

A

9005447124119-xxxx

11

SHEET OF

Intrinsically Safe Installation Drawing

CO-3417 retsedihC .C8102/13/7.esaeler laitinI-- A

RS-485 B

RS-485 A

V+

V- (GND)

SIZE

52797

A

REVISIONS

6/5/2018

7/5/2018

Output ParametersInput Parameters

Uo = 12V

Io = 136mA

Po = 809mW

Lo = 7.7mH

Co = 0.65uF

7/31/2018

MDI

R. Taylor

Hazardous Location

Class I, Zone 1, AEx ib [ia Ga] IIB 142°C (T3) Gb

Ex ib [ia Ga] IIB 142°C (T3) Gb, Ta -30°C to 85°C

Ii = 30mA

Pi = 100mW

Ci = 0.33uF

Li = 0mH

Ui = 12V

through associated apparatus approved for the installed location.

- Installation must be in accordance with NEC Articles 504 and 505.

- Third party controller suitable for conntection to Class I, Zone 1 equipment

- The MND is powered from three AA lithium batteries, which may be used

RS-485 A

RS-485 B

Sw+

Sw- (GND)

APPROVALS DATE

DRWN

to supply power to the intrinsically safe sensor.

R. Barson

C. Chidester

FINISH

CONTRACT

APVD

CHKD

MATL

PROPRIETARY AND CONFIDENTIAL

(Optional)

Po ≤ Pi

Ca (or Co) ≥ Ci + Ccable

Isc (or Io) ≤ Imax (or Ii)

Um = 250V

La (or Lo) ≥ Li + Lcable

Voc (or Uo) ≤ Vmax (or Ui)

Unclassified Location

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Associated Apparatus

IF LOANED, IT IS SUBJECT TO RETURN

UPON DEMAND AND MAY NOT BE USED

DETRIMENTAL TO THE COMPANY.

IN ANY WAY DIRECTLY OR INDIRECTLY

LOGAN, UTAH AND MAY NOT BE

AUTOMATION PRODUCTS GROUP, INC.

DISCLOSED TO OTHERS WITHOUT

USED, REPRODUCED, PUBLISHED, OR

WRITTEN CONSENT OF THE COMPANY.

THIS DRAWING IS THE PROPERTY OF

29

Configurator code

Option

Description

9

BATTERIES – 3 x AA 3.6V Lithium

4

MODBUS RTU, IS Rated

0

NO RELAYS

d – Enclosure
2

3” AL (1/2-14 NPT Cable Entry)

3

4” AL (3/4-14 NPT Cable Entry)

0

Mounting / Cover

• CSA Certicate of Compliance

Certificate of Compliance

Certificate: 70219728 Master Contract: 237484
Project: 70219728 Date Issued: 2019-06-12
Issued to: Automated Products Group

1025 West 1700 North
Logan, Utah, 84321
USA

Attention: Karl Reid

The products listed below are eligible to bear the CSA Mark shown

with adjacent indicators 'C' and 'US' for Canada and US or with adjacent

indicator 'US' for US only or without either indicator for Canada only.

Ronald (Ron) Bell

Issued by:

PRODUCTS
CLASS – 2258 04 - PROCESS CONTROL EQUIPMENT - Intrinsically Safe, Entity-- For Hazardous

Locations
CLASS – 2258 84 - PROCESS CONTROL EQUIPMENT - Intrinsically Safe, Entity-- For Hazardous
Locations - Certified to US Standards

Class I, Zone 1, AEx ib [ia Ga] IIB 142°C (T3) Gb
Ex ib [ia Ga] IIB 142°C (T3) Gb
IP66

Modbus Network Display – Model MDI-940d0-fg-hi-j-k-l. Battery powered, using 3 AA size lithium cells,
manufactured by SAFT, model LS14500, Xeno, model XL-060F. External circuits rated 12 VDC, 136 mA, Class
2/SELV, 809mW, Tamb = -30°C to +85°C.
Intrinsically safe when connected as per drawing 9005447.
Where:

Ronald (Ron) Bell

DQD 507 Rev. 2016-02-18 Page 1

30

FF0001

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Certificate:

70219728

Project:

f1Main Connect ion Location

g – Cable connection

2

4-PIN M12 MALE CONNECTOR

5

4-PIN M12 FEMALE CONNECTOR

C

CABLE W/FLYING LEADS, SPECIFY LENGTH IN FEET

M

CABLE W/CONNECTOR, SPECIFY LENGTH IN FEET

h0Aux connection location

i – Cable connection

0

NOT USED

2

4-PIN M12 MALE CONNECTOR

5

4-PIN M12 FEMALE CONNECTOR

C

CABLE W/FLYING LEADS, SPECIFY LENGTH IN FEET

M

CABLE W/CONNECTOR, SPECIFY LENGTH IN FEET

j0Backlight

k

Not Applicable

This manufacturer’s option is not covered by this certification

l

Not Applicable

This manufacturer’s option is not covered by this certification

Standard

Description

CAN/CSA C22.2 No. 60529:16

Degrees of protection provided by Enclosure (IP Code)

CAN/CSA C22.2 No. 61010-1-12

Safety Requirements for electrical equipment for measurement,
control, and laboratory use - Part 1: General requirements

CAN/CSA C22.2 No. 60079-0:15

Explosive atmospheres - Part 0: Equipment – General requirements

CAN/CSA C22.2 No. 60079-11:14

Explosive atmospheres - Part 11: Equipment protection by intrinsic
safety “i”

NEMA ANSI/IEC 60529-2004

R 2011

Degrees of Protection Provided by Enclosures (IP Code)

ANSI/UL 61010-1:2016

Safety Requirements for electrical equipment for measurement,
control, and laboratory use - Part 1: General requirements

ANSI/UL 60079-0:2013

Explosive atmospheres - Part 0: Equipment – General requirements

ANSI/UL 60079-11:2014

Explosive atmospheres - Part 11: Equipment protection by intrinsic
safety “i”

70219728

Note: Configurator codes E, F, H, J, K and Lare not certification related.

APPLICABLE REQUIREMENTS

Master Contract: 237484

Date Issued: 2019-06-12

MARKINGS

The manufacturer is required to apply the following markings:

• Products shall be marked with the markings specified by the particular product standard.

• Products certified for Canada shall have all Caution and Warning markings in both English and French.

Additional bilingual markings not covered by the product standard(s) may be required by the Authorities Having
Jurisdiction. It is the responsibility of the manufacturer to provide and apply these additional markings, where
applicable, in accordance with the requirements of those authorities.

DQD 507 Rev. 2016-02-18 Page 2

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

31

Certificate:

70219728

Project:

70219728

Master Contract: 237484

Date Issued: 2019-06-12

The products listed are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and
US (indicating that products have been manufactured to the requirements of both Canadian and U.S. Standards) or
with adjacent indicator 'US' for US only or without either indicator for Canada only.

Nameplate adhesive label material approval information:

CSA-Accepted adhesive label for Hazardous Locations, (Class 7923-01) Zebra Technologies, Z-Ulitmate 4000T,
which is suitable for indoor or outdoor use on painted aluminum at a maximum service temperature of 85C or
higher. The label stock is printed with one of the approved printer and ink combinations as specified in the
manufacturers listing and the finished label is affixed to the housing.

The following markings appear on each product where applicable:

1. Manufacturer’s name: "Automation Products Group", or CSA Master Contract Number “237484”,
adjacent to the CSA Mark in lieu of manufacturer’s name.

2. Model designation: As specified in the PRODUCTS section, above.

3. Serial number and year of manufacture: Serial# XXXXXX

4. Electrical ratings: As specified in the PRODUCTS section, above.

5. Ambient temperature rating: As specified in the PRODUCTS section, above.

6. Enclosure IP rating: As specified in the PRODUCTS section, above.

7. The CSA Mark with or without “C” and “US” indicators, as shown on the Certificate of Conformity.

8. Method of Protection markings (Ex -- markings): “Ex ib [ia Ga] IIB T3 Gb”, for Canada, and “Class I,
Zone 1, AEx ib [ia Ga] IIB T3 Gb” for USA

9. The designation: “CSA 19CA70219728”

10. The words: “Install per user manual and doc# 9005447”

11. The statement: “WARNING - Use only (3)-SAFT model LS14500 or (3)-Xeno model XL-060F
batteries.”

12. The statement: “ADVERTISSEMENT – Utiliser uniqueement (3) batteries SAFT LS14500 OU (3)
Xeno XL-060F batteries.”

13. The statement: “WARNING - Do not replace batteries when an explosive atmosphere is present”

14. The statement: “ADVERTISMENT – Nes pas remplacer les Piles en presence D’une atmosphere
explosive.”

32

DQD 507 Rev. 2016-02-18 Page 3

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

e

y

N

s

t

3

.

a

l

y

e

p

k

S

m

4

• IECEx Certicate of Conformity

IIEECCEExx CCeerrttiiffiiccaatte

ooff CCoonnffoorrmmiitty

IINNTTEERRNNAATTIIOONNAALL EELLEECCTTRROOTTEECCHHNNIICCAALL CCOOMMMMIISSSSIIOON

IIEECC CCeerrttiiffiiccaattiioonn SScchheemmee ffoorr EExxpplloossiivvee AAttmmoosspphheerrees

for rules and details of the IECEx Scheme visit www.iecex.com

Certificate No.: IECEx SIR 18.0076X Issue No: 1 Certificate history:

Status: CCuurrrreennt

Date of Issue: 22001199--0055--003

Applicant: AAuuttoommaattiioonn PPrroodduuccttss GGrroouupp IInncc.

Equipment: MMooddbbuuss NNeettwwoorrkk DDiissppllaayy,, MMDDII--994400dd00--ffgg--hhii--jj--kk--l

Optional accessory:

Type of Protection: IInnttrriinnssiicc SSaaffeetty

Marking:

Approved for issue on behalf of the IECEx
Certification Body:

1025 West 1700 North

Logan, Utah 84321

UUnniitteedd SSttaatteess ooff AAmmeerriicca

Ex ib [ia Ga] IIB 142°C (T3) Gb
Ta = -30°C to +85°C

IP66

N Jones

Page 1 of

Issue No. 1 (2019-05-03)

Issue No. 0 (2019-03-26)

Position:

Signature:
(for printed version)

Date:

1. This certificate and schedule may only be reproduced in full.

2. This certificate is not transferable and remains the property of the issuing body.

3. The Status and authenticity of this certificate may be verified by visiting the Official IECEx Website.

Certificate issued by:

SSIIRRAA CCeerrttiiffiiccaattiioonn SSeerrvviicce

CCSSAA GGrroouup

UUnniitt 66,, HHaawwaarrddeenn IInndduussttrriiaall PPaarrk

HHaawwaarrddeenn,, DDeeeessiiddee,, CCHH55 33UUS

UUnniitteedd KKiinnggddoom

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Certification Manager

33

IIEECCEExx CCeerrttiiffiiccaatte

e

y

3

.

a

:

1

1

:

4

ooff CCoonnffoorrmmiitty

Page 2 of

Certificate No: IECEx SIR 18.0076X Issue No: 1

Date of Issue: 22001199--0055--003

Manufacturer: AAuuttoommaattiioonn PPrroodduuccttss GGrroouupp IInncc.

Additional Manufacturing location(s):

This certificate is issued as verification that a sample(s), representative of production, was assessed and tested and found to comply with the

IEC Standard list below and that the manufacturer's quality system, relating to the Ex products covered by this certificate, was assessed and

found to comply with the IECEx Quality system requirements. This certificate is granted subject to the conditions as set out in IECEx Scheme

Rules, IECEx 02 and Operational Documents as amended.

SSTTAANNDDAARRDDSS:

The apparatus and any acceptable variations to it specified in the schedule of this certificate and the identified documents, was found to comply

with the following standards:

IIEECC 6600007799--00 :: 2200111

Edition:6.0

IIEECC 6600007799--1111 :: 2200111

Edition:6.0

This Certificate ddooeess nnoott indicate compliance with electrical safety and performance requirements other than those expressly included in the

TTEESSTT && AASSSSEESSSSMMEENNTT RREEPPOORRTTSS:

A sample(s) of the equipment listed has successfully met the examination and test requirements as recorded in

1025 West 1700 North

Logan, Utah 84321

UUnniitteedd SSttaatteess ooff AAmmeerriicca

Explosive atmospheres - Part 0: General requirements

Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "i"

Standards listed above.

34

Test Report:

GB/SIR/ExTR19.0094/00 GB/SIR/ExTR19.0126/00

Quality Assessment Report:

NL/DEK/QAR13.0027/03

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

IIEECCEExx CCeerrttiiffiiccaatte

e

y

3

e

:

:

4

ooff CCoonnffoorrmmiitty

Page 3 of

Certificate No: IECEx SIR 18.0076X Issue No: 1

Date of Issue: 22001199--0055--003

SScchheedduulle

EEQQUUIIPPMMEENNTT:

Equipment and systems covered by this certificate are as follows:

The Modbus Network Display (MDI) is an Intrinsically Safe Display unit housed within an aluminium pressure die-casting IP66 enclosure
having a viewing window, to be used in a Class I Zone 1 Hazardous Location. The MDI is Intrinsically Safe when connected to and approved
IS barrier and it provides output power to the separately-approved model MPI Magnetostrictive probe, for use in Class I, Zone 0 Hazardous
Location. MODBUS RS485 and switch Inputs from a third-party controller to the MDI must be provided through an approved IS barrier.

Refer to the Annex for additional information.

SSPPEECCIIFFIICC CCOONNDDIITTIIOONNSS OOFF UUSSEE:: YYEESS aass sshhoowwnn bbeellooww:

Refer to the Annex.

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

35

IIEECCEExx CCeerrttiiffiiccaatte

e

y

3

:

:

4

ooff CCoonnffoorrmmiitty

Page 4 of

Certificate No: IECEx SIR 18.0076X Issue No: 1

Date of Issue: 22001199--0055--003

DDEETTAAIILLSS OOFF CCEERRTTIIFFIICCAATTEE CCHHAANNGGEESS ((ffoorr iissssuueess 11 aanndd aabboovvee)):

This issue, issue 1, recognises the following change: refer to the certificate annex to view a comprehensive hostory:

Model number revised from “MND-940d0f-g-h-i-j-k-l” to “MDI-940d0-fg-hi-j-k-l”; Marking, Nameplate and Equipment Description

1.

revised to include the new Model Code options.

Certification Code was corrected from “Ex ib IIB T3 (142°C) Gb” to “Ex ib [ia Ga] IIB 142°C (T3) Gb” to appropriately comply with

2.

clause 29 of 60079-0; Marking and Nameplate revised to include the corrected Certification Code.

IP66 rating added to marking; Marking, Nameplate and Equipment Description revised to include IP66.3.

Equipment Description revised to include corrections to product description.4.

Introduction of Specific Condition of Use referencing “The enclosure is manufactured from aluminium.”5.

AAnnnneexx:

IECEx SIR 18.0076X Issue 1 Annexe.pdf

36

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

• EU Declaration of Conformity

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

37

Appendix A: MDI Factory Default Settings

• Resetting MDI to Factory Defaults

• Press and hold the Decrease/Power button and Enter button for approximately 5 seconds.

• If necessary, enter the Mode Access Password (See page 26).

• When the Operating Mode number (see page 10) appears, change it to 125, and press enter.

• MDI Factory Default Settings

Parameter Holding Register Address Value

Units 40412 Gallons

Auto-O 40474 65535 (disabled)

Decimal Place 40411 0

Digit Mask 40419 O

Digit Shift 40420 0
Multiplier 40436-37 1.000
Bar Graph 0 40438-39 0
Bar Graph 100 40440-41 10000

Over Load 40442-43 99999 (max display value)

Battery Gauge Enable 40418 Internal
Battery Full 40416 10.8 V

Battery Low 40417 10.4 V
Analog Low Reading 40444-45 0

Analog High Reading 40446-47 99999

Analog Low Calibration 40472 0

Analog High Calibration 40473 16383

T1 Type 40424 O

T1 Reading 40428-29 1000
T1 Window 40430-31 500
Baud Rate 40402 9600
Parity 40403 None
Stop Bits 40404 1
C-Type 40401 Master
Sensor Address 40400 1
Number of Sensors 40408 1
Register Number 40407 303
Function 40406 4
Register Type 40410 U32 (unsigned 32-bit)
Scan Rate 40405 000.5 seconds

Sensor Labels 40480-40512 Sen 1 - Sen 11

Percent Full 40450-40471 00000 (disabled)

38

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Appendix B: MNU IS Modbus Registers

Input Registers (0x04):

Register Type Returned Data

30300 U16 Raw Distance/Level Reading (in mm)

30302 S16 Temperature Reading (in 0C, signed)
30303-30304 U32 Calculated Reading (in selected units, no decimal)
30307 U8H Version

30307 U8L Signal Strength

30309 U8H Trip 1 Alarm

30309 U8L Trip 1 Status

30310 U8H Trip 2 Alarm

30310 U8L Trip 2 Status

Holding Registers (0x03):

Register Type Description Value Range

40400 U16 Device Address 1 to 247
40401 U16 Units 1, 2, 3
40402 U16 Application Type 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
40403 U16 Volume Units 1, 2, 3, 4, 5, 6, 7
40404 U16 Decimal Place 0, 1, 2, 3
40405 U16 Max Distance 0 to 32,678 mm
40406 U16 Full Distance 0 to 32,678 mm
40407 U16 Empty Distance 0 to 32,678 mm
40408 U16 Sensitivity 0 to 100
40409 U16 Pulses 0 to 20
40410 U16 Blanking 0 to 15,250 mm
40411 U16 Gain Control 0, 1, 2, 3, 4
40412 U16 Averaging 0 to 100
40413 U16 Filter Window 0 to 15,250 mm
40414 U16 Out of Range Samples 1 to 255
40415 U16 Sample Rate 10 to 1,000 msec.
40416 U16 Multiplier 1 to 1,999

40417 S16 Oset -15,250 to 15,250 mm

40418-40419 reserved

40420 U16 Temperature Compensation 0 = o, 1 = on

40421-40435 reserved
40436-40437 U32 Parameter 1 Data 0 to 100,000 mm
40438-40439 U32 Parameter 2 Data 0 to 100,000 mm
40440-40441 U32 Parameter 3 Data 0 to 100,000 mm
40442-40443 U32 Parameter 4 Data 0 to 100,000 mm
40444-40445 U32 Parameter 5 Data 0 to 100,000 mm

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

39

Appendix C: MPI Series Modbus Registers

Input Registers (0x04):

Register Type Returned Data

30299 U16 Model Type
30300 U16 Raw Top Float Reading (in mm, unsigned)
30301 U16 Raw Bottom Float Reading (in mm, unsigned)
30302 S16 Temperature Reading (in 0C, signed)
30303-30304 U32 Calculated Top Float Reading (in selected Units)
30305-30306 U32 Calculated Bottom Float Reading (in selected Units)
30307 U16 Version
30308 S16 API 18.2 TEMP (in 0C, signed)

Holding Registers (0x03):

Register Type Description Value Range

40400 U16 Device Address 1 to 255
40401 U16 Units 1, 2, 3
40402 U16 Application Type 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
40403 U16 Volume Units 1, 2, 3, 4, 5, 6, 7
40404 U16 Decimal Place 0, 1, 2, 3
40405 U16 Max Distance 0 to 32,768 mm
40406 U16 Full Distance 0 to 32,768 mm
40407 U16 Empty Distance 0 to 32,768 mm
40408 U16 Sensitivity 0 to 100
40409 U16 Pulses 0 to 20
40410 U16 Blanking 0 to 10,364 mm
40411 reserved
40412 U16 Averaging 0 to 50
40413 U16 Filter Window 0 to 10,364 mm
40414 U16 Out of Range Samples 1 to 255
40415 U16 Sample Rate 50 to 1,000 msec.
40416 U16 Multiplier 1 to 1,999

40417 S16 Oset -10,364 to 10,364 mm

40418 U16 Pre Filter 0 to 10,364 mm

40419 U16 Noise Limit 0 to 255

40420 U16 Temperature Select 0, 1, 2, 3, 4, 5, 6, 7, 8

40421 U16 RTD Oset (0C) --

40422 U16 Float Window 0 to 1,000 mm

40423 S16 Top Float Oset -10,364 to 10,364 mm
40424 S16 Bottom Float Oset -10,364 to 10,364 mm
40425 U32 Gain Oset 0 to 255

40426-40435 reserved
40436-40437 U32 Parameter 1 Data 0 to 100,000 mm
40438-40439 U32 Parameter 2 Data 0 to 100,000 mm
40440-40441 U32 Parameter 3 Data 0 to 100,000 mm
40442-40443 U32 Parameter 4 Data 0 to 100,000 mm
40444-40445 U32 Parameter 5 Data 0 to 100,000 mm
40446 U16 Baud Rate 0 to 4

40

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Appendix D: MDI Modbus Registers

Input Registers (0x04):

Register Type Returned Data

30299 U16 Model Type

30300 U16 Raw Distance/Level Reading (in mm)

30301 U16 Decimal Place
30302 S16 Temperature Reading (in 0C, signed)
30303-30304 U32 Calculated Reading 1 (in selected units, no decimal)
30305-30306 U32 Calculated Reading 2 (in selected units, no decimal)
30307 U16 Signal Strength
30308 U16 Battery Voltage
30309 U16 Trip 1
30310 N/A

Holding Registers (0x03):

Register Type Description Value Range

40400 U16 Device Address 1 to 247

40401 U16 Communication 0, 1, 2, 3, 4 (Master, Sni, L/R Sni, Setup)

40402 U16 Baud Rate 0, 1, 2, 3 (2400, 9600, 19200, 38400)
40403 U16 Parity 0, 1, 2 (none, even, odd)
40404 U16 Stop Bits 0 or 1 (0 = 1 stop bit, 1 = 2 stop bits)
40405 U16 Scan Rate (ms) 1 to 9999
40406 U16 Function Code 3, 4, 6, 16
40407 U16 Register Address 299 to 600
40408 U16 Number of Sensors 0, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
40409 U16 Scroll Readings 0 to 1 (0 = disabled, 1 = enabled)
40410 U16 Register Type 0, 1, 2, 3, 4, 5, 6, 7
40411 U16 Decimal Place 0, 1, 2, 3, 4
40412 U16 Volume Units 0, 1, 2, 3, 4, 5, 6, 7, 8
40413-40415 U8 Custom Unit Name A - Z, 0 - 9, /.-,+*

40416 U16 Battery Full Level 0 to 999 (999 = 99.9)
40417 U16 Battery Empty Level 0 to 999 (999 = 99.9)
40418 U16 Battery Enable 0, 1, 2 (No battery, Internal, RST/LOE)
40419 U16 Display Mask 0, 1, 2, 3 (o, 0, 00, 000)

40420 U16 Decimal Shift 0, 1, 2, 3, 4 (/1, /10, /100, /1000)

40421 U16 Menu Lock 0 to 999
40422 U16 Startup Logo 0 to 10

40423 U16 Custom Flag 0 to 65535
40424 U16 Trip 1 type 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
40425 U16 Trip 2 type *N/A
40426 U16 Backlight 0 to 7

40427 S16 Temperature Oset -1,000 to 1,000

40428-40429 U32 Trip 1 Start 0 to 99,999
40430-40431 U32 Trip 1 Window 0 to 99,999

*These registers are not used by the MDI, even though they are labeled in the APG Modbus software

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

41

Holding Registers (0x03):

Register Type Description Value Range

40432-40433 U32 Trip 2 Start *N/A
40434-40435 U32 Trip 2 Window *N/A
40436-40437 U32 Multiplier (3 decimal place) 0 to 99,999 (1,000 = 1.000)
40438-40439 U32 Bar Graph Zero 0 to 99,999
40440-40441 U32 Bar Graph Full 0 to 99,999
40442-40443 U32 Over Range 0 to 99,999
40444-40445 U32 Analog Zero Reading 0 to 99,999
40446-40447 U32 Analog Full Scale Reading 0 to 99,999
40448-40449 U32 Full Scale 0 to 99,999
40450-40451 U32 Percent Full Sensor 1 0 to 99,999
40452-40453 U32 Percent Full Sensor 2 0 to 99,999
40454-40455 U32 Percent Full Sensor 3 0 to 99,999
40456-40457 U32 Percent Full Sensor 4 0 to 99,999
40458-40459 U32 Percent Full Sensor 5 0 to 99,999
40460-40461 U32 Percent Full Sensor 6 0 to 99,999
40462-40463 U32 Percent Full Sensor 7 0 to 99,999
40464-40465 U32 Percent Full Sensor 8 0 to 99,999
40466-40467 U32 Percent Full Sensor 9 0 to 99,999
40468-40469 U32 Percent Full Sensor 10 0 to 99,999
40470-40471 U32 Percent Full Sensor 11 0 to 99,999
40472 S16 Analog Zero Calibration -16,383 to 16,383
40473 U16 Analog Full Scale Calibration 0 to 65,535

40474 U16 Auto O 0 to 65,535

40475 U16 Digipot Gain 0 to 65,535
40476 U16 Relay 1 On Time 0 to 65,535
40477 U16 Relay 2 On Time *N/A
40478 U16 Relay 1 Interval Time 0 to 65,535
40479 U16 Relay 2 Interval Time *N/A

40480-40482 U8 Sensor 1 Label A - Z, 0 - 9, /.-,+*
40483-40485 U8 Sensor 2 Label A - Z, 0 - 9, /.-,+*
40486-40488 U8 Sensor 3 Label A - Z, 0 - 9, /.-,+*
40489-40491 U8 Sensor 4 Label A - Z, 0 - 9, /.-,+*
40492-40494 U8 Sensor 5 Label A - Z, 0 - 9, /.-,+*
40495-40497 U8 Sensor 6 Label A - Z, 0 - 9, /.-,+*
40498-40500 U8 Sensor 7 Label A - Z, 0 - 9, /.-,+*
40501-40503 U8 Sensor 8 Label A - Z, 0 - 9, /.-,+*
40504-40506 U8 Sensor 9 Label A - Z, 0 - 9, /.-,+*
40507-40509 U8 Sensor 10 Label A - Z, 0 - 9, /.-,+*
40510-40512 U8 Sensor 11 Label A - Z, 0 - 9, /.-,+*

40513 U16 Averaging 1 to 50
40514 U16 Sample Rate (Hz) 200 to 10,000

40515 U16 Dierence 1 to 65,000

40516 U16 Read Select 1 or 2

40517 S16 Current Oset -5,000 to 5,000

40518 U16 Enter Shortcut 0 to 5

*These registers are not used by the MDI, even though they are labeled in the APG Modbus software

42

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

43

APG

R

Tel: [phone] • Fax: [phone] • www.apgsensors.com • [e-mail]

Automation Products Group, Inc.
