APG
LPD Loop Powered Display
®
The LPD Loop Powered Displays are designed to be inserted into a 4-20 mA sensor current loop to provide a local display without additional wiring. Setup is easy using the 3 buttons on the display.
Features
• Large, full 5-digit display with 0.4 in. characters and 6-digit description line
• Environmentally sealed housing; IP67 or IP68 certication
• 4-20 mA input
• Easy 3-button programming
• User selectable units of measure
(barrels, cubic inches, liters, cubic meters, gallons, million cubic feet, cubic feet, custom)
• Optional RS-485/Modbus RTU output
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
Rev. A1, 12/22/2015
APG
LPD Specications
3.25”
82.6 mm
3” Aluminum Housing
4.09”
104 mm
Position 2
4.92”
125 mm
Depth
Position 1
Main Connection
Positions
1.60”
40.6 mm
Position 3
Posion 3
4.53”
115 mm
4” Aluminum Housing
5.71”
145 mm
Position 2
Position
3
4.15”
105.5 mm
Position 1
4.25”
108 mm
Performance
• RS-485 (Modbus RTU):
2400, 9600, 19200, 38400 baud rates
• Display readings: volume, level, distance, pressure
• Display update rate: 500 mSec
• Accuracy: +/- 1 count
Connectivity
• Output Options:
4-20 mA loop-powered operation
RS485
• Input: 4-20 mA
Environmental
• Protection rating: IP67, IP68
• Storage Temp: -40º - 160ºF (-40º - 71ºC)
• Operating Temp: 0º - 160ºF (-18º - 71ºC)
Certication
• IP67 - Plastic Housing (3.25”)
• IP68 - Aluminum Housing (3” or 4”)
Position 2
7 mm hole
Position 1
4.96”
126 mm
Programming
• Programmable Features:
User selectable units of measure, Auto-O
• 3-Button Keypad
Electrical
• Backlight - powered from the 4-20 mA loop
• Maximum Voltage Drop:
4.7 VDC maximum, 4.3 VDC typical
Physical
• Display: 5 digit LCD, 0.4 in. digits, 6 character
description eld
Plastic Housing
• Injected molded case (EMI-X ® PDX-W-88341)
• Protection rating: IP67
Metal Housing
• Aluminum pressure die casting, 0.5% Mg
• Chemically resistant paint
• Protection rating: IP68
7 mm
hole
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
®
2
Rev. A1, 12/22/2015
APG
LPD Accessories
Please order separately, by part number.
Description Part Number
Panel mount bracket 512599
Flat mount bracket 110542-0002
Stando bracket 512597
Rubber boot 512626
4-pin female micro connector (M12) Field Wireable 509087
4-pin femail micro connector (M12) with cable 135407-00XX (X=cable length)
4 Conductor Cable 135287
5 Conductor Cable 135296
6 Conductor Cable 135297
8 Conductor Cable 135300

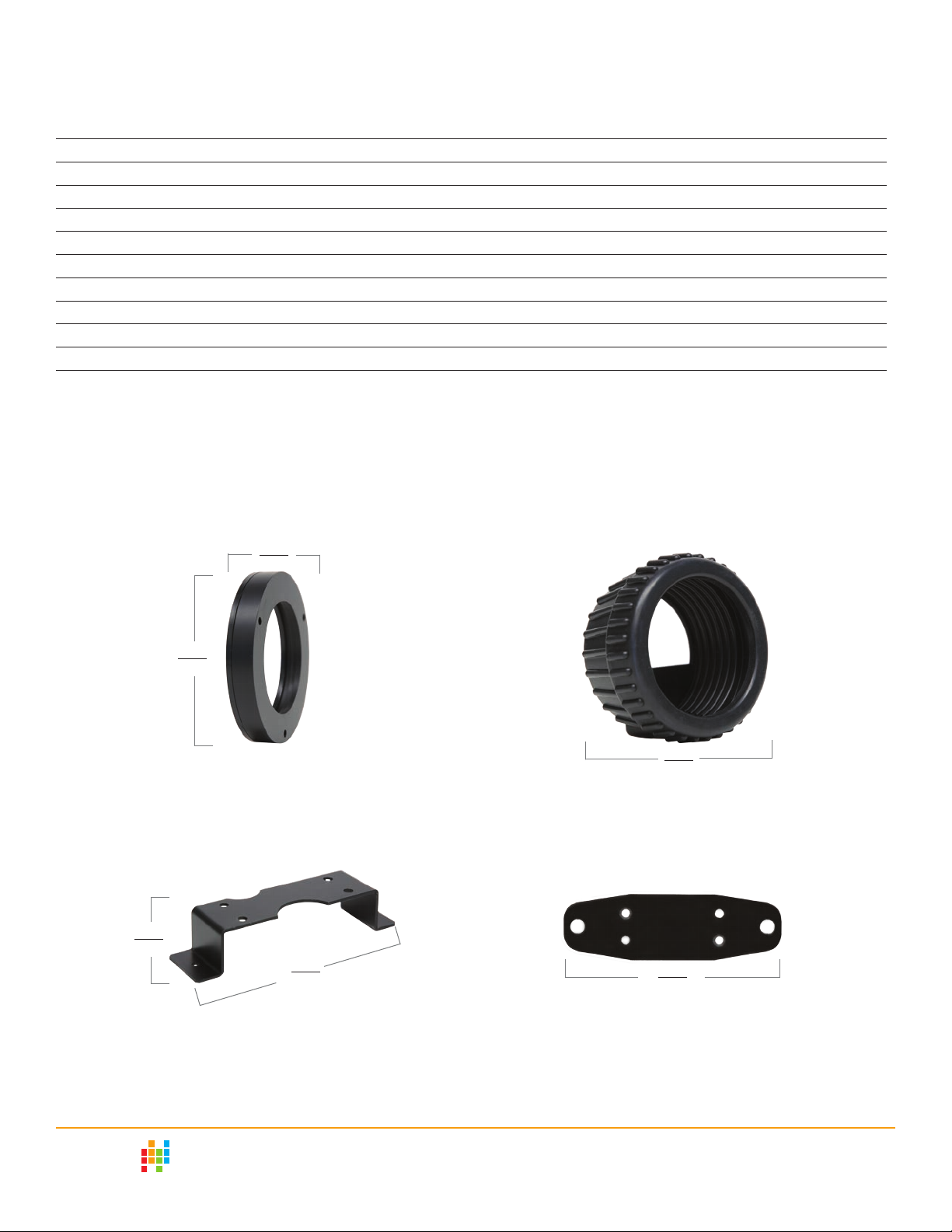

Mounting Braket Options
Panel Mount
3.9”
99.15 mm
Stando Bracket
0.85”
21.5 mm
0.62”
15.83 mm
101.8 mm
4.00”
Rubber Boot
3.4”
86.75 mm
Flat Mount Bracket
(Black Acrylic 3/16”)
4.9”
125 mm
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
®
3
Rev. A1, 12/22/2015
APG
Model Conguration Options
Part Number: LPD - 0_____ 0 _____ _____ _____ - _____ - _____
A C D E F G
®
A. RS-485 Communication
□ 0 RS-485
▲
□ 3
No RS-485
C. Enclosure
▲
□ 0
3” Round Plastic Housing
□ 2 3” Aluminum (1/2” NPT cable entry)
□ 3 4” Aluminum (3/4” NPT cable entry)
D. Mounting/Cover
▲
□ 0
Standard Mounting
□ 1 Rubber Boot
□ 2 Stando Bracket (Aluminum Black Anondized)
□ 4 Panel Mount Bracket (Black Delrin)
□ 5 Flat Mount Bracket (Black Acrylic 3/16”)
□ 6 Flat Mount Bracket (Black Acrylic 3/16”) + Rubber
Boot installed
E. Connection Location
▲
□ 1
Position 1
□ 2 Position 2
□ 3 Position 3
F. Main Cable or Connector
□ C Cable with ying leads, in feet
(ex. C100 = 100 feet, avail. in 5 ft increments)
□ M Cable in feet with connector
(select from Connector Table below)
(ex. M5C5 = 4 pin M12 Female connector with
5 feet of cable, cable avail. in 5 ft increments)
□ Connector only
(select from Connector Table below)
Connector Table
□ 2 4 pin M12 Male
□ 5 4 pin M12 Female
G. Backlight
▲
□ 0
No Backlight
□ 1 Backlight (intesity follows 4-20 mA loop)
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
Document #9004633 Rev. A1, 12/22/2015
