APG FLX Operating Manual

PRODUCTS
AUT OMATION
Operator’s Manual
GROUP, INC.
FLX
Magnetic Float Sensors
9003283
Rev. C4, 10/09
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • E-mail: sales@apgsensors.com
Automation Products Group, Inc.
FLX Series Rev. C4, 10/09
Table of Contents
Warranty ......................................................................................... 3
Description...................................................................................... 4
Installation ................................................................................... 5-6
Wiring...........................................................................................7-8
Circuit Pr otection ........................................................................... 9
Inspection & Maintenance ............................................................ 10
Technical Notes............................................................................. 10
Specifications ................................................................................ 11

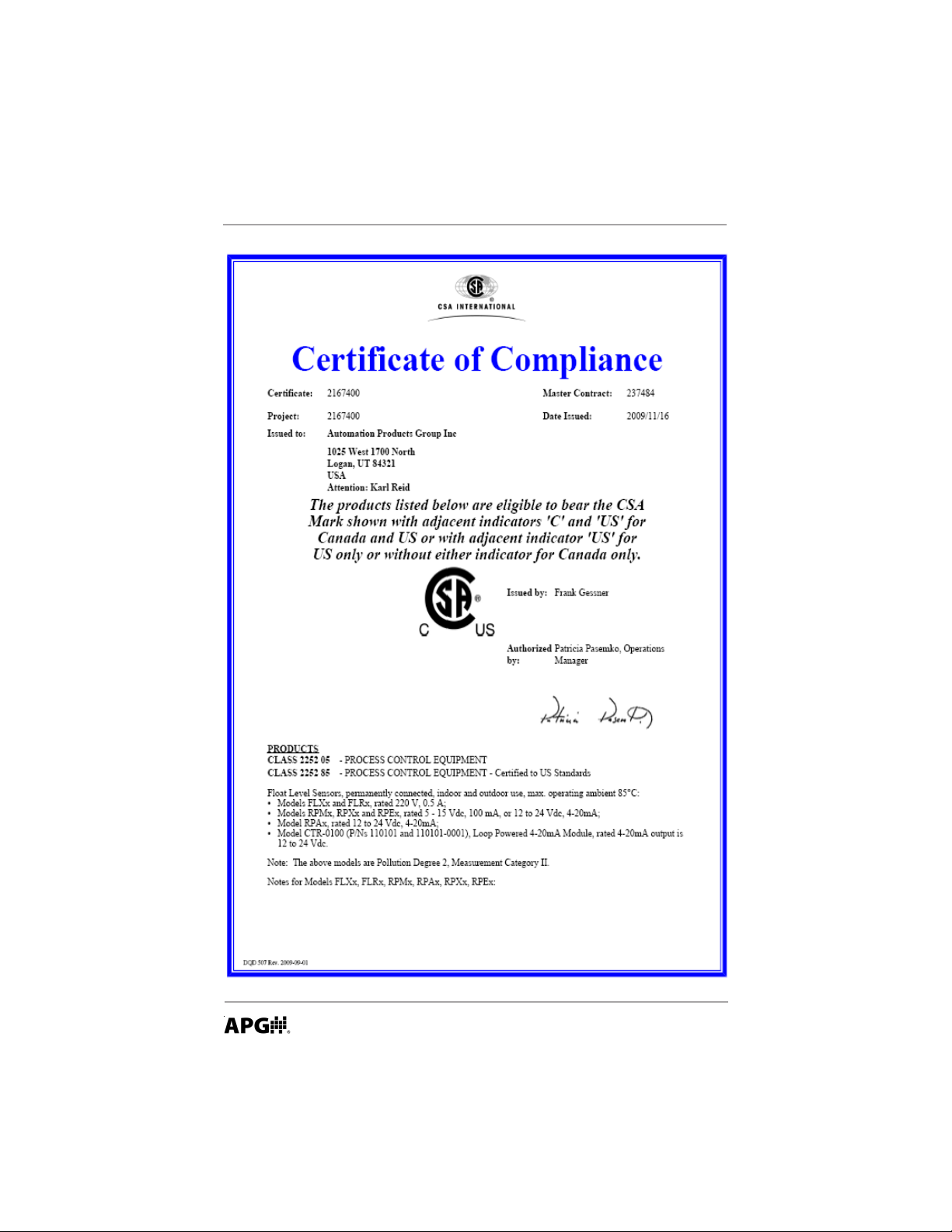

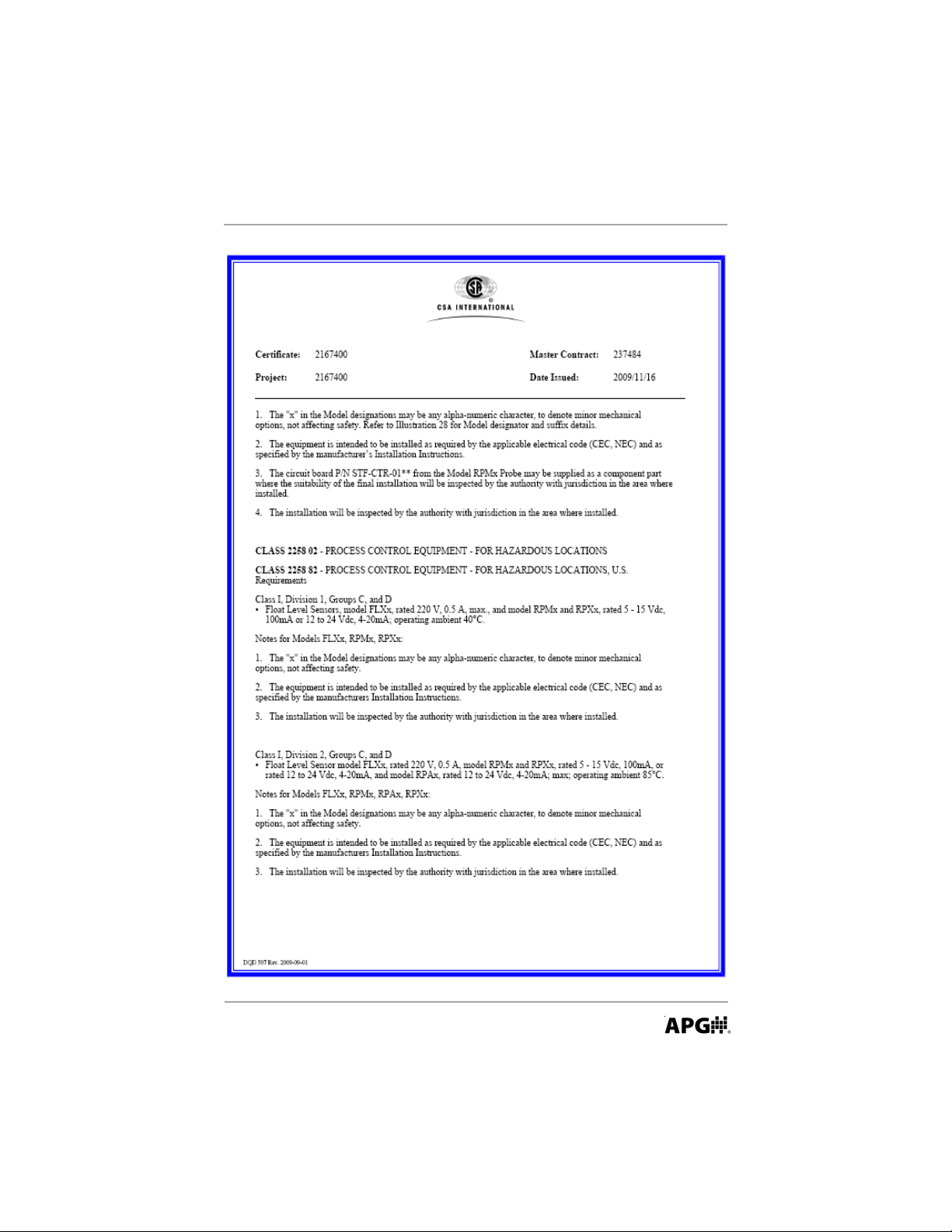

Certificate of Compliance ....................................................... 12-14
Automation Products Group, Inc.
2
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
Warranty and W arranty Restrictions
APG warrants its products to be free from defects of material and workmanship and will, without charge, replace or repair any equipment found defective upon inspection at its factory, provided the equipment has been returned, transportation prepaid, within 24 months from date of shipment from factory .
THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSL Y SET FOR TH HEREIN, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR OTHER WISE INCLUDING BUT NOT LIMITED T O ANY IMPLIED WARRANTIES OF MERCHANT ABILITY OR FITNESS FOR A PAR TICULAR PURPOSE.
No representation or warranty, express or implied, made by any sales representative, distributor, or other agent or representative of APG which is not specifically set forth herein shall be binding upon APG. APG shall not be liable for any incidental or consequential damages, losses or expenses directly or indirectly arising from the sale, handling, improper application or use of the goods or from any other cause relating thereto and APG’s liability hereunder, in any case, is expressly limited to the repair or replacement (at APG’s option) of goods.
Warranty is specifically at the factory. Any on site service will be provided at the sole expense of the Purchaser at standard field service rates.
All associated equipment must be protected by properly rated electronic/ electrical protection devices. APG shall not be liable for any damage due to improper engineering or installation by the purchaser or third parties. Proper installation, operation and maintenance of the product becomes the responsibility of the user upon receipt of the product.
Returns and allowances must be authorized by APG in advance. APG will assign a Return Material Authorization (RMA) number which must appear on all related papers and the outside of the shipping carton. All returns are subject to the final review by APG. Returns are subject to restocking charges as determined by APG’s “Credit Return Policy”.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
3
FLX Series Rev. C4, 10/09
Permanent Magnet
Float Travel-Stop
Float
Stem
Reed Switch
• Description
The FLX series instruments contain reed switches in the stem and permanent magnets in the floats. As the float rises or falls with the level of the liquid, the magnet inside the float act on the reed switch inside the stem to provide the SPST switching action.
• Handling of the Explosion-Proof FLX Series
The FLX is rated CSA Class 1 Division 1; Groups C, D for explosive environments. All repairs and adjustments of the FLX must be made by the factory. To modify, disassemble, or alter the FLX on site is strictly prohibited. Do not loosen any joints, with the exception of the housing cover for electrical connection.
Automation Products Group, Inc.
4
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
Installation
- Unpacking -
When unpacking the instrument, exercise care not to subject the instrument to mechanical shock. After unpacking, visually inspect the instrument for damage.
- Environment -
The FLX series sensors should be installed indoors or outdoors in an area which meets the following conditions:
1. The ambient temperature does not exceed -400F to +1850F (-400C to 850C). NOTE: It is recommended that a sun shield be installed over the housing if exposed to direct sunlight.
2. The medium temperature does not exceed -400F to +1850F (-400C to 850C).
3. Relative humidity up to 100%
4. Pollution Degree 2
5. Measurment Category II
6. Altitude 2000 m or less.
7. Locate the sensor away from strong magnetic fields such as those produced by motors, transformers, solenoid valves, etc.
8. The medium is free from metallic substances and other foreign matter.
9. No corrosive gases such as NH3, SO2, Cl2, etc.
10. No excessive vibration
11. Ample space for maintenance and inspection.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
5
FLX Series Rev. C4, 10/09
• Installation
- Location -
Do not locate the FLX series sensor near inlets/outlets. If there is surface wave action, then use a time-delay relay or stilling tube. If a stilling tube is used, drill vent holes in the tube and use a spacer to assure the float has free travel inside the tube.
Wave action may cause switch to chatter. Use a stilling tube or time-delay
relay to prevent switch chatter.
- Mounting -
The FLX can be mounted up to 300 from vertical.
1. Flange Mounting Provide the compatible mating flange on the tank and install using a suitable gasket.
2. Plug Mounting Provide the compatible female boss on the tank and install the FLX with a suitable gasket, O-ring, or thread tape.
Automation Products Group, Inc.
6
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
• Wiring
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
7
FLX Series Rev. C4, 10/09
L1
L2
L3
L4
BlackBlack White White Red Red Green Green
Wiring Color
L1
L1 L2 L3
L4 L5
L6 L7
L2
L3 L4 L5
L6
L7 Com.
Blk x 2 Blk x 2 Blk x 2 Blk x 2
Black Black Black
Wh x 2 Wh x 2 Wh x 2
White White White
Red x 2 Red x 2
Red Red Red
Grn x 2
Green Green Green
Yellow Yellow Yellow
Brown Brown
Grey Grey Grey
Blue
Number of Levels
L1 L2 L3 L4 L5 L6 L7
Common
Black White Red Green GreyBlueBrownYellow
• Wiring

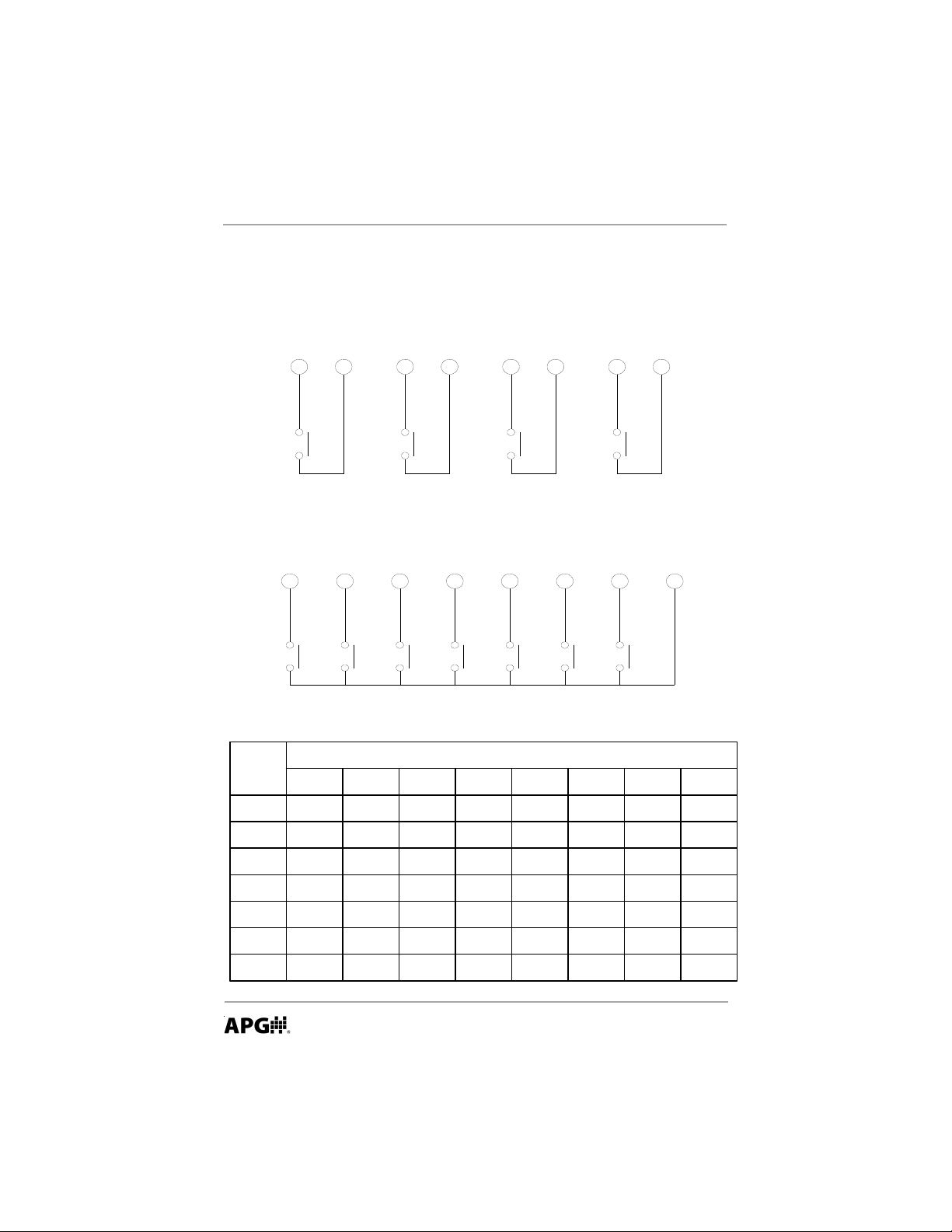

- Wiring for 1 to 4 switches
- Wiring for greater than 4 switches
8
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
Rev. C4, 10/09 FLX Series
L
C
R
E
C = I R = Approx.
10 x I (I + 50/E)
E
Protecting Circuit Using CR
Protecting Circuit Using Varistor
Protecting Circuit Using Diode
2
/10 (uF)
• Circuit Protection
W ARNING!
DO NOT EXCEED CONT ACT RA TINGS! When an inductive load is used (e.g. a motor, a coil, or an electromagnetic relay), a back electromotive force of several hundred volts (energy stored in the inductance) arises when the contacts are opened. This results in considerable decrease in contact life. The same result arises even when a resistive load is used with a high voltage or a large current. The figures below show circuits for protecting the reed switch(s) from the back electromotive force.
Code A & B Switches
Max. contact capacity 70 VA AC, Max. switching current 220 VAC 0.5 A, 120 VDC 0.5 A
Code C Switches
Max. contact capacity 110 VA AC, Max. switching current 220 VAC 0.5 A, 115 VDC 0.5 A
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
9
FLX Series Rev. C4, 10/09
• Inspection and Maintenance
Periodic inspection is necessary to keep your FLX unit in good working order.
CAUTION! Do not remove the housing cover until the atmosphere is determined to be safe, and the power supplied to the unit is turned off.
1. Keep the sensor clean.
Never leave the housing cover off. If the cover becomes
damaged or is misplaced, order a replacement immediately .
If sediment or other foreign matter is trapped between the stem
and the float, detection errors may be caused. Keep the float and
stem clean.
2. Inspect the switches and terminals.
• T echnical Notes
1. The float travel stop settings are based on how the magnetic field influences the reed switch. Normally it is not necessary to move the stop. If the stops are moved, check the switch action for float overrun.
2. Normally Open (NO) (switch closes as level rises) and Normally Closed (NC) (switch closes as level falls).
Automation Products Group, Inc.
10
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
• FLX Specifications
Maximum Number Switching Points: 7
Resolution: +/- 1/16” (2mm)
Field Adjustable Actuation Levels: No
Maximum Length: 153 in.
Process Temperature: Class 1 Div. 2 Applications:
-400 to +1850F (-400 to +850C)
Class 1 Div . 1 Applications:
-400 to +1400F (-400 to +400C)
Housing Material: Die Cast
Aluminium
CSA Rating: Class 1 Div . 1
Groups C, D
Housing Rating: NEMA 4
Contact Rating:
Code A & B Switch
Max. contact capacity: 70 V A AC, Max. switching current: 220 V AC 0.5 A, 120 VDC 0.5 A
Code C Switch
Max. contact capacity: 110 VA AC, Max. switching current: 220 V AC 0.5 A, 115 VDC 0.5 A
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
11
FLX Series Rev. C4, 10/09
12
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
13
FLX Series Rev. C4, 10/09
14
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. C4, 10/09 FLX Series
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
