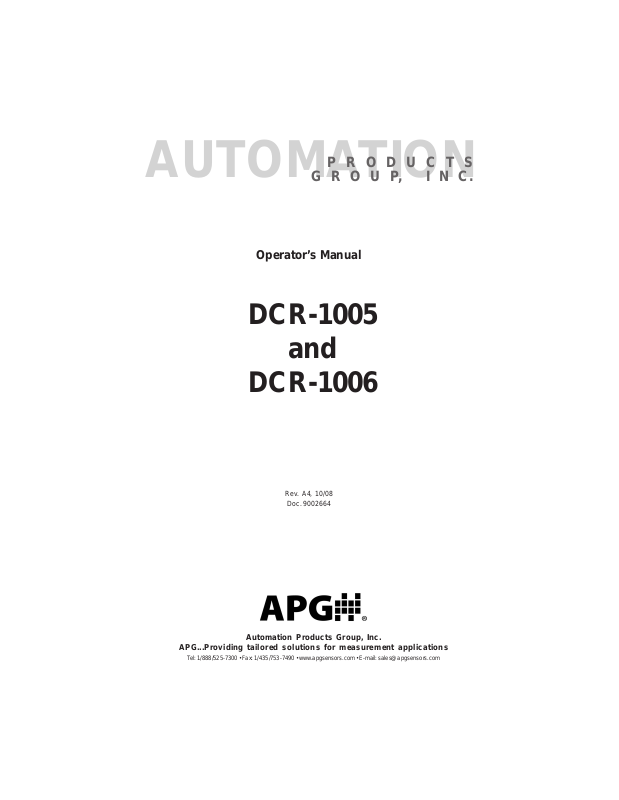

APG DCR-1006 User Manual

PRODUCTS
AUTOMATION
Operator’s Manual
GROUP, INC.
DCR-1005
DCR-1006
Rev. A4, 10/08
Doc. 9002664
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • E-mail: sales@apgsensors.com
DCR-1005 and DCR-1006 Rev. A4, 10/08
Table of Contents
Warranty ......................................................................................... 3
Introducing...................................................................................... 4
Understanding Ultrasonics............................................................. 5
Installation ...................................................................................... 7
Wiring............................................................................................ 10
Programming................................................................................ 11
Error Indicators ............................................................................ 11
Programming Modes .................................................................... 12
Operation ................................................................................... 13
Filtering ..................................................................................... 14
Outputs ...................................................................................... 16
Applications ............................................................................... 21
Calibration................................................................................. 26
Utilities ...................................................................................... 28
Quick Reference Sheet .................................................................. 30
Maintenance ................................................................................. 32
DCR Specifications ....................................................................... 33
DST Specifications ........................................................................ 34
Automation Products Group, Inc.
2
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Warranty and Warranty Restrictions
APG warrants its products to be free from defects of material and workmanship and will, without charge, replace or repair any equipment found defective upon inspection at its factory, provided the equipment has been returned, transportation prepaid, within 24 months from date of shipment from factory .
THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET FORTH HEREIN, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR OTHER WISE INCLUDING BUT NOT LIMITED T O ANY IMPLIED WARRANTIES OF MERCHANT ABILITY OR FITNESS FOR A P AR TICULAR PURPOSE.
No representation or warranty, express or implied, made by any sales representative, distributor, or other agent or representative of APG which is not specifically set forth herein shall be binding upon APG. APG shall not be liable for any incidental or consequential damages, losses or expenses directly or indirectly arising from the sale, handling, improper application or use of the goods or from any other cause relating thereto and APG’s liability hereunder, in any case, is expressly limited to the repair or replacement (at APG’s option) of goods.
Warranty is specifically at the factory. Any on site service will be provided at the sole expense of the Purchaser at standard field service rates.
All associated equipment must be protected by properly rated electronic/ electrical protection devices. APG shall not be liable for any damage due to improper engineering or installation by the purchaser or third parties. Proper installation, operation and maintenance of the product becomes the responsibility of the user upon receipt of the product.
Returns and allowances must be authorized by APG in advance. APG will assign a Return Material Authorization (RMA) number which must appear on all related papers and the outside of the shipping carton. All returns are subject to the final review by APG. Returns are subject to restocking charges as determined by APG’s “Credit Return Policy”.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
3
DCR-1005 and DCR-1006 Rev. A4, 10/08
• Introducing
The DCR-1005 and DCR-1006 controller with DST series sensors were specifically designed to provide a rugged and reliable non-contact sensor system that is easily programmed yet flexible enough to use in a wide range of applications.
The DCR-1005 and DCR-1006 controllers have a 0.5 in. 4 character LCD display to show readings and parameters. The controller can be configured to monitor distance, level or volume. The DCR-1005 comes standard with four relay outputs. The DCR-1006 also includes an isolated 4 - 20 mA output.
The DST series sensors are non-contact ultrasonic sensors which measure the distance to a target through air. A list of available sensors can be found under DST Specifications, found at the end of this manual starting on page 35.
T ypical applications include:
• Monitoring water levels in a well
• Determining material volume in a tank
• Obstacle avoidance
• Product dimensioning
• Loop control
Automation Products Group, Inc.
4
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
detection
area
beam spread
low sensitivity and pulses
high sensitivity and pulses
• Understanding Ultrasonics
Ultrasonic sensors measure distance using a transducer to send out ultrasonic bursts. Each burst contains a series of 1­20 pulsed sound waves that emit in the shape of a cone, reflect off the target, and are received by the sensor. The time required for the sound burst to travel to and from the target is converted into a distance measurement by the sensor.
Ultrasonic sensing is affected by several factors including the target surface, distance, size, and angle. The following considerations will help ensure the best possible target conditions.
Surface
The ideal target surface is hard and smooth and perpendicular to the face of the transducer. This surface will reflect a greater amount of signal than a soft, sound wave absorbent surface. A target with poor sound wave reflection characteristics will reduce the operating distance of the sensor and decrease its accuracy.
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
5
DCR-1005 and DCR-1006 Rev. A4, 10/08
1 ft.
2 ft.
3 ft.
4 ft.
5 ft.
6 ft.
7 ft.
8 ft.
9 ft.
10 ft.
Sensor
Typical Beam Pattern of a Ceramic Transducer at high sensitivity and power settings.
0.317'
0.634'
0.950' 1.267'
1.584' 1.901' 2.217' 2.534'
2.851'
3.168'
Distance
The shorter the distance from the sensor to an object, the stronger the returning echo will be. Therefore, as the distance increases, the object requires better reflective characteristics to return a sufficient echo.
Size
A large object will have a greater surface area to reflect the signal than a small one, therefore, a large target will be detected at a greater distance than a small target. The surface area recognized as the target is generally the portion closest to the sensor.
Angle
The inclination of the object's surface facing the ultrasonic sensor affects the reflectivity of the object. The portion perpendicular to the sensor returns the echo. If the entire surface is at a great enough angle, the signal will be reflected away from the sensor and no echo will be detected. Generally a target at an angle greater than 5 degrees off perpendicular will not be detected.
Environmental Conditions
T emperature, humidity, gases, dust, and pressure may also affect the sensor’s performance. APG ultrasonic sensors automatically compensate for many of these conditions. However, these conditions can degrade the sensor’s performance enough it may be necessary to use a longer-range sensor than normal conditions would require.
6
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
Rev. A4, 10/08 DCR-1005 and DCR-1006
• Installation
Installing the DCR
The DCR-1005 and DCR-1006 should be installed using the 4 screws through 4 holes in the back of the enclosure. The enclosure must be mounted out of direct sunlight.
Installing the DST
The DST sensor should be installed so that it has a clear sound path to the intended target. Mount the sensor away from tank walls and inlets. The path should be free from obstructions and as open as possible for the 9° off axis beam pattern. Follow the guidelines mentioned in “Understanding Ultrasonics”, found on page 5.
NPT and Flange Mounting
• Mounting in a coupler or half coupler welded to the top of tank. (see drawings below)
• Coupling should extend through the top of tank.
• Coupler must be aligned perpendicular to the target level.
• Screw sensor in only hand tight!
• To avoid false Echoes, the coupler should be installed where there is a clear sound path perpendicular to the detection surface and where the sound path will not intersect vessel fill spouts, rough vessel walls, ladders…etc.
BETTER GOOD
*Soft gasket
material is
recommended with
flange mounting.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
7
DCR-1005 and DCR-1006 Rev. A4, 10/08
Top of Tank
Stand Pipe
10-45
o
CUT
Stand Pipe Mounting
The stand pipe should be as large in diameter and as short in length as possible. Mount the sensor above the highest anticipated material by at least the published blanking distance.
The stand pipe should be seamless to provide a smooth path for the sound waves to propagate into the tank. Because the sound waves will concentrate along the inside wall of the pipe, any seams from couplers, nipples, and welds will cause echo returns that will be picked up by the sensor. The sensor blanking will need to be changed to a distance greater than the length of the pipe (found on page 13; mode 5).
The end of the stand pipe should extend inside the tank and be cut to a 45° angle. Make sure that the cut is clean and free from burs. If the standpipe is cut at 90°, there will develop a standing wave echo at the end of the pipe that will be seen by the sensor as a target. If a 45° cut is not feasible in your application, then the cut should be made as close to 45° as possible (often, even a 10° cut will shrink the standing wave enough to allow the sensor to see past it).
To avoid false Echoes, the stand pipe should be installed where there is a clear sound path perpendicular to the detection surface and where the sound path will not intersect vessel fill spouts, rough vessel walls, ladders…etc. Any angle off perpendicular will degrade the performance of the sensor .
Automation Products Group, Inc.
8
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Minimum Blanking Distance
Highest Anticipated
Tank Level
Stilling Well Mounting
Provides access to difficult areas and eliminates problems with foam.
• Extend the pipe above the highest anticipated level by at least the published blanking distance.
• Provide a vent hole at the top of the tube. Keep the hole inside the blanking distance of the sensor to prevent false echoes.
• Use only in liquid materials that will not leave deposits on the inside of the pipe (material build-up will result in false echoes).
• Pipe must have smooth walls and should be seamless to provide a smooth path for the sound waves to propagate into the tank. Because the sound waves will concentrate along the inside wall of the pipe, any seams from couplers, nipples, and welds will cause echo returns that will be picked up by the sensor.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
9
DCR-1005 and DCR-1006 Rev. A4, 10/08
TRIP 1
TRIP 2
TRIP 3
TRIP 4
DST
4-20
24V
110-220 VAC
24VDC INPUT
OR
COM
COM
COM
COM
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
24V
L2
L1
GND
DIG
GND
GND
Digital In
4-20(+)
4-20(-)
DST(+)
• Wiring
Step 1: Depending on the DST cable version (coax or 2-conductor), connect
the DST to the DCR Controller by way of the coaxial ‘F’ connector located on the outside of the DCR box, or use the terminal strip located inside the DCR box. The DST sensors can be mounted up to 2000 feet from the controller .
Step 2: To obtain access to the DCR’s terminal strip, remove the DCR’ s
polycarbonate cover by turning the 4 screws counterclockwise 1/4 turn. Remove the display board by removing the four 4-40 screws to expose the terminal strip.
S tep 3: The DCR-1005 and DCR-1006 is shipped from the factory configured
for 120 VAC input power. If 24 VDC or 230 VAC is to be used, change the jumpers on the bottom board. A soldering iron will be required for this operation. The jumpers are soldered into pads located on the bottom board and labeled J4. The pads are labeled 1 through 6.
INPUT POWER JUMP JUMP
24 VDC 1-2 5-6 120 VAC 2-3 4-5 240 VAC 3-4 N/A
S tep 4: Wires can be pulled into the DCR-1005 and DCR-1006 through the
strain reliefs on the enclosure. The screw terminal can be wired using solid or stranded wire between 16 - 22 AWG . Wires should be stripped, leaving a 0.4 in. bare wire. For wiring the 2-conductor DST , connect the red wire to DST (+) and the black and shield wire to the DST GND.
Step 5: Perform an internal check to ensure that all wires are properly
connected and secured.
Step 6: Secure the Display Board and make the power connection. The LCD
should light.
10
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
• Programming
The DCR-1005 and DCR-1006 has a four-digit LCD readout and four red LED’s labeled TRIPS 1, 2, 3, and 4. These LED’ s indicate the status of the relays. Four momentary push-buttons located under the cover, are used to program the DCR. The cover makes reading the displays easy while sealing the electronics and preventing the buttons from being accidentally bumped.
The different modes of the DCR can be easily accessed using the mode buttons, M-UP and M-DN. They operate similar to a digital watch. To cycle forward through the modes, hold down the M-UP key . T o cycle backward through the modes, hold down the M-DN key.
To select a mode, press the M-UP or M-DN key until the desired mode number is displayed. Pressing either the V-UP or V-DN will display the selected mode setting on the LCD display.
To change the selected mode setting hold down the V-UP or V-DN key until the desired setting is displayed. Enter the new value by pressing either of the mode keys. The display will then show the DST distance reading.
• Error Indicators
There are 4 error indicators which may appear on the display given the appropriate conditions.
E1 indicates a short in the DST Power connection or termination.
E2 indicates that a sensor is not connected or the sensor is not
communicating.
E3 indicates a Loss of Echo condition. The sensor is not able to acquire a target within the range of the sensor.
---- (dashes) indicate that the number to be displayed is larger than the display
will allow . To correct this condition, try adjusting the Decimal Position (Mode 2) or changing the multiplier (Modes 29 and 30). This indication may also result from a negative number to be displayed.
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
11
DCR-1005 and DCR-1006 Rev. A4, 10/08
• Programming Modes
1) Operation (Modes 1-5)
2) Filtering (Modes 6-11)
3) Outputs (Modes 12-27)
4) Applications (Modes 28-37)
5) Calibration (Modes 38-39)
6) Utilities (Modes 40-42)
Mode Sequence
For best results when programming your DCR, follow the steps below . Following the steps in sequence will eliminate most of the problems encountered when setting up the DCR controller .
1. MODES 1-2 Determine units to be displayed
2. MODES 4-6 Determine settings to get a reliable distance reading
on your target
3. MODES 7-1 1 Determine appropriate filtering for your application
4. MODE 3 Select application type (MODE 2 will need to be
adjusted for volume applications)
1. Distance: skip to step 5
2. Volume/Level: setup Modes 28-34
5. MODES 12-23 Setup relay outputs. Remember to program relays in
the units of measurement be displayed and to disable relays that are not being used.
6. MODES 24-27 Setup analog output
7. MODE 35 Set temperature compensation
8. Advanced setup (not required in most applications) MODES 26-27, 36-45
12
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Operation
The operation modes are used to perform basic initialization of the DCR.
MODE DESCRIPTION PARAMETERS EXPLANA TION
1 Units Range = 1 - 3
1 - inches 2 - feet 3 - meters Default = 2
Selects the units to be displayed.
2 Decimal Point Range = 0000.- 0.000
Default = 00.00
3 Operating Mode Range = 1 - 2
1 - distance
Selects the decimal point position.
Selects mode of measurement for
the application. 2 - volume/level Default = 1
4 Sensitivity Units = %
Range = 0 - 100 %
Sets sensitivity (or gain) as a
percentage of maximum.
If using a DST version 2000 sensor, Mode 4 will display the selected sensor’s sensitivity. The sensitivity is not user adjustable in these models.
5 Blanking Units = mode 1
Range = 0 - 36 ft. Default = dependant on DST model
6 Pulses Range = 1-20
Default = 16
Sets a dead zone in front of the
DST where echoes are ignored.
Keep above DST’s minimum
specification.
Sets the number of pulse waves sent
in each ultrasonic burst. Adjusts the
strength of the transmitting signal.
If using a DST version 2000 sensor, Mode 6 will display the sensor’s selected pulse setting. The pulse setting is not user adjustable.
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
13
DCR-1005 and DCR-1006 Rev. A4, 10/08
Filtering
The filtering modes are provided to change how fast the system will respond to changes. The default settings should be appropriate for most level applications, however, the delays and windows can be changed to increase or decrease reaction time and filtering.
MODE DESCRIPTION PARAMETERS EXPLANATION
7 Sample Rate Units = milliseconds
Range = 80 - 9999 Default = 120
Sets the delay between sensor samples (readings).
8 Samples Units = Samples
Averaged Range = 1 - 50
Default = 20
9 Out-of-Range Units = samples
Range = 1 - 50 Default = 10
10 Filter Window Units =Mode 1
Range = 0 - 20 ft. Default = 2.00 ft.
11 Loss of Units = seconds
Echo Delay Range = 0 - 9999
Default = 5
Sets the number of samples to be averaged in the buffer memory on a first in first out basis.
Sets the number of out-of range samples in succession that will be ignored before the new target is accepted.
Sets the window of acceptance. The window is + or - this distance from the current reading. If a sample distance is outside of this window it will be ignored the number of times set in mode 9.
Sets the delay in seconds before the output will show a loss of echo condition. Allows the controller to maintain the current level indication for temporary loss of echo conditions. During a loss of echo condition the controller will maintain the last reading for the time frame indicated in seconds.
14
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Example: Rapid Level Changes
If the DCR’s filtering is too slow and the level to be monitored is changing rapidly , the display will seem to jump between readings instead of scrolling smoothly as the level changes. To reduce the filtering and quicken the response, mode 7 or 8 should be changed.
MODE VALUE DESCRIPTION
7 0.125 Sets the sampling interval to a shorter time requirement, thus
decreasing the interval between samples from the default of 250 ms to 125 ms.
8 10 Decrease the samples averaged so that the DCR can respond
faster.
Example: Ignoring Intermittent Obstacles
To prevent agitators, splashing, or other intermittent objects from being detected even though they are occasionally in the ultrasonic detection beam:
MODE VALUE DESCRIPTION
9 40 Increase the Out-of-Range Samples before updating. If the
sample rate is set to 0.500 seconds, and mode 9 set to 40, then the DCR will require at least 40 * 0.5 or 20 seconds of readings outside of the filter window (Mode 10) before the display and outputs will recognize a new target.
10 0.3 ft. Reduce the filter window for good readings. This will help
qualify only echoes at the surface level. If the level changes rapidly, the average level indication may lag behind the actual level. If this occurs, the actual level may move outside the filter window if the window size is too small.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
15
DCR-1005 and DCR-1006 Rev. A4, 10/08
Outputs
The DCR-1005 and DCR-1006 contain 4 SPDT relays which are capable of handling a 10 amp load. These relays have programmable BEGIN and END points as well as TYPE of operation. The LED’s on the DCR indicate the status of the relays. The programming units must be the same as those displayed. i.e. If gallons are displayed the trip location should be set in gallons.
MODE DESCRIPTION PARAMETERS EXPLANATION
12 Begin Trip 1 Units = mode 1 Sets the begin point
Default = 2.5 ft. of Trip 1.
13 End Trip 1 Units = mode 1/mode 3 Sets the end point
Default = 2.9 ft. of Trip 1.
14 Trip 1 Type Range = 0 - 7 Selects the type of function
Default = 0 Trip 1 will perform.
See Trip Type Explanation for details.
15 Begin Trip 2 Units = mode 1/mode 3 Sets the begin point
Default = 3 ft. of Trip 2.
16 End Trip 2 Units = mode 1/mode 3 Sets the end point of
Default = 3.4 ft. of Trip 2.
17 Trip 2 Type Range = 0 - 7 Selects the type of function
Default = 0 Trip 2 will perform.
See Trip Type Explanation for details.
18 Begin Trip 3 Units = mode 1/mode 3 Sets the begin point
Default = 3.50 ft. of Trip 3.
19 End Trip 3 Units = mode 1/mode 3 Sets the end point
Default = 3.90 ft. of Trip 3.
20 Trip 3 Type Range = 0 - 7 Selects the type of function
Default = 0 Trip 3 will perform.
See Trip Type Explanation for details.
21 Begin Trip 4 Units = mode 1/mode 3 Sets the begin point
Default = 4.0 ft. of Trip 4.
22 End Trip 4 Units = mode 1/mode 3 Sets the end point of
Default = 4.40 ft. of Trip 4.
23 Trip 4 Type Range = 0 - 7 Selects the type of function
Default = 0 Trip 4 will perform.
See Trip Type Explanation for details.
16
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Off
On
Off
On
On
On
Off
Off
On
Off
On
Off
Off
On
Off
On
On
On
Off
Off
ZERO BEGIN END
Type 0: Near
Type 1: Exclusive
Type 2:
Type 3: Far
Type 4: Inclusive
Type 5: Hysteresis Far
Type 6:
Hysteresis Near
Trip Point Disable
loss of echo, or loss of power.
an error is detected in communication,
Type 7: Relay remains closed (trip light on) unless
NOTE: The Zero line represents the face of the sensor when operating in "Distance" mode and the bottom of the tank when indicating volume or level.
Rev. A4, 10/08 DCR-1005 and DCR-1006
Trip T ype Explanation
NOTE: TRIP END should always be a larger value than TRIP BEGIN.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
17
DCR-1005 and DCR-1006 Rev. A4, 10/08
Example: Relay Settings for Distance to Level
A 10 ft. deep lift station requires that a pump turn on when a level is closer than 6 ft to the DST . The pump must stay on until the level drops to 9 ft. from the DST. An alarm relay is to be energized under normal operation and should open for failure in power, communication, invalid readings, high level closer than 5 ft., or loss of echo.
To program the DCR-1005 and DCR-1006 for this application, the following modes must be set:
MODE VALUE DESCRIPTION
5 2.00 Do not set closer than the minimum distance recommended for
the DST sensor type being used.
12 6.00 Set the pump begin point at 6 ft. from the DST.
13 9.00 Set the pump end point at 9 ft. from the DST.
14 2 Use the hysteresis near type of gate to keep the pump on while
pumping the level down.
15 5.00 Begin the alarm trip point at 5 ft.
16 10.00 End the alarm trip point at 10 ft. because any reading greater
will indicate loss of echo or communication.
17 4 Any signal higher than 5 ft. or lower than 10 ft. will cause the
alarm relay to open.
Automation Products Group, Inc.
18
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
10 ft
4 ft
1 ft
6 ft
9 ft
Example: Relay Settings For Product Level rather than Distance to Level
A 10 ft. deep lift station requires that a pump turn on when a level reaches 4 ft. and stay on until the level drops to 1 ft. from the bottom of the station. An alarm relay is to be energized under normal operation and should open for failure in power, communication, invalid readings, high level above 5 ft., or loss of echo.
To program the DCR-1005 and DCR­1006 for this application, the following modes must be set:
MODE VALUE DESCRIPTION
3 2 Select Volumetric Monitoring for this application so the display
will indicate the distance from the tank bottom to the level.
5 2.00 Do not set closer than the minimum distance recommended for
the DST sensor type being used. 12 1.00 Set the pump begin point at 1 ft. from the bottom. 13 4.00 Set the pump end point at 4 ft. from the bottom. 14 5 Use the hysteresis far type of trip to keep the pump on while
pumping the level down. 15 0.00 Begin the alarm trip point at the bottom because any signal
below the zero point will indicate loss of echo or
communication. 16 5.00 End the alarm trip point at 5 ft. for high level alarm. 17 4 Any signal higher than 5 ft. or lower than 0 ft. will cause the
alarm relay to open. 28 1 Select a Flat Bottom Tank. 31 10 Distance from sensor to bottom of tank. The Controller subtracts
the measured distance from the T ank Span to display level.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
19
DCR-1005 and DCR-1006 Rev. A4, 10/08

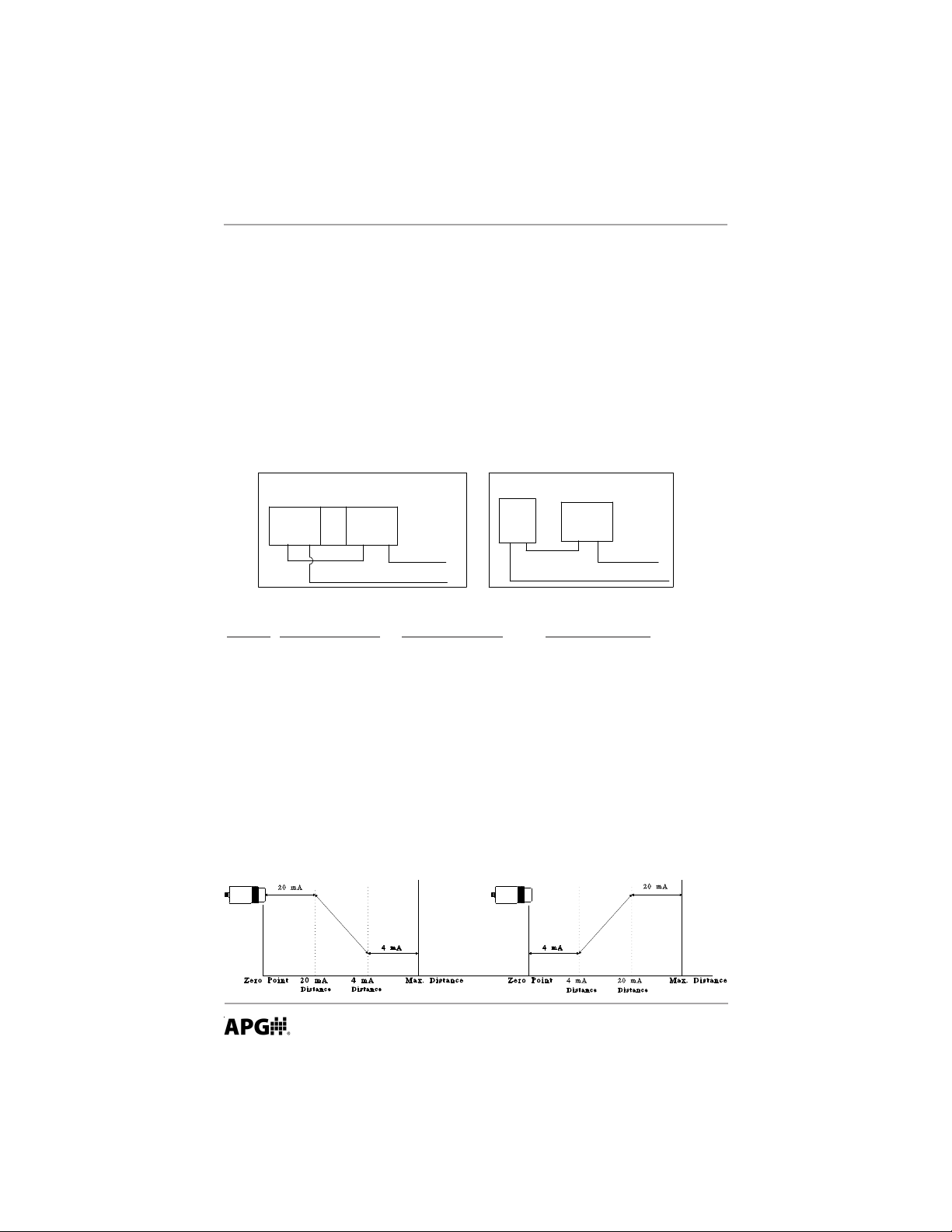

External Power Source
(-)
(+)
4-20(+)
4-20(-)
Isolated 4 to 20 ma output
24V
DIG
GND
4-20 ma output Analog Ground
Current sourcing 4 to 20 ma output
Analog Ground
4-20 ma output
4-20(+)
4-20(-)
Analog
The DCR-1006 has an Isolated 4-20 mA circuitry. To set up this feature, enter the two end points. For performing a distance to level measurement, the zero point of distance will be at the transducer and the 4-20 limits will be programmed in the same units as mode 1. For volumetric monitoring, the zero point will be at the empty point of the tank and the end points must be set in the units used in the volume measurement. Keep this in mind when referring to the diagram below. Remember that this circuit is Loop Powered. Power must be supplied to the 4-20 mA terminal for this feature to operate.
MODE DESCRIPTION PARAMETERS EXPLANATION
24 4 mA distance Units = mode 1 Sets the minimum value
Default = 3.00 ft. of the analog output slope
25 20 mA distance Units = mode 1 Sets the maximum value
26 4 mA calibration Approx. 5000 Fine tunes the minimum
27 20 mA calibration Approx. 5000 Fine tunes the maximum
20
Default = 4.00 ft. of the analog output slope
current sourced on the analog output
current sourced on the analog output
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Applications
The DCR Controller can be configured for two different types of
applications. They are:
• Distance: Measuring the distance to an object.
• Volume: Determining the volume, or level of a product in a tank.
DISTANCE
Measuring the distance to a target is the most basic application. The DCR
Controller will do this without any special settings.
Example: Distance Measurement
A batch plant operator needs a display to show the level of rock in a hopper
5 m deep.
To program the DCR for this application, the following values must be entered in the modes indicated. Many of them are the same as the preset values but are shown again for example purposes.
MODE VALUE DESCRIPTION
1 3 Set units to meters because the output is to be displayed in
meters.
2 .0 Change the display so that it will have a 10 cm resolution.
3 1 Select distance monitoring for application.
4 80 Adjust percent of sensitivity. (This would not apply for DST
sensor operating with Auto-Sense.)
5 0.60 Do not set closer than the minimum distance recommended for
the DST sensor type being used.
6 9 Set strength of transmit signal.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
21
DCR-1005 and DCR-1006 Rev. A4, 10/08
VOLUME
A very popular use for the DCR is to display for the amount of product in a tank. If tank type 0 is selected, the zero point is at the DST , and the display will show the distance to the product. Selecting tank type 1 is the most common setting for DCR this allows the display to show the level of the product in the tank. This setting would be used for any style of tank to indicate level, the zero point is moved to the bottom of the tank. It is also used for volume calculations of flat bottom tanks. If tank type 2 - 5 are selected, the zero point is the bottom of the tank, and the controller will compute product volume using the units selected in mode 1. These tank types are used only if a volumetric readout is desired.
MODE DESCRIPTION PARAMETERS EXPLANATION
28 Tank Type Range = 0 - 5
0 - distance to level 1 - level indication 2 - hzontal flat ends 3 - hzontal sphere ends 4 - spherical tank 5 - conical bottom Default = 0
Selects the type of tank to be monitored. Set by V-UP or V-DN Types 2-5 converts to volume using units selected in mode. If feet is the unit of measure then display will read cubic feet of product.
29 Constant Above Range = 0 - 9999
Decimal Point Default = 1 [Note: The relay and analog outputs must be programmed in the same units used here.]
30 Constant Below Range = .0000 - .9999
Decimal Point Default = .0000
31 Span Units = mode 1
Default = 12.00 ft.
32 Tank Length Units = mode 1
Default = 10.00 ft.
33 Length of Units = mode 1
Spherical Ends Default = 2.00 ft. or Cone
34 Tank Radius Units = mode 1
Default = 5.00 ft.
Automation Products Group, Inc.
22
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Sets the portion of the multiplier above the decimal point. Used for converting distance to volume or converting from one unit to another for example ft3 to gallons.
Sets the portion of the multiplier below the decimal point.
Sets distance from the transducer to bottom of the tank.
Sets the length of a horizontal tank or the length to a conical bottom.
Sets the length of the bottom cone or spherical ends (tank type 3 or 5)
Sets the radius of the cylinder (not used in tank type 0 or 1)
Rev. A4, 10/08 DCR-1005 and DCR-1006
Conversion Factors
It is often desirable to display a volume output in units of measurement other than cubic feet, inches, or meters. In order to do this you need to apply a conversion factor. For tank types 2-5 the conversion factor needs to be entered into modes 29- 30, and the DCR does the rest. For flat bottom tanks (type 1), the conversion factor needs to be multiplied by the area of the bottom of the tank, and the result entered into modes 29-30. This is only necessary for type 1 tanks.
Common Conversion Factors:
Cubic Feet (ft.3) x 7.4805 = Gallons Cubic Feet (ft.3) x 28.317 = Liters Cubic Inches (in.3) x 0.00433 = Gallons
Common Area Formulas (for use with type 1 tanks):
Area of a Circle = P x r
2
Area of a Square or Rectangle =
L x W
Gallons x 3.7854 = Liters
For each tank type, as shown below, values for modes 31-34 must be entered. If a mode is not indicated in the drawing, the value stored in that mode setting will be ignored. For example, if tank type 4 is selected in Mode 28, only Modes 31 and 34 will be used in calculations. Values in Modes 32 and 33 are ignored. It is not necessary to set unused Modes to 0.
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
23
DCR-1005 and DCR-1006 Rev. A4, 10/08
Example: Volumetric Setting for a Horizontal Cylindrical Tank
Gallons of diesel fuel need to be displayed in a horizontal cylindrical tank. The dimensions of the tank are 11 ft. span, 10 ft. length and a radius of 5 ft. To convert the volume (cubic feet) to gallons requires a multiplier of 7.4805. If relay and analog outputs were to be used, they must be programmed in gallons.
To program the DCR-1006 for this application, the following modes must be changed from their preset values.
MODE VALUE DESCRIPTION
1 2 Set units to feet.
2 0 Set the decimal to the right to prevent display overflow.
3 2 Select Volume Monitoring for application.
28 2 Set the tank type to 2 for horizontal tank.
29 7 Converting ft.3 to gallons, multiplier above decimal point.
30 4805 Converting ft.3 to gallons, multiplier below decimal point.
31 11.00 Set the distance from the DST to the bottom of the tank.
32 10.00 Set the length of the tank.
34 5.00 Set the tank radius of 5 ft.
Automation Products Group, Inc.
24
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Example: Volumetric Setting for a Vertical Cylindrical Flat Bottom Tank
Liters of DI water need to be displayed in a vertical cylindrical tank. The dimensions of the tank are 96 in. tall and 48 in. in diameter. In order to display the desired indication of liters a multiplier must be calculated. The multiplier is calculated based on the units selected in Mode 1. In this case it is inches (Mode 1 set to 1). If no multiplier is input the controller will display the distance in inches from the bottom of the tank. We will show how to program this application in 2 steps. First setting up the controller to display the level of the liquid in the tank, second showing how to convert that level indication to display in liters
To indicate the level of water in the tank, make the following adjustments:
MODE VALUE DESCRIPTION
1 1 Sets units to inches
3 2 Selects the operating mode to calculate level/volume 28 1 Selects the type of tank to be monitored. 31 96.0 Sets the distance from the transducer to the bottom of the tank.
This will display the level of water in the tank in inches.
To convert the read out so it displays the volume in liters we calculate the
volume per unit of measure. In this case, liter/inch.
The volume of a cylinder is calculated by the following formula:
(Pi)(R2)(H) = Volume in cubic inches Pi = 3.1415927 R = Radius of tank in this example 48 in./2 = 24 in. H = Height of the cylinder. We are concerned only about volume per
inch so H = 1
Inserting the radius into this equation - 3.1415927 x 242 x 1 = 1,809.216
cubic inches
Cubic inches are converted to liters by multiplying it by 0.01639. So, the multiplier is calculated by 0.01639 x 1,809.216 = 29.6530 liters/inch
MODE VALUE DESCRIPTION
2 0 Move decimal point all the way to the right 29 29 Multiplier above the decimal point 30 6586 Multiplier Below the decimal point
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
25
DCR-1005 and DCR-1006 Rev. A4, 10/08
Temperature Compensation
As air temperature changes, so does the speed of sound. This change can cause 0.18% drift in distance for every degree C change. Mode 35 allows compensation in the readings for this change. The DST contains an internal thermistor which measures temperature in degrees F. By turning temperature compensation on, the effects of temperature changes are be reduced.
For the DST temperature sensor to operate properly, it must be shielded from radiant heat. Because the temperature sensor is internal to the DST, it requires several minutes to react to air temperature changes.
MODE DESCRIPTION PARAMETERS
35 Temperature Range = 0 - 2
Compensation 0 = OFF
1 = ON 2 = Current Temp. Default = OFF
EXPLANATION
Selects internal temperature compensation for changes in the speed of sound, on, off, or view sensor temperature set by V-UP or V-DN.
Calibration
For most open air applications, the factory-set calibration should be correct. Variations between the distance measured by the DCR/DST System and the actual distance are caused by environmental conditions such as temperature, humidity, or chemical atmospheres. These environments can be compensated for by using a calibration factor which alters the reading to match the application conditions.
MODE DESCRIPTION PARAMETERS EXPLANATION
36 Distance Offset Units = mode 1
Range = 0.000 - 9999 Default = 0
37 Offset Polarity Range = 0,1
0 = Subtract 1 = Add Default = NEG
38 Calibration Range = 0 - 9999
Above the Default = 1 Decimal Point
Sets an offset for the display when measuring distance to a level.
Selects the direction of the offset. adds or subtracts offset to reading. Set by V­UP or V-DN.
Sets the integer portion of the calibration factor.
39 Calibration Range = .0000-.9999
Below the Default = 0 Decimal Point
Automation Products Group, Inc.
26
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Sets the fractional portion of the calibration factor
Rev. A4, 10/08 DCR-1005 and DCR-1006
Example: Calibration 1 Point Calibration
The Calibration Factor is used to bring the displayed reading in line with the measured distance. To obtain the measured distance, measure from the level to be detected to 0.5 in. behind the DST face. (0.5 in. behind the DST face is the electrical zero of the sensor.) The calibration factor is determined by dividing the actual distance measured, by the displayed distance. Enter this number in the calibration modes 38 and 39.
2 Point Calibration
If a more precise calibration is required, a two point calibration should be used. This is accomplished by using the linear equation of
Y = AX + B where;
Y = Measured distance X = DCR Reading A = Multiplier B = Offset
The multiplier (A) can be determined by taking ultrasonic readings at two known distances and dividing the difference of the known distances (D) by the difference of the ultrasonic (U) readings
(A) = (D2-D1)/ (U2-U1) where;
D2 = far known distance U2 = Ultrasonic reading at D D1 = close known distance U1 = Ultrasonic reading at D
2
1
Enter this multiplier in Modes 38 and 39. The multiplier can then be entered in the above equation to calculate the offset B = D2 - (A)U2. The offset should be entered using Modes 36 and 37.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Automation Products Group, Inc.
27
DCR-1005 and DCR-1006 Rev. A4, 10/08
Utilities
Input Select
Allows the customer to use either a DST type sensor or other APG sensors
with a pulse width output (digital) to drive the display .
MODE DESCRIPTION PARAMETERS EXPLANATION
40 Input Select Range = 0,1 Selects which type of
0 = DST Sensor sensor input to accept. 1 = Pulse Width Default = 0
Reset
When the DCR is powered up, ‘0’ is loaded in mode 41. This saves the user­selected modes into the DCR. If the mode adjustments get scrambled or if the factory preset values are wanted, press the V-UP. If “1” is entered into this mode, all of the parameters will be “RESET” to their factory defaults.
MODE DESCRIPTION PARAMETERS EXPLANATION
41 Reset Range = 0,1 Entering a 1 here will
Default = 0 reset the DST to its
factory default values.
Software Version
Mode 42 displays the software version for the DCR. The value corresponds to the operating version and the approximate date of manufacture.
MODE DESCRIPTION PARAMETERS EXPLANATION
42 Software Displays the software
Version version
Automation Products Group, Inc.
28
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Extended Range
Modes 43 - 44 allows the DCR to display ranges greater than 50 ft. These
modes are enabled only in DST’ s with extended range.
MODE DESCRIPTION PARAMETERS EXPLANATION
43 Range Range = 0,1 Some DSTs will allow a
Selection 0 = 1 - 35 ft. Range detection range of up to
1 = 1 - 72 ft. Range 72 ft. This parameter Default = 0 enables the DCR to
display that distance.
44 Maximum Range = 1 - 72 ft. This parameter works
Range Default = 35 ft. only with 72 ft. DSTs and
enables the user to limit the maximum distance.
AutoSense
Modes 45 disables or enables the AutoSense feature on selected models.
MODE DESCRIPTION PARAMETERS EXPLANATION
45 AutoSense Range 0,1 Sensors with the extended
0 = OFF range software can have 1 = ON the AutoSense feature Default = 0 disabled or enabled.
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
29
DCR-1005 and DCR-1006 Rev. A4, 10/08
• Quick Reference Sheet
MODE DESCRIPTION PARAMETERS
Operation
1 Units ________________________ 2 Decimal Point ________________________ 3 Operating Mode ________________________ 4 Sensitivity ________________________ 5 Blanking ________________________ 6 Pulses ________________________
Filtering
7 Sample Rate ________________________ 8 Samples Averaged ________________________
9 Out-of-Range Sample ________________________ 10 Out-of-Range Span ________________________ 11 Loss of Echo Delay ________________________
Relay
12 Begin Trip 1 ________________________ 13 End Trip 1 ________________________ 14 Trip 1 Type ________________________ 15 Begin Trip 2 ________________________ 16 End Trip 2 ________________________ 17 Trip 2 Type ________________________ 18 Begin Trip 3 ________________________ 19 End Trip 3 ________________________ 20 Trip 3 Type ________________________ 21 Begin Trip 4 ________________________ 22 End Trip 4 ________________________ 23 Trip 4 Type ________________________
30
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
MODE DESCRIPTION PARAMETERS
Analog
24 4 mA Distance ________________________ 25 20 mA Distance ________________________ 26 4 mA Calibration ________________________ 27 20 mA Calibration ________________________
Volume
28 Tank Type ________________________ 29 Mult Above ________________________ 30 Mult Below ________________________ 31 Span ________________________ 32 Tank Length ________________________ 33 Sphere. Length ________________________ 34 Tank Radius ________________________
Calibration
35 Temp Comp ________________________ 36 Distance Offset ________________________ 37 Offset Polarity ________________________ 38 Calibration Above ________________________ 39 Calibration Below ________________________
Utilities
40 Input Select ________________________ 41 Reset ________________________ 42 Software Version ________________________
Extended Range
43 Range Select ________________________ 44 Max. Range ________________________
Extended Range
45 AutoSense ________________________
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
31
DCR-1005 and DCR-1006 Rev. A4, 10/08
• Maintenance
The DCR-1005 /1006 controller and DST sensors do not require maintenance.
However, a periodic visual inspection of the system would be in order.
The DST should be kept as clean as possible for optimum performance. Dust buildup may be removed from the transducer with a cloth or by low pressure air. The DST housing can be cleaned with soap and water.
If the DST is visibly affected by the environment, a different type of transducer may be required.
32
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
• DCR Specifications
DCR-1005 DCR-1006
Outputs 4 relays (10 A 110 VAC) 4 relays (10 A 110 VAC)
with isolated 4-20 mA.
Supply Voltage 24 VDC or 110/220 VAC 24 VDC or 110/220 VAC
T otal Current 0.1 A 0.1 A Draw
Housing Poly-Carbonate Poly-Carbonate
Rating NEMA 4X, IP65 NEMA 4X, IP65
Dimensions (in.) 6.25 x 3.125 x 2.25 6.25 x 3.125 x 2.25
Resolution Maximum of 0.1 in. Maximum of 0.1 in.
(2.5mm) (2.5mm)
Display 4 character digital LCD 4 character digital LCD
24 VDC Output 200 mA current max. 200 mA current max.
Operating Temp -30 to 60°C -30 to 60°C
Sample Rate 10 sec to 80 msec. 10 sec to 80 msec.
Adjustments Programmable modes Programmable modes
Connector T erminal S trip T erminal Strip
Sensor Coaxial “F” connector or Coaxial “F” connector or Connector 2-conductor cable 2-conductor cable
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
33
DCR-1005 and DCR-1006 Rev. A4, 10/08
• DST Specifications
DST-1002 DST-2421
Application Wet corrosive Wet corrosive
Environments Environments
Operating Range (ft.) 1.5 to 35 1 to 25
Enclosure PVC PC/PET
Transducer Type Ceramic Ceramic Transducer Material PVC PVDF Ratings NEMA 6P/IP65 NEMA 4X
Approvals Class I, Div. 1 n/a Operating Temp -30 to 60°C -40 to 60ºC
Internal T emp Comp. Yes Yes Accuracy 0.25% of range 0.25% of range
Dimensions L x D (in.) 7 x 3.5 7 x 2.5 Beam Pattern 9° off axis 9° off axis
Standard Cable Coaxial RG-6 2-conductor
Automation Products Group, Inc.
34
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
• DST Specifications (continued)
DST-3431 DST-5111
Application Wet corrosive Wet corrosive
Environments Environments
Operating Range (ft.) 1.25 to 50 4 to 72 inch
Enclosure PC/PET PC/PET
Transducer Type Ceramic Ceramic Transducer Material PC/PET PVDF
Ratings NEMA 4X NEMA 6P/IP65 Approvals n/a n/a
Operating Temp -40 to 60°C -30 to 60ºC Internal T emp Comp. Yes Yes
Accuracy 0.25% of range 0.25% of range Dimensions L x D (in.) 7.5 x 3.5 4.5 x 3
Beam Pattern 9° off axis 9° off axis Standard Cable 2-conductor 2-conductor
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
35
DCR-1005 and DCR-1006 Rev. A4, 10/08
• DST Specifications (continued)
DST-9421
Application Dry stable
Environments
Operating Range (ft.) 0.5 to 35
Enclosure PC/PET
Transducer Type Electrostatic Transducer Material Gold-Kapton Ratings NEMA 12
Approvals n/a Operating Temp -40 to 70ºC
Internal T emp Comp. Yes Accuracy 0.25% of range
Dimensions L x D (in.) 5.5 x 2.5 Beam Pattern 9° off axis
Cable 2-conductor
AutoSense SOFTW ARE ~The AutoSense software is a built-in feature available with the DST sensor models listed above. It provides automatic sensitivity adjustment and is preferable in tank and level applications. Please use the above part numbers when ordering a DST with the AutoSense option.
Automation Products Group, Inc.
36
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Notes
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
37
DCR-1005 and DCR-1006 Rev. A4, 10/08
Notes
38
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com
Rev. A4, 10/08 DCR-1005 and DCR-1006
Notes
APG...Providing tailored solutions for measurement applications
Automation Products Group, Inc.
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
39
AUTOMATION
APG...Providing tailored solutions
for measurement applications
Automation Products Group, Inc.
T el: 1/888/525-7300 Fax: 1/435/753-7490
e-mail: sales@apgsensors.com
www.apgsensors.com
GROUP, INC.
1/435/753-7300
PRODUCTS
Automation Products Group, Inc.
1025 W. 1700 N.
Logan, UT 84321
Loading...
