APEX Digital AD500A User Manual

Download
1
APEX DIGITAL
AD-500A
Safety Precautions
The lightning flash with a arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NO T OPEN THE CABINET .
CAUTION: TO PREVENT ELECTRIC SHOCK,MA TCH WIDE BLADE OF PLUG T O WIDE SLOT, AND
FULLY INSERT .
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQ U' A U FOUD .
CAUTION: This Digital Video Disc Pla y er emplo ys a Laser System. To prevent direct exposure to the laser beam, do not
try to open the enclosure. Visible laser radiation when open and interlocks defeated. The use of control adjustments or the performance of procedures other than those specified may result in
hazardous radiation exposure.
DO NOTSTAREINTOBEAM.
To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location, or contact APEX Digital Inc. Only qualified service personnel should remove the cover.
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital de vice . Pursuant with the
FCC Rules, Part 15. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. WARNING: Changes or modifications made to this equipment, not expressly approv ed b y APEX or parties authorized by
APEX will void all the manuf acture warranties .
THE REGION CODE FOR THE UNIT IS 1.
Since it is very usual for DVD movies to be released at different times in diff erent regions of the w orld, all players ha ve region codes and disks can hav e an optional region code. If you load a disk of a different region code to your play er , y ou will see the region code notice on the screen. The disk will not play, and should be unloaded.
For Customer Use:
In spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.
Model No. Serial No.
Retain this information for future reference.
CLASS 1
LASER PRODUCT
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
RISQUE DE CHOC ELECTRIQUE NE
PAS OUVRIR
WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
!
2
APEX DIGITAL AD-500A
Important Safety Instructions
1. READ THE OWNER’S MANUAL - Follow all the operating
and installation instructions.
2. R
ETAIN INSTRUCTIONS - The safety and operating
instructions should be retained for future use.
3. P
AY ATTENTION TO WARNINGS - All warnings on the
appliances and in the operating instructions should be followed.
4. F
OLLOW INSTRUCTIONS - Follow all operating instructions
to achieve optimal use.
5. P
OWER SOURCES - This product should only be
operated from the type of power source indicated on the label.
6. H
EAT - This unit should be situated away from heat
sources, such as amplifiers, radiators, stoves or any other units producing heat.
7.W
ATER AND MOISTURE - Do not use this unit near water,
for example:near the kitchen sink, a bath tub, washbowl, laundry tub, swimming pool, or in a wet basement.
8. C
LEANING - Unplug the unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners directly on the unit. Use a damp cloth for cleaning.
9. CARTS AND STANDS - The unit and cart combination should be moved with care. Quick stops, excessive f orce and uneven surfaces may cause the unit and cart combination to overturn. The unit should be used only with a cart or stand recommended by the manufacturer.
10. P
OWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be walked on or pinched by items places upon or against them.
11. O
VERLOADING - Do not overload wall outlet, or
extension cords. This can result in a risk of fire or electrical shock.
12. D
ISC TRAY - Keep your fingers well clear of the disc
tray as it is closing. It may cause serious personal injury, or do damage to the machine.
13. W
EIGHT - Do not place a heavy object (amplifier,
receiver) on your DVD player. The object may fall, causing serious personal injury or death.
14. O
BJECT AND LIQUID ENTRY - Care should be taken so
that objects do not fall and liquids are not spilled into the units openings. Such situations could result in fire or electrical shock.
15. N
ON-USE PERIODS - The power cord of the unit should
be unplugged, when not in use for a long time.
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. PLEASE KEEP THIS MANUAL FOR FUTURE USE.
This product was designed and manufactured to meet strict quality and saf ety standards . The safeguards incorporated in this unit will protect you if you observe the f ollo wing procedures for installation, use, and service. There are how ever, some installation and operation precautions which you should be aware of.
3
APEX DIGITAL
AD-500A
Important Safety Instructions
16. DISC - Do not use a deformed, cracked, or heavily
scratched disc. Using these disc will limit your viewing pleasure, and/or may damage the internal workings of your machine.
17. L
IGHTING AND POWER SURGES - Use a power strip to
help eliminate surges and spikes caused by lighting and static electric charges.
18. P
OLARIZATION OR GROUNDING - Precautions should be
taken so that the polarization or grounding means of a unit is not defeated. To prevent electric shock match the wide blade of the plug to the wide slot of the outlet and fully insert. If the wide blade does not match up with the outlet try reversing the plug.
19. S
ERVICING - Do not attempt to service this unit
yourself. Only qualified APEX service technicians should work on your DVD Player.
20. D
AMAGE REQUIRING SERVICE - The unit should be
serviced by qualified APEX authorized specialist when:
A. The unit does not appear to operate normally or exhibits a marked change in performance.
B. When the power supply cord or plug is damaged.
C. If objects have fallen, or liquid has been spilled into the unit.
D. If the unit has been exposed to water or rain.
E. If the unit has been dropped or damaged in
any way.
21. SAFETY CHECK - Ask the service technician to perform safety checks upon completion of the unit.
22. W
ALL AND CEILING MOUNTING - The unit should be
mounted to a wall or ceiling only as recommended by the manufacturer.
4
APEX DIGITAL AD-500A
Introduction
Your DVD video player is a player for digital video discs conforming to the universal DVD video standard. With it, you will be able to enjoy full-length mo vies with true cinema picture quality, and stereo or multi-channel sound (depending on the disc, and on your playbac k setup). The unique features of this DVD video, such as selection of sound track and subtitle languages, and of diff erent camera angles (again depending on the disc), are all included. What’s more, Parental Control lets you decide which discs your children will be able to see.
You will find your player remarkably easy to use , b y way of the On­Screen Display (Setup Menu) and player display, in combination with the remote control.
UNPACKING
When shipping the DVD video player, the original shipping carton and packing comes in handy. For maximum protection, repack the unit as it was originally packed at the factory.
First check and identify the contents of your DVD video players package, as listed below:
- DVD video player
- Remote control handset with separately packed batteries
- Power cable
- RCA cables (3) (1 yellow, 1 red, and 1 white)
- Owner’s manual
- Size AAA batteries (2) If any item should be damaged or missing, please inform your supplier without delay. Keep the packaging materials, you may need them to transport your player in the future.
WHERE TO LOCATE Y OUR DVD
A. Place the unit on a firm, flat surface. B. When you place this DVD video player near a radio, or VCR, the playback picture may become poor and/or distorted. In this situation, move the DVD video player away from the other units. C. Keep away from direct sunlight & domestic heating equipment. D. If placed in a cabinet, please allow at least 2.5 cm (1 inch) of free space all around the player for proper ventilation.
TO OBTAIN A CLEAR PICTURE
The DVD video player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.
5
APEX DIGITAL
AD-500A
Table of Contents
Safety Precautions ........................... 1
Important Safety Instructions ........... 2 - 3
Introduction ........................................ 4
Identification of Controls .................... 6
DVD Display....................................... 7
Remote Control.................................. 8 - 9
Preparation before Operation ........... 10 - 11
Connecting to a TV using a RF Modulator
............................................................. 12 - 13
Basic Operation ................................. 14 - 15
Playing Disc in Various Ways ........... 16 - 25
Function Settings .............................. 26 - 31
Notes on Discs .................................. 32
Specifications ..................................... 33
Before Calling Service Personnel ...... 34
Memo ................................................ 35
Limited Warranty ................................ 36
6
APEX DIGITAL AD-500A
Identification of Controls
FRONT PANEL
REAR PANEL
1S-VIDEO OUT 2 COMPOSITE VIDEO OUT 3 COMPOSITE AUDIO OUT 4 COMPOSITE AUDIO OUT 5COAXIAL OUT 6POWER CORD INPUT
4
3
1
2
6
5
PAUS E RETURN
PLAY
PAUS E
STANDBY
PREV NEXT MENU P.B.C.
MIN MAX
/mp3
2
4
5
6
7
8
9 10
3
1POWER ON/OFF 2DISC LOADING TRAY 3DVD DISPLAY 4 OPEN/CLOSE 5PAUSE
6 PLAY 7STOP 8 RETUNR 9 NEXT
10 PREVIOUS
1
7
APEX DIGITAL
AD-500A
DVD Display
• Other indicators
When playing back the same title, chapter or
track repeatedly.
When playback is paused.
When playing back a specific segment repeatedly. (A-B repeat)
During memory playback. During shuffle playback.
When playing back the entire disc repeatedly.
When the camera angle can be changed.
The indicators vary depending on the kinds of discs you play. Push the DIMMER button, the brightness of the display is
reduced by half; push it once more, the display becomes dark. Push the button again, the display resumes brightness.
8
APEX DIGITAL AD-500A
Remote Control
17. DIGEST
18. TIME SEARCH
19. RESUME
20. REMAIN
21. ZOOM
22. SLOW PLAY
23. PAUSE/STEP
24. MENU
25. RETURN
26. REPEAT
27. A-B REPEAT
28. AUDIO MODE
29. SUBTITLE
30. MUTE ( )
31. LANGUAGE ( )
1. OSD
2. DIMMER
3. NUMBER BUTTONS
4. SEARCH
5. SETUP
6. TITLE
7. PLAY
8. PREV/NEXT
9. STOP
10. DIRECTIONS
11. SYSTEM
12. KEY CONTROL
13. VOLUME
14. OPEN/CLOSE
15. ANGLE ( )
16. PLAY MODE
THE INSTRUCTIONS IN THIS MANUAL DESCRIBE THE FUNCTIONS ON THE REMOTE CONTROL.
1 2
14 15
16 17
18 19 20 21 22
23 24
25
26
27 28
29 30 31
3
4
5 6
7 8
9
10
11
12
13
REMOTE CONTROL RC-210
9
APEX DIGITAL
AD-500A
Remote Control
Continued
1 2 3
Open the battery cover.
OPERATING WITH THE REMOTE CONTROL
Operating DVD video player with the remote control.
1
The remote control must point at the remote sensor, in order for the DVD player to function correctly. Make sure there is no barrier between them.
Distance: Maximum of 5 m from the front of the remote sensor. Angle: Approximately 30º from each direction.
*Please do not place the remote sensor towards any light source such as direct sunlight or illumination. The DVD video player will malfunction, if you do so.
Insert two batteries (AAA size).
Make sure to match the + and - on the batteries to the marks inside the battery compartment.
Close the battery cover.
NOTICE (BATTERIES)
PREPARING THE REMOTE CONTROL
To operate the DVD video player, you must first place the batteries into the remote control.
FOLLOW INSTRUCTIONS BELOW BECAUSE INCORRECT USE OF BATTERIES MIGHT CAUSE THEM TO LEAK OR CORRODE.
• Do not place the batteries in the wrong direction.
• It is dangerous to charge/heat/open or short-circuit the batteries.
• Do not leave dead batteries or mix old/new batteries in the remote control.
• When not using the remote control for a long duration of time, remove the batteries.
• When difficulties occur, with the remote control, or if the operating range becomes reduced, then replace the batteries.
• If leakage from the battery occurs, wipe the battery liquid from the batter y compar tment, then replace the batter ies.
• With normal usage the batteries should last one year.
NOTICE (REMOTE CONTROL)
• The remote control should be aimed directly towards the remote sensor of the DVD video player.
• Avoid dropping the remote control.
• Avoid spilling any liquids and/or extreme heat.
10
APEX DIGITAL AD-500A
1. If the TV has S-VIDEO input, please connect the unit and the TV with S-VIDEO cord (not supplied). You do not have to connect it to VIDEO. S-VIDEO will ensure clearer image.
2.You have to set the unit according to the TV to be connected.
• If the system of the TV is PAL, push SYSTEM and select PAL.
• If the system of the TV is NTSC , push SYSTEM and select NTSC.(NTSC is American standard.)
• If the system of the TV is AUTO (multi-system), push SYSTEM and select AUTO.
• Connect the unit to a wide-screen TV. Set the “TV DISPLAY” to “16:9 WIDE” in the function setting column.
• Connect the unit to an ordinary TV. Set the “TV DISPLAY” to “4:3/PS” or “4:3/LB” in the function setting column.
Preparation Before Operation
CONNECTIONS
Before preparing this unit for operation, make sure all equipments are turned off. The unit has several types of output modes like A/V output, S-VIDEO output, digital signal output (COAXIAL). You may select as needed.
CONNECTED TO A TV
11
APEX DIGITAL
AD-500A
CONNECTED TO AN ORDINARY AMPLIFIER
CONNECTED TO A RECEIVER WITH DOLBY DIGITAL/DTS DECODER
Preparation Before Operation
• This connection is for Analog Audio only.
WHAT IS VCD?
Size and shape of any regular music CD with the same digital audio, plus good video capability. It is a new video format that offers exceptional high-end digital picture quality and smoothness, over an hour of playing time, full CD-quality, stereo sound, and more. Using MPEG (Motion Picture Expert Group) compression (1:30), VCD’s offer picture quality that is far superior to the Quicktime movies you see on standard VHS tape.
Note:
The AD-500A DVD player will only play “Comercially”made VCD and SVCD’s. Apex does not now of any software that will produce VCD’s or SVCD on a PC or MAC.
DTS and DTS Digital Out are trademarks of Digital Theater System, Inc.
Manufactured under license from Dolby Digital Laboratories. Dolby and the Double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.
c
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
"
"
"
"
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission. DVD video discs are copy protected, and any recordings made from these discs will be distorted.
12
APEX DIGITAL AD-500A
Connecting to a TV using a RF Modulator
Connection 1
Figure 1
Connecting the TV to the DVD through the VCR
Note: Many VCRs will distort the picture of a DVD
player.This is NOT a malfunction of the DVD player or VCR.All DVD manufacturers are required to install macrovision copyright ciruritry to prevent copying via VCR.This is what causes the distor tion.
1) Connect the three-terminal composite video cable to the back of your Apex DVD player.This cable has three prongs, one each in yellow, red, and white.The yellow prong will go into the jack labeled "Video Out"; the white prong will go into the jack labeled "Front-L";the red prong will go into the jack labeled "Front-R".
2) Connect the opposite end of the composite-video cable into the back of the RF modulator. Make sure to match up the colors correctly.
3) Connect a coaxial cable from the "Antenna Out" jack on the back of your VCR to the "Antenna" jack on the RF modulator.The coaxial cable is the one­wire, metal-ended type that you screw onto the VCR.
4) Connect a coaxial cable from the "To TV" jack on the RF modulator to the jack on the back of your TV.
Many older televisions do not have the newer component-video, composite-video, or s-video connections that optimize DVD technology. While it would be advised to purchase a newer television in order to take full advantage of the digital quality of DVD’s, it is possible to connect an older television to a DVD player. This connection requires a device called an RF modulator.
First, it is necessary to ascer tain whether or not your TV needs a RF modulator. Look at the back of your TV. If you see three input connectors lined up in a row, in the colors of yellow, red, and white, then you will not need an RF modulator.If you see a connector labeled "s-video", then you will not need an RF modulator.If you do not have either of these connectors, then you will need to purchase an RF modulator from the store where you purchased your Apex Digital DVD player or other home electronics retailers.
Older televisions use a coaxial connection, which combines all of the video signal from an exterior source into a single line.This line is then translated by your TV into the picture you see.The RF modulator combines the output signals from the DVD player, or any other device, into the coaxial connection for use by your television.
Below are written and pictoral instructions on the proper way to connect an RF modulator to your Apex DVD player and your TV.
Note: Not all RF Modulators are compatible
with APEX Digital players. Please see our
website for recommendations.
5) Make sure your TV is set to the appropriate channel before using your DVD player.In most cases, this is channel 3 or 4.
DVD (Back)
AUDIO OUT
COAXIAL
TV / Video Input Conntection
VIDEO OUT
1
(V)
L
(L)
(R)
R2
TV /Audio Input Conntection
(L)
Your VCR (Back)
UHF/Antenna OUT
(R)
Coaxial
RF-Modulator
VTo TVAntennaRL
(V)
Your TV (Back)
UHF/Antenna IN
Coaxial
13
APEX DIGITAL
AD-500A
Connecting to a TV using a RF Modulator
Figure 3
Connection 3
Connecting the TV , DVD,VCR, and Cable or Satelite Box
1) Connect the three-terminal composite video cable to the back of your Apex DVD player.This cable has three prongs, one each in yellow, red, and white.The yellow prong will go into the jack labeled "Video Out"; the white prong will go into the jack labeled "Front-L";the red prong will go into the jack labeled "Front-R".
2) Connect the opposite end of the composite­video cable into the back of the RF modulator. Make sure to match up the colors correctly.
3) Connect a coaxial cable from the "Antenna Out" jack on the back of your cable or satellite receiver to the "Antenna In" jack on the back of your VCR. The coaxial cable is the one-wire, metal-ended type that you screw onto the VCR.
4) Connect a coaxial cable from the "Antenna Out" jack on the back of your VCR to the "Antenna" jack on the RF modulator.
5) Connect a coaxial cable from the "To TV" jack
Figure 2
Connection 2
Connecting the TV to the DVD through the Cable or Satelite Box
1) Connect the three-terminal composite video cable to the back of your Apex DVD player.This cable has three prongs, one each in yellow, red, and white.The yellow prong will go into the jack labeled "Video Out"; the white prong will go into the jack labeled "Front-L";the red prong will go into the jack labeled "Front-R".
2) Connect the opposite end of the composite­video cable into the back of the RF modulator. Make sure to match up the colors correctly.
3) Connect a coaxial cable from the "Antenna Out" jack on the back of your Cable or Satellite receiver to the "Antenna" jack on the RF modulator.The coaxial cable is the one-wire, metal-ended type that you screw onto the VCR.
Continued
4) Connect a coaxial cable from the "To TV" jack on the RF modulator to the jack on the back of your TV.
5) Make sure your TV is set to the appropriate channel before using your DVD player. In most cases, this is channel 3 or 4.
on the RF modulator to the jack on the back of your TV.
6) Make sure your TV is set to the appropriate channel before using your DVD player. In most cases, this is channel 3 or 4. Also make sure
that the VCR is set to the appropriate channel, as well.This selector is usually on the back of your VCR. Consult your VCR manual for further information.
DVD (Back)
Your TV (Back)
COAXIAL
TV / Video Input Conntection
VIDEO OUT
AUDIO OUT
1
(V)
L
(L)
(R)
R2
TV /Audio Input Conntection
RF-Modulator
VTo TV AntennaRL
(L)
(R)
Your Cable/Satelite Box
INOUT
(V)
UHF/Antenna IN
Coaxial
To your Cable/Satelite connection
(Back)
AUDIO OUT
COAXIAL
L
1
R2
VIDEO OUT
(V)
TV /Audio Input Conntection
Your Cable/Satelite Box
(L)
(R)
TV / Video Input Conntection
INOUT
(L)
Your TV (Back)
UHF/Antenna IN
Coaxial
RF-Modulator
VTo TV AntennaRL
(V)
(R)
Your V CR (Back)
UHF/Antenna OUT
Coaxial
IN
OUT
To your Cable/Satelite connection
14
APEX DIGITAL AD-500A

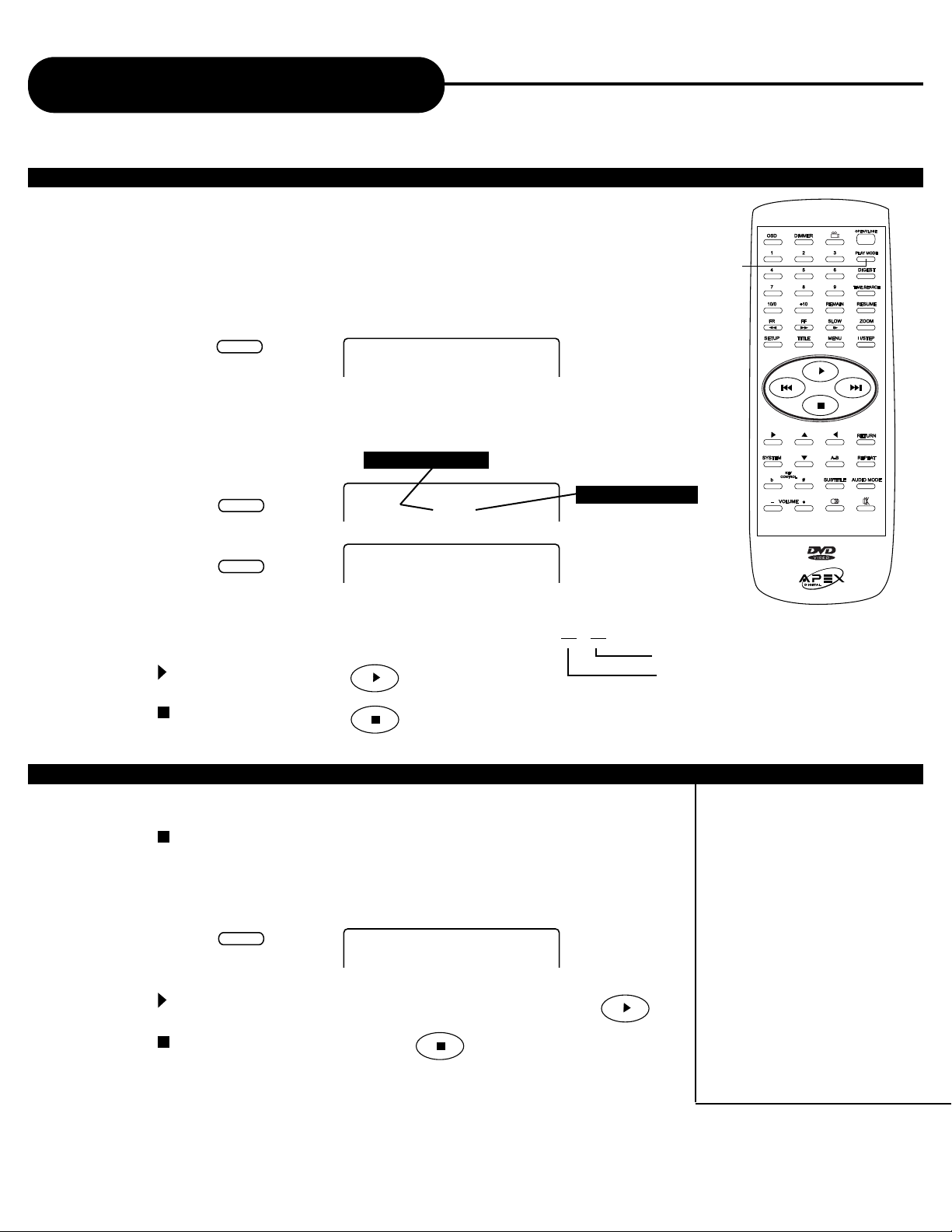

Basic Operations
TV/AUDIO SELECTION
Press POWER on the TV and audio system.
1. Press “TV/VIDEO” on the TV, select VIDEO mode (TV).
• Select S-VIDEO mode to connect to S-VIDEO (if available).
2. Select the correct audio input on the receiver.
• Each receiver is different from another, please refer to the manual of the receiver. (e.g., connect the audio output of the DVD to audio input of the receiver.)
Note: This step can be cancelled if you do not connect it to the receiver.
1. Press the POWER button to turn on the unit.
2. Press to open the disc tray and load a disc with the label side up.
3. Press again to close the disc tray. The unit begins to read the disc.
4. Press to play the disc.
After step 4 is finished:
• PLAY DVD
The TV Screen shows DVD menu and title menu.
• PLAY SUPER-VCD, VCD 2.0
The TV Screen shows the menu, the unit enters PBC status.
• PLAY CD,VCD 1.1
Press , the unit plays the disc according to the track numbers.
5. Press to stop playback.
• You have to push this button twice to stop the playback properly.
6. Remove the disc and power off the unit.
DOLBY
D I G I
T A L
TV/VIDEO
DVD/LD
PLAY DISCS
DOLBY
D I G I
T A L
15
APEX DIGITAL
AD-500A
1. If the system of the TV is PAL:
Press SYSTEM and select PAL.
Basic Operations
SYSTEM SETTING
According to the system of the TV to be connected, set the system of the unit to make it match the TV.
PAUSE
Press STEP.
• When playing pictures:
If the pictures of D VD and VCD are play ed, press STEP to make pla ybac k pause . The unit enters step play status. Press STEP again, the unit plays a frame forward.
• When playing music CD:
Press STEP to make playback pause. Press STEP again to resume playback.
The screen shows:
PAL
2. If the system of the TV is NTSC:
Press SYSTEM and select NTSC.
The screen shows:
NTSC
3. If the system of the TV is multi­system:
Press SYSTEM and select AUTO.
The screen shows:
AUTO
Note: SYSTEM button works only with DVD, SUPER-VCD and VCD discs.
OSD
When the unit is operated, the TV screen shows the operation functions and information about the disc.
Press OSD to select. OSD OFF
SYSTEM SYSTEM
SYSTEM
OSD
OSD
STEP
VOLUME
Continued
VOLUME CONTROL
Press VOLUME on the TV or amplifier to adjust the volume or press VOLUME on the remote control.
1. Press + to raise the volume.
2. Press - to lower the volume.
Note: Volume control will not be available on Digital Audio output (SPDIF/RAW or SPDIF/PCM).
+ -
Note: most U.S. manufactured TV’s are NTSC
REMOTE CONTROL RC-210
16
APEX DIGITAL AD-500A
PBC PLAY (PBC - PLAY BACK CONTROL)
When playing a SUPER-VCD, VCD 2.0, you can enjoy the basic interactive function. Example: VCD 2.0
1. Press , the screen shows the home menu.
2. Press number buttons to select.
Example: select home menu 1.
3.The screen shows the sub-menu after the unit enters home menu 1.
4. Press or to see the previous or next page.
5. Press number buttons to select sub-menus.
Example: Press number button 5, the unit plays track.
6. Press RETURN to return to the sub-menu, press it again to retur n to the home menu.
12. ................
13. ................
14. ................
15. ................
16. ................
. . . . .
Basic Operations
ROOT MENU 1. ................
2. ................
3. ................
4. ................
5. ................
. . . .
11. ...............
ROOT MENU 12. ................
13. ................
14. ................
15. ................
16. ................
. . . . .
ROOT MENU
+10 3
TITLE
1
5
MENU
TITLE
MENU
SELECT 01
1. .................
2. .................
3. .................
1. .................
2. .................
3. .................
4. .................
5. .................
1. .................
2. .................
3. .................
4. .................
5. .................
DVD MENU PLAY
Some DVDs have title menus and chapter menus. Press , the screen shows the menu. Press or to see the next page, select with number buttons and direction buttons.
1. Press to enter the next menu.
2. Press number buttons to select directly.
Example: select track 13.
You can also do as follows:
1. Press to select track 13.
Press TITLE once to return to the title menu; press it again to return to the current playback.
Press MENU once to return to the root menu; press it again to return to the current playback.
+
REMOTE CONTROL RC-210
17
APEX DIGITAL
AD-500A
Basic Operations
SELECT WITH NUMBER BUTTONS
Load a disc. Press number buttons to select tracks after the unit finishes reading the disc.
1. If the track number is less than 10, just push buttons 1-10.
Example: push 8 to select track 8.
2. If the track number is over 10, press +10 once and a button among 1-10.
Example: if you select track 12, press +10 once and button 2.
TRACK08 00:21
8
+10 2
The screen shows:
TRACK12 00:00
The screen shows:
+
The screen shows:
MUTE
MUTE OFF
MUTE
When playing a disc, this function can remove the sound.
1. REMOVE SOUND Press MUTE, the screen shows “MUTE”.
2. RESUME SOUND Press MUTE again, the screen shows “MUTE OFF”.
Continued
18
APEX DIGITAL AD-500A

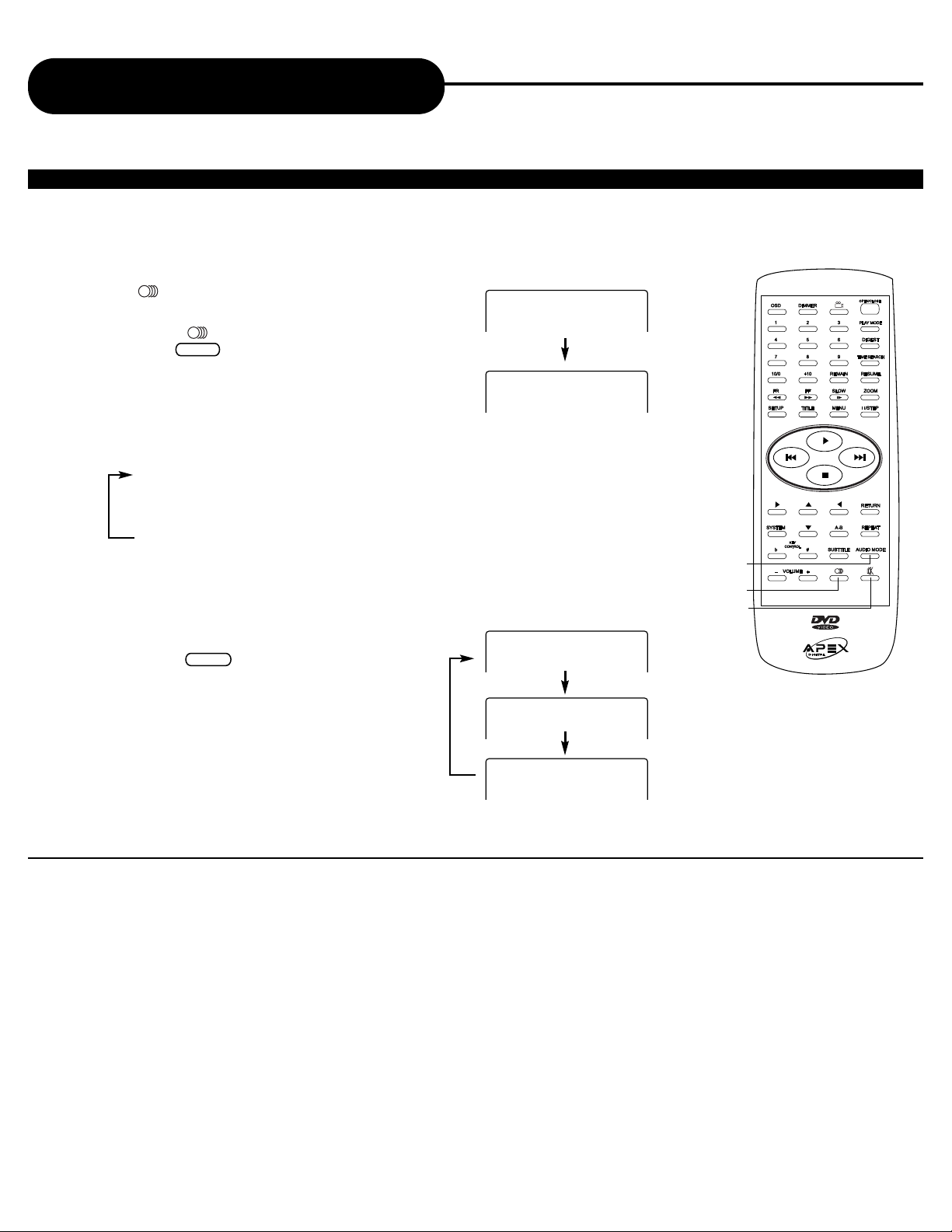

Play Discs in Various Ways
AUDIO MODE
You may select a needed language from a multi-language DVD and SUPER-VCD. You may select the right channel, left channel, or stereo from a multi-channel CD or VCD.
WHEN PLAYING DVD
Press , the screen shows orderly:
Different discs differ in languages.
1 AUDIO 1/4:MPEG 2CH ENGLISH 2 AUDIO 2/4:MPEG 2CH SPANISH 3 AUDIO 3/4:MPEG 2CH FRENCH 4 AUDIO 4/4:MPEG 2CH CHINESE
AUDIO 1/4:AC-3 2CH ENGLISH
AUDIO 2/2:AC-3 2CH SPANISH
WHEN PLAYING VCD OR CD
Press AUDIO MODE, the screen shows orderly:
MONO L
STEREO
MONO R
AUDIO MODE
NOTICE
• Different discs differ in language.
• As to a two-language function VCD, you may push AUDIO MODE to select a needed language.
• AUDIO MODE works when playing a SUPER-VCD, you may select mono channel (left or right) or stereo.
You may select one mode.
AUDIO MODE
MUTE
LANGUAGE
REMOTE CONTROL RC-210
19
APEX DIGITAL
AD-500A
Continued
Play Discs in Various Ways
FAST PLAY
When playing a disc, you may play it forward fast or reverse it fast to find what you need.
SLOW PLAY
Enjoy slow motions by the following steps.
WHEN PLAYING DVD
1. Press to play slowly. Each time you press the button, the screen shows orderly:
2. Press to play normally.
WHEN PLAYING SUPER-VCD OR VCD
1.Press to play slowly. The unit has three steps for slow play. Each time you press the button, the screen shows orderly:
2. Press to play normally.
WHEN PLAYING DVD
1. Press to play forward fast. Each time you press the button, the screen shows orderly:
2. Press to reverse the disc fast. Each time you press the button, the screen shows orderly:
3. Press to switch to normal play while FF or FR playing.
FF 2X FF 4X FF 6X FF 8X PLAY
FR 2X FR 4X FR 6X FR 8X PLAY
WHEN PLAYING SUPER-VCD OR VCD
1. Press to play forward fast. Each time you press the button, the screen shows orderly:
2. Press to reverse the disc fast. Each time you press the button, the screen shows orderly:
3. Press to switch to normal play while FF or FR playing.
FF 1X FF 2X FF 3X FF 4X PLAY
FR 1X FR 2X FR 3X FR 4X PLAY
SF 2X SF 4X SF 6X PLAY
SF 1X SF 2X SF 3X PLAY
WHEN PLAYING CD
1. Press to play forward fast.
2. Press to reverse the disc fast.
3. Release or to play normally.
20
APEX DIGITAL AD-500A
Play Discs in Various Ways
REPEAT PLAY
This function can be used to repeatedly play a title, chapter, track, disc or some part on a disc.
WHEN PLAYING DVD
You may repeat a title or chapter.
1. Repeat a chapter Press REPEAT, the screen shows:
2. Repeat a title Press REPEAT, the screen shows:
3. Remove “REPEAT” function Press REPEAT, the screen doesn’t show character referring to REPEAT.
REPEAT
CHAPTER REPEAT
TITLE REPEAT
REPEAT
REPEAT
REPEAT
WHEN PLAYING SUPER-VCD,VCD, CD
You may repeat a track, a disc according to the following steps. VCD 1.1 and CD can play repeatedly directly. Super VCD and VCD 2.0 can play repeatedly in PBC OFF mode. After the unit stops, press number buttons directly to select tracks.
1. Repeat a track Press REPEAT, the screen shows “REPEAT ONE”. The unit plays the current track.
2. Repeat a disk Press REPEAT, the screen shows “REPEAT ALL”. The unit plays all the tracks on the disc.
3. Remove “REPEAT” function Press REPEAT until “REPEAT OFF” display on TV screen.
REPEAT
REPEAT
REPEAT
REPEAT ONE
REPEAT ALL
REMOTE CONTROL RC-210
21
APEX DIGITAL
AD-500A
Continued
Play Discs in Various Ways
SELECT SUBTITLES
When playing a multi-subtitle DVD or SUPER-VCD, you ma y select one subtitle to show it on the screen.
WHEN PLAYING DVD
1. Press SUBTITLE to select one.
2. Remove the subtitle Press SUBTITLE until the screen shows “SUBTITLE OFF”.
WHEN PLAYING SUPER-VCD
A super-VCD has only four channels for recording, so it has four subtitles at the most. Press SUBTITLE, the screen shows orderly:
You may select a subtitle as you need. Some discs may not have “SUBTITLE OFF” function.
SUBTITLE
The screen shows:
SUBTITLE 1/03
SUBTITLE
SUBTITLE 01
SUBTITLE 02
SUBTITLE 03
SUBTITLE 04
SUBTITLE OFF
NOTICE
• For some discs, subtitles can not be removed.
• Different discs differ in the language of subtitles.
• If the subtitles of discs can not be selected, press SUBTITLE, the screen shows “NO SUBTITLE”.
WHEN PLAYING SUPER-VCD,VCD, CD
1. Set a star ting point A by pressing A-B.
2. Set an ending point B by pressing A-B again. Afterwards, the unit plays from point A to point B.
3. Press REPEAT until “REPEAT AB” disappeared to cancel this function.
REPEAT SOME PARTS
You may press A-B to enjoy some parts repeatedly when playing a disc.
REPEAT
A-B
A-B
The screen shows:
REPEAT A
REPEAT AB
SUBTITLE
A-B
REMOTE CONTROL RC-210
22
APEX DIGITAL AD-500A
Play Discs in Various Ways
SELECT ANGLES
Some discs have images with different screen angles, you may select among them. For example, when you watch a running train, you may watch it from the front, the left window or the right window without stopping it.
Example: A DVD has four screen angles at your option.
1. Press to select ANGLE 1.
2. Press to select other angles, the screen shows respectively:
3.To resume normal playback, press until these is no display on the screen.
TIME SEARCH
You may directly enter a time, title or chapter number to search fast on a disc, the unit plays from that point.
WHEN PLAYING DVD
1. Search a title or a chapter
Example: Search chapter 2 in title 6.
• Press TIME SEARCH.
• Press the left or right button and move the cursor to illuminate the title number.
• Press button 6 to select title 6.
• Repeat the steps above, then select chapter 2 in title 6.
2.Time Search
• Press TIME SEARCH until the screen shows:
• Press number buttons to enter hour, minute, and second.
Example: Enter 0, 1, 0, 2, 3, 8. After the setting, the disc is displayed from 01:02:38.
• Press OSD button to remove text from the screen.
ANGLE
TIME SEARCH
The screen shows:
1/4
The screen shows:
2/4
3/4
4/4
TIME SEARCH
TITLE 03/30 CHAPTER 00 /04
TITLE 03 /30 CHAPTER 00 /04
TITLE 06/30 CHAPTER 00 /04
TIME : :
6
REMOTE CONTROL RC-210
23
APEX DIGITAL
AD-500A
Continued
Play Discs in Various Ways
WHEN PLAYING SUPER-VCD,VCD, CD
To jump to a specific time, use TIME SEARCH to set the time f or the desired location.
Example: Play from 00:01:38 of track 6.
1. Press button 6 to select track 6.
2. Press TIME SEARCH.
3. Press button 0, 1, 3, 8 to enter the time.
• The unit plays from 00:01:38 of track 6 after setting.
• Press 0/10 to enter 0.
The screen shows:
TRACK 06 00:00
TRACK 06 GO TO _ _ : _ _
TRACK 06 GO TO 01:38
TIME SEARCH
0:56:45 TITLE REMAIN
0:01:02 CHAPTER ELAPSED
0:05:58 CHAPTER REMAIN
REMAIN
REMAINING TIME
This function can be used to know the remaining time of a title, chapter, track or disc.
WHEN PLAYING DVD
1. Press REMAIN, the screen shows the remaining time of the title.
2. Press REMAIN again, the screen shows time of the chapter.
3. Press REMAIN third time, the screen shows the remaining time of the chapter.
4. Press REMAIN fourth time, the screen resumes to normal play mode.
WHEN PLAYING SUPER-VCD,VCD, CD
Example: Check the remaining time when playing track 2.
1. Press REMAIN, the screen shows the remaining time of the track.
2. Press REMAIN again, the screen shows the remaining time of the disc.
3. Press REMAIN once more, the screen shows the previous playing time.
REMOTE CONTROL RC-210
TIME SEARCH
REMAIN
TRACK 02 04:23 SINGLE REMAIN
TRACK 02 33:23 TOTAL REMAIN
TRACK 02 01:02
REMAIN
24
APEX DIGITAL AD-500A
ZOOMING A PICTURE
This function can be used to watch a motion or motionless picture.
WHEN PLAYING DVD, SUPER-VCD,VCD
1. Press ZOOM.
The picture is enlarged two times.
2. Press ZOOM again.
The picture is enlarged four times as big.
3. Press / / / to shift the enlarged picture.
4. To resume the picture, push ZOOM until the screen shows “ZOOM OFF”.
RESUME PLAY
The unit can memorize the last point where it stops and resumes playback from there.
1. Press to stop playing.
2. Press RESUME to resume playback.
Notes:
1.This function can not work in SHUFFLE mode.
2.The recorded location is erased when the disc is changed or when the power is turned off.
Play Discs in Various Ways
ZOOM X2
ZOOM X4
zoom
RESUME
REMOTE CONTROL RC-210
ZOOM
RESUME
25
APEX DIGITAL
AD-500A
PROGRAM PLAY
You may program the tracks on a disc and play them in the programmed order.
WHEN PLAYING DVD, SUPER-VCD,VCD, CD
1. After the unit stops, push PLAY MODE to select.
2. Using the numbered button, select the items you want in the order you want them programmed in.
Example: Press 2, 4, 6, 8.
Notes: P
* *:* *
3. Press to star t playing.
4. Press twice to stop.
SHUFFLE PLAY
The unit can play by random orders. The order is different each time.
1. Press to stop playing. (You need to push the button twice for a DVD.)
2. Press PLAY MODE to select a random order.
3. Press to star t shuffle play. The unit selects a track to play.
4. Press twice to remove shuffle play.
Continued
Play Discs in Various Ways
The screen shows:
PROGRAM
P00:00
PROGRAM
P01:02
REMOTE CONTROL RC-210
PLAYMODE
PLAY MODE
The screen shows:
SHUFFLE
PLAY MODE
2
PROGRAM
P04:08
8
title (chapter) number program order
Track 2 on your CD
Program Position 1
About the +10 Key:
To select tracks 10 and above, use the “+10” key and additional numbered keys to go the sum of the keys choosen position.
Example: go to track 12, press the “+10” Key and the number 2 Key to equal 12.To go to track 20, press the “+10” Key twice and so on.You can program up to 99 items into the memory.
26
APEX DIGITAL AD-500A
DIGEST PLAY
This function can be used to look through the content of the track or a disc.
WHEN PLAYING DVD
1. Press DIGEST after the unit stops.
The unit begins to look through the titles (or chapters), and shows the starting pictures of each title (or chapter) on the screen.
Each page has nine pictures and their location may be different.
2. Press or to look at the previous or next page.
3. Press twice to remove digest.
WHEN PLAYING SUPER-VCD
1. Press DIGEST after the unit stops.
Play Discs in Various Ways
REMOTE CONTROL RC-210
DIGEST
The screen shows:
DIGEST
DIGEST
The screen shows:
1. INTRO
2. DISC DIGEST
3.TRACK DIGEST
4. EXIT SELECT
PLAY MODE
12 3 45 6
78 9
27
APEX DIGITAL
AD-500A
2. Press number buttons to select a digest mode.
• Press button 1 for INTRO.
The unit plays the first ten seconds of each track one after another.
• Press button 2 for DISC DIGEST.
The unit shows ten starting pictures of all the tracks on the screen simultaneously.
If the track number is more than 9, press to view the next page. Press number buttons to select a track.
• Press button 3 forTRACK DIGEST.
Press to select a track.
Example: You may select to look through track 3.
The unit divides track 3 into nine parts and shows the starting pictures of each par t on the screen.
• Press button 4 to exit from DIGEST PLAY.
3. Press to remove DIGEST PLAY.
Notice: A CD only has “INTRO”function.
1
2
3
The screen shows:
TRACK DIGEST 3
12 3 45 6
78 9
Continued
Play Discs in Various Ways
28
APEX DIGITAL AD-500A
Function Settings
29
APEX DIGITAL
AD-500A
Function Settings
Continued
30
APEX DIGITAL AD-500A
Function Settings
31
APEX DIGITAL
AD-500A
Function Settings
Continued
PREFERENCES
AUDIO >> ENGLISH
FRENCH SPANISH CHINESE JAP ANESE
SUBTITLE >> ENGLISH
FRENCH SPANISH CHINESE JAP ANESE OFF
DISC MENU >> ENGLISH
CHINESE FRENCH SPANISH JAP ANESE
32
APEX DIGITAL AD-500A
Function Settings
The setting structure is:
PASSWORD MODE
• ON: The password works, “PREFERENCES” is dim and can not be selected.
• OFF: The password is locked. “PREFERENCES” can be selected.
PASSWORD CHANGE
Select this to adapt the code, the screen shows:
Enter a password according to the screen.
Notes: The preset password is 99999 .
PASSWORD SETUP
-- PASSWORD SETUP PAGE -­PASSWORD >> CHANGE PASSWORD MODE >> ON
OFF
-- PASSWORD CHANGE PAGE -­OLD PASSWORD NEW PASSWORD CONFIRM PASSWORD
33
APEX DIGITAL
AD-500A
Function Settings
Continued
PREFERENCES
COUNTRY/REGION >> CHINA
FRANCE JAP AN GBR USA
PARENTAL >> 1. KID SAFE
2. G
3. PG
4. PG 13
5.
6. PG-R
7. NC-17
DEFAULTS >> RESET
SELECT LANGUAGE
If a language mentioned above is recorded on the disc, y ou can select sounds, subtitles or disc men u language. If not, the language recorded on the disc is shown.
PARENTAL
When playing disc with parent lock function, you may select an age control grade according to grade of disc and your desire. Example: Select “PG”, you cannot play DVD discs rated higher than the PG grade.
DEFAULT>>RESET
Each function setting returns to the initial status in the factory if you select this.
Notes:
• “PREFERENCES” only can be selected in password OFF and the tray is open after the unit go into stop mode.
• PREFERENCES function works only with DVD discs.
34
APEX DIGITAL AD-500A
Notes on Discs
HOW TO HANDLE, CLEAN, AND STORE DISCS.
HANDLING DISCS
• Do not touch the playback side of the disc.
• Do not attach paper or tape to discs.
CLEANING DISCS
• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean.
• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as a thinner, benzine, commercially available cleaners or anti-static spray for vinyl LP’s. It may damage the disc.
STORING DISCS
• Do not store discs in places subject to direct sunlight or near heat sources.
• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.
• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.
ABOUT THIS OWNER’S MANUAL
This owner’s man ual e xplains the basic instructions of this DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD video player may not respond to all operating commands. Refer to instruction notes of disc.
PLAYABLE DISCS
This DVD video player can play back the following discs.
NOTES ON REGIONAL NUMBERS
The region number of this DVD video player is 1. If region numbers, which stand for their playable area, are printed on your DVD video disc, make sure the disc plays region 1 or
ALL .Otherwise playback will not be allowed by the player (In
this case, the DVD video player will display the message.)
NOTES ON COPYRIGHT
It is forbidden by la w to cop y, broadcast, show , broadcast on cable, play in public, and rent copyrighted material without permission.
DVD video discs are copy protected, and any recordings made from these discs will be distorted.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
TYPE OF TV SYSTEM
Connect this DVD video player to a TV compatible with PAL/3.58 NTSC system.
DVD video disc
Audio +
Video
(moving
pictures)
Audio +
Video
(moving
pictures)
Audio
12 cm
8 cm
12 cm
12 cm
8 cm
(CD single)
VIDEO CD
Audio CD
Super-VCD
Disk Mark Contains Disc Size Maximum playback time
8 cm
Approx. 4 hours
(double sided disc)
Approx. 80 mins.
(single sided disc) Approx. 160 mins.
(double sided disc)
Approx. 74 minutes
Approx. 20 minutes
Approx. 74 minutes
Approx. 20 minutes
Approx. 2 hours
(single sided disc)
Super­VCD
Audio +
Video
(moving
pictures)
12 cm
Approx. 45 minutes
35
APEX DIGITAL
AD-500A
Video output 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1 S video output (Y) 1.0 V (p-p), 75 Ω negative sync., Mini DIN 4-pin x 1
(C) 0.286 V (p-p), 75 Ω Audio output (digital audio) 0.5 V (p-p), 75 Ω, pin jack x 1 Audio output (analog audio) 2.0 V (rms), 330 Ω, pin jack(L,R) x 1
OUTPUTS
Specifications
DVD VIDEO PLA YER/OUTPUTS/SUPPLIED ACCESSORIES
Power supply 120V AC 50 or 60 Hz Power consumption 20VA Mass 3.3 kg External dimensions 430 x 81 x 300 mm (W/H/D) Signal system MULTI/NTSC/PAL Laser Semiconductor laser, wavelength 650 nm
DVD VIDEO PLA YER
Audio cable (red and white) 1 pair Remote control 1 Batteries (AAA) 2 Video cable (yellow) 1 S-Video cable 1 Power cord 1
SUPPLIED ACCESSORIES
36
APEX DIGITAL AD-500A
Before Calling Service Personnel
Check the following guide for the possible cause of a problem before contacting service.
SYMPTOMS AND CORRECTION
Symptom
No power No picture
No sound
The playback picture has occasional distortion
Brightness is unstable or noises are produced on playback pictures
The DVD video player does not start playback
Buttons do not work
The remote control does not work properly
Picture Rolling/Vertical hold (VCR Tracking offset)
Cause
• The power plug is disconnected
• The TV is not set to receive DVD output
• The video cable is not connected securely
• The equipment connected with the audio cable is not set to receive DVD signal output.
• The audio cables are not connected securely.
• The power of the equipment connected with the audio cable is turned off.
• The setting of output sound type is not correct.
• The disc is dirty.
• It is in fast forward reverse playback.
• The copy protection’s effect.
• No disc is inserted.
• An unplayable disc is inserted.
• The disc is placed upside down.
• The disc is not placed within the guide.
• The disc is dirty.
• A menu is on the TV screen.
• The parental lock function is set.
• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operations.
•The remote control is not pointed at the remote sensor of the DVD video player.
•The remote control is too far from the DVD video player.
•The batteries in the remote control are exhausted.
Your TV display is set to PAL and not to NTSC.
Correction
• Connect the power plug into the wall outlet securely.
• Select the appropriate video input mode on the TV so the picture from the DVD video player appears on the TV screen.
• Connect the video cable into the jacks securely.
• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD video player.
• Connect the audio cable into the jacks securely.
• Turn on the equipment connected with the audio cable.
• Set the audio setting correctly.
• Eject the disc an clean it.
•Sometimes a small amount of picture distortion may appear. This is not malfunction.
• Connect the DVD video player to the TV directly.
• Insert a disc. (Check that the DVD or VCD or audio CD indicator in the DVD displays is lit.)
• Insert a playback disc. (Check the disc type and color system).
• Place the disc with the playback side down.
• Place the disc on the disc tray correctly inside the guide.
• Clean the disc.
• Press the SETUP button to turn off the menu screen.
• Cancel the parental lock function or change the parental lock level.(The Pre-set password is 3308.)
• Turn the power on or off with the POWER button. Or disconnect the power plug and insert it into the wall outlet again.
• Check each button on the remote, make sure it is in normal position.
• Point the remote control at the remote sensor of the DVD video player (left side).
• Operate the remote control within about 11” - 20”.
• Replace the batteries with new ones.
You will need to press the P/N button on the remote control until NTSC is displayed on the TV screen.
37
APEX DIGITAL
AD-500A
TYPE OF DISC HOW TO ENJOY
VIDEO CD without PBC Audio and movie can be played back by operating the unit in the (VERSION 1.1) same way as the audio CD.
VIDEO CD with PBC In addition to the operation of the VIDEO CD without PBC, you can (VERSION 2.0) enjoy a playback with interactive software and software with search
function by using the menu displayed on the TV screen (Menu
Playback). Some of the functions described in this manual may not
work in some discs.
DVD Video Discs VCD CD
Sound recording system
Audio setting on the setting screen
ANALOG AUDIO OUT jacks
DIGITAL AUDIO OUT jack
Memo
DISCS AND OUTPUT SOUNDS
Dolby Digital
SPDIF
/RAW
_____
Dolby
Digital
bitstream
SPDIF
/RAW
o
PCM
(48kHz)
MPEG/ PCM44.
1kHz
SPDIF
/RAW
SPDIF
/PCM
_____
PCM
(44.1kHz)
SPDIF
/RAW
SPDIF
/PCM
o
PCM
(44.1kHz)
MPEG 2
SPDIF
/RAW
_____
MPEG 2
bitstream
SPDIF
/PCM
o
PCM
(48kHz)
Linear PCM
48kHz 96kHz
SPDIF
/RAW
SPDIF
/PCM
_____
PCM
(48kHz)
SPDIF
/RAW
o
PCM
(48kHz)
SPDIF
/PCM
o
_____
ON VIDEO CD
This D VD video pla y er supports the VIDEO CD with PBC (Version 2.0) (PBC) is the ab bre viation for Play Back Control.) You can enjoy two kinds of playbacks, depending on types of disc.
38
APEX DIGITAL AD-500A
Limited W arranty
DVD PLAYER
90 DAYS LABOR
ONE YEAR REPLACEMENT OF PARTS
WHO IS COVERED?
A proof of purchase is required to receive warranty service. A sales receipt or other document showing original date of purchase is considered proof of purchase.
WHAT IS COVERED?
Warranty repair is one (1) year limited warranty coverage:
• 90 days from original date of purchase:
- Parts and labor are included under warranty repair.
• After 90 days up to one (1) year from original date of purchase.
- Parts usage will be cover under warranty.
- Labor will be charged at a flat rate.
NOTE: If you don’t have proof of purchase, then your unit will be considered out-of-warranty. Out-of-warranty repairs will be charged at a flat labor rate, including any necessary parts.
WHAT IS EXCLUDED?
Your warranty does not cover:
- Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
- Product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Apex Digital, Inc.
- A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
- Incidental or consequential damages resulting from the product. (Some states do not allow the incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
MAKE SURE YOU KEEP:
Please keep your sales receipt or other document showing proof of purchase . Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.
BEFORE REQUESTING SERVICE:
Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.
REMEMBER
Keep a record of your model and serial number.
MODEL # _____________________________ SERIAL # ____________________________
WHERE IS SERVICE AVAILABLE?
Please contact: APEX DIGITAL, INC.• 2919 E. Philadelphia St., Ontario, CA 91761
(909) 930-1239 • customerservice@apexdigitalinc.com
This warranty gives you specific legal rights. You may have other rights which vary from state/province to
state/province.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
