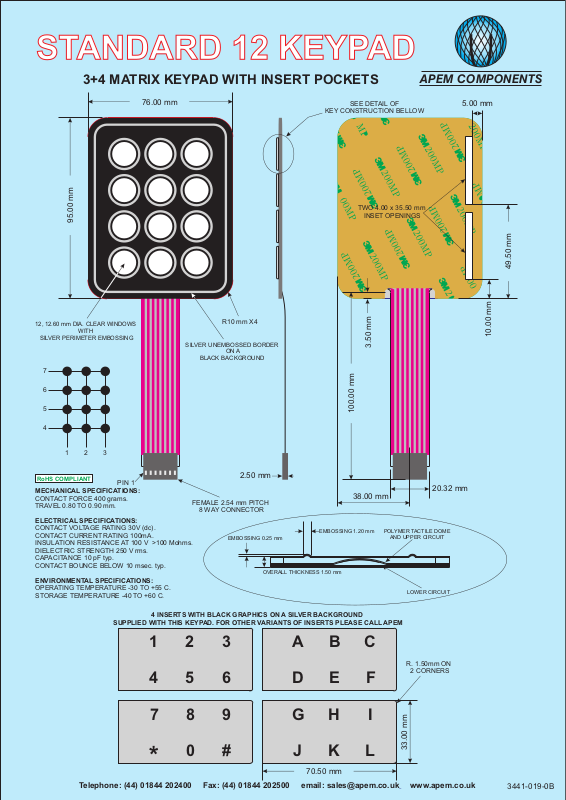

STANDARD 12 KEYPAD
3+4 MATRIX KEYPAD WITH INSERT POCKETS
76.00 mm
KEY CONSTRUCTION BELLOW
95.00 mm
SEE DETAIL OF
APEM COMPONENTS
5.00 mm
TWO 4.00 x 35.50 mm
INSET OPENINGS
49.50 mm
12, 12.60 mm DIA. CLEAR WINDOWS
WITH
SILVER PERIMETER EMBOSSING
SILVER UNEMBOSSED BORDER
7
6
5
4
1 2
RoHS COMPLIANT
MECHANICAL SPECIFICATIONS:
CONTACT FORCE 400 grams.
TRAVEL 0.80 TO 0.90 mm.
ELECTRICAL SPECIFICATIONS:
CONTACT VOLTAGE RATING 30V (dc).
CONTACT CURRENT RATING 100mA.
INSULATION RESISTANCE AT 100 V >100 Mohms.
DIELECTRIC STRENGTH 250 V rms.
CAPACITANCE 10 pF typ.
CONTACT BOUNCE BELOW 10 msec. typ.
ENVIRONMENTAL SPECIFICATIONS:
OPERATING TEMPERATURE -30 TO +55 C.
STORAGE TEMPERATURE -40 TO +60 C.
3
PIN 1
R10 mm X4
ON A
BLACK BACKGROUND
2.50 mm
FEMALE 2.54 mm PITCH
8 WAY CONNECTOR
EMBOSSING 0.25 mm
OVERALL THICKNESS 1.50 mm
100.00 mm
38.00 mm
EMBOSSING 1.20 mm
10.00 mm
3.50 mm
20.32 mm
POLYMER TACTILE DOME
AND UPPER CIRCUIT
LOWER CIRCUIT
4 INSERTS WITH BLACK GRAPHICS ON A SILVER BACKGROUND
SUPPLIED WITH THIS KEYPAD. FOR OTHER VARIANTS OF INSERTS PLEASE CALL APEM
1
4 5
7
Telephone: (44) 01844 202400 Fax: (44) 01844 202500 email: [email protected] www.apem.co.uk
2
8
0
3
6
9
#
A
D
G
J
70.50 mm
B
E
H
K
C
F
I
L
R. 1.50mm ON
2 CORNERS
33.00 mm
3441-019-0B
