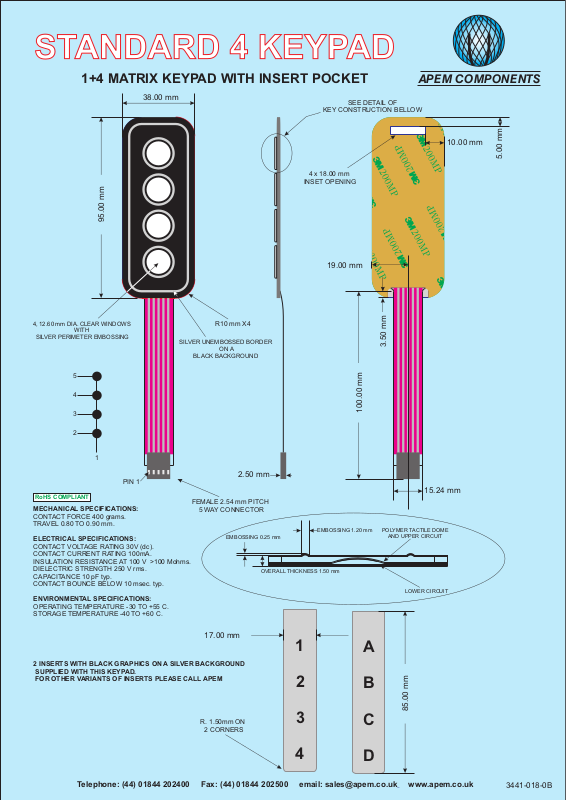

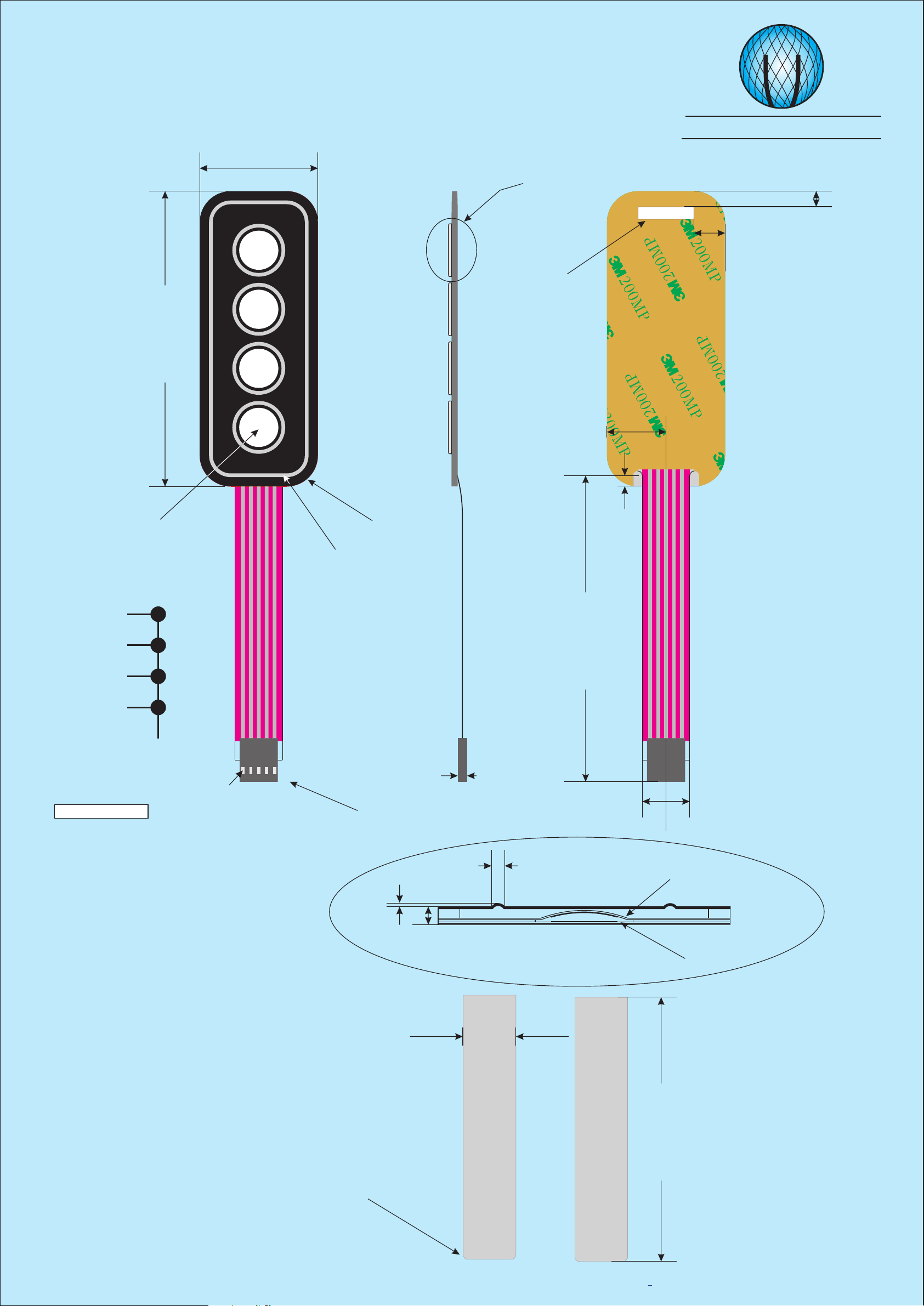

STANDARD 4 KEYPAD
1+4 MATRIX KEYPAD WITH INSERT POCKET
38.00 mm
KEY CONSTRUCTION BELLOW
4 x 18.00 mm
INSET OPENING
95.00 mm
19.00 mm
SEE DETAIL OF
APEM COMPONENTS
10.00 mm
5.00 mm
4, 12.60 mm DIA. CLEAR WINDOWS
WITH
SILVER PERIMETER EMBOSSING
5
4
3
2
1
PIN 1
RoHS COMPLIANT
MECHANICAL SPECIFICATIONS:
CONTACT FORCE 400 grams.
TRAVEL 0.80 TO 0.90 mm.
ELECTRICAL SPECIFICATIONS:
CONTACT VOLTAGE RATING 30V (dc).
CONTACT CURRENT RATING 100mA.
INSULATION RESISTANCE AT 100 V >100 Mohms.
DIELECTRIC STRENGTH 250 V rms.
CAPACITANCE 10 pF typ.
CONTACT BOUNCE BELOW 10 msec. typ.
ENVIRONMENTAL SPECIFICATIONS:
OPERATING TEMPERATURE -30 TO +55 C.
STORAGE TEMPERATURE -40 TO +60 C.
SILVER UNEMBOSSED BORDER
R10 mm X4
ON A
BLACK BACKGROUND
2.50 mm
FEMALE 2.54 mm PITCH
5 WAY CONNECTOR
EMBOSSING 0.25 mm
OVERALL THICKNESS 1.50 mm
100.00 mm
EMBOSSING 1.20 mm
3.50 mm
15.24 mm
POLYMER TACTILE DOME
AND UPPER CIRCUIT
LOWER CIRCUIT
17.00 mm
2 INSERTS WITH BLACK GRAPHICS ON A SILVER BACKGROUND
SUPPLIED WITH THIS KEYPAD.
FOR OTHER VARIANTS OF INSERTS PLEASE CALL APEM
R. 1.50mm ON
2 CORNERS
Telephone: (44) 01844 202400 Fax: (44) 01844 202500 email: [email protected] www.apem.co.uk
1
2
3
4
A
B
85.00 mm
C
D
3441-018-0B
