Smart-UPS On-Line
Lithium-ion UPS 230V
APC™ single-phase, rack/tower convertible, double conversion on-line
UPS with Lithium-ion batteries and remote management flexibility
help you address challenges at the edge.
apc.com/lithium-ion
A UPS developed for
availability of your loads under
unstable power conditions
Smart-UPS™ On-Line provides high-density, double-conversion, online power protection for
servers, voice/data networks, medical labs and light industrial applications. The Smart-UPS
On-Line has a rack/tower convertible chassis with Lithium-ion batteries that allow for greater
performance at higher temperatures and increased lifecycle of the UPS. When business-critical
systems require runtime in hours, not minutes, Smar t-UPS On-Line can be congured with multiple
Lithium-ion battery packs to meet your runtime demands.
The entire Smart-UPS On-Line family provides value to customers with demanding power
conditions, including a very wide input voltage window, extremely tight output voltage regulation,
frequency regulation, internal bypass and input power factor correction.
The included PowerChute™ Business Edition software provides unattended graceful shutdown of
network operating systems.
2 apc.com
Save up to 58% on total cost of
ownership with Smart-UPS
On-Line Lithium-ion solutions
APC Smart-UPS with Lithium-ion technology enables IT professionals to operate
eectively and lower Total Cost of Ownership (TCO) by minimizing UPS maintenance
and oering remote UPS management across distributed environments.
Why should you consider Smart-UPS On-line Lithium-ion?
2X Longer life expectancy
than VRLA batteries
Better battery performance
at ambient temperatures,
up to 104°F/40°C
Five-year factory warranty on
the UPS and battery
Eliminate the cost of battery
replacement, labor, shipping
and recycling
One-third lighter batteries for
easier handling and installation
Battery management system and
certications provide higher level
of performance
Save on TCO by
up to 58%
Remote UPS
management options
Greater eciency in charge
and discharge of the batteries
3 Life Is On | APC by Schneider Electric
Smart-UPS On-Line
Lithium-ion UPS
Industry-leading power factor and Lithium-ion batteries maximizing UPS density
1000VA to 3000VA
Features
High power density
More real power in watts, 0.9 pf
Graphical LCD display
Intuitive interface with multicolor backlight.
Built-in energy meter
Measures energy use and displays UPS
eciency in operating modes for easy tracking.
Intelligent battery management system
Measures energy use and displays UPS
eciency in operating modes for easy tracking.
Lithium-ion battery pack
Longer battery life and performance at higher
temperatures than VRLA. The exibility to add up
to 10 additional battery packs to expand runtime.
Operate without battery
Immediately protect equipment when power
returns after a complete discharge of the battery.
4 apc.com
Smart-UPS On-Line
Lithium-ion UPS
Proven performance with the world’s largest installed base of single-phase,
double-conversion products.

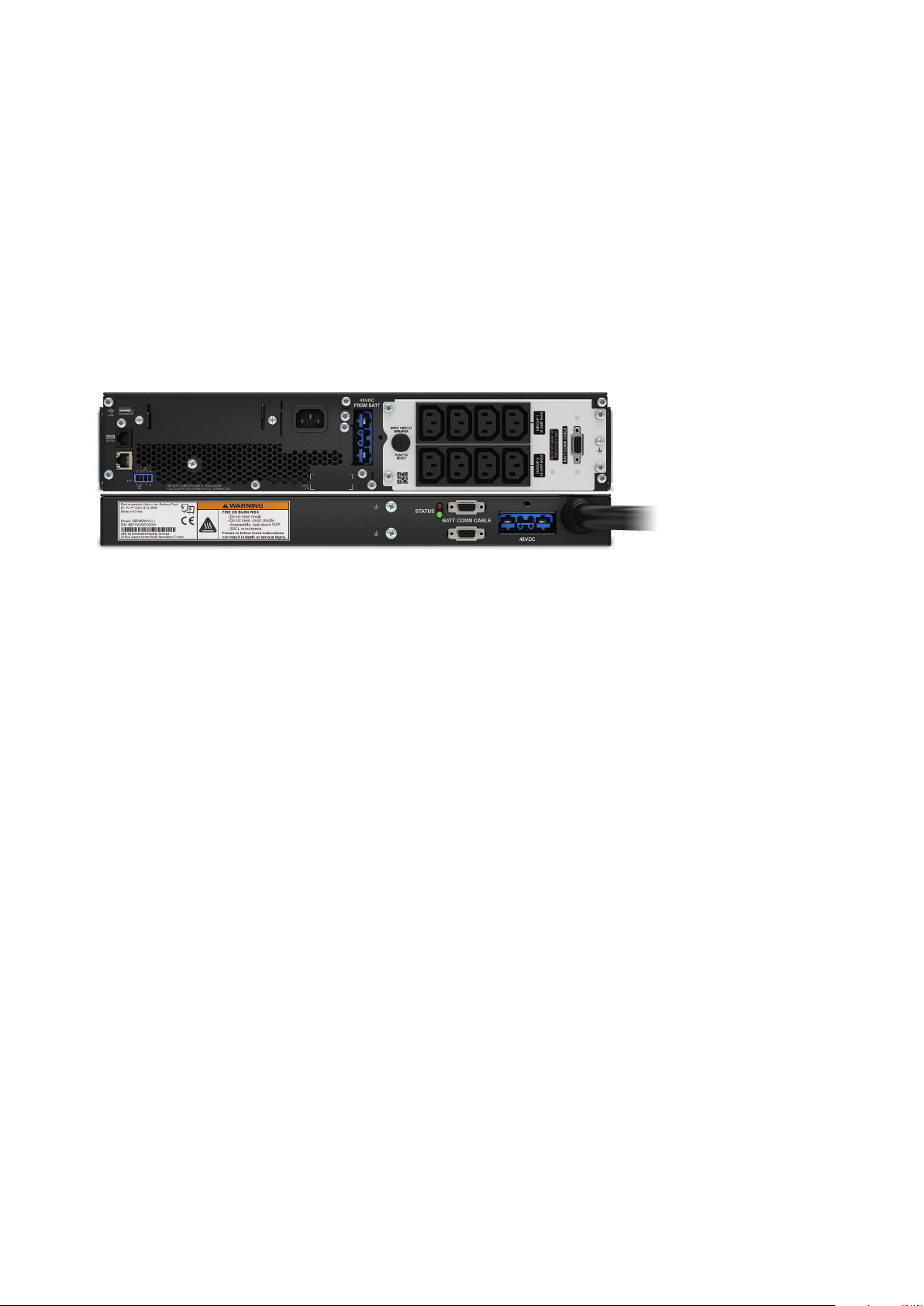

SRT1500RMXLI
Features
Optional network management card
with environmental monitoring
Remote monitoring and control of the UPS
and the environment via Ethernet connection.
Switched outlet group
Control a group of output load receptacles
independent from the main UPS:
• Cycling the entire UPS
• Sequenced turn ON/OFF
• Shedding of noncritical loads based on
battery time, runtime remaining and overload
• Scheduled time OFF to conserve energy
• Rebooting hung device without cycling the
entire UPS
Emergency power o
Shuto UPS remotely in the event of a re or
other emergency. The UPS can accept normally
open (NO) or normally closed (NC) contacts.
Flash upgradeable rmware
Allows for eld updates of rmware via
communication ports or Network Management
Card (NMC).
Built-in automatic and manual bypass
Ensures seamless power to the load even
when UPS functional failure is detected.
Communication ports
Options of Serial, USB, Ethernet and
SmartSlot™ for network accessory cards.
Communication protocols
Choose from Modbus serial, USB
PowerSummary, HTTP, SNMP and Telnet.
5 Life Is On | APC by Schneider Electric
Smart-UPS On-Line display
Intuitive, easy-to-use LCD provides clear and accurate information in multiple languages
Backlit screens:
Amber: Indicates a
condition that requires
attention
Features
LCD display screen
Clear, consistent and detailed information in
your choice of basic or advanced menus.
Power status
• Operating mode and eciency mode
• Load VA/watts/amps
• Input/output voltage and frequency
• Battery capacity and runtime
• Energy meter
Control
Backlit screens:
Red: Indicates a UPS
visible alarm that requires
immediate attention
Conguration
• Output voltage, frequency
• Language
• Brightness, contrast
• Alarm volume
• IP address
Test and diagnostics
Initiate battery and runtime calibration tests
About
• UPS serial number, battery part number
• Battery install and suggested replacement dates
UPS and outlet group settings, Bypass control
6 apc.com
Smart-UPS On-Line
Lithium-ion Battery Pack
Long life, lighter weight, higher performance, high density
Features
Longer lifecycle
Double the life expectancy vs. sealed lead
acid batteries
Lighter weight
1/3 lighter than sealed lead acid battery pack
High density
1U rack height allows more extended run
capability in a smaller footprint.
Intelligent battery management system
Monitoring at the cell level to manage voltage
helps Lithium-ion batteries provide a higher
level of performance.
UL certication for higher level
performance
Cell Certication:UL1642/IEC62133/UN38.2
Functional Certication: UL1973 (Sec 5.7 & 5.8)
7 Life Is On | APC by Schneider Electric
Smart-UPS management solutions
PowerChute Business Edition
For graceful UPS shutdown
Built-in manageability for your UPS unit
PowerChute™ Business Edition software
provides UPS management, safe system
shutdown and innovative energy reporting
capabilities. Energy usage, cost and CO2
reporting provides a greater understanding of
the energy consumed by IT equipment, enabling
improved energy eciency. Advanced analysis
features help to identify the causes of potential
power-related problems before they occur,
ensuring the health of your protected equipment.
PowerChute Business Edition features:
• Graceful system shutdown
• Fault notications
• Risk-assessment reporting
• Scheduled shutdowns
• Energy-usage reporting
• Centralized monitoring
• Recommended actions
• Battery status
• Outlet-aware shutdown
• Event and data logging
• Power-event summary
• Voltage analysis
PowerChute Network Shutdown
For machine prioritization
Reliable, virtualized shutdown of multiple devices
PowerChute™ Network Shutdown Edition
software provides UPS management, safe
system shutdown and innovative energy
reporting capabilities. Energy usage, cost
and CO2 reporting provides a greater
understanding of the energy consumed by
IT equipment, enabling improved energy
eciency. Advanced analysis features help to
identify the causes of potential power-related
problems before they occur, ensuring the
health of your protected equipment.
8 apc.com
PowerChute Network Shutdown features:
• Graceful network-based shutdown
• Sequenced server shutdown
• Integration with VMware and Microsoft Hyper-V
• Support for virtual clusters
• Migration / shutdown by virtual machine
• IPv6 support
• Virtual machine prioritization
• Command le integration
• Redundant and parallel UPS support
• Event logging
• HTTPS communications
• Scalable architecture for host of client system
Smart-UPS cloud-enabled
management options
EcoStruxure IT
IT Expert
Monitoring
IT Expert helps the IT
Professional manage their
IT equipment for Local
Edge and Distributed IT. It
synthesizes per formance
and alarming data into
proactive recommendations
and enables secure,
wherever-you-go visibility.
IT Advisor
Planning and Modeling
IT Advisor is an asset planning
tool that enables Data Center
Managers to reduce OPEX,
plan for uptime and automate
reporting by optimizing
capacities, analyzing business
impact, automating workow
and deploying energy-based
billing.
Asset Advisor
24/7 Monitoring
Asset Advisor provides a
remote monitoring service
for your critical equipment,
increasing Resiliency and
quick resolution through
Schneider Electric’s
service personnel equipped
with real-time device data
to quickly troubleshoot
and dispatch.
For more information, please visit www.ecostruxureit.com
9 Life Is On | APC by Schneider Electric
UPS Network Management Cards
For remote management and control
AP96 31
Connect to your network and enjoy
direct control
APC UPS network management cards allow for
secure connection and control of an individual
APC UPS unit via web browser, command-line
interface or SNMP. The congurable notication
features keep you informed of problems as
they occur. For protected servers, the included
PowerChute network shutdown software
provides graceful, unattended shutdown in the
event of an extended power outage, keeping
business information safe.
Management card options
• AP9630: UPS network management card
• AP9631: UPS network management card
with environmentalmonitoring
• AP9635: UPS network management card
with environmental monitoring,
out-of-band access and Modbus
• AP9620: Legacy communications
SmartSlot™card
Network management card features
• View the user interface with a browser
for quick access from anywhere on a
secure network.
• Enable remote device management of
your UPS by connecting it directly to
the network.
• Get real-time fault event notifications to
quickly respond to critical situations, reducing
repair time and maximizing uptime.
• Eliminate the need to dispatch
technicians to remote locations by rebooting
equipment remotely.
Smart-UPS Accessories
Service bypass panels
• SBP1500RMI: APC service bypass
PDU, 230V; 10amp with (6) IEC C13
10 apc.com
• SBP3000RMI: APC service bypass
PDU, 230V; 10amp with (6) IEC C13
and (1) C19
• SBP1500RMI: APC service bypass
100-240V; 30amp; Hardwire Input/
Output
Product family
SKU technical specifications
SRTL1000RMXLI
SRTL1000RMXLI-NC*
Topology Double Conversion On-Line
Output
Output power capacity 900Wat ts /100 0 VA 1350Watts /1500 VA 1980Watts /2200 VA 2700Watts /30 00 VA
Nominal output voltage 230V
Output voltage distortion Less than 1% at linear load (Full)
Output frequency (sync to mains) 50/60 Hz +/- 3 Hz (auto sensing)
Waveform t ype Pure Sine Wave
Output connections (8) IEC320 C13 (6) IEC320 C13, (2) IEC320 C21
Switched outlet groups Yes
Efficiency at full load >95% >96% >95% >96%
Input
Nominal input voltage 230V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input connections NE MA 5 -15 P
Input voltage range for mainoperations IEC 320 C14 IEC320 C20
Batteries and runtime
Battery type Lithium-ion (LiFePo4)
Runtime Please refer to ww w.apc.com for runtime char ts
Communications and management
Interface port(s) Serial (RJ45), Smart-Slot, USB
Available SmartSlot interface quantity 1
Control panel Multi-function LCD status and control console
Audible alarms Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) Yes
*Preinstalled Network Management Card Included with “NC” suf fix SK U
Physical
UPS
Net HxW xD 85mm x 4 32mm x 510mm 43mm x 432mm x 510mm
Rack height 2U 2U
Net weight 13.7kg 17. 5 k g
Shipping weight 21kg 25kg
Shipping HxWxD 445mm x 600mm x 850mm 245mm x 60 0mm x 870mm
Color Black, aluminum bezel
Lithium-ion External Battery Pack
Net HxW xD 85mm x 4 32mm x 510mm 43mm x 432mm x 510mm
Rack height 1U 1U
Net weight 12kg 13kg
Shipping weight 16.4kg 16.4kg
Shipping HxWxD 200mm x 600mm x 850mm 200mm x 600mm x 850mm
Environmental
Operating environment 32 – 104°F (0 – 40°C)
Operating relative humidity 0 – 9 5%
Operating elevation 0-10000feet (0 -3000meters)
Storage temperature -15 to 45°C (-30 to 70°C without batter ies)
Storage relative humidity 0 – 95%
Storage elevation 0-50000feet (0-15000meters)
Audible noise at 1 meter from sur face of unit 50.0dBA
Conformance
Regulatory approvals VDE, EAC, CE, RCM, EN/IEC 62040-1
Standard warranty Five years on UPS and five years on battery pack repair or replace
SRTL1500RMXLI
SRTL1500RMXLI-NC*
SRTL2200RMXLI
SRTL2200RMXLI-NC*
SRTL3000RMXLI
SRTL3000RMXLI-NC*
11 Life Is On | APC by Schneider Electric
apc.com/lithium-ion
132 Fairgrounds Rd
West Kingston, RI 02892
Phone: + 01 (401) 789-5735
www.apc.com
© 2019 Schneider Electric. All Rights Reserved. Schneider Electric, APC, Smart-UPS and Life Is On Schneider Electric is a trademark and the property of Schneider Electric SE, its
subsidiaries and affiliated companies.
• 998-20485441_GMA-A4
Loading...
