Page 1

™

Installation Guide Smart-UPS

On-Line

SRT5K/6K Tower/Rack-Mount 3U/4U

Safety Messages

Read the instructions carefully to become familiar with the equipment before attempting to install, operate, service or maintain the UPS. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

The addition of this symbol to a Danger or Warning product safety label indicates that an electrical hazard exists which will result in personal injury if the instructions are not followed.

The addition of this symbol to a Warning or Caution product safety label indicates that a hazard exists that can result in injury and product damage if the instructions are not followed.

Inform

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to physical injury.

Page 2

Safety and General Information

• Adhere to all national and local electrical codes.

• All wiring must be performed by a qualified electrician.

• Changes and modifications to this unit not expressly approved by APC could void the warranty.

• This UPS is intended for indoor use only.

• Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.

• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.

• For a UPS with a factory installed power cord, connect the UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.

• The battery typically lasts for two to five years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality mains power, and frequent short duration discharges will shorten battery life.

• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.

• The batteries are heavy. Remove the batteries before installing the UPS and external battery packs (XLBPs), in a rack.

• Always install XLBPs at the bottom in rack-mount configurations. The UPS must be installed above the XLBPs.

• Always install peripheral equipment above the UPS in rack-mount configurations.

• Additional safety information can be found in the Safety Guide supplied with this unit.

Deenergizing safety

The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit (mains). Before installing or servicing the equipment verify the following:

• Mains circuit breaker is in the OFF position

• Internal UPS batteries are removed

• XLBP battery modules are disconnected

Electrical safety

• For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualified electrician.

• 230 V models only: In order to maintain compliance with the EMC directive for products sold in Europe, output cords attached to the UPS must not exceed 10 meters in length.

• The protective earth conductor for the UPS carries the leakage current from the load devices (computer equipment). An insulated ground conductor is to be installed as part of the branch circuit that supplies the UPS. The conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply conductors. The conductor will typically be green and with or without a yellow stripe.

• The UPS input ground conductor must be properly bonded to protective earth at the service panel. If the UPS input power is supplied by a separately derived system, the ground conductor must be properly bonded at the supply transformer or motor generator set.

Battery safety

• When replacing batteries, replace with the same number and type of batteries as originally installed in the equipment.

• Batteries typically last for two to five years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality utility power, and frequent short duration discharges will shorten battery life. Batteries should be replaced before end of life.

• Replace batteries immediately when the unit indicates battery replacement is necessary.

• Schneider Electric uses Maintenance-Free sealed Lead Acid batteries. Under normal use and handling, there is no contact with the internal components of the battery. Over charging, over heating or other misuse of batteries

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U2

Page 3

can result in a discharge of battery electrolyte. Released electrolyte is toxic and may be harmful to the skin and eyes.

• CAUTION: Before installing or replacing the batteries, remove jewelry such as wristwatches and rings. High short circuit current through conductive materials could cause severe burns.

• CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

• CAUTION: Do not open or mutilate batteries. Released material is harmful to the skin and eyes and may be

toxic.

Hardwire safety

• Verify that all branch circuit (mains) and low voltage (control) circuits are deenergized, and locked out before installing cables or making connections, whether in the junction box or to the UPS.

• Wiring by a qualified electrician is required.

• Check national and local codes before wiring.

• Strain relief is required for all hardwiring.

• All openings that allow access to UPS hardwire terminals must be covered. Failure to do so may result in personal injury or equipment damage.

• Select wire size and connectors according to national and local codes.

General information

• The UPS will recognize as many as 10 external battery packs connected to the UPS.

Note: For each XLBP added, increased recharge time will be required.

• The model and serial numbers are located on a small, rear panel label. For some models, an additional label is located on the chassis under the front bezel.

• Always recycle used batteries.

• Recycle the package materials or save them for reuse.

FCC Class A radio frequency warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are intended to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 3

Page 4

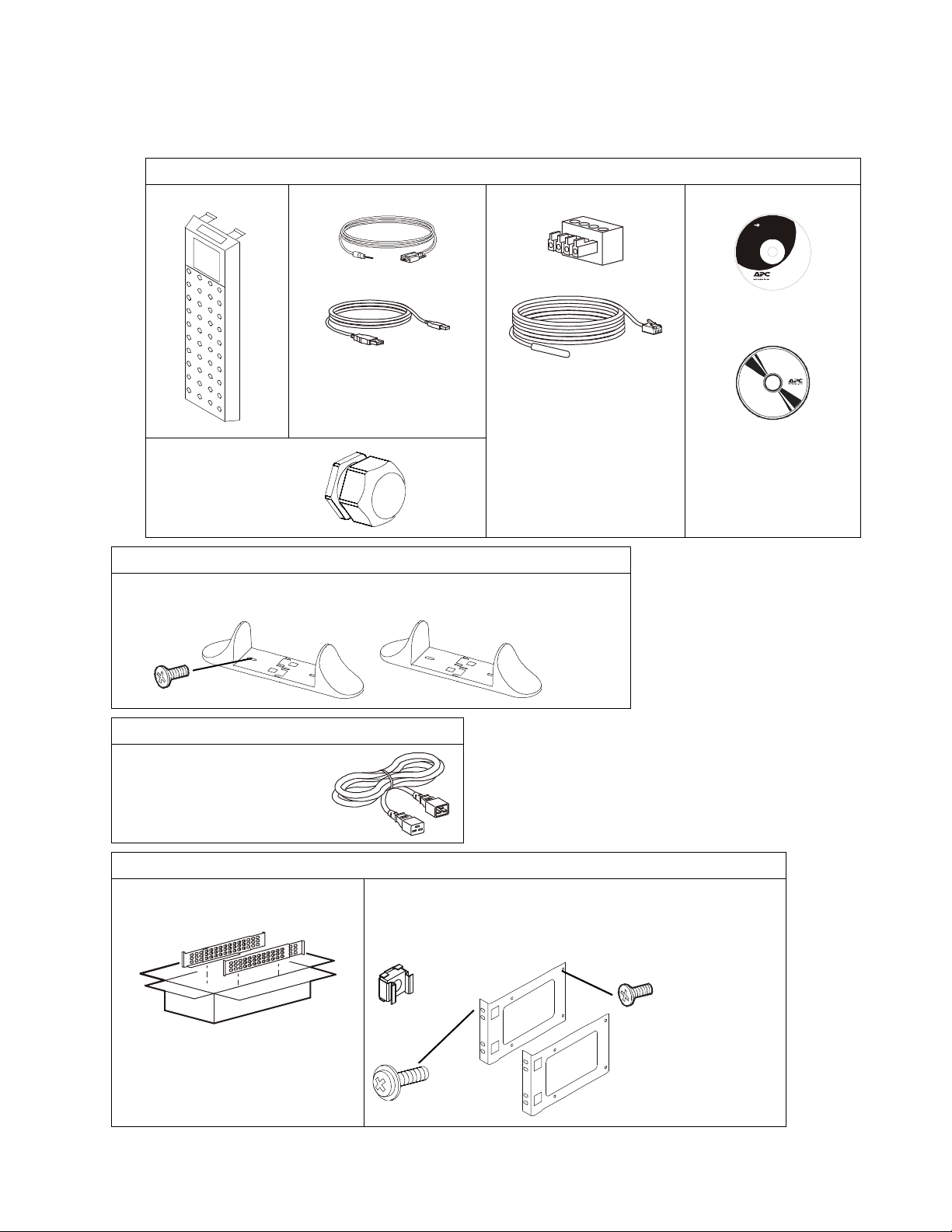

Package Contents

su04

Inspect the contents upon receipt. Notify the carrier and dealer if the unit is damaged.

Included with all models

Front bezel Console to DB9 cable

EPO Terminal block

User Documentation CD.

User Do cumen tati on

USB cable

Strain relief

• Qty 1 for SRT5KXLI, SRT5KHW models

• Qty 2 for 6K models

Temperature sensor probe

Included with Tower and SRT5KRMXLW-HW models only

• 2 pairs stabilizer brackets

• 4 flat head screws to secure tower stabilizer brackets to the UPS

Network Management Utility CD

Included with XLI/XLT-IEC models only

2 output power cords:

1.2 m in length 2 m in length

Included with Rack-Mount models only

Rail Kit with instructions and hardware for installing rails in a rack.

• 1 pair rack-mount brackets

• 8 flat head screws to secure rack-mount brackets to the UPS

• 4 ornamental screws to secure rack-mount brackets to the rails

• 2 cage nuts

34a

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U4

Page 5

Specifications

For additional specifications refer to the APC web site, www.apc.com.

Environmental

Tempe rature

Operating

Storage

Operating

Maximum Elevation

Storage

Humidity

Protection Class

Note: Charge the battery modules every six months during storage.

Environmental factors impact battery life. Elevated ambient temperatures, high humidity, poor quality mains power, and frequent short duration discharges will shorten battery life.

0% to 95% relative humidity, non-condensing

IP 20 rating

0º to 40º C (32º to 104º F)

-15º to 45º C (5º to 113º F)

0 - 3,000 m (0 - 10,000 ft)

0 - 15,000 m (50,000 ft)

Physical

SRT5K model

The UPS is heavy. Follow all lifting guidelines.

Lifting guidelines >55 kg (>120 lb)

Unit weight batteries included, without packaging

Unit weight batteries included, with packaging

Unit dimensions without packaging Height x Width x Depth

Unit dimensions with packaging Height x Width x Depth

The model and serial numbers are on a small label located on the rear panel.

56.6 kg (124.8 lb)

Rack-Mount models: 67.3 kg (148.4 lb) Tower models: 64.36 kg (141.9 lb)

130 mm x 432 mm x 711 mm 5 in x 17 in x 28 in

330 mm x 610 mm x 960 mm 13 in x 24 in x 37.8 in

SRT6K model

The UPS is heavy. Follow all lifting guidelines.

Lifting guidelines >55 kg (>120 lb)

Unit weight batteries included, without packaging 60 kg (132 lb)

Unit weight batteries included, with packaging 67 kg (147.4 lb)

Unit dimensions without packaging Height x Width x Depth

Unit dimensions with packaging Height x Width x Depth

The model and serial numbers are on a small label located on the rear panel.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 5

174 mm x 432 mm x 719.4 mm

6.9 in x 17 in x 28.3 in

370 mm x 610 mm x 960 mm

14.6 in x 24 in x 37.8 in

Page 6

Battery

NOTICE

RISK OF EQUIPMENT DAMAGE

• Replace the battery at least every 5 years.

• Replace the battery immediately when the UPS indicates battery replacement is necessary.

Failure to follow these instructions can result in equipment damage

Battery type

Replacement battery module

This UPS has swappable battery modules.

Refer to the appropriate replacement battery user manual for installation instructions.

Contact your dealer or go the APC web site, www.apc.com for information on replacement batteries.

Number of battery modules 2 battery modules

Voltage for each battery module Total voltage for the UPS Ah rating

XLBP cable length 500 mm (19.7 in)

Maintenance free, leak proof, sealed, lead acid

APCRBC140

96 V 192 V

5.1 Ah per battery module

Electrical

Models Rating Branch Circuit Overcurrent Rating /

Building Circuit Breaker (CB) Current

30 A

SRT5KXLT

SRT5KRMXLT

SRT 5KXLT-IEC

SRT 5KRMXLT-IE C

SRT5KXLI

SRT5KRMXLW-HW

SRT6KXLT

SRT6KRMXLT

SRT 6KXLT-IEC

SRT 6KRMXLT-IE C

SRT6KXLI

SRT6KRMXLI

Online Green Mode

5.4 kVA/4.8 kW at 208 V

6.0 kVA/4.8 kW at 240 V

5 kVA/4.5 kW 5.0 kVA 40 ASRT5KRMXLI

6 kVA/6 kW 6.0 kVA 50 A

4.8 kVA at 208 V

5.5 kVA at 240 V

Rating

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U6

Page 7

Output

Output Frequency 50 Hz/60 Hz ± 3 Hz

Nominal Output Voltage SRT5KRMXLW-HW: 208V, 220V, 230V, 240V

SRT5K/6KXLI, SRT5K/6KRMXLI: 220V, 230V, 240V

SRT5K/6KXLT/XLT-IEC, SRT5K/6KRMXLT/XLT-IEC: 208V, 240V

Input

Input Frequency 40 HZ/70 Hz ± 3 Hz

Nominal Input Voltage SRT5KRMXLW-HW: 208 V, 220 V, 230 V, 240 V

SRT5K/6KXLI, SRT5K/6KRMXLI: 220 V, 230 V, 240 V

SRT5K/6KXLT/XLT-IEC, SRT5K/6KRMXLT/XLT-IEC: 208 V, 240 V

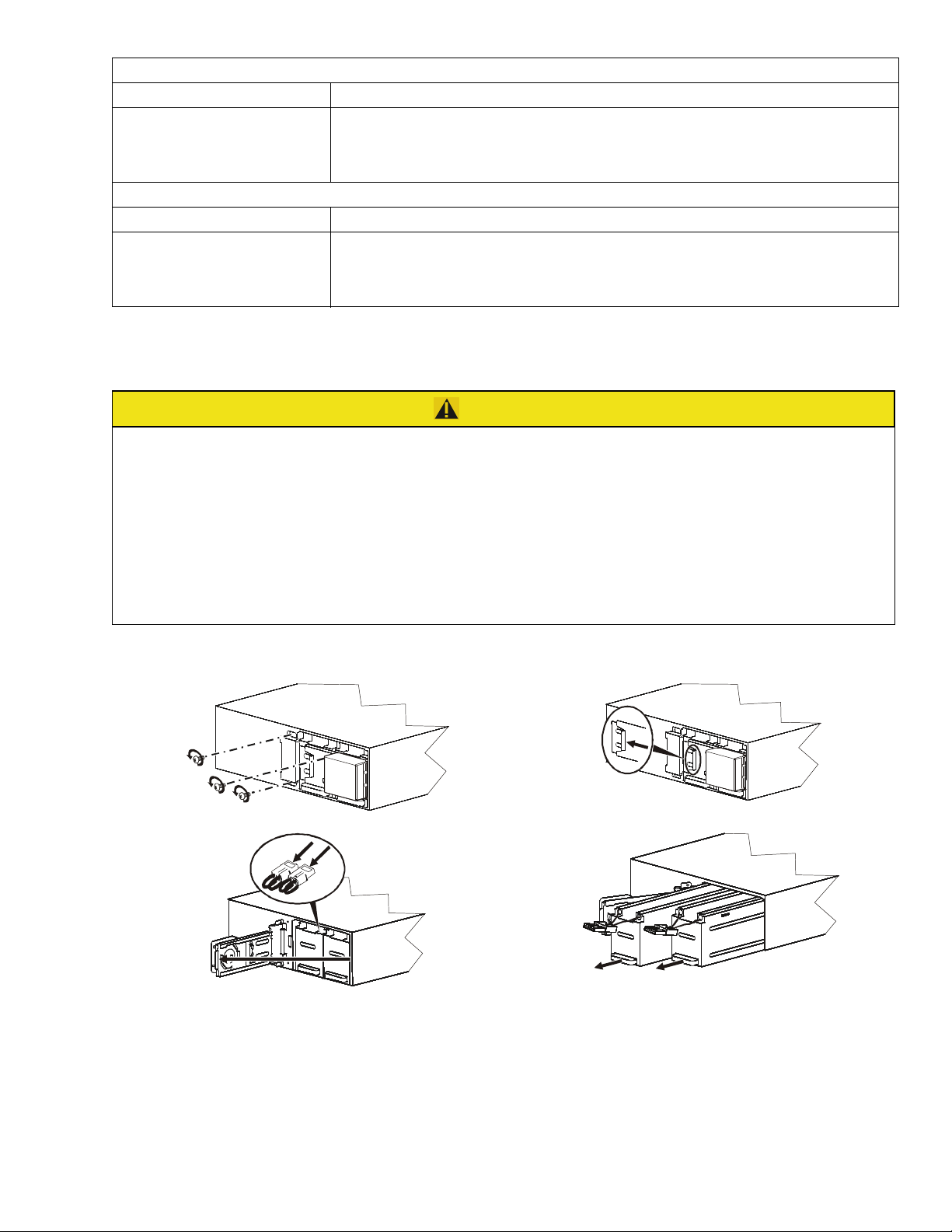

Remove Battery Modules

CAUTION

RISK OF FALLING EQUIPMENT

• The equipment is heavy. Each battery module weighs 17 kg (37 lb).

• Always practice safe lifting techniques adequate for the weight of the equipment.

• Remove the battery modules before installing the UPS.

• Use the battery module handle to slide the battery modules in or out of the UPS.

• Do not use the battery module handle to lift or carry the battery module.

Failure to follow these instructions can result in equipment damage and minor or moderate injury.

Use the battery module handle to lift and slide the battery modules out of the UPS.





Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 7

Page 8

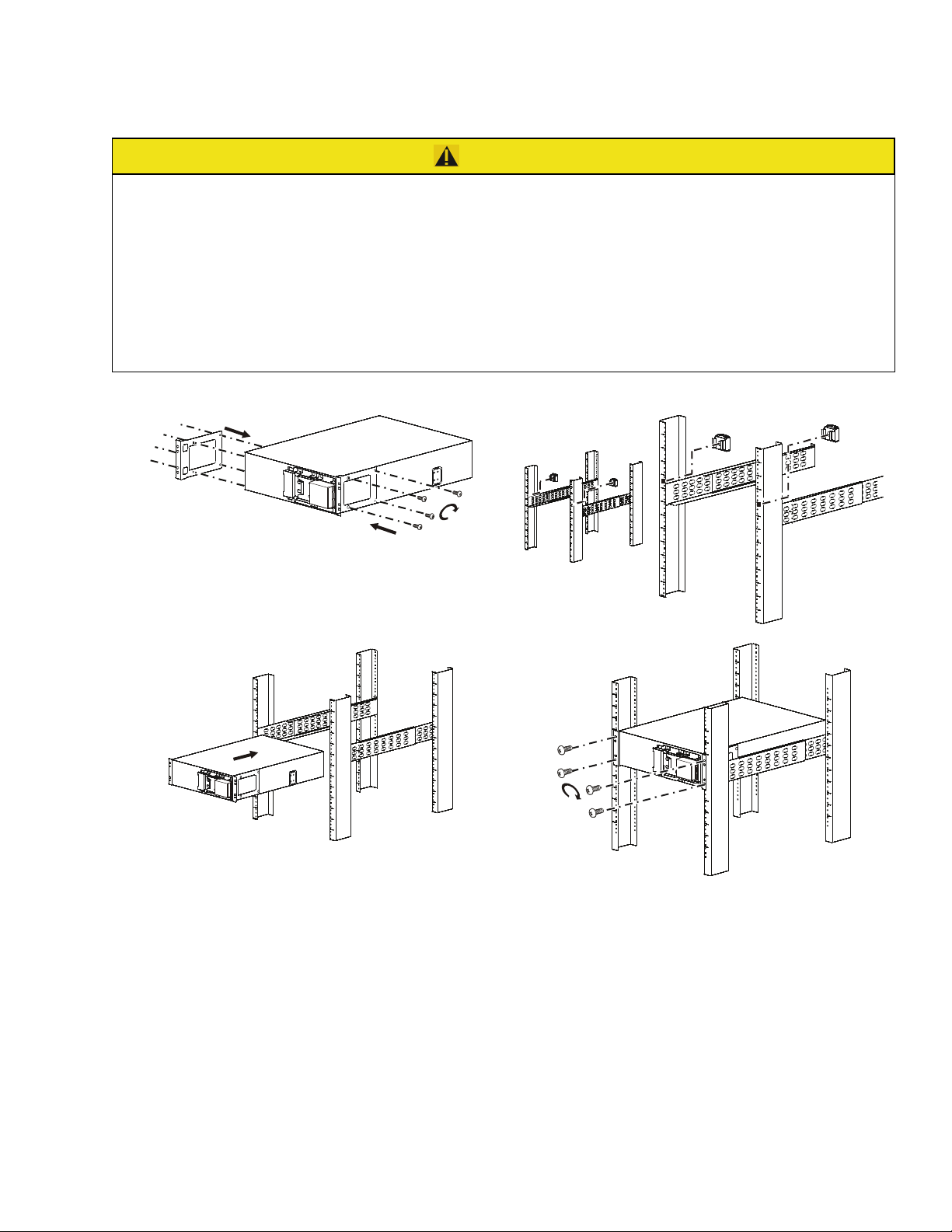

Rack-Mount Installation

Refer to the Rail Kit Installation Guide for instructions on rail installation.

CAUTION

RISK OF FALLING EQUIPMENT

• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.

• Always use the recommended number of screws to secure brackets to the UPS.

• Always use the recommended number of screws and cage nuts to secure the UPS to the rack.

• Always install the UPS at the bottom of the rack.

• Always install the XLBP below the UPS in the rack.

Failure to follow these instructions can result in equipment damage and minor or moderate injury





Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U8

Page 9







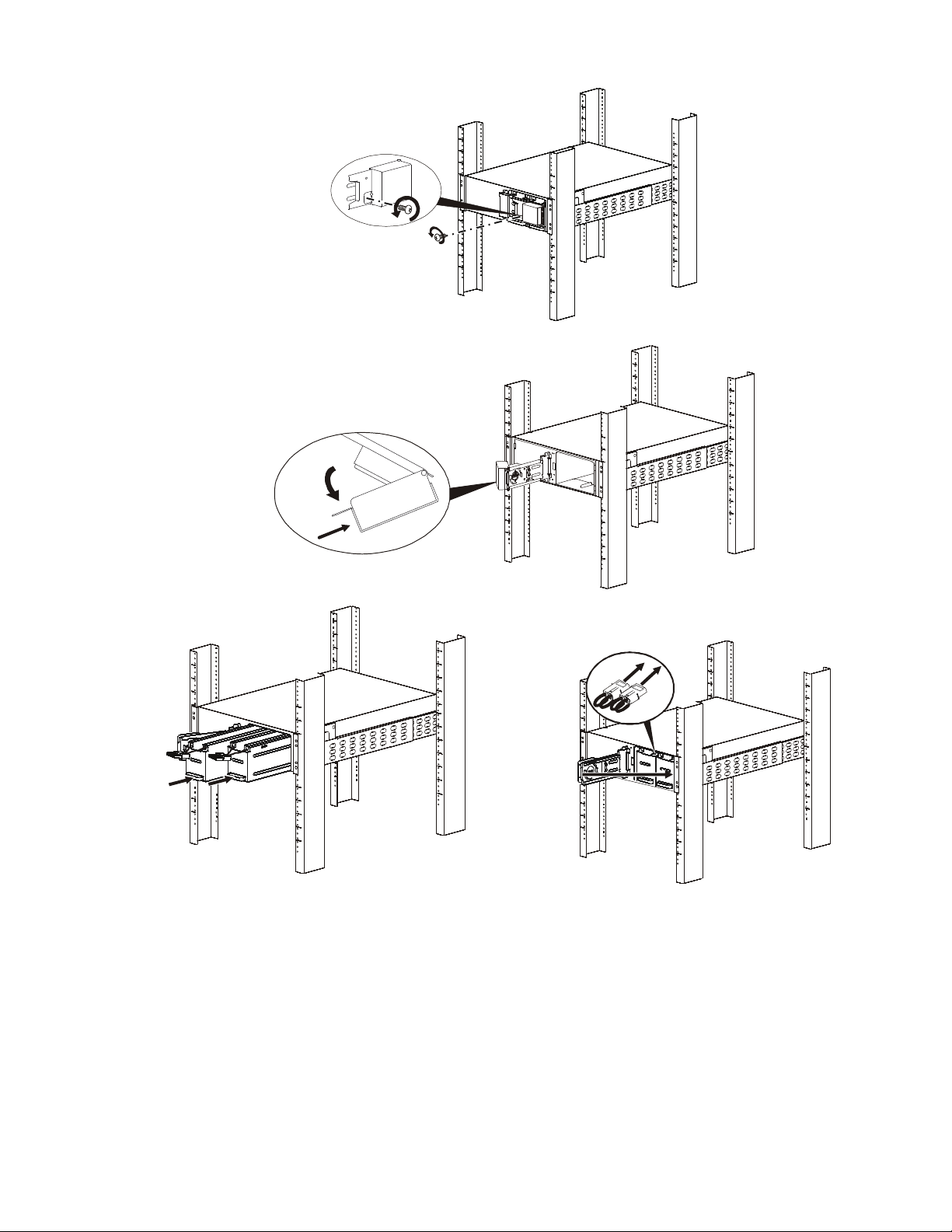

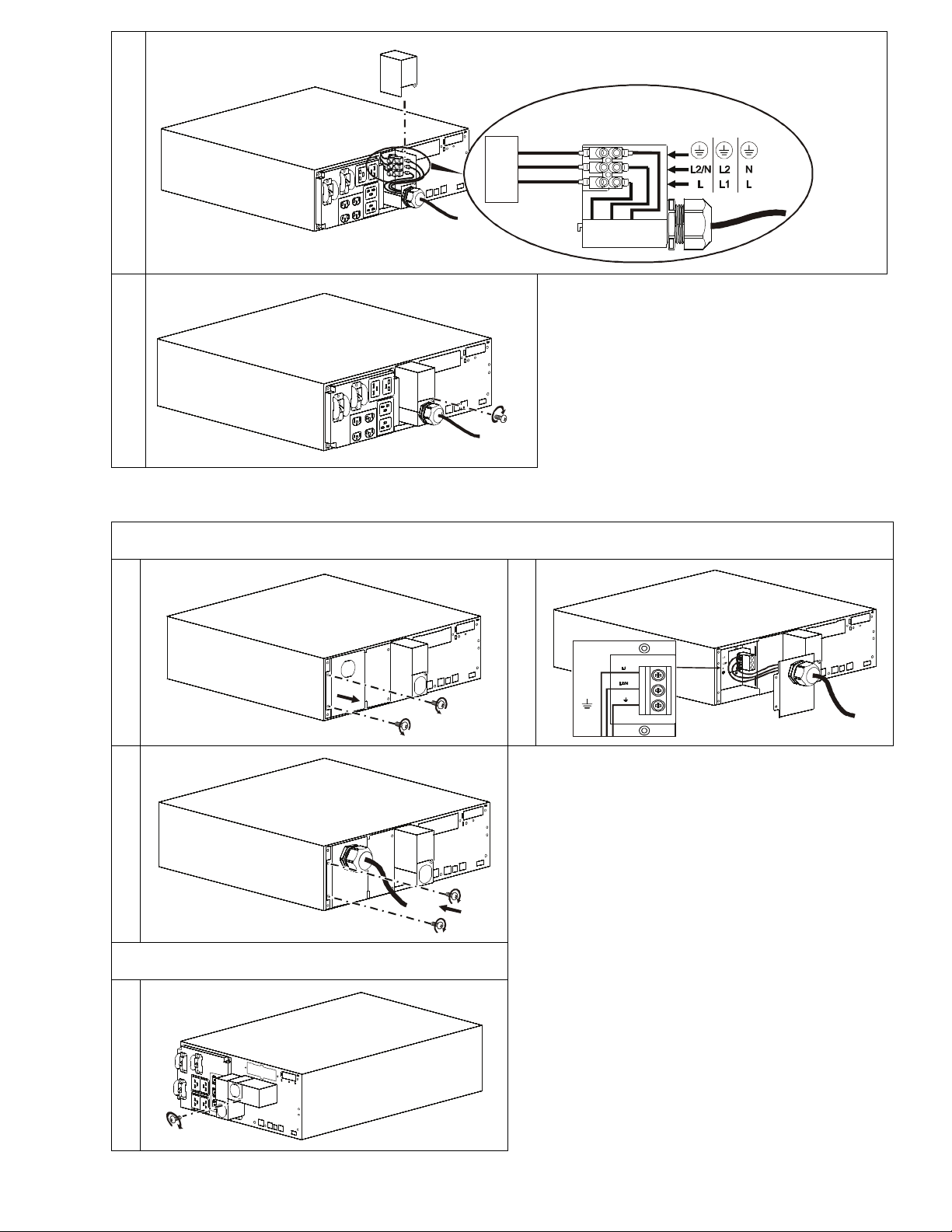

After the UPS is hardwired to branch circuit mains complete steps 8-10.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 9

Page 10



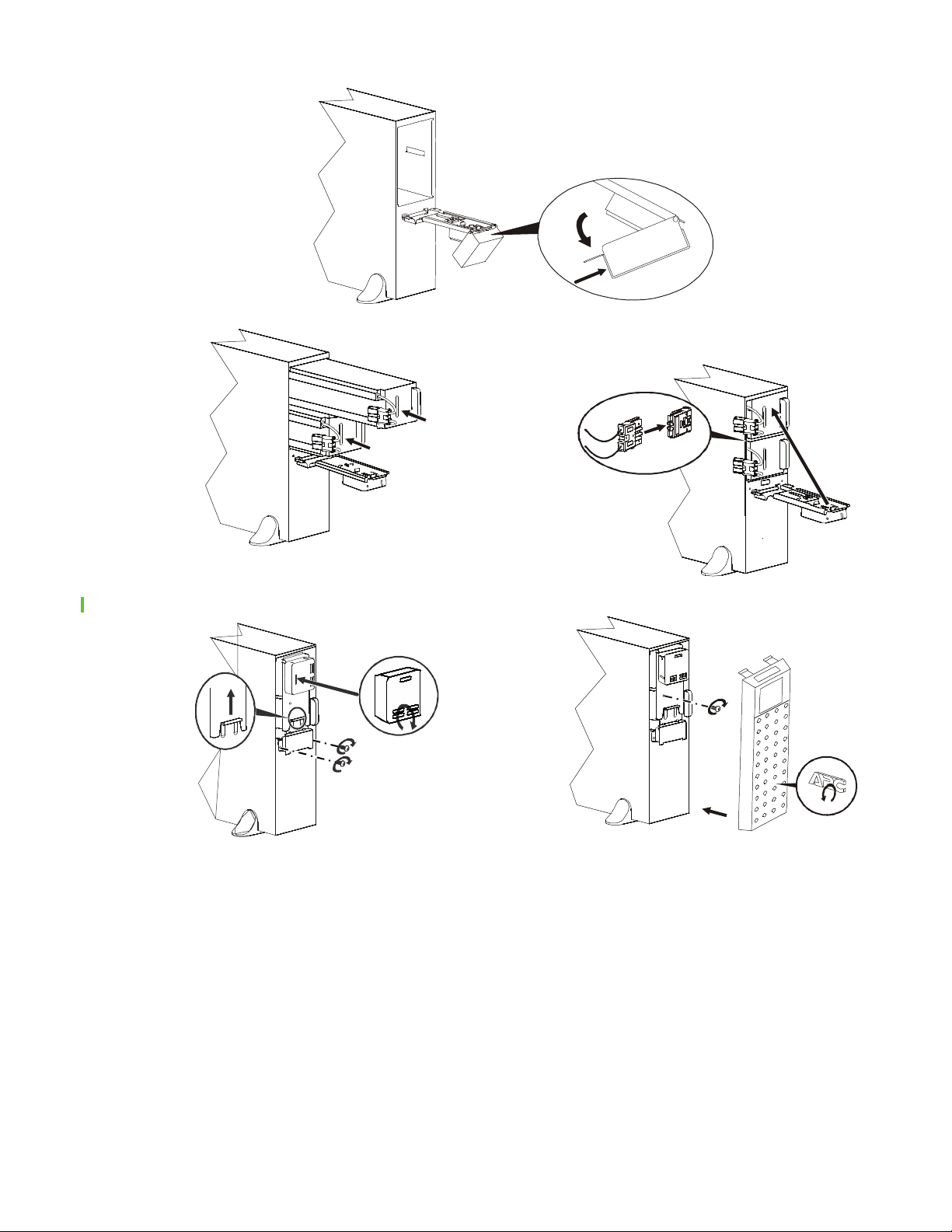

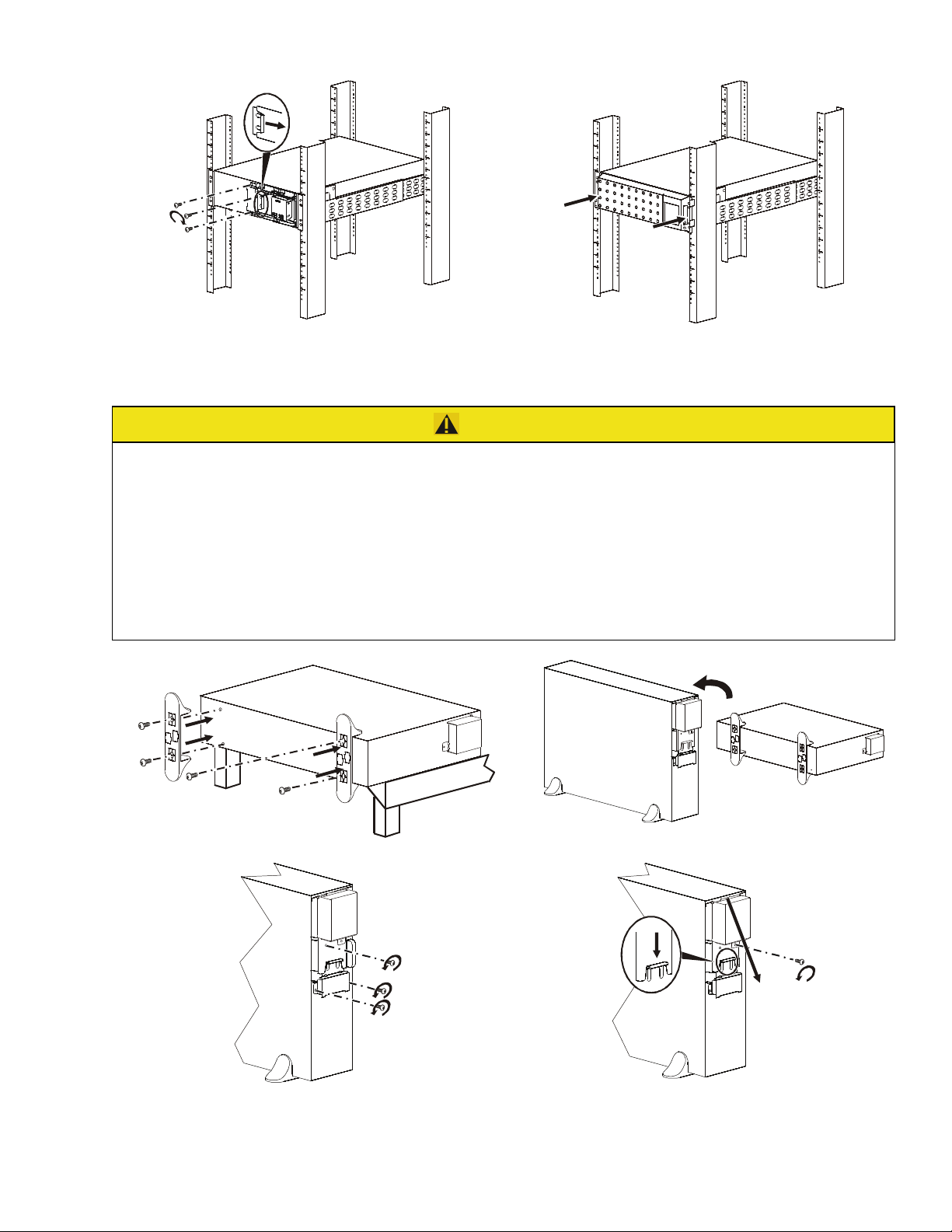

Tower Installation

CAUTION

RISK OF FALLING EQUIPMENT

• The equipment is heavy. Each battery module weighs 17 kg (37 lb).

• Always practice safe lifting techniques adequate for the weight of the equipment.

• Remove the battery modules before installing the UPS.

• Use the battery module handle to slide the battery modules in or out of the UPS.

• Do not use the battery module handle to lift or carry the battery module.

Failure to follow these instructions can result in equipment damage and minor or moderate injury





Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U10

Page 11





Rotate the display panel clockwise, one quarter turn.



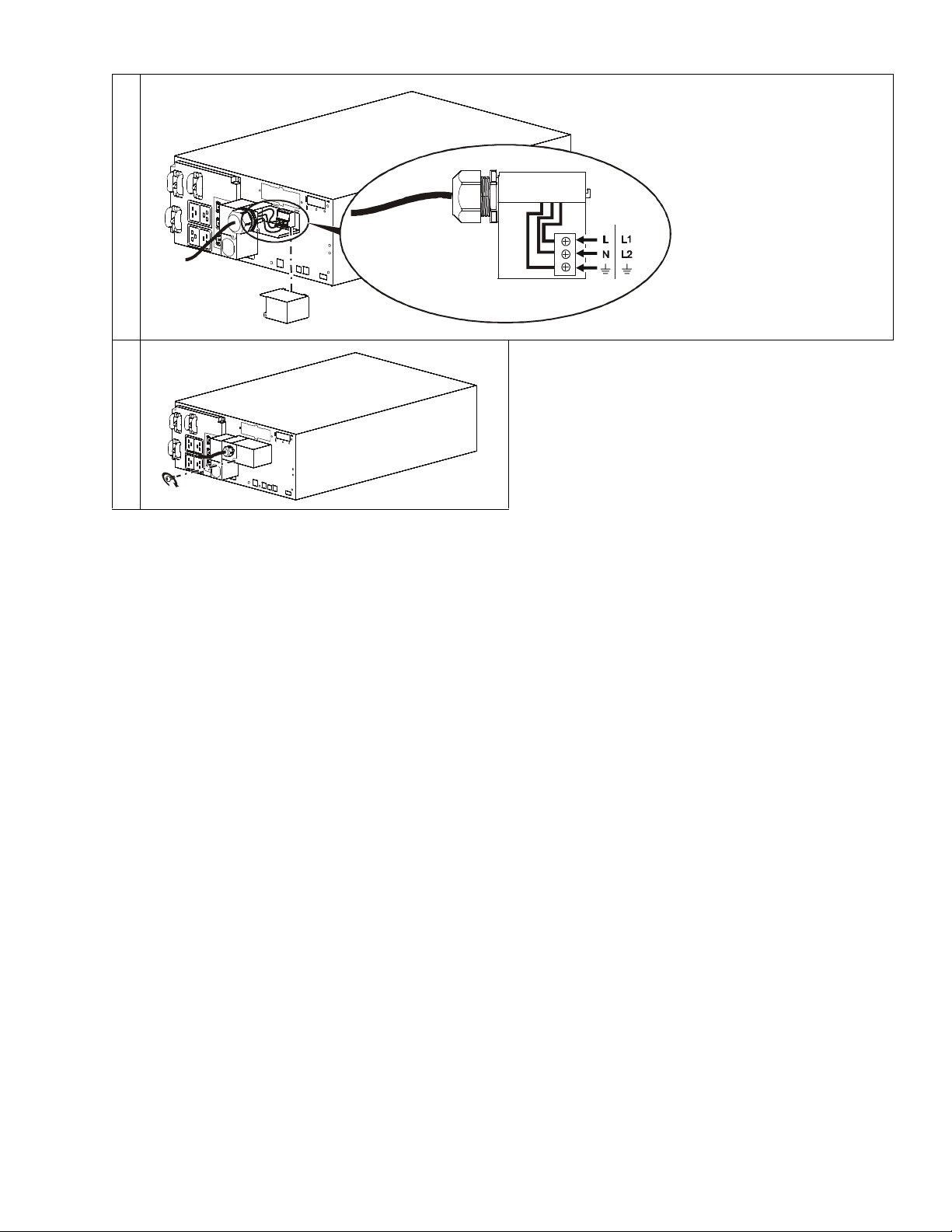

After the UPS is hardwired to branch circuit mains complete steps 7-9.



Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 11

Page 12

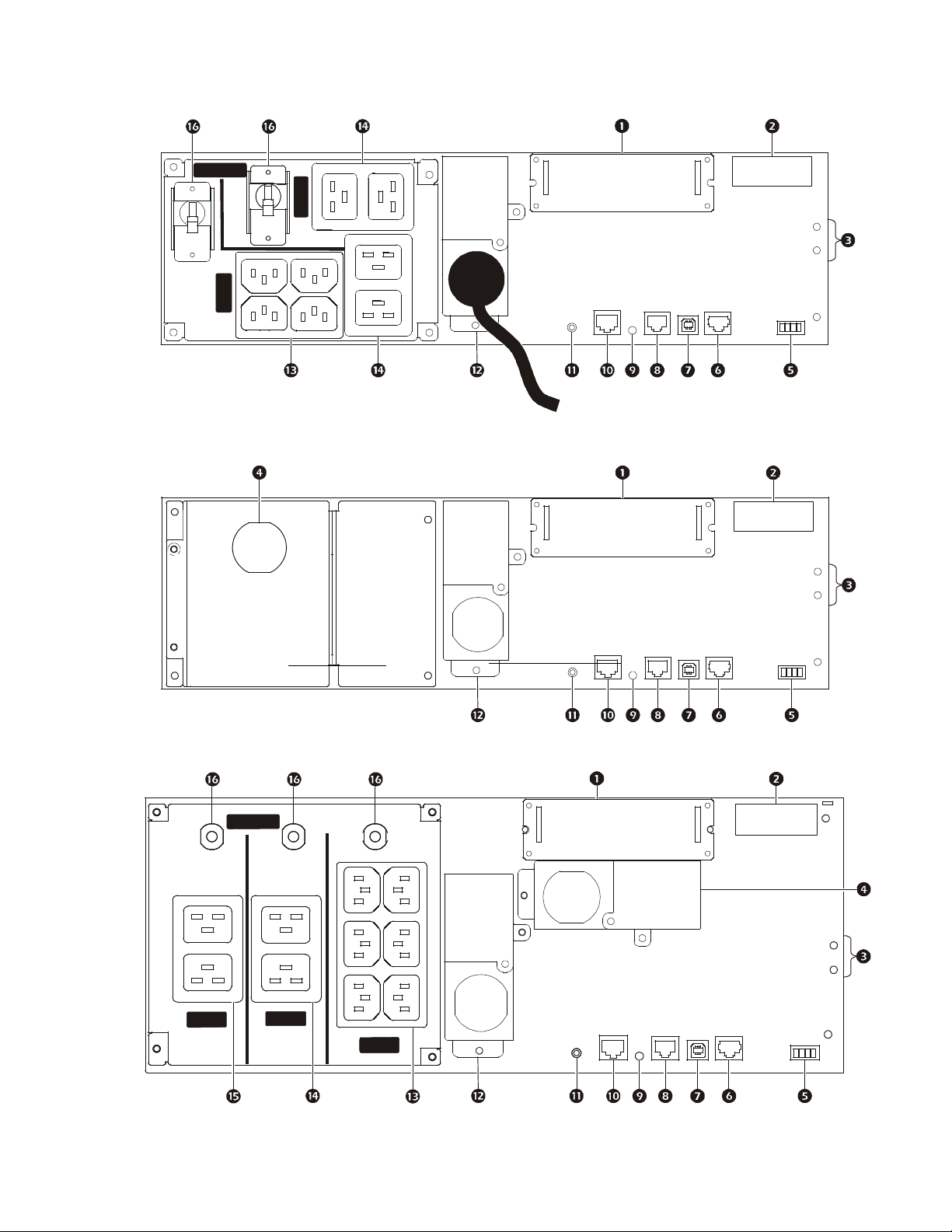

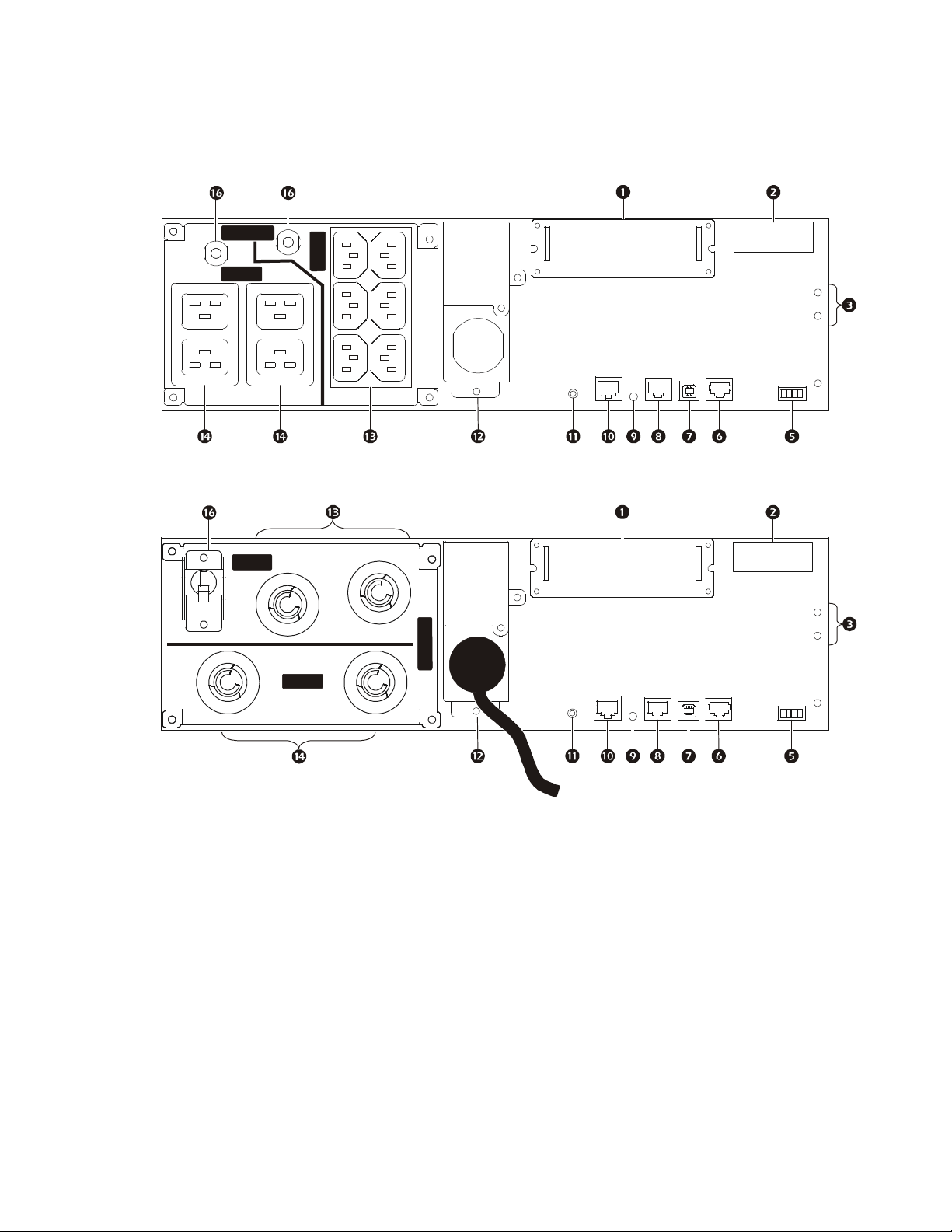

Rear Panel Features

GROUP 1

20 AMP MAX

Note: Refer to the table “Key to identify rear panel features” on page 15, that provides a key to the callout numbers for the rear panel graphics depicted in this manual.

SRT5KXLI/SRT5KRMXLI

GROUP 1

10 AMP MAX

su0878a

SRT5KXLT/SRT5KRMXLT

z H

/ 0

su0879 a

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U12

Page 13

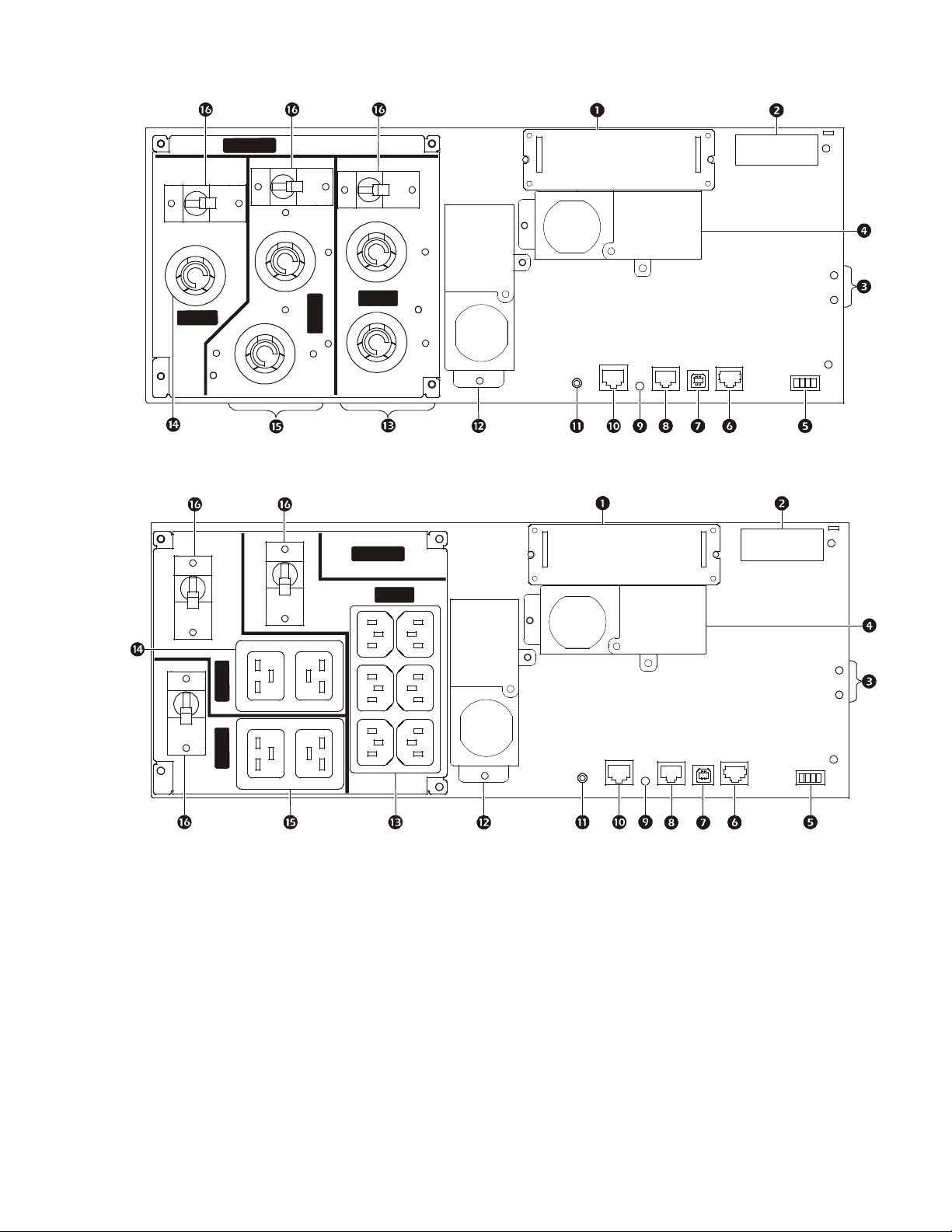

SRT5KXLT-IEC/SRT5KRMXLT-IEC

GROUP 1

15 AMP MAX

GROUP 1

10 AMP MAX

GROUP 3

16 AMP MAX

A M

P U

0 2

su0880 a

SRT5KRMXLW-HW

su0881 a

SRT6KXLI/SRT6KRMXLI

su0882a

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 13

Page 14

GROUP 1

20 AMP MAX

GROUP 3

30 AMP MAX

su0884 a

GROUP 1

15 AMP MAX

SRT6KXLT/SRT6KRMXLT

su0883 a

SRT6KXLT-IEC/SRT6KRMXLT-IEC

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U14

Page 15

Key to identify rear panel features

 SmartSlot The SmartSlot can be used to connect optional management accessories.

 External battery

power and communication connector

 Chassis ground

screws

 Hardwire output

box

 EPO terminal The Emergency Power Off (EPO) terminal allows the user to connect the UPS to a central EPO

 Serial Com The Serial Com port is used to communicate with the UPS.

 USB port The USB port is used to connect either a server for native operating system communications, or

 Universal I/O port Use to connect:

Use the external battery cable on the XLBP to connect the UPS and XLBP. XLBPs provide extended runtime during power outages. The UPS will automatically recognize up to 10 external battery packs.

The UPS and XLBPs have ground screws for connecting the ground leads. Prior to connecting a ground lead, disconnect the UPS from mains power.

SRT5KRMXLW-HW, SRT6KXLI, SRT6KRMXLI, SRT6KXLT, SRT6KRMXLT, SRT6KXLT-IEC, SRT6KRMXLT-IEC models are equipped with a hardwire output box. Refer to “Wiring Specifications” on page 16 for hardwire specifications.

Remove the knockouts. Use Snap-In strain reliefs (supplied).

system.

Use only interface kits supplied or approved by APC by Schneider Electric. Any other serial interface cable will be incompatible with the UPS connector.

for software to communicate with the UPS.

• Temperature sensor AP9335T (supplied)

• Temperature/humidity sensor AP9335TH (not supplied)

• Relay input/output connector AP9810 (not supplied), supports two input contacts and one output relay

 Console port Use the Console port to configure the network management features.

 Network port Use the Network port to connect the UPS to the network.

 Reset button Use the Reset button to restart the Network Management Interface.

Note: A restart of the Network Management Interface does not affect UPS operation.

 AC input

power cable or hardwire input box

 Controllable

outlet group 1

 Controllable

outlet group 2

 Controllable

outlet group 3

 Circuit breaker In the event an overload condition occurs, disconnect nonessential equipment.

• SRT5KXLT, SRT5KRMXLT, SRT5KXLT-IEC, SRT5KRMXLT-IEC models have factory installed input power cables.

• All other models are equipped with a hardwire input box. Refer to “Wiring Specifications” on page 16. Remove the knockouts. Use Snap-In strain reliefs (supplied).

Connect electronic devices to these outlets.

Then reset the circuit breaker.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 15

Page 16

Wiring Specifications

CAUTION

RISK OF ELECTRIC SHOCK

• Adhere to all national and local electrical codes.

• Wiring should be performed by a qualified electrician.

• Use Snap-In strain reliefs provided with the unit.

• The UPS must be wired into a branch circuit, equipped with a circuit breaker rated as specified in the tables below.

• Actual wire size must comply with required amp capacity and national and local electrical codes.

• Recommended input terminal screw torque: 16 lbf-in (2 Nm).

Failure to follow these instructions can result in equipment damage and minor or moderate injury

SRT5K/6KXLT/SRT5K/6KXLT-IEC models

Input connections Wire to L1, L2,

Output connections Wire to L1, L2,

System Wiring Voltage Current full

SRT5KXLT SRT5KRMXLT SRT5KXLT-IEC SRT5KRMXLT-IEC

SRT6KXLT SRT6KRMXLT SRT6KXLT-IEC SRT6KRMXLT-IEC

Input

208/240 Vac 24 A 30 A/2-pole

Output

Input

208/240 Vac

Output

SRT5KXLI/SRT6KXLI models

Input connections Single phase: Wire to L, N,

Output connections Wire to L, N

System Wiring Voltage Current full

SRT5KXLI SRT5KRMXLI

SRT6KXLI SRT6KRMXLI

Input

Output

Input

Output 28 A

220/230/240 Vac 24 A 40 A/2-pole 6 mm

220/230/240 Vac

load, nominal

33 A

29 A

load, nominal

32 A

External input

Wire size,

circuit breaker,

(typical)

(provided with the

50 A/2-pole 6 AWG

External input

circuit breaker,

(typical)

50 A/2-pole 10 mm

typical

L6-30

UPS)

Wire size,

typical

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U16

Page 17

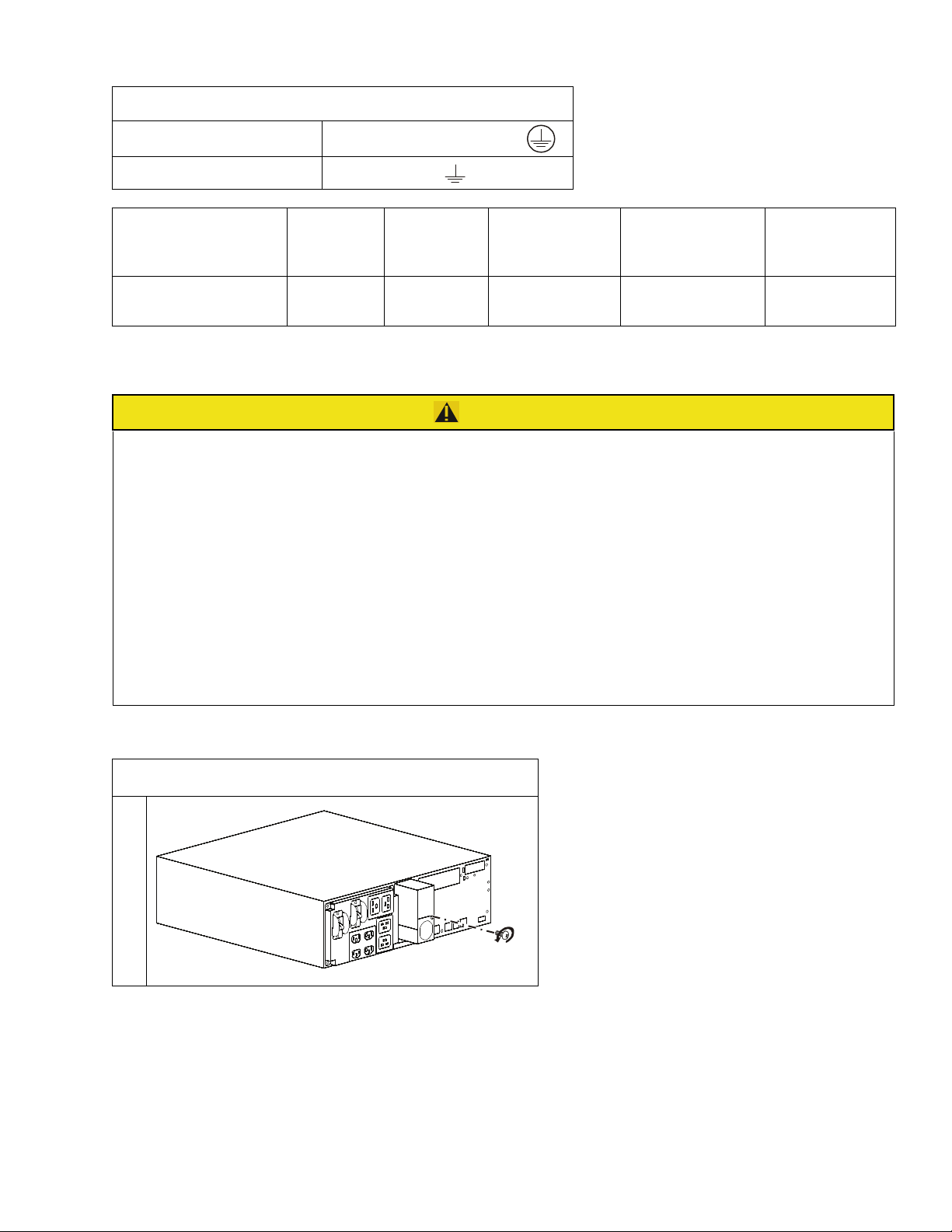

SRT5KRMXLW-HW

Input connections Single phase: Wire to L, L2/N,

Output connections Wire to L1, L2/N

System Wiring Voltage Current full

load, nominal

External input

circuit breaker,

Wire size,

typical

(typical)

6 mm

(8 AWG)

SRT5KRMXLW-HW

Input

Output

208/220/

230/240 Vac

26 A

40 A/2-pole

24 A

Hardwire the UPS

CAUTION

RISK OF ELECTRIC SHOCK

• Disconnect the mains input circuit breaker before installing or servicing the UPS or connected equipment.

• Disconnect internal and external batteries before installing or servicing the UPS or connected equipment.

• The UPS contains internal and external batteries that may present a shock hazard even when disconnected from the mains.

• UPS AC hardwired and pluggable outlets may be energized by remote or automatic control at any time.

• Disconnect equipment from the UPS before servicing any equipment.

• Do not use the UPS as a safety disconnect.

• Use Snap-In strain reliefs provided with the unit.

Failure to follow these instructions can result in equipment damage and minor or moderate injury

Input hardwiring

SRT5K/6K models



Remove the 35 mm (1.38 in) knockout panels.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 17

Page 18



L2/N



Output hardwiring

UPS

SRT5KRMXLW-HW models





SRT6K models

Remove the 38.1 mm (1.5 in) knockout panels.



Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U18

Page 19





UPS Configuration

Connect Emergency Power Off feature

For instructions on how to connect the Emergency Power Off (EPO) switch, refer to the Operation and Maintenance manual on the User Documentation CD (supplied).

Configure controllable outlet groups

The outlets on the UPS are grouped. To configure the controlled outlet features, use the Advanced menus on the display interface and navigate to: Main Menu > Configuration > Outlets > Outlet Group.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 19

Page 20

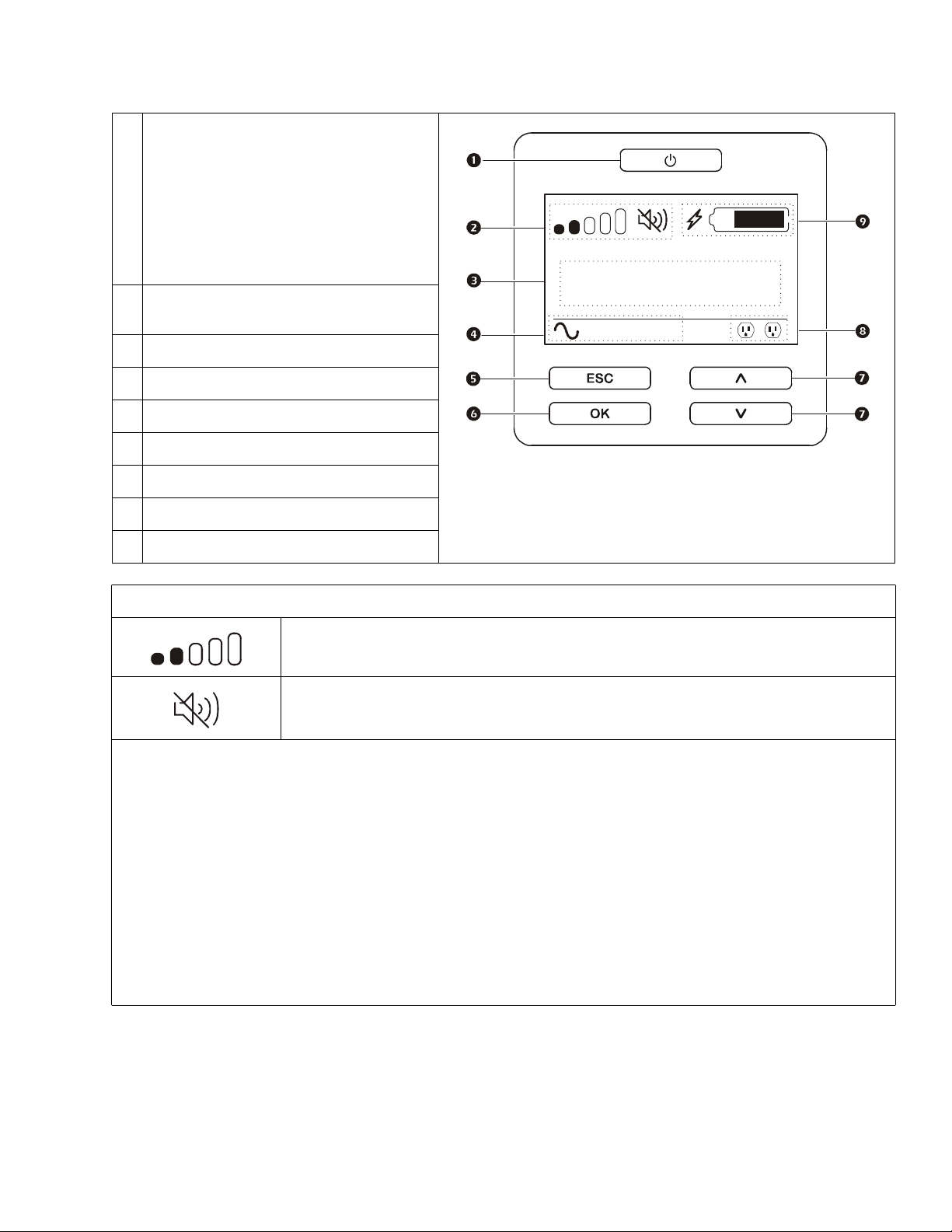

UPS Display Interface

su0870b

Output

230.0

LOAD

POWER ON/OFF button



Button illumination indications:

-No illumination, the UPS and the output power are off

-White illumination, the UPS and the output power are on

-Red illumination, the UPS is on and the output power is off

Load icon



Disable/mute audible alarm icon

UPS status information



Operation mode icons



ESCAPE button



OK button



UP/DOWN buttons



Controllable outlet group status icons



On-Line

Battery status icons



The icons on the LCD display interface screen may vary depending on the installed firmware version.

Load icon: The approximate load capacity percentage is indicated by the number of load bar sections illuminated. Each bar represents 16% of the load capacity.

Mute icon: Indicates the audible alarm is disabled/mute.

UPS Status Information

The status information field provides key information on the status of the UPS. The Standard menu will allow the user to select one of the following screens. The Advanced menu will scroll through the following five screens.

Input Voltage

Output Voltage

Output Frequency

Load

Runtime

In the case of a UPS event, status updates will be displayed defining the event or condition that has occurred. The display screen illuminates amber to indicate a Message and red to indicate an Alert depending on the severity of the event or condition.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U20

Page 21

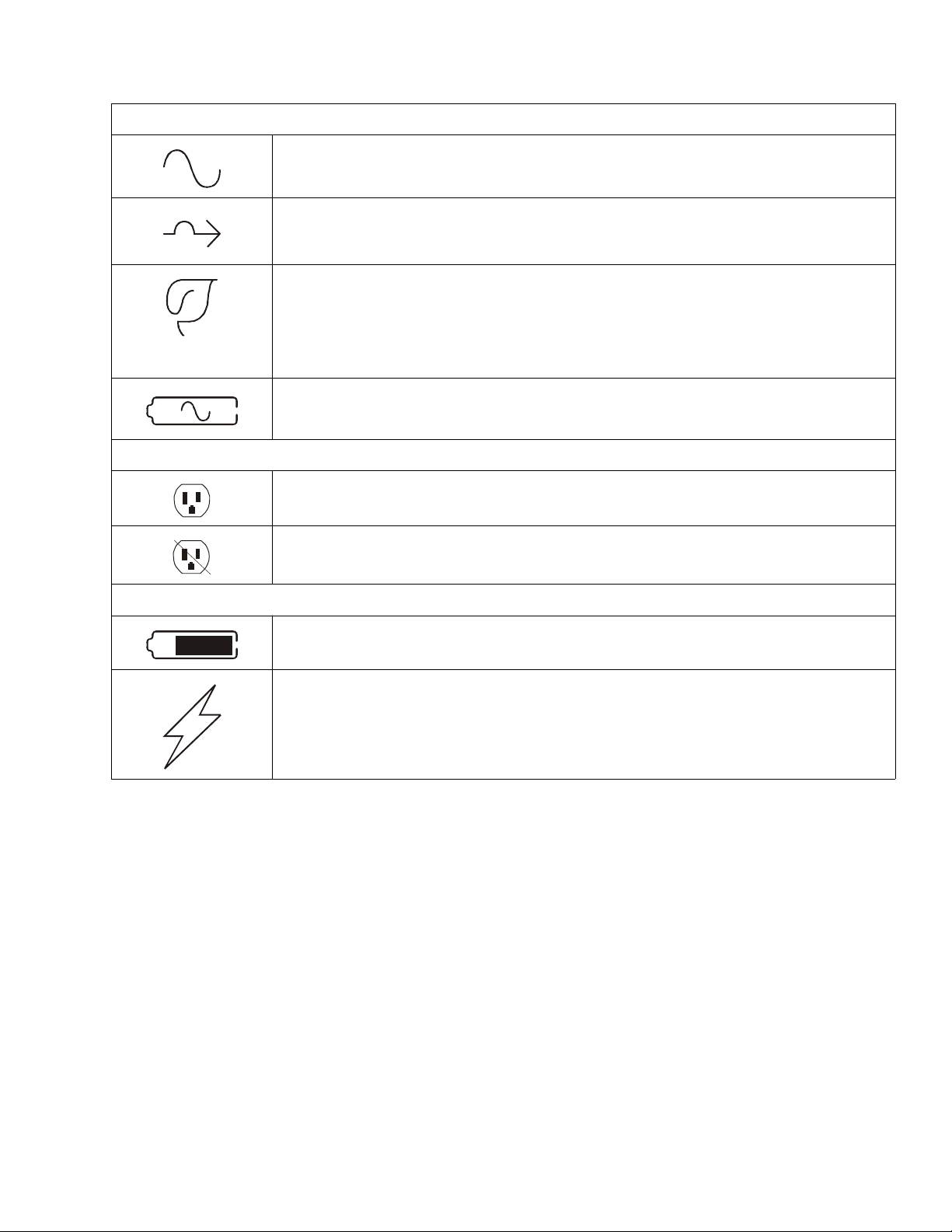

Operation Mode Icons

On-Line mode: The UPS is supplying conditioned mains power to connected equipment.

Bypass mode: The UPS is in Bypass mode and the connected equipment will receive mains power

as long as the input voltage and frequency are within the configured limits.

Green mode: When in Green mode mains power is sent directly to the load.

In the event of a mains power outage, there will be an interruption in power to the load of up to 8 ms while the UPS switches to On-Line mode.

When enabling Green mode consideration should be given to devices that may be sensitive to power fluctuations.

Battery mode: The UPS is supplying battery power to connected equipment.

Controllable Outlet Group Icons

Controllable Outlet Group Power Available: The number next to the icon identifies the specific

outlet groups that have available power.

Controllable Outlet Group Power Not Available: The number next to the icon identifies specific outlet groups that do not have available power.

Battery Status Icons

Battery Charge Status: Indicates the battery charge status.

Battery Charge In Progress: Indicates the battery is charging.

Display interface operation

Use the UP/DOWN buttons to scroll through the options. Press the OK button to accept the selected option. Press the

ESC button to return to the previous menu.

Menu overview

The display interface has Standard and Advanced menu screens. The preference for Standard or Advanced menu selections is made during initial installation and can be changed at any time through the Configuration menu.

The Standard menus include the most commonly used options.

The Advanced menus provide additional options.

Note: Actual menu screens may differ by model and firmware version.

Refer to the UPS Operation Manual for menu configuration details.

Smart-UPS On-Line SRT5K/6K Tower/Rack-Mount 3U/4U 21

Page 22

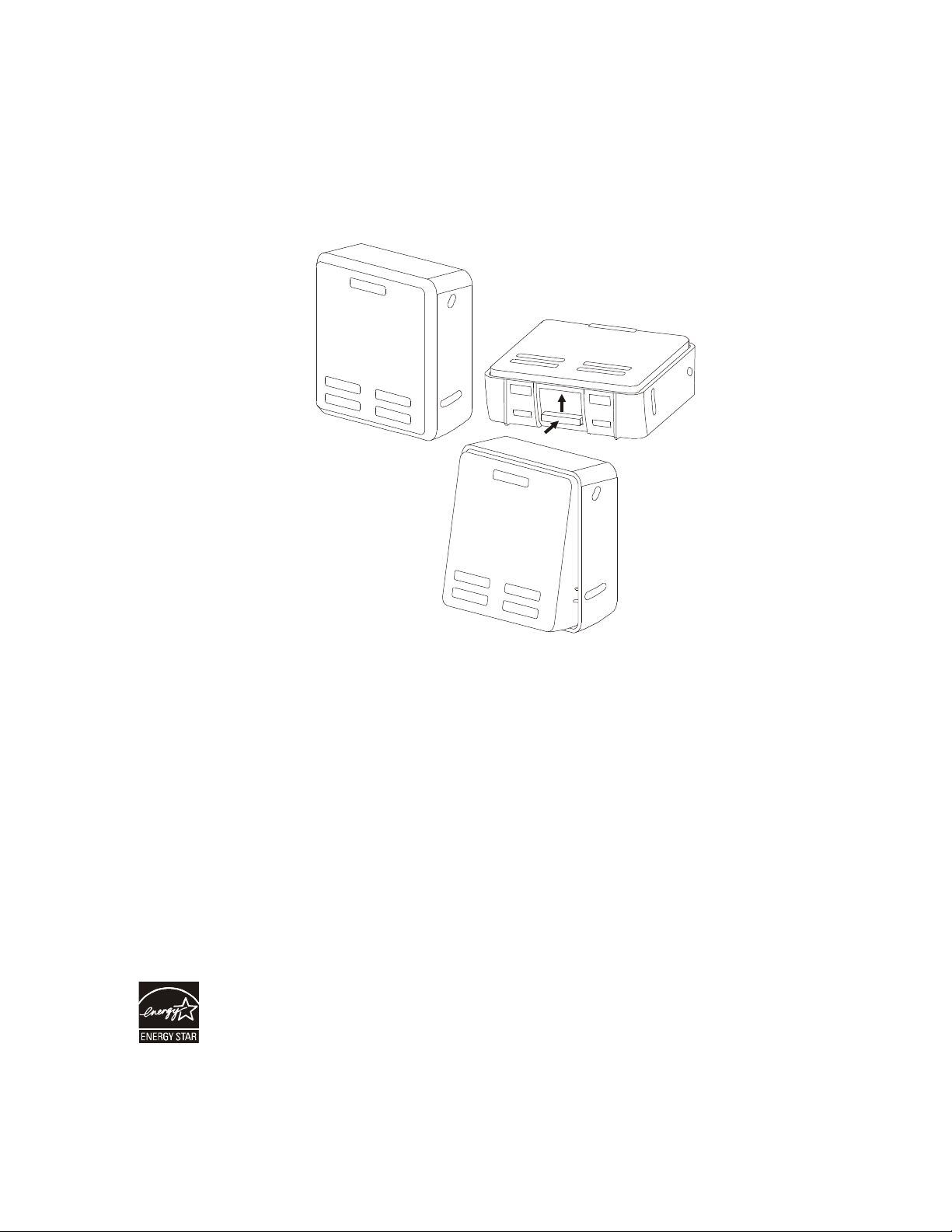

LCD display interface angle adjustment

The angle of the LCD display interface can be adjusted for ease in viewing the displayed messages.

1. Remove the front bezel.

2. Locate the button on the bottom of the display interface panel.

3. Press the button and slide the bottom of the LCD display interface screen out. An audible click will be heard when the screen reaches the maximum angle.

Select models are ENERGY STAR

qualified.

For more information go to www.apc.com/site/recycle/index.cfm/energy-efficiency/energy-star/

Customer support and warranty information are available on the APC web site, www.apc.com.

© 2017 APC by Schneider Electric. APC, the APC logo, Smart-UPS and PowerChute are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of their respective owners.

EN 990-5090D

3/2017
