Installation and
Operation
Service Bypass Panel
SBP20KP
SBP20KRMT4U
SBP20KRMI4U
suo0707a
This manual and the safety guide are available in English on the enclosed CD and the APC Web site, www.apc.com.
Uživatelská příručka a bezpečnostní pokyny jsou k dispozici v češtině na přiloženém CD a na webových stránkách APC -
www.apc.com.
Denne vejledning og sikkerhedsvejledningen er tilgængelige på dansk på den vedlagte CD og på APC's websted, www.apc.com.
Dieses Handbuch sowie die Sicherheitsrichtlinien sind in deutscher Sprache auf der beiliegenden CD und auf der Website von
APC unter www.apc.com verfügbar.
Este manual y la guía de seguridad están disponibles en español en el CD adjunto y en el sitio Web de APC, www.apc.com.
Ce manuel et le guide de sécurité sont disponibles en français sur le CD-ROM ci-inclus et sur le site Web d'APC, www.apc.com.
A használati utasítás és a biztonsági útmutató megtalálható magyarul a csatolt CD-n és az APC honlapján: www.apc.com.
Il presente manuale e la corrispondente Guida per la sicurezza sono disponibili in italiano sul CD-ROM allegato e sul sito Web
di APC all'indirizzo www.apc.com.
Deze handleiding en het veiligheidshandboek staan in het Nederlands op de bijgevoegde cd en op de APC-website:
www.apc.com.
En norsk versjon av denne håndboken og sikkerhetsveiledningen finnes på den vedlagte CD-en og på APCs webområde
www.apc.com.
Este manual e o guia de segurança estão disponíveis em português no CD incluso e no website da APC, www.apc.com.
Instrukcja obsługi oraz przewodnik bezpieczeństwa w języku polskim dostępne są na załączonej płycie CD i na stronie
internetowej APC, www.apc.com.
Denna manual och säkerhetsguide finns tillgänglig på svenska på medföljande CD och på APC:s webbsida, www.apc.com.
Bu kılavuzun ve güvenlik kılavuzunun Türkçe versiyonu ürünle birlikte verilen CD’de ve www.apc.com adresindeki APC web
sitesinde bulunmaktadır.
Panduan dan petunjuk keselamatan ini tersedia dalam Bahasa Inggris pada CD terlampir dan pada Situs APC, www.apc.com.
本書及び安全ガイドの日本語版は、同梱の CD 及び APC の Web サイト（www.apc.com）からご覧戴けます。
이 매뉴얼과 안전 가이드는 동봉된 CD 와 APC 웹사이트 www.apc.com 에서 한글로 이용할 수 있습니다 .
Англоязычный вариант данного руководства и руководства по технике безопасности имеется на прилагаемом
компакт-диске, а также на сайте компании APC: www.apc.com.
คําแนะนําดานความปลอดภัยและคู
มือนี้ที่เปนภาษาไทย สามารถดูไดในซีดีที่ใหมาและเว็บไซตของ APC, www.apc.com
您可以從隨附的 CD 與 APC 網站 （www.apc.com）上獲得本手冊與安全指南的中文版本¡£
Το εγχειρίδιο αυτό και ο οδηγός ασφάλειας είναι διαθέσιμα στα ελληνικά στο CD που εσωκλείεται και στην ιστοσελίδα της
APC, www.apc.com.
Overview
The APC® by Schneider Electric service bypass panel (SBP), provides util ity power to connected
equipment during UPS maintenance.
Inventory
Read the Safety Guide before instal ling the UPS.
Inspect the SBP upon receipt. Notify the carr ier and dealer if there is damage.
The package is recyclable; save it for reuse or dispose of it properly.
Literature Kit:
• Product documentation
• Safety Guide
• Wa rranty card
• Allen wre n ch
(1)
(8)
(1 pair)
Rail Kit Installation Kit
Installation Kit Contents
(8)
(1 pair)
(8) (2)
(1 pair)
(1 pair)
SBP20K Series User Manual
1
Specifications
Electrical Specifications
SBP model Rated Input Voltage Rated Output Voltage
200/208/240 VAC
50/6 0 H z , 2P +PE
200/208/240 VAC
50/60 Hz, 2P+PE
Input Current
maximum
125 A
each pha se
Output Power
Watts/VA
maximum
30,000
SBP20KP
SBP20KRMT4U
SBP20KRMI4U
220/230/240 VAC
50/60 Hz 1P+N+PE
380/400/415 VAC
50/60 Hz, 3P+N+PE
200/208/240 VAC
50/6 0 H z , 2P +PE
220/230/240 VAC
50/60 Hz, 1P+N+PE
380/400/415 VAC
50/60 Hz, 3P+N+PE
220/230/240 VAC
50/60 Hz, 1P+N+PE
220/230/240 VAC
50/60 Hz, 1P+N+PE
200/208/240 VAC
50/60 Hz, 2P+PE
220/230/240 VAC
50/60 Hz, 1P+N+PE
220/230/240 VAC
50/60 Hz, 1P+N+PE
125 A
each pha se
125 A
each pha se
125 A
each pha se
125 A
each pha se
125 A
each pha se
30,000
30,000
30,000
30,000
30,000
Note: The table above represents the electrical ratings of the SBP and not those of the UPS.
2
UPS wire specifications may vary. The SBP requires a minimum wire size of 25 mm
and a
maximum wire size of 50 mm2. Refer to the UPS user manual for UPS wiring specificati ons.
SBP ratings must be equal to or greater than those of the UPS to which it is connected.
The input circuit breaker should not exceed the rating recommended on the UPS.
The system load must not exceed the electrical rating of the UPS. For example, if a 3840 VA
SBP is used with a 3000 VA UPS the maximum load that the system will support is 3000 VA.
Environmental Specifications
Temperature
Maximum
Elevation
Humidity 0 to 95% relative humidity, non-condensing
Operating 0° to 40° C (32° to 104° F) This unit is intended for indoor use onl y.
Storage -15° to 45° C (-40° to 1 13° F)
Operating 3,000 m (10,000 ft)
Storage 15,000 m (50,000 ft)
Changes and modifications to this unit not expressly approved by APC could
void the warranty.
Do not operate the service bypass pane l wh ere
there is excessive dust or the temperature or
humidit y ar e outside specified limits.
Be sure the air vents on the SBP are not
blocked. Allow adeq uat e s pac e for proper
ventilation.
SBP20K Series User Manual2

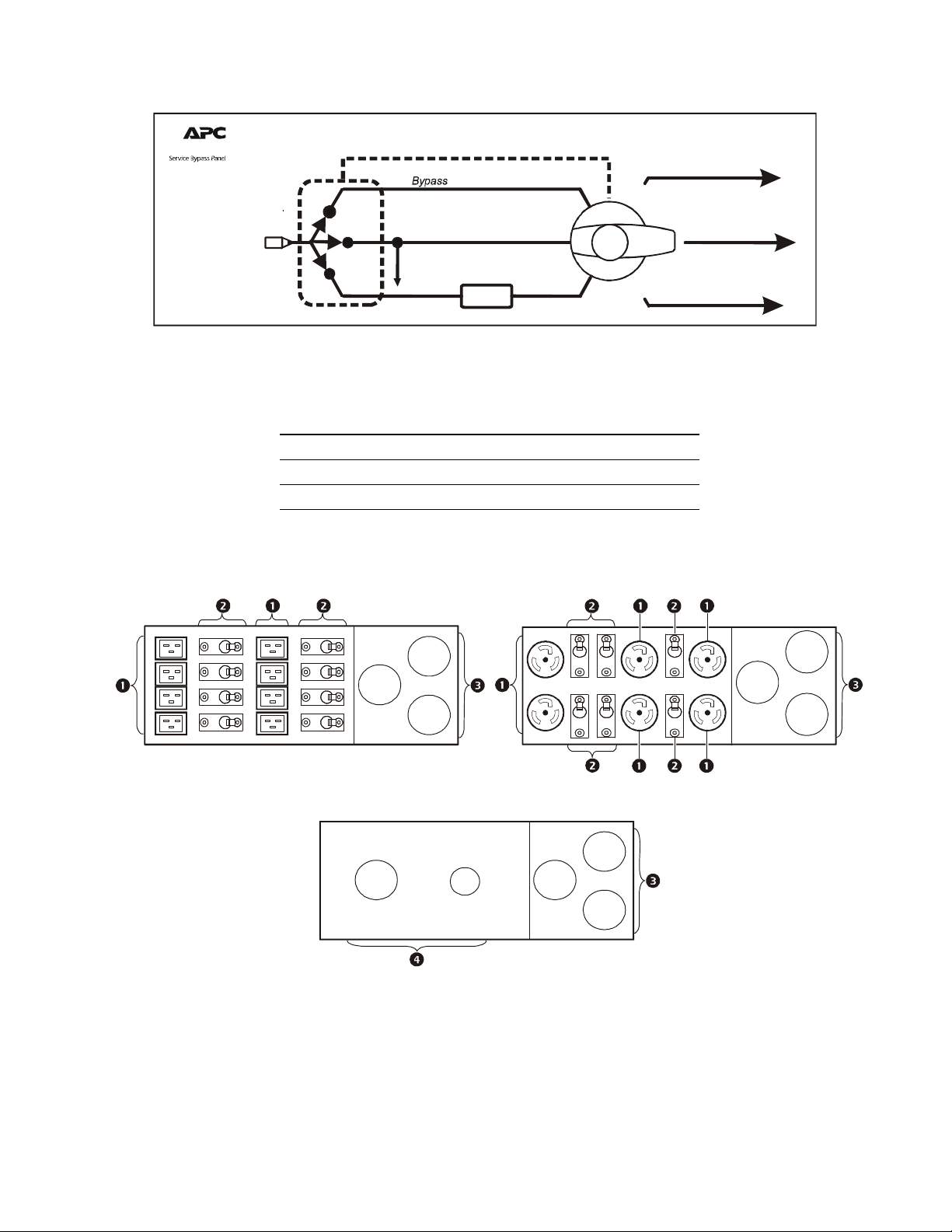

Front panel
Test
Normal
Bypass
Normal
Load protected
Load not protected
AC Input
by Schneider Electric
suo
Test
Load not protected
Rear panels
SBP20KRMI4U SBP20KRMT4U
UPS
Callout Description
Equipment outl ets
Equipment outlet circuit breakers
Utility input power hardwire access
Output power hardwire acces s
0641a
suo0687a
suo0686a
SBP20KP
suo0688a
SBP20K Series User Manual 3
Installation
4x
4x
4x
4x
4x
7 holes
7 holes
Stack configuration
Always place the SBP above the external battery packs and the UPS.
Four ornamental screws (sup plied), must be used to secure each tie
bracket to the units , (s ee diagram).
Rack-mount configuration
Install rails in rack
For de tails on ra il instal lation ref e r to th e instru c tions inc lu ded in th e r ai l k it.
Install rack -mo u nt brackets
Secure the bra ckets to the unit usi ng eigh t
flat head screws (supplied).
4x
suo0689a
suo0690a
Install cleats
Secure th e cleats to the unit usin g eight
Pan head screws (supplied).
Install in rack
Always place the SBP above the external
battery packs and the UPS.
A cage nut and an ornamental screw
(supplied), must be used in the top hole
of each rack-mount bracket when
securin g the unit in the rack.
The bottom hole of each rack-mount
bracket must be secured usi ng an
ornamental screw (supplied), in the
threaded h o le.
4x
suo0696a
suo0691a
SBP20K Series User Manual4
Wall-mount configuration
suo0697a
4x

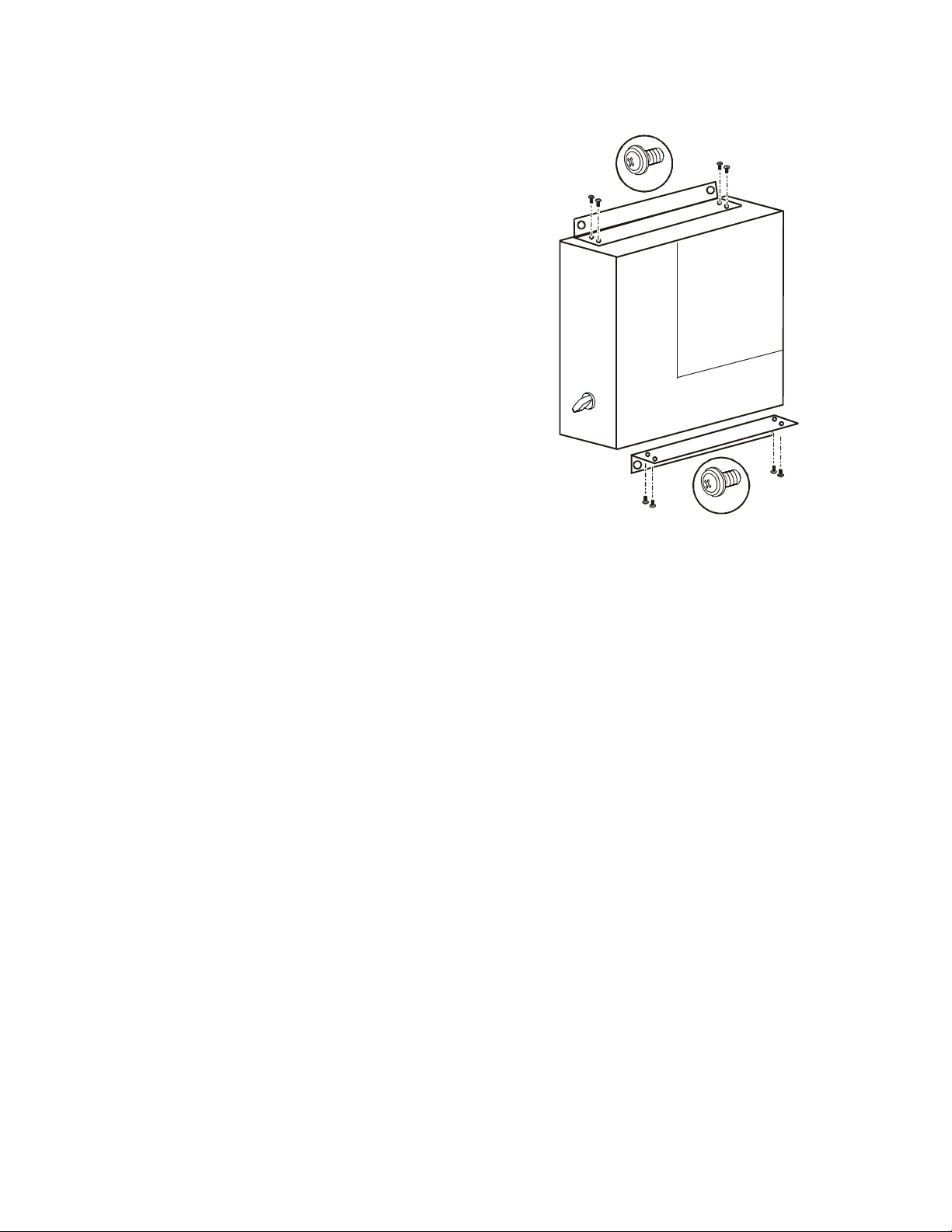

Secure the wall-moun t brackets to the unit using eight
ornamental screws (supplied), four in each bracket.
Secure the SBP to the wall. Select screws (not supplied),
that are appropri ate for the weight of the unit and the
mounting surface materi al.
4x
SBP20K Series User Manual 5
Hardwire the SBP
suo0702a
x7
x6
x6
(1 inch)
A
suo070
Hardwiring must be performed by a qualified electrician.
Adhere to all national and local electrical codes.
Switch the utility circui t breaker off.
Remove the terminal block access pa nel located on top
of the unit.
On all models, remove the access panel with three
knockout piece s.
Remove all three kno ckout pieces from the panel.
suo0703a
Model SBP20KP has two access panels. Remove both
of the access panels.
Remove all three kno ckout pieces from the smal l panel.
Remove one of the knockout pieces from the large panel.
Strip 24 mm (1 inch), of insulation from the cable ends.
Insert cables through the holes in the access panel(s).
Connect the ground terminal first .
Install an approp riate strain re lief (not suppl ied ), on each
cable.
Secure th e cables in th e terminal blocks. Refer to the
terminal block configurations on the following page.
Use the Allen wrench supplied to tighten the te rmi nal
block screws.
Torque terminals to 6 Nm (53 in-lb) minimum,
8 Nm (71 in-lb) maximum.
Replac e th e access pan el ( s ) using all of the scr ew s
removed in the previous s teps. Failure to do so may
result in persona l injury or equipment damage.
suo0705a
ll Models
suo0704a
24 mm
SBP20KP
6a
SBP20K Series User Manual6
SBP20KRMI4U SBP20KRMT4U
L2/N
L1
L3
L2
L1
L1
L2/N
L1
L2/N
L1
L2/N L1
L3
L2
N
L3
N
L3
N
L2 L1
L1
L2/N
L2/N
SBP20KP
Hardwire the UPS
N
L1
L2 L1
Refer to the UPS user manual for detailed instructions.
SBP20K Series User Manual 7
Operation
Normal mode
While the SBP operates in normal mode, power is supplied to conne cted equipment from the UPS
providing protectio n from power variations and disturbances .
Test mode
1. Swit ch th e U P S to Bypass mode. Verify that no UPS fault conditions e xist. In the event that a fault
conditi o n ex ists, refer to th e u ser manu als for the UPS and SBP.
2. Switch the SBP to Test mode.
Note: While the SBP i s in Test mode connected equipment re ceiv es direct util ity p ower and i s
not protected by the UPS.
The UPS will continue to receive input util ity power.
The Equipment Protection Policy is not val id while the SBP is operating in Test mode.
Bypass mode
Bypass mode enables connected equipment to operate on utility power while UPS maintenance is
performed.
While in SBP Bypass mode the UPS will not receive utility input power. The UPS will receive battery
power while in SBP Bypass mode. Refer to the UPS use r manual for shutdown procedures.
Note: Connected equipment is not protected by the UPS while the SBP is in Bypass mode.
The Equipment Protection Policy is not val id while the SBP is operating in Bypass mod e.
Reconnect SBP to UPS
Bypass mode
1. Put the SBP in Bypass mode.
2. Correct ly configure the input , output and battery conn ections on the UPS.
DO NOT turn on the UPS at this time.
Test mode
1. Swit ch th e S B P to Test mode.
a.The connected equipment will receive direct input utility power.
b.The UPS will receive input utility power.
2. Verify that no UPS fault condit ion s exist. In the event tha t a fault conditi on exi sts, re fer to the use r manuals
for the UPS and SBP.
3. Turn on the UPS output power.
Normal mode
1. Switch the UPS to Bypass mode. Verify that no UPS fault conditi ons exist. In the event that a fault
conditi o n ex ists, refer to th e u ser manu als for the UPS and SBP.
2. Swit ch th e S B P to Normal mode.
3. Swit ch th e U P S to Online mode. Verify that no UPS fault conditions exist. In the event that a fault
conditi o n ex ists, refer to th e u ser manu als for the UPS and SBP.
The SBP will now supply power to connecte d equipment from the UPS providi ng prote ction fro m power
variations and disturba nces.
SBP20K Series User Manual8
Troubleshooting
Use the table to solve minor installation and operation problems.
Refer to the APC W eb site, www.apc.com for assistance with complex problems.
Problem and/or Possible Cause Solution
UPS will not turn on
SBP is in Bypass mode. Rotate th e SBP swit ch to TEST.
There is no power at the UPS input . Verify that the power ca bles from the SBP to the utility power, an d from
the SBP to the UPS inp ut are securely conne cted.
UPS is faulty or damaged. Rotate the SBP switch to Test. If the connected eq u ipment is energized,
the UPS may be faulty. Refer to Tr oubl eshoot ing in the UPS use r man ual
for detaile d in f o r m a tion.
There is no po w er at the utility power outlet . Rotate the SBP swi tch to Test. If the connected equipment does not
become energized, the util ity power outlet may be faulty. Verify the
utilit y power s upply. Contact a qualif ied elec tri cian to chec k the buil ding
electri cal power.
UPS is Online; not providing power to connected equipment
SBP output circuit breaker has tripped. Disconnect all nonessential equipment from the SBP. Reset the SBP
circuit breaker.
There is no SBP output power. Verify that the power cable from the SBP to the UPS out put is securely
connected.
Contact i n fo r m a t io n
Customer support for this or any othe r APC product is available at no charge in any of the following ways:
Visit the APC Web site to access documents in the APC Knowledge Base and to submit customer support
requests.
– www.apc.com (Corporate Headquarters)
Connect to localized APC Web sites for specific countries, each of which provides customer support
information.
– www.apc.com/support/
Global support searchi ng APC Knowledge Base and using e-support.
• Contact the
Local, country-specific centers: go to www.apc.com/support/contact for contact information.For
information on how to obtain local custo mer support, contact the APC representative or other
distributors from whom you purchased your APC product.
APC Customer Support Cente r by telephone (888) 272 2782, or by e-mail.
SBP20K Series User Manual 9
Service
If the unit requires service, do not return it to the dealer. Follow these steps:
1. Review the Troubleshooting section of the manual to eliminate common problems.
2. If the problem persis ts , contact APC Customer Support through the APC Web site, www.apc.com.
a.Note the model number and seria l number and the date of purc hase. The model and serial numbers are
located on the rear panel of the unit and are available through the LCD display on select models.
b.Call APC Customer Sup port and a te chnician will attempt to solve the problem over the phone. If this
is not possi b le, the technician will issue a Returned Material Authorization Number ( RMA #).
c.If the unit is under warranty, the repairs are free.
d.Service procedures and returns may vary interna tionally. Refer to the APC Web site for country
specif i c in s t r u ct io n s .
3. P ack the unit in its original packaging. If this is not available, refer to www.apc.com to obtain a new set.
a.Pack the unit properly to avoid damage in transit. Never use foam beads for packaging. Damage
sustained in transit is not covered under warranty.
b.For the UPS, always DISCONNECT THE BATTERY before shipping in compliance with U.S.
Department of Transportation (DOT) and IATA regulations. The batt ery may rem ain in the unit.
c.Internal batteries may remain connected in the XLBP during shipment, (if applicable, not all units
have XLBPs).
4. Write the RMA# provided by Customer Support on the outside of the packa ge.
5. Return the unit by ins ured, pre-paid carrier to the address provided by Cus tom er Support.
Transport the unit
1. Shut down and discon nect all connected equipment.
2. Disconnect the unit from utility power.
3. Disconnect all in ternal and external batteries (if applicable).
4. F ollow the shipping instructions outlined in the Service section of this manual.
Two-Year Factory Warranty
This warranty applies only to the produ cts you purchase for your use in accordance with this manual.
Terms of warranty
APC warrants its products to be free from defects in materials and workmanship for a period of two
years from the date of purchase. APC will r epair or replace defecti ve products covered by this warranty.
This warranty does not apply to equipment that has been damaged by accident, negligence or
misapplication or has been alter ed or modified in any way. Repair or replace ment of a defective product
or part thereof do es not e xtend t he ori ginal war rant y period. Any part s fur nished un der this wa rrant y may
be new or factory-remanufactured.
Non-transferable warranty
This warranty extends only to the origi nal purchase r who must have properly regi stered the prod uct. The
product may be registered at the APC Web site, www.apc.com.
SBP20K Series User Manual10
Exclusions
APC shall not be liable under the warranty if its testing and examination disclose that the alleged defect
in the product does not exist or was caused by end user’s or any third person’s misuse, negligenc e,
improper installati on or testing. Further, APC shall not be liable under the warranty f or unauthorized
attempts to repair or modify wrong or inadequate electrical voltage or conne ction, inappropriate on- site
operation conditions , co rrosive atmosphere, repair, installation, exposure to the elements, Acts of God,
fire, theft, or instal lation contrary to APC recommendations or spec ifications or in any event if the APC
serial number has been al tered, defa ced, or removed, or any other caus e beyond th e range of the int ended
use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR
OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS
AGREEMENT OR IN CONNECTION HEREWITH. APC DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY, SATISFACTION AND FITNESS FOR A
P ARTICULAR PURPOSE. APC EXPRESS WARRANTIES WILL NOT BE ENLARGED,
DIMINISHED, OR AFFECTED BY AND NO OBLIGATION OR LIABILITY WILL ARISE
OUT OF, APC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN
CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND
REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND
REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE APC’S SOLE
LIABILITY AND PURCHASER’S EXCLUSIVE REMEDY FOR ANY BREACH OF SUCH
WARRANTIES. APC WARRANTIES EXTEND ONLY TO PURCHASER AND ARE NOT
EXTENDED TO ANY THIRD PARTIES.
IN NO EVENT SHALL APC, ITS OFFICERS, DIRECTORS, AFFILIATES OR EMPLOYEES
BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE
DAMAGES, ARISING OUT OF THE USE, SERVICE OR INSTALLATION, OF THE
PRODUCTS, WHETHER SUCH DAMAGES ARISE IN CONTRACT OR TORT,
IRRESPECTIVE OF FAULT, NEGLIGENCE OR STRICT LIABILITY OR WHETHER APC
HAS BEEN ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES.
SPECIFICALLY, APC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS OR
REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT, LOSS OF SOFTWARE,
LOSS OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD PARTIES, OR
OTHERWISE.
NO SALESMAN, EMPLOYEE OR AGENT OF APC IS AUTHORIZED TO ADD TO OR VARY
THE TERMS OF THIS WARRANTY. WARRANTY TERMS MAY BE MODIFIED, IF AT ALL,
ONLY IN WRITING SIGNED BY AN APC OFFICER AND LEGAL DEPARTMENT.
Warrant y cl ai ms
Customers with warranty claims issue s may access the APC customer support network through the
Support page of the APC Web site, www.apc.com/support. Select your country from the country
selection pull-down menu at the top of the Web page. Select the Support tab to obtain contact
information for customer support in your region.
© 2010 APC by Schneider Electric. APC, the APC logo, and Smart-UPS are owned by Schneider Electric Industries S.A.S.,
American Power Conversion Corporation, or their af filiated companies. All other trademarks are property of their respective
owners.
SBP20K Series User Manual 11
Loading...
