American Power Conversion RS-232 User Manual

APC, PowerChute and Back-UPS are registered trademarks of

Momentary Tone

-

a two (2) sec-

ond duration tone is sounded two

seconds after utility power loss has

Continuous Beeping

-

the UPS is

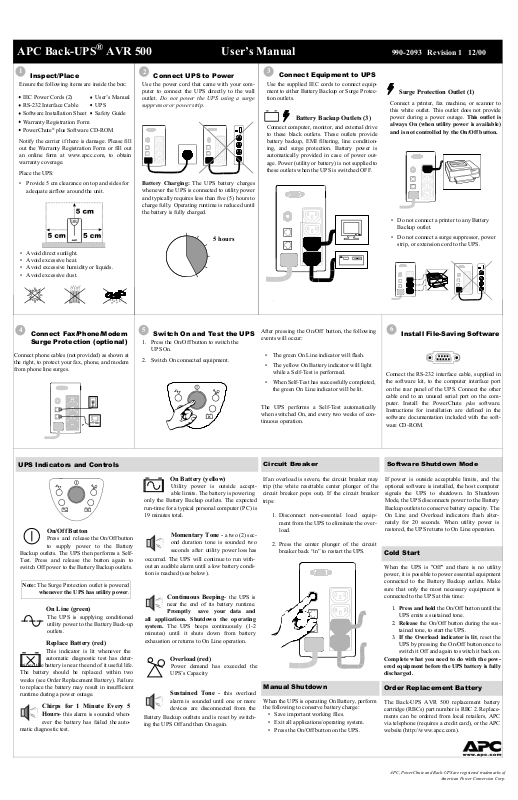

APC Back-UPS® AVR 500 User’s Manual 990-2093 Revision 1 12/00

Chirps for 1 Minute Every 5

Sustained Tone

-

this overload

1

Inspect/Place

Ensure the following items are inside the box:

IEC Power Cords (2)
RS-232 Interface Cable
Software Installation Sheet
Warranty Registration Form
PowerChute® plus Software CD-ROM

Notify the carrier if there is damage. Please fill
out the Warranty Registration Form or fill out
an online form at www.apcc.com, to obtain
warranty coverage.

Place the UPS:

• Provide 5 cm clearance on top and sides for
adequate airflow around the unit.

• Avoid direct sunlight.

• Avoid excessive heat.

• Avoid excessive humidity or liquids.

• Avoid excessive dust.

User’s Manual
UPS
Safety Guide

2

Connect UPS to Power

Use the power cord that came with your com­puter to connect the UPS directly to the wall
outlet. Do not power the UPS using a surge
suppressor or power strip.

Battery Charging: The UPS battery charges
whenever the UPS is connected to utility power
and typically requires less than five (5) hours to
charge fully. Operating runtime is reduced until
the battery is fully charged.

5 hours

3

Connect Equipment to UPS

Use the supplied IEC cords to connect equip­ment to either Battery Backup or Surge Protec­tion outlets.

Battery Backup Outlets (3)

Connect computer, monitor, and external drive
to these black outlets. These outlets provide
battery backup, EMI filtering, line condition­ing, and surge protection. Battery power is
automatically provided in case of power out­age. Power (utility or battery) is not supplied to
these outlets when the UPS is switched OFF.

Surge Protection Outlet (1)

Connect a printer, fax machine, or scanner to
this white outlet. This outlet does not provide
power during a power outage. This outlet is

always On (when utility power is available)
and is not controlled by the On/Off button.

• Do not connect a printer to any Battery
Backup outlet.

• Do not connect a surge suppressor, power
strip, or extension cord to the UPS.

4

Connect Fax/Phone/Modem

Surge Protection (optional)

Connect phone cables (not provided) as shown at
the right, to protect your fax, phone, and modem
from phone line surges.

UPS Indicators and Controls

On/Off Button

Press and release the On/Off button

to supply power to the Battery
Backup outlets. The UPS then performs a Self­Test. Press and release the button again to
switch Off power to the Battery Backup outlets.

Note: The Surge Protection outlet is powered

whenever the UPS has utility power.

On Line (green)

The UPS is supplying conditioned

utility power to the Battery Back-up

outlets.

Replace Battery (red)

This indicator is lit whenever the

automatic diagnostic test has deter­mined the battery is near the end of it useful life.
The battery should be replaced within two
weeks (see Order Replacement Battery). Failure
to replace the battery may result in insufficient
runtime during a power outage.

Hours- this alarm is sounded when-

ever the battery has failed the auto-

matic diagnostic test.

5

Switch On and Test the UPS

1. Press the On/Off button to switch the
UPS On.

2. Switch On connected equipment.

On Battery (yellow)

Utility power is outside accept-

able limits. The battery is powering
only the Battery Backup outlets. The expected
run-time for a typical personal computer (PC) is
19 minutes total.

occurred. The UPS will continue to run with­out an audible alarm until a low battery condi­tion is reached (see below).

near the end of its battery runtime.

Promptly save your data and

all applications. Shutdown the operating
system. The UPS beeps continuously (1-2

minutes) until it shuts down from battery
exhaustion or returns to On Line operation.

Overload (red)

Power demand has exceeded the
UPS’s Capacity

alarm is sounded until one or more
devices are disconnected from the

Battery Backup outltets and is reset by switch­ing the UPS Off and then On again.

After pressing the On/Off button, the following
events will occur:

• The green On Line indicator will flash.

• The yellow On Battery indicator will light
while a Self-Test is performed.

• When Self-Test has successfully completed,
the green On Line indicator will be lit.

The UPS performs a Self-Test automatically
when switched On, and every two weeks of con­tinuous operation.

Circuit Breaker

If an overload is severe, the circuit breaker may
trip (the white resettable center plunger of the
circuit breaker pops out). If the circuit breaker
trips:

1. Disconnect non-essential load equip­ment from the UPS to eliminate the over­load.

2. Press the center plunger of the circuit
breaker back “in” to restart the UPS.

Manual Shutdown

When the UPS is operating On Battery, perform
the following to conserve battery charge:

• Save important working files.

• Exit all applications/operating system.

• Press the On/Off button on the UPS.

6

Install File-Saving Software

Connect the RS-232 interface cable, supplied in
the software kit, to the computer interface port
on the rear panel of the UPS. Connect the other
cable end to an unused serial port on the com­puter. Install the PowerChute plus software.
Instructions for installation are defined in the
software documentation included with the soft­ware CD-ROM.

Software Shutdown Mode

If power is outside acceptable limits, and the
optional software is installed, the host computer
signals the UPS to shutdown. In Shutdown
Mode, the UPS disconnects power to the Battery
Backup outlets to conserve battery capacity. The
On Line and Overload indicators flash alter­nately for 20 seconds. When utility power is
restored, the UPS returns to On Line operation.

Cold Start

When the UPS is "Off" and there is no utility
power, it is possible to power essential equipment
connected to the Battery Backup outlets. Make
sure that only the most necessary equipment is
connected to the UPS at this time:

1. Press and hold the On/Off button until the
UPS emits a sustained tone.

2. Release the On/Off button during the sus­tained tone, to start the UPS.

3. If the Overload indicator is lit, reset the
UPS by pressing the On/Off button once to
switch it Off and again to switch it back on.

Complete what you need to do with the pow­ered equipment before the UPS battery is fully
discharged.

Order Replacement Battery

The Back-UPS AVR 500 replacement battery
cartridge (RBCs) part number is RBC 2. Replace­ments can be ordered from local retailers, APC
via telephone (requires a credit card), or the APC
website (http://www.apcc.com).

American Power Conversion Corp.

APC, PowerChute and Back-UPS are registered trademarks of

Note:

Troubleshooting

Pb

To solve minor UPS installation problems, use the table below. To resolve complex UPS problems,
consult the APC web site (http://www.apcc.com), or contact APC Technical Support.

Battery Replacement

!

Please read the cautions in the APC Safety Information Guide first.

Symptom Possible Cause Solution

UPS will not switch On. UPS circuit breaker has

tripped.

Reduce the power demand on the UPS by
unplugging equipment and then reset the
circuit breaker by pressing the plunger
back in.

UPS will not switch On or
Off.

UPS is not connected to
utility power.

Computer interface
problem.

Check that the UPS power plug is
securely connected to the wall outlet.

Disconnect the computer interface. If the
UPS now works normally, check the
interface cable and the attached
computer.

UPS operates On Battery
even though normal line
voltage is thought to exist.

UPS's circuit breaker
tripped.

Reduce the power demand on the UPS by
unplugging equipment from the UPS and
then reset the circuit breaker by pushing
the plunger back in.

Single beep. Normal UPS operation. This is not a fault. The UPS is indicating

that it is protecting the load during a
momentary power loss.

UPS does not provide
expected back up time.

The UPS is excessively
loaded.

Unplug non-essential Battery Backup
connected equipment. They can be
plugged into the Surge Protection outlet.

The UPS’s battery is
weak due to recent
outage and has not had

Charge the battery for five hours. The
battery charges whenever the UPS is
connected to utility power.

time to recharge.

Battery requires
replacement.

Replace battery (see Order Replacement
Battery). Batteries typically last 3-6
years, shorter if subjected to frequent
power outages or elevated temperatures.

PC and/or Monitor is not
powered during an outage.

PC and/or monitor is
plugged into the Surge

Move PC and/or monitor to a Battery
Backup outlet.

Protection outlet.

On Line and Overload
indicators are flashing
alternately.

All indicators are “Off” and
the UPS is not operating.

The UPS was shutdown
by PowerChute® plus
software.

The UPS is shutdown
and the battery is
discharged from an

The UPS will restart automatically when
utility power returns.

The UPS will return to normal operation
when the power is restored and the
battery has a sufficient charge.

extended power outage.

The Replace Battery
indicator is illuminated.

The Overload indicator is
illuminated or flashing.

Overload and Replace
Battery indicators are

Weak battery. Replace battery (see Order Replacement

Battery).

The UPS is overloaded. Reduce the load on the UPS by

unplugging equipment.

Internal UPS fault. Do not use the UPS. Switch the UPS Off

and have it serviced.

flashing.

On Line and On Battery
indicators are flashing.

Internal UPS fault. Do not use the UPS. Switch the UPS Off

and have it serviced.

All indicators are flashing. Internal UPS fault. Do not use the UPS. Switch the UPS Off

and have it serviced.

Service

Note: This procedure requires a coin or flat-blade screwdriver.

Battery replacement is a safe procedure, isolated from electrical hazards. The replacement battery
must match the specifications of RBC 2. The UPS may be left connected to utility power and the
connected equipment left "On" during the procedure. Do not replace the battery when the UPS is On
Battery (yellpw indicator is lit).

Note: Once the battery is disconnected, the connected equipment is not protected from power outages.

1. Lay the UPS on its left side to permit access to the
battery access door on the bottom of the UPS. Remove
the two (2) screws that secure the battery access door
to the chassis. Open the battery access door.

Note: It may be necessary to pull the battery door

slightly outward or toward the front of the

unit in order to open the door fully.

2. Grasp the white tab attached to the battery and gently
pull the battery out of the chassis.

3. Disconnect the two wires connecting the battery to the
UPS. Loosen the wires by wiggling them while pulling
straight back from the battery connector.

4. Connect the replacement battery in place of the old
battery as follows:

Red wire - to red terminal.
Black wire - to black terminal.

Note: Small sparks at the battery connections

are normal during connection

5. Insert the replacement battery in the UPS. Carefully
avoid pinching the wires.

6. Carefully close the battery compartment door and
replace the screws.

7. Batteries must be recycled. Deliver the old battey to an

Pb

appropriate recycling facility or ship it to APC in
packaging from the replacement battery. See the
information supplied with the new battery for more
details.

UPS Storage

Before storing, the UPS should be connected to utility power for at least 4-5 hours. Disconnect the
UPS from facility power, cover and store the UPS upright in a cool, dry location. During long-time
storage, the battery should be charged in accordance with the below:

Note: If the UPS requires service, do not return it to the dealer. The following
steps should be taken:

1. Consult the Troubleshooting section to eliminate common problems.

2. Determine if the circuit breaker is tripped. If the circuit breaker is tripped, reset the breaker and
determine if the problem still exists.

3. If the problem persists, consult the APC Worldwide Web site (www.apcc.com) or call customer
service.

• Record the model number of the UPS, the serial number, and the date purchased. Be

prepared to troubleshoot the problem over the telephone with a technician. If this is not
successful, the technician will issue a Return Merchandise Authorization Number (RMA#)
and a shipping address.

• If the UPS is under warranty, repairs are free. If not, there is a repair charge.

4. Pack the UPS in its original packaging. If the original packing is not available, ask customer
service about obtaining a new set. Pack the UPS properly to avoid damage in transit.

Note: Never use StyrofoamTM beads for packaging. Damage sustained in
transit is not covered under warranty (insuring the package for full value
is recommended).

Never use Styrofoam™ beads for packaging. Damage sustained in transit is not covered under

warranty (insuring the package for full value is recommended).

5. Write the RMA# on the outside of the package.

6. Return the UPS by insured, prepaid carrier to the address provided by customer service.

Warranty

The standard warranty is 2 years from date of purchase. APC's standard procedure is to replace the
original unit with a factory reconditioned unit. APC will ship out the replacement unit once the
defective unit has been received by the repair department or cross ship upon the receipt of a valid
credit card number. The customer pays for the shipping to APC and APC pays ground freight
transportation costs back to the customer.

Customers who must have the original unit back due to assigned asset tags and set depreciation
schedules must declare such a need at first contact with APC Customer Service.

Copyright © 2000 American Power Conversion

132 Fairgrounds Rd West Kingston, RI 02892 USA

Toll free: (800) 800-4APC Phone: [phone] Fax: [phone]

Storage Temperature Recharge Frequency Charging Duration

5 to 86o F (-15 to 30o C)

86 to 113o F (30 to 45o C)

Every 6 Months 10 Hours

Every 3 Months 10 Hours

APC Contact Information

APC Web Site http://www.apcc.com

Technical Support http://support.apcc.com

India 91 44 433 1124

United States [phone] (fax)

[phone]

Specifications

Expected runtime for a
Typical PC (110 Watts)

Acceptable Input Voltage 0 - 320 VAC, Single Phase

Input Voltage Range for On
Line Operation

Maximum Load 500 VA, 300 W

On Battery Output Voltage 230 VAC + 8% of nominal input voltage

On Battery Output Frequency 50 Hz - unless synchronized to utility during deep brownout.

On Battery Waveshape Stepped sine-wave

Output Over Current
Protection

Typical Battery Life 3 to 6 years, depending on number of discharge cycles

Operating Temperature

Storage Temperature

Operating and Storage
Relative Humidity

UPS Size (H x W x D) 15.0 x 8.9 x 35.6 cm (5.9" x 3.5" x 14.0")

UPS Weight 7.0 kg (15.43 lbs.)

Shipping Weight 8.2 kg (18.08 lbs.)

(For more accurate runtime information, consult http://www.apcc.com/sizing)

Overcurrent and short circuit protected, latching shutdown on overload

19 Minutes

160 - 120 VAC

and ambient temperature

0 to 40o C (32 - 104o F)

-15 to 45o C (5 - 113o F)

0 to 95%, non-condensing

American Power Conversion Corp.
