Installation Manual
NetBotz® Room
Sensor Pod 155
NBPD0155
This manual is available in Engli sh on the enclosed CD.
Dieses Handbuch ist in Deutsch auf der beiliegende n CD-ROM
verfügbar.
Este manual está disponible en español en el CD-ROM adjunto.
Ce manuel est disponible en français sur le CD-ROM ci-i nclus.
Questo manuale è disponibile in ita liano nel CD-ROM allegato.
本マニュアルの日本語版は同梱の CD-ROM からご覧になれます。
Instrukcja obsługi w języku polskim jest dostępna na CD.
O manual em Português está disponível no CD-ROM em anexo.
Данное руководство на русском языке имеется на
прилагаемом компакт-диске.
anual finns tillgängli g på svenska på medfö ljande CD.
您可以从包含的 CD 上获得本手册的中文版本。
동봉된 CD 안에 한국어 매뉴얼이 있습니다 .
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Install the NetBotz 155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connect Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Document overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Additional documentation . . . . . . . . . . . . . . . . . . . . . . . . . 2
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
InfraStruXure-certified. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wall options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ceiling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Configure and Monitor Sensor s . . . . . . . . . . . . . . . . . . . . . . . . . 12
Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clean the NetBotz 155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Two-Year Factory Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Terms of warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Non-transferable warranty. . . . . . . . . . . . . . . . . . . . . . . . 15
Exclusions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Warranty claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
NetBotz Room Sensor Pod 155 Installation Manual i
Introduction
Product description
®
The American Power Conversion (APC
connects to a NetBot z appl iance and al lows yo u to increa se t he sp ace moni tored
by your NetBotz security and environmental monitoring system. You can
connect the NetBot z 155 to one of the following appliances: NetBotz Rack
Monitor 450 (NBRK0450 ), NetBotz Room Monitor 455 (NBWL0455), or
NetBotz Rack Moni tor 550 (NBR K0550). T he Room Sensor Pod 155 c annot b e
used with a NetBotz Room Monitor 355 or a NetBotz Rack Monitor 200.
The NetBotz 155 includes four sensor ports for connecting APC environmenta l
sensors and other third-party senso r s. The NetBotz 155 also includes built-in
temperature, humi dity, and airflow sensors.
The total number of NetBot z 155s tha t you can use and the types of sens ors th at
can be used depends upon the specific applia nce to which the NetBotz 155 is
connected. Fo r details, see the installation and quick configuration m anual
included with your appliance.
) NetBotz® Room Sensor Pod 155
NetBotz Room Sensor Pod 155 Installation Manual 1
Document overview
The NetBotz Room Sens or Po d 155 Ins tallat ion Manual d escri be s how to ins tal l
the NetBotz 155. For details on connecting the NetBotz 155 to your appliance,
see the installation and quick configuration manual included with your
appliance.
Addition al documentatio n
Unless otherwise noted, the following documentation is available on the CD
provided with the de vice or on the applicable product page on the APC Web
site, www.apc.com. To quickl y find a product page, enter the product name or
part number in the Search field.
NetBotz Appliance User’ s Gui de – Inc ludes a ll detai ls fo r using , managi ng, a nd
configuring a NetBotz system with one of the following appliances: Net Botz
Room Monitor 355 (NBWL0355, NBWL0356), NetBotz Rack Monitor 450
(NBRK0450), NetBotz Room Monitor 455 (NBWL0455, NBWL0456), or
NetBotz Rack Monitor 550 (NBRK0550).
2
NetBotz Room Sensor Pod 155 Installation Manual
Addition al options
The following options ar e available for the NetBotz 155. For more information
about any of the opti ons, contact your APC representative or the distributor
from whom you purchased your APC product.
• Te mp erature Sensor (AP9335T)
• Temperature/Humidity Sensor (AP9335TH)
• NetBotz Spot Fluid Sensor (NBES0301)
• NetBotz Smoke Sensor (NBES0307)
• NetBotz V ibration Sensor (NBES0306)
• NetBotz Door Switch Sensor for APC Racks (NBES0303)
• NetBotz Door Switch Sensor for Rooms or Third Party Racks
(NBES0302)
• NetBotz Dry Contact Cable (NBES0304)
• NetBotz 0-5 V Sensor Cable (NBES0305)
InfraStruXure-certified
®
This product is certified for use in APC InfraSt ruXure
systems.
NetBotz Room Sensor Pod 155 Installation Manual 3
Physical Desc r ipt io n
Front
Item Description
Temperature display • Displays the current temperature from 0 to 99 in Centigrade or
Vented internal
sensors
Alert LED Indicates the aler t status of the NetBot z 155. When more than one alert
Speaker (int er nal) Produces audi ble indication f or an alert.
4
NetBotz Room Sensor Pod 155 Installation Manual
Fahrenheit. The tempera ture read ing is from th e intern al tempera tur e
sensor . If the temperature exceeds 99, t he display will fl as h 99.
• When the unit first receives power, displays the unique identifier
number for one minute.
• If an alert exists, flashes at the same rate as the Alert LED.
• During a firmware upgrade (page 13), displays 88.
Vented opening for internal airflow, temperatu r e, and humidity
sensors.
exists, the most severe will be indicated.
• Flashing once every eight seconds—Informational
• Flashing once e ver y four second s —Wa rning
• Flashing once every two seconds— Error
• Flashing once every second—Critical
• Flashing twice per second—Failure
Rear
Item Description
Sensor port s Used for connecting APC sens ors, third-party dry contact sensors, and
A-Link ports
•Left port in
•Right port out
24 VDC input Provides supplemental pow er for high- c urrent load configurations.
standard third-party 0-5 V sensors. (See “Additional options” on
page 3 for details on APC sen sor options.)
Third-part y dry co ntact senso rs requir e the Ne tBot z Dry C ontac t Cabl e
(NBES0304 ). Standar d third-part y 0-5 V sensors require the
NetBotz 0-5 V Sensor Cable (NBES0305).
Used for connecting t he NetBotz 155 to a NetBotz Rack Monitor 450,
NetBotz Room Monitor 455, or NetBotz Rack Monitor 550. S tandard
CAT-5 cabling with straight-thr ough wiring is r equired. Dep ending on
the appliance to which the NetBotz 155 is connected, multiple devices
may be cascaded along an A-Link bus.
Supplemental power is not required for most system configurations.
See the install at ion an d qu ick con fig uratio n man ual in clude d wi th your
appliance to determine whether supplemental power is required.
NetBotz Room Sensor Pod 155 Installation Manual 5

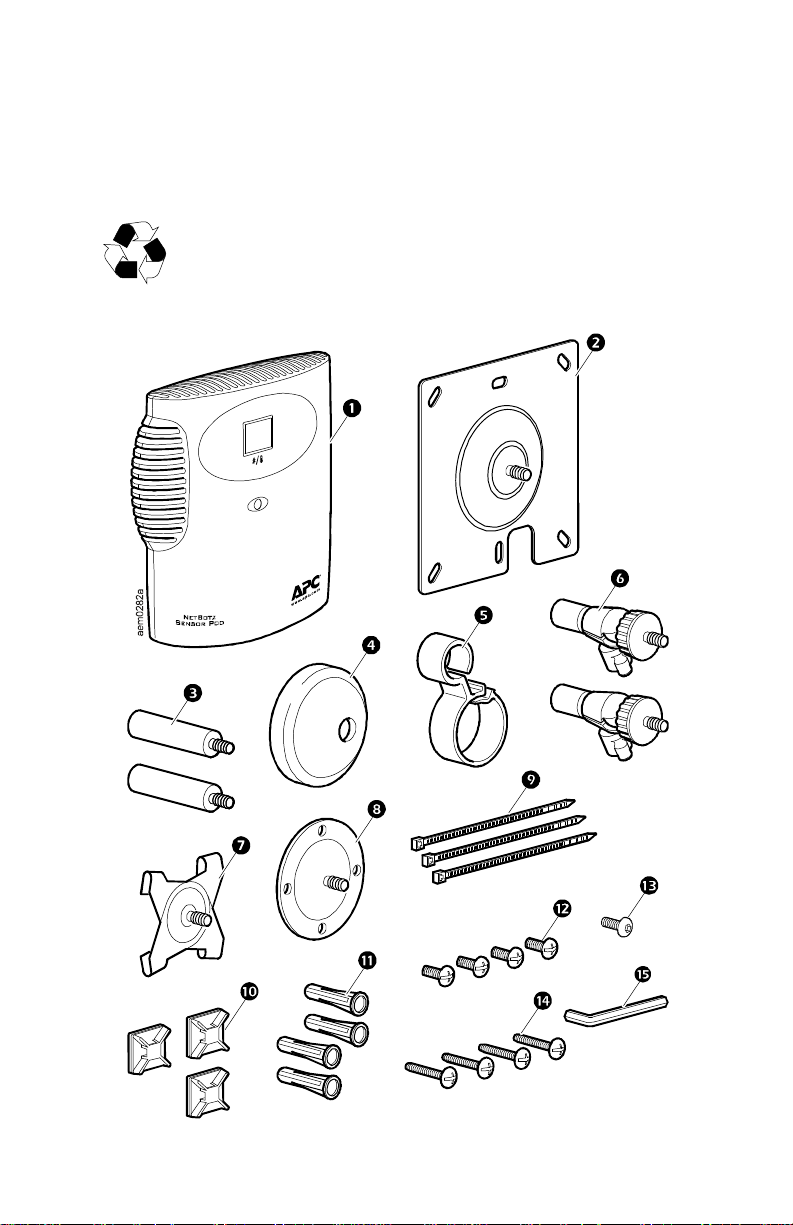

Inventory
Inspec t th e c ont ent s o f th e pa ck age to ensu re th at th e pa rt s in cl uded ma tch tho se
shown below. Report missing or damaged contents to APC or your APC
reseller. However, if damage was due to ship ping, immediately report the
damage to the shipping agent.
The shipp i ng an d pa ck ag i n g materia ls ar e re cy cl ab l e. Pl ea se s a ve
them for later use or dis pose of them appropriatel y.
6
NetBotz Room Sensor Pod 155 Installation Manual
Item Description
NetBotz R oom Sensor Pod 155
Bracket mounting plate for elect r ical boxes
Extender arms
Rubber bracket cover
Cable retainer
Ball-joint adjuste r arms
T-bar mount ing plate
Mounting plate
203-mm (8-i n) tie wraps
A-Link terminator
Adhesive cable tie holders
Mounting screw wall anchors
13-mm (0.5-in) machine screws (for electrical box)
Extender arm se t scr ew
19-mm (0.75-in) sheet metal screws (for wall or enclosure)
Allen wrench
NetBotz Room Sensor Pod 155 Installation Manual 7
Install the NetBotz 155
Choose an insta llation option that meets your needs. Then c onnect the NetBotz
155 to yo ur appliance by following t he instructions in the installat ion and quic k
configuration manual included with the appliance.
Caution: Only connect approved devices to ports on the NetBotz
155 as direct ed in t his m anual . Pl ugging i n ot her dev ices m ay resul t
in equipment damage.
Note: If the direction o f airflow is known, the idea l position of the
NetBotz 155 for measuring the airflow is directly facing the
oncoming air.
Electrical box
8
NetBotz Room Sensor Pod 155 Installation Manual
Wall options
Note: Drill 4.76-mm (3/16-in) pilot holes for wall anc hors.
Caution: Do not overtighten the screws.
NetBotz Room Sensor Pod 155 Installation Manual 9

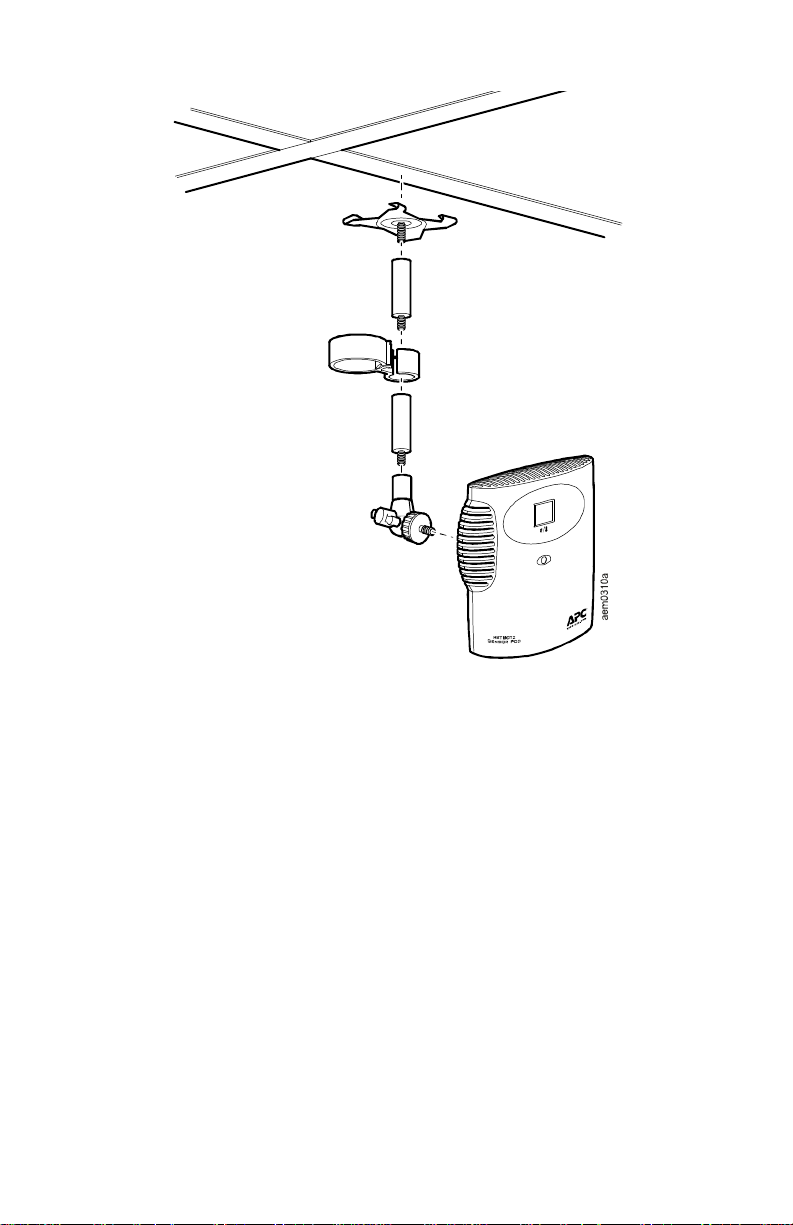

Ceiling
10
NetBotz Room Sensor Pod 155 Installation Manual
Enclosure
Note: Use a #32 drill to make four 2.94-m m (0. 116-in) pilot holes.
NetBotz Room Sensor Pod 155 Installation Manual 11
Connect Sensors
Only connect sensors supported by the appliance to which the NetBotz 155 is
connected. See the installat ion and quick configuration manual included with
your appliance.
Connect APC and third-party sensors to the f our ports labeled Sensors on the
NetBotz 155.
• Third-party dry contact sensors require the NetBotz Dry Contact Cable
(NBES0304). To connect a sensor to the cable, follow the instruction s
provided with the sens or and the instructions provided with the cable.
• Standard third-party 0-5 V sensors require the NetBotz 0-5 V Sensor
Cable (NBES0305). To connect a sensor to the cable, follow the
instruction s provided with the sensor an d the instructions provided with
the cabl e.
• If a sensor cable is not long enough, use an RJ-45 coupling (provided
with some sensors) and standar d CAT -5 cabling to ex te nd the cable up to
15 m (50 ft) for a Temperature/Humidity Sensor (AP9335TH) or a
Temperature Sensor (AP9335T) and up to 30.5 m (100 ft) for all other
supported sensors.
Configure and Mo nitor Sensors
Once your system is inst alled and receiving power, configure sensors and begin
monitoring your sys tem using the software interface for the appliance.
12
See your appliance ins tallation and quick configuration manua l for
system instal lation details and for instructions on ac cessing the
software interface of the applianc e.
NetBotz Room Sensor Pod 155 Installation Manual
Upgrades
Firmware upgrades for NetBot z 155s are included with firmware upgrades for
the NetBotz applia nces. When yo u upgrade firmwar e for the app lianc e to whic h
the NetBotz 155 is connected, the NetBotz 155 firmware will be updated
automaticall y, if requir ed .
Note: The NetBotz 155 Identifier # LED shows 88 during a
firmware upgrade. During the upgrade , data from sensor s connect ed
to the NetBotz 155 will be invalid.
For more information on firmware upgrades, see the NetBotz
Appliance User’s Guide.
Clean the NetBotz 155
To clean the device, gently wipe surfaces with a clean, dry cloth.
NetBotz Room Sensor Pod 155 Installation Manual 13
Specifications
Electrical
Input vol tage, nominal 24 VDC; 50-75 mA
Maximum total current draw 75 mA
Physical
Dimensions (H x W x D) 146 x 135 x 38.5 mm (5.75 x 5.31 x 1.5 in)
Weight 0.2 kg (0.4 lb)
Ship ping di m e ns i o n s
(H x W x D)
Shipping weight 1.4 kg (3.0 lb)
Environmental
Elevation ( above MSL)
Operating
Storage
Temperature
Operating
Storage
Relative Humidity
Operating
Storage
Compliance
Immunity/E m issions CE, FCC Part 15 Class A, ICES-003 Class A,
260 x 286 x 165 mm (10.25 x 11.25 x 6.50 in)
0 to 3000 m (0 to 10,000 ft )
0 to 15000 m (0 to 50,000 ft)
0 to 45ºC (32 to 113°F)
-15 to 65°C (5 to 149°F)
10 to 90%, non-c ondensing
10 to 90%, non-c ondensing
VCCI Class A, EN 55022 Class A, EN 55024,
AS/NZS CISPR 22
14
NetBotz Room Sensor Pod 155 Installation Manual
Two-Year Factory Warranty
This warranty applies only to the products you purchase for your use in
accordance with this manual.
T erms of warranty
APC warrants its produc ts to be free from defects in materials and
workmanship for a period of two years from the date of purchase. APC will
repair or replace defective products covered by this warranty. This warranty
does not apply to equipment that has been da ma ged by accident, negligence or
misapplication or has been altered or modifi ed in any way . Re pair or
replacement of a defective product or part thereof does not extend the original
warranty period. Any parts furnished under this warranty may be new or
factory-remanufactured.
Non-transferable warranty
This warranty extends only to the original purchaser who must have properly
registered the product. The product may be registered at the APC Web site,
www.apc.com.
Exclusions
APC shall not be liable under the warranty if its testing and examination
disclose tha t the alleged defect in the product does not exist or was caused by
end user’s or any third person’s misuse, negligence, improper installation or
testing. Further, APC shall not be li able under the warranty for unauth orized
attempts to repair or modify wrong or inadequat e el ectrical voltag e or
connection, inappropriate on-site operation conditions, corrosive atmosphere,
repair, installation, exposure to the elements, Acts of God, fire, theft, or
installation contrary to AP C recommendations or s pecifications or in any event
if the APC serial number has been altered, defaced, or removed, or any other
cause beyond the range of the intended use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY
OPERATION OF LAW OR OT HE RWISE, OF PRODUCTS SOLD,
SERVICED OR FURNISHED UNDER THIS AGREEMENT OR IN
CONNECTION HEREWITH. APC DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY, SATISFACTION AND
FITNESS FOR A PARTICULAR PURPOSE. APC EXPRESS
WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR
AFFECTED BY AND NO OBLIGAT ION OR LIABILITY WILL ARISE
OUT OF, APC RENDERING OF TECHNICAL OR OTHER ADVICE
OR SERVICE IN CONNECTION WITH THE PRODUCTS. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE
NetBotz Room Sensor Pod 155 Installation Manual 15
AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES. THE
WARRANTIES SET FORTH ABOVE CONSTITUTE APC’S SOLE
LIABILITY AND PURCHASER’S EXCLUSIVE REMEDY FOR ANY
BREACH OF SUCH WARRANTIES. APC WARRANTIES EXTEND
ONLY TO PURCHASER AND ARE NOT EXTENDED TO ANY THIRD
PARTIES.
IN NO EVENT SHALL APC, ITS OFFICERS, DIRECTORS,
AFFILIATES OR EMPLOYEES BE LIABLE FOR ANY FORM OF
INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES,
ARISING OUT OF THE USE, SERVI C E OR INSTALLATION, OF THE
PRODUCTS, WHETHER SUCH DAMAGES ARISE IN CONTRACT
OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR STRICT
LIABILITY OR WHETHER APC HAS BEEN ADVISED IN ADVANCE
OF THE POSSIBILITY OF SUCH DAMAGES. SPECIFICALLY, APC IS
NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS OR
REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT,
LOSS OF SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUENTS,
CLAIMS BY THIRD PARTIES, OR OTHERWISE.
NO SALESMAN, EMPLOYEE OR AGENT OF APC IS AUTHORIZED
TO ADD TO OR VARY THE TERMS OF THIS WARRANTY.
WARRANTY TERMS MAY BE MODIFIED, IF AT ALL, ONLY IN
WRITING SIGNED BY AN APC OFFICER AND LEGAL
DEPARTMENT.
Warranty claims
Customers with warranty claims issues may ac ce ss the APC customer support
network through the Support page of the APC Web site, www.apc.com/
support. Select your country from the coun try selection p ull-down menu at the
top of the Web page. Selec t the Support tab to obtain cont ac t information for
customer support in your region.
Radio Frequency Interference
Changes or mod ifications to this unit not expressly approved
by the par ty re s pons i ble f or c omp li ance cou l d void th e us er’s
authority to operate this equip ment.
USA—FCC
This equipment has been tested and found to comply with the limits for a
Class A dig ital device , purs uan t to pa rt 15 of the FCC R ule s. The se li mits ar e
designed to provide re asonable protec ti on again st harmfu l inter fere nce whe n
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installe d
and used i n accordan ce with t h is user manual, may cause harm ful
interference to radio communication s. Operation of this equipment in a
residential area is likely to cause harmful interference. The user will bear
sole responsibility for correcting such interference.
Canada— ICES
This Class A digital apparatus complies with Canadian ICES-003.
Cet appar eil numéri que de la cla sse A est co nforme à la norme NMB-003 du
Canada.
Japan —VCCI
This is a Class A product based on the standard of the Voluntary Control
Council for Interference by Information Technology Equipment (VCCI). If
this equipment is used in a domestic environment, radio disturbance may
occur, in which case, the user may be required to take corrective actions.
この装置は、情報処理装置等電波障害自主規制協議会（VCCI）の基準
に基づくクラス A 情報技術装置です。この装置を家庭環境で使用すると、
電波
妨害を引き起こすことがあります。この場合には、使用者が適切な対策を講
ず
るように要求されることがあります。
Taiwan—BSMI
警告使用者 :
這是甲類的資訊產品 , 在居住的
環境中使用時 , 可能會造成射頻
干擾 , 在這種情況下 , 使用者會
被要求採取某些適當的對策。
Australia and New Zealand
Attention: T his is a Cl ass A p roduc t. In a domesti c environm ent t his produc t
may cause radio interference in which case the user may be re quired to take
adequate measures.
European Union
This product is in conformity with the protection requirements of EU
Council Directive 2004/108/EC on the approx imation of the laws of the
Member States relating to electromagnetic compatibility. APC cannot
accept responsibility for any failure to satisfy the protection requirements
resulting from an unapproved modification of the product.
This product has be en teste d and f ound to com ply with the limit s f or Clas s A
Information Technology Equipment according to CISPR 22/European
Standard EN 55022. The limi ts for Class A equipment were derived for
commercial and industrial environments to provide a reasonable protection
against interference with licensed communication equipment.
Attention: This is a Class A product. In a domestic environment this
product may cause radio interf erence in which case the user may be require d
to take adequate measures.
APC Worldwide Customer Support
Customer support for this or any other APC product is available at no charge in any of
the following way s :
• Visit the APC Web site to access documents in the APC Knowledge Base and t o
submit customer support reque sts.
– www.apc.com (Corporate H eadquarters)
Connect to localized APC Web sites for speci fic countries, each of which
provid es customer support information.
– www.apc.com/support/
Global support searching APC Knowledge Base and using e-support.
• Contact the
– Local, country-specific centers: go t o www.apc.com/support/contact for
contact information.
For information on ho w to obtain local customer support, conta ct the APC
representative or other distr ibutors from whom you purchased your APC product.
APC Customer Support Center by telephone or e-mail.
Entire contents copyright 2008 American Power Conversion Corporation. All rights reserved.
Reproduc tion in who l e o r in part without pe r mis s ion is pr ohibited. APC, the AP C logo, Inf r a S tr uX ur e and
NetBotz are trademarks of American Power Conversion Corporation. All other trademarks, product
names, and corporate names are the property of their respective owners and are used for informational
990-3289-001
purposes only.
*990-3289-001*
9/2008
Loading...
