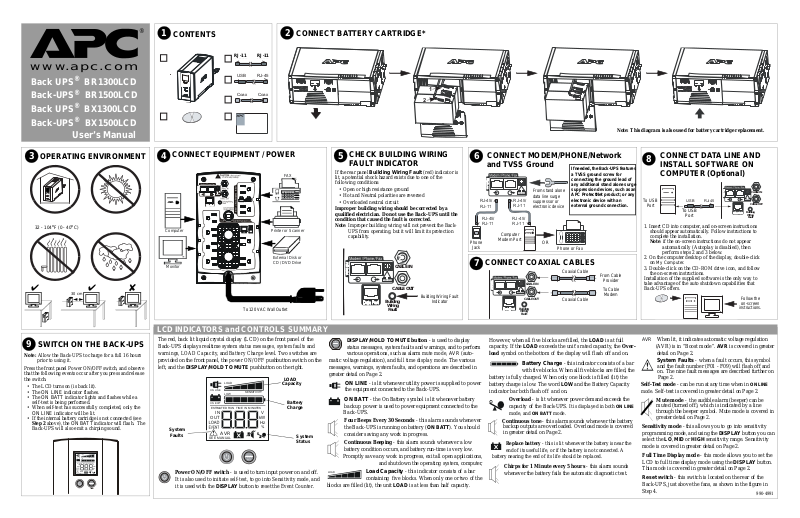

APC Back UPS BX1300LCD, Back UPS BX1500LCD, Back UPS BR1300LCD, Back UPS BR1500LCD User Manual
5
T
2
w w w
.apc.com
Back UPS® BR1300LCD
®
Back-UPS
Back UPS
Back-UPS
BR1500LCD
®
BX1300LCD
®
BX1500LCD
User’s Manual
OPERATING ENVIRONMENT
3
32 - 104oF (0 - 40oC)
30 cm
®
1
CONTENTS
USB
RJ-11RJ-11
RJ-45RJ-45
RJ-4
2
CONNECT BATTERY CARTRIDGE*
1
CoaxCoax
2
Æ
Note: This diagram is also used for battery cartridge replacement.
CONNECT EQUIPMENT / POWER
4
Computer
Monitor
To 120 VAC Wall Outlet
FAX
Printer or Scanner
External Disk or
CD / DVD Drive
CHECK BUILDING WIRING
3
5
FAULT INDICAT OR
If the rear panel Building Wiring Fault (red) indicator is
lit, a potential shock hazard exists due to one of the
following conditions:
• Open or high resistance ground
• Hot and Neutral polarities are reversed
• Overloaded neutral circuit
Improper building wiring should be corrected by a
qualified electrician. Do not use the Back-UPS until the
condition that caused the fault is corrected.
Note: Improper building wiring will not prevent the Back-
UPS from operating, but it will limit its protection
capability.
2
CABLE IN
CABLE OUT
Building Wiring Fault
Building
Wiring
Fault
Indicator
CONNECT MODEM/PHONE/Network
6
and TVSS Ground
From stand alone
data line surge
RJ-45/
RJ-11
RJ-45/
RJ-11
Phone
Jack
CONNECT COAXIAL CABLES
7
RJ-45/
RJ-11
RJ-45/
RJ-11
Computer
Modem Port
Building
Wiring
Fault
CABLE IN
CABLE OUT
suppressor or
electronic device
OR
If needed, the Back-UP S features
a TVSS ground screw for
connecting the ground lead of
any additional stand alone surge
suppression devices, such as an
APC ProtectNet product; or any
electronic device with an
external ground connection.
Phone or Fax
Coaxial Cable
Coaxial Cable
From Cable
Provider
To Cable
Modem
CONNECT DA TA LINE AND
8
INSTALL SOFTWARE ON
COMPUTER (Optional)
CABLE IN
Port
RJ-45USB
CABLE OU
Building
Wiring
Fault
Follow the
on-screen
instructions.
To USB
Port
To USB
1. Insert CD into computer, and on-screen instructions
should appear automatically. Follow instructions to
complete the installation.
Note: if the on-screen instructions do not appear
automatically (Autoplay is disabled), then
perform steps 2 and 3 below.
2. On the computer desktop of the display, double-click
on
My Computer.
3. Double-click on the CD-ROM drive icon, and follow
the on-screen instructions.
Installation of the supplied software is the only way to
take advantage of the auto shutdown capabilities that
Back-UPS offers.
9
SWITCH ON THE BACK-UPS
Note: Allow the Back-UPS to charge for a full 16 hours
prior to using it.
Press the front panel Power ON/OFF switch, and observe
that the following events occur after you press and release
the switch:
• The LCD turns on (is back lit).
•The ON LINE indicator flashes.
•The ON BATT indicator lights and flashes while a
self-test is being performed.
• When self-test has successfully completed, only the
ON LINE indicator will be lit.
• If the internal battery cartridge is not connected (see
Step 2 above), the ON BATT indicator will flash. The
Back-UPS will also emit a chirping sound.
LOAD
ON LINE
SENSITIVITY
LOW
ON BATT
ESTIMATEDRUNTIME IN MINUTES
IN
OUT
AVR
SEE MANUAL
V
kW
Hz
%
DISPLAY
HOLD TO
MUTE
LCD INDICATORS and CONTROLS SUMMARY
The red, back lit liquid crystal display (LCD) on the front panel of the
Back-UPS displays realtime system status messages, system faults and
warnings, LOAD Capacity, and Battery Charge level. Two switches are
provided on the front panel, the power ON/OFF pushbutton switch on the
left, and the
DISPLAY/HOLD TO MUTE pushbutton on the right.
LOAD
Capacity
Battery
Charge
System
Status
System
Faults
LOAD
ON LINE
LOW
ON BATT
ESTIMATED RUN TIME IN MINUTES
IN
OUT
AVR
SEE MANUAL
SENSITIVITY
DISPLAY
HOLD TO
MUTE
kW
Hz
V
%
Power ON/OFF switch - is used to turn input power on and off.
It is also used to initiate self-test, to go into Sensitivity mode, and
it is used with the
DISPLAY button to reset the Event Counter.
DISPLAY/HOLD TO MUTE button - is used to display
DISPLAY
status messages, system faults and warnings, and to perform
various operations, such as alarm mute mode,
AVR (auto-
matic voltage regulation), and full time display mode. The various
messages, warnings, system faults, and operations are described in
greater detail on Page 2.
ON LINE - is lit whenever utility power is supplied to power
the equipment connected to the Back-UPS.
ON BATT - the On Battery symbol is lit whenever battery
backup power is used to power equipment connected to the
Back-UPS.
Four Beeps Every 30 Seconds - this alarm sounds whenever
the Back-UPS is running on battery (
ON BATT). You should
consider saving any work in progress.
Continuous Beeping - this alarm sounds whenever a low
battery condition occurs, and battery run-time is very low.
Promptly save any work in progress, exit all open applications,
and shut down the operating system, computer,
LOAD
Load Capacity - this indicator consists of a bar
containing five blocks. When only one or two of the
blocks are filled (lit), the unit
LOAD is at less than half capacity.
However, when all five blocks are filled, the LOAD is at full
capacity. If the
LOAD exceeds the unit’ s rated capacity, the Over-
load symbol on the bottom of the display will flash off and on.
Battery Charge - this indicator consists of a bar
with five blocks. When all five blocks are filled, the
battery is fully charged. When only one block is filled (lit) the
battery charge is low. The word
LOW and the Battery Capacity
indicator bar both flash off and on.
Overload - is lit whenever power demand exceeds the
capacity of the Back-UPS.
mode, and
ON BATT mode.
It is displayed in both ON LINE
Continuous tone - this alarm sounds whenever the battery
backup outputs are overloaded. Overload mode is covered
in greater detail on Page 2.
Replace battery - this is lit whenever the battery is near the
end of its useful life, or if the battery is not connected. A
battery nearing the end of its life should be replaced.
Chirps for 1 Minute every 5 hours - this alarm sounds
whenever the battery fails the automatic diagnostic test.
When lit, it indicates automatic voltage regulation
AVR
(AVR) is in “Boost mode”.
AVR is covered in greater
detail on Page 2.
System Faults - when a fault occurs, this symbol
and the fault number (F01 - F09) will flash off and
on. The nine fault messages are described further on
Page 2.
Self-Test mode - can be run at any time when in ON LINE
. Self-test is covered in greater detail on Page 2.
mode
Mute mode - the audible alarm (beeper) can be
muted (turned off), which is indicated by a line
through the beeper symbol. Mute mode is covered in
greater detail on Page 2.
Sensitivity mode - this allows you to go into sensitivity
programming mode, and using the
select the
LO, MID or HIGH sensitivity range. Sensitivity
DISPLAY button you can
mode is covered in greater detail on Page 2.
Full Time Display mode - this mode allows you to set the
LCD to full time display mode using the
DISPLAY button.
This mode is covered in greater detail on Page 2.
Reset switch - this switch is located on the rear of the
Back-UPS, just above the fans, as shown in the figure in
Step 4.
990-4991
ON-LINE MODE Display Selection
H
When you are in
DISPLAY button, you will rotate through the
following seven groups of displays and messages.
When you press the
LCD is back lit, and the input voltage (
screen is displayed, in this example
When you press the
power
EVENT counter is displayed, as shown below .
To reset the counter, press and hold the
ton, and press the power ON/OFF button.
When you press the
ESTIMATED RUN TIME IN MINUTES is displayed.
In this example, the value is 18 minutes.
When you press the
ON LINE mode, the LOAD in W att s (W) is displayed, in
this example
When you press the DISPLAY button a fifth time, the
online
LOAD as a percentage (%) is displayed, in this
example it is
Pressing the
ON LINE output (OUT) voltage, in this example the
value is
ON-LINE mode, and press the
DISPLAY button the first time, the
IN) default
110 V is displayed.
DISPLAY button a second time, the
DISPLAY but-
DISPLAY
DISPLAY button the third time, t he
DISPLAY button a fourth time in
760 W is displayed.
82%.
DISPLAY button a sixth time displays the
110 V.
LOAD
ON LINE
IN
DISPLAY
LOAD
ON LINE
DISPLAY
CLICK
LOAD
ON LINE
ESTIMATED RUN TIME IN MINUTES
LOAD
ON LINE
LOAD
ON LINE
LOAD
ON LINE
OUT
ON-LINE MODE (Continued)
When you press the
the
ON BATT output (OUT) frequency is displayed, in
this example it is
V
DISPLAY button a seventh time
60.0 Hz.
BATTERY MODE Display Selection
When you are in battery (ON BA TT) mode, and press
the
DISPLAY button, you will rotate through the
following seven groups of displays and messages.
When you press the
the LCD is back lit, and the default screen (
MATED RUN TIME IN MINUTES
this case it is
When you press the
the power
EVENT counter is displayed, as shown below. To reset the counter,
press and hold the
When you press the
battery backup (
is displayed, in this example it is
W
When you press the
button a fourth time the battery
backup (
ON BATT) input volt-
age (
IN) is displayed.
The first example shows an
%
over voltage condition at
V. The second example shows
a black out, or less than 10
Vac.
When you press the
(
ON BATT) input LOAD in Watts (W) is displayed, in
V
this example
DISPLAY button the first time,
) is displayed, in
18 minutes.
DISPLAY button a second time,
DISPLAY button, and press the power ON/OFF button.
LOAD
ON LINE
DISPLAY button a third time the
ON BATT) output (OUT) voltage (V)
115 V.
DISPLAY
ON BATT
LOAD
IN
149
DISPLAY button a fifth time the
760 W is displayed.
ESTI-
DISPLAY
LOAD
ON LINE
OUT
LOAD
ON BATT
ESTIMATED RUN TIME IN MINUTES
LOAD
ON BATT
LOAD
ON BATT
OUT
LOAD
ON BATT
V
IN
LOAD
ON BATT
ESTIMATED RUN TIME IN MINUTES
BATTERY MODE (Continued)
When you press the DISPLAY button a sixth time, the
battery backup
in this example it is
Hz
LOAD is displayed as a percentage (%);
82%.
When you press the DISPLAY button a seventh time the
ONLINE output (OUT) frequency is displayed, in this
example it is
60.0 Hz.
WARNINGS
Warning 1 - Online Overload
This warning indicates that there is an
ONLINE
overload condition at 1.25 kW , indicated by the
flashing overload icon.
Warning 2 - Battery Backup Overload
This warning indicates that there is a backup
battery (
ONBATT) overload condition. This is
indicated by the flashing overload icon.
Warning 3 - Online Bad Battery
This warning indicates that you are in ONLINE
mode, and you have a bad battery, indicated by
the flashing bad battery icon.
V
Warning 4 - Battery Backup
Low Battery
This warning indicates that the battery is low.
This is indicated by the word
LOW, and the
Battery Capacity indicator bar flashing.
V
SYSTEM FAULTS
Up to nine system faults can be displayed (F01 F09). A note,
below the system fault number. The system
faults include:
F01 - On-Battery Overload
F02 - On-Battery Output Short
F03 - On-Battery XCap Overload
F04 - Clamp Short
W
F05 - Charger Fault
SEE MANUAL, is provided just
F06 - Relay Welding
F07 - Temperature
F08 - Fan Fault
F09 - Internal Fault
ON BATT
ON BATT
OUT
LOAD
ON L INE
LOAD
LOW
ON BATT
LOAD
ON LINE
IN V
LOAD
LOW
ON BATT
Flashing
SEE MANUAL
LOAD
LOAD
DISPLAY
kW
kW
%
Hz
Flashing
Flashing
Flashing
Flashing
OTHER STATUS INDICATORS
Self-Test
To initiate self-test mode, press the power
ON/OFF button, and hold it in for ONE second.
The AC plug symbol (
ON LINE) flashes off and
on during self-test mode.
Mute
This feature allows you to mute the audible alarm (the
beeper) for a single display and message. To mute the
audible alarm, the unit should be on battery, or the
“speaker” symbol is displayed. Press the
HOLD TO MUTE
button for ONE second, the alarm
DISPLAY/
(beeper) is toggled, and the “speaker-NOT” symbol
(speaker with a line drawn through it) is displayed on the
screen.
To enable an audible alarm that has been muted, perform the
same steps that were used for muting the alarm.
The alarm (beeper) can also be muted all the time. With the
speaker or speaker-NOT icon displayed, press and hold the
DISPLAY/HOLD TO MUTE button for FIVE seconds until the
speaker-NOT icon flashes off and on. The unit will mute the
alarm all the time except for faults.
AVR
When
AVR is illuminated on the LCD, it indicates that
the automatic voltage regulation (AVR) circuitry
is in Boost mode. AVR compensates for excessively low
voltage conditions without going on battery. In this
example,
90 V is displayed.
Sensitivity
A typical condition where sensitivity adjustments would
be appropriate is with an AC line input, and with the UPS
off.
Press and hold the power ON/OFF pushbutton in for 10
seconds. The unit will go into “sensitivity programming
mode”. Use the ON/OFF button to select the
HIGH range. LO displays one block, MID is three blocks,
and High is
five blocks. Sensitivity programming mode is
also discussed on Page 3.
LCD Full Time Display Mode
The LCD can be set to full time display mode by performing the following steps:
1. Ensure the unit is connected to utility input power, and the power on/off switch
is turned off (no power is supplied to the output connectors).
2. Press the DISPLAY/HOLD TO MUTE pushbutton, and hold it in for 10
seconds. All five blocks in the Battery Capacity bar will flash of f and on, which
indicates the unit is in pushbutton programming mode.
Note: A rotating selection method is used that allows you to step through the
display modes using the DISPLAY/HOLD TO MUTE button until you
select the display mode you want. For example, in Power Save mode
none of the blocks are lit. If all five of the blocks are lit, it indicates
the LCD is in full time mode, and will remain on full time.
3. When you rotate through the selections and reach the display mode you want,
press and release the DISPLAY/HOLD TO MUTE button to select the display
mode.
Note: If no buttons are pushed, and no operations occur for five seconds, the
unit automatically exits pushbutton programming mode.
4. Once you have selected the desired display mode, continue with normal
operations.
Flashing
LO, MID or
LOAD
ON LINE
IN
LOAD
ON BATT
ESTIMATED RUN TIME IN MINUTES
DISPLAY
LOAD
ON LINE
IN
LOW
AVR
MID
SENSITIVITY
HIG
SENSITIVITY
DISPLAY
V
V
Loading...
