Specifications and Main Features
- Model: Fortress 9000
- Power Supply: 3 wire types plug with earthing.
- Front Panel:
- Event log indicator LED
- LED indicate HDD activity
- LED for Power/Suspend State
- Push button for power purposes
- Optional 3.5” FDD
- 3.5” FDD eject switch
- Optional CD-ROM drive
- CD-ROM drive eject button
- Optional tape drive
- Eject tape drive button
- Optional hot swap backup BPL6 cage fan (3 units)
- BPL6 HDD trays x6
- Lock for tray BPL6 for HDD
- Wheels of housing
- SCSI drive error indicator LED<_p>
- A SCSI drive activity indicator LED
- А LED on SCSI drive power supply
- LED for hot swap backup fan failure
- LED for Drive (Amber)
- LED for Media (Green)
- LED for Clean (Green)
- LED for the CD-ROM drive.
- Ear phone jack
- Volume adjustable control
- Optional 3.5” FDD activity indicator LED
- Rear Panel:
- Brackets for add on card
- RJ45 port for LAN
- 1 USB port
- VGA 15 Pin D-sub connector
- Parallel printer port.
- Serial (COM1) connector.
- Microlock PS/2 sockets keyboard
- microlok PS/2 sockets mouse
- System power connection socket
- LED for Hot swap power supply operation (Orange when fail)
- Hot change power sources optional
- Fan

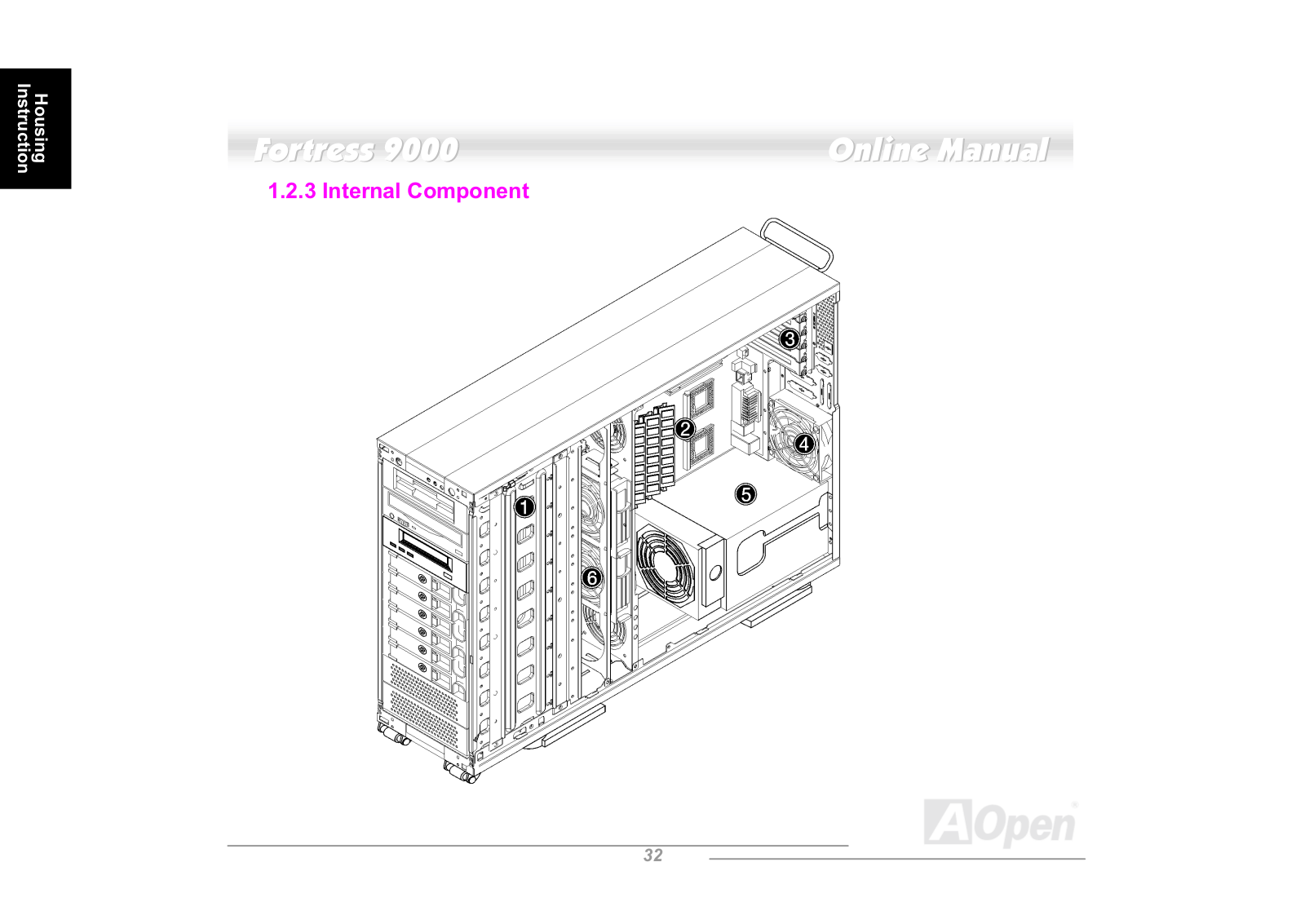

- Internal Components:
- Bays for drives

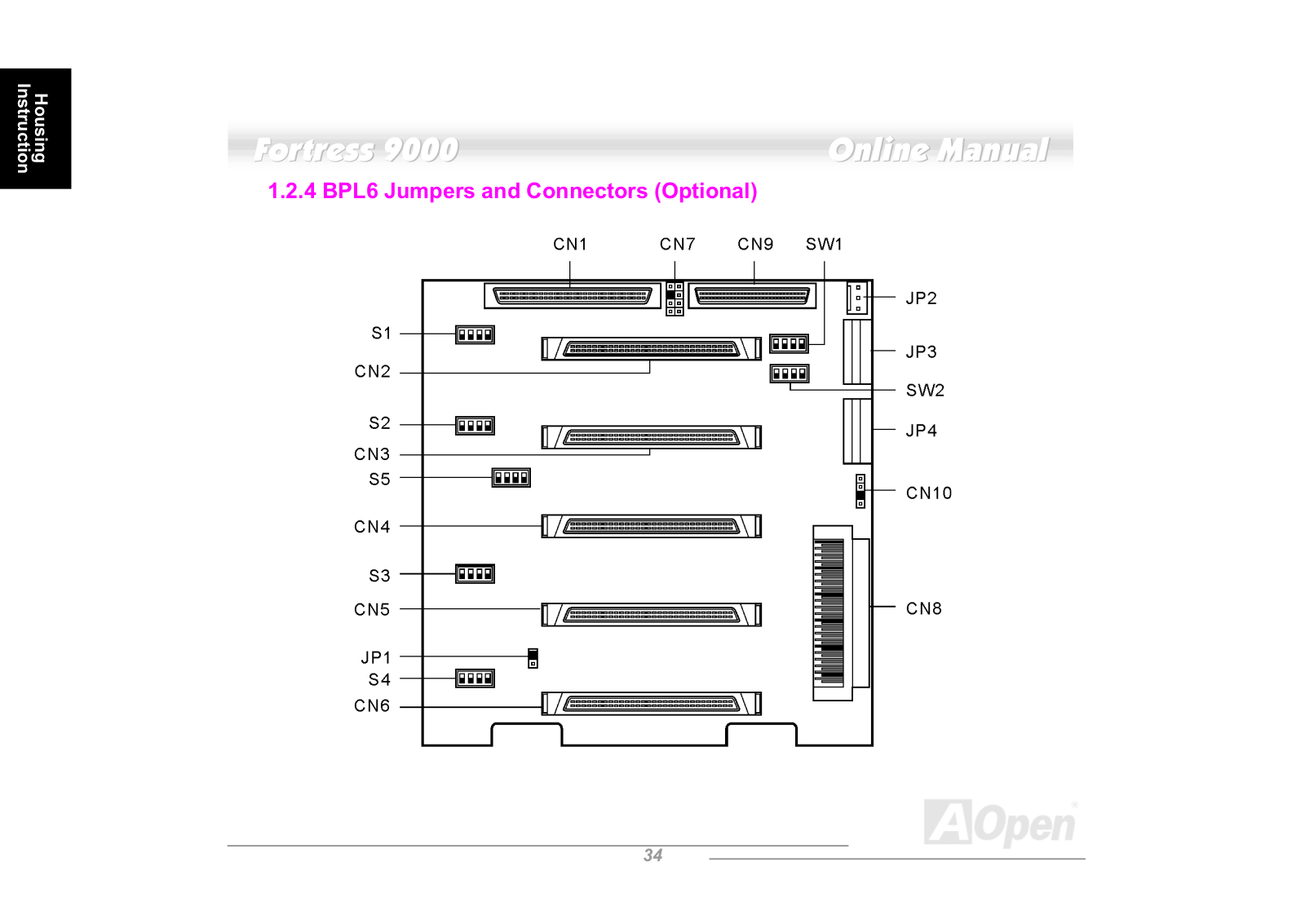

- DX3R Plus Motherboard - Expansion Brackets - Rear Fan - Power Supply - Front Fans (2 pcs) - BPL6 Jumpers and Connectors (Optional): - Various SCSI connectors - Power connectors - Fan connectors - Terminator power source alternatives - ID switches for SCSI drives.
Frequently Asked Questions
- Which power supply type is going to work with the Fortress 9000?
The Fortress 9000 and 3 wire grounding type plug need this for operation.
- Is there a facility for installing additional drives in the Fortress 9000?
Yes, the chassis supports nine 5.25” drive bays for extra storage devices.
- Does the Fortress 9000 have support for hot-swapping?
Yes, is supportive of with a hot-swap cage which is optional.
- What connectors are there on the rear panel of a system?
The integrated peripherals rear ports include RJ45LAN port, USB port, VGA connector, parallel port, serial and PS/2 ports for keyboard and mouse.
- Is there a place for keys for a front panel?
There are extra keys located at the back of the system.
- Does the Fortress 9000 include a cooling system?
Yes, it supports front fans and optional hot swap redundancy fan sink modules.
- Can tape drives and CD-ROMs are used with the Fortress 9000?
Yes, it has space for the installation of tape drives and CD-ROMs.
