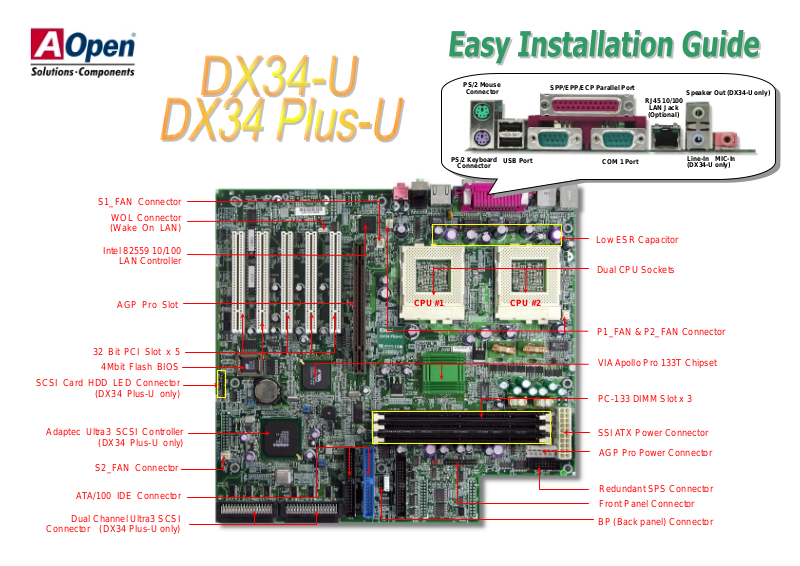

Page 1

PS/2 Mouse

Connector

SPP/EPP/ECP Parallel Port

RJ45 10/100

LAN Jack (Optional)

Speaker Out (DX34-U only)

S1_FAN Connecto

WOL Connecto

(Wake On LAN)

Intel 82559 10/100

LAN Controlle

GP Pro Slo

32 Bit PCI Slot x 5

4Mbit Flash BIOS

SCSI Card HDD LED Connecto

(DX34 Plus-U only)

daptec Ultra3 SCSI Controlle

(DX34 Plus-U only)

S2_FAN Connecto

CPU #1

PS/2 Keyboard

Connector

USB Port

CPU #2

COM 1 Port

Line-In MIC-In (DX34-U only)

Low ESR Capacitor

Dual CPU Sockets

P1_FAN & P2_FAN Connector

VIA Apollo Pro 133T Chipset

PC-133 DIMM Slot x 3

SSI ATX Power Connector

AGP Pro Power Connector

TA/100 IDE Connecto

Redundant SPS Connector Front Panel Connector

Dual Channel Ultra3 SCSI

Connector (DX34 Plus-U only)

BP (Back panel) Connector

Page 2

1.Installing Processor

Everything you need to boot this motherboard is included in this Easy Installation Guide. For more information, a complete Online

User's Manual can be found in the Bonus Pack CD Disc. Thanks for

the help of saving our earth!

Hard Drive IDE Cable x 1 80-Wire IDE Cable x 1 Floppy Drive Cable x 1 Ultra 160 SCSI 68 pin Cable x 1 (DX34 Plus-U only) Bonus Pack CD disc x 1 User Manual x 1 This Easy Installation Guide x 1 I/O Bracket x 1 ASM Lite x 1

CPU socket lever

CPU Pin 1 and cut edge

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper interface. Match Pin 1 and cut edge. Then insert the CPU into the socket.

3. Press down the CPU socket lever and finish CPU installation.

Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it may damage the CPU.

2. Installing CPU & Housing Fan

Plug in the CPU fan cable to the 3-pin CPU FAN (P1_FAN & P2_FAN) connector and housing fan cable to the System Fan (S1_FAN & S2_FAN) connector.

Senso

+12

GND

System fan connector

(S1_FAN)

CPU fan connector (P1_FAN & P2_FAN)

GND +12V Sensor

PART NO: 90.50F30.007 DOC. NO: DX34PU-EG-E0112C

System fan connector (S2_FAN)

GND +12V Sensor

Page 3

3. JP14 Clear CMOS

4. Supported CPU Type

The DX34-U / DX34 Plus-U support s Intel® Socket 370 Celecron™ and Pentium III series CPU. Including the code name Tualatin 512K cache CPU for dual CPU configuration.

Processor Name CPU Package

Single Processor

Dual Processor

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1 & pin2.

5. Connect ATX power cable back to connector PW R2.

Normal Operation

(default)

Pentium !!! Celeron Pentium !!! Pentium !!! 512K

All FCPGA Coppermine Tualatin

Clear CMOS

Setting CPU Core Voltage This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.05V to 1.825V. It is not necessary to set CPU Core Voltage

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, no jumpers or switches are needed.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup Core Frequency = CPU FSB Clock * CPU Ratio

CPU Ratio CPU FSB

(By BIOS Table)

CPU CPU Core Frequency FSB Clock Ratio

Pentium III 600E 600MHz 100MHz 6x Pentium III 650E 650MHz 100MHz 6.5x Pentium III 700E 700MHz 100MHz 7x Pentium III 750E 750MHz 100MHz 7.5 Pentium III 800E 800MHz 100MHz 8x Pentium III 850E 850MHz 100MHz 8.5x Pentium III 533EB 533MHz 133MHz 4x Pentium III 600EB 600MHz 133MHz 4.5x Pentium III 667EB 667MHz 133MHz 5x Pentium III 733EB 733MHz 133MHz 5.5 Pentium III 800EB 800MHz 133MHz 6x Pentium III 866EB 866MHz 133MHz 6.5 Pentium III 933EB 933MHz 133MHz 7x Pentium III 1G 1GHz 133MHz 7.5x Pentium III 1.13G 1.13GHz 133MHz 8.5x Pentium III 1.26G 1.26GHz 133MHz 9x

5. Setting CPU Voltage & Frequency

3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x , 6.5x, 7x, 7.5x, 8x, 8.5x, 9x, 9.5x, 10x, 10.5x, 11x, 11.5x, 12x, 12.5x, 13x, 13.5x, 14x, 14.5x, 15x, 15.5x and 16x

100 and 133 MHz

Warning: We strongly recommend you do not overclocking your CPU and system for get more system reliability.

Page 4

(

)

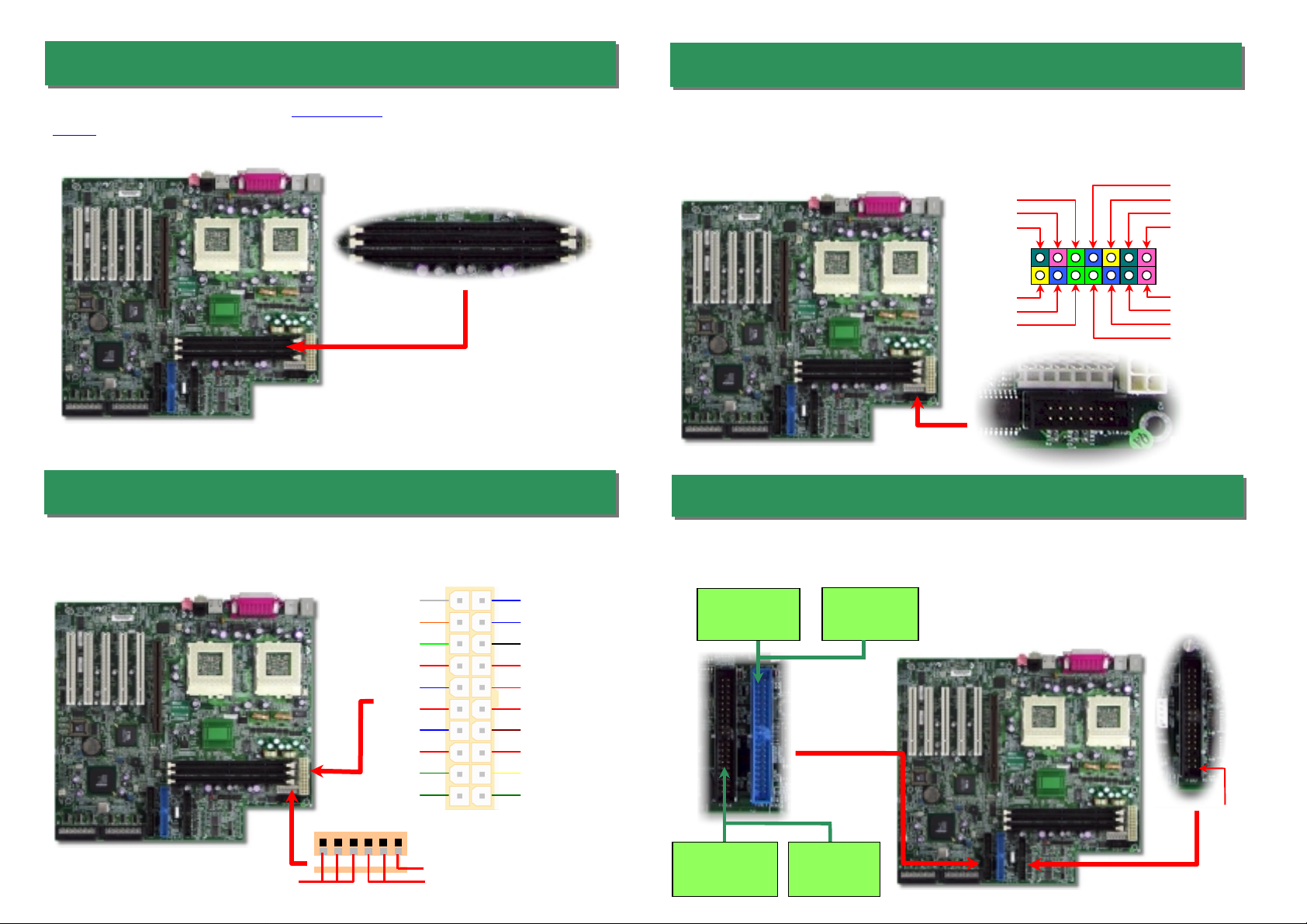

6. Install DIMM Modules

This motherboard has three 168-pin DIMM sockets that allow you to install PC100 o

PC133 memory up to 3GB. The DX34-U / DX34 Plus-U supports not only SDRAM but

also ECC or Re

istered DRAM.

7. Connecting ATX and AGP Pro Power Connector

The DX34-U / DX34 Plus-U uses standard ATX power connector. The 6-pin AGP Pro Power connector provides extra +5V and +3.3V power for AGP Pro VGA card. Make sure you plug in the right direction.

5VSB

COM

+5V

COM

+5V

COM +3.3V +3.3V

+5V +5V

-5V COM COM

COM PS-ON COM

-12V +3.3V

Standard ATX Power Connecto

+3.3

AGP Pro Power

GND

DIMM 3 DIMM 2 DIMM 1

8. Redundant SPS Monitoring Connector

This motherboard implements Redundant SPS monitoring connector to provide hardware monitoring signals. It is feasible to install an additional 337-watt power supply module (optional with AOpen Server Housing) in a hot swappable configuration. If any SPS failed, a signal will be sent to a hardware monitoring device.

PS_ON

PS 3 Fail

Fan 3 Fail

I2CDA

Present 3

GND

9. Connecting IDE & FDD Cable

Connect 34-pin floppy cable and 40-pin ATA100 or ATA33 IDE cable to floppy connecto FDC and IDE connector IDE1, IDE2. Pin1 of cable is normally marked with red color. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

Primary

Master

Secondary

Master (3rd)

1st

IDE1 (Primary)

IDE2 (Secondary)

Primary

Slave (2nd)

ATA/100 IDE

Connector

Secondary Slave (4th)

Present 1

C CLK

I Fan 1 Fail PS 1 Fail

1 2 14

PS 2 Fail Fan 2 Fail Present 2 5VSB

FDD

Connector

Pin 1

Page 5

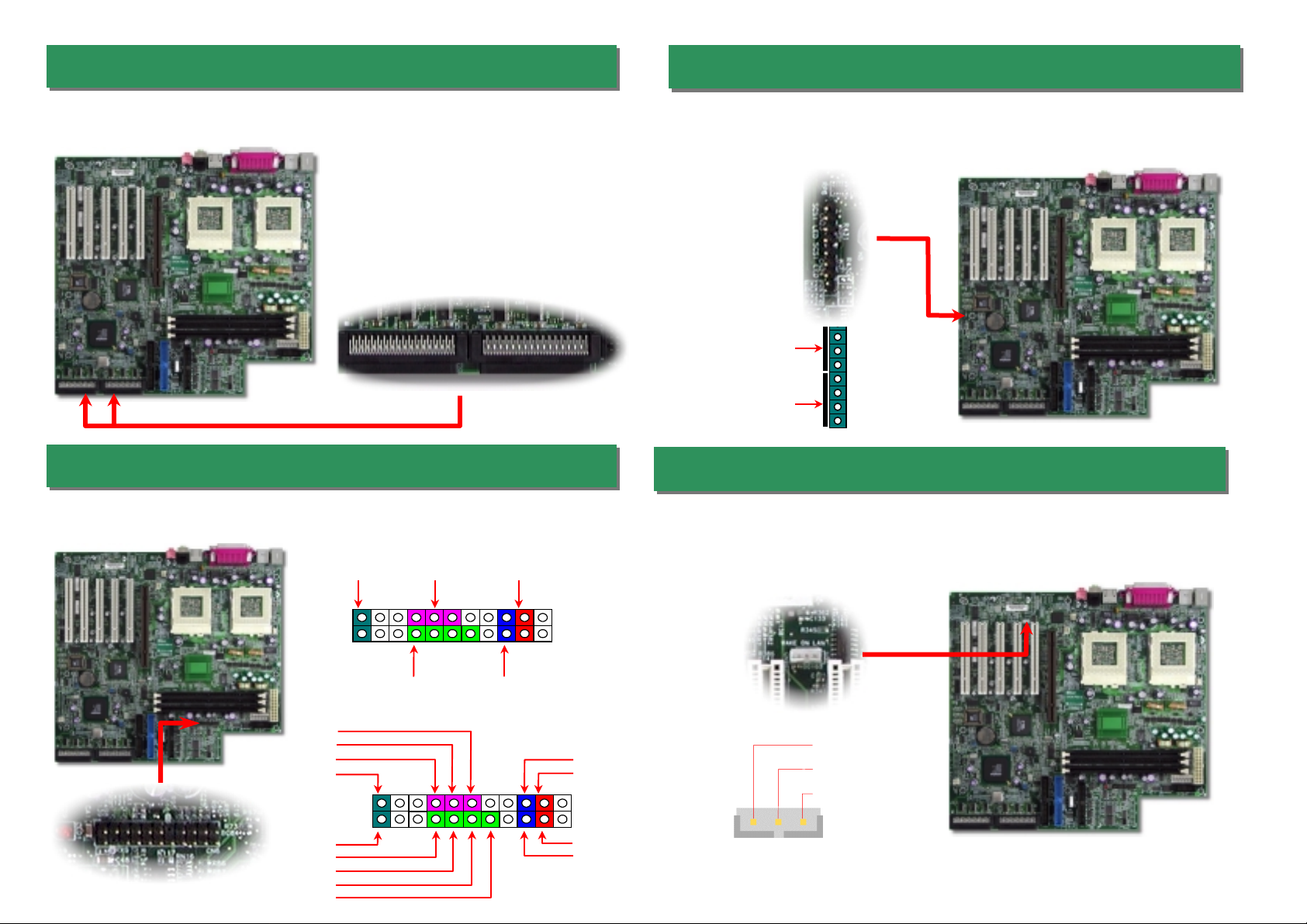

10. Connecting 68-pin Ultra3 SCSI Cable (DX34 Plus-U only)

12. Connecting SCSI Card LED Connector (DX34 Plus-U only)

The DX34Plus-U provides two 68-pin Ultra Wide/Ultra 2/3 SCSI connectors for 16-bit o 16-bit differential SCSI devices.

68-pin SCSI Ultra3 Connectors

11. Connecting Front Panel Connector

ttaching such as power LED, speaker, reset switch, power switch connector, etc.… to

corresponding pins.

ATX

Power Switch

Power LED

Chassis

Intrusion Switch

The 4-pin SCSI LED connector can be connected to a PCI SCSI control card activit LED connector. Read or write activity by devices connected to the SCSI card will make the LED lighting up.

CN23

CN24

13. Wake On LAN

This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector.

Reset SwitchHDD LED

+5V

GND

PWR LED

+5VSB

GND

+5V HDD LED HDD LED

+5V

RST S/W INT S/W

GND GND

+5VSB GND LID

Page 6

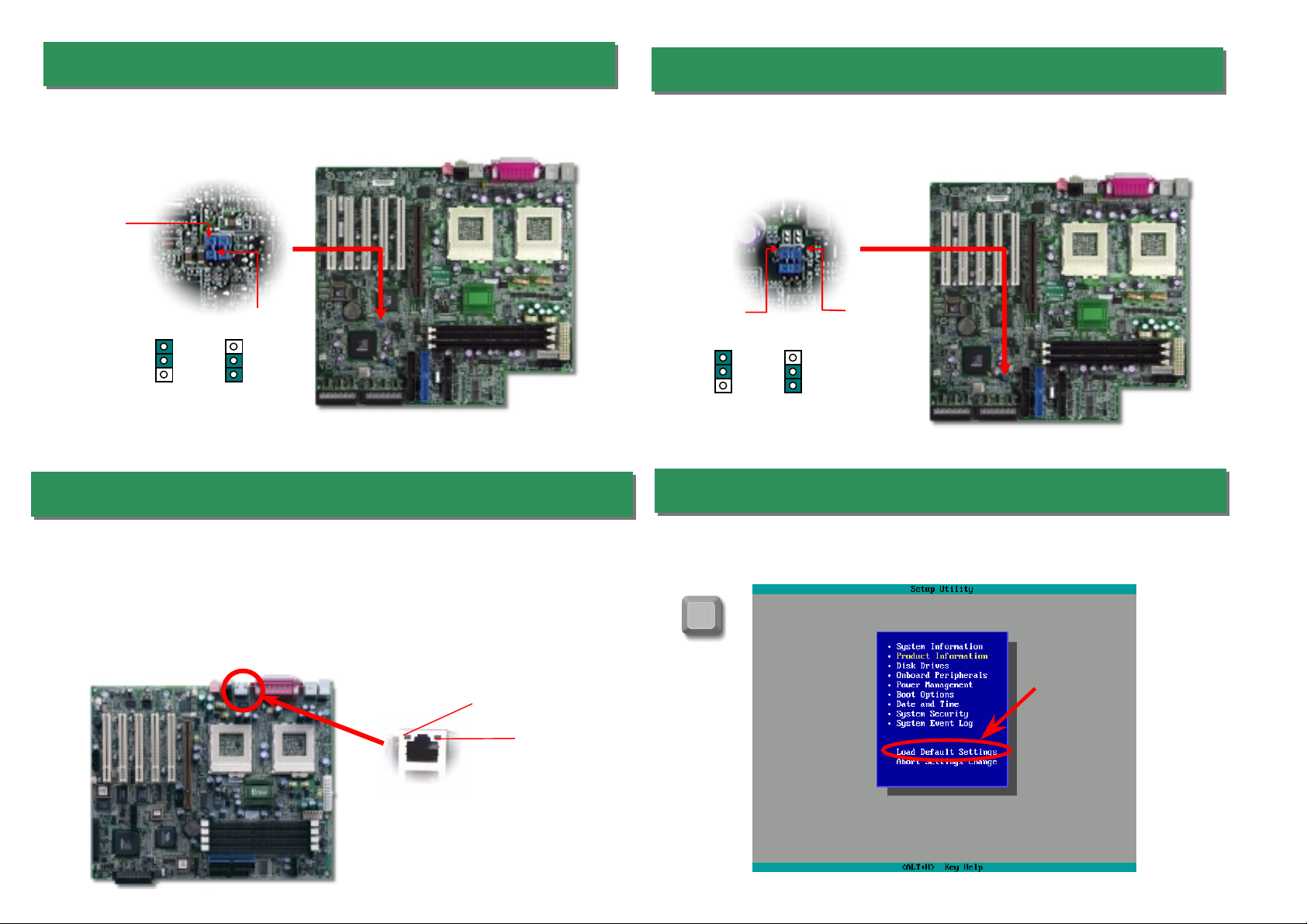

14. Select Buzzer or Ext. Speaker (Optional)

16. On board SCSI controller Channel (DX34 Plus-U only)

There is one jumper cap over pin1 and pin2 of JP4 for internal buzzer. If you want to use external case-mounted speaker instead of internal buzzer, please remove jumper cap to short pin2 and pin3.

JP4

1 1

Buzzer

(Default)

Speaker

15. Support 10/100 Mbps LAN onboard

The South Bridge VIA 686B includes a fast Ethernet controller on chip. On the strength of Intel 82559 PHY on board, which is a highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45 connector is located on the back panel. The green LED indicates the link mode, it lights when linking to network and blinking when transferring data. The orange LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode. To enable or disable this function, you may simply adjust it through BIOS.

The JP3/JP3X allows you to enable or disable the on-board SCSI Channel A and B terminator control function. The SCSI Channel A is controlled by JP3; the Channel B is controlled by JP3X.

JP3XJP3

(Default)

OFF

17. Power-On and Load BIOS Setup

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST (Power On Self Test). Choose "Load Defaul Setting" for recommended optimal performance.

Del

Green/ACT

Orange/Speed

Page 7

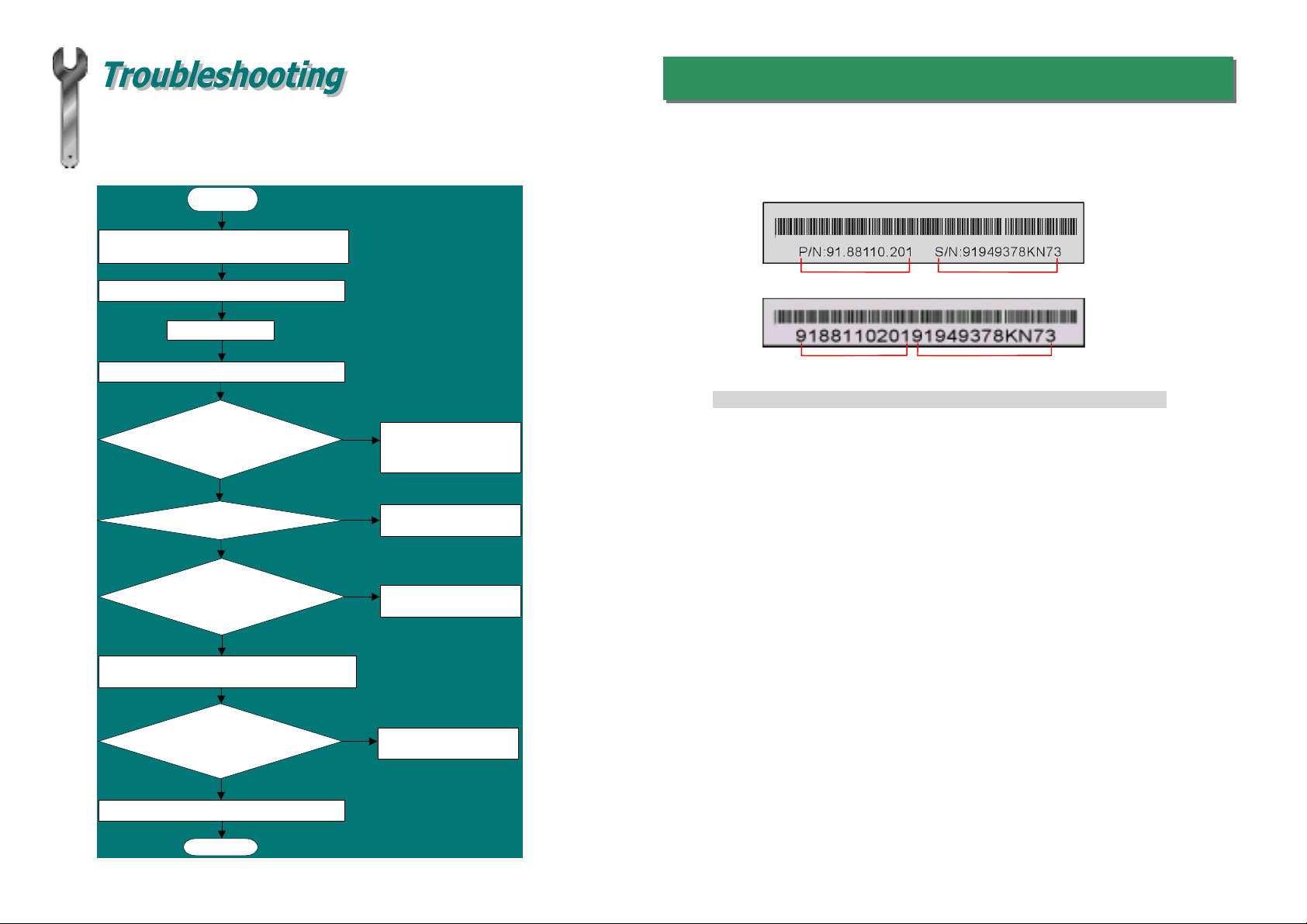

Part Number and Serial Number

If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem.

Turn off the power and unplug the AC power cable, th en remove all of the addon cards and cables, including VGA, ID E, FDD, COM1, COM2 and Printer.

Make sure if the jumper settings for CPU and DRAMs are correct.

Install the VGA card. Then connect your monitor and keyboard.

Start

Clear CMOS.

Turn on the power, and check if the power supply and CPU fan

work properly.

Check if there is display.

Yes

The problem was probably caused by power supply or motherboard failure. Please contact your r eselle or local distributor for repairing.

Perhaps your VGA card o r monitor is defective.

The Part Number and Serial number are printed on bar code label. You can find this bar code label on the outside packing, on ISA/CPU slot or on component side of PCB. Fo example:

Part No.

Serial No.

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default".

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

Re-install Windows 95, Windows 98 or Windows NT.

End

Yes

It is very possible that your keyboard is defective.

The problem should be caused by the IDE cables or HDD itself.

Page 8

Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend you follow the procedures below and seek help before contact us. With your help, we can then continue to provide the best quality service to more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Pacific Rim AOpen Inc. Tel: 886-2-3789-5888 Fax: 886-2-3789-5899

China

艾尔鹏国际上海(股)有限公司

Tel: 86-21-6225-8622 Fax: 86-21-6225-7926

America AOpen America Inc. Tel: 1-408-922-2100 Fax: 1-408-922-2935

Web Site: http://www.aopen.com

E-mail: Send us email by going through the contact form below. English http://www.aopen.com/tech/contact/techusa.htm Japanese http://www.aopen.com.jp/tech/contact/techjp.htm Chinese http://www.aopen.com.tw/tech/contact/techtw.htm German http://www.aopencom.de/tech/contact/techde.htm French http:/france.aopen.com/tech/contact/techfr.htm Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Europe AOpen Computer b.v. Tel: 31-73-645-9516 Fax: 31-73-645-9604

Germany AOpen Computer GmbH. Tel: 49-2102-157700 Fax: 49-2102-157799

Japan AOpen Japan Inc. Tel: 81-048-290-1800 Fax: 81-048-290-1820

Download Software: Check out this table to get the latest updated

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and should be able to solve your problem more efficiently and provide important reference for you if next time you want to buy something else from them.

Contact Us: Please prepare detail system configuration and error symptom before contacting us. The part number, serial number and BIOS version are also very helpful.
