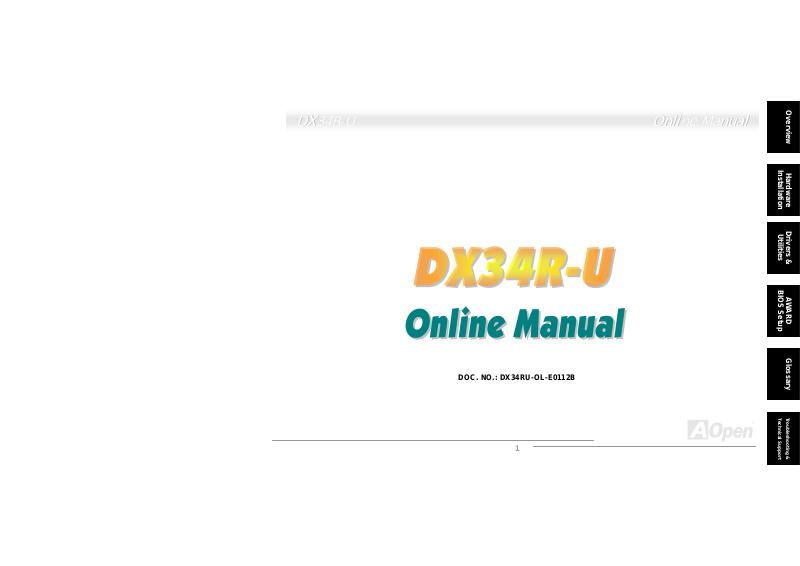

Aopen DX34RU User Manual

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Overview

DX34R-U

DOC. NO.: DX34RU-OL-E0112B

1

Installation

Hardware

Drivers &

Utilities

BIOS Setup

AWARD

Glossary

Troubleshooting &

Technical Support

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

DX34R-U ...........................................................................................................................................1

What’s in this manual ......................................................................................................................................................2

You Must Notice ..............................................................................................................................................................8

Before You Start..............................................................................................................................................................9

Overview .......................................................................................................................................................................10

Feature Highlight...........................................................................................................................................................11

Quick Installation Procedure..........................................................................................................................................15

Motherboard Map ..........................................................................................................................................................16

Block Diagram ...............................................................................................................................................................17

Hard war e Ins tal lat ion..................................................................................................................18

About “Optional” and “Upgrade Optional”…...................................................................................................................19

JP14 Clear CMOS Data .................................................................................................................................................2 0

CPU Installation ............................................................................................................................................................. 21

JP23 FSB/PCI Clock Ratio ............................................................................................................................................23

CPU Jumper-less Design............................................................................................................................................... 25

CPU and Housing Fan Connector (with H/W Monito ring) ...............................................................................................3 0

DIMM Sockets ...............................................................................................................................................................31

Front Panel Connector ..................................................................................................................................................34

2

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

ATX Power Connector...................................................................................................................................................35

AC Power Auto Recovery ..............................................................................................................................................36

Keyboard/Mouse Wake-up.............................................................................................................................................36

IDE, Floppy, IDE RAID Connector .................................................................................................................................37

WOM (Zero Voltage Wake on Modem) Connector.........................................................................................................40

WOL (Wake on LAN).....................................................................................................................................................43

AGP (Accelerated Graphic Port) Expansion Slot ...........................................................................................................45

CNR (Communication and Network Riser) Expansion Slot ............................................................................................47

PC99 Color Coded Back Panel......................................................................................................................................48

Support 2nd USB Port.....................................................................................................................................................49

Chassis Intrusion Connector.......................................................................................................................................... 50

JP12 Enable/Disable Onboard Sound ...........................................................................................................................51

CD Audio Connector......................................................................................................................................................52

Modem Audio Connector ...............................................................................................................................................53

AUX-IN Connector.........................................................................................................................................................54

Front Audio Connector...................................................................................................................................................55

Dr. LED Connector ........................................................................................................................................................56

Battery-less and Long Life Design.................................................................................................................................58

Over-current Protection .................................................................................................................................................59

3

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Hardware Monitoring .....................................................................................................................................................60

Resettable Fuse ............................................................................................................................................................61

2200

μf

Low ESR Capacitor..........................................................................................................................................62

Layout (Frequency Isolation Wall) .................................................................................................................................64

Pure Aluminum Heatsink ...............................................................................................................................................65

Driver and Utility.......................................................................................................................... 6 6

Auto-run Menu from Bonus CD Disc..............................................................................................................................67

Installing VIA 4 in 1 Driver.............................................................................................................................................68

Installing Onboard Sound Driver....................................................................................................................................69

Installing LAN Driver ......................................................................................................................................................70

Install Onboard IDE RAID Driver ...................................................................................................................................71

Install FastCheck™ Monitoring Utility ............................................................................................................................71

ACPI Suspend to Hard Drive......................................................................................................................................... 72

ACPI Suspend to RAM (STR)........................................................................................................................................76

AWARD BIOS ................................................................................................................................78

About BIOS Function Description…...............................................................................................................................79

How To Use Award™ BIOS Setup Program...................................................................................................................80

How To Enter BIOS Setup .............................................................................................................................................82

BIOS Upgrade............................................................................................................................................................... 83

4

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Overclocking ................................................................................................................................85

VGA Card & Hard Disk.................................................................................................................................................. 86

Glossary ....................................................................................................................................... 8 7

AC97 .............................................................................................................................................................................87

ACPI (Advanced Configuration & Power Interface)........................................................................................................87

AGP (Accelerated Graphic Port) .................................................................................................................................... 87

AMR (Audio/Modem Riser)............................................................................................................................................88

AOpen Bonus Pack CD .................................................................................................................................................88

APM (Advanced Power Management)...........................................................................................................................88

ATA (AT Attachment)......................................................................................................................................................88

ATA/66...........................................................................................................................................................................88

ATA/100.........................................................................................................................................................................89

BIOS (Basic Input/Output Sys tem) ................................................................................................................................ 89

Bus Master IDE (DMA mode).........................................................................................................................................89

CNR (Communication and Networking Riser)................................................................................................................89

CODEC (Coding and Decoding)....................................................................................................................................90

DDR (Double Data Rated) SDRAM................................................................................................................................90

DIMM (Dual In Line Memory Module) ............................................................................................................................90

DMA (Direct Memory Access) ........................................................................................................................................90

5

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

ECC (Error Checking and Correction)............................................................................................................................91

EDO (Extended Data Output) Memory...........................................................................................................................91

EEPROM (Electronic Erasable Programmable ROM)....................................................................................................91

EPROM (Erasable Programmable ROM).......................................................................................................................91

EV6 Bus ........................................................................................................................................................................92

FCC DoC (Declaration of Conformity)............................................................................................................................92

FC-PGA (Flip Chip-Pin Grid Array)................................................................................................................................ 92

Flash ROM ....................................................................................................................................................................92

FSB (Front Side Bus) Clock........................................................................................................................................... 93

I2C Bus ..........................................................................................................................................................................93

IEEE 1394 .....................................................................................................................................................................93

Parity Bit ........................................................................................................................................................................94

PBSRAM (Pipelined Burst SRAM) .................................................................................................................................94

PC-100 DIMM ................................................................................................................................................................ 94

PC-133 DIMM ................................................................................................................................................................ 94

PC-1600 or PC-2100 DDR DRAM .................................................................................................................................95

PCI (Peripheral Component Interface) Bus....................................................................................................................95

PDF Format...................................................................................................................................................................95

PnP (Plug and Play) ......................................................................................................................................................95

6

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

POST (Power-On Self Test)........................................................................................................................................... 96

RDRAM (Rambus DRAM)..............................................................................................................................................96

RIMM (Rambus Inline Memory Module).........................................................................................................................96

SDRAM (Synchronous DRAM) ......................................................................................................................................96

Shadow E2PROM ..........................................................................................................................................................97

SIMM (Single In Line M emory M odule)..........................................................................................................................97

SMBus (System Management Bus) ...............................................................................................................................97

SPD (Serial Presence Detect) .......................................................................................................................................97

Ultra DMA ...................................................................................................................................................................... 98

USB (Universal Serial B us) ............................................................................................................................................ 98

VCM (Virtual Channel Memory).....................................................................................................................................99

ZIP file...........................................................................................................................................................................99

Troubleshooting......................................................................................................................... 1 0 0

Technical Support ......................................................................................................................104

Product Registration..................................................................................................................10 7

How to Conta ct Us.....................................................................................................................108

7

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered

trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right
to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that
may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval
system without prior written permission from AOpen Corporation.
Copyright

©

1996-2000, AOpen Inc. All Rights Reserved.

8

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later
chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved
in PDF format
get free download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper
size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer
driver.

Thanks for the help of saving our earth.

, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can

.

9

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

OOvveerrvviieeww

Thank you for choosing AOpen DX34R-U motherboard. The DX34R-U is Intel® Socket 370 motherboard (M/B) based on the
ATX form factor featuring the VIA Apollo Pro 133T chipset

motherboard can support dual CPU for Intel
Celeron™**** processor and 66/100/133MHz Front Side Bus (FSB)
supports AGP 1X/2X/4X mode and pipelined spilt-transaction long burst transfer up to 1056MB/sec. According to different
customer’s requirements, 32, 64, 128, 256 and 512MB SDRAM DIMM modules can be applied to the motherboard and the
maximum memory size can be up to 2 GB. The on-board IDE controller supports Ultra DMA
rate up to 100MB/s. DX34R-U equipped with a Promise
performance and fault tolerance. Further flexibility can be achieved by taking advantage of the Communication and Network

Riser (CNR) card option that allows audio, modem on a single baseboard design. More

than that, on the strength of LSI 80225 PHY on board, which is an
highly-integrated Platform LAN Connect device, it provides 10/100M bps
Ethernet for office and home use. Besides, the DX34R-U motherboard has an
AD 1885 AC97
magic surround stereo sound to let people enjoy working with it. Now, enjoy all
features from AOpen DX34R-U motherboard.

*Note 1: Only the Tualatin CPU with 512 K cache are supported on this dual CPU motherboard.
*Note 2: Only one Celeron CPU can be inserted on this dual CPU motherboard.

®

Socket 370 series Pentium® III (Both Coppermine & Tualatin**** are supported) &

CODEC chipset onboard for provides high performance and

. As high performance chipset built in the M/B, the DX34R-U

clock. In the AGP performance, it has one AGP slot and

®

FastTrak™ 100 Lite IDE RAID controller that provides high

33/66/100 mode and the transfer

10

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports dual CPU Intel® Socket 370 Pentium® III (Both Coppermine & Tualatin**** are supported) & Celeron™****
533MHz~1.2GHz+ with 66/100/133MHz Front Side Bus (FSB)
delicate design with terminator circuit implemented on CPU socket 2, please use CPU socket 1 if only one CPU is going to be
installed. Additionally, we highly recommend you to install the same types of CPU if two CPU are installed.

*Note 1: Only the Tualatin CPU with 512 K cache are supported on this dual CPU motherboard.
*Note 2: Only one Celeron CPU can be inserted on this dual CPU motherboard.

designed for Socket 370 technology. In consistent with AOpen’s

Chipset

With the VIA Apollo Pro 133T chipset, this motherboard contains the various controller inclusive of 32-bit Accelerated Graphics
Port (AGP), 32-bit PCI bus and 64-bit advanced high performance DRAM. Because of its powerful features, CPU Front Side Bus
(FSB) of DX34R-U can operate easily at 66/100/133MHz. This chipset also supports Ultra DMA 33/66/100 (with VIA
VT82C694T and CT8231) EIDE, USB and keyboard/ PS2 Mouse interface plus RTC/CMOS on chip.

®

11

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Expansion Slots

Including five 32-bit/33MHz PCI, one CNR and one AGP 4X slots. The PCI local bus throughput can be up to 132MB/s. The

Communication & Nectworking Riser (CNR)

Modem/Audio card. The Accelerated Graphics Port (AGP)
speed. The AGP video cards support data transfer rate up to 1056MB/s. As DX34R-U motherboard includes one AGP expansion
slot for a bus mastering AGP graphic card, For AD and SBA signaling, DX34R-U motherboard can support 133MHz 2X/4X mode.
Of five PCI slots provided, DX34R-U supports all master PCI slots for arbitration and decoding functions.

slot provided from DX34R-U motherboard can support CNR interface for a

specification provides a new level of video display sophistication and

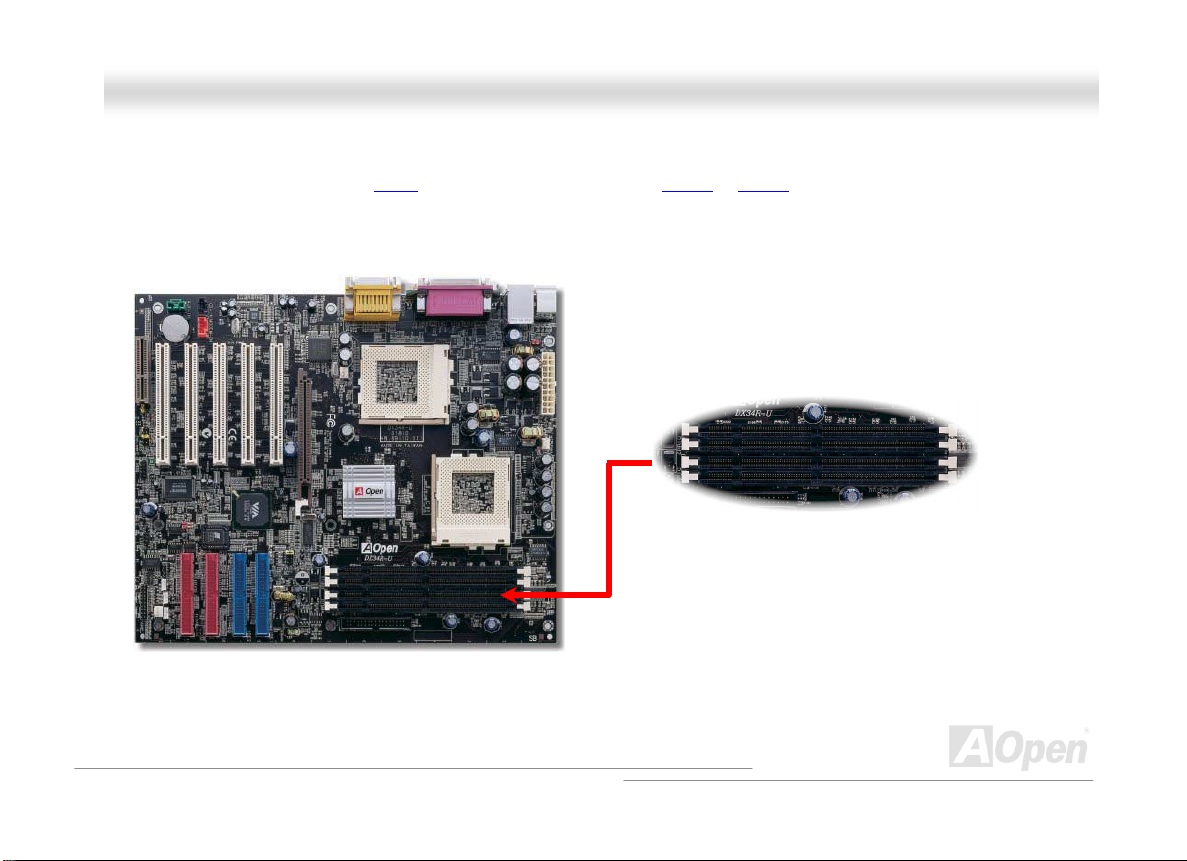

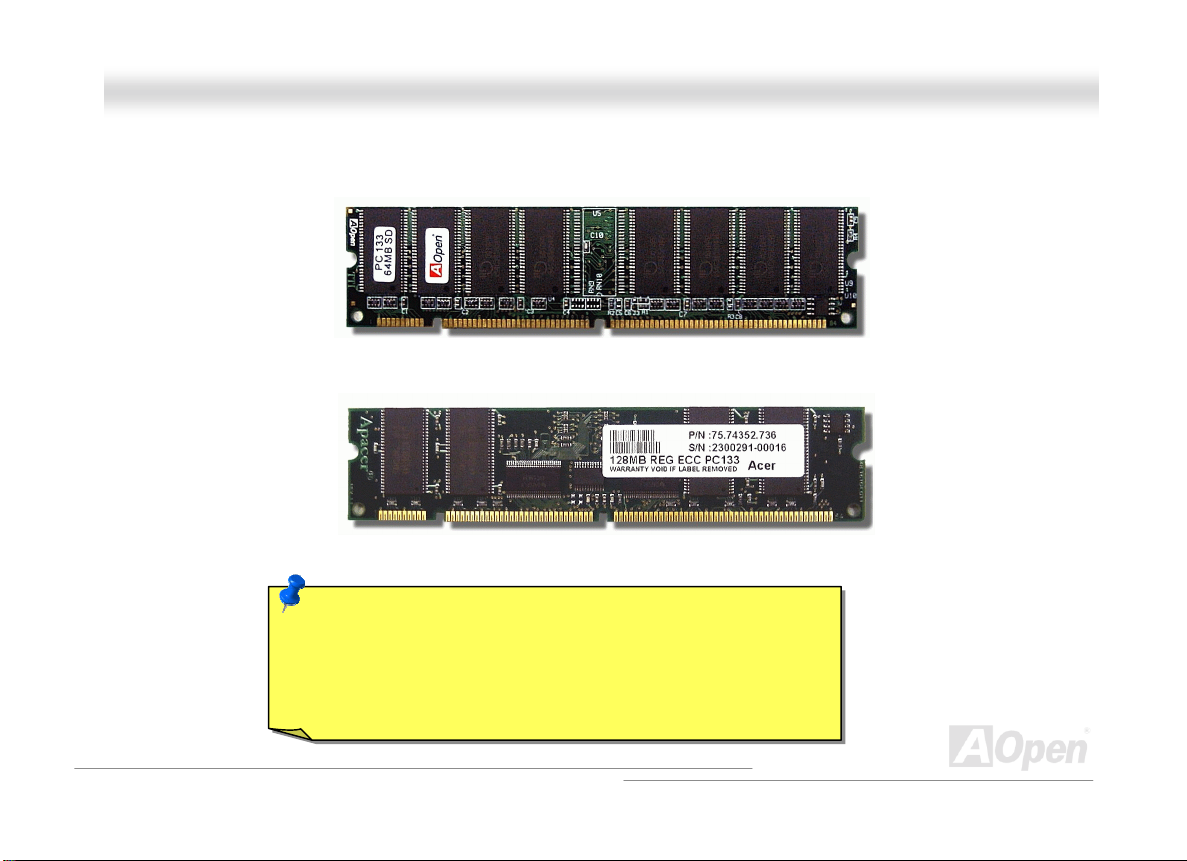

Memory

Provides four 168-pin SDRAM DIMM socket that support up to 2GB of PC-100/133 compliant SDRAM (Synchronous Dynamic
Random Access Memory). 32, 64, 128, 256 and 512MB SDRAM DIMM modules are supported.

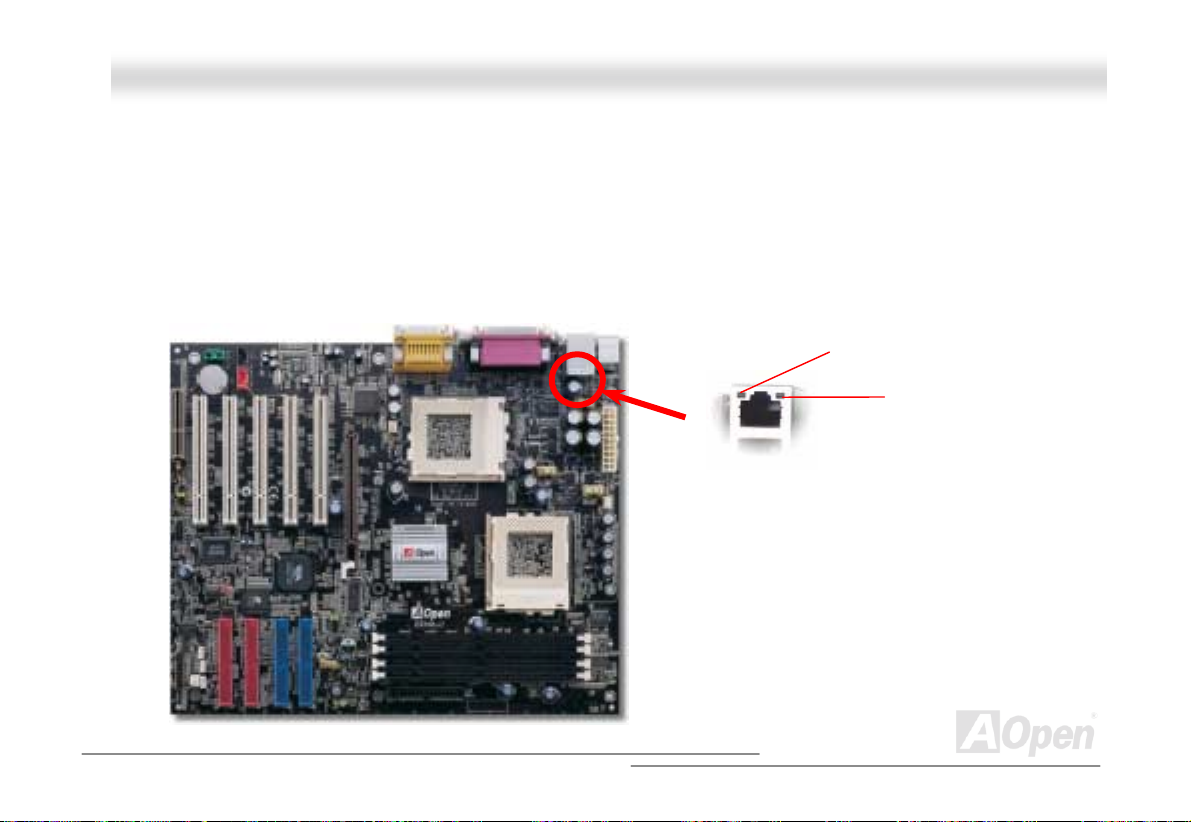

LAN Port

On the strength of LSI 80225 PHY on board, which is an highly-integrated Platform LAN Connect device, it provides 10/100
Mbps Ethernet for office and home use.

Ultra DMA 33/66/100 Bus Mater IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels,
supports Ultra DMA

33/66/100, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.

12

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

On-board ATA/100 IDE RAID

1. Supports data striping (RAID 0) and mirroring (RAID 1). Provides dramatic increase in drive performance and/or fault
tolerant options. Offers performance customization and data rebuilds from the BIOS menu. Mirroring supports automatic
background rebuilds. Fault tolerance can be restored automatically without rebooting.

2. Supports up to four IDE drives which capacities are more than 8.4GB on the two IDE RAID connectors while still supporting
four IDE devices on the motherboard. The burst data transfer rates can up to 100MB/s from ATA/100 drives to boot overall
system performance.

3. Supports IDE Bus Master operation allows multi-tasking during disk drives transfer which increase CPU efficiency, then the
CPU is free to process task during IDE data transfer through PCI bus interface to/from system memory.

On-board AC97 Sound

DX34R-U M/B uses the AD 1885 AC97 sound chip. This on-board audio includes a complete audio recording and playback
system.

Four USB Connectors

Providing two ports, four USB connectors for USB interface devices, such as m ouse, keyboard, m odem, scanner, etc.

Dr. LED

The Dr. LED has 8 LEDs on the DX34R-U motherboard can easily shows what kind of problems you may encounter.

13

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Power Management/Plug and Play

The DX34R-U Motherboard supports the power management function that confirms to the power-saving standards of the U.S.
Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play
configuration problems, thus making the system much more user-friendlier.

, which helps save users from

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor
module.

Enhanced ACPI

Fully implement the ACPI standard for Windows® 98/ME/2000 series compatibility, and supports Soft-Off, STR (Suspend to RAM,
S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.

Super Multi-I/O

The DX34R-U provides one high-speed UART compatible serial port and one parallel port with EPP and ECP capabilities. If you
need more serial ports, please considering using PCI serial port add-on card.

14

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM

3. Connecting Front Panel Cable

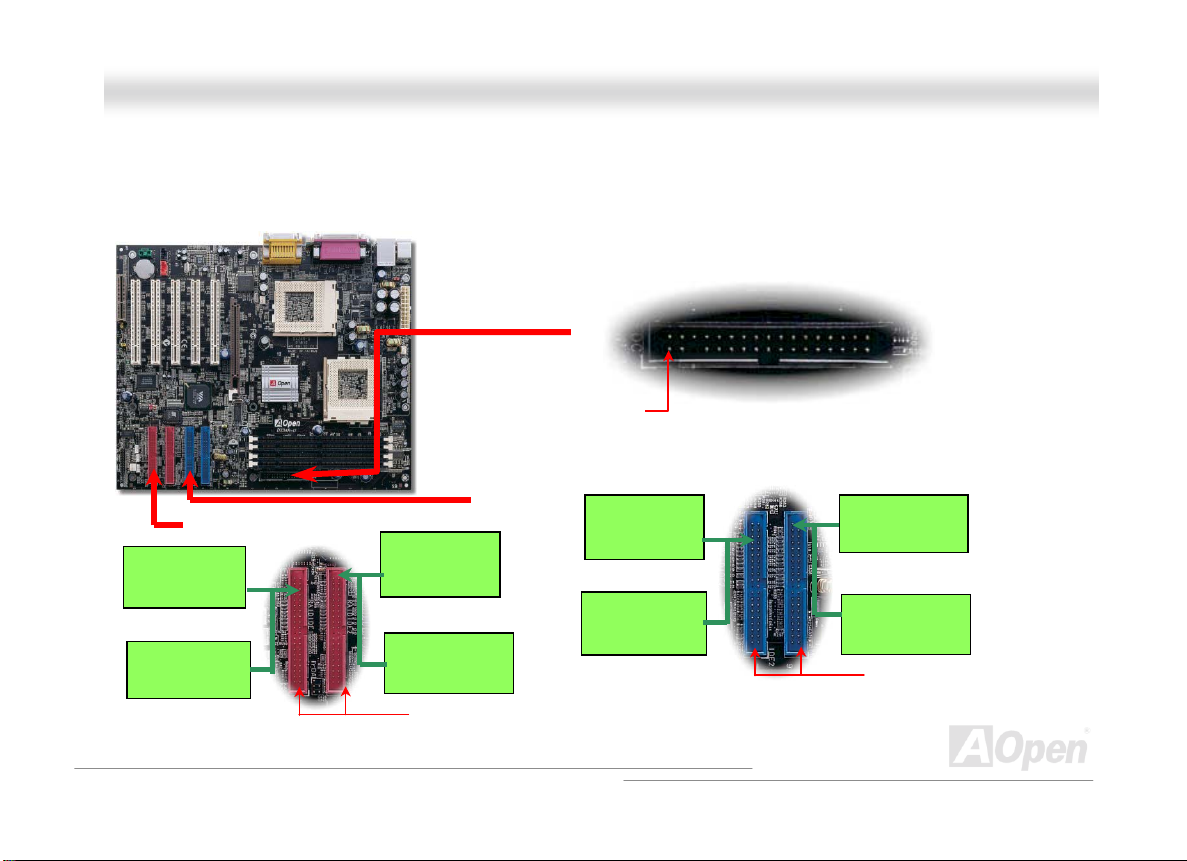

4. Connecting IDE and Floppy Cable

5. Connecting ATX Power Cable

6. Connecting Back Panel Cable

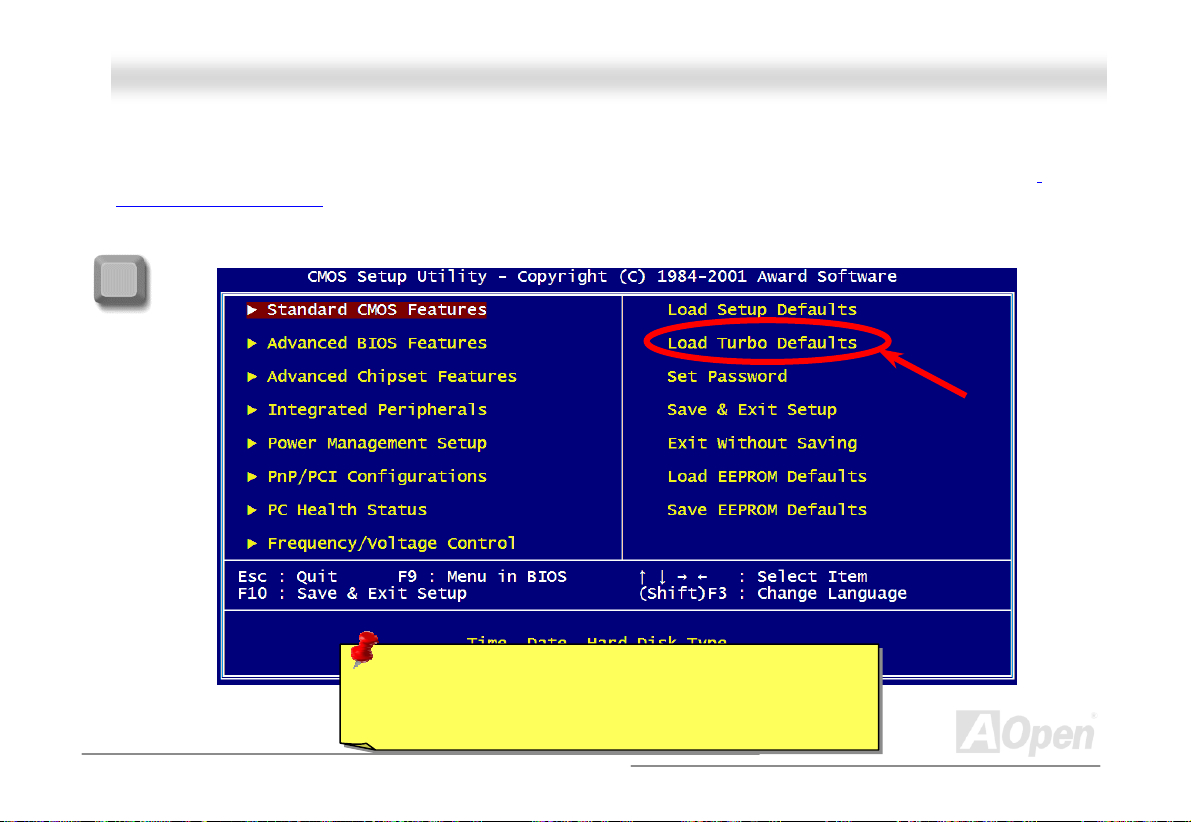

7. Power-on and Load BIOS Setup Default

8. Setting CPU Frequency

9. Reboot

10. Insta lli ng O pe rat in g Sys tem (s uch as W ind ows 98 )

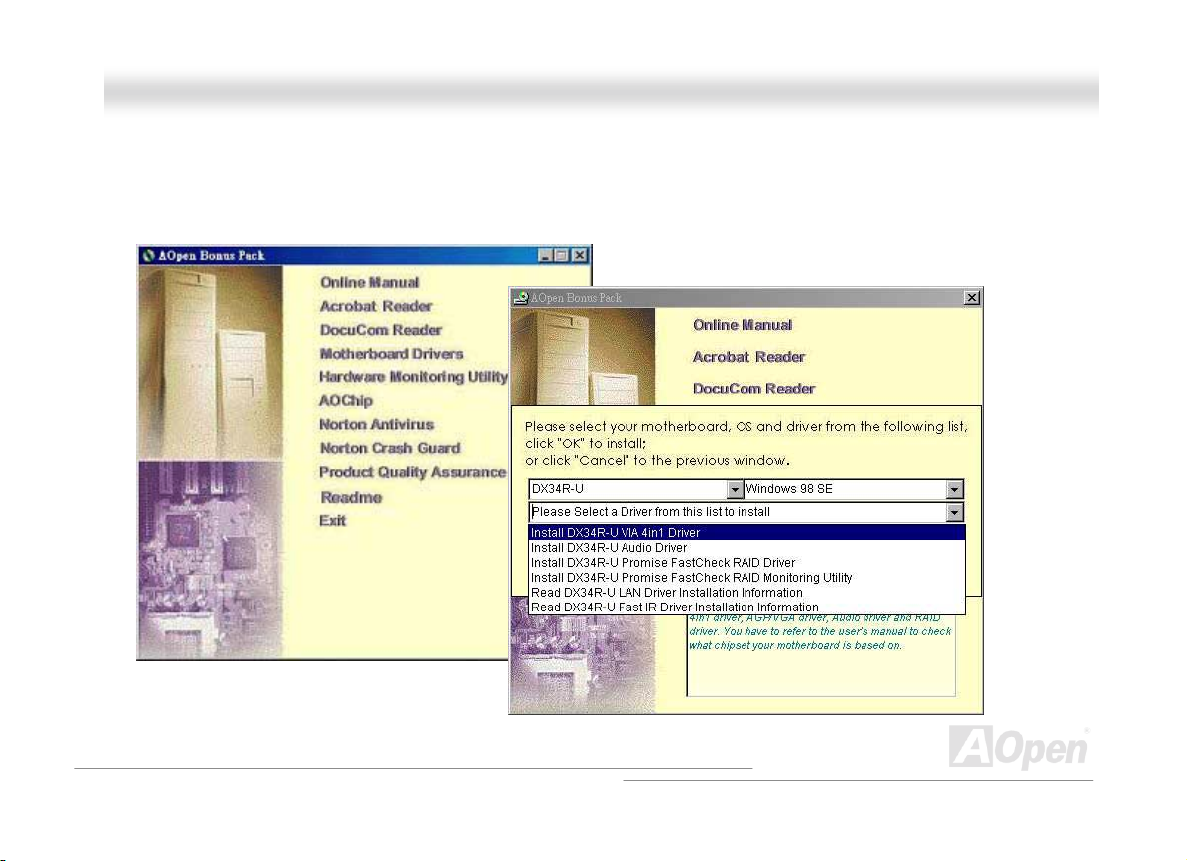

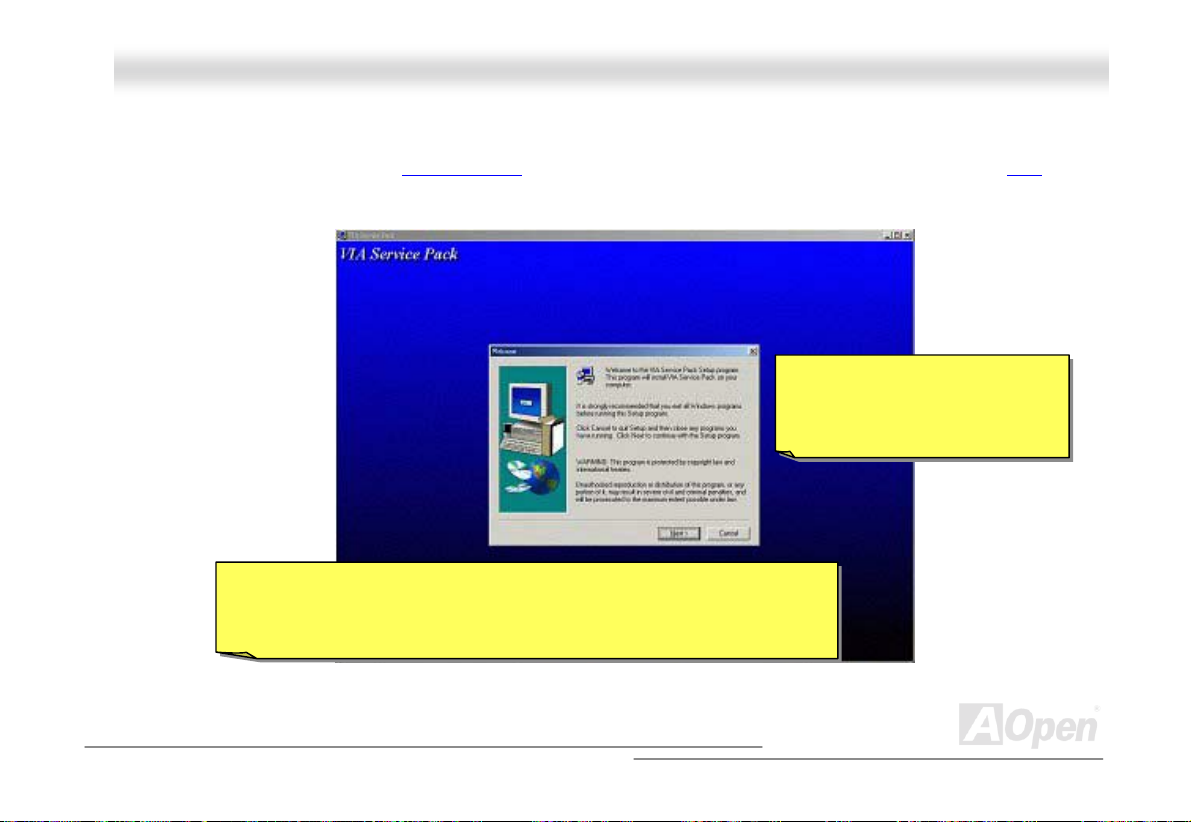

11. Installing Driver and Utility

15

r

r

r

A

A

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AC’97 CODEC Chipset

LSI 80225 chipset

AGP 4x Expansion Slot

CD-IN

AUX-IN

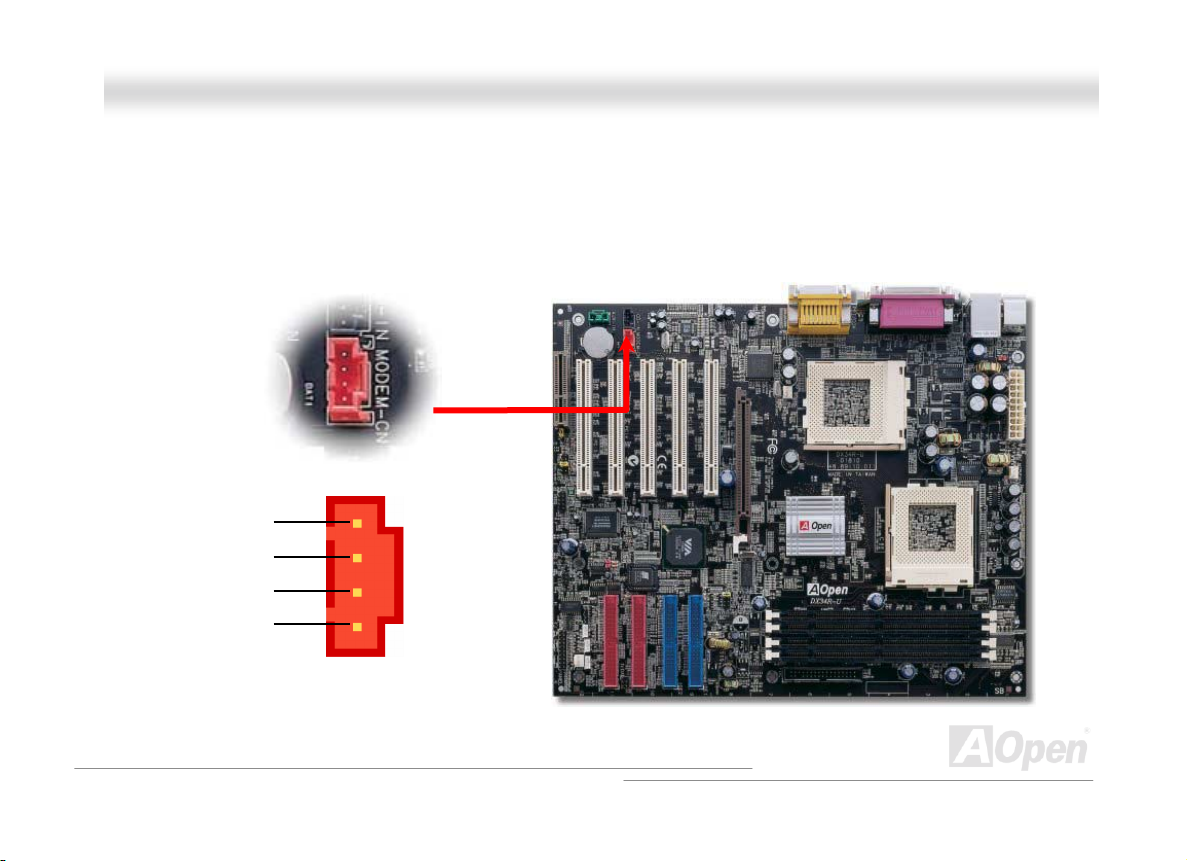

MODEM-CN

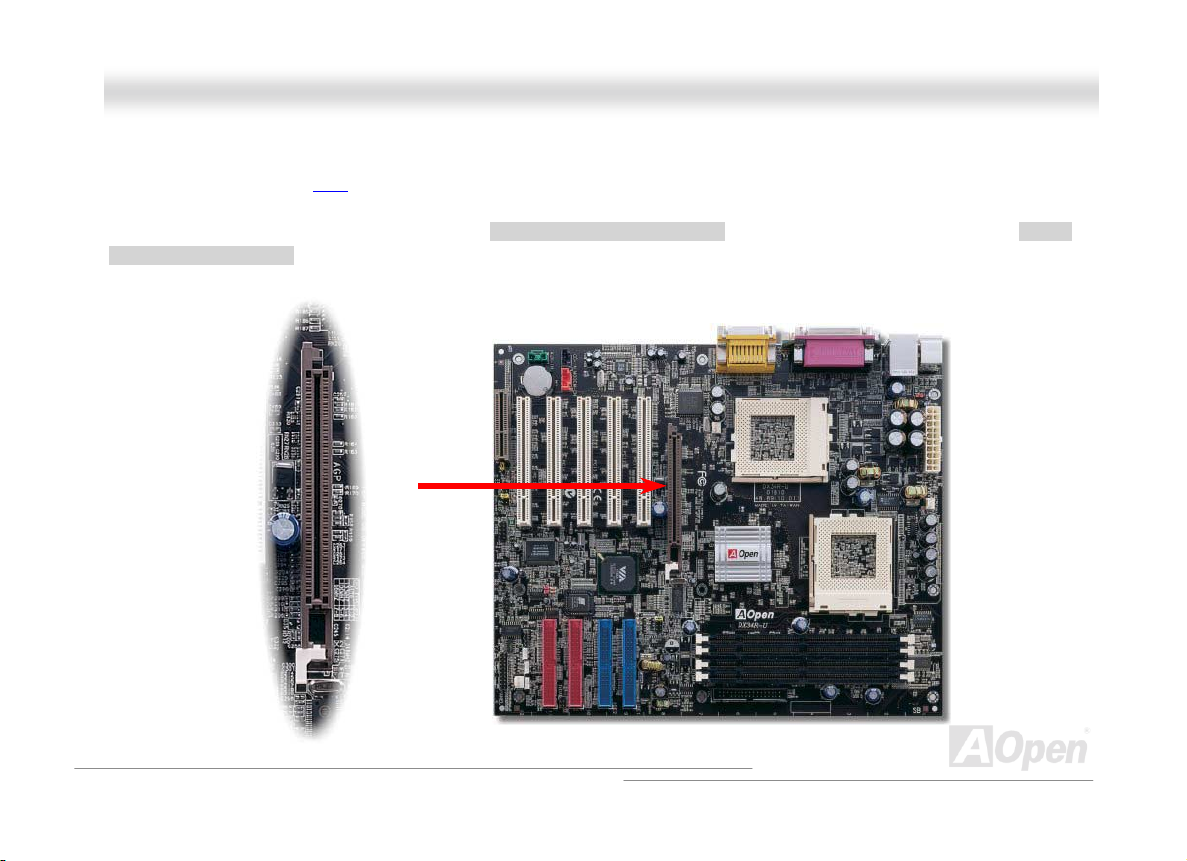

CNR Expansion Slot

JP12 On-board Sound

Enable/Disable Jumper

32bit PCI Expansion Slot x 5

Front Audio Connecto

Support 2nd USB Port

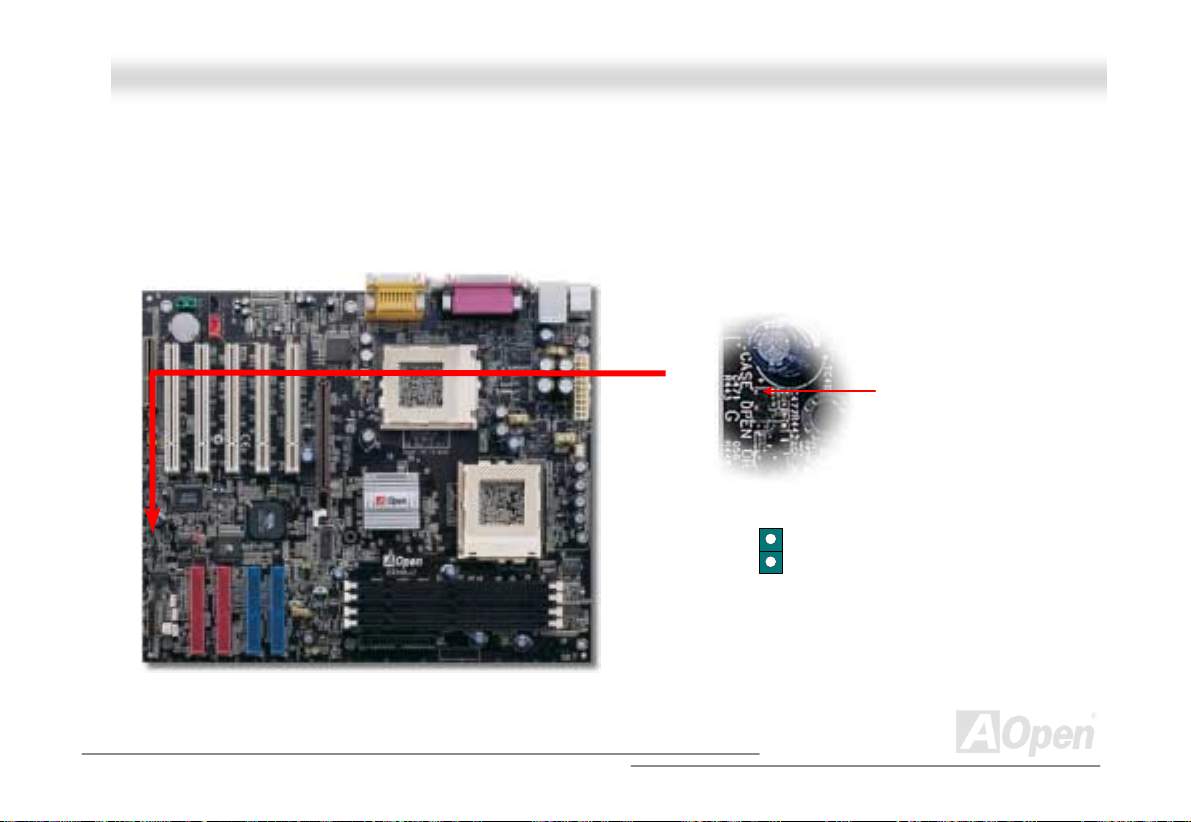

Chassis Intrusion Connector

JP14 Clear CMOS Jumper

Dr. LED Connector

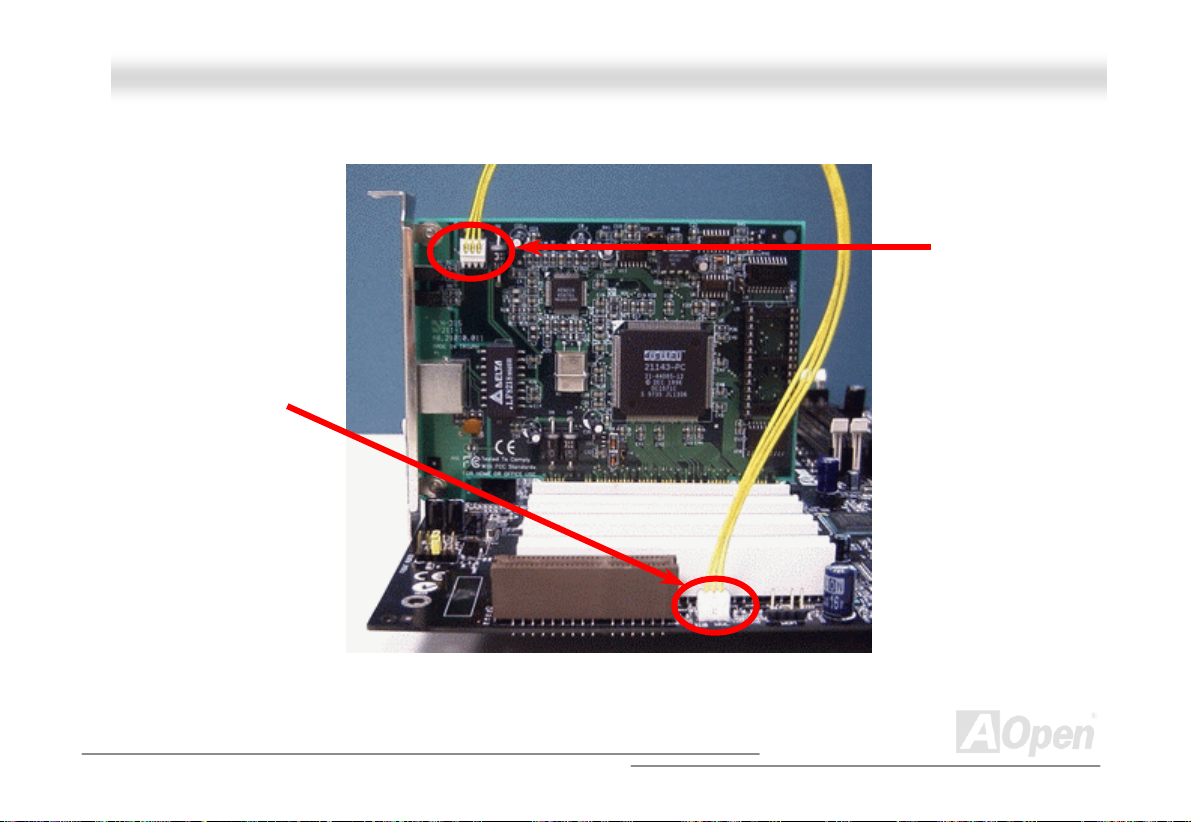

WOL (Wake On LAN)

Front Panel Connecto

FAN3 (with H/W Monitoring)

IrDA Connecto

IDE RA ID C o n nec t o r

Motherboar d M ap

TA33/66/100 IDE Connector x2

16

Resettable Fuse

JP28 Keyboard/Mouse
Wake up Jumper

FAN2 (with H/W Monitoring)

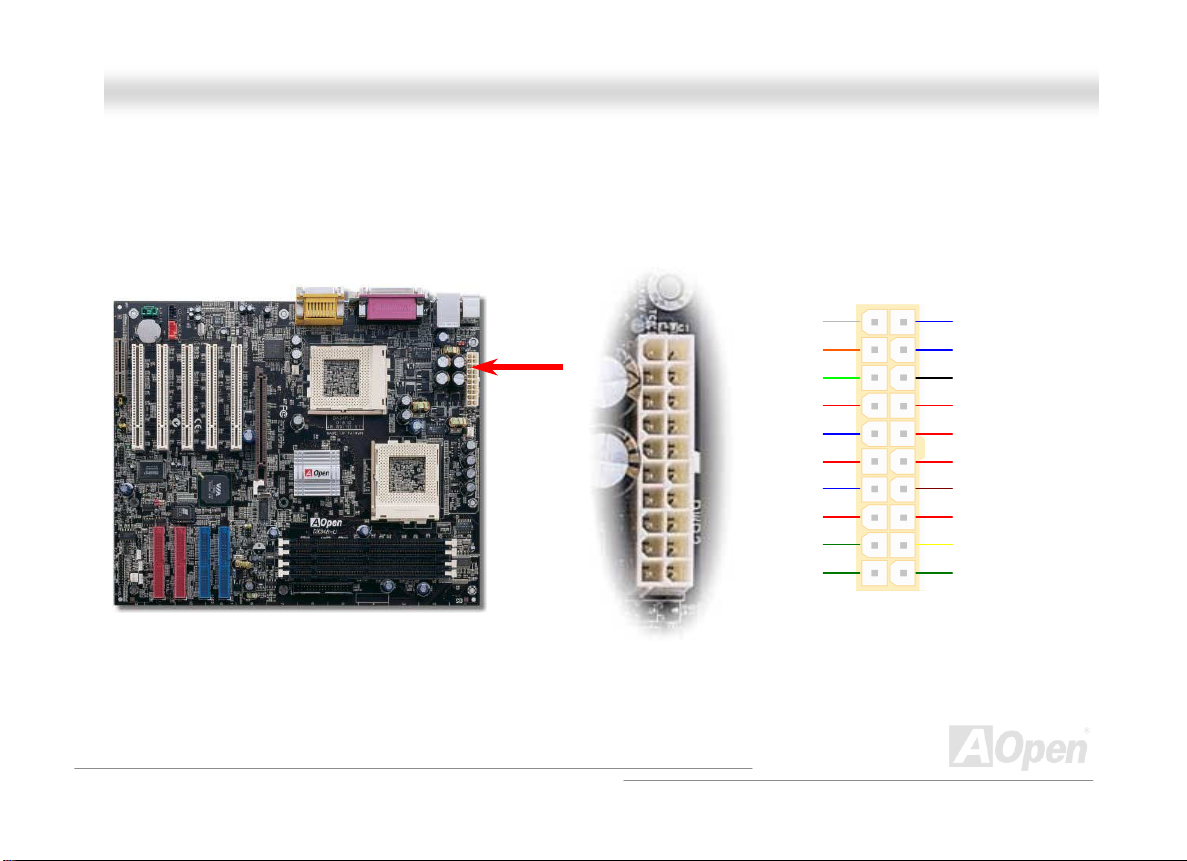

TX Power Connector

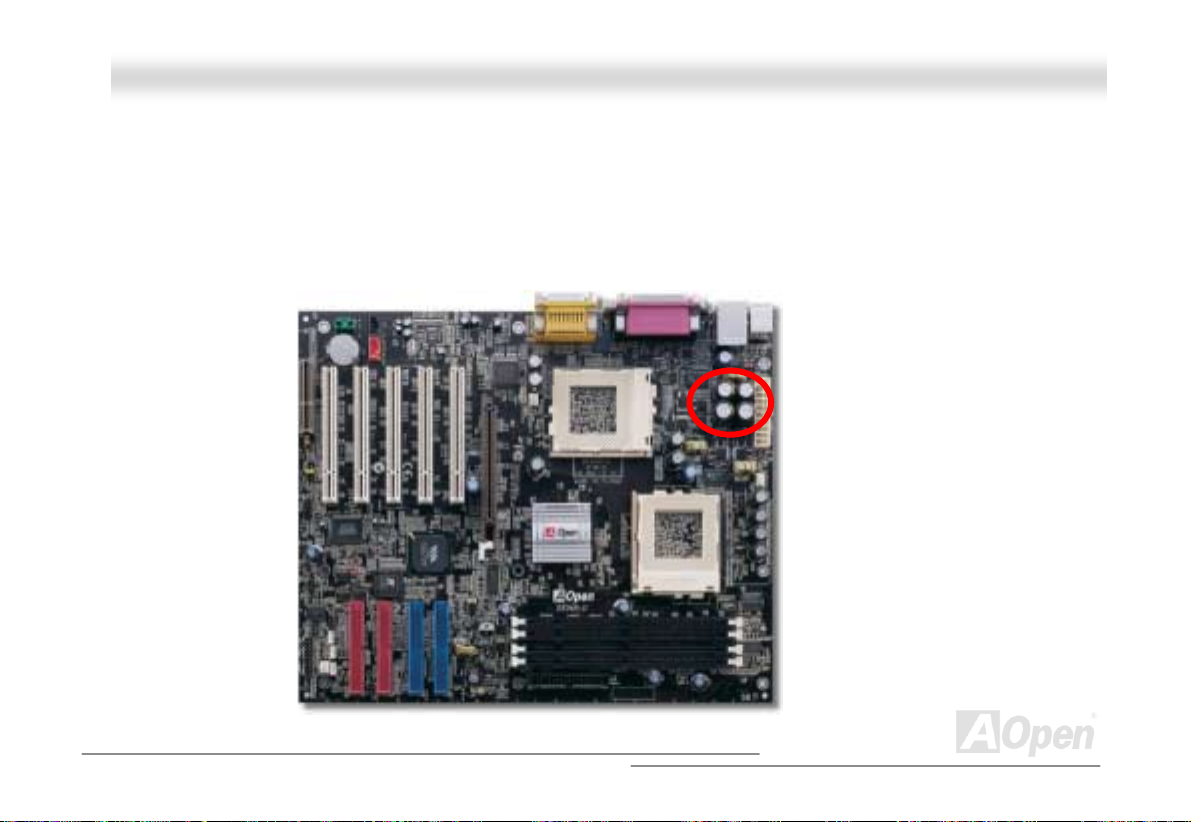

2200μF Low ESR Capacitors

CPU Fan (with H/W Moni toring)

370-pin CPU Socket with Voltage
& Frequency Auto-detection,
supports Intel
(Both Coppermine & Tualatin with
512K Cache are supported) & o ne
Celeron 533MHz~1.13GHz+ CPU

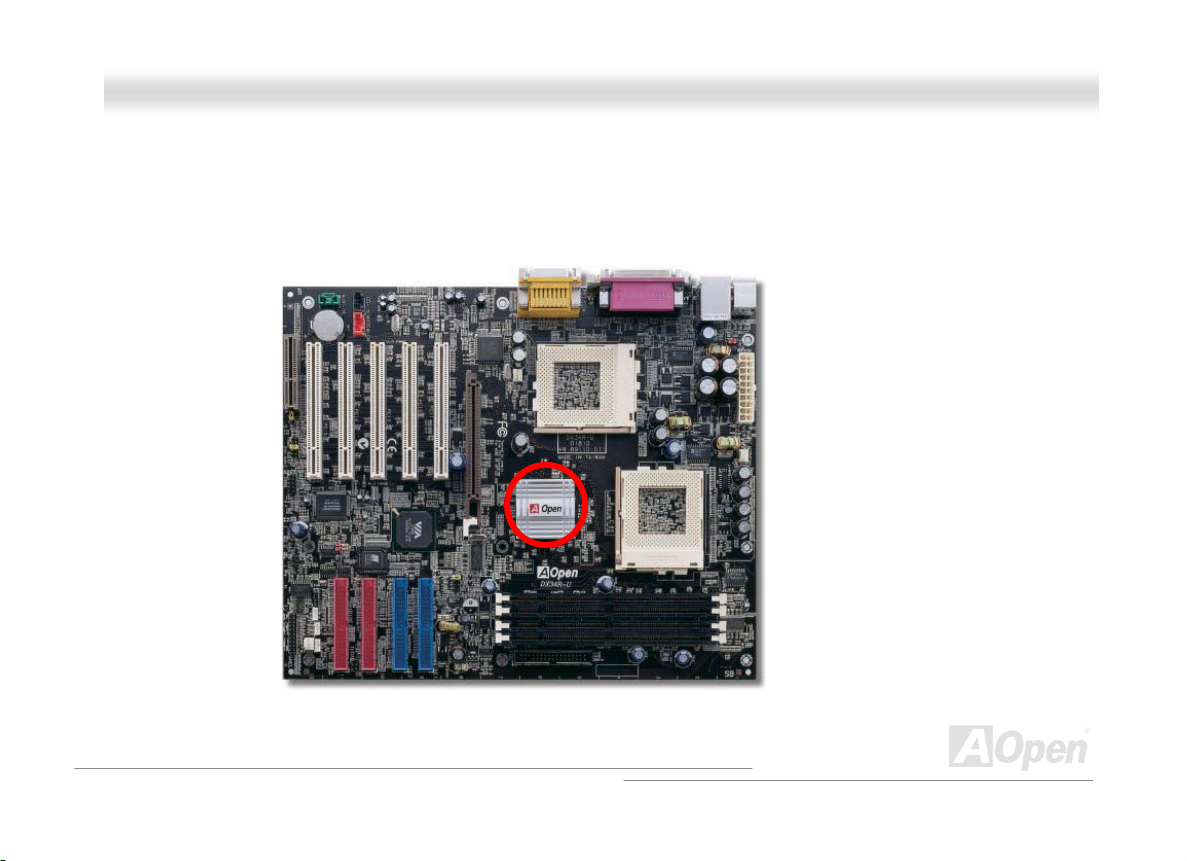

VIA Apollo Pro 133T Chipset with
Enlarged Aluminum Heatsink

JP23 FSB Select Jumper

PC133 DIMM Slot x4

FDD Connector

®

Pentium™ III

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

BBlloocckk DDiiaaggrraamm

Socket 370 Intel

Pentium III (Both Tualatin

with 51 2K Cache &

Coppermine are supported)

/one Celeron CPU

66/100/133MHz

PC-100/133 SDRAM

DIMM Socket x4

System Bus

AGP 4X Slot

LAN connect Component

Floppy Disk Drive x2

Up to 512MB

North Bri dge

VIA

VT82C694T

USB

Connector

x4

PCI Bus

1stUSB Port

2ndUSB Port

LSI

80225

PHY

32-bit PCI Slot x5

Promise
FastTrak
100 IDE

RAID

Controller

ATA

33/66100

Primary

Channel

Secondary

Channel

Primary

Channel

Secondary

Channel

South

Bridge

VIA VT8231

Supports ATA100 IDE RAID 0

and RAID 1 Solution

AC’97 Link

Firmware Hub

Audio CODEC

Modem CO DEC

CNR Slot

4MbitFlash EEPROM

Parallel Port

Serial P o rt x1

IDE Drive x4

IDE Drive x4

17

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: El ectrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and
other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a
component. If a wrist strap is not available, maintain contact with the system unit t hroughout any
procedure requiring ESD protection.

18

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAbboouutt ““OOppttiioonnaall”” aanndd ““UUppggrraaddee OOppttiioonnaall””……

W hen you read this online manual and start to assemble your computer system, you may find some of functions are called
“Optional”, and some are called “Upgrade Optional”. Though all AOpen motherboards include many amazing and powerful
features, in some situations, these powerful features are not used to every user. Hence, we changed some key features as
“Optional” for you to choose. Some optional functions that can be upgraded by users, we call them “Upgrade Optional”. As for
those optional functions that can’t be upgraded by ourselves, we call them “Optional”. If needed, you can contact our local
distributors or resellers for purchasing “Upgrade Optional” components, and again you can visit AOpen official web site:

www.aopen.com.tw

for more detail information.

19

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

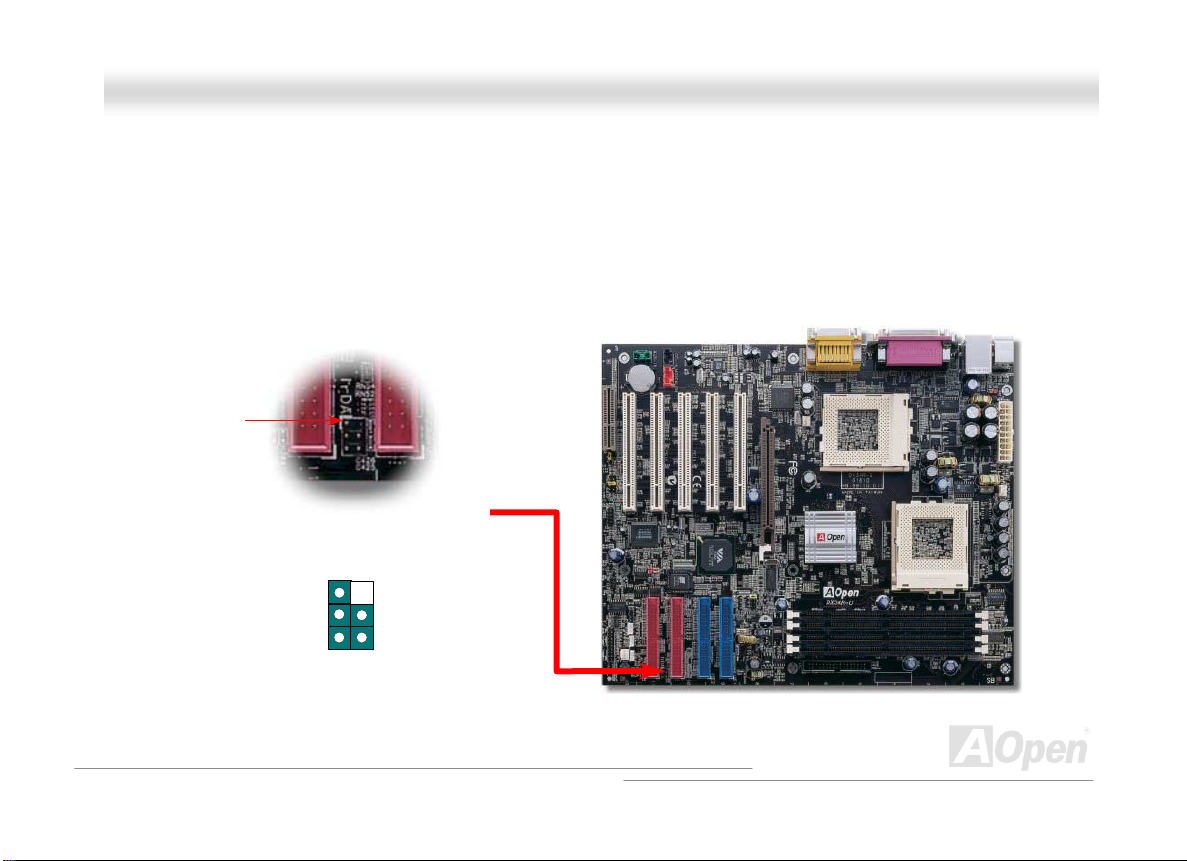

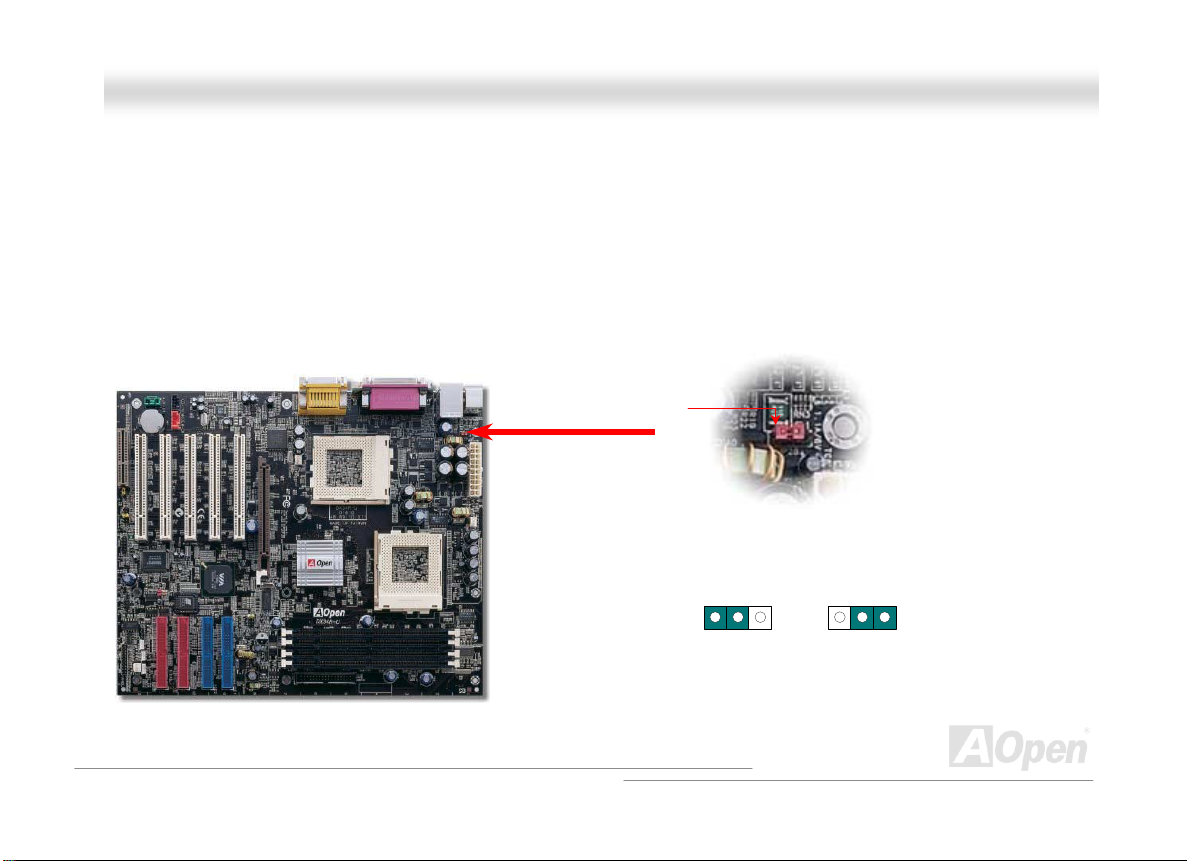

JJPP1144 CClleeaarr CCMMOOSS DDaattaa

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1 & pin2.

5. Connect ATX power cable back to connector PWR2.

11

Normal Operation

Tip: W hen should I Clear CMOS?

1. Boot fa il bec aus e of ove rc lock i ng…

2. Forget password…

3. Troubleshooting…

Clear CMOS

(default)

20

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

CCPPUU IInnssttaallllaattiioonn

This motherboard supports Intel® Pentium III®(Both Coppermine and Tualatin with 512K Cache are supported) and one
Celeron™ Socket 370 series CPU. In consistent with AOpen’s delicate design with terminator circuit implemented on CPU

socket 2, please use CPU socket 1 if only one CPU is going to be installed. Be careful of CPU orientation when you plug it into
CPU socket. We highly recommend you to install the same types of CPU if two CPU are installed.

1. Pull up the CPU socket level and
up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the
CPU upper interface. Match Pin 1 and cut edge, then ins ert the CPU into
the socket.

CPU pin 1

and cut edge

Note: These pictures are for example only, it may not exactly be the same motherboard.

CPU socket

Lever

CPU cut edge

21

y

/

t

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

3. Press down the CPU socket level and finish
CPU installation.

Note: These pictures are for example only, it may not exactly be the same motherboard.

CPU cut edge

Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
ma

damage the CPU.

Note: This socket supports FC-PGA

FC-PGA2 package CPU, which is the
latest CPU package developed by Intel.
We strongly recommend you not to inser
former PPGA-package CPU onto it.

22

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

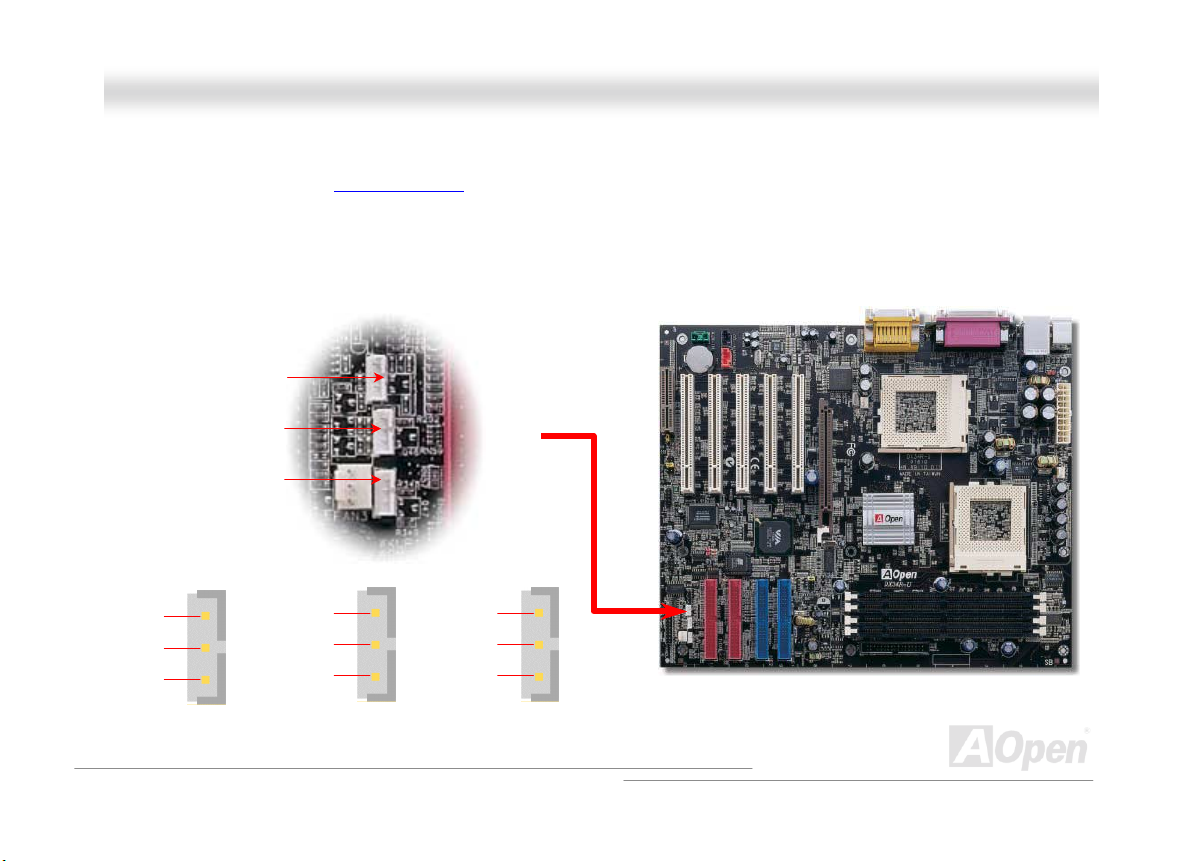

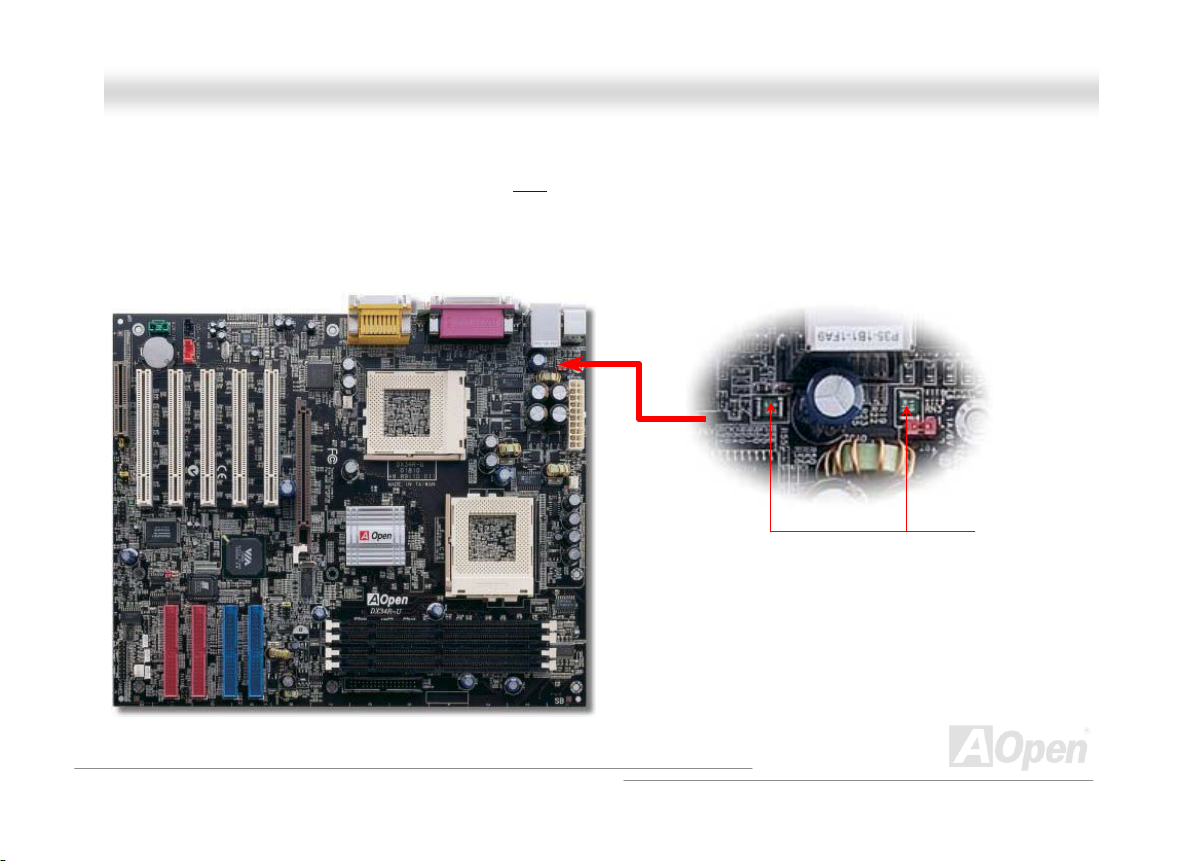

JJPP2233 FFSSBB//PPCCII CClloocckk RRaattiioo

This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not overclockers, we
recommend you to set at the default setting.

Warning: VIA Apollo Pro
133T chipset supports
maximum 133MHz FSB and
66MHz AGP clock, higher
clock setting may cause
serious system damage.

Pin 1

1

AAuuttoo DDeetteecctt

((DDeeffaauulltt))

FFSSBB==113333MMHHzz

1

1

FFSSBB==110000MMHHzz

1

FFSSBB==6666MMHHzz

23

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

PCI Clock = CPU FSB Clock / Clock Ratio
AGP Clock = PCI Clock x 2

Clock Ratio CPU (Host ) PCI AGP Memory
2X 66MHz 33MHz 66MHz PCI x3
2X, overclocking 75MHz 37.5MHz 75MHz PCI x3
3X 100MHz 33MHz 66MHz PCI x3
3X, overclocking 110MHz 36.7MHz 73MHz PCI x3
4X 133MHz 33MHz 66MHz PCI x3 or x4
4X, overclocking 147MHz 36.8 MHz 73MHz PC I x3 or x4

Warning: VIA 694T chipset supports maximum 133MHz FSB and
66MHz AGP clock, higher clock setting may cause serious system
damage.

24

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

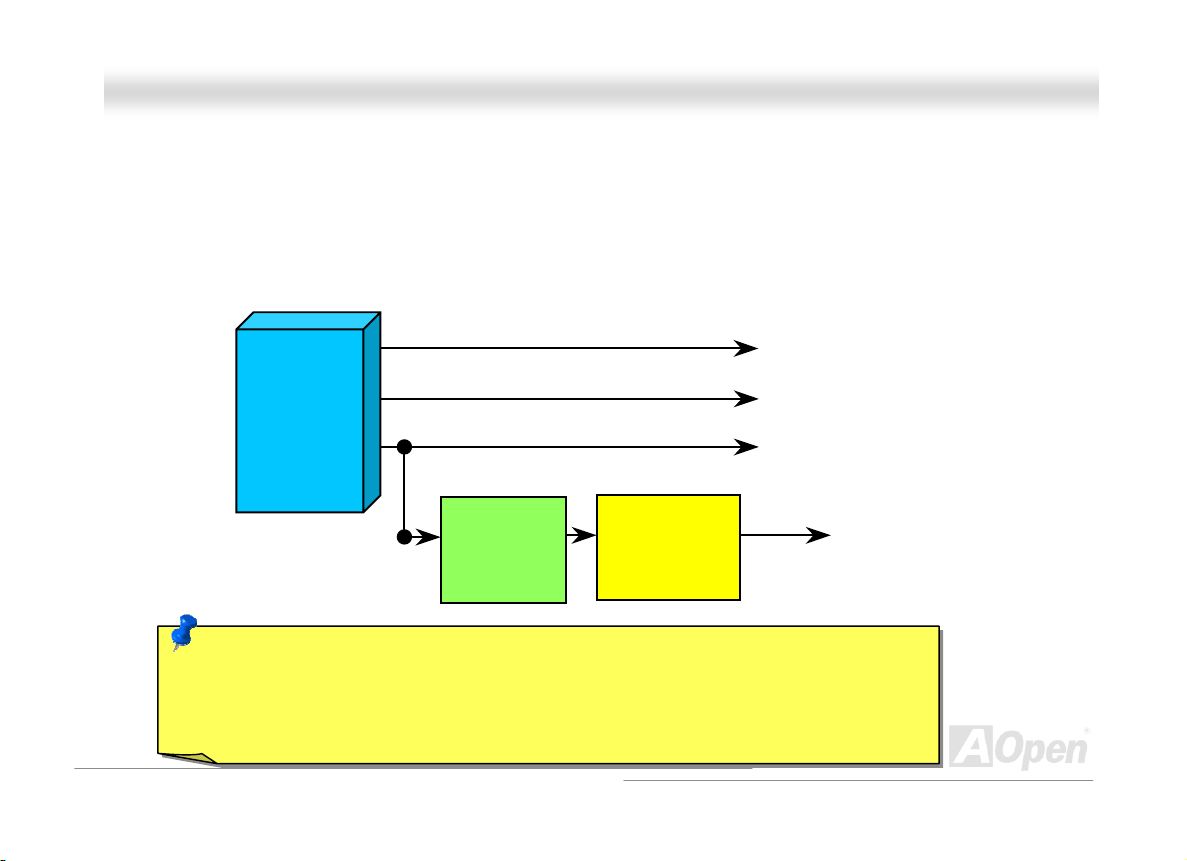

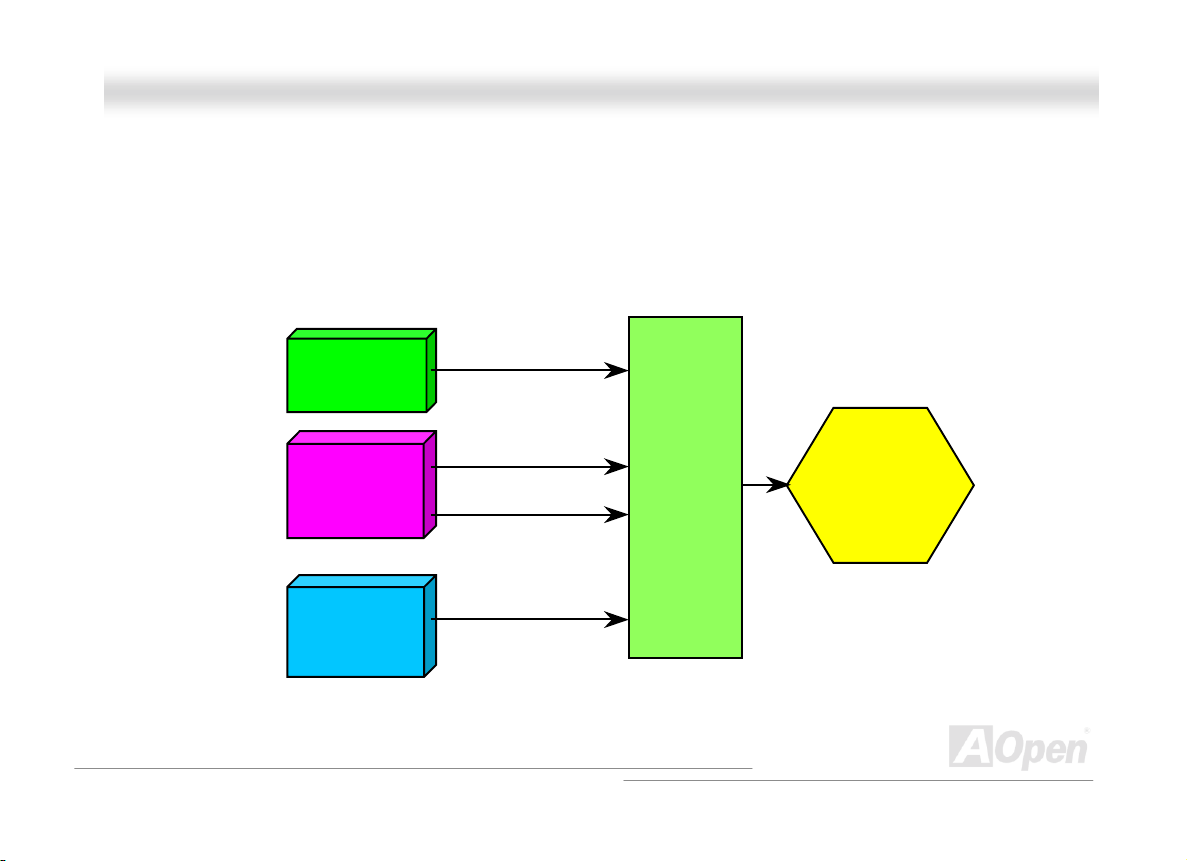

CCPPUU JJuummppeerr--lleessss DDeessiiggnn

CPU VID signal and SMbus clock generator provide CPU vol tage auto-detection and allows the us er to set the CPU frequency
through the BIOS setup
designs are eliminated. There will be no worry of wrong CPU voltage detection.

, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less

Intel® Socket 370

Pentium III &
Celeron CPU

CPU VID signal

Power Regulator

(Automatically generat es CPU voltage)

CPU Freq. Ratio

CPU voltage

Clock

Generator

BIOS

Controlled

Circuit

25

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee

This function is dedicated to overclockers, AOpen works together with SEHTECH to develop a special chip SC1189 that
supports Adjustable CPU Core Voltage from 1.05V to 1.825 by 0.05V stepping. But this motherboard can also automatically
detect CPU VID signal and generates proper CP U core voltage.

BIOS Setup > Frequency/Voltage Control > CPU Voltage Setting

Warning: Higher CPU core voltage may be

able to increase CPU speed for overclocking,
but you may damage the CPU or reduce the
CPU lifecycle

26

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

SSeettttiinngg CCPPUU FFrreeqquueennccy

This motherboard is CPU jumper-less design, you c an set CPU frequency through the BIOS setup, and no jumpers or swi tches
are needed.

BIOS Setup > Frequency/Voltage Control > CPU Speed Setting

CPU Ratio

CPU FSB
(By BIOS Table)

3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, 8 x, 8.5x, 9x, 9.5 x, 10x, 10.5 x, 11x,

11.5x, 12x, 12.5x, 13x, 13.5x, 14 x, 14.5x, 15x, 15. 5 x and 16x

66.6, 79, 83.3, 85, 87.5, 90, 92.5, 95, 100, 110, 120, 124, 1 29, 133.3, 138, 143, 147 ,
152, 154, 157, 159, 162, 166, 171, 1 80, 190, an d 200 MHz

Warning: VIA Apollo 133T chipset supports
maximum 133MHz FSB and 66MHz AGP clock,
higher clock setting may cause serious system
damage.

y

27

y

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy

Core Frequency = CPU Bus Clock * CPU Ratio
PCI Clock = CPU Bus Clock / Clock Ratio

AGP Clock = PCI Clock x 2

CPU

Celeron 533 533MHz 66MHz 8x
Celeron 566 566MHz 66MHz 8.5x
Celeron 600 600MHz 66MHz 9x
Celeron 667 667MHz 66MHz 10x
Celeron 700 700MHz 66MHz 10.5
Pentium III 500E 500MHz 100MHz 5x
Pentium III 600E 600MHz 100MHz 6x
Pentium III 650E 650MHz 100MHz 6.5x
Pentium III 700E 700MHz 100MHz 7x
Pentium III 750E 750MHz 100MHz 7.5
Pentium III 800E 800MHz 100MHz 8x
Pentium III 850E 850MHz 100MHz 8.5x
Pentium III 533EB 533MHz 133MHz 4x
Pentium III 600EB 600MHz 133MHz 4.5x

CPU Core

Frequenc y

Note: This motherboard support CPU
auto-detection function. Hence, you
don’t need to setup the CP U frequency
manuall

.

FSB Clock Ratio

28

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Pentium III 667EB 667MHz 133MHz 5x
Pentium III 733EB 733MHz 133MHz 5.5
Pentium III 800EB 800MHz 133MHz 6x
Pentium III 866EB 866MHz 133MHz 6.5
Pentium III 933EB 933MHz 133MHz 7x
Pentium III 1G 1GHz 133MHz 7.5 x
Pentium III 1.13G 1.13GHz 133MHz 8.5x

Warning: VIA Apollo Pro 133T chipset supports maximum
133MHz FSB and 66MHz AGP cl ock , higher c lock setting may
cause serious system damage.

29

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

CCPPUU aanndd HHoouussiinngg FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))

Plug in t he CPU fan cab le to the 3-pin CPU FAN connector. If you have housing fan, you can also plug it on System FAN
connector and AUX FAN .

FAN3

Connector

CPU FAN

Connector

Note: Some CPU fans do not have
sensor pin, so that cannot support fan

FAN2

Connector

GND
+12V
SENSOR

30

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

DDIIMMMM SSoocckkeettss

This motherboard has four 168-pin DIMM s ockets that allow you to install PC100 or PC133 memory up to 2GB.

DIMM1
DIMM2
DIMM3

DIMM4

31

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

DIMM can be single side or double s ide; it has 64 bit data and 2 or 4 clock signals. W e strongly recommend choosing 4-clock
SDRAM for its reliabil ity

Note: Based on VIA Apollo Pro 133T chipset specification, we
recommend you that using double-side SDRAM modules w ith DIMM
socket 1 & 2. By the way, do not insert the single-side DIMM module
in the DIMM socket 4 when DIMM socket 3 left blank. This will cause
the size report error of DIMM.

SDRAM DIMM Modul e

ECC-Register DIMM Modul e

32

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with bot h hands and press down firmly until the DIMM module is securely
in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Tab

20 pins 60 pins 88 pins

Note: The ta bs of t he DIMM slot
will close-up to hold the DIMM in
place when the DIMM touches
the slot’s bottom.

33

e

A

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell CCoonnnneeccttoorr

Pin

Attach the power LED, speaker, power and reset switch connectors to th
corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI
& Power LED will keep flashing while the s ystem is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female
connector from the housing front panel. Plug this connector to the soft-power
switch connector marked SPWR.

Suspend Type ACPI L E D

Power on Suspend (S1) Flashing for every second
Suspend to RAM (S3) or Suspend to Disk (S4) The LED will be turned off

IDE LED

Speaker

1

SPWR

CPI & PWR

LED

Reset

SPEAKER

NC
NC

+5V
IDE LED
IDE LED

+5V

+5V

GND

NC

1

SPWR
GND
ACPILED­ GND
AC PILED
NC
NC
GND
RESET
GND

34

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AATTXX PPoowweerr CCoonnnneeccttoorr

The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction.

+12V

5VSB

PW-OK

COM

+5V

COM

+5V

COM

+3.3V
+3.3V

+5V
+5V

-5V
COM
COM

COM
PS-ON
COM

-12V
+3.3V

35

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

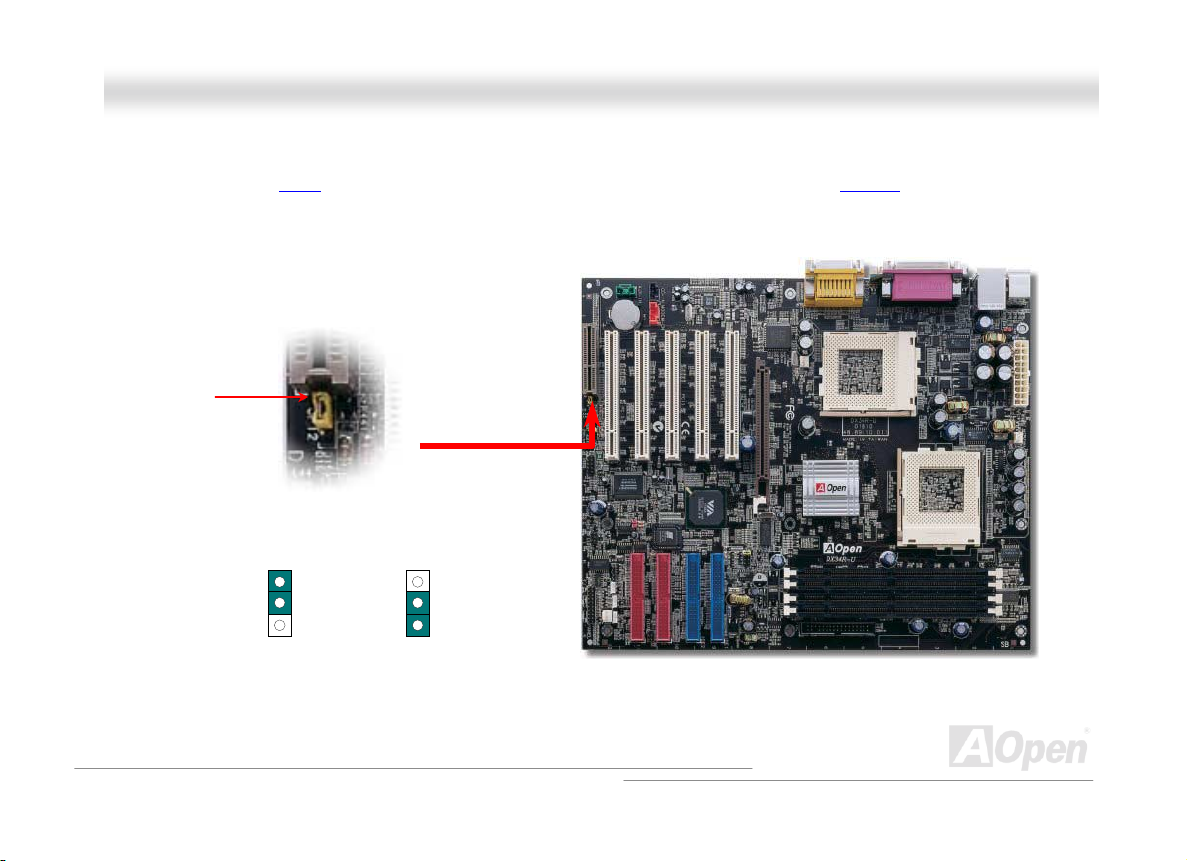

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is
inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This m otherboard implements
an AC Power Auto Recovery function t o solve t his problem.

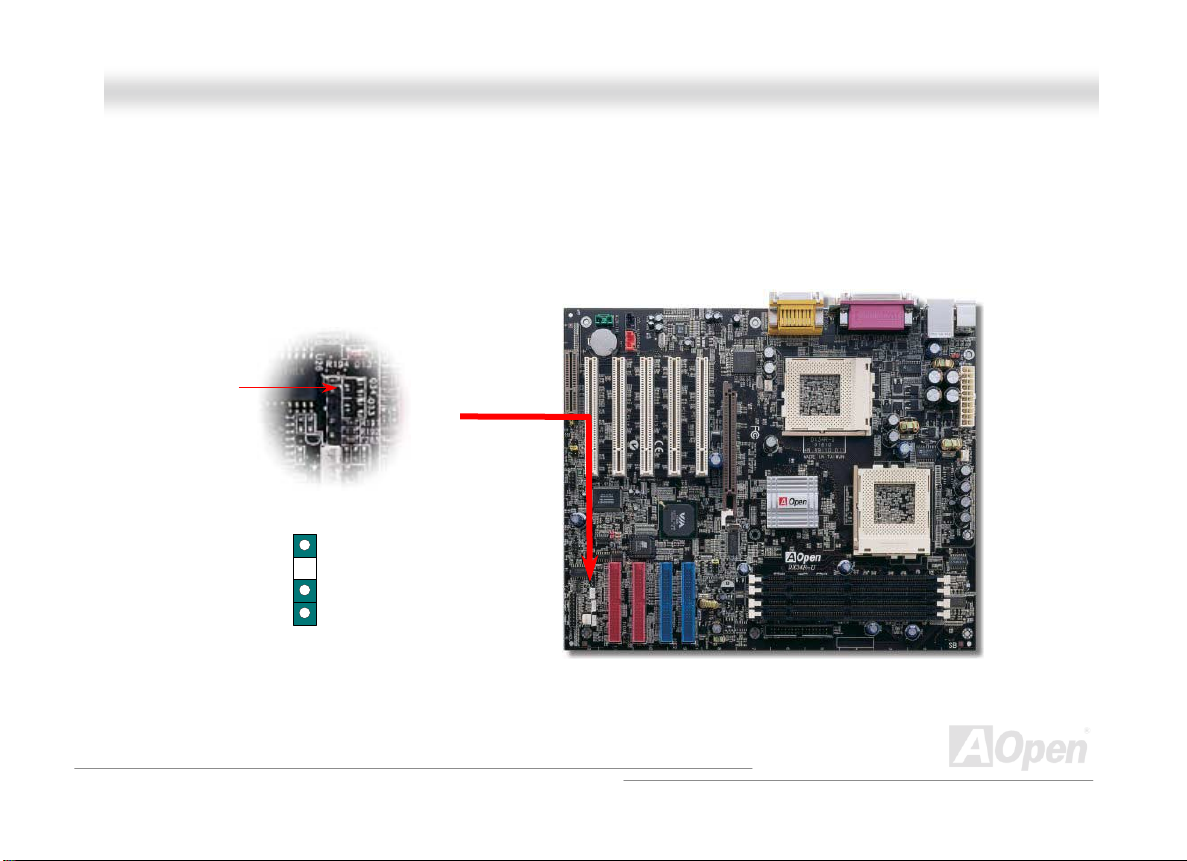

KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp

This motherboard provides keyboard/mouse wake-up function. You can use the JP28 to enable or disable this function.

Pin 1

JP28

KB/Mouse Wake-up

1

Disable

(Default)

Enable

36

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IIDDEE,, FFllooppppyy,, IIDDEE RRAAIIDD CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin, 80-wire IDE c able to floppy connector FDC and IDE / IDE RAID connector. Be careful of
the pin1 orientation. Wrong orientation may cause system damage.

Primary

Slave (2nd)

Primary

Master (1st)

IDE RAID 1 (Primary)

IDE RAID

Connector

IDE RAID 2 (Secondary)

Secondary

Slave (4th)

Secondary

Master (3rd)

Pin 1

Pin 1

Secondary

Slave (4th)

Secondary

Master (3rd)

IDE2 (Secondary)

FDD Connector

Slave (2nd)

Master (1st)

Pin 1

IDE1 (Primary)

Primary

Primary

IDE Connector

37

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that
make a total of four devices. In order to work t ogether, t he two devices on each channel must be set diff erently to Master and
Slave mode. Either one can be the hard disk or the CDROM. The sett ing as master or s lave mode depends on the jum per on
your IDE device, so please refer to your hard disk and CDROM manual accordingly.

This motherboard supports ATA33
modes. The IDE bus is 16-bit, which means every transfer is two bytes.

Mode Clock Period Clock

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s
PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s
PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s
PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s
PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s
DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s
DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s
DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s
UDMA 33 30ns 4 120ns (1/120ns) x 2byte x2 = 33MB/s
UDMA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s
UDMA100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s

Warning: Th e sp ec ific at io n of the I DE c abl e is a max imu m of 46c m (1 8 inc hes ) ;
make sure your cable does not exceed this length.

, ATA66 or ATA100 IDE devices. Following table lists the transfer rate of IDE PIO and DMA

Count

Cycle Time Data Transfer Rate

Tip:

1. For better signal quality,
it is recommended to set
the far end side device
to master mode and
follow the suggested
sequence to install your
new device. Please refer
to above diagram

2. To achieve the best
performance of Ultra
DMA 66/100 hard disks,
a special 80-wires IDE
cable for Ultra DMA

1 i r

ir

.

38

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IIrrDDAA CCoonnnneeccttoor

The IrDA connect or can be configured to support wireless infrared module, with this module and application software such as
Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and
printers. This connector supports HPS IR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module ont o the IrDA connector and enable the infrared f unction from BIOS Setup, UA RT Mode, make sure
to have the correct orientation when you pl ug in the IrDA connector.

Pin 1

r

IrDA Connec tor

NC

+5V

IR_TX

KEY
GND
IR_RX

39

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

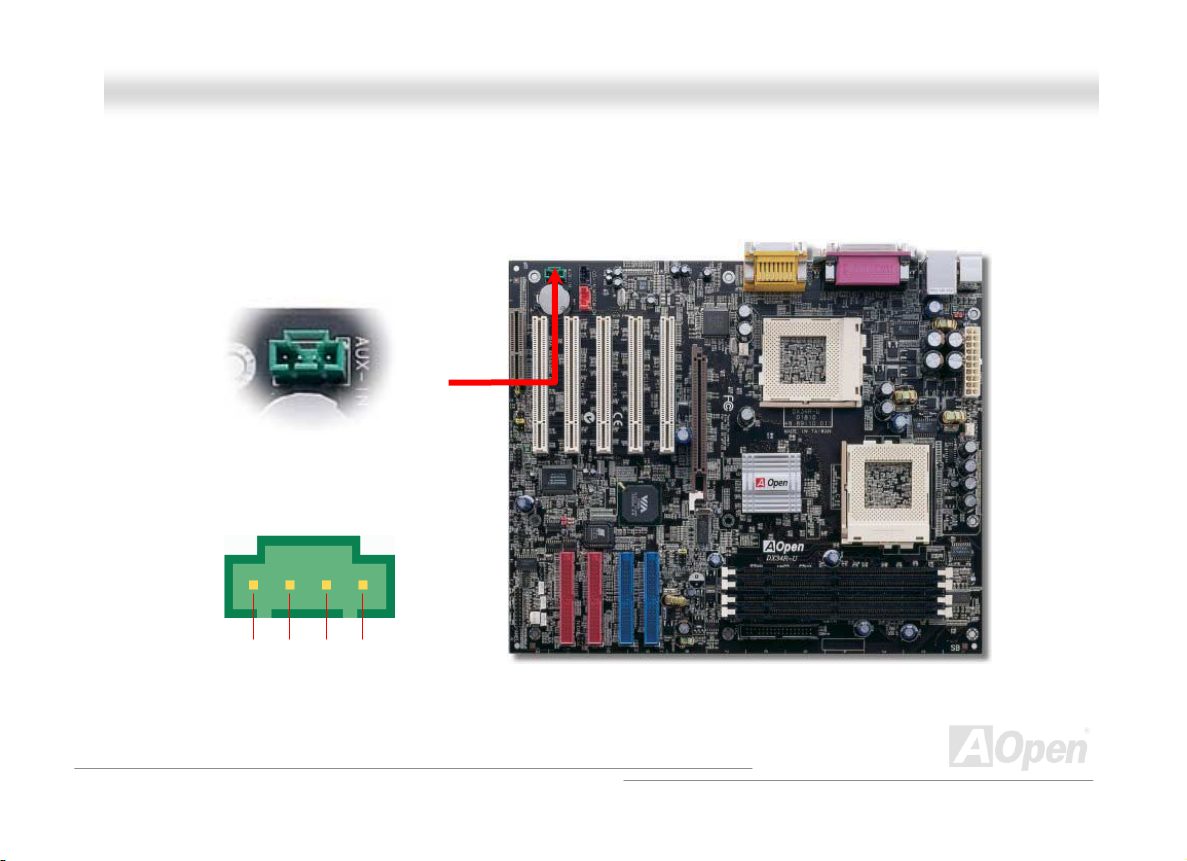

WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm)) CCoonnnneeccttoorr

This motherboard implements special circuit to support Wake On Modem, both Internal modem card and external box modem
are supported. Since Internal modem card consumes no power when system power is off, it is recommended t o use an internal
modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the
motherboard.

Pin 1

1

+5VSB
NC
RI­GND

WOM Connector

40

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

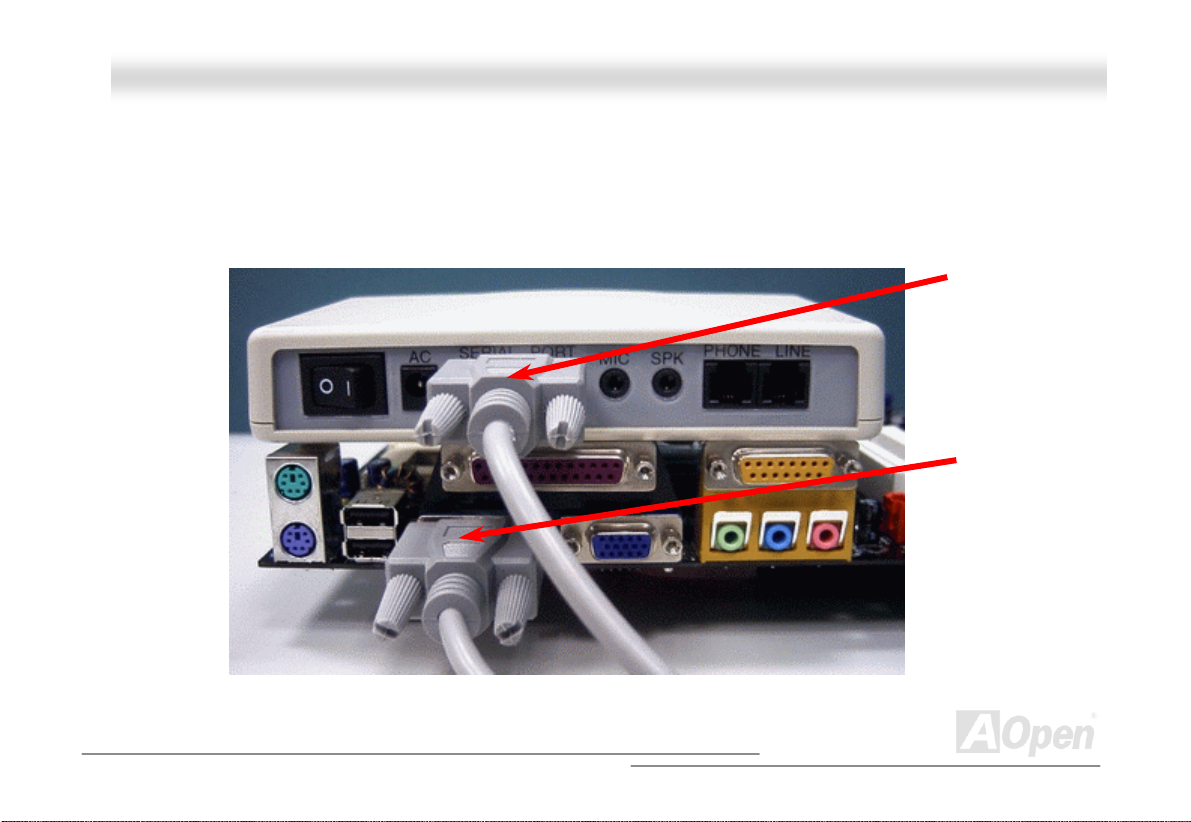

WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem

Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box m odem to trigger MB
COM port and resume back to active.

Note: These pictures are for example only, it may not exactly be the same motherboard.

m

Serial Port

(Modem Side)

Pin 1

Serial Port

(Motherboard Side)

41

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

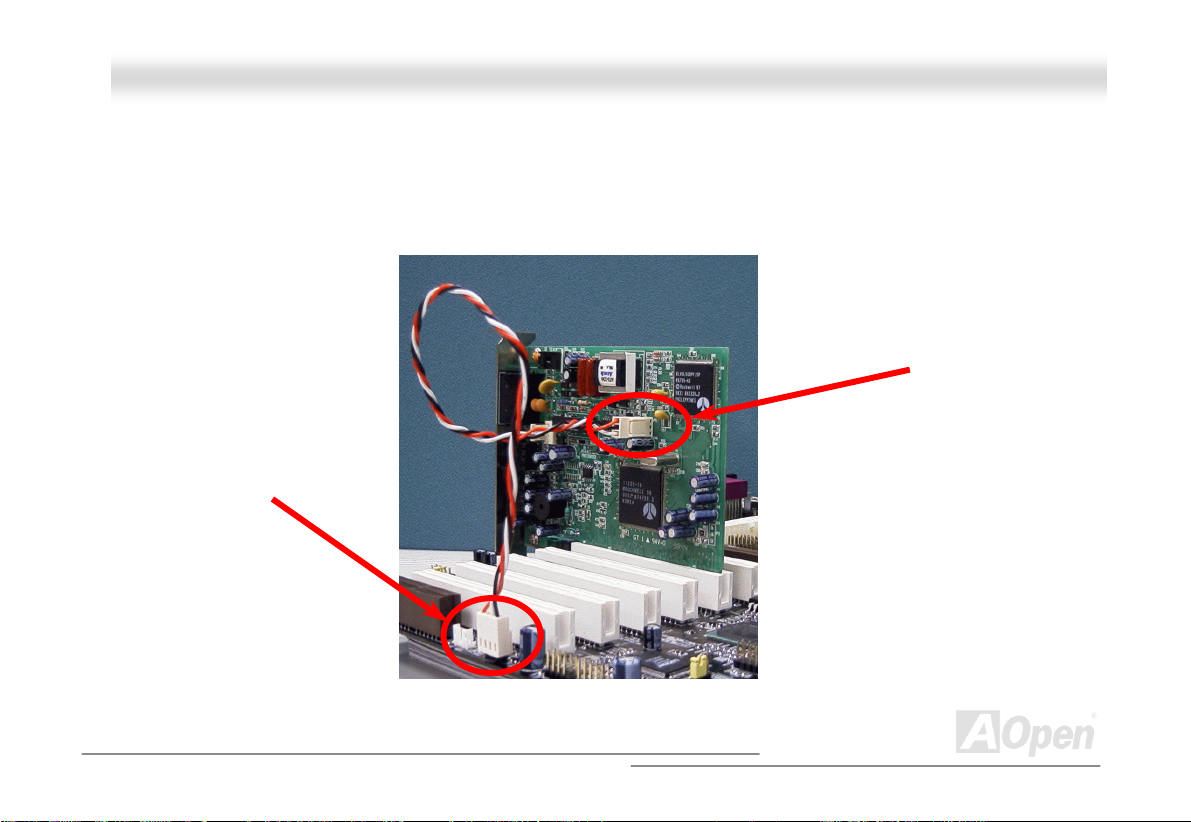

WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd

With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer
a phone call as an answering machine or to s end/receive a fax. You may identify whether or not your system is in true power off
mode by checking to see if the fan of your power supply is off. Both an external box modem and an internal modem c ard can be
used to support Modem Wake Up, but if you use an external modem, you have to leave your box modem on.

Note: These pictures are for example only, it may not exactly be the same motherboard.

WOM Connector

(Motherboard Side)

d

WOM Connector

(Modem Card Side)

42

(

)

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

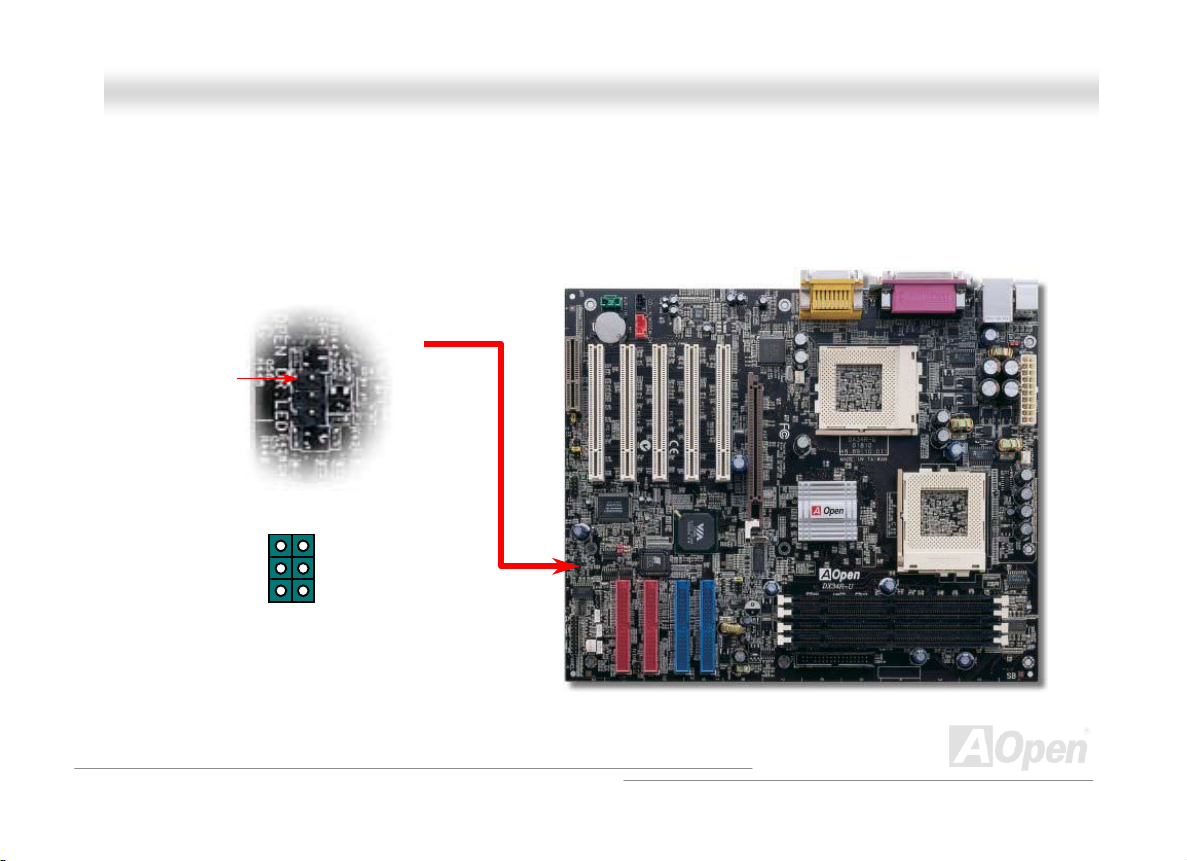

WWOOLL ((WWaakkee oonn LLAANN))

This feature is very similar as Wake On Modem, but it goes through loc al area network. To us e Wake On LAN function, you must
have a network card with chipset that s upports this feature, and connect a cable from LAN card to m otherboard WOL connector.
The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the
Ethernet, you need to install network m anagement software, such as ADM, for the checking of how to wake up the system. Note
that, at least 600mA ATX s tandby current is required to support the LAN card for this function.

WKUP2

WKUP3

WKUP4

LID

GND

+5VSB

WKUP2

RI

GND

+5VSB

WKUP3

(High Active)

RI

GND

+5VSB

WKUP4

Low Active

43

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

WOL Connector

(Motherboard Side)

Note: These pictures are for example only, it may not exactly be the same motherboard.

WOL Connector

(Ethernet Card Side)

44

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) EExxppaannssiioonn SSlloott

The DX34R-U provides an AGP 4x slot. The AGP 4x is a bus int erface targeted for high-performance 3D graphic. AGP supports
only memory read/write operation and s ingle-master single-slave one-to-one only. AGP uses both rising and falling edge of the
66MHz clock, for 2X AGP, the data transfer rat e is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving t o AGP 4x m ode, 66MHz
x 4bytes x 4 = 1056MB/s.

45

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

SSuuppppoorrtt 1100//110000 MMbbppss LLAANN oonnbbooaarrd

VIA Apollo Pro 133T includes a fast Ethernet controller on chip. On the strength of LSI 80225 PHY on board, which is a
highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45
connector is located on top of USB connectors. The green LED indicates the link mode, it lights when linking to network and
blinking when transferring data. The orange LED indicates the transfer mode, it lights when transferring data in 100Mbps mode.

d

Green/ACT

Orange/Speed

46

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

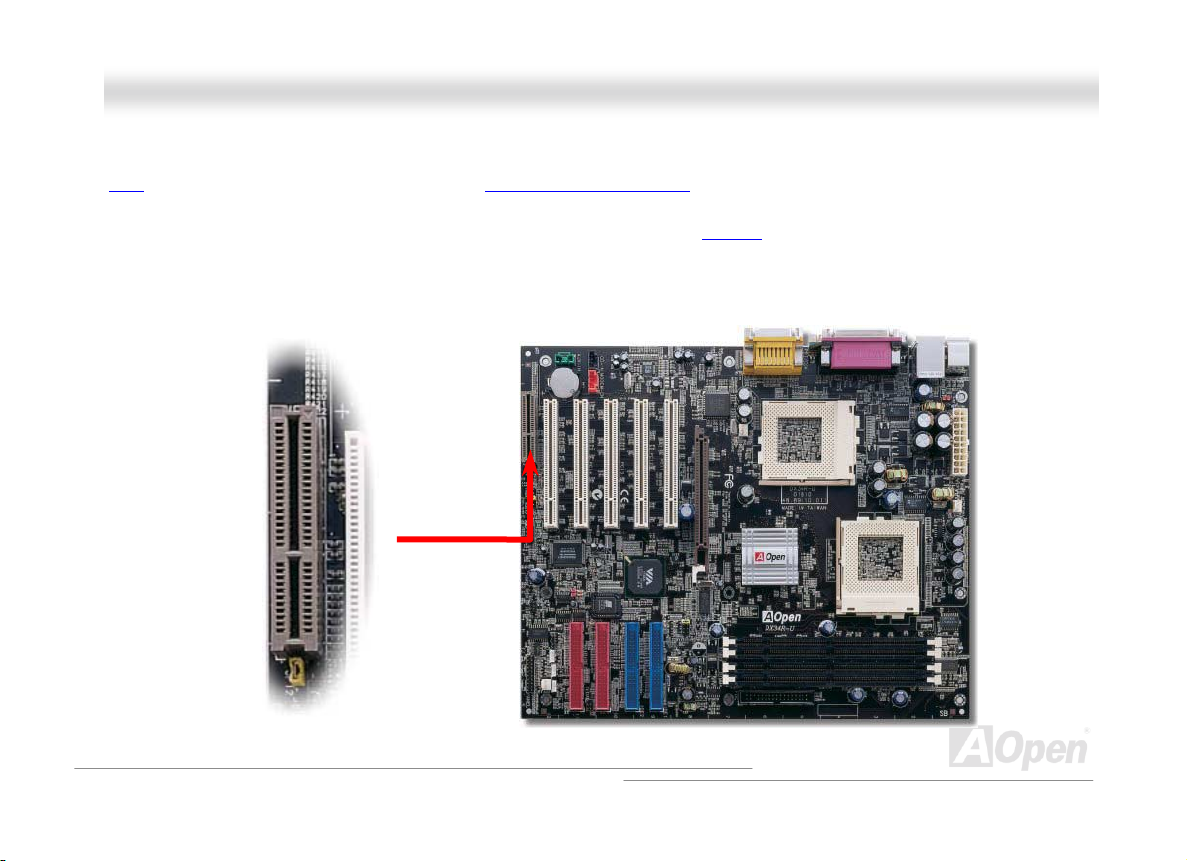

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr)) EExxppaannssiioonn SSlloott

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel

audio, and phone-line based networking. Owing to CPU c om puting power getting stronger, the digital processing job can be
implemented in main chipset and share CPU power. The analogy conversion (CODEC
circuit design, which is put on CNR card. This motherboard implements sound CODEC on board (can be dis abled by JP12), but
reserve CN R slot fo r t he opt i on of mod em f unc ti on. Not e t hat you c an sti ll use P CI m odem ca rd.

) circuit requires a different and separate

47

y

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

PPCC9999 CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/ 2 Keyboard, PS/2 Mouse, COM1 (DX34R-U supports one serial port only. If you need more
serial ports, please considering using PCI seri al port add-on c ard), Printer, Four USB
angle of drawing shown here is from the back panel of the housing.

PS/2 Mouse

Connector

RJ45 LAN

Connector

SPP/EPP/ECP

Parallel Port

, AC97 sound and gam e ports. The vi ew

Game Port

PS/2 Keyboard: For standard keyboard, whic h is using a PS/2 plug.
PS/2 Mou s e: Fo r PC- Mou se, wh ic h is us i ng a P S/2 p l ug.
USB Por t : Available for connecting USB devices.
Parallel Port: To connect with SPP/ECP/ EPP printer.
COM1 Port: To c onnect with pointing devices, modem or others serial devices.
Speaker Out: To External Speak er, Earphone or Amplifier.
Line-In: Comes from the signal sources, such as CD/Tape player.
MIC-In: From Microphone.
MIDI/Game Port: For 15-pin PC joystick, game pad or MI DI devices.

Ke

PS/2

board

USB Port

COM 1 Port

MIC-In
Line-In
Speaker Out

48

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

d

nnd

SSuuppppoorrtt 2

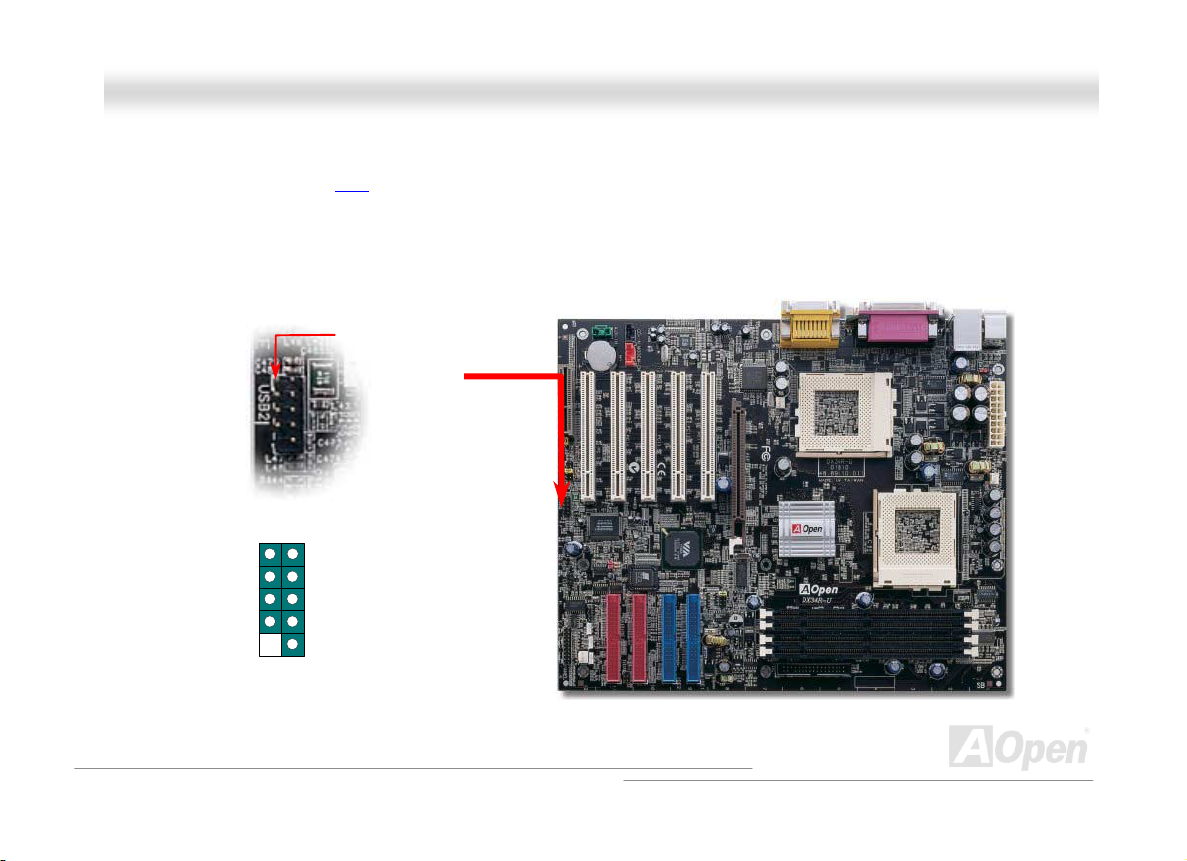

This motherboard provides 4 USB connectors to connect USB devices, such as mouse, keyboard, modem, printer, etc. There
are two connectors on the PC99 bac k panel. You can use proper cable to connect other USB connectors t o the back panel or
front panel of chassis.

2

UUSSBB PPoorrtt

+5V

SBD2-

SBD2+

GND

KEY

UUSSBB22 CCoonnnneeccttoorr

Pin 1

+5V
SBD3­SBD3+
GND
NC

49

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

CChhaassssiiss IInnttrruussiioonn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. This function logged the event in the system BIOS
when chassis is opened. You can use the 2-pin chassis intrusion sensor to connect with this header, and enable the chassis
monitoring function of system BIOS.

Pin 1

1

Sensor
GND

Chassis I nt rus i on

Sensor Connector

50

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

JJPP1122 EEnnaabbllee//DDiissaabbllee OOnnbbooaarrdd SSoouunndd

This motherboard has AC97 sound onboard. JP12 is used to enable or disable onboard AD1885 CODEC chip. If you don’t want
to enable the Onboard Audio, you should set this jumper to 2-3, and disable the “OnChip Sound” from BIOS setting > Advanced
Chipset Features, before you install your pref erred PCI Sound Card.

Pin 1

JP12 Onboard Audio jumper

11

Enable

(Default)

Disable

51

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

R
GND
GND

L

CD-IN

52

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

MMooddeemm AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect Mono In/MIC Out cable from internal modem card to onboard sound circuit. The pin 1-2 is
Mono In, and the pin 3-4 is MIC Out. Please note that there is no standard for this kind of connector yet, only s ome internal
modem cards implement this connector.

MIC Out

GND
GND

Mono In

MODEM-CN

53

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

AAUUXX--IINN CCoonnnneeccttoorr

L RGND GND

54

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

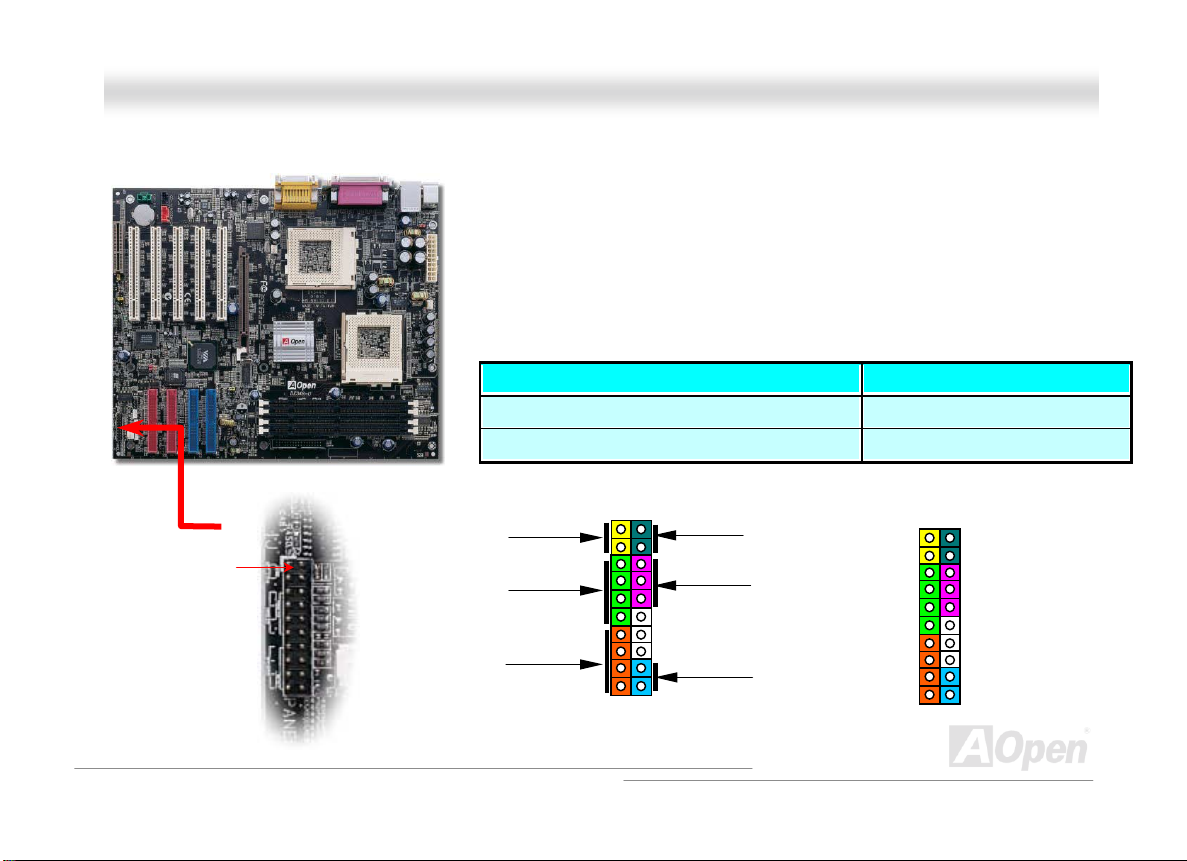

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel
through this connector. By the way, please remove the jumper cap from the F ront Audio Connector if you want to connect cable
to it. Do not remove this yellow jumper c ap if there’s no audio port on the front panel.

Pin 1

1 2

FP_MIC

FP_VREF

PHONE_R

NC

PHONE_L

Note: Please remove the jumper cap from t he Front Panel Audio Connector
before you connect the cable. Do not remove this yellow jumper cap if

GND
+5V
JS1
KEY
NC

9 10

55

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

DDrr.. LLEEDD CCoonnnneeccttoorr

In conjunction with Dr. LED (Upgrade Optional), which can easily show what k ind of problem may oc cur on your system during
assembly. It can clearly indicate whether there is a component issue or an installation i ssue by the 8 LEDs on the front panel of
Dr. LED. T his helps you quickly self-diagnostic your system status.

Pin 1

1 2

3.3V
NC

GND

5 6

GPO12
GPO14

GPO14-

56

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive,
so that it can be mount into normal 5.25 in drive bay of any housing.

The total 8 LEDs light up alternatively if the system fails in one of eight stages. Once the LED7 (latest LED) is l it, this indicates
that the system has completed its boot-up procedure.
The 8 LEDs indicate the following messages when lit:

LED 0 - Indicates that the CPU may have been ins talled incorrectly or is damaged.
LED 1 - Indicates that the memory may have been installed incorrectly or is damaged.
LED 2 - Indicates that the AGP may have been installed incorrectly or is damaged.
LED 3 - Indicates that the PCI card m ay have been installed incorrectly or is damaged.
LED 4 - Indicates that the floppy disk drive may have been i nstalled incorrectly or is damaged.
LED 5 - Indicates that the HDD may have been installed incorrectly or is damaged.
LED 6 - Indicates that the keyboard may have been installed incorrectly or is damaged.
LED 7 - Indi ca tes th at t he sy st em is OK.

7 6 5 4 3 2 1 0

Boot O.K. KB HDD Audio CPU Video MemoryPCI

Note: During POST (Power On Self Test) procedure, the
Debug LED will light on sequentially from LED0 to LED7 until
the system boot O.K

57

A

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

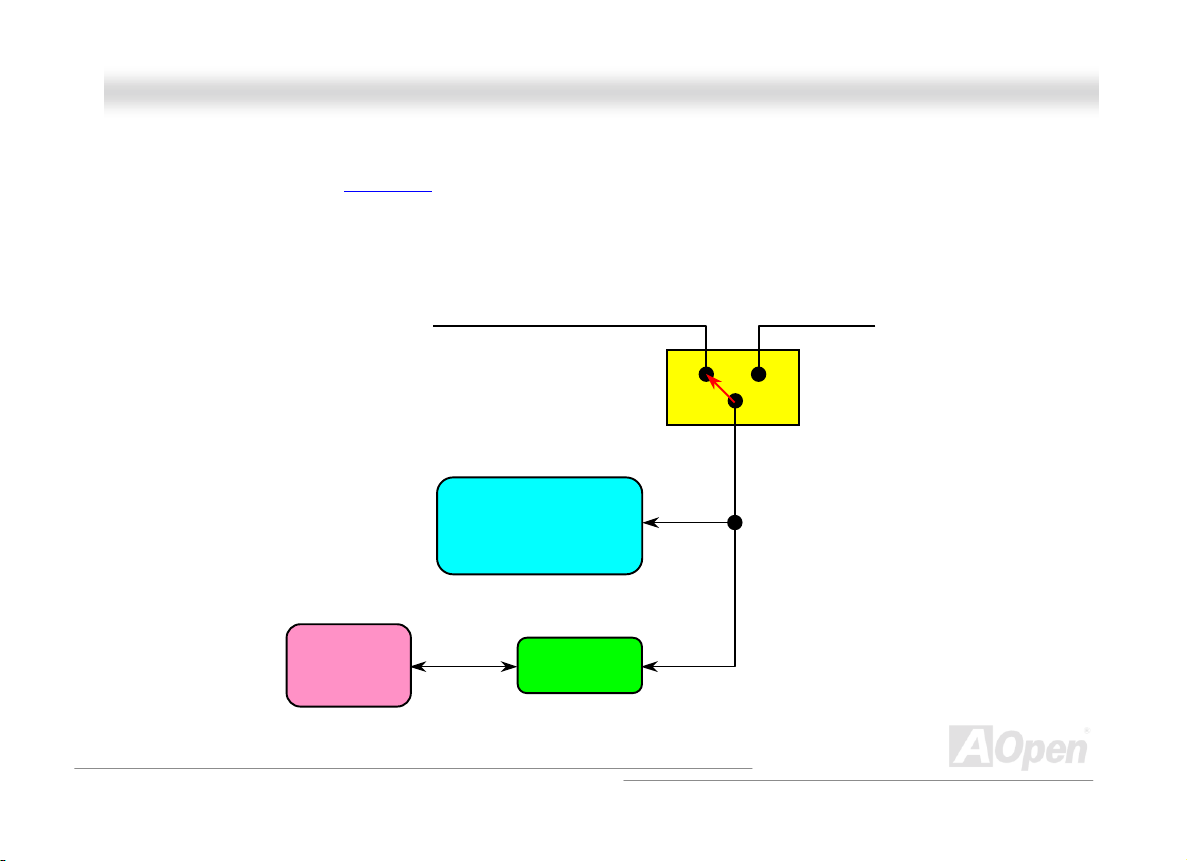

Auto Swi tch

RTC

CMOS

Battery ATX Stand-by Power

uto switching to ATX standby
power as long as AC power line is
plugged. This smart design
increases battery life if you still plug
battery on motherboard.

Backup by EEPROM

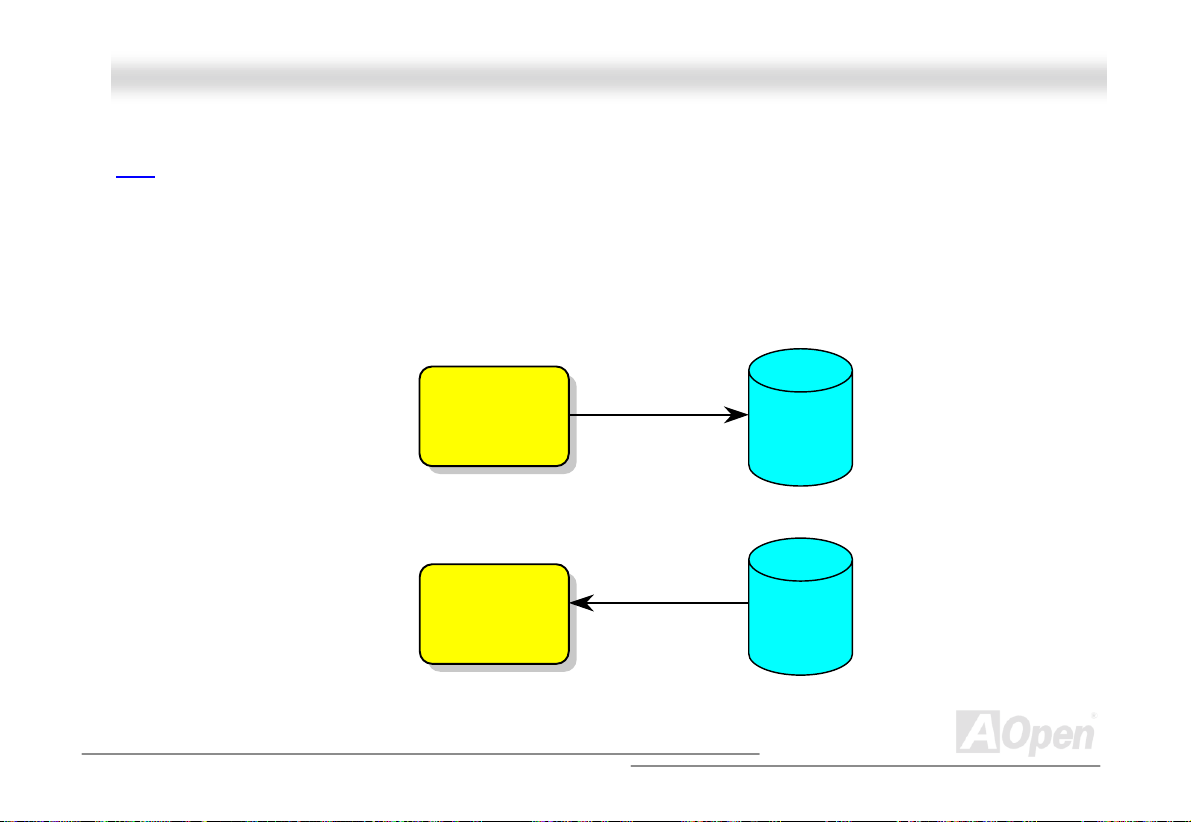

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup
configurations without the need of a battery. The RTC (real time clock) can also keep running as long as the power cord is
plugged. If you lose your CMOS data by accident, you c an just reload the CMOS configurations from Flash ROM and the system
will recover as usual.

Flash

ROM

(Real Time Clock)

00:00:00

58

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

The Over Current Protection was very popular implemented on ATX 3.3V/5V/12V switching power supply. However, the new
generation CPU uses different voltage that has regulator to transfer 5V to CPU voltage (for example, 2.0V), and makes 5V over
current protection useless. This motherboard is with switching regulator onboard supports CPU over-current protection; in
conjunction with 3.3V/5V/12V power supply provide the full line over-current protection.

Note: Although we have implemented protection circuit try to prevent any human operating
mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this
motherboard may be damaged because of component failure, human operating error or unknown
nature reason. AOpen cannot guaranty th e protection circuit will always work perfectly.

ATX

Switching

Power

Supply

12V (Protected by power supply)

3.3V (Protected by power sup ply)

5V (Protected by power supply)

Onboard

Power

Regulator

Over-Current

Protection

Circuit

CPU Core Voltage

59

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

HHaarrddwwaarree MMoonniittoorriinngg

This motherboard implements a hardware m onit oring system. As you turn on your system, this smart design will continue to
monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status go wrong, there will be
an alarm through the chassis external speaker or buzzer of motherboard (if existed) to warn the user.

Fan

CPU

Power

Fan Speed

AOpen H/W

Monitoring

Utility

CPU Temperature

CPU Voltage

System Vol tage

Detection

Circuit

60

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

RReesseettttaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered
onboard that when it is broken (function as protecting the m otherboard), user still cannot replace it and the m otherboard is still
malfunctioning.

With expensive Resettable Fuse, the motherboard can be resumed back to normal function after the fuse had done its
protection job.

Resettable

Fuse

61

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

0

μμμμ

ffff

2222000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the
stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail
calculation.

Not only that, this motherboard implements 2200μF capacitors, which is m uch larger than normal capacitors (1000 and 1500μf)
and it provides better stability for CPU power.

μμμμ

ffff

LLooww EESSRR CCaappaacciittoorr

62

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

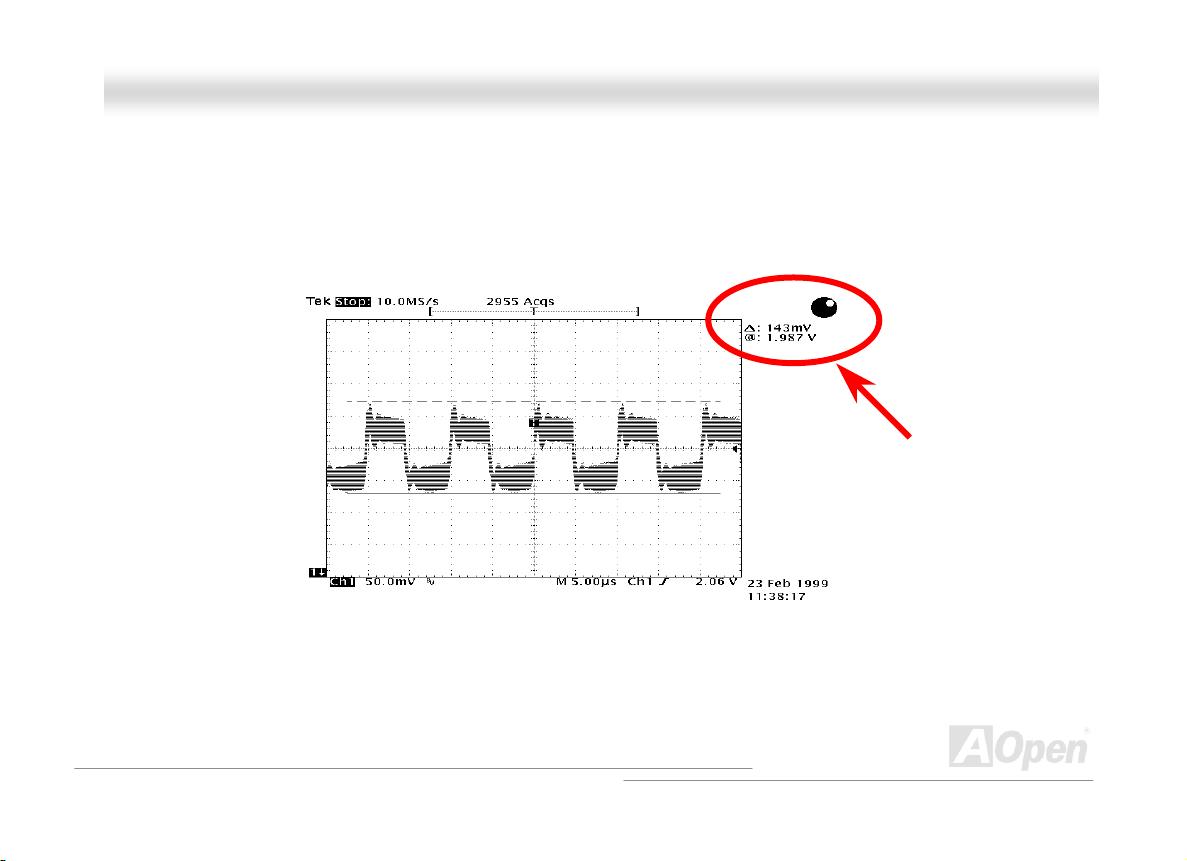

The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new
Pentium III, or when overclocking). A t ypical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V
and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it
shows the voltage transient is only 143m v even when maximum 18A current is applied.

Note: This diagram for exam ple only, it may not be exactly the same as this motherboard.

63

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

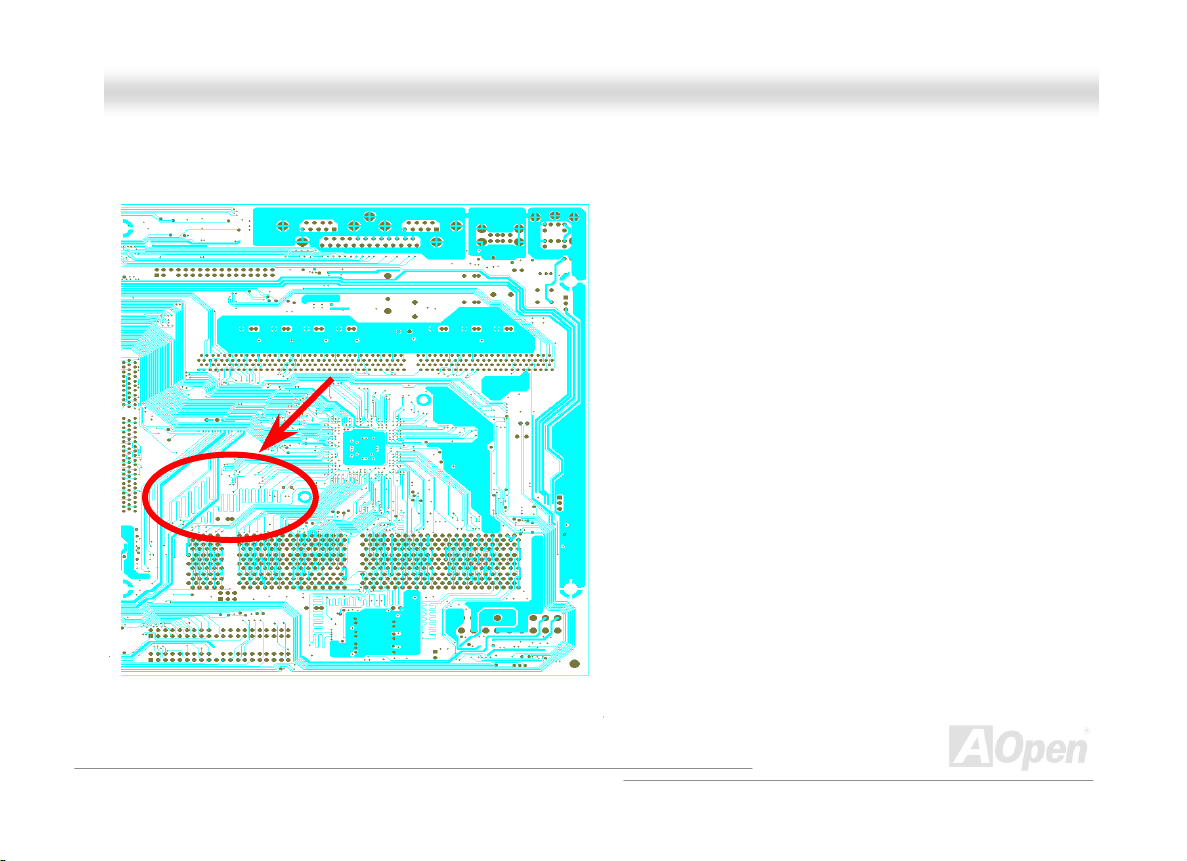

LLaayyoouutt ((FFrreeqquueennccyy IIssoollaattiioonn WWaallll))

Note: This diagram for example only, it may not be exactly the same as this motherboard.

For high frequency operation, especially overclocking,
layout is the most important factor to make sure
chipset and CPU working in stable condition. The
layout of this motherboard implements AOpen’s
unique design called “ Frequency Isolation Wall”.
Separating each critical portion of motherboard into
regions where each region operates in a same or
similar frequency range to avoid cross talk and
frequency interference between each region’s
operations and condition. The trace length and route
must be calculated carefully. For example, the clock
trace must be equal length (not necessarily as short
as possible) so that clock skew will be controlled
within few a pico second (1/10

12

Sec)

64

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

PPuurree AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset is important for system reliability. Aluminum heat sink provides better heat consumption especially
when you are trying to overclocking.

65

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to
boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows

98) before you can install any drivers or ut ilities. Please refer to your operation system’s installation guide.

Note: Please follow recommended procedure
to install Windows 95

and Windows 98.

66

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc

You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and s elect model name.

67

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg VVIIAA 44 iinn 11 DDrriivveerr

You can i nstall the VIA 4 in 1 driver (IDE Bus master (For W indows NT use), VIA ATAP I Vendor Support Driver, VIA AGP, IRQ
Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc Autorun menu.

Warning: I f you w ant to uninstal l the VIA AGP Vxd driver, please remove
the AGP c ard driver first. Otherwise, the screen may go black at rebooting
after th e u n- i ns ta l l ation.

Note: Installing this Bus Master
IDE driver may cause Suspend
to Hard Drive failure.

68

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr

This motherboard comes with an AD1885 AC97 CODEC. You can find the audio driver from the Bonus Pack CD disc auto-run
menu.

69

x

t

p

r

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg LLAANN DDrriivveerr

The South Bridge in VIA Apollo 133T chipset integrates a t otal communication solution including 10/100Mb Fast Ethernet for
Office requirement. You can install LAN Driver under Windows 95/98/ME, WindowsNT4 & W indows2000 by following steps.

Manually Adding an Adapter in Windows 95 / 98 / ME / NT4 / 2000.
=====================================
LOCATION OF DRIVER: \Driver\LAN\RTL8100\Windows\
(Depend on various Windows version in your system.)

1. From the Control Panel, double-click the “Add Hardware” icon.

2. Double-click Other Devices or Network Adapters in t he list area.

3. Double-click a PCI Ethernet Control ler.

4. Click the Driver tab, then click Update Driver.

5. Click Next at the Update Device Driver Wizard.

6. Select "Display a list of all the drivers..." and click Next.

7. Insert the AOpen Bonus CD and cl ick Have Disk.

8. Enter the appropriate drive for your disk media
(for example: D:\) ,and click OK.

9. Click OK at the Select Device dialog box.

10. The Update W izard displays the message that it has found
the driver. Click Next .

11. Click Finish and restart your computer when prompted.

Note: If the New Hardware Found dialog bo
does not appear at startup and you canno
connect to the network, check the Device
Manager list to see if the new adapter is

resent. If it is not, please install the LAN drive

manually.

70

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

IInnssttaallll OOnnbbooaarrdd IIDDEE RRAAIIDD DDrriivveerr

The onboard PROMISE® FastTrak 100 Lite chipset provi des DOS, Widows 3.1/95/98/98 SE/ME/NT/2000 driver for install.
Please refer to the “ATA/100 IDE RAID Manual” for get m ore detail information.

IInnssttaallll FFaassttCChheecckk™™ MMoonniittoorriinngg UUttiilliittyy

You can monitor the operating status of disk array and drives configured on the IDE RAID channel using the supplies
FastCheck™ monitoring utility for Windows-based operating system. FastCheck™ generates visual and audible messages
alerting you of possible problems with the disk array or controller. Please refer to the “ATA/100 IDE RAID Manual” for get more
detail information.

71

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AACCPPII SSuussppeenndd ttoo HHaarrdd DDrriivvee

ACPI Suspend to Hard Drive is basically controlled by W indows operation system. It saves your current work (system status,

memory and screen image) into hard disk, and then the system can be totally power off . Next time, when power is on, you can
resume your original work directly from hard disk within few s econds without go through the Windows booting process and run
your application again. If your memory is 64MB, normally, you need to reserve at least 64MB HDD space to save your memory
image.

When go into Suspend:

When power-on next time:

System

Image &

Status

System

Image &

Status

Hard

Save into

Restore within
seconds

Disk

Hard
Disk

72

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

System Requirement

1. AOZVHDD.EXE 1.30b or later.

2. Delete config.sys and autoexec.bat.

Fresh installation of Window s 98 on a new system

1. Execute "Setup.exe /p j" to install Windows 98

2. Aft er Windows 98's installation is complete, go to the Control Panel > Power Management.

a. Set Power Schemes > Syst em Standby to "Never".
b. Click on "Hibernate" and select "Enable Hibernate Support" then "Apply".
c. Click on the "Advanced" tab, you'll see "Hibernate" on "Power B uttons". Note that this option will only be seen after step

b mentioned above has been completed; otherwise only "Standby" and "Shutdown" will be shown. Select "Hibernate" and
"Apply".

3. Clean boot into DOS and run AOZVHDD utility.

a. If you ass ign the wh ole disk to your W in 98 system (FAT 16 or FAT 32), please ru n "aozvhdd /c /file". Please remember

sufficient free space has to be res erved in t he disk, e.g. if you have 64 MB DRAM and 16 MB VGA card installed, the
system needs at least 80 MB free space. The utility will locate the space automatically.

b. If you assign an individual partition for Win 98, please run "aozvhdd /c /partition". Of course, the system needs to

provid e unf orm at te d an emp t y part it io n.

4. Reboot sys tem .

5. You've already implemented ACPI Suspend to-Hard Drive. Click "Start > Shut Down > Standby" then the screen will go off

immediately. And 1 minute or so will be taken for the system to save what's in the memory to the hard drive; the larger the
memory size the longer this process will take.

73

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

Changing from APM to ACPI (Windows 98 only)

1. Run "Regedit.exe"

a. Go through the following path

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOW S

CURRENT VERSION

DETECT
b. Select "ADD Binary" and name it as "ACPIOPTION".
c. Right click and select Modify, add "01" after "0000" to make it "0000 01".
d. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "ACP I B I O S " and
remove "Plug and Pla y BIOS")

3. Reboot sys tem .

4. Clean boot into DOS and run "AOZVHDD.EXE /C /F ile"

Changing from ACPI to APM

1. Run "Regedit.exe"
a. Go through the following path

74

A

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOW S

CURRENT VERSION

DETECT

ACPI OPTION

b. Right click and select "Modify, change "01" to "02" to make it "0000 02".

c. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "Plug and Pla y

BIOS" and remove "ACPI BIOS")

3. Reboot sys tem .

4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource".

5. Click "OK ".

Tip: "02" means Windows 98 is ACPI ack nowl edged
but the ACPI function is disabled.

Tip: Currently we found only ATI 3D Rage Pro AGP c ard would support

CPI suspend to disk. Please refer to AOpen w eb site for latest update.

75

work

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AACCPPII SSuussppeenndd ttoo RRAAMM ((SSTTRR))

This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly f rom
DRAM without going through the Windows 98 boot ing process and run your application again. Suspend to DRAM saves your
current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to DRAM, while
Suspend to Hard Drive requires no power.

When go into Suspend:

When power-on next time:

System Image & Status

in the DRAM

System Image & Status

in the DRAM

Backup by 3.3V
Power

Power back to

Other System

Devices

Other System

Devices

Power loss

Power back to

76

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

To implement ACPI Suspend to DRAM, please follow the proc edures as below:

System Requirement

1. An ACPI OS is required. Currently, except W indows 95 and Windows NT, all other Windows Systems support ACPI

2. The V IA 4 in 1 Driver must have been installed properly.

Procedures

1. Changed the following BIOS settings.

BIOS Setup > Power Management Setup > ACPI Function: Enabled

BIOS Setup > Power Management Setup > ACPI Suspend Type: S3.

2. Go to Control Panel > Power Management. Set “Power Buttons” to “Standby”.

3. Press power button or standby butt on to wake up the system.

77

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAWWAARRDD BBIIOOSS

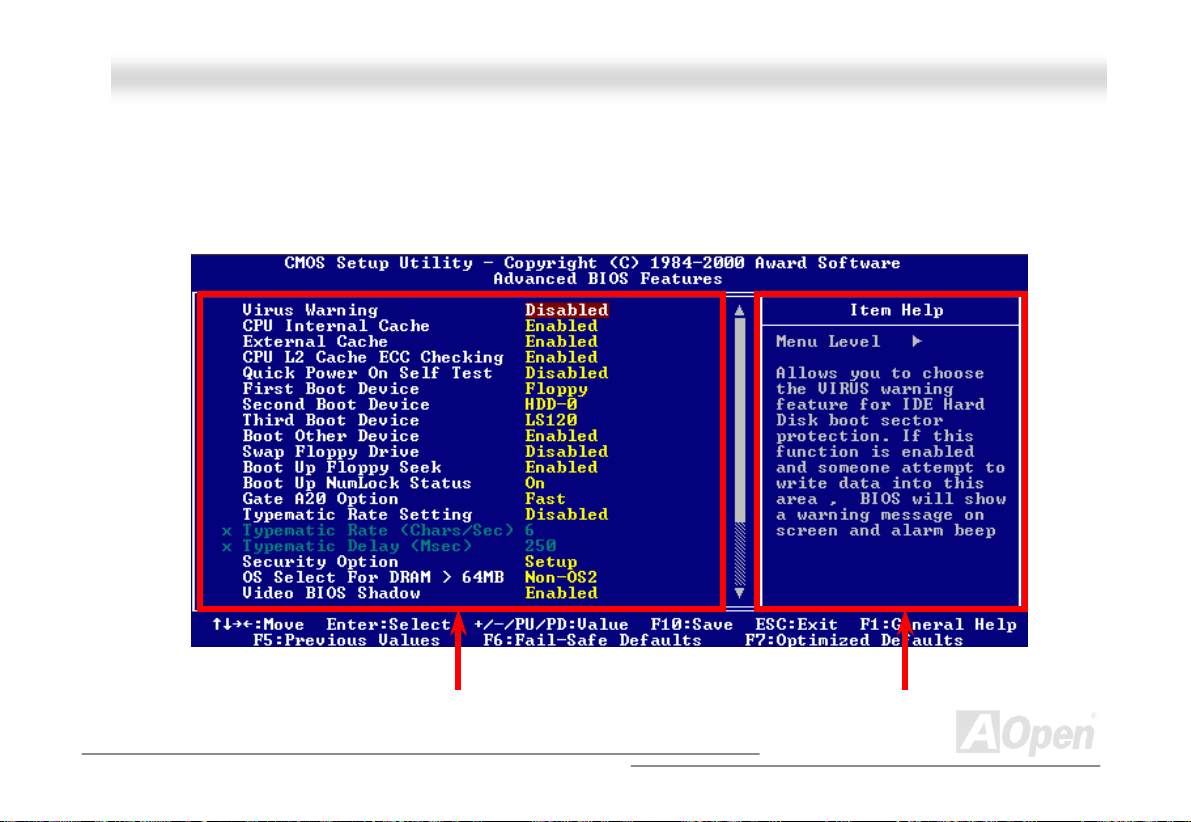

System parameters can be modified by going i nto BIOS Setup m enu, this menu all ows yo u to conf igure t he syst em param eters
and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in t he mai n chipset).

The AwardBIOS™ that installed in the Flash RO M
BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting of DX34R-U motherboard had optimized by AOpen’s R&D engineering team. B ut, the default setting of BIOS
still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through t he
process of c onf i guri ng y ou r sy st em us in g set up .

To enter to BIOS setup m enu

, press <Del> when POST (Power-On S elf Test) sc reen is shown on your monitor.

of the motherboard is a custom version of an indust ry standard BIOS. The

Note: Because the BIOS code is the most often
changed part of the motherboard design, the BIOS
information contained in this manual may be
different with actual BIOS that come with your
motherboard.

78

DDXX3344RR--UU OOnnlliinnee MMaannuuaall

AAbboouutt BBIIOOSS FFuunnccttiioonn DDeessccrriippttiioonn……

AOpen always dedicates to give users a more friendly computer system. Now, we inc lude all function descriptions of BIOS setup
