XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AX4B Pro-533

DOC. NO.: AX4BP533-OL-E0208C

Overview

Installation

Hardware

Drivers &

Utilities

BIOS Setup

AWARD

Glossary

Troubleshooting &

Technical Support

Page 2

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

AX4B Pro-533 ................................................................................................................................... 1

What’s in this manual ...................................................................................................................................................... 2

You Must Notice .............................................................................................................................................................. 9

Before You Start............................................................................................................................................................ 10

Overview ....................................................................................................................................................................... 11

Feature Highlight........................................................................................................................................................... 12

Quick Installation Procedure ......................................................................................................................................... 16

Motherboard Map .......................................................................................................................................................... 17

Block Diagram............................................................................................................................................................... 18

Hardware Installation.................................................................................................................. 19

About “Optional” and “Upgrade Optional”… ..................................................................................................................20

JP14 Clear CMOS Data ................................................................................................................................................21

CPU Installation ............................................................................................................................................................22

CPU Jumper-less Design ..............................................................................................................................................25

AOpen “Watch Dog Timer” ............................................................................................................................................ 26

Full-range Adjustable CPU Core Voltage....................................................................................................................... 27

CPU and System Fan Connector (with H/W Monitoring) ............................................................................................... 29

Page 3

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

JP28 Keyboard/Mouse Wake-up Enable/Disable Jumper.............................................................................................. 30

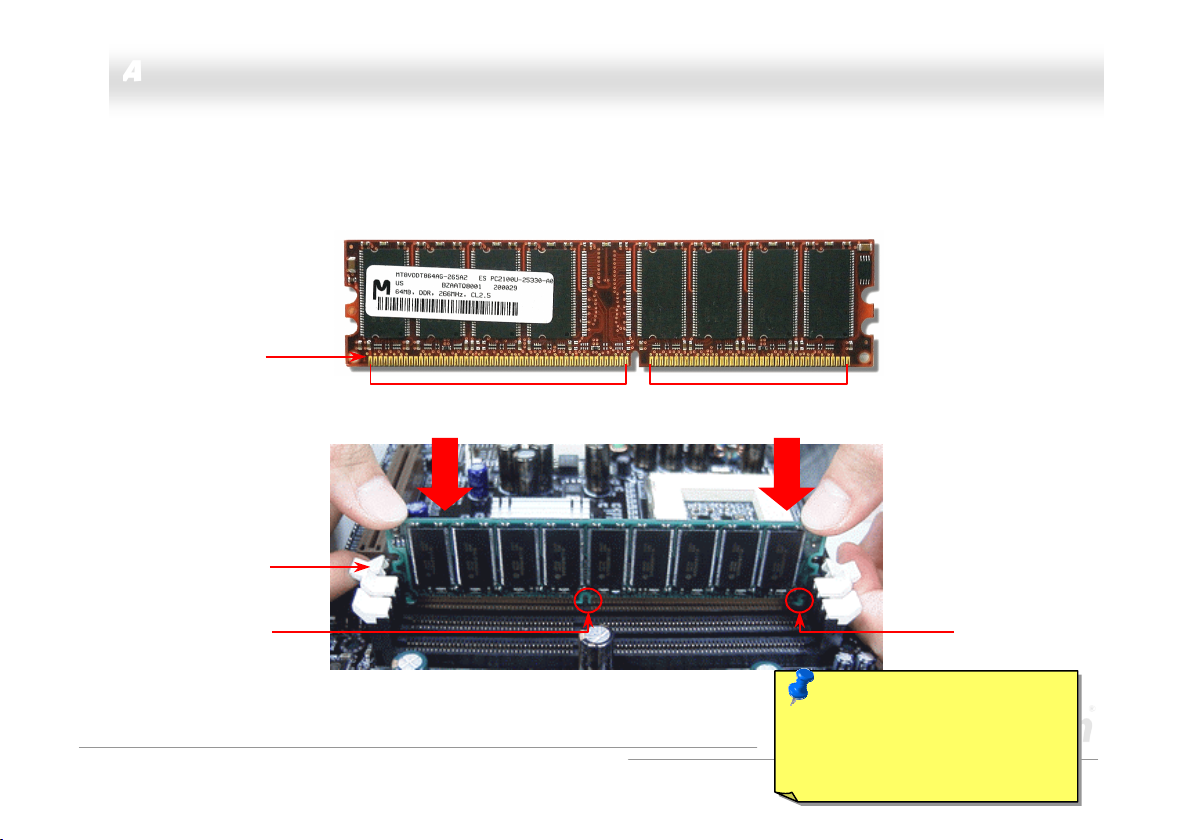

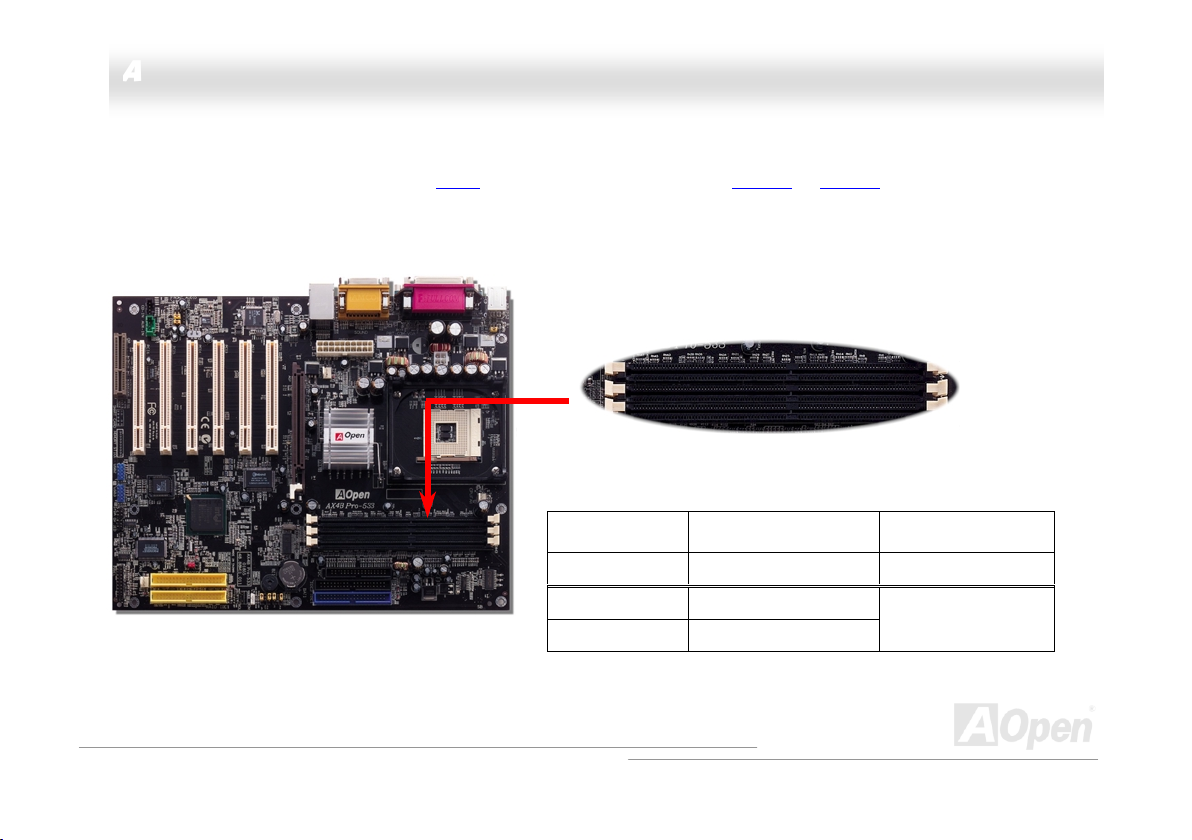

DIMM Sockets ............................................................................................................................................................... 31

Front Panel Connector .................................................................................................................................................. 33

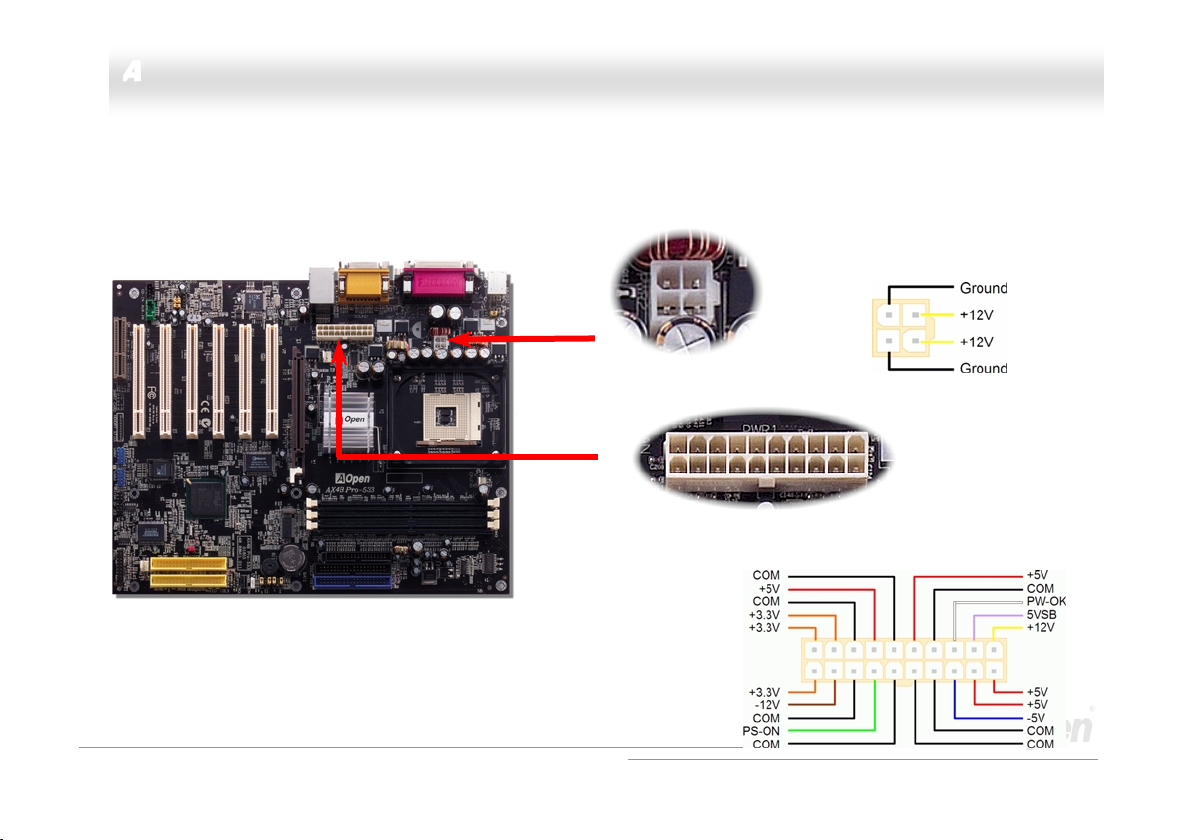

ATX Power Connector................................................................................................................................................... 34

AC Power Auto Recovery .............................................................................................................................................. 35

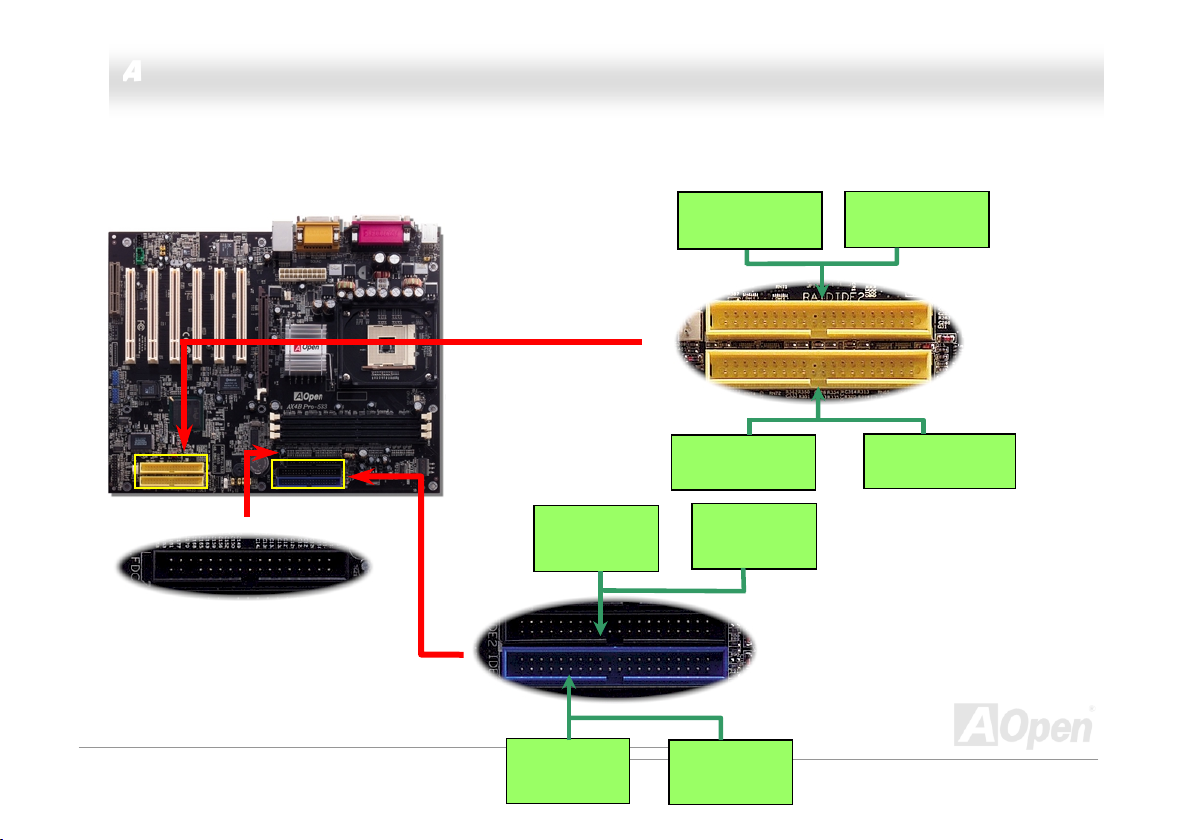

IDE and Floppy Connector ............................................................................................................................................ 36

ATA/133 Supported ....................................................................................................................................................... 38

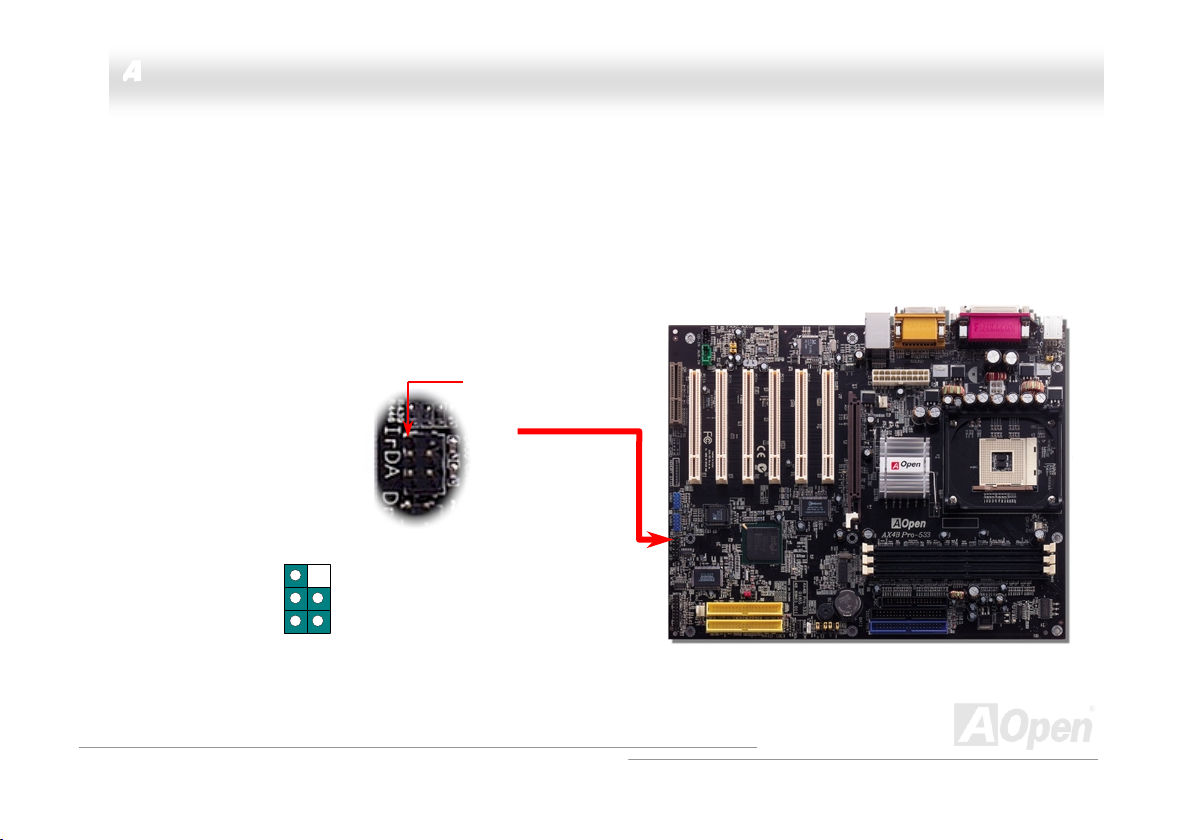

IrDA Connector .............................................................................................................................................................39

AGP Expansion Slot...................................................................................................................................................... 40

AGP Protection Technology........................................................................................................................................... 41

WOM (Zero Voltage Wake on Modem) Connector......................................................................................................... 42

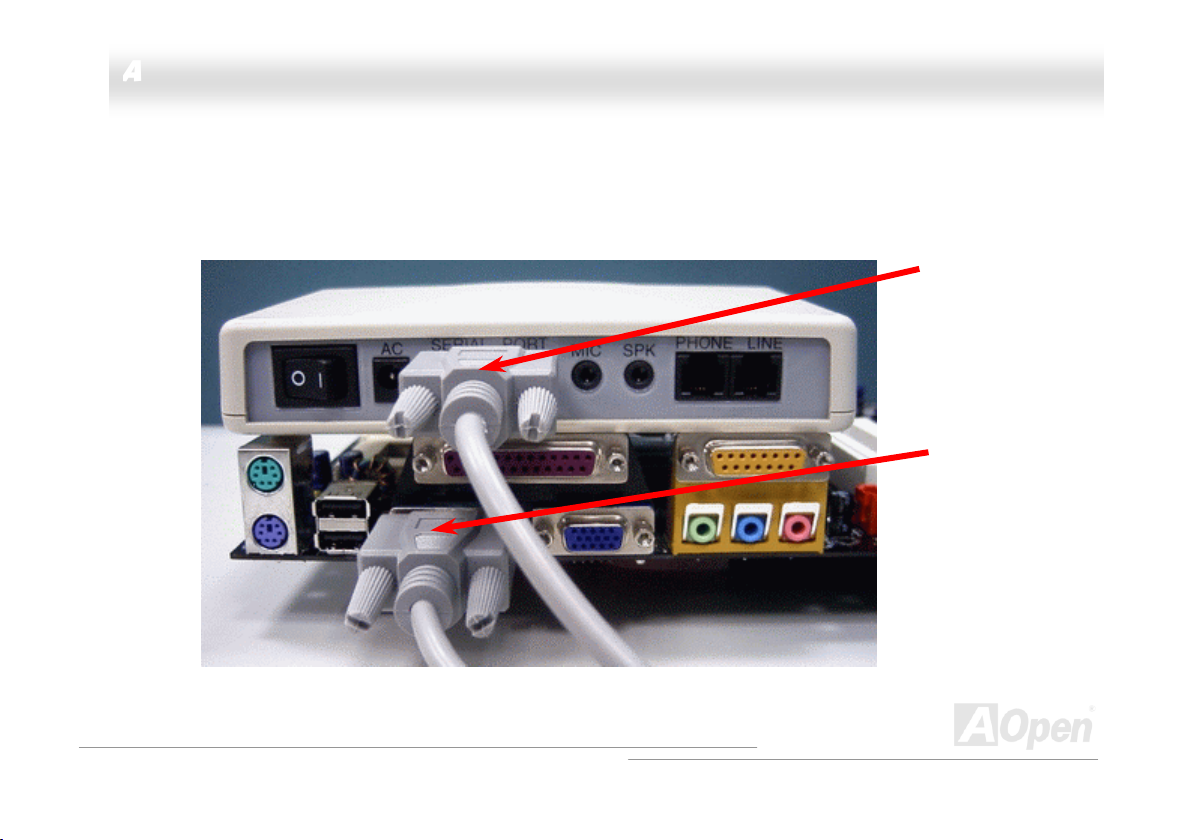

WOM by External BOX Modem .....................................................................................................................................43

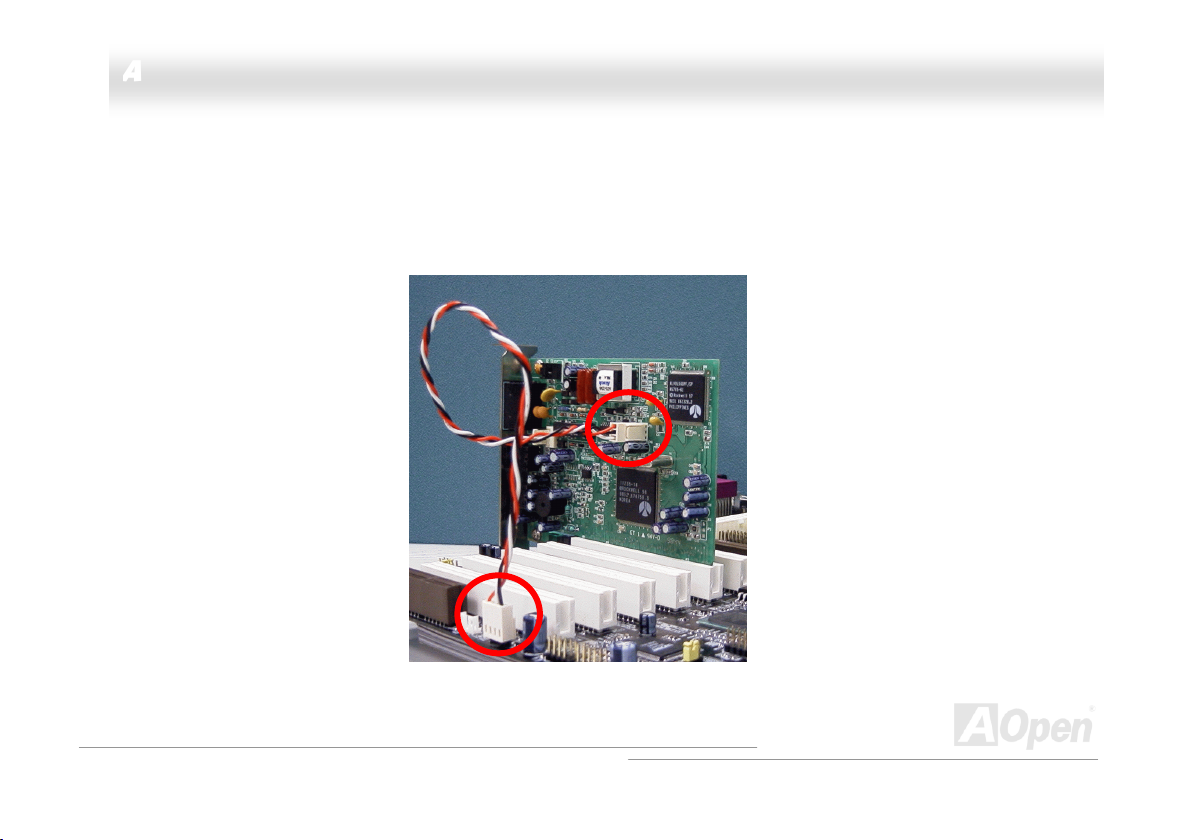

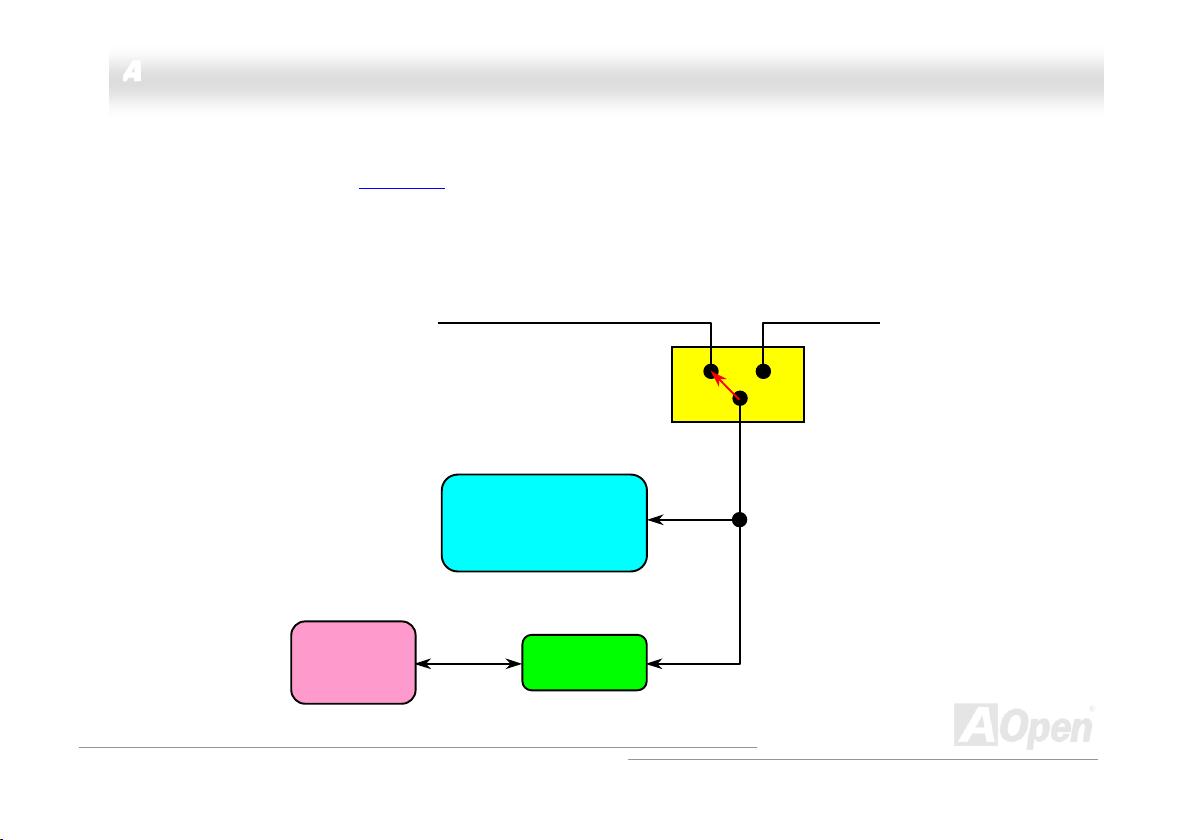

WOM by Internal Modem Card ...................................................................................................................................... 44

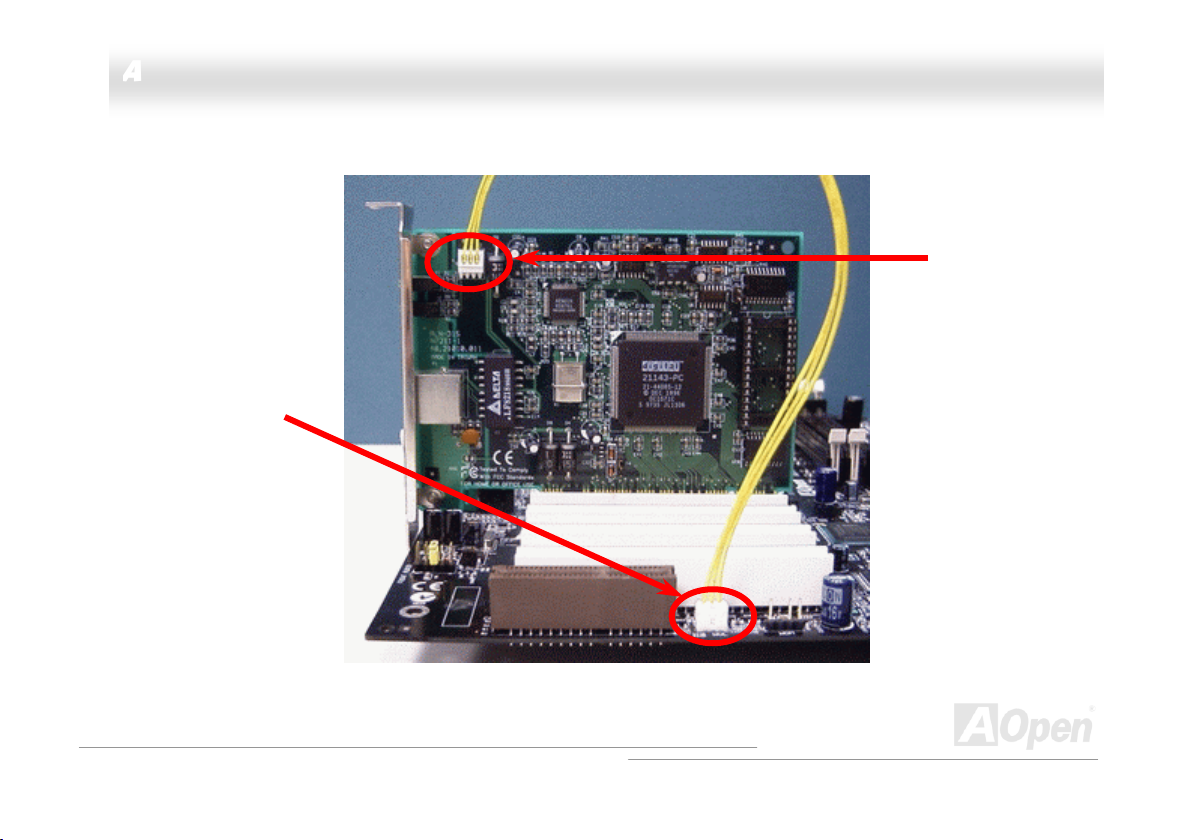

WOL (Wake on LAN)..................................................................................................................................................... 45

CNR (Communication and Network Riser) Expansion Slot............................................................................................ 47

PC99 Color Coded Back Panel ..................................................................................................................................... 48

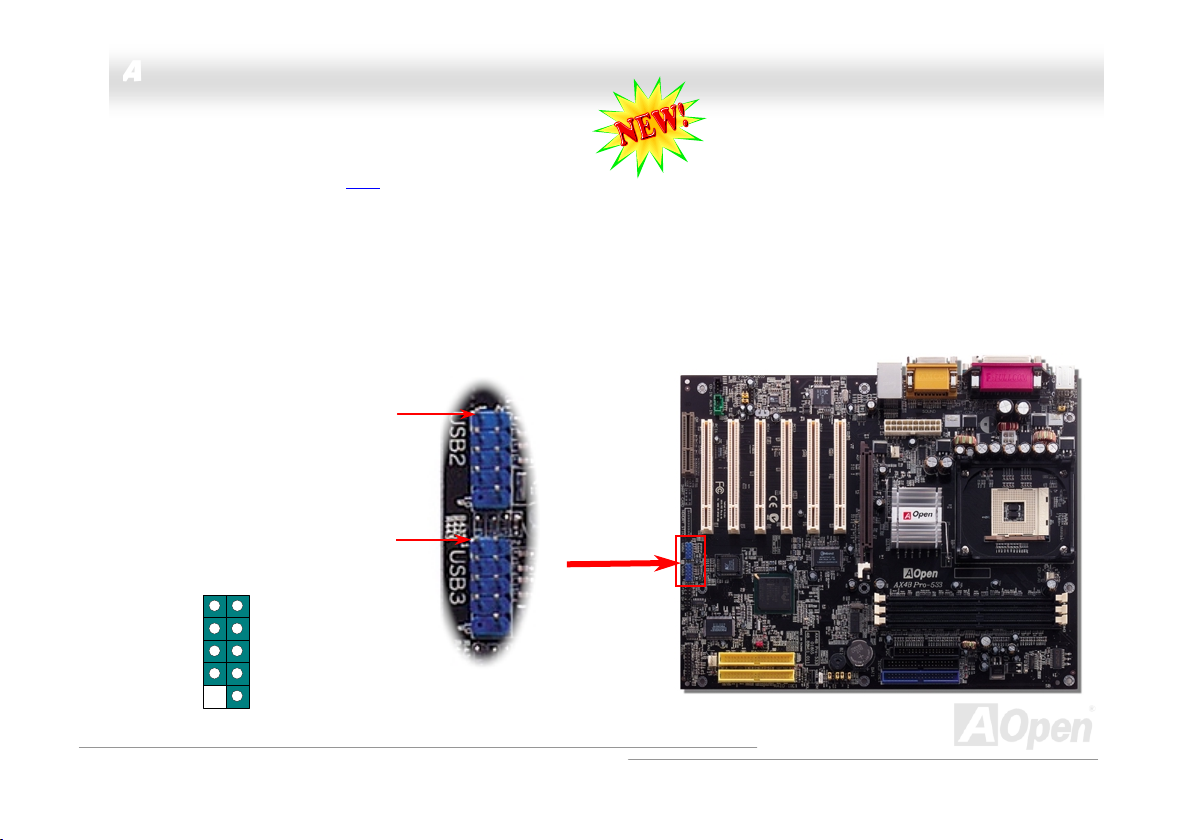

Support 2nd and 3rd USB 2.0 Ports................................................................................................................................. 49

Chassis Intrusion Connector ......................................................................................................................................... 50

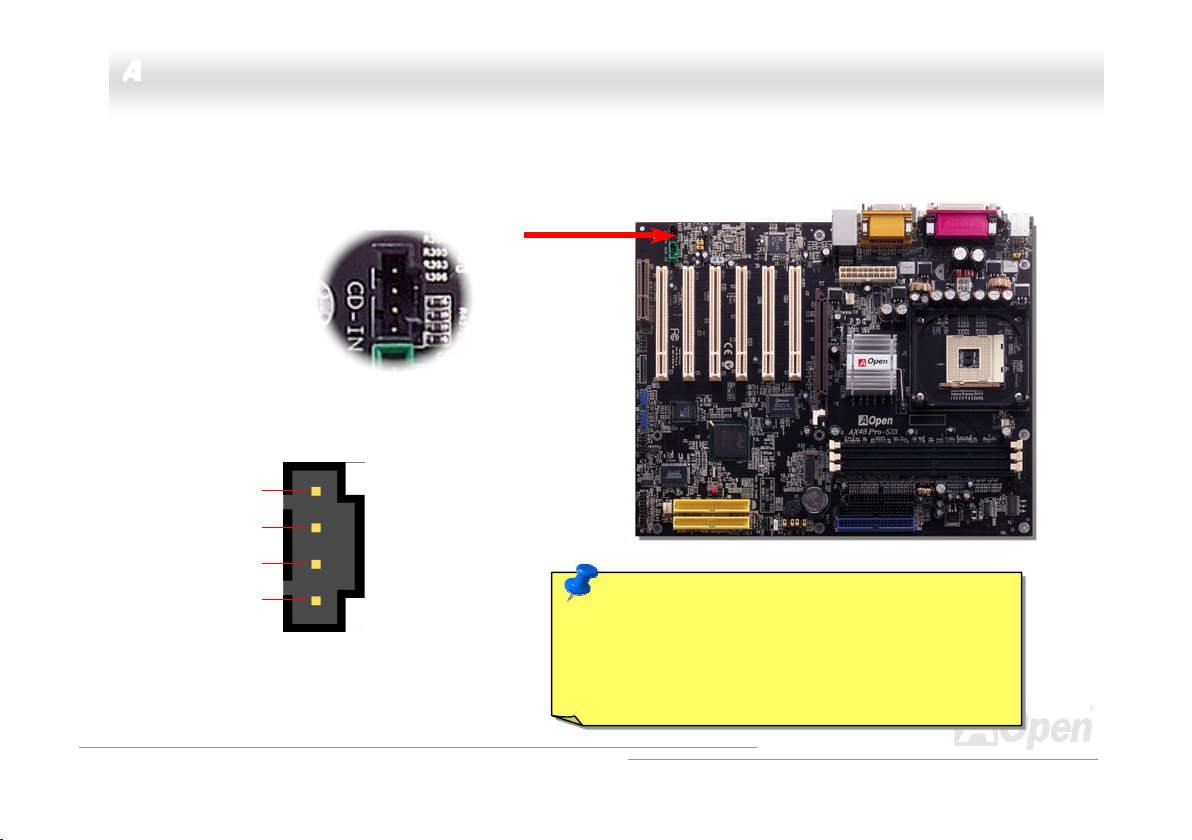

CD Audio Connector ..................................................................................................................................................... 51

Page 4

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

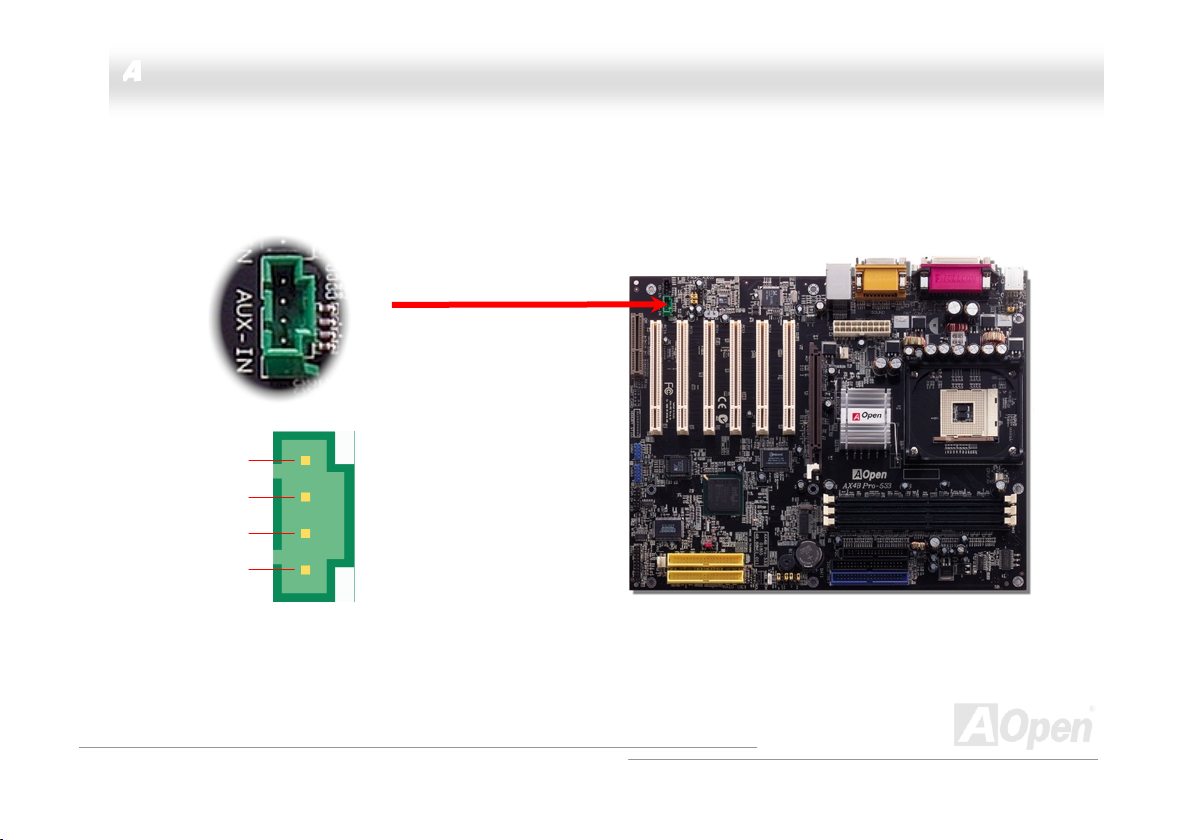

AUX-IN Connector ........................................................................................................................................................ 52

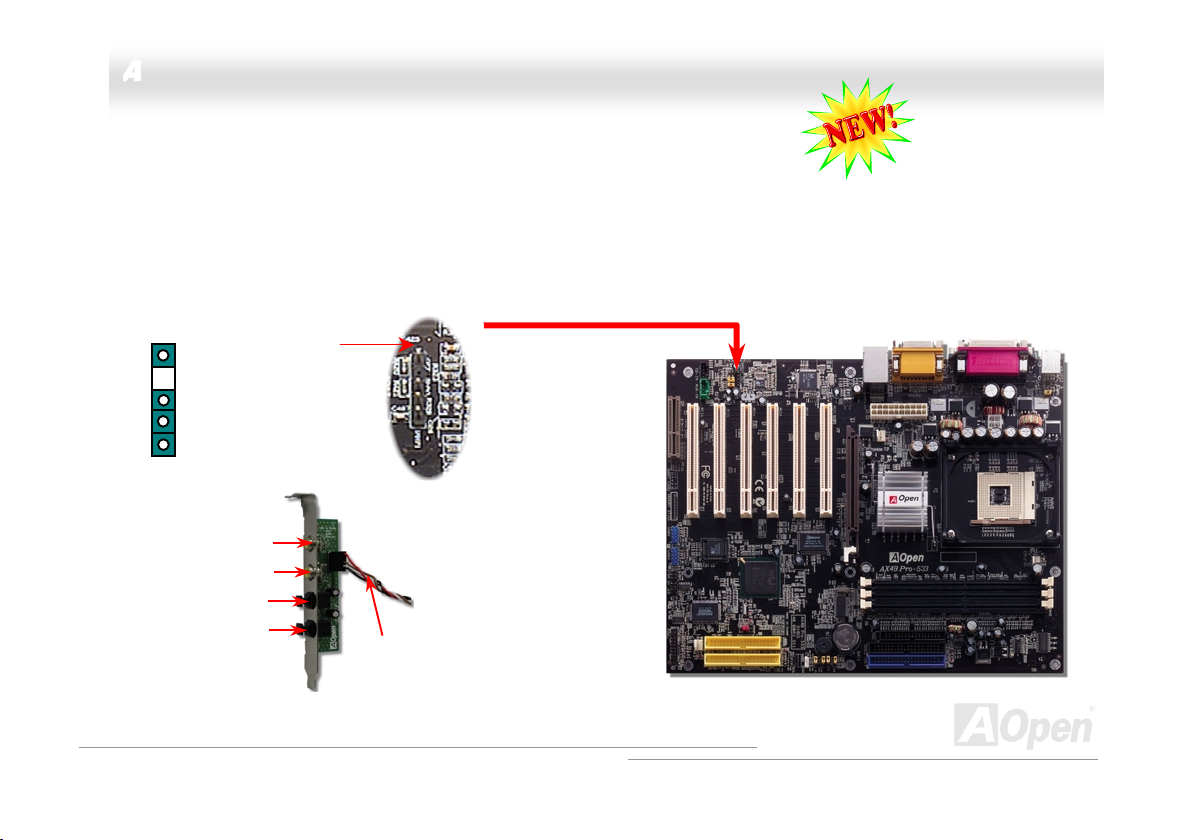

S/PDIF (Sony/Philips Digital Interface) Connector......................................................................................................... 53

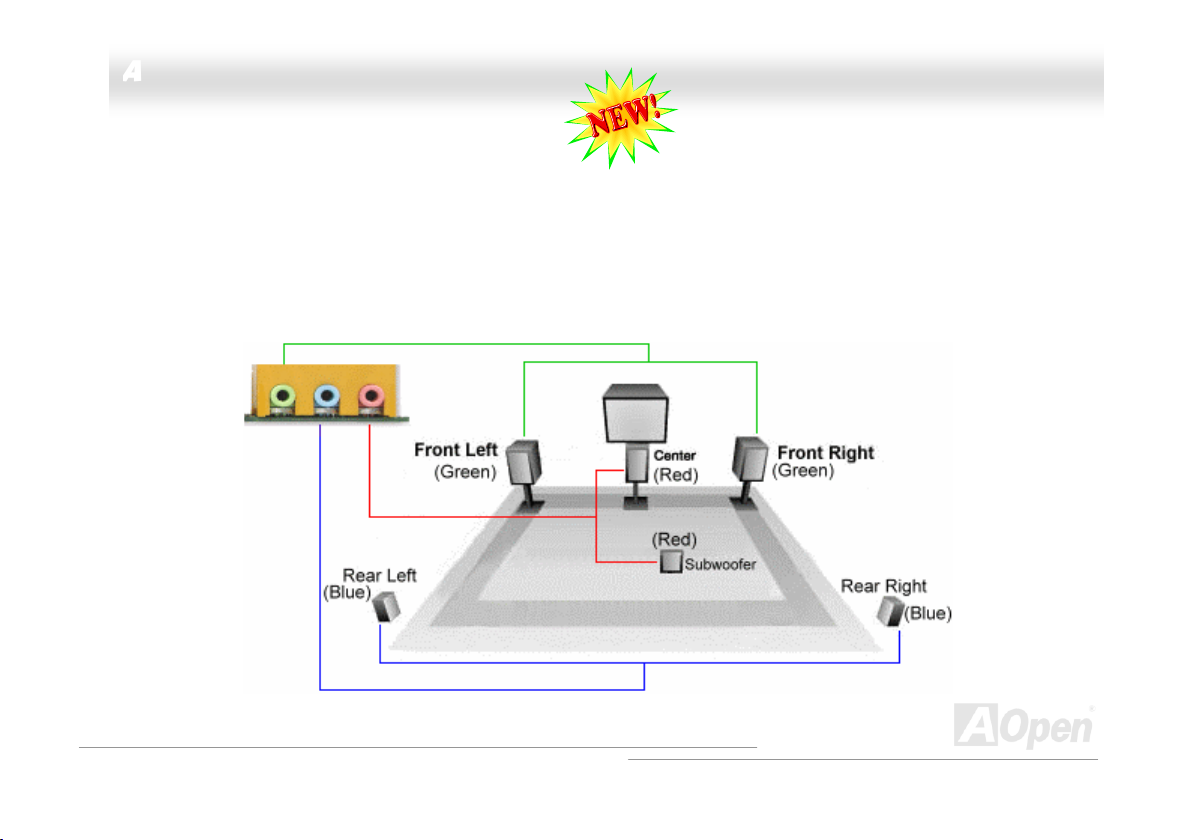

Super 5.1 Channel Audio Effect .................................................................................................................................... 54

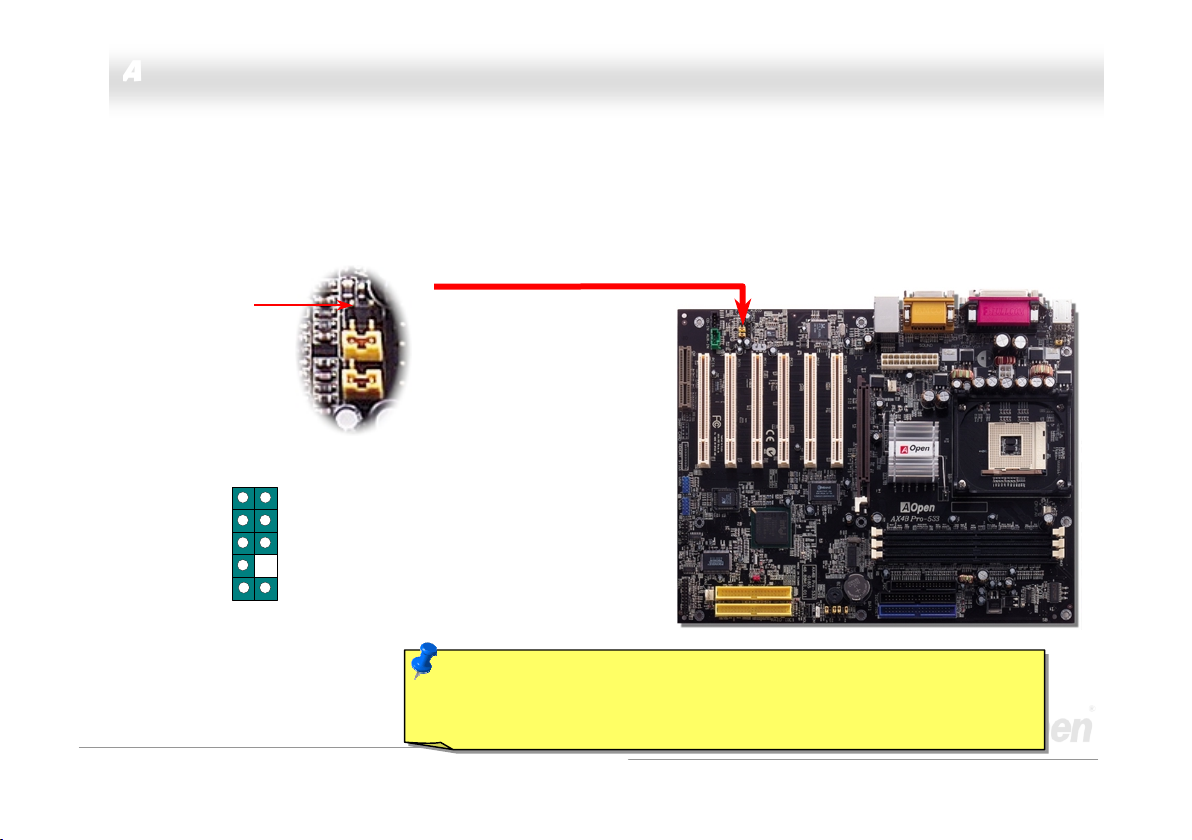

Front Audio Connector .................................................................................................................................................. 55

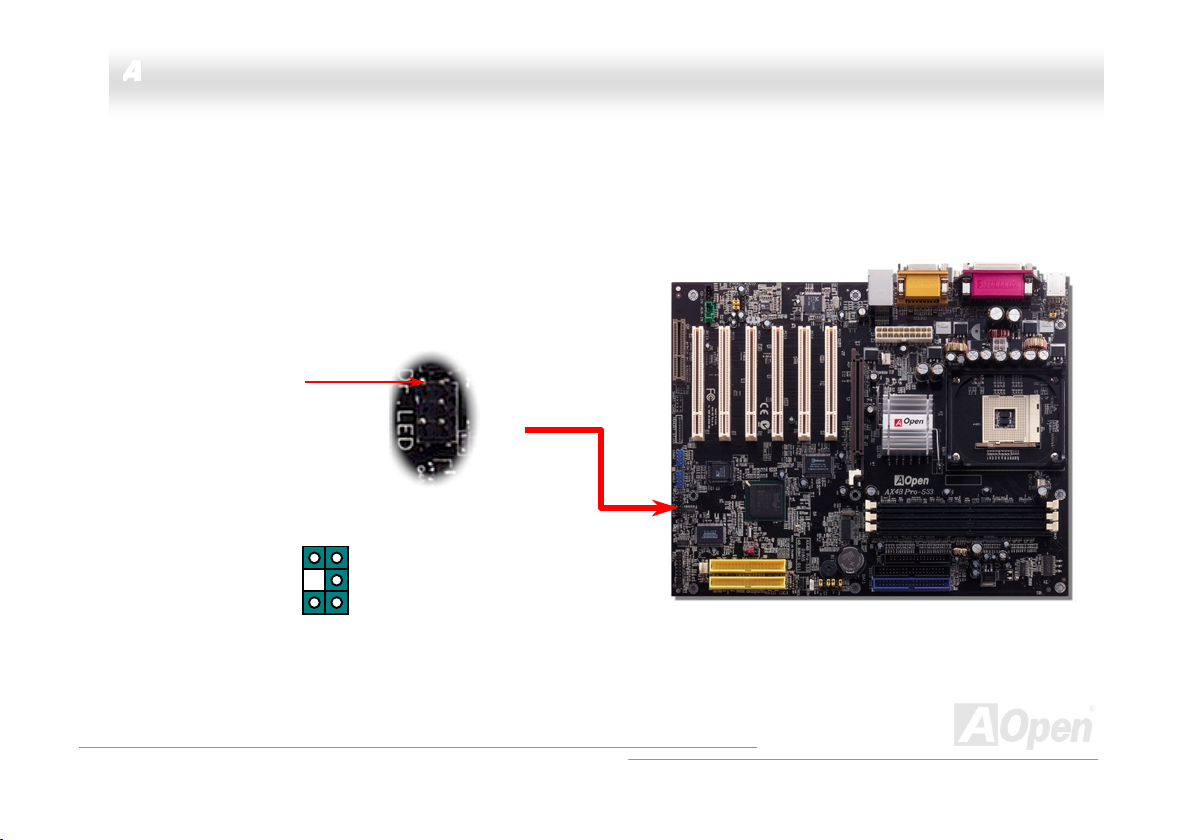

Dr. LED Connector........................................................................................................................................................ 56

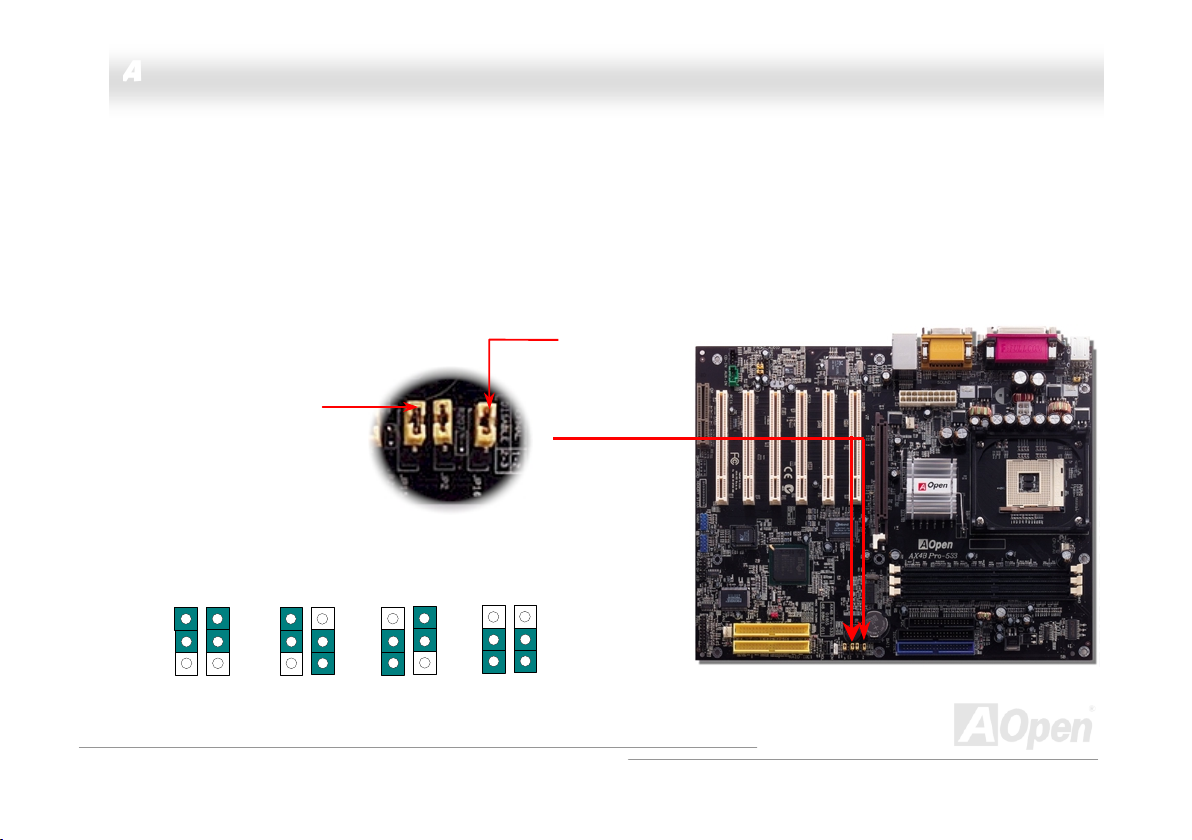

JP15/JP16 Dr. Voice Language Select Jumpers ........................................................................................................... 58

JP1 Buzzer and JP2 Speaker Enable/Disable Jumpers ................................................................................................ 59

Battery-less and Long Life Design ................................................................................................................................ 60

Over-current Protection ................................................................................................................................................. 61

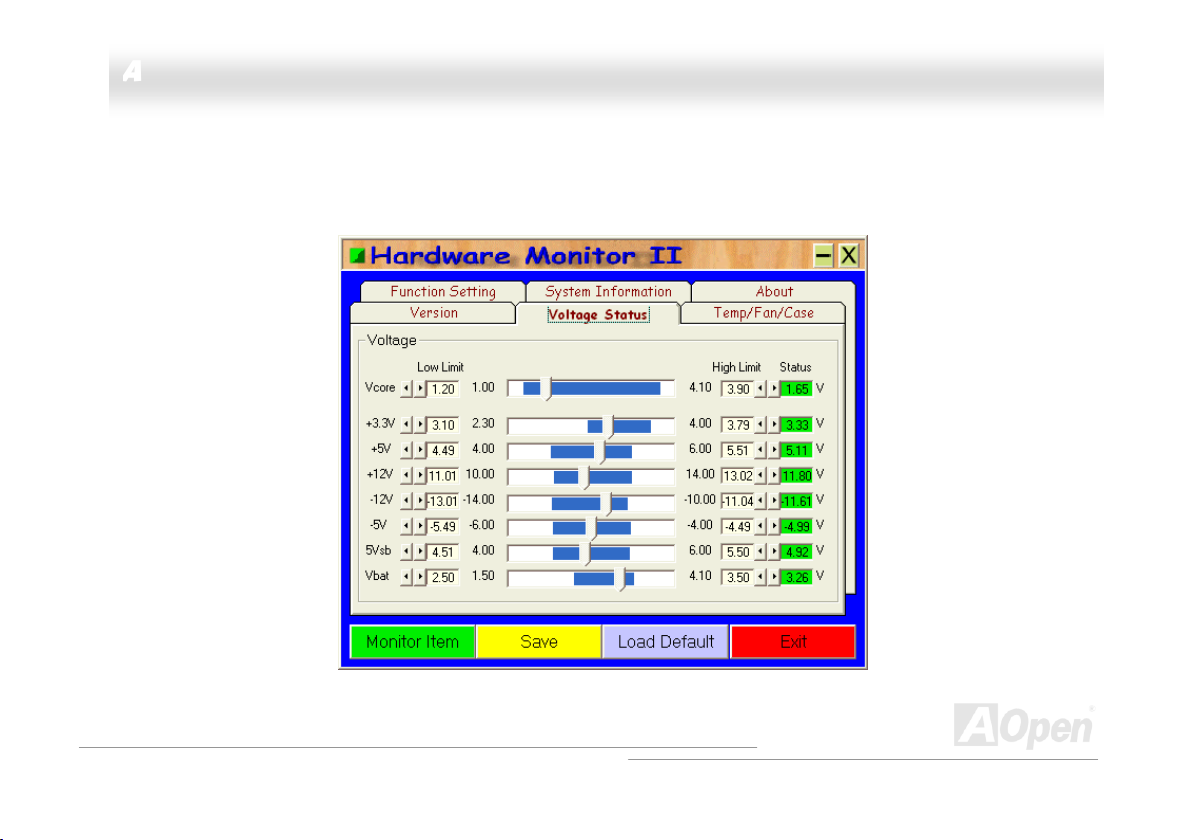

Hardware Monitoring ..................................................................................................................................................... 62

Resettable Fuse ............................................................................................................................................................ 63

3300µF Low ESR Capacitor .......................................................................................................................................... 64

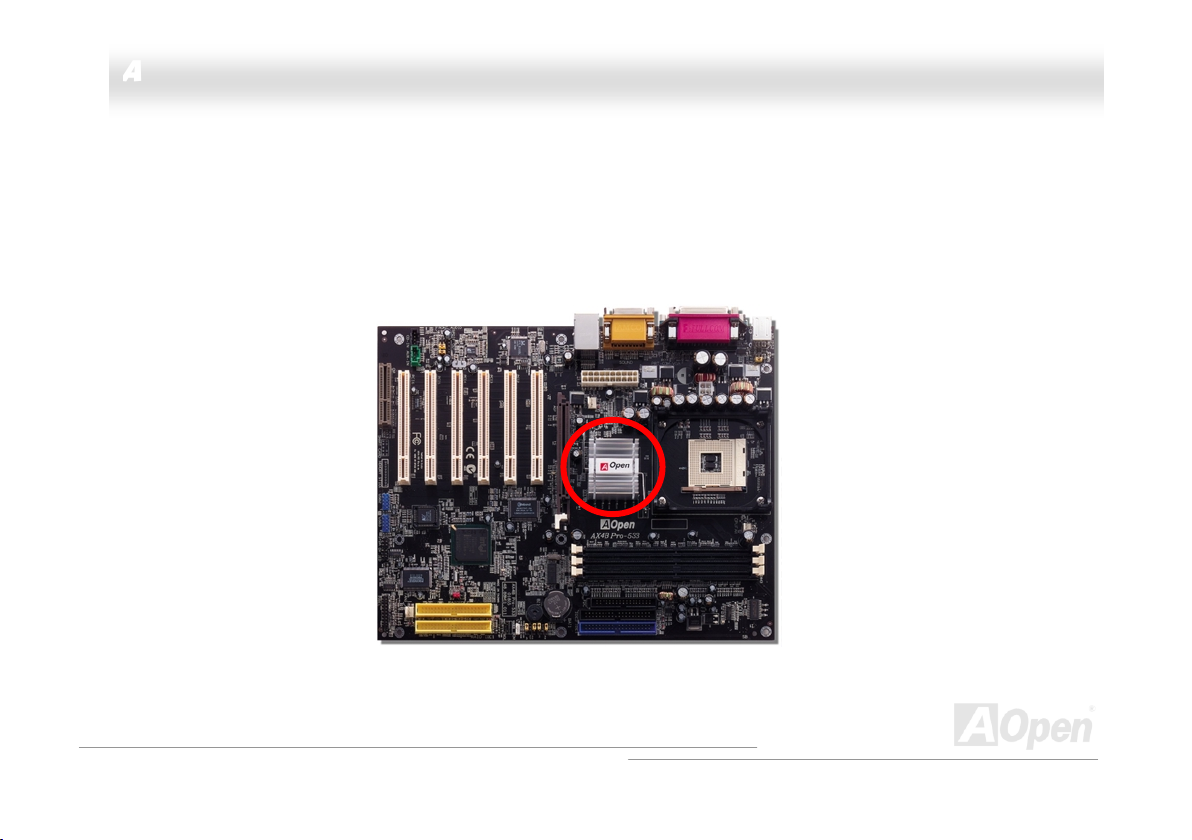

Enlarged Aluminum Heatsink ........................................................................................................................................ 65

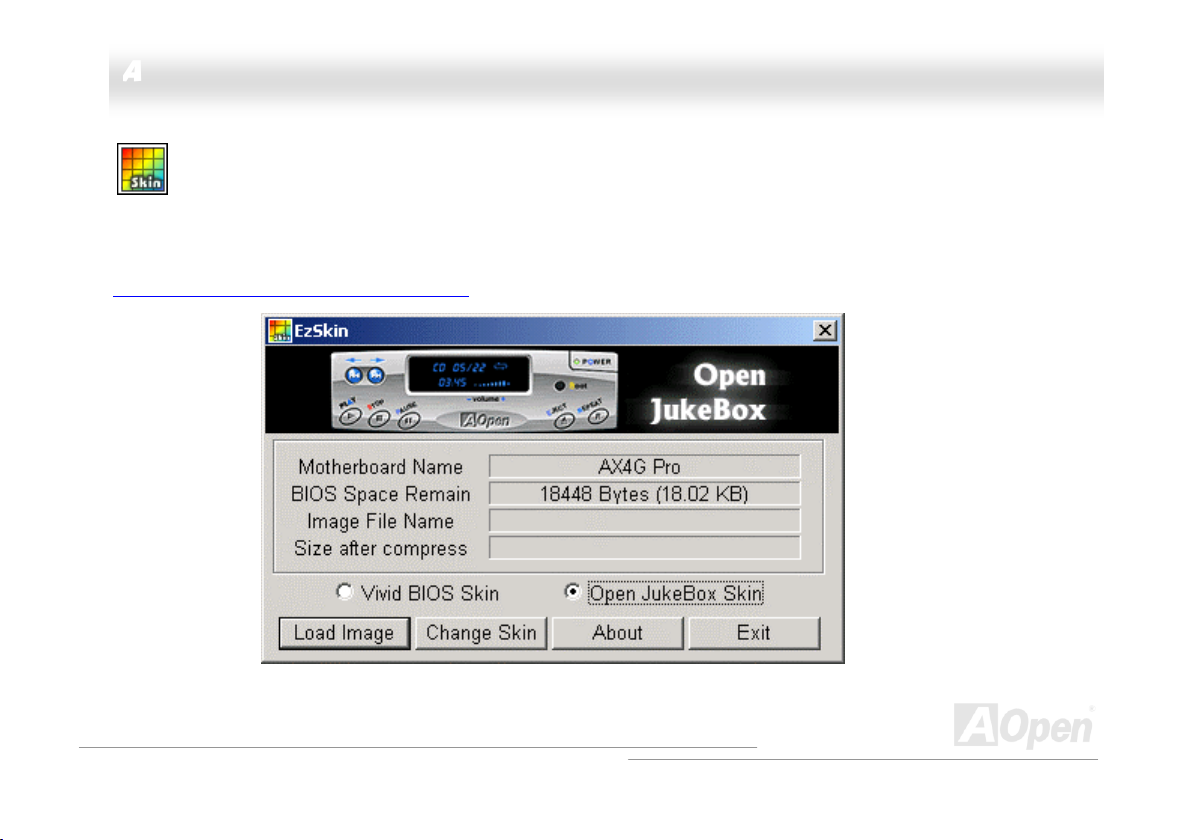

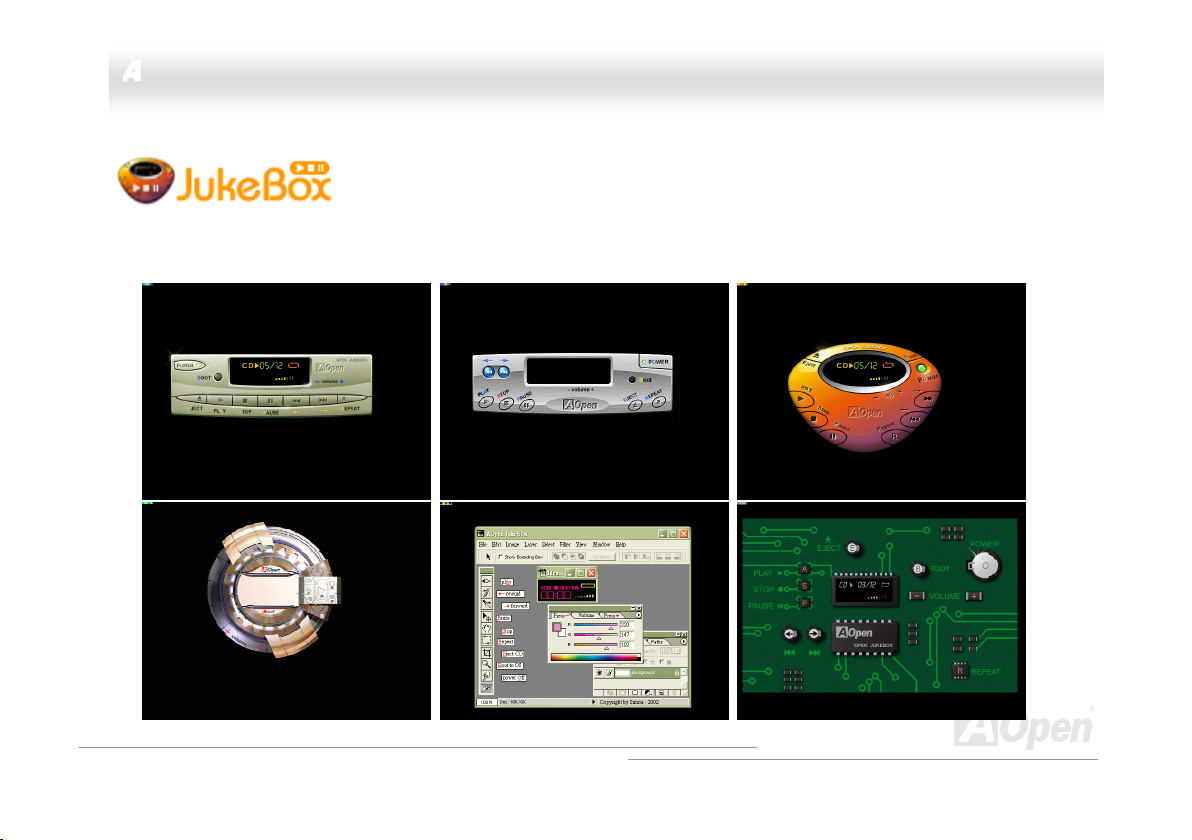

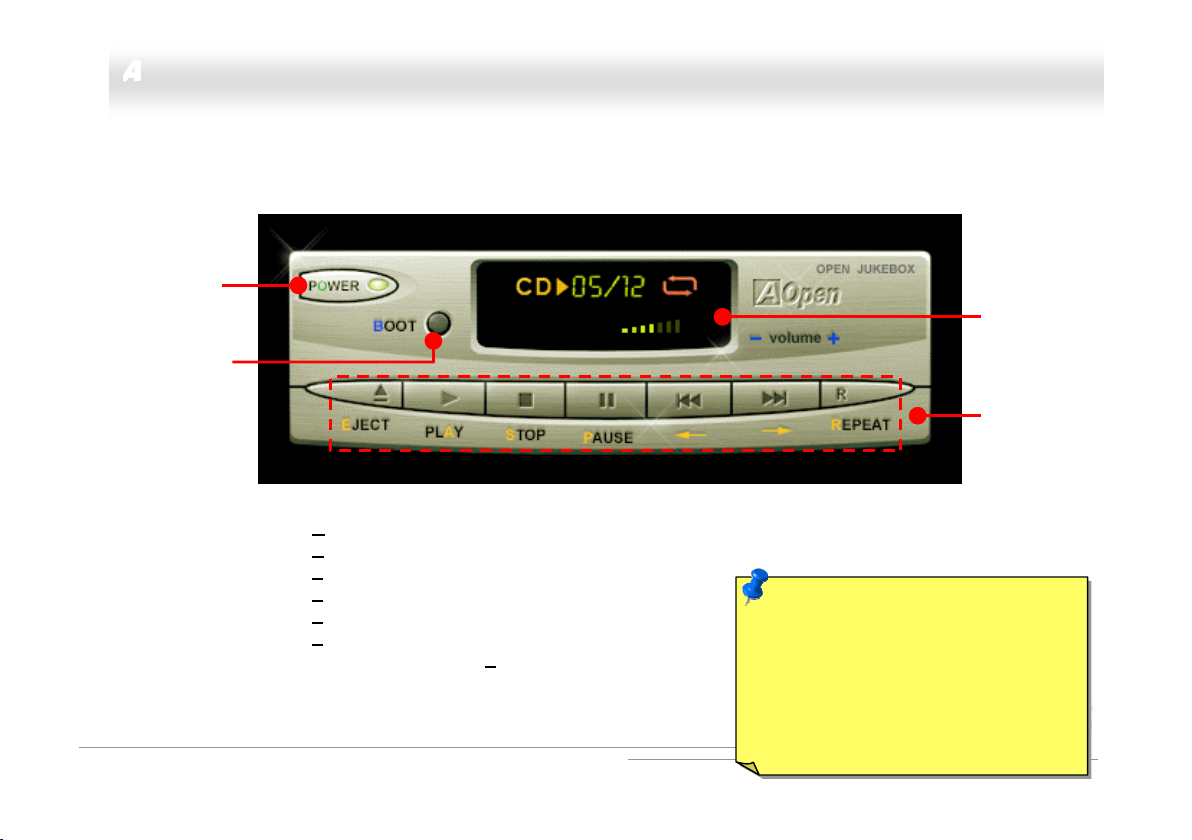

Open JukeBox Player.................................................................................................................................................... 66

Vivid BIOS technology................................................................................................................................................... 70

Driver and Utility ......................................................................................................................... 71

Auto-run Menu from Bonus CD Disc ............................................................................................................................. 72

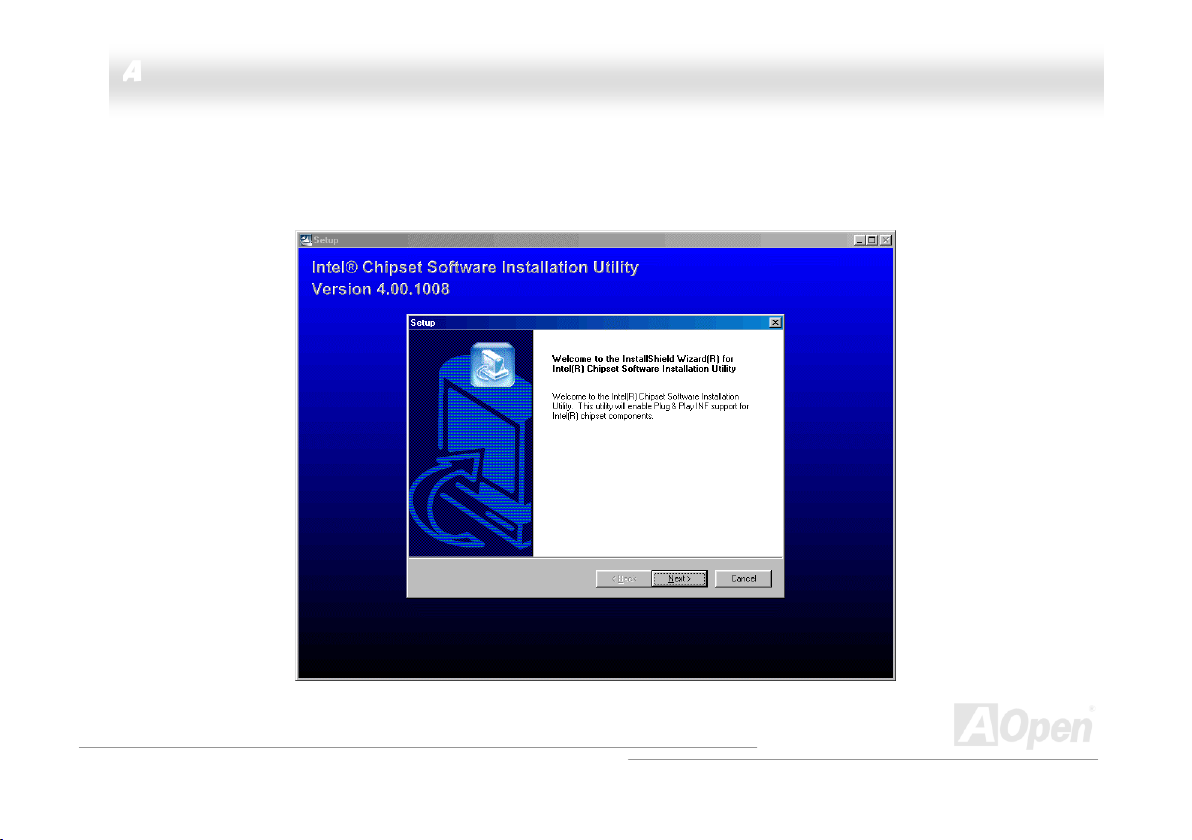

Installing Intel® Chipset Software Installation Utility...................................................................................................... 73

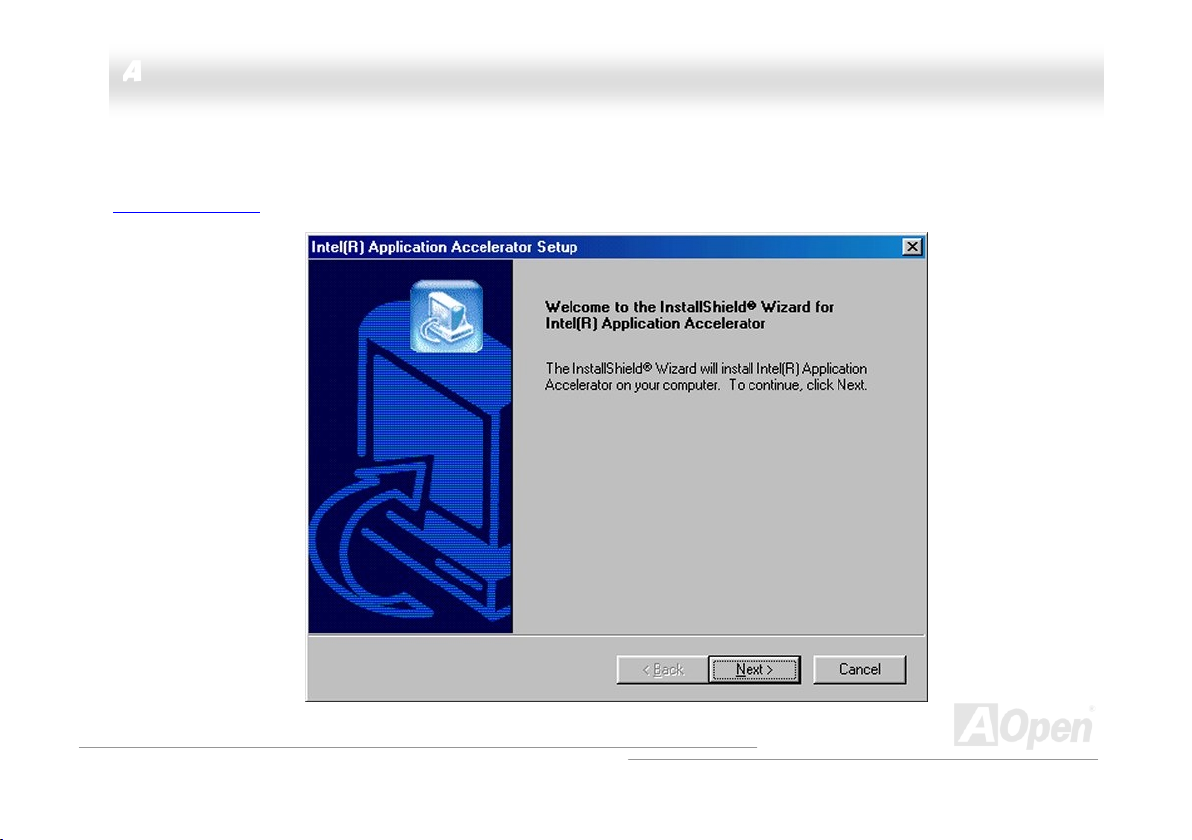

Installing Intel IAA Driver............................................................................................................................................... 74

Page 5

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Installing LAN Driver .....................................................................................................................................................75

Installing Hardware Monitoring Utility ............................................................................................................................ 77

Installing USB2.0 Driver ................................................................................................................................................ 78

Install ATA/133 Driver .................................................................................................................................................... 80

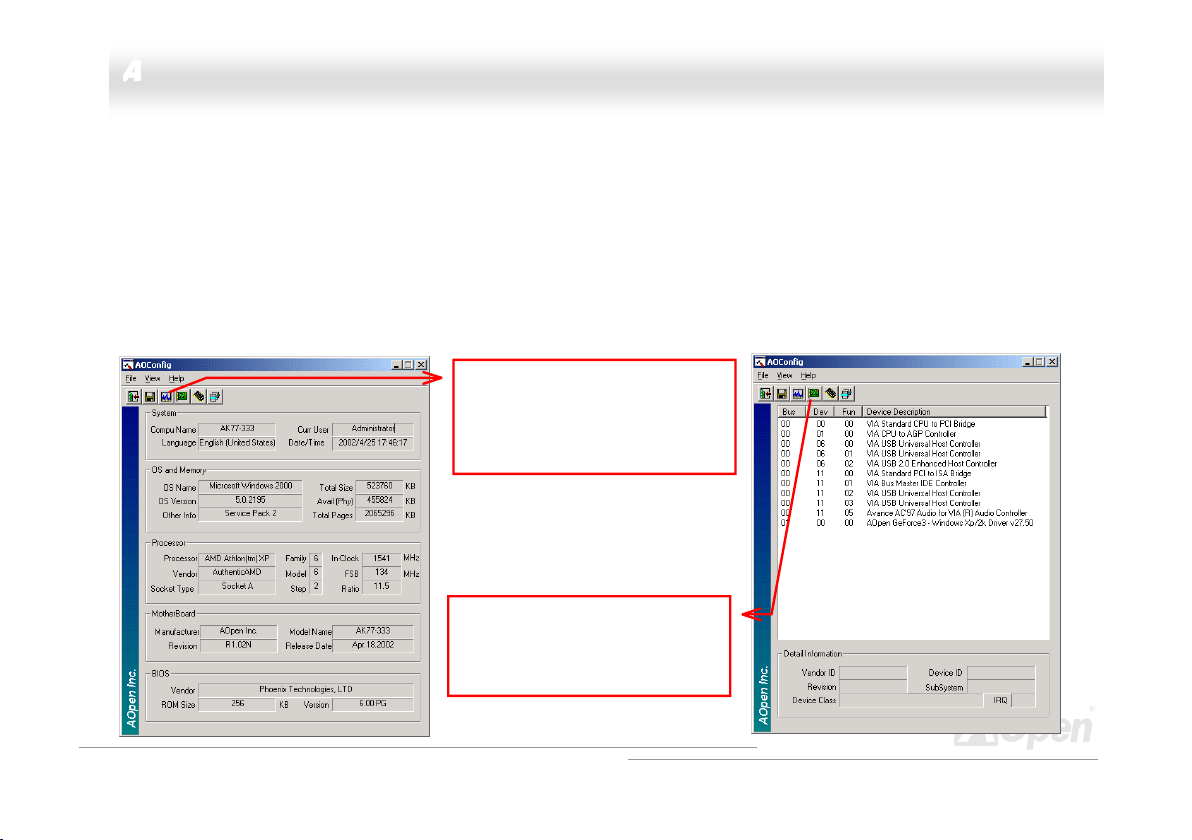

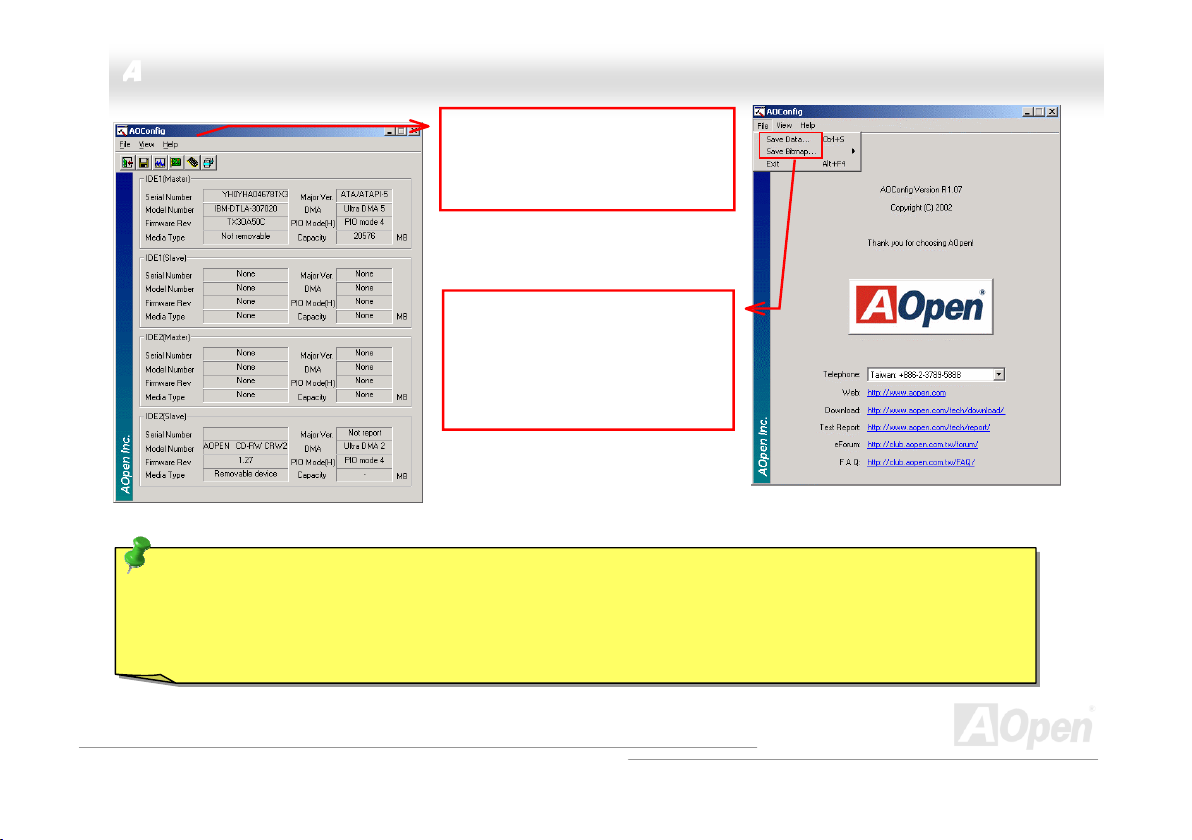

AOConfig Utility............................................................................................................................................................. 85

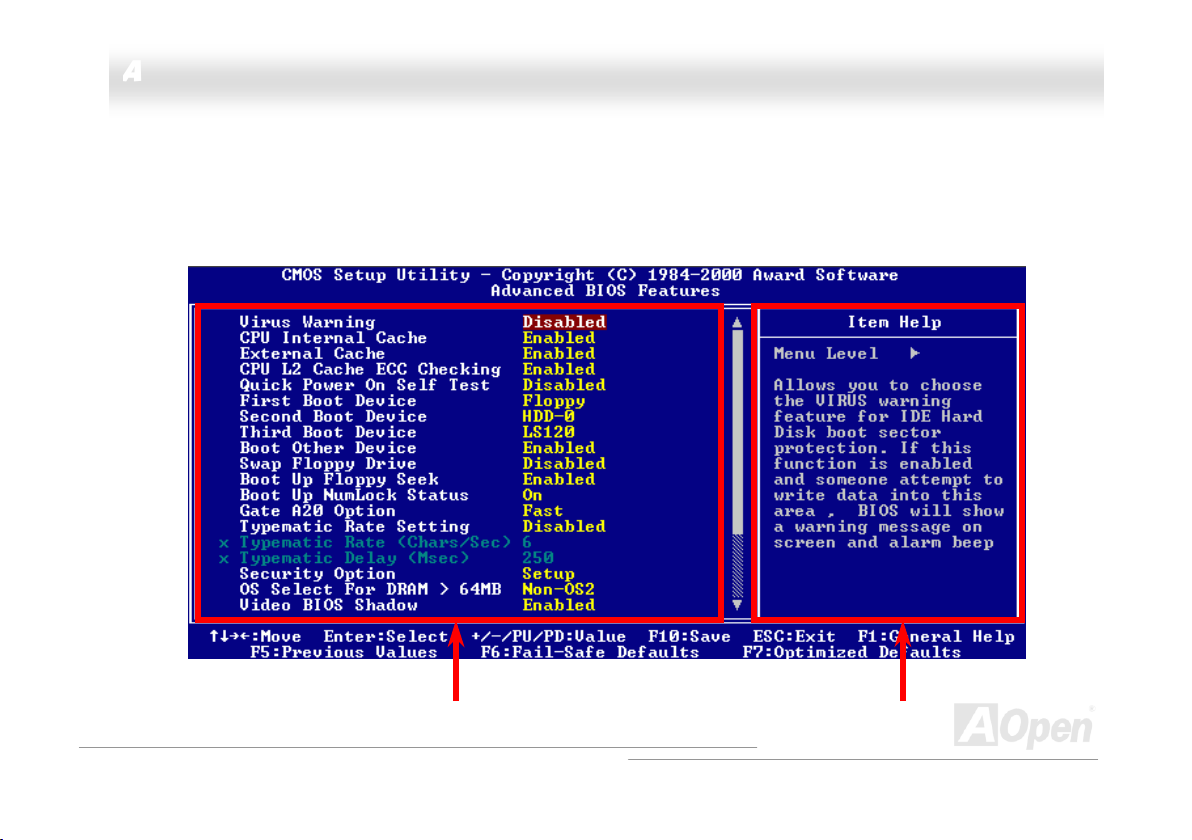

AWARD BIOS ................................................................................................................................ 87

About BIOS Function Description… .............................................................................................................................. 88

How To Use Award™ BIOS Setup Program .................................................................................................................. 89

How To Enter BIOS Setup ............................................................................................................................................. 91

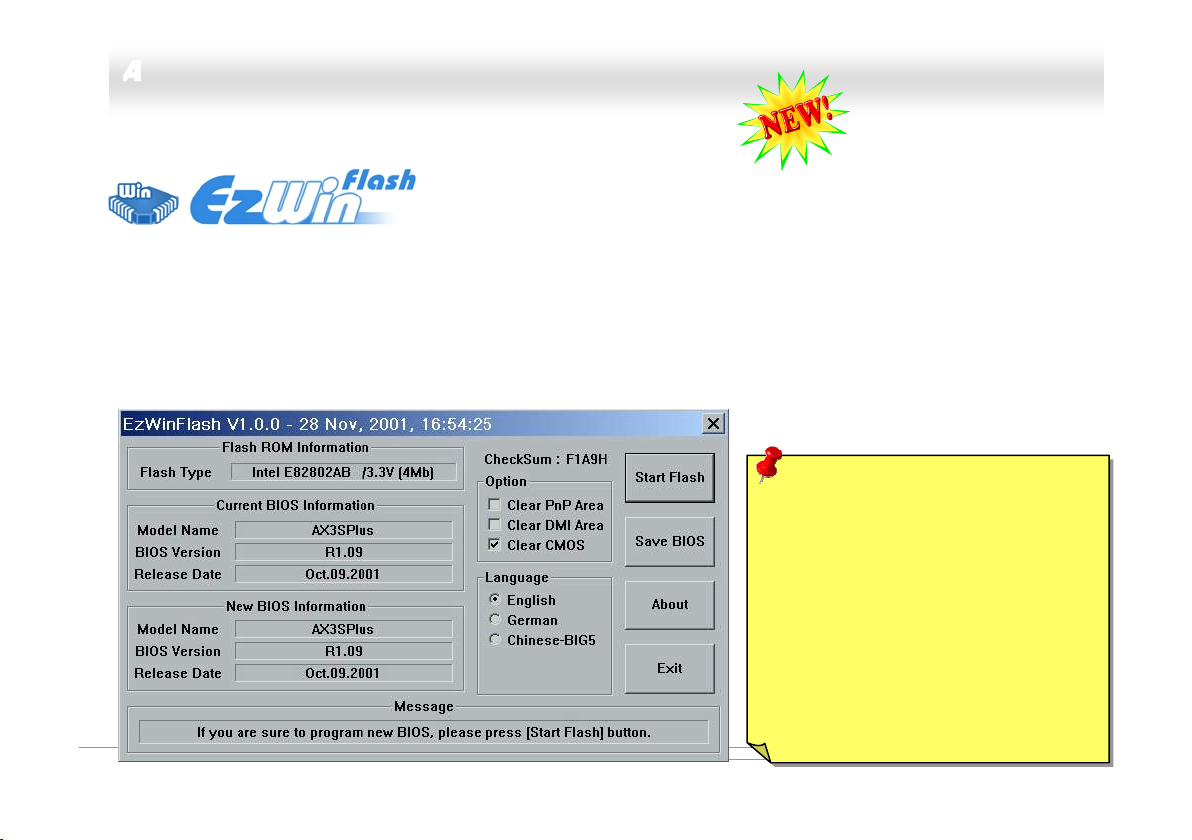

BIOS Upgrade under Windows environment ................................................................................................................. 92

Glossar y ....................................................................................................................................... 94

AC97............................................................................................................................................................................. 94

ACPI (Advanced Configuration & Power Interface) .......................................................................................................94

AGP (Accelerated Graphic Port) ................................................................................................................................... 94

AMR (Audio/Modem Riser)............................................................................................................................................ 95

AOpen Bonus Pack CD ................................................................................................................................................. 95

APM (Advanced Power Management)........................................................................................................................... 95

ATA (AT Attachment) .....................................................................................................................................................95

ATA/66 ..........................................................................................................................................................................95

Page 6

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

ATA/100 ........................................................................................................................................................................ 96

ATA/133 ........................................................................................................................................................................ 96

BIOS (Basic Input/Output System) ................................................................................................................................ 96

Bus Master IDE (DMA mode) ........................................................................................................................................ 97

CNR (Communication and Networking Riser)................................................................................................................ 97

CODEC (Coding and Decoding) .................................................................................................................................... 97

DDR (Double Data Rated) SDRAM ............................................................................................................................... 97

DIMM (Dual In Line Memory Module) ............................................................................................................................ 98

DMA (Direct Memory Access)........................................................................................................................................ 98

ECC (Error Checking and Correction) ........................................................................................................................... 98

EDO (Extended Data Output) Memory .......................................................................................................................... 98

EEPROM (Electronic Erasable Programmable ROM).................................................................................................... 99

EPROM (Erasable Programmable ROM) ...................................................................................................................... 99

EV6 Bus ........................................................................................................................................................................ 99

FCC DoC (Declaration of Conformity) ...........................................................................................................................99

FC-PGA (Flip Chip-Pin Grid Array).............................................................................................................................. 100

Flash ROM .................................................................................................................................................................. 100

FSB (Front Side Bus) Clock ........................................................................................................................................100

I2C Bus........................................................................................................................................................................ 100

Page 7

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IEEE 1394................................................................................................................................................................... 101

Parity Bit ..................................................................................................................................................................... 101

PBSRAM (Pipelined Burst SRAM)............................................................................................................................... 101

PC-100 DIMM ............................................................................................................................................................. 102

PC-133 DIMM ............................................................................................................................................................. 102

PC-1600, PC-2100 or PC-2700 DDR DRAM ............................................................................................................... 102

PCI (Peripheral Component Interface) Bus ................................................................................................................. 102

PDF Format................................................................................................................................................................. 102

PnP (Plug and Play) .................................................................................................................................................... 103

POST (Power-On Self Test) ........................................................................................................................................ 103

RDRAM (Rambus DRAM) ........................................................................................................................................... 103

RIMM (Rambus Inline Memory Module) ...................................................................................................................... 103

SDRAM (Synchronous DRAM) .................................................................................................................................... 104

Shadow E2PROM ........................................................................................................................................................ 104

SIMM (Single In Line Memory Module) ....................................................................................................................... 104

SMBus (System Management Bus) ............................................................................................................................. 104

SPD (Serial Presence Detect)..................................................................................................................................... 105

Ultra DMA ................................................................................................................................................................... 105

USB (Universal Serial Bus) ......................................................................................................................................... 105

Page 8

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

USB2.0 (Universal Serial Bus) .................................................................................................................................... 106

VCM (Virtual Channel Memory)................................................................................................................................... 106

ZIP file......................................................................................................................................................................... 106

Troubleshooting......................................................................................................................... 107

Technical Support ..................................................................................................................... 111

Product Registration ................................................................................................................. 114

How to Contact Us .................................................................................................................... 115

Page 9

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.

AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.

Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III are trademarks of Intel Corporation.

Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

Page 10

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce you how this product is installed. All useful information will be described in later chapters.

Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF

format, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can get free

download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper

size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer

driver.

Thanks for the help of saving our earth.

Page 11

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

OOvveerrvviieeww

Thank you for choosing AOpen AX4B Pro-533 motherboard. AX4B Pro-533 is Intel® Socket 478 motherboard (M/B) based on the

ATX form factor featuring the Intel

motherboard can support Intel

533MHz Front Side Bus (FSB)

with 4x SBA/Data Transfer and 2x/4x Fast Write capability and pipelined spilt-transaction long burst transfer up to 1056MB/sec.

According to different customer’s requirements, the Intel 845E chipset memory interface supports DDR SDRAM devices with

densities of 64, 128, 256, 512Mb, and 1Gb DDR SDRAM DIMM modules and the maximum memory size can be up to 2GB. The

onboard IDE controller supports Ultra DMA

achieved by taking advantage of the Communication and Network Riser (CNR)

card that allows audio, modem, and/or LAN configuration on a single

baseboard design. Besides, the AX4B Pro-533 has a S/PDIF connector

and an AC97

magic surround stereo sound to let people enjoy working with it. Now,

let’s enjoy all features from AOpen AX4B Pro-533 motherboard.

845E (Brookdale) chipset. As high performance chipset built in the M/B, AX4B Pro-533

Socket 478 Pentium® 4 (Brookdale) and 400MHz Front Side Bus (FSB) clock for Northwood and

clock for Williamett. In AGP performance, it has one AGP slot which supports 1.5V AGP interface

33/66/100/133 mode and the transfer rate up to 100MB/s. Further flexibility can be

CODEC chipset onboard, providing high performance and

Page 12

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports Intel® Socket 478 Pentium® 4 (Brookdale) 1.4GHz~2.4GHz+ with 400MHz / 533MHz Front Side Bus (FSB) designed for

Socket 478 technology.

Chipset

With Intel® 845E (Brookdale) chipset is designed for use with the Intel Pentium 4 processor and Northwood processor in the

478-pin package. The Intel 845E chipset Memory Controller Hub (MCH) component provides the processor interface, DRAM

interface, AGP interface, and Hub Interface in an Intel 845E desktop platform. It is optimized for the Intel Pentium 4 processor

and Northwood processor, supporting a single channel of DDR 200/266. Besides, it also supports the second generation I/O

Controller Hub (Intel ICH4) to provide the features required by a desktop platform.

Expansion Slots

Including six 32-bit/33MHz PCI, one CNR and one AGP 4X slots. The PCI local bus throughput can be up to 132MB/s. The

Communication & Nectworking Riser (CNR)

Accelerated Graphics Port (AGP)

data transfer rate up to 1056MB/s. AX4B Pro-533 motherboard includes one 1.5V AGP expansion slot with 4x SBA/Data

Transfer and 2x/4x Fast Write capability. For AD and SBA signaling, AX4B Pro-533 motherboard can support 4X mode.

specification provides a new level of video display sophistication and speed which supports

slot on AX4B Pro-533 supports CNR interface for a Modem/Audio card. The

Page 13

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Memory

Provides three 184-pin DDR SDRAM DIMM sockets that support up to 2GB of PC-200/266 compliant DDR SDRAM

(Synchronous Dynamic Random Access Memory). You may install 64, 128, 256, 512Mb and 1Gb DDR SDRAM DIMM modules

into each socket.

Ultra DMA 33/66/100/133 Bus Master IDE

Comes with an on-board PCI Bus Master IDE controller with four connectors that support eight IDE devices, and support Ultra

DMA 33/66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5. Besides, they also support Enhanced IDE

devices.

On-board AC’97 Sound

AX4B Pro-533 implements ALC650 AC97 sound chip. This on-board audio supports 5.1 channel and includes a complete audio

recording and playback system.

1MHz Stepping CPU Frequency Adjustment

Provides “1MHz Stepping CPU Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB

frequency from 100~248MHz by 1MHz stepping adjustment, and helps your system get maximum performance.

Watch Dog Timer

Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking.

Page 14

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Six USB ports

There are two connectors on the back panel and two USB headers on the board, providing you a total of six USB ports for USB

interface devices, such as mouse, keyboard, modem, scanner, etc. All six USB ports support USB2.0 with a faster speed of data

transmission than the traditional USB.

Dr. LED

Connecting Dr. LED you can easily diagnose the possible problem occurred through 8 LED lights.

AGP Protection Technology

With AGP Protection Technology implemented, this motherboard will automatically detect the voltage of AGP card and prevent

your chipsets from being burnt out.

Dr. Voice

Dr. Voice provides 4 language versions (English, Chinese, Japanese and German) that easily tell you the problem occured.

Specially tailored made for users, we have defaulted the language versions of Japanese market to Japanese only in order to

save users from the hassle of setting jumpers, and thus making motherboard a real jumper less design.

Page 15

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Power Management/Plug and Play

Supports the power management function that conforms to the power-saving standards of the U.S. Environmental Protection

Agency (EPA) Energy Star program. It also offers Plug-and-Play

system user-friendly.

, helping save users from configuration problems and makes the

Hardware Monitoring Management

Supports CPU or system fans’ status, temperature, voltage monitoring and alert through the on-board hardware monitor module.

Enhanced ACPI

The fully implemented ACPI standard is Windows® 98/ME/2000 series compatible; it also supports Soft-Off, STR (Suspend to

RAM, S3), STD (Suspend to Disk, S4) features.

Super Multi-I/O

Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. You can also

connect UART from COM1 to an Infrared Module for wireless connection.

Page 16

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM)

3. Connecting Front Panel Cable

4. Connecting IDE and Floppy Cable

5. Connecting ATX Power Cable

6. Connecting Back Panel Cable

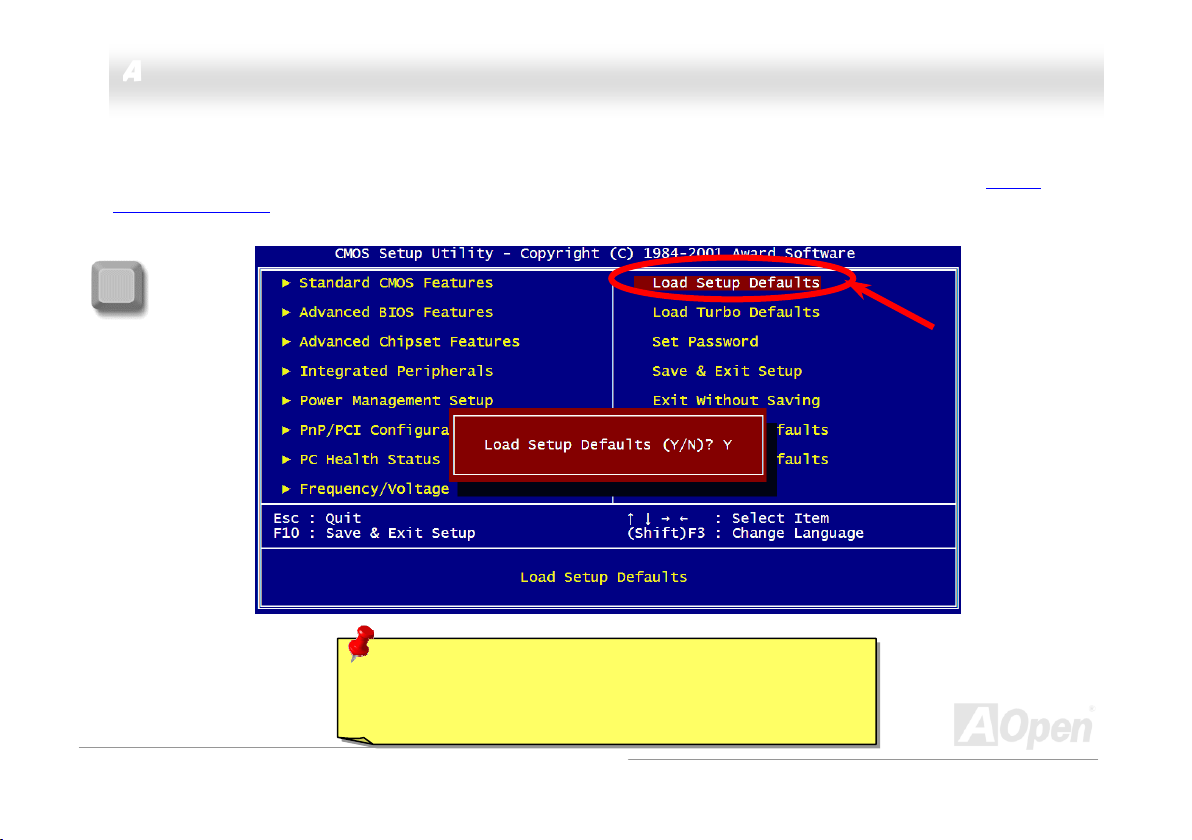

7. Power-on and Load BIOS Setup Default

8. Setting CPU Frequency

9. Reboot

10. Installing Operating System (such as Windows 98)

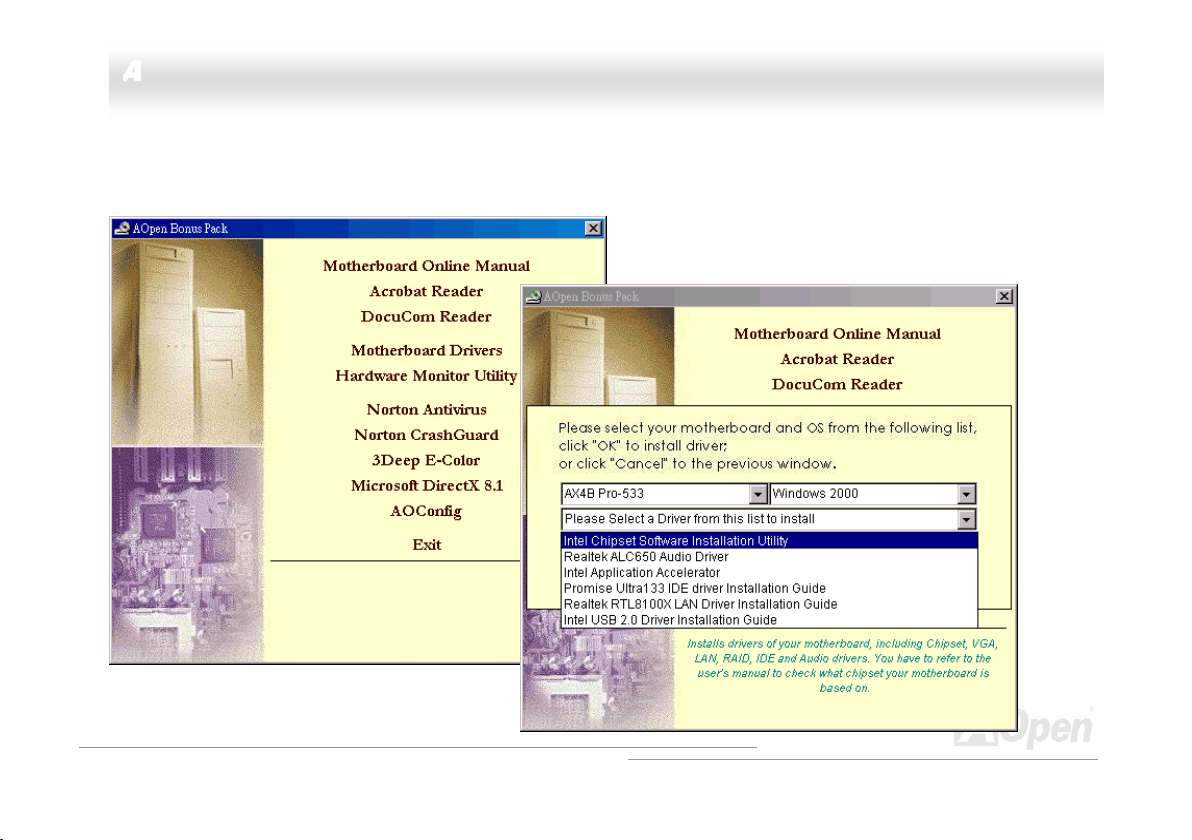

11. Installing Driver and Utility

Page 17

(

ATA/133 C

JP15 & JP16 D

per

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Realtek 8100BL LAN chi

Onboard AC’97 CODEC

SPDIF Connecto

Front Audio Connecto

CD-IN Connector

AUX-IN Connecto

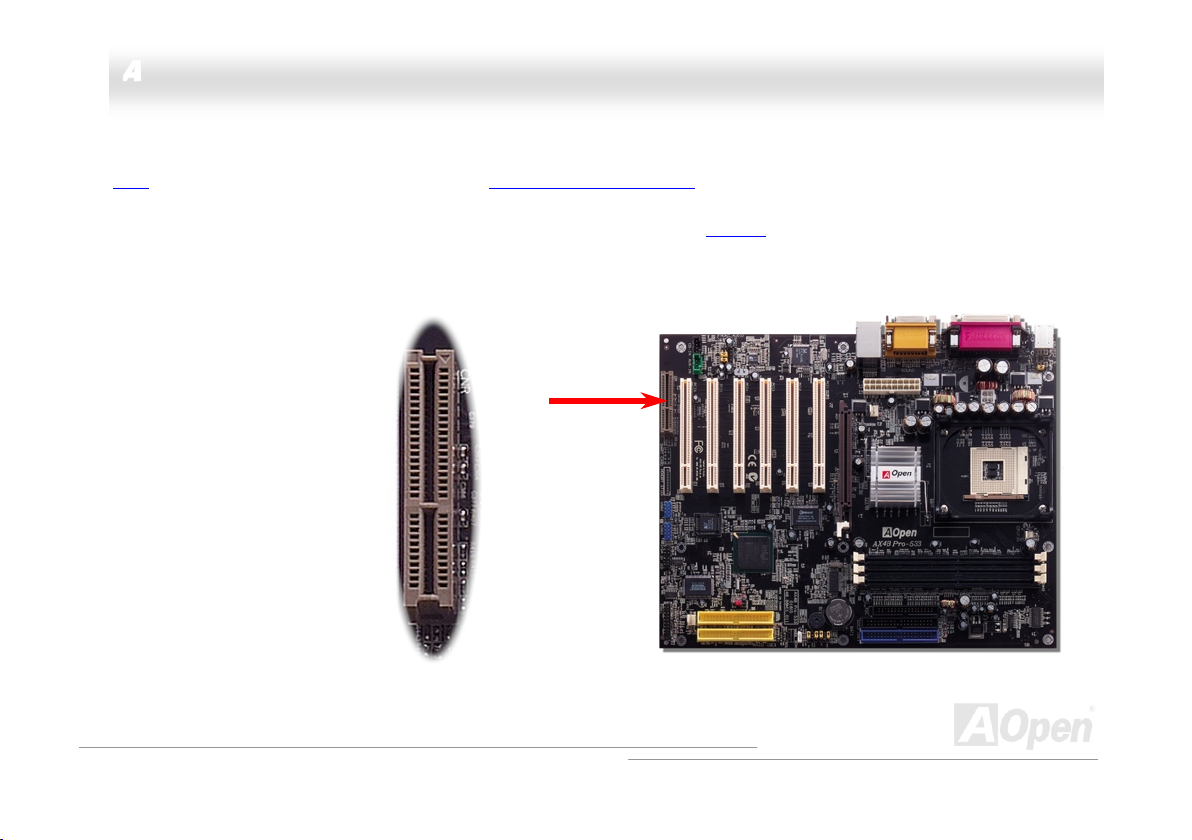

CNR Expansion Slot

32-bit PCI Expansion Slot x6

2nd & 3rd USB Connectors

Chassis Intrusion Connecto

JP14 CMOS Clear Jumpe

4MB Flash ROM BIOS

IrDA Connecto

Dr. LED Connecto

FAN3 Connecto

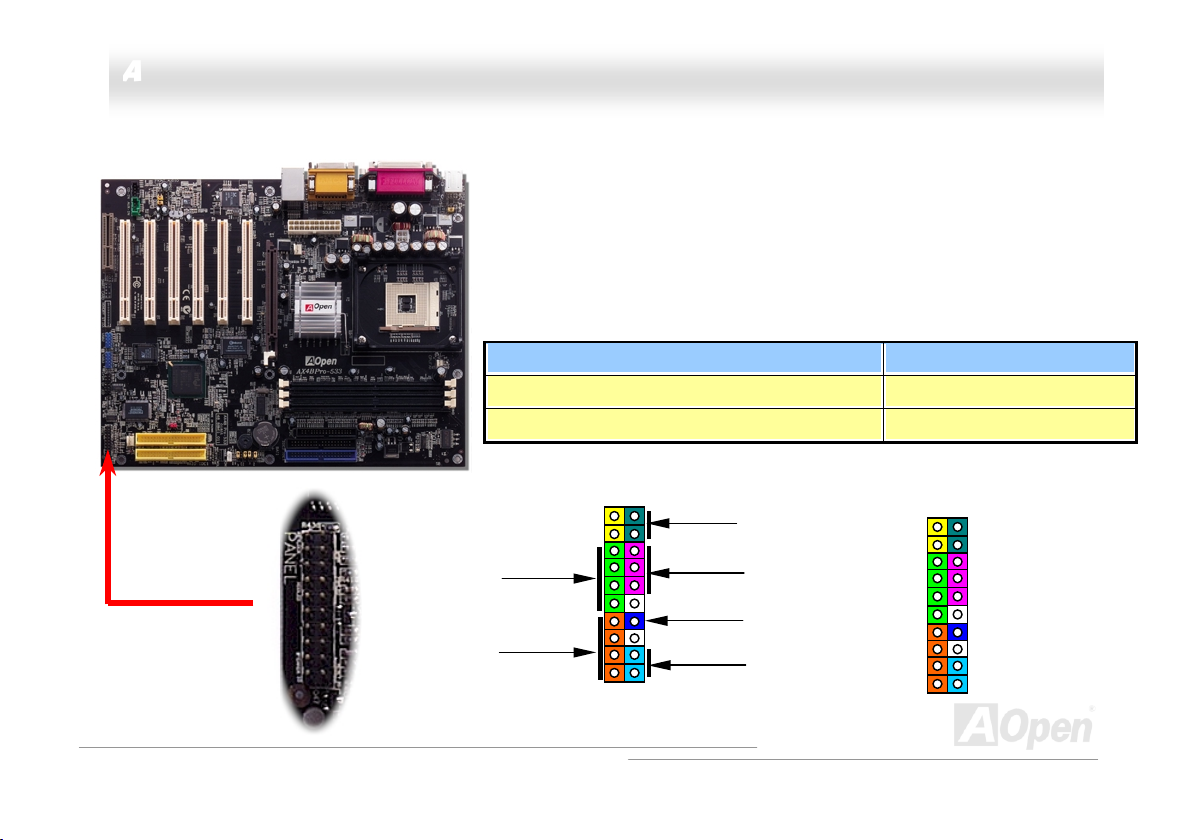

Front Panel Connecto

onnector x

WOM Connecto

WOL Connecto

Motherboard Map

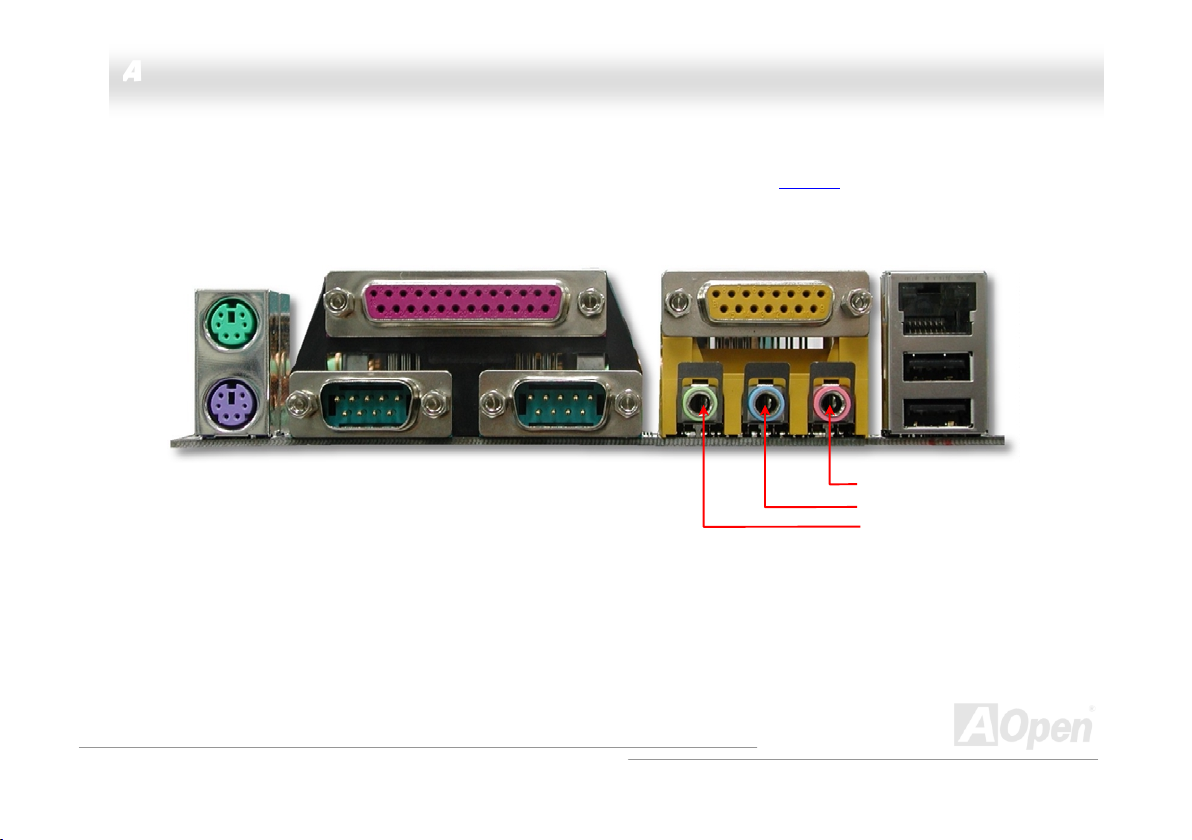

PC99 Colored Back Panel

Resettable Fuse JP28 Keyboard/Mouse Wakeup Enable/Disable Jum

TX Power Connector

4-pin 12V ATX Power Connector 3300μF Low ESR Capacitors

FAN2 Connecto

GP 4x Expansion Slot

for 1.5V AGP card)

478-pin CPU socket with Voltage and Frequency Auto-detection supporting Intel

1.4~2.4GHz+ CPU

845E chipset (Brookdale)

Intel CPU Fan Connector with H/W Monitoring Function

184-pin DIMM Socket x3 supporting DDR200/266 DDR SDRAM

FDD Connecto JP1 & JP2 Buzzer/Speaker Jumper

TA/33/66/100

IDE Connector x2

Select Jumper

Pentium® 4

r. Voice Language

Page 18

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

BBlloocckk DDiiaaggrraamm

Socket 478

Intel

Pentium 4

CPU

AGP 4X Slot

ATA133 IDE Drive x4

Primar y

Channel

Secondary

Channel

DIMM Socket x3

400MHz/533 MHz

System Bu s

Floppy Disk Drive x2

PC-200/266 DDR

SDRAM Up to 2GB

Intel 845E

MCH

Promise

20275

USB

Connector x3

PCI Bus

1stUSB Port

2ndUSB Port

3rdUSB Port

32-bit PCI Slot x6

ATA 33/66/100

Primary

Channel

Secondary

Channel

Intel ICH4

Low Pin

Count Super

I/O

AC97

CODEC

AC Link

Firmware Hub

4Mbit Flash EEPROM

Parallel Port

Serial Port x2

IDE Drive x4

CNR Slot

Page 19

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and

other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a

component. If a wrist strap is not available, maintain contact with the system unit throughout any

procedure requiring ESD protection.

Page 20

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAbboouutt ““OOppttiioonnaall”” aanndd ““UUppggrraaddee OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may find some functions are “Optional”,

and some “Upgrade Optional”. Although all AOpen motherboards include many amazing and powerful features, in some

situations, those powerful features are not commonly used by every user. Therefore, we changed some key features to

“Optional” for you to choose. With optional functions that can be upgraded by users, we define them “Upgrade Optional”. As for

those optional functions that can’t be upgraded by ourselves, we call them “Optional”. If needed, you can contact our local

distributors or resellers for purchasing “Upgrade Optional” components, and again you are welcomed to visit AOpen official web

site: www.aopen.com

for more detail information.

Page 21

(

)

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

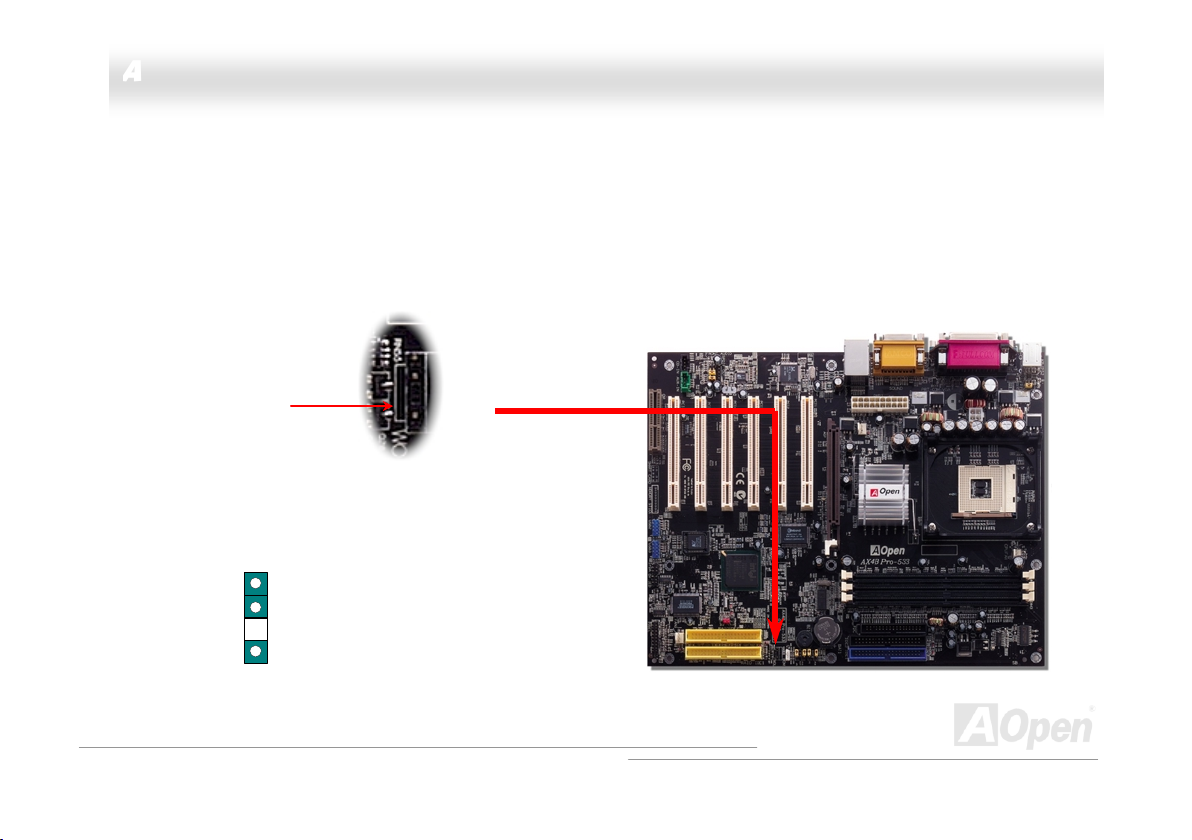

JJPP1144 CClleeaarr CCMMOOSS DDaattaa

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin1 & pin2.

5. Connect ATX power cable back to connector PWR2.

Clear CMOS

Normal

default

Pin 1

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

Page 22

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

CCPPUU IInnssttaallllaattiioonn

This motherboard supports Intel® Pentium 4 Socket 478 series CPU (Brookdale). Be careful of CPU orientation when you plug it

into CPU socket.

1. Pull up the CPU socket lever and

up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

Note: Those pictures are for example only; it may not exactly look the same with your motherboard.

CPU socket

Lever

CPU pin 1 and

cut edge

CPU cut edge

Page 23

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

3. Press down the CPU socket lever and finish CPU installation.

Note: This picture is for example only; it may not exactly look the same with your motherboard.

CPU cut edge

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well,

ou may damage the CPU.

Note: This socket supports

Micro-FC-PGA2 package CPU, the

latest CPU package developed by

Intel. Other forms of CPU package

are impossible to be fitted in.

Note: P4 CPU tends to produce highe

temperature; for better heat dissipation,

we recommend you to install this

motherboard with a bigger housing.

Besides, by doing so you can preven

components from colliding.

Page 24

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

CCPPUU FFaann IInnssttaallllaattiioonn

This motherboard comes with a retention module attached on the CPU socket when shipped; we strongly recommend you to

install AOpen special designed CPU Fan as shown below for better heat dissipation. Please install the CPU Fan according to

the following procedures.

1. Gently put the CPU Fan down on the

retention module with clips aligning correctly to the four corners.

2. Press down the four clips with force one by one on the retention module.

Clip

Page 25

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

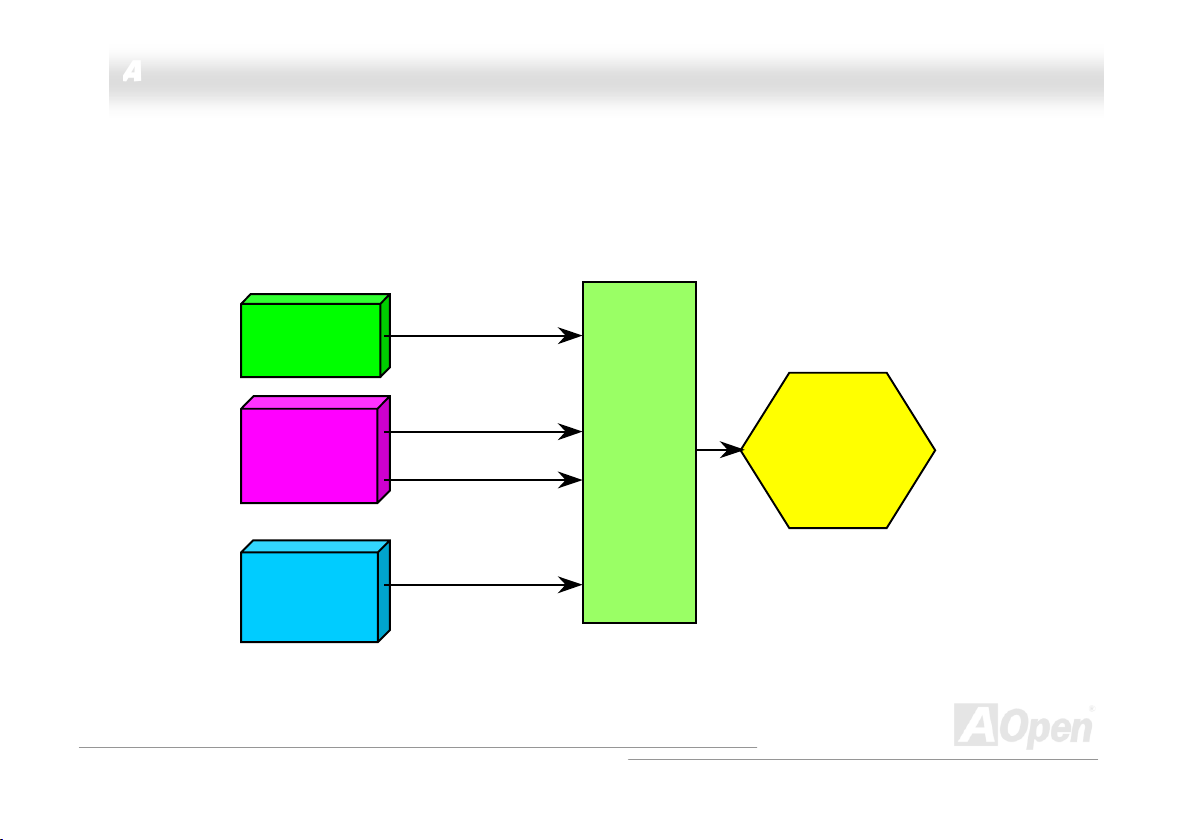

CCPPUU JJuummppeerr--lleessss DDeessiiggnn

CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency

through the BIOS setup

designs are eliminated. There will be no worry of wrong CPU voltage detection.

, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less

Intel® Socket 478

Pentium 4 CPU

CPU VID signal

Power Regulator

(Automatically generates CPU voltage)

CPU Freq. Ratio

CPU voltage

Clock

Generator

BIOS

Controlled

Circuit

Page 26

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAOOppeenn ““WWaattcchh DDoogg TTiimmeerr”

the system to reboot in five seconds. BIOS will detect the CPU’s default frequency and POST again. With this special feature,

you can easily overclock your system to get a higher system performance without removing the system housing and save the

hassle from setting the jumper to clear CMOS data when system hangs.

AOpen

Watch Dog

Timer

AOpen provides a special and useful feature on this motherboard for overclockers. When you

power-on the system, BIOS will check last system POST

enable “Watch Dog Timer” function immediately, and set the CPU FSB

user’s settings stored in BIOS. If system fails in BIOS POST, then “Watch Dog Timer” will reset

Enable/Disable Signal

”

from BIOS

Countdown about

5 seconds if fails

in POST

Reset Signal

Clock Generator

status. If it succeeds, the BIOS will

frequency according to

BIOS

CPU ID Signal

CPU

Page 27

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee

This function is dedicated to overclockers and supports Adjustable CPU Core Voltage from 1.10V to 1.85V. However, this

motherboard also automatically detects CPU VID signal and generates proper CPU core voltage.

SSeettttiinngg CCPPUU FFrreeqquueennccyy

BIOS Setup > Frequency/Voltage Control > CPU Clock Setting

You can set CPU frequency through the BIOS setup, and no jumpers or switches are needed to be set.

CPU Ratio

CPU FSB

Home

8x, 9x, 10x,…22x, 23x, 24x

100~248MHz by 1MHz stepping

Tip: If your system hangs or fails to boot because of

overclocking, simply use <Home> key to restore the

default setting or you can wait AOpen “Watch Dog Timer”

to reset the system after five seconds and the system will

auto-detect hardware again.

Page 28

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Core Frequency = CPU FSB Clock * CPU Ratio

PCI Clock = CPU FSB Clock / Clock Ratio

AGP Clock = PCI Clock x 2

Northwood CPU

Pentium 4

1.6G

Pentium 4

1.6G

Pentium 4

1.7G

Pentium 4

1.8G

Pentium 4

2.0G

Pentium 4

2.2G

Pentium 4

2.4G

Pentium 4

2.4G

CPU Core

Frequency

1600MHz 100MHz 400MHz 16x

1600MHz 133MHz 533MHz 12x

1700MHz 133MHz 533MHz 13x

1800MHz 100MHz 400MHz 18x

2000MHz 100MHz 400MHz 20x

2200MHz 100MHz 400MHz 22x

2400MHz 100MHz 400MHz 24x

2400MHz 133MHz 533MHz 18x

FSB

Clock

System

Bus

Ratio

Warning: Intel® 845E chipset supports maximum

400MHz (100MHz*4) / 533MHz (133MHz*4) system

bus and 66MHz AGP clock; higher clock setting may

cause serious system damage.

Willamette CPU

Pentium 4

1.5G

Pentium 4

1.6G

Pentium 4

1.7G

Pentium 4

1.8G

Pentium 4

1.9G

Pentium 4

2.0G

CPU Core

Frequency

1500MHz 100MHz 400MHz 15x

1600MHz 100MHz 400MHz 16x

1700MHz 100MHz 400MHz 17x

1800MHz 100MHz 400MHz 18x

1900MHz 100MHz 400MHz 19x

2000MHz 100MHz 400MHz 20x

FSB

Clock

System

Bus

Celeron CPU

1.7G 1700MHz 100MHz 400MHz 17x

1.8G 1800MHz 100MHz 400MHz 18x

CPU Core

Frequency

FSB

Clock

System

Bus

Note: Since the latest processor,

Northwood, would detect the clock ratio

automatically, you may not be able to

adjust the clock ratio in BIOS manually.

Ratio

Page 29

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

CCPPUU aanndd SSyysstteemm FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you can also plug it on FAN2 or FAN3

connector.

FAN2 Connector

CPU Fan Connector

GND +12V SENSOR

FAN3 Connector

Note: Some CPU fans do not have

sensor pin, so that they cannot

support hardware monitoring function.

Page 30

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

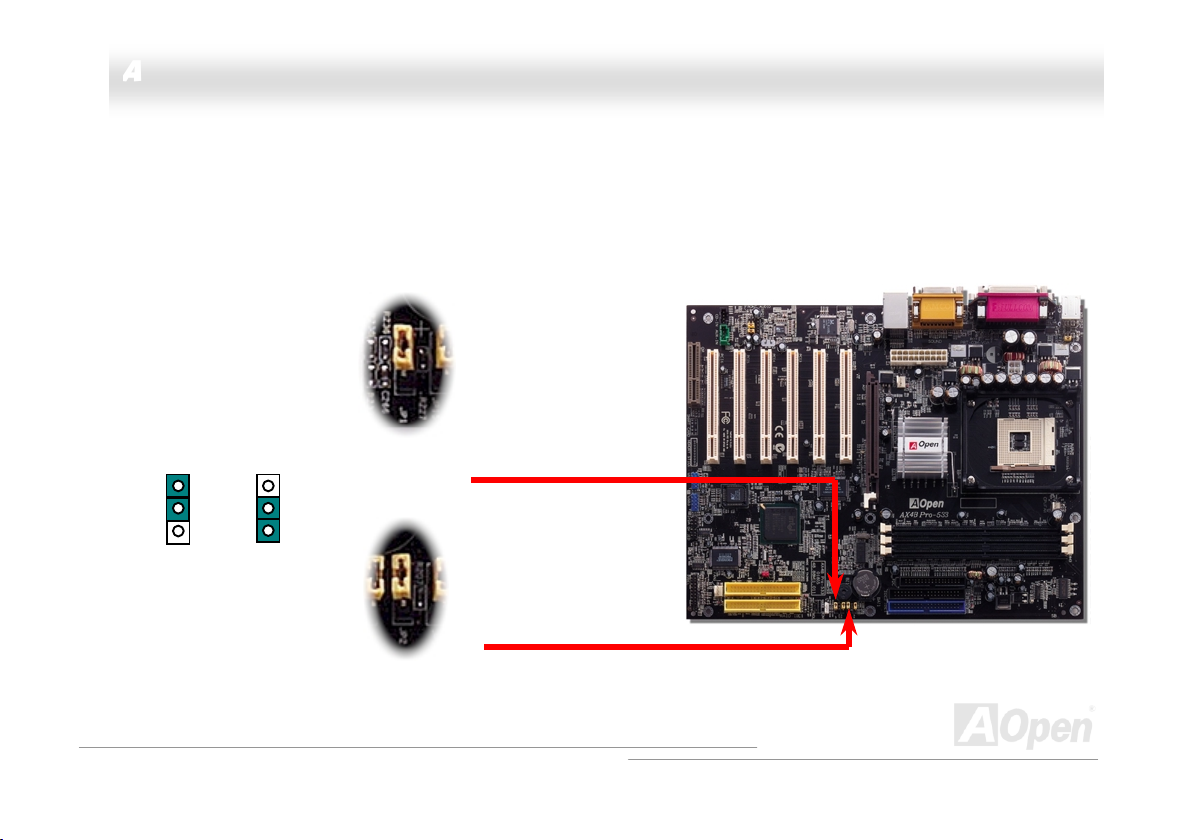

JJPP2288 KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp EEnnaabbllee//DDiissaabbllee JJuummppeerr

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which

could resume your system from suspend mode with keyboard or mouse. The factory default setting is set to “Disable”(1-2), and

you may enable this function by setting the jumper to 2-3.

Pin1

JP28

KB/Mouse Wake-up

Disable

(Default)

Enable

Page 31

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

DDIIMMMM SSoocckkeettss

This motherboard has three 184-pin DDR DIMM sockets that allow you to install PC1600 or PC2100 memory up to 2GB. Both

ECC and Non-ECC DDR SDRAM are supported, but you can’t install them both on DIMM at the same time. Otherwise, serious

damage on memory sockets or SDRAM module may be caused. Please note that double-side DDR SDRAM is not allowed to be

installed on both DIMM2 and DIMM3.

DIMM1 DIMM2 DIMM3

DIMM 1

DIMM 2

DIMM 3

Single-Side

DDR SDRAM

V V

Suggested Installation

Double-Side

DDR SDRAM

Install ONLY on either

slots

Page 32

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely

in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Pin 1

Ta b

Key

52 pins 40 pins

Pin 1

Note: The tabs of the DIMM slot

will close-up to hold the DIMM in

place when the DIMM touches

the slot’s bottom.

Page 33

V+5V

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell CCoonnnneeccttoorr

Attach the power LED, Keylock, speaker, power and reset switch connectors t

the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, th

ACPI & Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female

connector from the housing front panel. Plug this connector to the soft-power

switch connector marked SPWR.

Suspend Type ACPI LED

Power on Suspend (S2) or Suspend to RAM (S3) Flashing for every second

Suspend to Disk (S4) The LED will be turned off

IDE LED

Speaker

SPWR

CPI & PWR

LED

CPI LED (BLUE)

Reset

KEYLOC

SPEAKER

GND

+5 IDE LED IDE LED

GND

5VSB

SPWR ACPILED -

GND

ACPILED+

NC ACPI_B

GND

RESET

GND

Page 34

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AATTXX PPoowweerr CCoonnnneeccttoorr

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly

recommend you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard

power supply specially designed for Pentium 4 system.

4-Pin 12V ATX Power Connector

20-Pin Power Connector

Page 35

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system remains at power off stage when AC power resumes from power failure. This design is inconvenient for

a network server or workstation without an UPS. This motherboard implements an AC Power Auto Recovery function to solve

this problem.

Page 36

(

)

(

)

(

)

(

)

(

)

(

)

(

)

(

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and IDE connector. Be careful of the pin1

orientation. Wrong orientation may cause system damage.

ATA/133 IDE 2

Slave (4th)

ATA/133 IDE 2

Master

3rd

FDD Connector

ATA 33/66/100 IDE

Connecto

Secondary

4th

Slave

ATA/133 IDE 1

2nd

Slave

Secondary

Master

3rd

IDE2 (Secondary)

IDE1

Primar

ATA/133 IDE 1

Maste

1st

Primary

Slave

2nd

Primary

Master

1st

Page 37

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that

make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and

Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on

your IDE device, so please refer to your hard disk and CDROM manual accordingly.

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches);

make sure your cable does not exceed this length.

Tip:

1. For better signal quality, it is recommended to set the far end side device to

master mode and follow the suggested sequence to install your new

device. Please refer to above diagram

2. To achieve the best performance of Ultra DMA 66/100/133 hard disks, a

special 80-wires IDE cable for Ultra DMA 66/100/133 is required.

Page 38

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AATTAA//113333 SSuuppppoorrtteedd

This motherboard supports ATA6 6, ATA100 or ATA133 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes. As the hard drive industry introduces faster and higher capacity hard drives, the current Ultra ATA/100 interface causes a data bottleneck between the drive and the host computer. To avoid this problem, hard disk manufactures have introduced the new Ultra ATA-133 interface technology. traditional ATA/100, ATA/133 has up to 33 percent increase in interface speed with transfer rate of 133MB/s. ATA/133 performance is ideal for new operating systems, such as Window XP, that demand more storage space and faster data transfer rates from more responsive computing experiences.

To make good use of this new technology and enjoy its best performance, we recommend you to pair your system with a hard disk equipped with ATA/133 technology so that your system's need for speed on this motherboard can be satisfied.

Mode Clock Period Clock Count Cycle Time Data Transfer Rate

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s

PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s

PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s

PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s

PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s

DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s

DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

ATA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s

ATA 100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s

ATA 133 15ns 2 30ns (1/30ns) x 2byte x2= 133MB/s

Compared to

Page 39

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as

Laplink or Windows 95 Direct Cable Connection, user can transfer files to or from laptops, notebooks, PDA devices and printers.

This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure

when you plug the IrDA connector in right orientation.

+5V

IR_TX

IIrrDDAA CCoonnnneeccttoorr

KEY

GND IR_RX

Pin 1

Page 40

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

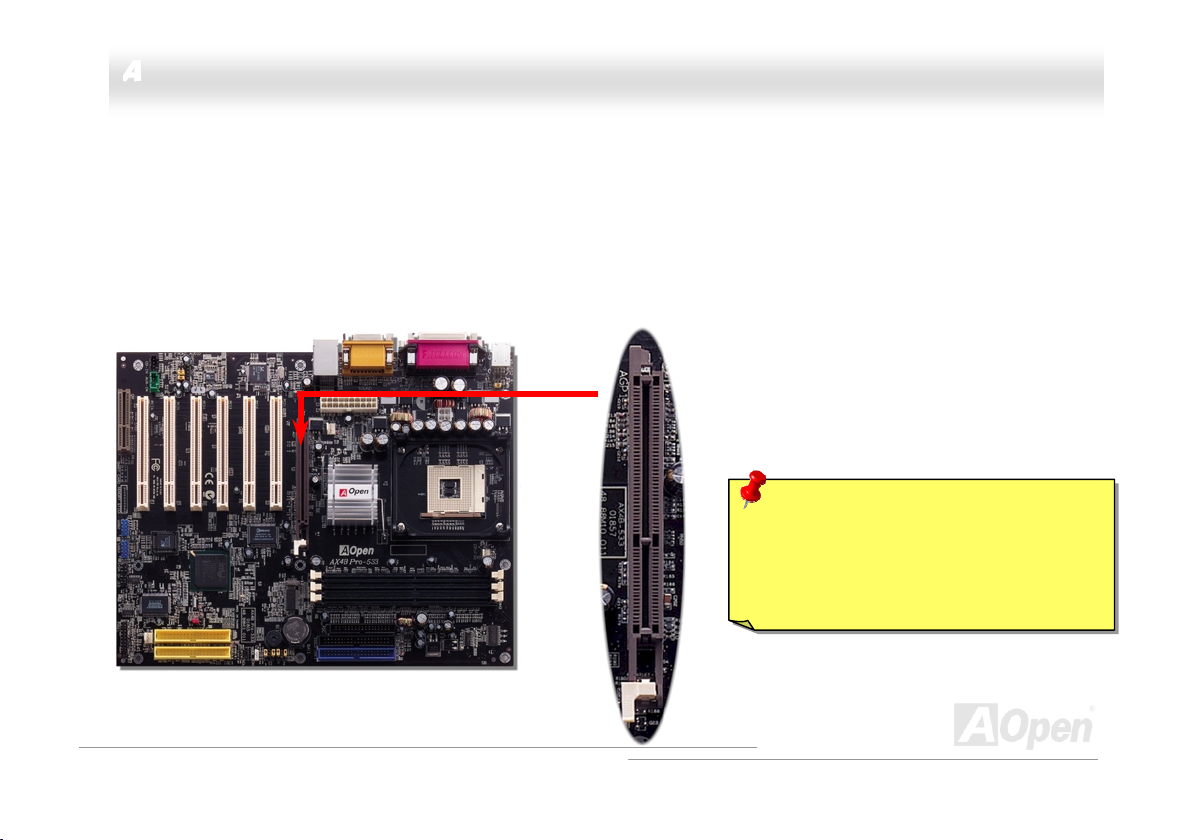

AAGGPP EExxppaannssiioonn SSlloott

The AX4B Pro-533 provides an AGP 4x slot. AGP 1x2x4x is a bus interface targeted for high-performance 3D graphic. AGP

supports memory read/write operation and single-master single-slave one-to-one only. It uses both rising and falling edge of the

66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving to AGP 4x mode, 66MHz

x 4bytes x 4 = 1056MB/s. And this AGP expansion slot supports 1.5V AGP card only.

Page 41

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

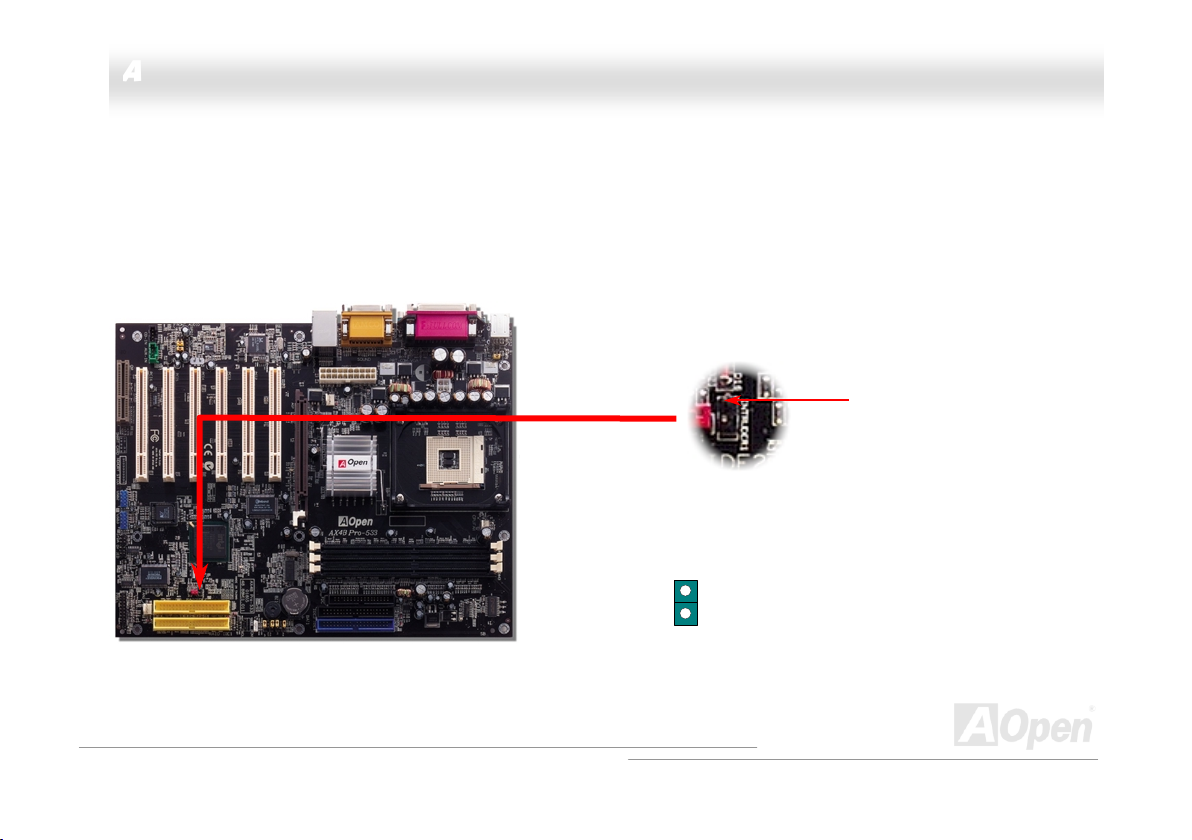

AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy

With the outstanding R&D ability of AOpen and its specially developed circuit, AX4B Pro-533 implements a blend new

technology to protect your motherboard from being damaged by over-voltaging of AGP card. When AGP Protection Technology

is implemented, this motherboard will automatically detect the voltage of AGP card and prevent your chipsets from being burnt

out. Please note that if you install a AGP card with 3.3V, which is not supported by Intel 845E, the LED2 on the motherboard will

light up to warn you the possible damage of the exceeding voltage. You may contact your AGP card vendor for further support.

Warning: It is strongly recommended not

to install a 3.3V AGP card, which is not

supported by Intel 845E. When you do so,

the LED2 on the motherboard will light up

to warn you the possible damage.

Page 42

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

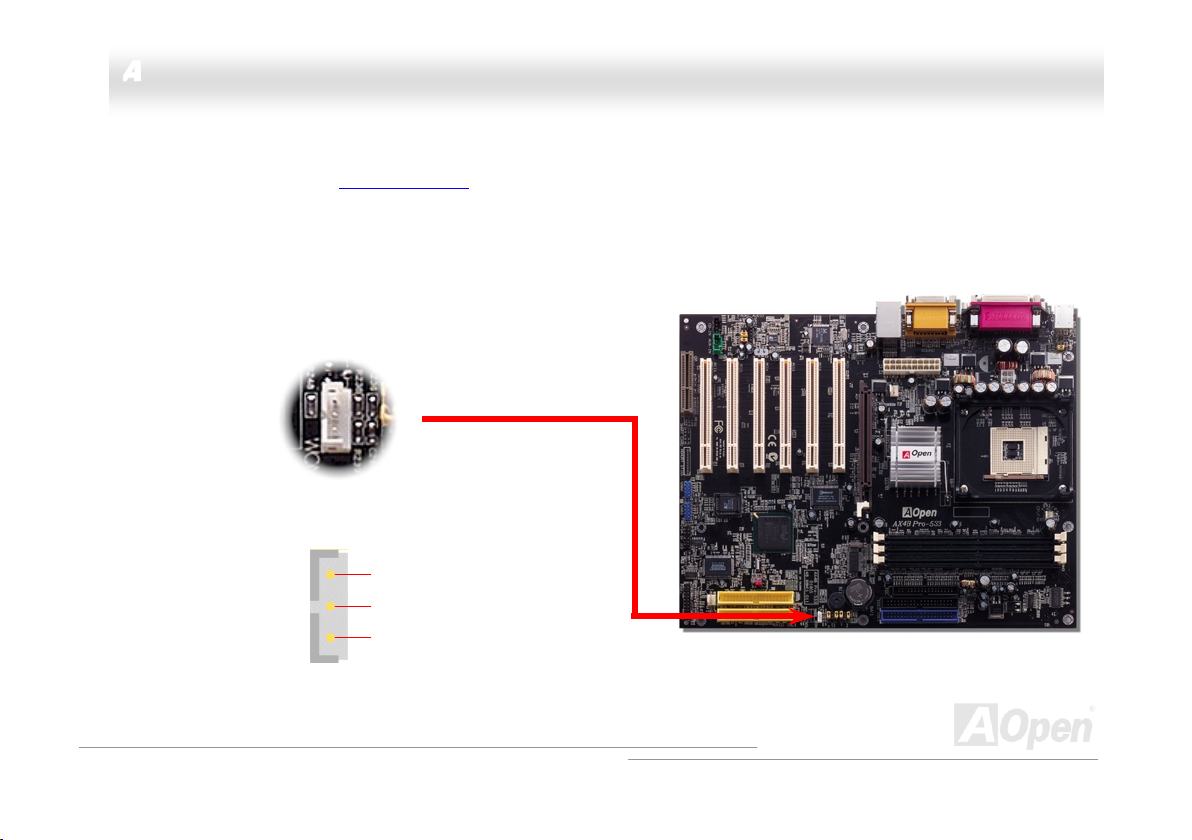

WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm)) CCoonnnneeccttoorr

TThhiiss mmootthheerrbbooaarrdd iimmpplleemmeennttss ssppeecciiaall cciirrccuuiitt ttoo ssuuppppoorrtt WWaakkee OOnn MMooddeemm;; bbootthh IInntteerrnnaall mmooddeemm ccaarrdd aanndd eexxtteerrnnaall bbooxx mmooddeemm

aarree ssuuppppoorrtteedd.. SSiinnccee IInntteerrnnaall mmooddeemm ccaarrdd ccoonnssuummeess nnoo ppoowweerr wwhheenn ssyysstteemm ppoowweerr iiss ooffff,, iitt iiss rreeccoommmmeennddeedd ttoo uussee aann iinntteerrnnaall

mmooddeemm.. TToo uussee iinntteerrnnaall mmooddeemm,, ccoonnnneecctt 44--ppiinn ccaabbllee ffrroomm RRIINNGG ccoonnnneeccttoorr ooff mmooddeemm ccaarrdd ttoo WWOOMM ccoonnnneeccttoorr oonn tthhee

mmootthheerrbbooaarrdd..

Pin 1

GND

RI-

+5VSB

WWOOMM CCoonnnneeccttoorr

WOM Connector

Page 43

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem

TTrraaddiittiioonnaall GGrreeeenn PPCC ssuussppeenndd mmooddee ddooeess nnoott rreeaallllyy ttuurrnn ooffff tthhee ssyysstteemm ppoowweerr ssuuppppllyy,, iitt uusseess eexxtteerrnnaall bbooxx mmooddeemm ttoo ttrriiggggeerr MMBB

CCOOMM ppoorrtt aanndd rreessuummee bbaacckk ttoo aaccttiivvee..

Note: This picture is for example only; it may not look exactly the same as the motherboard you purchased.

Serial Port

(Modem Side)

Pin 1

Serial Port

(Motherboard Side)

Page 44

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd

WWiitthh tthhee hheellpp ooff tthhee AATTXX ssoofftt ppoowweerr OOnn//OOffff,, iitt iiss ppoossssiibbllee ttoo hhaavvee aa ssyysstteemm ttoottaallllyy ppoowweerr ooffff,, aanndd wwaakkeeuupp ttoo aauuttoommaattiiccaallllyy aannsswweerr

aa pphhoonnee ccaallll aass aann aannsswweerriinngg mmaacchhiinnee oorr ttoo sseenndd//rreecceeiivvee aa ffaaxx.. YYoouu mmaayy iiddeennttiiffyy wwhheetthheerr oorr nnoott yyoouurr ssyysstteemm iiss iinn ttrruuee ppoowweerr ooffff

mmooddee bbyy cchheecckkiinngg ttoo sseeee iiff tthhee ffaann ooff yyoouurr ppoowweerr ssuuppppllyy iiss ooffff.. BBootthh aann eexxtteerrnnaall bbooxx mmooddeemm aanndd aann iinntteerrnnaall mmooddeemm ccaarrdd ccaann bbee

uusseedd ttoo ssuuppppoorrtt MMooddeemm WWaakkee UUpp,, bbuutt iiff yyoouu uussee aann eexxtteerrnnaall mmooddeemm,, yyoouu hhaavvee ttoo lleeaavvee yyoouurr bbooxx mmooddeemm oonn..

Note: This picture is for example only; it may not look exactly the same as the motherboard you purchased.

Page 45

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

WWOOLL ((WWaakkee oonn LLAANN))

This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must

have a network card with a chipset supporting this feature, and connect a cable from LAN card to motherboard WOL connector.

The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the

Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. Note

that, at least 600mA ATX standby current is required to support the LAN card for this function.

WWOOLL CCoonnnneeccttoorr

LID

GND

+5VSB

Page 46

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

WOL Connector

(Motherboard Side)

Note: This picture is for example only; it may not look exactly the same as the motherboard you purchased.

WOL Connector

(Ethernet Card Side)

Page 47

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

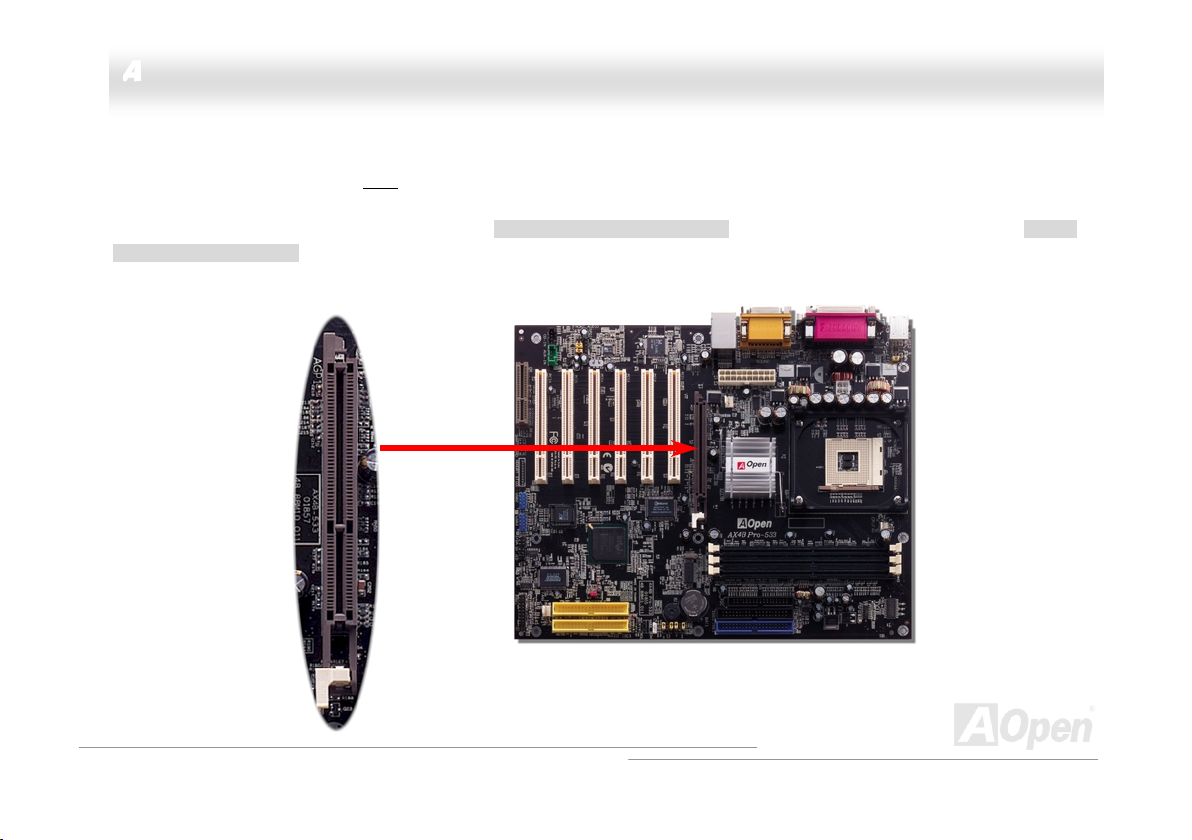

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr)) EExxppaannssiioonn SSlloott

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel

audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be

implemented in main chipset and share CPU power. The analogy conversion (CODEC) circuit requires a different and separate

circuit design, which is put on CNR card. This motherboard implements sound CODEC on board, but reserve CNR slot for the

option of modem function. Note that you can still use PCI modem card.

Page 48

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

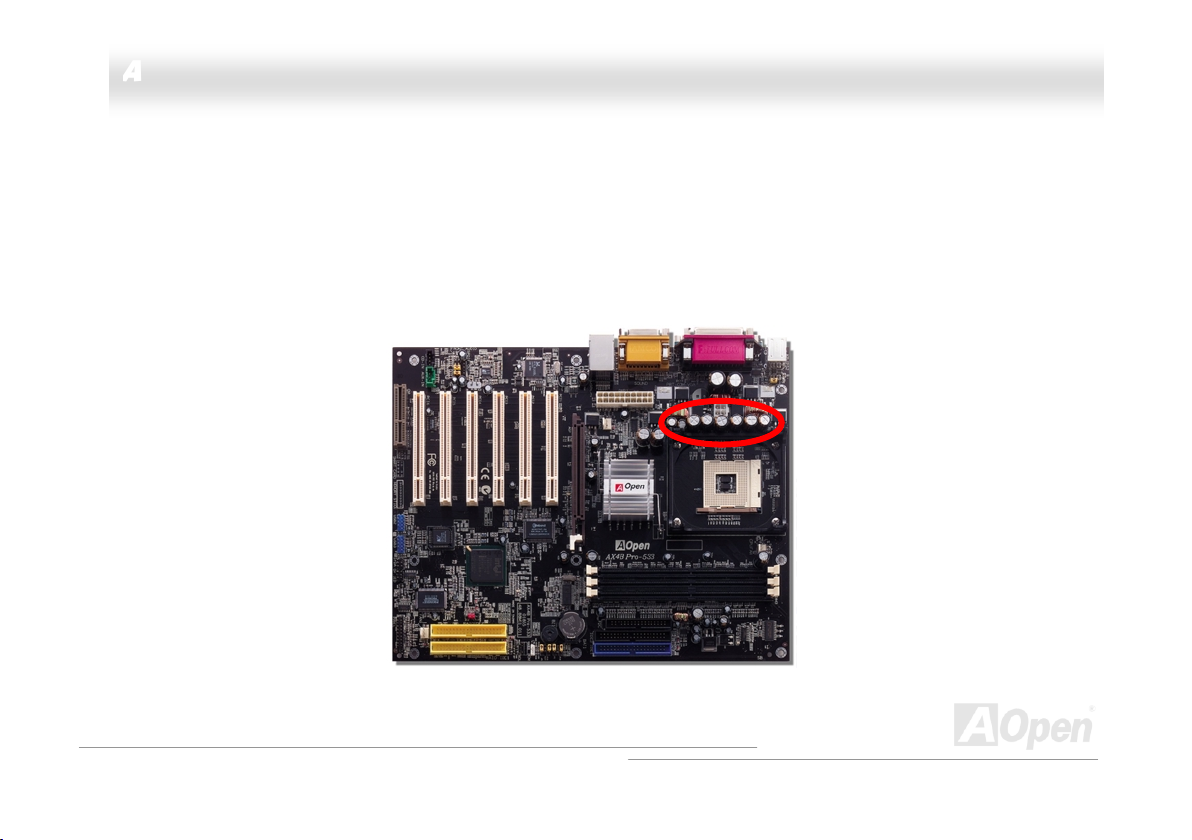

PPCC9999 CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1 and COM2, Printer, six USB, AC97 sound and game ports.

The view angle of drawing shown here is from the back panel of the housing.

PS/2 Mouse

Connector

SPP/EPP/ECP

Parallel Port

MIDI/Game Port

LAN Connector

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug. PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1/COM2 Port: To connect with pointing devices, modem or others serial devices. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone. MIDI/Game Port: For 15-pin PC joystick, game pad or MIDI devices.

PS/2 Keyboard

Connector

COM 1 Port

COM 2 Port

USB Connectors

MIC-In

Line-In

Speaker Out

Page 49

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

nnd

+5V SBD3SBD3+ GND NC

aanndd 3

SSuuppppoorrtt 2

This motherboard provides six USB ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There are two

connectors on the PC99 back panel. You can use proper cables to connect USB devices from PC99 back panel or connect

USB2 and USB3 headers to the front panel of chassis.

Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps which is 40 times

faster than the traditional one. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals,

offering impressive and even better compatibility to customers. On this motherboard, all six ports support USB 2.0 function.

+5V

SBD2-

SBD2+

GND

KEY

rrd

UUSSBB 22..00 PPoorrttss

Pin 1

Pin1

USB2 Connector

Page 50

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

CChhaassssiiss IInnttrruussiioonn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in

the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or

by the opening of the chassis, the system will beep to inform you. Please be informed that this useful function only applies to

advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this function.

Pin1

Sensor

GND

Page 51

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

GND

CCDD--IINN CCoonnnneeccttoorr

Note: Though some of the latest versions of Windows

support “Digital Audio” through IDE bus. However, in

order to use Open Jukebox player, which is driven

under BIOS, it is a MUST to connect audio cable to

CD-IN connector on the motherboard.

Page 52

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

GND

UUXX--IINN CCoonnnneeccttoorr

Page 53

)

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoorr

S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive quality through optical fiber

and allows you to enjoy digital audio instead of analog. Normally there are two S/PDIF outputs as shown, one for RCA connector,

the most common one used for consumer audio products, and the other for optical connector with a even better audio quality.

Through a specific audio cable, you can connect the S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output.

However, you must have a S/PDIF supported speaker with S/PDIF digital input to make the most of this function.

+5V NC SPDIFOUT GND SPDIFIN

S/PDIF IN (RCA

Pin1

S/PDIF Module

(User Upgrade Optional)

S/PDIF Cable

Page 54

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt

This motherboard comes with an ALC650 Codec which supports high quality of 5.1 Channel audio effect, bringing you a brand

new audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround

audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus

Pack CD as well as an audio application supporting 5.1 Channel. Picture below represents the standard location of all speakers

in 5.1 Channel sound track. Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug

to the blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.

Page 55

’

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel

through this connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable.

Do not remove this yellow jumper cap if your housing doesn’t have an audio port on the front panel.

AUD_MIC_BIAS AUD_FPOUT_R

AUD_FPOUT_L

Pin 1

AUD_MIC

UD_GND UD_VCC UD_RET_R

KEY

UD_RET_L

Note: Please remove the jumper cap from the front audio connector before

ou connect the cable. Do not remove this yellow jumper cap if your housing

doesn

t have an audio port on the front panel.

Page 56

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

DDrr.. LLEEDD CCoonnnneeccttoorr

Connecting Dr. LED you can easily find the system problems that may occur while assembling. It can clearly indicate whether

the problem is caused from components or improper installation through the 8 LED lights of Dr. LED on the front panel. That is

to say you can diagnose your system status quickly.

Pin 1

1 2

3.3V NC

GND

5 6

Page 57

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

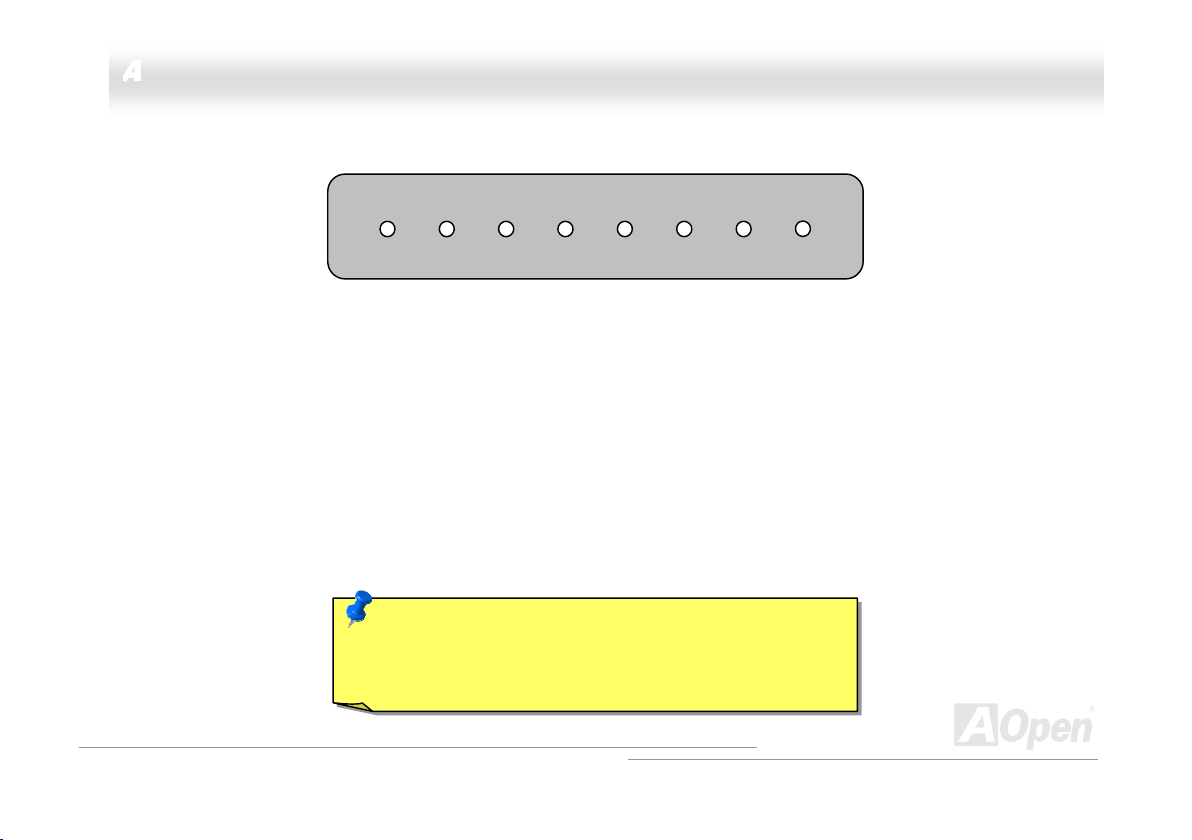

Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive,

so that it can be mount into normal 5.25 in drive bay of any housing.

The total 8 LEDs light up alternatively if the system fails in one of eight stages. Once the LED7 (latest LED) is lit, this indicates

that the system has completed its boot-up procedure.

The 8 LEDs indicate the following messages when lit:

LED 0 - Indicates that the CPU may have been installed incorrectly or is damaged.

LED 1 - Indicates that the memory may have been installed incorrectly or is damaged.

LED 2 - Indicates that the AGP may have been installed incorrectly or is damaged.

LED 3 - Indicates that the PCI card may have been installed incorrectly or is damaged.

LED 4 - Indicates that the floppy disk drive may have been installed incorrectly or is damaged.

LED 5 - Indicates that the HDD may have been installed incorrectly or is damaged.

LED 6 - Indicates that the keyboard may have been installed incorrectly or is damaged.

LED 7 - Indicates that the system is OK.

7654 3210

Boot O.K. KB HDD

Floppy

CPUVideo MemoryPCI

Note: During POST (Power On Self Test) procedure, the

Debug LED will light on sequentially from LED0 to LED7 until

the system boot O.K

Page 58

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

JJPP1155//JJPP1166 DDrr.. VVooiiccee LLaanngguuaaggee SSeelleecctt JJuummppeerrss

Dr. Voice is a great feature of AX4B Pro-533, which can identify the problems you may encounter in the operating system. It can

clearly “tell you” whether the problem is caused from components or improper installation such as CPU, memory module, VGA,

PCI add-on card, FDD, HDD or keyboard. Dr. Voice provides four language versions: English, German, Japanese and Chinese.

You can select your preferred language by JP15 & JP16 jumpers. However, if you want to disable this function, you may also

adjust both JP1 and JP2 and set them to pin 2-3 to disable the buzzer and speaker from making out voices.

JP15

JP16

English

(Default)

JP15 Pin 1

Chinese

Dr. Voice Language

Select Jumper

Japanese German

JP16 Pin 1

Page 59

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

JJPP11 BBuuzzzzeerr aanndd JJPP22 SSppeeaakkeerr EEnnaabbllee//DDiissaabbllee JJuummppeerrss

This motherboard comes with another considerate option that allows you to turn off the voice from buzzer and speaker. You can

choose not to be bothered by the warning made from Dr. Voice when it detects any error in operating system. To disable this

function, set JP1 and JP2 to pin 2-3 to stop both the buzzer and speaker from sending out voices.

Enable (Default)

Disable

JP1 (Buzzer)

JP2 (Speaker)

Page 60

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Auto Switch

RTC

CMOS

Battery ATX Stand-by Power

uto switching to ATX standby

power as long as AC power line is

plugged. This smart design

increases battery life if you still plug

battery on motherboard.

Backup by EEPROM

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements a Flash ROM and a special circuit that provide you no batter power consumption of current CPU

and CMOS Setup configurations. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you

lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as

usual.

Flash

ROM

(Real Time Clock)

00:00:00

Page 61

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

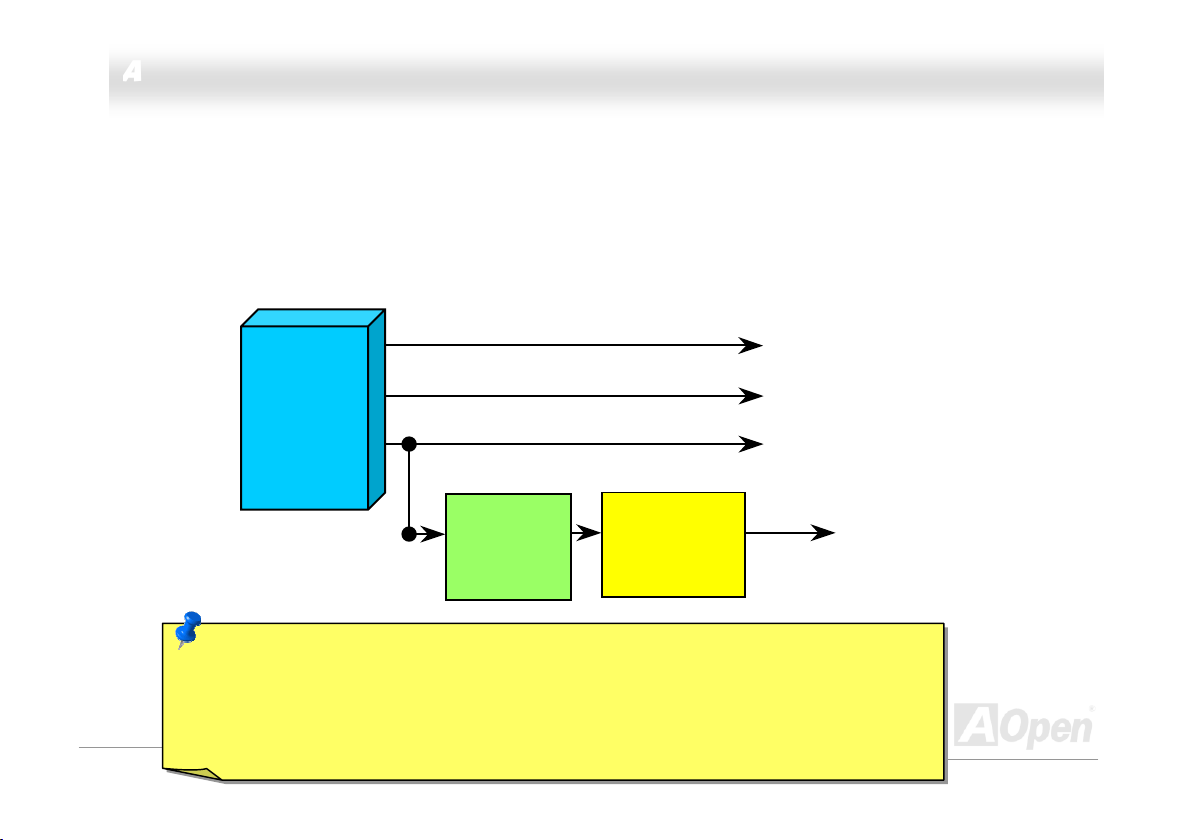

OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

The Over Current Protection is a popular implementation on ATX 3.3V/5V/12V switching power supply. However, the new

generation CPU uses different voltage with a regulator to transfer 12V to CPU voltage (for example, 2.0V), and thus makes 5V

over current protection useless. This motherboard is with switching regulator onboard supporting CPU over-current protection; in

conjunction with 3.3V/5V/12V power supply provide the full line over-current protection.

Note: Although we have implemented protection circuit and tried to prevent any human operating

mistake, certain risks might still happen when CPU, memory, HDD or add-on cards installed on

this motherboard is damaged due to component failure, human operating error or other unknown

natural reasons. AOpen cannot guarantee that the protection circuit will always work

erfectly.

ATX

Switching

Power

Supply

3.3V (Protected by power supply)

5V (Protected by power supply)

12V (Protected by power supply)

Onboard

Power

Regulator

Over-Current

Protection

Circuit

CPU Core Voltage

Page 62

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

HHaarrddwwaarree MMoonniittoorriinngg

This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will monitor your

system’s working voltage, fan status and CPU temperature. If any of those systems’ status goes wrong, there will be an alarm

through the chassis external speaker or buzzer of motherboard (if having this function and enabled) to warn the user.

Fan

CPU

Power

Fan Speed

CPU Temperature

CPU Voltage

System Voltage

Detection

Circuit

AOpen H/W

Monitoring

Utility

Page 63

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

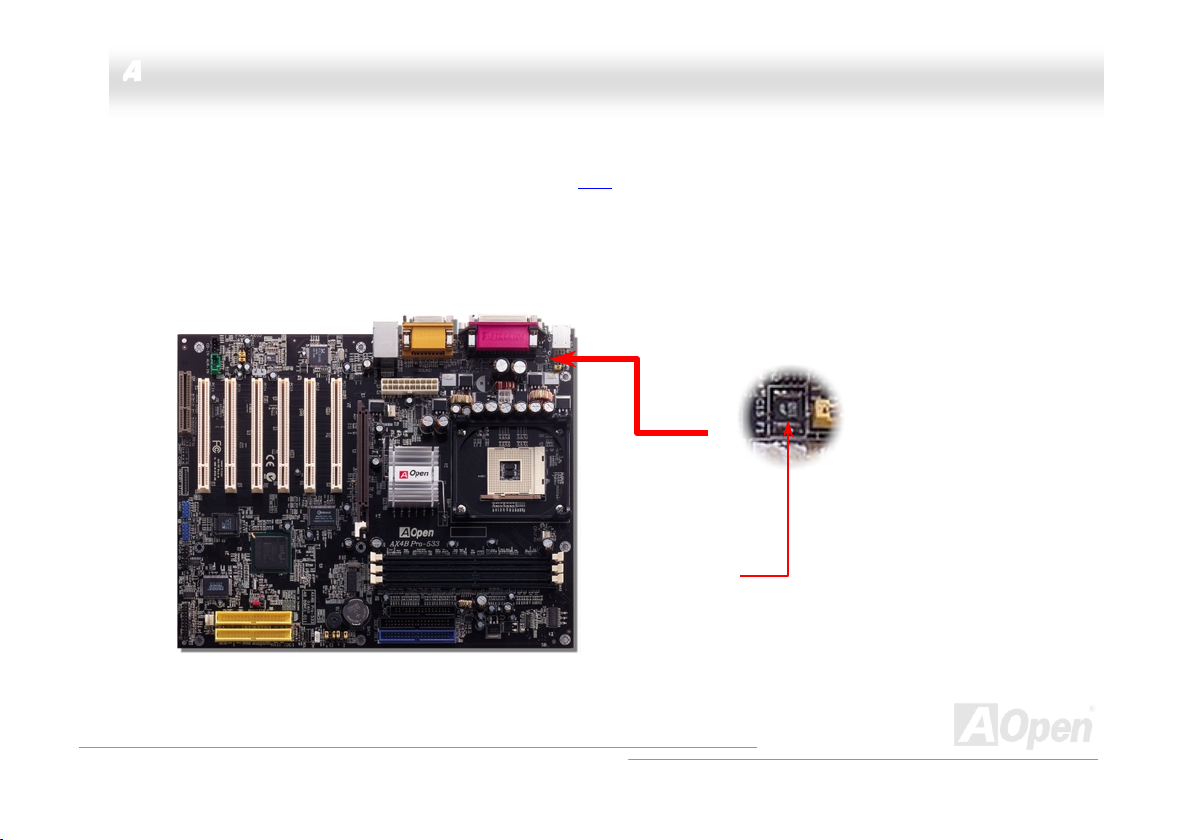

RReesseettttaabbllee FFuussee

Traditional motherboard uses fuses to prevent Keyboard and USB port from over-current or shortage. These fuses are soldered

onboard that when it is broken (function to protect motherboard), user cannot replace them and result in malfunction of

motherboard.

With expensive Resettable Fuse, the motherboard can be resumed back to normal function even after the fuse had done its

protection job.

Resettable

Fuse

Page 64

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

3333000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the

stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail

calculation.

Moreover, AX4B Pro-533 implements 3300μF capacitors that have much larger capacity than normal capacitor (1000 and 1500

μf) and provide better stability for CPU power.

μμμμ

FF LLooww EESSRR CCaappaacciittoorr

Page 65

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset are important for system reliability. Enlarged aluminum heat sink provides better heat consumption

especially when you are trying to over-clock the CPU.

Page 66

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

OOppeenn JJuukkeeBBooxx PPllaayyeerr

Here we are pleased to provide you a brand-new powerful interface—Open JukeBox. Without

any cost you can have your PC turn into a fashionable CD player! This latest Open JukeBox

motherboard aims at helping you directly operate your CD player on the PC without any hassle of entering Windows operation

system.

Page 67

play

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

How Your Open JukeBox Works

The operation of Open JukeBox Player is the same as other CD players. By pressing specific keys on the keyboard you will find

playing Open JukeBox Player couldn’t be easier than the traditional CD Players. Below is the function description of respective

buttons.

Power-Off Button

Operation S

Boot to

Power: Pressing O Boot: Pressing B Play: Pressing A Stop: Pressing S Pause: Pressing P Eject: Pressing E Repeat: Like other CD Players, pressing R Volume +/-: Pressing + or – to adjust the volume of playing music.

stem

to directly power off your computer with no hassle of entering Windows Operation System. to intelligently boot to Windows Operation System for you. to start playing CD music. to stop the music playing. to pause the music playing temporarily. to eject CD tray for you to change CD.

to shift the repeat mode.

Rewind/Forward  / : Pressing arrow keys, to rewind or forward the music.

Note: Though some of the latest

versions of Windows support “Digital

udio” through IDE bus. However, in

order to use Open Jukebox player,

which is driven under BIOS, it is a

MUST to connect audio cable to CD-IN

connector on the motherboard.

Dis

Function Key

Screen

Page 68

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

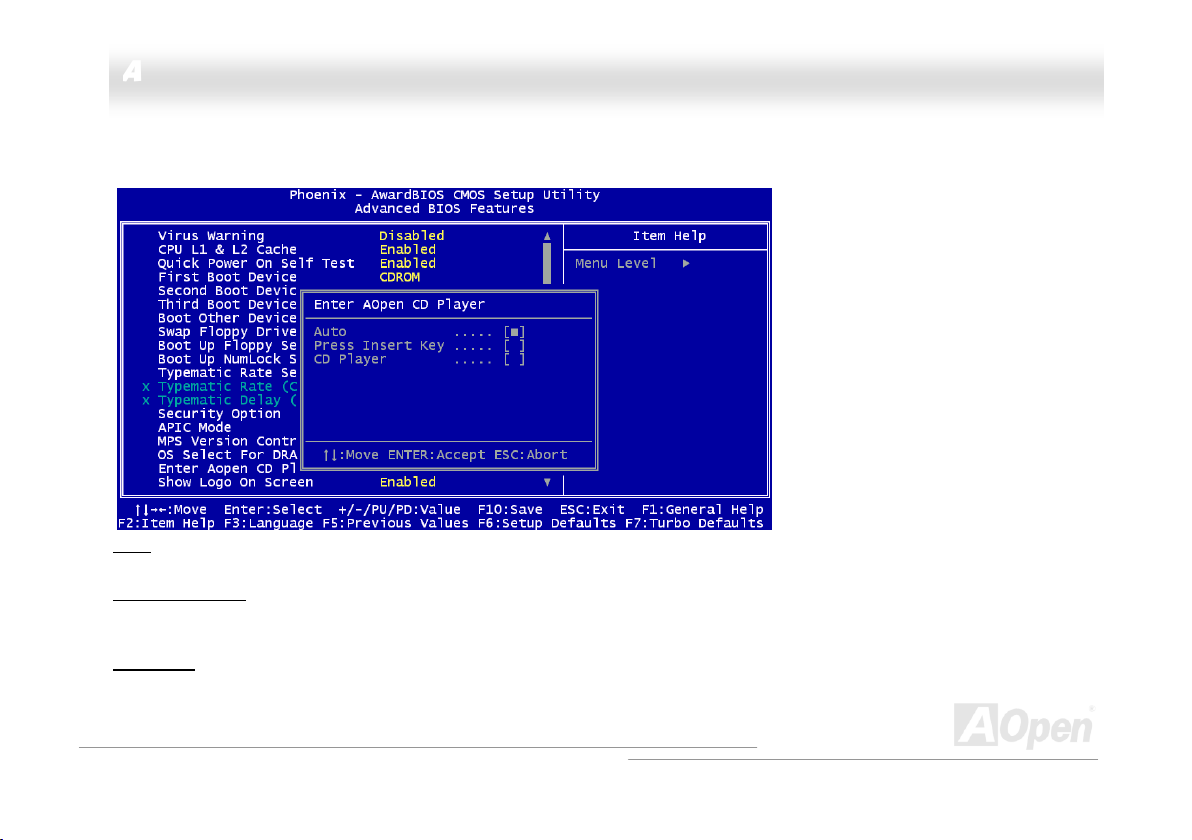

Your Open JukeBox Settings in BIOS

There are three Open JukeBox settings in BIOS as follows.

Auto

: The default setting is “Auto” with which the Open JukeBox will automatically check the CD player every time you power

on. The Open JukeBox will automatically be launched when it detects a music CD in your CD player.

Press Insert Key

you of pressing “Ins” key on your keyboard to start Open JukeBox Player; otherwise the system will launch the Windows

Operation System.

CD Player

pressing B on your keyboard the Windows Operation System will be launched.

: Choosing this setting will allow a reminder message popped up on the screen during BIOS POST. It reminds

: Choosing this setting allows the system to launch Open JukeBox Player every time you power on. However, by

Page 69

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Your Open JukeBox EzSkin

Except these powerful functions above, Open JukeBox Player is also equipped with another fancy feature for you to

change its “skin”. You can download as many skins as you want from AOpen Website, and changing them whenever

you want by using this useful utility – EzSkin – which may also be downloaded from our website.

Even more, you may design your own skins with innovative idea and sharing them to users around the world by uploading to our website. For further technical information, we welcome you to visit our website at

http://english.aopen.com.tw/tech/download/skin

Page 70

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

VViivviidd BBIIOOSS tteecchhnnoollooggyy

Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen

VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative

design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on

POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show

space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the

smaller-sized GIF format and even dynamic-showing GIF animation.

Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to

change your Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo your model name on the BIOS download page,

your motherboard supports this innovative feature!

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the

tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly

developed VividBIOS to experience the lively vivid colorful POST screen!

shown beside

http://english.aopen.com.tw/tech/download/skin, it is assured that

Page 71

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD. You don’t need to install all of them in order to boot

your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98)

before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

Note: Please follow recommended procedure

to install Windows 2000

and Windows XP.

Page 72

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc

You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.

Page 73

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg IInntteell®® CChhiippsseett SSooffttwwaarree IInnssttaallllaattiioonn UUttiilliittyy

Windows 95/98 cannot recognize this chipset, because they were released earlier than Intel 845 chipset. You can install Intel

INF Update Utility from Bonus Pack CD auto-run menu to eliminate the “?” marks.

Page 74

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg IInntteell IIAAAA DDrriivveerr

You can install Intel IAA Driver to increase the performance of software applications and reduce PC boot times. You can find it in

AOpen Bonus Pack

CD.

Page 75

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg LLAANN DDrriivveerr

You can install LAN Driver under Windows95/98, Windows NT and Windows 2000 for RealTek 8100BL PCI Fast Ethernet adapter by following steps.

Installing driver procedure on Microsoft Windows 95:

-----------------------------------------------------

1. Select "Driver from disk provided by hardware manufacturer" when being asked which driver you would like to install.

2. Specify the setup file pathname

[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95\WIN95A (for Windows 95 and Win95A) or [CD-ROM]:Driver\LAN\RTL8100\Windows\Win95 (for Windows 95 OSR2).

3. Follow the procedure and insert Windows 95 system disk to complete setup step.

4. Windows 95 will finish the other installation procedures automatically, and then restart your system.

Installing driver for Win98/Win98 SE/Windows2000/Windows ME/Windows XP:

-------------------------------------------------------------------

1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".

2. Specify the setup file pathname [CD-ROM]:Driver\LAN\RTL8100\Windows\WIN98 (for Windows 98/98 SE) or

[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN2000 (for Windows 2000) or [CD-ROM]:Driver\LAN\RTL8100\Windows\WINME (for Windows ME) or

[CD-ROM]:Driver\LAN\RTL8100\Windows\WinXP (for Windows XP)

3. Win98/Win98 SE/Windows2000/Windows ME will appear some messages to insert Win98/Win98 SE/Windows2000/Windows ME system disk to complete setup step.

4. Win98/Win98 SE/Windows2000/Windows ME will finish the other installation procedure automatically, then you restart the system.

Page 76

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveer

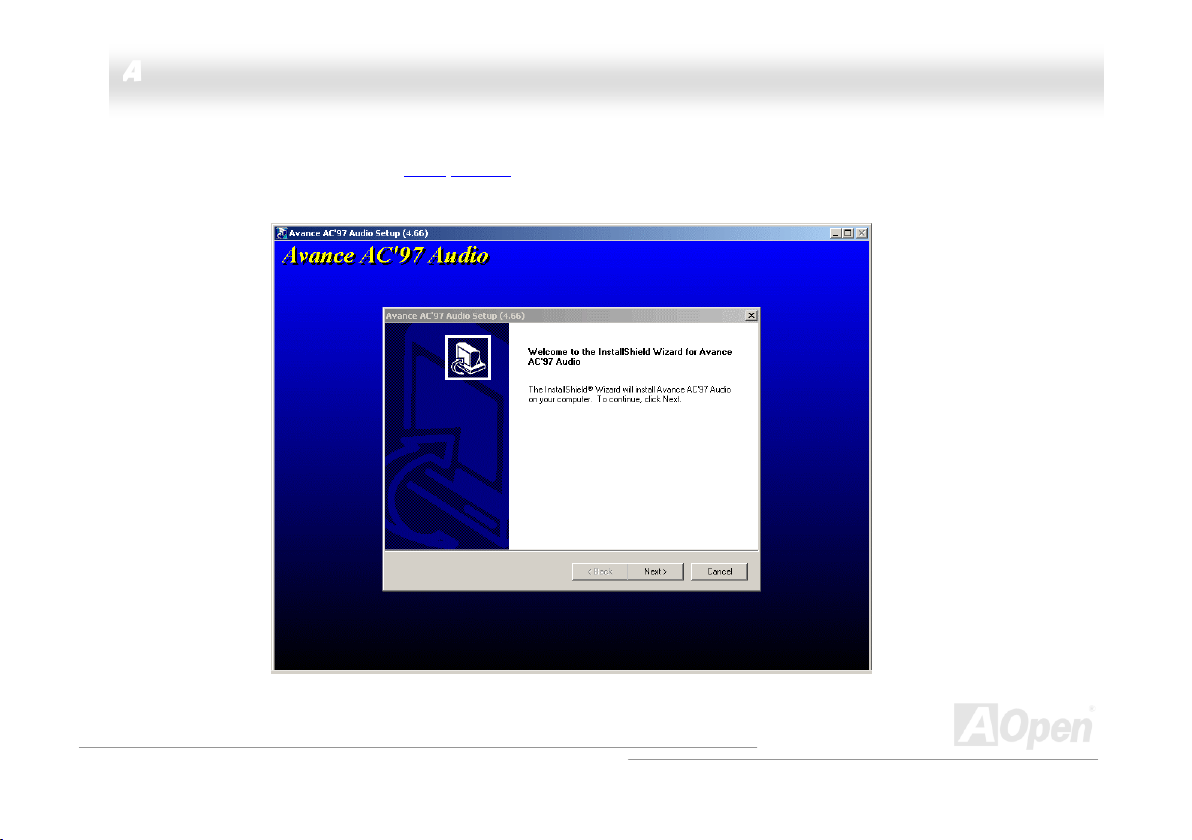

This motherboard comes with ALC650 AC97

can find the audio driver from the Bonus Pack CD disc auto-run menu.

CODEC. This audio driver supports Windows 98SE and upper Windows OS; you

Page 77

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg HHaarrddwwaarree MMoonniittoorriinngg UUttiilliittyy

You can install Hardware Monitoring Utility to monitor CPU temperature, fans and system voltage. The hardware monitoring

function is automatically implemented by the BIOS and utility software. No hardware installation is needed.

Page 78

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg UUSSBB22..00 DDrriivveerr

This motherboard comes with USB2.0 function. You can install USB2.0 Driver under Windows 2000 and Windows XP from the

Bonus Pack CD disc auto-run menu.

Under Windows 2000 System

After enabling the USB 2.0 controller and rebooting your system, Windows 2000 setup will show a "New Hardware Found"

dialog box. Under Windows 2000, "Universal Serial Bus (USB) Controller" will be displayed.

1. Choose "Search for a suitable driver for my device (Recommended)" from the list, and press "Enter".

2. Choose "Specify a location." and then press "Next"

3. Place Bonus CD in CD-ROM.

4. Type "[CD-ROM]:\Driver\Intel\USB2.0" in the text box that appears. Press " OK ".

5. Click "Next." A message informing you that Windows has found "Intel (R) USB Enhanced Host Controller (ICH4)" should

appear.

6. Click "Next," and then "Finish."

************************************

Confirming Windows 2000 Installation

************************************

1. From Windows 2000, open Control Panel from "My Computer" followed by the System icon.

2. Choose the "Hardware" tab, and then click the "Device Manager" tab.

3. Click "+" in front of "Universal Serial Bus controllers". "Intel (R) USB Enhanced Host Controller (ICH4)" should appear.

Page 79

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Under Windows XP System

After enabling the USB 2.0, Windows XP setup will show a "Found New Hardware" dialog box. Under Windows XP, "Universal

Serial Bus (USB) Controller" will be displayed.

1. Click "Next," and from the generated list box, choose "Install from a list or special location (Advanced)", click "Next"

2. Click "Next," and from the generated choices, choose "Include this location in the search:"

3. Place Bonus CD in CD-ROM.

4. Type "[CD-ROM]:\Driver\Intel\USB2.0" in the text box that appears.

5. Click on "Next." A message informing you that Windows XP has found "Intel (R) USB Enhanced Host Controller (ICH4)"

should appear.

6. When the New Hardware Wizard has finished installing the USB driver, click "Finish".

**********************************

Confirming Windows XP Installation

**********************************

1. From Windows XP, open Control Panel from "My Computer".

2. Click "Performance and maintenance".

3. Click "System" icon.

4. Choose "Hardware" tab, and then click "Device Manager" tab.

5. Click "+" in front of "Universal Serial Bus Controllers". "Intel (R) USB Enhanced Host Controller (ICH4)" should appear.

Page 80

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

IInnssttaallll AATTAA//113333 DDrriivveerr

*************************************************

Installing Drivers During Windows 98 Installation

*************************************************

Following procedure details the installation of ATA/133 driver while installing Windows 98 (when ATA/133 controller is enabled already).

1. After enabling ATA/133 controller and configuring the hard drive(s), setup partition and format your hard drive(s) if necessary.

2. Install Windows 98 normally.

3. After installation, go to "Start" menu and choose "Settings."

4. From "Settings" menu, choose "Control Panel."

5. In "Control Panel" window, double-click the "System" icon.

6. In "System" window, choose the "Device Manager" tab.

7. In the hierarchical display under "Other Devices" is a list for "PCI Mass Storage Controller." Choose it and then press

"Properties" button.

8. Choose "Driver" tab in "Properties" window, choose "Update Driver," and then press "Next."

9. Choose "Search for a better driver than the one your device is using now (recommended)," then press "Next."

10. Place "Bonus CD" into CD-ROM.

11. Choose "Specify a Location," and type "[CD-ROM]:\Driver\Promise\20275\WIN9X-ME" in the text box.

12. Press "Next" button. A message informing you that Windows has found "Win9x-ME Promise Ultra133 TX2(tm) IDE

Controller" will appear.

13. Press "Next," then "Finish," then "Yes" when asked if you want to restart your computer.

Page 81

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

******************************************************

Installing Driver During New Windows 2000 Installation

******************************************************

1. Start the installation:

a. Floppy Install: Boot the computer with Windows 2000 installation diskettes.

b. Floppyless Install: Boot from floppy and type "WINNT". After files have been copied, the system will reboot. While

rebooting, press <F6> after the message "Setup is inspecting your computer's hardware configuration..." appears.

c. CD-ROM Install: Boot from CD-ROM. Press <F6> after the message "Press F6 if you need to install third party SCSI or

RAID driver" appears.

2. When the "Windows 2000 Setup" window pops up, press "S" to Specify an Additional Device(s).

3. Copy all directories and files in "[CD-ROM]:\Driver\Promise\20275" to floppy disk.

4. Place Promise Technology driver diskette into drive A: and press "Enter" key.

5. Use "↑" or "↓" to choose "Win2000 Promise Ultra133 TX2(tm) Controller" from the list that appears on screen, and press

"Enter" key.

6. Windows 2000 Setup screen will appear again saying "Setup will load support for the following mass storage devices:" The

list will include "Win2000 Promise Ultra133 TX2(tm) IDE Controller".

NOTE: If you need to specify any additional devices to be installed, do so at this time. Once all devices are specified, proceed to next step.

7. From Windows 2000 Setup screen, press Enter key. Setup will now load all device files and then continues the Windows

2000 installation.

Page 82

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

*************************************************

Installing Drivers During Windows Me Installation

*************************************************

Following procedure details the installation of ATA/133 driver while installing Windows ME (when ATA/133 controller is enabled already).

1. Install Windows Me fully.

2. After installation, go to "Start" menu and choose "Settings."

3. From "Settings" menu, choose "Control Panel."

4. In "Control Panel" window, double-click the "System" icon.

5. In the "System" window, choose the "Device Manager" tab.

6. In the hierarchical display under "Other Devices" is a list for "PCI Mass Storage Controller." Choose it and then press

"Properties" button.

7. Choose "Driver" tab in the "Properties" window, choose "Update Driver," and then press "Next."

8. Choose "Specify the location of the driver (Advanced)," then press "Next".

9. Place Bonus CD into CD-ROM.

10. Choose "Specify a Location," and then type "[CD-ROM]:\Driver\Promise\20275\WIN9X-ME" in the text box.

11. Press "Next" button. A message informing you that Windows Me has found "Win9x-ME Promise Ultra133 TX2(tm) IDE Controller" will appear.

12. Press "Next," then "Finish," then "Yes" when asked if you want to restart your computer.

Page 83

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

*********************************************************

Installing Drivers During New Windows NT 4.0 Installation

*********************************************************

1. Start system installation by booting from the Windows NT disk:

a. Floppy install: boot the system with Windows NT installation diskettes.

b. Floppyless install: boot from floppy and type "WINNT /B". After files have been copied, the system will reboot. While

rebooting, press "F6" key when the message "Setup is inspecting your computer's hardware configuration…" appears.

c. CD-ROM disk install: boot from CD-ROM disk and press "F6" key when the message "Setup is inspecting your computer's

hardware configuration…" appears.

2. When the "Windows NT Setup" window pops up, press "S" to specify an Additional Device(s).

3. Use "↑" or "↓" to select "Other" and press "Enter" key.

4. Copy all files in "[CD-ROM]:\Driver\Promise\20275" to floppy disk.

5. Place the driver diskette into drive A: and press "Enter" key.

6. Choose "WinNT Promise Ultra133 TX2(tm) Controller" from the list that appears on screen, and then press the "Enter" key.

7. The Windows NT Setup screen will appear again saying, "Setup will load support for the following mass storage devices:" The list will include "WinNT Promise Ultra133(tm) IDE Controller".

NOTE: If you need to specify any additional devices to be installed, do so at this time. Once all devices are specified, proceed to next step.

8. From Windows NT Setup screen, press Enter key. Setup will now load all device files and then continues the Windows NT installation.

9. After installation succeeds, the "SCSI Adapter Setup" box will show saying "WinNT Promise Ultra133 TX2(tm) IDE Controller" driver has been installed.

Page 84

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

**************************************************** Installing Driver During New Windows XP Installation ****************************************************

1. Start installation:

a. Floppy Install: Boot the computer with Windows XP installation diskettes. b. Floppyless Install: Boot from floppy and type "WINNT". After files have been copied, the system will reboot. While

rebooting, press <F6> after the message "Setup is inspecting your computer's hardware configuration..." appears.

c. CD-ROM Install: Boot from the CD-ROM. Press <F6> after the message "Press F6 if you need to install third party SCSI

or RAID driver" appears.

2. When "Windows XP Setup" window pops up, press "S" to Specify an Additional Device(s).

3. Copy all directories and files in "[CD-ROM]:\Driver\Promise\20275" to floppy disk.

4. Place the Promise Technology driver diskette into drive A: and press "Enter" key.

5. Use "↑" or "↓" to choose "WinXP Promise Ultra133 TX2 (tm) Controller" from the list that appears on screen, and then press

"Enter" key.

NOTE: Immediately following the loading of the selected driver the Installation Program will notify you that "The driver you provided seems to be newel than the Windows default driver. Windows already has a driver that you can use for "WinXP Promise Ultra133 TX2 (tm) IDE Controller". Unless the device manufacture prefers that you use the driver on the floppy disk, you should use the driver in Windows."

6. Press "S" to use the driver on the floppy disk, and then press "enter" to continue installation. If you press "enter" to use

"Windows default driver", you will read the following error message in the next phase of the installation saying "Setup did not find any hard disk drives installed in your computer"

NOTE: Restart installation and then use option "S" to load driver from floppy disk.

7. The Windows XP Setup screen will appear again saying, "Setup will load support for the following mass storage devices:" The list will include "WinXP Promise Ultra133 TX2 (tm) IDE Controller".

NOTE: If you need to specify any additional devices to be installed, do so at this time. Once all devices are specified, proceed to next step.

8. From Windows XP Setup screen, press Enter key. Setup will now load all device files and then continues the Windows XP installation.

Page 85

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAOOCCoonnffiigg UUttiilliittyy

AOpen always dedicated to provide users a much friendly computer environment. We now bring you a comprehensive system

detection utility. AOConfig is a Windows based utility with user-friendly interface that allows users to obtain information of the

operation system and hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also

displays the version of BIOS and firmware for your convenience of maintenance.

Moreover, AOConfig allows users to save information in *.BMP or *.TXT format which users may collect the system information

in detail and send them to AOpen directly for technical support or for further diagnose of system problems.

1. The system page shows the detailed information of the

motherboard, operating system, processor, and BIOS version.

2. The PCI device page shows the configurations of all PCI devices installed in your motherboard.

Page 86

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

3. This page presents the IDE device information, such as serial number, manufacturer,

firmware version, and

4. From this page, users can obtain the technical support information of AOpen.

Moreover, detailed information could be saved in .bmp or .txt format.

NOTE:

AOConfig can be used under Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please also note

that AOConfig can only be operated in a system equipped with an AOpen motherboard. Before running

AOConfig, all applications must be closed.

Page 87

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters

and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

The AwardBIOS™ that installed in the Flash ROM

BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting of AX4B Pro-533 had been optimized by AOpen R&D engineering team. But, the default setting of BIOS still

can’t fine-tune the chipset controlling entire system. Therefore, the rest of this chapter is intended to guide you through the

process of configuring your system using setup.

Currently there are two kinds of beep sound when system fails to boot at POST. The first type of beep sound consists of a single

long beep and two short beeps, indicating that a video error has failed BIOS from initializing video screen for displaying any

additional information. The second type of beep sound is a single long beep that beeps repeatedly, signaling a DRAM error has

occurred. You may look over the indicated error according to different beep significances.

To enter to BIOS setup menu

, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.

of the motherboard is a custom version of an industry standard BIOS. The

Note: Because the BIOS code is the most often

changed part of the motherboard design, the BIOS

information contained in this manual may be

different with actual BIOS that come with your

motherboard.

Page 88

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAbboouutt BBIIOOSS FFuunnccttiioonn DDeessccrriippttiioonn……

AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup

program into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appeared

at right side of screen. Hence, you don’t need read this manual while you changing the BIOS setting.

Menu Items Select Window Item Function Description Window

Page 89

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

HHooww TToo UUssee AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the

<Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award™ BIOS setup

program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key

selecting preferred menu language to display.

Key Description

Page Up or + Changing setting to next value or increase the value.

Page Down or - Changing setting to previous value or decrease value.

Enter Select the item.

Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu.

Up Arrow Highlight previous item.

Down Arrow Highlight next item.

Left Arrow Move the light bar to left side of menu.

Right Arrow Move the light bar to right side of menu.

F1 Get menu or item help description.

F3 Changing menu language.

F5 Load previous setting value from CMOS.

Page 90

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

Key Description

F6 Load fail-save setting value from CMOS.

F7 Load turbo setting value from CMOS.

F10 Save changed setting and exit setup program.

Page 91

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish jumper settings and connect correct cables, power on and enter the BIOS Setup. Press <Del> during POST

(Power-On Self Test) and choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Please avoid of using "Load Turbo Defaults", unless

you are sure your system components (CPU, DRAM, HDD, etc.)

are good enough for turbo setting.

Page 92

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash

wizard ---- EzWinFlash. With an eye to users convenience, EzWinFlash combines the

BIOS binary code and flash module together, so the only thing you have to do is just

clicking on the utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash

detects your motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover,

EzWinFlash has been taken into consideration to go with any windows platform you might be using, no matter if you’re using

Windows 95/98, 98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed

to have multi-language function to provide easier way for users’ usage in changing BIOS setting.

Caution: By updating your motherboard,

you are taking a risk of BIOS flash

failure. If your motherboard is working

stable, and there are no major bugs that

had been fixed by a latter BIOS revision,

we recommend that you DO NOT try to

upgrade your BIOS.

If you intent on upgrading, PLEASE BE

SURE to get the right BIOS revision for

the right motherboard model to avoid any

ossibility failure.

Page 93

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to

close all the applications before you start the upgrading.

1. Download the new version of BIOS package zip

2. Unzip the download BIOS package (ex: WAX4BP533102.ZIP) with WinZip (http://www.winzip.com

environment.

3. Save the unzipped files into a folder, for example, WAX4BP533102.EXE & WAX4BP533102.BIN.

4. Double click on WAX4BP533102.EXE, EzWinFlash will detect the model name and BIOS version of your motherboard. If

you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You

may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

file from AOpen official web site. (ex: http://www.aopen.com)

) in Windows

, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

Warning: The new BIOS upgrade will

permanently replace your original

BIOS’s settings when flashing. You

may need to reconfigure your BIOS

setting so that your system can go

back to work as normal.

Page 94

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

GGlloossssaarryy

AACC9977

Basically, AC97 specification separates sound/modem circuit to two parts, digital processor and a CODEC for analogy I/O they

are linked by AC97 link bus. Since digital processor can be put into motherboard main chipset, the cost of sound/modem

onboard solution can be reduced.

AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPoowweerr IInntteerrffaaccee))

ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power

management to operating system and bypass BIOS

to operating system (such as Windows 98). This is a bit similar as the PnP

power switch to control the power state transition.

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt))

AGP is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and

single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data

transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the

first company to support 4X AGP motherboards by both AX6C (Intel 820) and MX64/AX64 (VIA 694x), started from Oct 1999.

. The chipset or super I/O chip needs to provide standard register interface

Page 95

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr))

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects

to motherboard through AMR connector.

AAOOppeenn BBoonnuuss PPaacckk CCDD

A disc bundled with AOpen motherboard product; there are motherboard drivers, Acrobat Reader for PDF online manual and

other useful utilities.

AAPPMM ((AAddvvaanncceedd PPoowweerr MMaannaaggeemmeenntt))

Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM

power management.

AATTAA ((AATT AAttttaacchhmmeenntt))

ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification

together. The AT is meaning International Business Machines Corporation (IBM) personal computer/AT’s bus structure.

AATTAA//6666

ATA/66 uses both rising edge and falling edge but doubles UDMA/33 transfer rate. The data transfer rate is 4 times of the PIO

mode 4 or DMA mode 2, 16.6MB/s x4 = 66MB/s. To use ATA/66, you need special ATA/66 IDE cable.

Page 96

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

AATTAA//110000

ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/ 6 6 but clock cycle

time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire

IDE cable, the same as ATA/66.

AATTAA//113333

Compared to traditional ATA/100, ATA/133 has been up to 33 percent increase in interface speed with transfer rate of 133MB/s.

ATA/133 performance is ideal for new operating systems, such as Window XP, that demand more storage space and faster data

transfer rates from more responsive computing experiences.

BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm))

BIOS is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other

hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is

required to access BIOS without directly access hardware devices.

Page 97

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

BBuuss MMaasstteerr IIDDEE ((DDMMAA mmooddee))

The traditional PIO (Programmable I/O) IDE requires the CPU to involve in all the activities of the IDE access including waiting

for the mechanical events. To reduce the workload of the CPU, the bus master IDE device transfers data from/to memory

without interrupting CPU, and releases CPU to operate concurrently while data is transferring between memory and IDE device.

You need the bus master IDE driver and the bus master IDE HDD to support bus master IDE mode.

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr))

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing

LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR

specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and

Microsoft.

CCOODDEECC ((CCooddiinngg aanndd DDeeccooddiinngg))

Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of

AC97

sound/modem solution.

DDDDRR ((DDoouubbllee DDaattaa RRaatteedd)) SSDDRRAAMM

DDR SDRAM utilizes the existing DRAM infrastructure and technology while doubling the nominal bandwidth available to

systems in an easy to design and simple to adopt way. Initially a perfect solution for memory intensive server and workstation

applications, DDR low cost and low voltage will ultimately make it an ideal solution for all segments of the PC market, high

performance desktop and mobile PCs, Value PCs and even Internet Appliances and mobile devices.

Page 98

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

DDIIMMMM ((DDuuaall IInn LLiinnee MMeemmoorryy MMoodduullee))

DIMM socket has total 168-pin and supports 64-bit data. It can be single or double side, the golden finger signals on each side

of PCB are different, and that is why it was called Dual In Line. Almost all DIMMs are made by SDRAM

Note that some old DIMMs are made by FPM/EDO

DDMMAA ((DDiirreecctt MMeemmoorryy AAcccceessss))

Channel for communications between the memory and surrounding devices.

EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a

special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while

parity mode can only detect single-bit error.

EEDDOO ((EExxtteennddeedd DDaattaa OOuuttppuutt)) MMeemmoorryy

The EDO DRAM technology is actually very similar to FPM (Fast Page Mode). Unlike traditional FPM that tri-states the memory

output data to start the pre-charge activity, EDO DRAM holds the memory data valid until the next memory access cycle, that is

similar to pipeline effect and reduces one clock state.

, which operate at 3.3V.

and only operate at 5V. Do not confuse them with SDRAM DIMM.

Page 99

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface

technology is different. Size of EEPROM is much smaller than flash ROM.

EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be

upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

EEVV66 BBuuss

EV6 Bus in the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock

edge to transfer data, similar as DDR SDRAM or ATA/66 IDE bus.

EV6 Bus Speed = CPU external bus clock x 2.

For example, 200 MHz EV6 bus is actually using 100 MHz external bus clock, but the equivalent speed is 200 MHz.

FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy))

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as

motherboard) to apply DoC label separately without a shielding of housing.

Page 100

XX44BB PPrroo--553333 OOnnlliinnee MMaannuuaall

FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))

FC means Flip Chip, FC-PGA is a new package of Intel for Pentium III CPU. It can plug into SKT370 socket, but require

motherboard to add some signals on socket 370. That is, the motherboard needs to be redesigned. Intel is going to ship

FC-PGA 370 CPU and phase out slot1 CPU.

FFllaasshh RROOMM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to

be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is

the first board to implement 256KB (2Mbit) Flash ROM. Now flash ROM size is moving to 4M bit on AX6C (Intel 820) and MX3W

(Intel 810) motherboard. , AOpen motherboard uses EEPROM for jumper-less and battery-less design.

FFSSBB ((FFrroonntt SSiiddee BBuuss)) CClloocckk

FSB Clock means CPU external bus clock.

CPU internal clock = CPU FSB Clock x CPU Clock Ratio

CC BBuuss

See SMBus.
