AOpen AX34PROII User Manual

Specifications and Main Features

1. Form Factor: ATX form factor motherboard.

2. Chipset: VIA Apollo Pro 133A

3. Supported Processors:

  • Intel® Socket 370 series Pentium III™
  • PPGA/FC-PGA Celeron™ series processors
  • VIA® Cyrix™ III series processors

4. CPU FSB:

  • 66/100/133 Mhz

5. AGP Support: Operates in AGP 1X/2X/4X modes, with a maximum data transfer rate of 1066 MB/s.

6. Memory:

  • 3 x 168-pin DIMM sockets
  • The maximum memory supported is 1.5GB.
  • Compatible with SDRAM, VCM (Virtual Channel Memory), and ECC-Registered DRAM.

7. IDE Controller:

  • Compatible with ATA 33/66/100.
  • Rate of transfer is approximately 66MB/s and can go up to 100MB/s with the VIA VT82C686B.

8. Sound Card:

  • Integrated AC97 Audio Codec chip with SoundMax 2.

9. Slots and Connections:

  • Six 32-bit PCI slots
  • One AMR slot
  • One AGP Pro slot

10. Power Management feature support:

  • Support of the ACPI standard
  • Provisions like Wake on modem (WOM) and wake on LAN (WOL)

11. Monitoring Features:

  • Monitoring of the status, temperature, and voltage of the CPU and system fans.

12. Additional Features:

  • Die-Hard BIOS (Provides 100% virus protection)
  • Dr. LED (Diagnostic display)
  • Dr. Voice (Multi-lingual audio output)

Frequently Asked Questions

Q1: Which processors work with the AX34 Pro II motherboard?

A1: This model does work with the following processors which include: Intel® Socket 370 series Pentium III™, PPGA/FC-PGA Celeron™ series processors and VIA® Cyrix™ III series processors.

Q2: What is the maximum amount of memory that can be installed on AX34 Pro II motherboard?

A2: For additional memory, the motherboard contains three 168-pin DIMM sockets and it can accept as much as 1.5 GB of RAM.

Q3: Is it possible to attach an external modem for using, if the Wake on Modem goes off.

A3: Yes, the WOM feature supports internal modem cards as well as modem box which can be connected through the JP3 port.

Q4: AGP slot supports how much maximum data transfer rate?

A4: AGP Pro slot has a transfer rate bandwidth of around 1066MB/S.

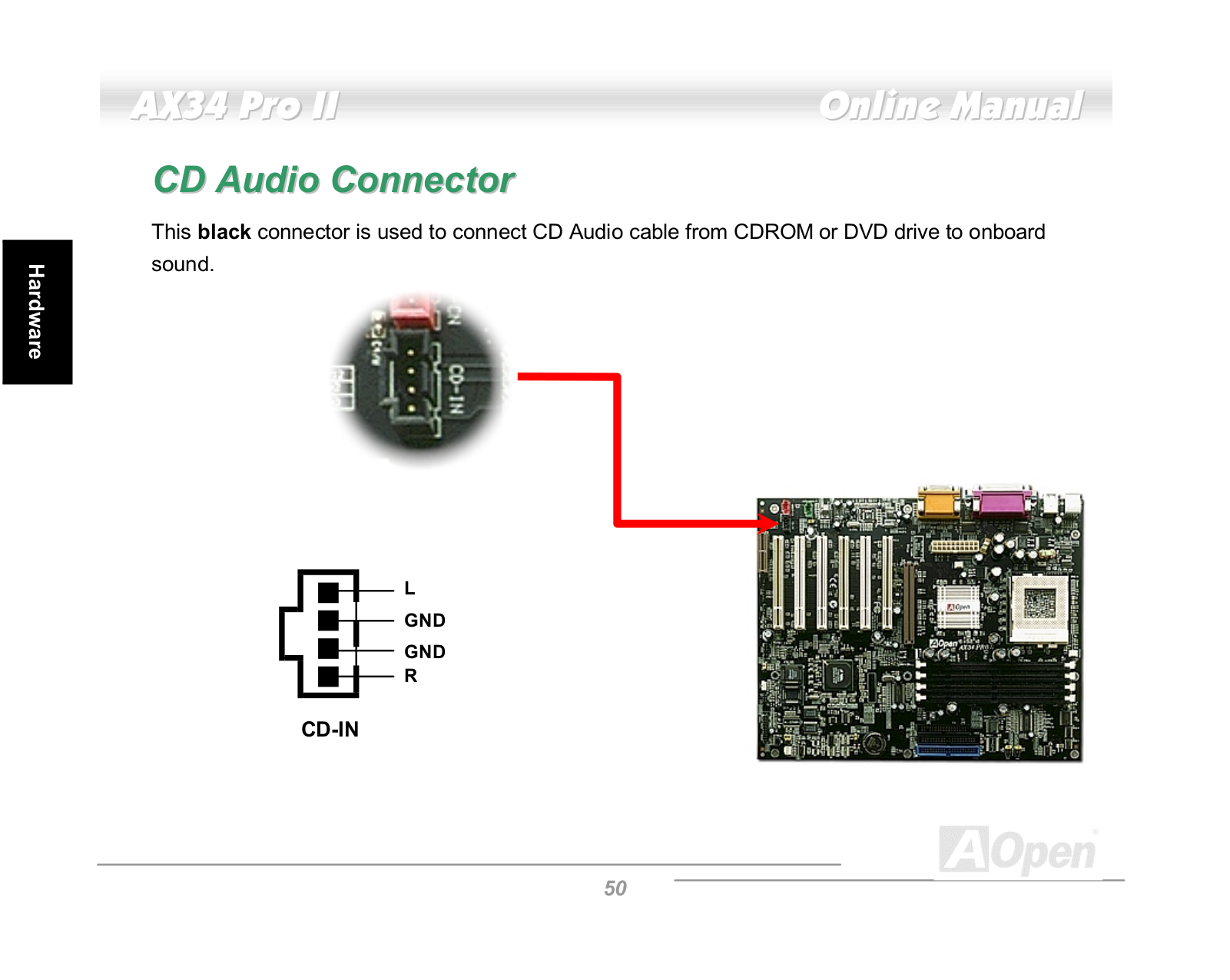

Q5: How can onboard sound functionality be activated or deactivated in the device?

A5: To activate or deactivate the onboard sound functionality, you need to locate JP12 jumper on the motherboard and change OnChip Sound option in BIOS settings.

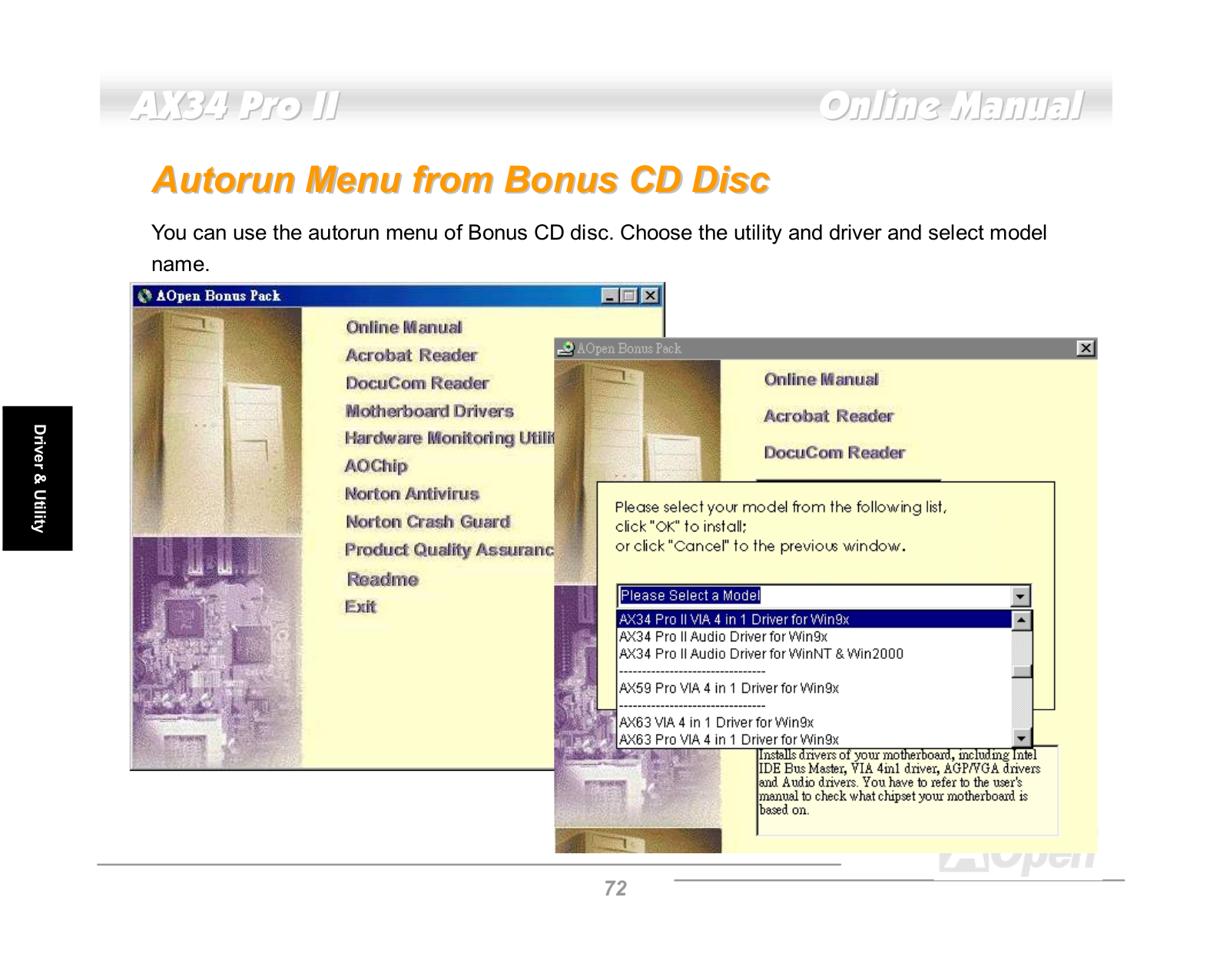

User Manual

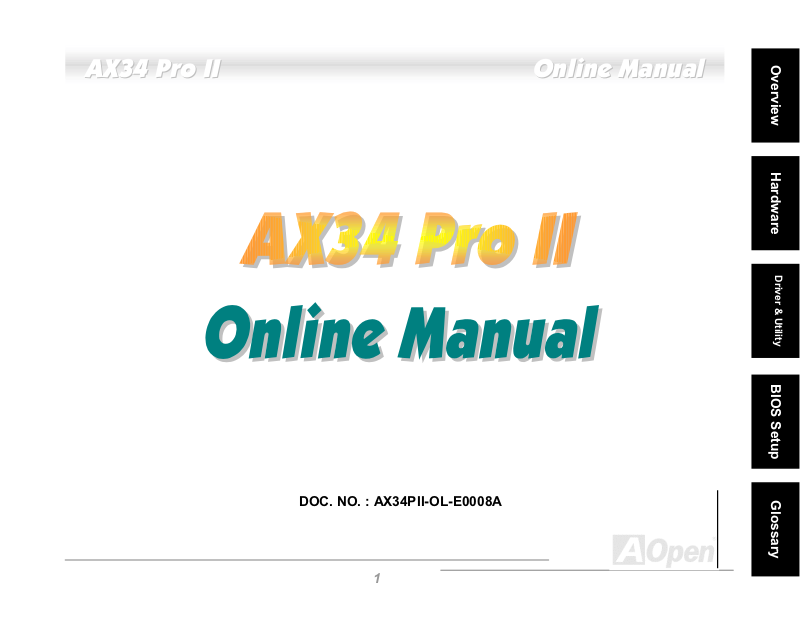

Page 1
