24" LCD Color Monitor HP LP2475w
Service
Service
Service
Horizontal Frequency
30- 94 kHz
TABLE OF CONTENTS
Description Page Description Page
Table Of Contents.......…..............................…........1
Revision List.…..................................……......2
1. Monitor Specification............................………........4
2. LCD Monitor Description……………………….......5
3. Operation Instruction…………..............……...........6
3.1.General Instructions.........................…...........6
3.2. Control Button…………….….........……...............6
3.3 Adjusting the Picture...........................…............7
4. Input/Output Specification......……………...........12
4.1. Input Signal Connector............………................12
4.2. Factory Preset Display Modes......…..................15
4.3. Power Supply Requirements..............................16
5. Panel Specification.....………………..................17
5.1.General Feature…..........................................17
5.2. Optical Characteristics…………………………18
6. Block Diagram……...................………................19
6.1 Software Flow Chart…………….………………...19
6.2. Electrical Block Diagram……………..….......21
7. Schematic……………......................................23
7.1 Main Board..……….......................................23
7.2 Power Board.…….……....................................32
7.3 Key Board.……..……....................................34
8.PCB Layout…...…….......................................35
8.1.Main Board………........................................35
8.2.Power Board……….........................................36
8.3.Key Board………............….......................36
8.4.USB Board………............….......................37
9. Maintainability……….......................................38
9.1.Equipments and Tools Requirement..............38
9.2.Trouble Shooting………..............................39
10.White-Balance, Luminance adjustment...45
11.Mechanical Instructions………….…...….......47
12.Monitor Exploded View…….…………....….......52
13.BOM List……………….…………………………54
14. Different Parts List……………………………....85
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg2.png)
24" LCD Color Monitor HP LP2475w
Revision List
Version Date Revision History TPV Model Name
A00 Jun.-24-08 Initial release
A01 Aug.-19-2008 Add new BOM in item 14
J248GGDKW9HPNN
J248GGDBW9HF2N
J248GGDBW9HA2N
2
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg3.png)
24" LCD Color Monitor HP LP2475w
ECN History
ECN No. Change Description Service
Deposition
1. Remove R314 and install R315
resistor (0 OHM).
Cut-in date SMR
SCR
AOC-LP2475w-001
SCR
AOC-LP2475w-004
SCR
AOC-LP2475w-005
SCR
AOC-LP2475w-006
2. At the same time, update Torino
firmware version from GIG032 to
GIG034, and matching changed
Safe-Lite firmware version from
SL0614 to SL0710.
Delete R276 / R265 and add R267 /
R274
Change the hinge screws with the
longer length and add glue to prevent
hinge screw loose
Change the Torino firmware to
GIG046 and Safe-Lite firmware to
SL1002 to correct the DP auto
detection.
Item 13 Jul-26-08 A01
Item 13 Sep-14-08 A01
N/A Aug-6-2008 A01
N/A Sep-29-08 A01
3
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg4.png)
24" LCD Color Monitor HP LP2475w
1.Monitor Specification
4
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg5.png)
24" LCD Color Monitor HP LP2475w
2. LCD Monitor Description
The LCD Monitor will contain a main board, a power board, a key board and a USB board which house the flat panel
control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each
voltage.
Power Board
Include adapter board)
AC-IN
110V-240V
Monitor Block Diagram
CCFT Drive.
Main Board
Key board USB BOARD
Flat Panel and
CCFL backlight
RS232 Connector
For white balance
adjustment in
factory mode
Video signal, DDC
HOST Computer
5
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg6.png)
24" LCD Color Monitor HP LP2475w
3. Operation Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front of the panel. By
changing these settings, the picture can be adjusted to your personal performance.
The power cord should be connected and insert to adaptor.
-
Connect the video cable from the monitor to the computer VGA card.
-
Press the power button to turn on the monitor, the power indicator will light up to Green.
-
3.2 Control Button
6
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg7.png)
24" LCD Color Monitor HP LP2475w
Using the On-Screen Display Menu
3.3 Adjust the Picture
The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions.
After changing an OSD menu item, and if the menu screen has these options, you may choose to:
● Cancel—to return to the previous menu level.
● Save and Return—to save all changes and return to the OSD Main Menu screen. This Save and
Return option is only active if you change a menu item.
● Reset—to change back to the previous setting.
7
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg8.png)
24" LCD Color Monitor HP LP2475w
8
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg9.png)
24" LCD Color Monitor HP LP2475w
9
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bga.png)
24" LCD Color Monitor HP LP2475w
10
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bgb.png)
24" LCD Color Monitor HP LP2475w
11
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bgc.png)
24" LCD Color Monitor HP LP2475w
4. Input/Output Specification
4.1 Input Signal Connector
Pin Signal Pin Signal Pin
TMDS Data 2 -
1
2 TMDS Data 2 + 10 TMDS Data 1 + 18 TMDS Data 0 +
TMDS Data 2 / 4 Shield
3
TMDS Data 4 -
4
TMDS Data 4 +
5
DDC Clock
6
DDC Data
7
No Connect
8
TMDS Data 1 -
9
TMDS Data 1 / 3 Shield
11
TMDS Data 3 -
12
TMDS Data 3 +
13
+3.3/+5V Power (from PC)
14
Ground (Return for +5V)
15
Hot Plug Detect (connect internally
16
to pin-14)
DVI-D digital connector layout
TMDS Data 0 -
17
TMDS Data 0 / 5 Shield
19
TMDS Data 5 -
20
TMDS Data 5 +
21
TMDS Clock Shield
22
TMDS Clock +
23
TMDS Clock -
24
Signal
12
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bgd.png)
24" LCD Color Monitor HP LP2475w
PIN MNEMONIC SIGNAL
1 ML Lane 0 (p) Lane 0 +
2 GND Ground
3 ML Lane 0 (n) Lane 0 -
4 ML Lane 1 (p) Lane 1 +
5 GND Ground
6 ML Lane 1 (n) Lane 1 -
7 ML Lane 2 (p) Lane 2 +
8 GND Ground
9 ML Lane 2 (n) Lane 2 -
10 ML Lane 3 (p) Lane 3 +
11 GND Ground
12 ML Lane 3 (n) Lane 3 -
13 GND Ground
14 GND Ground
15 AUX CH (p) Aux Channel +
16 GND Ground
17 AUX CH (n) Aux Channel +
18 HPD Hot Plug Detect
19 Return Return
20 DP PWR Source Power Out (to sink)
DISPLAY-PORT DIGITAL Source connector
13
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bge.png)
24" LCD Color Monitor HP LP2475w
PIN MNEMONIC SIGNAL
1 ML Lane 3 (n) Lane 3 -
2 GND Ground
3 ML Lane 3 (p) Lane 3 +
4 ML Lane 2 (n) Lane 2 -
5 GND Ground
6 ML Lane 2 (p) Lane 2 +
7 ML Lane 1 (n) Lane 1 -
8 GND Ground
9 ML Lane 1 (p) Lane 1 p
10 ML Lane 0 (n) Lane 0 -
11 GND Ground
12 ML Lane 0 (p) Lane 0 +
13 GND Ground
14 GND Ground
15 AUX CH (p) Aux Channel +
16 GND Ground
17 AUX CH (n) Aux Channel +
18 HPD Hot Plug Detect
19 Return Return
20 DP PWR Source Power In
DISPLAY-PORT DIGITAL SINK connector
14
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bgf.png)
24" LCD Color Monitor HP LP2475w
4.2 Factory Preset Display Modes
15
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg10.png)
24" LCD Color Monitor HP LP2475w
4.3 Power Supply Requirements
Parameter Range
AC Input Voltage 90 to 265V
AC Input Frequency 45 to 63 Hz
Inrush Current 50A MAX AT 220VAC and 30A AT 120VAC
Leakage Current 5 mA MAX at 120VAC
16
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg11.png)
24" LCD Color Monitor HP LP2475w
5. Panel Specification
LM240WU4 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp(CCFL)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.It is a transmissive type display
operating in the normally black mode. It has a 24inch diagonally measured active display area with WUXGA resolution
(1200 vertical by 1920 horizontal pixel array)Each pixel is divided into Red, Green and Blue sub-pixels or dots which are
arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale
signal for each dot,thus, presenting a palette of more than 16,7M(True) colors.
5.1 General Feature
Absolute Maximum Ratings
17
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg12.png)
24" LCD Color Monitor HP LP2475w
5.2 Optical Characteristics
(Ta=25 °C, VLCD=12.0V, fV=60Hz Dclk=154MHz, VBR=3.3V)
18
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg13.png)
24" LCD Color Monitor HP LP2475w
6. Block diagram
6. 1 Software Flow Chart
1
Y
2
N
3
4
5
N
Y
6
N
7
8
Y
9
10
N
11
12
Y
13
N
N
Y
14
15
Y
N
16
Y
17
18
N
19
Y
19
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg14.png)
24" LCD Color Monitor HP LP2475w
REMARK:
1) MCU initialize.
2) Is the EEprom blank?
3) Program the EEprom by default values.
4) Get the PWM value of brightness from EEprom.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EEprom.
Turn on the LED and set it to green color.
Scalar initialize.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are they’re any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappear.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
20
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg15.png)
24" LCD Color Monitor HP LP2475w
6.2 Electrical Block Diagram
6.2.1 Scalar Board
DVI A INPUT
DVI B INPUT
HDMI
DP INPUT
USB CONNECTOR
PI3HDMI341
ARCFFE
U123
DISPLAY
PREFECTION
GM69010
U104
DP/DN
IIC
USB2507
U702
S-VIDE
ANALOG INPUT
DDR U4O9 DDR U410
CVBC
SCALER
FLI30336-AC
U401
FSADAT
CN702
CN703
YPBPR
MX29LV320
U408
OCM
21
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg16.png)
24" LCD Color Monitor HP LP2475w
6.2.2 Inverter / Power Board
AC input 24V to backlight
EMI FILTER
Bridge Rectification
PFC
converter
Main power
+12V to 5V DC/DC Power
PS-ON
Vcc
5V converter
To audio
12V Regulator
+5VSB to MCU and logic IC
22
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg17.png)
24" LCD Color Monitor HP LP2475w
7. Schematic
7.1 Main Board
+5V
R208
DVI-I_A_Cable_detect
DVI-I_A PART
CN107
JACK
DATA2DATA2+
DATA2/4_SHLD
DATA4DATA4+
DDC_CLK
DDC_DATA
VSYNC
DATA1DATA1+
DATA1/3_SHLD
DATA3DATA3+
+5V
GND
H_PLUG_DET
DATA0DATA0+
DATA0/5_SHLD
DATA5DATA5+
CLK_SHLD
CLK+
CLK-
C1
ANA_Red
C2
ANA_Green
C3
ANA_Blue
C4
ANA_HYNC
C5
ANA_GND
C5
ANA_GND
TH1
TH2
31
32
HP_B
GND
PMBS3904
HP_A
GND
HDMI_HPD
GND
+3.3V_HDMI SW
R265
4.7K OHM 1/10W
EQ_S1
R274
NC
GND
4.7K OHM 1/10W
DVI_A_CD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
GND
Q101
PMBS3904
R262 100 OHM 1/16W
Q102
R263 100 OHM 1/16W
Q103
PMBS3904
R264 100 OHM 1/16W
EQ_S0
GND
DDC-SCL_A
DDC-SDA_A
AVI-VS_A
R224 20R 1/16W 5%
DVI-5V_A
DVI-I_A_Cable_detect
HP_A
AVI-R_A
AVI-G_A
AVI-B_A
AVI-HS_A
R245 20R 1/16W 5%
DDC-SDA-DVI_B
DDC-SCL-DVI_B
RXC-_B
RXC+_B
RX0-_B
RX0+_B
RX1-_B
RX1+_B
RX2-_B
RX2+_B
DDC-SDA-DVI_A
DDC-SCL-DVI_A
RXC-_A
RXC+_A
RX0-_A
RX0+_A
RX1-_A
RX1+_A
RX2-_A
RX2+_A
SDA_HDMI
SCL_HDMI
RX_CRX_C+
RX_0RX_0+
RX_1RX_1+
RX_2RX_2+
+3.3V_HDMISW
R266
R275
4.7K OHM 1/16W
GND
NC
C245
0.1uF 16V
1
VSYNC_A
R230
10K OHM 1/16W
HSYNC_A
4/1 Allion
+5V
+5V
+5V
+5V
C242
C244
0.1uF 16V
0.1uF 16V
GND
2
D111
BAV99
3
ZD107 RLZ5.6B12
ZD109
+3.3V_DEVICE
SEL1
SEL2
SEL3
GND
GND
1
2
1
2
D112
D113
BAV99
BAV99
3
3
RLZ5.6B
12
GND
3
3
D115
D116
BAV99
BAV99
C246
C247
C248
1
2
1
1
2
0.1uF 16V
0.1uF 16V
0.1uF 16V
GND
+3.3V_HDMISW
FB114
1 2
120 OHM
U123
80
HPD1
2
SDA1
3
SCL1
5
CLK-1
6
CLK+1
D0-1
9
D0+1
11
D1-1
12
D1+1
14
D2-1
15
D2+1
62
HPD2
63
SDA2
64
SCL2
67
CLK-2
68
CLK+2
70
D0-2
71
D0+2
73
D1-2
74
D1+2
76
D2-2
77
D2+2
44
HPD3
45
SDA3
46
SCL3
48
CLK-3
49
CLK+3
51
D0-3
52
D0+3
54
D1-3
55
D1+3
57
D2-3
58
D2+3
21
S1
22
S2
23
S3
EQ_S1
60
EQ_S1
41
EQ_S0
EQ_S0
PI3HDMI341ARCFFE
EMI CHANGE
+5V
C243
0.1uF 16V
1
2
D114
BAV99
3
3
3
D117
D118
BAV99
BAV99
C249
2
1
0.1uF 16V
+3.3V_HDMI SW
C209
100uF 16V
33
17
27
7
VCC
VCC
VCC
VCC
GND
GND
GND
GND
GND
30
10816
36
24
RX2-_A
R2160 OHM 1/10W
R2180 OHM 1/10W
RX2+_A
RX1-_A
R2260 OHM 1/10W
R2270 OHM 1/10W
RX1+_A
R2320 OHM 1/10W
RX0-_A
R2330 OHM 1/10W
RX0+_A
R2390 OHM 1/10W
RXC-_A
R2420 OHM 1/10W
EMI CHANGE
2
+5V
C213
C211
C212
C210
+
56
50
61
VCC
VCC
VCC
GND
GND VCC
GND
GND
53
37 43
59
47
VCC
GND
69413
VCC
HPD_SINK
SCL_SINK
SDA_SINK
GND
65
0.1UF16V
0.1UF16V
0.1UF16V
0.1UF16V
79
75
VCC
VCC
31
D0+
32
D0-
28
D1+
29
D1-
25
D2+
26
D2-
34
CLK+
35
CLK-
OC_S3
1
OC_S3
OC_S1
18
OC_S1
19
OC_S0
OC_S0
20
OC_S2
OC_S2
40
38
39
OE_MUX
42
OE
OC_S3
GND
GND
GND
66
78
72
GND
+5V
DDC-SCL_A
DDC-SDA_A
ZD104
RLZ5.6B
1 2
AVI-R_A
AVI-G_A
AVI-B_A
Close To Pericom341
C215
C214
C216
0.1UF16V
0.1UF16V
0.1UF16V
SL_RX0+
SL_RX0-
SL_RX1+
SL_RX1-
SL_RX2+
SL_RX2-
SL_RXC+
SL_RXC-
+3.3V_DEVICE
R261
NC
10K OHM 1/16W
R295
4.7K OHM 1/10W
+3.3V_HDMI SW
GND
R267
NC
OC_S1
R276
4.7K OHM 1/10W
GND
C217
0.1UF16V
DVI-5V_A
DC5V
GND
GND
R283
1 2
D109
2
1
BAV70
ZD105
RLZ5.6B
2/15 Add for EMI
U119
1
I/O1
I/O4
2
GND
VDD
3 4
I/O2I/O3
AZC099-04S
C218
C219
0.1UF16V
0.1UF16V
SEL1
SEL2
SEL3
OE_MUX
R284
10K OHM 1/16W
+3.3V_HDMI SW
R268
NC
R277
4.7K OHM 1/10W
GND
3
DDC-5V
14
X
15
Y
4
Z
7
VEE
8
GND
U115
SN74LV4053ADR
FB101 30 OHM1 2
FB111 30 OHM1 2
FB113 30 OHM1 2
+5V
6
5
C207
NC
GND
C221
C220
0.1UF16V
0.1UF16V
+3.3V_HDMI SW
+3.3V_HDMI SW
+3.3V_HDMI SW
+3.3V_HDMI SW
SL_HPD
SL_DDC_SCL_HDMI
SL_DDC_SDA_HDMI
OC_S0
DDC-5V
16
X0
X1
VCC
Y0
Y1
Z0
Z1
INH
C
75 OHM 1/16W 1%
R254
R258
R259
R260
12
13
2
1
5
3
6
11
A
10
B
9
R249
75 OHM 1/16W 1%
4.7K OHM 1/10W
4.7K OHM 1/10W
4.7K OHM 1/10W
4.7K OHM 1/10W
+3.3V_HDMI SW
GND
DDC-SCL-DVI_A
DDC-SDA-DVI_A
DVI-SCL_A
AVI-SCL_A
DVI-SDA_A
AVI-SDA_A
DDC-SCL-AVI_A
DDC-SDA-AVI _A
R298 100 OHM 1/16W
DDC-SEL_A
R301
NC
DDC-SEL_A= 0V, X/Y/Z = X0/Y0/Z0 (DIGITAL)
DDC-SEL_A= 3.3V, X/Y/Z = X1/Y1/Z1(ANALOG)
GND
R291
NC
R292
NC
R293
NC
R294
NC
+3.3V_HDMISW
GND
GND
SEL1
SEL2
SEL3
OE_MUX
R270
4.7K OHM 1/10W
R279
NC
12
C200
12
NC
C203
NC
R250
75 OHM 1/16W 1%
R269
NC
OC_S2
R278
4.7K OHM 1/10W
R251
GND
GND
GND
GND
12
C204
NC
DDC-5V
R2024.7K OHM 1/10W
R2034.7K OHM 1/10W
R20747 OHM 1/10W
R20947 OHM 1/10W
DDC-5V
R212 4.7K OHM 1/10W
R213 4.7K OHM 1/10W
R22047 OHM 1/10W
R22147 OHM 1/10W
WP_DVI
R23575 OHM 1/10W
R322 0 OHM 1/16W
R323 0 OHM 1/16W
R24075 OHM 1/10W
R324 0 OHM 1/16W
R24375 OHM 1/10W
Del C194/196/198
HDMI
4/1 Allion
C189 0.22uF
8
7
C192 0.22uF
8
7
GREEN_A+
BLUE_A+
DVI-I_A PART
HSYNC_A
VSYNC_A
HSYNC_B
VSYNC_B
GND
CN108
20
SHELL1
D2 Shield
22
SHELL3
D1 Shield
D0 Shield
CK Shield
CE Remote
DDC CLK
DDC DATA
23
SHELL4
21
SHELL2
C233 NC
1 2
GND
U112
A0
VCC
A1
WP
A2
SCL
VSSSDA
M24C02-WMN6TP
U116
A0
VCC
A1
WP
A2
SCL
VSSSDA
M24C02-WMN6TP
RED_A+
4/2 Allion
HDMI
D2+
D2D1+
D1D0+
D0CK+
CK-
NC
GND
+5V
HP DET
1
2
3456
1
2
3456
ZD110
RLZ5.6B
1 2
ZD112
RLZ5.6B
1 2
0 OHM 1/10W
R331
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ZD101RLZ5.6B
GND
ZD111
RLZ5.6B
1 2
GND
ZD113
RLZ5.6B
1 2
GND
D2+_HDMI
D2-_HDMI
D1+_HDMI
D1-_HDMI
D0+_HDMI
D0-_HDMI
CK+_HDMI
CK-_HDMI
R271 NC
R272 56 OHM 1/10W
R273 56 OHM 1/10W
GND
R280 1K OHM 1/10W
HDMI_HPD
R252 20R 1/16W 5%
R253 20R 1/16W 5%
R256 20R 1/16W 5%
R257 20R 1/16W 5%
+5V
DVI-I_B_Cable_detect
DVI-I_B PART
CN106
JACK
DATA2DATA2+
DATA2/4_SHLD
DATA4DATA4+
DDC_CLK
DDC_DATA
VSYNC
DATA1DATA1+
DATA1/3_SHLD
DATA3DATA3+
H_PLUG_DET
DATA0DATA0+
DATA0/5_SHLD
DATA5DATA5+
CLK_SHLD
CLK+
C1
ANA_Red
C2
ANA_Green
C3
ANA_Blue
C4
ANA_HYNC
ANA_GND
C5
C5
ANA_GND
TH1
31
32
VSA
C228
33pF
2.2K OHM 1/10W
GND
VSB
C230
33pF
GND
2.2K OHM 1/10W
+5V
R290
NC
R288NC
SL_CEC
SCL_HDMI
SDA_HDMI
D101
BAT54C
U126
1
8
A0
VCC
2
7
A1
WP
3
6
A2
SCL
4 5
VSSSD A
M24C02-WMN6TP
GND
R311
0 OHM 1/10W
GND
R205
4.7K OHM 1/10W
+5V
GND
CLK-
TH2
R337
R339
ZD114
R310
NC
HDMI_CD
DDC-5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
GND
DVI_B_CD
GND
GND
GND
VSIS 4/28
NC
1 2
R281
R282
10K OHM 1/16W
10K OHM 1/16W
WP_DVI
3/17 WP
AVI-VS_B
DVI-5V_B
DVI-I_B_Cable_detect
HP_B
AVI-HS_B
HSA
C223
33pF
HSB
C229
33pF
GND
SCL_HDMI
SDA_HDMI
C250
0.1uF 16V
GND
1
DDC-SCL_B
DDC-SDA_B
R222 20R 1/16W 5%
R228
10K OHM 1/16W
AVI-R_B
AVI-G_B
AVI-B_B
R244 20R 1/16W 5%
R336
2.2K OHM 1/10W
R338
2.2K OHM 1/10W
4/1 Allion
C234
0.22uF
+5V
3
VSYNC_B
HSYNC_B
BLUE_A+
BLUE_B+
GREEN_A+
GREEN_B+
RED_A+
RED_B+
1 2
EGA10603V05A1-B
GND
2
D122
BAV99
VSA
VSB
HSA
HSB
ZD115
GND
+5V
C252
0.1uF 16V
1
3
ZD106 RLZ5.6B
RLZ5.6B
C257
1
0.1uF 16V
GND
U122
16
IC1
18
IC0
21
IB1
22
IB0
23
IA1
24
IA0
15
ID1
17
ID0
13
IE1
14 12
IE0 SEL
PI3V512QE
ZD116
1 2
EGA10603V05A1-B
4/1 Allion
+5V
+5V
EMI CHANGE
C251
C253
0.1uF 16V
0.1uF 16V
GND
GND
2
1
2
1
1
0.1uF 16V
9
VDD
VDD
GND VDD
GND
3 4
7
D120
BAV99
3
GND
3
D125
BAV99
C256
2
place C?~C? close to
corresponding pin
19
VDD
2
YA
5
YB
6
YC
8
YD
11
YE
GND
GND
10
20
1
0.1uF 16V
SCL_HDMI
SDA_HDMI
2
D119
BAV99
3
3
D124
BAV99
C255
2
C224
0.1UF16V
3
C254
1
0.1uF 16V
C225
0.1UF16V
GND
SL_RED+
SL_GREEN+
SL_BLUE+
SL_VSYNC
SL_HSYNC
DSUB_SWITCH1
R21410 OHM 1/10W
R21510 OHM 1/10W
R22310 OHM 1/10W
R22510 OHM 1/10W
R22910 OHM 1/10W
R23110 OHM 1/10W
R23610 OHM 1/10W
R23810 OHM 1/10W
D123
BAV99
EMI CHANGE
2
+5V
L201 600 OHM
C226
+
C240
C227
22uF50V
0.1UF16V
0.1UF16V
+3.3V
R255
4.7K OHM 1/16W
R296
NC
GND
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
HDMI1_D1-
HDMI1_D0+
HDMI1_D0-
HDMI1_CK+
HDMI1_CK-
SL_CEC
RX2-_B
RX2+_B
RX1-_B
RX1+_B
RX0-_B
RX0+_B
RXC+_B
RXC-_B
R297 100 OHM 1/16W
+3.3V
DDC-SCL-AVI_B
DDC-SCL-AVI_A
DDC-SDA-AVI_B
DDC-SDA-AVI_A
DSUB_SWITCH1
DSUB_SWITCH
SL_CEC
DDC-SCL_B
DDC-SDA_B
AVI-R_B
AVI-G_B
AVI-B_B
D121
BAV99
12
12
ZD108
3
D126
BAV99
2
1
GND
+5V
ZD102
RLZ5.6B
12
13
2
1
5
3
6
11
10
9
SN74LV4053A DR
DVI-5V_B
DC5V
1 2
1 2
GND
GND
+5V
16
X0
X1
VCC
Y0
Y1
Z0
Z1
INH
VEE
A
B
GND
C
U127
D108
2
1
BAV70
ZD103
RLZ5.6B
2/15 Add for EMI
U117
1
I/O1
I/O4
2
GND
VDD
3 4
I/O2I/O3
AZC099-04S
place C? cl ose to
corresponding pin
C222
0.1UF16V
GND
14
X
15
Y
4
Z
7
8
GND
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
HDMI1_D1-
HDMI1_D0+
HDMI1_D0-
HDMI1_CK+
HDMI1_CK-
DDC-5V
3
14
X
15
Y
4
Z
7
VEE
8
GND
U114
SN74LV4053ADR
FB109 30 OHM1 2
FB110 30 OHM1 2
FB112 30 OHM1 2
+5V
6
5
C205
NC
GND
+5V
1
2
3
4
5 6
+5V
1
2
3
4
5 6
16
12
X0
13
X1
VCC
2
Y0
1
Y1
5
Z0
3
Z1
6
INH
11
A
10
B
9
C
75 OHM 1/16W 1%
VGA_SCL
VGA_SDA
U128
Line-1
Line-2
VDD
GND
Line-3
Line-4 NC
AZ1045-04QU
U129
Line-1
Line-2
VDD
GND
Line-3
Line-4 NC
AZ1045-04QU
GND
R246
R247
75 OHM 1/16W 1%
75 OHM 1/16W 1%
10
NC
9
NC
8
7
NC
GND
10
NC
9
NC
8
7
NC
GND
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
HDMI1_D1-
HDMI1_D0+
HDMI1_D0-
HDMI1_CK+
HDMI1_CK-
DDC-5V
DDC-SCL-DVI_B
DDC-SDA-DVI_B
DVI-SCL_B
AVI-SCL_B
DVI-SDA_B
AVI-SDA_B
R299 100 OHM 1/16W
DDC-SEL_B
R300
NC
DDC-SEL_B= 0V, X/Y/Z = X0/Y0/Z0 (DIGITAL)
DDC-SEL_B= 3.3V, X/Y/Z = X1/Y1/Z1(ANALOG)
R248
GND
T P V ( Top Victory Electronics Co . , Ltd. )
T2972-G-X-X-1-080604
絬 隔 瓜 絪 腹
Key Component
01.SAFE-Lite Input
Date
DDC-SCL-AVI_B
DDC-SDA-AVI _B
12
C201
NC
12
C199
NC
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
HDMI1_D1-
HDMI1_D0+
HDMI1_D0-
HDMI1_CK+
HDMI1_CK-
12
C202
NC
DDC-5V
R210 4.7K OHM 1/10W
R211 4.7K OHM 1/10W
WP_DVI
R23475 OHM 1/10W
R23775 OHM 1/10W
R24175 OHM 1/10W
R340 0 OHM 1/16W
R341 0 OHM 1/16W
R342 0 OHM 1/16W
R343 0 OHM 1/16W
R344 0 OHM 1/16W
R345 0 OHM 1/16W
R346 0 OHM 1/16W
R347 0 OHM 1/16W
OEM MODEL Size
TPV MODEL
PCB NAME
Sheet
R2004.7K OHM 1/10W
R2014.7K OHM 1/10W
R20447 OHM 1/10W
R20647 OHM 1/10W
R21747 OHM 1/10W
R21947 OHM 1/10W
R325 0 OHM 1/16W
R326 0 OHM 1/16W
R327 0 OHM 1/16W
Del C193/195/197
DVI-I_B PART
RX_2+
RX_2-
RX_1+
RX_1-
RX_0+
RX_0-
RX_C+
RX_C-
Hurley 24W
210Wednesday, June 04, 2008
of
C188 0.22uF
U110
8
VCC
7
WP
SCL
VSSSDA
M24C02-WMN6TP
C191 0.22uF
U101
8
VCC
7
WP
SCL
VSSSDA
M24C02-WMN6TP
GREEN_B+
1
A0
2
A1
3456
A2
1
A0
2
A1
3456
A2
GND
RED_B+
BLUE_B+RXC+_A
Custom
Rev
G
<
称爹
>
称爹
23
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg18.png)
24" LCD Color Monitor HP LP2475w
0.1uF 16V
GND
1
C272
+5V
0.1uF 16V
GND
2
C271
1
+5V
0.1uF 16V
GND
2
C270
1
+5V
GND
2
C269
0.1uF 16V
1
+5V
GND
2
C268
0.1uF 16V
1
+5V
GND
2
C267
0.1uF 16V
1
+5V
0.1uF 16V
GND
2
1
C266
+5V
EMI CHANGE
2
CN101
21
SHELL1
23
SHELL3
24
SHELL4
22
SHELL2
DP CONNECTOR
DOPA_SPDIF
ML_ Lane 3(p)
ML_ Lane 3(n)
ML_ Lane 2(p)
ML_ Lane 2(n)
ML_ Lane 1(p)
ML_ Lane 1(n)
ML_ Lane 0(p)
ML_ Lane 0(n)
AUX_CH(p)
AUX_CH(n)
Hot Plug Detect
Return
DP_PWR
Add SPDIF
OUTPUT
A3_CTZ
1
2
GND
3
4
5
GND
6
7
8
GND
9
10
11
GND
12
13
GND
14
GND
15
16
GND
17
18
19
20
C236 0.1UF16V
3
DAP
DAN
TX_HPD_OUT
GND
GND
75 OHM 1/16W 1%
C185 0.1UF16V
75 OHM 1/16W 1%
BAV99
BAV99
D140
D141
3
+5V
R564
NC
PWR_I N_RX
+5V
C235
0.1UF 16V
1
2
D110
R312 33 OHM 1/16W
GND
BAV99
3
R313
+5V
GND
C182
0.1UF16V
1
2
R191 33 OHM 1/16W
3
R193
GND
DAP
This cable detection is option between the
DP_Power and AUX cable detection
D105
3
BAV99
BAV99
D139
GND
3
3
D145
BAV99
C276
1
0.1uF 16V
SPDIF_OU T
BAV99
BAV99
D137
D138
2
SC_IN
C275
1
0.1uF 16V
3
3
3
3
D144
BAV99
C274
1
2
0.1uF 16V
CN105
7 8
2 3
1 4
5 6
JACK
88A78-13A-44C(NEW)
+3.3V
R1971M OHM 1/16W
DAN
R199
DP_GPIO32
10K OHM 1/16W
BAV99
D136
D143
BAV99
C273
2
1
0.1uF 16V
switch
GND
R198
1M OHM 1/16W
DP_GPIO32
BAV99
D135
3
C165 0. 1UF16V
C166 0. 1UF16V
C167 0. 1UF16V
C168 0. 1UF16V
C169 0. 1UF16V DPRX-N1
C170 0. 1UF16V
C171 0. 1UF16V
C172 0. 1UF16V
C173 0. 1UF16V
C174 0. 1UF16V
R101
2
SY_I N
GND
0 OHM 1/16W
EMI CHANGE
+5V
C3_CTZ
GND
75 OHM 1/16W 1%
3
D142
BAV99
9
C180 0.1UF16V
C183
0.1UF16V
1
3
R194
GND
DPRX-N3
DPRX-P3
DPRX-P1
DPRX-AUXP
DPRX-AUXN
+5V
2
D106
BAV99
33 OHM 1/16W
R192
DPRX-N2
DPRX-P2
DPRX-N0
DPRX-P0
DPRX-HPD
GND
R187 3 3 OHM 1/16W
R188
75 OHM 1/16W 1%
C186 0.1UF16V
DPRX-N3
DPRX-P3
DPRX-N2
DPRX-P2
DPRX-N1
DPRX-P1
DPRX-N0
DPRX-P0
DPRX-AUXP
DPRX-AUXN
DPRX-HPD
+5V C176 0.1UF16V
C178
0.1UF1 6V
1
2
D103
BAV99
3
GND
CVBS_IN
CVBS_IN
GND
B3_CTZ
88T78-13A-9C(NEW)
Cr_IN
CN104
4
5 6
1
2 3
JACK
Cr_IN
75 OHM 1/16W 1%
Cb_IN
Y_IN
Y_IN
C175
1
GND
3
R186
GND
1
GND
R190
75 OHM 1/16W 1%
GND
1
GND
R196
75 OHM 1/16W 1%
+5V
0.1UF16 V
2
33 OHM 1/16W
R185
+5V
C179
0.1UF 16V
R189
3
C184
0.1UF16V
3
GND
D102
BAV99
2
D104
BAV99
33 OHM 1/16W
+5V
2
D107
BAV99
33 OHM 1/16W
R195
B4
T P V ( Top Victory Electronics Co . , Ltd. )
T2972-G-X-X-1-080604
絬 隔 瓜 絪 腹
Key Component
01.COVER
Date
OEM MODEL Size
TPV MODEL
PCB NAME
Sheet
B4_CTZ
Do not need swap. F/W already fixed.
C181 0.1UF16V
C187 0.1UF16V
C4
A4
C3
CVBS
Hurley 24W
310Wednesday , June 04, 2008
Cb Cr SWAP :
Y to A4_CTZ
Cr to B4_CTZ
Cb to C4_CTZ
of
C4_CTZ
A4_CTZ
Original :
Y to B4_CTZ
Cb to A4_CTZ
Cr to C4_CT
Y
Cb
Cr
Custom
Rev
G
称爹
<
称爹
>
24
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg19.png)
24" LCD Color Monitor HP LP2475w
+3.3V_Dev ice
+3.3V_SLR
+3.3V_SLR
/SRESET
GPIO11
3.3V_DVDD_SLR
GND
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
DNP
FB119 120 OHM
60mA
22uF50V
140mA
22uF50V
Reset
R124
NC
R127
4.7K OHM 1/16W
R128
NC
R129
4.7K OHM 1/16W
R130
NC
R133
NC
R135
NC
R136
4.7K OHM 1/16W
R137
NC
R140
4.7K OHM 1/16W
R141
NC
R142
4.7K OHM 1/16W
R143
NC
R144
4.7K OHM 1/16W
R145
NC
R147
4.7K OHM 1/16W
R149
NC
R150
4.7K OHM 1/16W
R151
NC
R152
4.7K OHM 1/16W
R153
NC
R154
4.7K OHM 1/16W
R155
NC
R157
NC
R160
NC
R161
4.7K OHM 1/16W
MSTR2_SCL
MSTR2_SDA
C103
GND
C127
GND
R117
4.7K OHM 1/10W
3.3V_DVDD_SLR
GND
12
All decou pling caps close t o
respective pow er pins
FB103
120OHM
+
FB105
120OHM
+
R110
0 OHM 1/10W
DP_GPIO32
R121
2.7K OHM 1/10W
RESETn
C154
0.0047uF
AA_INTR_OUT/BS_0
SPI_CSn/BS_1
SPI_CLK/BS_2
SPI_DO/BS_3
UA_TX/BS_4
ADATA20_O
ADATA19_O
ADATA18_O
ADATA15_O
BS_9
BS_10
ADATA16_O
ADATA17_O
DDC_SCL_SAFE
DDC_SDA_SAF E
+3.3V_SLR
12
12
C128
0.1UF16V
10K OHM 1/16W
C104
0.1UF16V
RESETn
C105
C106
0.1UF16V
0.1UF16V
C130
C129
0.1UF16V
0.1UF16V
4/1 Allion
3.3V_DVDD_SLR
C155
22pF
R158 82R 1/16W 5%
AGND
SL_BLUE+
SL_GREEN+
SL_RED+
3.3V_DVDD_SLR
R168
C109
C107
C108
0.1UF16V
0.1UF16V
0.1UF16V
C132
C131
C133
0.1UF16V
0.1UF16V
0.1UF16V
TP2
SL_DDC_SDA_HDMI
SL_DDC_SCL_HDMI
SL_CEC
SL_RXCSL_RXC+
SL_RX0SL_RX0+
SL_RX1SL_RX1+
SL_RX2SL_RX2+
R138 NC
R139 NC
R146
0 OHM 1/10W
C156
22pF
X101
27.00MHZ
R156 82R 1/ 16W 5%
R159
82R 1/16W 5%
Phase
improve
R317 100 OHM 1/16 W
R318 100 OHM 1/16 W
R319 100 OHM 1/16 W
R169
10K OHM 1/16W
These pull up
should be put
to close to
gm69010
EMI 2/27
Delete
R320/R321/R555
+1.8V_SLR
3.3V_DVDD_SLR
3.3V_AVDD_SLR
SL_HSYNC
SL_VSYNC
+1.8V_SLR
C111
C110
0.1UF16V
0.1UF16V
C134
0.1UF16V
3.3V_AVDD_SLR
3.3V_DVDD_SLR
SL_HPD
R11910 OHM 1/10W
R12010 OHM 1/10W
CEC
GPIO11
3.3V_AVDD_SLR
R134
249R 1/10W 1%
BLU_P
GRN_P
RED_P
C157 0.1U F16V
C158 0.1U F16V
C159 0.1U F16V
C237 0.01 UF25V
C238 0.01 UF25V
C239 0.01 UF25V
BE Version: Connect to GND
BF Version: Connect to VDD
AGND/G ND
GND
AGND
Connect two grounds at single point.
220mA+160mA
22uF50V
2mA
22uF50V
AGND
BLU_P
GRN_P
RED_P
GND
C112
C135
GND
C279
0.22uF
FB104 120 OHM
+
GND
FB106
120OHM
+
GND
1.8V_AVDD_SLR
HPD
1.8V_AVDD_SLR
3.3V_DVDD_SLR
U413
1
2
3
4 5
M24C04-WMN6TP
GND
12
C114
C113
0.1UF16V
0.1UF16V
12
C136
0.1UF16V
DPRX-HPD
DPRX-AUXN
DPRX-AUXP
DPRX-P0
DPRX-N0
DPRX-P1
DPRX-N1
DPRX-P2
DPRX-N2
DPRX-P3
DPRX-N3
270 OHM 1% 1/10W
81
HDMI_CEC
82
GPIO_11
83
RVDD_3V3
84
CRVSS
85
DVDD_1V8
86
HDMI_RXCN
87
HDMI_RXCP
88
HDMI_VDDA_3V3
89
HDMI_RX0N
90
HDMI_RX0P
91
HDMI_VSSA
92
HDMI_DVDD_1V8
93
HDMI_VSSA
94
HDMI_RX1N
95
HDMI_RX1P
96
HDMI_VDDA_3V3
97
HDMI_RX2N
98
HDMI_RX2P
99
HDMI_VSSA
100
HDMI_DVDD_1V8
101
HDMI_REXT
102
HDMI_VSSA
103
CRVSS
104
DVDD_1V8
105
RVDD_3V3
106
VGA_DDC_SCL
107
VGA_DDC_SDA
108
AHSYNC _IN
109
AVSYNC_I N
110
ADC_AVDD_3V3
111
BLU_P
112
BLU_N
113
ADC_VSSA
114
GRN_P
115
GRN_N
116
ADC_VSSA
117
RED_P
118
RED_N
119
ADC_AVDD_3V3
120
ADC_VSSA
TP3
CLOSE TO PIN
3.3V_DVDD_SLR
R328
4.7K OHM 1/16W
R329
0 OHM 1/16W
GND
SDA/SCL SWAP
SL_DDC_SDA_H DMI
SL_DDC_SCL_H DMI
R176
10K OHM 1/16W
8
VCC
NC
7
E1
WC
6
E2
SCL
VSSSDA
1.8V_DVDD_SLR
C115
C118
C116
C117
0.1UF16V
0.1UF16V
0.1UF16V
0.1UF16V
1.8V_AVDD_SLR
C137
C140
C139
C141
C138
0.1UF16V
0.1UF16V
0.1UF16V
0.1UF16V
0.1UF16V
DPRX-HPD
DPRX-AUXN
DPRX-AUXP
DPRX-P0
DPRX-N0
DPRX-P1
DPRX-N1
DPRX-P2
DPRX-N2
DPRX-P3
DPRX-N3
R118
AUX2SDA
AUX2SCL
80
CRVSS
GPIO_5
AUX_SCL
RVDD_3V3
DPRX_VSSA
DPRX_VBUFC
DPRX_ML_L3P
DPRX_ML_L2N
DPRX_ML_L3N
HDMI_DDC_SCL
HDMI_DDC_SDA
DPRX_VDDA_1V8
GPIO_6/HDMI_HPD_OUT
GENESIS
DISPLAY PERFECTION
DOPA_3
DOPA_2
DOPA_1
DOPA_0
CRVSS
RPLL_AVDD_3V3
TCLK
XTAL
RPLL_VSS
RPLL_DVDD_1V8
VBUFC_RPLL
ADC_DVDD_1V8
ADC_VSSD
134
133
132
131
130
129
128
127
126
125
124
123
122
121
ADATA1_E
ADATA0_E
SL_SDA_HDMI
R174
0 OHM 1/10W
SL_SCL_HDMI
R175
0 OHM 1/10W
3.3V_DVDD_SLR
R177
10K OHM 1/16W
SL_HDCP_CON TROL
MSCL
R179
MSDA
R180 0 OHM 1/10W
DNP, TEST ONLY
C119
0.1UF16V
DPRX_ML_L2P
DPRX_ML_L1P
DPRX_ML_L1N
DPRX_VDDA_1V8
DOPA_7
DOPA_6
DOPA_5
DOPA_4
137
136
135
C120
C121
0.1UF16V
0.1UF16V
C143
C142
0.1UF16V
0.1UF16V
DPRX_VSSA
DPRX_AUXP
DPRX_REXT
DPRX_ML_L0P
DPRX_ML_L0N
DPRX_VDDA_1V8
DPRX_VDDA_1V8
DOPA_13
DOPA_12
DOPA_11
DOPA_10
DOPA_9
DOPA_8
RVDD_3V3
145
144
143
142
141
140
139
138
ADATA9_E
ADATA8_E
SL_SDA_HDMI
SL_SCL_HDMI
SL_HDCP_CONTROL 5
0 OHM 1/10W
C122
0.1UF16V
DPRX_VSSA
DPRX_AUXN
DPRX_HPD_OU T
DOPA_15
CRVSS
DOPA_14
148
147
146
3.3V_DVDD_SLR
GND
GND
CRVSS
DVDD_1V8
RVDD_3V3
AUD_VSSD
RVDD_3V3
GPIO_41
GPIO_40
DVDD_1V8
151
150
149
MSCL
MSDA
U106
1
A0
2
A1
3
A2
4 5
VSS SDA
M24C02-WMN6TP
AUDIO_IN_L2
AUDIO_IN_L1
AUDIO_IN_R2
AUDIO_IN_R1
AUD_VDDA_3V3
DOPA_I2S_0(DOPA_SPD IF)
DOPA_26/GPO_15/BS_5
DOPA_25/GPO_14/BS_6
DOPA_24/GPIO_13/ BS_7
DOPA_20/BS_9
DOPA_19/BS_8
DOPA_18
DOPA_17
DOPA_16
157
156
155
154
153
152
BS_9
8
VCC
7
WP
6
SCL
SPI_CSn/BS_1
1.8V_DVDD_SLR
R112 10K OHM 1/ 16W
R113 10K OHM 1/ 16W
R114 10K OHM 1/ 16W
R115 10K OHM 1/ 16W
414243444546474849505152535455565758596061626364656667686970717273747576777879
VERFP
VREFC
VREFN
AUD_VSSA
DOPA_I2S_MUTE
RVDD_3V3
LBADC_IN1
DVDD_1V8
UART_TX/BS_4/GPO_5
UART_RX/GPO_4
SPI_DI/GPO_3
SPI_DO/BS_3/GPO_2
SPI_CLK/BS_2/GP O_1
SPI_CSn/BS_1/GP O_0
INTR_OUT/BS_0
I2S_OPA_AUMCLK
DOPA_I2S_WS
DOPA_I2S_SCLK
DOPA_I2S_3
DOPA_I2S_2
DOPA_I2S_1
RVDD_3V3
DOPA_CLK
DOPA_VS
DOPA_DE
DOPA_HS/GPO_19
DVDD_1V8
DOPA_29/GPO_18
DOPA_28/GPO_17
DOPA_27/GPO_16
RVDD_3V3
DOPA_23/BS_12
DOPA_22/BS_11
CRVSS
DOPA_21/BS_10
160
159
158
ADATA0_O
ADATA1_O
ADATA2_O
ADATA3_O
ADATA4_O
ADATA5_O
ADATA6_O
ADATA7_O
ADATA8_O
ADATA9_O
ADATA10_O
ADATA11_O
ADATA12_O
ADATA13_O
ADATA14_O
ADATA15_O
BS_10
BS_10
BS_9
ADATA9_E
ADATA8_E
ADATA1_E
ADATA0_E
C278
0.22uF
GND
DNP, TEST ONLY
3.3V_DVDD_SLR
R103
10K OHM 1/16W
1
SPI_DI
1.8V_DVDD_SLR _DPRX
U104
gm69010-BD
CRVSS
RESETn
I2C_SCL
I2C_SDA
GPIO_32
CRVSS
2
3
4
SST25LF020A-33-4C-SAE
GND
FB107
12
120OHM
+
C144
22uF50V
GND
1.8V_AVDD_SLR
1.8V_DVDD_SLR
40
39
38
37
36
VSS
35
34
TEST1
33
32
TEST0
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
AHS_O
9
8
7
6
5
4
3
2
1
ADATA21_O
ADATA20_O
ADATA19_O
ADATA18_O
ADATA17_O
ADATA16_O
R307 33 OHM 1/ 16W
R306 33 OHM 1/ 16W
R332 33 OHM 1/16W
R333 33 OHM 1/16W
R334 33 OHM 1/16W
R335 33 OHM 1/16W
CLOSE TO IC PIN FOR EMI 4/3
AUX2SCL
R181
AUX2SDA
R183
0 OHM 1/10W
0 OHM 1/10W
U102
CE#
SO
HOLD#
WP#
VSS
160mA
C145
0.1UF16V
ADATA23_O
ADATA22_O
EXTRA_ADATA5
EXTRA_ADATA4
EXTRA_ADATA3
EXTRA_ADATA2
EXTRA_ADATA1
EXTRA_ADATA0
C102
22uF50V
GND
8
VDD
7
6
SCK
5
SI
1.8V_DVDD_SLR_DPRX
0.1UF16V
AGND
R553
10K OHM 1/16W
TEST1
TEST0
UA_TX/BS_4
UART_RX
SPI_DI
SPI_DO/BS_3
SPI_CLK/BS_2
SPI_CSn/BS_1
GPIO32
IPCLK0_O
AVS_O
AHREF_DE_O
R314
0 OHM 1/10W
GND
+
C153
R131
20R 1/16W 5%
R102
10K OHM 1/16W
SPI_CLK/BS_2
SPI_DO/BS_3
The CKT is used
for isolate the
DP power
C151
0.1UF16V
TP1
AGND
RESETn
R125 100 OHM 1/16W
R126
AA_INTR_OUT/BS_0
ADATA23_O
ADATA22_O
ADATA21_O
ADATA20_O
ADATA19_O
ADATA18_O
ADATA17_O
ADATA16_O
ADATA15_O
ADATA14_O
ADATA13_O
ADATA12_O
ADATA11_O
ADATA10_O
ADATA9_O
ADATA8_O
ADATA7_O
ADATA6_O
ADATA5_O
ADATA4_O
ADATA3_O
ADATA2_O
ADATA1_O
ADATA0_O
EXTRA_ADATA[0..5]
R315
NC
Gprobe
AGND
C152
0.1UF16V
100 OHM 1/16W
R330 33 OHM 1/16W
C277
33pF
GND
WP_SL
+5V
CN102
CONN
R548
0 OHM 1/10W
R111
NC
0 OHM 1/10W
R132
1
2
3
4
UA_TX/BS_4
UART_RX
GND
AGND
R116
100K OHM 1/16W
R549
0 OHM 1/10W
AGND
DDC_SCL_SAFE
DDC_SDA_SAFE
FB108 600 OHM
C147
0.1UF16V
3.3V_DVDD_SLR
R108
4.7K OHM 1/16W
DOPA_SPDIF
R104 NC
3.3V_DVDD_SLR
R109
AGND
0 OHM 1/16W
CLOSE TO IC PIN FOR EMI 2/27
RP1 33R 1/16W 5%
1
8
ADATA23
2
7
ADATA22
ADATA21
3
6
4
5
ADATA20
RP2 33R 1/16W 5%
1
8
ADATA19
ADATA18
2
7
ADATA17
3
6
ADATA16
4
5
RP3 33R 1/16W 5%
ADATA15
1
8
2
7
ADATA14
3
6
ADATA13
ADATA12
4
5
RP4 33R 1/16W 5%
ADATA11
1
8
2
7
ADATA10
3
6
ADATA9
ADATA8
4
5
RP5 33R 1/16W 5%
ADATA7
1
8
2
7
ADATA6
ADATA5
3
6
4
5
ADATA4
RP6 33R 1/16W 5%
1
8
ADATA3
ADATA2
2
7
3
6
ADATA1
ADATA0
4
5
3.3V_DVDD_SLR
+
C148
100uF 16V
AGND
R550 NC
R551
10K OHM 1/16W
R552 0 OHM 1/ 10W
IPCLK0_O
AVS_O
AHREF_DE_O
AHS_O
AUX2SCL
AUX2SDA
GPIO44
ADATA[0..23]
R568 NC
SDA_HDMI
SCL_HDMI
IPCLK0
AVS
AHREF_DE
AHS
R171 100 OHM 1/16 W
R173 100 OHM 1/16 W
SDA_HDMI
SCL_HDMI
R569 NC
FOR SAFE-LITE ISP
& WRITE HDCP
TEST1
TEST0
R302 33 OH M 1/16W
R303 33 OH M 1/16W
R304 33 OH M 1/16W
R305 33 OH M 1/16W
R170 0 OHM 1/16W
R172 0 OHM 1/16W
+3.3V_I/O
R166
R167
10K OHM 1/16W
10K OHM 1/16W
Bootstrap configuration:
BS_0 0 = XTAL TO DRIVE TCLK1 AND T CLK3
. 1 = TCLK PIN DRIVE TCLK1 OR T CLK3
BS_1 0 = INT MCU, SPI ROM
SLAVE_SCL
SLAVE_SDA
C162
C161
33pF
33pF
GND
T P V ( Top Victory Electronics Co . , Ltd. )
T2972-G-X-X-1-080604
絬 隔 瓜 絪 腹
Key Component
04. DIP A INPUTS
Date
. 1 = TEST ACCESS
BS_2 0 = JTAG DISABLED
. 1 = JTAG ENABLED
BS_3 0 = SPI I/F ENABLED
. 1 = SPI I/F DISABLE
BS_4 0 = BOOT IROM TO TOP 32K
. 1 = BOOT FROM EXT ROM
BS_[7:5] DEFINE SLAVE I2C ADDR FOR R/W
. 000 = 0XC0, 0XC1
. 001 = 0XC2, 0XC3
. 010 = 0XC4, 0XC5
. 011 = 0XC6, 0XC7
. 100 = 0XE0, 0XE1
. 101 = 0XE2, 0XE3
. 110 = 0XE4, 0XE5
. 111 = 0XE6, 0XE7
BS_8 0 = EXT I2C PINS TO I2C SLAVE
. 1 = EXT I2C PINS TO I2C MASTE R
BS_9 0 = TCLK12 IS TCLK1<-XTAL
. 1 = TCLK12 IS FROM IC_OSC
BS_10 0 = UART ENABLE
. 1 = UART USED AS GPO
BS_11 0 = DISABLE I2C MAST ON GPO_1 /3
. 1 = ENABLE I2C MASTER ON GPO_ 1/3
BS_12 0 = OCM NORMAL BOOT IN IROM
. 1 = SHOW OCM RUN BIST OF IROM
OEM MODEL Size
Hurley 24W
TPV MODEL
PCB NAME
Sheet
of
410Wednesday , June 04, 2008
Rev
称爹
D
G
称爹
>
<
25
![](/html/24/2416/241617eff90a1c992af95dfa93f13005f5eed44373843a4b94ae10f874cbd2f0/bg1a.png)
24" LCD Color Monitor HP LP2475w
RP10
FSDATAU0
FSDATAU1
FSDATAU2 FSDATA13
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31
R587 100 OHM 1/10W
FSDATA15
1
8
FSDATA14
2
7
3
6
FSDATA12
4
5
33R 1/16W 5%
RP12
FSDATA11
1
8
FSDATA10
2
7
FSDATA9
3
6
4
5
FSDATA8
33R 1/16W 5%
RP13
FSDATA7
1
8
FSDATA6
2
7
FSDATA5
3
6
FSDATA4
4
5
33R 1/16W 5%
RP16
FSDATA3
1
8
FSDATA2
2
7
FSDATA1
3
6
4
5
FSDATA0
33R 1/16W 5%
RP18
FSDATA31
1
8
FSDATA30
2
7
3
6
FSDATA29
FSDATA28
4
5
33R 1/16W 5%
RP20
FSDATA27
1
8
FSDATA26
2
7
FSDATA25
3
6
FSDATA24
4
5
33R 1/16W 5%
RP21
1
8
2
7
3
6
4
5
33R 1/16W 5%
RP22
1
8
2
7
3
6
4
5
33R 1/16W 5%
FSCLK+
FSCLK/FSCS0U
/FSCS1
FSCLK+, FSCLK- should b e rou ted lik e a diffe ren tail pair
/OCM_CS0
GND
PBIAS
PBIAS
R591
4.7K OHM 1/10W
GND

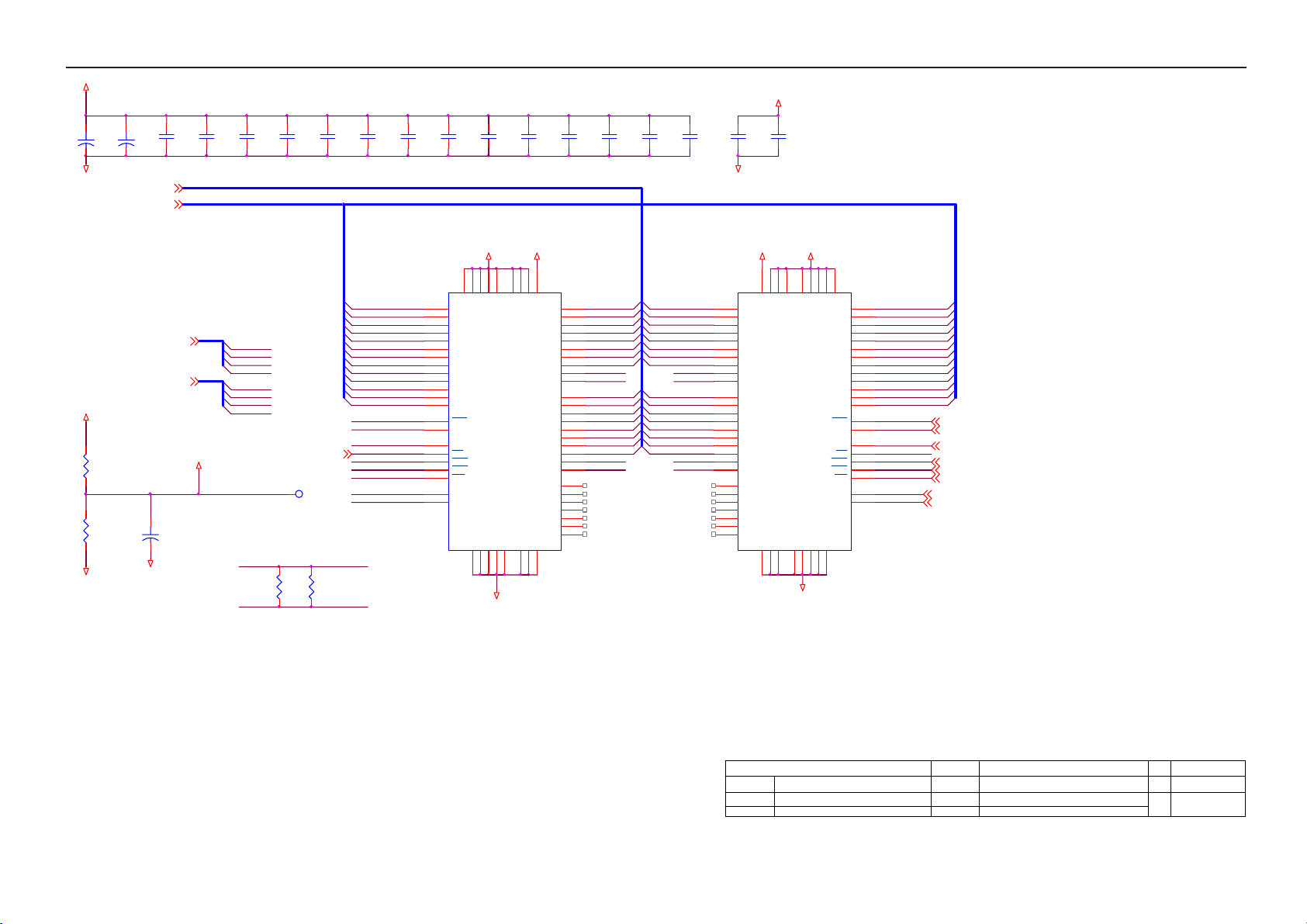

Place Series termination resistors on all address and
control line s ver y close to U600
Place Series termination resistors on bidirectional lines-DATA
,DQS,DQM midw ay betw ee n U500 anf U700
Minimize trace length difference betwe en DQS,DQM and data
FSDQSU0
R539 33 OHM 1/16W
FSDQMU0
R540 33 OHM 1/16W
R541 33 OHM 1/16W
FSDQSU1
FSDQMU1
R542 33 OHM 1/16W
FSDQSU2
R543 33 OHM 1/16W
FSDQMU2
R544 33 OHM 1/16W
FSDQSU3
R545 33 OHM 1/16W
FSDQMU3
R546 33 OHM 1/16W
/FSCS0U
FSCLK+
FSCLK-
R547 33 OHM 1/16W
FSADDRU[0. .12]
TP403
20R 1/16W 5%
WP_24C32
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
FSDATA23
FSDATA22
FSDATA21
FSDATA20
FSDATA19
FSDATA18
FSDATA17
FSDATA16
FSDQS1
FSDQM1
FSDQS0
FSDQM0
FSDQS3
FSDQM3
FSDQS2
FSDQM2
TXB0+
TXB1+
TXB2+
TXBCTXB3TXA0-
TXA1+
TXA2TXACTXA3-
NC
R580
T2972-G-X-X-1-080604
05.FLI30336
/FSCS0
FCLKINM
SCLKINM
R565
10K OHM 1/16W
/FSWEU
/FSRASU
/FSCASU
FSDATA[0..31]
FSDQS[0..3]
FSDQM[0..3]
/FSCS0
CONN
CN404
FR0P
30
29
FR0M
28
27
FR1P
FR2P
FR3M
SR0M
GND
SR1P
SR2M
SR3M
GND
NC
R494
GND
FR1M
FR2M
26
25
24
23
GND
22
21
FCLKINP
20
19
FR3P
SR0P
18
17
SR1M
16
15
14
13
GND
12
11
SR2P
SCLKINP
10
9
SR3P
8
7
6
5
DCR_OUT
4
3
VLCD
2
1
VLCD
Panel_Power
R566
+
C748
100uF 16V
GND
+3.3V_I/O
R495
10K OHM 1/16W
MSTR0_SCL
R579
MSTR0_SDA
NC
I2C address: A2H and A3H
OEM MODEL Size
TPV MODEL
PCB NAME
Sheet
RP11
1
8
/FSWE
2
7
3
6
4
5
33R 1/16W 5%
FSDATA[0..31]
RP14
1
FSADDRU4
FSADDRU9
2
FSADDRU12
3
FSADDRU5
4
RP15
33R 1/16W 5%
FSADDRU6
1
2
FSADDRU7
FSADDRU8
3
FSCKEU
4
33R 1/16W 5%
RP17
FSBKSELU0
1
FSBKSELU1
2
FSADDRU0
3
FSADDRU1
4
RP19
33R 1/16W 5%
FSADDRU2
1
2
FSADDRU10
FSADDRU3
3
FSADDRU11
4
33R 1/16W 5%
Max trac e leng th on this inter fce is 2.5 inches
Unloaded t race im pedan ce on th is inte rface is 90 Ohm
Loaded trace im pe dace w ith DRAM load is 65 Ohm (f or 2.5 inch
total trace length)
TXB0TXB1TXB2-
TXBC+
TXB3+
TXA0+
TXA1-
TXA2+
TXAC+
TXA3+
R567
C749
0.1UF16V
C527
1uF/16V
GND
U411
1
8
A0
VCC
2
7
A1
WP
3
6
A2
SCL
45
GNDSDA
AF24BC32-SI
Hurley 24W
of
510Wednesday, J une 04, 2008
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
NC
R493
10K OHM 1/16W
/FSRAS
/FSCAS
FSCKE
FSBKSEL0
FSBKSEL1
FSADDR4
FSADDR9
FSADDR12
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSBKSEL0
FSBKSEL1
FSADDR0
FSADDR1
FSADDR2
FSADDR10
FSADDR3
FSADDR11
/FSWE
/FSRAS
/FSCAS
FSCKE
FSBKSEL0
FSBKSEL1
FSCKE
FSADDR[0.. 12]
FSADDR[0.. 12]
FSADDR[0..12]
GND
D
Rev
G
称爹
>
<
称爹
GND
GND
22uF50V
GND
+3.3V_I/O
GND
C516
22uF50V
C453
0.1UF16V
+
C489
0.1UF16V
C503
22uF50V
ADATA[0..23]
C524
30PF J 50V
C517
0.1UF16V
DP_GPIO32
19.6 Mhz
C454
0.1UF16V
C490
0.1UF16V
C504
0.1UF16V
FSVREF
GND
AVS
AHS
+3.3V_PLL
X401
PWM_ADJ
CN401
CONN
GPROBEA
SL_SCL_HDMI
SL_SDA_HDMI
C455
C456
0.1UF16V
0.1UF16V
C491
0.1UF16V
+1.8V_ADC
C505
0.1UF16V
C519
C518
0.01uF/25V
0.1UF16V
SL_HDCP_CONTROL4
R478 0 OHM 1/16W
DP_GPIO32
C525
30PF J 50V
+5V
1
2
3
4
GND
+3.3V_I/O
10K OHM 1/16W
SLAVE_SCL
SLAVE_SDA
+1.8V_CORE
C492
0.1UF16V
C506
0.1UF16V
AVS
EXTRA_ADATA0
EXTRA_ADATA1
EXTRA_ADATA2
EXTRA_ADATA3
EXTRA_ADATA4
EXTRA_ADATA5
R501
R470 NC
DVI_B_CD
DVI_A_CD
AHREF_DE
WP_DVI
OE_MUX
DDC-SEL_A
DDC-SEL_B
POWER_OFF
MSTR0_SCL
MSTR0_SDA
GPIO44
C457
0.1UF16V
SY_IN
Cr IN
HDMI_CD
C458
0.1UF16V
C493
0.1UF16V
SC_IN
Cb_IN
A_RET_CTZ
Y_IN
B_RET_CTZ
CVBS
C_RET_CTZ
SV_RET_CTZ
TP4
IPCLK0
PS_ON
WP_SL
R401 0 OHM 1/16W
R316 0 OHM 1/16W
WP_24C32
SEL1
SEL2
SEL3
XTAL
TCLK
POWER
ADC_IN3
ADC_IN2
ADC_IN1
LBADC_RETURN
GND
MSTR2_SCL
MSTR2_SDA
VGA_SCL
VGA_SDA
TP404
TP405
TP406
R502 10K OHM 1/16W
LED_AMB
LED_GRN
/SRESET
POWER_OFF
SLAVE_SCL
SLAVE_SDA
C460
C461
C459
0.1UF16V
0.1UF16V
0.1UF16V
A3_CTZ
A4_CTZ
B3_CTZ
B4_CTZ
C3_CTZ
C4_CTZ
ADC_+TEST
AHREF_DE
MSTR2_SCL
MSTR2_SDA
OBUFC_CLK
SCAN_EN
GND
U401 FLI30336-AC
AB1
A1P
AF1
A2P
AF4
A3P
AF7
A4/AN2
AD1
AN
AC2
B1P
AE2
B2P
AE5
B3P
AE8
B4/BN2
AF3
BN
AC1
C1P
AF2
C2P
AF5
C3P
AF8
C4/CN2
AF6
CN
AB2
SV1P
AE1
SV2P
AE4
SV3P
AE7
SV4/SVN2
AF9
SVN
AA1
ADC_+TEST
AC7
VOUT2
AF12
AIP_RAW_HS_CS
AE12
AIP_RAW_VS
AD13
EXT_OSD_VS
AC13
EXT_OSD_HS
AF13
EX_OSD_CLK
P3
ADATA0
ADATA0
ADATA1
P2
ADATA1
P1
ADATA2
ADATA2
R4
ADATA3
ADATA3
ADATA4
R3
ADATA4
R2
ADATA5
ADATA5
ADATA6
R1
ADATA6
ADATA7
T4
ADATA7
ADATA8
T3
ADATA8
T2
ADATA9
ADATA9
ADATA10
T1
ADATA10
ADATA11
U4
ADATA11
ADATA12
U3
ADATA12
ADATA13
U2
ADATA13
ADATA14
U1
ADATA14
V4
ADATA15
ADATA15
ADATA16
V3
ADATA16
ADATA17
V2
ADATA17
ADATA18
V1
ADATA18
W4
ADATA19
ADATA19
W3
ADATA20
ADATA20
W2
ADATA21
ADATA21
W1
ADATA22
ADATA22
Y4
ADATA23
ADATA23
N3
AODD
Y1
AVS
Y2
AHS
Y3
AHREF_DE
IPCLK0
N1
IPCLK0
P4
IPCLK1
M4
IPCLK2
L1
IPCLK3
N2
DIP_RAW_HS_CS
M2
DIP_EXT_CLAMP
M3
DIP_EXT_COAST
M1
DIP_CLEAN_HS_OUT
B1
BDATA0/DOBLU0
C3
BDATA1/DOBLU1
C2
BDATA2/DOBLU2
C1
BDATA3/DOBLU3
D3
BDATA4/DOBLU44
D2
BDATA5/DOBLU5
D1
BDATA6/DOBLU6
E3
BDATA7/DOBLU7
E2
BDATA8/DOGRN0
E1
BDATA9/DOGRN1
F3
BDATA10/DOGRN2
F2
BDATA11/DOGRN3
F1
BDATA12/DOGRN4
G3
BDATA13/DOGRN5
G2
BDATA14/DOGRN6
G1
BDATA15/DOGRN7
H3
BDATA16/DORED0
H2
BDATA17/DORED1
H1
BDATA18/DORED2
J3
BDATA19/DORED3
J2
BDATA20/DORED4
J1
BDATA21/DORED5
K3
BDATA22/DORED6
K2
BDATA23/DORED7
N4
BODD
L2
BVS
L3
BHS
K1
BHREF_DE
B26
XTAL
C26
TCLK
V24
PWM0
U23
PWM1
U24
PWM2
AB24
IR0
AE11
LBADC_IN6
AF11
LBADC_IN5
AC10
LBADC_IN4
AD10
LBADC_IN3
AE10
LBADC_IN2
AF10
LBADC_IN1
AD11
LBADC_RETURN
W26
ATXD
OCM_UDO_0
ARXD
W25
OCM_UDI_0
B2
OCM_UDO_1
B3
OCM_UDI_1
AD9
/RESET
/RESET
AA24
MSTR0_SCL
AA23
MSTR0_SDA
A3
MSTR1_SCL
A2
MSTR1_SDA
AB26
MSTR2_SCL
AB25
MSTR2_SDA
AA26
VGA0_SCL
AA25
VGA0_SDA
Y26
VGA1_SCL
Y25
VGA1_SDA
AF14
AVS_IN_SCL/JTAG_CLK
AD12
AVS_IN_WS/JTAG_MODE
AC12
AVS_IN_DATA/JTAG_TDI
AD14
AVS_OUT_DATA
AE13
AVS_OUT_SCL/JTAG_TDO
AE14
AVS_OUT_WS/JTAG_RESET
M24
VCO_LV
D25
OBUFC_CLK
A1
SCAN_EN
W24
OCM_TIMER1
Y24
/OCM_INT2
W23
/OCM_INT1
V26
SLAVE_SCL
V25
SLAVE_SDA
PBGA-416-1.27
C464
+
C463
+
C462
22uF50V
+1.8V_CORE
K10
U10
CORE_1.8
L10
K11
CORE_1.8
CORE_1.8
D_GND
D_GND
M10
C465
0.01uF/25V
22uF50V
0.01uF/25V
+3.3V_I/O
L11
T11
U11
K16
L16
T16
U16
K17
T17
E4
F4
U17
CORE_1.8
D_GND
N10
P10
IO_3.3
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
CORE_1.8
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
R10
T10
M11
N11
R11
P11
K12
L12
M12
N12
P12
R12
T12
G4H4J4
IO_3.3
D_GND
U12
C468
C467
C466
0.1UF16V
K4
L4
IO_3.3
IO_3.3
IO_3.3
IO_3.3
D_GND
D_GND
D_GND
D_GND
M13
N13
K13
L13
C469
0.1UF16V
0.01uF/25V
0.1UF16V
+3.3V_LBADC
AC14
AC16
AC18
AC9
AC22
AB23
Y23
V23
T23
P23
M23
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
IO_3.3
LBACD-33
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
R14
L14
T13
P13
R13
K14
M14
N14
P14
T14
U14
K15
L15
M15
U13
D4D6D7D8D10
D_GND
N15
+2.5V_DDR
FS_2.5
D_GND
P15
C470
0.01uF/25V
FS_2.5
FS_2.5
D_GND
D_GND
R15
C472
C471
C473
C474
0.01uF/25V
0.1UF16V
0.1UF16V
0.01uF/25V
+3.3V_LVDS_PLL
+3.3V_LVDS
FSVREF
D11
D12
D13
D14
D15
D17
D18
D20
D22
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
FS_2.5
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
D_GND
T15
U15
M16
N16
P16
R16
L17
M17
P17
R17
N17
GND
+1.8V_ADC
D23
H24
E26
H26
J26
M26
C19
C9
FS_2.5
FS_2.5
FSVREF
FSVREF
LVDS_3.3
LVDS_3.3
LVDS_3.3
LVDS_3.3
LVDS_PLL_3.3
D_GND
LVDS_GND
D_GND_ADC
D_GND_ADC
D_GND_ADC
LVDS_PLL_GND
LVDS_GND
LVDS_GND
LVDS_GND
E25
H25
J25
M25
AA2
AA3
AA4
H23
+
C444
C445
+
C401
22uF50V
0.1UF16V
22uF50V
+
C479
+
C480
C481
22uF50V
22uF50V
0.1UF16V
+3.3V_ADC1
C495
+
C494
0.1UF16V
0.1UF16V
GND
+3.3V_PLL
+1.8V_PLL
C508
+
C507
C509
0.1UF16V
22uF50V
0.1UF16V
GND GND
R47482R 1/16W 5%
R47582R 1/16W 5%
R47682R 1/16W 5%
R47782R 1/16W 5%
GND
+3.3V_I/O
RLZ5.6B
CN405
8
7
LED_A
LED_G
6
5
POWER
ADC_IN3
4
3
ADC_IN2
2
ADC_IN1
1
CONN
GND
10K OHM 1/16W
R584
LED_GRN
1K OHM 1/10W
R585
LED_AMB
1K OHM 1/10W
C446
0.1UF16V
C482
0.1UF16V
C496
+1.8V_DLL
C520 0.1UF 16V
C521 0.1UF 16V
C522 0.1UF 16V
C523 0.1UF 16V
R5714.7K OHM 1/16W
R5724.7K OHM 1/16W
R5734.7K OHM 1/16W
R5744.7K OHM 1/16W
R5754.7K OHM 1/16W
R5764.7K OHM 1/16W
R577NC
R5824.7K OHM 1/16W
R5834.7K OHM 1/16W
ZD121
RLZ5.6B
ZD117
R487
+3.3V_I/O
R496
10K OHM 1/16W
C526
0.0022uF
GND
C497
0.1UF16V
C510
0.1UF16V
12
1 2
RLZ5.6B
ZD118
C448
C447
0.1UF16V
0.1UF16V
C483
0.1UF16V
C498
22uF50V
+
+
C511
22uF50V
GND
SL_HDCP_CONTROL
DSUB_SWITCH
DDC-SEL_A
DDC-SEL_B
PWM_ADJ
PPWR
PBIAS
WP_DVI
WP_24C32
12
ZD122
RLZ5.6B
1 2
1 2
RLZ5.6B
ZD119
+3.3V_I/O
R488
100 OHM 1/16W
Q411
PMBS3906
R491 0 OHM 1/16W
+3.3V_I/O
R489
10K OHM 1/16W
/RESET
C484
0.1UF16V
GND
C512
0.1UF16V
A_RET_CTZ
B_RET_CTZ
C_RET_CTZ
SV_RET_CTZ
GND
RLZ5.6B
ZD120
R490
75 OHM 1/16W
Q412
PMBS3906
C449
0.1UF16V
C485
0.1UF16V
+3.3V_ADC2
C499
C500
0.1UF16V
0.1UF16V
C513
0.1UF16V
4/11
R483
R484
R485
R486
1 2
3/18 derating
LED_G
LED_A
R492 0 OHM 1/16W
C450
0.1UF16V
C486
0.1UF16V
+3.3V_LBADC
GND
C514
0.1UF16V
EXTRA_ADATA[0..5]
+3.3V_I/O
/SRESET
C451
0.1UF16V
C487
0.1UF16V
+
C501
22uF50V
+3.3V_LVDS
ADATA[0..23]
DSUB_SWITCH
C515
0.1UF16V
10K OHM 1/16W
10K OHM 1/16W
10K OHM 1/16W
10K OHM 1/16W
3.3V_DVDD_SLR
C452
0.1UF16V
C488
0.1UF16V
C502
0.1UF16V
+3.3V_LVDS_PLL
+
GND
+3.3V_PLL
TP5
R499
10K OHM 1/16W
/SRESET
C475
0.1UF16V
+2.5V_DDR
C476
C478
C477
0.1UF16V
0.1UF16V
0.01uF/25V
RPLL_1.8
ADC_AGND
AE6
+3.3V_PLL
D26
ADC_AGND
AC8
+3.3V_ADC2
+3.3V_ADC1
AD3
AD4
AD5
AD6
AD7
FSDATA0
RPLL_33
ADC_AGND
ADC_AGND
ADC_AGND
AD8
AE9
FSDATA1
FSDATA2
ADC1_3.3
ADC1_3.3
ADC1_3.3
ADC2_3.3
ADC2_3.3
FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31
FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSADDR9
FSADDR10
FSADDR11
FSADDR12
FSCLKp
FSCLKn
FSCS0
FSCS1
FSDQS0
FSDQS1
FSDQS2
FSDQS3
FSDQM0
FSDQM1
FSDQM2
FSDQM3
FSWE
FSCAS
FSRAS
FSCKE
FSBKSEL0
FSBKSEL1
EBLU5/PD5
EBLU4/PD4
EBLU7/PD7
EBLU6/PD6
EGRN1/PD9
EGRN0/PD8
EGRN3/PD11
EGRN2/PD10
EGRN5/PD13
EGRN4/PD12
EGRN7/PD15
EGRN6/PD14
ERED1PD17
ERED0/PD16
ERED3/PD19
ERED2/PD18
ERED5/PD21
ERED4/PD20
ERED7/PD23
ERED6/PD22
EBLU0/PD0
EBLU1/PD1
EBLU2/PD2
EBLU3/PD3
DCLK
DHS
DVS
DEN
OCMADDR21
OCMADDR20
OCMADDR19
OCMADDR18
OCMADDR17
OCMADDR16
OCMADDR15
OCMADDR14
OCMADDR13
OCMADDR12
OCMADDR11
OCMADDR10
OCMADDR9
OCMADDR8
OCMADDR7
OCMADDR6
OCMADDR5
OCMADDR4
OCMADDR3
OCMADDR2
OCMADDR1
OCMADDR0
OCMDATA15
OCMDATA14
OCMDATA13
OCMDATA12
OCMDATA11
OCMDATA10
OCMDATA9
OCMDATA8
OCMDATA7
OCMDATA6
OCMDATA5
OCMDATA4
OCMDATA3
OCMDATA2
OCMDATA1
OCMDATA0
/OCM_RE
/OCM_WE
/ROM_CS
/OCM_CS0
/OCM_CS1
/OCM_CS2
JTAG_BS_EN
GPIO_42
GPIO_43
GPIO_44
GPIO_45
GPIO_46
GPIO_47
PPWR
PBIAS
VSSA18_DLL
FSVREFVSS
LBADC_GND
RPLL_AGND
RPLL_DGND
RPLL_AGND
FSVREFVSS
B14
D19
AC11
A25
B25
A26
D9
+1.8V_PLL
+1.8V_DLL
AB4
AC4
C25
AC5
A14
ADC_1.8
ADC_1.8
ADC_1.8
VDD18_DLL
ADC_AGND
ADC_AGND
ADC_AGND
ADC_AGND
AC3
AD2
AB3
AE3
AC6
FSDATAU[0..31]
FSDATAU0
B4
FSDATAU1
A4
FSDATAU2
B5
FSDATAU3
A5
FSDATAU4
B7
FSDATAU5
A7
FSDATAU6
B8
FSDATAU7
A8
FSDATAU8
B9
FSDATAU9
A9
B10
FSDATAU10
FSDATAU11
A10
FSDATAU12
B12
A12
FSDATAU13
FSDATAU14
B13
FSDATAU15
A13
FSDATAU16
B15
FSDATAU17
A15
FSDATAU18
B16
FSDATAU19
A16
B18
FSDATAU20
FSDATAU21
A18
B19
FSDATAU22
FSDATAU23
A19
B20
FSDATAU24
A20
FSDATAU25
FSDATAU26
B21
A21
FSDATAU27
FSDATAU28
B23
FSDATAU29
A23
FSDATAU30
B24
FSDATAU31
A24
FSADDRU0
C18
FSADDRU1
C17
FSADDRU2
C16
FSADDRU3
C15
C13
FSADDRU4
C10
FSADDRU5
FSADDRU6
C8
FSADDRU7
C7
C6
FSADDRU8
C12
FSADDRU9
R503, R502 very close to U500
FSADDRU10
D16
FSADDRU11
C14
FSADDRU12
C11
D5
FSCLKU+
FSCLKU-
C5
D21
/FSCS1U
C22
FSDQSU0
B6
B11
FSDQSU1
FSDQSU2
A17
A22
FSDQSU3
A6
FSDQMU0
A11
FSDQMU1
FSDQMU2
B17
FSDQMU3
B22
/FSWEU
C23
D24
/FSCASU
C24
/FSRASU
C4
FSCKEU
C21
FSBKSELU0
C20
FSBKSELU1
L24
L23
L26
L25
K24
K23
K26
K25
J24
J23
G24
G23
G26
G25
F24
F23
F26
F25
E24
E23
N23
N24
N25
N26
P24
DCLK_COR
DHHS
P25
R26
DVVS
P26
DEEN
AF15
OCMADDR21
AE15
OCMADDR20
OCMADDR19
AD15
OCMADDR18
AC15
OCMADDR17
AF16
OCMADDR16
AE16
AD16
OCMADDR15
AF17
OCMADDR14
AE17
OCMADDR13
OCMADDR12
AD17
AC17
OCMADDR11
AF18
OCMADDR10
AE18
OCMADDR9
OCMADDR8
AD18
AF19
OCMADDR7
AE19
OCMADDR6
OCMADDR5
AD19
AC19
OCMADDR4
OCMADDR3
AF20
OCMADDR2
AE20
OCMADDR1
AD20
AF21
OCMADDR0
AE21
OCMDATA15
OCMDATA14
AD21
AC21
OCMDATA13
AF22
OCMDATA12
AE22
OCMDATA11
AD22
OCMDATA10
AF23
OCMDATA9
AE23
OCMDATA8
AD23
OCMDATA7
OCMDATA6
AC23
OCMDATA5
AF24
AF25
OCMDATA4
AF26
OCMDATA3
AE24
OCMDATA2
AE25
OCMDATA1
OCMDATA0
AE26
AC25
/OCM_RE
AC26
/OCM_WE
AD24
/OCM_CS
AD25
/OCM_CS0
AD26
/OCM_CS1
AC24
AC20
BS_EN
T24
T25
T26
R23
R24
R25
U25
PPWR
U26
TXA3TXA3+
TXACTXAC+
TXA2TXA2+
TXA1TXA1+
TXA0TXA0+
TXB3TXB3+
TXBCTXBC+
TXB2TXB2+
TXB1TXB1+
TXB0TXB0+
R479 20R 1/16W 5%
R480 0 OHM 1/16W
R481 0 OHM 1/16W
R482 0 OHM 1/16W
OCMDATA[0..15]
+3.3V_I/O
PPWR
R471 0 OHM 1/16W
R472 0 OHM 1/16W
R473 33 OHM 1/16W
OCMADDR[0..21]
/OCM_RE
/OCM_WE
/ROM_CS
/OCM_CS1
R497
10K OHM 1/16W
R498 NC
R588 NC

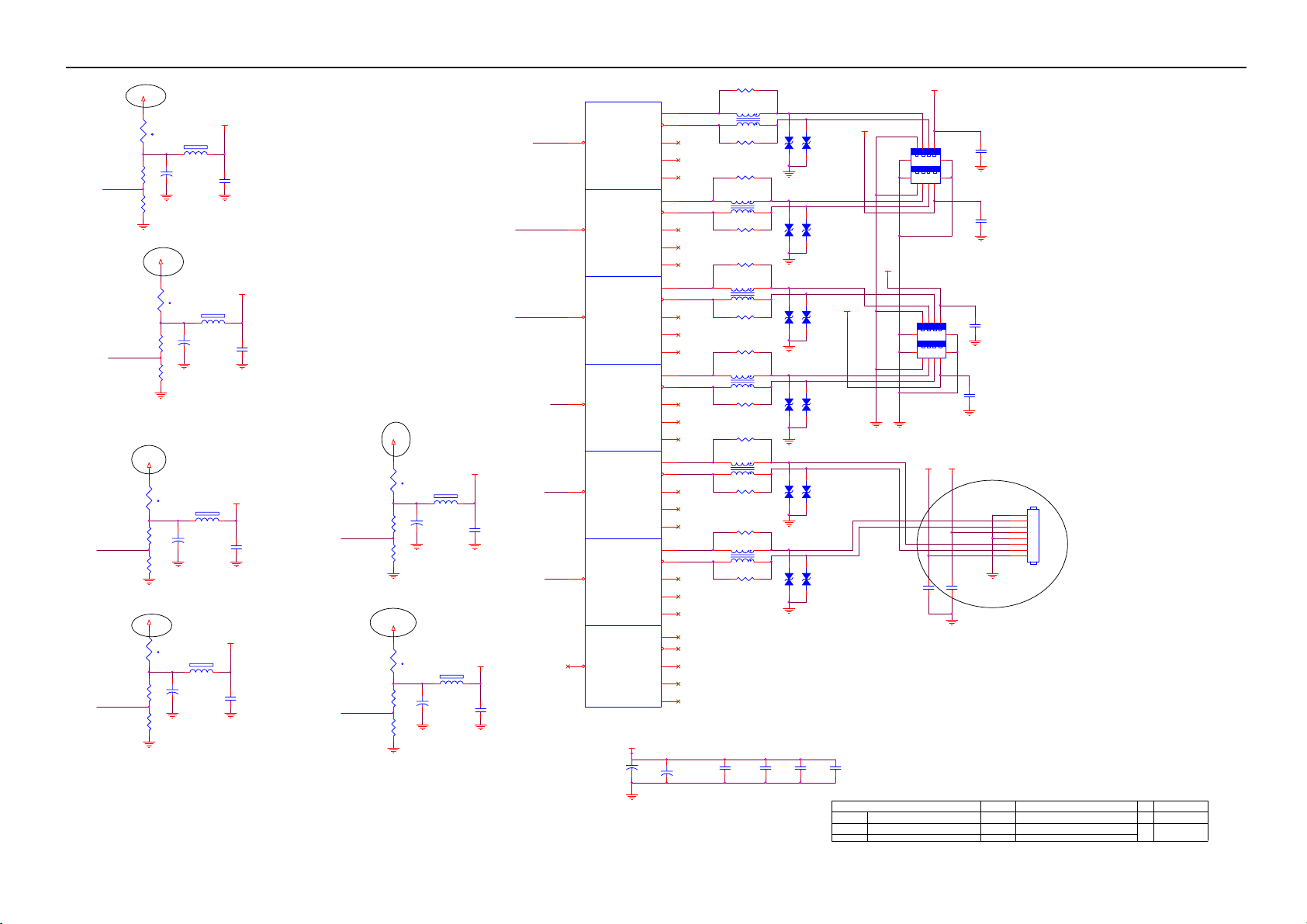

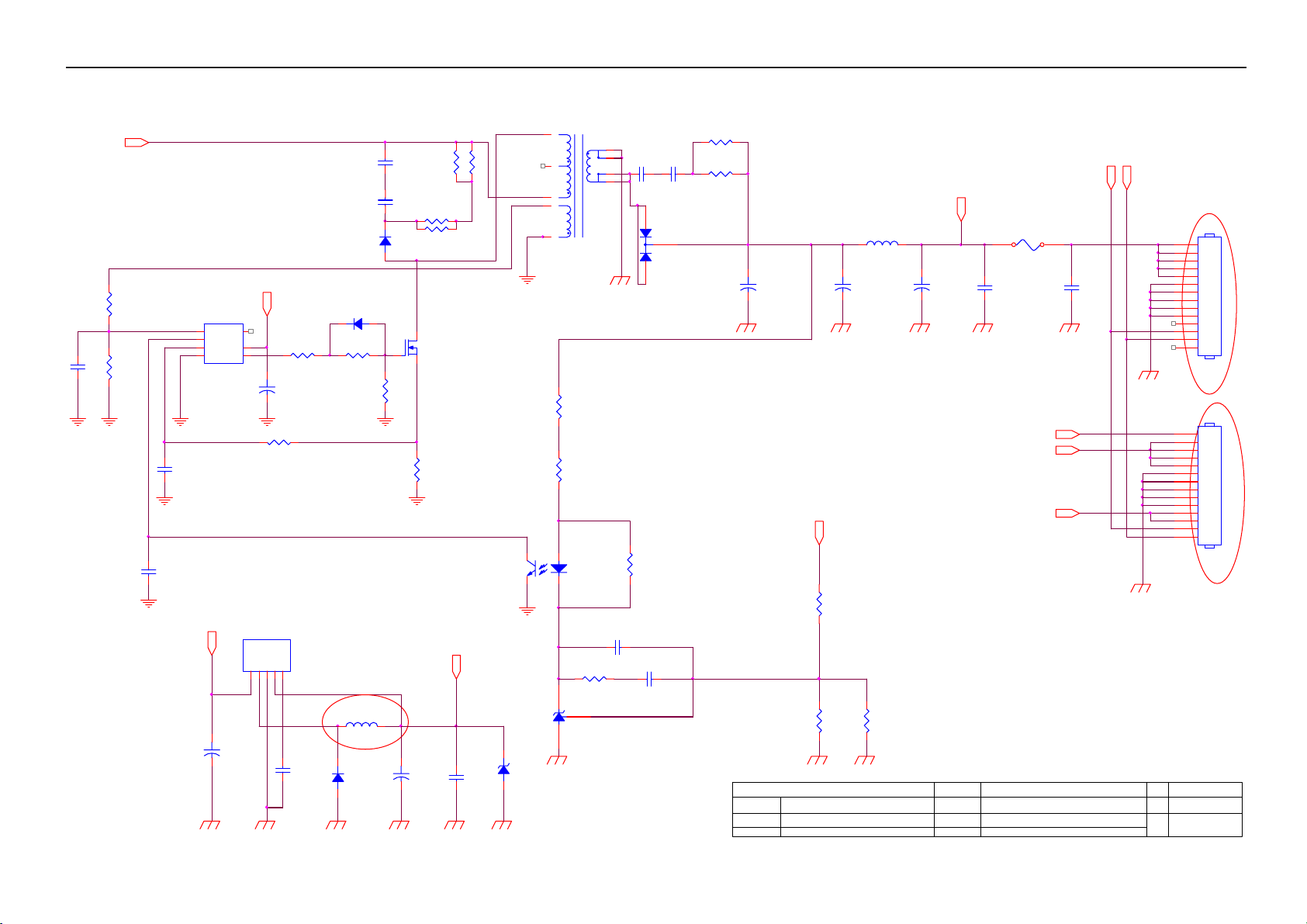

26
