AOC I2470PWQU User Manual

I2470S

(LED Backlight)

WD

/

I2470S

WQ

I2470P

/

W

Q

U

Safety ........................................................................................................................................................................4

2

National Conventions .........................................................................................................................................4

Power ................................................................................................................................................................5

Installation..........................................................................................................................................................6

Cleaning.............................................................................................................................................................7

Other ..................................................................................................................................................................8

Setup ........................................................................................................................................................................9

Contents of Box .................................................................................................................................................9

Setup Stand .......................................................................................................................................................10

Adjusting Viewing Angle .....................................................................................................................................11

Connecting the Monitor ......................................................................................................................................

Adjusting ................................................................................................................................................................... 15

Setting Optimal Resolution ................................................................................................................................ 15

Windows 8 ...................................................................................................................................................15

Windows Vista .............................................................................................................................................17

Windows XP ................................................................................................................................................19

Windows ME/2000 .......................................................................................................................................20

Hotkeys ...............................................................................................................................................................21

Using"Mobile High-Defintion Link"

OSD Setting

Luminanc ..................................................................................................................................................

Image Setup

Color Setup ............................................................................................................................................... 29

Picture Boost ............................................................................................................................................ ..31

OSD Setup

Extra ......................................................................................................................................................... 35

Exit ............................................................................................................................................................

LED Indicator ................................................................................................................................................... 38

Driver ........................................................................................................................................................................ 39

Monitor Driver ..................................................................................................................................................

Windows 8 ................................................................................................................................................

Windows 2000 ..........................................................................................................................................

Windows ME .............................................................................................................................................

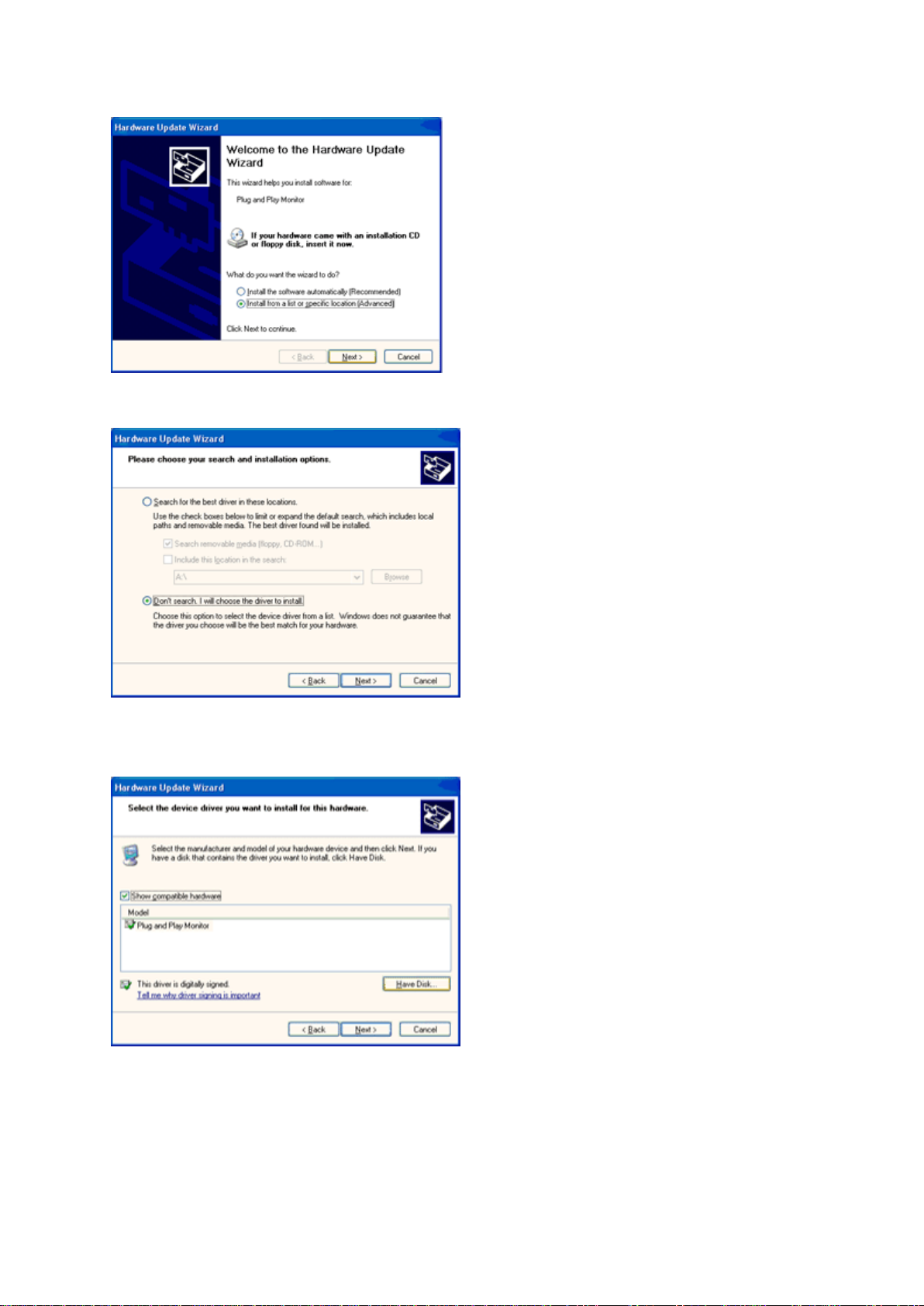

Windows XP .............................................................................................................................................

Windows Vista ..........................................................................................................................................

Windows 7

i-Menu ..............................................................................................................................................................

e-Saver ............................................................................................................................................................

Screen+ ...........................................................................................................................................................

Troubleshoot ...........................................................................................................................................................

Specification............................................................................................................................................................

General Specification .......................................................................................................................................

Preset Display Modes .........................................................................................................................................

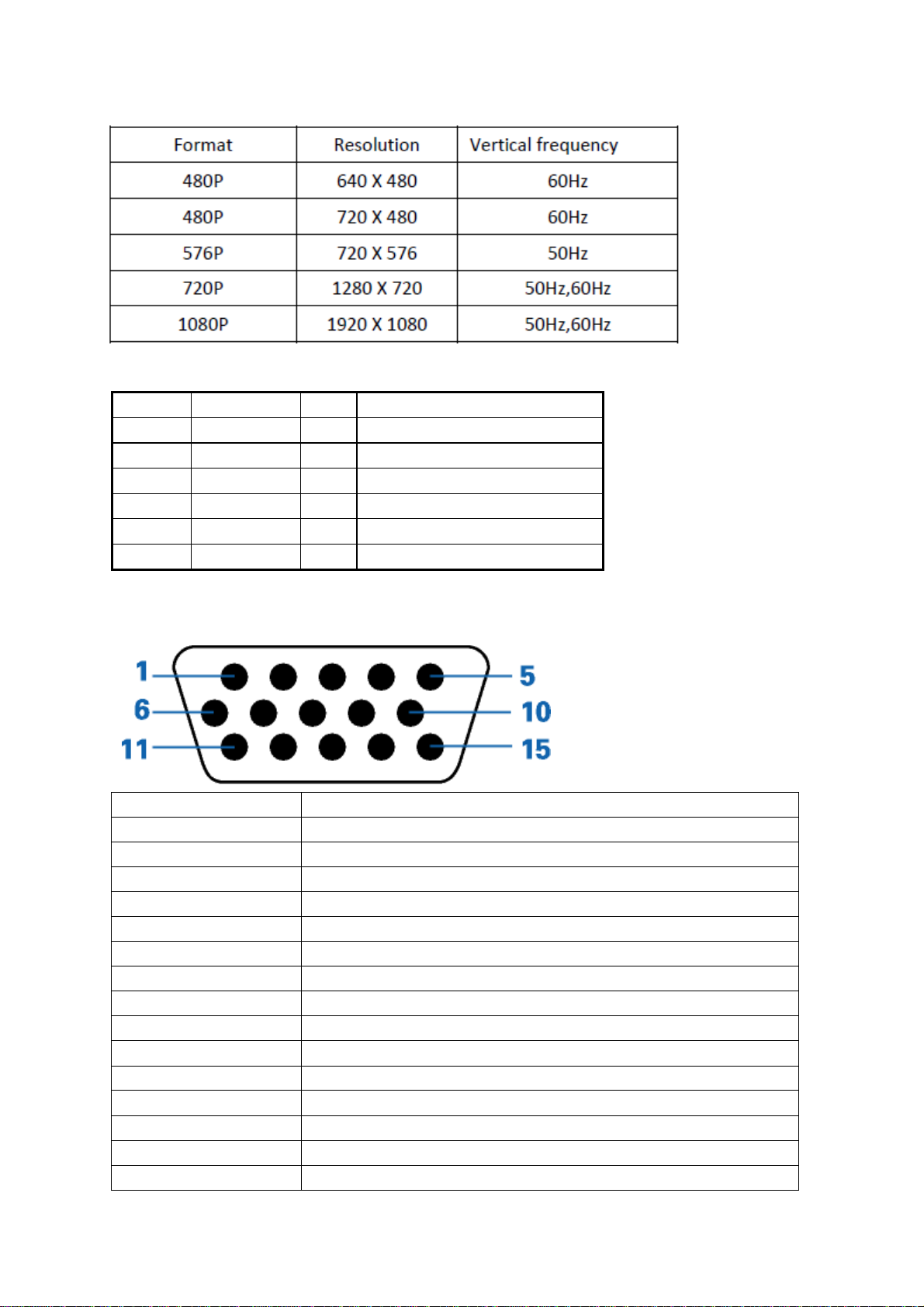

Pin Assignments .............................................................................................................................................. 62

Plug and Play ...................................................................................................................................................

Regulation ...............................................................................................................................................................

FCC Notice ...................................................................................................................................................... 64

WEEE Declaration .......................................................................................................................

e

................................................................................................................................................

....

................

...

...............................................................................................................

12

23

..24

......................................................................................................................................................

25
27

..
..
..
..

..
..

37

..

39

..

..

39

..

43

43

..

44

..

47

..

49

..

53

..
..

54

..

55
56

..

58

..

58

..
..

60

..
..63

64

..

..

65

..

.............................................................................................................................................

............................................................................................................................................... 33

E

3

1 .

z

z

z

c o

s t e

P

P

E

....

...

WEEE Declaration for India ......................................................................................................... 65

....

...

EPA Energy Star .......................................................................................................................... 66

EPEAT Declaration ...................................................................................................................... 67

.............

....

.....

............

.............

Service ............................................................................................................................................................. 68

EU WARRANTY FOR AOC MONITORS ......................................................................................................... 68

n

Warranty Statement for North & South America (excluding Brazil) ........................................................... 70

v

P

(

d

Safety

4

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.

Power

5

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug
will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat
the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect
the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

6

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on
the stand:

Cleaning

7

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too
rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

8

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

For display with glossy bezel the user should consider the placement of the display as the bezel may cause

disturbing reflections from surrounding light and bright surfaces.

Setup

Monitor

CD Manual Monitor Base /Stand Wire holder MHL cable

Power Cable DVI Cable Analog Cable HDMI Cable USB Cable Audio Cable DP Cable

9

Contents of the Box

Not all signal cables (Analog , Audio, DVI, USB, DP, MHLand HDMI cables) will be provided for all countries and

regions. Please check with the local dealer or AOC branch office for confirmation.

10

Setup Stand

Please setup or remove the Stand following the steps as below.

Setup:

Remove:

Setup:

Remove:

Remove:

………………………

Adjusting Viewing Angle

11

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
1> You are able to adjust the monitor's angle from -5° to 25

°.

NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Do not adjust the viewing angle over 25 degrees in order to avoid damage.

Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting
the viewing angle.

Connecting the Monitor

12

Cable Connections In Back of Monitor and Computer:

I2470S

WD

1

2

3

2

3

4

5 6

I2470S

WQ

1

7

10

9

2

3

7

4

5 6

I2470P

9

WQU

9

8

1

1. Power
DVI

2.

Analog (D-Sub 15-Pin VGA cable)

3.

4.

HDMI/MHL
Audio in

5.

Earphone out

6.
Display port

7.
AC power switch

8.

9.

USB

10.

USB

fast charging

13

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.

3. (Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.

4. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.

5. (Optional – Requires a video card with DP port) - Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.

6. (Optional – Requires a video card with MHL port) - Connect one end of the MHL cable to the back of the
monitor and connect the other end to the computer’s MHL port.

7. (Optional)Connect the audio cable to audio in port on the back of the monitor

8. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

14

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

I2470S

I2470P

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this
procedure. Follow these steps:

1 Remove the base.
2 Follow the manufacturer's instructions to assemble the wall mounting arm.
3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the
back of the monitor.
4 Insert the 4 screws into the holes and tighten.
5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for
instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official
department of AOC.

Adjusting

15

Setting Optimal Resolution

Windows 8

For Windows 8:

1. Right click and click All apps at the bottom-right of the screen.

2. Set the “View by” to “Category”.

3. Click Appearance and Personalization.

4. Click DISPLAY.

16

5. Set the resolution SLIDE-BAR

to 1920x1080.

Windows Vista

17

For Windows Vista:

1 Click START.
2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization

5 Click Display Settings.

18

6 Set the resolution SLIDE-BAR

to

1920x1080.

Windows XP

19

For Windows XP:

1 Click START.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

6 Click SETTINGS.

20

7 Set the resolution SLIDE-BAR

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR

to 1920x1080.

to 1920x1080.

Hotkeys

21

1

I2470S

Power

Press the Power button to turn on/off the monitor.

Menu/Enter

Press to display the OSD or confirm the selection.

Volume /

When there is no OSD, press Volume adjust volume.

4:3 or wide image ratio /+

When there is no OSD, press +hotkey continuously to change 4:3 or wide image ratio. (If the product screen size
is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

WD

1

Source/Auto/Exit

2

ClearVision/-

4:3 or wide /

3

4 Menu/Enter

5 Power

+

+

2

3

4

I2470S

WQ

1

2

3

4 Menu/Enter

5 Power

5

/I2470P

Source/Auto/Exit

ClearVision/-

Volume

WQU

/

+

ClearVision/-

22

1. When there is no OSD, Press the “-
Clear Vision

button to activate

”

2. Use the “ ” or “­medium, strong,

always “off”

3.

Press and hold “ - ” button for 5 seconds ,the vertical line

will display while no vertical line
“ -”

button for 5 seconds ,the vertical line will disappear while

the vertical
the monitor clear vision

of

vertical line will be the effect demo and right of

will be clear vision off

more obviously.

Clear Vision function will provides the best image

viewing
blurry images

+

experience by converting low

“buttons to select between weak,

or off settings.

line is moving in screen;

into

Off /

When display picture in screen will be

;

clear and vivid images.

Default setting is

in screen;

Strong / Medium / Weak,

Press and hold

Press the

resolution and

“ -”

Button to turn

the left

vertical line
