AOC I2279VWHE, I2279VW, I2379V, I2379VHE User Manual
LCD Monitor User Manual
1
I2279VW / I2279VWHE / I2379V / I2379VHE
(LED
Backlight)
www.aoc.com
©2015 AOC. All Rights Reserved.
Safety ........................................................................................................................................................................ 4
2
National Conventions ......................................................................................................................................... 4
Power ................................................................................................................................................................ 5
Installation.......................................................................................................................................................... 6
Cleaning ............................................................................................................................................................ 7
Other .................................................................................................................................................................. 8
Setup ...................................................................................................................................................................... 9
Contents in Box ............................................................................................................................................... 9
Setup Stand &Base.......................................................................................................................................... 10
Adjusting Viewing Angle ................................................................................................................................... 11
Connecting the Monitor .................................................................................................................................... 12
Adjusting ................................................................................................................................................................. 13
Setting Optimal Resolution .............................................................................................................................. 13
Windows 8 ................................................................................................................................................ 13
Windows 7 ................................................................................................................................................ 15
Windows Vista .......................................................................................................................................... 17
Windows XP ............................................................................................................................................. 19
Windows ME/2000 .................................................................................................................................... 20
Hotkeys ............................................................................................................................................................ 21
OSD Setting ..................................................................................................................................................... 23
Luminance ................................................................................................................................................ 24

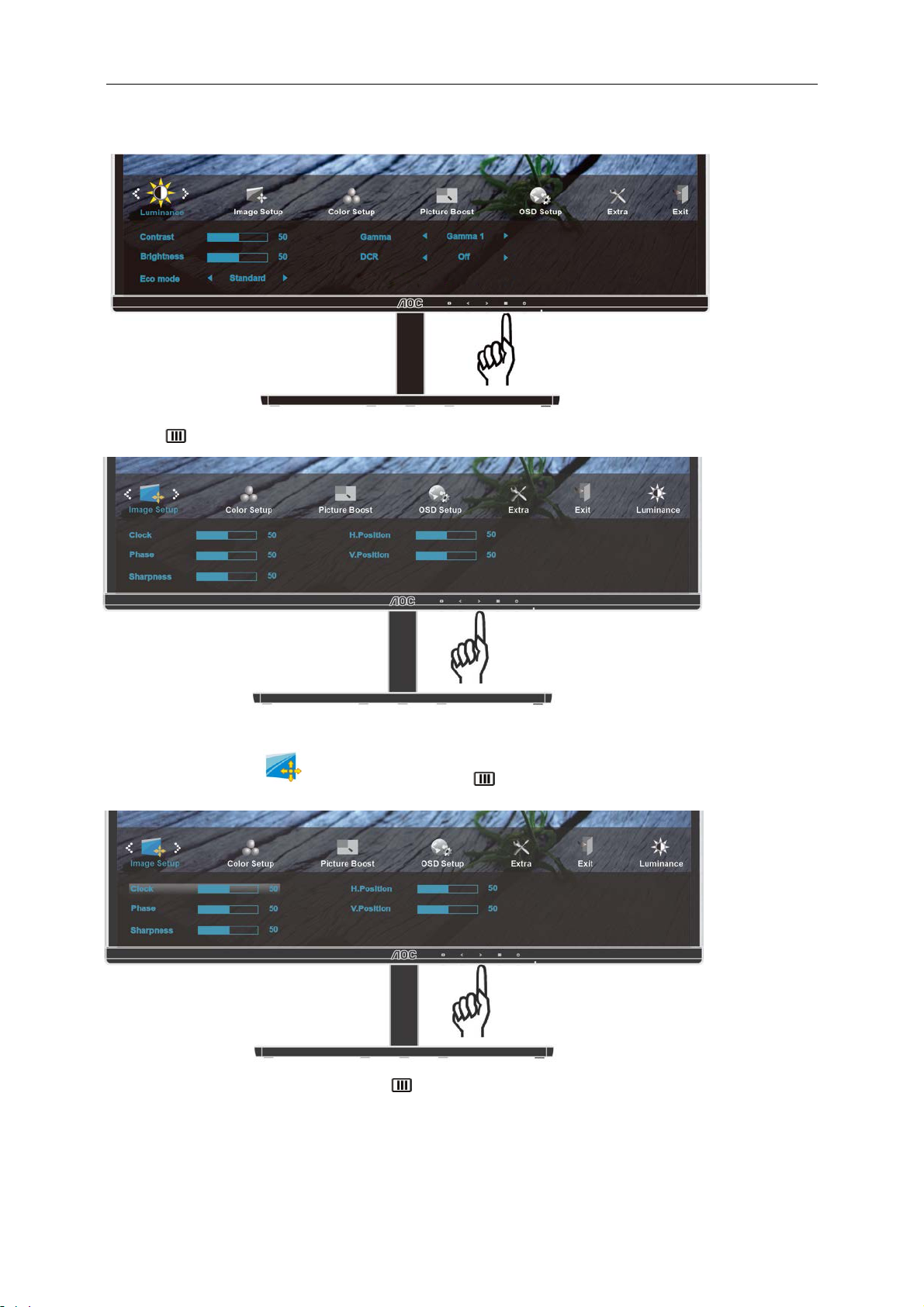

Image Setup ............................................................................................................................................. 26

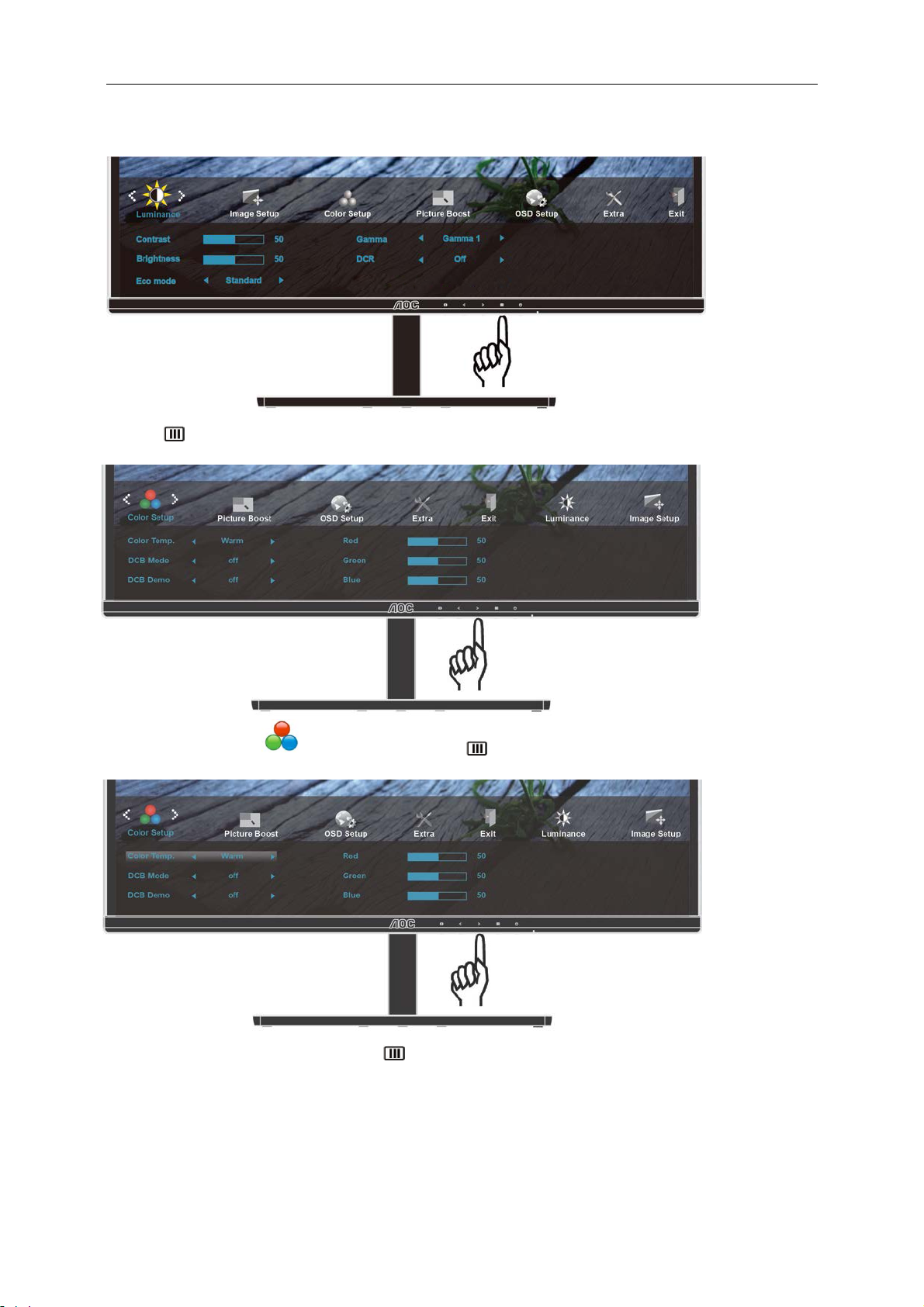

Color Setup ............................................................................................................................................... 28
Picture Boost ............................................................................................................................................ 30
OSD Setup ............................................................................................................................................... 32
Extra ......................................................................................................................................................... 34
Exit ........................................................................................................................................................... 36
LED Indicator ................................................................................................................................................... 37
Driver ...................................................................................................................................................................... 38
Monitor Driver .................................................................................................................................................. 38
Windows 8 ................................................................................................................................................ 38
Windows 7 ................................................................................................................................................ 42
Windows Vista ..........................................................................................................................................46
Windows XP ............................................................................................................................................. 48
Windows 2000 .......................................................................................................................................... 51
Windows ME .............................................................................................................................................51
i-Menu .............................................................................................................................................................. 52
e-Saver ............................................................................................................................................................ 53
Screen+ ...........................................................................................................................................................54
Troubleshoot ...........................................................................................................................................................55
Specification ...........................................................................................................................................................57
General Specification (I2279VW/I2279VWHE)
Preset Display Modes ................................................................................................58
General Specification ................................................................................................. 59
Preset Display Modes ..................................................................................................... 60
Pin Assignments ..............................................................................................................................................61
Plug and Play ................................................................................................................................................... 63
(I2279VW/I2279VWHE)
(I2379V/I2379VHE)
(I2379V/I2379VHE)
............................................................................................... 57
.......
..
..
..
Regulation ............................................................................................................................................................... 64
3
FCC Notice ...................................................................................................................................................... 64
WEEE Declaration ........................................................................................................................................... 65
WEEE Declaration for India ............................................................................................................................. 65
RoHS Declaration for India ............................................................................................................................. .65
EPA Energy Star ..............................................................................................................................................66
Service ....................................................................................................................................................................67
Warranty Statement for Europe .......................................................................................................................67
Warranty Statement for Middle East and Africa (MEA) ....................................................................................69
AOC International (Europe) B.V. ......................................................................................................................71
Warranty Statement for North & South America (excluding Brazil) ...........................................................
......72
Safety
4
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
Power
5
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect
the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V ~, Min. 5A
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter which have CE,UL,CSA listed license (Only for
monitors with power adapter).
Manufacturer:
SHENZHEN HONOR ELECTRONIC CO., LTD
ADS-25FSG-19 19025GPCN：
TPV ELECTRONICS (FUJIAN) CO., LTD
ADPC1925EX：
Output: 19VDC， 1.31A；
Output: 19VDC， 1.31A；
Installation
6
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the stand:
Cleaning
7
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
Other
8
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause
disturbing reflections from surrounding light and bright surfaces.
If the phone on the base of LCD monitor when the phone calls will affect the circuit characteristics, may
cause the screen to mute or screen interference.
Setup
9
Contents in Box
Monitor
or
CD Manual
*
Power Cable
Not all signal cables (Power,Analog,DVI,HDMI ) will be provided for all countries and regions.
Please check with the local dealer or AOC branch office for confirmation.
*
Analog Cable
Base
*
*
DVI Cable
Setup Stand & Base
10
Please setup or remove the base following the steps as below.
Setup:
Remove:
Adjusting Viewing Angle
11
For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to
your own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor's angle as below.
5
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
Do not adjust the viewing angle over 23 degrees in order to avoid damage.
Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the
viewing angle.
23
Connecting the Monitor
12
Cable Connections In Back of Monitor and Computer:
1
2
I2279VW/I2379V
1. DC port
D-SUB
2.
3.
HDMI
4.
DVI
To protect equipment, always turn off the PC and LCD monitor before connecting.
3
I2279VWHE/I2379VHE
1
2
1. Connect the power cable to the DC port on the back of the monitor.
2.
Turn on your monitor and computer.
Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
3.
computer's D-Sub port.
(Optional—Requires a video card with HDMI port）-Connect one end of the HDMI cable to the back of the monitor and
4.
connect the other end to the computer’s HDMI port.
(Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor and connect
5.
the other end to the computer’s DVI port.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
Adjusting
13
Setting Optimal Resolution
Windows 8
For Windows 8:
1. Right click and click All apps at the bottom-right of the screen.
2. Set the “View by” to “Category”.
3. Click Appearance and Personalization.
4. Click DISPLAY.
14
5. SettheresolutionSLIDE-BARtoOptimalpresetresolution
Windows 7
15
For Windows 7:
1. Click START.
2. Click CONTROL PANEL.
3. Click APPEARANCE.
4. Click DISPLAY
5. Set the resolution SLIDE-BAR to Optimal preset resolution.
16
Windows Vista
17
For Windows Vista:
1 Click START.
2 Click CONTROL PANEL.
3 Click Appearance and Personalization.
4 Click Personalization
5 Click Display Settings.
18
6 Set the resolution SLIDE-BAR to Optimal preset resolution
Windo
w
d
T
E
O
p
N
n
AY
19
s XP
For Win
1 Click S
2 Click S
3 Click C
4 Click A
ows XP:
ART.
TTINGS.
NTROL PA
pearance a
EL.
d Themes.
5 Double
click DISPL
.
6 Click S
E
w
d
T
E
O
E
L
0
0
N
AY
L
O
O
t
t
20
TTINGS.
7 Set the
Windo
For Win
1 Click S
2 Click S
3 Click C
4 Double
5 Click S
6 Set the
resolution S
s ME/20
ows ME/200
ART.
TTINGS.
NTROL PA
click DISPL
TTINGS.
resolution S
IDE-BAR to
0
:
EL.
.
IDE-BAR to
ptimal prese
ptimal prese
resolution
resolution
Hotkeys
21
1 2 3 4 5
1
2
3
4
5
Power
Press the Power button to turn on/off the monitor.
4:3 or wide image ratio /
When there is no OSD, press > hotkey continuously to change 4:3 or wide image rati
is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )
Auto / Exit
When there is no OSD, press Auto / Exit button continuously about 2 second to do auto configure.
Source hot key
When the OSD is closed, press Source button will be Source hot key function. Press Source button to
the input source showed in the message bar , press Menu/Enter button to change to the source selected.
Source/ Auto/ Exit
Clear Vision /<
Widescreen / 4:3 switch />
Menu/Enter
Power
>
o. (If the product screen size
select
Clear Vision
22
Clear Vision
Adjust the Clear Vision
Weak
Medium
Strong
Clear Vision Demo
on or off
Disable or Enable Demo
1. When there is no OSD, Press the “<” button to activate Clear Vision.
2. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always
“off”.
3. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision
Demo: on” will be display on the screen for a duration of 5 seconds. Press Menu or Exit button, the message
will disappear. Press and hold “<” button for 5 seconds again, Clear Vision Demo will be off.
Clear Vision function provides the best image viewing experience by converting low resolution and blurry images
into clear and vivid images.
Weak
Medium
Strong
Off
OSD Setting
23
Basic and simple instruction on the control keys.
1.
Press the MENU-button to activate the OSD window.
2.
Press < or > to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is
highlighted, press MENU-button to activate.
3.
Press < or > to change the settings of the selected function. Press AUTO to exit. If y
other function, repeat steps 2-3.
4.
OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor
press power-button to turn the monitor on. To un-lock the OSD, press and hold the MENU-button while
the monitor is off and then press power-button to turn the monitor on.
Notes:
1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are
turned off accordingly.
ou want to adjust any
is off and then
Loading...
