AOC F1905E Service Manual

HP F1905E

SERVICE MANUAL

19〞LCD Monitor

F1905E Series

THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY
REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE
CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE OF
PUBLICATION AND DISCLAIMS RELIABILITY FOR CHANGES, ERRORS OR OMISSIONS.

HP F1905E

Table of Contents

Table of Contents ---------------------------------------------------------------------------------- 02
Revision List ---------------------------------------------------------------------------------------- 04

1.Product Feature --------------------------------------------------------------------------------05

2.LCD Monitor Description -----------------------------------------------------------------------05

3.Operation Instructions --------------------------------------------------------------------------06

3.1 General Instructions -----------------------------------------------------------------------06

3.2 Control Button -------------------------------------------------------------------------------07

3.3 Adjusting The Picture ---------------------------------------------------------------------08

4. Input/Output S pecification ---------------- --------------------------------------------------- 09

4.1 Input Signal Connector --------------------------------------------------------------------09

4.1.1 Analog D-SUB Connector --------------------------------------------------------09

4.1.2 DVI-D Digital connector -------------------------------------------------------------09

4.2 Factory Preset Display Modes ----------------------------------------------------------10

4.3 Power Supply Requirements ------------------------------------------------------------11

5.Panel Specification ---------------------------------------------------------------------------11

5.1 General Feature ----------------------------------------------------------------------------11

5.2 Optical Characteristics --------------------------------------------------------------------12

6. Block Diagram -----------------------------------------------------------------------------------13

6.1 Monitor Exploded View ------------------------------------------------------------------13

6.2 Software Flow Chart -----------------------------------------------------------------------14

6.3 Electrical Block Diagram -----------------------------------------------------------------16

6.3.1 Scalar Board ---------------------------------------------------------------------------16

6.3.2 Inverter/Power Board ----------------------------------------------------------------17

2

HP F1905E

7. Schematic -----------------------------------------------------------------------------------------19

7.1 Main Board -----------------------------------------------------------------------------------19

7.2 Inverter/Power Board -------------------------------------------------------------------23

8. PCB Layout ---------------------------------------------------------------------------------------26

8.1 Main Board -----------------------------------------------------------------------------------26

8.2 Inverter/Power Board ----------------------------------------------------------------------27

8.3 Keypad Board -----------------------------------------------------------------------------30

9. Maintainability ------------------------------------------------------------------------------------31

9.1 Equipments and Tools Requirements -------------------------------------------------31

9.2 Trouble Shooting ---------------------------------------------------------------------------32

9.2.1 Main Board ------------------------------------------------------------------------32

9.2.2 Power/Inverter Board -------------------------------------------------------------35

9.2.3 Key Pad Board -----------------------------------------------------------------------37

10. White-Balance, Luminance Adjustment ----------------------------------------------- 38

12. Check List After Replacing LCD Main Board ---------------------------------------------40

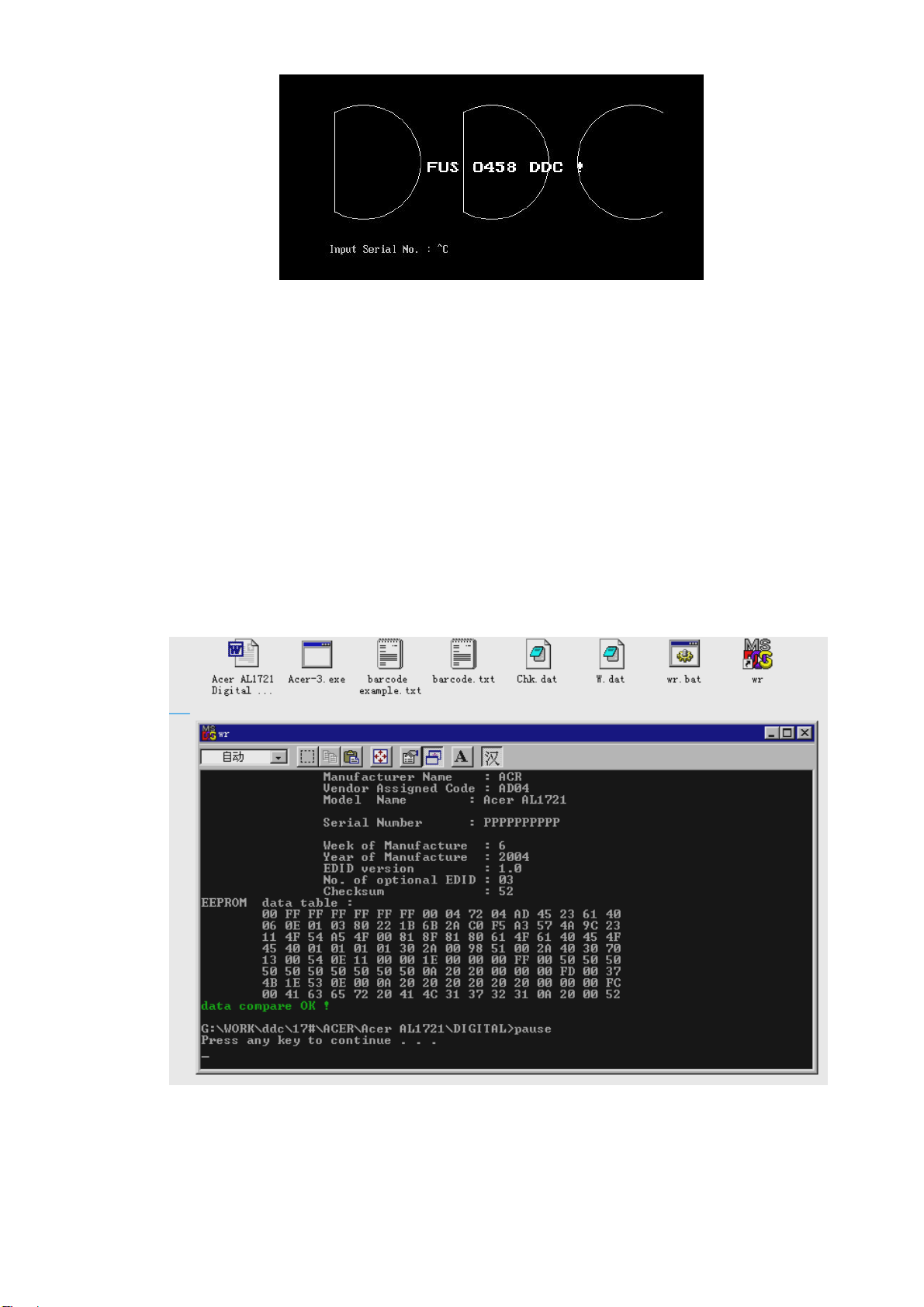

13. EDID Content -----------------------------------------------------------------------------------44

14. BOM List -----------------------------------------------------------------------------------------45

3

Revision List

Revision Date TPV model name

A00 May.-09-06 T986KAVDKHHPAP

HP F1905E

4

1. Product Feature

48.3 cm (19”) a-si TFT Active matrix LCD panel, 0.294mm dot pitch
Scalar chipset: Genesis GM5321
Microprocessor controlled scan technology
Both VGA analog and DVI-D digital signal video inputs supported
450:1 Typical Contrast Ratio and 250-nits typical Brightness
Response time 20ms and Viewing Angle 140(Horizontal) and 120(Vertical)
15 factory presets, 10 user modes
Vertical refresh rate 50Hz to 76Hz; Horizontal frequency 30kHz to 83kHz
Resolutions: 640 x 480 up to 1280x1024, Max Pixel Modes: 140 MHz
Power Internal AC100V-240V
Tilt -5° to 35°
CE mark
TCO 03 mark
VESA DPMS compliant

HP F1905E

VESA DDC2B compliant and DDC/CI interface.

2. LCD Monitor Description

The LCD Monitor will contain main board, power board, key board which house the flat panel
control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main
board chips each voltage.

Power Board

Monitor Block Diagram

CCFT Drive.

Main Board

Keyboard

Flat Panel and
CCFL backlight

RS232 Connector
For white balance
adjustment in
factory mode

AC-IN

100V-240V

HOST Computer

5

Video signal, DDC

HP F1905E

3. Operation Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located on the
side of the front panel. By changing these settings, the picture can be adjusted to your personal
performance.

The power cord should be connected and insert to adaptor.

-

Connect the video cable from the monitor to the computer VGA card.

-

Press the power button to turn on the monitor, the power indicator will light up to Green.

-

6

3.2 Control Buttons

HP F1905E

7

3.3 Adjust the Picture

HP F1905E

1.

2.

3.

4.

5.

6.

Brightness

Contrast Adjust the contrast

Control

Color

Language Shows the language of the OSD window.

Management

Adjust the brightness.

Adjust the:
 Auto Adjustment: Adjusts the main settings and produces a stable, centered

image.

 H-Position: horizontal position of the screen image.
 V-Position: vertical position of the screen image.
 Clock: frequency of the pixel clock to minimize vertical bar.
 Phase: phase value to minimize horizontal jitters.

 9300K: recall 9300K color
 6500K: recall 6500K color
 SRGB: recall SRGB color
 Custom Color: adjusts the color tint of white, and the red, green, and blue (RGB)

mix for colors.

 Power Saver: enable/disable power saving
 Power On Recall: enable/disable power recall
 Mode Display: enable/disable mode display
 Sleep Timer: set sleep timer
 Basic Menu: set to basic menu

7.

8.

9.

10.

OSD Control

Information
Factory

Reset
Exit Exit the current OSD window.

OSD (on Screen Display) settings: adjusts the H/V position, timeout, On Screen
Display window.

Current setting, recommended setting, serial number, total hours, backlight hours,
Exit.

Resets the display to original factory settings for color, brightness, phase, and clock.

8

4. Input/Output Specification

4.1 Input Signal Connector

4.1.1 Analog D-SUB Connector

PIN MNEMONIC SIGNAL PIN MNEMONIC SIGNAL

1 RV Red Video 9 +5 V +5 V (from PC)
2 GV Green Video 10 SG Sync Ground
3 BV Blue Video 1 1 NC None (Reserved for Factory Use)

HP F1905E

4 NC
5 GND
6 RG Red GND 14 VS Vertical Sync
7 GG Green GND 15 SCL DDC Clock
8 BG Blue GND

Ground (DDC Return)

None

PIN 1

PIN 11

12 SDA DDC Data
13 HS Horizontal Sync

VGA connector layout

PIN 5

4.1.2 DVI-D Digital connector

PIN MNEMONIC SIGNAL PIN MNEMONIC SIGNAL

1 TX 2 - TMDS Data 2 - 13 TX 3 + TMDS Data 3 +
2 TX 2 + TMDS Data 2 + 14 +5V +5V Power (from PC)
3 SHLD 2 / 4 TMDS Data 2 / 4 Shield 15 GND Ground (Return for +5V)

4 TX 4 - TMDS Data 4 - 16 HPD

5 TX 4 + TMDS Data 4 + 17 TX 0 - TMDS Data 0 ­6 DDC Clk DDC Clock 18 TX 0 + TMDS Data 0 +
7 DDC Data DDC Data 19 SHLD 0 / 5 TMDS Data 0 / 5 Shield
8 N/C No Connect 20 TX 5 - TMDS Data 5 -

9 TX 1 - TMDS Data 1 - 21 TX 5 + TMDS Data 5 +
10 TX 1 + TMDS Data 1 + 22 TX CLK SHLD TMDS Clock Shield
1 1 SHLD 1 / 3 TMDS Data 1 / 3 Shield 23 TX CLK + TMDS Clock +
12 TX 3 - TMDS Data 3 - 24 TX CLK - TMDS Clock -

Hot Plug Detect (connect internally to

pin-14)

9

4.2 Factory Preset Display Modes

HP F1905E

DVI-D digital connector layout

Factory Pre-set Video Input Modes

Pre-set Pixel Format

Horizontal

Frequency (kHz)

1 640 x 480 31.5 60.0
2 640 x 480 37.9 72.0

3 640 x 480 37.5 75.0
4 720 x 400 31.5 70.0
5 800 x 600 37.9 60.0
6 800 x 600 48.1 72.0
7 800 x 600 46.9 75.0
8 832 x 624 49.7 75.0
9 1024 x 768 48.4 60.0

10 1024 x 768 56.5 70.0

Vertical Frequency

(Hz)

11 1024 x 768 60.0 75.0
12 1152 x 900 68.7 75.6
13 1152 x 900 71.7 76.0
14 1280 x1024 63.9 60.0
15 1280 x1024 80.0 75.0

10

4.3 Power Supply Requirements

PARAMETER RANGE

AC Input Voltage 90 to 265V

AC Input Frequency 47 to 63 Hz

Inrush Current 50A MAX AT 220VAC and 30A AT 120VAC

Leakage Current 5 mA MAX at 120VAC

Power consumption <70W

5. Panel Specification

5.1 General Feature

HP F1905E

11

5.2 Optical Characteristics

HP F1905E

12

6. Block Diagram

6.1 Monitor Exploded View

HP F1905E

13

6.2 Software Flow Chart

HP F1905E

1

Y

2

N

3

4

5

Y

N

6

7

9

N

8

Y

10

N

11

Y

N

12

14

Y

13

Y

15

Y

N

N

16

17

18

N

19

Y

14

REMARK:

HP F1905E

1) MCU initialize.

2) Is the EEprom blank?

3) Program the EEprom by default values.

4) Get the PWM value of brightness from EEprom.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEprom.
Turn on the LED and set it to green color.
Scalar initialize.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are they’re any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappear.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

15

6.3 Electrical Block Diagram

6.3.1 Scalar Board Block Diagram

HP F1905E

16

6.3.2 Inverter / Power Board Block Diagram

HP F1905E

Inverter Block Diagram

17

Power Block Diagram

HP F1905E

18

7. Schematic

HP F1905E

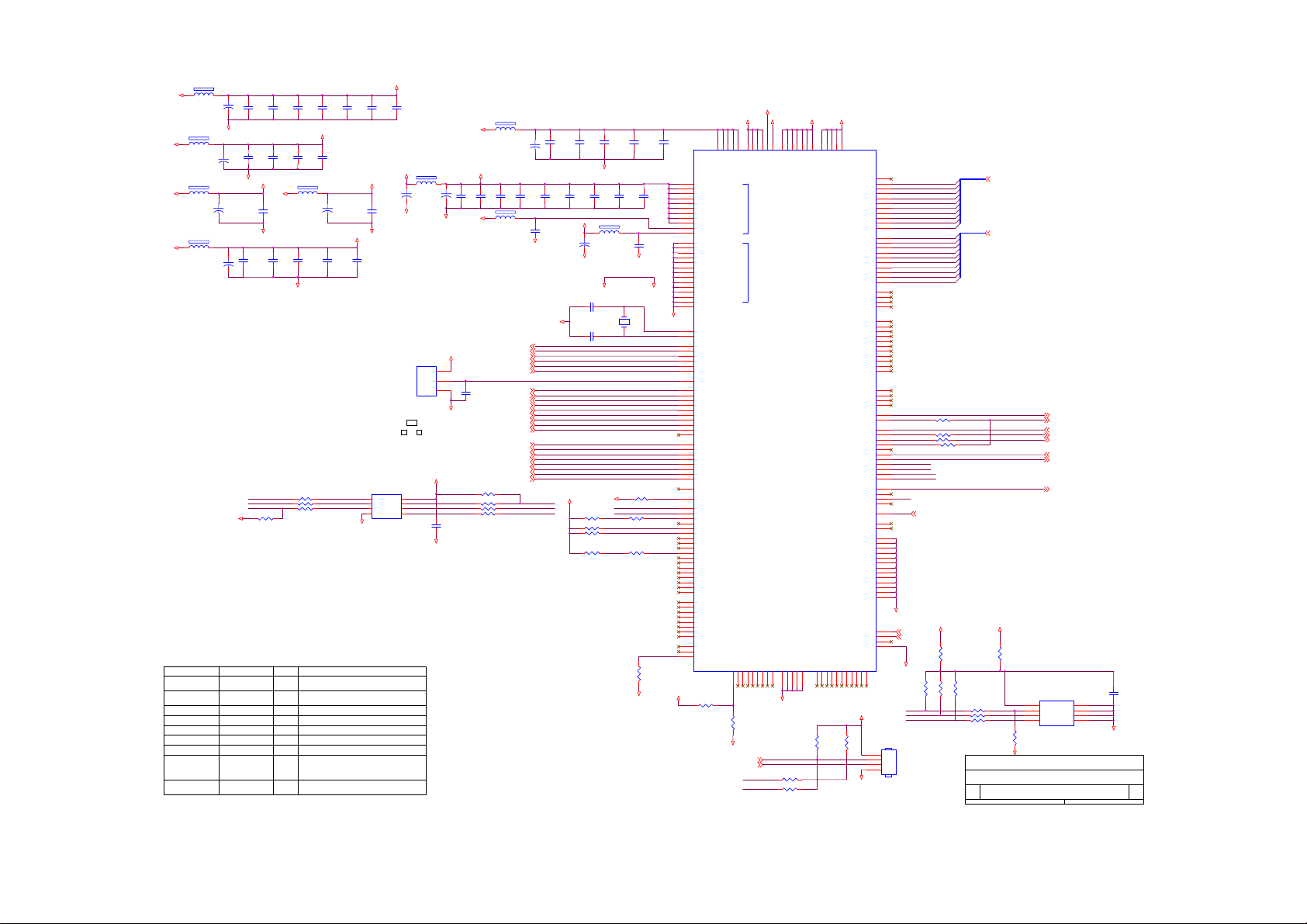

7.1 Main Board

2
3
4

GND

VGA_5V

1 2

C108

0.1uF

U102

VCCA0

2

A1A2WP

3
4

GND

SDA

M24C02WMN6

GND

3

1

2

CN101

A_GND

A_GND

+5V

D101

R104

R132

1/16W

R112

4.7K

1/16W

ZD105

MLL5232B 5.6V

T2-

T2+

SGND

T4-

T4+
DDCCLK
DDCDAT

A_VSYNC

T1-

T1+

SGND

T3­T3+
+5V

GND
HPD

T0­T0+

SGND

T5­T5+

SGND

TC+

TC-

A_RED

A_GREEN

A_BLUE

A_HSYN C

A_GND

JACK

BAT54C-GS08

4.7K

DDC_SDA_A

DDC_SCL_A

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

17
18
19
20
21
22
23
24

C1
C2
C3
C4
C5

R105

1/16W

R133

10K

1/16W

GPIO4/UART_DI

DDC_SDA_VGA

DDC_SCL_VGA

GND

GND

26

25

DVI_5V

1 2

3

4.7K

1/16W

U101

81

VCCA0

7

A1A2WP

6

SCL

5

GND

SDA

M24C02WMN6

100

R131

NC

GND

+5V

D105

BAT54C-GS08

3

R111

4.7K

1/16W R113 47　 1/16W

GND

81
7
6

SCL

5

ZD104

MLL5232B 5.6V

GND

DVI_5V

C101
1uF/25V

DVI_EDID_WP

47

ZD106

MLL5232B 5.6V

R101 47　 1/16W
R102 47　 1/16W

R103 10K　 1/16W

HOT_PLUG

+5V

GND

SCL_IN
SDA_IN

ZD102

MLL5232B 5.6V

R134

10K

1/16W

R110
1/16W

RX2+IN

R129

10K

1/16W

1K

ZD108

MLL5232B 5.6V

GND

GND

HS_in
VS_IN

R117

1/16W

47

ZD107

MLL5232B 5.6V

RX2-IN

RX1-IN
RX1+IN

ZD101

MLL5232B 5.6V

RX0-IN
RX0+IN

RXC+IN
RXC-IN

R130

1/16W

ZD109

MLL5232B 5.6V

GND

SCL_IN
SDA_IN

DVI_HPD

ZD103
MLL5232B 5.6V

7
1

11
12
13
14
15

6
1

R127

2.2K

GND

DDC_SCL_DVI
DDC_SDA_DVI

CN102

1
6
2
7
3
8
4
9
5
10

1/16W

3

C114

1000pF

DVI_HPD

DB15

Rin
Gin
Bin

GND

R135

10K

1/16W

Pins 6/7/8 are R/G/B
return lines resp.

R125 22　 1/16W

R126 22　 1/16W

R128

1/16W

2.2K

12

D106
BAV99

VGA_5V

47

1000pF

GND

3

C115

R116
1/16W

D107
BAV99

12

D102
BAV99

ZD110

MLL5232B 5.6V

D108

3

BAV99

12

C116

1000pF

0.1uF
C122

12

D103
BAV99

3

GPIO5/UART_DO

AGND

(8 mil)

C111
NC

D109

3

BAV99

12

C117

1000pF

1000pF

GND

+5V

C123

0.1uF

12

D104
BAV99

3

GND

10K

VGA_CONN

75-ohm terminating resistor
very close to the VGA
conn.

C112
NC

3

12

C118

C124

0.1uF

3

1/16W

1 2

D110
BAV99

R121

12

3

C119

1000pF

GND

+5V

R122

4.7K

74LVC14ADT

3 4

U104A

D111
BAV99

12

R118
75

1/16W

1000pF

1/16W

VGA_PLUG

U104B

74LVC14ADT

D112

3

BAV99

12

C120

AGND

3

C121

1000pF

R119
75

1/16W

VGA_PG

13 12

D113
BAV99

12

FB102

60 OHM

FB103

60 OHM
FB104

60 OHM

R120
75

1/16W

U104F

74LVC14ADT

RX2­RX2+

RX1­RX1+

RX0­RX0+

RXC+
RXC-

+5V

R106 22　 1/16W
R107 100　 1/16W

R108 22　 1/16W
R109 100　 1/16W

R114 22　 1/16W
R115 100　 1/16W

C113

0.1uF

VS

GND

(10 mil,

VCC

11 10

GND

┰キ︽絬

C103
C104
C105
C106
C107

C109
C110

FB101
120 OHM

U104E

74LVC14ADT

)

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

RED+
RED­SOG_MCSS
GREEN+
GREEN-

BLUE+
BLUE-

+3.3V

HS

715L-XXXX-A

Titl e

ANALOG&DIGITAL INPUT

Size Document Number Rev

gm5321 A

C

Date: Sheet

14Friday, July 23, 2004

of

19

+1.8V

FB201
120 OHM

C201

10uF/50V

+1.8V

FB203
120 OHM

C215

10uF/50V

+1.8V

FB205
120 OHM

+

C231

10uF/50V

+3.3V

FB209
120 OHM

C238

10uF/50V

BOOTSTRAP SIGNAL S

ADDRESS DESCRIPTI ON

ROM_A DDR(6 :0 )

ROM_A DDR(8 :7 )
ROM_A DDR9
ROM_ADDR(11:10) TCLKS EL
ROM_A DDR12
ROM_ADDR(14:13)
ROM_A DDR15

ROM_A DDR16

ROM_A DDR17

+

C202

0.1uF

GND

C216

+

0.1uF

GND

C239

+

0.1uF

ROMCE#
RMADDR15
GPIO7/IRQin

+3.3V

R242 10K　 1/16W

NAM E

DEV_ADDR( 6: 0)

FORCEI/EROM
OCM_USES_ TCLK

DDCHANS EL
OP_MODE
SPI_E N

OCM_ROM

OSC_SEL

Close to respective power Pins

C204

C203

0.1uF

0.1uF

1.8V_DVI

C217

C218

0.1uF

0.1uF

1.8V_AVDD

+1.8V

FB206
120 OHM

C232

C233

10uF/50V

0.1uF

GND

C240

C241

0.1uF

0.1uF

GND

R204 0　 1/16W
R206 0　 1/16W
R208 0　 1/16W

SET R

x

To specify the device address for s erial host
interf ace

x

00=Check for signature in external ROM and if

x

present jump to external ROM

x

0=OCM_CLK=FCLK
00=for TCLK=14.3MHz

x

1=DDC2 Bi=DDC_SCL _V GA /DDC_ SCL_V GA

1
x

00=UART

x

0=Parallel,1= S PI
0=Internal ROM on at top of 1M in X86

address space(normal operation)

x

1=Internal ROM off
0=TCLK source using external

x

crystal

0.1uF

0.1uF

HP F1905E

1.8V_CVDD

C206

C242

0.1uF

0.1uF

3.3V_LVDS

ROM_SCSn
ROM_SDO
ROM_WP#

C207

0.1uF

1.8V_PLL

C234

0.1uF

GND

C243

0.1uF

1

CE#

2

SO

3

WP#

4 5

VSS SI

SST25VF010-20-4C-SA

GND

10uF/50V

U203

HOLD#

C208

0.1uF

+3.3V

FB202
120 OHM

+3.3V

FB204

+

C220

120 OHM

C221

10uF/50V

GND

U202

VCC

RSTN

GND

NC

3

2

1

8

VDD

ROM_HOLD#

7

ROM_SCLK

6

SCK

ROM_SDI

+3.3V_RG B

+

GND

+3.3V

3
2
1

GND

+3.3V

C248
1uF/25V

GND

C223

C222

0.1uF

0.1uF

+3.3V

C246

0.01uF

R243 10K　 1/16W
R207 0　 1/16W

R209 0　 1/16W
R210 0　 1/16W

C224

0.1uF

FB207
120 OHM

GPIO4/UART_DI

GPIO5/UART_DO

DDC_SCL_VGA
DDC_SDA_VGA

DDC_SCL_DVI

DDC_SDA_DVI

SOG_MCSS

C209

10uF/50V

BLUE+
BLUE-

GREEN+

GREEN-

RED+

C225

0.1uF

GND

RED-

HS
VS

RX2+
RX2­RX1+
RX1­RX0+
RX0­RXC+
RXC-

GPIO8/IRQout
RMADDR17
RMADDR16

+

C226

0.1uF

C235

0.1uF

+3.3V

C210

C211

0.1uF

0.1uF

C227

0.1uF

+3.3V

+

C236

10uF/50V

GND

C244 33pF

C245 33pF

+5V

+3.3V_RG B

20K

1/16W

R215
R217 NC

R218

1/16W

20K

R222

1/16W

20K

R249 Serial ROM >>0
Parallel ROM>>NC

C228

0.1uF

FB208
120 OHM

AGND

X20 1

14.318MHz

C212

0.1uF

GND

0

C213

0.1uF

C230

C229

0.1uF

0.1uF

C237

0.1uF

GND

GND

1

TCLK
XTAL

2

GPIO4/UART_DI
GPIO5/UART_DO

R205 255　 1/16W

RMADDR17
RMADDR16
RMADDR15

R249

1/16W

RMADDR13
RMADDR12

R250 NC

ROMCE#

R233

10K

GND

R251 Dual >>20K

Analog-only>>NC

1/16W

C214

0.1uF

AGND

+3.3V

U201

113

AVDD_I MB_3.3

120

AVDD_RX2_3. 3

125

AVDD_RX1_3. 3

130

AVDD_RX0_3. 3

134

AVDD_R XC_3.3

141

AVDD_BLUE_3.3

145

AVDD_GR EEN_3.3

150

AVDD_RED_3.3

154

AVDD_ADC_3.3

172

LBADC_VDD_3.3

171

AVDD_RPL L_3.3

115

AGND_IMB

117

AGND_RX2

122

AGND_RX1

127

AGND_RX0

131

AGND_RXC

136

GND_RXPLL

144

AGND_BLUE

149

AGND_GREEN

153

AGND_RED

156

AGND_ADC

163

GND_ADC

165

GND_RPLL

168

AGND_RPLL

177

LBADC_GND

170

TCLK

169

XTAL

71

HOST_SCL/UART_DI

72

HOST_SDA/UART_DO

77

DDC_SCL_VGA

78

DDC_SDA_VGA

79

DDC_SCL_DVI

80

DDC_SDA_DVI

178

RESETn

142

BLUE+

143

BLUE-

146

SOG_MCSS

147

GREEN+

148

GREEN-

151

RED+

152

RED-

181

HSYNC/CSYNC

182

VSYN C

155

RESERVED

118

RX2+

119

RX2-

123

RX1+

124

RX1-

128

RX0+

129

RX0-

132

RXC+

133

RXC-

138

CLKOUT

114

REXT

183

ROM_ADDR17

184

ROM_ADDR16

185

ROM_ADDR15

186

ROM_ADDR14

187

ROM_ADDR13

188

ROM_ADDR12

189

ROM_ADDR11

192

ROM_ADDR10

193

ROM_ADDR9

194

ROM_ADDR8

195

ROM_ADDR7

196

ROM_ADDR6

197

ROM_ADDR5

198

ROM_ADDR4

199

ROM_ADDR3

200

ROM_ADDR2

201

ROM_ADDR1

202

ROM_ADDR0

203

ROM_DATA7

204

ROM_DATA6

207

ROM_DATA5

208

ROM_DATA4

1

ROM_DATA3

2

ROM_DATA2

3

ROM_DATA1

4

ROM_DATA0

5

ROM_OEn

6

ROM_WEn

7

ROM_CSn

GM5321

PQFP-208

20K

R251

50731

3

.
3

_
D
D
V
R

1/16W

1.8V_DVI

0

5

6

9

0

1

5

2

1

9

3

3

3

3

.

.

.

.

3

3

3

3

_

_

_

_

D

D

D

D

D

D

D

D

V

V

V

V

R

R

R

R

6

7

8

1

1

1

O

O

O

I

I

I

P

P

P

G

G

G

2

3

6

7

0

0

0

0

1

1

1

1

R252
47K

GND

GPIO5/UART_DO

GPIO4/UART_DI

DDC_SCL_VGA
DDC_SDA_VGA

1.8V_AVDD

1.8V_CVD D

1.8V_PLL

6

1

6

7

4

6

2

2

3

6

6

1

9 41759

1

1

1

1

8

8

8

8

8

8

8

8

8

.

.

.

.

.

.

.

.

1

1

1

1

1

1

1

1

_

_

_

_

_

_

_

_

2

L

L

1

0

C

D

D

L

L

X

X

X

D

D

D

P

P

R

R

R

V

V

A

_

_

_

X

R

_

_

C

C

R

D

D

D

_

D

D

D

D

D

D

D

D

V

V

V

V

V

D
V

3.3V_A

AGN D

E

E

_

_

V

V

L

L

9

0

1

2

3

_

_

1

2

2

2

2

S

S

O

O

O

O

O

I

I

I

I

I

S

S

C

P

P

P

P

P

V

V

G

G

G

G

G

A

N

A

8

9

0

1

2

2

3

0

0

1

1

1

2

1

1

1

1

1

1

GND

1/16W

GPIO5/UART_DO
GPIO4/UART_DI

6

8

8

.

.

1

1

_

_

D

D

D

D

V

V

C

C

O

_

V

V

L

L

_

_

S

S

S

S

V

V

A

A

5

8

9

2

2

3

10K

R246NC

R247NC

9

9

6

4

1

3

7

2

2

1

1

1

8

3

8

8

3

.

.

.

.

.

1

3

1

1

3

_

_

_

_

_

E

E

D

D

D

_

_

D

D

D

V

V

V

V

V

L

L

_

_

C

C

C

D

D

D

D

V

V

A

A

O

_
V
L

_
S
S

C

V

N

NCNCNCNCNCNCNCNCNCN

A

4

4

0

5

52531

R238

1/16W

10K

3.3V_LVDS

0

274

3

3

3

.

.

.

3

3

3

_

_

_

V

O

O

_

_

L

_

V

V

L

L

D

_

_

D

RESERVED

D

D

V

D

D

A

CH3P_LV_E

V

V

CH3N_LV_E

A

A

CLKP_LV_E
CLKN_LV_E
CH2P_LV_E
CH2N_LV_E
CH1P_LV_E
CH1N_LV_E
CH0P_LV_E
CH0N_LV_E

CH3P_LV_O

CH3N_LV_O

CLKP_LV_O
CLKN_LV_O
CH2P_LV_O

CH2N_LV_O

CH1P_LV_O

CH1N_LV_O

CH0P_LV_O

CH0N_LV_O

RESERVED
RESERVED
RESERVED
RESERVED

JTAG_RESET

RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED

JTAG_TDO

RESERVED

JTAG_TDI

RESERVED
RESERVED
RESERVED
RESERVED

PPWR
PBIAS

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8

GPIO9/NVRAM_SCL

GPIO10/NVRAM_SDA

GPIO11/PWM0
GPIO12/PWM1
GPIO13/PWM2
GPIO14/PWM3

GPIO15

RESERVED
RESERVED

RESERVED

CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS
CRVSS

LBADC_IN1
LBADC_IN2
LBADC_IN3

LBADC_RETURN

5

7

8

9

0

1

2

0

5

5

5

6

6

6

1

1

1

1

1

1

1

+5V

R239

1/16W

GND

10

LV_E9

13
14

LV_E8
LV_E7

15

LV_E6

16

LV_E5

17

LV_E4

18
19

LV_E3

20

LV_E2
LV_E1

21
22

LV_E0
LV_O9

29

LV_O8

30

LV_O7

31

LV_O6

32

LV_O5

33

LV_O4

34

LV_O3

35

LV_O2

36

LV_O1

37

LV_O0

38
43

44
45
46

56
57
58
59
60
61
62
63
64
65
66

47
48
49
55

67
68

R253 0　 1/16W

81

R201 4.7K　 1/16W

82
83

R202 4.7K　 1/16W

GPIO7/IR Qin
GPIO8/IRQout

WP

GND

LBADC1
LBADC2

GND

10K

R254 NC

SCL
SDA

VGA_PG

+3.3V

W

R245

6

4

1

3

1/16W

/

2

1

R

K
0

1

WP
SCL
SDA

84
85
88
89
90
91
92
93

98
99
100
101

69
167

135
70

206
191
180
140
97
94
76
74
51
42
8
87

173
174
175
176

C

NC
CN201

1
2
3
4

RS23 2

LV_E[0..9]

LV_O[0..9]

PPWR
PBIAS

POWER_ON
LED_GRN
LED_RED

DVI_HPD
DVI_EDID_WP

PWM0

+5V

R240

NC

R235
10K

R244 100　 1/16W
R236 100　 1/16W
R237 100　 1/16W

R241

1/16W

0

1/16W

715L-xxxx-A

Titl e

Size Document Number Rev

gm5321 A

C

Date: Sheet

U205

1

8

A0

VCC

2

7

A1

WP

3

6

A2

SCK

45

VSSSI

M24C1 6-MN 6T

R248

NC

GND

24Friday , July 23, 2004

C250
1uF/25V

GND

of

C205

C219

+

20

Brightness

GND
GND
VCC12V
GND
+5V
GND

1K

PWM0

LED_RED

R315

10K

1/16W

LBADC1

LBADC2

POWER_ON

R301

1/16W

LED_GRN

CN301

1
3
5
7
9

11

CONN

+5V

+3.3V

R314

10K

1/16W

R306 22K　 1/16W
R307 30K　 1/16W
R308 47K　 1/16W
R309 22K　 1/16W
R310 30K　 1/16W

ON_OFF

2

DIM

4

VCC12V

6

GND

8
10

+5V
GND

12

R302

1K

1/16W

U104C

74LVC14ADT

5 6

U104D
74LVC14ADT

9 8

R317 4.7K　 1/16W

R303
NC

R304
NC

C301
1uF/25V

HP F1905E

VCC5V+

C317

1000pF

TO-263

U301
AIC1084-18CE

)
B
A
T

(
T
U

N

O

I

V

V

3

2

D305

3

BAV99

12

12

)
D
N
G

(

J

D

A

GND

1
3
5
7
9

C309

+

47uF/25V

CN302

CONN

1000pF

3

C306
47uF/25V

C310

0.1uF

2
4
6
8
10

GND

D306
BAV99

12

+

KEY_ECO
LED_RED#
KEY_MENU
KEY_UP

C319

1000pF

3

+1.8V

+1.8V 4

C307

0.1uF

+3.3V

+3.3V 4

C320

1000pF

D307

GND C322

D308

3

BAV99

12

C321

1000pF

BAV99

12

GND

1000pF

+5V

D310

ES3D

D311

ES3D

C305

0.1uF

SMAL240LVXRO

C302

+

100uF/25V

D309

C303

0.1uF

VCC5V+
+5V

C304

0.1uF

R316

4.7K

1/16W

PBIAS

VCC5V+

TO-263

U302

3

VIN

VOUT

1

C308

0.1uF

R312

220

R313

1K

1/16W

1/16W

LED_GRN#

LED_RED#

10K

R311

1/16W

KEY_ECO
KEY_MENU
KEY_UP
KEY_OK
KEY_DOWN

LCD_ON/OFF

+3.3V

GND

C313

0.1uF

3

C314

1000pF

GND

D301
BAV99

12

C323

1000pF

C315

1000pF

GND

D302

3

BAV99

12

3

ADJ

AIC1084-33M

LED_GRN#
KEY_OK
KEY_DOWN

LCD_ON/OFF

C316

1000pF

GND C318

D303
BAV99

12

GND

D304

3

BAV99

12

GND

21

715L-xxxx-A

Title

PANEL POWER

Size Document Number Rev

gm5321 A

B

Date: Sheet

34Friday , J uly 23, 2004

of

LV_O[0..9]

LV_E[0..9]

LV_O0
LV_O1
LV_O2
LV_O3
LV_O4

LV_O6
LV_O7
LV_O8
LV_O9
LV_E0
LV_E1

LV_E2
LV_E3

LV_E4 R408
LV_E5
LV_E6
LV_E7
LV_E8
LV_E9

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+LV_O5

RXOC­RXOC+
RXO3­RXO3+
RXE0­RXE0+

RXE1­RXE1+

RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

470

1/8W

RXO0­RXO1­RXO2­RXOC­RXO3­RXE0­RXE1­RXE2­RXEC­RXE3-

1
3
5
7

9
11
13
15
17
19
21
23

C401

+

47uF/25V

CN401

VDDD

CONN

2
4
6
8
10
12
14
16
18
20
22
24

GND

C402

0.1uF

RXO0+
RXO1+
RXO2+
RXOC+
RXO3+
RXE0+
RXE1+
RXE2+
RXEC+
RXE3+

HP F1905E

+5V

R401
0

1/16W

+3.3V

R402
NC

40mil

PPWR

10K

R405

1/16W

100K

R407

NC

C403

0.1uF

R403

1/16W

1

3

2

R404

100K

Q402

PMBS3904

GND

C405
NC

1/16W

E
C
R
U
O
S

2

Q203

1

N
I
A
R
D

3

AO3401

VDDD

C404

0.1uF

GND

715L-xxxx-A

Title

LVDS I/F

Size Document Number Rev

gm5321 A

B

of

Date: Sheet

44Friday , J uly 23, 2004

22

7.2 Power Board

HP F1905E

+13VCC

L907

BEAD

C927

1000uF/25V

L903

73L253151-L(45uH)

R902

1/16W

+

C923

0.1uF/25V

0.1uF/25V

1K

22

NC

R903
1/16W

C908

R908

3K

Q902

PMBS3904

Q903

PMBS3906

IC905

1

OUT

2

VCC

3

COMP

4 5

FB SCP

FP5001DR

1/16WC910

R911

3.6K

1/16W

GND

RT

DTC

R901

1/16W

1K

R943

1/16W

22

8
7
6

MOSFET P

W

6

4

1

0
9

1

R

K

C926

1/16W

+

5
0
9

R

2.7K

W

6
1

/

1
0

R907

R910

7.5K

1/16W

C911

0.1uF/25V

1/16W

D901

1000uF/16V

SM340A

V

W

/

3
3

6

6

1

1

/

/

6

7

F

1

0

0

u

9

2

.

2

9

C

R

K
7
4

C
N

C909
1uF/16V

R909

8.2K

6
0
9

C

L909

BEAD

C945

0.1uF/25V

+5VQ904

L904

L

+

2

ZD903

RLZ6.8B

1

C905
1000uF/16V

AUDIO

C936

0.1uF/25V

23

ON/OFF

INV1

DTC144WKA

1M

DIM

180K

ON/OFF

R701

1/8W

0
DTA144WKA
Q713

R714

1/16W

R715

1/16W

W

6

1

/

0

1

2

7
R

M

1

100K

Q707

DTC144WKA

ISEN

Q708
PMBS3906

ISEN

Q711
PMBS3906

Q712

1

0

7
D

Z

R721
1/16W

R729
1K

R737
1K

B

6

.

5

1

1

­E
T
Z

L
R

1/16W

1/16W

3

0

7
R

W

6

1

/

1
K

0

0

1

W

6

1

/

1
K

0

4

2

+5VDD

W

6

1

/

1

M

1

W

6

1

/

1
F

1

K

1

+5VDD

2

1

7

R

8

1

7

R

RK7002
Q706

R704
100

Q702

3

PMBS3904

2

7

0

7
C

V

5

2

/

6

F

3

u

7

1

.

C

0

D705

LL4148-GS08

7

2

7
R

V

5

2

/

6

1

F

2

3

u

7

7

3

C

3

R

0

.

0

V

5

2

/

1

8

F

3

3

u

7

7

3

C

3

R

0

.

0

(1206)

R706

10

V

5

2

/
F

u

1

.

0

F

u

7

4

0

.

0
7

1

7

C

D710

W

6

1

/

1
M

1

D713

W

6

1

/

1
M

1

V

5

2

/

7

F

3

u

7

1

.

C

0

1/16W

)
6

0

2

1

8

(

0

V

7

6

C

1

/
F

u

2

.

2

C711

0.01uF

OVP

ISEN

8

7

N

M

I

E

D

S

1

_

I

0

N

7

T

E

C

S

I

S

S

V

_
A
N

CTG

E

1 234

0

F

2

p

7

7

C

2

9

F

1

p

7

0

C

3

3

LL4148-GS08

LL4148-GS08

HP F1905E

+

C701
220uF/25V

56

1

A

V

D

R

D

B

D

V

R
R

9

Z

A

2

O

D

V

N

R
D

FB1

W

6

1

/

2

1

3

7

R

0

3

4

FB2

W

6

1

/

9

1

3

7

R

0

3

4

Q701

4 5

G2 D2

3

S2

D2

2

G1

D1

1

S1

D1

SI9945

C733
22pF

Q705

4 5

G2 D2

3

S2

D2

2

G1

D1

1

S1

D1

SI9945

C735
22pF

1/8W

0.0022uF

1/8W

1/8W

1/8W

1M

0.0022uF

V

5

2

/

C

F

u

1

.

0

1/16W

8

3

7

R740

C702

.

C704

.

C7150.0022uF

C7210.0022uF

+

R702

6
7
8

6
7
8

22

R707
22

C732
22pF

R722
22

R728
22

C734
22pF

OVP

D714 LL4148-GS08

PT701

1

3

5 7

OZ9RR_TRANS

PT702

1

.

3

.

5 7

OZ9RR_TRANS

C724
220uF/25V

3

12

V

5

0

2

3

/

7

F

C

u

1

.

0

!

!

D712

BAV99

10

.

10

.

!

!

C728
NC

!

!

C703

22pF/3KV

C705

22pF/3KV

C706

5pF/3KV

C709

5pF/3KV

F

u

2

3

1

3

7

0

C

0

.

0

C716

22pF/3KV

C722

22pF/3KV

C723

5pF/3KV

C725

5pF/3KV

C729

0.0033uF

R705

6.2M

1/2W

ISEN

R708

1/16W

2K

V

5

2

/

R713

6

1

NC

/

0

1

1

7
R

K

6

R725

6.2M

3

3

7
R

1

1
2

1/2W

W

6

1

/

1
K

6

1

D711

4

3

7

C

BAV99

R

N

1 2

C713

NC

3

D706
BAV99

D704

BAV99

1 2

Q703

RK7002

R741
13K

3

Q709

RK7002

3

W

0

F

1

u

7

3

C

3

0

.

0

+5VDD

7

1

7
R

Q704

PMBS3906

R723

1/16W

2K

V

5

2

1/16W

/

8

F

1

u

7

3

3

C

0

.

0

+5VDD

0

3

7
R

Title

<Title>

Size Document N um ber Rev

<Doc> <RevCode>

B

Date: Sheet

W

6

1

/

1

K

0

0

1

W

6

1

/

1

K

0

0

1

Q710
PMBS3906

R709

1/16W

220

W

6

1

1

/

1

1

3

7

0

R

7

0

3

D

4

W

6

1

6

/

1

1

W

7

6

1

R

9

/

0

1

1

3

7

4

R

M

1

R724

1/16W

220

8

0

W

6

6

S

2

1

9

G

7

/

-

0

1

R

8

7

4

D

1

0

4

3

L

4

L

W

6

5

3

1

/

7

1

R

0

3

4

D702

2
1

8

0

BAV99
S
G

-

8

4

1

4

L

L

V

5

2

/

4

F

1

u

7

3

C

3

0

.

0

D707

2

3

1

BAV99

V

W

5

6

2

1

6

3

7
R

/

/

7

F

1

2

u

7

3

C

3

0

M

.

1

0

CN701

1

FB1

2

CONN

CN702

1

R742

2

1/10W

1K

3

FB2

R743
1K

13Wednesday , D ec em ber 08, 2004

1

2

1/10W

1

2

of

CONN

CN703

CONN

CN704

CONN

24

1

R924

!

330K

1/8W

!

V

0

0

5

4

2

/

9

F

C

u

1

0

0

.

0

4

BD901

+

-

2

2

!

1 4

!

330K

4

1 2

3

CN901
SOCKET

VAR901

varistor

3

L902

!

R926

1/8W

3

L901

61L58-050-WT

U4KB80R

!

L

R925

330K

L

!

NR901

F901

2.5A/250V

12

!

!

C903 0.47uF/250V

150uF/400V

3

1/8W

C904

C

t

9

3

9

!

!

V

0

5

2

/
F

u

1

0

0

.

0

!

!

!

+

!

V
K

5

1

3

/

9

F

C

u

1

0

.

0

C934

0.0033uF/250V

R922
10K

R933

ZD901

RLZ20B

R938

1/10W

100

R940

4.7K

C919

0.1uF

1/10W

8

V

3

K

9

1

/

C

F

u

1

0

.

0

1/10W

R929
24K

4.7K

5

4

1/10W

1/10W

R912
665K

R916
665K

R918
665K

3

N

I

V

RT

IC901

SG6841S

RI

D
N
G

1 2

Q905
PMBS3906

C932

0.1uF

1/8W

1/8W

1/8W

7

D
D
V

GATE

SENSE

B
F

8

6

C925

0.01uF/25V

C929
NC

Q906

PMBS3904

R914
NC

R917
NC

+

C924
470pF/25V

D905

PS102R
C917
10uF

+

R920
10

1/10W

R927

220

1/10W

R935

4.7K

D911

LL4148-GS08

D906

PS102R
C918

22uF/50V

LL4148-GS08

1/10W

C913

1500P/2KV

R921
10K

D909

C930

0.1uF

1/10W

100K

D904
FR107

R944

1/8W

5.1

Q901

2SK2996

R939
100K

R913

2W

1/10W

R928

0.39

L908

4

6

3

2

BEAD

T901

2W

POWER X'FMR

!

C921

!

0.0047uF/250V

4

3

11
12

7
8

1

2

100

100

SP10150

100

IC903

PC123Y82

IC904

AZ431AZ-A

R942

R915

D903

R919

100

R941

1/8W

1/8W

1/8W

C914

1000uF/25V

D907
SP10150

1/8W

R931
1K

R937

2.2K

C912

0.001uF

+

C920

0.001uF

1/10W

C928

0.1uF/25V

1/10W

C931
NC

L906

+

C922
1000uF/25V

C941

0.1uF/25V

+13VCC

R923

1/8W

300

L905

0.1uF/25V
C944

HP F1905E

INV1

L912

BEAD

INV2

V

5

7

2

3

/

9

F

u

C

1

.

0

+

C915
1000uF/25V

ZD902

RLZ12B

R930

1/10W

1K

R932
10K

R934

1K

1/10W

R936

2.4K

Title

<Title>

Size Document Number Rev

<Doc> <RevCode>

B

Date: Sheet

V

5

6

2

4

/

9

F

u

C

1

.

0

1 2

KA278R12C-NC

C947

0.1uF/25V

DIM

AUDIO

1/10W

1/10W

L911

BEAD

D902 PS102R-NC

IC902

Vin Vo

34

GndVc

6

1

9
C

ON/OFF

C
N

-

+

V

5

2

/
F

u

0

0

0

1

2
4
6
8

10
12

0.1uF/25V

CN903
33L8027-12

L910

BEAD

C942

1
3
5
7
9
11

23Wednesday , D ec em ber 08, 2004

of

CN902
JACK-NC

1

2

C943

0.1uF/25V

INV2

+5V

25

8. PCB Layout

8.1 Main Board

HP F1905E

26

8.2 Power BOARD

HP F1905E

27

HP F1905E

28

HP F1905E

29

8.3 KEY BOARD

HP F1905E

30

9. Maintainability

9.1 Equipments and Tools Requirement

1.) Multi-meter.

2.) Oscilloscope.

3.) Pattern Generator.

4.) DDC Tool with an IBM Compatible Computer.

5.) Alignment Tool.

6.) LCD Color Analyzer.

7.) Service Manual.

8.) User Manual.

HP F1905E

31

9.2 Trouble Shooting

9.2.1 Main Board

No power

HP F1905E

Press power key and look
if the picture is normal

Please reinsert and make sure
the AC of 100-240 is normal

Measure U301 PIN2=1.8V?
Measure U302 PIN2=3.3V?

X201 oscillate waveforms
are normal

No power

NG

OK

OK

NG

NG

Reinsert or check
the power section

1.Check power section

2.Replace U301, U302

OK

Replace U201

NG

Replace X201

32

No picture (LED is orange)

HP F1905E

No picture

Measure U301 PIN2=1.8V?
Measure U302 PIN2=3.3V?

NG

1.Check power section

2.Replace U301, U302

OK

X201 oscillate waveforms
are normal

OK

NG

Replace X201

Check if the sync signal from
computer is output and video
cable is connected normally

OK

NG

Input the sync signal of
computer, or change the cable

Replace U201

33

Panel Pow er Circuit

HP F1905E

Measure Q402 base
is high level?

OK

NG

X201 oscillate waveforms
are normal

Check Q402 and Q203
are broken or CN401

OK

NG

Replace X201

Check Correspondent

NG

Replace U201

component.

OK

Replace PANEL

34

9.2.2 Power Board

No Power

HP F1905E

No power

Check AC line volt 110V or 220V

NG

OK

Check AC line

Check the voltage of C904(+)

Check start voltage for the pin3 of IC901

OK

NG

Check F901, bridge rectified circuit

NG

OK

Check R912, R916, R918, IC901

Check the auxiliary voltage is between 10V-16V

NG

OK

Check IC901,T901
Check ZD901, D909

Check D903, D907,

35

No Backlight

HP F1905E

Check CN903 Pin1/3 =12V

NG

Check adapter

OK

Check ON/OFF signal

OK

NG

Check Interface board

Check IC701 PIN6=5V+0.25V

OK

Check IC701 PIN1=5V

NG

Check Q713,Q712, Q702, ZD701 circuit

OK

NG

Check Q707, Q706 circuit

Check IC701 PIN 2 triangular wave is
normal

OK

Check IC701 PIN4, 5

NG

Check C720, C719, IC201 circuit

OK

NG

Check Q701, Q705, PT701, PT702, IC701

Check D703, D709, D702, D707

36

9.2.3 Keypad Board

HP F1905E

OSD is unstable or not working

Is Keypad board connecting normally

NG

Connect Keypad Board

OK

Is Button Switch normally

NG

Replace Button Switch

OK

Is Keypad board normally

NG

Replace Keypad Board

Check main board

OK

37

HP F1905E

10. WHITE- BALANCE, LUMINANCE ADJUSTMENT

Approximately 30 minutes should be allowed for warm up before proceeding
White-Balance adjustment.

1. How to do the Chroma-7120 MEM .Channel setting
A. Reference to chroma 7120 user guide
B. Use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the

TEXT description Following is the procedure to do white-balance adjust

2. Setting the color temp. You want
A. 9300 color:

9300 color temp. parameter is x = 283 ±20, y = 297 ±20, Y > 180 cd/m

B. 6500K color:

6500K color temp. parameter is x = 313±20, y = 329 ±20, Y>200 cd/m2)

C. SRGB
SRG color temp. parameter is x = 313±20, y = 329 ±20, Y >200 cd/m2)

2 ,

3. Into factory mode of HP F1905E
Turn on power, at the same time press the up (+) key and menu key, pull out the power cord,

and then plug the power cord, Then the factory OSD will be at the left top of the panel.

4. Bias adjustment:

Set the Contrast to 80

Adjust the Brightness to 90.

5. Gain adjustment:

Move cursor to “-F-” and press MENU key
A. Adjust 9300 color-temperature

1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button )

2. Switch the MEM. Channel to Channel 3 ( with up or down arrow on chroma 7120 )

3. The LCD-indicator on chroma 7120 will show x = 283 ±10, y = 298 ±10,
Y = 210 ±10 cd/m2

4. Adjust the RED of color1 on factory window untilchroma 7120 indicator reached
the value R=100

5. Adjust the GREEN of color1 on factory window until chroma 7120 indicator reached

the value G=100

6. Adjust the BLUE of color1 on factory window until chroma 7120 indicator reached

the value B=100

7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the
tolerance =100±2

38

HP F1905E

B. Adjust SGB color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button )

2. Switch the MEM .Channel to Channel 4( with up or down arrow on chroma 7120 )

3. The LCD-indicator on chroma 7120 will show x = 313 ±10, y = 329 ±10,
Y = 210 ±10 cd/m2

4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached
the value R=100

5. Adju the GREEN of color3 on factory window until chroma 7120 indicator reached

the value G=100

6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached
the value B=100

7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the
tolerance =100±2

C. Press reset key and Turn the Power-button “off to on” to quit from factory mode.

39

HP F1905E

11. Check List After Replacing LCD Main Board

Check if white-balance is within the specs after replacing Main board and panel, then re-writing DDC is necessary.

Ⅰ. Check white -balance

The white-balance value for each common color temperature:

9300K: x=283± 20 ; y = 297±20;

6500K: x = 313± 20 ; y =329±20;

The color temperature value above must be up to the situation of x<y. The value of Y should be confirmed
according to different customers. 15 ”LCD is commonly 180±20cd/cm
larger than 200cd/cm
different customers and different models.

2

(Center). The exact brightness values are confirmed by the checking-regulations of

Ⅱ. Steps of white-balance adjustment for LCD:(Take 19” HP LCD for example)

1. Required instruments: Chroma7120、Chroma2325（BGA265A）。

2. First connect the instruments together and turn on the LCD power, then warm up for 30 minutes under full

2

（Center）and 17” LCD is required to be

white screen mode. First press the “Reset” key in the menu to recover factory set as following.

a) Set Chroma2325 at round-windows mode and make the detecting-head of Chroma7120 aim at the cross in the

middle, the distance between the detecting-head and the cross is 20cm.

b) Set Chroma2325（BGA265A）to be T144（1280*1024/60HZ）and P105 of full white screen. Test if the

white-balance value is within the specs. Please follow the steps below to adjust if it is beyond the specs.

c) Cut the power. Then press Minus (“-“) key and supply power at the same time to enter into the factory mode.

See the following pictures.

40

HP F1905E

d) T est white-balance again after Auto Level. Adjustment with hand is necessary if it is beyond the specs just the

same.

e) Select 7x00 item to adjust cool color-temperature and select 6x00 to adjust warm color- temperature. It can

reach to the best effect through adjusting R/G/B value if it inclines to green or blue.

f) Select Exit to the upper menu after completing the adjustment. Then press POWER OFF to exit and save it.

Ⅲ. Steps for writing DDC：

1. Employ PC, and connect the DDC-writing instrument and the instrument that is ready for writing into DDC
to the power of 12v. Connect the signal cable of the latter to D-USB or DVI of DDC-writing instrument (The
data-writing of monitor needs transfer-interface) and link the DDC-writing instrument with PC through printer
interface. (See the schematic picture below)

Connection of DDC-writing instrument for

2. Seek the document with the expanded name of .BAT in DDC file of this model. It appears the indication of
“Input Serial No.：＂after dual-click the document to be ready for DDC-writing.

41

HP F1905E

3.Input the serial number of the product (For instance: AOC LM729 is 13 bit s), then press ENTER to start writing

4.Check the indication of DDC-writing program at the end. When you see the picture as the schematic picture above,

the “Data compare OK!” means being written well and that’s the end. Please check if the Manufacturer Name,

Vendor Assigned Code, Monitor Name, Serial Number, Week of Manufacture, Year of Manufacture are right. It will

appear “Data compare error ！” to indicate failure if the DDC-writing doesn’t perform well. Please check the

power resource and the connection of the signal cable, then return to step 3 by pressing ENTER and re-do it.

5.You can exit the program by pressing Ctrl plus C, then cut the signal cable and the power.

6.The following picture is taking Acer AL1721 EDID for example.

Notes:
1、Make sure the system time of PC is in accordance with the real time before writing.

2、The schematic picture is just as an example for description, the exact content of the DDC is dependent on the

serial number of the BARCORD of this model.

3、Data DDC-writing needs a transfer interface.

42

HP F1905E

Instruction：DDC-writing needs 4 files:

1. Barcode.txt (Supply Barcode length and flow number)

2. *.EXE (DDC-writing program)

3. WR.bat (Group order file for cycling utilization of *EXE, and dual-click this file when
perform DDC-writing)

4、w.dat The content with 128 bits of DDC

43

HP F1905E

12. EDID CONTENT

ANALOG

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

0：
16：
32：
48：
64：
80：
96：

112：

00 FF FF FF FF FF FF 00 22 F0 4E 26 01 01 01 01
41 0E 01 03 68 26 1E 8C EE B3 8B 9A 52 45 95 1B

0C 47 4C AD EF 80 81 80 01 01 01 01 01 01 01 01

01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
13 00 54 0E 11 00 00 1E 00 00 00 FD 00 32 4C 1E
53 0E 00 0A 20 20 20 20 20 20 00 00 00 FC 00 48
50 20 66 31 39 30 35 0A 20 20 20 20 00 00 00 FF
00 31 32 33 34 36 35 39 37 38 30 0A 20 20 00 9C

DIGITAL

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

0：
16：
32：
48：

00 FF FF FF FF FF FF 00 22 F0 4F 26 01 01 01 01
41 0E 01 03 E8 26 1E 8C EE B3 8B 9A 52 45 95 1B
0C 47 4C AD EF 80 81 80 01 01 01 01 01 01 01 01

01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
64：
80：
96：

112：

13 00 54 0E 11 00 00 1E 00 00 00 FD 00 32 4C 1E

53 0E 00 0A 20 20 20 20 20 20 00 00 00 FC 00 48

50 20 66 31 39 30 35 0A 20 20 20 20 00 00 00 FF

00 31 32 33 34 36 35 39 37 38 30 0A 20 20 00 1B

44

13. BOM List

T986KAVDKHHPAP

Location Part NO. for TPV Description Quantity Unit

CBPC981KAVHPP CONVERSION BOARD 1 PCS
KEPC980KB4P KEY BOARD 1 PCS
PWPC1942AUH5P POWER BOARD 1 PCS
12G 423 1 BUCKET BUMPER 1 PCS
15G8127 1 MAIN FRAME 1 PCS
23G3178690 6A LOGO 1 PCS
34G1471CPC B BEZEL 1 PCS
34G1473APD 1B VESA COVER 1 PCS
40G 19N690 9A RATING LABEL 1 PCS
40G 19N69010B RATING LABEL 1 PCS
40G 45769020A CARTON/PALLET LABEL 1.05 PCS

HP F1905E

41G160069019G DOC KIT F1905 FOR NA 1 PCS
41G780069072D QSG 1 PCS
41G780069075D SCREEN FLYER 1 PCS
44G3919 1 EPS 1 PCS
44G3919 2 EPS 1 PCS
44G3919690 5A CARTON 1 PCS
45G 88609 C EPE COVER 1 PCS
45G 88626 H PE BAG FOR MONITOR 1 PCS
52G 1185 MIDDLE TAPE FOR CARTON 145 CM
52G 1186 SMALL TAPE 8 CM
52G 1211 A ALUMINIUM TAPE 2 PCS
52G 1211 B AL TAPE 1 PCS
52G6022 1500 SMALL TAPE 12 CM
52G6025 11811 MYLAR 1 PCS
78G W19 1 Z STAND ALONE SPEAKER 1 PCS
89G 171 35 DC POWER CORD DUSK LAKE 1 PCS
89G1738LAA 21 D-SUB CABLE 1 PCS
95G8014 15 4 HARNESS 1 PCS
95G8018 30 69 WIRE HARNESS 1 PCS
M1G 130 6120 SCREW M3X6 4 PCS
M1G 140 10 47 SCREW M4X10 5 PCS
M1G1730 6128 SCREW M3x6 4 PCS
M1G1730 6128 SCREW M3x6 4 PCS
M1G1740 6128 SCREW 1 PCS
Q1G 330 8120 SCREW 3X8mm 3 PCS

45

HP F1905E

705G980KB34082 19" BACK COVER ASS'Y 1 PCS
705G980KP34003 19" STAND ASS'Y 1 PCS
750GLU90N45 Z H AU 19" V50 ZBD PANEL 1 PCS

E089A 89G402A19N LS POWER CORD 1 PCS

AIC981KAVHPP MAIN BOARD 1 PCS
40G 457624 1B LABEL-CPU 1 PCS
40G 45762412B CBPC LABEL 1 PCS

C201 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C209 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C215 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C220 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C221 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C231 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C232 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C236 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C238 67G305V100 7N GP KME50VB10M-CC3 5*11 1 PCS
C302 67G215V101 4R LOW E.S.R 100UF +/-20% 1 PCS
C306 67G215V470 4R LOW E.S.R 47UF +/-20% 2 1 PCS
C309 67G215V470 4R LOW E.S.R 47UF +/-20% 2 1 PCS

C401 67G215V470 4R LOW E.S.R 47UF +/-20% 2 1 PCS
CN101 88G 35424FHCJ DVI 24PIN 1 PCS
CN102 88G 35315F H D-SUB 15PIN 1 PCS
CN301 33G8027 12 WAFER 2*6P 2.0MM R/A 1 PCS
CN302 33G8027 10 WAFER 2*5P 2.0MM R/A 1 PCS
CN401 33G8027 24 H GP WAFER 1 PCS

X201 93G 22 53 CRYSTAL 14.318MHzHC-49U 1 PCS

715G1370 1 H PCB 1 PCS
C101 65G0805105 22 CHIP 1UF 25V X7R 0805 1 PCS
C103 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C104 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C106 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C107 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C108 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C109 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS

C110 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS

C113 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C122 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C123 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C124 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C202 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS

46

HP F1905E

C203 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C204 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C205 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C206 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C207 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C208 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C210 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS

C211 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C212 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C213 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C214 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C216 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C217 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C218 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C219 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C222 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C223 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C224 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C225 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C226 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C227 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C228 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C229 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C230 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C233 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C234 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C235 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C237 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C239 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C240 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C241 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C242 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C243 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C244 65G0603330 31 CER1 0603 NP0 50V 33P P 1 PCS
C245 65G0603330 31 CER1 0603 NP0 50V 33P P 1 PCS
C246 65G0603103 32 0.01UF +-10% 50V X7R 1 PCS
C248 65G0805105 22 CHIP 1UF 25V X7R 0805 1 PCS
C250 65G0805105 22 CHIP 1UF 25V X7R 0805 1 PCS
C301 65G0805105 22 CHIP 1UF 25V X7R 0805 1 PCS
C303 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS

47

HP F1905E

C304 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C305 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C307 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C308 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C310 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C313 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C315 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C316 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C317 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C318 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C319 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C320 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C323 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C402 65G0603103 32 0.01UF +-10% 50V X7R 1 PCS
C403 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C404 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C405 65G0603683 32 CHIP 0.068UF 50L X7R 1 PCS
D101 93G 64 42 P BAV70 SOT-23 1 PCS
D102 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D103 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D104 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D105 93G 64 42 P BAV70 SOT-23 1 PCS
D302 93G 39S 34 T UDZS5.6B 1 PCS
D303 93G 39S 34 T UDZS5.6B 1 PCS
D304 93G 39S 34 T UDZS5.6B 1 PCS
D305 93G 39S 34 T UDZS5.6B 1 PCS
D306 93G 39S 34 T UDZS5.6B 1 PCS
D309 93G2004 2A SM240A DO-214AC 1 PCS
D310 93G3020 19 ES3D 3A 1 PCS

D311 93G3020 19 ES3D 3A 1 PCS

FB101 71G 56K121 CHIP BEAD 1 PCS
FB102 71G 59C800 CHIP BEAD 1 PCS
FB103 71G 59C800 CHIP BEAD 1 PCS
FB104 71G 59C800 CHIP BEAD 1 PCS
FB201 71G 56K121 CHIP BEAD 1 PCS
FB202 71G 56K121 CHIP BEAD 1 PCS
FB203 71G 56K121 CHIP BEAD 1 PCS
FB204 71G 56K121 CHIP BEAD 1 PCS
FB205 71G 56K121 CHIP BEAD 1 PCS
FB206 71G 56K121 CHIP BEAD 1 PCS

48

HP F1905E

FB207 71G 56K121 CHIP BEAD 1 PCS
FB208 71G 56K121 CHIP BEAD 1 PCS
FB209 71G 56K121 CHIP BEAD 1 PCS

Q101 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q203 57G 763 1 A03401 SOT23 BY AOS(A1) 1 PCS
Q301 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q302 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q402 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
R101 61L0603470 RST SM 0603 RC0603 47R 1 PCS
R102 61L0603470 RST SM 0603 RC0603 47R 1 PCS
R103 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R104 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R105 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R106 61L0603181 CHIP 180 OHM 5% 1/10W 1 PCS
R107 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R108 61L0603181 CHIP 180 OHM 5% 1/10W 1 PCS
R109 61L0603101 RST SM 0603 RC0603 100R 1 PCS

R110 61L0603101 RST SM 0603 RC0603 100R 1 PCS

R111 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R112 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R113 61L0603470 RST SM 0603 RC0603 47R 1 PCS
R114 61L0603181 CHIP 180 OHM 5% 1/10W 1 PCS
R115 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R116 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R117 61L0603470 RST SM 0603 RC0603 47R 1 PCS
R118 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
R119 61L0603750 RST SM 0603 RC22H 75R P 1 PCS

R120 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
R121 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R122 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R125 61L0603220 RST SM 0603 RC0603 22R 1 PCS
R126 61L0603220 RST SM 0603 RC0603 22R 1 PCS
R127 61L0603222 RST SM 0603 RC0603 2K2 1 PCS
R128 61L0603222 RST SM 0603 RC0603 2K2 1 PCS
R129 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R130 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R131 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R133 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R134 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R135 61L0603103 RST SM 0603 RC0603 10K 1 PCS

49

HP F1905E

R145 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R205 61L0603255 0F CHIP 255OHM 1/16W 1% 1 PCS
R215 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R218 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R233 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R234 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R235 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R236 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R237 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R238 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R239 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R241 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R242 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R243 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R244 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R245 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R249 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R251 61L0603203 CHIPR 20K OHM+-5% 1/10W 1 PCS
R252 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R301 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R302 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R307 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS
R308 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R309 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R310 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS

R311 61L0603103 RST SM 0603 RC0603 10K 1 PCS

R314 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R315 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R316 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R317 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R319 61L0603511 CHIPR 510 OHM+-5% 1/10W 1 PCS
R320 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R322 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
R323 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R401 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R403 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R404 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R405 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R408 61L1206331 CHIP 330OHM 5% 1/4W 1 PCS
U101 56G113334A 24LC02B/SNG SOIC-8PIN 1 PCS

50

HP F1905E

U102 56G113334A 24LC02B/SNG SOIC-8PIN 1 PCS
U104 56G4LVC 14 P 74LVC14ADT 1 PCS
U201 56G 562 70 GM5321 QFP-208 1 PCS
U202 56G 643500 EM6353BX2SP3B-2.9 3PIN 1 PCS
U203 56G1133 59UH4 SST25VF010-20-4C-SA SOI 1 PCS
U205 56G113356A 24LC16B/SNG SOIC-8PIN 1 PCS
U301 56G 563 34 AIC 1084-18PM TO-263 1 PCS

U302 56G 563 7 AIC1084-33PM 1 PCS
ZD101 93G 39147SEM ZMM5V6ST 1 PCS
ZD102 93G 39147SEM ZMM5V6ST 1 PCS
ZD103 93G 39147SEM ZMM5V6ST 1 PCS
ZD104 93G 39147SEM ZMM5V6ST 1 PCS
ZD105 93G 39147SEM ZMM5V6ST 1 PCS
ZD106 93G 39147SEM ZMM5V6ST 1 PCS
ZD107 93G 39147SEM ZMM5V6ST 1 PCS
ZD108 93G 39147SEM ZMM5V6ST 1 PCS
ZD109 93G 39147SEM ZMM5V6ST 1 PCS

ZD110 93G 39147SEM ZMM5V6ST 1 PCS
ZD114 93G 39147SEM ZMM5V6ST 1 PCS

AIK980KB4SMTP KEY BOARD FOR SMT 1 PCS
12G6076 1 WASHER 1 PCS
715G1404 2 KEPC 1 PCS

DP1 81G0603 B KB KP-1608QBC-C-AOC 5MA 1 PCS
DP2 81G0603 Y KB KP-1608SYCK-5MAV-AOC 1 PCS

JP103 33G803415D WAFER 1 PCS

SW1 77G 607 1 FD TACT SWITCH 1 PCS
SW2 77G 607 1 FD TACT SWITCH 1 PCS
SW3 77G 607 1 FD TACT SWITCH 1 PCS
SW4 77G 607 1 FD TACT SWITCH 1 PCS

SW5 77G 607 1 FD TACT SWITCH 1 PCS
ZD101 93G 39S 34 T UDZS5.6B 1 PCS
ZD102 93G 39S 34 T UDZS5.6B 1 PCS
ZD103 93G 39S 34 T UDZS5.6B 1 PCS
ZD104 93G 39S 34 T UDZS5.6B 1 PCS
ZD105 93G 39S 34 T UDZS5.6B 1 PCS
ZD106 93G 39S 34 T UDZS5.6B 1 PCS
ZD107 93G 39S 34 T UDZS5.6B 1 PCS

PW1942AUH5SMTP POWER BOARD FOR SMT 1 PCS
11G6049 2 GP TIE MOUNT(S) 1 PCS
40G 45762420A ID LABEL 1.02 PCS

51

HP F1905E

705G 980 56 03 IC901 ASS'Y 1 PCS
705G 980 57 07 Q901 ASS'Y 1 PCS
705G 980 87 04 CN901 ASS'Y 1 PCS
705G 980 93 06 D903/D907 ASS'Y 1 PCS

BD901 93G 50460 16 U4KB80R 1 PCS

C701 67G215L471 4N GP KY25VB470M-L10*16 1 PCS
C706 65G 3J5096ET 5PF 5% SL 3KV 1 PCS
C709 65G 3J5096ET 5PF 5% SL 3KV 1 PCS
C723 65G 3J5096ET 5PF 5% SL 3KV 1 PCS
C724 67G215L471 4N GP KY25VB470M-L10*16 1 PCS
C725 65G 3J5096ET 5PF 5% SL 3KV 1 PCS
C903 63G107K474 US 0.47UF +-10% 1 PCS
C904 67G215S15115K EC105C 150UF 450V 1 PCS
C914 67G215S102 4K ED1000UF 25V 1 PCS
C915 67G215S102 4K ED1000UF 25V 1 PCS
C916 67G215S102 4K ED1000UF 25V 1 PCS
C921 65G306M4722BM 4700PF +-20% 400VAC 1 PCS
C922 67G215S102 4K ED1000UF 25V 1 PCS
C926 67G215S102 4K ED1000UF 25V 1 PCS
C927 67G215S102 4K ED1000UF 25V 1 PCS
C934 65G306M3322BM 3300PF +-20% 250VAC 1 PCS
C935 65G 1M103 3B6921 10NF +-2% 1000V 1 PCS
C938 65G 1M103 3B6921 10NF +-2% 1000V 1 PCS
C939 65G306M1022BM Y1.CAP.001UF 250VAC MUR 1 PCS

C940 65G306M1022BM Y1.CAP.001UF 250VAC MUR 1 PCS
CN701 33G8021 2D U 3.5mm WAFER 1 PCS
CN702 33G8021 2D U 3.5mm WAFER 1 PCS
CN703 33G8021 2D U 3.5mm WAFER 1 PCS
CN704 33G8021 2D U 3.5mm WAFER 1 PCS
CN902 88G 304 7K DC JACK 1 PCS
CN903 95G8014 12512 CONNECTOR 1 PCS

IC903 56G 139 3B PC123 Y82FZ0F 1 PCS

L901 73L 174 53 LG GP CHOKE 1 PCS
L902 73L 174 40LSG LINE FILTER 1 PCS
L903 73G 253151 LA CHOKE COIL 1 PCS
L905 73G 253 91 L CHOKE BY LI TA 1 PCS
L906 73G 253 91 L CHOKE BY LI TA 1 PCS
L909 71G 55 29 FERRITE BEAD 1 PCS
L910 71G 55 19 T FERRITE BEAD D9X3. 5X0. 1 PCS

NR901 61G 58050 WT NTC 5 OHM 5A 1 PCS

52

HP F1905E

PT701 80GL19T 8DN1 X'FMR DARFONTK.2006M.10 1 PCS
PT702 80GL19T 8DN1 X'FMR DARFONTK.2006M.10 1 PCS

R913 61G152M104 64 100KOHM 5% 2W 1 PCS

R928 61G152M398 64 0.39 OHM 2W 1 PCS

T901 80LL19T 3 TG TRANSFORMER 1 PCS

VAR901 61G 46 6 GP TNR 10V471K 1 PCS

PWP1942AUH5AIP POWER BOARD FOR AI 1 PCS
C702 65G0603332 32 CHIP 0.0033UF 50V X7R 0 1 PCS
C704 65G0603332 32 CHIP 0.0033UF 50V X7R 0 1 PCS
C707 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C708 65G1206225 17 1206 2.2UF -20%~+80% 16 1 PCS
C710 65G0603333 32 0.033UF/50V 1 PCS

C711 65G0603103 32 0.01UF +-10% 50V X7R 1 PCS
C712 65G0805332 31 GP CHIP 3.3NF 50V NPO 0805 1 PCS
C714 65G0603333 32 0.033UF/50V 1 PCS
C715 65G0603332 32 CHIP 0.0033UF 50V X7R 0 1 PCS
C718 65G0603333 32 0.033UF/50V 1 PCS
C719 65G060333131G 330PF NPO 50V 2% 1 PCS
C720 65G0603330 31 GP 33PF+-5% 50V NPO 1 PCS
C721 65G0603332 32 CHIP 0.0033UF 50V X7R 0 1 PCS
C726 65G0603333 32 0.033UF/50V 1 PCS
C727 65G0603333 32 0.033UF/50V 1 PCS
C729 65G0805332 31 GP CHIP 3.3NF 50V NPO 0805 1 PCS
C730 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C731 65G0603333 32 0.033UF/50V 1 PCS
C736 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C737 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C738 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C739 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C740 65G0603472 32 CHIP 4700PF 50V X7R 1 PCS
C907 65G0805225 12 CHIP 2.2UF 15V X7R 0805 1 PCS
C909 65G0603105 17 1UF 16V Y5V 1 PCS
C910 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS

C911 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C912 65G1206102 72 CHIP 1000PF 500V X7R 1 PCS
C919 65G0805104 32 CHIP 0.1U 50V X7R 1 PCS
C920 65G1206102 72 CHIP 1000PF 500V X7R 1 PCS
C923 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C924 65G0805471 21 CHIP 470PF 25V NPO 1 PCS
C925 65G0805103 22 CHIP 0.01uF 25V X7R 080 1 PCS

53

HP F1905E

C928 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
C930 65G0805104 32 CHIP 0.1U 50V X7R 1 PCS
C932 65G0805104 32 CHIP 0.1U 50V X7R 1 PCS
C937 65G0603104 22 CHIP 0.1UF +80-20% 50V 1 PCS
C941 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C942 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C943 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C944 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C945 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C946 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
C947 65G0603104 32 CHIP 0.1UF 50V X7R 1 PCS
D702 93G 6433P BAV99 SOT-23 1 PCS
D703 93G 6432V LL4148-GS08 1 PCS
D704 93G 6433P BAV99 SOT-23 1 PCS
D705 93G 6432V LL4148-GS08 1 PCS
D706 93G 6433P BAV99 SOT-23 1 PCS
D707 93G 6433P BAV99 SOT-23 1 PCS
D709 93G 6432V LL4148-GS08 1 PCS
D710 93G 6432V LL4148-GS08 1 PCS

D711 93G 6433P BAV99 SOT-23 1 PCS
D712 93G 6433P BAV99 SOT-23 1 PCS
D713 93G 6432V LL4148-GS08 1 PCS
D714 93G 6432V LL4148-GS08 1 PCS
D715 93G 6433P BAV99 SOT-23 1 PCS
D901 93G8004500 SM840B 1 PCS
D909 93G 6432V LL4148-GS08 1 PCS

D911 93G 6432V LL4148-GS08 1 PCS

IC701 56G 608 9 OZ9RRBGN SOIC-8 1 PCS
IC901 56G 379 33 SG6841SZ 1 PCS

IC905 56G 379 37 FP5001DR 1 PCS
JR701 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
JR901 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
JR903 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS

Q701 57G 763 6 AO4828L 1 PCS
Q702 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q703 57G 759 2 RK7002 1 PCS
Q704 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q705 57G 763 6 AO4828L 1 PCS
Q706 57G 759 2 RK7002 1 PCS
Q707 57G 760 5B PDTC144WK SOT346 1 PCS

54

HP F1905E

Q708 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q709 57G 759 2 RK7002 1 PCS
Q710 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q711 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q712 57G 760 4B PDTA144WK SOT346 1 PCS
Q713 57G 760 5B PDTC144WK SOT346 1 PCS
Q714 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q902 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q903 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q904 57G 763 7 A0D405L 1 PCS
Q905 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q906 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
R701 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
R702 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R703 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R704 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R706 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R707 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R708 61L0603202 CHIPR 2K OHM+-5% 1/10W 1 PCS
R709 61L0603220 0F 220 OHM +-1% 1/10W 1 PCS
R710 61L0603160 2F CHIP 16K OHM 1/10W 1% 1 PCS

R711 61L0603430 0F 430 OHM +-1% 1/10W 1 PCS
R712 61L0603100 3F 100KOHM 1/16W 1 PCS
R714 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R715 61L0603184 RES 180K 1/10W 5% SMT 0 1 PCS
R716 61L0603431 CHIP 430OHM5% 1/10W 1 PCS
R717 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R718 61L0603240 3F 240K OHM 1/16W 1 PCS
R719 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R720 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R721 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R722 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R723 61L0603202 CHIPR 2K OHM+-5% 1/10W 1 PCS
R724 61L0603220 0F 220 OHM +-1% 1/10W 1 PCS
R726 61L0603430 0F 430 OHM +-1% 1/10W 1 PCS
R727 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R728 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R729 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R730 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R731 61L0603105 RST SM 0603 RC0603 1M P 1 PCS

55

HP F1905E

R732 61L0603431 CHIP 430OHM5% 1/10W 1 PCS
R733 61L0603160 2F CHIP 16K OHM 1/10W 1% 1 PCS
R735 61L0603431 CHIP 430OHM5% 1/10W 1 PCS
R736 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R737 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R738 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R739 61L0603431 CHIP 430OHM5% 1/10W 1 PCS
R740 61L0603105 RST SM 0603 RC0603 1M P 1 PCS
R741 61L0603150 2F CHIPR 15KOHM +-1% 1/10W 1 PCS
R742 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R743 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R744 61L0603203 CHIPR 20K OHM+-5% 1/10W 1 PCS
R745 61L0603205 CHIPR 2MOHM +-5% 1/10W 1 PCS
R746 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS
R750 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R751 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R752 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R753 61L1206330 CHIP 33 OHM 5% 1/4W 1 PCS
R901 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R902 61L0603392 CHIP 3.9K OHM 1/10W 1 PCS
R903 61L0603471 CHIPR 470 OHM+-5% 1/10W 1 PCS
R904 61L0603333 CHIP 33K OHM 1/10W 1 PCS
R905 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R906 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R907 61L0603272 RST SM 0603 RC22H 2K7 P 1 PCS
R908 61L0603302 CHIPR 3K OHM +-5% 1/10W 1 PCS
R909 61L0603680 1F CHIP 6.8KOHM 1% 1/10W 1 PCS
R910 61L0603752 CHIPR 7.5K 1/10W 1 PCS

R911 61L0603362 CHIP 3.6K OHM 1/10W 1 PCS
R912 61L1206665 3F 665K OHM 1/8W 1 PCS
R915 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R916 61L1206665 3F 665K OHM 1/8W 1 PCS
R918 61L1206665 3F 665K OHM 1/8W 1 PCS
R919 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R920 61L0805100 CHIPR 10 OHM+-5% 1/8W 1 PCS
R921 61L0805100 2F CHIP 10K OHM 1/8W 1% 1 PCS
R922 61L0805100 2F CHIP 10K OHM 1/8W 1% 1 PCS
R923 61L1206301 CHIP 300OHM 1/4W 1 PCS
R924 61L1206334 330K 1/4W 1 PCS
R925 61L1206334 330K 1/4W 1 PCS

56

HP F1905E

R926 61L1206334 330K 1/4W 1 PCS
R927 61L0805221 CHIPR 220 OHM +-5% 1/8W 1 PCS
R929 61L0805240 2F CHIP 24KOHM 1% 1/8W 1 PCS
R930 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R931 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R932 61L0805100 2F CHIP 10K OHM 1/8W 1% 1 PCS
R933 61L0805472 CHIRP 4.7K OHM +-5% 1/8 1 PCS
R934 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R935 61L0805472 CHIRP 4.7K OHM +-5% 1/8 1 PCS
R936 61L0805240 1F CHIPR 2.4KOHM +-1% 1/8W 1 PCS
R937 61L0805222 CHIP 2.2KOHM 5% 0805 1/ 1 PCS
R938 61L0805101 CHIPR 100 OHM +-5% 1/8W 1 PCS
R939 61L0805104 CHIPR 100K OHM+-5% 1/8W 1 PCS
R940 61L0805472 CHIRP 4.7K OHM +-5% 1/8 1 PCS
R941 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R942 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R943 61L0603220 RST SM 0603 RC0603 22R 1 PCS
R944 61L1206519 CHIPR 5.1OHM +-5% 1/4W 1 PCS

ZD701 93G 39S 24 T RLZ 5.6B LLDS 1 PCS
ZD901 93G 39S 12 T RLZ20B LLDS 1 PCS
ZD902 93G 39S 17 T RLZ12B LLDS 1 PCS

715G1421 3 PCB 1 PCS
C732 65G601G101 1T GP 100pf +-2% 50v 1 PCS
C733 65G601G101 1T GP 100pf +-2% 50v 1 PCS
C734 65G601G101 1T GP 100pf +-2% 50v 1 PCS
C735 65G601G101 1T GP 100pf +-2% 50v 1 PCS
C904 6G 31502 1.5MM RIVET 2 PCS
C913 65G 2K152 1T GP CERAMIC CAP 1 PCS
C917 67G 2151007RT LOW E.S.R 10UF +/-20% 5 1 PCS
C918 67G215Y2207KT ED1500UF 10V 1 PCS

CN901 6G 31500 EYELET 3 PCS

D902 93G 6038P52T PS102R 1 PCS
D904 93G 6026T52T RECTIFIER DIODE FR107 1 PCS
D905 93G 6038P52T PS102R 1 PCS
D906 93G 6038P52T PS102R 1 PCS

F901 84G 55 2 MET2.50 1 PCS

IC904 56G 158 10 T AZ431AZ-AE1 1 PCS

L901 6G 31502 1.5MM RIVET 4 PCS
L902 6G 31502 1.5MM RIVET 4 PCS
L907 71G 55 29 FERRITE BEAD 1 PCS

57

HP F1905E

L908 71G 55 29 FERRITE BEAD 1 PCS

L912 71G 55 19 T FERRITE BEAD D9X3. 5X0. 1 PCS
PT701 6G 31502 1.5MM RIVET 2 PCS
PT702 6G 31502 1.5MM RIVET 2 PCS

Q901 6G 31502 1.5MM RIVET 1 PCS
R705 61G212Y625 KT MGFR 6.2MOHM +-5% 1/2W 1 PCS
R725 61G212Y625 KT MGFR 6.2MOHM +-5% 1/2W 1 PCS

T901 6G 31502 1.5MM RIVET 5 PCS

90G6084 1 HEAT SINK 1 PCS
M1G1730 8128 SCREW M3x8 1 PCS

IC902 56G 563 37 KA278R12CTU TO-220F-4L 1 PCS

90G 412 1 HEAT SINK 1 PCS
M1G1730 8128 SCREW M3x8 1 PCS

Q901 57G 600 35 STP8NK80ZFP 1 PCS

95G205S354083 HARNESS 1 PCS
96G 29 6 SHRINK TUBE UL/CSA 160 MM

CN901 87G 501 12 CJ AC SOCKET 1 PCS

90G6081 2 GP HEAT SINK 1 PCS
M1G1730 8128 SCREW M3x8 2 PCS

D903 93G 60242 SRF20150C T0-220 1 PCS
D907 93G 60242 SRF20150C T0-220 1 PCS

33G4789 PM 4L CONTROL BUTTON 1 PCS
33G4790APM L POWER BUTTON 1 PCS
33G4799 1 L LENS 1 PCS
34G1472 PD B BACK COVER 1 PCS
12G 424 1 BASE RUBBER FOOT 6 PCS
20G 020 1 DIECASTING 1 PCS
33G4800 PD L HINGE COVER TOP 1 PCS
33G4801 PD L HINGE COVER BOTTOM 1 PCS
33G4802 PC L BASE COVER 1 PCS
33G4803 PD X CLIP 1 PCS
34G1474 PC B BASE 1 PCS
34G1475 PC B STAND-F 1 PCS
34G1476 PC B STAND-B 1 PCS
37G 515 1 HINGE 1 PCS
M1G 140 10120 SCREW 4 PCS
Q1G 130 8120 SCREW 6 PCS
Q1G 330 8120 SCREW 3X8mm 1 PCS

58
