AOC e950SWa Service Manual

Service Manual AOCe950SWa

SERVICE MANUAL

维 修 手 册

客户/品牌 机种名

AOC e950SWa

本手册适用于主板 715G4737-Scalar IC RTD2270LW，内置音频放大+喇叭

1

Service Manual AOCe950SWa

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

A00 Jul-16-2011 Initial Release AOCe950SWa T8BMR96BAGE6ANJ

2

Service Manual AOCe950SWa

目 录

1.显示器规格 ................................................................................................................................ 4

1.1 技术规格 ............................................................................................................................ 4

1.2 工厂预设模式 .................................................................................................................... 5

1.3 本机特点 ........................................................................................................................... 5

1.4 接口说明 ........................................................................................................................... 5

1.5 面板特性 ............................................................................................................................ 6

1.6 面板连接器 ........................................................................................................................ 7

2.操作说明 .................................................................................................................................... 8

2.1 连接显示器 ........................................................................................................................ 8

2.2 控制按钮 ........................................................................................................................... 8

2.3 OSD 菜单调整 ................................................................................................................. 10

3.机构拆解图示 .......................................................................................................................... 12

4.电气方框图 .............................................................................................................................. 15

4.1 LCD 整机方框图 ............................................................................................................ 15

4.2 Panel 方框图 .................................................................................................................... 15

4.3 Main 主板方框图 ............................................................................................................. 16

4.4 Power 电源板方框图 ....................................................................................................... 16

4.5 软体流程 Software Flow Chart ....................................................................................... 17

5.电原理图 .................................................................................................................................. 18

5.1 主板 715G4737 ................................................................................................................ 18

5.2 电源板 Power 715G4744 ................................................................................................ 23

5.3 Audio part 音频部分 ........................................................................................................ 25

5.4 按键板 key board 715G4747-k ....................................................................................... 26

6.机构爆炸图 .............................................................................................................................. 27

7.软体更新和 DDC 改写 ........................................................................................................... 28

7.1 软体更新 SOP ................................................................................................................. 28

7.2 改写 DDC/EDID ............................................................................................................. 33

7.3.工厂模式调整 .................................................................................................................. 36

8.故障处理流程 .......................................................................................................................... 39

8.1 主板 .................................................................................................................................. 39

8.2 电源板 .............................................................................................................................. 41

8.3 按键板检查 ..................................................................................................................... 42

9.料件清单 BOM ........................................................................................................................ 43

Model：T8BAR92YAGA1NNJ ............................................................................................. 43

3

Service Manual AOCe950SWa

1.显示器规格

1.1 技术规格

Monitor Model AOC e950SWa*

Driving system TFT Color LCD

LCD Panel

Max. Resolution 1366 x 768@60Hz

Display Colors 16.7M Colors

Input

Audio

Connector

Dot Clock 210MHz

Active Display Area 18.5” 409.8mm (W)×230.4mm(H)

Pixel Pitch 0.3 mm×0.3mm

R,G,B Analog Interface，75ohm,0.7V

Video

Separate Sync. H/V TTL

H-Frequency 30kHz—81kHz

V-Frequency 56Hz--75Hz

Line in Audio （Built-in speaker 内置喇叭 2×2W）

D-Sub 15pin

Ø3.5 Audio Line in

Plug & Play VESA DDC2B DDC/CI

ON Mode <25W

Power Consumption

Power Source

Environmental
Considerations

Dimensions(including stand)

Weight (N. W.): 3.0kg

Safety

Power Saving Mode <1W

Switch OFF

<0.5W

90~264VAC,47~63Hz, 1.5A Max supply current

Operating Temp: 0° to 40°C
Storage Temp.: -20° to 60°C
Operating Humidity : 8% to 80%

444.0(W)x345.5(H)x170.0 (D)mm

FCC B CE mark CCC IEC950CB etc.

4

Service Manual AOCe950SWa

1.2 工厂预设模式

标准 分辨率 行频 场频

Dos-模式

720 × 400 31.47kHz 70Hz

640 × 480 31.47kHz 60Hz

640 × 480 31.47kHz 67Hz

VGA

640 × 480 31.47kHz 72Hz

640 × 480 37.50kHz 75Hz

800 × 600 37.879kHz 56Hz

800 × 600 37.879kHz 60Hz

SVGA

800 × 600 46.875kHz 72Hz

800 × 600 46.875kHz 75Hz

832 × 624 49.725kHz 75Hz

1024 × 768 48.363kHz 60Hz

XGA

1024 × 768 56.476kHz 70Hz

1024 × 768 60.02kHz 75Hz

SXGA 1280 × 720 44.77kHz 59.85Hz

WXGA 1360×768 47.712 kHz 60.0 Hz

WXGA 1366×768 47.712 kHz 59.79 Hz

1.3 本机特点

 18.5”W LCD，VGA 接口，LED 背光，最大分辨率 1366 x 768/60Hz，
 动态对比度 20M:1，5 个用户模式，新型 OSD 界面；16 种语言菜单；
 增加内置喇叭，和外接音频输入接口；

1.4 接口说明

VGA connector

Pin No. Description Pin No. Description

1. Red Input 9. +5VDC

2. Green Input 10. GND

3. Blue Input 11. GND

4. GND 12. SDA- DDC-Serial Data

5. Connection detect 13. H Sync

6. Red GND 14. V Sync

7. Green GND 15. SCL- DDC-Serial Clock

8. Blue GND

15

VGA Connector layout

6

11 15

10

5

Service Manual AOCe950SWa

1.5 面板特性

6

Service Manual AOCe950SWa

1.6 面板连接器

CN1：LVDS 连接器

CN2：LED 背光连接器

7

Service Manual AOCe950SWa

2.操作说明

2.1 连接显示器

 将 VGA 信号线②连接到计算机- PC 显卡输出端，音频线③ 连接到 PC 声卡输出端 。

 接好电源线

①。

 功能按键位于前面板下方。按电源开关即可开关显示器。通过调节这些功能键可得到您需要的画面。

2.2 控制按钮

Icon Control Description

1

2

3

4

5

MENU

AUTO

+

-

Power Button Power ON/OFF,and power indicator(Blue and Orange).

Active main menu while no OSD display,enter next level

Menu

/Enter/OK

Auto Adjustment

DDC-CI

Exit

Decrease + adjusting

Increase - adjusting

on main menu or sub menu status, or enter last level on
adjustment bar.Continued pressing 10 seconds will lock
menu or un-lock menu.
If there is no any OSD, it is auto configuration. Pressed till
10 seconds, will enable/disable the DDC/CI.

Exit current OSD return to last level.

OSD, it will increase current value of bar, or move to last
item of menu.

If there is no any OSD,adjusted volume

OSD, it will decrease current value of bar, or move to next
item of menu.

If there is no any OSD,Direct access to display mode

8

Service Manual AOCe950SWa

前面板控制

电源开关：

按此键开/关显示器的电源,并显示机器所处的状态。

电源指示灯

绿色或蓝色— 开机状态；橙色或红色— 待机状态

菜单键MENU/选择:

激活OSD菜单或功能调整确认。

“

- +”左右选择：快捷键方式，-，可以切换情景模式，+，可以调节喇叭音量 ；

在OSD状态，按左右键可以选择所需要的菜单项.

自动调节键/退出：

当OSD菜单为关闭状态时，请按住此按钮两秒以上，以激活自动调整功能。当OSD菜单为开启状态时，请按住此按钮两

秒以上，以退出OSD菜单。

（自动调节功能将自动设置水平位置，垂直位置，时钟和相位）

OSD-锁定功能：

要锁定 OSD，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。要解锁 OSD，请在显示器关闭时按住

MENU 按钮，然后按电源按钮打开显示器。

+ -

AUTO Menu+power

9

Service Manual AOCe950SWa

2.3 OSD 菜单调整

 按 MENU 按钮激活 OSD 窗口。

 按 < 或 > 浏览这些功能。 如果想要调整的功能突出显示，按 MENU 按钮激活它。如果所选的功能包含有子菜

单，再按一下 < 或 > 可以浏览到子菜单功能。如果想要调整的功能突出显示，按 MENU 按钮激活它。

 按 < 或 > 更改所选功能的设置。

 要退出和保存，请选择退出功能。 如果您想调整其它任何功能，请重复步骤 2-3。

明亮度 调整数值 说明

亮 度

对比度

Eco Mode

伽马

动态对比度

0-100

0-100

标准 正常使用模式

文本 文本应用模式

网络 网络应用模式

游戏 游戏应用模式

电影 观赏电影应用模式

运动 观赏户外运动模式

伽马 1 调整为伽马值 1

伽马 2 调整为伽马值 2

伽马 3 调整为伽马值 3

禁用 关闭动态对比度

启用 开启动态对比度

调整显示亮度

调整显示对比度

图象设置

时钟

聚焦

水平位置

垂直位置

颜色调整

暖色温

常规色

0-100

0-100

0-100

0-100

调整图片时钟以降低垂直线噪声

调整图片相位以降低水平线噪声

调整图片的水平位置

调整图片的垂直位置

设置为暖色温

设置为常规色温

10

Service Manual AOCe950SWa

冷色温

sRGB

微调 蓝 微调蓝色色温

微调 绿 微调绿色色温

微调 红 微调红色色温

使用者设定

自定义黄 微调黄色色温

自定义蓝 微调青色色温

自定义红 微调粉红色色温

窗口增亮

窗口尺寸

亮 度

对比度

14-100

0-100

0-100

设置为冷色温

设置为 sRGB

调整窗口尺寸大小

调整窗口亮度

调整窗口增强对比度

色相

饱和度

0-100

0-100

调整窗口色相

调整窗口颜色饱和度

水平位置 调整水平窗口位置

位置

垂直位置 调整垂直窗口位置

增亮 禁用/启用 开启或关闭增亮窗口

OSD 设置

水平位置

垂直位置

OSD 显示时间设定

语言

0-100

0-100

5-100

调整 OSD 水平位置

调整 OSD 垂直位置

调整 OSD 显示时间

选择 OSD 语言

其它

自动调整 是或者否 自动调整画面

重置 是或者否 恢复到出厂设置

退出/DDC-CI

打开/关闭 DDC-CI 支持

宽普切换

Full/4:3

Aspect Control

显示信息

显示输入信号信息

11

Service Manual AOCe950SWa

3.机构拆解图示

基本工具

Phillips screwdriver

十字螺丝起

spacer screwdriver

六角起

C/D Disassembly Tool

划片

Gloves or soft cloth

手套/软布

Prepare soft cloth and

sponge as working

platform

防静电平台

拆解示意图

12

Service Manual AOCe950SWa

提起小后盖

拆掉螺丝 1，打开后盖

拆掉螺丝 2

拆掉螺丝，分开支架

打开后盖后，拆掉 2 个连接器

拆掉喇叭和按键板

打开铁盘

13

Service Manual AOCe950SWa

电源板（含音频放大部分）

14

Service Manual AOCe950SWa

4.电气方框图

4.1 LCD 整机方框图

Monitor Block Diagram

LED-bar backlight

Panel1366.*768

LVDS

DC-DC

Main Board

715G4737-M01

Audio AMP

converter

AC-DC(5V/16V)

715G4744

Power Board

Audio in

4.2 Panel 方框图

AC supply
90V-264V

Key board

PC- VGA

/DDC

Input signal

15

Service Manual AOCe950SWa

4.3 Main 主板方框图

EEPROM

MX25L2026DM1I

(U402)

5V 3.3V 1.8V

Voltage converter

5V

4.4 Power 电源板方框图

Crystal 14.318Mhz

X401

DDC

Key Board Control

(CN401/402)

MCU RTD2270LW-CG

(U401)

Power/ Converter Board Block Diagram

Panel Interface

(CN403)

D-Sub Connector

(CN101)

From PC

H sync
V sync

Fuse EMI

AC input
100-240V

Vcc

CN902-5V

Audio in

Amplifier

Power adapter Part

16V

CN801

SET

Rectifier

IC-PWM

IC901

PWM Control

0Z9998 BGN

U801

Smoothing

Capacitor

Transformer

T901

MOSQ901
Switching

Sense
resistor

photocoupler

Converter

Switching MOS

APMB005KCT

16V
Rectifier

5V
Rectifier

Vcc
Rectifier

16V

16V

regulating
sampling

CN804

On/off DIM

LED converter Part

Current Sense

1-8

16

Service Manual AOCe950SWa

g

4.5 软体流程 Software Flow Chart

Brightness

Contrast

Language
InputType

Start

Initial_MCU

Check if DataBuffer Is blank

Check if Sum is chan

Read parameter_from Buffer

ed ?

Init_GlobalVariables

Initial_MCU Device

Software Flow Chart

Y

To Write default values

InputTimingStableCounter

OsdCounter

PowerDownCounter

No signal message

UnsupportModeFlag

OSD Menu

PowerHandler

InputTiming

ModeHandler

MenuHandler

if factory mode?

DebugHandler

if standby mode?

N

LED turn-on

Show power on logo

InputTiming

Phaes/Frequency

Image setup

Color

Y

Enter factory mode OSD

END

17

Service Manual AOCe950SWa

5.电原理图

5.1 主板 715G4737

RTD2270LW-GR SCHEMATIC

CMVCC1

CMVCC1

CMVCC

VCC3.3

XGA/SXGA

CMVCC1

02.Input

VCC1.2

VCC 1.2

on_BACKLIGH T

VCC 3.3

Adj_BACKLIGH T

CMVCC

CMVCC1

DSUB_R+

DSUB_R-

DSUB_G+

DSUB_G-

DSUB_SOG

DSUB_B+

DSUB_B-

DSUB_H
DSUB_V

DDC1_SDA

DDC1_SCL

DET_CABLE

EDID_CTRL

Mut e

Volume#

PANEL_ID #

VCTRL

DSUB_R+
DSUB_R­DSUB_G+
DSUB_G­DSUB_SOG
DSUB_B+
DSUB_B­DSUB_H
DSUB_V
DDC1_SDA
DDC1_SCL
DET_CABLE

EDID _CTRL

on_BACKLIGH T

Mut e
Volume#
PANEL_ID #

Adj_BACKLIGH T

VCTRL

LVDS OUTPUT

VCC1.2

VCC1.2

VCC3.3

CMVCC1

PA[0..1]

PA[4..9]

PB[0..9]

PPWR_ON #

L/T_SCL

L/T_SDA

VCC3.3

PA[0.. 1]

PA[4.. 9]

PB[0.. 9]

CMVCC1

04.Output

PA[0.. 1]

PA[4.. 9]

PB[0.. 9]

PPWR_ON#

L/T_SCL

L/T_SDA

04.Output

CMVCC

CMVCC

05.Power

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

715G4737-M01-000-0040-110119-01

01.Top

03.Scalar

18

OEM MOD E L

TPV MODEL

PCB NAME

Sheet

AOC 50/52 ID(1A)

AOC 50/52 ID(1A) 1.0

715G4737-M01

37Wednesday , January 19, 2011

of

Size

Rev

称爹

<

称爹

A

>

Service Manual AOCe950SWa

VGA input part

ミ

ΑCONN

GND POW ER

R101 0R 05 1/10W R102 100R 1/16W 5%

V_Sy nc

R105

2K2 1/16W 5%

CN101

DSUB_SCL VGA_PLUG

DGND

D-SUB 15P

15

14

13

12

11

5
10
4
9
3
8
2
7
1
6

17 16

DSUB_SDA

DSUB_SCL

DSUB_5V

VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R-

1

I/O1

2

GND
I/O23I/O3

U103

AZC399-04S

R106
2K2 1/16W 5%

6

I/O4

5

VDD

4

ZD103

RLZ5.6B

H_Sync
ESD_5V
V_Sy nc

候綼　

C102

22PF 50V

1 2

U103

R103 100R 1/16W 5%

C103

22PF 50V

DSUB_5V

C114

NC

DSUB_H 5
DSUB_V 5

VGA_B+H_Sync

VGA_B-

VGA_G+DSUB_SDA

VGA_G-

VGA_R+

VGA_R-

FB102

1 2

BEAD

FB103

1 2

BEAD

FB101

1 2

BEAD

R107

75 OHM +-5% 1/16W

R112

75 OHM +-5% 1/16W

R116

75 OHM +-5% 1/16W

R104

100R 1/16W 5%

C104

5PF 50V

R108

100R 1/16W 5%

R109

1K 1/16W 5%

R111

100R 1/16W 5%

C108

5PF 50V

R114

100R 1/16W 5%

R115

100R 1/16W 5%

C111

5PF 50V

R117

100R 1/16W 5%

C101

47nF 16V

C105

47nF 16V

C106

22NF25V

C107

47nF 16V

C109

47nF 16V

C110

47nF 16V

C113

47nF 16V

DSUB_B+ 5

DSUB_B- 5

DSUB_SOG 5

DSUB_G+ 5

DSUB_G- 5

DSUB_R+ 5

DSUB_R- 5

1
2

I/O1
GND
I/O23I/O3

U102

I/O4
VDD

AZC399-04S

VGA_PLUG

6

ESD_5V

5

VGA_B+VGA_R+

4

VGA_G+

候綼　

056G 662504 эΘ2nd source

U102

C115

NC

C435
1N50V

ESD_5V

R472

R473

DSUB_SCL

R475 47R 1/16W 5%

DSUB_SDA

R476 47R 1/16W 5%

DDC1_SDA5
DDC1_SCL5

DDC1_SDA
DDC1_SCL

4K7 1/16W 5%

絬 隔 瓜 絪 腹

Key Component

DSUB_5V

CMVCC1

D403
LBAV70LT1G

R474

U405

22K 1/16W 5%

4K7 1/16W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

Date

8

VCC

7

WP

6

SCL

5

SDA

FM24C02A

715G4737-M01-000-0040-110119-01

02.Input

GND

1

A0

2

A1

3

A2

4

C434
220N16V

Q407
LMBT3904LT1G

OEM MODEL

TPV MODEL

PCB NAME

Sheet

CMVCC1

CMVCC1 5

R118

VGA_PLUG

AOC 50 /52I D(1A)

AOC 50 /52 I D(1A) 1.0

715G4737-M0C

of

47Wednesday , January 19, 2011

100K 1/16W 5%

EDID_C TRL

Size

Rev

称爹

DET_CABLE 5

<

称爹

B

>

19

Service Manual AOCe950SWa

MCU RTD2270LW U401/U402

VCC3.3

C436 100N16V

If product spec is <0.3W, need to
check flash VCC current.

VCC3.3

C408

CN408

CONN

CN409

NC/CONN

CMVCC17

6
5
4
3
2
1

7
6
5
4
3
2

TOUCH_POWER

1

220N16V

R408
10K 1/16W 5%

CMVCC1

NC/10U F 50V

LBADC1
(KEY1)

LBADC2
(KEY2)

U402

1

8

VDD

CE#

2

7

HOLD#

SO

WP

3

6

SCK

WP#

4

5

SI

GND

Pm25LD020C -SCE

MSCL

L/T_SCL4

+

C410

ZD404

MLVS0603M04

1 2

VCC3.3

R417

NC/10K 1 /16W 5%

AUTO

(2K)

(0)

UP

DOWN

(2K)

MENU

(1K)

R421

3.9K 1%

ZD402

C413100N16V

MLVS0603M04

1 2

VCC3.3

R427

3.9K 1%

C414100N16V

Near to Connect

VCC3.3

C411 20pF 50V

C412 20pF 50V

1.118V

0V

1.118V

0.673V

ZD403

MLVS0603M04

1 2

DSUB_R+3
DSUB_R-3
DSUB_G+3
DSUB_G-3
DSUB_SOG3
DSUB_B+3
DSUB_B-3
DSUB_H3
DSUB_V3
DDC1_SDA3
DDC1_SCL3

AVDD

R403 390R 1/16W 1%

R487
10K 1/16W 5%

100N16V

R489 22R 1/16W 5%
R490 22R 1/16W 5%
R491 22R 1/16W 5%
R492 22R 1/16W 5%

R405 100R 1/16W 5%
R451 100R 1/16W 5%
R494 NC

R453 4K7 1/16W 5%

R401

0R05 1/16W

X40 1

14.31818MHZ/ 32PF

0R05 1/16W

1 2

R402

R428

3.9K 1%

KEY1
KEY2
POWER_KEY#
LED_GRN/BLUE
LED_ORANGE/TOUCH_VCC

C416

C415100N16V

100N16V

LED_ORANGE/TOUCH_VCC

6

51

PVDD33

ADC_VDD33

LVDS

GND

GND

5

3

R407

NC/10K 1 /16W 5%

TOUCH_POWER

VCC1.2

30

53

52

LDO_CTL

33

PA0

TXE3+

34

TXE3-

TXE2+
TXE2­TXE1+
TXE1­TXE0+
TXE0-

TXO3+
TXO3-

TXO2-

TXO1-

TXO0-

P3.3

P6.3
P5.4

P3.2
P1.1

PA1

PA4

35

PA5

36

PA6

37

PA7

38

PA8

39

PA9

40

PB0

41
42

PB1
PB2

43
44

PB3

45

PB4
PB5

46
47

PB6
PB7

48

PB8

49

PB9

50

R424 100R 1/16W 5%

20
27

55
56

R485 4K7 1/16W 5%

57

R411 100R 1/16W 5%

58

R412 100R 1/16W 5%

59

R414 10K 1/16W 5%

60

R410 10K 1/16W 5%

61

R418 NC/100R 1/16W 5%

62

R420 100R 1/16W 5%

63

R419 NC/100R 1/16W 5%

64

26

R413 100R 1/16W 5%

25

R466

2K2 1/16W 5%

LED_G/B

R469

2K2 1/16W 5%

LED_O

When use touch
Key,GPIO_P07 as
to control touch
key VCC

PA[0..1]

PA[4..9]

PB[0..9]

CMVCC1

Q403

DVDD12

DVDD12

TXOC+
TXOC­TXO2+

TXO1+

TXO0+

P5.0//PWM0

P5.1/PWM1

P5.3/PWM3

P6.0/ADC0
P6.1/ADC1
P6.2/ADC2

P5.5/PWM5

P3.7/I2C_MCL
P3.6/I2C_MDA

RTD2270LW-CGU401

CN406

1
2
3
4
5
6
7
8

NC/CONN

CN402

1
2
3
4
5
6

NC/CONN

CN407

1
2
3
4
5
6
7

C433

NC

NC/CONN

PA[0..1] 5

PA[4..9] 5

PB[0..9] 5

R425

NC

KEY2
KEY1

LED_G/B
LED_O

POWER_KEY#

LMBT3906LT1G

R468 330OHM 1/10W

R481

0R05 1/16W

R482 NC

Q402

LMBT3906LT1G

R471 4 70OHM +-5% 1/10W

VCTRL 7

EE_WP

C418

100N 16V

on_BACKLIGHT 7
adj_BACKLIGHT 7

EDID_CTRL

Volume# 7

Mute 7

PPWR_ON# 6
DET_CABLE 4

LED_GRN/BLUE

CMVCC1

VCC3.3

LED_ORAN GE/TOUCH_VC C

VCC3. 3

R454
4K7 1/16W 5%

R426 NC

R493 NC

VCC3.37

VCC1.27

MSDA

R452
100R 1/16W 5%

MSCL
MSDA

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

VCC3.3

FB401

30OHM

C403

100N16V

VCC1.2

C406

100N16V

PANEL_ID# 7

L/T_SDA 4

R455
22K 1/16W 5%

715G4737-M01-000-0040-1-110318

03.Scalar

EE_WP

8
7
6

AVDD

C404

100N16V

C407

100N16V

VCC3.3

U403

VCC
WC
SCL

M24C16

NC
NC
NC

VSSSDA

C429

220N 10V

1
2
3
45

OEM MOD EL Size

AOC 50/52 ID(1A)

TPV MODEL

AOC 50/52 ID(1A)

715G4737-M0C

PCB NAME

57Friday , March 18, 2011

Sheet

of

C

Rev

1.0

<

称爹

>

称爹

AVDD

13

R+

12

R-

10

G+

9

G-

11

SOG0

8

B+

7

B-

16

HSYNC0

17

VSYNC0

18

DDCA_SD A/RS232_TX

19

DDCA_SC L/rs232_R X

4

REXT

15

ADC_REF

C401

14

ADC_GND

21

SPI_SDO

22

SPI_CE

23

SPI_SCL

24

SPI_SDI

28

P5.2/PWM2

29

P1.0/T2

54

RST

1

XIN

2

XOU T

31

DGND

32

DGND

R463 NC
R464 NC

R478 NC

R461 N C/0R05 1/16W
R462 N C/0R05 1/16W

C417

R404

100N16V

NC/10K 1 /16W 5%

FB404

VCC3.3

NC

FB405

NC

ZD401

NC/R LZ5.6B

20

Service Manual AOCe950SWa

Output part

PA[0.. 1]5

PA[4.. 9]5

PB[0..9]5

PA[0.. 1]

PA[4.. 9]

PB[0.. 9]

PA0
PA1

PA4
PA5
PA6
PA7
PA8
PA9

PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9

CN405 for 18.5" panel
(single LVDS channel)

PANEL_VC C

CN405

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30

L/T_SDA

PA1
PB3
PA5
PA7
PA9
PB1
PB3

PB7
PB9

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29

NC/CONN

R477

300 OHM 1/4W

L/T_SCL
PA0
PB2
PA4
PA6
PA8
PB0
PB2
PB4PB5
PB6
PB8

300 OHM 1/4W

PANEL_VCC

R434

C420

100N16V

PB7
PB8
PB9

L/T_SCL 3
L/T_SDA 3

L/T_SDA
L/T_SCL

PA0
PA1
PB2
PB3
PA4
PA5

PA6
PA7

PA8
PA9
PB0
PB1
PB2
PB3

PB4
PB5
PB6

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

1
2
3
4
5
6
7
8
9

CN 403

<

A

称爹

CONN

>

2006-11-7 Add pull up 4K7 to MVCC

10K 1/16W 5%

PPWR_ON#5

1

G

PPWR_ON#

3

D

2

S

AO3401A

R435

R433

10K 1/16W 5%

R436

100K 1/16W 5%

Q404

LMBT3906LT1G

CMVCC

C419
100N16V

3

4

G

Q405
AO3401A

5

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

715G4737-M01-000-0040-110119-01

04.Out put

Q411

S1S2S

NC /AO4411

D8D7D6D

FB402

120OHM

CMVCC 7

PANEL_VCC

OEM MODEL

TPV MODEL

PCB N AME

Sheet

C421

+

100UF 16V

AOC 50/52 I D(1A)

AOC 50/52 I D(1A) 1.0

715G4737-M0C

of

67Wednes day , January 19, 2011

Size

Rev

称爹

21

Service Manual AOCe950SWa

Power 5V +3.3V

CN404

9
8
7
6
5
4
3
2
1

CMVCC5

CMVCC
CMVCC
BKLT-VBRI
BKLT-EN
C_PANEL_I NDEX
Volume
Mut e

CMVCC VCC3. 3 VCC3. 3

CMVCC1

CMVCC1 5

R450 NC

NC(R0402)

PANEL_ID # 5

R449

NC

Mut e 5

BKLT-EN

C425

NC

CMVCC1

R465

NC

Q406

LMBT3904LT1G

R437

10K 1/16W 5%

R440
10K 1/16W 5%

R439

10K 1/16W 5%

on_BACKLIG HT 5

VCC3. 3

R480 NC/1. 5 OHM +-5% 2WS

R479
0R05 1/4W

VCTRL5

Q410
MMBT2907A

Q409
MMBT2907A

C432

100N16V

VCC1. 2

C423

+

100UF 16V

VCC1. 2 5

CONN

BKLT-VBRI

R441
10K 1/16W 5%

R442
1K 1/16W 5%

R418
R419
R486

adj_BACKLIGH T 5

Audio model

100 ohm
100 ohm

0 ohm

Volume

Non-Audio model

NC
NC
NC

R446

NC

R486
NC/ 0R05 1/16W

Q408
NC/ 2N3904S-RTK/PS

R448
NC/ 4K7 1/ 16W 5%

VCC3.3VCC3. 3VCC3. 3

R447

NC/ 10K 1/16W 5%

Volume# 5

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

715G4737-M01-000-0040-110119-01

05.Power

Date

CMVCC1

+

U406

VIN

1

3
2
1

AP1117E33L-13-77

VOUT

ADJ(GN D)

4

4

C422

100N16V

C426

100UF 16V

MVC C

FB403 NC

C428

100N16V

U404

VOUT(TAB)

ADJ(GN D)

NC/ G1117-33T43UF

3

VIN

U404 can use package 223 or 252.

OEM MO DE L

TPV MODEL

PCB NAME

AOC 50/52 I D(1A)

AOC 50/52 I D(1A) 1.0

715G4737-M0C

Sheet

77Wednesday , January 19, 2011

of

2

VCC3.3

VCC3.3 4, 5

C427

+

100UF 16V

Size

Rev

称爹

B

称爹

>

<

22

Service Manual AOCe950SWa

5.2 电源板 Power 715G4744

Power

F901
FUSE

KBP208G

R900

620K 1/4W

C903

1000PF/250VAC

BD901

2

620K 1/4W

!

1 2

!

L901

3

30mH

R901

C908

0.47UF

CN901

SOCKET

1

+

-

4

!

142

!

C902

1000PF/250VAC

3

3

!

R902

620K 1/4W

80GL22T-3

!

R906
100K

D903

12

FB903

1 2

BEAD

!

R913

5.1 OHM 1/4W

!

Q901
P0765ATF

FB901
BEAD

R924

0.47OHM2W

!

PC123X2YFZ OF

C911

1500PF2KV

D904
FR103

C913

+

47uF/50V

D907
1N4148

R917

10 OHM 1/4W

R918

10K OHM +-5% 1/8W

FR107

R911
10K 1/4W

!

R931
NC

R932
NC

+

C907A

47uF M 450V

!

+

C907

47uF M 450V

!

!

R933
NC

C927

47N 50V

R921
NC/ 100K 1/10W 1%

1
2
3
4 5

LD7576AGR

HS1
HEAT SINK(Q901)

1
2

HS3
HEAT SINK(D 906_5V/2.5A)

1
2

U901

CT
COMP
CS
GNDOUT

1 2

D908
NC/I N4148

12

NR901
NTCR

t

!

C915

HV

VCC

эDIP 1/2W

C914
1N 50V

C906
1N 50V

ADD C906

FB902

BEAD

R908
10K 1/4W

8

6

R915
22 OHM 1/4W +-5%

C912
100N 50V

R923
220 OHM 1/4W

1
2

1
2

HS2
NC/ HEAT SINK(D906_5V/4A)

GND1
GND

+5V

U902

4

5

6
1

3

T901

POWER X'FMR

43

C900

0.0022UF

C926
100N 50V

8
7

9
10

12
11

12

IC903

AS431AZTR-E1

MUTE

VOL

ON/OF F

DIM

R920
1K 1/8W

C924

0.1uF 50V

R928
1K 1/8W

9

8

7

6

5

4

3

2

1

R929 100 OHM 1/4W

R930 100 OHM 1/4W

R903 100 OHM 1/4W

R909 100 OHM 1/4W

R910 100 OHM 1/4W

R912 100 OHM 1/4W

D909 NC/ 31DQ06FC3

D905 NC/ 31DQ06FC3

2

1

R919
220 OHM 1/8W

CN902
Wire Harnes s

C928
2N2 500V

C929

2N2 500V

T P V ( Top Victory Electronics Co . , Ltd. )

G4497-P0B-000-0010-1-100720

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

D901
SR515

D902
SR515

D906

3

SRF1060

C916
2N2 500V

C917
2N2 500V

+

1000uF/16V

N.C

C921

+

NC/ 1000uF25V

C925

C918

+

NC/470UF/25V

L907

R904
250OHM2W

Q904

KTD1028

C923

+

C922
470UF M 16V

R935
7K5 1/8W +/-1%

C931

+

NC/ 470uF/16V

13Thursday , January 20, 2011

of

1nF 50V

715G4497-P0B-000-0010

L906

+

C920
1000uF/16V

OEM MOD EL Size

TPV MOD EL

PCB NAME

Sheet

ZD901
MTZJ T-72 16B

1 2

R905
470OHM +-5% 1/8W

R907
1K OHM +-5% 1/8W

R916
7K5 1/8W +/ -1%

F903

FUSE

LNPCAB351AAB2 1

F801
0R05 1/4W

F902

R914

43.2K OHM 1%

R925

2.43KOHM +-1% 1/8W

+5V1

+5V1

Rev

称爹

FUSE

CN903

1
2
3
4

CONN

OD M MODEL

+14.5V

+5V

Custom

23

Service Manual AOCe950SWa

CONVERTER

+14.5V

ON/OF F

DIM

R801

10K 1/8W

1
2

R802

300K 1/8W

R818 10K 1/ 8W

R803

300K 1/8W

CN801

5
4
3
2
1

NC/ CONN

CN802

NC/CONN

C802

10N 50V

C803
1N 50V

C815

1N 50V

R804

10 OHM 1/8W

FB801
BEAD

1 2

C804

0.47UF 50V

C806

220N 50V

C805

1UF/25V

R805

100K 1/8W

R806

1K 1/8W

C807

220N 50V

+

C801

330uF 25V

U801

10

STATUS

11

SSTCMP

12

PWM

13

ISEN1

14

ISEN2

15

GND

16 1

ISEN3 ISEN 4

OZ9998BGN

C814
100N 50V

VREFVIN

LDR

ISW

ENA

RT
OVP
ISET

89
7
6
5
4
3
2

R809

330K 1/8W 5%

L801

47UH

APM8005KCTRG

R807 1 OHM +-5% 1/8W

R808 1 OHM +-5% 1/8W

R810

20K 1/8W 1%

R811

0R05OHM1/8W

R817

100 OHM 1/4W

C813
100PF 50V

Q801

S1G1S2

123

678

D2D1D1

G2 D2

4 5

R813

0.1R 1 %

R812

0.1R 1%

D801

1 2

SK310B

R814

10 OHM 1% 1/4W

C808
100PF 500V

+

C809

33UF 100V

1000PF500V

C810

0.47UF 50V

C811

0.47UF 50V

C816

FB802

1 2

BEAD

R815

160K 1/8W

R816

5.1K OHM 1%

C812

100PF 50V

R819

NC

R820

NC

R821

CN803

1
2

R822

NC/CONN

NC

NC

6
5
4

CN804

3

CONN

2
1

7 8

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G4497-P0B-000-0010-1-100720

02.IN VERTER

Date

OEM MO DE L Size

TPV MODEL

PCB NAME

Sheet

LNPCAB351AAB2

715G4497-P0B-000-0010

23Thursday , Januar y 20, 2011

of

Rev

称爹

Custom

1

ODM MODEL

24

Service Manual AOCe950SWa

5.3 Audio part 音频部分

CN 601

PHONEJ ACK

4

Lin

5
3
2

Rin

1

R608

0 OHM +-5% 1/8W

FB601

1 2

BEAD

+5V1

VOL

R604 7K5 1/10W 5%

R605 7K5 1/10W 5%

C610

100P 50V

R606

20K 1/10W 5%

R602
10K 1/10W 5%

R603

10K 1/10W 5%

C611
100P 50V

R607

20K 1/10W 5%

C609
1uF 16V

C601 0.47uF 16V

C606 0.47uF 16V

R612
1K 1/10W 5%

D601

C613
100uF 25V

1N4148

+

NC/ 10K 1/ 10W 5%

R610

10K 1/10W 5%

Q607
LMBT3906LT1G

R613
10K 1/10W 5%

SE

R609

+5V1

R601
10K 1/10W 5%

+5V1

C604

100uF 25V

U601

8 9

SE/BTL

7

VOLUME

6

LINN

5

GND

4

GND

3

RINN

2

BYPASS

1

SHUTDOWN

APA2071JI -TUG 3.1W

C612

0.1uF 16V

+

LOUTP

LOUTN

ROUTN

ROUTP

C608
1uF 16V

C602

0.47uF 16V

VDD

GND
GND

VDD

10
11
12
13
14
15
16

C603

0.47uF 16V

C620200PF 50V

C619200PF 50V

FB605 120 OHM1 2
FB604 120 OHM1 2
FB603 120 OHM1 2
FB602 120 OHM1 2

+5V1

LOUT+
LOUT­ROUT+
ROUT-

C618200PF 50V

C617200PF 50V

+

C622
220pF 50V

LOUT+
LOUT­ROUT+
ROUT-

C616
220uF 16V

OUTR

R614

1K 1/10W 5%

+

C615
220uF 16V

R615

1K 1/10W 5%

4
3
2
1

OUTL

CN602

CONN

C621
220pF 50V

MUTE

HS4
Q90G6295-3

1
2

C605

0.1uF 16V

Q608

LMBT3904LT1G

C614

0.1uF 16V

CN 603

PHONEJ ACK

IC with Heat-sink(Q90G6295-3)

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G2824-2A-5-X-28-090212

04.AUD IO

25

OEM MO D EL S ize

TPV MO D EL

PCB NAME

Sheet

R616
100K 1/10W 5%

4
5
3
2
1

R618 750R 1/10W 5%
R617 100R 1/10W 5%

R619 750R 1/10W 5%

AOC 619vH

PWPC 9E41CAJ O 1

715G2824-2A-5

of

44Thursday , January 20, 2011

OUTL
SE

OUTR

Rev

称爹

A4

OD M MOD E L

Service Manual AOCe950SWa

5.4 按键板 key board 715G4747-k

LED001

1

3

SUR

CN001

UB

2

1

LBADC1

2

LBADC2

3

DC_POWERON

4

LED_1#

5

LED_2#

6

Wire H arness

SGND

LBADC1

LBADC2

AUTO

(2.0K)

UP 0V

(0)

(2K)

DOWN

(1K)

MENU

1.118V

1.118V

0.673V

LED

(DOWN-) (MENU)

(UP+)

(AUTO)

C001

NC/0.1uF 50V

(Power)

CONNECTOR

C002

NC/ 0.1 uF 50V

R001 2KOHM 1% 1/10W

R002 0R01 1/ 10W

R003 2KOHM 1% 1/10W
R004 1K 1/10W

AUTO

SGND

SW005

SW

DOWN

SW004
SW

UP

SW003
SW

MENU

SW002
SW

POWER

SW001
SW

T P V ( Top Vict ory Elect ronic s Co . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

Date

G4747-K0B-000-0040-101026

2.0. key

OEM MODEL Size

TPV MO DE L

PCB NAME

Sheet

N/A

e950Sw B

715G4747

of

22Friday , D ecem ber 10, 2010

Rev

称爹

B

称爹

>

<

26

Service Manual AOCe950SWa

6.机构爆炸图

27

Service Manual AOCe950SWa

7.软体更新和 DDC 改写

7.1 软体更新 SOP

本机信息：

756GJBCB AE011 01 MCU ASS'Y CBPCBR9E6J1 G4737-M01
U402 056G2233501 FLASH MX25L2026DM1I-12G 2Mb SOP-8
U401 056G 562431 SCALER RTD2270LW-CG LQFP-64

SMTCB-U402 100GARM8003B11 AOC_e950Sw_R2270LW_TPM185B1B3LA_A_V001

步骤 1：连接

1. 用 USB 连接线缆将软件改写工具（ISP 版 715GT089-B）连接到计算机 PC-USB 口，用 VGA15

芯线缆连接显示器，如下图所示：

步骤 2：驱动安装

1.安装 USB 驱动：mstar ISP Driver3-DB07-6-XP-driver

28

Service Manual AOCe950SWa

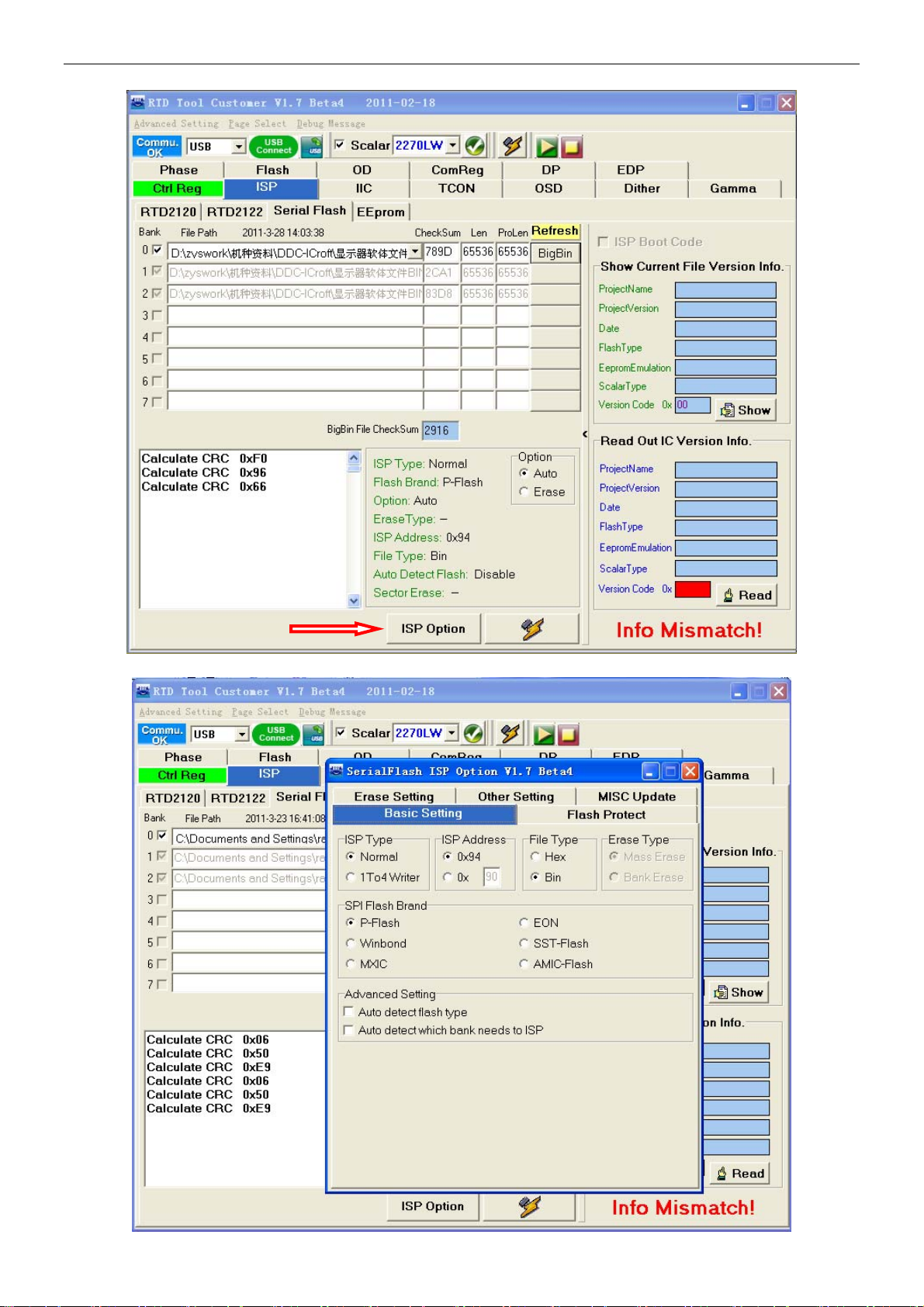

2.准备好 Realtek tool ---RTD ISP Tool 安装在 PC 机上：

步骤 3：运行

1. 在 PC 开始菜单，运行程序 RTD ISP tool V1.7（已安装）,打开执行文件，

出现下图：

29

Service Manual AOCe950SWa

2.选中“ISP”，出现下图：

3.点击 ISPOption，出现对话框，选择 Basic Settings ,出现下图，按图示勾选，

30

Service Manual AOCe950SWa

4.点击. ”Flash Protect”,selected “LPA_series”, 按图中所示选择，然后打×返回上一级菜单，

5.Click “Page Select”,Not Load HDCP key ,Save HDCP data, The figuer is as follows

31

Service Manual AOCe950SWa

6.点击 “BigBin”,选择本机软体所在的路径 , 打开，如下图：

7.点击 ，软体自动编程，

32

Service Manual AOCe950SWa

8. 软件自动改写程序，完成 OK 后，显示“PASS”。

7.2 改写 DDC/EDID

1.连接工具---DDC Tool（715GT034-B+12V），连接打印线缆到 PC，DVI&VGA 线缆连接显示器，如图所示：

33

Service Manual AOCe950SWa

2.运行 DDC 软件，（已经安装好打印口驱动 ）

3.选择和本机匹配的 DDC 文件，在查找 DDC 文件时注意可能在 AOC-18 的路径，

34

Service Manual AOCe950SWa

4.选择文件后，出现下图，输入二次机器序列号，注意本机是单 VGA 接口，

5. 点击“Program”，DDC 自动改写，成功后，出现“PASS”。

35

Service Manual AOCe950SWa

读数据完成，即正常。

7.3.工厂模式调整

进入工厂模式方法：
机器应处于开机状态，拔掉输入电源线，然后按住Menu键，再接通电源线，放开”MENU”后，再按下”MENU”,工厂模

式菜单将位于屏的左上角。

选中“F”，按下“MENU”,出现下图：

36

Service Manual AOCe950SWa

a.基本调整:

设置对比度 为 50。

设置亮度

为 90。

b.增益调整:

调整9300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择9300K进行R G B增益调整

x = 283 ±30, y = 297 ±30

调整7300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择7300K进行R G B增益调整

x = 302 ±30, y = 318 ±30

调整6500K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±30, y = 329 ±30

调整sRGB色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 sRGB 进行 R G B 增益调整

x = 313 ±30, y = 329 ±30

c.调整完毕退出工厂模式菜单。

37

Service Manual AOCe950SWa

在改写了软体和 DDC 文件后，需要对显示器进行“重置”操作：

38

Service Manual AOCe950SWa

8.故障处理流程

8.1 主板

无供电

无供电

按下电源键看画面是否正常

NG

重新插插头然后检查 AC:100-240V 是否正常?

NG

OK

检查 5V-CN404, 3.3V-U404-2;

-

OK

检查 X401 震荡波形

-

-

NG

主板无电检查流程

检查适配器及升压板部分和交流电源输入

检查更换 CN404,U404,Q409,Q410,Q405

NG

更换 X401、C411、C412

OK

更换 U402/U401

OK

NG

更换 U401

更换 U402 更新软体

39

Service Manual AOCe950SWa

无

无画 (LED 橙色)白屏

屏幕无画

白屏

检查 Q602 的基极是
否为低电平

检查 Q405=5V
或 CN403

OK

焊接?

NG

检查连接器

更换 Panel

面板白屏检查流程

NG

检查 X401 的晶振是否正常

NG

更换 X401

检查 U403/U402

NG

检查周边元件

检查周边元件

更新软体
更换 U402/U403/U401

画

检查信号线

OK

检查 U404 Vout=3.3V;

Q409-out=1.8V

OK

检查 X401 波形

OK

检查 CN101-RGB/HS/VS 信号

OK

NG

NG

屏幕无画检查流程

更换信号线

更换 U404,Q409,Q410,Q405

&周边元件

NG

更换 X401

NG

检查周边元件

检查 U402/U403 输出

OK

更换 U401/U402

40

更新软体

Service Manual AOCe950SWa

无

)

8.2 电源板

死机

电

检测交流电 100V or 240V 是否正常？

OK

检测 C907 (+)的电压大小

OK

检测 IC901 第 8 脚电压是否正常？

OK

检测二次启动电压是否正常？

OK

检测 IC901 第 5,6 脚的 PWM 波形

NG

NG

NG

NG

整机无电检查流程

检测 AC 输入

检测全桥整流回路和 F901 回路

检测 R904,R932 或更换 IC901

1) 检测 IC901
2

检测 D900,D901 回路

NG

OK

检测 D905, D906,Q903,IC902,IC903,ZD920

检测更新 IC901

41

Service Manual AOCe950SWa

无

背光

更换

屏幕无背光

检测 R801 电压是否为 14.5V

OK

检测 ON/OFF 信号

OK

检测 U801 第 12 脚是否为 12V

OK

检测 U801 第 9/10 脚的 PWM 波形？

OK

检测 T801 的输出

NG

NG

NG

NG

屏幕无背光检查流程

检测 F801/Adapter 回路

检测主板&连接器

检测或更换 Q802/Q804

1) 检测 D802、D805 回路

2) 检测 RtCt 回路，
3）检查 Q809、Q810、Q811
4）

U801

8.3 按键板检查

OK

检查接口或灯管,反馈和保护回路

OSD 画面不稳定及不可调整

检查按键板是否连接正常

OK

检查按键开关是否正常

OK

检查按键板是否正常

OK

NG

NG

NG

检测更换 Q803、Q801、Q807 等

按键板检查流程

连接好按键板

替换按键开关

检测或更换按键板

检查主板&连接器

42

Service Manual AOCe950SWa

9.料件清单 BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

Model：T8BAR92YAGA1NNJ

点位 组件号 对象描述 数量(CUn)

040G 581 26704 SHIPPING LABEL 2nd source
040G 581689 4A BARCODE LABEL FOR 1 3
052G 1210 A Tasma aluminiowa 1

052G 1211 B
E07801 078G025A553 VA SPEAKER 4 OHM 2.5W 62*20 150+275 1
E08904 089G 17356G554 AUDIO CABLE 1800MM 1
E08902 089G 725HAA 2D D-SUB CABLE 1500MM 1
E08901 089G404A15N HL AC POWER CORD 1500mm 1

0M1G1030 6120 SCREW 3x6 5

0M1G1030 8120 SCREW 1

0Q1G 140 12120 SCREW 4X12 1

0Q1G 330 10120 SCREW FOR FP/RC 42-D003792 1

E750 750GBV185B3121N000 LCD TPM185B1-B3LA1 C3B FQ TPV 1

756GJBCB AE011 01 MCU ASS'Y CBPCBR9E6J1 G4737-M01 0

U402 056G2233501 FLASH MX25L2026DM1I-12G 2Mb SOP-8 2nd source
U401 056G 562431 SCALER RTD2270LW-CG LQFP-64 1

SMTCB-U402 100GARM8003B11 AOC_e950Sw_R2270LW_TPM185B1B3LA_A_V001 0

CBPCBR9E6J1 CONVERSION G4737-M01-000-0040-A1-110525 1

A15G1587101 HINGE PLATE 2nd source

A33G1181ABJ 2L KNOB Function Button 2nd source

A33G1182 1 1C LENS Power 2nd source

A33G1183ABJ 1L STAND 1

A33G1184ABJ 1L COVER Hinge 1

A34G2528DBGZ1B7010 BEZEL FOR 50TH 18.5W 1

A34G2529ABJ IB7012 REAR COVER 1

A34G2530ABJ 1B7010 STAND COVER 1

A34G2531DBG 1B7010 BASE FOR 50TH 18.5W 1

A37G0241011 HINGE 18.5 1

AM1G1740 10125 SCREW 4

Conductive Tape 85mm *40mm *0.09mm (单导)

2

CN408 033G3802 6B Y L WAFER 1
CN404 033G3802 9B Y L CONN 2.0 9P 1

040G 45762412B CBPC LABEL 1

CN101 088G 35315FVCL D-SUB CONN V/T 15P BLUE H=10.4 1

X401 093G 22 53 YC Crystal 14.31818MHz/32PF 49U/S YC 1

CN405 311GW200C30ABL WAFER 2.0mm 2*15P 1

AIGBR9E6J1 MAIN BOARD FOR AI 1

C427 067G305M1013CB EC 100UF 20% 16V 6.3*7 1
C421 067G305M1013CB EC 100UF 20% 16V 6.3*7 1
C423 067G305M1013CB EC 100UF 20% 16V 6.3*7 1
C426 067G305M1013CB EC 100UF 20% 16V 6.3*7 1

SMTCBR9E6J1 MAIN BOARD FOR SMT 1

U406 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223 1
U103 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1
U102 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1
U405 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8 1
U402 056G2233501 FLASH MX25L2026DM1I-12G 2Mb SOP-8 1
Q402 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1
Q403 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1

43

Service Manual AOCe950SWa

Q404 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1
Q406 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1
Q407 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1
Q409 057G 417527 SMALLTRAN MMBT2907A -0.6 -60V SOT-23 1
Q410 057G 417527 SMALLTRAN MMBT2907A -0.6 -60V SOT-23 1
Q405 057G 763940 MOSFET AO3401A SOT-23 1
R401 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 1
R402 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 1
R481 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 1
R486 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 1
R117 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R115 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R114 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R111 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R108 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R104 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R103 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R102 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R405 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R411 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R412 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R413 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R420 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R418 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R419 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
R109 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 1
R442 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 1
R447 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1
R408 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R410 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R414 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R433 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R435 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R437 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R439 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R440 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R441 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R487 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1
R118 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN 1
R436 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN 1
R492 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1
R491 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1
R490 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1
R489 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1
R105 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 1
R106 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 1
R466 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 1
R469 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 1
R474 061G0402223 JT rst chip 33k 1/16w 5% tzai yuan 1
R403 061G04023900FT RST CHIP 390R 1/16W 1% 1
R421 061G04023901FT RST 0402 3.9K 1% 1/16W TZAI YUAN 1
R427 061G04023901FT RST 0402 3.9K 1% 1/16W TZAI YUAN 1
R428 061G04023901FT RST 0402 3.9K 1% 1/16W TZAI YUAN 1
R475 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1

44

Service Manual AOCe950SWa

R476 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1
R472 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 1
R473 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 1
R485 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 1
R107 061G0402750 JT RST 0402 75R 5% 1/16W 1
R112 061G0402750 JT RST 0402 75R 5% 1/16W 1
R116 061G0402750 JT RST 0402 75R 5% 1/16W 1
R101 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 1
R468 061G0603331 JT RST 0603 330R 5% 1/10W 1
R471 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN 1
R479 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 1
R434 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN 1
R477 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN 1
C401 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C406 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C413 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C414 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C415 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C416 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C417 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C419 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C420 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C422 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C428 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C432 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C436 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1
C115 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1
C114 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1
C404 065G0402105A5K T CAP 0402 1UF 10% 10V X5R 1
C412 065G040220031J Y CAP 0402 20PF 5% 50V NP0 1
C411 065G040220031J Y CAP 0402 20PF 5% 50V NP0 1
C103 065G040222031J A CAP 0402 22PF J 50V NPO 1
C102 065G040222031J A CAP 0402 22PF J 50V NPO 1
C106 065G040222322K T CAP MLCC 0402 22nF K 25V X7R 1
C408 065G040222415K T CAP CHIP 0402 220nF K 16V X5R 1
C434 065G040222415K T CAP CHIP 0402 220nF K 16V X5R 1
C101 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C105 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C107 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C109 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C110 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C113 065G040247312K A CAP 0402 47NF 10% 16V X7R 1
C104 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1
C108 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1

C111 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1
FB402 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1
FB401 071G 59B300 M CHIP BEAD 0603 30ohm 25% 1000mA 1
FB101 071G 59K190 M CHIP BEAD 0603 19R/500mA 1
FB102 071G 59K190 M CHIP BEAD 0603 19R/500mA 1
FB103 071G 59K190 M CHIP BEAD 0603 19R/500mA 1

D403 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC 1

ZD402 093G 64 59 SU ESD MLVS0603M04 0603 1

45

Service Manual AOCe950SWa

ZD403 093G 64 59 SU ESD MLVS0603M04 0603 1
ZD404 093G 64 59 SU ESD MLVS0603M04 0603 1
ZD103 093G 39GA01 T RLZ5.6B 1

E715 715G4737M01000004C MAIN PCB FR4 DS 72*65*1.6mm 1

H40G0002615 1A e950Swa POP LABEL 1
H44G8021101 EPS 1
H44G8021201 EPS 1
J07G 1 S106 X WOODEN PALLET 1
J12G8B03931 FOOT 2
J15G1586101106 MAIN FRAME FOR 50TH 18.5W 1
J40G 19T61580A e950Sw EU ID LABEL 2
J40G000361553A

CARTON LABEL e950Swa 外销

J44G6002 S152 paper plate 1
J44G8X21615 6A CARTON 1
J44G9003220 35 CORNER PAPER 1
J45G 77 6 PE PACKING 0.31
J45G 88605 R PE BAG FOR BASE 1
J45G9901609 3 N EPE COVER 1
J52G 1185A6A MIDDLE TAPE FOR CARTON 70
J52G 1185A6B MIDDLE TAPE FOR CARTON 2nd source
J52G1801 3 1A MYLAR FOR UB 1
J70G19C1615 4A CD MANUAL e950Swa 1
KEPCBJA5 KEY BOARD 1

LED001 081G 12 1F GP

LED Φ3mm 黄绿双色 GP32032M/G307-ZY-50-C

CN001 095G820H 6DE10 HARNESS 6P(SANW)-6P(2008) 120mm 1

SMTKEPCBJA5 KEY BOARD FOR SMT 1
R002 061G0603000 FF RST CHIPR MAX0R01 1/10W FENGHUA 1
R004 061G06031001FF RST CHIPR 1 KOHM +-1% 1/10W FENGHUA 1
R001 061G06032001FF RST CHIP 2KOHM 1% 1/10W FENGHUA 1
R003 061G06032001FF RST CHIP 2KOHM 1% 1/10W FENGHUA 1

AIKEPCBJA5 KEY BOARD FOR AI 1

SW005 077G603S AI CJ TACT SWITCH AI 2PIN SEALED 2nd source
SW004 077G603S AI CJ TACT SWITCH AI 2PIN SEALED 2nd source
SW003 077G603S AI CJ TACT SWITCH AI 2PIN SEALED 2nd source
SW002 077G603S AI CJ TACT SWITCH AI 2PIN SEALED 2nd source
SW001 077G603S AI CJ TACT SWITCH AI 2PIN SEALED 2nd source
SW001 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1
SW002 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1
SW003 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1
SW004 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1
SW005 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1

E715 715G4747K01000001C KEY PCB FR1 SS 135*11*1.6mm 1

FB101 071G 59K190 M CHIP BEAD 0603 19R/500mA 1
FB102 071G 59K190 M CHIP BEAD 0603 19R/500mA 1
FB103 071G 59K190 M CHIP BEAD 0603 19R/500mA 1

D403 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC 1

ZD402 093G 64 59 SU ESD MLVS0603M04 0603 1
ZD403 093G 64 59 SU ESD MLVS0603M04 0603 1
ZD404 093G 64 59 SU ESD MLVS0603M04 0603 1
ZD103 093G 39GA01 T RLZ5.6B 1

E715 715G4737M01000004C MAIN PCB FR4 DS 72*65*1.6mm 1

PLPCA9361AHD5J POWER G4744-P01-000-X-12-110323 1

GND1 009G6005 1 GROUND TERMINAL 1

CN602 033G3802 4B Y L CONNECTOR 4P 2.0 1

46

1

1

Service Manual AOCe950SWa

CN803 033G8021 2E F CONNECTOR 1
CN803 033G8021 2E L INVERT CONN 3.5mm 2P 2nd source

040G 45762412B CBPC LABEL 2
U902 056G 139 9 IC EL817M(X) photocoupler DIP-4 2nd source
U902 056G 139 10 IC TLP781F photocoupler DIP-4 2nd source
U902 056G 139 3A PC123Y22FZOF SHARP 1
U601 056G 616 85 AUDIO APA2603JI-TUG 3W DIP-16 1

NR901 061G 58120MEN RST NTCR 12OHM +-20% 4A 1
NR901 061G 58120MEX RST NTCR 12OHM +/-20% 4A XINGSHUN 2nd source

C908 063G107K474 6S 0.47UF +-10% 1
C908 063G107K474 UM CAP X2 470NF 10% 275V 2nd source
C902 065G305M1023PR CAP Y2 1NF 20% 250V Y5U 2nd source
C903 065G305M1023PR CAP Y2 1NF 20% 250V Y5U 2nd source
C902 065G305M1023WR CAP Y2 1000PF 20% 250V Y5U 1
C903 065G305M1023WR CAP Y2 1000PF 20% 250V Y5U 1
C900 065G306M2222BP CAP Y1 2.2NF 20% 250V Y5P 1
C900 065G306M2222BW CAP Y1 2200PF M 400VAC WANSHEGN 2nd source

C907A 067G 40Z47015H EC 47uF M 450V 13*36mm 2nd source

C907 067G 40Z47015H EC 47uF M 450V 13*36mm 2nd source

C907A 067G 40Z47015K EC 47UF 20% 450V 12.5*35 1

C907 067G 40Z47015K EC 47UF 20% 450V 12.5*35 1

C907A 067G 40Z47015L EC 47UF 20% 450V 12.5*35 2nd source

C907 067G 40Z47015L EC 47UF 20% 450V 12.5*35 2nd source
C809 067G 415330 9K EC 33UF 20% 100V ED 8*12 1
C809 067G 415330 9L EC 33UF 20% 100V RZW 8*11.5 2nd source
C921 067G 4156814KV EC 680UF 20% 25V EP 12.5*12 1
C921 067G 4156814LV EC 680UF 20% 25V RXK 12.5*12 2nd source
C801 067G215D3314KV EC 330UF 20% 25V 10*12 4000 hr 1
C801 067G215D3314LV LOW ESR EC 330uF 25V M 10*12.5mm 2nd source
C918 067G215D6814HV EC 680uF 20% 25V 10*21mm 2nd source
C918 067G215D6814KV EC 680UF 20% 25V 10*20 1
C918 067G215D6814LV LOW ESR EC 680uF 25V M 10*20mm 2nd source
C931 067G215S4713KV EC 470UF 20% 16V 10X13 2nd source
C922 067G215S4713KV EC 470UF 20% 16V 10X13 1
C931 067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm 1
C922 067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm 2nd source
C604 067G305S1013HB EC 100uF 16V 6.3*7mm 1
C613 067G305S1013HB EC 100uF 16V 6.3*7mm 1

L901 073G 174 65 H2 LINE FILTER 30mH MIN 1
L901 073G 174 65 S2 LINE FILTER 30mH MIN 2nd source
L901 073G 174 65 X2 LINE FILTER 30mH MIN 2nd source
L906 073G 253191 H IND CHOKE 1.1uH DADON 1
L907 073G 253191 H IND CHOKE 1.1uH DADON 1
L906 073G 253191 L CHOKE COIL 1.1uH CC-007802 2nd source
L801 073G 253214 H CHOKE COIL 47UH 10% L470R HA 2nd source

L801 073G 253214 DN CHOKE COIL 47UH 10% LZ.CC013.G01 1
CN901 087G 501 48 S AC SOCKET 3PIN + 3 Hole 1
CN901 087G 501 48 DL AC SOCKET 3PIN + 3 Hole 2nd source
CN601 088G302J5G1VCL PHONE JACK V/T 5P GREEN H=15 1

D901 093G 60325 SCHOTTKY SB5150 5A 150V DO-201AD 2nd source
D902 093G 60325 SCHOTTKY SB5150 5A 150V DO-201AD 2nd source
D902 093G 60335 DIODE SR515 5A/150V DO-201AD 1
D901 093G 60335 DIODE SR515 5A/150V DO-201AD 1

CN902 095G 825 9D536 HARNESS 9P(SCN)-9P(2008) 80mm 2nd source

47

Service Manual AOCe950SWa

CN902 095G 825 9X536 HARNESS 9P(SCN)-9P(2008) 80mm 1

705GHA57006 Q901 ASS"Y 1

051G 200 1 OIL FOR DISAPPEAR 0.1
Q901 057G 667923 MOSFET SMK0765F 7A 650V TO-220FP 2nd source
Q901 057G 667941 MOSFET P0765ATF 7 650 TO-220F 1

HS1 090G6064 1 HEAT SINK 1

0M1G 930 8120 SCREW 3x8 1

705GHA93006 D906 ASS"Y 1

051G 200 1 OIL FOR DISAPPEAR 0.1
D906 093G 52 63 DIODE FCQS10A065 10A/65V TO-220 2nd source
D906 093G 60507 SCHOTTKY SRF1060 C0 10A 60V ITO-220AB 1

0M1G 930 6120 SCREW 3x6 1

HS3 Q90G6084 3 heat sink 1

PLA9361AHD5SMTJ POWER BOARD FOR SMT 1
U901 056G 379529 AC/DC CONVERTER IC LD7576AGR SOP-7 1
U801 056G 700 11 LED DRIVER OZ9998BGN-A1-0-TR SOP-16 1
Q607 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1
Q608 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1
Q801 057G 763 92 FET P8008HV 4A/80V SOP-8 1
Q801 057G 763947 MOSFET APM8005KCTRG SOP-8 2nd source
R609 061G06031002FF RST CHIPR 10 KOHM +-1% 1/10W FENGHUA 1
R609 061G06031002FT RST CHIP 10K 1/10W 1% 2nd source
R612 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA 2nd source
R612 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN 1
R601 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 2nd source
R602 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 2nd source
R603 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 2nd source
R610 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 2nd source
R613 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 2nd source
R613 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN 1
R610 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN 1
R603 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN 1
R602 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN 1
R601 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN 1
R605 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA 1
R604 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA 1
R605 061G0603223 JT RST 0603 22K 5% 1/10W 2nd source
R604 061G0603223 JT RST 0603 22K 5% 1/10W 2nd source
R607 061G0603333 JF RST CHIPR 33KOHM 1/10W FENGHUA 2nd source
R606 061G0603333 JF RST CHIPR 33KOHM 1/10W FENGHUA 2nd source
R607 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN 1
R606 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN 1

RJ601 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source

R822 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source
R819 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source
R811 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1

RJ801 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1

R821 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source
R820 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source
R822 061G0805000 JT RST 0805 0.05R MAX 1/8W 1

RJ601 061G0805000 JT RST 0805 0.05R MAX 1/8W 1

R811 061G0805000 JT RST 0805 0.05R MAX 1/8W 2nd source
R819 061G0805000 JT RST 0805 0.05R MAX 1/8W 1
R820 061G0805000 JT RST 0805 0.05R MAX 1/8W 1

48

Service Manual AOCe950SWa

R821 061G0805000 JT RST 0805 0.05R MAX 1/8W 1
R804 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1
R804 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 2nd source
R907 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA 2nd source
R806 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA 1
R907 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1
R806 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 2nd source
R928 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1
R918 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1
R818 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1
R801 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1
R928 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source
R918 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source
R818 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source
R801 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source
R805 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA 2nd source
R805 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN 1
R808 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA 1
R807 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA 1
R807 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN 2nd source
R808 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN 2nd source
R815 061G0805164 JF RST 0805 160K 5% 1/8W 1
R815 061G0805164 JT RST 0805 160K 5% 1/8W 2nd source
R810 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA 2nd source
R916 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA 2nd source
R935 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA 2nd source
R935 061G08052002FT RST CHIP 20K 1/8W 1% 1
R916 061G08052002FT RST CHIP 20K 1/8W 1% 1
R810 061G08052002FT RST CHIP 20K 1/8W 1% 1
R920 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA 1
R920 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN 2nd source
R919 061G0805221 JF RST CHIPR 220 OHM +-5% 1/8W FENGHUA 1
R919 061G0805221 JT RST CHIP 220R 1/8W 5% TZAI YUAN 2nd source
R803 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA 1
R802 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA 1
R803 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN 2nd source
R802 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN 2nd source
R809 061G08053303FF RST CHIP 330K 1/8W 1% 2nd source
R809 061G08053303FT RST CHIP 330K 1% 1/8W 1
R905 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA 2nd source
R905 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 1
R816 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 2nd source
R816 061G08055101FT RST CHIP 5K1 1/8W 1% 1
R925 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA 1
R925 061G08059101FT RST CHIP 9K1 1/8W 1% 2nd source

RJ608 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ607 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ606 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ605 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ604 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ603 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
RJ602 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source

F801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source
F801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1

49

Service Manual AOCe950SWa

RJ602 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ603 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ604 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ605 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ606 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ607 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
RJ608 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1

R917 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA 2nd source
R917 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
R814 061G12061009FF RST CHIP 10 OHM 1% 1/4W FENGHUA 1
R814 061G12061009FT RST CHIP R 10ohm 1/4W +/-1% 2nd source
R903 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R909 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R910 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R912 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R929 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R930 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source
R930 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R929 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R912 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R910 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R909 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R903 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1
R908 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA 2nd source
R911 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA 1
R908 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1
R911 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 2nd source
R913 061G1206109 JF RST CHIPR 1 OHM +-5% 1/4W FENGHUA 2nd source
R913 061G1206109 JT RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN 1
R812 061G12062007FF RST CHIPR 0.2 OHM +-1% 1/4W FENGHUA 2nd source
R813 061G12062007FF RST CHIPR 0.2 OHM +-1% 1/4W FENGHUA 2nd source
R812 061G12062007FT RST CHIPR 0.2 OHM +-1% 1/4W 1
R813 061G12062007FT RST CHIPR 0.2 OHM +-1% 1/4W 1
R923 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA 2nd source
R923 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN 1
R902 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA 1
R901 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA 1
R900 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA 1
R902 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 2nd source
R901 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 2nd source
R900 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 2nd source
R817 061G1206681 JF RST 1206 680R 5% 1/4W FENGHUA 2nd source
R817 061G1206681 JT RST CHIPR 680 OHM +-5% 1/4W TZAI YUAN 1
C614 065G060310412K M MLCC 0603 CAP 0.1uF 16V X7R 1
C612 065G060310412K M MLCC 0603 CAP 0.1uF 16V X7R 1
C605 065G060310412K M MLCC 0603 CAP 0.1uF 16V X7R 1
C614 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10% 2nd source
C612 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10% 2nd source
C605 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10% 2nd source
C609 065G060310512K M CAP 0603 1UF 10% 16V X7R 2nd source
C608 065G060310512K M CAP 0603 1UF 10% 16V X7R 2nd source
C609 065G060310512K T CAP 0603 1UF 10% 16V X7R 1
C608 065G060310512K T CAP 0603 1UF 10% 16V X7R 1
C617 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source

50

Service Manual AOCe950SWa

C618 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source
C619 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source
C620 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source
C621 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source
C622 065G060320131J F CAP 0603 200PF J 50V NP0 2nd source
C617 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C618 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C619 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C620 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C621 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C622 065G060320131J Y CAP CHIP 0603 200PF J 50V NPO 1
C611 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
C610 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
C611 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 2nd source
C610 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 2nd source
C603 065G060347412K F CAP 0603 470NF 10% 16V X7R 2nd source
C606 065G060347412K F CAP 0603 470NF 10% 16V X7R 2nd source
C602 065G060347412K F CAP 0603 470NF 10% 16V X7R 2nd source
C601 065G060347412K F CAP 0603 470NF 10% 16V X7R 2nd source
C606 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R 1
C603 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R 1
C602 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R 1
C601 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R 1
C812 065G080510131J F CAP CHIP 0805 100PF J 50V NPO 1
C812 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5% 2nd source
C906 065G080510232K F CAP 0805 1000PF 10% 50V X7R 2nd source
C815 065G080510232K F CAP 0805 1000PF 10% 50V X7R 2nd source
C803 065G080510232K F CAP 0805 1000PF 10% 50V X7R 2nd source
C914 065G080510232K F CAP 0805 1000PF 10% 50V X7R 2nd source
C923 065G080510232K F CAP 0805 1000PF 10% 50V X7R 1
C803 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1
C815 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1
C906 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1
C914 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1
C923 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 2nd source
C915 065G080510332K F CAP 0805 10NF K 50V X7R 2nd source
C802 065G080510332K F CAP 0805 10NF K 50V X7R 2nd source
C802 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 1
C915 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 1
C924 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
C926 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 2nd source
C814 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
C912 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 2nd source
C926 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 1
C924 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 2nd source
C912 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 1
C814 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 2nd source
C813 065G080522131J F CAP CHIP 0805 220PF J 50V NPO 1
C813 065G080522131J Y CAP CHIP 0805 220P 50V NP0 +/-5% 2nd source
C806 065G080522432K F CAP 0805 220NF 10% 50V X7R 2nd source
C807 065G080522432K F CAP 0805 220NF 10% 50V X7R 2nd source
C806 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10% 1
C807 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10% 1
C927 065G080547332K F CAP CHIP 0805 47NF K 50V X7R 1

51

Service Manual AOCe950SWa

C927 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% 2nd source
C804 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R 2nd source
C810 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R 2nd source
C811 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R 2nd source
C804 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1
C810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1
C811 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1
C811 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10% 2nd source
C808 065G120610171J Y CAP 1206 100PF 5% 500V NP0 1
C929 065G120622272K Y CER 1206 2N2 500V X7R 10% 1
C928 065G120622272K Y CER 1206 2N2 500V X7R 10% 1
C917 065G120622272K Y CER 1206 2N2 500V X7R 10% 1
C916 065G120622272K Y CER 1206 2N2 500V X7R 10% 1
C929 065G1206222B2K M CAP 1206 2.2NF 10% 630V X7R 2nd source
C928 065G1206222B2K M CAP 1206 2.2NF 10% 630V X7R 2nd source
C917 065G1206222B2K M CAP 1206 2.2NF 10% 630V X7R 2nd source
C916 065G1206222B2K M CAP 1206 2.2NF 10% 630V X7R 2nd source
R608 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1

FB605 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1
FB604 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1
FB603 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1
FB602 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1

D801 093G 60S509 T SCHOTTKY BR310 T/R 3A 100V SMB 2nd source
D801 093G 60S907 T SCHOTTKY B3100B 3A 100V SMB 1

PLA9361AHD5AIJ POWER BOARD FOR AI 1

CN901 006G 31500 EYELET 3

040G 45762420A LABEL 25x6mm 1

IC903 056G 158 10 T LDO IC AZ431AZ-AE1 TO-92 150MA 40V TO-92 1
IC903 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92 2nd source

Q904 057G 530503 T 2SD1207T 1
Q904 057G 761 16 TRA KTD1028 KEC 2nd source
R915 061G 17222052T TZ RST CFR 22R 5% 1/4W 1
R915 061G 17222052T XZ RST CFR 22 OHM +-5% 1/4W XIANZHENG 2nd source
R906 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA 1
R904 061G152M25152T SY RST MOF 250R 5% 2W 1
R924 061G152M47852T HX RST MOFR 0.47 OHM +-5% 2WS 2nd source
R924 061G152M47852T SY RST MOFR 0.47 OHM +-5% 2WS FUTABA 1
C911 065G 2K152 2T6213 CAP CER 1.5NF 10% 2KV Y5P 2nd source
C911 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P 1
C805 065G250K1052HT CAP CER 1UF 10% 25V X7R 1
C816 065G517K102 2T6921 CAP CER 1000PF K 500V Y5P 1
C920 067G 2046812KT CS CAP 680uF 10V 8*11 mm 1
C920 067G 2046812LT CAP CS 680UF 20% 10V 8*11.5 2nd source
C913 067G215Y4707KT EC 47uF 20% 50V 6.3*11mm EG 1
C913 067G215Y4707LT LOW ESR EC 47uF 50V M 6.3*11mm 2nd source

J613 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R HF 1

J613 071G 55 9 X CORE 3.5*0.8*6.0 110R 25% 3BDR3560-903A 2nd source
FB903 071G 55 29 FERRITE BEAD 1
FB801 071G 55 29 FERRITE BEAD 1
FB802 071G 55 29 FERRITE BEAD 1
FB901 071G 55 29 FERRITE BEAD 1
FB902 071G 55 29 FERRITE BEAD 1
FB902 071G 55 29 X BEAD 3.5X2.2X0.8 45R 25% 3BDR3522-453A 2nd source
FB903 071G 55 29 X BEAD 3.5X2.2X0.8 45R 25% 3BDR3522-453A 2nd source

52

Service Manual AOCe950SWa

FB802 071G 55 29 X BEAD 3.5X2.2X0.8 45R 25% 3BDR3522-453A 2nd source
FB801 071G 55 29 X BEAD 3.5X2.2X0.8 45R 25% 3BDR3522-453A 2nd source
FB901 071G 55 29 X BEAD 3.5X2.2X0.8 45R 25% 3BDR3522-453A 2nd source

F901 084G 56 4 B FUSE 4A 250V 1
F903 084G 56 4 B FUSE 4A 250V 1
F902 084G 56 4 B FUSE 4A 250V 1
F902 084G 56 4W FUSE 4A 250V 2nd source

F901 084G 56 4W FUSE 4A 250V 2nd source
ZD901 093G 3916352T ZD TZX22B 2nd source
ZD901 093G 3916826T GPMTZJ T-77 22B 2nd source
ZD901 093G 39A6852T ZENER DIODES MTZJ22B DO-34 1

D904 093G 6026T52T CTIFIER DIODE FR107 1

D903 093G 6026T52T CTIFIER DIODE FR107 1

D904 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41 2nd source

D903 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41 2nd source

D907 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35 1

D601 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35 1

J814 095G 90 23 JUMPER WIRE 1
J813 095G 90 23 JUMPER WIRE 1
J812 095G 90 23 JUMPER WIRE 1
J811 095G 90 23 JUMPER WIRE 1
J810 095G 90 23 JUMPER WIRE 1
J809 095G 90 23 JUMPER WIRE 1
J808 095G 90 23 JUMPER WIRE 1
J807 095G 90 23 JUMPER WIRE 1
J806 095G 90 23 JUMPER WIRE 1
J805 095G 90 23 JUMPER WIRE 1
J804 095G 90 23 JUMPER WIRE 1
J803 095G 90 23 JUMPER WIRE 1
J902 095G 90 23 JUMPER WIRE 1
J901 095G 90 23 JUMPER WIRE 1
J905 095G 90 23 JUMPER WIRE 1
J906 095G 90 23 JUMPER WIRE 1
J907 095G 90 23 JUMPER WIRE 1
J909 095G 90 23 JUMPER WIRE 1
J910 095G 90 23 JUMPER WIRE 1
J921 095G 90 23 JUMPER WIRE 1
J908 095G 90 23 JUMPER WIRE 1
J903 095G 90 23 JUMPER WIRE 1
J904 095G 90 23 JUMPER WIRE 1
J815 095G 90 23 JUMPER WIRE 1
J802 095G 90 23 JUMPER WIRE 1
J601 095G 90 23 JUMPER WIRE 1
J602 095G 90 23 JUMPER WIRE 1
J603 095G 90 23 JUMPER WIRE 1
J604 095G 90 23 JUMPER WIRE 1
J605 095G 90 23 JUMPER WIRE 1
J606 095G 90 23 JUMPER WIRE 1
J607 095G 90 23 JUMPER WIRE 1
J608 095G 90 23 JUMPER WIRE 1
J609 095G 90 23 JUMPER WIRE 1
J610 095G 90 23 JUMPER WIRE 1
J611 095G 90 23 JUMPER WIRE 1
J612 095G 90 23 JUMPER WIRE 1

53

Service Manual AOCe950SWa

J801 095G 90 23 JUMPER WIRE 1

715G4744P01000001C PWR PCB FR1 SS 195*132*1.6MM 1

Q51G 6 4509 GLUE_RTV 1
T901 S80GL22T3V3 Transformer Ass'Y 2nd source
T901 080GL22T 3 N3 X'FMR 490UH 7% 4UH YUVA-1656 1
T901 080GL22T 3 S3 X'FMR 490UH 7% 4UH BCK-ER28-22210 2nd source

BD901 093G 50460514 BRIDGE KBP306G-05 3A 800V KBP 2nd source
BD901 093G 50460515 BRIDGE KBP308G-C 3A 800V KBP 1
BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON 2nd source

C900 065G306M2223BW CAP Y1 2.2NF 20% 250V Y5U 2nd source

Q12G6600 6 FOOT 4

Q52G6025 13155 MYLAR 1

E09501 S95G80183E51 HARNESS 30P-30P(2004) 160mm 1

54
