AOC 718Swag-1 User Manual

718Swag-1

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it‘s not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this monitor does cause serious interference to radio or television reception, resetting the monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following:

 Reorient or relocate the receiving antenna.  Move the monitor and the receiver further away from each other.  Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

 Consult your local dealer or an qualified technician

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this monitor would void the user‘s authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the emission level limits.

English glish

English

Content

Safety Precautions.............................................................................1

First Setup .........................................................................................2

Quick Installation.............................................................................2-5

Front View of the Product.................................................................. 6

Rear View of the Product...................................................................6

Using On Screen Display (OSD) Functions ....................................7-9

Supporting Timing Modes .................................................................10

Technical Information........................................................................11

Care and Maintenance......................................................................12

Troubleshooting ................................................................................12

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

WARNINGS:

English glish

 This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of the power supply in your residence, consult your local dealer or power company.

 Do not try to repair the monitor yourself as it contains no

user-serviceable parts. The monitor should only be repaired by a qualified technician.

 Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power cord is disconnected .

 Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

 Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

 Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.

 Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

 Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

English

First Setup

Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories:

 Power Cable  D-Sub Cable (15 pin)  Audio Cable  User’s Guide  Quick Start Guide

Quick Installation

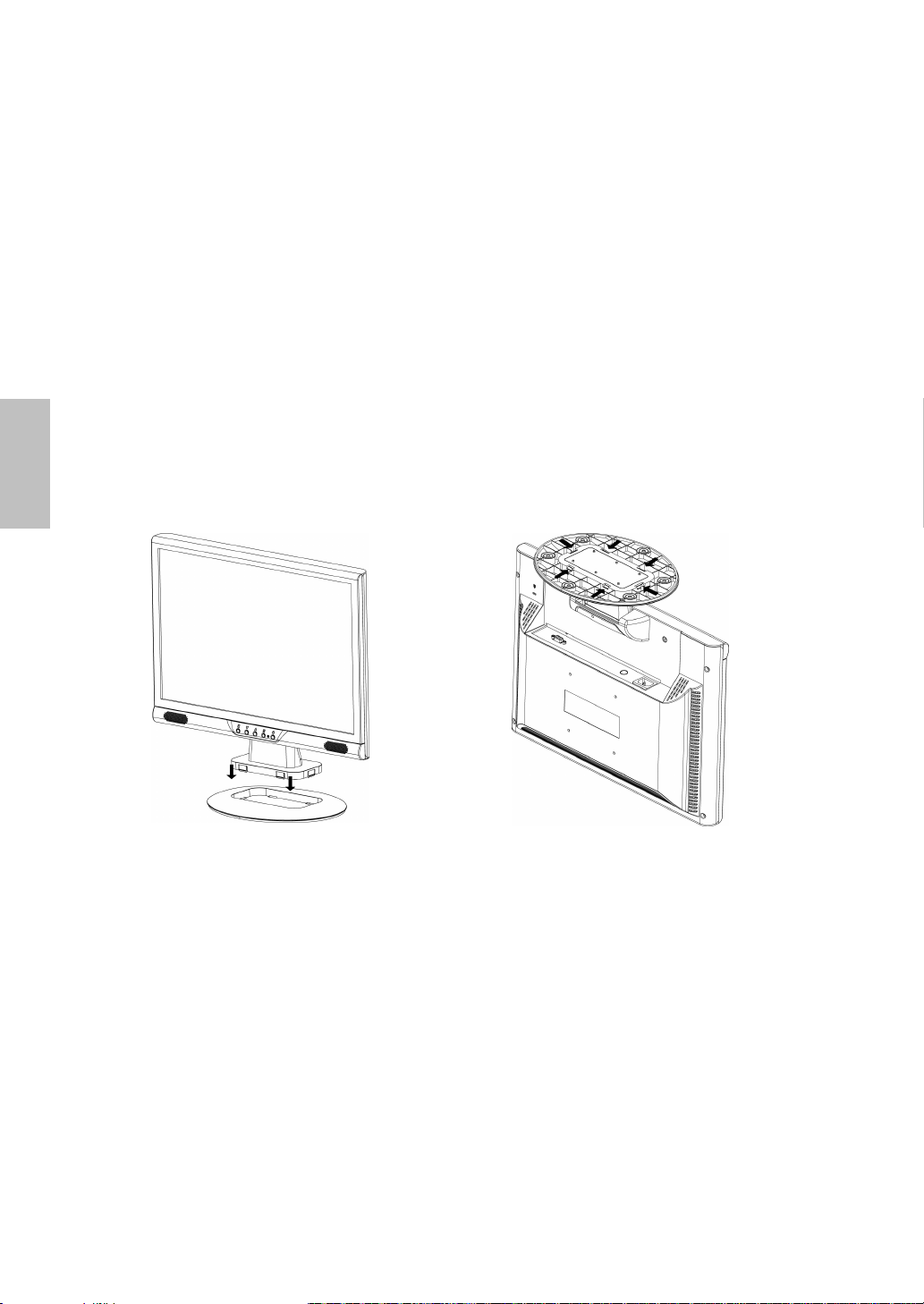

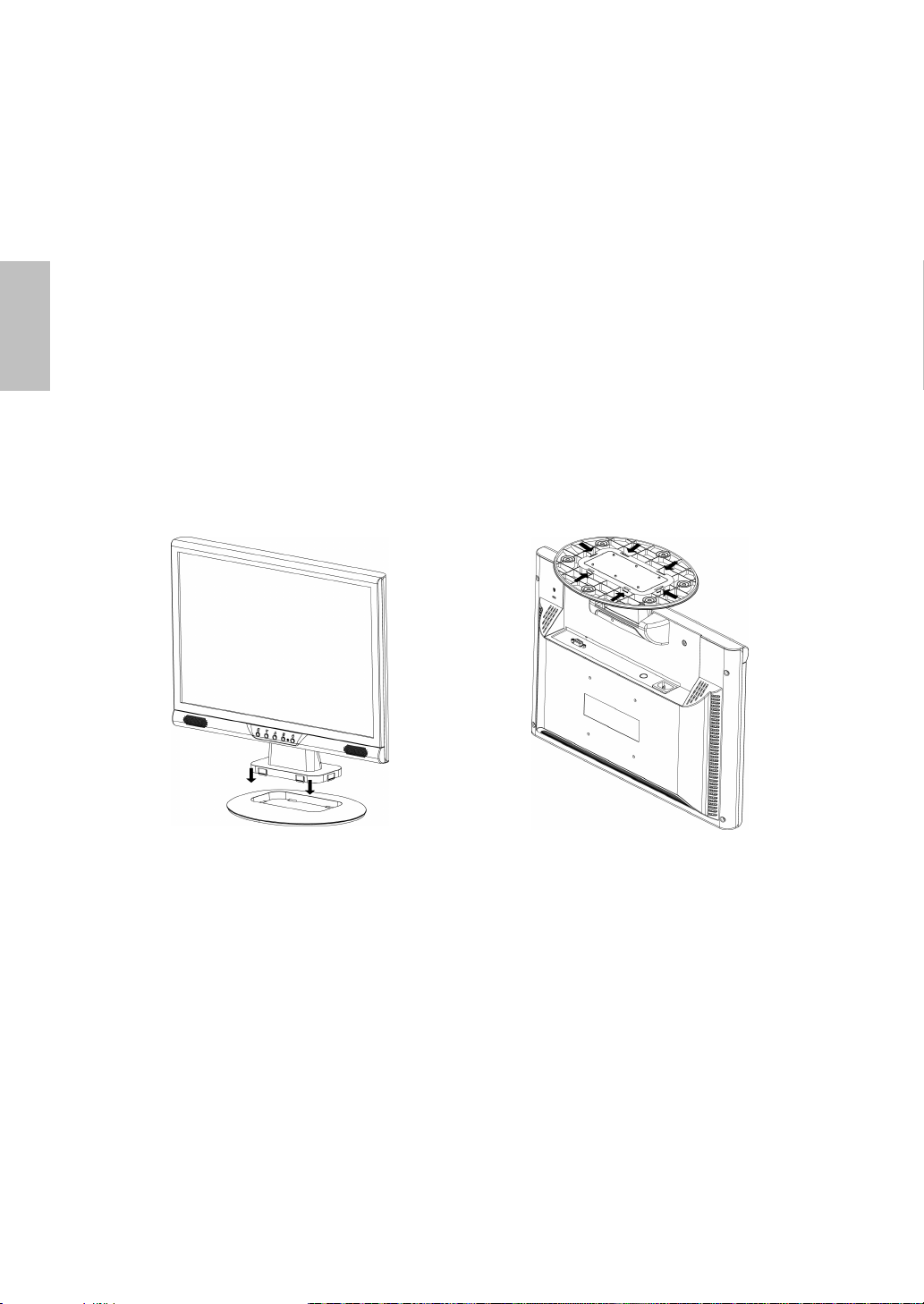

Installing & Removing the Base

Install

Remove

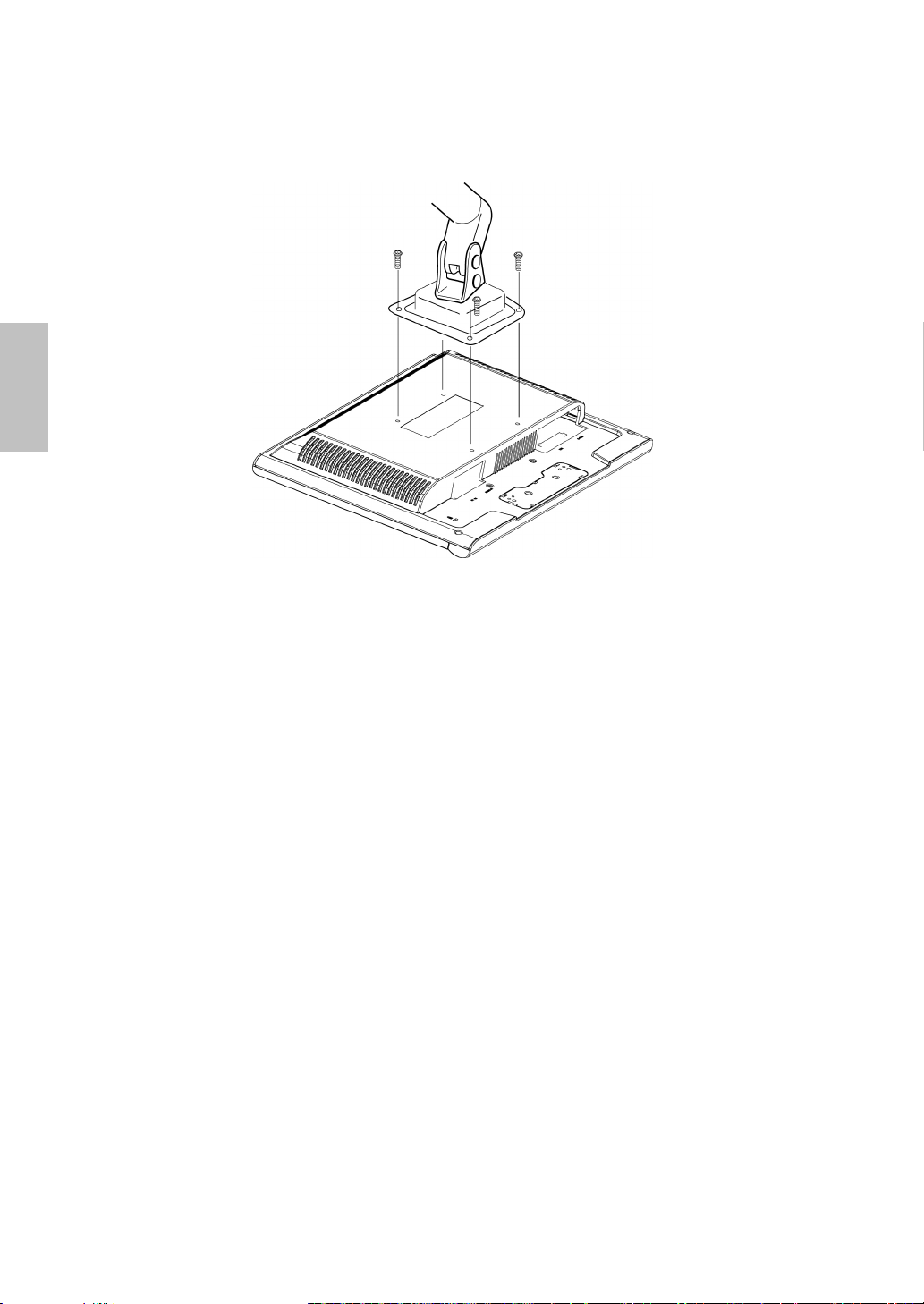

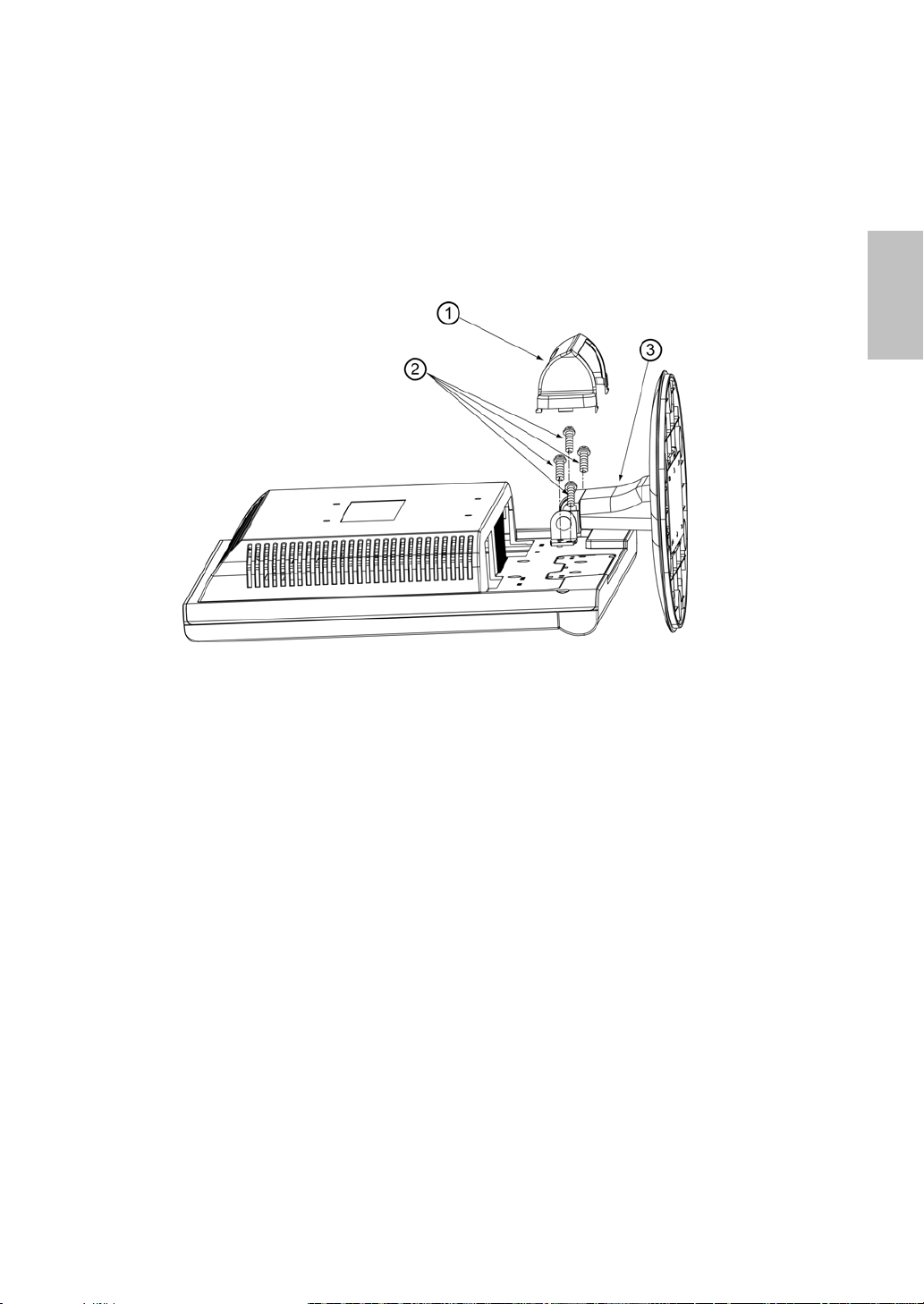

Preparing To Install The Optional Wall Mount Arm (Not Included)

English

This monitor can be attached to a wall mounting arm you can purchase separately. Turn the power OFF then dis-connect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface.

1. Remove the plastic hinge cover. It is attached to the back of the monitor by hooks.

2. Remove the 4 screws holding the stand to the back of the monitor.

3. Remove the stand.

English

Attaching The Optional Wall Mount Arm (not supplied)

Follow these steps to finish installing the wall mounting arm:

1. Place the wall mounting arm onto the back of the monitor. Line up the

holes of the arm with the holes in the back of the monitor.

2. Insert the 4 screws into the holes and tighten.

3. Reconnect the cables. Refer to the user’s manual that came with the

optional wall mounting arm for instrucstions on attaching it to the wall.

NOTE

The AOC 718Swag-1 is in compliance with the most current revision of the VESA 100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).

Connecting the Monitor

1. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video cable (D-Sub cable) to the computer.

Connect audio cable

Connect one end of the audio cable to the back of the monitor and connect the other end to the computer's audio out port.

Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1440 x 900 @ 60 Hz (Recommended Resolution)

Resolution Right-click on the Windows desktop > Properties > Settings > “Desktop Area”. Set the resolution. Refresh Rate (vertical frequency) See your graphic card’s user guide for instructions.

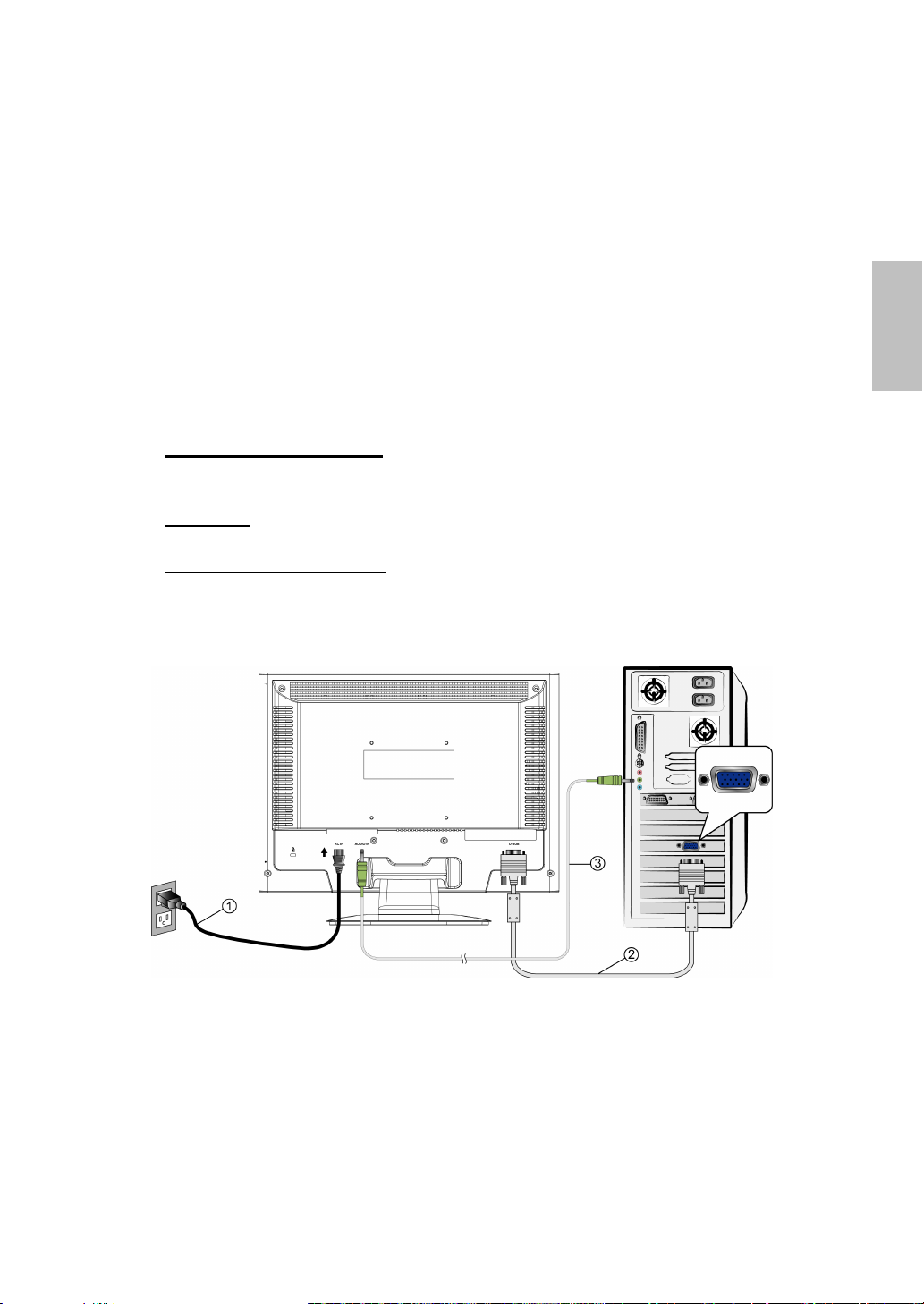

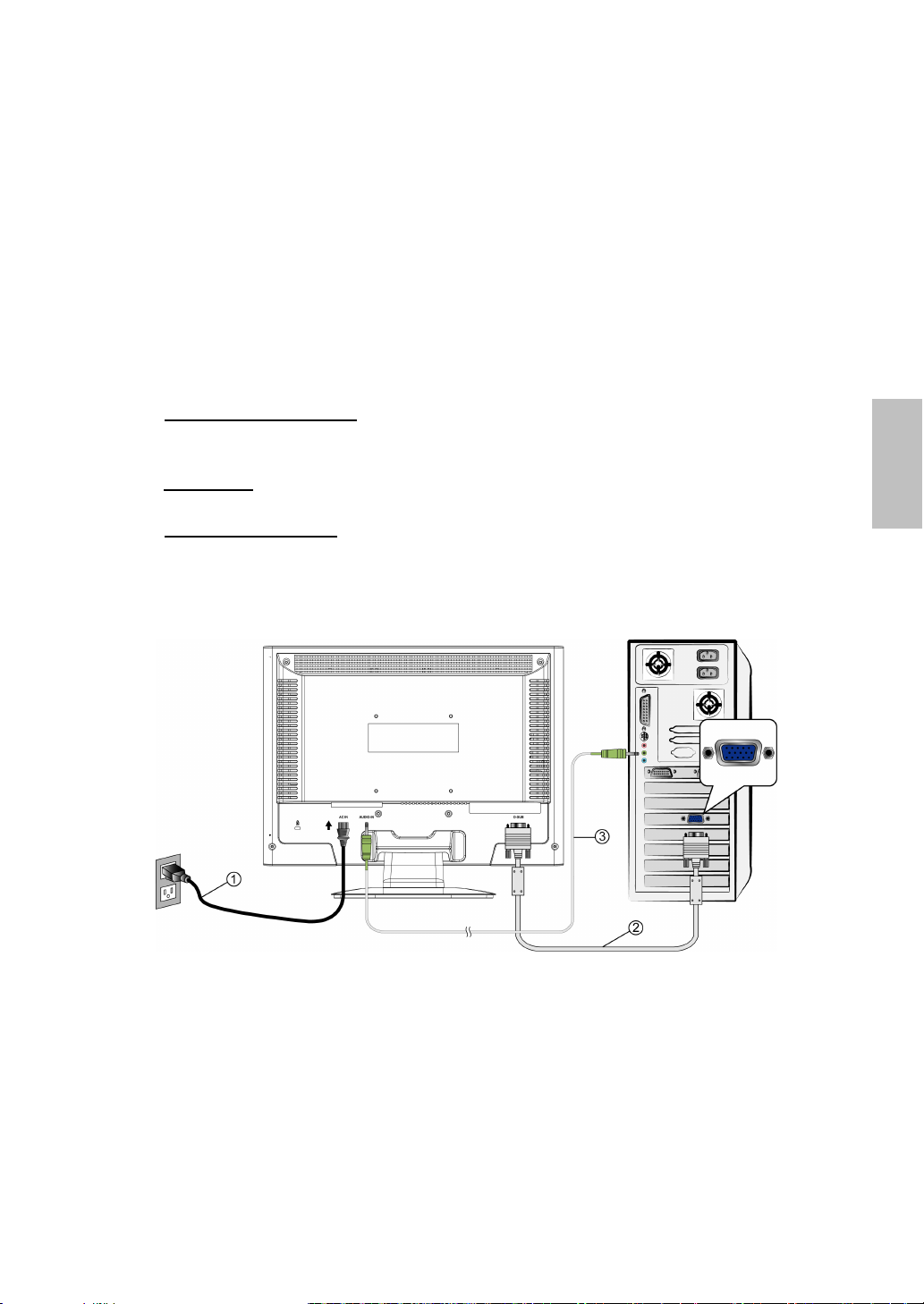

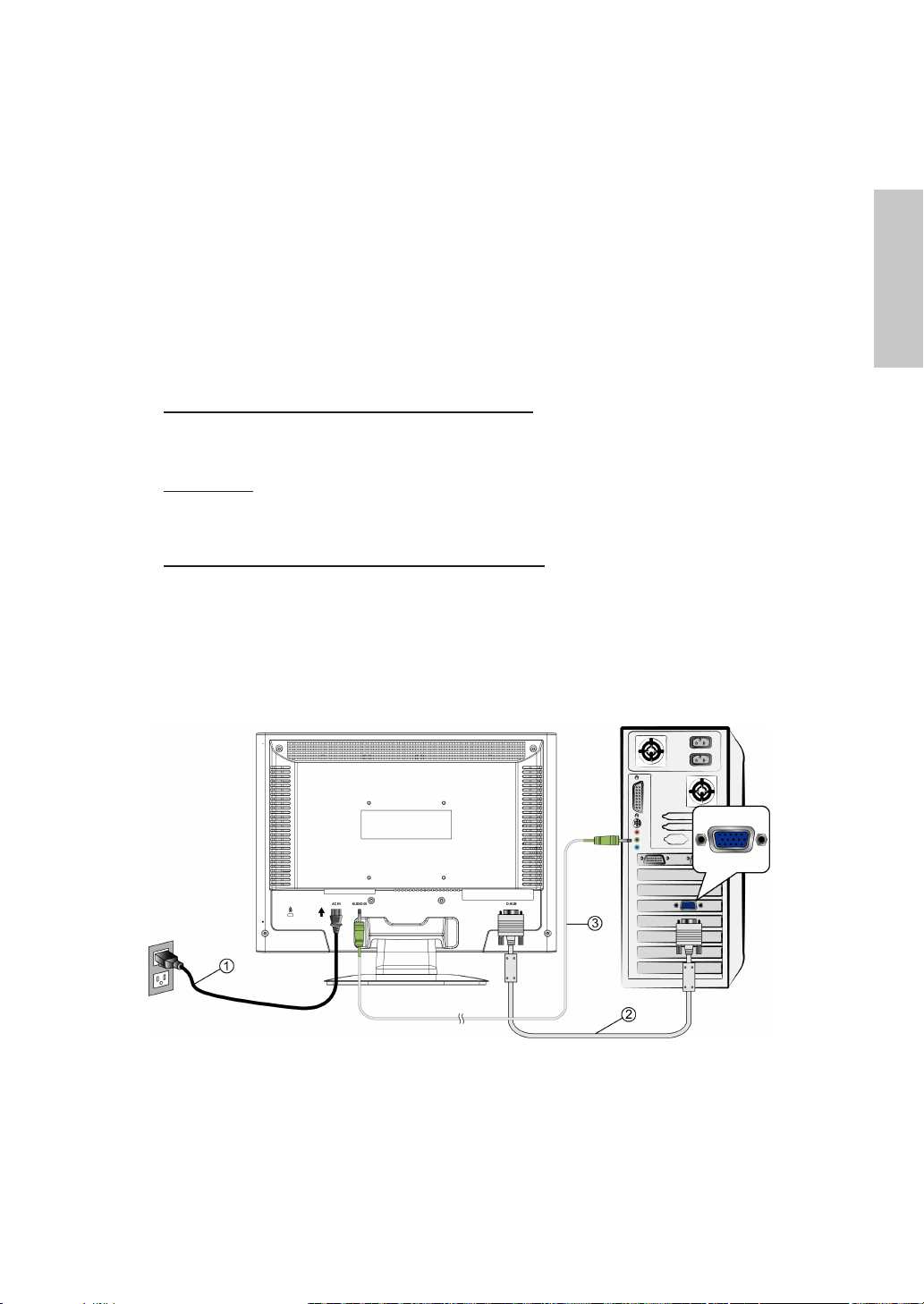

Connection Diagram:

English

English glish

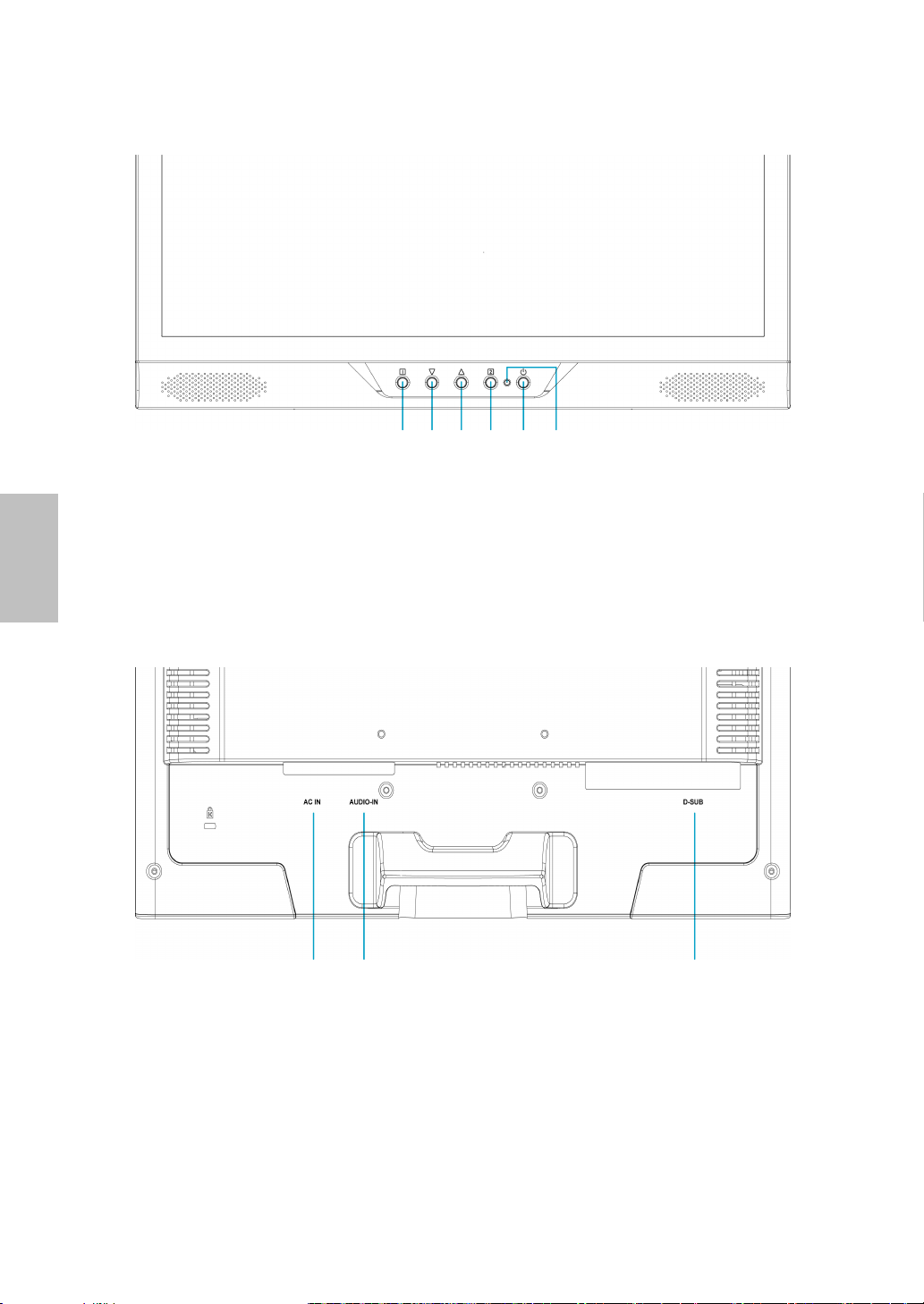

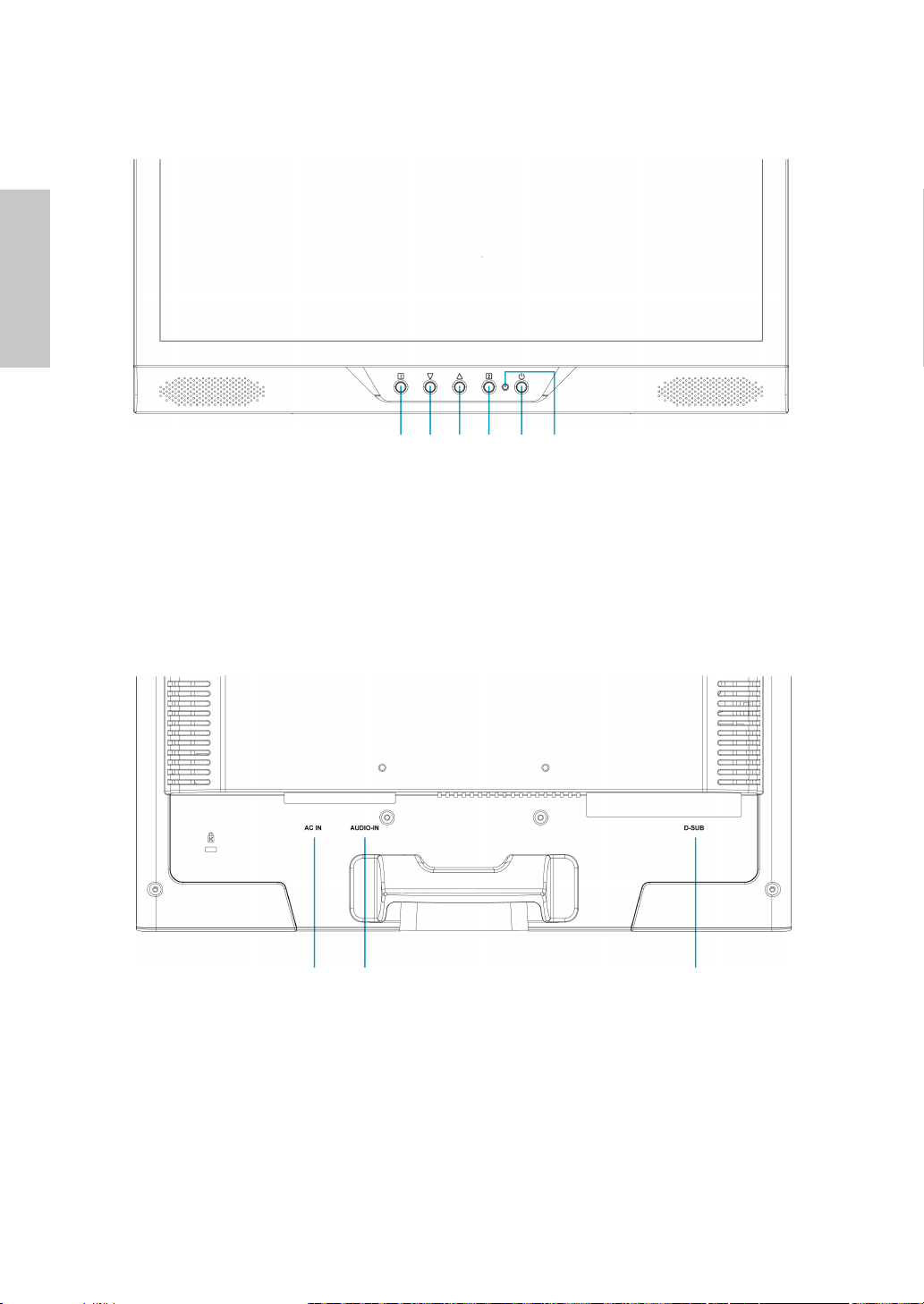

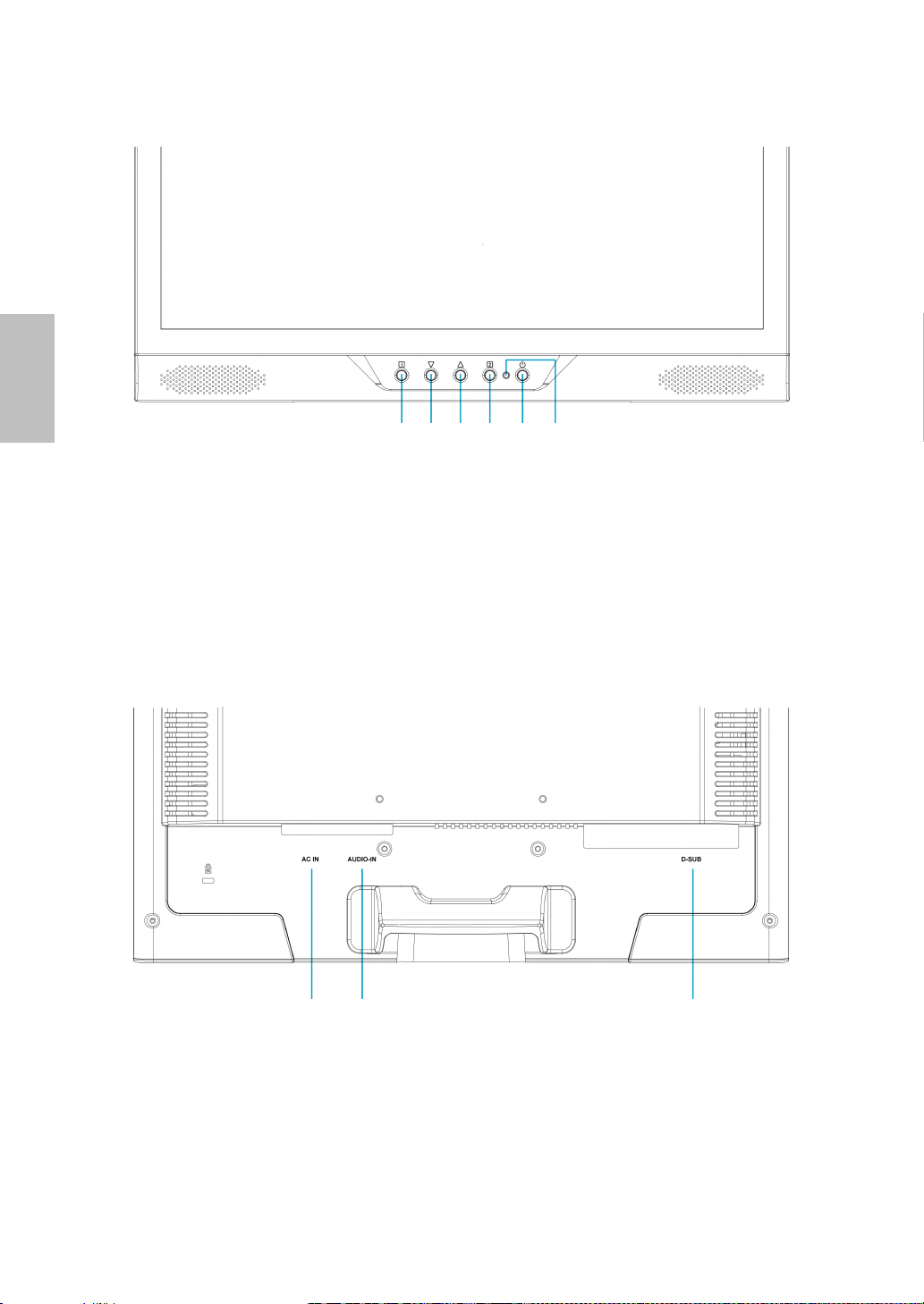

Front View of the Product

➊ ➋ ➌ ➍ ➎ ➏

➊ OSD TURN ON/OFF ➍ CONFIRM SELECTION ➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF ➌ SCROLL UP/INCREASE ➏ LED INDICATOR

Rear View of the Product

➑

➐

➒

➐ POWER INPUT ➒ VGA INPUT (D-SUB 15 PIN) ➑ AUDIO INPUT

Using On Screen Display (OSD) Functions

Display main menu. 1

Exit from OSD menu.

Auto adjust the image when not in main menu. 2

Confirm the selection.

Select the desired item when in OSD menu. V or W

When not in OSD menu, it is to immediately activate Contrast/ Brightness. It should be changed to Contrast/ Brightness by pressing

button or .

V W

▼ + ▲ Recall both of Contrast and Brightness.

1 + ▼ Power Lock (when not in OSD menu) 1 + ▲ OSD Lock (when not in OSD menu )

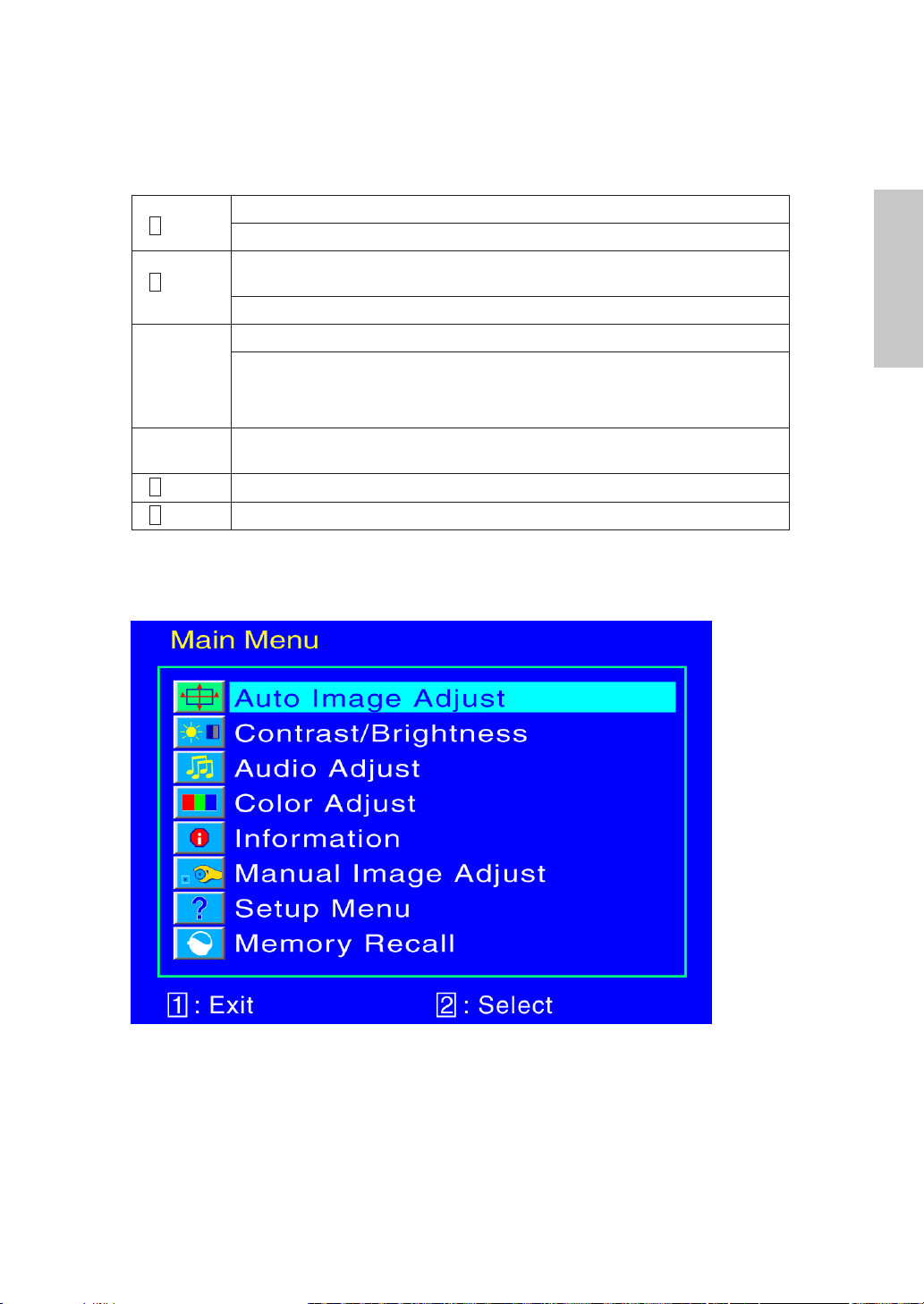

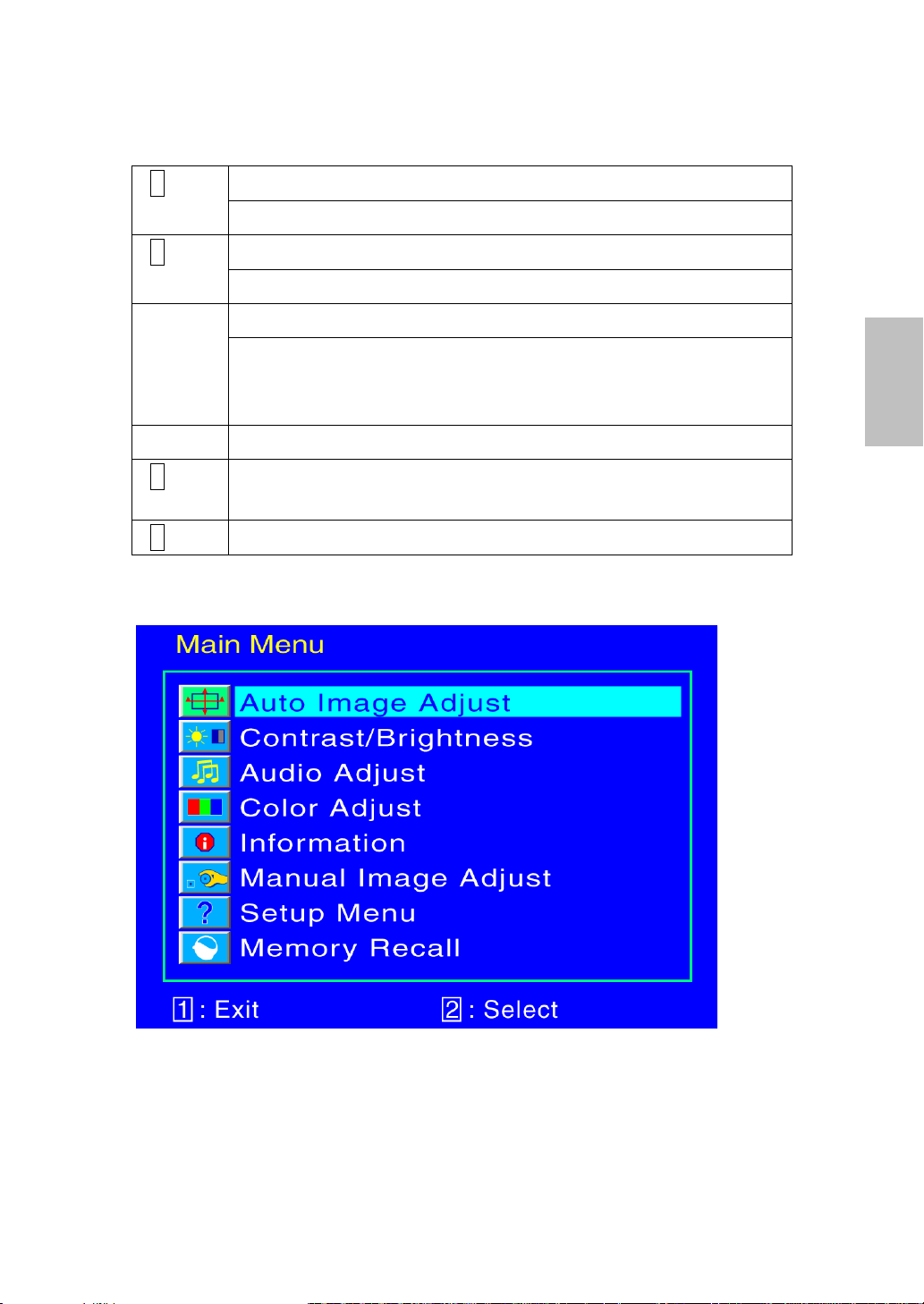

Main Menu

English

English glish

Short Cuts Function from the button(s)

Auto Image Adjust : To auto adjust Horizontal Position, Vertical

Position, Phase (Fine Tune) and Clock (H. Size) of the screen.

Contrast : To adjust the foreground white level of screen image.

V : increase contrast, W: decrease contrast.

Brightness : To adjust the luminance of the video.

V : increase brightness, W : decrease brightness.

Audio Adjust : To adjust the audio functions.

Volume : To adjust the volume of speaker output. Mute :

Color Adjust : To select the color for improving brightness and color

saturation between cool, normal, warm, and User Color.

Cool : Adds blue to screen image for cooler white. Normal : Adds red to screen image for warmer white and richer red. Warm : Adds green to screen image for a darker color. User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press ▼ or ▲ button to adjust selected color.

Information : To display the information, regarding the current input signal

coming from the graphic card in your computer. Note: See your graphic card user guide for more information about changing the resolution and refresh rate.

W : decrease the width of screen image, V : increase the width of screen image.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : V : move screen to the right, W : move screen to the left. V. Position : V : move screen up, W : move screen down.

To turn the Mute ON/OFF.

orizontal Size : To adjust the width of the screen image.

Fine Tune : To adjust the delay time of data and clock.

Press W or V to adjust to your preference.

Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with

W or V button.

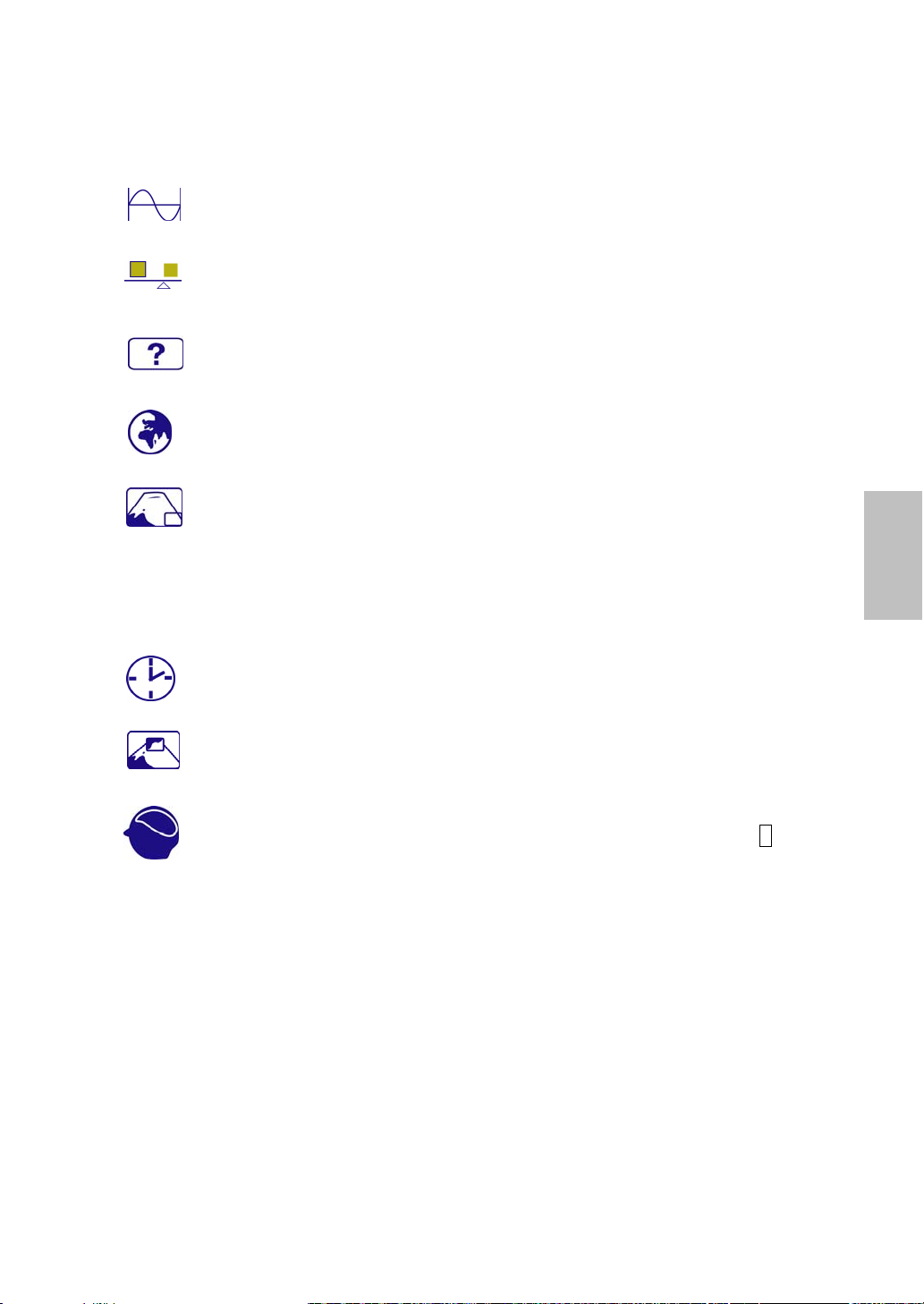

Setup Menu : To set up Language Select, OSD Position, OSD Time Out

and OSD Background.

Language Select : To allow users to choose from available languages.

OSD Position : Press or button to select between horizontal and

vertical OSD Position adjustment. Horizontal OSD Position : To horizontally adjust the OSD position.

V : move OSD to the right, W : move OSD to the left. Vertical OSD Position : To vertically adjust the OSD position. V : move OSD up, W : move OSD down.

OSD Time Out : To automatically turn off On Screen Display(OSD)

after a preset period of time.

OSD Background : Allows the user to turn the OSD background

On or Off.

V W

English

Memory Recall : To recall factory settings for Video & Audio controls.

Press button 2 to select the Memory Recall menu option.

Supporting Timing Modes

VESA 720 x 400 @ 70Hz

English glish

VESA 640 x 480 @ 60Hz MAC 640 x 480 @ 67Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA 800 x 600 @ 75Hz MAC 832 x 624 @ 75Hz VESA 1024 x 768 @ 60Hz VESA 1024 x 768 @ 70Hz VESA 1024 x 768 @ 75Hz MAC 1152 x 870 @ 75Hz VESA 1280 x 1024 @ 60Hz VESA 1280 x 1024 @ 75Hz VESA 1440 x 900 @ 60Hz VESA 1440 x 900 @ 75Hz

Warning : Do not set the graphic card in your computer to exceed these maximum

refresh rates. Doing so may result in permanent damage to your monitor.

Technical Information

Note: Product Specifications are subject to change without notice.

Technical Specification

LCD Panel 17.0” TFT Glare Surface Treatment

English

Power Management

Displayable Resolution WXGA 1440 x 900 max. Vertical Frequency 75Hz max.

Pixel Dimension 0.255 x 0.255 mm

LCD Display Color 16.2M (6 bits+FRC) colors

Tilt 0°~20°

Active Display Area 367.2 mm x 229.5 mm

Temperature Operating: 0°C ~ +40°C

Compliance cULus, CE, FCC-B, Energy Star, ISO 13406-2

Power Input Voltage AC100-240 V

Speaker 1W x 2

Energy Star compliant VESA DPMS compatible < 1 W

Storage: -20°C ~ + 60°C

English glish

Care and Maintenance

Care

 Avoid exposing your monitor directly to sunlight or other heat source. Place your

monitor away from the sun to reduce glare.

 Put your monitor in a well ventilated area.  Do not place any heavy things on top of your monitor.  Make certain your monitor is installed in a clean and moisture-free area.  Keep your monitor away from magnets, motors, transformers, speakers, and TV

sets.

Safety Tips:

 If smoke, abnormal noise or odor came out from your monitor, caution you

should remove the power cord immediately and call your service center.

 Never remove the rear cover of your monitor cabinet. The display unit inside

contains high-voltage parts and may cause electric shock to human bodies.



Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it.

Troubleshooting

No power



Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor.



Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.

 Make sure all signal cables are installed.

Power on but no screen image



Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.

 Adjust brightness.

Wrong or abnormal colors



If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.

 Connect the monitor to another computer

Instructions d’Utilisation

Merci d’avoir acheté ce moniteur couleur multi-scan à haute résolution. Veuillez lire attentivement ce guide avant l’installation.

COMMUNIQUE D’AVERTISSEMENT DE LA FCC CONCERNANT LES INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR MODELES CERTIFIE PAR LA FCC)

Ce moniteur a été testé et à été trouvé conforme aux limites pour un appareil numérique de Classe B, suivant la partie 15 des règlements de la FCC. Ces limites ont été développées pour offrir une protection satisfaisante contre les interférences nuisibles dans une installation résidentielle. Ce moniteur génère, utilise et peut radier de l’énergie de fréquence radio. Ceci peut causer des interférences nuisibles à des communication radio si l’appareil n’est pas convenablement installé et utilisé. Il n’y à néanmoins aucune garantie que des interférences n’apparaîtront pas dans une installation particulière. Si ce moniteur cause de sérieuses interférences à la réception de signaux radios ou télévisées, une possibilité est de réinitialiser le moniteur. Les usagers sont aussi encouragés à corriger les interférences en appliquant une ou plusieurs des démarches suivantes:

 Réorientez ou déplacez l’antenne de réception.  Placez le moniteur et le récepteur plus loin l’un de l’autre.  Connectez le moniteur à une prise différente de celle à laquelle le

récepteur est connecté.

 Consultez votre revendeur local ou un technicien qualifié.

Avertissement de la FCC:

Pour assurez une conformité continue au règlements de la FCC, l’utilisateur doit utiliser un cordon d’alimentation mis à terre et le câble d’interface vidéo protégé avec noyaux en ferrite, fourni avec l’appareil. Chaque modification ou changement non-autorisé appliqué à ce moniteur peut faire perdre à l’utilisateur sont droit d’opération de cet appareil.

Note: Si nécessaire, des câbles d’interface protégés et un cordon d’alimentation alternante doivent être utilisé pour être conforme aux limites d’émission.

Français

Contenu

Précautions de Sécurité.....................................................................1

Première Installation ..........................................................................2

Installation Rapide ..........................................................................2-5

Vue avant du produit..........................................................................6

Français

Produit vu de dos...............................................................................6

Utiliser les fonctions d'affichage d'écran (OSD) ............................7-10

Support des modes minutage ..........................................................10

Informations Technique ...................................................................11

Soins et Maintien ..............................................................................12

En Cas de Problème.........................................................................12

Précautions de Sécurité

Ce moniteur à été fabriqué et testé à partir du principe que la sécurité de l’utilisateur est primordiale. Néanmoins, l’utilisation ou l’installation incorrecte peut causer un danger à l’appareil aussi bien que à l’utilisateur. Lisez attentivement les AVERTISSEMENTS suivants avant de commencer l’installation et gardez ce guide à portée de main.

AVERTISSEMENTS:

 Ce moniteur ne doit être utilisé que en connexion avec les sources

d’alimentation correctes, indiquées sur l’étiquette à l’arrière du moniteur. Si vous n’êtes pas sur de l’alimentation dans votre résidence, consultez votre revendeur locale ou la compagnie d’électricité.

 N’essayez pas de réparer le moniteur vous même, car il ne contient

pas de composants réparables par l’utilisateur. Le moniteur ne peut être réparé que par un technicien qualifié.

 N’enlevez pas la cache du moniteur. Il y à des composants sous haute

tension à l’intérieur qui peuvent causer des choques électriques, même quand le cordon d’alimentation est déconnecté.

 N’utilisez plus le moniteur si la caisse est endommagée. Appelez un

technicien d’entretien pour la contrôler.

 Placez votre moniteur dans un endroit propre et sec. Si le moniteur se

mouille déconnectez le immédiatement et consultez votre technicien d’entretien.

 Déconnectez toujours votre moniteur avant de le nettoyer. Nettoyez la

caisse avec un chiffon sec et propre. Appliqué un nettoyant non-ammonisé sur le chiffon, jamais directement sur l’écran.

 Gardez le moniteur éloigné d’objets magnétiques, de moteurs, de sets

de télévision et de transformateurs.

 Ne placez pas d’objets lourd sur le câble ou le cordon d’alimentation.

 Pour des EQUIPMENTS à FICHE, la fiche de sortie doit être installé

près de l’arrière de l’équipement et à un endroit facilement accessible.

Français

+ 39 hidden pages
