AOC 2230Fm+ Schematic

SERVICE MANUAL

维 修 手 册

客户/品牌 机种名

AOC 2230Fm+

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

HC9MMVNDWCA2PZ

A00 Oct.-11-2010 Initial Release 2230Fm+

HC9MMVNDWCA1PZ

HC9MMVNDWCA2FZ

2

目录

1. 技术规格 -------------------------------------------------------------------------------------------------------------- 4

1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4

1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 5

2. 操作说明 -------------------------------------------------------------------------------------------------------------- 6

2.1控制面板 --------------------------------------------------------------------------------------------------------- 6

2.2接口说明 --------------------------------------------------------------------------------------------------------- 8

2.3 OSD 菜单调整 ------------------------------------------------------------------------------------------------- 10

3. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 13

4. 故障处理流程 -------------------------------------------------------------------------------------------------------- 14

4.1 主板 --------------------------------------------------------------------------------------------------------------- 14

4.2 电源板 ------------------------------------------------------------------------------------------------------------ 17

4.3 按键板 ------------------------------------------------------------------------------------------------------------ 19

5. 电气方框图 ----------------------------------------------------------------------------------------------------------- 20

5.1主板 --------------------------------------------------------------------------------------------------------------- 20

5.2电源板 ------------------------------------------------------------------------------------------------------------ 21

6. 线路图 ----------------------------------------------------------------------------------------------------------------- 22

6.1主板 --------------------------------------------------------------------------------------------------------------- 22

6.2电源板 ------------------------------------------------------------------------------------------------------------ 35

6.3 按键板 ------------------------------------------------------------------------------------------------------------ 37

7. ISP 和 DDC 烧录 SOP --------------------------------------------------------------------------------------------- 38

8. 料件清单 -------------------------------------------------------------------------------------------------------------- 39

3

1. 技术规格

1.1 一般规格

LCD 面板

分辨率

市场型号
驱动系统 TFT 彩色 LCD
可视尺寸 558mm 对角
像素间距
视频 R, G, B 模拟接口,DVI 接口,HDMI 接口
独立同步 行 /场 TTL
显示颜色 16.7M 色彩
点时钟
水平扫描范围
水平扫描尺寸（最大）
垂直扫描范围
垂直扫描尺寸（最大）
预设的最佳分辨率
预设的最高分辨率
即插即用
输入连接器
输入视频信号 模拟： 0.7Vp-p（标准），75 OHM，正 极 性 和 TMDS ,DVI-D,HDMI

2230Fm+

0.282mm(H) x 0.282mm(V)

146.25 MHz
31 kHz - 83 kHz

473.76mm
56 Hz - 76 Hz

296.1mm
1680 x 1050 (60 Hz)
1680 x 1050 (60 Hz)
VESA DDC2B/CI
D-Sub,DVI-D,HDMI

物理 特性

环境

电源

功率消耗

音箱
连接器类型 15- 针 Mini D-Sub ,24- 针 DVI-D,19- 针 HDMI
信号电缆类型 可分离
尺寸和重量：
高度 (含底座)
宽度
深度
重量（仅监视器）
重量（含包装）
温度
工作时
非工作时
湿度：
工作时 10% - 85%（非凝露）

100~240VAC, 50/60Hz

开机 < 49 W
离机 < 1 W

2W x 2

416.8mm

510.2mm

219.6mm

5.2kg

6.7 kg

0°- +40°

-20°- +60°

非工作时 5% - 80%（非凝露）
海拔高度
工作时
非工作时

0~3000m (0~10000 ft)
0~5000m (0~15000 ft)

4

1.2 工厂预设模式

标准 分辨率 水平频率(kHz) 垂直频率(Hz)

DOS 720x400@70Hz 31.469 70.087

640x480@60Hz 31.469 59.940

VGA

SVGA

XGA

SXGA

WXGA+

WSXGA

640x480@72Hz 37.861 72.809

640x480@75Hz 37.500 75.00

800x600@56Hz 35.156 56.250

800x600@60Hz 37.879 60.317

800x600@72Hz 48.077 72.188

800x600@75Hz 46.875 75.000

1024x768@60Hz 48.363 60.004

1024x768@70Hz 56.476 70.069

1024x768@75Hz 60.023 75.029

1280x1024@60Hz 63.981 60.020

1280x1024@75Hz 79.976 75.025

1440x900@60Hz 55.935 55.887

1440x900@60Hz 55.469 59.901

1680x1050@60Hz 65.29 59.95

1680x1050@60Hz 64.67 59.883

5

2. 操作说明

2.1 控制面板

外部控制

按电源开关即可开关显示器。其它功能按键位于前面板 下方 。通过调节这些功能键可得到您需要的画面。

* 接好电源线。

* 将信号线接到 PC 机显卡

* 打开显示器把开关打到开机位置，电源指示灯亮。

1 亮度情景模式 / 向上

2 信号源切换(自动调整) / 退出

3 音量 / 向左

4 动态对比度 / 向右

5 菜单 / 电源开关

6

1.电源接口

2. HDMI

3. 数字信号端口

4. 模拟信号端口

5. 音频口

6. 耳机口

7.USB 上行口

在执行下列步骤之前，关闭计算机电源。

1. 将电源适电缆连接到监视器后部的 AC-In 端口。

2. 将 15-针 D-Sub 电缆的一端连接到监视器后部，另一端连接到计算机的 D-Sub 端口。

3. （可选–需要带 DVI 端口的视频卡）- 将 24 针 DVI 电缆的一端连接到显示器的背后，然后将另一端连接到计

算机的 DVI 端口。

4. （可选–需要带 HDMI 端口的视频卡）- 将 HDMI 电缆的一端连接到显示器的背后，然后将另一端连接到计

算机的 HDMI 端口。

5. 耳机插口用于连接耳机线。

6. 打开监视器和计算机的电源。

如果监视器显示一个图像，则说明安装完毕。如果不显示图像，请参见故障排除 。

7

2.2 接口说明

D-SUB 接口：

管脚号 信号电缆的 15 针一端

1

2

3

4 N.C.

视频 - 红色

视频 - 绿色

视频 - 蓝色

5

检测电缆

6 GND-R

7 GND-G

8 GND-B

9 +5V

10

11 N.C.

12

13

14

接地

DDC- 串行数据

H- 同步

V- 同步

15

DDC- 串行时钟

DVI 接口：

管脚号 信号名称 管脚号 信号名称 管脚号 信号名称

1

2

3

4

5

6

7

8 N.C. 16

TMDS 数据 2-

TMDS 数据 2+

TMDS 数据 2/4 屏蔽

TMDS 数据 4-

TMDS 数据 4+

DDC 时钟

DDC 数据

9

10

11

12

13

14

15

TMDS 数据 1-

TMDS 数据 1+

TMDS 数据 1/3 屏蔽

TMDS 数据 3-

TMDS 数据 3+

+5V 电源

接地（对于 +5V）

热插拔检测

17

18

19

20

21

22

23

24

TMDS 数据 0-

TMDS 数据 0+

TMDS 数据 0/5 屏蔽

TMDS 数据 5-

TMDS 数据 5+

TMDS 时钟屏蔽

TMDS 时钟 +

TMDS 时钟 -

8

HDMI 接口：

管脚号 信号名称 管脚号 信号名称 管脚号 信号名称

1

2

3

4

5

6

7

8

TMDS 数据 2+

TMDS 数据 2 屏蔽

TMDS 数据 2

TMDS 数据 1+

TMDS 数据 1 屏蔽

TMDS 数据 1

TMDS 数据 0+

TMDS 数据 0 屏蔽

9

10

11

12

13

14

15

16

TMDS 数据 0

TMDS 时钟 +

TMDS 时钟屏蔽

TMDS 时钟

CEC

预留（设备未使用）

SCL

SDA

17

18

19

DDC/CEC 接地

+5V 电源

热插拔检测

9

2.3 OSD 菜单调整

• 按菜单（电源）键启动 OSD 主画面。 通过上下左右键浏览次级菜单, 按菜单（电源）键进入次级菜单

• 进入次级菜单后, 用上下键选择子项目, 左右键选择数值增加减小; 按菜单(电源)键返回上级菜单.

• 如果您想调整其它任何功能，请重复步骤 1-2 。

• 在主菜单画面下, 选择 “退出” 图标, 再按出菜单(电源)键退出 OSD 画面.

• OSD 锁定功能： 要锁定 OSD ，请在显示器关闭时按住 向左 按钮，然后按电源按钮打开显示器。 要解锁

OSD ，请在显示器关闭时按住 向左 按钮，然后按电源按钮打开显示器。

• 亮度情景模式快捷键: 当没有 OSD 菜单时, 连续按 Eco 快捷键可选择不同的亮度情景模式(部分机型可能不适

用).

• 音量快捷键: 当没有 OSD 菜单时, 按音量快捷键(

叭机型)

• 动态对比度快捷键 :当没有 OSD 菜单时, 连续按动态对比度快捷键 (

• 信号源快捷键: 当没有 OSD 菜单时, 按信号源快捷键激活信号源功能(仅针两种输入信号及以上机型) .连续按

source 键来选择信息栏中显示的信号源，按菜单键调整为选择的信号源。

• 自动调整快捷键: 当没有 OSD 菜单时,持续按自动调整快捷键 2 秒启动自动调整功能

• 连续按住菜单(电源)键至 2 秒关闭电源.

)激活音量调整菜单, 按 或 调节音量大小(仅针对带喇

) 开启或关闭动态对比度功能.

10

功能控制说明

明亮度 调整数值 说明

亮 度

对比度

Eco Mode

0-100

0-100

标准

节能

网络

游戏

电影

运动

调整显示亮度

调整显示对比度

正常使用模式

文本应用模式

网络应用模式

游戏应用模式

观赏电影应用模式

观赏户外运动模式

伽玛 1 调整为伽玛值 1

伽玛

DCR

图象设置

时钟

相位

水平位置

垂直位置

色温

暖色温

常规色

冷色温

伽玛 2 调整为伽玛值 2

伽玛 3 调整为伽玛值 3

禁用

启用

0-100

0-100

0-100

0-100

6500K

7300K

9300K

关闭动态对比度

开启动态对比度

调整图片时钟以降低垂直线噪声

调整图片相位以降低水平线噪声

调整图片的水平位置

调整图片的垂直位置

设置为暖色温

设置为常规色温

设置为冷色温

sRGB

使用者设定

设置为 sRGB

红 微调红色色温

绿 微调绿色色温

蓝 微调蓝色色温

11

色彩增强

全色增强 禁用/启用 开启或关闭全色增强模式

自然肤色 禁用/启用 开启或关闭自然肤色模式

绿茵场景 禁用/启用 开启或关闭绿色增强模式

蔚蓝风景 禁用/启用 开启或关闭蓝色增强模式

自动检测 禁用/启用 开启或关闭自动增强模式

演示 禁用/启用 开启或关闭左画面演示

窗口增亮

窗口尺寸

亮 度

对比度

水平位置

垂直位置

14-100

0-100

0-100

0-100

0-100

调整窗口尺寸大小

调整窗口亮度

调整窗口增强对比度

调整水平窗口位置

调整垂直窗口位置

增亮 禁用/启用 开启或关闭增亮窗口

OSD 设置

水平位置

垂直位置

OSD 显示时间设定

透明度

0-100

0-100

5-120

0-100

调整 OSD 水平位置

调整 OSD 垂直位置

调整 OSD 显示时间

调整 OSD 透明度

语言 选择 OSD 语言

其它

自动 自动检测输入信号

模拟 选择输入为模拟信号源

输入选择

数字 选择输入为数字信号源

选择输入为 HDMI 信号源(仅针对有

HDMI

HDMI 接口的机种)

自动调整 是或者否 自动调整画面

画面比例 宽屏或 4:3 选择宽屏或 4:3 显示格式

DDC-CI

是或者否 打开/关闭 DDC-CI 支持

显示信息 显示输入信号信息

重置

重置 是或者否 恢复到出厂设置

退出

退出

退出 OSD

12

3. 工厂模式调整

进入工厂模式方法：

按住右键，拔掉电源线，然后插电源线，即可进入工厂模式。

a.基本调整:

设置对比度 为 50。

设置亮度

b.增益调整:

调整9300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择9300K进行R G B增益调整

x = 283 ±20, y = 297 ±20

调整7300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择7300K进行R G B增益调整

x = 301±20, y = 317 ±20

调整6500K色温

为 80。

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±20, y = 329 ±20

c.调整完毕直接关闭电源。

13

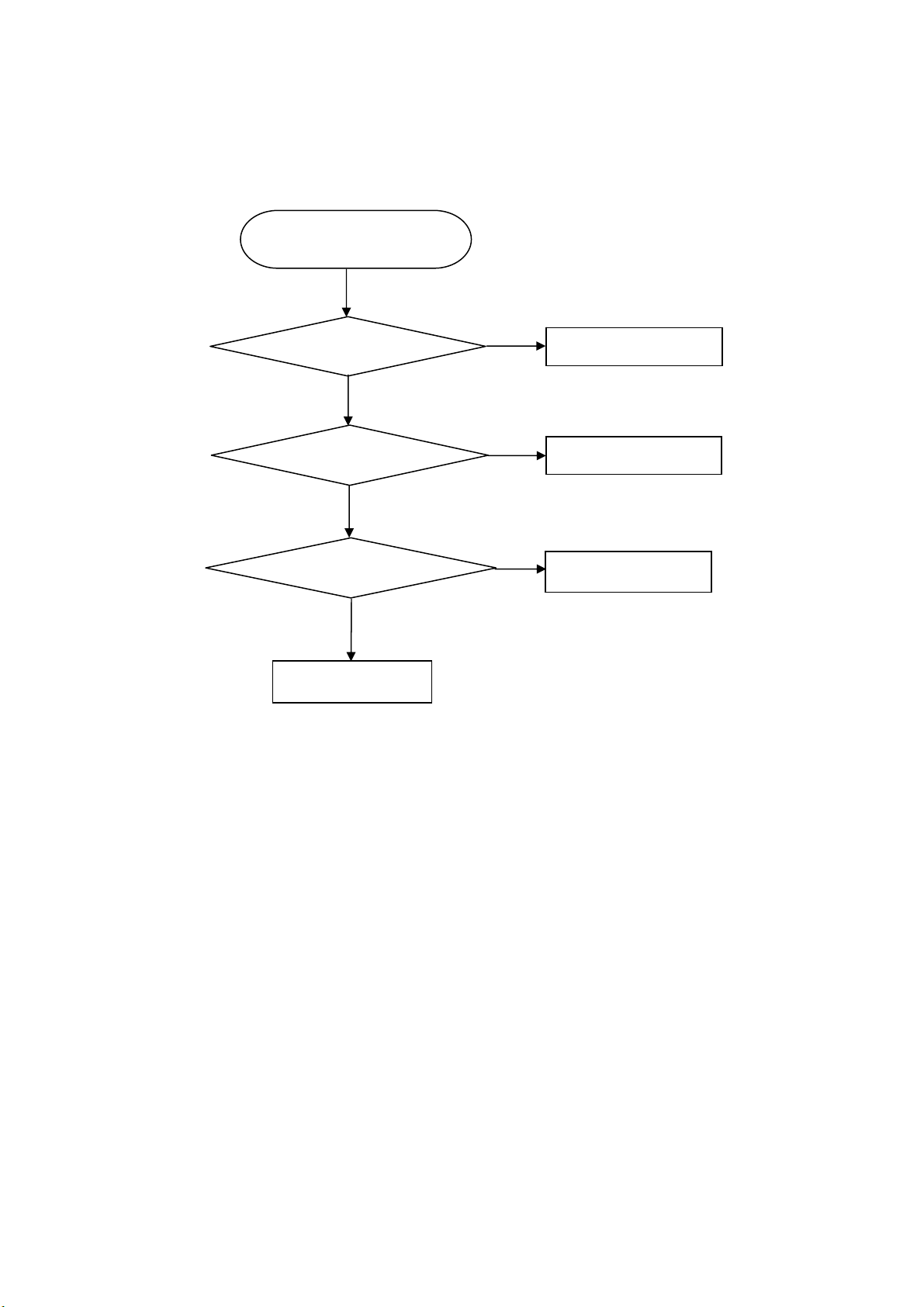

4. 故障处理流程

4.1 主板

无供电

按下电源键看画面是否正常

无供电

重新插插头然后检查 AC:100-240V 是否正常?

NG

OK

NG

检查适配器及升压板部分和交流电源输入

检查 U102 PIN2=3.3V; C115 (+) =1.8V

OK

NG

检查或更换 CN101, U102, U104

检查 X401 晶振是否正常

OK

NG

更换 X401

更换 U403

14

无画 (LED 橙色)

无画

检查信号线

G

OK

NG

更换信号线

检查 U102 PIN2=3.3V; C115 (+) =1.8V

检查 X401 震荡波是否正常

OK

N

更换 CN101, U102, U104

OK

更换 X401

检查 CN401 的 HS/VS 是否正常

OK

更换 U403

NG

检查相关回路

15

白屏

白屏

检查 Q104 的基极是否

为低电平

OK

NG

检查 X401 的晶振是否正常

NG

OK

更换 X401

检查 Q105 是否损坏

或 CN405 虚焊

检查 U403 复位电路是否正常

NG

OK

NG

检查相关元件

OK

检查相关元件

更换 PANEL

更换 U403

16

4.2 电源板

死机

检测交流电 100V or 240V 是否正常？

OK

NG

检测 AC 输入

检测 C905 (+)的电压大小

OK

NG

检测全桥整流回路和 F901 回路

检测 IC901 第 8 脚电压是否正常？

OK

NG

检测 R904, R905 或更换 IC901

检测二次启动电压是否正常？

OK

NG

1) 检测 IC901

2) 检测 D901 回路

检测 IC901 第 5 脚的 PWM 波形

OK

NG

检测 IC901

检测 D906, D907, IC903, IC904,Q903,ZD902

17

无背光

检测 R803 电压是否为 16V

NG

OK

检测 Adapter 回路

检测 ON/OFF 信号

NG

OK

检测 IC801 第 11 脚是否为 5V

检测主板

NG

OK

检测 IC801 第 6,8,9,10 脚的 PWM 波形

更换 IC801

NG

OK

更换 IC801

检测 Q805,Q806

NG

OK

更换 Q805,Q806

检测 PT801

OK

NG

更换 PT801

检查接口或灯管,反馈和保护回路

18

4.3 按键板

OSD 画面不稳定及不可调整

OSD 画面不稳定及不可调整

OK

按键板是否连接正常

OK

按键开关是否正常

OK

NG

连接好按键板

NG

替换按键开关

按键板是否正常

OK

检查主板

NG

替换按键板

19

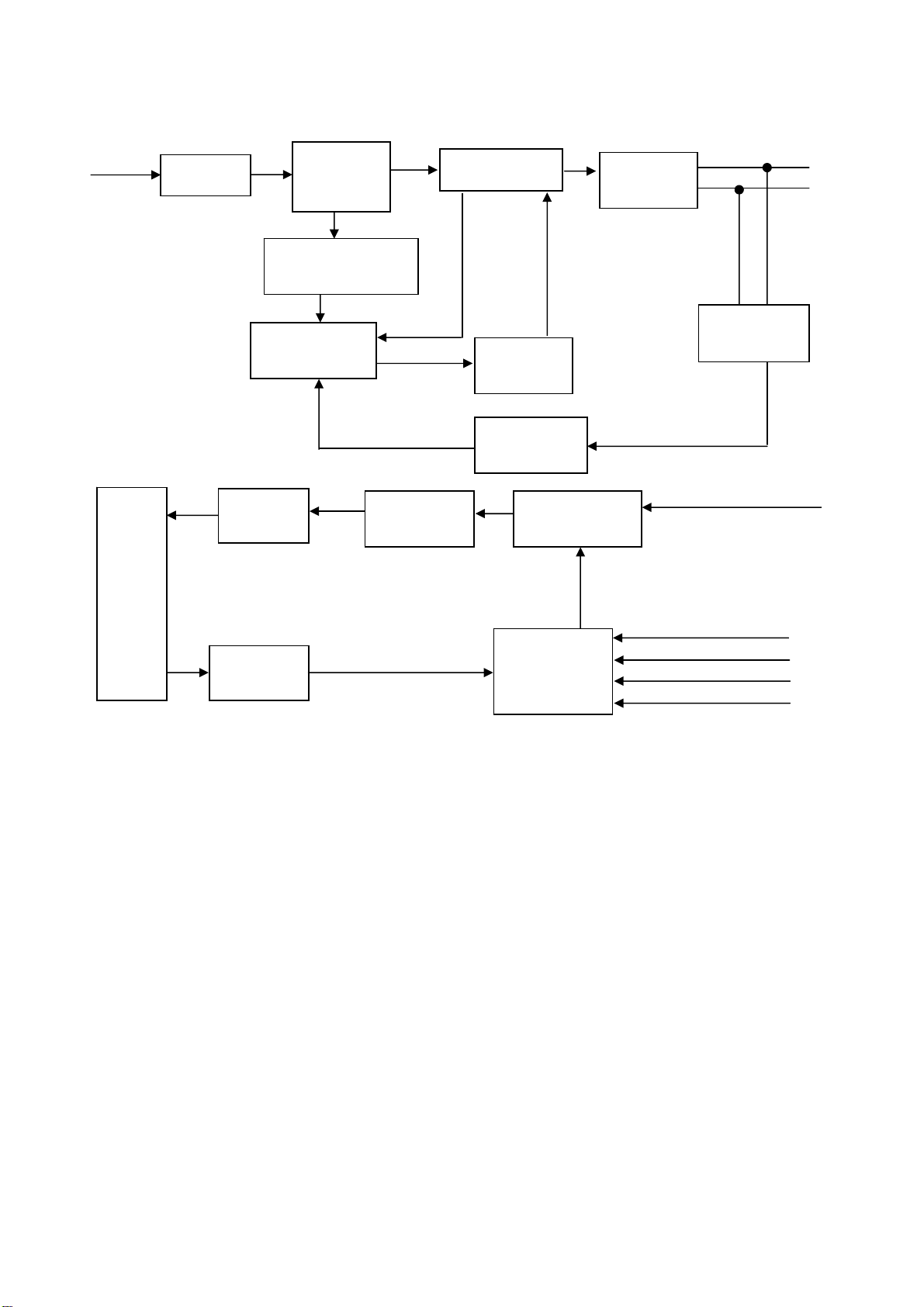

5 电气方框图

(

(

(

)

(

)

(

)

(

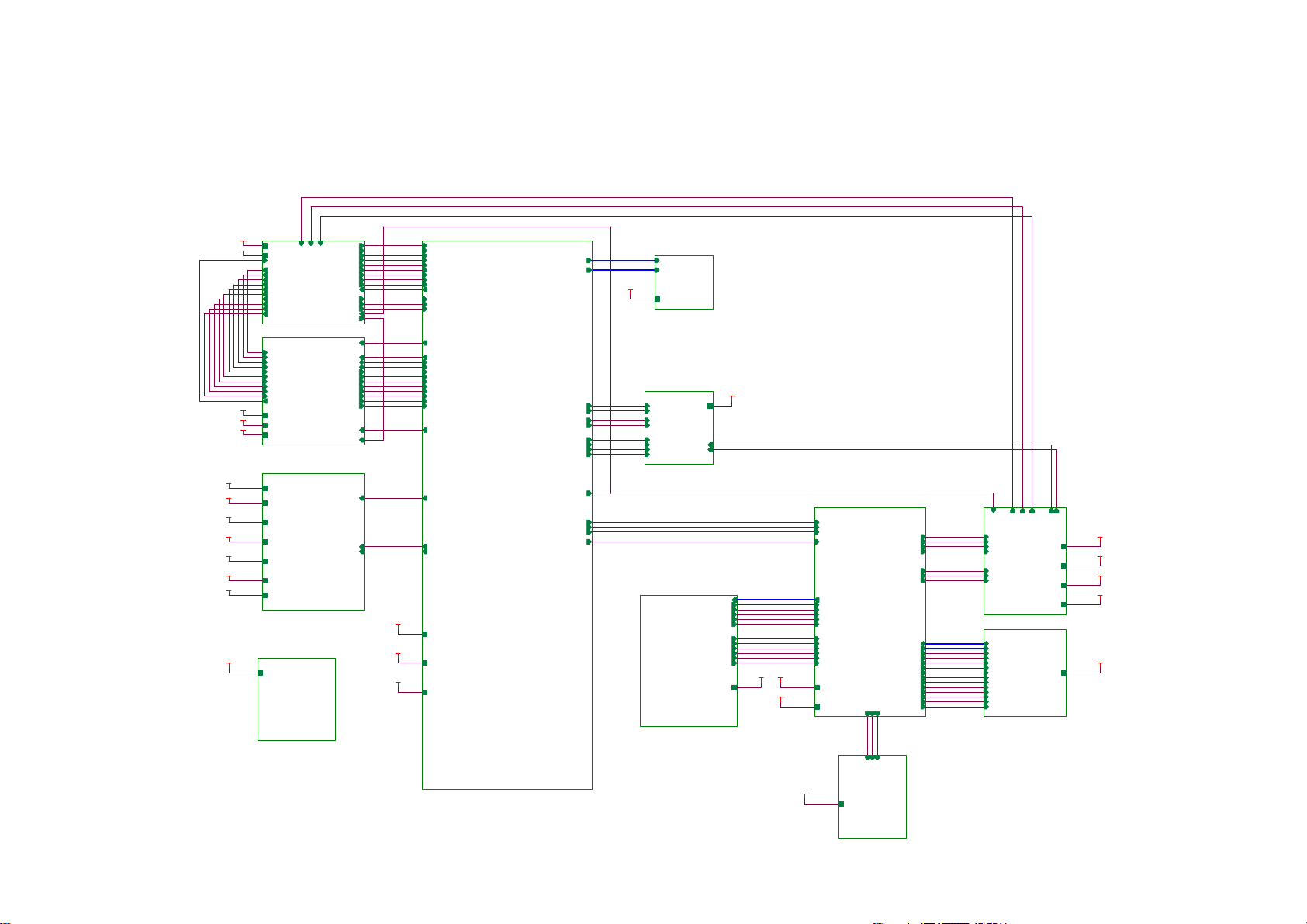

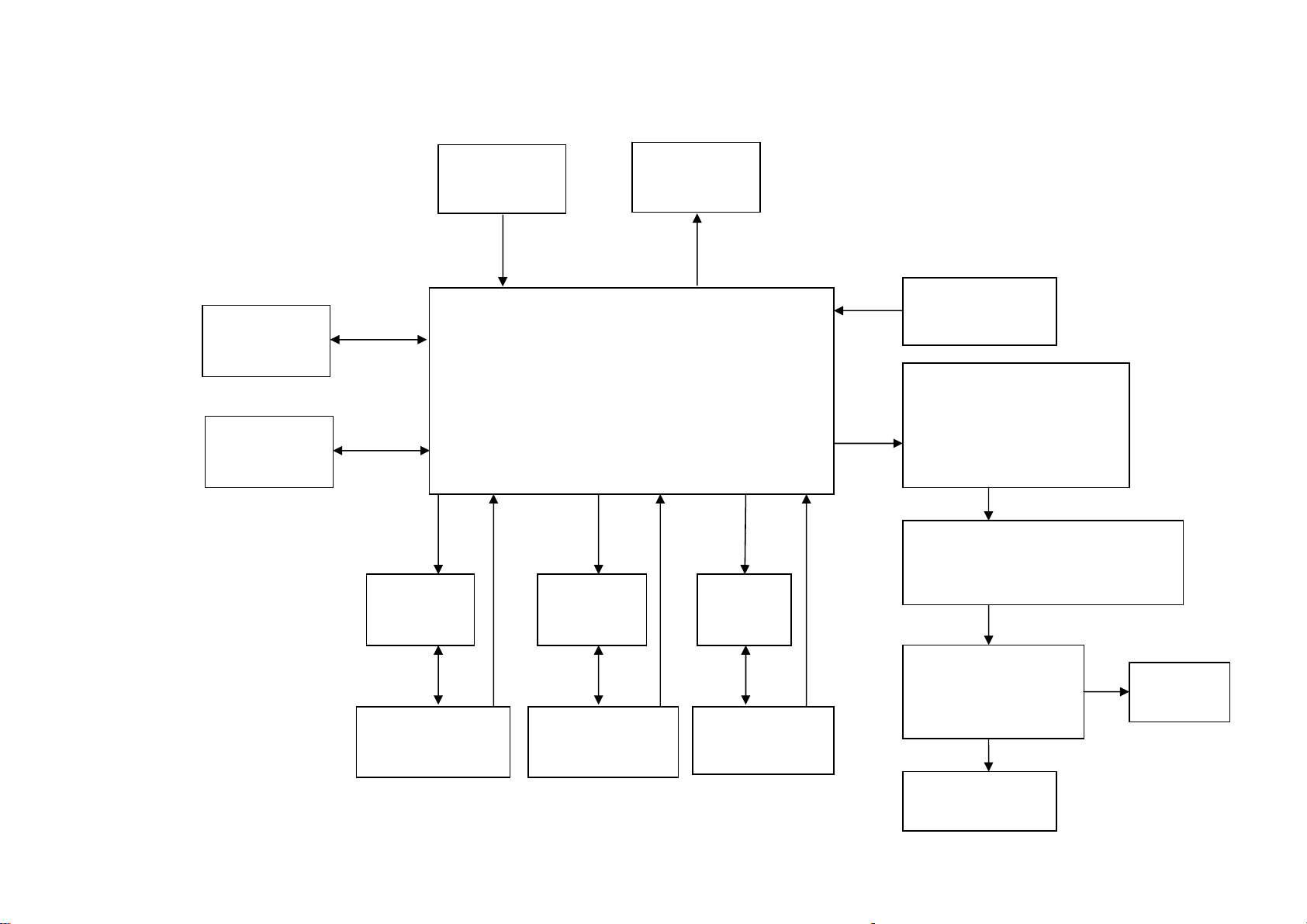

5.1 主板

FLASH ROM

MX25L2025MC

U404)

EEPROM

M24C04

U405)

EEPROM

M24C02

U401

14.31818MHZ

(X401)

Scalar IC TSUMO58GDJ-LF

(Include ADC, OSD, MCU)

EEPROM

M24C02

U402

Panel Interface

(CN405)

(U403)

EEPROM

M24C02

U502

Key Control Interface

(CN403)

AUDIO DIGITAL-TO-ANALOG

CONVERTER

PCM1754DBQR

(U601)

Dual 4-channel analog multiplexer

74HC4052D

U602)

Audio Power Amplifier

APA2069JITUL

D-Sub Connector

(CN401)

DVI Connector

(CN402)

20

HDMI Connector

(CN501)

(U603)

Speaker

(CN603)

Phone Jack

(CN602)

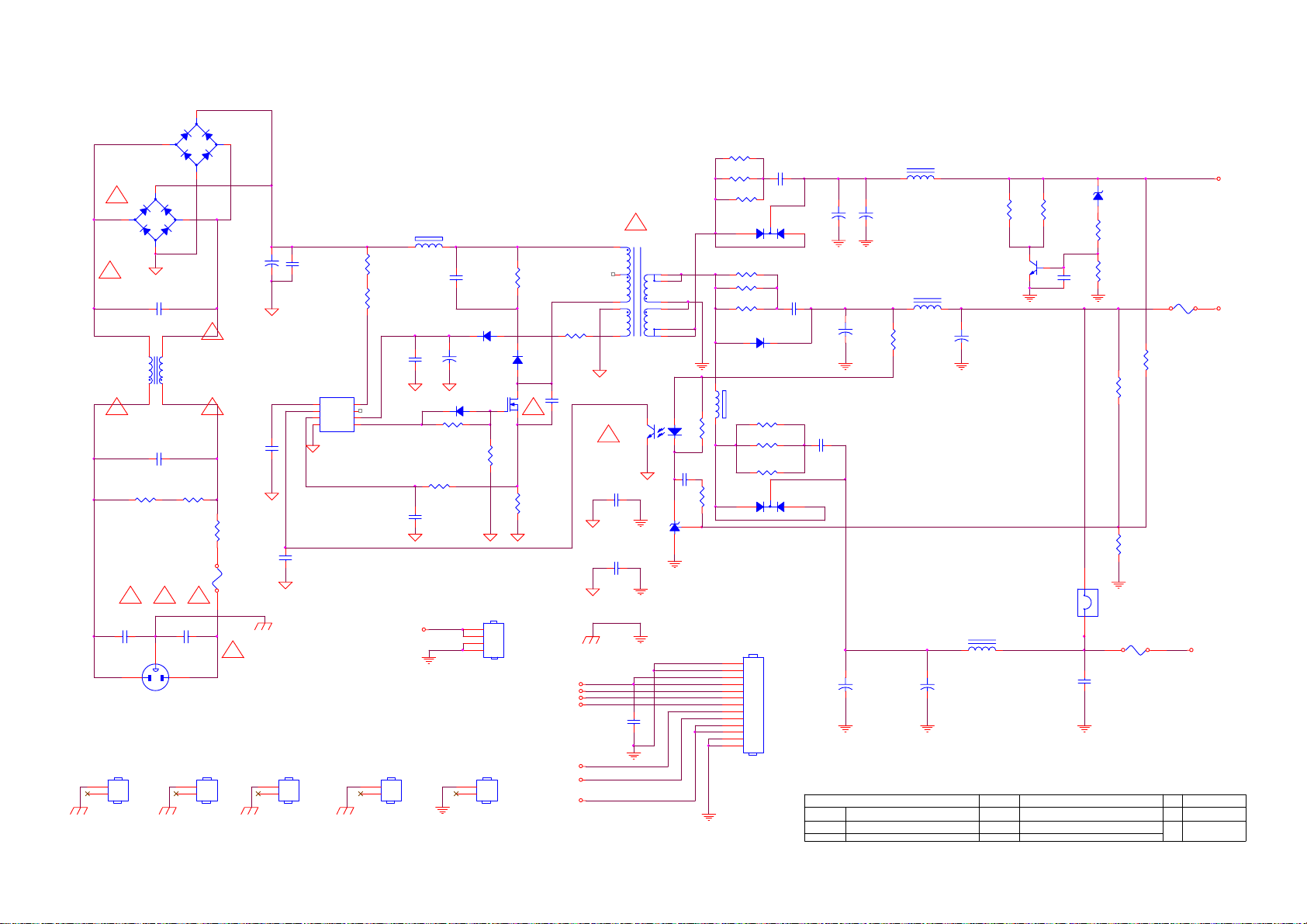

5.2 电源板

t

t

AC input

Lamp

EMI filter

Feedback
Circui

Bridge
Rectifier
and Filter

Start Resistor

(R904,R905)

PWM Control

(IC901)

Output

Circui

Transformer

(PT801)

Transformer

Power Switch

(Q901)

Photo coupler

(IC903)

(Q805, Q806)

PWM Control

TA9687GN

(IC801)



MOSFET

Rectifier
diodes

16V

5V

Feedback

Circuit

16V

ON/OFF

5V
DIM

PID

21

6. 线路图

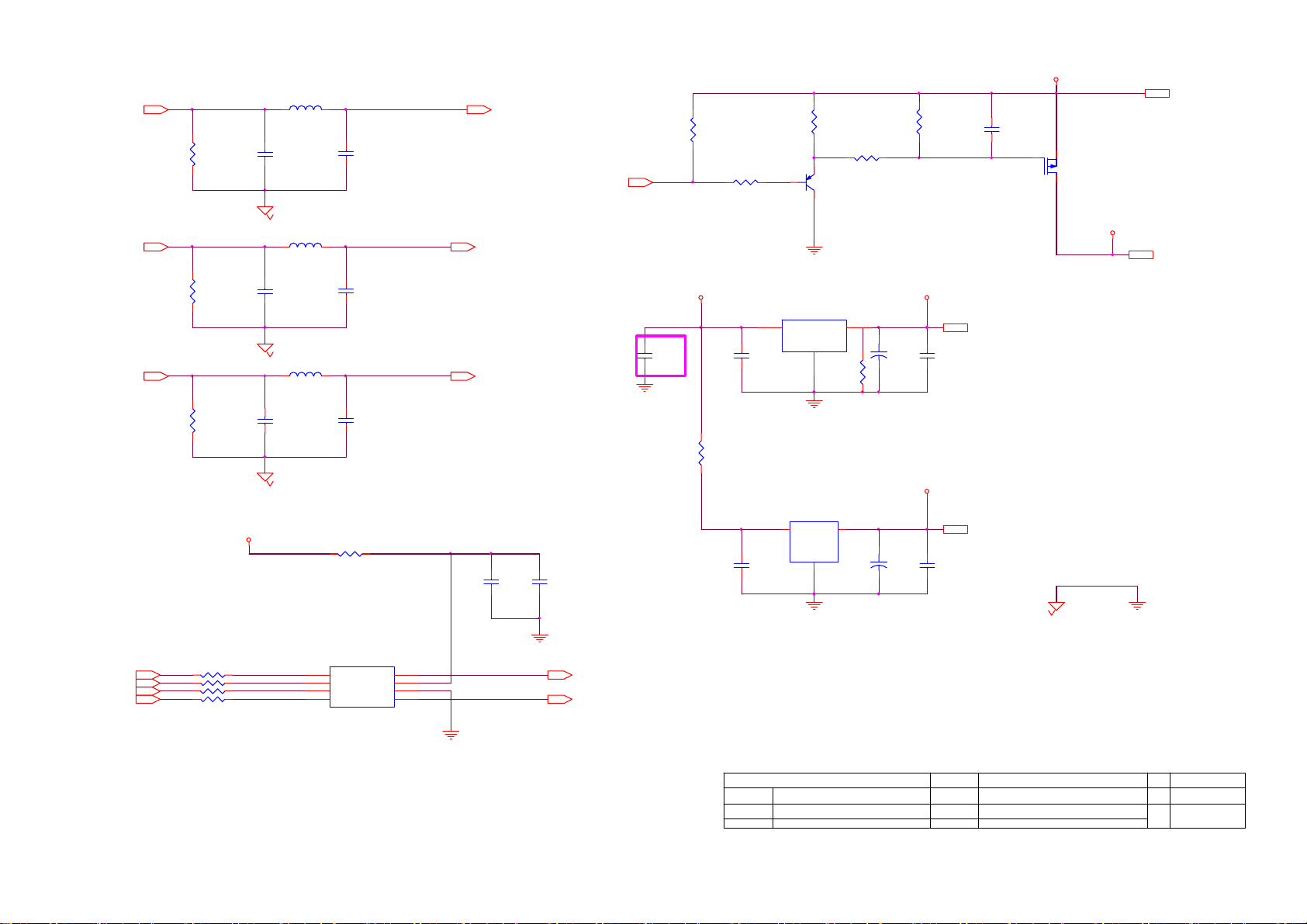

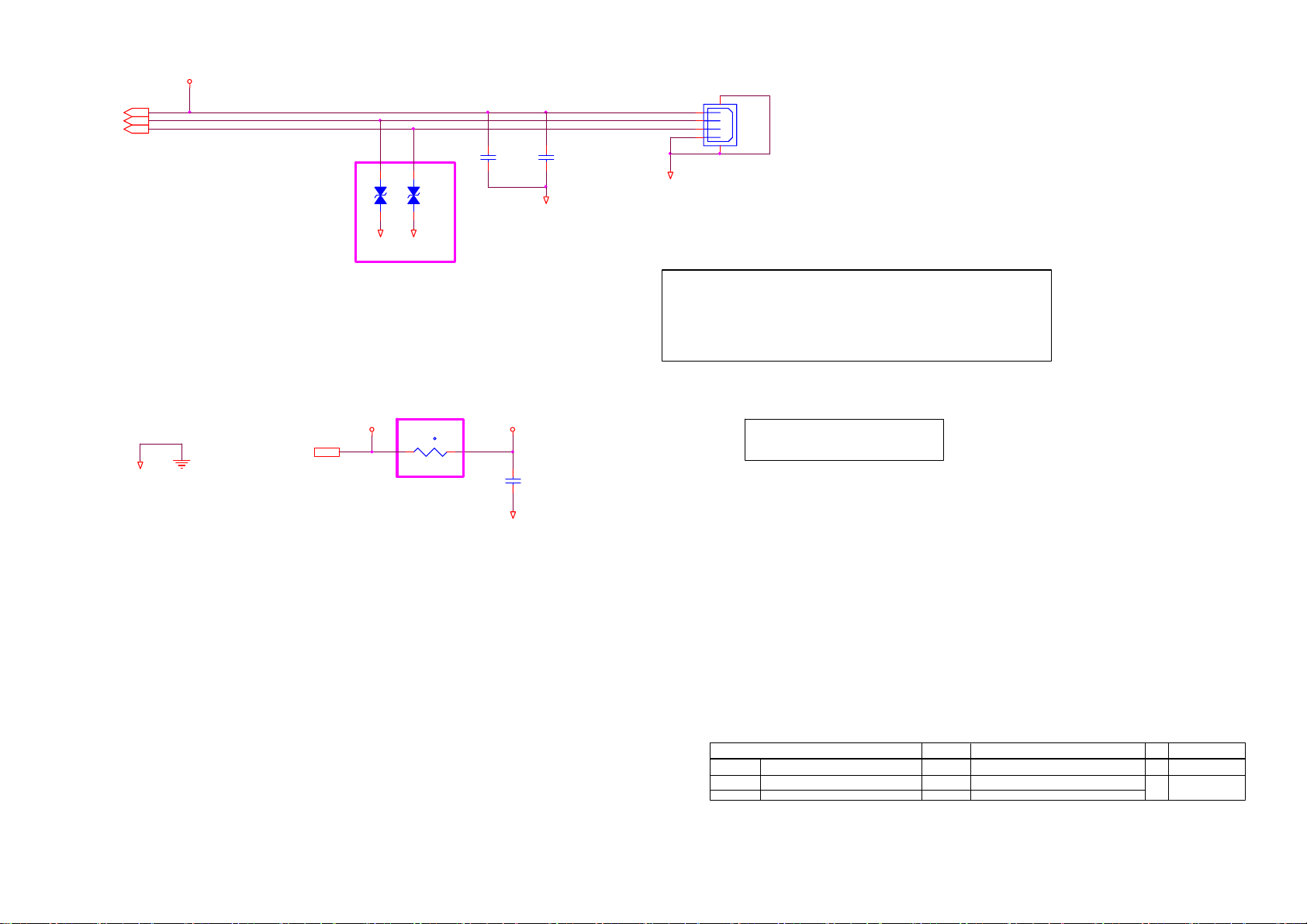

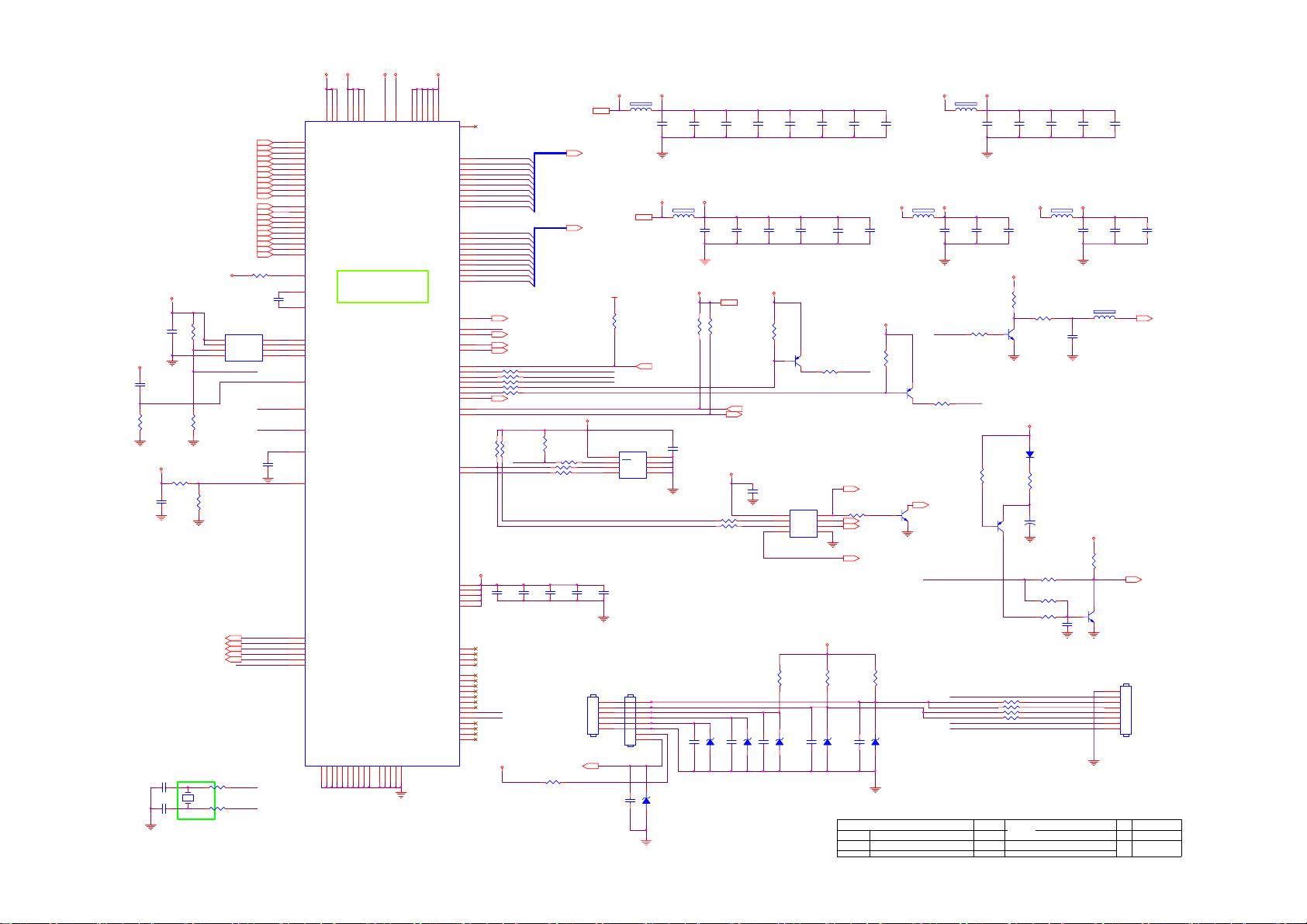

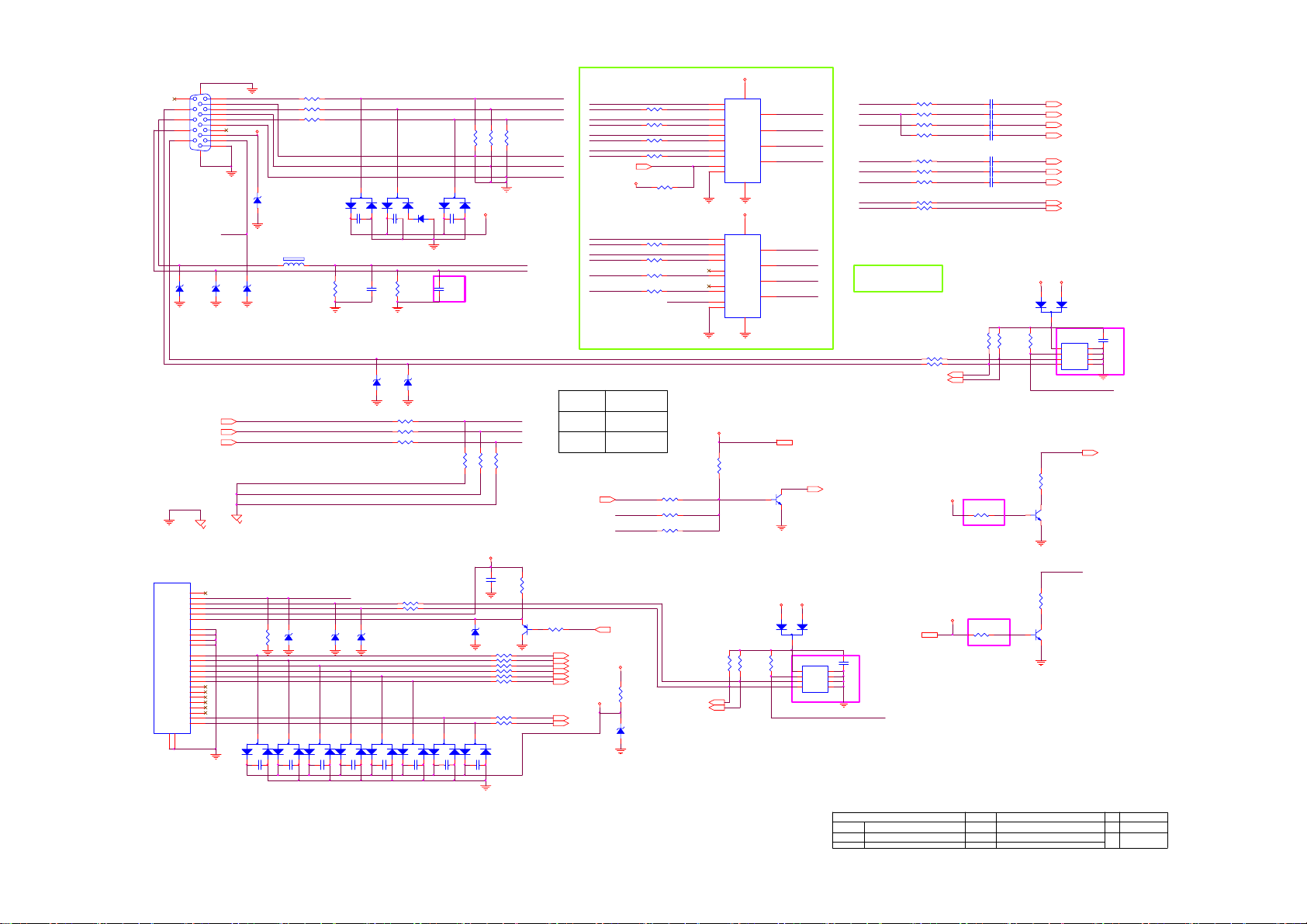

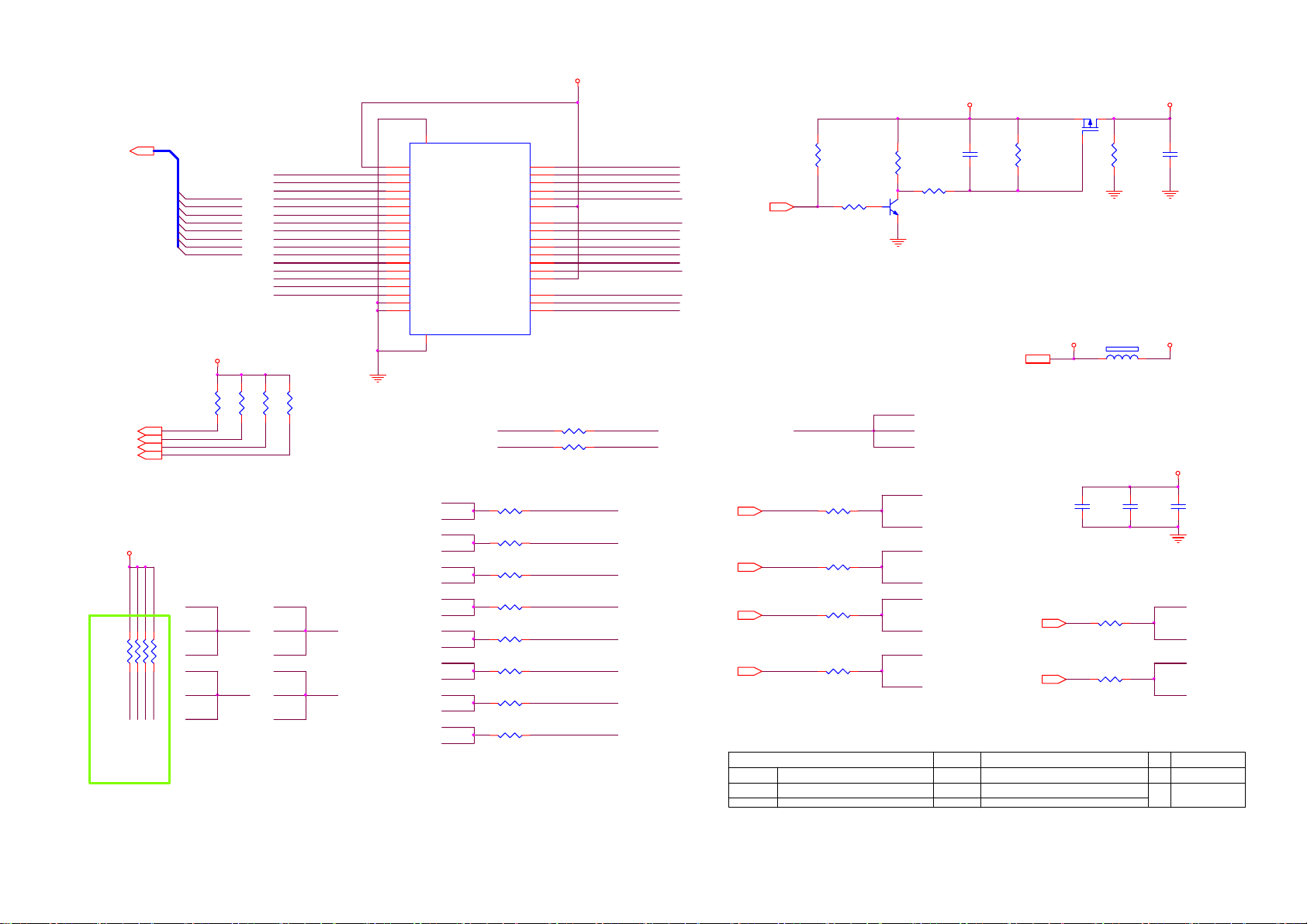

6.1 主板

715G2857 2

TSUMU58BWGJ SCHEMATIC

VLCD

VCC1.8

VCC3.3

+5V

+5V_AUD IO

+5V_USB

+5V_DPF

+5V_USB

+5V

HDMI1_+5V

HDMI1_+5V

+5V

VCC3.3

INPUT

+5V

HDMI1_+5V
DET_HDMI

DVI_SDA
DVI_SCL
RX0+
RX0­RX1+
RX1­RX2+
RX2­RXC+
RXC-

3.INPUT

HDMI INPUT

DVI_SDA
DVI_SCL
RX0+
RX0­RX1+
RX1­RX2+
RX2­RXC+

DET_HDMI

HDMI1_+5V

+5V

VCC3.3

6.HDMI INPUT

POWER

VLCD

VCC1.8

VCC3.3

+5V

+5V_AUD IO

+5V_USB

+5V_DPF

2.POWER

USB HUB

+5V_USB

8.USB HU B

DPF_Y

DPF_Pr

DPF_Pb

on_BACKLIGHT

Adj_BACKLIGHT

GNDR

GNDG

GNDB

HSYNC

VSYNC

DVI_HPD

DDCA_SCL
DDCA_SDA
DET_INPUT

on_DPF

DDC_WP

CEC_CTRL

HDMI_HPD
DDCD_SDA
DDCD_SCL

HDMI_SEL

DDC_WP

on_PANEL

SCALER

+5V

VCC3.3

VCC1.8

RIN
GNDR
GIN
GNDG
BIN
GNDB
SOG
HSYNC
VSYNC
DVI_HPD

DDCA_SCL
DDCA_SDA
DET_INPUT

CEC_CTRL

HDMI_HPD
DDCD_SDA
DDCD_SCL
R+
R­G+
G­B+
B­CLK+
CLK-

HDMI_SEL

on_PANEL

on_BACKLIGHT
adj_BACKLIGHT

+5V

VCC3.3

VCC1.8

PA[0..9]

PB[0..9]

SW0_AUOUT
SW1_AUOUT

AUMCKO

AUSCK
AUSDO

AUOUTLR

on_DPF

IR_DPF

PANEL INTERFACE

PA[0..9]

PA[0..9]

PB[0..9]

PB[0..9]

VLCD

VLCD

5.PANEL INTERF ACE

AUDIO

7.AUDIO

MUTE
VOL

SW0_AUOUT
SW1_AUOUT

AUMCKO
AUSCK
AUSDO
AUOUTLR

MUTE

VOL

DPF0
DPF1
DPF2

DPF AT API

13.DPF ATAPI

+5V_AUDIO

DPF_ML
DPF_MR

5IN_D[0. .7]

MS_I NS

SD/XD/SM_WP

XD/ S M_ R EA D Y

XD/ S M_ W E

XD/ S M_ R E
XD/ S M_ C E

CARD_EN
CARD_ALE
CARD_CLE

DAC_3.3V

SD_IN

XD_ I N

+5V_AUDIO

DAC_3.3V

5IN_D[0. .7]

DAC_3.3V

VCC1.2V

DPF0
DPF1
DPF2

IR_DPF

5IN_D[0. .7]
SD_IN
MS_IN S
XD_ I N
SD/XD/SM_WP
XD/ S M_ R E AD Y

XD/ S M_ W E
XD/ S M_ R E
XD/ S M_ C E
CARD_EN
CARD_ALE
CARD_CLE

DAC_3.3V

VCC1.2V

9.DPF DECODER

DPF_Y

on_DPF

DPF_Pr

DPF_Pb

DPF_ML

DPF_MR
AMCLK
ASCLK

ALRCLK

ADATA0/AL

G/Y/ Y

B/Cb/Pb

R/Cr/Pr

M1_D[0..15]

M1_D[0..15]

M1_A[0..11]

M1_A[0..11]

M1_DQM0
M1_DQM1

M1_BA1
M1_BA0
M1_C LK

M1_WE_N
M1_CAS_N
M1_RAS_N
M1_SCS0_N

F_nCS
F_nOE

RESET_N

DP1_DPF

VBUS1

DM1_DPF

AMCLK
ASCLK
ALRCLK
ADATA0/AL

G/Y/Y
B/Cb/Pb
R/Cr/Pr

11.DPF AV and POW ER

M1_D[0..15]
M1_A[0..11]
M1_DQM0
M1_DQM1
M1_BA1
M1_BA0
M1_CLK
M1_WE_N
M1_CAS_N
M1_RAS_N
M1_SCS0_N
F_nCS
F_nOE
RESET_N

10.DPF MEMORY

+5V_DPF

+5V_PF

DAC_3.3V

VCC1.2V

DAC_3.3V

+5V_DPF

+5V_PF

DAC_3.3V

VCC1.2V

DAC_3.3V

RIN

GIN

BIN

SOG

R+
R­G+

G-

B+

B-RXC­CLK+
CLK-

4.SCALER

22

+5V_PF

+5V_PF

12.DPF U SB PORT

VBUS1

DP1_DPF

DM1_DPF

on_Panel[5]

CN101

CONN

Q101

MMBT39 04

8
7
6
5

VCC3.3

VCC3.3

R101
10K 1/16W 5%

R103
10K 1/16W 5%

VLCD

C110

0.22uF

R102 1K 1/16W 5%

R105 22K 1/16W 5%

C104
NC/ 0.1uF 16V

VLCD [6]

Q102
NC/ AO3401

C112
10uF/10V

Q102=>NC/E

+5V

R111
10K 1/16W 5%

VCC3.3

R104
10K 1/16W 5%

Adj_BACKLI GHT [5]

on_BACKLI GHT [5]

100uF=>10uF

+5V

R108

3.3 OHM 2W

C114
10uF/ 10V

C108

0.1uF 16V

C116

0.1uF 16V

U101
NC/ AP1117D33LA

TO252

ADJ(GND)

VOUT

VIN

123

VOUTVIN

VSS

U102
AP1117E33LA

1

SOT223

U103
NC/AIC1117A-18PY

VOUTVIN

VSS

1

SOT223

U104
AZ1117D-1.8-E1

ADJ/GN D

OUTPU T

INPUT

123

TO252

OUTIN

GND

U105
NC/AIC1084-18PM

1

TO263

VCC3.3

23

+

C107
100uF/16V

23

VCC1.8

23

+

C115
100uF/16V

C109

0.1uF 16V

C117

0.1uF 16V

VCC3.3 [5,7]

VCC1.8 [5]

+5V

C102=>NC/D

+5V [4,5,7]

C101

0.1uF 16V

1
2
3
4
5
6
7
8
9
10

C105=>NC/D

C106

0.1uF 16V

C105
NC/10uF/10V

C102
NC/ 10uF/10V

FB101

1 2

120 OHM

FB102

1 2

120 OHM

FB103

1 2

120 OHM

DIM
ON/OF F

+5V_AUDI O

+5V_U SB

+5V_D PF

C103

0.1uF 16V

+5V_AUDI O [8]

+5V_U SB [ 9]

+5V_D PF [ 12]

ADD Q105/E

Q105

1

S1

D1

2

S1

D1

3

S1

D1

4

G1

D1

AO4403

R112=>NC/E

R112
NC/ 47K 1/16W 5%

C111
NC/ 0.1uF 16V

R107
10K 1/16W 5%

R110

22K 1/16W 5%

+5V

R106
10K 1/16W 5%

Q104
MMBT39 06

R109

56K 1/16W 5%

23

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2857-1-X-X-1-080513

03.POWER

Date

OEM MO DEL Size

TPV MO DEL

PCB NAME

AOC B

2230Fm E

715G2857-1

314Tuesday , May 20, 2008

Sheet

of

Rev

称爹

备注

JACK

CN402

SYNC GND

CN401

VSYNC

DDC SCL
DDC SDA

1/3shield
2/4shield
0/5shield
clk shield

DAT0+
DAT0­DAT1+
DAT1­DAT2+
DAT2­DAT3+
DAT3­DAT4+
DAT4­DAT5+
DAT5-

GND

26

25

1716

DB15

RED+

1

11

12

13

14

15

HSI
VSI

ZD402
RLZ5.6B

6
2
7
3
8
4
9
5
10

DET_VGA

ZD403
RLZ5.6B

RED­GREEN+
GREEN­BLUE+
BLUE-

PC5V
VGA_CON

ZD401
RLZ5.6B

PC5V

FB401 120 OHM

ZD404
RLZ5.6B

R535 0R05 1/8W

R536 0R05 1/8W

R537 0R05 1/8W

D401 BAV99

C408

2

0.1uF 16V

R421
2K2 1/16W 5%

VGA_RED+

VGA_GREEN+

VGA_BLUE+

R40975R 1/16W 5%

R41075R 1/16W 5%

R40875R 1/16W 5%

VGA_GREEN-

VGA_H
VGA_V

VGA_BLUE-

1

D414

LL4148

ZD406
RLZ5.6B

3

D403 BAV99

C410

2

0.1uF 16V

C413
22pF

ESD_5V

1

220P=>22P/E

3

3

D402 BAV99

C409

1

2

0.1uF 16V

C412

R422

22pF

2K2 1/16W 5%

ZD405
RLZ5.6B

Pb-

VGA_BLUE-

Pb

VGA_BLUE+

Y

VGA_GREEN+

Y-

VGA_GREEN-

on_DPF[5,12]

Pr­VGA_RED-

Pr
VGA_RED+

VGA_V

VGA_H

R401 20 OHM 1/16W

R403 20 OHM 1/16W

R405 20 OHM 1/16W

R492 20 OHM 1/16WVGA_RED-

DET_DPF

R497

+5V

10K 1/16W 5%

R493 20 OHM 1/16W

R494 20 OHM 1/16W

R495 20 OHM 1/16W

R496 20 OHM 1/16W

DET_DPF

Input

R49075R 1/16W 5%

R48975R 1/16W 5%

DVI5V

R436 10R 1/16W 5%
R437 10R 1/16W 5%
R438 10R 1/16W 5%
R439 10R 1/16W 5%
R440 10R 1/16W 5%
R441 10R 1/16W 5%

R443 10R 1/16W 5%
R444 10R 1/16W 5%

3

D413 BAV99

C424

1

2

0.1uF 16V

Y

Pb

R49175R 1/16W 5%

C415

0.1uF 16V

Q402

MMBT3906

Pr

R428
1K 1/16W 5%

R431 22K 1/16W 5%

ESD_5V

HI

LOW

DET_HDMI[7]

RX0+ [7]
RX0- [7]
RX1+ [7]
RX1- [7]
RX2+ [7]
RX2- [7]

RXC+ [7]
RXC- [7]

ESD_5V

VGA

DPF

DET_HDMI

DET_VGA

DET_DVI

DVI_HPD [5]

+5V

1K 1/16W 5%

R415 100R 1/16W 5%

R417 100R 1/16W 5%

R418 100R 1/16W 5%

R442

ZD411

RLZ5.6B

DVI_SDA[7]
DVI_SCL[7]

ZD408
RLZ5.6B

3

D409 BAV99

C420

2

0.1uF 16V

R486 0R05 1/16W

R487 0R05 1/16W

R488 0R05 1/16W

ZD409

RLZ5.6B

3

D410 BAV99

C421

1

1

2

0.1uF 16V

R429 100R 1/16W 5%
R430 100R 1/16W 5%

3

D411 BAV99

D412 BAV99

C422

1

2

2

0.1uF 16V

0.1uF 16V

3

C423

ZD410

RLZ5.6B

1

DPF_Pr[12]

DPF_Y[12]

DPF_Pb[12]

Pr-

Y-

Pb-

8
15
6

SCL_DVI

7

SDA_DVI

14

DVI5V

+5V

16

HPD

HPD

11
3
19
22

18
17
10
9
2
1
13
12
5
4
21
20
23

clk+

24

clk-

GND

NC/10K 1/16W 5%

DAT0+
DAT0­DAT1+
DAT1­DAT2+
DAT2-

DCLK+
DCLK-

D406 BAV99

2

R432

3

C417

0.1uF 16V

1

D407 BAV99

2

3

C418

0.1uF 16V

ZD407
RLZ5.6B

1

3

D408 BAV99

C419

2

0.1uF 16V

DET_DVI

1

U406

2

S1A

3

S2A

5

S1B

6

S2B

11

S1C

10

S2C

14

S1D

13

S2D

1

IN

15

/EN

PI5V330SQE

U407

2

S1A

3

S2A

5

S1B

6

S2B

11

S1C

10

S2C

14

S1D

13

S2D

1

IN

15

/EN

PI5V330SQE

+5V

R413
10K 1/16W 5%

+5V

168

VCCGND

DA

DB

DC

DD

+5V

168

VCCGND

DA

DB

DC

DD

R434 4K7 1/16W 5%

R433 4K7 1/16W 5%

4

7

9

12

4

7

9

12

+5V

2

R435 4K7 1/16W 5%

GNDB-

BIN+

GIN+

GNDG-

GNDR-

RIN+

VS

HS

+5V [3,5,7]

DDC_WP

DDC_WP [7]

Q401
MMBT3904

DVI5V

1

D405
BAV70

A-PLUS=>ST/E

3

U402
M24C02-WMN6TP

8

A0

VCC

7

A1

WP

6

A2

SCL

VSSSDA

56G 634 2 -->
56G 634 2 1

SCL_VGA
SDA_VGA

C416

0.22uF

1
2
3
45

DDC_WP

RIN+

GIN+

BIN+

GNDR-

GNDG-

GNDB-

HS
VS

R402 33R 1/16W 5%

R404 33R 1/16W 5%

R406 33R 1/16W 5%

R407 470R 1/16W 5%

R411 75R 1/16W 5%

R412 75R 1/16W 5%

R414 75R 1/16W 5%

R419 1K 1/16W 5%
R420 1K 1/16W 5%

R426 100R 1/16W 5%
R427 100R 1/16W 5%

DDCA_SDA[5]
DDCA_SCL[5]

HDMI1_+5V[7]

C401 0.047uF

C402 0.047uF

C403 0.047uF

C404 1000pF

C405 0.047uF

C406 0.047uF

C407 0.047uF

22K=>150K/E

DVI5V

R481 150K OHM 1/16W 5%

22K=>150K/E

HDMI1_+5V

R526 150K OHM 1/16W 5%

RIN [5]

GIN [5]

BIN [5]

SOG [5]

GNDR [5]

GNDG [5]

GNDB [ 5]

HSYNC [5]
VSYNC [ 5]

PC5V

+5V

1

2

D404
BAV70

A-PLUS=>ST/E

3

U401

C414

M24C02-WMN6TP

0.22uF

1

R425 4K7 1/16W 5%

8

VCC

7

WP

6

SCL

DET_INPUT

R453
2K OHM 1/16W

Q407
MMBT3904

DET_INPUT

R525
1K 1/16W 5%

Q408
MMBT3904

VSSSDA

A0
A1
A2

DDC_WP

2
3
45

DET_INPUT [5]

R424 4K7 1/16W 5%

R423 4K7 1/16W 5%

24

T P V ( Top Victory Electronics Co . , Ltd. )

G2857-1-X-X-1-080513

絬 隔 瓜 絪 腹

Key Component

04.INPUT

Date

OEM MOD EL S ize

AOC C

TPV MOD EL

2230Fm E

PCB NAME

715G2857-1

Sheet

414Tuesday, May 20, 2008

of

Rev

备注

称爹

+5V

VCC3.3

C459

0.22uF

C460
10uF/10V

R458

10K 1/16W 5%

VDDP_33

R467 NC

AVDD_33

R452

NC

R459

10K 1/16W 5%

C462

R468

0.1uF 16V

10K 1/16W 5%

AUMCKO[8]

AUOUTLR[8]

AUSCK[8]
AUSDO[8]

SW0_AUOUT[8]

93G 22 53 H

C474
47pF

X401

14.31818MHz
C475
47pF

RIN[4]

GNDR[4]

GIN[4]

GNDG[4]

SOG[4]

BIN[4]

GNDB[4]
HSYNC[4]
VSYNC[4]
DDCA_SDA[4]
DDCA_SCL[4]

B+[7]
B-[7]
G+[7]
G-[7]
R+[7]
R-[7]

CLK+[7]

CLK-[7]
DDCD_SDA[7]
DDCD_SCL[7]

R449
390 OHM 1/16W

0.1uF 16V

U404

8

SDO

VDD

7

CE#

HOLD#

3

WP#

SCK

4 5

VSS SDI

MX25L2025MC-12G

WP

AUDIO_MU TE

XIN

R478
0R05 1/16W

XOU T

R479
0R05 1/16W

FB402

1 2

120 OHM

VCC1.8[3]

R538

3.9K OHM 1/16W

U405

8

VCC

NC

7

E1

WC

6

E2

SCL

VSSSD A

M24C04-WMN6TP

CN403

1
2
3
4
5
6
7
8

CONN

IR_DPF

C481

VDDP_33

C425
10uF/10V

VCC1.8

1 2

DET_INPUT [4]

1
2
3
45

ZD417
NC/RLZ5.6B

FB404

120 OHM

C463

0.22uF

0.1uF 16V

C433

0.1uF 16V

VDDC_18

C441
10uF/10V

+5V

R454

R455

10K 1/16W 5%

10K 1/16W 5%

R539 100R 1/16W 5%
R540 100R 1/ 16W 5%

KEY1
KEY2
POWER
LED_G
LED_A

C469

+5V

ZD412 RLZ 5.6B

C470

0.1uF 16V

C434

0.1uF 16V

C442

0.1uF 16V

+5V [3,4, 7]

C435

0.1uF 16V

HDMI_HPD [7]
DVI_HPD [4]

C411

0.1uF 16V

ZD413 RLZ 5.6B

C471

0.1uF 16V

C443

0.1uF 16V

+5V

R456

10K 1/16W 5%

C436

0.1uF 16V

C444

0.1uF 16V

Q405
MMBT3906

U408

8

PO

VCC

7

P1

SDA

6

P2

SCL

VSSP3

PCA9536DGKR

R475

3.9K OHM 1/16W

ZD414 RLZ 5.6B

C472

0.1uF 16V

C438

C437

0.1uF 16V

0.1uF 16V

C446

C445

0.1uF 16V

0.1uF 16V

+5V

LED_G

R457

120R 1/16W 5%

on_DPF [4,12]

R498 22K 1/16W 5%

1
2

DPF0 [8]

3

DPF1 [4,12]

45

DPF2 [4,12]

VCC3.3

R476

3.9K OHM 1/16W

R477

3.9K OHM 1/16W

ZD415 RLZ 5.6B

C473

0.1uF 16V

T P V ( Top Victory Electronics Co . , Ltd. )

G2857-1-X-X-1-080513

絬 隔 瓜 絪 腹

Key Component

05.SCALER TSUMO58GDJ-LF

Date

C439

0.1uF 16V

VCC1.8

R460

10K 1/16W 5%

ZD416 RLZ 5.6B

FB405

1 2

120 OHM

Q406
MMBT390 6

200 OHM 1/16W

Q410
MMBT390 4

VCC3.3

R461

SW1_AUOUT [8]

AUDIO_MUTE

AVDD_33

FB403

1 2

120 OHM

C426

C427

10uF/10V

0.1uF 16V

AVDD_18

C449

C448

0.1uF 16V

0.1uF 16V

+5V

R445
1K 1/16W 5%

R450

Q403
MMBT3904

+5V

R532
4K7 1/16W 5%

Q409
MMBT3906

R482 NC
R483 NC
R484 NC
R485 NC

OEM MOD EL Size

AOC C

TPV MOD EL

2230Fm E

PCB NAME

715G2857-1

Sheet

of

514Tuesday , May 20, 2008

Volume

C447
10uF/10V

POWER

LED_A
LED_G

4K7 1/16W 5%

LED_A

C428

0.1uF 16V

FB406

VCC3.3

1 2

120 OHM

R447

1K 1/16W 5%

D415
LL4148

R533
1K 1/16W 5%

+

C479
100uF/16V

R448
1K 1/16W 5%

R451

NC/1K 1/16W 5%

R531

1K 1/16W 5%

C480

0.1uF 16V

KEY_LEF T
KEY_RI GHT
KEY_AUTO

AUPLL_33

C453
10uF/10V

C429

0.1uF 16V

C450
10uF/10V

FB408

120 OHM

+5V

R446
10K 1/16W 5%

Q404
MMBT390 4

C430

0.1uF 16V

C451

0.1uF 16V

CN404

8
7
6
5
4
3
2
1

NC/CONN

Rev

称爹

备注

C452

0.1uF 16V

MUTE [8]

VOL [8]

AVDD_33

U403

28

RIN0P

27

RIN0M

25

GIN0P

24

GIN0M

26

SOGIN0

23

BIN0P

22

BIN0M

32

HSYNC0

33

VSYNC0

34

DDCA_SDA/RS232_TX

35

DDCA_SCL/rs232_RX

9

RX2P

10

RX2N

12

RX1P

13

RX1N

15

RX0P

16

RX0N

18

RXCKP

19

RXCKN

5

DDCD_SDA

6

DDCD_SCL

7

REXT

31

REFP

C456

30

REFM

41

2

SDO

42

1

SCZ

43

6

SCK

44

SDI

108

RST

128

XIN

XIN

127

XOU T

XOU T

102

BYPASS

C461

0.1uF 16V

37

MODE

45

MCKO

46

AUOUTLR

47

AUSCK

48

AUSDO

49

AUMUTE

50

SPDIFO

1

VDDC_18

8

104

14

53

74

20

VDDC

VDDC

VDDC

AVDD_ADC33

AVDD_ADC33

AVDD_ADC33

TSUMO58GDJ-LF

GND

GND

GND

GND

GND

GND

GND

GND

11

172952

7288101

AVDD_18

126

VDDC

GND

106

105

21

AVDD_ADC18

GND

GND

GND

62

AUPLL_33

58

GND

686963

AVDD_MEMPLL

GND

GND

113

87

107

40

59

54

VDDP

VDDP

VDDP

VDDP

GPIO_P14/PWM0

GPIO_P22/PWM1
GPIO_P24/PWM2

GPIO_P25/PWM3

GPIO_P00/SAR0
GPIO_P01/SAR1
GPIO_P02/SAR2
GPIO_P03/SAR3

GPIO_P13/PWM2

GPIO_P26/PWM0
GPIO_P27/PWM1

VDDP_33

112

VCTRL

VDDP

VDDP

LVA3P

LVA3M
LVACKP
LVACKM

LVA2P

LVA2M

LVA1P

LVA1M

LVA0P

LVA0M

LVB3P

LVB3M
LVBCKP
LVBCKM

LVB2P

LVB2M

LVB1P

LVB1M

LVB0P

LVB0M

GPIO_P04

GPIO_P06
GPIO_P07

GPIO_P15
GPIO_P16

I2C_MCL
I2C_MDA

VDDP
VDDP
VDDP
VDDP
VDDP

GPO_P42
GPO_P43

10K 1/16W 5%

NC
NC

NC
NC
NC
NC
NC
NC
NC

NC
NC
NC
NC

103

PA0

77

PA1

78
79

PA2

80

PA3
PA4

81

PA5

82

PA6

83
84

PA7
PA8

85
86

PA9

91

PB0
PB1

92

PB2

93
94

PB3
PB4

95

PB5

96

PB6

97

PB7

98
99

PB8
PB9

100

2

Volume

36
51

73
109

119
120
121
122
123
124
125

3
4

R470

39
38

VDDP_33

60
65
66
71
114

0.1uF 16V

75
76
89
90

55
57
56
61
64
67
70

EE_WP

110
111

WP

115
116
117
118

PA[0..9]

PB[0..9]

CEC_CTRL [7]

HDMI_SEL [7]

on_PANEL [3]
on_BACKLIGHT [3]

R462 100R 1/16W 5%
R463 100R 1/16W 5%
R464 100R 1/16W 5%
R465 4K7 1/ 16W 5%
R466 4K7 1/16W 5%

Adj_BACKLIGHT [3]

R471
10K 1/16W 5%

EE_WP

C464

C465

0.1uF 16V

0.1uF 16V

VCC3.3

R499 0R05 1/16W

VCC3.3[3,7]

PA[0..9 ] [6]

PB[0..9 ] [6]

DET_INPUT

KEY1
KEY2
POWER

VCC3.3

R469
10K 1/16W 5%

R472 100R 1/16W 5%
R473 100R 1/16W 5%
R474 100R 1/16W 5%

C467

C466

IR_DPF[10]

0.1uF 16V

0.1uF 16V

CN406

NC/CONN

C468

1
2
3
4
5
6

VCC3.3

VCC3.3

NC/100pF

25

CN405

FB407

120 OHM

PA[0..9]

PB[0..9]

VLCD [3]

PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PA8
PA9

PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9

LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M

LVB3P
LVB3M
LVBCKP
LVBCKM
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M

LVB0M
LVB0P
LVB1M
LVB1P
LVB2M
LVB2P

LVBCKM
LVBCKP
LVB3M
LVB3P
LVA0M
LVA0P

LVA1M
LVA1P

LVA2M
LVA2P
LVACKM
LVACKP
LVA3M
LVA3P

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+

RXOC­RXOC+
RXO3­RXO3+
RXE0­RXE0+

RXE1­RXE1+

RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

PA[0..9][5]

PB[0..9][5]

VLCD

1 2

+

C476
22uF/50V

150R=>220R/E

R480
220 OHM 1/4W

R534
220 OHM 1/4W

C477

0.1uF 16V

T P V ( Top Victory Electronic s Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G2857-1-X-X-1-080513

07.PANEL INTERFACE

26

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

AOC A

2230Fm E

715G2857-1

of

614Tuesday , May 20, 2008

Rev

称爹

备注

CN501

HDMI

20

SHELL1

22

SHELL3

CE Remote

DDC DATA

23

SHELL4

21

SHELL2

+5V[3,4,5]

HDMI_D0­HDMI_D0+
HDMI_D1­HDMI_D1+

HDMI_D2­HDMI_D2+
HDMI_CK+
HDMI_CK-

D2+

D2 Shield

D2-

D1+

D1 Shield

D1-

D0+

D0 Shield

D0-

CK+

CK Shield

CK-

DDC CLK

GND

+5V

HP DET

+5V

1
2
3
4
5
6
7
8
9
10
11
12
13
14

NC

15
16
17
18
19

D504

LL4148

R510 0R05 1/ 16W
R511 0R05 1/ 16W
R512 0R05 1/ 16W
R513 0R05 1/ 16W

R514 0R05 1/ 16W
R515 0R05 1/ 16W
R516 0R05 1/ 16W
R517 0R05 1/ 16W

HDMI_D2+

HDMI_D2­HDMI_D1+

HDMI_D1­HDMI_D0+

HDMI_D0­HDMI_CK+

HDMI_CK-

CE R

HDMI_SCL
HDMI_SDA

HDMI1_+5V

HDMI_HOTPLUG

C502

0.1uF 16V

D505

LL4148

HDMI1_SC L
HDMI1_SD A

NC R286 1K 1/16W 5%

ZD504
RLZ5.6B

U501

1

1D2+

2

1D2-

3

1D1+

4

1D1-

5

GND

6

1D0+

7

1D0-

8

1CLK+

9

1CLK-

10

GND

21

CEC1

22

SCL1

23

SDA1

24

HPD1

CEC

HDMI1_+5V [ 4]

C503
10uF/10V

C504

0.1uF 16V

Vcc3
Vcc3

D2+

D2-

GND

D1+

D1-

GND

D0+

D0-

GND

CLK+

CLK­GND

56
55
54
53
52
51
50
49
48
47
46
45
44
43

B+ [5]
B- [5]

G+ [5]
G- [5]

R+ [5]
R- [5]

CLK+ [5]
CLK- [5]

D501

RClam p0524P.TCT

1
2

4
5 6

D502

RClamp0524P.TCT

1
2

4
5 6

R518
10K 1/16W 5%

OUT1

IN1

OUT2

IN2

IN3

OUT3

IN4 OUT4

GND

GND

3

8

OUT1

IN1

OUT2

IN2

IN3

OUT3

IN4 OUT4

GND

GND

3

8

+5V

NC Q502
2N7002K

C505

0.1uF 16V

10
9

7

10
9

7

HDMI_D1+
HDMI_D1-

HDMI_D0+
HDMI_D0-

HDMI_CK­HDMI_CK+

HDMI_D2+
HDMI_D2-

VCC3. 3

NC R521
27K 1/16W 5%

HDMI1_+5V

HDMI_HOTPLUG

R506 100R 1/ 16W 5%
R507 100R 1/ 16W 5%

VCC3.3 [3,5]

NC R522

0R05 1/ 16W

R501
1K 1/16W 5%

Q501
MMBT3904

HDMI1_SDA
HDMI1_SCL

CEC_CTRL [5]

+5V

R519
10K 1/16W 5%

Q503
MMBT39 04

HDMI1_+5V

R503 4K7 1/16W 5%

R502 4K7 1/16W 5%

R509

22K 1/16W 5%

R504 4K7 1/16W 5%

D503

BAT54C

2

3

A-PLUS=>ST/E

CEC

HDMI_SCL

+5V

1

U502
M24C 02- WMN 6TP

8

A0

VCC

7

A1

WP

6

A2

SCL

VSSSD A

+5V

5

6

I/O4

VDD

I/O1

GND

123 4

HDMI_HPD [5]

+5V [3,4,5]

1
2
3
45

DDC_WP [4]

HDMI_HOTPLUG

U503
AZC099-0 4S

I/O2 I/O3

HDMI_SDA

C501

0.22uF

RX0-[4]
RX0+[4]
RX1-[4]
RX1+[4]

RX2-[4]
RX2+[4]

RXC+[4]

RXC-[4] DDCD_SDA [5]

DVI_SCL[4]
DVI_SDA[4]

DVI_SCL
DVI_SDA

11

2D2+

12

2D2-

13

2D1+

14

2D1-

15

GND

16

2D0+

17

2D0-

18

2CLK+

19

2CLK-

20

Vcc3

25

CEC2

26

SCL2

27

SDA2

28 29

HPD2 VDDC

FSHDMI08MTDX

/OE_TMDS

S_TMDS

Vcc3
Vcc3
GND

DGND

CEC

SCL
SDA
HPD

S_DDC

/OE_DDC

DGND

42
41
40
39
38
37
36
35
34
33
32
31
30

R520
10K 1/16W 5%

DDCD_SCL [5]

HDMI_SEL [ 5]

HDMI_SEL

HI

LOW

HDMI1_+5V

OUTPUT

DVI

22K=>150K/E

R524 150K OHM 1/16W 5%

HDMI

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2857-1-X-X-1-080513

07.HDMI INPUT

Date

OEM MODEL Size

TPV MO DEL

PCB NAME

+5V

R523
NC/ 10K 1/16W 5%

DET_HDMI

Q504
MMBT3904

AOC B

2230Fm E

715G2857-1

Sheet

of

714Tuesday , May 20, 2008

DET_HDMI [4]

Rev

称爹

备注

27

AUOUTLR[5]

AULIN

AUSCK[5]
AUSDO[5]

AUMCKO[5]

C627
1uF 10V

MUTE

AUSCK
AUSDO
AUOUTLR
AUMCKO

HI

LOW

AURIN

C626
1uF 10V

MUTE[5]

R622 0R05 1/16W

R623 0R05 1/16W

VOL[5]

R628

NC/ 10K 1/16W 5%

AUGND

R601 22R 1/16W 5%
R605 22R 1/16W 5%
R606 22R 1/16W 5%
R608 22R 1/16W 5%

AUDIO ON

AUDIO OFF

SE

C630

C603

1uF 10V

1uF 10V

AUGND

AUGND

1 2

AUGND

C609

C608

22pF

22pF

+5V_AUDI O[3]

U603

1

SHUTDOWN

2

BYPASS

3

RIN-

4

GND

5

GND

6

LIN-

7

VOLUME

8 9

SE/BTL

APA2069JITUL

FB602

120 OHM

AUGND

C610

22pF

DPF_ML[12]

DPF_MR[12]

C611

22pF

ROUT-

VDD

ROUT+

GND
GND

LOUT+

VDD

LOUT-

1 2

I2S_SCK
I2S_SD0
I2S_LR
I2S_MCK

R613

16
15
14
13
12
11
10

FB603

120 OHM

R615

R614

10K 1/16W 5%

10K 1/16W 5%

C631 10uF/ 10V

C632 10uF/ 10V

+5V_AUDI O

BCK
DATA
LRCK

SCK

FMT
MUTE
DEMP

PCM1754DBQR

4

AUGND

6

DGND

9

1
2
3

16

15
14
13

10K 1/16W 5%

+5V_AUDI O

U601

470uF=>100uF/E

+

AUGND

AUGND

C624
100uF/16V

OUT-R+

OUT-R-

OUT-L-

OUT-L+

C625

0.1uF 16V

FB604

1 2

120 OHM

VCC

VOUTR

ZEROA

AGND

R640
7K5 1/16W 5%
R641
7K5 1/16W 5%

VOUTL

TEST

VCOM

AUGND

NC

C601

0.1uF 16V

7

8

12
11

10
5

R64233K 1/16W 5%

10
11
12
13
14

AUGND

0.1uF 16V

C6331000pF

AUGND

CN602

PHONEJ ACK

C602
10uF/10V

C604 10uF/10V

C606 10uF/10V

C615

C616 1uF 10V

C617 1uF 10V

R64333K 1/16W 5%

C6341000pF

R634

100K 1/16W 5%

2
3
5
4
1
6
7
9
8

R604
7K5 1/16W 5%

7K5 1/16W 5%

C614
10uF/10V

PFIN L

PFIN R

+5V_AUDI O

R635 750R OHM 1/16W 5%
R636 100K 1/16W 5%

R637 750R OHM 1/16W 5%

AUGND

R618

NC/ 10K 1/16W 5%

R626NC/10K 1/ 16W 5%

AUGND

C605 1uF 10V

C607 1uF 10V

C6121000pF

AUGND

CN601

NC/ PHONEJAC K

L

R

G2857-1-X-X-1-080513

08.AUDIO

R61233K 1/16W 5%

C6131000pF

4
5
3
2
1

25V=>10V/E

EOUTL
SE

EOUTR

R61133K 1/16W 5%

+5V_AUDIO

R619

NC/ 10K 1/16W 5%

R627NC/10K 1/ 16W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

SW1_AUOUT[5]
SW0_AUOUT[5]

R

L

AUGND

+5V_AUDIO

R602

R609NC/ 10K 1/16W 5%

+

C628
220uF 10V

1K 1/16W 5%

AUGND

U602

INL

12

R61710K 1/16W 5%

C6221000pF

of

CN603
CONN

1Y0

1

2Y0

14

1Y1

5

2Y1

15

1Y2

2

2Y2

11

1Y3

4

2Y3

C618 1uF 10V

C619 1uF 10V

R63333K 1/16W 5%

C6231000pF

74HC4052D

S1

0

0

1

1

R603

HINL

NC/ 10K 1/16W 5%

NC/ 10K 1/16W 5%

HINR

R610NC/ 10K 1/16W 5%

R624
7K5 1/16W 5%

R625
7K5 1/16W 5%

OUT-L+
OUT-L-

OUT-R+
OUT-R-

EOUTR

R638

AUGND

OEM MO DEL Size

TPV MODEL

PCB NAME

INR

HINL

HINR

PFIN L

PFIN R

+5V_AUDI O

R61610K 1/16W 5%

R63233K 1/16W 5%

AUGND

4
3
2
1

+

C629
220uF 10V

EOUTL

R639

1K 1/16W 5%

AOC B

2230Fm E

715G2857-1

Sheet

814Tuesday, May 20, 2008

INR

INL

VCC

VEE

GND

1Z

2Z

S0

S1

/E

16

7

8

13

3

10

9

6

R620

R630NC /10K 1/16W 5%

AUGND

S0

0

1

0

1

0.1uF 16V

+5V_AUDI O

NC/ 10K 1/16W 5%

C620

AULINR607

AURIN

R621

NC/ 10K 1/16W 5%

R631NC /10K 1/16W 5%

Rev

称爹

+5V_AUDI O

AUGND

Y0

Y1

Y2

Y3

备注

C621
10uF/10V

28

GND_U

R728
100K 1/16W 5%

R716
NC/100K 1/ 16W 5%

GND_U

1M 1/16W 5%

GND_U

R701

100K 1/16W 5%

C701
1uF 10V

/OCS1

/OCS2

+3.3V_ USB

GND_U

C708 18pF

R724

C713 18pF

R704
100K 1/16W 5%

GND_U

R717
100K 1/16W 5%

C705

0.1uF 16V

GND_U

12

GND_U

U701 USB2512-AEZG

27

Ups tr ea m

VBUS_DET

Dow n st rea m 1

13

OCS1

Dow n st rea m 2

17

OCS2

Dow n st rea m 3

19

NC

Dow n st rea m 4

21

NC

EEPROM/ C on f i g

SDA/SMBDATA/N ON_REM1

26

RESET

28

LOCAL_PWR/ NON_REM0/SUSP_I ND

11

TEST

33

XTAL 1 / C LK I N

X70 1
NXS24.000AC18F

32

XTAL2/C LKIN_EN

37

VSS(FLAG)

USBUP_D M

USBUP_DP

USBDN 1_DM

USBDN1_D P

PRTPWR1

USBDN 2_DM

USBDN2_D P

PRTPWR2

SCL/SMBCLK/ CFG_SEL0

HS_IND /CFG_SEL1

Commo n

RBIAS

VDD33

VDD33CR

VDDA33
VDDA33
VDDA33

VDDA33/VDD33PLL

VDD18

VDDA18PLL

30

31

1

2

12

3

4

16

6

NC

7

NC

18

NC

8

NC

9

NC

20

NC

22
24
25

35

23

15

5
10
29
36

14

34

DM1

DP1

DM2

+3.3V_ USB

DP2

R706 NC

+3.3V_ USB

R710 NC

R721
12K 1/10W 1%

GND_U

C709

0.1uF 16V

GND_U

GND_U

C715

4.7UF 10V

GND_U

GND_U

C719

4.7UF 10V

GND_U GND_U

R727

R718

GND_U

C710

0.1uF 16V

C714

0.1uF 16V

C718

0.1uF 16V

R702 0R05 1/16W

L701 N C

1

2

DM0

DP0

R703 0R05 1/16W

+5V_U SB

12

R708

R709

GND_U

DM1

DP1

DM2

DP2

R725

10K 1/16W 5%

/OCS2

R726

15K 1/16W 5%

t

R712 0R05 1/16W

R715 0R05 1/16W

R722 0R05 1/16W

R723 0R05 1/16W

+5V_US B

12

GND_U

R707 NC

10K 1/16W 5%

/OCS1

R711 NC

+3.3V_ USB

GND_U

GND_U

GND_U

C704

0.1uF 16V

C712

0.1uF 16V

U702
NC/ AF24BC02-SI

8

VCC

7

WP

6

SCL

VSSSDA

GND_U

A0
A1
A2

C707

0.1uF 16V

1
2
3
45

GND_U

+3.3 V_US B

FB703

120 OHM

1 2

C706
10uF/10V

NC/10K 1/ 16W 5%

100K 1/16W 5%

R714

R713

NC/10K 1/ 16W 5%

NC/10K 1/ 16W 5%

R719

R720

100K 1/16W 5%

GND_U

GND_U

C711

0.1uF 16V

100K 1/16W 5%

GND_U

C724

0.1uF 16V

GND_U GND_U

15K 1/16W 5%

3

F701
PTCR

GND_U

L702 N C

2

3

L703 N C

2

3

F702
PTCR

t

GND_U

4

FB701 120 OHM

1 2

+

C702
100uF/16V

1

4

1

4

FB702 120 OHM

1 2

+

C716
100uF/16V

ZD701 NC

GND_U

ZD703 NC

ZD705 NC

GND_U

1 2

C703

0.1uF 16V

1 2

1 2

ZD702 NC

ZD704 NC

ZD706 NC

C717

0.1uF 16V

1 2

1 2

1 2

GND_U

1
2
3
4

CN701

CONN

12

11

34

21

6 5

4

657

8

123

1234

10

CN702
CONNNECTOR

5678

9

+5V_US B[3]

100uf/16V=>NC/D

+5V_US B

GND_U

C723
NC/10uF /10V

GND_U

C722

0.1uF 16V

U703

GND_U

VOUTVI N

VSS

AP1117E33LA

1

+3.3V_ USB

23

+

C720
100uF/16V

GND_U GND_U

C721

0.1uF 16V

29

T P V ( Top Victory Electronics Co . , Ltd. )

G2857-1-X-X-1-080513

絬 隔 瓜 絪 腹

Key Component

09.USB HU B USB2512

Date

OEM MOD EL Si ze

AOC Custom

TPV MOD EL

2230Fm E

PCB NAME

715G2857-1
914Tuesday, May 20, 2008

Sheet

of

Rev

备注

称爹

5IN_D[ 0..7][ 14]

CARD_EN[14]

R209

1M 1/16W 5%

X201

12

27.000MHz

C221
5pF/50V

10pF=>5pF/D

Core3.3V

R213
10K 1/16W 5%

Core3.3V

NC CN201

1
2
3
4
5
6

CONN

DGND

DAC_3.3V[11,12, 14]

C222
5pF/50V

TEST_N

NC R214

4K7 1/16W 5%

R210
0R05 1/16W

DAC_3.3V

F_nCS[11]
F_nOE[11]

NC R215

4K7 1/16W 5%

1 2

120 OHM

FB209

AVDD1

NC R216

DVDD

4K7 1/16W 5%

F_nCS
F_nOE

5IN_D0
5IN_D1
5IN_D2
5IN_D3
5IN_D4
5IN_D5
5IN_D6
5IN_D7

AVDD2

DGND

NC R217

AVDD3

4K7 1/16W 5%

+

DGND

TMS
TCK
TDO
TDI

C247
100uF/16V

M1_A[0..11][11]

89
90

18
19
20
21
22
23
26
27
28

51

52
179
180

53

57

61

55

59

63

54

56

58

60

62

64

TMS

TDI

TCK

TDO

TEST_N

RESET_N

NC C235

0.1uF 16V

M1_A[0..11]

M1_A9

M1_A8

M1_A10

M1_A11

M1_BA1

M1_SCS0_N

M1_BA0

M1_CLK

M1_WE_N

M1_DQM1

M1_DQM0

M1_RAS_N

M1_CAS_N

M1_CLK

M1_SCS0_N

M1_WE_N

M1_DQM0

M1_CAS_N

M1_BA1

M1_BA0

M1_DQM1

M1_RAS_N

104

103

102

M1_WE_n

M1_CAS_n

FLASH_CS_n
FLASH_OE_n

CCIR 656_0
CCIR 656_1
CCIR 656_2
CCIR 656_3
CCIR 656_4
CCIR 656_5
CCIR 656_6
CCIR 656_7
CCIR 656_CLK

SCLK_XIN
SCLK_XOUT
USB_XIN
USB_XOUT

DVDD12_PLL3
DVDD12_PLL2
DVDD12_PLL1

AVDD33_PLL3
AVDD33_PLL2
AVDD33_PLL1

DVSS12_PLL3
AVSS33_PLL3
DVSS12_PLL2
AVSS33_PLL2
DVSS12_PLL1
AVSS33_PLL1

101

M1_RAS_n

M1_SCS0_n

10099989796

M1_DQM0

M1_DQM1

M1_SCS1_n

92

93

M1_BA0

M1_BA1

M1_CLKO

CCIR601CLOCKS & PLL

TEST USB TWO OTG PORTS

TMS

TDI

TCK

TDO

TEST_N

RESET_N

203

204

205

206

207

208

Core3.3V

C249

C248

0.1uF 16V

0.1uF 16V

91

M1_A_10

M1_A_11

C250

0.1uF 16V

50

M1_A_9

R248

49

4K7 1/16W 5%

M1_A_8

M1_A7

M1_A6

47464342414039

GPIO M1_A_7

65 48

66

R2450R 05 1/16W

DPF2

R247

M1_A2

M1_A3

M1_A4

M1_A5

M1_A_6

M1_A_5

M1_A_4

M1_A_3

Memory #1

GPIO & I2C

MIO5

MIO4/IR

MIO3

MIO2

189

190

191

IR

R2430R 05 1/16W

R2440R 05 1/16W

DPF1

DPF0

R246

4K7 1/16W 5%

4K7 1/16W 5%

C251

0.1uF 16V

M1_D11

M1_A1

M1_D15

M1_A0

M1_D13

M1_D14

M1_D12

110

111

112

113

114

M1_A_0

M1_A_1

M1_A_2

M1_D_15

M1_D_12

M1_D_13

M1_D_14

I2C_M_DAT

I2C_M_CLK

185

186

I2C_DATA

I2C_CLK

DPF0
DPF1
DPF2

C252

0.1uF 16V

M1_D[0..15]

M1_D4

M1_D2

M1_D7

M1_D9

M1_D3

M1_D8

M1_D5

M1_D6

M1_D10

122

121

118

117

116

115

105

106

107

M1_D_3

M1_D_4

M1_D_5

M1_D_6

M1_D_7

M1_D_8

M1_D_9

M1_D_10

M1_D_11

M1_D[0..15] [11]

M1_D1

M1_D0

Core1.2V

124

123

17

16

37

386886

126

142

182

192

VSS12

VDD12

VDD12

M1_D_0

M1_D_1

M1_D_2

VSS12

VDD12

VDD12

VDD12

VDD12

VDD12

VDD12

U201

AML7223

56G112643

TS-DEMUX

FEC_CLK

FEC_SOP

FEC_D_VALID

FEC_FAIL

FEC_D0

FEC_D1

SD/MS_CLK/F EC_D2

SD/MS_CMD/FEC_D3

SD/MS_D0/FEC_D4

SD/MS_D1/FEC_D5

SD/MS_D2/FEC_D6

146

147

XD/SM_CE

SD/XD/SM _WP

148

149

150

SD_IN

MS_INS

Core3.3V

IR

C254

0.1uF 16V

153

XD_IN

DGND

SD/MS_D3/FEC_D7

154

155

156

R218
4K7 1/16W 5%

R220 100R 1/16W 5%

C246
NC/22pF

C255

0.1uF 16V

USBGND

C256

0.1uF 16V

139

XD/SM_RE

XD/SM_RE

DPF0
DPF1
DPF2

C253

0.1uF 16V

140

141

XD/SM_READY

XD/SM_WE

XD/SM_READY

XD/SM_WE

XD/SM_CE

6985125

DGND

VSS12

VSS12

ID_USBB

157

158

R280NC/0R 05 1/16W

R2810R05 1/16W

VBUS1

VBUS1

C257

0.1uF 16V

VSS12

VBUS_USBB

DP1_DPF

143

VSS12

DP_USBB

162

DP1_DPF

181

193

VSS12

DM_USBB

163

165

DM1_DPF

DM1_DPF

VSS12

REXT_USBB

REXT1

USB1.2V

24

293045

VSS33

VDD12_USB2

160

159

USBGND

C258

0.1uF 16V

DGND

71

798794

108

VSS33

VSS33

VSS33

VSS33

VSS33

VSS33

VSS33

P O W E R

VSS12_USB2

VDD33T_U SB2

VDD33C_U SB2

VSS33C_USB2

VSS33T_USB2

164

166

167

161

IR_DPF [5]

C259

0.1uF 16V

Core3.3V

U202

RESET(RESET)

3

VDD

EM6353BX2SP3B-2.9+

C201

0.1uF 16V

Core3.3V

25

4470808895

109

119

129

144

151

183

198

120

130

145

152

184

188

199

VSS33

VSS33

VSS33

VSS33

VSS33

VSS33

VSS33

VDD33

VDD33

VDD33

VDD33

ID_USBA

VBUS_USBA

DP_USBA

DM_USBA

REXT_USBA

VSS12_USB1

VDD12_USB1

VDD33T_U SB1

VDD33C_U SB1

168

169

173

VSS33C_USB1

174

176

171

170

175

177

178

172

USB3.3V

USBGND

C261

C260

0.1uF 16V

0.1uF 16V

187

AMCLK
AOCLK

VDD33

VDD33

USBGND

USBGND

VDD33

VDD33

VDD33

CLOSE TO
U201

R219 3.48K 1/ 10W 1%

VCC1. 2V[12]

VDD33

ADATA0/AL
ADATA1/AR

AudioVi deo DAC

AVDD_D AC

VREF_DAC

ATAPI

AT_DMARQ

AT_DMACK_n

AT_DIORDY

DGND

C303

0.1uF 16V

ALRCLK

VDD_DAC

AVDD_R
AVDD_G
AVDD_B

VSS_DAC

AVSS_R
AVSS_G
AVSS_B

REXT_DAC

COMP

DAC_R
DAC_G

DAC_B

AT_D_0
AT_D_1
AT_D_2
AT_D_3
AT_D_4
AT_D_5
AT_D_6
AT_D_7
AT_D_8

AT_D_9
AT_D_10
AT_D_11
AT_D_12
AT_D_13
AT_D_14
AT_D_15

AT_DA2
AT_DA1
AT_DA0

AT_IRQ14

AT_CS0
AT_CS1

AT_DIOW

AT_DIOR
AT_CSEL

REXT1

MIO0
MIO1

VCC1. 2V

VDD33

VDD33

VDD33

VDD33

VDD33

VSS33T_USB1

Core3.3V

C262

0.1uF 16V

DGND

56G643500
56G643901

202
201
200

ADATA0/AL

197

ADATA1/AR

196

CARD_CLE

195

CARD_ALE

194

AVDD_DAC

1
3

8
11
14

2
7
10
13

4
5
6

9
12
15

31
32
33
34
35
36
127
128
131
132
133
134
135
136
137
138
84
83
82
81
78
77
76
75
74
73
72
67

R207 261 OHM 1% 1/10W
C208 10nF 16V

R211
4K7 1/16W 5%

I2C_CLK
I2C_DATA

Core3.3V

1 2

FB208

1 2

120 OHM

+

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

RESET_N

2

1

GND

AMCLK [12]
ASCLK [12]
ALRCLK [12]

ADATA0/AL [ 12]

CARD_CLE [14]
CARD_ALE [14]

R/Cr/ Pr [12]
G/Y/ Y [12]
B/Cb/Pb [12]

DAC_3.3V

FB202

1 2

120 OHM

DAC_3.3V

FB203

1 2

120 OHM

R212
4K7 1/16W 5%

DGND

FB206

120 OHM

C231
10uF/10V

C236

C237

100uF/16V

0.1uF 16V

G2857-1-X-X-1-080513

10.DPF DE CODER AML7223

RESET_N [11]

R201
100K 1/16W 5%

DGND

AVDD_DAC

Core3.3V

56G1133 34

C238

0.1uF 16V

VCC1.2V

1 2

120 OHM

AVDD_DAC

C207
10nF16V

+

C209

C304

100uF/16V

0.1uF 16V

+

C305

C215

0.1uF 16V

100uF/16V

Core1.2V

FB204

1 2

120 OHM

A-PLUS=>ST/E

C228

0.22uF

1

A0

VCC

2

A1

WP

3

A2

SCL

45

VSSSDA

DGND

Core3.3V

C240

C239

0.1uF 16V

0.1uF 16V

OEM MODEL Size

AOC C

TPV MODEL

2230Fm E

PCB NAME

715G2857-1

Sheet

10 14Tuesday, May 20, 2008

AVDD2

U203

M24C02-WMN6TP

8
7
6

C233

0.1uF 16V

Core3.3V

DGND

FB201

C206
10uF/10V

C210

0.1uF 16V

C216

0.1uF 16V

+

C223
100uF/16V

FB207

1 2

120 OHM

C241

0.1uF 16V

of

Power_on
Configuration

R202 10K 1/16W 5%

R203 10K 1/16W 5%

R204 10K 1/16W 5%

R205 10K 1/16W 5%

R206 NC/10K 1/ 16W 5%

+

C203

C202

0.1uF 16V

100uF/16V

C211

C212

0.1uF 16V

0.1uF 16V

C217

C218

0.1uF 16V

0.1uF 16V

C224

C225

0.1uF 16V

0.1uF 16V

Core3.3V

FB205

1 2

120 OHM

AVDD3

C234

C232

0.1uF 16V

10uF/10V

C242

C243

0.1uF 16V

0.1uF 16V

ADATA0/AL

ADATA1/AR

AMCLK

ASCLK

C204

0.1uF 16V

C213

0.1uF 16V

C219

0.1uF 16V

C226

0.1uF 16V

C229
10uF/10V

Rev

称爹

USB1.2V

USBGND

AVDD_DAC

USB3.3V

USBGND

DVDD

DGND

AVDD1

C244

0.1uF 16V

备注

C205

0.1uF 16V

C214

0.1uF 16V

C220

0.1uF 16V

C227

0.1uF 16V

C230

0.1uF 16V

Core1.2V

DGND

C245

0.1uF 16V

30

R242

0R

OPEN

DGND

C263
NC/ 22pF

M1_D[0. .15][10]

16M

32M

M1_CLKB

M1_D QM0
M1_D QM1

M1_A0
M1_A1
M1_A2
M1_A3
M1_A4
M1_A5
M1_A6
M1_A7
M1_A8
M1_A9
M1_A10
M1_A11

M1_W E_ NB
M1_CAS_NB
M1_RAS_NB

M1_SCS0_NB

M1_D QM0
M1_D QM1

M1_A[0..11][10]

M1_D 8
M1_D 9
M1_D10
M1_D11
M1_D12
M1_D13
M1_D14
M1_D15

M1_D QM1

RESET_N[10]

U204

23

A0

24

A1

25

A2

26

A3

29

A4

30

A5

31

A6

32

A7

33

A8

34

A9

22

A10

35

A11

16

WE

17

CAS

18

RAS

19

CS

15

DQML

39

DQMU

36

NC

28

VSS

41

VSS

54

VSS

6

VSSQ

12

VSSQ

46

VSSQ

52

VSSQ

DGND

EM639165TS-6G

2MX16X4 BANK=128Mbits
56G 615 19 1 ETRON
56G 615 73 HYNIX

R242 NC/ 0R05 1/16W

F_nCS[10]
F_nOE[10]

M1_A0
M1_A1
M1_A2
M1_A3
M1_A4
M1_A5
M1_A6
M1_A7
M1_A8
M1_A9
M1_A10
M1_A11

M1_DQM0

F_nCS
F_nOE
M1_W E_N

RESET_N

CKE

VDD
VDD

VDD
VCCQ
VCCQ
VCCQ
VCCQ

D10
D11
D12
D13
D14
D15CLK

BA1
BA0

2

D0

4

D1

5

D2

7

D3

8

D4

10

D5

11

D6

13

D7

42

D8

44

D9

45
47
48
50
51
5338

37
21
20

40

NC

1
14
27
3
9
43
49

M1_D 0
M1_D 1
M1_D 2
M1_D 3
M1_D 4
M1_D 5
M1_D 6
M1_D 7

M1_D 8
M1_D 9
M1_D10
M1_D11
M1_D12
M1_D13
M1_D14
M1_D15

M1_BA1
M1_BA0

VCC_SDR AM

U205

25

A0

24

A1

23

A2

22

A3

21

A4

20

A5

19

A6

18

A7

8

A8

7

A9

6

A10

5

A11

4

A12

3

A13

2

A14

1

A15

48

A16

17 13

A17 N C

15

RY/BY

9

A19

10

NC

26

CE

28

OE

12

RESET

EN29LV160AT-70TCP

D10
D11
D12
D13
D14
D15

BYTE

VCC

GND1WE
GND2

29

D0

31

D1

33

D2

35

D3

38

D4

40

D5

42

D6

44

D7

30

D8

32

D9

34
36
39
41
43
45
16

A18

14

NC

47

37

2711
46

2MX8=16Mbits
56G1133 92 Eon
56G1133112 MXIC

Samguage=>Etron

64M=>128M

M1_B A1
M1_B A0

M1_D 0
M1_D 1
M1_D 2
M1_D 3
M1_D 4
M1_D 5
M1_D 6
M1_D 7

M1_A0
M1_D15

DGND

R208

4K7 1/16W 5%

Flash3.3v

R221 22R 1/16 W 5%

M1_W E_ N[ 10]
M1_CAS_N[10]
M1_RAS_N[10]

M1_SCS0_N[10]

M1_CLK[10]

絬 隔 瓜 絪 腹

Key Component

M1_CLK
M1_W E_ N

R222 22R 1/16 W 5%

M1_CAS_N

R223 22R 1/16 W 5%

M1_RAS_N

R224 22R 1/16 W 5%
R225 22R 1/16 W 5%

M1_SCS0_N

DAC_3.3V[10,12, 14]

C266

C267

0.1uF 16V

0.1uF 16 V

T P V ( Top Victory Electronics Co . , Ltd. )

G2857-1-X-X-1-080513

11.DPF MEMORY

Date

DAC_3.3V

C268

0.1uF 16V

M1_CLKB
M1_W E_N B
M1_CAS_NB
M1_RAS_NB
M1_SCS0_NB

FB210

1 2

120 OHM

C264
10uF/10V

C270

C269

0.1uF 16 V

OEM MO DEL Siz e

TPV MO DEL

PCB NAME

Sheet

C271

0.1uF 16V

0.1uF 16V

AOC B

2230Fm E

715G2857-1

11 14Tuesday , May 20, 2 008

of

C265

0.1uF 16V

DGND

VCC_SDRAM

C272

0.1uF 16V

DGND

Flash3.3v

VCC_SDR AM

C306

0.1uF 16V

C307

0.1uF 16 V

Rev

称爹

备注

31

+5V_DP F

L201

G/Y /Y[10]

R228
75R 1/16 W 5%

0.22uH

C274
NC/ 22pF

C275
NC/ 100pF

DPF_Y [4]

R226
R227
10K 1/16W 5%

on_DPF[4,5]

R230

22K 1/16W 5%

10K 1/16W 5%

56K 1/16W 5%
Q202
MMBT39 06

R229

R241
47K 1/16W 5%

C273
1uF 10V

Q201
AO3401

+5V_D PF [ 3]

L202

B/Cb/Pb[10]

R231
75R 1/16 W 5%

R/Cr/Pr[10]

R232
75R 1/16 W 5%

+5V_PF

ADATA0/AL[10]
ASCLK[10]
ALRCLK[10]
AMCLK[10]

R235 22R 1/ 16W 5%
R236 22R 1/ 16W 5%
R237 22R 1/ 16W 5%
R238 22R 1/ 16W 5%

0.22uH

C276
NC/ 22pF

L203

0.22uH

C278
NC/ 22pF

C277
NC/ 100pF

C279
NC/ 100pF

R239

10R 1/16 W 5%

U208

1

SDATA

2
3
4 5

AOUTL
SCLK
LRCLK

AGND

MCL K A OUTR

CS4334

VA

8
7
6

56G647502

DGND

DPF_Pb [4]

DPF_Pr [4]

C284
10uF/10V

DPF_ML

DPF_MR

100uf/16V=>NC/D

C285

0.1uF 16V

DGND

DPF_ML [8]

DPF_MR [8]

C281
NC/ 10uF/10V

DGND

+5V_PF

R233

7.5 OHM 2W

C282

0.1uF 16 V

C287

0.1uF 16 V

DGND

VOUTVIN

VSS

U206
AP1117E33LA

1

SOT223

DGND

U207

3 2

VI VO

GND

1

AP1117ELA-ADJ

DGND

23

R285
100 OHM 1/4W

+

C280
100uF/ 16V

+

C288
100uF/ 16V

DAC_3. 3V

VCC1. 2V

C283

0.1uF 16V

C289

0.1uF 16 V

DAC_3. 3V [10,11, 14]

VCC1. 2V [10]

+5V_PF

+5V_PF [13]

DGND

32

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2857-1-X-X-1-080513

12.DPF AV OUT AND POWER

Date

OEM MO DEL Size

TPV MOD EL

PCB NAME

AOC B

2230Fm E

715G2857-1

12 14Tuesday , May 20, 2008

Sheet

of

Rev

称爹

备注

USB5V

VBUS1[10]
DM1_DPF[10]
DP1_DPF[10]

VBUS1

ZD201 NC

1 2

USBGND

ZD202 NC

1 2

USBGND

C290
10uF/1 0V

C291
10nF16V

USBGND

D1-

D1+

USBGND

CN202

4
3
2
1

6 5

CONNNECTOR

USBGND

DGND

Add ZD201/ZD202/E

1.Keep the trace D- & D+ same length

2.Maintain parallelism between D- & D+

3.Do not route D+ & D- over the power plane split

4.Do not route D+ & D- over the other high Fre. signals

5.It is preferred to route D+ & D- over the ground layer

6.It is preferred to route D+ & D- using single layer

Bead=>Polyfuse/E

+5V_PF

+5V_PF[12]

F201

1 2

PTCR

t

USB5V

USBGND

C294

0.1uF 16V

The net should be at least
50 mil to the connector

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2857-1-X-X-1-080513

13.DPF U SB PORT

Date

OEM MO DE L Si ze

TPV MO DEL

PCB NAME

AOC B

2230Fm E

715G2857-1

13 14Tuesday , May 20, 20 08

Sheet

of

Rev

称爹

备注

33

4IN1CARD_3.3V

ATAPI_3.3V

Q209 AO3401

4IN1C ARD_3.3V

5IN_D[0..7][10]

SD/XD/SM_WP[10]

SD_IN[10]
MS_I NS[ 10]
XD _I N[10]

ATAPI_3.3V

DEL
R272~R275/D

R276 NC /4K7 1/16W 5%

5IN_D3

R277 NC /4K7 1/16W 5%

5IN_D2

R278 NC /4K7 1/16W 5%

5IN_D1

SD/XD/SM_WP

SD_IN
MS_I NS
XD _I N

R279 NC /4K7 1/16W 5%

5IN_D0

ATAPI_3.3V

SD/MS_D0

SD_D0

MS_D 0

SD/MS_D2

SD_D2

MS_D 2

5IN_D 0
5IN_D 1
5IN_D 2
5IN_D 3
5IN_D 4
5IN_D 5

5IN_D 7

R250

10K 1/16W 5%

5IN_D0

5IN_D2

CN203

R282
10K 1/16W 5%

4K7 1/16W 5%

SD/XD/ SM_WP

R266

22R 1/16W 5%

R267

22R 1/16W 5%

R268

22R 1/16W 5%

R269

22R 1/16W 5%

G2857-1-X-X-1-080513

14.DPF ATAPI

R284

SD/MS_CLK

SD/MS_CMD

SD/MS_CLK

SD/MS_CMD

5IN_D4

5IN_D5

SD_IN
SD_WP
SD_D1
SD_D0

MS_D 1
MS_D 0
MS_D 25IN_D 6
MS_I NS
MS_D 3

SD_D3
SD_D2

CARD_EN[10]

XD / SM _R E A D Y[10]

XD / SM _C E[ 10]

XD / SM _R E[ 10]

XD / SM _W E[10]

XD / SM _R E A D Y

XD / SM _C E

XD / SM _R E

XD / SM _W E

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

33

XD -V C C

DGND

32
31
30
28
27
26

9
8
7
6
5
4
3
2

1
34
22
13

XD -D 7
XD -D 6
XD -D 5
XD -D 4
XD -D 3
XD -D 2
XD -D 1
XD -D 0
XD -W P - I N
XD -W E
XD -A L E
XD -C L E
XD -C E
XD -R E
XD -R / B
XD -C D
4 in 1-GND
4 in 1-GND

GND GND

P38 P37

JACK

XD _D 0

SM_D0

XD _D 1

SM_D1

XD _D 2

SM_D2

XD _D 3

SM_D3

XD _D 4

SM_D4

XD _D 5

SM_D5

XD _D 6

SM_D6

XD _D 7

SM_D7

XD _D 7
XD _D 6
XD _D 5
XD _D 4
XD _D 3
XD _D 2
XD _D 1
XD _D 0
XD _W P
XD _W E
XD_ALE
XD_CLE
XD _C E
XD _R E
XD _R E A D Y
XD _I N

R252

R251

R253

10K 1/16W 5%

10K 1/16W 5%

10K 1/16W 5%

SD/MS_D1

SD_D1

MS_D 1

SD/MS_D3

SD_D3

MS_D 3

5IN_D1

5IN_D3

SD-CD

SD-WP
SD-D AT1
SD-D AT0

SD-C LK

SD-VCC

MS-B S
MS-D ATA1
MS-D ATA0
MS-D ATA2

MS-I NS

MS-D ATA3

MS-S CLK

MS-VC C

SD-CMD

SD-DATA3

SD-D AT2

SD/MS_CMD

SD/MS_CLK

R258

22R 1/16W 5%

R259

22R 1/16W 5%

R260

22R 1/16W 5%

R261

22R 1/16W 5%

R262

22R 1/16W 5%

R263

22R 1/16W 5%

R264

22R 1/16W 5%

R265

22R 1/16W 5%

36
35
29
25
24
23

21
20
19
18
17
16
15
14

12
11
10

22R 1/16W 5%

22R 1/16W 5%

R256

R257

5IN_D0

5IN_D1

5IN_D2

5IN_D3

5IN_D4

5IN_D5

5IN_D6

5IN_D7

R283
10K 1/16W 5%

Q203
MMBT3904

DGND

SD_WP

XD _W P

SM_WPD

SM_IORDY

XD _R E A D Y

SM_CE

XD _C E

SM_RE

XD _R E

SM_WE

XD _W E

R255

4K7 1/16W 5%

C298

0.1uF 16V

OEM MOD EL Size

TPV MO DEL

PCB NAME

Sheet

R254
47K 1/16W 5%

DAC_3. 3V

DAC_3. 3V[10,11, 12]

CARD_ALE[10]

CARD_CLE[10]

AOC B

2230Fm E

715G2857-1

14 14Tuesday , May 20, 2008

of

R234
470R 1/16W 5%

DGND

FB213

1 2

120 OHM

C300

0.1uF 16V

R270

22R 1/16W 5%

R271

22R 1/16W 5%

ATAPI_3.3V

C301

0.1uF 16V

C299

0.1uF 16V

DGND

4IN1CARD_3.3V

C302

0.1uF 16V

DGND

SM_ALE

XD _A L E

SM_CLE

XD _C L E

Rev

备注

称爹

34

6.2 电源板

715G2824 6 5

BD901A

KBP208G

3

1

BD901

GBU406

3

1M 1/4W 5%

!

2

1

R902

CN901
SOCKET

+

-

4

C904

0.22UF275V

3

L901

27mH

4

C903

0.22UF275V

1M 1/4W 5%

!

C901

1000pF

3

12

R901

1
2

!

!

!

C902

1000pF

GND2
GND

1

+

2

-

4

2

C905

+

120uF450V

1500PF2KV

C938

NC

!

IC901

1

8

CT

HV

2

!

C940

0.047uF

NR901
NTCR

C928

0.01uF

F901
FUSE

!

COMP

NC

3

CS

VCC

4 5

GNDOUT

LD7576

7
6

!

GND1
GND

1
2

HS3
HEAT SINK(D9 06)

1
2

R904

8.2K OHM 1/4W

R905

8.2K OHM 1/4W

+16V

HS2
HEAT SINK

1
2

FB902 0R05 1/4W

1 2

1500PF2KV

C9070. 1uF

+

D903 IN4148

R910

10R 1/4W 5%

R912
220 OHM 1/4W

C909
220pF

NC

C906

D901
FR103

C908

22uF 50V

STP10NK70ZFP

CN903

1
2
3
4

CONN

HS1
HEAT SINK(Q901)

1
2

R903

100K OMH 2W +-5%

FR107

Q901

R938
10K 1/8W 5%

R914

0.39 OHM 2W +-5%

D900

!

R909

3.3 OHM 1/4W

C937

100pF/2KV

NC

+5V

DIM

ON/OF F

PID

VOL

MUTE

+5V1

4

POWER X'FMR

5

6
1

3

!

C921

1000PF/250VAC

C900
3300pF 250V

!

T901

PC123X2YFZOF

43

C931

0.1uF

IC903

8
7

9
10

12
11

R925

1K 1/8W 5%

12

C924

0.1uF

IC904
KIA431A-AT/P

R918100 OHM 1/4W

R919100 OHM 1/4W

R920100 OHM 1/4W

R926
1K 1/10W 1%

3

R935 100 OH M 1/4W

R961 100 OH M 1/4W

R962 100 OH M 1/4W

D907
31DQ06FC3

12

FB901

BEAD

3

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

Wire Harness

C912

0.001uF

2

D906

FME-230B

R949

R950

R951

2

D908

SP1060

+

C917

470UF M 35V

1

C929

0.001uF

C939

1000uF/25V

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

1

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

+

C935
1000PF 500V

C916

+

1000UF M 25V

G2824-4-5-X-59-090615

02.POWER

+

C918
470UF M 35V

R924
100R 1/8W 5%

C934

L904

+5V1

+16V

Custom

1

ODM MODEL

+5V

Coil

R946

R947

680 OHM 2W +-5%

680 OHM 2W +-5%

Q903

2SD1207T

L903

Coil

+

C915

470UF16V

L905

Coil

+

NC

OEM MO DEL Siz e

TPV MODEL

PCB NAME

Sheet

AOC

715G2824-4-5

of

13Monday, J une 22, 2009

C932

0.001uF

470R 1/8W 5%

1 2

C930

0.1UF 50V

ZD902
TZX18B

R943

R939
1K 1/8W 5%

L906

JUMPER

R940
NC

R927

10K 1/10W 1%

R930

9K1 1/10W 1%

F902

FUSE

F903

FUSE

Rev

称爹

35

+16V

ON/OF F

+5V

DIM

PID

100K 1/10W 1%

100K 1/10W 1%

R812

R806

R805
NC

R801
10K 1/10W 5%

C818

1.5UF /10V

R802

22R 1/8W 5%

R807
10K 1/10W 5%

C812

C806

NC

2.2uF/ 16V

ZD802
RLZ5.6B

5K1 1/8W 5%

1 2

R815
NC

R803

C801

0.047uF

R808

390R 1/10W 1%

C805

0.022uF

10

PDR1

11

VDDA

12

TIME R

13

PWM

14

ISEN

15

SSTCMP

OVPT

16

ENA

IC801 ta9687GN-A-0-TR

R813
100K 1/10W 5%

NDR2NDR1
GNDP

PDR2

GNDA

RT1

CT

VSEN

1M 1/10W 5%

89
7
6
5
4
3
2
1

R809

ZD803
RLZ5.6B

1 2

C802

0.047uF

R810

100K 1/10W 1%

C810

0.0033uF

4R7 1/8W 5%

R804

5K1 1/8W 5%

R818

4R7 1/8W 5%

G

C808

33NF50V

R817

R816

R819

D801

IN4148

D

Q802

SRK7002LT1G

S

4R7 1/8W 5%

4R7 1/8W 5%

R811
82K1/10W

C809
220pF

C815

0.1uF

C811

0.1uF

+

C804

1000uF 25V

D806

3

D807

3

D808

3

Q805

4 5

G1 D1

3

S1

2

G2

1

S2

AO4620

Q806

4 5

G1 D1

3

S1

2

G2

1

S2

AO4620

BAV70

1

2

BAV70

1

2

BAV70

1

2

R842

5.1K 1/10W 5%

6

D1

7

D2

8

D2

6

D1

7

D2

8

D2

R843

5.1K 1/10W 5%

POWER X'F MR

6
5

2
1 8

C813
NC

R844

5.1K 1/10W 5%

PT801

7

R828

6.2M1W

R830

6K8 1/8W 5%

R838 1M 1/ 10W 5%

R839 1M 1/ 10W 5%

R840 1M 1/ 10W 5%

R841 1M 1/ 10W 5%

R845

5.1K 1/10W 5%

C817

2PF6KV

C814
220pF

56KOHM +-5% 1/10W

R837

6K8 1/10W 5%

LV1

LV2

LV3

LV4

R836

LV3

LV2

L801

124

L802

124

L

L

LV1

C819
56pF3KV

R846 0R 05 1/8W

C820
56pF3KV

R847

0R05 1/8W

3

3

C821
56pF3KV

R848

0R05 1/8W

C822
56pF3KV

3

1

CN801

2
1

CONN

2
1

CONN

CN802

LV4

CN803

2
1

CONN

2
1

CONN

CN804

D803

BAV99

2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2824-4-5-X-59-090615

03.IN VERTER

Date

36

OEM MO DEL Si ze

TPV MODEL

PCB NAME

Sheet

715G2824-4-5

13Monday , June 15, 2009

of

Rev

称爹

Custom

1

ODM MODEL

6.3 按键板

715G2941 2

CN001

1

LBADC1
LBADC2

2
3

DC_POWERON

4

LED_BLU E#

5

LED_RED#

6

VCC

CONN

R001 0R05 1/10W 5%

R002 2K 1/10W

R003 2K 1/10W
R004 1K 1/10W 5%

(2K)

LBADC1

LBADC2

AUTO

UP

DOWN

MENU

(0)

(2K)

(1K)

1.19V

0V

1.19V

0.67V

GND

IR_OUT

C006
NC/100pF

GND

ZD008
NC/UDZS5.6B

GND

U001

OUT

123

GND

C002NC/ 0.1uF

ZD007

LUDZS 5.6B

2 1

2 1

UP_V-

R005

R006

ZD003NC/UDZS5.6B

C003NC/ 0.1uF

GND

ZD002NC/UDZS5.6B

SW002
SW

4K7 1/10W 5%

4K7 1/10W 5%

1

3 4

5 6

BLUE

2

AMBER

POWER

SW003
SW

Q001
PMBS3904

Q002
PMBS3904

LED_RED#
LED_BLUE#

DOWN_V+

ZD004NC/UDZS5.6B

C004NC/ 0.1uF

SW004
SW

LEFT_MENU

ZD005NC/UDZS5.6B

C005NC/ 0.1uF

SW005
SW

RIGHT_AUTO

ZD001NC/UDZS5.6B

C001NC/ 0.1uF

SW001
SW

GND

IRM3638

GND

VCC

C007
NC/ 0.1uF/ 16V

GND

R007
NC/ 33R 1/10W

C008
NC/ 1uF/16V

GND

C0090.1uF 50V

ZD006

C0100.1uF 50V

LUDZ S5.6B

37

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2941-2-X-X-4-090513

02.Key

Date

OEM MO DEL Size

TPV MODEL

PCB NAME

Sheet

AOC

715G2941

of

22Wednesday , May 13, 2009

Rev

称爹

B

A

称爹

>

<

7. ISP 和 DDC 烧录 SOP

请登陆 ftp://cs.tpv.com.cn/ 到各相应的文件夹下载各相应平台的烧录 SOP。

账号: TPVSQZ
密码: TPVZGDLSQZ20090707

注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。

38

8. 料件清单

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

HC9MMVNDWCA2PZ

点位 组件 对象描述 备注

050G 600 3 HANDLE2
050G 600 4 HANDLE 1
052G 1209 A TASMA ALUMINIOWA
052G 1211 A TASMA ALUMINIOWA
052G 2191 A PAPER TAPE
070GHDCP500HDC NO-SUGGEST HDCP CODE
078G 311 17 G SPEAKER 4 OHM 3 W L: 420MM 57.5X23MM

E08905 089G 175 8 G FQE41177F USB CABLE 1800MM A+B 2nd Source
E08905 089G 175 8 X USB CABLE 1.8M
E08903 089G1745CAA AC DVI CABLE 1.5M 2nd Source
E08903 089G1745GAA AC DVI CABLE

089G179W30NA10 NO-SUGGEST FFC CABLE
E08901 089G414A15N CX POWER CORD
E08901 089G414A15N IS POWER 2nd Source
E08901 089G414A15N YH AC POWER CORD 1500MM CHINA REG. 2nd Source

092GC1LI3CD3GA BATTERY 3V LITHIUM CR2025 (HIGHEST)

095G8014 8D 75 HARNESS 8P-8P 300MM

098GR8BD7NEACA REMOTE CONTROL SRC-T5000

0M1G 130 5120 SCREW

0M1G 930 6120 SCREW

0M1G1030 6120 SCREW M3X6

0M1G1740 10 47 CR3 SCREW(1D301011)

705GQ834148 22" LCD STAND ASS'Y

0M1G 340 10225 CR3 SCREW

A34G0690AEP 1B STAND

A37G0069 1 HINGE ASS’Y

705GQ934311 22" LCD BEZEL ASS'Y

A19G0004 1 SPRING-POWER

A33G0349 X2 1L BEZEL DECO

A33G0350 X2 1L0100 FUNCTION BUTTON

A33G0351 KGA1C0100 POWER BUTTON

A33G0352 1 1C0100 POWER LENS

A34G0687AEPD1M0130 BEZEL(22")

750GLMC0Z1312N PANEL M220Z1-L03 C1 NB CMO

756GQ9CB AA026 MIAN BOARD-CBPC9MVACQ1

SMTC9-U205 100GALMC000N21 MCU ASS'Y-056G1133 92
SMTC9-U404 100GAMMC00IYT1 MCU ASS'Y-056G1133120

A15G0380201 MAIN_FRAME

A33G0353AEP 1M0100 CABLE CLIP

A34G0688ABJ 2B REAR COVER(L22WA-830)

A34G0689AED 1B0130 LOGO COVER

A34G0691AEP 1M0133 BASE

A34G0693AEP 1M0130 STAND REAR

040G 45762412B CBPC LABEL

CN603 033G3802 4 WAFER 2.0MM 4P
CN403 033G3802 8 WAFER 2.0MM 8P
CN101 033G380210B Y L CONNECTOR 10P 2.0
CN405 033G801930F CH JS CONNECTOR

39

U603 056G 616 34 IC APA2069JITUL 2.6W*2 PDIP-16
R108 061G152M339 64 CHIPR 3.3 OHM +-5% 2W

R233 061G152M759 64 7.5 OHM
CN602 088G 30242S PHONE JACK 1+1 BLACK
CN702 088G 350 1 CL USB CONN DOUBLE LAYER
CN701 088G 3512B1 CL USB CONN 4PIN BLACK USB-04
CN202 088G 352 6 CL USB CONN T TYPE ·´ÏÒ
CN401 088G 35315F HD D-SUB CONN F ATTACHED SCREW 2nd Source
CN401 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW
CN402 088G 35424F C DVI 24PIN CONN F ATTACHED SCREW
CN402 088G 35424F D DVI 24PIN CONN F ATTACHED SCREW 2nd Source

X401 093G 22 53 YC CRYSTAL 14.31818MHZ/32PF 49U/S YC

X701 093G 2245B J XTL NXS24.000AC18F-KAB10 18PF 30PPM

X201 093G 2264B NXS27.000AC30F-KAB10 HC-49/US

709G2857 QM001 CONSUMPTIVE ASS'Y
055G 2 ALCOHOL
055G 23524 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM

C288 067G 215101 3T NO-SUGGEST 105C RADIAL E-CAPACTOR 100UF

C209 067G 3051013PT EC 100UF 20% 16V 5*11

C215 067G 3051013PT EC 100UF 20% 16V 5*11

C236 067G 3051013PT EC 100UF 20% 16V 5*11

C223 067G 3051013PT EC 100UF 20% 16V 5*11

C702 067G 3051013PT EC 100UF 20% 16V 5*11

C479 067G 3051013PT EC 100UF 20% 16V 5*11

C280 067G 3051013PT EC 100UF 20% 16V 5*11

C247 067G 3051013PT EC 100UF 20% 16V 5*11

C624 067G 3051013PT EC 100UF 20% 16V 5*11

C720 067G 3051013PT EC 100UF 20% 16V 5*11

C716 067G 3051013PT EC 100UF 20% 16V 5*11

C107 067G 3051013PT EC 100UF 20% 16V 5*11

C115 067G 3051013PT EC 100UF 20% 16V 5*11

C202 067G 3051013PT EC 100UF 20% 16V 5*11

C476 067G 305220 7T 105C RADIAL E-CAPACTOR 22UF 50V

C628 067G 3052213PT EC 220UF 16V 6.3¦µ*11MM

C629 067G 3052213PT EC 220UF 16V 6.3¦µ*11MM

040G 457624 1B LABEL-CPU
U403 056G 562569 IC TSUMO58GDJ-LF PQFP-128
U104 056G 563 31 IC AZ1117D-1.8-E1
U207 056G 585 10 IC AP1117ELA-ADJ
U206 056G 585 4A IC AP1117E33L-13
U102 056G 585 4A IC AP1117E33L-13
U703 056G 585 4A IC AP1117E33L-13
U602 056G 614 1 74HC4052D S016 PHLIPS
U204 056G 615 83 IC SDAM W9812G6IH-6 TSOP54
U407 056G 634 2 1 IC PI5V330SQEX QSOP-16 PERICOM
U406 056G 634 2 1 IC PI5V330SQEX QSOP-16 PERICOM
U501 056G 634 13 IC FSHDMI08MTDX TSSOP-56
U202 056G 643500 EM6353BX2SP3B-2.9+ 3PIN SOT23-3
U208 056G 647502 IC CS4334 SOIC-8 CIRRUS LOGIC
U701 056G 659 10 IC USB2512-AEZG QFN-36
D502 056G 662 10 IC RCLAMP0524P.TCT
D501 056G 662 10 IC RCLAMP0524P.TCT
U503 056G 662 13 IC AZC099-04S SOT23-6L

40

U408 056G 665 35 IC PCA9536DGKR VSSOP-8
U601 056G1124 3 IC PCM1754DBQR SSOP-16
U201 056G1126 43 IC AML7223 PQFP-208
U405 056G1133 32 IC M24C04-WMN6TP SO8
U203 056G1133 34 M24C02-WMN6TP
U401 056G1133 34 M24C02-WMN6TP
U402 056G1133 34 M24C02-WMN6TP
U502 056G1133 34 1 IC M24C02-RMN6TP 2KB SO-8
U205 056G1133 92 IC EN29LV160AT-70TCP 16MB TSOP-48 EON
U404 056G1133120 IC MX25L2025MC-12G 2MB SOP-8
Q504 057G 417511 MMBT3904
Q503 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q410 057G 417511 MMBT3904
Q408 057G 417511 MMBT3904
Q407 057G 417511 MMBT3904
Q404 057G 417511 MMBT3904
Q403 057G 417511 MMBT3904
Q401 057G 417511 MMBT3904
Q203 057G 417511 MMBT3904
Q101 057G 417511 MMBT3904
Q104 057G 417512 MMBT3906
Q202 057G 417512 MMBT3906
Q402 057G 417512 MMBT3906
Q405 057G 417512 MMBT3906
Q406 057G 417512 MMBT3906
Q409 057G 417512 MMBT3906
Q201 057G 763 1 AO3401 SOT23 BY AOS
Q209 057G 763 1 AO3401 SOT23 BY AOS
Q105 057G 763 2 A04403
F201 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
F702 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
F701 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R210 061G0402000 JI RST 0402 0.05R MAX 1/16W
R243 061G0402000 JI RST 0402 0.05R MAX 1/16W
R244 061G0402000 JI RST 0402 0.05R MAX 1/16W
R245 061G0402000 JI RST 0402 0.05R MAX 1/16W
R281 061G0402000 JI RST 0402 0.05R MAX 1/16W
R478 061G0402000 JI RST 0402 0.05R MAX 1/16W
R479 061G0402000 JI RST 0402 0.05R MAX 1/16W
R486 061G0402000 JI RST 0402 0.05R MAX 1/16W
R487 061G0402000 JI RST 0402 0.05R MAX 1/16W
R488 061G0402000 JI RST 0402 0.05R MAX 1/16W
R499 061G0402000 JI RST 0402 0.05R MAX 1/16W
R510 061G0402000 JI RST 0402 0.05R MAX 1/16W
R511 061G0402000 JI RST 0402 0.05R MAX 1/16W
R512 061G0402000 JI RST 0402 0.05R MAX 1/16W
R513 061G0402000 JI RST 0402 0.05R MAX 1/16W
R514 061G0402000 JI RST 0402 0.05R MAX 1/16W
R515 061G0402000 JI RST 0402 0.05R MAX 1/16W
R516 061G0402000 JI RST 0402 0.05R MAX 1/16W
R517 061G0402000 JI RST 0402 0.05R MAX 1/16W
R622 061G0402000 JI RST 0402 0.05R MAX 1/16W
R623 061G0402000 JI RST 0402 0.05R MAX 1/16W

41

R702 061G0402000 JI RST 0402 0.05R MAX 1/16W
R703 061G0402000 JI RST 0402 0.05R MAX 1/16W
R712 061G0402000 JI RST 0402 0.05R MAX 1/16W
R715 061G0402000 JI RST 0402 0.05R MAX 1/16W
R722 061G0402000 JI RST 0402 0.05R MAX 1/16W
R723 061G0402000 JI RST 0402 0.05R MAX 1/16W
R245 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R244 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R243 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R210 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R517 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R622 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R623 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R702 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R703 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R712 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R715 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R722 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R723 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R281 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R516 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R515 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R514 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R513 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R512 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R511 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R510 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R499 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R488 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R487 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R486 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R479 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R478 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R444 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R443 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R441 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R440 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R439 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R438 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R437 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R436 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R239 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R220 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R415 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R417 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R418 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R426 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R427 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R429 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R430 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R462 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R463 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R464 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R472 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

42

R473 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R474 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R506 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R507 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R539 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R540 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R102 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R419 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R420 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R428 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R442 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R445 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R447 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R448 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R501 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R525 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R531 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R533 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R638 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R639 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R454 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R446 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R413 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R283 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R282 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R253 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R252 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R251 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R250 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R227 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R226 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R213 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R205 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R204 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R203 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R202 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R111 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R107 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R106 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R455 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R725 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R708 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R617 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R616 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R615 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R614 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R613 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R520 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R519 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R518 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R497 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R471 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R470 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R469 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

43

R468 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R460 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R459 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R458 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R456 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R104 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R103 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R101 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R728 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R720 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R719 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R718 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R717 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R201 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R634 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R636 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R701 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R704 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R201 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R634 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R636 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R701 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R704 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R728 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R720 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R719 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R717 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R718 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R724 061G0402105 JI EST ONLY RST 0402 1M 5% 1/16W TA-I
R209 061G0402105 JI EST ONLY RST 0402 1M 5% 1/16W TA-I
R724 061G0402105 JY RST CHIPR 1000KOHM 1/16W YAGEO
R209 061G0402105 JY RST CHIPR 1000KOHM 1/16W YAGEO
R457 061G0402121 RST CHIP 120R 1/16W 5%
R709 061G0402153 RST CHIP 15K 1/16W 5%
R726 061G0402153 RST CHIP 15K 1/16W 5%
R481 061G0402154 JF RST CHIP 150K 1/16W 5% FENGHUA
R526 061G0402154 JF RST CHIP 150K 1/16W 5% FENGHUA
R524 061G0402154 JF RST CHIP 150K 1/16W 5% FENGHUA
R524 061G0402154 JI RST 0402 150K 5% 1/16W
R526 061G0402154 JI RST 0402 150K 5% 1/16W
R481 061G0402154 JI RST 0402 150K 5% 1/16W
R401 061G0402200 RST CHIP 20R 1/16W 5%
R403 061G0402200 RST CHIP 20R 1/16W 5%
R405 061G0402200 RST CHIP 20R 1/16W 5%
R492 061G0402200 RST CHIP 20R 1/16W 5%
R493 061G0402200 RST CHIP 20R 1/16W 5%
R494 061G0402200 RST CHIP 20R 1/16W 5%
R495 061G0402200 RST CHIP 20R 1/16W 5%
R496 061G0402200 RST CHIP 20R 1/16W 5%
R461 061G0402201 JI RST 0402 200R 5% 1/16W
R461 061G0402201 JT RST CHIP 200R 1/16W 5% TZAI YUAN
R453 061G0402202 RST CHIP 2K 1/16W 5%
R259 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R258 061G0402220 JI RST 0402 22R 5% 1/16W TA-I

44

R257 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R256 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R238 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R237 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R236 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R235 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R225 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R224 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R223 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R222 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R221 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R608 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R606 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R605 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R601 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R271 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R270 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R269 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R268 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R267 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R266 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R265 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R264 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R263 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R262 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R261 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R260 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R608 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R606 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R605 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R601 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R271 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R270 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R269 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R268 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R267 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R266 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R265 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R264 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R263 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R262 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R261 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R260 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R259 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R258 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R257 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R256 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R238 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R237 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R236 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R235 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R225 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R224 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R223 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN

45

R222 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R221 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R421 061G0402222 JI TEST ONLY RST 0402 2.2K 5% 1/16W TA-I
R422 061G0402222 JI TEST ONLY RST 0402 2.2K 5% 1/16W TA-I
R421 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN
R422 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN
R509 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R498 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R431 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R230 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R110 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R105 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R105 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R110 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R230 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R431 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R498 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R509 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R402 061G0402330 JI RST 0402 33R 5% 1/16W TA-I
R404 061G0402330 JI RST 0402 33R 5% 1/16W TA-I
R406 061G0402330 JI RST 0402 33R 5% 1/16W TA-I
R406 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R404 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R402 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R643 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R642 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R633 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R632 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R612 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R611 061G0402333 RST CHIPR 33 KOHM +-5% 1/16W
R449 061G04023900FI TEST ONLY RST 0402 390R 1% 1/16W TA-I
R475 061G0402392 RST CHIP 3.9K 1/16W 5%
R476 061G0402392 RST CHIP 3.9K 1/16W 5%
R477 061G0402392 RST CHIP 3.9K 1/16W 5%
R538 061G0402392 RST CHIP 3.9K 1/16W 5%
R234 061G0402471 JI TEST ONLY RST 0402 470R 5% 1/16W TA-I
R407 061G0402471 JI TEST ONLY RST 0402 470R 5% 1/16W TA-I
R502 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R208 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R211 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R212 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R218 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R246 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R247 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R248 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R255 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R284 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R423 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R424 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R425 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R433 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R434 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R435 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R450 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

46

R465 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R466 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R532 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R504 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R503 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R254 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R241 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R229 061G0402563 JI RST 0402 56K 5% 1/16W
R109 061G0402563 JI RST 0402 56K 5% 1/16W
R109 061G0402563 JT RST CHIPR 56KOHM 1/16W TZAI YUAN
R229 061G0402563 JT RST CHIPR 56KOHM 1/16W TZAI YUAN
R491 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R490 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R489 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R414 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R412 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R411 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R410 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R409 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R408 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R232 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R231 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R228 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R635 061G0402751 JI RST 0402 750R 5% 1/16W
R637 061G0402751 JI RST 0402 750R 5% 1/16W
R637 061G0402751 JT RST CHIP 750R 1/16W 5% TZAI YUAN
R635 061G0402751 JT RST CHIP 750R 1/16W 5% TZAI YUAN
R604 061G0402752 JI RST 0402 7.5K 5% 1/16W
R607 061G0402752 JI RST 0402 7.5K 5% 1/16W
R624 061G0402752 JI RST 0402 7.5K 5% 1/16W
R625 061G0402752 JI RST 0402 7.5K 5% 1/16W
R640 061G0402752 JI RST 0402 7.5K 5% 1/16W
R641 061G0402752 JI RST 0402 7.5K 5% 1/16W
R641 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R640 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R625 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R624 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R607 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R604 061G0402752 JT RST CHIP 7K5 1/16W 5% TZAI YUAN
R721 061G0603120 2F RST CHIPR 12 KOHM +-1% 1/10W
R207 061G0603261 0F RST CHIPR 261 OHM +-1% 1/10W
R219 061G0603348 1F RST CHIP 3.48K 1/10W 1%
R535 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R536 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R537 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R537 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
R536 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
R535 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
R285 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R480 061G1206221 JI RST 1206 220R 5% 1/4W
R534 061G1206221 JI RST 1206 220R 5% 1/4W
R480 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R534 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
C404 065G040210232K A CAP 0402 1NF K 50V X7R

47

C612 065G040210232K A CAP 0402 1NF K 50V X7R
C613 065G040210232K A CAP 0402 1NF K 50V X7R
C622 065G040210232K A CAP 0402 1NF K 50V X7R
C623 065G040210232K A CAP 0402 1NF K 50V X7R
C633 065G040210232K A CAP 0402 1NF K 50V X7R
C634 065G040210232K A CAP 0402 1NF K 50V X7R
C207 065G040210332K A CAP 0402 10NF 50V X7R
C208 065G040210332K A CAP 0402 10NF 50V X7R
C291 065G040210332K A CAP 0402 10NF 50V X7R
C410 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C411 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C415 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C417 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C418 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C419 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C420 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C421 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C422 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C423 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C424 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C427 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C428 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C429 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C430 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C433 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C434 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C435 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C436 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C437 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C438 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C439 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C409 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C268 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C269 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C270 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C271 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C272 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C282 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C283 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C285 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C287 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C289 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C294 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C298 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C299 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C300 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C301 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C302 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C303 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C304 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C305 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C306 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C307 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C408 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

48

C625 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C620 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C615 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C601 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C456 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C461 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C462 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C464 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C465 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C466 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C467 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C468 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C469 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C470 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C471 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C472 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C473 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C477 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C480 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C502 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C504 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C505 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C703 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C442 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C443 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C444 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C445 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C446 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C448 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C449 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C451 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C452 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C724 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C722 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C721 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C718 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C717 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C714 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C712 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C711 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C710 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C709 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C707 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C705 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C704 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C267 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C213 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C214 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C216 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C217 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C218 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C219 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C220 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C224 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

49

C225 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C226 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C227 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C230 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C233 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C212 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C101 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C103 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C106 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C108 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C109 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C116 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C117 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C201 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C203 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C204 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C205 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C210 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C211 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C252 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C253 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C254 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C255 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C256 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C257 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C258 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C259 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C260 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C261 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C262 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C265 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C266 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C251 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C234 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C237 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C238 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C239 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C240 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C241 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C242 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C250 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C249 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C248 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C245 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C244 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C243 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C618 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C619 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C626 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C627 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C630 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C701 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C273 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C603 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

50

C605 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C607 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C616 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C617 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R
C708 065G040218031J Y MLCC 0402 18PF 50V NPO +-5% YAGEO
C713 065G040218031J Y MLCC 0402 18PF 50V NPO +-5% YAGEO
C412 065G040222031J A CAP 0402 22PF J 50V NPO
C608 065G040222031J A CAP 0402 22PF J 50V NPO
C609 065G040222031J A CAP 0402 22PF J 50V NPO
C610 065G040222031J A CAP 0402 22PF J 50V NPO
C611 065G040222031J A CAP 0402 22PF J 50V NPO
C413 065G040222031J A CAP 0402 22PF J 50V NPO
C110 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C228 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C414 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C416 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C459 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C463 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C501 065G0402224A5K T CAP CHIP 0402 0.22UF 10V X5R
C474 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C475 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C401 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C402 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C403 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C405 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C406 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C407 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C222 065G040250931J A CAP 0402 5PF J 50 NPO
C221 065G040250931J A CAP 0402 5PF J 50 NPO
C229 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C206 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C112 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C604 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C606 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C614 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C621 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C631 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C632 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C706 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C114 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C231 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C602 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C503 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C460 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C453 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C450 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C447 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C441 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C426 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C425 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C290 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C284 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C264 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C232 065G0805106 A7 CHIP 10UF 10V Y5V 0805

51

C715 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80%
C719 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80%

FB213 071G 56K121 CHIP BEAD
FB402 071G 56K121 CHIP BEAD
FB403 071G 56K121 CHIP BEAD
FB404 071G 56K121 CHIP BEAD
FB405 071G 56K121 CHIP BEAD
FB406 071G 56K121 CHIP BEAD
FB407 071G 56K121 CHIP BEAD
FB602 071G 56K121 CHIP BEAD
FB603 071G 56K121 CHIP BEAD
FB604 071G 56K121 CHIP BEAD
FB701 071G 56K121 CHIP BEAD
FB702 071G 56K121 CHIP BEAD
FB703 071G 56K121 CHIP BEAD
FB101 071G 56K121 CHIP BEAD
FB102 071G 56K121 CHIP BEAD
FB103 071G 56K121 CHIP BEAD
FB201 071G 56K121 CHIP BEAD
FB202 071G 56K121 CHIP BEAD
FB203 071G 56K121 CHIP BEAD
FB204 071G 56K121 CHIP BEAD
FB205 071G 56K121 CHIP BEAD
FB206 071G 56K121 CHIP BEAD
FB207 071G 56K121 CHIP BEAD
FB208 071G 56K121 CHIP BEAD
FB209 071G 56K121 CHIP BEAD
FB210 071G 56K121 CHIP BEAD
FB401 071G 59B121 TB160808B
FB408 071G 59B121 TB160808B

L201 073G 8522810M CHIP INDUCTOR 0.22UH 10%
L202 073G 8522810M CHIP INDUCTOR 0.22UH 10%

L203 073G 8522810M CHIP INDUCTOR 0.22UH 10%
CN501 088G 340 19CHA HDMI HEADER 19P 2nd Source
CN203 088G 500 10 P 4 IN 1 MENORY CARD CM4S-01X

D405 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D404 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D503 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D404 093G 64 42 P BAV70 SOT23 BY PAN JIT
D405 093G 64 42 P BAV70 SOT23 BY PAN JIT
D503 093G 64 42 PP BAV70 SOT-23
D414 093G 6432P LL4148
D415 093G 6432P LL4148
D504 093G 6432P LL4148
D505 093G 6432P LL4148
D401 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D402 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D403 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D406 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D407 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D408 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D409 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D410 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D411 093G 6433L DIODE LBAV99LT1G SOT-23 LRC

52

D412 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D413 093G 6433L DIODE LBAV99LT1G SOT-23 LRC
D413 093G 6433P BAV99
D412 093G 6433P BAV99
D411 093G 6433P BAV99
D410 093G 6433P BAV99
D409 093G 6433P BAV99
D408 093G 6433P BAV99
D407 093G 6433P BAV99
D406 093G 6433P BAV99
D403 093G 6433P BAV99
D402 093G 6433P BAV99

D401 093G 6433P BAV99
ZD413 093G 39GA01 T RLZ5.6B
ZD412 093G 39GA01 T RLZ5.6B
ZD411 093G 39GA01 T RLZ5.6B
ZD410 093G 39GA01 T RLZ5.6B
ZD409 093G 39GA01 T RLZ5.6B
ZD408 093G 39GA01 T RLZ5.6B
ZD407 093G 39GA01 T RLZ5.6B
ZD406 093G 39GA01 T RLZ5.6B
ZD405 093G 39GA01 T RLZ5.6B
ZD404 093G 39GA01 T RLZ5.6B
ZD403 093G 39GA01 T RLZ5.6B
ZD402 093G 39GA01 T RLZ5.6B
ZD401 093G 39GA01 T RLZ5.6B
ZD414 093G 39GA01 T RLZ5.6B
ZD415 093G 39GA01 T RLZ5.6B
ZD416 093G 39GA01 T RLZ5.6B
ZD504 093G 39GA01 T RLZ5.6B

715G2857 2 MAIN-PCB FR-4 160X150X1.6MM DS
CN501 088G 340 19 AV HDMI HEADER 19P +SCREW HOLE
CN501 088G 340 19 AN HDMI HEADER 19P +SCREW HOLE 2nd Source

709G2857 QS001 CONSUMPTIVE ASS'Y

052G 2191 A PAPER TAPE

055G 100610 TIN CREAM W/O PB

Q52G6026 7 MESH PRINTTING PAPER

R449 061G04023900FY RST CHIP 390R 1/16W 1%
R407 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN
R234 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN
R254 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA
R241 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

709G2857 QA001 CONSUMPTIVE ASS'Y

Q90G6258 2 HEAT SINK

KEPC8QA1 KEY BOARD G2941-1-X-X-1-080606

CN001 033G3802 8H WAFER 8P RIGHT ANGLE PITCH 2.0

U001 056G 627503 IC GP18B38BCE-HB GUANG PU
SW002 077G603S 3 TO TACT SWITCH 2P
SW001 077G603S 3 TO TACT SWITCH 2P
SW005 077G603S 3 TO TACT SWITCH 2P
SW004 077G603S 3 TO TACT SWITCH 2P
SW003 077G610D 1 NA TACT SWITCH+LED
SW003 077G610D 1 WB TACT SW+LED

709G2941 QM001 CONSUMPTIVE ASS'Y

53

Q001 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q002 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q001 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q002 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

R001 061G0603000 1F NO-SUGGEST RST CHIPR 0 OHM +-1% 1/10W

R004 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R002 061G06032001FI TEST ONLY RST 0603 2K 1% 1/10W TA-I

R003 061G06032001FI TEST ONLY RST 0603 2K 1% 1/10W TA-I

R007 061G0603330 JI TEST ONLY RST 0603 33R 5% 1/16W TA-I

R005 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I

R006 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I

R006 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN

R005 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN

C007 065G0603104 12 CER2 0603 X7R 16V 100N P

C010 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C009 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C008 065G060310512K T CAP 0603 1UF 10% 16V X7R

ZD006 093G 39S501 T LUDZS5.6BT1G BY LRC
ZD007 093G 39S501 T LUDZS5.6BT1G BY LRC

715G2941 2 KEY-PCB FR4 19X76X1.6MM DS
709G2941 QS001 CONSUMPTIVE ASS'Y

R002 061G06032001FT RST CHIP R 2KOHM 1/10W +/-1%

R003 061G06032001FT RST CHIP R 2KOHM 1/10W +/-1%

R007 061G0603330 JT RST CHIP 33R 1/10W 5% TZAI YUAN

PWPC8E41MQIG POWER BOARD G2824-2-5-X-18-090520
040G 45762412B CBPC LABEL

GND1 009G6005 1 GROUND TERMINAL
CN801 033G8021 2E F CONNECTOR 2nd Source
CN802 033G8021 2E F CONNECTOR 2nd Source
CN803 033G8021 2E F CONNECTOR 2nd Source
CN804 033G8021 2E F CONNECTOR 2nd Source
CN801 033G8021 2E XY CONNECTOR
CN802 033G8021 2E XY CONNECTOR
CN803 033G8021 2E XY CONNECTOR
CN804 033G8021 2E XY CONNECTOR

IC903 056G 139 8 IC PS2561L1-1-V-A LJ LEAD BENDING 4PIN

IC903 056G 139 3A PC123Y22FZOF SHARP
NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING
NR901 061G 58809MEN RST NTCR 8OHM £«£20£¥ 4A XIANZHENG

R946 061G152M471 64 SY RST MOFR 470 OHM +-5% 2WS FUTABA
C903 063G107K224 UM X2 CAP 0.22UF K 275VAC
C904 063G107K224 UM X2 CAP 0.22UF K 275VAC
C904 063G107K2246S1 X2 CAP 0.22UF K 275VAC
C819 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C822 065G 3J5606ET CAP CER 56PF J 3KV
C817 065G 6J2096ET 2PF 5% SL 6KV
C901 065G305M1022BP CAP Y2 1000PF M 250VAC
C902 065G305M1022BP CAP Y2 1000PF M 250VAC
C901 065G305M1022BP CAP Y2 1000PF M 250VAC
C902 065G305M1022BP CAP Y2 1000PF M 250VAC
C921 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C921 065G306M1022BP Y1 1000PF M 250VAC

54

C900 065G306M3322B3 Y1 CAP 3300PF +-20% 250VAC CD SERIES
C900 065G306M3322BP Y1 CAP 3300PF M 250VAC
C804 067G215A1024KV EC 1000UF 25V 12.5*20MM
C917 067G215B6814RV CAP 105C 680UF M 25V 10*20
C918 067G215B6814RV CAP 105C 680UF M 25V 10*20
C804 067G215C1024HV CAP L105C 1000UF M 25V HERMEI
C918 067G215D6814KV CAP 105C 680UF M 25V 10*20
C917 067G215D6814KV CAP 105C 680UF M 25V 10*20
C908 067G215R2207HB LOW ESR EC 22UF 50V M 6.3*11MM
C908 067G215R2207KV LOW ESR EC 22UF 50V M 6.3*11MM
C908 067G215R2207LB LOW ESR EC 22UF 50V M 6.3*11MM

C939A 067G215S1024KV EC 1000UF 20% 25V 12.5*20

C916 067G215S1024KV EC 1000UF 20% 25V 12.5*20
C915 067G215S4713KV

C939A 067G215V102 4N EC 1000UF 25V 12.5*20MM NCC

C916 067G215V102 4N EC 1000UF 25V 12.5*20MM NCC
C915 067G215Y4713HV EC 470UF 16V 10*13MM
C905 067G315Z12115H EC 120UF 20% 450V 20*40MM
C905 067G315Z12115K EC 120UF 20% 450V 20*40

L802 073G 174 35DNA COMMON FILTER CHOKE 200MH¡À25%
L801 073G 174 35DNA COMMON FILTER CHOKE 200MH¡À25%
L905 073G 253 91 L CHOKE BY LI TA
L904 073G 253 91 L CHOKE BY LI TA
L903 073G 253 91 L CHOKE BY LI TA
L905 073G 253 91 HP CHOKE COIL 3.5UH VOC
L903 073G 253 91 HP CHOKE COIL 3.5UH VOC
L904 073G 253 91 HP CHOKE COIL 3.5UH VOC

L901 073L 174 26T1G LINE FILTER 27MH
T901 080GL22T 3 N1 X'FMR 490UH YUVA-1093
T901 080GL22T 3 S1 X'FMR 490UH

PT801 080GL24T 23 DN X'FMR 68UH TK.2005Y.101 VOC
CN901 087G 501 32 S AC SOCKET ST-01CP-BCE-R
CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND 2nd Source
BD901 093G 50460 16 U4KB80R
BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON

D907 093G3006 1 1 31DQ06FC3 NIHON INTER

CN902 095G 82013D505 HARNESS 13P(SAN)-10P 160 2nd Source
CN902 095G 82013W505 WIRE HARNESS 13P(SAN)-10P 160MM

705GQ851002 OIL FOR DISAPPEAR ASS'Y
705GQ857026 Q901 ASS'Y

Q901 057G 667 21 NO-SUGGEST STP10NK70ZFP
Q901 057G 667516 FET 2SK3673 TO-220 FUJI
Q901 057G 667924 MOSFET SMK0965F

0M1G 930 8120 SCREW

HS1 Q90G6263 6 HEAT SINK

705GQ893039 D908 ASS'Y
D908 093G 60278 DIODE SP1060 ITO-220 SECOS
D908 093G 60507 SRF1060

0M1G 930 8120 SCREW

HS2 Q90G6263 6 HEAT SINK

705GQ893040 D906 ASS'Y
D906 093G 52 66 DIODE FMX-12SL 10A/200V TO-220

0M1G 930 8120 SCREW

HS3 Q90G6264 5 HEAT SINK

EC 105℃ CAP 470UF M 16V

55

709G2824 QM001 CONSUMPTIVE ASS'Y

055G 2 ALCOHOL

055G 23524 WELDING FLUX WITHOUT PB

Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379128 IC LD7576 GS SOP-8
IC801 056G 608 12 IC TA9687GN-A-0-TR SOP-16

Q806 057G 600 61 AM4502C-TI-PF S0-8
Q805 057G 600 61 AM4502C-TI-PF S0-8
Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8
Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8
Q805 057G 763526 FET APM4548AKC 30V/7.4A -30V/-5.6A ANPEC
Q806 057G 763526 FET APM4548AKC 30V/7.4A -30V/-5.6A ANPEC
R926 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R806 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W
R810 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W
R812 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W
R927 061G06031002FI RST 0603 10K 1% 1/10W TA-I
R927 061G06031002FY RST CHIPR 10KOHM +-1% 1/10W YAGEO
R801 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R807 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R801 061G0603103 JI RST 0603 10K 5% 1/10W TA-I
R807 061G0603103 JI RST 0603 10K 5% 1/10W TA-I
R813 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R809 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R838 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R839 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R840 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R841 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R842 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R843 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R844 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R845 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R842 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R843 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R844 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R845 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R836 061G0603563 RST CHIPR 56 KOHM +-5% 1/10W
R837 061G0603682 RST CHIPR 6.8 KOHM +-5% 1/10W
R811 061G06038202FI TEST ONLY RST 0603 82K 1% 1/10W TA-I
R930 061G06039101FI TEST ONLY RST 0603 9.1K 1% 1/10W TA-I
R848 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R847 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R846 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

JR903 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
JR804 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
JR801 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
JR801 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
JR804 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
JR903 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R846 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
R847 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
R848 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

56

R924 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W
R924 061G08051000FY RST CHIPR 100 OHM +-1% 1/8W YAGEO
R925 061G08051001FT RST CHIP 1K 1/8W 1%
R939 061G08051001FT RST CHIP 1K 1/8W 1%
R925 061G08051001FY RST CHIP 1K 1/8W 1%
R939 061G08051001FY RST CHIP 1K 1/8W 1%
R938 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R938 061G08051002FT RST CHIP 10K 1/8W 1%
R938 061G08051002FY RST CHIP 10K 1/8W 1%

JR803 061G08052002FF RST CHIPR 20KOHM +-1% 1/8W FENGHUA
JR803 061G08052002FT RST CHIP 20K 1/8W 1%

R802 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R943 061G0805471 RST CHIPR 470 OHM +-5% 1/8W
R816 061G0805479 RST CHIP 4R7 1/8W 5%
R817 061G0805479 RST CHIP 4R7 1/8W 5%
R818 061G0805479 RST CHIP 4R7 1/8W 5%
R819 061G0805479 RST CHIP 4R7 1/8W 5%
R803 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W
R804 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W
R830 061G0805682 RST CHIPR 6.8 KOHM +-5% 1/8W

JR802 061G1206000 RST CHIP MAX 0R05 1/4W
JR901 061G1206000 RST CHIP MAX 0R05 1/4W
JR902 061G1206000 RST CHIP MAX 0R05 1/4W
JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R910 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R962 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R961 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R951 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R950 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R949 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R935 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R920 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R919 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R918 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W
R902 061G1206105 1M 1206
R901 061G1206105 1M 1206
R912 061G1206221 JI RST 1206 220R 5% 1/4W
R912 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R909 061G1206339 NO-SUGGEST RST CHIPR 3.3 OHM +-5% 1/4W
R905 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W
R904 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W
C932 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R
C814 065G060322131J A CAP CHIP 0603 220PF J 50V NPO
C805 065G060322332K Y TPV CHIP 0603 22N 50V X7R +/-10%
C810 065G060333232K F CAP CHIP 0603 3.3NF K 50V X7R
C928 065G080510332K F CAP 0805 10NF K 50V X7R
C931 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C930 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C924 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C907 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C815 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C811 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C809 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

57

C809 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%
C909 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%
C806 065G080522512K M MLCC 0805 CAP 2.2UF 16V X7R
C806 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R
C808 065G080533332K F CAP 0805 33NF K 50V X7R
C935 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C912 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C929 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
D803 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D808 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D807 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D808 093G 64 42 P BAV70 SOT23 BY PAN JIT
D806 093G 64 42 P BAV70 SOT23 BY PAN JIT
D807 093G 64 42 P BAV70 SOT23 BY PAN JIT
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
D806 093G 64 42 PP BAV70 SOT-23
D803 093G 6433S SWITCHING DIODE BAV99
D803 093G 64900 T DIO SIG SM BAV99 (VISH) R

ZD802 093G 39S 24 T RLZ 5.6B LLDS
ZD803 093G 39S 24 T RLZ 5.6B LLDS

D806 093G 64S 6 SMT D-BAV70-7-F SOT-23
D807 093G 64S 6 SMT D-BAV70-7-F SOT-23
D808 093G 64S 6 SMT D-BAV70-7-F SOT-23

CN901 006G 31500 EYELET

IC904 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC
IC904 056G 158 12 KIA431A-AT/P TO-92

Q903 057G 530503 T 2SD1207T
Q903 057G 761 16 TRA KTD1028 KEC
R903 061G152M10452T NO-SUGGEST RST MOFR 100KOHM +-5% 2WS
R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS
R828 061G211S62552T SY MGFR 6.2MOHM +-5% 1WS FUTABA
C906 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P
C940 065G500K4732GT CAP JC 47NF 10% 50V X7R
C801 065G500K4732GT CAP JC 47NF 10% 50V X7R
C802 065G500K4732GT CAP JC 47NF 10% 50V X7R
C802 065G500K4732HT CAP CER 47NF 10% 50V X7R
C940 065G500K4732HT CAP CER 47NF 10% 50V X7R
C801 065G500K4732HT CAP CER 47NF 10% 50V X7R

J806 071G 55 9 T FERRITE BEAD 3.5*6*0.8-T52

FB901 071G 55 29 FERRITE BEAD

F903 084G 56 4 B FUSE 4A 250V
F902 084G 56 4 B FUSE 4A 250V
F901 084G 56 4 B FUSE 4A 250V
F903 084G 56 4W FUSE 4A 250V
F902 084G 56 4W FUSE 4A 250V
F901 084G 56 4W FUSE 4A 250V

ZD902 093G 3952152T TZX18B

D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D900 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D900 093G 6026T52T RECTIFIER DIODE FR107
D901 093G 6038P52T PS102R
D901 093G 6038T52T FR103 AO

58

D903 093G 64 1152T 1N4148
D801 093G 64 1152T 1N4148
D801 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP
D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP
D900 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J803 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE
J809 095G 90 23 JUMPER WIRE
J810 095G 90 23 JUMPER WIRE
J811 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE
J916 095G 90 23 JUMPER WIRE
L906 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
J814 095G 90 23 JUMPER WIRE
J813 095G 90 23 JUMPER WIRE
J812 095G 90 23 JUMPER WIRE

715G2824 6 5 POWER PCB FR-1 S/S 160X160MM

709G2824 QA001 CONSUMPTIVE ASS'Y

095G 90 23 JUMPER WIRE

709G2824 QS001 CONSUMPTIVE ASS'Y

052G 2191 A PAPER TAPE

C818 065G0805155A2K T NO-SUGGEST 0805 1.5UF K 10V X7R
C818 065G0805155A2K 3 NO-SUGGEST 0805 1.5UF K 10V X7R
C818 065G0805155A2K M CAP MLCC 0805 1.5UF K 10V X7R
C806 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10%
R811 061G06038202FT RST CHIPR 82K OHM +- 1% 1/10W
R930 061G06039101FT RST CHIP 9K1 1/10W 1%
R910 061G1206100 JI RST 1206 10R 5% 1/4W
R813 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

L801 S73G17435VA COMMON FILTER CHOKE 200MH±25%
L802 S73G17435VA COMMON FILTER CHOKE 200MH±25%
L901 S73L17426VG LINE FILTER ASS'Y

T901 S80GL22T3V1 FMR POWER 490UH TPV-PT

PT801 S80GL24T23V XFMR POWER 68UH TPV-PT VOC

052FP5MB040026 MYLAR

Q12G6300 46 SCREW CAP VESA

59

Q12G6600 6 FOOT

Q40G000262410B VISTA LABEL

Q40G000262463A I-O LABEL FOR 2230FM

Q40G000262466C POP LABEL FOR 2230FM

Q40G000262813A CEL LABEL FOR TFT22W90PSA

Q41G2009615 9C WARRANTY CARD

Q41G780B61544A 2230FM QSG

Q44GC043101 EPS

Q44GC043201 EPS

Q44GC04361518C 22 LCD CARTON

Q45G 88609204 N EPE BAG

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 BIG CARTON TAPE FOR AOC

089G 17356X554 AUDIO CABLE 1800MM

Q36G 600517 DUSTER CLOTH

Q41G780060886A PAPER SHEET NO.2 NYXL

Q45G 76 28 RN R PE BAG MANUAL

Q70G22C1615 2C CD MANUAL

040G 58162435A P/N LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

Q40G 22N61591B RATING LABEL

Q40G000161514A CARTON LABEL

60
