22” LCD Color Monitor AOC 2116Sw
Service
Service
Service
30kHz – 80kHz
Description Page Description Page
Table Of Contents.......……...................…............…........1
Revision List.…........................................……......2
Important Safety Notice.……..………...............……......3
1. Monitor Specification......….......................………........4
2. LCD Monitor Description……………...…………….......5
3. Operation Instruction……………...............……...........6
3.1 General Instructions……….........................…...........6
3.2 Control Button…….………….…..............……............6
3.3 Adjusting the Picture.................……..........…............7
4. Input/Output Specification..........……………...........14
4.1 Input Signal Connector..........…………….................14
4.2 Factory Preset Display Modes....……......................15
N
4.3 Panel Specification.....…………….…..............……..16
5. Block Diagram……..…................…………................18
5.1 Soft Flow Chart………….………….………....….......18
5.2 Electrical Block Diagram…………………..….......20
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
Horizontal Frequency
TABLE OF CONTENTS
6.Schematic……………....................................…22
6.1 Main Board.…..…...……..........................................22

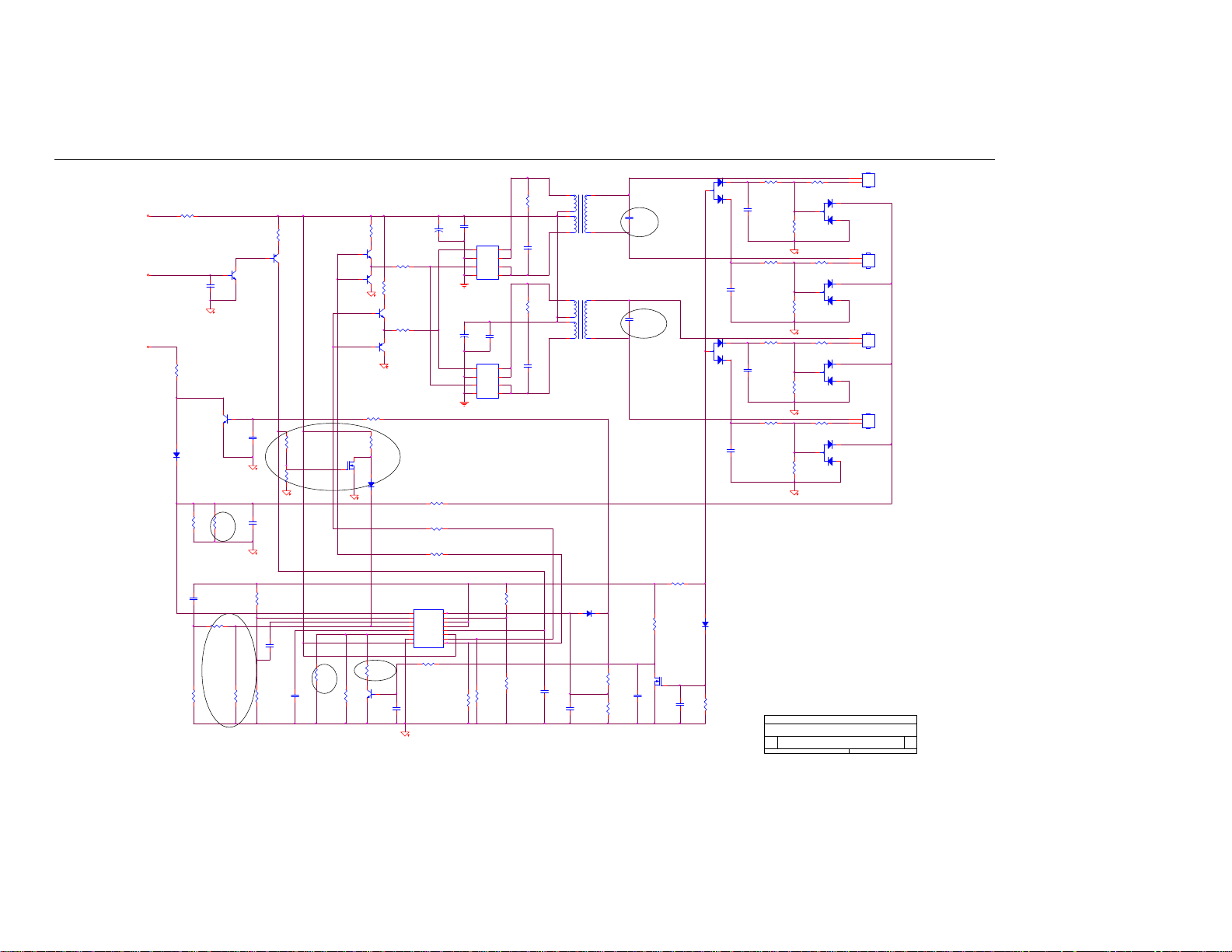

6.2 Power Board....………..……....................................26
6.3 Key Board…………………………………………...28
7.PCB Layout..………….......................................29
7.1 Main Board………………........................................29
7.2 Power Board…………...….......................................31
7.3 Key Board……………..…….....................................33
8. Maintainability……........................….........……......34
8.1 Equipments and Tools Requirement.....………........34
8.2 Trouble Shooting…………..……..............................35
9. White-Balance, Luminance adjustment..……............41
10. Monitor Exploded View………………………............43
11. BOM List…………....................................................44
12.Different Part List……….................................. 55
SAFETY NOTICE
1

22” LCD Color Monitor AOC 2116Sw
Revision List
Revision Date Revision History TPV Model
TC7CMADBLWA5NN/
TC7CMADPLWXMNF/
A00 June-30-07 Initial Release
TC7CMADPLWXMNN/
TC7CMADQLWA2NF/
TC7CMADQLWA2NN
2

22” LCD Color Monitor AOC 2116Sw
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The special
tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods
may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT
EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which
service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC. AOC
assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the
panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3

22” LCD Color Monitor AOC 2116Sw
1. Monitor Specifications
Driving system TFT Color LCD
Size 54.8cm ( 21.6" 16:10 )
LCD Panel
Input
Pixel pitch 0.277mm(H) x 0.277mm(V)
Dot Clock
Display Colors 16.7M Colors
Video R, G, B Analog Interface
Separate Sync. H/V TTL
H-Frequency
Horizontal scan
Size(Maximum)
165 MHz
30 – 80 kHz Multi- frequency monitor
464.94mm
V-Frequency
Vertical scan
Size(Maximum)
Max. Resolution
Plug & Play VESA DDC2B
Power
Consumption
Input Connector 15-pin D-Sub
Input Video Signal
Power Source 100~240VAC,50~60Hz
Environmental
Considerations
Dimension
Weight (monitor only)
Weight (with packaging)
ON Mode ≤49W
saving mode < 2 W
Height (with base)
Width
Depth
Regulations CCC/cULus/FCC/CE/RoHS/TCO 03/TUV-GS
55 - 75 Hz modes within these parameters
290.58mm
1680 x 1050 (60 Hz)
TM
Analog: 0. 7Vp-p(standard),
75 OHM, Positive
Operating Temp: 0° to 50°C
Operating Humidity: 10% to 85%
398.6(404.6) mm
505.8 mm
80.7 mm
5 kg
7 kg
4

22” LCD Color Monitor AOC 2116Sw
2. LCD Monitor Description
The LCD monitor will contain a main board, a power board, and a key board which house the flat panel control logic,
brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each
voltage.
RS232 Connector
For white balance
adjustment in factory
mode
Video signal,
HOST Computer
Power board
Include: adapter, inverter)
AC-IN
100V-240V
Monitor Block Diagram
CCFL Drive.
Key board
Flat Panel and
CCFL backlight
Main Board
5

22” LCD Color Monitor AOC 2116Sw
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
-
3.2 Control Button
External Controls
1. Auto Config
2. Eco Mode/ down
3. Up
4. Menu / Enter
5. Power Button & Indicator
6

22” LCD Color Monitor AOC 2116Sw
3.3 Adjusting The Picture
OSD Settings
Press the MENU-button to activate the OSD window.
Press+ or - to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate it. If the function selected has a sub-menu, press or again to navigate through the
sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
Press+ or - to change the settings of the selected function. To exit and save, select the exit function. If you
want to adjust any other function, repeat steps 2-3.
OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then
press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the
monitor is off and then press power button to turn the monitor on.
Press Exit key continually for 7 sec. to turn on or off DDC-CI.
DCB Adjustment
Dynamic Color Boost (DCB) is an advanced color adjustment technology. Through analyzing RGB signals, DCB
creates more vivid and natural images to suit various color environment needs. DCB has two types of color
enhancers: “Color Boost” and “Picture Boost” .
DCC: Dynamic color control
ICM: Intelligent color management
1) How to use Color Boost?
YCM adjustment: In addition to the basic R (red), G (green), B (blue) color adjustments, Color Boost has added Y
(yellow), B (blue), and M (magenta) for more color fine-tuning options. YCM adjustments are in the third icon labeled
7

22” LCD Color Monitor AOC 2116Sw
"Color Temperature "in the OSD menu. When adjusting YCM values, RBG values will also be changed automatically
due to the color correlation between RGB and YCM.
Five color-enhancement settings: To accommodate various display needs, Color Boost also offers 5 different
color enhancement modes: Full Enhance, Natural Skin, Green Field, Sky Blue, and Auto-Detect. Please go to the
fourth icon labeled “Color Boost” in the OSD menu and select one of the five settings you desire to be turned on.
Full Enhance: When "Full Enhance" is turned on, the color saturation of the entire screen is fully enriched, thus all
colors become more vibrant.
8

22” LCD Color Monitor AOC 2116Sw
Nature Skin: When "Natural Skin" is turned on, the red and yellow colors are enriched automatically, thus presents
human skin with more natural and truer colors. "Natural Skin" setting is ideal for viewing human portrait and detailed
skin texture.
Green Field: When "Green Field" is turned on, the green color is enriched so that football field and mountain
landscape would look more natural and fresh. “Green Field” setting is ideal for watching mountain scenery and
outdoor sports.
9

22” LCD Color Monitor AOC 2116Sw
Sky Blue: When"Sky Blue" is turned on, the color blue is being fine-tuned so that the sky or ocean landscape will
look more vivid and in-depth. "Sky Blue" setting is ideal for viewing sky and ocean images.
Auto Detect: When “Auto Detect” is turned on, every pigment will be detected and self-adjusted to render a lively
picture.
Demo: Screen divided into two for demonstration purposes.
2) How to use Picture Boost?
Users can change the color settings of a self-selected zone on the screen. The size and position of the selected zone
can also be adjusted. "Picture Boost" is located in the fifth icon labeled "Picture Boost" in the OSD menu. Turn on
"Bright Frame" to select a zone on the screen to be enhanced. Please note when adjust or turn on any one of the DCB
features, the rest of color settings including DCR will be disabled or return to default.
10

22” LCD Color Monitor AOC 2116Sw
Disclaimer: DCB aftereffects are subject to the resolution and quality of the display content, hence may look different
than the above illustrations.
DCR Adjustment
What is DCR?
Dynamic Contrast Ratio (DCR) auto adjusts the brightness of the screen so users can see the darker areas of the
displayed content in more depths. By increasing the darkness of the dark areas and the brightness of the bright areas,
contrast ratio is uplifted to exceed 2000:1. DCR value varies subject to the original CR values of the LCD module. The
higher the original CR, the higher DCR can be achieved. DCR is great for watching movie or video contents.
How to Use DCR?
Go to the first OSD icon labeled "Luminance", turn on or off DCR as desires. DCR boosts the contrasts between
lightness & darkness and enables the viewer to see more layers and details of the picture, especially in the darker
areas. Please note when DCR is on, DCB will be disabled.
DCR Demos:
Disclaimer: DCR aftereffects are subject to the resolution and quality of the display content, hence may look different
than the above illustrations.
11

22” LCD Color Monitor AOC 2116Sw
Function Control Illustration
Luminance Adjust Range Description
Brightness 0-100 Backlight Adjustment
Contrast 0-100 Contrast from Digital-register.
Standard Standard Mode
Eco mode
Gamma
Text Text Mode
Internet Internet Mode
Game Game Mode
Movie Movie Mode
Sports Sports Mode
Gamma1 Adjust to Gamma1
Gamma2 Adjust to Gamma 2
Gamma3 Adjust to Gamma 3
DCR
Image Setup
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Focus 0-100
H.Position 0-100 Adjust the verticalposition of the picture.
V.Position 0-100 Adjust the horizontal position of the picture.
Color Temp.
Warm
Normal
Cool
sRGB
User
Off Disable dynamic contrast ratio
On Enable dynamic contrast ratio
Adjust Picture Phase to reduce Horizontal-Line
noise
User-B Blue Gain from Digital-register
User-G Green Gain Digital-register.
User-R Red Gain from Digital-register
User-Y Yellow Gain from Digital-register
Recall Warm Color Temperature from EEPROM.
Recall Normal Color Temperature from EEPROM.
Recall Cool Color Temperature from EEPROM.
Recall SRGB Color Temperature from EEPROM.
User-C Cyan Gain from Digital-register
User-M Magenta Gain from Digital-register
Color Boost
Full Enhance on or off Disable or Enable Full Enhance Mode
Nature Skin on or off Disable or Enable Nature Skin Mode
12

22” LCD Color Monitor AOC 2116Sw
Green Field on or off Disable or Enable Green Field Mode
Sky-blue on or off Disable or Enable Sky-blue Mode
AutoDetect on or off Disable or Enable AutoDetect Mode
Demo on or off Disable or Enable Demo
Picture Boost
Frame Size 0-14 Adjust Frame Size
Brightness 0-100 Adjust Frame Brightness
Contrast 0-100 Adjust Frame Contrast
Hue 0-100 Adjust Frame Hue
Saturation 0-100 Adjust Frame Saturation
Position
Bright Frame on or off Disable or Enable Bright Frame
OSD Setup
H.Position 0-100 Adjust the verticalposition of OSD
V.Position 0-100 Adjust the horizontal position of OSD
Timeout 0-100 Adjust the OSD Timeout
Language
Extra
Auto Config yes or no Auto adjust the picture to default
Reset yes or no Reset the menu to default
EXIT/DDC-CI Turn ON/OFF DDC-CI Support
Information
H. position Adjust Frame horizontal Position
V.position Adjust Frame vertical Position
Select the OSD language
Show the information of the main image and
sub-image source
13

22” LCD Color Monitor AOC 2116Sw
4. Input/Output Specification
4.1 Input Signal Connector
Pin No.
1. Red 9. +5V
2. Green 10. Detect Cable
3. Blue 11. N.C.
4. N.C. 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
Description Pin No. Description
15
6
11 15
10
14

22” LCD Color Monitor AOC 2116Sw
4.2 Factory Preset Display Modes
15

22” LCD Color Monitor AOC 2116Sw
4.3 Panel Specification
CLAA220WA01
OVERVIEW
CLAA220WA01 is 22.0” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel,
driver ICs, control circuit and backlight. By applying 6 bit digital data, 1680×1050, 16.7M-color images are displayed
on the 21.6” diagonal screen. Input power voltage is 5.0V for LCD driving. Inverter for backlight is not included in this
module. General specification is summarized in the following table:
General Specifications
Electrical Characteristics
16

22” LCD Color Monitor AOC 2116Sw
Optical Characteristics
17

22” LCD Color Monitor AOC 2116Sw
5. Block Diagram
5.1 Software Flow Chart
1
2
4
5
6
7
9
10
N
3
N
N
N
11
N
18
N
12
14
19
13
15
17
18
N
N
16

22” LCD Color Monitor AOC 2116Sw
1) MCU initializes.
2) Is the EPROM blank?
3) Program the EPROM by default values.
4) Get the PWM value of brightness from EPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappears.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
19

22” LCD Color Monitor AOC 2116Sw
5.2 Electrical Block Diagram
5.2.1 Main Board
FLASH ROM
PM25LV010A
(U402)
EPR_SDA
EPR_SCL
Crystal14.31818MHz
(X201)
Scalar IC TSUMU58BWHL-LF
(Include ADC, OSD, MCU)
(U202)
H sync
V sync
RGB
D-Sub
Connector
(CN101)
LCD PANEL
(CN301)
EEPROM
M24C04-WMN6TP
(U204)
DB15_SDA
DB15_SCL
EEPROM
M24C02-WMN6TP
(U101)
20

22” LCD Color Monitor AOC 2116Sw
5.2.2 Inverter/Power Board
Lamp
EMI filter
Bridge
Rectifier and
Filter
Start Circuit: R904R932R933
PWM Control IC
IC TEA1530
Output
Circuit
Transformer
Transformer
T901
Over
Voltage
Protect
MOSFET
Q802Q803
5V Rectifier
and Filter
14V Rectifier
and Filter
Feedback
Circuit
CN902
5V
14V
ON/OFF
Feedback
Circuit
Over
Voltage
Protect
PWM Control
IC TL494
ON/OFF Control
Q805/Q808
DIM Control
21

22” LCD Color Monitor AOC 2116Sw
6. Schematic
6.1 Main Board
22

22” LCD Color Monitor AOC 2116Sw
23

22” LCD Color Monitor AOC 2116Sw
24

22” LCD Color Monitor AOC 2116Sw
25

22” LCD Color Monitor AOC 2116Sw
6.2 Power Board
C902
0.001uF/250V
R903
680K 1/4W
2
1
BD901
KBP208G
+
-
4
1
4
2
3
!
FG
L901
3
C903
0.47uF/275V
R902
680K 1/4W
!
L902
!
L
C901
0.001uF/250V
4.0mH
124
R901
680K 1/4W
R918100 1/4W
R919100 1/4W
R920100 1/4W
T901
4
9
R916
4K7 1/8W
C906
1500pF 2KV
BA159GPT
BEAD
HS2
NC
1
2
D900
FB901
R938
10K 1/8W
R908
12
Q901
STP10NK70ZFP
R914
0.22 2W
7
5
100KΩ 2W
6
11
4
10
6
8
1
12
3
POWER X'FMR
!
12
43
C921
0.0047UF/ 400V
IC903
PC123X2YFZOF
C924
0.1uF/25V
IC904
KIA431A-AT/P
R905
R904
NC
C938
+
C907
0.1uF
C911
0.22uF/25V
1500pF 2KV
VCC
R915
220K 1/8W
3
!
4K7 1/4W
C905
100uF/450V
4K7 1/4W
D901
PS102R
C908
+
22uF/50V
4K7 1/4W
1
Vcc
DRAIN
2
GND
HVS
3
PROTECT
DRIVER
4 5
CTRL SENSE
IC901
TEA1530AT
R911
1K 1/8W
R931
C928
8K2 1/8W
0.0012uF
R932
R933
8
7
6
HS1
HEAT SINK(D906)
1
2
R906
NC
R909
10R 1/4W
R907
NC
D903
LL4148WP
R910
10R 1/4W
R917
1K 1/8W
R912
22K 1% 1/8W
C909
R913
0.22uF/50V
NC
123
R935 100 1/4W
R961 100 1/4W
R962 100 1/4W
D907
31DQ06FC
R925
1K 1/10W 1%
R926
3.6K 1% 1/ 10W
C912
0.001uF
D906
SP10100
3
C929
0.001uF
680uF/25V
2
+
+5V
+12V
C917
1
D905
NC
C939
1000uF/25V
+
C931
0.1uF
+
C918
680uF/25V
R924
1K5 1/10W
C930
0.1uF
L903
1.1uH
470uF/16V
LL4148WP
ZD921
RLZ15B
D915
L904
1.1uH
C915
+
C922
NC
PMBS3904
+
C916
0.1uF
ZD922
RLZ5.1B
1 2
1 2
D916
LL4148WP
R942
1K 1/10W 1%
9
8
7
6
5
CN902
4
WIRE HARNESS
3
2
1
1K 1/4W
Q902
1K 1/4W
1K 1/4W
R921
R923
R922
1K 1/4W
R928
C910
0.001uF
R927
3.6K 1% 1/ 10W
R930
2.4K 1% 1/ 10W
ZD902
RLZ15B
R929
1K 1/8W
R936
NC
R940
33K 1/10W
F902
0R05 1/4W
NC
1 2
R967
0R05 1/4W
+14V
ZD901
+5V
VAR901
NC
NR901
NTCR
t
FG
3
12
CN901
SOCKET
F901
FUSE
4.0A/250V
!
HS3
HEAT SINK(Q901)
1
2
GND1
GND
1
2
FG
26
ON/OFF
DIM
TPV(Top victory) Electronics Co.,ltd.
Titl e
1.POWER
Size Document Number Rev
<Doc> DB
Date: Sheet
G2538-1-AC-X-1-070510
12Thursday, May 10, 2007
of

22” LCD Color Monitor AOC 2116Sw
2
1
R821
1K 1/10W 1%
3
R822
1K 1/10W 1%
3
R809
1K 1/10W 1%
3
R812
1K 1/10W 1%
3
CN801
CONN
2
1
D801
BAV99
2
1
CN802
CONN
2
1
D802
BAV99
2
1
CN803
CONN
2
1
D803
BAV99
2
1
CN804
CONN
2
1
D804
BAV99
G2538-1-AC-X-1-070510
of
12Thursday, May 10, 2007
ON/OFF
2
C834
0.1uF/25V
3
3
D806
LL4148WP
R835
1M 1/10W 5%
E
R817
D805
C
C
10K 1/10W
BAW56
1
B
C819
0.0022uF
R801
1K 1/10W 1%
R828
10K 1/10W
C823
0.0022uF
2
E
D808
BAW56
1
B
C816
0.0022uF
R814
1K 1/10W 1%
R833
10K 1/10W
C815
0.0022uF
R815
1K 1/10W 1%
R834
10K 1/10W
R816
1K 1/10W 1%
TPV(Top victory) Electronics Co.,ltd.
Titl e
2.INVERTER
Size Document Number Rev
<Doc> DCustom
Date: Sheet
T801
POWER X'FMR
148
R855
F801
0R05 1/4W
+12V
R804
100 1/8W
Q808
C835
NC
C842
0.01uF
R832
10K 1/10W
R831
2.4K 1% 1/10W
C821
0.1uF/25V
PDTA144WK
R808
10K 1/10W
R811
2.4K 1% 1/10W
C820
220pF
Q805
PDTC144WK
C807
0.1uF/25V
DIM
R827
01/10W
Q806
PMBS3904
D817
LL4148WP
R851
R802
NC
15 KOHM +-1% 1/10W
C822
1uF/25V
D812
0 OHM +-5% 1/4W
R820
47K 1/10W
R863
NC
R810
51K 1/8W
3.6K 1/10W
R819
Q801
PMBS3904
Q804
PMBS3906
1
PMBS3906
R813
10K 1/10W 1%
Q810
RK7002
R805
NC
23
Q811
PMBS3904
Q812
1
R853
68K 1% 1/10W
D809
LL4148WP
R861
390KΩ 1% 1/10W
Q807
PMBS3904
R823
3.6K 1/8W
23
R839
0 1/8W
R850
0 1/8W
1
2
3
4
5
6
7
8 9
C817
NC
C802
470uF/25V
IC801
IN1+
IN1FB
DTC
CT
RT
GND
C1 E1
TL494
R854
68K 1% 1/10W
+
470uF/25V
R841
68K 1% 1/10W
R829
22R 1/8W
R825
22R 1/8W
16
IN2+
15
IN2-
14
VREF
13
CONT
12
VCC
11
C2
10
E2
1K 1/10W 1%
C824
0.1uF
Q802
AM9945N-T1-PF
4
G
3
S
2
G
1
S
C803
+
Q803
AM9945N-T1-PF
4
G
3
S
2
G
1
S
R824
R826
1K 1/10W 1%
33 1/4W
3
7 9
C839
5
D
1000pF
6
D
7
D
8
D
C805
0.1uF
5
D
6
D
7
D
8
D
R806
68K 1% 1/10W
R807
47K 1/10W
R857
33 1/4W
C840
1000pF
C825
0.1uF/25V
T802
POWER X'FMR
148
3
7 9
D814
LL4148WP
C845
2.2uF/16V
R803
1M 1/10W 5%
R862
1M 1/10W 5%
C801
10pF/3KV
C811
10pF/3KV
C846
NC
R837
47K 1/8W
R818
1K 1/10W 1%
Q809
RK7002
27

22” LCD Color Monitor AOC 2116Sw
6.3 Key Board
28

22" LCD Color Monitor
7. PCB Layout
7.1 Main Board
AOC 2116Sw
29

22" LCD Color Monitor
AOC 2116Sw
30

22” LCD Color Monitor AOC 2116Sw
7.2 Power Board
31

22” LCD Color Monitor AOC 2116Sw
32

22” LCD Color Monitor AOC 2116Sw
7.3 Key Board
33

22” LCD Color Monitor AOC 2116Sw
8. Maintainability
8.1 Equipments and Tools Requirement
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
34

22” LCD Color Monitor AOC 2116Sw
8.2 Trou ble Shooting
8.2.1 Main Board
(1) No Power
No power
Press power key and look if the
picture is normal
NG
Please reinsert and make sure the
5V and 12V input is normal
OK
Measure U701 Pin2=3.3V and U702 PIN2=1.8V
OK
Check X201 oscillate waveforms
are normal
OK
Check U202
NG
NG
NG
Reinsert or check the
ower section
Check CN401 or
replace U701,U702
Replace X201
35

22” LCD Color Monitor AOC 2116Sw
(2) No picture
No picture
The button if under
control
OK
Measure U701 PIN2=3.3V
and U702 PIN2=1.8V
OK
X201 oscillate
waveform is normal
OK
Check HS/VS from
CN101 is normal
OK
NG
NG
NG
X201 oscillate
waveform is normal
OK
Check reset circuit of
U202 is normal
Replace U202
NG
Replace U701, U702
Replace X201
Check Correspondent
component
OK
NG
Replace X201
NG
Check Correspondent
component
Replace U202
36

22” LCD Color Monitor AOC 2116Sw
(3) White screen
Check Correspondent
component.
White screen
Measure Q301 base
is low level?
OK
Check Q301,Q302 is
broken or CN401 solder?
NG
OK
Replace PANEL
NG
X201 oscillate
waveform is normal
OK
Check reset circuit of
U202 is normal
OK
Replace U202
NG
NG
Replace X201
Check Correspondent
component.
37

22” LCD Color Monitor AOC 2116Sw
8.2.2 Power/Inverter Board
No power
Check CN902 pin4, 5 = 12V
Check AC line volt 110V or 220V
Check the voltage of C905(+)
Check start voltage for the pin8 of IC901
Check the auxiliary voltage is bigger than
10V and smaller than 20V
Check IC901 pin6 PWM wave
Check Q902/D906/IC903/ZD921/ZD922
OK
OK
NG
OK
OK
OK
NG
NG
NG
NG
NG
Check AC input
Check bridge rectified circuit and F901 circut
Check R904, R932, R933, and Change IC901
1) Check IC901
2) Check R909/D901 and OVP circuit
Check IC901
38

22” LCD Color Monitor AOC 2116Sw
W / LED, No Backlight
Check ON/OFF signal and the pin 12 of IC801 is 14V
Check CN902 pin4, 5 = 12V
NG
OK
NG
OK
Check the pin5 of IC801 have saw tooth wave
NG
OK
Check the adapter and F801
Check main board or change ON/OFF signal
Change IC801
Formatted:
Font color: Red
Check the PWM wave from the pin9,10 of IC801
OK
Check Q802, Q803 PIN5, 6, 7, 8 have the
output of square wave at short time.
OK
Check the output of T801, T802
OK
Check connecter & lamp
Check IC801
NG
NG
Check Q801, Q804, Q811, Q812,
Q802, Q803
Change T801, T802
39

22” LCD Color Monitor AOC 2116Sw
8.2.3 Keypad Board
OSD is unstable or not working
Is Key Pad Board connecting normally?
Y
Is Button Switch normally?
Y
Is Key Pad Board normally?
Y
Check Main Board
N
N
N
Connect Key Pad Board
Replace Button Switch
Replace Key Pad Board
40

22” LCD Color Monitor AOC 2116Sw
9. White- Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment.
Before started adjust white balance , please set the Chroma-7120 MEM Channel 3 to Warm (6500K) color, MEM
Channel 4 to Normal (7300K) color, MEM Channel 9 to Cool (9300K) color , and MEM Channel 10 to sRGB color
2
( our Warm color parameter is x = 313 ±20, y = 329 ±20, Y=180cd/m
2
317 ±20, Y=180cd/m
= 313 ±20, y = 329 ±20, Y= 180cd/m
; Cool color parameter is x = 283 ±20, y = 297 ±20, Y=180cd/m2; sRGB color parameter is x
2
)
How to setting MEM channel you can reference to chroma 7120 user guide or simple use “ SC” key and
“ NEXT” Key to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure
to do white-balance adjust .
2. Setting the color temp. you want
A. MEM.CHANNEL 3 (Warm color):
Warm color temp. parameter is x = 313 ±20, y = 329 ±20, Y=180cd/ m
B. MEM.CHANNEL 4 (Normal color):
Normal color temp. parameter is x = 301 ±20, y = 317 ±20, Y=180cd/ m
C. MEM.CHANNEL 9 (Cool color):
Cool color temp. parameter is x = 283 ±20, y = 297 ±20, Y=180cd/m
D. MEM.CHANNEL 10 (sRGB color):
sRGB color temp. parameter is x = 313 ±20, y = 329 ±20, Y= 180cd/m2
3. Into Factory mode of AOC 2116Sw:
Press the MENU button, pull out the power cord, and then plug the power cord. Then the factory OSD will be at the
left top of the panel.
; Normal color parameter is x = 301 ±20, y =
2
2
2
4. Bias adjustment:
Set the Contrast
to 50; Adjust the Brightness to 80.
5. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust Warm (6500K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)
2
3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y=180cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust Normal (7300K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 301 ±20, y = 317 ±20, Y=180cd/m
2
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
41

22” LCD Color Monitor AOC 2116Sw
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
C. Adjust Cool (9300K) color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283 ±20, y = 297 ±20, Y=180cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
D. Adjust sRGB color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 10 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y= 180cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
2
2
E. Turn the Power-button off to quit from factory mode.
42

22” LCD Color Monitor AOC 2116Sw
10. Monitor Exploded View
43

22” LCD Color Monitor AOC 2116Sw
11. BOM List
TC7CMADBLWA5NN
Location TPV Part No. Description
040G 581689 4A SERIAL LABEL FOR MONITOR
041G780061554A SERVICE CENTER LIST
044G6002757 1A PAPER PLATE
044G9003214 CORNER PAPER
044GH600 1 HANDLE 2
050G 600 4 HANDLE 1
052G 1186 SMALL TAPE
E089B 089G 725HAA DB D-SUB
089G179S30H 12 FFC CABLE 30P 179MM P1.0
E089A 089G404A15N YH POWER CORD
0M1G 130 5120 SCREW
0M1G1730 6120 SCREW
0Q1G 930 16 47 CR3 SCREW
705GQ734301 22"LCD STAND-BASE ASS'Y
A34G0289 AS 1B STAND
A34G0290 AS 1B 33 BASE 7S7
A37G0031 6 HINGE
AM1G1740 12120 SCREW
750GLCB6WA113N PANEL CLAA220WA01 000 FZ CPT
A15G0208 6 MAIN FRAME
A33G0171 GM 1L KEY BUTTON
A33G0173 GM 1L 32 CABLE CLAMP
A33G0182 1 1C POWER LENS
A34G0294 GMA5B REAR COVER((L22W-7K2-S1)
A34G0377 GMB1B 30 BEZEL(L22W-7K2-S1)
AM1G1740 12 47 CR3 SCREW
CBPC7CMAA6Q1 MAIN BOARD
CN201 033G3802 6 WAFER
CN401 033G3802 9 WAFER 9P RIGHT ANELE PITCH
CN301 033G801930F H FPC CONN. 1.0MM 30P
040G 457624 1B LABEL-CPU
040G 45762412B CBPC LABEL
R402 061G152M519 64 5.1OHM 2W
C303 067G 3151014KV EC 105 CAP 100UF M 25V
C402 067G 3151014KV EC 105 CAP 100UF M 25V
C403 067G 3151014KV EC 105 CAP 100UF M 25V
C407 067G 3151014KV EC 105 CAP 100UF M 25V
44

22” LCD Color Monitor AOC 2116Sw
C408 067G 3151014KV EC 105 CAP 100UF M 25V
C202 067G215V100 7R LOW E.S.R 10UF +/-20% 50V
C209 067G215V100 7R LOW E.S.R 10UF +/-20% 50V
C220 067G215V100 7R LOW E.S.R 10UF +/-20% 50V
CN101 088G 35315F H D-SUB 15PIN
X201 093G 22 53 CRYSTAL 14.318MHZHC-49US
U202 056G 562172 IC TSUMU58BWHL-LF PQFP-100
U702 056G 563 31 AI1117D-1.8-EI
U701 056G 585 4A AP1117E33LA
U204 056G1133 32 IC M24C04-WMN6TP SO8
U101 056G1133 34 M24C02-WMN6TP
U402 056G1133713(WA7MAPCMNQ1) IC PM25LV010A-100SCE SOIC-8
Q201 057G 417 12 T KEC 2N3904S-RTK/PS
Q205 057G 417 12 T KEC 2N3904S-RTK/PS
Q403 057G 417 12 T KEC 2N3904S-RTK/PS
Q202 057G 417 13 T KEC 2N3906S-RTK/PS
Q203 057G 417 13 T KEC 2N3906S-RTK/PS
Q301 057G 417 13 T KEC 2N3906S-RTK/PS
Q302 057G 763 1 A03401 SOT23 BY AOS(A1)
R201 061G0402000 RST CHIPR 0 OHM +-5% 1/16W
R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R108 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R110 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R207 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R213 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R214 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R215 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R221 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R222 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R224 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R225 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R102 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R103 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R406 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R403 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
45

22” LCD Color Monitor AOC 2116Sw
R405 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R118 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R203 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R205 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R209 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R210 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R211 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R220 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R223 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R226 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R227 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R230 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R231 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R401 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R301 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R234 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R232 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R219 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W
R105 061G0402202 RST CHIP 2K 1/16W 5%
R106 061G0402202 RST CHIP 2K 1/16W 5%
R202 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R204 061G0402390 0F RST CHIP 390R 1/16W 1%
R228 061G0402392 RST CHIP 3.9K 1/16W 5%
R229 061G0402392 RST CHIP 3.9K 1/16W 5%
R109 061G0402471 RST CHIPR 470 OHM +-5% 1/16W
R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R121 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R217 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R305 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R404 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R218 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R304 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R216 061G0402560 RST CHIP 56R 1/16W 5%
R139 061G0402682 RST CHIP 6K8 1/16W 5%
R208 061G0402682 RST CHIP 6K8 1/16W 5%
R233 061G0402682 RST CHIP 6K8 1/16W 5%
R107 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R212 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
46

22” LCD Color Monitor AOC 2116Sw
R101 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R302 061G0805331 RST CHIPR 330 OHM +-5% 1/8W
C106 065G0402102 32 1000PF +-10% 50V X7R
C212 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C211 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C210 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C208 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C207 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C206 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C213 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C411 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C410 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C409 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C405 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C401 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C302 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C301 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C231 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C229 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C228 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C227 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C226 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C225 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C223 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C219 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C217 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C216 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C215 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C214 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C205 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C112 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C114 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C118 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C201 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C203 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C204 065G0402104 15 MLCC 0402 0.1UF K 16V X5R
C222 065G0402220 31 CHIP 22PF 50V NPO
C221 065G0402220 31 CHIP 22PF 50V NPO
C103 065G0402220 31 CHIP 22PF 50V NPO
C102 065G0402220 31 CHIP 22PF 50V NPO
47

22” LCD Color Monitor AOC 2116Sw
C224 065G0402224 17 CAP CER 0.22UF -20%-80%
C218 065G0402224 17 CAP CER 0.22UF -20%-80%
C113 065G0402473 12 CHIP 0.047UF 16V X7R
C110 065G0402473 12 CHIP 0.047UF 16V X7R
C109 065G0402473 12 CHIP 0.047UF 16V X7R
C107 065G0402473 12 CHIP 0.047UF 16V X7R
C105 065G0402473 12 CHIP 0.047UF 16V X7R
C101 065G0402473 12 CHIP 0.047UF 16V X7R
C111 065G0402509 31 CHIP 5PF 50V NPO
C108 065G0402509 31 CHIP 5PF 50V NPO
C104 065G0402509 31 CHIP 5PF 50V NPO
FB301 071G 56K121 M CHIP BEAD
FB205 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL
FB206 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL
FB204 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL
FB203 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL
FB201 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL
FB101 071G 59K190 B 19 OHM BEAD
FB102 071G 59K190 B 19 OHM BEAD
FB103 071G 59K190 B 19 OHM BEAD
D102 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D103 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D104 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D105 093G 64 42 P BAV70 SOT23 BY PAN JIT
ZD106 093G 39GA01 T RLZ5.6B
ZD105 093G 39GA01 T RLZ5.6B
ZD104 093G 39GA01 T RLZ5.6B
ZD102 093G 39GA01 T RLZ5.6B
ZD101 093G 39GA01 T RLZ5.6B
ZD103 093G 39GA01 T RLZ5.6B
715G2698 2 MAIN BOARD PCB
KEPC7C7A KEY BOARD
CN001 033G3802 6H WAFER 6P RIGHT ANGLE PITCH 2.0
SW002 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW001 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW004 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW003 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW005 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
LED002 081G 12 1 GP LED GP32032M/R003-ZY-33
R001 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
48

22” LCD Color Monitor AOC 2116Sw
R006 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R007 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R002 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
R004 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
715G2636 1 KEY BOARD PCB
PWPCV42CE1 POWER BOARD
CN804 033G8021 2E F WAFER
CN803 033G8021 2E F WAFER
CN802 033G8021 2E F WAFER
CN801 033G8021 2E F WAFER
040G 45762420A LABEL 25X6MM
IC903 056G 139 3A IC PC123Y22FZ0F
NR901 061G 58080 WT 8 OHM NCT
R908 061G152M104 64 100KOHM 5% 2W
R914 061G152M228 64 0.22 OHM 5% 2W
C903 063G 10747410V 0.47UF 275VAC ARCO
C801 065G 3J1006ET 10PF,J,3KV,SL
C811 065G 3J1006ET 10PF,J,3KV,SL
C901 065G305M1022BP Y2 1000PF M 250VAC Y5P
C902 065G305M1022BP Y2 1000PF M 250VAC Y5P
C921 065G306M4722BP 4700PF +-20% 400VAC
C905 067G 40J10115K EC CAP 100UF 450V 18*35MM
C803 067G215D4714KV E.C 105 CAP 470UF M 25V ED SERIES
C802 067G215D4714KV E.C 105 CAP 470UF M 25V ED SERIES
C918 067G215D6814KV CAP 105 680UF M 25V
C917 067G215D6814KV CAP 105 680UF M 25V
C939 067G215S1024KV EC 105 CAP 1000UF M 25V
C915 067G215S4713KV EC 105 CAP 470UF M 16V
L902 073G 174 65 H LINE FILTER
L901 073G 174 76 H FILTER
L903 073G 253191 YS CHOKE COIL 1.1UH YS04110055
L904 073G 253191 YS CHOKE COIL 1.1UH YS04110055
T901 080GL19T 23 YS X'FMR 510UH YS04160061
T802 080GL19T 24 YS X'FMR 1.12H YS04170127
T801 080GL19T 24 YS X'FMR 1.12H YS04170127
CN901 087G 501 32 S AC SOCKET
BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON
D907 093G3006 1 1 31DQ06FC3 NIHON INTER
CN902 095G8014 9D 57 HARNESS 9P-9P 210MM
705G 193 57 01 Q901 ASS'Y
49

22” LCD Color Monitor AOC 2116Sw
Q901 057G 667 21 STP10NK70ZFP
090G6263 1 HEAT SINK
AM1G1730 8120 GP SCREW
705G 193 93 01 D906 ASS'Y
D906 093G 60218 SB10100FCT
AM1G1730 8120 GP SCREW
Q90G6274 2 HEAT SINK
IC801 056G 379 22 IC TL494IDR SOIC-16
IC901 056G 379 71 IC TEA1530AT SO-8 PHILIPS
Q801 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q806 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q807 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q811 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q804 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q812 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q902 057G 758 1 2N7002ESOT23 SILICONIX
Q810 057G 759 2 RK7002
Q809 057G 759 2 RK7002
Q808 057G 760 4B PDTA144WK SOT346
Q805 057G 760 5B PDTC144WK SOT346
Q803 057G 763 14 AM9945N
Q802 057G 763 14 AM9945N
R827 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R801 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R809 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R812 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R814 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R815 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R816 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R818 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R821 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R822 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R824 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R826 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R925 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R942 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R834 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R833 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R926 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R832 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
50

22” LCD Color Monitor AOC 2116Sw
R828 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R817 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R813 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R808 061G0603100 2F RST CHIPR 10 KOHM +-1% 1/10W
R803 061G0603105 RST CHIPR 1 MOHM +-5% 1/10W
R862 061G0603105 RST CHIPR 1 MOHM +-5% 1/10W
R835 061G0603105 RST CHIPR 1 MOHM +-5% 1/10W
R851 061G0603150 2F RST CHIPR 15 KOHM +-1% 1/10W
R924 061G0603152 RST CHIPR 1.5 KOHM +-5% 1/10W
R930 061G0603240 1F RST CHIPR 2.4 KOHM +-1% 1/10W
R831 061G0603240 1F RST CHIPR 2.4 KOHM +-1% 1/10W
R811 061G0603240 1F RST CHIPR 2.4 KOHM +-1% 1/10W
R940 061G0603330 2F RST CHIPR 33 KOHM +-1% 1/10W
R927 061G0603360 1F RST CHIPR 3.6 KOHM +-1% 1/10W
R823 061G0603362 RST CHIPR 3.6 KOHM +-5% 1/10W
R819 061G0603362 RST CHIPR 3.6 KOHM +-5% 1/10W
R861 061G0603390 3F RST CHIPR 390 KOHM +-1% 1/10W
R807 061G0603470 2F RST CHIPR 47 KOHM +-1% 1/10W
R820 061G0603470 2F RST CHIPR 47 KOHM +-1% 1/10W
R854 061G0603680 2F RST CHIPR 68 KOHM +-1% 1/10W
R853 061G0603680 2F RST CHIPR 68 KOHM +-1% 1/10W
R841 061G0603680 2F RST CHIPR 68 KOHM +-1% 1/10W
R806 061G0603680 2F RST CHIPR 68 KOHM +-1% 1/10W
R839 061G0805000 0 OHM 1/10W
R850 061G0805000 0 OHM 1/10W
R804 061G0805101 RST CHIPR 100 OHM +-5% 1/8W
R911 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R917 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R929 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R938 061G0805103 10 KOHM 1/10W
R916 061G0805152 RST CHIPR 1.5 KOHM +-5% 1/8W
R829 061G0805220 22&8 1/10W
R825 061G0805220 22&8 1/10W
R912 061G0805220 2F RST CHIPR 22 KOHM +-1% 1/8W
R915 061G0805224 RST CHIPR 220 KOHM +-5% 1/8W
R837 061G0805473 RST CHIPR 47 KOHM +-5% 1/8W
R810 061G0805510 2F RST CHIPR 51 KOHM +-1% 1/8W
R931 061G0805822 RST CHIPR 8.2 KOHM +-5% 1/8W
F801 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
F902 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
51

22” LCD Color Monitor AOC 2116Sw
JR801 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR802 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR803 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR804 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR805 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR807 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR808 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR809 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR901 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
R967 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
R909 061G1206100 RST CHIP 10R 1/4W 5%
R910 061G1206100 RST CHIP 10R 1/4W 5%
R962 061G1206101 100 1206
R961 061G1206101 100 1206
R935 061G1206101 100 1206
R920 061G1206101 100 1206
R919 061G1206101 100 1206
R918 061G1206101 100 1206
R921 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R922 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R923 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R928 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R855 061G1206330 RST CHIPR 33 OHM +-5% 1/4W
R857 061G1206330 RST CHIPR 33 OHM +-5% 1/4W
R904 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W
R932 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W
R933 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W
R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
R903 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
C842 065G0603103 12 CHIP 0.01UF 16V X7R
C924 065G0603103 12 CHIP 0.01UF 16V X7R
C807 065G0603104 22 CHIP 0.1UF 25V X7R
C821 065G0603104 22 CHIP 0.1UF 25V X7R
C825 065G0603104 22 CHIP 0.1UF 25V X7R
C834 065G0603104 22 CHIP 0.1UF 25V X7R
C815 065G0603222 22 CHIP 2200PF 25V X7R
C816 065G0603222 22 CHIP 2200PF 25V X7R
C819 065G0603222 22 CHIP 2200PF 25V X7R
C823 065G0603222 22 CHIP 2200PF 25V X7R
52

22” LCD Color Monitor AOC 2116Sw
C840 065G0805102 31 1000PF 50V NPO
C839 065G0805102 31 1000PF 50V NPO
C910 065G0805102 32 CHIP 1000P 50VX7R 0805
C931 065G0805104 32 CHIP 0.1U 50V X7R
C930 065G0805104 32 CHIP 0.1U 50V X7R
C916 065G0805104 32 CHIP 0.1U 50V X7R
C907 065G0805104 32 CHIP 0.1U 50V X7R
C824 065G0805104 32 CHIP 0.1U 50V X7R
C805 065G0805104 32 CHIP 0.1U 50V X7R
C822 065G0805105 22 CHIP 1UF 25V X7R 0805
C928 065G0805122 31 CHIP CAP 0805 1200PF J 50V NPO
C820 065G080522131G 220PF 50V NPO 2%
C911 065G0805224 22 CAIP CAP 0.22 UF 25V X7R
C909 065G0805224 32 0.22UF,K,50V,X7R
C845 065G0805225 12 CHIP 2.2UF 16V X7R 0805
C929 065G1206102 72 CHIP 1000PF 500V X7R
C912 065G1206102 72 CHIP 1000PF 500V X7R
D808 093G 64 38 D DIODE BAW56 DIODES
D805 093G 64 38 D DIODE BAW56 DIODES
D916 093G 64 44 S LL4148WP
D915 093G 64 44 S LL4148WP
D903 093G 64 44 S LL4148WP
D817 093G 64 44 S LL4148WP
D814 093G 64 44 S LL4148WP
D809 093G 64 44 S LL4148WP
D806 093G 64 44 S LL4148WP
D801 093G 6433P BAV99
D802 093G 6433P BAV99
D803 093G 6433P BAV99
D804 093G 6433P BAV99
ZD902 093G 39S 15 T RLZ15B LLDS
ZD921 093G 39S 15 T RLZ15B LLDS
ZD922 093G 39S 25 T RLZ5.1B LLDS
CN901 006G 31500 EYELET
IC904 056G 158 12 KIA431A-AT/P TO-92
C938 065G 2K152 1T6052 1.5NF/2KV Y5P +-10%
C906 065G 2K152 1T6052 1.5NF/2KV Y5P +-10%
C908 067G215Y2207KT CAP 105 22UF M 50V KINGNICHI
FB901 071G 55 29 FERRITE BEAD
F901 084G 55 1W FUSE 4A 250V WICKMANN
53

22” LCD Color Monitor AOC 2116Sw
D901 093G 6038P52T PS102R
D900 093G1100 1052T BA159GPT DO-41 CHENMKO
715G2538 2 POWER BOARD PCB
T901 006G 31502 1.5MM RIVET
NR901 006G 31502 1.5MM RIVET
R936 061G0805204 RST CHIPR 200 KOHM +-5% 1/8W
Q07G 7 T178 COMPOUND PALLET
Q40G 22N61515A RATING LABEL
Q40G0002615A02 POP LABEL FOR 2116Sw
Q40G000267311A WINDOW VISTA LABEL
Q41G7800615A98 QSG
Q44GC015 1 EPS(L)
Q44GC015 2 EPS(L)
Q44GC015615 3A AOC 22 LCD CARTON
Q45G 88607 34 PE BAG FOR BASE
Q45G 88609 74 R EPE BAG FOR MONITOR
Q45G 88626 8 R PE BAG FOR MONITOR
Q52G 1185 65 AOC MIDDLE TAPE
Q52G6020 29 PROTECT FILM
040G 58162435A LABEL
041G780061553A TCO'03 CARD
045G 76 28 RN PE BAG FO MANUAL/BASE
Q70G2201615 7B CD MANUAL
54

22” LCD Color Monitor AOC 2116Sw
12. Different Part List
Diversity of TC7CMADPLWXMNF compared with TC7CMADBLWA5NN
Location TPV Part No. Description
026G 800504 3 BARCODE LABEL
040G 459690 5A HP EXTRA CARTON LABEL
040G 58162461A EPA LABEL
044G600260811A PAPER BOARD
052G 1185 MIDDLE TAPE
E089A 089G402A15N YH POWER CORD
705GQ734264 22"LCD STAND-BASE ASS'Y
750GLCB6WA113V PANEL CLAA220WA01 000 FZ CPT
CBPC7CMAAA5A1 MAIN BOARD
U402 056G1133713(WA7MCPCCAQ1) IC PM25LV010A-100SCE SOIC-8
Q07G 7 T150 PALLET
Q07G 7 T173 COMPOUND PALLET
Q40G 22N61516A RATING LABEL
Q40G000260811A BASIC LABEL
Q44G6002121118 PAPER BOARD
Q44GC015615 2A
041G780061513B INPUT NOT SUPPORT CARD
041G780061518B EASE PROGRAM
Q41G7800615A69 MEXICO CENTER LIST
Q41G7800615A93 WARRANTY CARD FOR MEXICO
Q45G 76 28 C R PE BAG
34G0289 GM 1B STAND
34G0290 GM 1B 33 BASE 7S7
34G0377 GMC1B 30 BEZEL(L22W-7K2-S1)
OC 22 LCD CARTON
55

22” LCD Color Monitor AOC 2116Sw
Diversity of TC7CMADPLWXMNN compared with TC7CMADBLWA5NN
Location TPV Part No. Description
026G 800504 3 BARCODE LABEL
040G 459690 5A HP EXTRA CARTON LABEL
040G 58162461A EPA LABEL
044G600260811A PAPER BOARD
052G 1185 MIDDLE TAPE
E089A 089G402A15N YH POWER CORD
705GQ734264 22"LCD STAND-BASE ASS'Y
CBPC7CMAAA5A1 MAIN BOARD
U402 056G1133713(WA7MCPCCAQ1) IC PM25LV010A-100SCE SOIC-8
Q07G 7 T150 PALLET
Q07G 7 T173 COMPOUND PALLET
Q40G 22N61516A RATING LABEL
Q40G000260811A BASIC LABEL
Q44G6002121118 PAPER BOARD
Q44GC015615 2A
041G780061513B INPUT NOT SUPPORT CARD
041G780061518B EASE PROGRAM
Q41G7800615A69 MEXICO CENTER LIST
Q41G7800615A93 WARRANTY CARD FOR MEXICO
Q45G 76 28 C R PE BAG
34G0289 GM 1B STAND
34G0290 GM 1B 33 BASE 7S7
34G0377 GMC1B 30 BEZEL(L22W-7K2-S1)
OC 22 LCD CARTON
56

22” LCD Color Monitor AOC 2116Sw
Diversity of TC7CMADQLWA2NF compared with TC7CMADBLWA5NN
Location TPV Part No. Description
026G 800504 3 BARCODE LABEL
040G 58162461A EPA LABEL
044G600260811A PAPER BOARD
052G 1185 MIDDLE TAPE
089G 725HAA DB D-SUB
E089A 089G402A15N YH POWER CORD
750GLCB6WA113V PANEL CLAA220WA01 000 FZ CPT
CBPC7CMAAA5A1 MAIN BOARD
U402 056G1133713(WA7MCPCCAQ1) IC PM25LV010A-100SCE SOIC-8
Q07G 7 T150 PALLET
Q07G 7 T173 COMPOUND PALLET
Q40G 22N61517A RATING LABEL
Q40G000260811A BASIC LABEL
Q44G6002121118 PAPER BOARD
Q44GC015615 2A
041G780061513B INPUT NOT SUPPORT CARD
041G780061518B EASE PROGRAM
041G780061545B WARRANTY BOOKLET
Q41G780A61510A WARRANTY CARD SA(SPANISH)
Q41G780A61511A NEW SA CENTER LIST
Q45G 76 28 C R PE BAG
33G0173 AS 1L 32 CABLE CLAMP
OC 22 LCD CARTON
57

22” LCD Color Monitor AOC 2116Sw
Diversity of TC7CMADQLWA2NN compared with TC7CMADBLWA5NN
Location TPV Part No. Description
026G 800504 3 BARCODE LABEL
040G 58162461A EPA LABEL
044G600260811A PAPER BOARD
052G 1185 MIDDLE TAPE
E089A 089G402A15N YH POWER CORD
CBPC7CMAAA5A1 MAIN BOARD
U402 056G1133713(WA7MCPCCAQ1) IC PM25LV010A-100SCE SOIC-8
Q07G 7 T150 PALLET
Q07G 7 T173 COMPOUND PALLET
Q40G 22N61517A RATING LABEL
Q40G000260811A BASIC LABEL
Q44G6002121118 PAPER BOARD
Q44GC015615 2A
Q45G 76 28 C R PE BAG
041G780061513B INPUT NOT SUPPORT CARD
041G780061518B EASE PROGRAM
041G780061545B WARRANTY BOOKLET
Q41G780A61510A WARRANTY CARD SA(SPANISH)
Q41G780A61511A NEW SA CENTER LIST
33G0173 AS 1L 32 CABLE CLAMP
OC 22 LCD CARTON
58
