AOC 2036S User Manual

Safety ........................................................................................................................................................................ 4

National Conventions ......................................................................................................................................... 4

Power ................................................................................................................................................................ 5

Installation .......................................................................................................................................................... 6

Cleaning............................................................................................................................................................. 8

Other .................................................................................................................................................................. 9

Setup ...................................................................................................................................................................... 10

Contents in Box ............................................................................................................................................... 10

Setup Stand & Base ......................................................................................................................................... 11

Adjusting Viewing Angle ................................................................................................................................... 12

Connecting the Monitor .................................................................................................................................... 13

Wall Mounting .................................................................................................................................................. 14

Adjusting ................................................................................................................................................................. 15

Setting Optimal Resolution .............................................................................................................................. 15

Windows Vista .......................................................................................................................................... 15

Windows XP ............................................................................................................................................. 17

Windows ME/2000 .................................................................................................................................... 18

Hotkeys ............................................................................................................................................................ 19

OSD Setting ..................................................................................................................................................... 20

Eco mode ................................................................................................................................................. 21

Color Boost ............................................................................................................................................... 23

Luminance ................................................................................................................................................ 25

Image Setup ............................................................................................................................................. 27

Color Temperature .................................................................................................................................... 29

Picture Boost ............................................................................................................................................ 31

Extra Setting ............................................................................................................................................. 33

Exit............................................................................................................................................................ 35

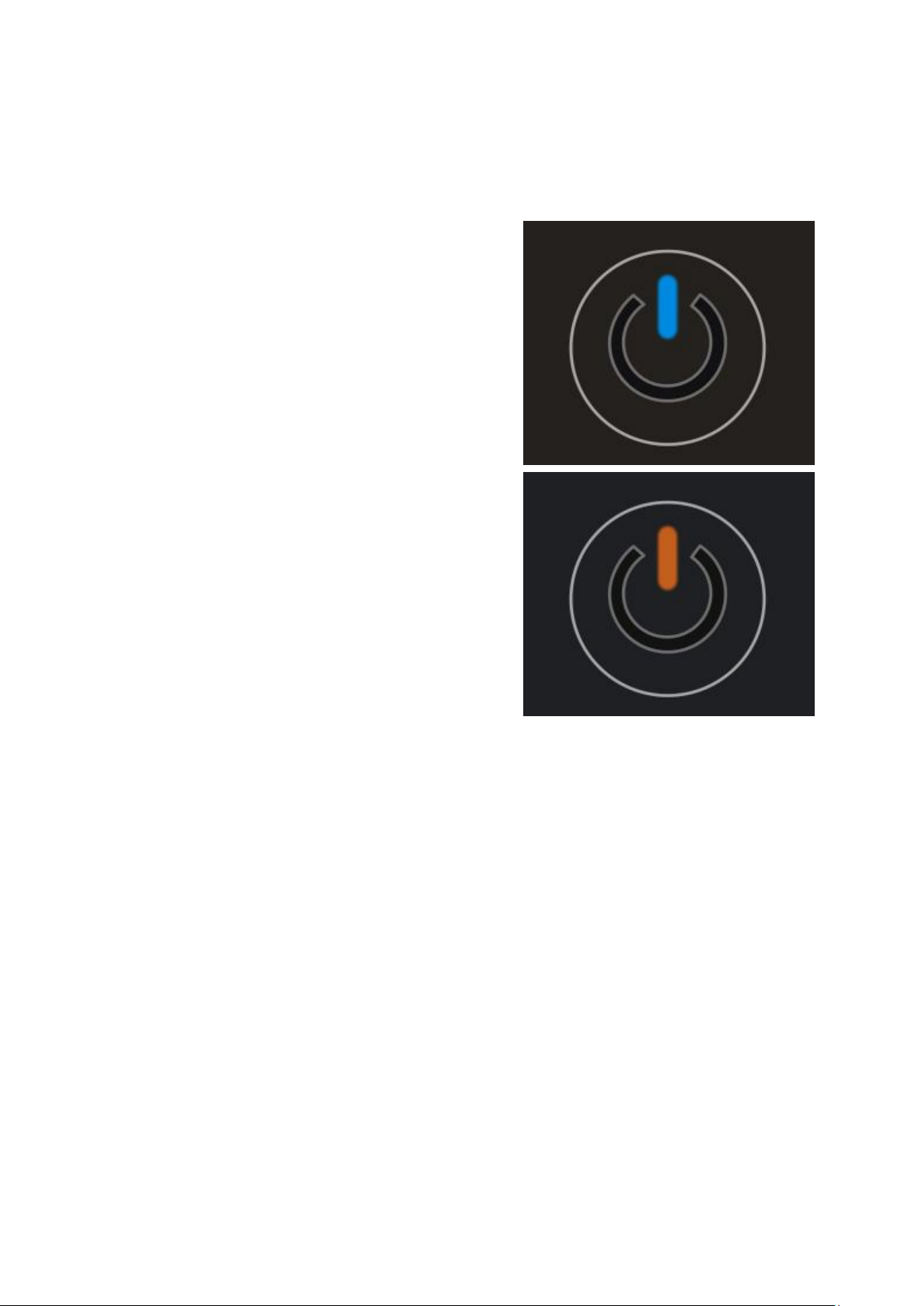

LED Indicator ................................................................................................................................................... 36

Driver ...................................................................................................................................................................... 37

Monitor Driver .................................................................................................................................................. 37

Windows 2000 .......................................................................................................................................... 37

Windows ME ............................................................................................................................................. 37

Windows XP ............................................................................................................................................. 38

Windows Vista .......................................................................................................................................... 41

i-Menu .............................................................................................................................................................. 43

Troubleshoot ........................................................................................................................................................... 44

Specification ............................................................................................................................................................ 46

General Specification ....................................................................................................................................... 46

Preset Display Modes ................................................................ ...................................................................... 47

Pin Assignments .............................................................................................................................................. 48

Plug and Play ................................................................................................................................................... 49

Regulation ............................................................................................................................................................... 50

FCC Notice ................................ ................................................................ ...................................................... 50

WEEE Declaration ........................................................................................................................................... 51

EPEAT Declaration .......................................................................................................................................... 52

Service .................................................................................................................................................................... 53

Warranty Statement for Europe........................................................................................................................ 53

Warranty Statement for North & South America (excluding Brazil) ........................................................... 55

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for monitors with power adapter).

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a

person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by

the manufacturer or sold with this product. Follow the manufacturer‟s instructions when installing the product and

use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or

electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit

instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence

overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Cleaning

Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead

of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough

as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and

contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

Setup

Contents in Box

Not all signal cables (Analog,, USB, Audio, and HDMI cables) will be provided for all countries and regions.

Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -5° to 20 °.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

Cable Connections On Back of Monitor and Computer:

1. Power

2. Analog (DB-15 VGA cable)

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor. 2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. 3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1 Remove the base. 2 Follow the manufacturer's instructions to assemble the wall mounting arm. 3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor. 4 Insert the 4 screws into the holes and tighten. 5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Distance between the wall-mount holes : 100 x 100 mm

Screw specification for wall-mount : M4 x 10

Adjusting

Setting Optimal Resolution

Windows Vista

For Windows Vista:

1 Click START.

2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization

5 Click Display Settings.

6 Set the resolution SLIDE-BAR to 1600 by 900.

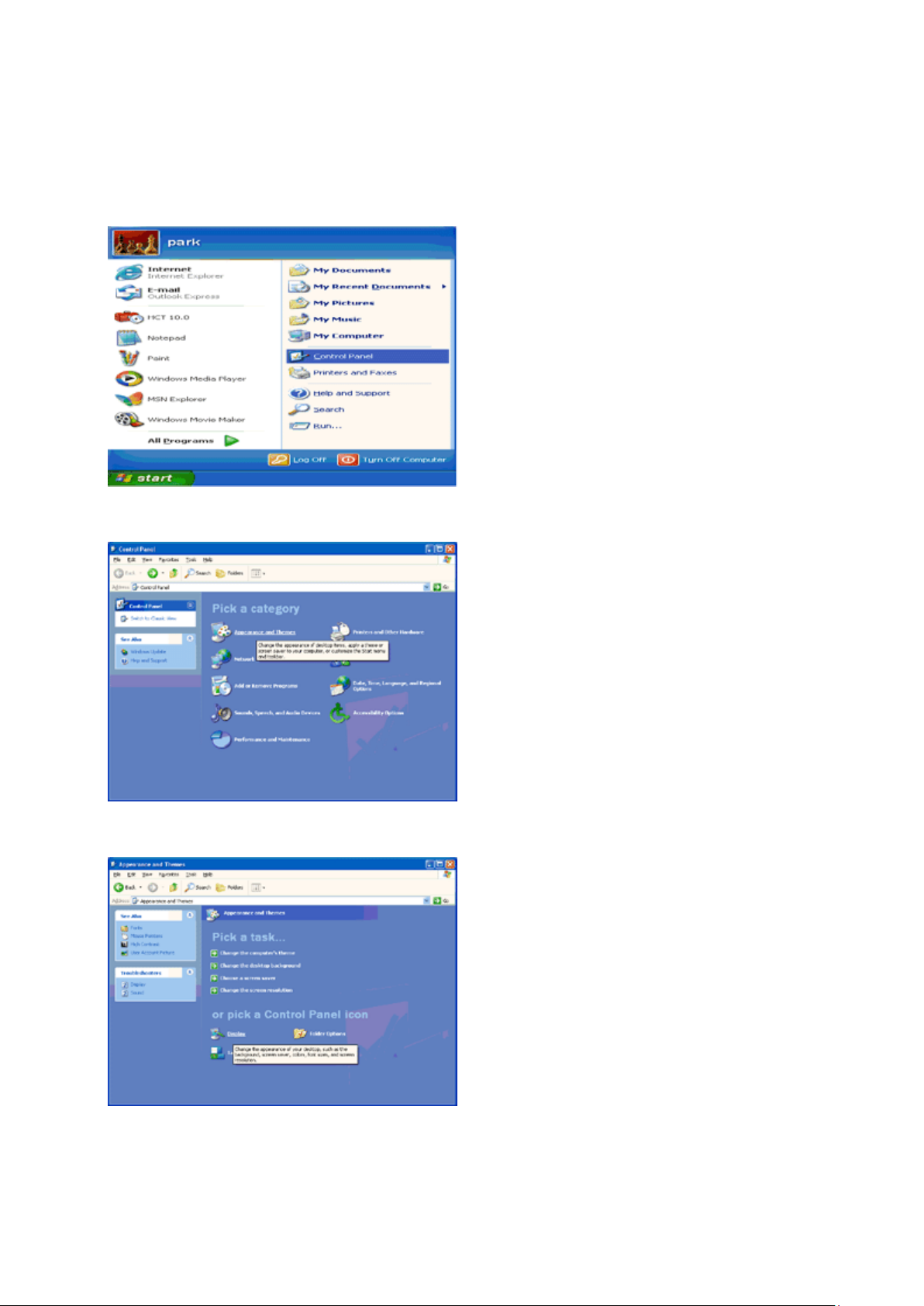

Windows XP

For Windows XP:

1 Click START.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

6 Click SETTINGS.

7 Set the resolution SLIDE-BAR to 1600 by 900.

Windows ME/2000

For Windows ME/2000:

1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1600 by 900.

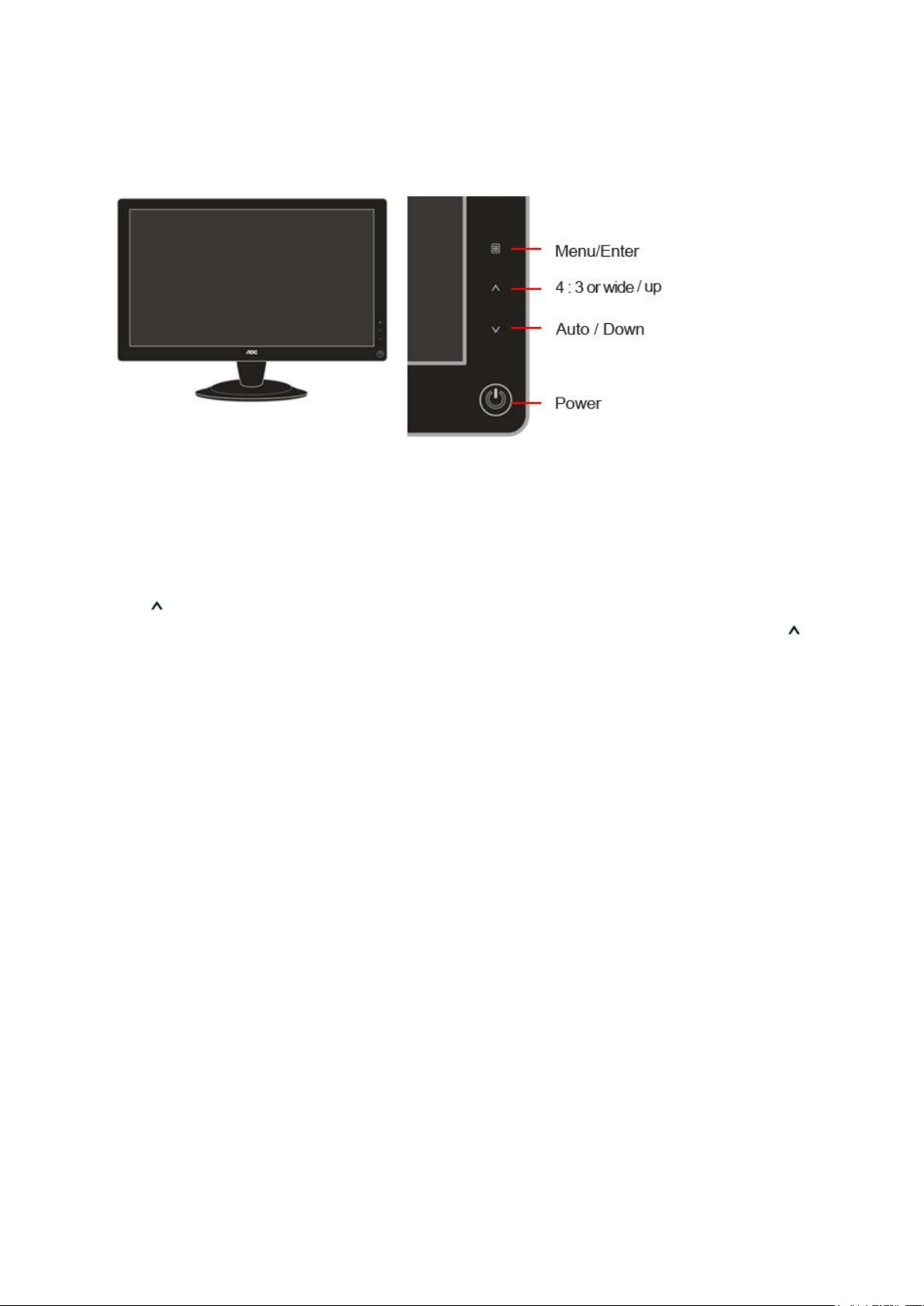

Hotkeys

Power

Press to turn on or turn off the monitor.

Source (4 : 3 or wide)/ Up

Press key to change the screen aspect ratio between standard 4:3 format or Wide format. When the input resolution is wide format, the aspect ratio hotkey is disabled. When the main menu or sub-menu is active, the key functions as to select up or increase value.

Source hot key : When the OSD is closed, press button will be Source hot key function (Only for the models with dual or more inputs) .Press Source button continuously to select the input source showed in the message bar , press Menu/Enter button to change to the source selected.

Menu / Enter Press to activate OSD, then press Up or Down to navigate through the functions. Once the desired function is

highlighted, press the Menu button to activate the submenu. In sub-menu, Press Up or Down to navigate through the functions. Once the desired function is highlighted, press Up or Down button to change the setting. Select Exit icon then press Menu button to return to superior menu.

(Auto) / Down

Auto configure hot key: When the OSD is closed, press Auto button to do auto configure

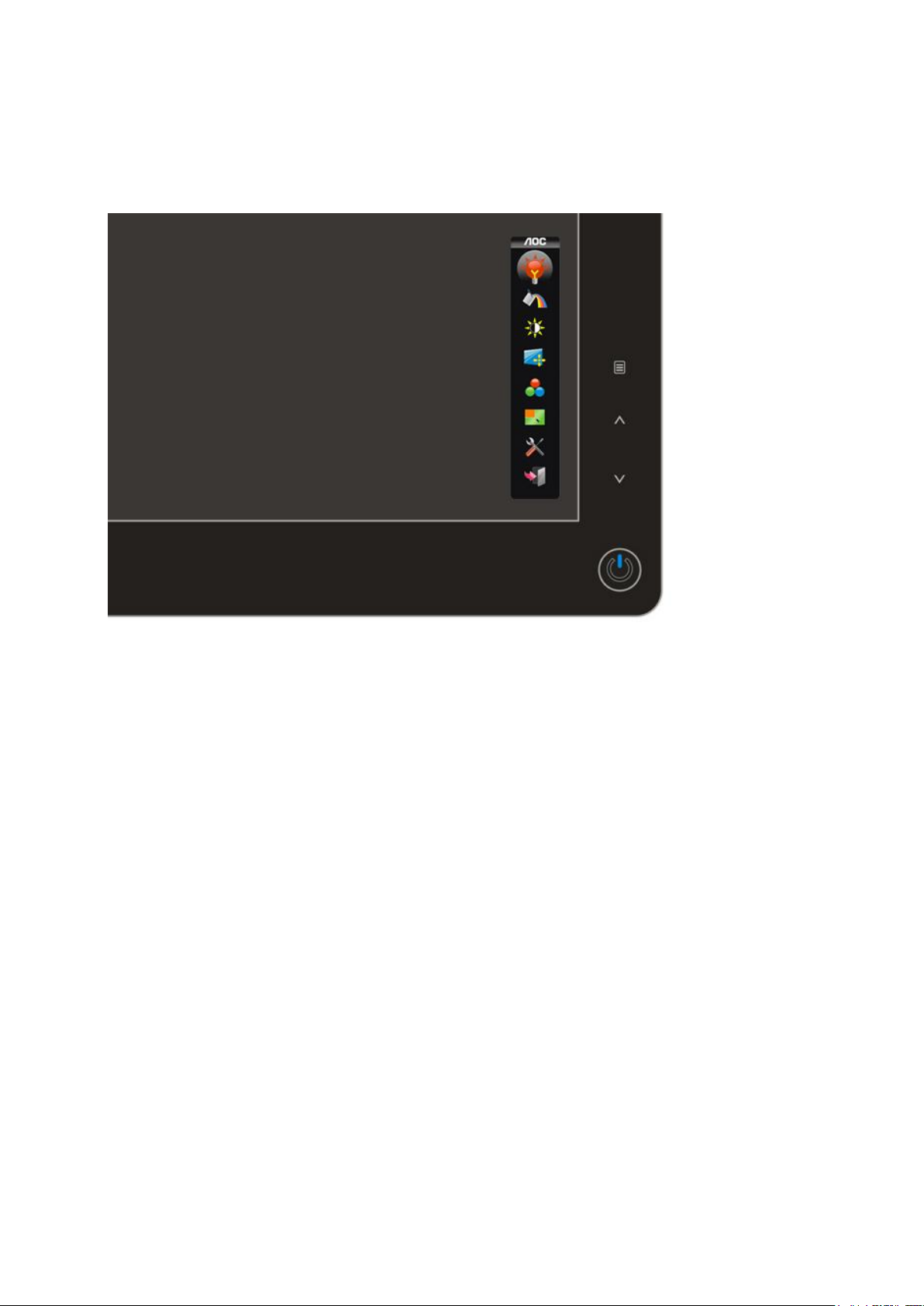

OSD Setting

Basic and simple instruction on the control keys.

When you press the MENU button on the front control of your monitor, the On DOWN Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the UP or DOWN keys to make your adjustments. Follow the steps below to activate the adjustment.

1) Press the MENU key to activate the OSD window.

2) Press UP or DOWN to navigate through the functions. Once the desired function is highlighted, press the MENU key to activate it. If the function selected has a sub-menu, press UP or DOWN again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU key to activate it.

3) Press UP or DOWN to change the settings of the selected function. Press MENU key to exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.

4) OSD Lock Function: To lock the OSD, press and hold the MENU key while the monitor is off and then press power button to turn the monitor on. To unlock the OSD, press and hold the MENU key while the monitor is off and then press power button to turn the monitor on.

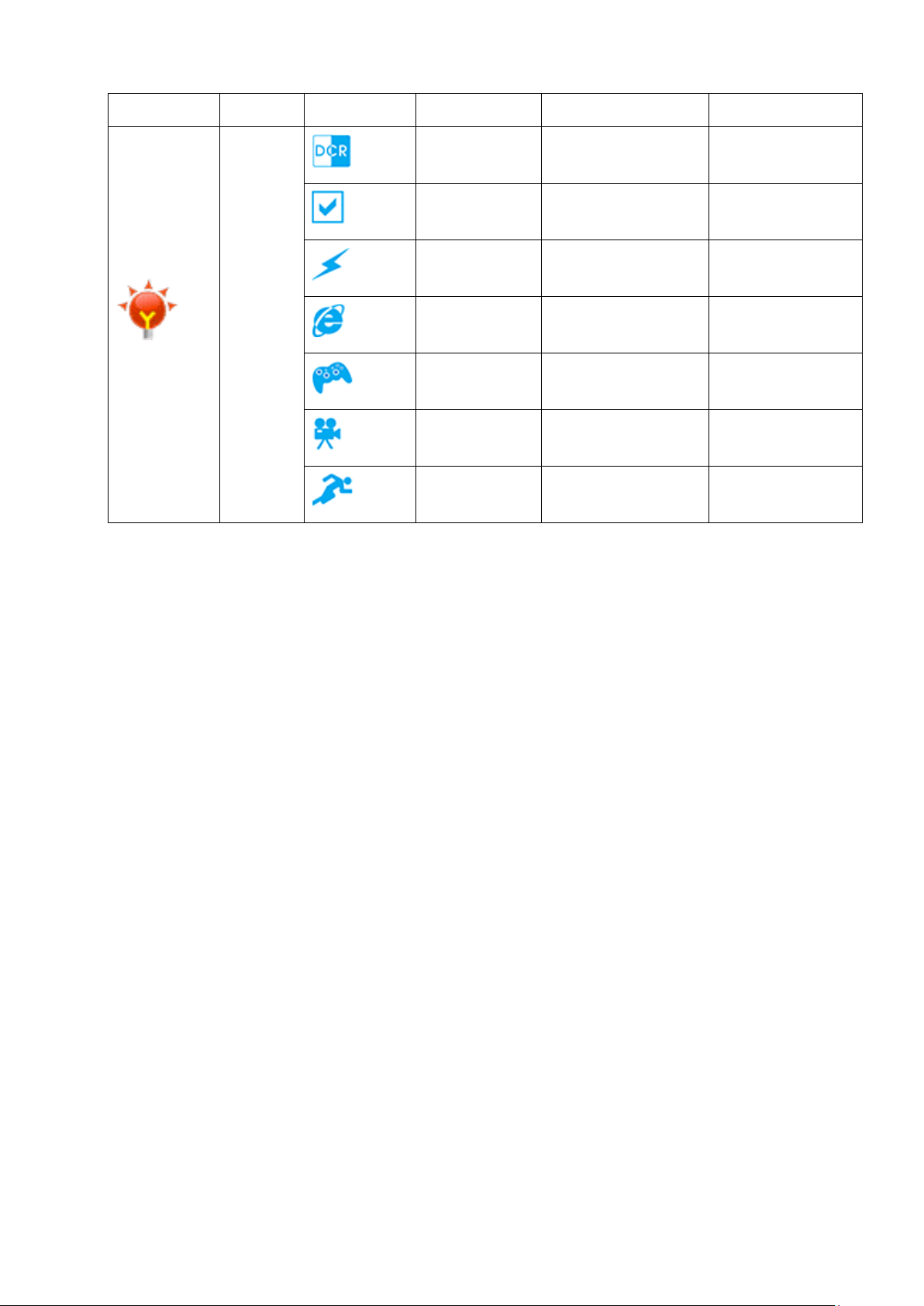

Eco mode

Item

Icon

Function

Adjust Range

Description

Eco mode

DCR

Select to active

Dynamic contrast ratio

Standard

Select to active

Standard Mode

Text

Select to active

Text Mode

Internet

Select to active

Internet Mode

Game

Select to active

Game Mode

Movie

Select to active

Movie Mode

Sports

Select to active

Sports Mode

Notes :

When Eco mode is not set as “Standard”, Contrast and Brightness can not be adjusted; When DCR is set as “On”,

Contrast, Brightness, Eco mode and Gamma can not be adjusted.

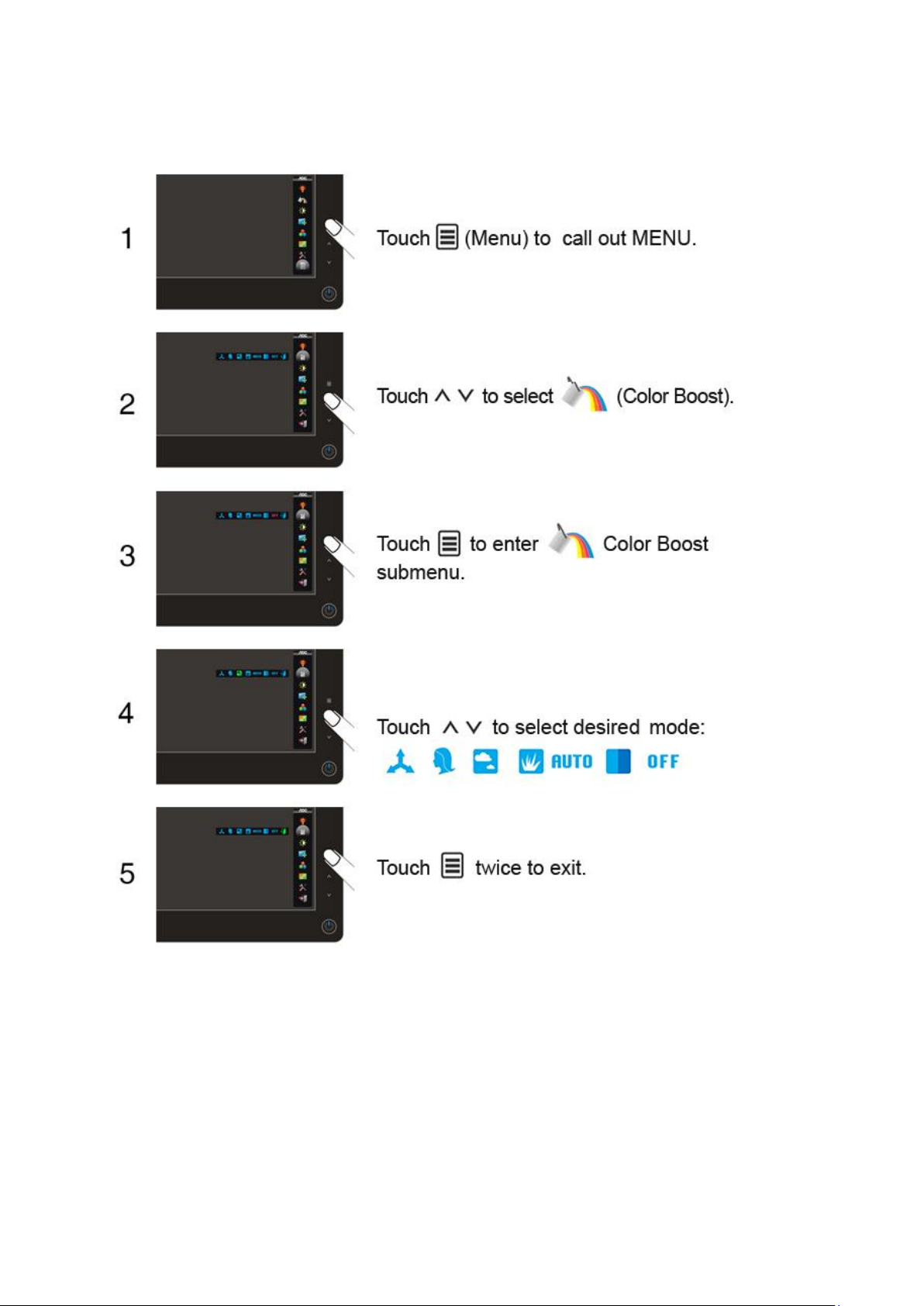

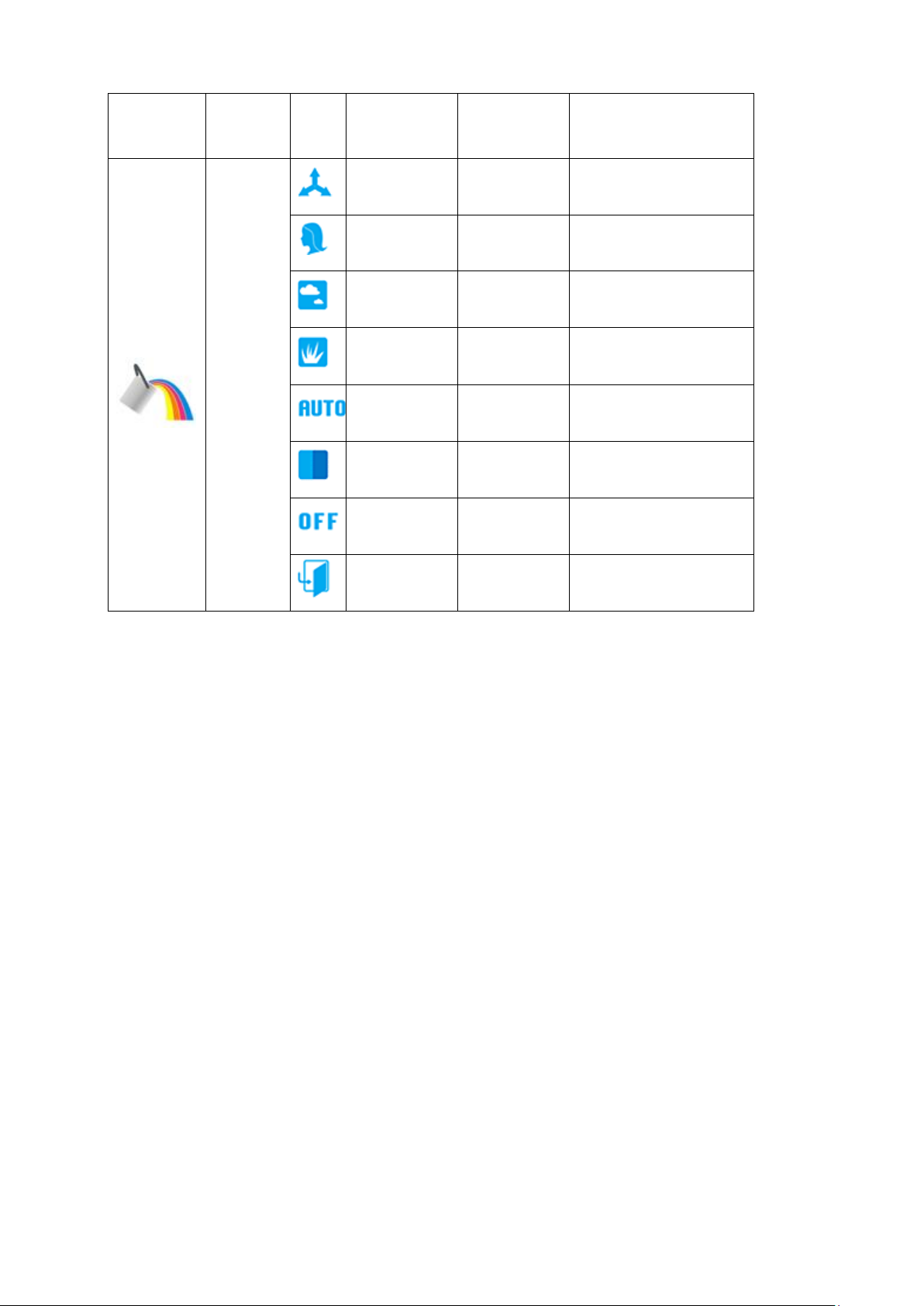

Color Boost

Item

Icon

Function

Adjust Range

Description

Color Boost

Full Enhance

on or off

Disable or Enable Full Enhance Mode

Nature Skin

on or off

Disable or Enable Nature Skin Mode

Sky-blue

on or off

Disable or Enable Sky-blue Mode

Green Field

on or off

Disable or Enable Green Field Mode

Auto Detect

on or off

Disable or Enable AutoDetect Mode

Demo

on or off

Disable or Enable Demo

Off

Disable Color Boost

Exit

Exit to main menu

Notes :

Full Enhance: Total color saturation is enhanced, suitable for vivid pictures. Natural Skin: Suitable for human portrait. Green Field: Suitable for large area of green. Sky Blue: Suitable for sky or ocean scene. Auto Detect: Suitable for outdoor or garden. Demo: Screen divided into two for comparison purpose.

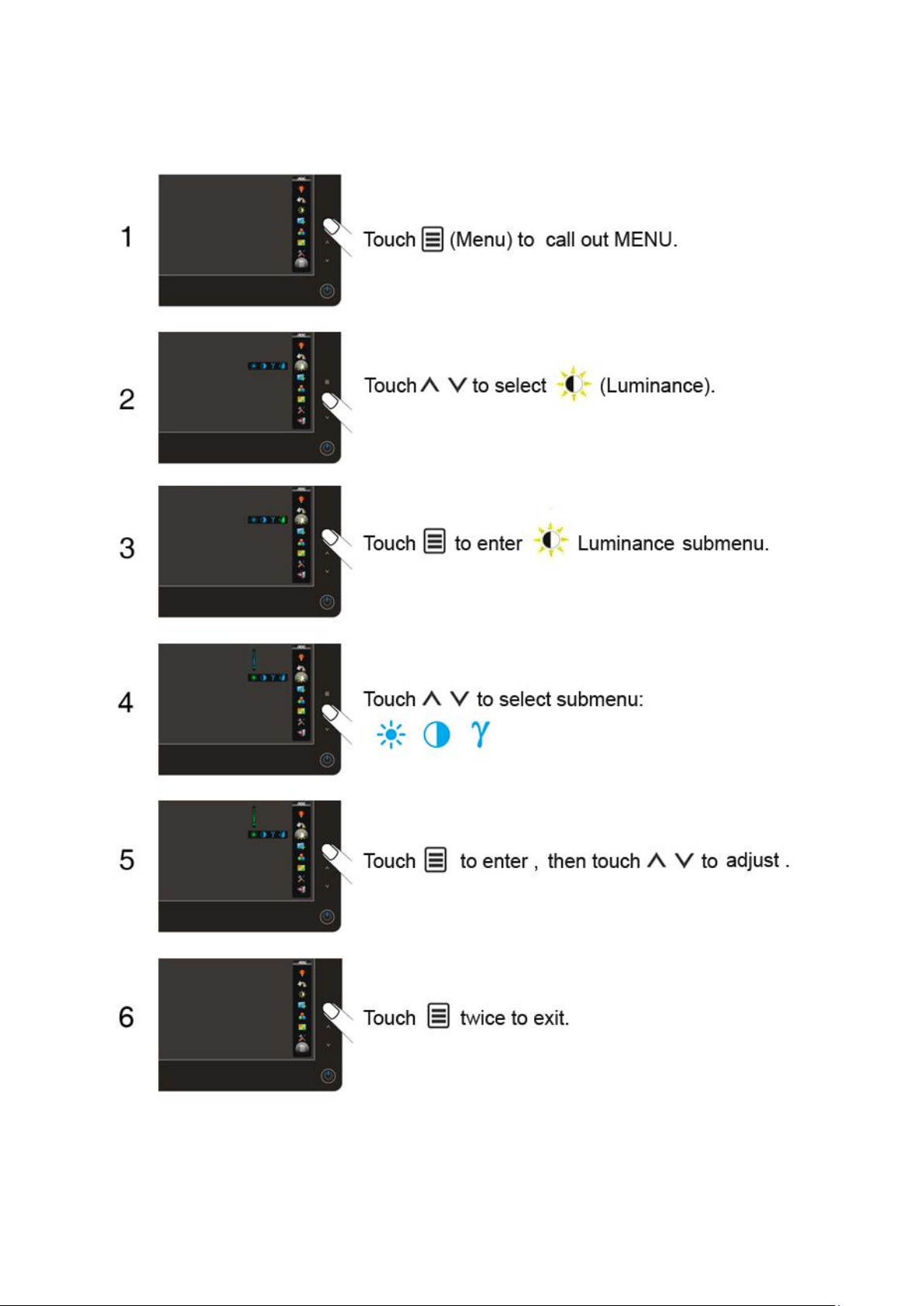

Luminance

Item

Icon

Function

Adjust Range

Description

Luminance

Brightness

00-100

Contrast

00-100

Gamma

Gamma1, 2, 3

Adjust to Gamma1, Gamma2, Gamma3

Exit

Exit to main menu

Notes :

When Eco mode is not set as “Standard”, Contrast and Brightness can not be adjusted; When DCR is set as “On”,

Contrast, Brightness, Eco mode and Gamma can not be adjusted.

Image Setup

Item

Icon

Function

Adjust Range

Description

Image Setup

Clock

00-100

Adjust picture Clock to reduce Vertical-Line noise.

Phase

00-100

Adjust Picture Phase to reduce Horizontal-Line noise

H.Position

00-100

Adjust the vertical position of the picture.

V.Position

00-100

Adjust the horizontal position of the picture.

Exit

Exit to main menu

Notes : When the input source is digital signal like DVI or HDMI, Image Setup can not be adjusted.

Color Temperature

Item

Icon

Function

Adjust Range

Description

Color Temperatu re

User Red

00-100

Red Gain from Digital-register

User Green

00-100

Green Gain Digital-register.

User Blue

00-100

Blue Gain from Digital-register

Normal

7300K

Recall Normal Color Temperature from EEPROM.

Warm

6500K

Recall Warm Color Temperature from EEPROM.

Cool

9300K

Recall Cool Color Temperature from EEPROM.

sRGB

Recall SRGB Color Temperature from EEPROM.

Exit

Exit to main menu

Picture Boost

Item

Icon

Function

Adjust Range

Description

Picture Boost

Horizontal Position

00-100

Adjust Frame horizontal Position

Vertical Position

00-100

Adjust Frame vertical Position

Contrast

00-100

Adjust Frame Contrast

Brightness

00-100

Adjust Frame Brightness

Frame Size

14-100

Adjust Frame Size

Bright Frame

on or off

Disable or Enable Bright Frame

Exit

Exit to main menu

Notes :

One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

Extra Setting

Item

Icon

Function

Adjust Range

Description

Extra Setting

Language

Select the OSD language

Reset

yes or no

Reset the menu to default

DDC-CI

yes or no

Turn ON/OFF DDC-CI Support

Timeout

05-120

Adjust the OSD Timeout

Transparence

00-100

Adjust the transparence of OSD

H. Position

00-100

Adjust the vertical position of OSD

V. Position

00-100

Adjust the horizontal position of OSD

Off Timer

00-24

Adjust the DC off time

Exit

Exit to main menu

Exit

LED Indicator

Status

LED Color

Full Power Mode

Blue

Active-off Mode

Orange

Driver

Monitor Driver

Windows 2000

1. Start Windows® 2000

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.

7. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.

8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).

9. Click on the 'Open' button, then click on the 'OK' button.

10. Select your monitor model and click on the 'Next' button.

11. Click on the 'Finish' button then the 'Close' button. If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, then click on 'Change...' button.

6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.

7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.

8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.

10. Click on 'Finish' button then the 'Close' button.

Windows XP

1. Start Windows® XP

2. Click on the 'Start' button and then click on 'Control Panel'.

3. Select and click on the category „Appearance and Themes‟

4. Click on the 'Display' Item.

5. Select the 'Settings' tab then click on the 'Advanced' button.

6. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.

7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

11. Click on the 'Open' button, then click the 'OK' button.

12. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

13. Click on the 'Finish' button then the 'Close' button.

14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows Vista

1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization".

2. Click "Personalization" and then "Display Settings".

3. Click "Advanced Settings...".

4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

5. Click "Update Driver..." in the "Driver" tab.

6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).

8. Select your monitor model and click on the 'Next' button.

9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

i-Menu

Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

Troubleshoot

Problem & Question

Possible Solutions

Power LED Is Not ON

Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.

No images on the screen

Is the power cord connected properly?

Check the power cord connection and power supply.

Is the cable connected correctly? (Connected using the D-sub cable) Check the DB-15 cable connection. (Connected using the DVI cable) Check the DVI cable connection. * DVI input is not available on every model.

If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.

Can you see "Input Not Supported" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly.

Make sure the AOC Monitor Drivers are installed.

Picture Is Fuzzy & Has Ghosting Shadowing Problem

Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .

Picture Bounces, Flickers Or Wave Pattern Appears In The Picture

Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution your are using.

Monitor Is Stuck In Active Off-Mode"

The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.

Missing one of the primary colors (RED, GREEN, or BLUE)

Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.

Screen image is not centered or sized properly

Adjust H-Position and V-Position or press hot-key (AUTO).

Picture has color defects (white does not look white)

Adjust RGB color or select desired color temperature.

Horizontal or vertical disturbances on the screen

Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS. Press to auto-adjust.

Specification

LCD Panel

model name

2036S

Driving system

TFT Color LCD

Viewable Image Size

50.8cm diagonal Pixel pitch

0.2768mm(H) x 0.2768mm(V)

Video

R, G, B Analog lnterface & Digital Interface

Separate Sync.

H/V TTL

Display Color

16.7M Colors

Dot Clock

140MHz

Resolution

Horizontal scan range

30 kHz - 80 kHz

Horizontal scan Size(Maximum)

442.8mm Vertical scan range

55 Hz - 75 Hz

Vertical scan Size(Maximum)

249.075mm

Optimal preset resolution

1600 x 900 (60 Hz)

Highest preset resolution

1600 x 900 (60 Hz) Plug & Play

VESA DDC2B/CI

Input Connector

D-Sub 15pin & DVI-D

Input Video Signal

Analog: 0.7Vp-p(standard), 75 OHM, TMDS

Power Source

100-240V～, 50/60Hz

Power Consumption Typical < 25 W

Standby < 1 W

Physical

Characteristics

Connector Type

15-pin Mini D-Sub& DVI-D

Signal Cable Type

Detachable

Dimensions & Weight:

Height (with base)

378 mm

Width

493.8 mm

Depth

186mm

Weight (monitor only)

4..2 kg

General Specification

Weight (with packaging)

5.5 kg

Environmental

Temperature:

Operating

0° to 40°

Non-Operating

-20°to 60°

Humidity:

Operating

10% to 85% (non-condensing)

Non-Operating

5% to 80% (non-condensing)

Altitude:

Operating

0~ 3000m (0~ 10000 ft )

Non-Operating

0~ 5000m (0~ 15000 ft )

Preset Display Modes

STAND

RESOLUTION

HORIZONTAL

FREQUENCY(kHZ)

VERTICAL

FREQUENCY(Hz)

VGA

640×480 @60Hz

31.469

59.940

VGA

640×480 @67Hz

35.000

66.667

VGA

640×480 @72Hz

37.861

72.809

VGA

640×480 @75Hz

37.500

75.000

Dos-mode

720×400 @70Hz

31.469

70.087

SVGA

800×600 @56Hz

35.156

56.250

SVGA

800×600 @60Hz

37.879

60.317

SVGA

800×600 @72Hz

48.077

72.188

SVGA

800×600 @75Hz

46.875

75.000

SVGA

832×624 @75Hz

49.725

74.550

XGA

1024×768 @60Hz

48.363

60.004

XGA

1024×768 @70Hz

56.476

70.069

XGA

1024×768 @75Hz

60.023

75.029

WSXGA

1600X900 @60Hz

60.000

Pin Assignments

Pin Number

15-Pin Side of the Signal Cable

Video-Red

Video-Green

Video-Blue

N.C.

Detect Cable

GND-R

GND-G

GND-B

+5V

Ground

N.C.

DDC-Serial data

H-sync

V-sync

DDC-Serial clock

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product .

EPEAT Declaration

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landﬁll protection, AOC announces the

launch of AOC monitor‟s packaging recycling program. This program is designed to help you discard of your

monitor carton and ﬁller materials properly. If a local recycling center is not available, AOC will recycle the

packaging material for you, including foam ﬁller and carton. AOC Display solution will only recycle AOC monitor

packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY* AOC Color Monitors sold within Europe AOC International (Europe) GmbH warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) GmbH will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The defective products that are replaced become the property of AOC International (Europe) GmbH.

If the product appears to be defective, please contact your local dealer or refer to the warranty card when attached to the product.

Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Authorized Service Center. If you cannot deliver the product in person:

Pack it in its original shipping container (or equivalent) Put the RMA number on the address label Put the RMA number on the shipping carton Insure it (or assume the risk of loss/damage during shipment) Pay all shipping charges

AOC International (Europe) GmbH is responsible neither for any damage or loss during inbound transport damage nor to inbound product that was not properly packaged.

AOC International (Europe) GmbH will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) GmbH is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union.

* This limited warranty does not cover any losses or damages that occur as a result of

Shipping or improper installation or maintenance Misuse Neglect Any cause other than ordinary commercial or industrial application Adjustment by non-authorized source Repair, modification, or installation of options or parts by anyone other than an AOC Authorized Service Center Improper environment Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have

modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

AOC INTERNATIONAL (EUROPE) GMBH OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) GMBH LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) GMBH BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more details, please visit: http://www.aoc-europe.com/en/service/index.php

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI ( EPI is the abbreviation of Envision Peripherals, Inc. ) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

EPI is not responsible for damage to inbound product that was not properly packaged. EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

Shipping or improper installation or maintenance Misuse Neglect Any cause other than ordinary commercial or industrial application Adjustment by non-authorized source Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center Improper environment Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE.

EPI‟ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER

THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii. Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice. For more details, please visit:

USA: http://us.aoc.com/support/find_service_center ARGENTINA: http://ar.aoc.com/support/find_service_center BOLIVIA: http://bo.aoc.com/support/find_service_center CHILE: http://cl.aoc.com/support/find_service_center COLOMBIA: http://co.aoc.com/support/find_service_center COSTA RICA: http://cr.aoc.com/support/find_service_center DOMINICAN REPUBLIC: http://do.aoc.com/support/find_service_center ECUADOR: http://ec.aoc.com/support/find_service_center EL SALVADOR: http://sv.aoc.com/support/find_service_center GUATEMALA: http://gt.aoc.com/support/find_service_center HONDURAS: http://hn.aoc.com/support/find_service_center NICARAGUA: http://ni.aoc.com/support/find_service_center PANAMA: http://pa.aoc.com/support/find_service_center PARAGUAY: http://py.aoc.com/support/find_service_center PERU: http://pe.aoc.com/support/find_service_center URUGUAY: http://pe.aoc.com/support/find_service_center VENEZUELA: http://ve.aoc.com/support/find_service_center IF COUNTRY NOT LISTED: http://latin.aoc.com/support/find_service_center

AOC 2036S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
