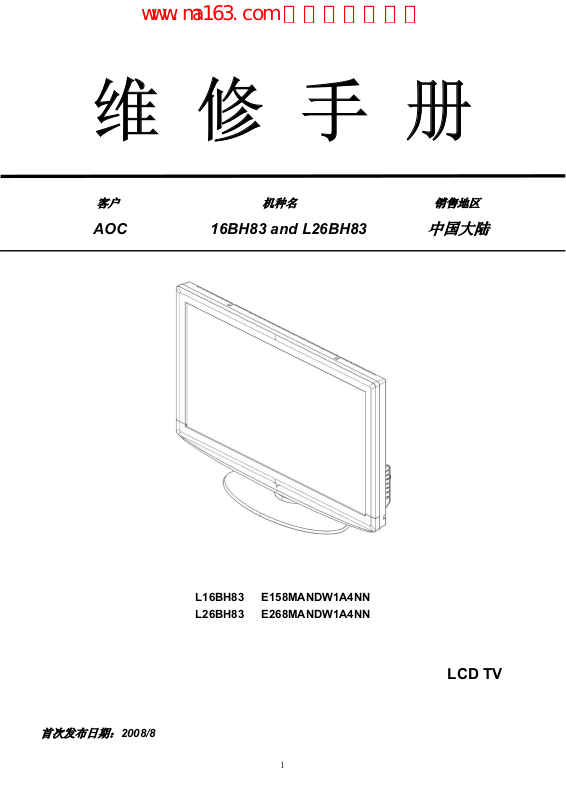

AOC 16BH83 User Manual

维 修 手 册

www.ma163.com 电子技术资料网

客户

机种名

销售地区

AOC 16BH83 and L26BH83

中国大陆

L16BH83 E158MANDW1A4NN

L26BH83 E268MANDW1A4NN

首次发布日期：

2008/8

LCD TV

1

目录

www.ma163.com 电子技术资料网

1. 安全与注意事项----------------------------------------------------------------------------------------------------- 03

2. 技术规格-------------------------------------------------------------------------------------------------------------- 05

3. 操作说明-------------------------------------------------------------------------------------------------------------- 06

4. 工厂模式调整-------------------------------------------------------------------------------------------------------- 13

5. 故障处理流程-------------------------------------------------------------------------------------------------------- 15

6. 线路图----------------------------------------------------------------------------------------------------------------- 19

7. 电气方框图----------------------------------------------------------------------------------------------------------- 34

8. 爆炸图----------------------------------------------------------------------------------------------------------------- 35

9. BOM-------------------------------------------------------------------------------------------------------------------- 37

2

1. 安全与注意事项

www.ma163.com 电子技术资料网

为了您的安全
在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。

重要安全说明
操作设备之前应阅读

1. 阅读这些说明。

2. 遵守这些说明。

3. 注意所有警告信息。

4. 按照所有说明进行操作。

5. 不要在靠近水的地方使用本设备。

6. 只使用干布进行清洁。

7. 不要堵塞任何通风孔，按照制造商说明进行安装。

8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。

9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第

三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电
工换一个新的插座。

10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。

11. 只使用制造商指定的附件。

12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小
心移动推车/设备的组合，以避免因翻倒而造成伤害。

13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当
地电力公司咨询。

14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。

15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体
或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。

16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有
关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org

17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修：

A. 电源线或插头损坏。
B. 电视内溅入了异物或液体。
C. 电视遭到雨淋。

。

D. 电视疑似不正常或性能发生明显变化。
E. 电视摔坏或外壳损坏。

3

倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。

www.ma163.com 电子技术资料网

y 请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。
y 另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电

视机上掉下来，从而造成产品损坏或人身伤害。

18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。

19. 电力线路 – 室外天线应远离电力线路。

20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和
静电聚集。
National Electric Code 的 810 节， ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接

地，天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的
连接，以及接地电极的要求。请参阅下图。

按照国家电力法规天线接地的实例

CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，
特别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。
将电源插头连接到墙上插座，请确保电视有电源输入！

22. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。

4

2.技术规格

www.ma163.com 电子技术资料网

功能 15.6"W/26"W 屏幕

PC 输入功能

支持电视、视频、HDMI 信号输入功能

项目 L16BH83 液晶电视 L26BH83 液晶电视

可视尺寸 396mm 对角 660mm 对角

电视功能

视频输入

PC 功能

音频输出 音频输出：L / R

OSD 语言 简体中文 / 英文 (出厂设定为简体中文)
桌台支架 包括

电视标准 PAL B/G 、D/K、I、NTSC M

声音系统 NICAM、FM-MONO

视频 AV

S-VIDEO S-Videox 1

分量输入

YPbPr/YCbCr

HDMI X 1

HDMI 及分量输入支

持模式

输入支持分辨率

声音输入 用于立体声的耳机迷你型插孔 (3.5ø)

RCA x 1

YPbPr/YCbCr x 1

480i、576i、480p、576p、720p、1080i

推荐使用：1360*768 /60Hz (26”W)

1024*768/60Hz (15.6”W)

扬声器（内置）：两个 2W 扬声器
用于立体声的耳机迷你型插孔 (3.5ø)

音频 L / R x 1

音频 L / R x 1

墙壁装配件

电源

使用环境

尺寸

VESA 100 x 100 mm

电源
功率消耗
温度

储存温度
湿度
宽 x 高 x 厚（ 含 底
座）

AC100V~240V, 50/60Hz

≤55W ≤150W

+ 5 °C ~ + 35 °C

- 25 °C ~ + 60 °C

10% ~ 85%

381.3x294x137(mm) 651.9x481.5x219.7(mm)

5

3. 操作说明

www.ma163.com 电子技术资料网

使用遥控器

电源

按这个按钮可以打开/关闭电视。电视不会

完全断电，除非关闭交流电源开关或者拔下

电源插头。

视频/S 端子

按此按钮可以在 AV 输入与 S 端子输入两个

模式互切。

分量信号/HDMI

按此按钮可以在 component 输入与 HDMI 输

入两模式互切。

电脑

按此按钮可以切到 PC 模式。

电视

按此按钮可以切到 TV 模式

0~9/100 (数字按钮)

用来选择电视频道。

频道:

按节目“+”或“-”（或 ∧ 或 ∨）

可以切换电视频道。

音量

按 + 或 –（或◄或►键）可以调整声音音

量大小。

丽音

用来选择 TV 模式声音制式，可以选择单声

回看

用来显示前一次选择的电视频道。

静音

暂时中断声音或恢复声音。

显示

(1) 当使用 TV RF 输入时显示频道号

码，声音制式等信息。

(2) 当使用 TV RF 输入之外的其它输

入时，显示输入源信息。

(3) 显示的信息会在3秒钟后自动消

失。

信源

选择信号源：按出可以选择 TV 输入、

视频 AV 输入、S 端子输入、Component

输入、PC 输入、HDMI 输入。

音质

切换画面声音预设模式，有个人设

定、对白、音乐、剧场四种模式。

缩放

按此键可切换画面比例。

静止

此按钮无作用。

画质

切换画面图像预设模式，有个人设

定、鲜艳、标准、柔和四种模式。

道 I、立体声、语言 I、语言 II、

语言 I+语言 II。

睡眠

使用这个按键，您可以设置电视在多长时间

之后进入待机状态。（PC 模式下此按钮无作

用

菜单

按这个键可以显示或者退出子菜单。

退出

按这个键可以退出主菜

单。

OK

对所选项目进行确认。

6

控制面板

www.ma163.com 电子技术资料网

电源:

信号源: 按此键可以变换不同的输入信号源，按此键屏幕可以显示输出信号源菜单。

菜单: 按此键可以进入或退出菜单。

频道:

音量:

按此键可以打开或使电视进入待机状态，如果电视处在待机状态，则前面的指
示灯会亮显示红色。

在屏幕出现菜单时，按此两键
菜单时，为 TV 模式时可以换台。

在屏幕出现菜单时，按此两键+ 或 –可以确认所选择之选项，在屏幕无 OSD
菜单时，为音量之调整。

或 可以选择所要执行选项，在屏幕无 OSD

7

背板接口

www.ma163.com 电子技术资料网

天线输入:
将天线接头插入电视机的天线插孔，本接口为 75Ω 同轴电缆输入。

视频/S 端子输入：
将视频信号源或 S 端子连接线连接至 DVD、激光影碟机、录像机或摄像机等设备上。
音频输入：把音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。
友情提示：S 端子音频与视频音频共享。

分量输入：
将分量信号源声音及影像(DVD、激光影碟机、录像机或摄像机等)连接至分量信号输入端口。

电脑信号与电脑音频输入：
将电脑主机的信号用 VGA 信号连接线连接到电视后面的电脑输入接口本机输入。
使用 PC 音频连接线接到电视的 PC 音频输入，另一接线接至 PC 主机音频线接口。

侧边信源接口

HDMI：
即为“高清晰多媒体接口”，将 HDMI 信号连接线连接至 DVD 等设备上。
耳机插孔:
使用者可通过耳机插孔使用耳机。

8

使用菜单使

www.ma163.com 电子技术资料网

按菜单按钮可以显示主菜单。

1. 使用上或下光标可以选择所要调整之功能选项。

2. 使用左或右光标或“OK”按钮可以进入子菜单或启用或调整所选择

之功能。

4. 按“退出”按钮可以退出菜单，按“菜单”按钮可以退出子菜单。

信源菜单

信源菜单

按“信源”按钮选择输入信源：包括 TV、AV、S-Video、component、HDMI、PC。
按菜单按钮进入 OSD 主 菜单。

电视模式时可调节项目包括：图像、声音、高级、电视、系统。

AV、S-Video、component、HDMI 输入时可调节项目包括：图像、声音、高级、系统。
PC 模式时可调节项目包括：图像、声音、PC、系统。

一、 图像设定

1. 预设：可提供个人设定、鲜艳、标准、柔和四种图像设定模式选择。

2. 亮度、对比度调整范围为 0～100，通过调整亮度、对比度可以设定画面亮度。

3. 色饱和度：调整范围为 0～100，通过调整此项可以对画面的彩色浓度做调整。（PC, HDMI 模式无该
选项）

4. 色调：调整范围从-50 至 50，通过调整此项可以改变画面颜色。

(COMPONENT，PC, HDMI 模式无该选项及彩色制式为 PAL 时该选项不可调）

5. 锐利度：调整范围为 0～100，通过调整此项改变画面清晰锐利程度。（PC, HDMI 模式无该选项）

9

6. 色温：此选项为用户提供了三种色温选项：正常、暖色、冷色。PC 模式下多“个人设定”选项，可调节

www.ma163.com 电子技术资料网

R, G, B 三色。

7. 复位：用于恢复图像设定中内容为出厂模式。

二、 声音设定

1. 预设：为设计好供您不同输出声音模式，其中有对白、音乐、剧场三种模式为预先设定无法调整高低
音，而个人模式则可以根据自己喜好调整低音、高音、平衡器来设定声音输出模式。

2. 低音、高音调整范围是从-10～10。

3. 平衡：调整范围是从-10～10。从 0~10 调整时，左声道声音 慢慢减小直至消失，从 0~-10 调整时，右
声道声音慢慢减小直至消失。

4. 音效： 有丽音台时可以切换声音效果。（只有电视模式下才有此选项）

5. 复位：可以将声音设定内容恢复为出厂预设值。

三、高级设定（PC 模式无高级设定）

1. 噪点消减：可以选择关、低、正常、高四种选项，画面出现严重噪点时选择消除噪点的高低，高低选

择请用户根据实际画面判定，建议有轻微噪点时无需使用。

2. 高级对比度：打开以后用于增强颜色饱和度，提升色彩效果。

3. 画面比例：wide、Normal、14：9 Zoom、Zoom，16：9 Zoom-Up,Cinema 六种模式来选择画面所占

屏幕比例（HDMI，Component 模式下只有“wide”，“Normal”，“Zoom”，“Cinema”四种模式）

4. 复位：可以将高级设定内容恢复为出厂预设值。

10

四、电视设定（以下菜单只有在电视模式才出现）

www.ma163.com 电子技术资料网

1. 自动搜台：用于给用户自动搜索并存储节目功能,按“菜单”键可以退出

自动搜台模式。

2. 手动搜台： 按左右按钮进入子菜单，见下图

(1) 频道号：显示当前电视频道号
(2) 频道名称：显示当前电视频道名
(3) 频率：显示当前电视频道频率
手动微调方法：按上下建选择频率选项，频率选项变为黄色，然后通过左右键
调整频率或直接按遥控器上的数字键输入固定频率来选择您需要收看的节目。

半自动搜台方法：当按住左或右键 3 秒以上时，会进入半自动搜台状态，当搜索到有信号的节目时自动退

出半自动搜台并将当前节目存储与当前节目号中。

(4) 彩色制式：显示当前电视信号彩色制式。
(5) 声音制式：显示当前电视信号声音制式。
(6) 微调：对频道频率进行微调，调整范围：-50～50.
(7) AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号有

偏移时会自动调整频道到正确位置。

(8) 保存：保存手动搜台的各个设定值。

3. 频道列表：按左右按钮进入子菜单，见下图

11

www.ma163.com 电子技术资料网

可以按照菜单最下方的指示，对频道列表进行编辑。
五、系统设定

1．菜单语言：设定 OSD 语言功能，提供英文、简体中文两种语言选择。

2. 菜单显示时间：有 10，20，30，40，50，60s 的时间可供选择，来设置菜单

的显示时间。
3．睡眠时间： 设定电视自动进入待机状态的时间。(PC 模式无该项功能)

当睡眠时间设定完成后，开始计时；

4. 菜单透明度：调整范围 0～15，调整菜单的透明程度。

5. 复位：可以将系统设定内容恢复为出厂预设值。

6. 系统重置：可以将各个调整项目设定内容恢复为出厂预设值。

六、PC 设定（以下菜单只有在 PC 模式才出现）

1. 自动调节：将 PC 画面调整到最佳位置

2. 水平位置，垂直位置：调整范围-50～50，手动调整 PC 画面位置

3. 时钟，相位：调整范围-50～50，手动调整 PC 画面。

12

4.工厂模式调整

www.ma163.com 电子技术资料网

1、进入工厂模式
按 MENU 键，出现 User OSD 菜单，如图 1，再依次按数字键 1 9 9 9，就会出现工厂 OSD 菜单，
即进入工厂模式。如图 2 所示

2、工厂模式各项说明
1）BRAND：商标，指示机器的品牌
2）DATE：软体的发布日期
3）FW:软体的文件名
4）PANEL TYPE: PANEL 的厂家规格
5）WHITE BALANCE：白平衡调整，进入详细的数值调整界面,如下图所示：

6）CURRENT SOURCE：信源选择

13

7）COLOR TEMP: 色温调整（NORMAL,COOL,WARM）

www.ma163.com 电子技术资料网

8）EEPROM INIT：程序存储器初始化
9）BURN IN：烤机模式关闭或开启
10）BAKE LIT TIME：背光开启总时间
11）TOTAL TIME：总开机时间（包括待机）
12）EMI ADJUST：开展屏设置（厂内调整用，不要更改）
13）MENU LANGUAGE：菜单语言
14）RESET:工厂模式设置复位（背光与总开机时间不清零）

14

5. 故障处理流程

检测

www.ma163.com 电子技术资料网

5.1 LED 橙色

无画

检查 按键板/遥控板

NG

换按键板/遥控板

OK

U701,U702,U703

OK

NG

更换U701/U702/U703

检查 U400

NG

更换U400

检查 I2C 总线

NG

换 I2C 通信元件

5.2 无显示（LED 绿色）

检测有无背光

OK

检测LVD S接口和线材

OK

检测UH200

OK

检测U202

NG

NG

NG

OK

检测Panel

检测24V供电

检测BL-ON/OFF信号

更换UH200

更换U202

NG

OK

NG

检测PS信号

NG

NG

检测Q705、Q706 更换Q705、Q706

更换Panel

N

G

OK

检测电源板

15

5.3 画异

www.ma163.com 电子技术资料网

画异

更换U400

检查 信号源

OK

检查 信号滤波电路

OK

检查 输入

AV, S-video, Comp，PC，HDMI信号

NG

检查U400

OK

检查 LVD S 线

NG

TV 信号

NG

NG

换 LVDS 线

重接信号源

换 滤波电容，电阻

检查 TV 制式

OK

检查 TU101

OK

NG

NG

重调制式

更换TU101

OK

检查 panel

NG

换 panel

16

5.4 无声

检测输入信号

检测

www.ma163.com 电子技术资料网

检测信号源

NG

重接信号源

检测是否被静音

NG

关闭静音功能

OK

TV SIF

检测U600

OK

U602/U603

OK

检测喇叭

OK

检测TU101

NG

更换U600

NG

更换U602/U603

NG

更换喇叭

检测TV制式

NG

NG

重调TV制式

更换TU101

17

5.5 按键板

www.ma163.com 电子技术资料网

OSD 不稳定或无法正常工作

按键板连接正常吗？

OK

按键正常吗？

OK

按键板有无故障？

OK

检查主板

NG

NG

NG

接好按键板

更换按键

更换按键板

18

6.线路图

www.ma163.com 电子技术资料网

6.1 主板 715T2899 1

FB103 120 OHM
FB104 120 OHM
FB105 120 OHM
FB106 120 OHM

7

33PF 50V

FB107 120 OHM

1 2

1 2

1 2

1 2

RS_RXD

C100

AGND

1 2

C109

33PF 50V

CN100

PHONEJAC K

ZD124

UDZS5. 6B

15

14

13

12

11

1 2

C110

33PF 50V

1
2

3

AGND

CN104

AUDIO_P_L

AUDIO_P_R

FB109 12 0 OHM

10
5
9
4
8
3
7
2
6
1

DB15

17 16

AGND

C111

33PF 50V

MCU 5V

VGA_5V

FOR VGA DDC

ZD105

ZD104

1 2

VPORT0603100KV05

VGA INTERFACE

ZD123

UDZS5. 6B

1 2

C104

C103

NC

NC

AGND

1 2

BAT54C

1

2

1
2
3

AGND

R100
33K OHM

R115
33K OHM

1 2

VPORT0603100KV05

FB108 120 OH M

1 2

C106

C105

NC

NC

ZD100
UDZS5. 6B

D100

3

C113
1uF/25V

AGND

U100

A0

VCC

A1

WP

A2

SCL

VSS4SDA

M24C02-WMN6TP

10uF/25V

10uF/25V

12

AGND

1 2

AGNDAGND

VGA_5V_S

MCU 5V

8
7
6
5

C125

C126

C103,C104,C105,C106靠近CN100

VGA_5V

RS_TXD 7

B_GND

G_GND

R_GND

VGA_SDA
VGA_SCL

ZD101
UDZS5. 6B

R125
R112
R113

4.7K OHM 1/10W

4.7K OHM 1/10W

4.7K OHM 1/10W

PC_L 4

PC_R 4

VGA_SCL
VGA_SDA

1 2

FB102 60 OHM

1 2

FB101

1 2

FB100

60 OHM

VGA_H

VGA_V

VGA_V

VGA_H

VGA_B

VGA_G

60 OHM

VGA_R

RV100,RV101,RV102靠近CN100

R102,R105,R108靠近UH200
R101,R104,R107靠近UH200

VGA_H

R103

2.2K OHM 1/10W

VGA_V

R106

2.2K OHM 1/10W

MCU 5V

R189

D123

C167

0.47uF/25V

C168

0.0047uF

3

BAT54S

3

D124

BAT54S

2

1

MCU 5V

2

1

100K OHM 1/10W

220K OHM 1/10W

820K OHM 1/10W

0.47uF/25 V

R187

R190

180K OHM 1/10W

R175

1

C169

1

C170

0.47uF/2 5V

33 OHM 1/16W

ZD102
UDZS5. 6B

1 2

AGND

ZD103
UDZS5. 6B

1 2

AGND

23

Q108

PMBS3906

23

PMBS3906

Q109

VGA_R

VGA_R

12

RV100

PESD0603-140

R_GND

R_GND

VGA_B

VGA_B

12

RV101

PESD0603-140

B_GND

B_GND

VGA_G

12

RV102

PESD0603-140

G_GND

R111

33PF 50V

AGND

R114

33 OHM 1/16W

C115

33PF 50V

AGND

R102

75 OHM 1/16W

R105

75 OHM 1/16W

75 OHM 1/16W

R108

C114

AGND

AGND

AGND

AGND

HS_M2 3

C114,C115靠近CN100

VS_M2 3

SYN C_DETECT 7

R101

100 OHM 1/16W

R104

100 OHM 1/16W

R107

100 OHM 1/16W

R110

100 OHM 1/16W

1000pF

C108

1 2

C101

0.047UF 25V

C102

0.047UF 25V

C107

0.047UF 25V

Near to HX6203(UH1)

R_M2 3

B_M2 3

G_M2 3

AGND

C112

NC

SOG_VGA_M2 3

19

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

01)VGA_INPUT

Date

OEM MO DEL

L16BH83

TPV MODE L

E268MANBW1ACN 1

715T2899-B

PCB NAME

111Sunday, May 25, 2008

Sheet

of

A3

Size

Rev

<

称爹

称爹

>

R119

www.ma163.com 电子技术资料网

C119

12

VPORT0603100KV05

33K OHM 1/10W

D102

AGND

R121

VPORT0603100KV05

12

33K OHM 1/10W

D104

AGND

AGND

AV1

5

6

7

1 3

8

10uF/25V

12/20'07

C121
10uF/25V

SVIDEO_C

4

2

SVIDEO_Y

VPORT0603100KV05
VPORT0603100KV05
VPORT0603100KV05

HD_L 4

HD_R 4

100 OHM 1/16W

R130

43 OHM +-5% 1/16W

AGNDAGND

100 OHM 1/16W

R133

43 OHM +-5% 1/16W

AGND

100 OHM 1/16W

R136

43 OHM +-5% 1/16W

AGNDAGND

R129

Video1 3

C128

0.047UF 25V

R128,R129,R130

R132

R135

R134,R135,R136靠近UH200

C129

S-Video_C 3

0.047UF 2 5V

C130

S-Video_Y 3

0.047UF 2 5V

靠近

UH200

R128

AV1

33 OHM 1/16W

12

D108

R131

12

33 OHM 1/16W

D109

R134

AGND

12

33 OHM 1/16W

D110

Y

C118 10uF/25V

C120 10uF/25V

C162

C156

33pF

33pF

R118

33K OHM 1/10W

R120

33K OHM 1/10W

C163

33pF

AV1_L4

AV1_R4

PB

PR

AV1/L

VPORT0603100KV05

12

D101

AGND

AV1/R

VPORT0603100KV05

12

D103

AGND

1
2

3
4 5

6
7 8

12

12

12

AGND

VPORT0603100KV05

VPORT0603100KV05

D105

D107

D106

AGND

CN105

2

1

4

3

JACK

AGND

CN102

HD/L

HD/R

JACK

VPORT0603100KV05

HD/L

HD/R

JACK
CN103

Change to yellow RCA 12/14

R125,R126,R127靠近UH200

AGND

C155

C154

R166

R122

R123

R124

100 OHM 1/16W
100 OHM 1/16W
100 OHM 1/16W

1000PF 50V

C122

0.047UF 25V

C123

0.047UF 25V

C124

0.047UF 25V

100 OHM 1/10W

Y

PB

PR

R172
R171

R170

75 OHM 1/10W
75 OHM 1/10W
75 OHM 1/10W

AGND

NC

HD_SOY 3

HD_Y 3

HD_PB 3

HD_PR 3

20

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

02)VIDEO_I O

Date

OEM MOD EL

L16BH83

TPV MODE L

E268MANBW1ACN 0.1

715T2899-B

PCB NAME

Sheet

of

211Sunday, May 25, 2008

A2

Size

Rev

<

称爹

>

称爹

DVI/HDMI 1.8V POWER 20mA

www.ma163.com 电子技术资料网

A_1.8

FB200

CLOSE

FB203

2

V3D3_M1_HDMI

+

C237

10uF/16V

AGNDAGND

PIN190

C200

0.1uF25V

AGND

C212

0.1uF25V

C230

0.1uF25V

C239

0.1uF25V

1 2

300 OHM

1 2

300 OHM

AGND

HDMI POWER 3V3 100mA

5VS

U200

AP1117E33LA

3

VOUT

VIN

VSS

4

1

4

+

C236

10uF/16V

C207

C206

100pF

0.1uF25V

VCCP_HDMI

VCCP_HDMI

C214

C213

100pF

GNDP_HDMI

0.1uF25V

FB206

1 2

300 OHM

FB207

1 2

300 OHM

PVCCG

PVCCG

PGNDG

VCCP_HDMI

CLOSE
PIN188

CLOSE
PIN196,202

C231

0.1uF25V
AGND

CLOSE PIN194

C240

0.1uF25V

AGNDAGND

C232

0.1uF25V

VSSP_DV

VDDA_DV

VSSA_DV

VDDP_DV

PVCCG

PVCCG

VCCP_HDMI

VCCP_HDMI

VDDA_DV

VDDA_DV

VDDP_DV

VDDP_DV

RX0+9
RX0-9
RX1+9
RX1-9
RX2+9
RX2-9

VDDA_DV

DDCSCL_M29

M1 register and setting path:
SYS_PW = 0 : Normal
SYS_PW = 1 : ISP HDCP

RXC+9
RXC-9

390 OHM 1% 1/10W

DDCSDA_M29

PVCCG

R204

C235

3.3K OHM 1/16W

4.7uF

C235,R204,C228

R202

DDCSCL_M2
DDCSDA_M2

PGNDG

GNDP_HDMI

VSSA_DV

VSSP_DV

REXT

C228

0.47uF

EXTCAP

要靠近

UH200

190
192

188
189

196
202
199
205
208

194
193

201
200
204
203
207
206
198
197

195

187
186

184
183

191

UH200A

HX6203-A

PVCCG(1.8V)
PGND

VCCP(1.8V)
GNDP

VDDA_D V(3.3V)
VDDA_D V(3.3V)
VSSA_DV
VSSA_DV
VSSA_DV

VDDP_D V(3.3V)
VSSP_DV

RX0P
RX0N
RX1P
RX1N
RX2P
RX2N
RXCKP
RXCKN

REXT

DDCSCL
DDCSDA

MSC L
MSD A

EXTCAP

FB214 300 OHM
FB213 300 OHM
FB212 300 OHM

PLL POWER

VDDP_AD

VSSP_AD

241

243

VSSP_AD

VDDP_AD(3. 3V)

HDMI/DVI

VSSA_AD

226

AGND

VSSDP

VDDDP

245

244

VDDDP_AD(3.3V)

VSSA_AD

236

215

BVDDA

BVSSA

212

209

VSSDP_AD

BVDDA_VD(3. 3V)

VDDA_AD (3.3V)

VSSA_AD

220

231

1 2

1 2

AGND

237

240

BVSSA_VD

VDDD_AD (3.3V)

- RGB/YPbPr/Video -

Analog Input / Output

VDDA_AD (3.3V)

VDDA_AD (3.3V)

225

AGND

1 2

VDDA_AD

AOUT1
AOUT2

VSYNC

VSSD_AD

HSYNC

AI11(RI N1)
AI21(GIN 1)
AI31(BIN 1)
AI41(Y IN1)

AI12(RI N2)
AI22(GIN 2)
AI32(BIN 2)
AI42(Y IN2)

AI13(RI N3)
AI23(GIN 3)
AI33(BIN 3)
AI43(Y IN3)

AI14(RI N4)
AI24(GIN 4)
AI34(BIN 4)
AI44(Y IN4)

FILT

VREF(1. 25V)

VMIDS(0.5v )

VDDA_AD

211
210

239
238

216
217
218
219

221
222
223
224

227
228
229
230

232
233
234
235

242

214

213

C229

0.1uF25V

C221NC
C222NC
C241NC

C217

0.1uF25V

FB208

1 2

300 OHM

FILT

VREF

VMID

C233

4.7uF

AGND AGND

FB216

1 2

300 OHM

AGND

C216

0.1uF25V

C234

0.1uF25V

VS_M2 1
HS_M2 1

HD_SOY 2
HD_PB 2
HD_PR 2
HD_Y 2

Video1 2

2007-10-31

AGND

SOG_VGA_M2 1
G_M2 1
B_M2 1
R_M2 1

S-Video_Y 2
S-Video_C 2
TV_C VBS 11
KEY1 7

1.6KOHM + -5% 1/16W

C227

0.01UF 25V

C227,R203,C226

C238

4.7uF

ADC POWER 3.3V 500mA

V33ADC VDDA_AD

VDDP_AD

R203

0.1UF 16V

VDDP_AD

要靠近

FB201

CLOSE

1 2

C208

0.1uF25V

AGND

ADC PLL 3.3V

C218

0.1uF25V

AGND

C223

0.1uF25V

C226

AGND

UH200

PIN220,231,225,237

300 OHM

+

C201

10uF/16V

FB202

1 2

300 OHM

FB204

1 2
300 OHM

FB205

1 2

300 OHM

C203

C202

0.1uF25V

0.1uF25V

CLOSE PIN209

+

C209

10uF/16V

C210

0.1uF25V

CLOSE PIN241,242

VDDP_AD

C220

c219

0.1uF25V

0.1uF25V

CLOSE PIN245

C224

0.1uF25V

C204

0.1uF25V

BVDDA

C211

100pF

VSSP_AD

VDDDP

C225

100pF

VSSDP

AGND

C205

0.1uF25V

BVSSA

M1 register and setting path:
SYS_PW = 0 : Normal
SYS_PW = 1 : ISP HDCP

21

<

称爹

Custom

>

T P V ( Top Victory Electronics Co . , Ltd. )

Date

T2899-1-X-X-11-080515

03)HX6203_AD_ INPUT

絬 隔 瓜 絪 腹

Key Component

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

L16BH83

E198MANSW1ACN 0.1

715T2899-A

11Sunday, May 25, 2008

of

3

Size

Rev

称爹

TUNE R_S IF11

www.ma163.com 电子技术资料网

VDD_AUD

FB710

TV_SI FR

1 2

300 OHM

C746

NC

FB600

1 2

FB601

1 2

FB602

1 2

FB603

1 2

300 OHM

AUD 3.3V 200mA

VRP

300 OHM

CLOSE PIN246 CLOSE PIN253

300 OHM

300 OHM

AGND

AGND

AGND

C620

C618

0.1uF25V

100pF

20mA

VDDD_AU

C628

C629

VSSD_AU

100pF

0.1uF25V

VDDA_AU

C639

C638

VSSA_AU

100pF

0.1uF25V

C600

0.1uF25V

VDD_SIF

+

+

+

1 2

AGND

C621

10uF/16V

C630

10uF/16V

C640

10uF/16V

FB712

300 OHM

SIF1+

1 2

FB713

300 OHM

C601

0.1uF25V

TUNER_MONO11

27K OHM 1/10W
27K OHM 1/10W

C622

100pF

CLOSE PIN63

CLOSE PIN58

PC_L1
PC_R1

SIF1-

SIF1-

C674

0.1uF25V

C615

VSS_SIF

0.1uF25V

UH200C

246

VDDA_SIF

VSS_SIF

247

VSSA_SIF

VDD_SIF

253

VDDD_SIF

VSS_SIF

256

VSSD_SIF

SIF1+

251

SIFP

SIF1-

252

SIFN

38

I2SREFCK

39

I2SCKI

40

I2SWSI

41

C608

I2SDTI

C609

C616

10uF/16V

10uF/16V
10uF/16V

44

AUIL1

45

AUIR1

46

AUIL2

47

AUIR2

48

AUIL3

49

AUIR3

50

AUIL4

51

AUIR4

HX6203-A

X600

C614

33PF 50V

R602

R603

AV1_L2
AV1_R2

HD_L2
HD_R2

+

. Audi o
Analog
I2S / SPDIF
SIF MUX
In / Out

24.576MHz

254

R604

XTAL_IN

1M OHM 1/10W

24.576MHz

AGND

VDDD_AU
VSSD_AU

VDDA_AU

XTAL_IN

XTAL_OUT

255

XTAL_O

C617

33PF 50V

C650

100uF/25V

VREFP

VCMG

VREFN

VSSA_AU

AUOL1

AUOR1

AUOL2

AUOR2

AUOL3

AUOR3

SPDIF

0.1uF25V

0.1uF25V

+

+12VA

VRP
VCM
VRN

VREFPVDD_SIF

248

VCMG

249

VREFN

250

VDDD_AU

63

VSSD_AU

64

VDDA_AU

58

VSSA_AU

59

AOUT1_L

53

AOUT1_R

52

55
54

57
56

65

VRP

60

VCM

62

VRN

61

AOUT1_R

330 OHM 1/10W

330 OHM 1/10W
330 OHM 1/10W

3

C649

0.1uF25V

1 2

FB711

AGND

C610

AGND

0.1uF25V

AGND AGND

C627

1uF/25V

C632

1uF/25V

C631

C633

C6340.1uF25V
C6350.1uF25V

C636
C637

U601

AGND

AZ1117H-ADJ -E1

VIN

VOUT

ADJ

1

220 OHM 1/10W

R621

1.2K OHM 1/10W

C602

0.1uF25V

+

C611

10uF/16V

2

10uF/16V

R609

R620

3000 OHM

+

C604

C603

0.1uF25V

10uF/16V

VRP

C612

+

0.1uF25V

C613

10uF/16V

R601

NC

R608 2.4K OHM 1/10W

2.4K OHM 1/10W

R611

R612330 OHM 1/10W
R614
R615

R617330 OHM 1/10W
R619330 OHM 1/10W

9VDD

9VDD

C642

10uF/16V

+

C607

+

C606

C605

10uF/16V

0.1uF25V

M_SDA7, 11

S_SCL_PT2314 7

AGND AGN D

R600

NC

C641

0.1UF16V

11
16

10
15

14

13

PT2314

AGND

R607

U600

25

RIN1
LIN1

DATA

DGND
RIN2
LIN2

9

RIN3
LIN3

8

RIN4
LIN4

AGND

VDD

1

C643

22uF/16V

AGND

R606

0 OHM 1/10W

27

26

CLK

LOUT

REF28RIN

ROUT

2

+

5.6K OHM 1/10W

R605

5.6K OHM 1/10W

C6192.2uF/16V

C6230.1uF

C626

C625

C624

0 OHM 1/10W

0.1uF

0.1uF

17

20

19

18

12

3

2700PF 50V

LIN

BIN_L

LOUT_L

TREB_L

BOUT_L

23

OUT_R

24

OUT_L

BIN_R

BOUT_R

LOUT_R

TREB_R

7

5

6

2.2uF/16V

4

21

22

C647

C6460.1uF

C645

C6482700PF 50V

C644

0.1uF

0.1uF

AGND

R622

AGND

AGNDAGND

R610

100 OHM 1/10W

R613

R616

R618

AUDIO_RAOUT1_L

HP_R

1K OHM 1/10W

AUDIO_L

100 OHM 1/10W

HP_L

1K OHM 1/10W

AUDIO_R 8

HP_R 8

AUDIO_L 8

HP_L 8

22

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

04)HX6203_Audio

Date

OEM MOD EL

L16BH83

TPV MODEL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

Sheet

11Sunday, May 25, 2008

of

4

A2

Size

Rev

<

称爹

>

称爹

M2 register and setting p ath:

www.ma163.com 电子技术资料网

BUSTYPE = 0 : Parallel in terface
BUSTYPE = 1 : I2C interfa ce

VCC3IO

4.7K OHM 1/10W

R206

R209

NC

AGND

5VS

R216

4.7K OHM 1/10W

DBUS0

R227

NC

Power On latch the DBUS0 value
for support HDCP Key from :
Use Pull-High to 8051 firmware
Use Pull-Low external key ROM

Use 1K for avoid MCU pull high

4.7K resistor effect.

4.7K OHM 1/10W

4.7K OHM 1/10W

R207

R208

R210

R211

NC

NC

4.7K OHM 1/10W

R724

CE7
SO7
SI7
SCK7

TSTMD1
TSTMD2
TSTMD3

R212

2007-10-31

SPI_FLASHM_WE

R217 68 OHM 1/10W
R218 0 OHM 1/10W
R219 68 OHM 1/10W
R220 68 OHM 1/10W

S_SDA7

S_SCL7

INTO_N7

IR_DATA7

RESET#7

R245 22 OHM 1/10W

R213

R247 22 OHM 1/10W

BL_ADJ10

4.7K OHM 1/10W

4.7K OHM 1/10W

R221

0 OHM 1/10W

R226

0 OHM 1/10W

R228

NC

R229

22 OHM 1/10W

CE

SO

SPI_FLASHM_WE

R235

4.7K OHM 1/10W

AGND

BUSTYP E_R

DBUS0

DBUS3_1
DBUS4_1
DBUS5_1
DBUS6_1
DBUS7

RST_N

AGND

1

2

3

INTO_N

IRDAT

176
177
179

180
181
182

67

71

72

73

76
77
78
79
80
82
83
84

85

70

68

66

C215

1UF/ 25V

3.3V

U202
M25P40-VMN6TP/X

CE#

VDD

SO

HOLD#

WP#

SCK

VSS4SI

VCC3IO

160

UH200B

PWMB
PWMC
PWMD

TSTMD 1
TSTMD 2
TSTMD 3/P D

BUSTYP

ALE

RDZ

WRZ

DBUS0
DBUS1
DBUS2
DBUS3
DBUS4
DBUS5
DBUS6
DBUS7/SDA

SCL/C S

INTO_N

IRDAT

RST_N

HX6203-A

8

7

AGNDAGND

SCK

6

SI

5

K310 SPI interface share pin
with MCU parallel bus
{csn, sdi, sdo, sck}
{DBUS3,DBUS5,DBUS4,DBUS6}

K310_gpio[5:0] =
DBUS2,DBUS1,DBUS0,WRN,RDN,ALE

178

PWM Output, Di rect Bu s, I2C Con trol & MISC

VCCK(1.8V)20VCCK(1.8V)43VCCK(1.8V)87VCCK(1.8V)75VCCK(1.8V)

VCC3IO(3.3V)5VCC3IO(3.3V)25VCC3IO(3.3V)69VCC3IO(3.3V)

VCC3IO(3.3V)

GNDIO

GNDIO

GNDIO81GNDIO34GNDIO14GNDK

185

170

166

150

AGND AGND

C242
1uF/25V

GNDK

116

117

GNDK

GNDK86GNDK74GNDK42GNDK

VCCK

149

165

1

P_A0

2

P_A1

3

P_A2

4

P_A3

6

P_A4

VCCK(1.8V)

VCCK(1.8V)

7

P_A5

8

P_A6

9

10
11
12
13
15
16
17
18

21
22
23
24
26
27
28
29

30

31
32
33
35
36

37

R239

NC

1K OHM 1/10W

R230

R234

1K OHM 1/10W

R222

NC

VCC3IO

R223

NC

R231

NC

AGND

R224

NC

R232

NC

R225

NC

R233

NC

19

TTL Input

SYNC1
SYNC2
SYNC3
SYNC4
SYNC5

P_A7

P_B0
P_B1
P_B2
P_B3
P_B4
P_B5
P_B6
P_B7

P_C0
P_C1
P_C2
P_C3
P_C4
P_C5
P_C6
P_C7

CLK_A

CLK_B

23

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

05)HX6203_CTRLBUS

Date

OEM MODEL

L16BH83

TPV MOD EL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

Sheet

11Sunday, May 25, 2008

of

5

A3

Size

Rev

<

称爹

称爹

>

VCCLV

www.ma163.com 电子技术资料网

GNDLVP
VCCLVP

47 ohm-->
0ohm / Bead

For panel
RSDS
driving

5VS

+

10uF/16V

C747

3

LVDS 120mA

D200

（

1N4148

）

NC

U704

AP1117E25LA

VIN

VSS

1

AGND

VOUT

4

4

C246

10uF/16V

VDD_AUD

CANCEL FB210,CA:C747 U704,D200

UH200D

156

155

154

153

152

151

146

145

144

143

142

141

140

139

138

137

136

135

134

133

130

129

128

127

126

125

HX6203-A

AGND AGND

CLOSE
PIN88,100,114,132,148

C247

0.1uF25V

2

AGNDAGND

AGND

+

AGND

BRSB3N/ OR0/B2POL20
BRSB3P/OR 1/B2BITST
BRSB2N/ OR2/B2CLK
BRSB2P/OR 3/B2RSR2
BRSB1N/ OR4/B2RSR1
BRSB1P/OR 5/B2RSR0
BRSB0N/ OR6/B2RSG2
BRSB0P/OR 7/B2RSG1

BRSG3N/ OG0/B2RSG0
BRSG3P/OG1/ B2RSB2
BRSG2N/ OG2/B2RSB1
BRSG2P/OG3/ B2RSB0
BRSG1N/ OG4/B1RSB0
BRSG1P/OG5/ B1RSB1
BRSG0N/ OG6/B1RSB2
BRSG0P/OG7/ B1RSG0

BRSCLKN
BRSCLKP

BRSR3N /OB0/B1RSG1
BRSR3P/ OB1/B1RSG2
BRSR2N /OB2/B1RSR0
BRSR2P/ OB3/B1RSR1
BRSR1N /OB4/B1RSR2
BRSR1P/ OB5/B1CLK
BRSR0N /OB6/B1BITST
BRSR0P/ OB7/B1POL20

PI

158

124

R237

C245

NC

13K OHM 1/10W

C248

0.1uF25V

103

89

GNDLV

BSTH1

BSTH2

157

159

C249

0.1uF25V

131

147

115

100

88

GNDLV

GNDLV

GNDLV

GNDLV

VCCLV(3.3V)

RSDS/Turbo RSDS/TTL/

LVDS /CMDI MUX I/O

BTP

FSTH1

FSTH2

FTP

161

162

163

169

VCCLV

C250

0.1uF25V

101

102

148

114

132

GNDLVP

VCCLV(3.3V)

VCCLV(3.3V)

VCCLV(3.3V)

VCCLV(3.3V)

VCCLVP(1. 8V)

FRSR 0P/LVB3P/EB7/F1PO L20
FRSR 0N/LVB3N/EB6/ F1BITST

FRSR 1P/LVBCKP/EB5/F 1CLK

FRSR 1N/LVBCKN/ EB4/F1RSR 2

FRSR 2P/LVB2P/EB3/F 1RSR1

FRSR 2N/LVB2N/EB2/ F1RSR0

FRSR 3P/LVB1P/EB1/F 1RSG2

FRSR 3N/LVB1N/EB0/ F1RSG1

FRSC LKP/LVB0P

FRSC LKN/LVB0N

FRSG0P/LVA3P/EG7/F1RSG0

FRSG0N /LVA3N/EG6/F 2RSB2

FRSG1P/ LVACKP/EG5/F 1RSB1

FRSG1N /LVACKN/EG4/ F1RSB0

FRSG2P/ LVA2P/EG3/F2R SB0

FRSG2N /LVA2N/EG2/F 2RSB1

FRSG3P/ LVA1P/EG1/F2R SB2

FRSG3N /LVA1N/EG0/F 2RSG0

FRSB0P/ LVA0P/ER7/F 2RSG1

FRSB0N /LVA0N/ER6/ F2RSG2

FRSB1P/ER5/F2RSR0
FRSB1N/ER4/F2RSR1
FRSB2P/ER3/F2RSR2

FRSB2N/ER2/F2CLK

FRSB3P/ER1/F2BITST

FRSB3N /ER0/ F2POL20

POL/CLK

STV1

CPV

STV2

OEV

UDC/VS

GVOF/HS

GVON/DEN

164

167

168

171

175

174

173

172

VCCK

1 2

FB209

300 OHM

C251

0.1uF25V
AGND

90
91
92
93
94
95
96
97

98
99

104
105
106
107
108
109
110
111

112
113
118
119
120
121
122
123

RLC

LVDS_PLL 20mA

+

C252

10uF/16V

C253

0.1uF2 5V

4
3
2
1
4
3
2
1

4
3
2
1

4
3
2
1
4
3
2
1

VCCLVP

CLOSE
PIN101

GNDLVP

RP200,RP201,RP202,RP203,RP204靠近UH200

TX0AP

TX3BP
TX3BN
TXCKB P
TXCKB N

TX2BP
TX2BN
TX1BP
TX1BN

TX0BP

TX0BN
TX3AP
TX3AN

TXCKA P
TXCKA N
TX2AP
TX2AN
TX1AP
TX1AN

TX0AN

RP200

0 OHM +- 5% 1/16W

RP201

0 OHM +-5% 1/16W

RP205

0 OHM +- 5% 1/16W

RP202

0 OHM +-5% 1/16W

RP203

0 OHM +-5% 1/16W

C259

470uF/16V

PANEL_VCC

+

AGND

5
6
7
8
5
6
7
8

5
6
7
8

5
6
7
8
5
6
7
8

11/30'07

PANEL POWER
1>OFF ;
0>ON

PANEL_PW7

R182

4.7K OHM 1/10W

TX0AP
TX1AP
TX2AP
TXCKAP
TX3AP
TX0BP
TX1BP
TX2BP
TXCKBP
TX3BP

C258

0.1uF25V

5Vstb

3.3V

23
21
19
17
15
13
11

AGND

CN402

9
7
5
3
1

CONN

FB217

1 2

5Vstb

R184

4.7K OHM 1/10W

4.7K OHM 1/10W

Q107

PMBS3904

2007-10-31

TX0AN

24

TX1AN

22

TX2AN

20

TXCKAN

18

TX3AN

16

TX0BN

14

TX1BN

12

TX2BN

10

TXCKBN

8

TX3BN

6
4
2

AGND

NC

FB218
0 OHM 1/4W

R186

4.7K OHM 1/10W

R185

22K OHM 1/10W

Q106

PMBS3904

AGND

5VS

R242

NC

R250

NC

R183

C166

0.1UF16V

FB215

NC

1 2

Q105

AO4411

1

S

2

S

3

S

4

G

2007-10-31

8

D

7

D

6

D

5

D

PANEL_VCC

FB219
0 OHM 1/4W

24

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

06)HX6203_PANEL IN TERF ACE

Date

OEM MO DEL

L16BH83

TPV MO DEL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

Sheet

11Sunday, May 25, 2008

of

6

Size

Rev

称爹

A3

<

称爹

>

5Vstb

www.ma163.com 电子技术资料网

10KΩ 1/10W

AGND

1 2

FB400

300 OHM

R430

HDMI_5V9

U402

1

E0

2

E1

3

E2

4

VSS

M24C32-WMN6TP

MCU5V

INTO_N5

+

AGND

VCC

WC
SCL

SDA

MCU5V

C400

0.1uF25V

AGND AGND

3

1 2

D403
BAV99

R459
1KΩ 1/10W

C406
10uF/16V

R431
10KΩ 1/10W

MCU5V

C414
1uF/25V

8
7
6
5

CLOSE
PIN44

+

C401

100uF/16V

1

INTO_N
IR_DATA

HDMI_5V

HDMI_HOTPLUG9

R415

4.7K OHM 1/10W

75 OHM 1/10W
75 OHM 1/10W

0.1UF16V

Q400
3906

3 2

SYS_RST

7

10KOHM +-5% 1/ 16W
10KOHM +-5% 1/ 16W

MCU_EPROM_WE

R424
R425

NC

NC

+

C405
47UF/16V

R427
100Ω 1/10W

PS_ON/OFF10

SPI_MUX_1

C402
C403
C404

10KOHM +-5% 1/ 16W
10KOHM +-5% 1/ 16W
10KOHM +-5% 1/ 16W
10KOHM +-5% 1/ 16W

C407
100pF

RS_RXD
1

RS_TXD
1

M_SCL
M_SDA

AGND

RS_RXD
ISP_EN#
RS_TXD

4

RP404
RP405

5

2007-10-31

2007-10-31

RP403

K7

4

123

5

876

MCU5V

BAT54C

BAT54C

MCU5V

R402

R401

D401

3

D402

R403

3

R409

R418

MCU5V

1

MCU5V

1

R422

0 OHM 1/10W

10K OHM 1/10W
10K OHM 1/10W

ISP_EN#

1

Q401

1

Q402

PMBS3904

2 3

PMBS3904

2 3

AGND

10K OHM 1/10W

KEY1

K4
K3

23

23

PMBS3906
Q404

PMBS3906
Q408

R410

3.3K OHM 1/16W

R423

3.3K OHM 1/16W

LED_ORANGE

C410

100pF

AGND

C412

100pF

AGND

S_SDA 5

MCU5V

RS_TXD TXD

AGND

IR_DATA5

LED_GREEN

R420
R421

0 OHM 1/10W
0 OHM 1/10W

IR_DATA

LED_GREEN

MCU5V

RS-232

K7

1

RXDRS_RXD

2
3
4

3.3V

R411

10K OHM 1/10W

1 2 FB402300 OHM
1 2 FB403300 OHM
1 2 FB407300 OHM
1 2 FB408300 OHM

1 2 FB401 300 OHM
1 2 FB404 300 OHM
1 2 FB405 300 OHM
1 2 FB406 300 OHM

2007-10-31

CONN

S_SCL

CN401

S_SDA

AGND

AGND

AGND

C409

100pF

Master IIC

R434

100 OHM

10

R436
R437

0 OHM 1/10W
0 OHM 1/10W

CN400

1
2
3
4
5
6
7
8
9

CONN

CONN

1
2
3
4

CN404

AGND

Power

K7
K3

CH Up

K4

CH Down

ZD400UDZS5.6B
ZD401UDZS5.6B
ZD402UDZS5.6B

1 2

1 2

123

876

LED_OR
LED_GR
K3
K4

1 2

123

4

876

5

U400

W79E632X40PX

X400

22.1184MHz

10
11
12
13
14
15
16
17

7
8
9

P1.5
P1.6
P1.7
RST
RXD,P3.0
P4.3
TXD,P3 .1
INT0,P3.2
INT1,P3.3
T0,P3 .4
T1,P3 .5

RP402

1 2

AGND

123

4

876

5

3

2

4

1

P1.46P1.35P1.2

P1.0,T2

P1.1,T2EX

P3.6,WR18P3.7,RD19XTAL220XTAL121VSS22P4.023P2.0,A824P2.1,A925P2.2,A1026P2.3,A1127P2.4,A12

AGND

R419

1M OHM 1/10W

C415

C416

22pF

22pF

MCU5V

4

5

44

P4.2

VDD

P0.0,AD043P0.1,AD142P0.2,AD241P0.3,AD3

123

RP401

876

40

P0.4,AD4
P0.5,AD5
P0.6,AD6
P0.7,AD7

EA
P4.1
ALE

PSEN
P2.7,A15
P2.6,A14
P2.5,A13

28

R438

10K OHM 1/10W

RP400

39
38
37
36
35
34
33
32
31
30
29

123

4

R407

876

5

R246 22 OHM 1/10W

2007-10-31

10KOHM +-5% 1/ 16W

R408

PANEL_PW
6

RP406

10K OHM 1/10W

M_SDA
M_SCL
RESET#_R

SPI_SCK
SPI_CS#
SPI_SDI
SPI_SDO

1.8K OHM 1/10W

RESET#_R

10K OHM 1/10W
NC

R412

NC

0 OHM 1/10W

AMP_MUTE 8
MUTE_H PH ONE 8

AMP_STB 8

5

4

MCU5V

MCU5 V

R405

Power sel

ON_PBACK 10

R413

MCU_EPROM_WE

SYNC_DETECT 1

876

10K OHM 1/10W

123

1

TUNER_ON 10,11

R435

R404

Q403

PMBS3904

2 3

CEC 9

AGNDAGND

HEADPHONE 8

2007-10-31

K7

R406

NC

1

K3

2

K4

1

2

RESET# 5

LED_OR LED_ORANGE

4.7K OHM 1/10W

LED_GR

4.7K OHM 1/10W

M_SDA

M_SDA4,11

AGND

SPI_SCK

1
2
3
4
5
6

SPI_CS#

U403

A1
Y1
A2
Y2
A3
Y3
GND7Y4

MM74HC14MX

SPI_MUX

SPI_MUX

12 11

MCU5V

14

VCC

13

A6

12

Y6

11

A5

10

Y5

9

A4

8

9 8

10

13

R429

22 OHM 1/10W

U405C

74HC126D

U405D

74HC126D

R428

22 OHM 1/10W

M_SCL M_SCL1

R432

S_SCL_PT23144

M_SCL 1

22 OHM 1/10W

SPI_MUX = 0 : ISP SPI CODE
SPI_MUX = 1 : NC

MCU5V

R417

4.7K OHM 1/10W

SPI_MUX

SPI_MUX_1

SPI_MUX_15

4.7K OHM 1/10W

Q407

1

R416

PMBS3904

2 3

AGND

VCC3IO

C160

0.1uF25V
AGND

SO5

SPI_SDI

2 3

AGND

5 6

SPI_MUX

SPI_MUX

U405A

1

4

SI 5

74HC126D

U405B

SPI_SDO

74HC126D

S_SCL_tuner

R426

22 OHM

25

CE 5

SCK 5

11

S_SCL5

R414

NC

MODIFY IIC LEVEL 0423

AGND

T P V ( Top Victory Electronic s Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

07)MCU

Date

OEM MOD EL

L16BH83

TPV MODEL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

11Sunday, May 25, 2008

of

Sheet

7

A2

Size

Rev

<

称爹

>

称爹

+12V

www.ma163.com 电子技术资料网

R623

ZD600

RLZ6.8C

1 2

R630

C654

0.1UF 16V

R675

MUTE_EAR
HP_L

HP_R

NC

R634

100K OHM 1/10W

C664

1uF/25V

C667

AGND

1uF/25V

AMP_STB7

HP_L4

HP_R4

4.7K OHM 1/10W

AUDIO _L4

AUDIO _R4

AMP_MUTE7

U603

1

OUT1

2

MUTE

3

IN1
GND4IN2

PT2309

R631

47K OHM 1/10W

R633

10K OHM 1/10W

Q602

PMBS3904

AUDIO _L

AUDIO _R

V_PHONE

AGND

VDD

OUT2

BIAS

C661

0.1UF16V

8
7
6
5

C666

47uF/16V

5VM

R629

47K OHM 1/10W

Q600

PMBS3904

C656

0.01uF

C659

0.01uF

R640

10K OHM 1/10W

C662 100uF/16V

+

C665 100uF/16V

+

+

AGND

R639

47K OHM 1/10W

R642

R641

4.7K OHM 1/10W

4.7K OHM 1/10W

R632

10K OHM 1/10W

C655

1uF/16V

C657
1uF/16V

R635

10K OHM 1/10W

C658
1uF/16V

R636

10K OHM 1/10W

5VM

Q603

PMBS3904

AGND

HP_LO

HP_RO

HEADPH ONE7

AGND

1 2

R626

C660
1uF

PHONEJ ACK
1
7
6
2
3
4
5

CN602

ZD601
UDZS 5.6B

PW_GND

R624

R627

NC U602

4

IN1

7

ST_BY

9

S_GND

12

IN2

6

MUTE

8

PW_GND

5

NC

10

NC

11

NC

2007-10-31

6.8 OHM 3W

6.8 OHM 3W

6.8 OHM 3W

6.8 OHM 3W

13

VCC3VCC

NC

C651

0.1uF25V

OUT1+

OUT1-

OUT2+

OUT2-

C652

+

1000UF25V

MUTE _HP HO NE7

PW_GND

1

2

15

14

680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%

C670

10K OHM 1/10W

C671

C672

AGND

47K OHM 1/10W

R628

2007-11-02

4
3
2
1

C673

V_PHONE

CN600

CONN

PW_GND

R625

AGND

R637

R638

5VS

1 2

300 OHM

Q601

PMBS3904

AGND

FB604

MUTE _EA R

C653
1uF

AGND

0 OHM 1/4W
0 OHM 1/10W

V_PHONE

C663

AGND

100uF/16V

+

26

T P V ( Top Victory Elec tronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

08)AudioAMP

Date

OEM MOD EL

L16BH83

TPV MOD EL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

Sheet

11Sunday , May 25, 2008

of

8

A3

Size

Rev

<

称爹

称爹

>

HDMI

www.ma163.com 电子技术资料网

TMDS D2+
TMDSD2-

TMDS D1+

TMDSD1-

TMDS D0+

TMDSD0-

TMDSC+

TMDSC-

SCL

SDA
CEC
HPD

VCC5

NC

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

CN500

HMDI_5V

AGND

3

RX2+

RX2­RX1+

RX1-

3L503

90 ohm

4

RXC-

HDMI_CEC

HPD

1K OHM 1/10W

HMDI_5V

MCU5V

8

4.7K O HM 1/10W

7
6
5

RXC+

R514

0 OHM 1/10W
0 OHM 1/10W

L500

L501

AGND

2

1
2

1
2

1

L502

HDMI_5VIN

1
3

4
6

7
9

10
12

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23
24

3

4
3

4
3

4

2

1

HDMI_SCL_I

HDMI_SD A_I

U502

1

A0

2

A1

3

A2
VSS4SDA

M24C 02-W MN6 TP

AGND

90 ohm

90 ohm

90 ohm

VCC

WP

SCL

8

5

IN4

4

IN3

2

IN2

1

IN1

U500

RX0+

5

RX0-

4

2
1

RClam p0524P. TCT

R500

OUT4
OUT3

GND

GND

OUT2
OUT1

RClam p0524P. TCT

AGND

3

8

IN4
IN3

IN2
IN1

U501

OUT4
OUT3

GND

GND

OUT2
OUT1

U500,U501靠近CN500

C500
1uF/25V

AGND

R511
R510

D501

RX2+_M2

6

RX2-_M2

7

RX1+_M2

9

RX1-_M2

10

RX0+_M2

6

RX0-_M2

7

RXC+_M2

9

RXC-_M2

10

R507

4.7K OH M 1/10W

1 2

AGND AGND

1 2

VPORT0603100KV05

RX2+ 3
RX2- 3

RX1+ 3
RX1- 3

RX0+ 3
RX0- 3

RXC+ 3
RXC- 3

MC U5V

1

D500

BAT54C

2

R508

4.7K OH M 1/10W

HDMI_SCL_I
HDMI_SDA_I

D502

VPORT0603100KV05

HPD

PMBS3904

HMDI_5V

3

Q500

2 3

HDMI_5VIN

10K OHM 1/10W

R512
R513

0 OHM 1/10W
0 OHM 1/10W

R501

1

10K OH M 1/10W

AGND

R506

DDCSCL_M2 3
DDCSDA_M2 3

MCU5V

1

AGND

Q502

2 3

HDMI_HOTPLUG 7

HDMI_CEC

R505

10K OHM 1/10W

PMBS3904

NC/ 2N7002 SOT-23

Q501

HDMI_5V 7

R502

NC

V3D3_M1_HDMI

R503

NC

R504

NC

CEC 7

T P V ( Top Vict ory Elec tronics C o . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

T2899-1-X-X-11-080515

09)HDMI

27

OEM MODEL

TPV MODEL

PCB NAME

Sheet

L16BH83

E198MANSW1ACN 0.1

715T2899-A

11Sunday , May 25, 2008

of

9

Size

Rev

称爹

<

称爹

A4

>

CN700

www.ma163.com 电子技术资料网

CONN

3.3V

3.3V

10uF/16V

C731

0.1uF25V

1
2
3
4
5
6
7
8
9
10
11
12

C716

5Vstb5Vstb

R701

Q700
NC

AGND

5Vstb

R721

1K OHM 1/10W NC

Q708

AGND

R718

NC

R720

R719

NC

AGND

VCC3IO

C721

0.1uF25V

VCCK 800mA

C733

10uF/16V

AGND

FB706

1 2

120 OHM

R712

R716

NC

NC

R725

R722

4.7K OHM 1/ 10W NC

ADD

0 OHM 1/10W

C722

0.1uF25V

+

AGND

10K OHM 1/10W

4.7K OHM 1/ 10W

Q706

PMBS3904

AGND

R700

1K OHM 1/ 10W

C700

NC 2. 2UF 16V

5Vstb

AGND

5Vstb

+12V

C704

0.1UF 16V NC

PMBS3904 NC

5Vstb

R708

1K OHM 1/10W

C711

0.1UF 16V

1 2

FB700

+

C717

0.1uF25V

AGND

C732

100uF/16V

300 OHM

3

AIC1084-18PM

IN

+

AGNDAGND

R709

Q703

PMBS3904

AGND

VCC3IO 50mA

C718

10uF/16V

U702

2

OUT

GND

1

AGND

PS_ON/OF F7

1K OHM 1/10W NC

Q702

4.7K OHM 1/ 10W NC

AGND

4.7K OHM 1/ 10W

+

C719

0.1uF25V

A_1.8

10K OHM 1/10W

4.7K OHM 1/ 10W

R706

R707

PMBS3904 NC

5Vstb

Q707
NC

CLOSE
PIN5,25,69,160,178

C720

0.1uF25V

1 2

FB704

300 OHM

5Vstb

5Vstb

R714

C745

0.1UF 16V

0 OHM 1/10W

R703

NC

Q701

NC

R723
NC

一级回路

VCC3IO

C723

0.1uF25V

C734

0.1uF25V

C742

0.1UF 16V

R713

R702

NC

R704
0 OHM 1/10W

R705

NC

AGND

TUNER_ON 7,11

ON_PBACK 7

CLOSE
PIN20,43,87,75,117,149,165

C737

C736

R710

C735

0.1uF25V

AGND

0.1uF25V

R711

22K OHM 1/10W

Q705

PMBS3904

0.1uF25V

C743

0.1UF 16V

BL_ADJ 5

5Vstb

+12V

VCCK

C738

C739

0.1uF25V

8

D

7

D

6

D

5

D

AGND

C740

0.1uF25V

5VS

C744
10uF/16V

0.1uF25V

Q704
AO4411

1

S

2

S

3

S

4

G

如

PANEL-VCC为3.3V时，Q401改为AO4403

VCCK

AGND

+

C702

470UF16V

+

C706

470UF25V

C741

0.1uF25V

5Vstb

+12V

C703

0.1UF 16V

C707

0.1uF25V

5VS

V1
JGK

1

8

1

8

2

7

2

7

3

6

3

6

5

445

9

9

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

10)POWER

Date

Heak Sink
Fix Hole

U700

+

C708

10uF/16V

U701

AIC1084-33PM

VIN

U703

AP1117E33LA

VIN

V3

JGK

1
2
3

3

VOUT

ADJ

1

VSS

1

1
2
3
445

VOUT

9

AP1117E33LA

VIN

1

2

C715

10uF/16V

2

4

4

C727

10uF/16V

8

8

7

7

6

6

5

9

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

VSS

VOUT

4

1
2
3

1 2

FB701

300 OHM

5VS

3

+

C724

10uF/16V

AGND AGND AGN D

5VS

3

+

C726

10uF/16V

V2
JGK

1

8

1

8

2

7

2

7

3

6

3

6

5

445

9

9

AGNDAGN D

Point

PH1

2

4

+

C709

10uF/16V

FB703

1 2

300 OHM

+

V33ADC

+

C728

0.1uF25V

AGNDAGND

V4
JGK

1
2
3
445

L16BH83

E198MANSW1ACN 0.1

715T2899-A

10

1

8

8

2

7

7

3

6

6

5

9

9

11Sunday , May 25, 2008

of

Photo point

VDD_AUD

C710

0.1uF25V

AGND

3.3V

C725

0.1uF25V

C729

0.1uF25V

V5
JGK

1
2
3
445

9

9

AGNDAGNDAGND

C730

0.1uF25V

8

8

7

7

6

6

5

PH2

Photo point

PH3

Photo point

Size

Rev

称爹

A3

<

称爹

>

28

Tune r_GN D

www.ma163.com 电子技术资料网

C138

0.1UF 16V

TUNER_MONO4

TUN ER_V CC

Tuner_GNDTun er_ GND

15

16

17

18

TH1

TH2

TH3

TH4

+

C141

100uF/16V

TU1 01

ANT IN

AS_IF

10

1K OHM 1/10W

NC8NC

9

R715

NC

R152

NC

AS

7

6

Tuner_GND

C142
10pF

C145

NC

AGND AGND

Audio Out

14

13

L101
300 OHM

11

TUNER_VCC

2nd IF s ound

CVBS12Vcc(Bif )

5

Tune r_GN D

L100
0R

Vcc(Bt u)3SCL4SDA

C143

10pF

33 OHM 1/16W

L102
300 OHM

R146

2

C146

NC

NC

NC

1

+

C139

100uF/16V

Tune r_GN D

AGND

C140

0.1UF 16V

R144

10 OHM 1/10W

R145
10 OHM 1/10W

R147

100 OHM 1/16W

R148

43 OHM +-5% 1/16W

TUNER_ON7,10

TUN ER_S IF 4

C144

0.047uF

TUNER_ON

4.7K OHM 1/ 10W

S_SCL_tuner 7

M_SD A 4, 7

TV_CVBS 3

5Vstb

R140

4.7K OHM 1/ 10W

R717

4.7K OHM 1/10W

NC

R143

Q100

PMBS3904

AGND

C145,L100,C146
R146,R147,R148靠近UH200

R139

4.7K OHM 1/ 10W

R142

靠近

U101

+12V

22K OHM 1/10W

Q102

PMBS3904

AGND

R141

C131

0.1uF25V

1
2
3
4

Q101

AO4411

S
S
S
G

D
D
D
D

C134

0.1uF25V

8
7
6
5

C132

470uF/25V

+12VA

+

2007-10-31

47OHM1/2W

R137

+

C133

100uF/25V

5VS

22OHM1/2W

R138

U102

AZ1117D-5. 0-E1

3

INPUT

0.1UF 16V

C137

FB110

1 2

NC

OUTPUT

1

ADJ/GND

AGNDAGND

2

+

C136

100uF/16V

TUN ER _VC C

C135

0.1UF 16V

TUNER_VCC

R149
0 OHM 1/8W
R150
0 OHM 1/8W
R151

Tune r_GN D

0 OHM 1/8W

AGND

29

T P V ( Top Victory Electronics Co . , Ltd. )

T2899-1-X-X-11-080515

絬 隔 瓜 絪 腹

Key Component

11)TUNER

Date

OEM MODEL

NS-LCD19-09CA

TPV MO DEL

E198MANSW1ACN 0.1

715T2899-A

PCB NAME

11 11Sunday , May 25, 2008

Sheet

of

A3

Size

Rev

称爹

>

<

称爹

6.2 电源板

www.ma163.com 电子技术资料网

L16BH83 715T2871 1

1

BD901

+

2

!

3

-

4

NC

L902

L

C903

0.47uF/ 275V

3

KBP208G

!

C904

142

!

C905

+

100uF450V

ZD901

NC

R941
100K OHM 1% 1/8W

IC901

1

RT

HV

2

COMP

NC

3

CS

VCC

4 5

GNDOUT

LD7575PS

R918

100 OHM 1/4W

R919

100 OHM 1/4W

R920

100 OHM 1/4W

100KOHM +-5% 2WS

!

T901

POWER X'FMR
R905

10K 1/8W

R944

10K 1/8W

+

C919

0.1uF50V

8
7
6

LL4148

R907

10R 1/8W

D909

R912

10R 1/8W

C908
22uF/50V

C906
1500pF2KV

D902

FR103

R938

10KOHM +-5% 1/8W

R908

D901

FR107

12

FB901
BEAD

!

Q901
2SK2645-54MR

4

5

6
1

3

R909

3.3 OHM 1/4W

8
7

9
10

12
11

R935

100 OHM 1/4W

R903

100 OHM 1/4W

R934

100 OHM 1/4W

1

3

1

3

0.001uF

C929

D906

SP10100

2

D904

SP1060

2

C921

0.001uF

+

C930
1000UF/ 16V

+

C917

470uF25V

C914

+

1000UF/16V

+

C918
470uF25V

L903

3.5uH

L904

3.5uH

C920

0.1uF

C922
470uF/25V

C915

470uF/16V

+

PMBS3904

R936
1K 1/4W

F902

JUMP WIRE

F903

JUMP WIRE

C927

0.1uF

R940

ZD920

150 OHM 2WS

RLZ13B

R943
470 OHM +-5% 1/4W

Q903

+

C916

0.1uF

+5V

ON/OF F

+12V

C932

0.001uF

DIM

+12V

+5V

CN902

1
2
3
4
5
6
7
8

9
10
11

NC

R900

620K OHM 1/4W

NR901
NTCR

C901

0.001uF/ 250V

!

4.0A/250V

R902

620K OHM 1/4W

0.001uF/ 250V

CN901

3

12

R901

620KOHM +-5% 1/4W

C902

FG

!

SOCKET

F901
FUSE

C923

470pF/25V

C924
220pF

D910

NC

R931

C925

NC

NC

R922

1K 1/8W

C931

0.001uF/250V

R914

0.62 OHM 2W

IC903

PC123X2YF ZOF

30

IC902

AP431VLA

R924
2K7 1/8W

R925
150R 1/8W

C912

0.022uF/ 25V

T2871-1-X-X-4-080425

02.POWER

R927

3.6K OHM 1% 1/4W

R928

1K5 1/8W

R929
33K OHM 1% 1/4W

R930

2.43KOHM +-1% 1/4W

OEM MO DEL Size

PWTV7521MYD3

TPV MODEL

715T2871 1

PCB NAME

23Friday , April 25, 2008

of

Sheet

A3

1

Rev

<

称爹

称爹

>

12

43

R937

NC

ZD902

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

ON/OFF

www.ma163.com 电子技术资料网

CN803

2

CONN
C839
1000pF

R855
33 OHM 1/4W

R856
33 OHM 1/4W

8

D

C838

7

D

1000pF

6

D

5

D

PDTC144WK

Q806
PMBS3904

NC

D813

F801

0R05 1/4W

Q805

C807

0.1uF/25V

R859

NC

PMBS3904

Q804

PMBS3906

R857

Q801

23

1

Q811

PMBS3904

Q812

PMBS3906

1

23

R853
68K 1/10W

R858

0R05 1/8W

D810
NC

R839
22R 1/8W

D811
NC

R850
22R 1/8W

C802

470UF/25V

C824

+

0.1uF
Q802
AM9945N-T1-PF

1

S

2

G

3

S

4

G

R804
100R 1/8W

Q808
PDTA144WK

C825

0.1uF/ 25V

C835
NC

R866

NC

Q810
NC

R860

NC

0R05 1/8W

+12V

DIM

R827
100 OHM +-1% 1/10W

D817

POWER X'FMR

6

3
4

T801

7

C801
33PF/3KV

C803
33PF/3KV

81

D805

D807

C819

0.0022uF

C823

0.0022uF

R817
10K 1/10W 1%

R828
10K 1/10W 1%

R821
1K 1/8W

3

R801
1K5 1/10W 1%

R822
1K 1/8W 1%

3

R814
1K5 1/10W 1%

D801
BAV99

D802
BAV99

1

2

1

CONN

CN804

1
2

33T8021 2E U

2

1

R841
68K OHM 1% 1/10W

R829
22R 1/8W

R825
22R 1/8W

TL494IDR

IC801

1

1IN+

2IN+

2

1IN­FEEDBACK
DTC

OUTPUT CTRL

CT

VCC
RT
GND
C1 E1

R854
NC

2IN­REF

C2
E2

3
4
5
6
7
8 9

16
15
14
13
12
11
10

1K 1/8W

R807
10K 1/10W 1%

R824

1K 1/10W 1%

R808
10K 1/10W 1%

C845

2.2uF/16V

R826

10K 1/10W 1%

22KOHM +-1% 1/10W

NC

R851

R830

NC

R820

R802

C842

0.47uF/16V

C822
1uF/25V

D812

47K 1/10W

R832
10K 1/10W 1%

R823
0R05 1/10W 5%

C821

0.1uF/25V

R831

R863

10K 1/10W 1%

R810

C820
220pF

R865

R861

R864

NC

NC

Q807
NC

360 KOHM +-5% 1/8W

56K OHM 1% 1/8W

C817
NC

R862
1M 1/10W 5%

31

R803

680K 1/10W

D814

R837
47K 1/8W

R818
1K 1/10W 1%

Q809
RK7002

C846
NC

D806

R835

C834

1M 1/10W 5%

0.1uF/25V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

T2871-1-X-X-4-080425

Key Component

03.IN VERTER

Date

OEM MOD EL Size

PWTV7521MYD3

TPV MOD EL

715T2871 1

PCB NAME

Sheet

of

13Friday, April 25, 2008

C

Rev

1

称爹

>

<

称爹

L26BH83 715T2907 2

www.ma163.com 电子技术资料网

FB901

3

!

C903
680PF/250V

!

!

R903

330K OHM 1/4W

!

!

!

124

C904 0.047U F

330K OHM 1/4W

2

1

C901 0.47UF

C908

330pF/250V

CN901
SOCKET

1 2

BEAD

C913

0.1uF

BD901

BU1006A-E3/45

1

+

-

4

L902

3

13mH

!

680PF/ 250V

R902

!

3

L901

13.0mH

4

!

RV901
NC

C907

330PF/250V

!

3

2

C902

!

!

R901
330K OHM 1/4W

!

12

!

220K OHM 1/10W

VCC

56K OHM 1/10W

680KOHM +-5% 1/8W

680KOHM +-5% 1/8W

680KOHM +-5% 1/8W

270KOHM +-5% 1/8W

NR901
NTCR

F901

C910

!

1uF/450V

R910

+

C914
47uF/50V

R917

D901
1N4007-E3/73

R904

680K OHM +-1% 1/4W

!

R924

R925

R926

R985

680KOHM +-5% 1/8W

R927

R928

100K OHM 1/8W

!

FUSE

2

1679

R911

8.2K OHM 1% 1/10W

680K OHM +-1% 1/4W

B+_390V

10

L906
300uH

VCC

INV

123

C916
NC

R905

!

C922
1uF

10K OHM 1/10W

OUT

COMP

ZD920
RLZ5.6B

R912

10 OHM 1/8W

R913 22 OHM 1/8W

C912
82PF/50V

678

IC901
FAN7529MX

GND

MOT

CS ZCD

4 5

R918 10K OHM 1/10W

C917

0.047uF

R909
680K OHM +-1% 1/4W

!

Q925

KTB1124B

12

R971

C909

330PF/250V

D902

FMXA-1106S

D911
LL4148

R915
470 OHM 1/10W

C918

0.22uF

C921

10uF/50V

R929
10K OHM 1/10W

Q924
DTC144WKA

C943

0.047UF 50V

!

Q901

R914
10K OHM 1/8W

C915
NC

470PF/50V

R906

+

120K OHM 1/10W

R936
(NC)0 OHM 1/8W

R935

1K OHM 1/8W

4.7K OHM 1/8W

R941
10K OHM 1/4W

2SK4085LS

R916

0.15 OHM 2W

R919

ZD901

RLZ 2.4BTE-11

VCC

R938

R942

10K OHM 1/10W

FB903

1 2

BEAD

C919
N/A

12

FB902
N/A

!

!

12

R907
100K OHM 1/10W

R937

4.7K OHM 1/8W

IC903

1

LUVP

VSTR

2

Latch/Plimit

NC

3

CS/FB

VCC

4 5

GND OUT

FAN7602BMX

C911
10nF

R920

0 OHM +-5% 1/4W

!

VCC

R921
680K OHM +-1% 1/4W

R922
680K OHM +-1% 1/4W

R984
680K OHM 1/4W

R923
13K OHM 1% 1/10W

100K OHM 1/8W

Q922
PMBS3904

C942

0.1uF

8
7
6

1K OHM 1% 1/10W
C944
220pF

6.2K OHM 1/1 0W

R908

B+_390V

+

D941
LL4148

R943

100 OHM 1/8W

R945

R947

+

C941

10uF/50V

C920
100uF/450V

C938
1uF/25V

Q923
PMBS3904

R944
10K OHM 1/8W

B+_390V

+

NC

C937
10uF/50V

C940
2200pF

R949

ZD930
RLZ15B

Q921

KTD1624C

1 2

R940
100K OHM 2W

D940

SARS01-V1

R948

Q903
ST

R946

0.27 OHM 2W

NC

!

7

6

5

R939
10K OHM 1/10W

8
7
6

T902

POWER X'FMR

!

43

B+_390V

IC902
TNY 277PN -TL

S

EN/UV

S

BP/M

S

12
13
14
8
9
10

R974
1K OHM 1/2W

12

IC970

EL817MC

10K OHM 1/10W

IC971
AZ431AZ-AE1

22 OHM 1/4W

+

C931

100uF/50V

1
2

45

DS

R976

FB904

1 2

BEAD

C930
2200pF

D930

SARS01-V1

R934

R932

16.8K OHM 1/8W

C934

0.1uF

R970

3.3OHM +-5% 2W

D970

3

FME-230B

2

C973

1

1000uF 35V

A24V

R975

3.9KOHM +-5% 1/8W

C976

0.33UF 50V

C905

0.01uF/250V

R930

100KOHM +-5% 1WS

R933
22 OHM 1/4W

1 2

+

+

C974
1000uF 35V

R977
NC

C977
NC

12

D931
AU02Z

R931
47 OHM 1/4W

ZD931

RLZ18B

C933
NC

C970

ZD932

NC

3300PF/100V

+

C906

0.001UF

C971
3300PF/100V

C972
3300PF/100V

L980

L

T901

POWER X'FMR

1

2

3
4

5

!

!

+

43

C975
470uF/35V

R980
NC

9
10

6
7

R954
47 OHM 1/4W

12

IC950

EL817MC

C955

0.1uF

IC952

0.47UF 50V X7R

C990

R978
13K OHM 1% 1/8W

R979

1.5K OHM 1% 1/1 0W

R950

47 OHM 1/4W

R952

47 OHM 1/4W

0 OHM 1/10W

AZ431AZ-AE1

3

1

R956

R951

47 OHM 1/4W

R953

47 OHM 1/4W

D950
SBT15006JST

2

+

C952
330uF/16V

R955
1K OHM 1/10W

R959
NC

+24V

+

C991

ZD991

470uF/35V

RLZ10B

1 2

R962

1K OHM 1/10W

1uF/25V

C960

ZD990
RLZ10B

1 2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C950
1000pF

C951

L950

1000pF

L

R957
10K OHM 1% 1/10W

R958
10K OHM 1% 1/10W

220 KOHM 1/10W

R969

C992

10NF/0 805 X7R

IC904

1

BS

2

IN

3

SW

COMP

4 5

GND FB

SI-8005QL

1K OHM 1/10W

Q990

PMBS3906

R963

10K OHM 1/10W

47K OHM 1/10W

T2907-2-X-X-2-080512

02.POWER

SS
EN

C993

1000PF/50V

R991

R967

+

43

8
7
6

R964

47K OHM 1/10W

C961

0.47uF/ 25

R966

47K OHM 1/8W

C954
470uF/16V

R960
1K OHM 1/10W

12

IC951

!

EL817MC

Q950

R961

PMBS3904

10 KOHM +-5% 1/4W

C956

0.1uF

ZD970

D971

RLZ27B

LL4148

+24V

A24V

C994

NC

PMBS3904

R965

D991
LL4148

12

Q970

10K OHM 1/10W

PMBS3904

D990

SR54

C995

0.22uF/ 50V

R968

D992

47KOHM 1/16W

LL4148-GSO8

Q991

10K OHM 1/ 10W

OEM MOD EL Size

<Title> Cust om

TPV MODEL

ADTV72412YD1 2

PCB NAME

715T2907 2

Sheet

of

11Friday , May 09, 2008

+5V

PS_ON

R983

C978

0.1uF

Panel DIM

R999
47 OHM 1/4W

C996
470pF/50V

1
2
3
4
5
6
7
8

9
10
11
12

L990
20uH

CN902

CONN

95T801312D650

Pane l ON/OFF

+12V

+24V

PS_ON

+5V

+24V

R981
56 OHM +-1% 1/10W

R982
62K OHM 1% 1/10W

CN903

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

1
2
3
4
5
6
7
8

9
10
11
12

1

2

3

4

5

6

7

8

9
10
11
12
13

C998

+

1uF

R996
110KOHM +-1% 1/10W

R997

8.2K OHM 1% 1/10W

R998

4.99K OHM 1% 1/10W

Rev

称爹

称爹

<

CN902

CONN

33T380212B Y

CN903

CONN

+12V

C999
470uF/25V

>

32

6.3 Key Board 715T2927 2

www.ma163.com 电子技术资料网

CN01

KEY1

1
2

CH_DOWN

3

CH_UP
PWR

4
5

CONN

R09

150K OHM 1/10W

C04

NC 0.068uF

1 2

C03
NC 0.068uF

ZD05

5.6V

ZD06

5.6V

1 2

C02

NC 0.068uF

ZD08

5.6V

1 2

2

SW07

1 3

SW

CH_DOWN

2

SW04

1 3

SW

CH_UP

2

SW01

1 3

SW

POWER

R05

0Ω 1/10W

C01

0.1uF/16V

4

5

4

5

4

5

ZD07

5.6V

1 2

2

1 3

MODEL_SEL

R06

3.3K OH M 1% 1/10W

4

5

SW02
SW

2

SW03

1 3

SW

MENU

R07

6.8K OHM 1% 1/10W

4

5

2

SW05

1 3

SW

VOL_DOWN

R08

22K OHM 1% 1/10W

4

5

2

SW06

1 3

SW

VOL_UP

4

5

T P V ( Top Vict ory Electronic s Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

T2927-2-X-X-2-080514

2.Key

33

OE M MOD EL Si ze

TPV MODEL

PCB NAME

Sheet

715T2927-C

22Wednesday, May 14, 2008

of

Rev

称爹

<

A4

1.0

称爹

>

7．电气方框图

www.ma163.com 电子技术资料网

PC

TUNER

SV

JACK

AV1

AV2

COMPONENT

VGA-SCL & VGA-SDA

RGB

CVBS

SIF

SV Y&C

SV &AV1 –R/L

AV 1 CVBS

AV 2 CVBS

AV 2 R/L

YPBPR

VGA DDC

U100

S-SCL & M-SDA

VIDEO

DECODER

&

AUDIO DECODER

&

SCALER

HX6203

UH200

EEPROM

U402

MCU

W79E632

U400

Panel

HDMI

DDCSCL & DDCSDA

IC 25P40

U202

34

PT2314

U600

TDA7297

U602

HP R&L

Earphone

PT2309

U603

SPEAKER

8.爆炸图

www.ma163.com 电子技术资料网

L16BH83

L16B H 83

ITEM DESCRIPTION QT'Y

1 BEZEL 1
2 SPEAKER 2
3 IR LENS 1
4 POWER LENS 1
5 IR BOARD 1
6 KEY BOARD 1
7 COVER-FUNC 1
8 BUTTON-FUNC 1

9 MAIN FRAME 1
10 POWER BOARD 1
11 MAIN BOARD 1
12 STAND 1
13 BASE 1
14 RUBBER FOOT 4
15 HINGE ASS'Y 1
16 REAR COVER 1
17 VESA BKT 4
18 SIDE COVER 1
19 PANEL 1

35

L26BH83

www.ma163.com 电子技术资料网

36

9.BOM

www.ma163.com 电子技术资料网

L16BH83 E158MANDW1A4NN

点位 组件 对象描述

007T 1 5505 WOODEN PALLET
040T 581689 4A S/N LABEL
044T6002834 2A PAPER BOARD
044T9003220 CORNER PAPER
044TH600 1 HANDLE 2
045T 77 3 PE PACKING
049T 51 1A ERADICATOR
050T 600 4 HANDLE 1
052T 1150 C BLACK TAPE
052T 1186 SMALL TAPE
052T 1211 B ADHESIVE TYPE
052T 2191 A TAPE
078T 498502 K SPK 8 OHM 2.5W 47X24.5MM KUAIDA
089T 725GAA DB D-SUB
089T414A15NYHA POWER CORD
095T801410D593 WIRE HARNESS 10P(DF11)-5P+5P(1253HA)
095T8018 3DH02 LVDS CABLE
098TRABD2NCACC REMOTE CONTROL RL57C
0M1T 930 4120 SCREW
0M1T 930 4120 SCREW
0M1T 930 8 47 CR3 SCREW
0M1T1730 8120 SCREW
0M1T1730 8120 SCREW
0M1T1730 8120 SCREW
0M1T1730 10120 SCREW
0Q1T 930 8 47 CR3 SCREW
0Q1T 930 8120 SCREW
0Q1T 940 10 47 CR3 SCREW
705TQ733047 PLASTIC ASS'Y
0Q1T 930 6120 SCREW
A33E0305 QV 1L0100 BUTTON_FUNC
A33E0309 GMB1L0100 COVER_FUNC
KEPF8YA4 KEY BOARD T2927-2-X-X-2-080512

CN01 033T3802 5B YH W WAFER

SW01 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW05 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW06 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW07 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW03 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW04 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW02 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

R05 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

37

R09 061T0603154 RST CHIPR 150 KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R08 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W

R06 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W

R07 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W

C01 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

ZD05 093T 39S 34 T UDZSNP5.6B ROHM

ZD06 093T 39S 34 T UDZSNP5.6B ROHM

ZD07 093T 39S 34 T UDZSNP5.6B ROHM

715T2927 2 KEY-PCB FR-1 110*15*1.6MM 9IN1
705TQ734521 BEZEL ASS'Y
A33E0306 1 1C0100 POWER LENS
A33E0310 ED 1C0100 IR LENS
A34E0634 GMA2L0130 BEZEL TV156W-8A1
705TQ734522 REAR COVER ASS'Y
036T 600 18115 HIMELON
A34E0635 GM 3L0100 REAR COVER 15
P15T8299 1 BKT-VESA
Q36T 600 28 10 NONWOVEN FABRIC
Q44T3121510568 SPONGE

E750 750TVM56B1111N PANEL M156B1-L01 TW CMO

A15T0362101 MAIN FRAME
A15T0379201 SIDE COVER
A34E0524 GM 1L0100 STAND
A34E0631 GM 1L0133 BASE_S1
A37T0056011 HINGE ASS'Y
AM1T1740 8 47 CR3 SCREW
AM1T1740 10225 CR3 SCREW
CBPF8A1DY8 CONVERSION BOARD T2899-1-X-X-11-080523
040T 45762412B CBPC LABEL

CN401 033T3278 4 GP WAFER

CN700 033T327812D WAFER 12P PLUG

CN404 033T3802 4 WAFER PH-4

CN600 033T3802 4B Y CONNECTOR

CN400 033T380210B Y CONNECTOR

CN402 033T8027 24 CONN W TO B 12P*2 P*2.0 4504-2

R138 061T 20722052T RST MOFR 22 OHM +-5% 1/2W

R137 061T 20747052T RST MOFR 47 OHM +-5% 1/2W

R623 061T153M689 59 6.8 OHM 5% 3W

R624 061T153M689 59 6.8 OHM 5% 3W

R626 061T153M689 59 6.8 OHM 5% 3W

R627 061T153M689 59 6.8 OHM 5% 3W

C132 067T 305471 4

C702 067T215P4713AV

C706 067T215P4714AV

C652 067T305V102 4P

CN105 088T 78 1357S RCA JACK 1*1 W+R V/A

EC 105℃ 470UF M 25V
CAP 105℃ 470UF M 16V
CAP 105℃ 470UF M 25V
105℃ RADIAL E-CAPACTOR 1000UF 25V

38

CN103 088T 78 13932 S RCA JACK + S JACK Y/B

www.ma163.com 电子技术资料网

CN102 088T 78 V5 C RCA JACK 3+2 G/BLU/R+W/R

CN602 088T 30211K PHONE JACK

CN100 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN

CN104 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

UH200 090T 372 2 HEAT SINK

X600 093T 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU101 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ856001 U602 ASS'Y

U602 056T 616511 ST IC TDA7297SA ST

0M1T1730 10120 SCREW
Q90T0155 1 HEAT SINK

C621 067T 305100 3T 10UF 16V

C616 067T 305100 3T 10UF 16V

C613 067T 305100 3T 10UF 16V

C611 067T 305100 3T 10UF 16V

C607 067T 305100 3T 10UF 16V

C605 067T 305100 3T 10UF 16V

C603 067T 305100 3T 10UF 16V

C252 067T 305100 3T 10UF 16V

C246 067T 305100 3T 10UF 16V

C237 067T 305100 3T 10UF 16V

C236 067T 305100 3T 10UF 16V

C209 067T 305100 3T 10UF 16V

C201 067T 305100 3T 10UF 16V

C406 067T 305100 3T 10UF 16V

C747 067T 305100 3T 10UF 16V

C733 067T 305100 3T 10UF 16V

C727 067T 305100 3T 10UF 16V

C726 067T 305100 3T 10UF 16V

C724 067T 305100 3T 10UF 16V

C718 067T 305100 3T 10UF 16V

C716 067T 305100 3T 10UF 16V

C715 067T 305100 3T 10UF 16V

C709 067T 305100 3T 10UF 16V

C708 067T 305100 3T 10UF 16V

C640 067T 305100 3T 10UF 16V

C630 067T 305100 3T 10UF 16V

C136 067T 305101 3T 100UF 16V 105C

C139 067T 305101 3T 100UF 16V 105C

C141 067T 305101 3T 100UF 16V 105C

C401 067T 305101 3T 100UF 16V 105C

C662 067T 305101 3T 100UF 16V 105C

C663 067T 305101 3T 100UF 16V 105C

C665 067T 305101 3T 100UF 16V 105C

C732 067T 305101 3T 100UF 16V 105C

39

C133 067T 305101 4T

www.ma163.com 电子技术资料网

C650 067T 305101 4T

C643 067T 305220 3T

C666 067T 305470 3T

C405 067T 305470 3T

C259 067T 305471 3T

U601 056T 133 30AAC IC AZ1117H-ADJ-E1

UH200 056T 562566 IC HX6203-A010QBG

U701 056T 563 7 AIC1084-33PM TO-263 AIC

U702 056T 563 34 A1C1084-18PM

U102 056T 585 11 AZ1117D-5.0-E1

U703 056T 585 4A AP1117E33LA

U700 056T 585 4A AP1117E33LA

U200 056T 585 4A AP1117E33LA

U704 056T 585 5A AP1117E25LA

U600 056T 616 4 IC PT2314L SO28 PTC

U603 056T 616507 IC AUDIO PT2309 PTC

U500 056T 662 10 IC RCLAMP0524P.TCT

U501 056T 662 10 IC RCLAMP0524P.TCT

U400

U100 056T1133 34 M24C02-WMN6TP

U502 056T1133 34 M24C02-WMN6TP

U202 056T1133527 ST(AACDH1M19FQ2) IC M25P40-VMN6TP/X ST

U402 056T113353A M24C32-WMN6TP

U403 056T74HC 14 F IC MM74HC14MX SOIC-14

U405 056T74HC126 P IC 74HC126D S014 PHILIPS

Q100 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q102 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q106 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q107 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q401 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q402 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q403 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q703 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q603 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q602 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q601 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q600 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q502 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q500 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q407 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q400 057T 417 6 PMBS3906/PHILIPS-SMT

Q408 057T 417 6 PMBS3906/PHILIPS-SMT

056T1125170

X(AACDH1M15NQ1)

CAP 105℃ 100UF M 25V
CAP 105℃ 100UF M 25V
EC 105℃ 22UF M 16V
EC 105℃ 47UF M 16V
EC 105℃ 47UF M 16V
105 摄氏度 470UF +-20% 16V

IC W79E632A40PL

40

Q404 057T 417 6 PMBS3906/PHILIPS-SMT

www.ma163.com 电子技术资料网

Q109 057T 417 6 PMBS3906/PHILIPS-SMT

Q108 057T 417 6 PMBS3906/PHILIPS-SMT

Q101 057T 763 3 AO4411L SO-8 BY AOS SMT

Q105 057T 763 3 AO4411L SO-8 BY AOS SMT

Q704 057T 763 3 AO4411L SO-8 BY AOS SMT

RP406 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP405 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP404 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP403 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP402 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP401 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP400 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

R101 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R147 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R135 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R132 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R129 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R124 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R123 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R122 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R110 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R107 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R104 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R203 061T0402162 RST CHIPR 1.6K OHM 1/16W +-5%

R146 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R134 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R131 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R128 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R114 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R111 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R204 061T0402332 RST CHIPR 3.3KOHM +-5% 1/16W

R410 061T0402332 RST CHIPR 3.3KOHM +-5% 1/16W

R423 061T0402332 RST CHIPR 3.3KOHM +-5% 1/16W

R148 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R136 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R133 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R130 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R102 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

R105 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

R108 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

R725 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R704 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R720 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R638 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R607 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

41

R606 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

www.ma163.com 电子技术资料网

R513 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R512 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R511 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R510 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

L100 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R218 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R221 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R226 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R413 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R420 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R421 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R422 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R436 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R437 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R145 061T0603100 CHIP 10OHM 1/16W

R144 061T0603100 CHIP 10OHM 1/16W

R610 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R616 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R166 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R434 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R459 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R708 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R700 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R618 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R613 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R500 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R234 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R230 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R152 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R401 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R402 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R403 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R405 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R407 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R411 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R435 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R438 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R501 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R505 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R506 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R628 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R632 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R633 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R635 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

42

R636 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R640 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R710 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R712 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R430 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R431 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R175 061T0603104 RST CHIPR 100KOHM +-5% 1/10W

R634 061T0603104 RST CHIPR 100KOHM +-5% 1/10W

R419 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R604 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R621 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R237 061T0603133 RST CHIPR 13 KOHM +-5% 1/10W

R404 061T0603182 CHIP 1.8K OHM 1/16W

R189 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R190 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R426 061T0603220 CHIP 22OHM 1/10W

R432 061T0603220 CHIP 22OHM 1/10W

R429 061T0603220 CHIP 22OHM 1/10W

R428 061T0603220 CHIP 22OHM 1/10W

R247 061T0603220 CHIP 22OHM 1/10W

R245 061T0603220 CHIP 22OHM 1/10W

R246 061T0603220 CHIP 22OHM 1/10W

R229 061T0603220 CHIP 22OHM 1/10W

R620 061T0603221 CHIP 220OHM 1/16W

R106 061T0603222 CHIP 2.2K OHM 1/16W

R103 061T0603222 CHIP 2.2K OHM 1/16W

R141 061T0603223 CHIP 22KOHM 1/16W

R711 061T0603223 CHIP 22KOHM 1/16W

R183 061T0603223 CHIP 22KOHM 1/16W

R609 061T0603242 RST CHIPR 2.4 KOHM +-5% 1/10W

R608 061T0603242 RST CHIPR 2.4 KOHM +-5% 1/10W

R603 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R602 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R612 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R611 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R619 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R617 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R615 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R614 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R118 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R119 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R120 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R121 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R100 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R115 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W

R202 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W

43

R216 061T0603472 CHIP 4.7KOHM 1/16W

www.ma163.com 电子技术资料网

R213 061T0603472 CHIP 4.7KOHM 1/16W

R212 061T0603472 CHIP 4.7KOHM 1/16W

R208 061T0603472 CHIP 4.7KOHM 1/16W

R207 061T0603472 CHIP 4.7KOHM 1/16W

R206 061T0603472 CHIP 4.7KOHM 1/16W

R186 061T0603472 CHIP 4.7KOHM 1/16W

R185 061T0603472 CHIP 4.7KOHM 1/16W

R184 061T0603472 CHIP 4.7KOHM 1/16W

R182 061T0603472 CHIP 4.7KOHM 1/16W

R143 061T0603472 CHIP 4.7KOHM 1/16W

R142 061T0603472 CHIP 4.7KOHM 1/16W

R140 061T0603472 CHIP 4.7KOHM 1/16W

R139 061T0603472 CHIP 4.7KOHM 1/16W

R235 061T0603472 CHIP 4.7KOHM 1/16W

R724 061T0603472 CHIP 4.7KOHM 1/16W

R714 061T0603472 CHIP 4.7KOHM 1/16W

R713 061T0603472 CHIP 4.7KOHM 1/16W

R709 061T0603472 CHIP 4.7KOHM 1/16W

R642 061T0603472 CHIP 4.7KOHM 1/16W

R641 061T0603472 CHIP 4.7KOHM 1/16W

R630 061T0603472 CHIP 4.7KOHM 1/16W

R514 061T0603472 CHIP 4.7KOHM 1/16W

R508 061T0603472 CHIP 4.7KOHM 1/16W

R507 061T0603472 CHIP 4.7KOHM 1/16W

R418 061T0603472 CHIP 4.7KOHM 1/16W

R417 061T0603472 CHIP 4.7KOHM 1/16W

R416 061T0603472 CHIP 4.7KOHM 1/16W

R415 061T0603472 CHIP 4.7KOHM 1/16W

R409 061T0603472 CHIP 4.7KOHM 1/16W

R125 061T0603472 CHIP 4.7KOHM 1/16W

R113 061T0603472 CHIP 4.7KOHM 1/16W

R112 061T0603472 CHIP 4.7KOHM 1/16W

R625 061T0603473 CHIP 47KOHM 1/16W

R629 061T0603473 CHIP 47KOHM 1/16W

R631 061T0603473 CHIP 47KOHM 1/16W

R639 061T0603473 CHIP 47KOHM 1/16W

R187 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R622 061T0603562 RST CHIPR 5.6 KOHM +-5% 1/10W

R605 061T0603562 RST CHIPR 5.6 KOHM +-5% 1/10W

R217 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R219 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R220 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R424 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R425 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R170 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

44

R172 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

www.ma163.com 电子技术资料网

R171 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R149 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R150 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R151 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R637 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

FB218 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

FB219 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

C143 065T0402100 31 CAP 0402 10PF J 50V NPO

C142 065T0402100 31 CAP 0402 10PF J 50V NPO

C207 065T0402101 32 100PF +-10% 50V X7R

C211 065T0402101 32 100PF +-10% 50V X7R

C214 065T0402101 32 100PF +-10% 50V X7R

C225 065T0402101 32 100PF +-10% 50V X7R

C409 065T0402101 32 100PF +-10% 50V X7R

C410 065T0402101 32 100PF +-10% 50V X7R

C412 065T0402101 32 100PF +-10% 50V X7R

C618 065T0402101 32 100PF +-10% 50V X7R

C622 065T0402101 32 100PF +-10% 50V X7R

C628 065T0402101 32 100PF +-10% 50V X7R

C638 065T0402101 32 100PF +-10% 50V X7R

C407 065T0402101 32 100PF +-10% 50V X7R

C108 065T0402102 32 1000PF +-10% 50V X7R

C154 065T040210232T CHIP 0402 1000PF 50V X7R

C227 065T0402103 22 CHIP 0.01UF 25V X7R

C656 065T0402103 32 MLCC 0402 10NF K 50V X7R

C659 065T0402103 32 MLCC 0402 10NF K 50V X7R

C226 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C745 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C743 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C742 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C711 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C703 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C661 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C654 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C641 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C402 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C166 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C140 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C138 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C137 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C135 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C131 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C134 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C649 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C651 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

45

C707 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

www.ma163.com 电子技术资料网

C602 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C604 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C606 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C610 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C612 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C615 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C620 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C629 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C234 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C239 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C240 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C247 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C248 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C249 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C250 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C251 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C253 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C258 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C400 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C600 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C601 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C634 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C729 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C730 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C731 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C734 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C735 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C736 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C737 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C738 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C739 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C740 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C741 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C631 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C633 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C635 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C636 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C637 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C639 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C710 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C717 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C719 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C720 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C721 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C722 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

46

C723 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

www.ma163.com 电子技术资料网

C725 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C728 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C232 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C160 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C200 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C202 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C203 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C204 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C205 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C206 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C208 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C210 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C212 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C213 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C231 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C230 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C229 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C224 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C223 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C220 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C219 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C218 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C217 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C216 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C653 065T0402105 A5 MLCC 0402 1UF K 10V X5R

C660 065T0402105 A5 MLCC 0402 1UF K 10V X5R

C415 065T0402200 31 CAP 0402 20PF J 50V NPO

C416 065T0402200 31 CAP 0402 20PF J 50V NPO

C626 065T040227232K T CAP CHIP 0402 2700PF 50V X7R

C648 065T040227232K T CAP CHIP 0402 2700PF 50V X7R

C156 065T0402330 31 33PF +-50% 50V NPO

C162 065T0402330 31 33PF +-50% 50V NPO

C163 065T0402330 31 33PF +-50% 50V NPO

C617 065T040233031T CHIP 33PF 50V NPO

C614 065T040233031T CHIP 33PF 50V NPO

C115 065T040233031T CHIP 33PF 50V NPO

C114 065T040233031T CHIP 33PF 50V NPO

C111 065T040233031T CHIP 33PF 50V NPO

C110 065T040233031T CHIP 33PF 50V NPO

C109 065T040233031T CHIP 33PF 50V NPO

C100 065T040233031T CHIP 33PF 50V NPO

C101 065T0402473 12 MLCC 0402 47NF K 16V X7R

C102 065T0402473 12 MLCC 0402 47NF K 16V X7R

C107 065T0402473 12 MLCC 0402 47NF K 16V X7R

C122 065T0402473 12 MLCC 0402 47NF K 16V X7R

47

C123 065T0402473 12 MLCC 0402 47NF K 16V X7R

www.ma163.com 电子技术资料网

C124 065T0402473 12 MLCC 0402 47NF K 16V X7R

C128 065T0402473 12 MLCC 0402 47NF K 16V X7R

C129 065T0402473 12 MLCC 0402 47NF K 16V X7R

C130 065T0402473 12 MLCC 0402 47NF K 16V X7R

C144 065T0402473 12 MLCC 0402 47NF K 16V X7R

C623 065T0603104 37 CHIP 0.1UF 50V/Y5V

C624 065T0603104 37 CHIP 0.1UF 50V/Y5V

C625 065T0603104 37 CHIP 0.1UF 50V/Y5V

C645 065T0603104 37 CHIP 0.1UF 50V/Y5V

C646 065T0603104 37 CHIP 0.1UF 50V/Y5V

C647 065T0603104 37 CHIP 0.1UF 50V/Y5V

C658 065T0603105 12 CHIP 1UF 16V X7R

C657 065T0603105 12 CHIP 1UF 16V X7R

C632 065T0603105 25 CHIP 1UF 25V X5R

C627 065T0603105 25 CHIP 1UF 25V X5R

C667 065T0603105 25 CHIP 1UF 25V X5R

C664 065T0603105 25 CHIP 1UF 25V X5R

C500 065T0603105 25 CHIP 1UF 25V X5R

C414 065T0603105 25 CHIP 1UF 25V X5R

C242 065T0603105 25 CHIP 1UF 25V X5R

C113 065T0603105 25 CHIP 1UF 25V X5R

C215 065T060310522Y MLCC 0603 1UF K 25V X7R

C168 065T0603472 32 CHIP 4700PF 50V X7R

C228 065T0603474 27 CHIP 0.47UF 25V Y5V

C170 065T0603474 27 GP CHIP 0.47UF 25V Y5V

C169 065T0603474 27 GP CHIP 0.47UF 25V Y5V

C167 065T0603474 27 GP CHIP 0.47UF 25V Y5V

C655 065T0805105 12 1UF +-10% 16V X7R

C642 065T0805106 15 CHIP 10UF 16V X5R 0805

C619 065T0805225 17 CHIP 2.2UF 16V Y5V

C644 065T0805225 17 CHIP 2.2UF 16V Y5V

C235 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C238 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C233 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C744 065T1206106 17 CHIP 10UF 16V Y5V

C121 065T1206106 25 CHIP 10UF 25V X5R 1206

C119 065T1206106 25 CHIP 10UF 25V X5R 1206

C120 065T1206106 25 CHIP 10UF 25V X5R 1206

C126 065T1206106 25 CHIP 10UF 25V X5R 1206

C125 065T1206106 25 CHIP 10UF 25V X5R 1206

C609 065T1206106 25 CHIP 10UF 25V X5R 1206

C608 065T1206106 25 CHIP 10UF 25V X5R 1206

C118 065T1206106 25 CHIP 10UF 25V X5R 1206

FB100 071G 59C600 CHIP BEAD

FB101 071G 59C600 CHIP BEAD

48

FB102 071G 59C600 CHIP BEAD

www.ma163.com 电子技术资料网

L101 071T 56G301 EA CHIP BEAD 300 OHM 0805

L102 071T 56G301 EA CHIP BEAD 300 OHM 0805

FB706 071T 56K121 CHIP BEAD 120OHM

FB216 071T 57G301 EA CHIP BEAD

FB209 071T 57G301 EA CHIP BEAD

FB207 071T 57G301 EA CHIP BEAD

FB206 071T 57G301 EA CHIP BEAD

FB205 071T 57G301 EA CHIP BEAD

FB204 071T 57G301 EA CHIP BEAD

FB203 071T 57G301 EA CHIP BEAD

FB202 071T 57G301 EA CHIP BEAD

FB201 071T 57G301 EA CHIP BEAD

FB200 071T 57G301 EA CHIP BEAD

FB703 071T 57G301 EA CHIP BEAD

FB704 071T 57G301 EA CHIP BEAD

FB400 071T 57G301 EA CHIP BEAD

FB600 071T 57G301 EA CHIP BEAD

FB601 071T 57G301 EA CHIP BEAD

FB602 071T 57G301 EA CHIP BEAD

FB603 071T 57G301 EA CHIP BEAD

FB604 071T 57G301 EA CHIP BEAD

FB700 071T 57G301 EA CHIP BEAD

FB701 071T 57G301 EA CHIP BEAD

RP200 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP201 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP202 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP203 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP205 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

FB109 071T 59B121 BEAD 0603 120 OHM

FB108 071T 59B121 BEAD 0603 120 OHM

FB107 071T 59B121 BEAD 0603 120 OHM

FB106 071T 59B121 BEAD 0603 120 OHM

FB105 071T 59B121 BEAD 0603 120 OHM

FB104 071T 59B121 BEAD 0603 120 OHM

FB103 071T 59B121 BEAD 0603 120 OHM

FB208 071T 59G301 CHIP BEAD 300OHM

FB212 071T 59G301 CHIP BEAD 300OHM

FB713 071T 59G301 CHIP BEAD 300OHM

FB712 071T 59G301 CHIP BEAD 300OHM

FB711 071T 59G301 CHIP BEAD 300OHM

FB710 071T 59G301 CHIP BEAD 300OHM

FB408 071T 59G301 CHIP BEAD 300OHM

FB407 071T 59G301 CHIP BEAD 300OHM

FB406 071T 59G301 CHIP BEAD 300OHM

FB405 071T 59G301 CHIP BEAD 300OHM

49

FB404 071T 59G301 CHIP BEAD 300OHM

www.ma163.com 电子技术资料网

FB403 071T 59G301 CHIP BEAD 300OHM

FB402 071T 59G301 CHIP BEAD 300OHM

FB401 071T 59G301 CHIP BEAD 300OHM

FB214 071T 59G301 CHIP BEAD 300OHM

FB213 071T 59G301 CHIP BEAD 300OHM

L503 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L502 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L501 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L500 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

CN500 088T 340 19 VD HDMI HEADER 19P V/A

D500 093T 60230 BAT54C BY MCC

D402 093T 60230 BAT54C BY MCC

D401 093T 60230 BAT54C BY MCC

D100 093T 60230 BAT54C BY MCC

D124 093T 60231 NO APP BAT54S SOT-23

D123 093T 60231 NO APP BAT54S SOT-23

D403 093T 64 33 BAV99 SOT-23

D101 093T 64 37 N V-PORT-0603-100K V05

D102 093T 64 37 N V-PORT-0603-100K V05

D103 093T 64 37 N V-PORT-0603-100K V05

D104 093T 64 37 N V-PORT-0603-100K V05

D105 093T 64 37 N V-PORT-0603-100K V05

D106 093T 64 37 N V-PORT-0603-100K V05

D107 093T 64 37 N V-PORT-0603-100K V05

D108 093T 64 37 N V-PORT-0603-100K V05

D109 093T 64 37 N V-PORT-0603-100K V05

D110 093T 64 37 N V-PORT-0603-100K V05

D501 093T 64 37 N V-PORT-0603-100K V05

D502 093T 64 37 N V-PORT-0603-100K V05

ZD104 093T 64 37 N V-PORT-0603-100K V05

ZD105 093T 64 37 N V-PORT-0603-100K V05

RV100 093T 64 55 TY ESD PESD0603-140 TYCO

RV101 093T 64 55 TY ESD PESD0603-140 TYCO

RV102 093T 64 55 TY ESD PESD0603-140 TYCO

X400 093T 22S 78 J XTL NXE22.1184AC18F HC-49/U-S SMD

ZD100 093T 39S 34 T UDZSNP5.6B ROHM

ZD101 093T 39S 34 T UDZSNP5.6B ROHM

ZD102 093T 39S 34 T UDZSNP5.6B ROHM

ZD124 093T 39S 34 T UDZSNP5.6B ROHM

ZD123 093T 39S 34 T UDZSNP5.6B ROHM

ZD103 093T 39S 34 T UDZSNP5.6B ROHM

ZD400 093T 39S 34 T UDZSNP5.6B ROHM

ZD401 093T 39S 34 T UDZSNP5.6B ROHM

ZD402 093T 39S 34 T UDZSNP5.6B ROHM

ZD601 093T 39S 34 T UDZSNP5.6B ROHM

50

ZD600 093T 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

www.ma163.com 电子技术资料网

715T2899 1 MAIN-PCB FR-4 193*180*1.6MM DS

C674 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C670 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C671 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C672 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C673 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

IRPF8YA6 IR BOARD T2995-1-X-X-1-080129

U01 056T 627 14 2 IC GP18C38BAE

CN01 033T8032 5F HR CONN.1.25PITCH

LED01 081T 14 6 GP LED GPTD1210RGC GUANGPU

715T2995 1 IR PCB FR-4 T:1.6MM 30X24MM
PWTV7521MYD2 POWER BOARD T2871-1-X-X-3-080425

CN803 033T8021 2E U WAFER

CN804 033T8021 2E U WAFER

040T 45762420A S/N LABEL
051T 6 4503 GLUE_RTV

IC903 056T 139 3A IC PC123Y22FZ0F

NR901 061T 5810T 8 OHM 4A NTCR BY THINKING

C801 065T 3J3306ET CER CAP 33PF J 3KV TDK

C803 065T 3J3306ET CER CAP 33PF J 3KV TDK

C901 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C902 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C931 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C930 067T215P1023AV

C914 067T215P1023AV

C915 067T215P4713YV CAP 105C 470UF M 16V

C918 067T215P4714AV

C917 067T215P4714AV

C922 067T215P4714AV

C802 067T215P4714AV

C905 067T215Z10115A

L902 073T 174 65 S LINE FILTER

L903 073T 253 91 H CHOKE COIL

L904 073T 253 91 H CHOKE COIL

T801 080GL17T 40 DN X'FMR TK.2001U.101

T901 080TL15T 36 S X'FMR 550UH

CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

CN902 095T 82011D 2 HARNESS 12P-11P(SAN) 150MM

705TQ757020 Q901 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

Q901 057G 667 30 2SK2645

HS1 090G6064 1 GP HEAT SINK

0M1G1730 8120 SCREW
705TQ793065 D904 ASS'Y

CAP 105℃ 1000UF M 16V
CAP 105℃ 1000UF M 16V

CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 100UF M 450V

51

051G 200 1 OIL FOR DISAPPEAR

www.ma163.com 电子技术资料网

HS2 090G6064 1 GP HEAT SINK

D904 093T 60278 DIODE SP1060 10A/60V_ITO-220

0M1G1730 8120 SCREW
705TQ793074 D906 ASS'Y

HS3 090G6064 1 GP HEAT SINK

D906 093T 60267 SP10100

0M1G1730 8120 SCREW

IC801 056G 379 22 IC TL494IDR SOIC-16

IC901 056T 379 61 IC LD7575PS SOP-8 LEADTREND

Q801 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q806 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q811 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q903 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q804 057T 417 6 PMBS3906/PHILIPS-SMT

Q812 057T 417 6 PMBS3906/PHILIPS-SMT

Q809 057T 759 2 RK7002

Q808 057T 760 4B PDTA144WK SOT346

Q805 057T 760 5B PDTC144WK SOT346

Q802 057T 763 14 AM9945N-T1-PF

R808 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W

R857 061G0805000 RST CHIPR 0 OHM +-5% 1/8W

R858 061G0805000 RST CHIPR 0 OHM +-5% 1/8W

R936 061G1206102 RST CHIPR 1K OHM +-5% 1/4W

R823 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R827 061T0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R818 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R824 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R807 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R817 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R820 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R832 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R828 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R835 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R862 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R814 061T0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W

R801 061T0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W

R802 061T0603243 2F RST CHIPR 0603 24.3 KOHM +-1% 1/10W

R863 061T0603470 2F RST CHIPR 47 KOHM +-1% 1/10W

R841 061T0603680 2F RST CHIPR 68 KOHM +-1% 1/10W

R853 061T0603683 RST CHIPR 68 KOHM +-5% 1/10W

R803 061T0603684 RST CHIPR 680 KOHM +-5% 1/10W

R912 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R907 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R821 061T0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R822 061T0805100 1F RST CHIPR 1KOHM +-1% 1/8W

52

R831 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W

www.ma163.com 电子技术资料网

R941 061T0805100 3F RST CHIPR 100 KOHM +-1% 1/8W

R804 061T0805101 RST CHIPR 100 OHM +-5% 1/8W

R826 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R922 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R905 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R938 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R944 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R925 061T0805151 RST CHIPR 150 OHM +-5% 1/8W

R928 061T0805152 RST CHIPR 1.5 KOHM +-5% 1/8W

R825 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R829 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R839 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R850 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R924 061T0805272 RST CHIPR 2.7 KOHM +-5% 1/8W

R865 061T0805364 RST CHIPR 360 KOHM +-5% 1/8W

R837 061T0805473 RST CHIPR 47 KOHM +-5% 1/8W

R810 061T0805560 2F RST CHIPR 56KOHM +-1% 1/8W

F801 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

JR801 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

JR802 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

JR803 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

JR806 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ904 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ905 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R903 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R918 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R919 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R920 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R934 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R935 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R930 061T1206243 1F CHIP 2.43K OHM 1% 1/4W

R856 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R855 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R929 061T1206330 2F RST CHIPR 33 KOHM +-1% 1/4W

R909 061T1206339 RST CHIPR 3.3 OHM +-5% 1/4W

R927 061T1206360 1F RST CHIPR 3.6 KOHM +-1% 1/4W

R943 061T1206471 RST CHIPR 470 OHM +-5% 1/4W

R902 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R901 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R900 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C834 065T0603104 22 CHIP 0.1UF 25V

C825 065T0603104 22 CHIP 0.1UF 25V

C821 065T0603104 22 CHIP 0.1UF 25V

C807 065T0603104 22 CHIP 0.1UF 25V

53

C823 065T0603222 22 MLCC 0603 2200PF K 25V X7R

www.ma163.com 电子技术资料网

C819 065T0603222 22 MLCC 0603 2200PF K 25V X7R

C842 065T0603474 12 CHIP 0.47UF 16V X7R

C838 065T0805102 31 1000PF 50V NPO

C839 065T0805102 31 1000PF 50V NPO

C824 065T0805104 32 CHIP 0.1UF 50V X7R

C916 065T0805104 32 CHIP 0.1UF 50V X7R

C920 065T0805104 32 CHIP 0.1UF 50V X7R

C919 065T0805104 32 CHIP 0.1UF 50V X7R

C822 065T0805105 22 CHIP 1UF 25V X7R 0805

C820 065T0805221 31 220PF 50V NPO

C924 065T0805221 31 220PF 50V NPO

C912 065T0805223 22 CHIP 0.022UF 25V X7R 0805

C845 065T0805225 12 CHIP 2.2UF 16V X7R 0805

C923 065T0805471 21 CHIP 0805 470PF J 25V NPO

C932 065T1206102 31 1000PF 50V NPO 120 +-5%

C921 065T1206102 72 CHIP 1000PF 500V X7R

C929 065T1206102 72 CHIP 1000PF 500V X7R

D801 093T 64 33 BAV99 SOT-23

D802 093T 64 33 BAV99 SOT-23

D814 093T 6432P LL4148 BY PANJIT

D812 093T 6432P LL4148 BY PANJIT

D806 093T 6432P LL4148 BY PANJIT

D909 093T 6432P LL4148 BY PANJIT

D807 093T 6432P LL4148 BY PANJIT

D805 093T 6432P LL4148 BY PANJIT

D817 093T 6432P LL4148 BY PANJIT

ZD920 093T 39S 40 T RLZ 13B LLDS

CN901 006T 31500 EYELET(2.0) FOR ITEM CN901(AC SOCKET)

IC902 056T 158 7 AP431V TO-92

R908 061T152M10452T RST MOFR 100KOHM +-5% 2WS

R940 061T152M15152T RST MOFR 150 OHM +-5% 2WS

R914 061T152M62852T RST MOFR 0.62 OHM +-5% 2WS

C906 065T 2K152 1T6213 CAP CER 1500PF K 2KV

C908 067T215Y2207KT

FB901 071T 55 9 T BEAD 3.5*6*0.8

F901 084T 56 3 B FUSE 3.15A 250V

D901 093T 6026T52T FR107

D902 093T 6038T52T FR103

715T2871 1 POWER-PCB FR-1 S/S T1.6MM 117*182MM
Q11T5005 2 WIRE SADDLE
Q12T6300 26 1 RUBBER WASHER
Q36T 600 36 11 NONWOVEN FABRIC
Q36T 600 48 1 HIMERON
Q40T 58169022A QC PASS LABEL
Q40T0001624 4A PALLET LABEL

EC CAP 105 度 22UF 50V

54

Q40T0002615A46 BACK I-O LABEL OF 19&22 TV FOR CCC

www.ma163.com 电子技术资料网

Q40T000278641A SIDE LABEL
Q44T5018101 EPS CUSHION
Q44T5018201 EPS CUSHION
Q44T5018615 1A 15 TV AOC CTN
Q45T 99609 69 EPE COVER
Q45T 99609 92 EPE BAG
Q50T 500523 CABLE TIE
Q52T 1185 65 AOC MIDDLE TAPE
Q52T6025 15249 MYLAR
041T780062415A CERTIFICATE CARD
089T 17356C553 AUDIO CABLE
092TB1JX1A31GM PEONY A1KALINE LR03
Q41T260161511A MANUAL
Q41T780A61578A WARRANTY CARD
Q45T 76 28 RN R PE BAG
040T 58162435A LABEL
Q40T 15161516A RATING LABEL

L26BH83 E268MANDW1A4NN

点位

040T 581689 4A S/N LABEL
041T 68508 A CONTROL CARD
044T6000 4 6B SPACE PAPER
044T9003 3 CORNER PAPER
045T 77 3 PE PACKING
049T 51 1A ERADICATOR
052T 1150 C BLACK TAPE
052T 1186 SMALL TAPE
052T 1210 A ALUMINIUM TAPE
052T 1211 A ADHESIVE TYPE
052T 1211 B ADHESIVE TYPE
052T 2191 A TAPE

E078 078T 495500 Y SPK 8 OHM 5W 120*30MM SUNLINK

089T 725GAA DB D-SUB
089T414A18NYHA POWER CORD
092TB1JX1A31GM PEONY A1KALINE LR03
095T801312D650 WIRE HARNESS 12P-12P 160MM

E09501 095T8014 4D541 WIRE HARNESS 4P(PLUG)-B&R+B&W

E09502 095T801410W596 WIRE HARNESS 10P-5P+5P(A1253HA HR)

095T801414DH33 WIRE HARNESS 14P-13P 260MM
095T8018 3D699 LVDS CABLE 30P-30P 180MM
098TRABD2NCACC REMOTE CONTROL RL57C

组件 对象描述

55

0D1T 930 6120 SCREW

www.ma163.com 电子技术资料网

0D1T 930 6120 SCREW
0D1T 930 6120 SCREW
0D1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T1140 6120 SCREW 4*6MM
0M1T1730 8120 SCREW
0M1T1740 10 47 CR3 SCREW
0Q1T 930 8 47 CR3 SCREW
0Q1T 940 14 47 CR3 SCREW
0Q1T1840 10120 SCREW
705TQ733052 PLASTIC ASS`Y
0Q1T 930 6120 SCREW
A33E0304 GMB1L0100 COVER_FUNC
A33E0305 QV 1L0100 BUTTON_FUNC
KEPF8YA5 KEY BOARD T2927-2-X-X-3-080515

CN01 033T3802 5B YH W WAFER

SW04 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW05 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW06 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW07 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW02 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW03 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

SW01 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

R05 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R09 061T0603154 RST CHIPR 150 KOHM +-5% 1/10W

R08 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W

R06 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W

R07 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W

ZD05 093T 39S 34 T UDZSNP5.6B ROHM

ZD06 093T 39S 34 T UDZSNP5.6B ROHM

ZD07 093T 39S 34 T UDZSNP5.6B ROHM

715T2927 2 KEY-PCB FR-1 110*15*1.6MM 9IN1
705TQ734551 BEZEL ASS`Y
A33E0306 1 1C0100 POWER LENS
A33E0307 ED 1C0100 IR LENS
A34E0558 GMB1L0130 BEZEL TV26W-8A1
705TQ734552 REAR COVER ASS`Y
A34E0559 GM 4L0100 REAR COVER 26
Q15T0257101 26BKT-VESA-BTM
Q36T 600 18134 NONWOVEN FABRIC
Q36T 600 40 1 NONWOVEN FABRIC
705TQ734553 STAND ASS`Y
0Q1T 130 6 47 GP SCREW

56

A34E0560 GM 1L0100 STAND

www.ma163.com 电子技术资料网

A34E0561 GM 1L0120 BASE_S1
A37T0065011 26 HINGE
AM1T1740 10125 SCREW
Q12T6083 1 RUBBER FOOT
Q12T6300 25 1 FOOT PAD
Q15T0306101 26BKT-BASE_A1

E750 750TVMG0B1132N PANEL V260B1-L01 C2 NB CMO

A15T0354201 SIDE BKT
ADTV72412YD1 POWER T2907-2-X-X-2-080603
040G 45762412B CBPC LABEL
009T6005 1 GROUND TERMINAL

CN902 033T380212B Y CONNECTOR

CN903 033T380213B Y CONNECTOR

051G 6 4503 GLUE_RTV

IC950 056T 139 7 1 IC EL817MA M-TYPE

IC951 056T 139 7 1 IC EL817MA M-TYPE

IC970 056T 139 7 1 IC EL817MA M-TYPE

IC904 056T 563134 IC SI-8105QL DIP-8

IC902 056T 581 7 IC TNY277PN DIP-8C

NR901 061T 58030 W RST NTCR 3 OHM 5A THINKING

R970 061T152M339 64 RST MOFR 3.3 OHM +-5% 2WS

C901 063T107K474 US X2 CAP 0.47UF K 275VAC

C904 063T107K474 US X2 CAP 0.47UF K 275VAC

C910 063T213J105GFA MPF CAP

C911 065T 1K103 2E6213 CAP CER 10NF K 1KV

C908 065T306K3312BM Y1/CAP 330PF 250VAC MURATA

C907 065T306K3312BM Y1/CAP 330PF 250VAC MURATA

C909 065T306K3312F2 Y1 330PF K 250VAC

C903 065T306K6812BM Y1 CAP 680PF 10% 250VAC KX

C902 065T306K6812BM Y1 CAP 680PF 10% 250VAC KX

C906 065T306M1022B2 1000PF 400VAC/250VAC Y1

C905 065T306M1022B2 1000PF 400VAC/250VAC Y1

C952 067T 2043313KT CS CAP 330UF 16V 10*12 MM

C973 067T215P1026AV CAP 105C 1000UF M 35V

C974 067T215P1026AV CAP 105C 1000UF M 35V

C954 067T215P4713AV

C999 067T215P4714AV

C991 067T215P4716AV CAP 105C 470UF M 35V

C975 067T215P4716AV CAP 105C 470UF M 35V

C920 067T215Z10115A

FB901 071T 55 21 IND BEAD 10.0*6.0

FB904 071T 55 26 S FERRITE CORE

FB903 071T 55 26 S FERRITE CORE

L902 073T 174106 DN LINE FILTER 13MH LK.TF032.A20

L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20

CAP 105℃ 470UF M 16V
CAP 105℃ 470UF M 25V

CAP 105℃ 100UF M 450V

57

L906 073T 174124 L PFC CHOKE 300UH PT-009584

www.ma163.com 电子技术资料网

L950 073T 253 91 L CHOKE BY LI TA

L980 073T 253 91 L CHOKE BY LI TA

L990 073T 253194 S CHOKE COIL 20UH

T902 080TL26T 6 S X'FMR POWER 370UH

T901 080TL26T 7 S X'FMR POWER 1MH

CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T

705TQ793028 D970 ASS'Y

D970 093T 52 57 DIODE FMXA-2202S 20A/200V TO-220F

0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ793029 BD901 ASS'Y
090T 425502 HEAT SINK

BD901 093T 50460 39 BRIDGE BU1006A-E3/45 10A/600V BU

0M1G1730 8120 SCREW
705TQ793030 D950 ASS'Y
090G6084 1 HEAT SINK

D950 093T 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

0M1G1730 8120 SCREW
705TQ793031 Q901&D902 ASS'Y

Q901 057T 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS)

D902 093T 220 33 DIODE FMXA-1106S

0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ857008 Q903 ASS`Y

Q903 057T 667 21 STP10NK70ZFP

090T 425502 HEAT SINK
0M1G1730 8120 SCREW

IC901 056T 368 12 IC FAN7529MX SOP-8

IC903 056T 379101 IC FAN7602BMX SOP-8

Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q923 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q950 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q970 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q924 057T 760 5 DTC144WKA BY FOHM SMT

Q921 057T 761 11 TRA KTD1624C SOT-89 KEC

Q925 057T 761 12 TRA KTB1124B SOT-89 KEC

R984 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R956 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R945 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R957 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R958 061T0603100 2F RST CHIPR 10KOHM +-1% 1/10W

R955 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R960 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

58

R991 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R918 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R929 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R939 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R942 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R976 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R983 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R971 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R907 061T0603104 RST CHIPR 100KOHM +-5% 1/10W

R996 061T0603110 3F RST CHIPR 110KOHM +-1% 1/10W

R906 061T0603124 RST CHIPR 120 KOHM +-5% 1/10W

R923 061T0603130 2F RST CHIPR 13KOHM +-1% 1/10W

R979 061T0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W

R910 061T0603224 RST CHIPR 220 KOHM +-5% 1/10W

R915 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R998 061T0603499 1D RST CHIPR 4.99K OHM +-0.5% 1/10W

R981 061T0603560 9F RST CHIPR 56 OHM +-1% 1/10W

R917 061T0603563 RST CHIPR 56 KOHM +-5% 1/10W

R982 061T0603620 2F RST CHIPR 62 KOHM +-1% 1/10W

R947 061T0603622 RST CHIPR 6.2 KOHM +-5% 1/10W

R997 061T0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

R911 061T0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

R912 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R943 061T0805101 RST CHIPR 100 OHM +-5% 1/8W

R935 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R914 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R944 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R908 061T0805104 RST CHIPR 100 KOHM +-5% 1/8W

R928 061T0805104 RST CHIPR 100 KOHM +-5% 1/8W

R978 061T0805130 2F RST CHIPR 13KOHM +-1% 1/8W

R932 061T0805168 2F CHIP 16.8K OHM 1/8W 1%

R913 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R927 061T0805274 RST CHIPR 270 KOHM +-5% 1/8W

R975 061T0805392 RST CHIPR 3.9KOHM +-5% 1/8W

R937 061T0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R938 061T0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R985 061T0805684 RST CHIP 680K 1/8W 5%

R924 061T0805684 RST CHIP 680K 1/8W 5%

R925 061T0805684 RST CHIP 680K 1/8W 5%

R926 061T0805684 RST CHIP 680K 1/8W 5%

RJ902 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R920 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ901 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R961 061T1206103 RST CHIPR 10 KOHM +-5% 1/4W

R941 061T1206103 RST CHIPR 10 KOHM +-5% 1/4W

R934 061T1206220 RST CHIPR 22 OHM +-5% 1/4W

59

R933 061T1206220 RST CHIPR 22 OHM +-5% 1/4W

www.ma163.com 电子技术资料网

R903 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R902 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R901 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R999 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R954 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R953 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R952 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R951 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R950 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R931 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R909 061T12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R905 061T12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R904 061T12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

C993 065T0603102 31 CHIP 1000PF 50V NPO

C913 065T0603104 32 CHIP 0.1UF 50V X7R

C934 065T0603104 32 CHIP 0.1UF 50V X7R

C942 065T0603104 32 CHIP 0.1UF 50V X7R

C955 065T0603104 32 CHIP 0.1UF 50V X7R

C956 065T0603104 32 CHIP 0.1UF 50V X7R

C978 065T0603104 32 CHIP 0.1UF 50V X7R

C938 065T0603105 25 CHIP 1UF 25V X5R

C944 065T0603221 31 CHIP 220PF 50V NPO

C995 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C918 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

R919 065T0603471 31 CHIP 470PF 50V NPO

C917 065T0603473 32 CHIP 0.047UF 50V X7R

C943 065T0603473 32 CHIP 0.047UF 50V X7R

C912 065T0603820 31 0603 82PF +-5%, 50V NPO

C950 065T0805102 31 1000PF 50V NPO

C951 065T0805102 31 1000PF 50V NPO

C992 065T0805103 32 10NF/50V/0805/X7R

C922 065T0805105 37 CHIP 1UF 50V Y5V

C998 065T0805105 37 CHIP 1UF 50V Y5V

C970 065T080533242H CAP CHIP 0805 3300PF K 100V X7R

C971 065T080533242H CAP CHIP 0805 3300PF K 100V X7R

C972 065T080533242H CAP CHIP 0805 3300PF K 100V X7R

C976 065T0805334 32 CHIP 0.33UF 50V X7R 0805

C996 065T0805471 31 CHIP 470PF 50V NPO

C990 065T0805474 32 CAP CHIP 0805 0.47UF K 50V X7R

D971 093T 6432V LL4148-GSO8 SMD BY VISHA

D941 093T 6432V LL4148-GSO8 SMD BY VISHA

D911 093T 6432V LL4148-GSO8 SMD BY VISHA

ZD930 093T 39S 15 T RLZ15B

ZD920 093T 39S 24 T RLZ 5.6B LLDS

ZD970 093T 39S 42 T RLZ27B LLDS

60

ZD931 093T 39S 44 T RLZ18B

www.ma163.com 电子技术资料网

ZD901 093T 39S103 T DIODE RLZ 2.4BTE-11 500MW/2.4V LL-34

D990 093T5004 1 SR54 T0-214AA

T902 006T 31 4 1.7MM RIVET

CN901 006T 31501 EYELET

IC952 056T 158 10 T IC AS431AZTR-E1 TO-92

IC971 056T 158 10 T IC AS431AZTR-E1 TO-92

R930 061G208M10452T RST MOF 100K 5% 1W

R940 061T152M10452T RST MOFR 100KOHM +-5% 2WS

R916 061T152M15852T RST MOFR 0.15 OHM +-5% 2WS

R946 061T152M27852T RST MOFR 0.27 OHM +-5% 2WS

R974 061T175L10252T 1KOHM +-5% 1/2W

C930 065T 1K222 5T6213 2200PF, 1KV, K

C940 065T 1K222 5T6213 2200PF, 1KV, K

C921 067T215A1007KT EC 10UF 50V 5*11MM

C937 067T215A1007KT EC 10UF 50V 5*11MM

C941 067T215A1007KT EC 10UF 50V 5*11MM

C931 067T215A1017KT EC 100UF 50V 8*12MM

C914 067T215A4707KT EC 47UF 50V 6.3*11MM

F901 084T 55 7 B FUSE 3.15A 250V BUSSMANN

D901 093T 52 1552T DIODE 1N4007-E3/54 1A/1000V DO-41

D931 093T 5250S52T AU02Z

D930 093T1080 252T DIODE SARSO1-V1 SANKEN

D940 093T1080 252T DIODE SARSO1-V1 SANKEN

J901 095G 90 23

J902 095G 90 23

J903 095G 90 23

J904 095G 90 23

J905 095G 90 23

J922 095G 90 23

J921 095G 90 23

J920 095G 90 23

J919 095G 90 23

J918 095G 90 23

J917 095G 90 23

J916 095G 90 23

J915 095G 90 23

J914 095G 90 23

J913 095G 90 23

J912 095G 90 23

J911 095G 90 23

J910 095G 90 23

J909 095G 90 23

J908 095G 90 23

J906 095G 90 23

J907 095G 90 23

跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线
跳线

61

J923 095T 90 23 JUMP WIRE

www.ma163.com 电子技术资料网

J925 095T 90 23 JUMP WIRE

715T2907 2 POWER PCB CEM-1 T1.6MM 125X180MM
CBPF8A1DY7 CONVERSION T2899-1-X-X-7-080526
040T 45762412B CBPC LABEL

CN700 033T327812D WAFER 12P PLUG

CN600 033T3802 4B Y CONNECTOR

CN400 033T380210B Y CONNECTOR

CN402 033T8027 30 WAFER

R623 061T153M399 59 3.9 OHM+-5% 3W

R624 061T153M399 59 3.9 OHM+-5% 3W

R626 061T153M399 59 3.9 OHM+-5% 3W

R627 061T153M399 59 3.9 OHM+-5% 3W

R138 061T175L22052T 22 OHM 5% 1/2W

R137 061T175L39052T 39 OHM 5% 1/2W

C652 067T 305102 4 105C 1000UF +-20% 25V

C132 067T 305471 4

C702 067T215P4713AV

C706 067T215P4714AV

CN105 088T 78 1357S RCA JACK 1*1 W+R V/A

CN103 088T 78 13932 S RCA JACK + S JACK Y/B

CN102 088T 78 V5 C RCA JACK 3+2 G/BLU/R+W/R

CN602 088T 30211K PHONE JACK

CN100 088T 30252S PHONE JACK 3.5MM 3P V/A GREEN

CN104 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

090T 372 2 HEAT SINK

X600 093T 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU101 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ856001 U602 ASS'Y

U602 056T 616511 ST IC TDA7297SA ST

0M1T1730 10120 SCREW
Q90T0155 1 HEAT SINK

C236 067T 305100 3T 10UF 16V

C237 067T 305100 3T 10UF 16V

C246 067T 305100 3T 10UF 16V

C252 067T 305100 3T 10UF 16V

C708 067T 305100 3T 10UF 16V

C709 067T 305100 3T 10UF 16V

C715 067T 305100 3T 10UF 16V

C724 067T 305100 3T 10UF 16V

C726 067T 305100 3T 10UF 16V

C727 067T 305100 3T 10UF 16V

C733 067T 305100 3T 10UF 16V

C406 067T 305100 3T 10UF 16V

C747 067T 305100 3T 10UF 16V

C732 067T 305101 3T 100UF 16V 105C

EC 105℃ 470UF M 25V
CAP 105℃ 470UF M 16V
CAP 105℃ 470UF M 25V

62

C665 067T 305101 3T 100UF 16V 105C

www.ma163.com 电子技术资料网

C663 067T 305101 3T 100UF 16V 105C

C662 067T 305101 3T 100UF 16V 105C

C401 067T 305101 3T 100UF 16V 105C

C141 067T 305101 3T 100UF 16V 105C

C139 067T 305101 3T 100UF 16V 105C

C136 067T 305101 3T 100UF 16V 105C

C133 067T 305101 4T

C650 067T 305101 4T

C643 067T 305220 3T

C666 067T 305470 3T

C405 067T 305470 3T

C259 067T 305471 3T

U601 056T 133 30AAC IC AZ1117H-ADJ-E1

UH200 056T 562566 IC HX6203-A010QBG

U701 056T 563 7 AIC1084-33PM TO-263 AIC

U702 056T 563 34 A1C1084-18PM

U102 056T 585 11 AZ1117D-5.0-E1

U200 056T 585 4A AP1117E33LA

U700 056T 585 4A AP1117E33LA

U703 056T 585 4A AP1117E33LA

U704 056T 585 5A AP1117E25LA

U600 056T 616 4 IC PT2314L SO28 PTC

U603 056T 616507 IC AUDIO PT2309 PTC

U500 056T 662 10 IC RCLAMP0524P.TCT

U501 056T 662 10 IC RCLAMP0524P.TCT

U400

U100 056T1133 34 M24C02-WMN6TP

U502 056T1133 34 M24C02-WMN6TP

U202

U402 056T113353A M24C32-WMN6TP

U403 056T74HC 14 F IC MM74HC14MX SOIC-14

U405 056T74HC126 P IC 74HC126D S014 PHILIPS

Q100 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q102 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q700 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q701 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q407 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q703 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q702 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q603 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q602 057T 417 4 CHIP PMBS3904 BY PHILIPS

056T1125170

X(AACDH1M26NQ1)

056T1133527

ST(AACDH1M26FQ1)

CAP 105℃ 100UF M 25V
CAP 105℃ 100UF M 25V
EC 105℃ 22UF M 16V
EC 105℃ 47UF M 16V
EC 105℃ 47UF M 16V
105 摄氏度 470UF +-20% 16V

IC W79E632A40PL

IC M25P40-VMN6TP/X ST

63

Q106 057T 417 4 CHIP PMBS3904 BY PHILIPS

www.ma163.com 电子技术资料网

Q107 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q401 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q402 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q403 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q601 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q600 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q500 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q502 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q408 057T 417 6 PMBS3906/PHILIPS-SMT

Q400 057T 417 6 PMBS3906/PHILIPS-SMT

Q404 057T 417 6 PMBS3906/PHILIPS-SMT

Q109 057T 417 6 PMBS3906/PHILIPS-SMT

Q108 057T 417 6 PMBS3906/PHILIPS-SMT

Q101 057T 763 3 AO4411L SO-8 BY AOS SMT

Q105 057T 763 3 AO4411L SO-8 BY AOS SMT

Q704 057T 763 3 AO4411L SO-8 BY AOS SMT

RP406 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP405 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP404 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP403 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP402 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP401 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

RP400 061T 125103 8 RST CHIP AR 8P4R 10KOHM +-5% 1/16W

R147 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R135 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R132 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R129 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R124 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R123 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R122 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R110 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R107 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R104 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R101 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R410 061T0402102 RST CHIPR 1KOHM +-5% 1/16W

R423 061T0402102 RST CHIPR 1KOHM +-5% 1/16W

R203 061T0402162 RST CHIPR 1.6K OHM 1/16W +-5%

R146 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R134 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R131 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R128 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R114 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R111 061T0402330 RST CHIPR 33 OHM +-5% 1/16W

R204 061T0402332 RST CHIPR 3.3KOHM +-5% 1/16W

R130 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

64

R133 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

www.ma163.com 电子技术资料网

R136 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R148 061T0402430 RST CHIPR 43 OHM 1/16W +-5%

R108 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

R105 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

R102 061T0402750 RST CHIPR 75 OHM +-5% 1/16W

L100 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R218 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R221 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R226 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R413 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R420 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R421 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R422 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R436 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R437 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R510 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R511 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R512 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R513 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R606 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R607 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R638 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R720 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R723 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R145 061T0603100 CHIP 10OHM 1/16W

R144 061T0603100 CHIP 10OHM 1/16W

R434 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R616 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R610 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R166 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

R459 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R700 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R701 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R702 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R708 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R706 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R618 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R613 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R500 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R234 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R230 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R152 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

R633 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R635 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

65

R636 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R640 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R710 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R712 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R438 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R411 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R430 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R431 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R632 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R628 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R506 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R505 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R501 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R435 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R407 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R405 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R403 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R402 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R401 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R175 061T0603104 RST CHIPR 100KOHM +-5% 1/10W

R634 061T0603104 RST CHIPR 100KOHM +-5% 1/10W

R419 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R604 061T0603105 RST CHIPR 1MOHM +-5% 1/10W

R621 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R237 061T0603133 RST CHIPR 13 KOHM +-5% 1/10W

R404 061T0603182 CHIP 1.8K OHM 1/16W

R189 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R190 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R426 061T0603220 CHIP 22OHM 1/10W

R432 061T0603220 CHIP 22OHM 1/10W

R429 061T0603220 CHIP 22OHM 1/10W

R428 061T0603220 CHIP 22OHM 1/10W

R247 061T0603220 CHIP 22OHM 1/10W

R246 061T0603220 CHIP 22OHM 1/10W

R245 061T0603220 CHIP 22OHM 1/10W

R229 061T0603220 CHIP 22OHM 1/10W

R620 061T0603221 CHIP 220OHM 1/16W

R103 061T0603222 CHIP 2.2K OHM 1/16W

R106 061T0603222 CHIP 2.2K OHM 1/16W

R183 061T0603223 CHIP 22KOHM 1/16W

R711 061T0603223 CHIP 22KOHM 1/16W

R141 061T0603224 RST CHIPR 220 KOHM +-5% 1/10W

R608 061T0603242 RST CHIPR 2.4 KOHM +-5% 1/10W

R609 061T0603242 RST CHIPR 2.4 KOHM +-5% 1/10W

R118 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R119 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

66

R120 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

www.ma163.com 电子技术资料网

R121 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R100 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R115 061T0603273 RST CHIPR 27 KOHM +-5% 1/10W

R612 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R611 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R619 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R617 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R615 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R614 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R202 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R602 061T0603393 RST CHIPR 39 KOHM +-5% 1/10W

R603 061T0603393 RST CHIPR 39 KOHM +-5% 1/10W

R143 061T0603472 CHIP 4.7KOHM 1/16W

R142 061T0603472 CHIP 4.7KOHM 1/16W

R140 061T0603472 CHIP 4.7KOHM 1/16W

R139 061T0603472 CHIP 4.7KOHM 1/16W

R125 061T0603472 CHIP 4.7KOHM 1/16W

R113 061T0603472 CHIP 4.7KOHM 1/16W

R112 061T0603472 CHIP 4.7KOHM 1/16W

R182 061T0603472 CHIP 4.7KOHM 1/16W

R417 061T0603472 CHIP 4.7KOHM 1/16W

R416 061T0603472 CHIP 4.7KOHM 1/16W

R714 061T0603472 CHIP 4.7KOHM 1/16W

R713 061T0603472 CHIP 4.7KOHM 1/16W

R709 061T0603472 CHIP 4.7KOHM 1/16W

R707 061T0603472 CHIP 4.7KOHM 1/16W

R642 061T0603472 CHIP 4.7KOHM 1/16W

R641 061T0603472 CHIP 4.7KOHM 1/16W

R630 061T0603472 CHIP 4.7KOHM 1/16W

R514 061T0603472 CHIP 4.7KOHM 1/16W

R508 061T0603472 CHIP 4.7KOHM 1/16W

R507 061T0603472 CHIP 4.7KOHM 1/16W

R415 061T0603472 CHIP 4.7KOHM 1/16W

R409 061T0603472 CHIP 4.7KOHM 1/16W

R235 061T0603472 CHIP 4.7KOHM 1/16W

R216 061T0603472 CHIP 4.7KOHM 1/16W

R212 061T0603472 CHIP 4.7KOHM 1/16W

R208 061T0603472 CHIP 4.7KOHM 1/16W

R207 061T0603472 CHIP 4.7KOHM 1/16W

R206 061T0603472 CHIP 4.7KOHM 1/16W

R186 061T0603472 CHIP 4.7KOHM 1/16W

R185 061T0603472 CHIP 4.7KOHM 1/16W

R184 061T0603472 CHIP 4.7KOHM 1/16W

R724 061T0603472 CHIP 4.7KOHM 1/16W

R213 061T0603472 CHIP 4.7KOHM 1/16W

67

R418 061T0603472 CHIP 4.7KOHM 1/16W

www.ma163.com 电子技术资料网

R705 061T0603472 CHIP 4.7KOHM 1/16W

R703 061T0603472 CHIP 4.7KOHM 1/16W

R639 061T0603473 CHIP 47KOHM 1/16W

R631 061T0603473 CHIP 47KOHM 1/16W

R629 061T0603473 CHIP 47KOHM 1/16W

R625 061T0603473 CHIP 47KOHM 1/16W

R187 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R605 061T0603562 RST CHIPR 5.6 KOHM +-5% 1/10W

R622 061T0603562 RST CHIPR 5.6 KOHM +-5% 1/10W

R220 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R219 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R217 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R170 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R171 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R172 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R424 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R425 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R149 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R150 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R151 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R637 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

C143 065T0402100 31 CAP 0402 10PF J 50V NPO

C142 065T0402100 31 CAP 0402 10PF J 50V NPO

C407 065T0402101 32 100PF +-10% 50V X7R

C412 065T0402101 32 100PF +-10% 50V X7R

C638 065T0402101 32 100PF +-10% 50V X7R

C628 065T0402101 32 100PF +-10% 50V X7R

C622 065T0402101 32 100PF +-10% 50V X7R

C618 065T0402101 32 100PF +-10% 50V X7R

C207 065T0402101 32 100PF +-10% 50V X7R

C211 065T0402101 32 100PF +-10% 50V X7R

C214 065T0402101 32 100PF +-10% 50V X7R

C225 065T0402101 32 100PF +-10% 50V X7R

C409 065T0402101 32 100PF +-10% 50V X7R

C410 065T0402101 32 100PF +-10% 50V X7R

C108 065T0402102 32 1000PF +-10% 50V X7R

C154 065T0402102 32 1000PF +-10% 50V X7R

C227 065T0402103 22 CHIP 0.01UF 25V X7R

C656 065T0402103 32 MLCC 0402 10NF K 50V X7R

C659 065T0402103 32 MLCC 0402 10NF K 50V X7R

C135 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C226 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C745 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C743 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C742 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

68

C711 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

www.ma163.com 电子技术资料网

C704 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C703 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C661 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C654 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C651 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C641 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C404 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C403 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C402 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C166 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C140 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C138 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C137 065T0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C707 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C649 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C134 065T0402104 27 CAP CHIP 0402 0.1UF Z 25V Y5V

C223 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C224 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C229 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C230 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C231 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C232 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C234 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C239 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C240 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C247 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C248 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C249 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C203 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C204 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C205 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C206 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C208 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C210 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C212 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C213 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C216 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C218 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C219 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C220 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C250 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C634 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C635 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C636 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C637 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

69

C639 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

www.ma163.com 电子技术资料网

C710 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C717 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C719 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C720 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C721 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C722 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C723 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C725 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C629 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C251 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C253 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C258 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C400 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C600 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C601 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C602 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C604 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C606 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C610 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C612 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C615 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C620 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C633 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C631 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C217 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C741 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C740 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C739 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C738 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C737 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C736 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C202 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C200 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C160 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C728 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C729 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C730 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C731 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C734 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C735 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C660 065T0402105 A5 MLCC 0402 1UF K 10V X5R

C653 065T0402105 A5 MLCC 0402 1UF K 10V X5R

C415 065T0402200 31 CAP 0402 20PF J 50V NPO

C416 065T0402200 31 CAP 0402 20PF J 50V NPO

C131 065T0402224 17 CAP CER 0.22UF -20%-80%

70

C626 065T040227232K T CAP CHIP 0402 2700PF 50V X7R

www.ma163.com 电子技术资料网

C648 065T040227232K T CAP CHIP 0402 2700PF 50V X7R

C163 065T0402330 31 33PF +-50% 50V NPO

C162 065T0402330 31 33PF +-50% 50V NPO

C156 065T0402330 31 33PF +-50% 50V NPO

C100 065T040233031T CHIP 33PF 50V NPO

C109 065T040233031T CHIP 33PF 50V NPO

C110 065T040233031T CHIP 33PF 50V NPO

C111 065T040233031T CHIP 33PF 50V NPO

C114 065T040233031T CHIP 33PF 50V NPO

C115 065T040233031T CHIP 33PF 50V NPO

C614 065T040233031T CHIP 33PF 50V NPO

C617 065T040233031T CHIP 33PF 50V NPO

C144 065T0402473 12 MLCC 0402 47NF K 16V X7R

C101 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C102 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C107 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C122 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C123 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C124 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C128 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C129 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C130 065T040247312K T CAP CHIP 0402 0.047UF 25V X7R

C623 065T0603104 37 CHIP 0.1UF 50V/Y5V

C624 065T0603104 37 CHIP 0.1UF 50V/Y5V

C625 065T0603104 37 CHIP 0.1UF 50V/Y5V

C645 065T0603104 37 CHIP 0.1UF 50V/Y5V

C646 065T0603104 37 CHIP 0.1UF 50V/Y5V

C647 065T0603104 37 CHIP 0.1UF 50V/Y5V

C657 065T0603105 12 CHIP 1UF 16V X7R

C658 065T0603105 12 CHIP 1UF 16V X7R

C632 065T0603105 25 CHIP 1UF 25V X5R

C627 065T0603105 25 CHIP 1UF 25V X5R

C500 065T0603105 25 CHIP 1UF 25V X5R

C664 065T0603105 25 CHIP 1UF 25V X5R

C667 065T0603105 25 CHIP 1UF 25V X5R

C113 065T0603105 25 CHIP 1UF 25V X5R

C242 065T0603105 25 CHIP 1UF 25V X5R

C414 065T0603105 25 CHIP 1UF 25V X5R

C215 065T060310522Y MLCC 0603 1UF K 25V X7R

C700 065T060322517Y MLCC 0603 2.2UF Z 16V Y5V

C228 065T0603474 27 CHIP 0.47UF 25V Y5V

C167 065T0603474 27 CHIP 0.47UF 25V Y5V

C170 065T0603474 27 GP CHIP 0.47UF 25V Y5V

C169 065T0603474 27 GP CHIP 0.47UF 25V Y5V

C168 065T060347427Y MLCC 0603 0.47UF Z 25V Y5V

71

C655 065T0805105 27 CHIP 1UF 25V Y5V 0805

www.ma163.com 电子技术资料网

C642 065T0805106 15 CHIP 10UF 16V X5R 0805

C619 065T0805225 17 CHIP 2.2UF 16V Y5V

C644 065T0805225 17 CHIP 2.2UF 16V Y5V

C238 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C235 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C233 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V

C744 065T1206106 17 CHIP 10UF 16V Y5V

C118 065T1206106 25 CHIP 10UF 25V X5R 1206

C119 065T1206106 25 CHIP 10UF 25V X5R 1206

C120 065T1206106 25 CHIP 10UF 25V X5R 1206

C121 065T1206106 25 CHIP 10UF 25V X5R 1206

C125 065T1206106 25 CHIP 10UF 25V X5R 1206

C126 065T1206106 25 CHIP 10UF 25V X5R 1206

C608 065T1206106 25 CHIP 10UF 25V X5R 1206

C609 065T1206106 25 CHIP 10UF 25V X5R 1206

L102 071T 56G301 EA CHIP BEAD 300 OHM 0805

L101 071T 56G301 EA CHIP BEAD 300 OHM 0805

FB706 071T 56K121 CHIP BEAD 120OHM

FB601 071T 57G301 EA CHIP BEAD

FB602 071T 57G301 EA CHIP BEAD

FB603 071T 57G301 EA CHIP BEAD

FB604 071T 57G301 EA CHIP BEAD

FB700 071T 57G301 EA CHIP BEAD

FB701 071T 57G301 EA CHIP BEAD

FB703 071T 57G301 EA CHIP BEAD

FB704 071T 57G301 EA CHIP BEAD

FB216 071T 57G301 EA CHIP BEAD

FB218 071T 57G301 EA CHIP BEAD

FB219 071T 57G301 EA CHIP BEAD

FB600 071T 57G301 EA CHIP BEAD

FB400 071T 57G301 EA CHIP BEAD

FB209 071T 57G301 EA CHIP BEAD

FB207 071T 57G301 EA CHIP BEAD

FB206 071T 57G301 EA CHIP BEAD

FB205 071T 57G301 EA CHIP BEAD

FB204 071T 57G301 EA CHIP BEAD

FB203 071T 57G301 EA CHIP BEAD

FB202 071T 57G301 EA CHIP BEAD

FB201 071T 57G301 EA CHIP BEAD

FB200 071T 57G301 EA CHIP BEAD

RP200 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP201 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP202 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP203 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP205 071T 57U121 Y CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

72

FB109 071T 59B121 BEAD 0603 120 OHM

www.ma163.com 电子技术资料网

FB108 071T 59B121 BEAD 0603 120 OHM

FB107 071T 59B121 BEAD 0603 120 OHM

FB106 071T 59B121 BEAD 0603 120 OHM

FB105 071T 59B121 BEAD 0603 120 OHM

FB104 071T 59B121 BEAD 0603 120 OHM

FB103 071T 59B121 BEAD 0603 120 OHM

FB100 071T 59C600 CHIP BEAD

FB101 071T 59C600 CHIP BEAD

FB102 071T 59C600 CHIP BEAD

FB208 071T 59G301 CHIP BEAD 300OHM

FB713 071T 59G301 CHIP BEAD 300OHM

FB712 071T 59G301 CHIP BEAD 300OHM

FB711 071T 59G301 CHIP BEAD 300OHM

FB710 071T 59G301 CHIP BEAD 300OHM

FB408 071T 59G301 CHIP BEAD 300OHM

FB407 071T 59G301 CHIP BEAD 300OHM

FB406 071T 59G301 CHIP BEAD 300OHM

FB405 071T 59G301 CHIP BEAD 300OHM

FB404 071T 59G301 CHIP BEAD 300OHM

FB403 071T 59G301 CHIP BEAD 300OHM

FB402 071T 59G301 CHIP BEAD 300OHM

FB401 071T 59G301 CHIP BEAD 300OHM

FB214 071T 59G301 CHIP BEAD 300OHM

FB213 071T 59G301 CHIP BEAD 300OHM

FB212 071T 59G301 CHIP BEAD 300OHM

L500 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L501 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L502 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L503 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

CN500 088T 340 19 VD HDMI HEADER 19P V/A

D100 093T 60230 BAT54C BY MCC

D401 093T 60230 BAT54C BY MCC

D402 093T 60230 BAT54C BY MCC

D500 093T 60230 BAT54C BY MCC

D123 093T 60231 NO APP BAT54S SOT-23

D124 093T 60231 NO APP BAT54S SOT-23

D403 093T 64 33 BAV99 SOT-23

D502 093T 64 37 N V-PORT-0603-100K V05

D501 093T 64 37 N V-PORT-0603-100K V05

D110 093T 64 37 N V-PORT-0603-100K V05

D109 093T 64 37 N V-PORT-0603-100K V05

D108 093T 64 37 N V-PORT-0603-100K V05

D107 093T 64 37 N V-PORT-0603-100K V05

D106 093T 64 37 N V-PORT-0603-100K V05

D105 093T 64 37 N V-PORT-0603-100K V05

73

D104 093T 64 37 N V-PORT-0603-100K V05

www.ma163.com 电子技术资料网

D103 093T 64 37 N V-PORT-0603-100K V05

D102 093T 64 37 N V-PORT-0603-100K V05

D101 093T 64 37 N V-PORT-0603-100K V05

ZD104 093T 64 37 N V-PORT-0603-100K V05

ZD105 093T 64 37 N V-PORT-0603-100K V05

RV100 093T 64 55 TY ESD PESD0603-140 TYCO

RV101 093T 64 55 TY ESD PESD0603-140 TYCO

RV102 093T 64 55 TY ESD PESD0603-140 TYCO

X400 093T 22S 78 J XTL NXE22.1184AC18F HC-49/U-S SMD

ZD601 093T 39S 34 T UDZSNP5.6B ROHM

ZD402 093T 39S 34 T UDZSNP5.6B ROHM

ZD401 093T 39S 34 T UDZSNP5.6B ROHM

ZD400 093T 39S 34 T UDZSNP5.6B ROHM

ZD124 093T 39S 34 T UDZSNP5.6B ROHM

ZD123 093T 39S 34 T UDZSNP5.6B ROHM

ZD103 093T 39S 34 T UDZSNP5.6B ROHM

ZD102 093T 39S 34 T UDZSNP5.6B ROHM

ZD101 093T 39S 34 T UDZSNP5.6B ROHM

ZD100 093T 39S 34 T UDZSNP5.6B ROHM

ZD600 093T 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

715T2899 1 MAIN-PCB FR-4 193*180*1.6MM DS

C668 065T040256132K Y CAP CHIP 0402 560P 50V X7R +/-10%

C669 065T040256132K Y CAP CHIP 0402 560P 50V X7R +/-10%

C674 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C670 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C671 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C672 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C673 065T040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C201 067T 305100 3T 10UF 16V

C209 067T 305100 3T 10UF 16V

C603 067T 305100 3T 10UF 16V

C605 067T 305100 3T 10UF 16V

C607 067T 305100 3T 10UF 16V

C611 067T 305100 3T 10UF 16V

C613 067T 305100 3T 10UF 16V

C616 067T 305100 3T 10UF 16V

C621 067T 305100 3T 10UF 16V

C630 067T 305100 3T 10UF 16V

C640 067T 305100 3T 10UF 16V

C716 067T 305100 3T 10UF 16V

C718 067T 305100 3T 10UF 16V

IRPF8YA7 IR T2995-B-X-X-2-080303

U01 056T 627 14 1 IC KSM-2003TN2E 37.9KHZ

CN01 033T8032 5F HR CONN.1.25PITCH

LED01 081T 14 6 GP LED GPTD1210RGC GUANGPU

74

715T2995 1 IR PCB FR-4 T:1.6MM 30X24MM

www.ma163.com 电子技术资料网

Q07T 2 L120 WOODEN PALLET
Q07T 2 L121 WOODEN PALLET
Q11T5005 1 GP WIRE SADDLE
Q15T0258101 26BKT-VESA
Q15T0259101 26BKT-CMO-PANEL-SUPPORT
Q15T0260101 26BKT-BASE-SUPPORT
Q15T0261102 26BKT-PCB-HOLDER-BTM
Q15T0263301 26BKT-PCB-HOLDER-TOP
Q36T 600 18134 NONWOVEN FABRIC
Q36T 600 28 3 GP NONWOVEN FABRIC
Q40T 58169022A QC PASS LABEL
Q40T0001624 4A PALLET LABEL
Q40T000262454A BACK I-O LABEL FOR 08 26 AOC CCC
Q40T000295410A SIDE I-O LABEL
Q44T6002102 79 PAPER BOARD
Q44T6002122 78 PAPER BOARD
Q44TE014 5 1B U TYPE SHEET FOR BASE
Q44TE014101 EPS-FOR BBY
Q44TE014201 EPS-FOR BBY
Q44TE014301 EPS-FOR BBY
Q44TE014615 1A 26" TV CARTON
Q44TE014BLO001 PAPER SHEET
Q45T 99609 78 EPE COVER FOR MONITOR
Q45T 99609 79 EPE COVER FOR BASE
Q50T 500523 CABLE TIE
Q52T 1185 66 AOC TAPE
041T780062415A CERTIFICATE CARD
089T 17356C553 AUDIO CABLE
0Q1T 940 30 47 CR3 SCREW
Q41T260161511A MANUAL
Q41T780A61578A WARRANTY CARD
Q45T 76 28 RN R PE BAG
Q45T 76 28NV2 R PE BAG FOR CLAMP
040T 58162435A LABEL
Q40T 26061510A RATING LABEL

75
