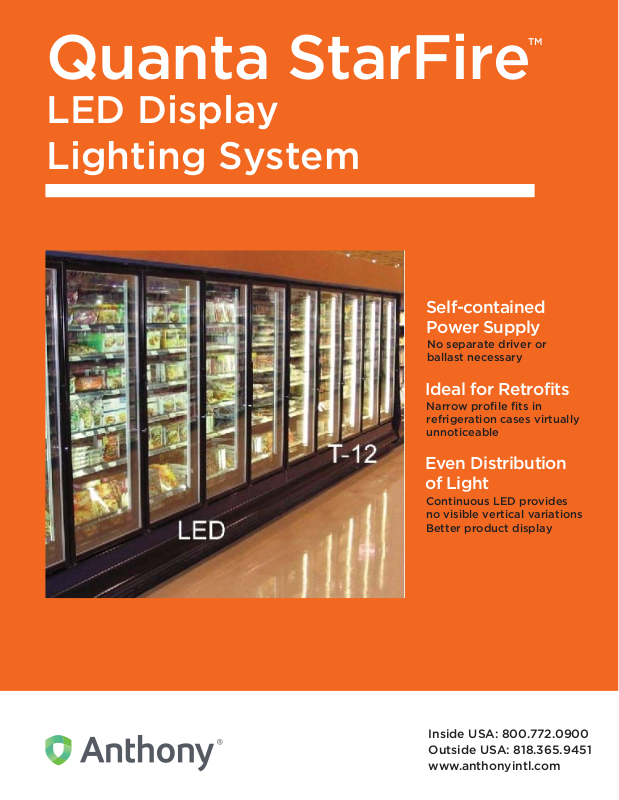

Quanta StarFire
LED Display
Lighting System
Self-contained
Power Supply
No separate driver or
ballast necessary
TM
Ideal for Retrofits
Narrow profile fits in
refrigeration cases virtually
unnoticeable
Even Distribution
of Light
Continuous LED provides
no visible vertical variations
Better product display
Inside USA: 800.772.0900
Outside USA: 818.365.9451
www.anthonyintl.com
TM
Quanta StarFire introduces the streamlined,
lightweight and washable SMD
5’ MULLION (CENTER) -120-SMD-C
CASING DIMENSIONS
Amp
AB C
Total length
Casing length
Hole distance
Wattage
Center Mullion
rating
*
Weight
Center Mullion
4160-120-C
5160-120-C
6160-120-C
1160-120-L
1160-120-R
2160-120-L
2160-120-R
3160-120-L
3160-120-R
4160-120-L
4160-120-R
5160-120-L
5160-120-R
6160-120-L
6160-120-R
45.35"
56.25"
67.15"
ABC
Total length
12.65"
12.65"
23.65"
23.65"
34.5"
34.5"
45.35"
45.35"
56.25"
56.25"
67.15"
67.15"
43.85"
54.75"
65.65"
Casing length
11.25"
11.25"
22.25"
22.25"
33.0"
33.0"
43.85"
43.85"
54.75"
54.75"
65.65"
65.65"
Hole distance
11.9"
11.9"
22.9"
22.9"
33.75"
33.75"
44.6"
44.6"
55.5"
55.5"
66.4"
66.4"
44.6"
55.5"
66.4"
14.5 W
18.5 W
22.5 W
Wattage
2.1 w
2.1 w
4.2 w
4.2 w
6.3 w
6.3 w
8.4 w
8.4 w
10.5 w
10.5 w
12.6 w
12.6 w
2.1 w Per Foot or 27 LED’s
0.24
0.35
0.46
Amp
*
consumed
.018
.018
.035
.035
.053
.053
.070
.070
.088
.088
.11
.11
1 lb 8.4 oz
2 lb 7.2 oz
2 lb 14.8 oz
Amp
*
rating
.06
.06
.09
.09
.12
.12
.17
.17
.25
.25
.3
.3
Weight
4.8 oz
4.8 oz
9.4 oz
9.4 oz
14 oz
14 oz
1 lb 2.5 oz
1 lb 2.5 oz
1 lb 7.2 oz
1 lb 7.2 oz
2 lb 3.1 oz
2 lb 3.1 oz
Meets NSF, UL 1598 and Class A FCC Title 47, Sub part B, Section 15.
Rev. 08-09-10
www.anthonyintl.com
QSF-9/10
A
life
50,000
Warranty: 5 years from date of manufacture; repair or replacement
Color
temp
3500K
4100K
5000K
Power
factor
0.44
leading
CRI
80
(for further details see our warranty document)
THD
<36%
Voltage
120V
LED
per PCB
27 24"
Length
of whip
