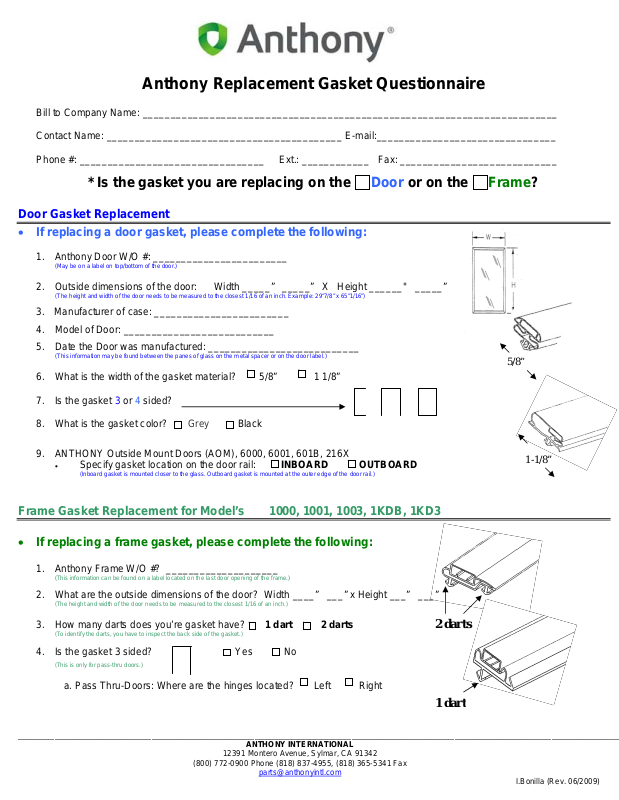

Anthony Replacement Gasket Questionnaire

Bill to Company Name: __________________________________________________________________________
Contact Name: __________________________________________ E-mail:________________________________
Phone #: _________________________________ Ext.: ____________ Fax: ____________________________

* Is the gasket you are replacing on the Door or on the Frame?

Door Gasket Replacement

• If replacing a door gasket, please complete the following:

1. Anthony Door W/O #: ________________________

(May be on a label on top/bottom of the door.)

2. Outside dimensions of the door: Width _____” _____” X Height ______" _____”

(The height and width of the door needs to be measured to the closest 1/16 of an inch. Example: 29”7/8” x 65”1/16”)

3. Manufacturer of case: ________________________

4. Model of Door: ___________________________

5. Date the Door was manufactured: ___________________________

(This information may be found between the panes of glass on the metal spacer or on the door label.)

6. What is the width of the gasket material? 5/8” 1 1/8”

7. Is the gasket 3 or 4 sided?

8. What is the gasket color? Grey Black

9. ANTHONY Outside Mount Doors (AOM), 6000, 6001, 601B, 216X

• Specify gasket location on the door rail: INBOARD OUTBOARD

(Inboard gasket is mounted closer to the glass. Outboard gasket is mounted at the outer edge of the door rail.)

5/8”

1-1/8”

Frame Gasket Replacement for Model’s 1000, 1001, 1003, 1KDB, 1KD3

• If replacing a frame gasket, please complete the following:

1. Anthony Frame W/O #? ____________________

(This information can be found on a label located on the last door opening of the frame.)

2. What are the outside dimensions of the door? Width ____” ___” x Height ___” ___”

(The height and width of the door needs to be measured to the closest 1/16 of an inch.)

3. How many darts does you’re gasket have? 1 dart 2 darts

(To identify the darts, you have to inspect the back side of the gasket.)

2 darts

4. Is the gasket 3 sided? Yes No

(This is only for pass-thru doors.)

a. Pass Thru-Doors: Where are the hinges located? Left Right

__________________________________________________________________________________________________

ANTHONY INTERNATIONAL

12391 Montero Avenue, Sylmar, CA 91342

[phone] Phone [phone] Fax

I.Bonilla (Rev. 06/2009)

[e-mail]
