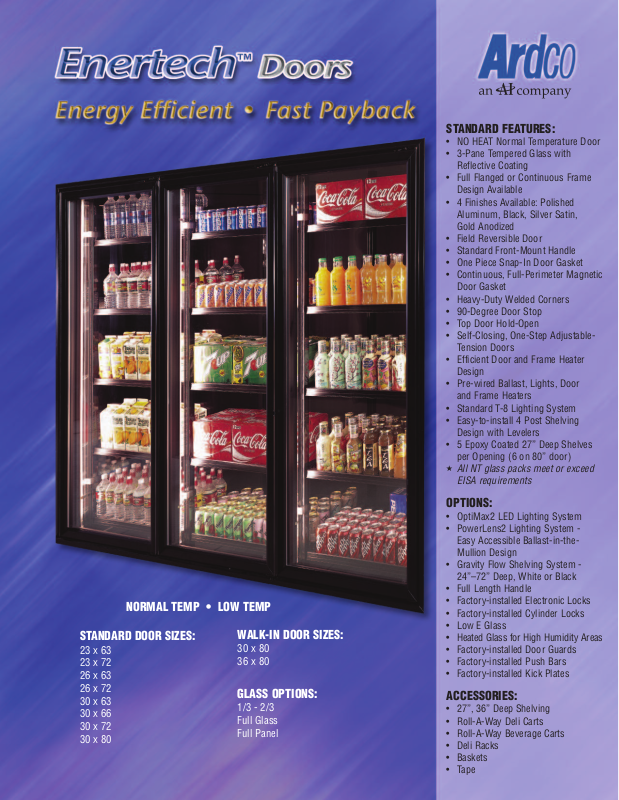

Anthony Enertech User Manual

STANDARD FEATURES:

• NO HEAT Normal Temperature Door

• 3-Pane Tempered Glass with
Reflective Coating

• Full Flanged or Continuous Frame
Design Available

• 4 Finishes Available: Polished
Aluminum, Black, Silver Satin,
Gold Anodized

• Field Reversible Door

• Standard Front-Mount Handle

• One Piece Snap-In Door Gasket

• Continuous, Full-Perimeter Magnetic
Door Gasket

• Heavy-Duty Welded Corners

• 90-Degree Door Stop

• Top Door Hold-Open

• Self-Closing, One-Step Adjustable­Tension Doors

• Efficient Door and Frame Heater
Design

• Pre-wired Ballast, Lights, Door
and Frame Heaters

• Standard T-8 Lighting System

• Easy-to-install 4 Post Shelving
Design with Levelers

• 5 Epoxy Coated 27” Deep Shelves
per Opening (6 on 80” door)

#

All NT glass packs meet or exceed
EISA requirements

NORMAL TEMP • LOW TEMP

STANDARD DOOR SIZES:

23 x 63
23 x 72
26 x 63
26 x 72
30 x 63
30 x 66
30 x 72
30 x 80

WALK-IN DOOR SIZES:

30 x 80
36 x 80

GLASS OPTIONS:

1/3 - 2/3
Full Glass
Full Panel

OPTIONS:

• OptiMax2 LED Lighting System

• PowerLens2 Lighting System ­Easy Accessible Ballast-in-the­Mullion Design

• Gravity Flow Shelving System ­24”–72” Deep, White or Black

• Full Length Handle

• Factory-installed Electronic Locks

• Factory-installed Cylinder Locks

• Low E Glass

• Heated Glass for High Humidity Areas

• Factory-installed Door Guards

• Factory-installed Push Bars

• Factory-installed Kick Plates

ACCESSORIES:

• 27”, 36” Deep Shelving

• Roll-A-Way Deli Carts

• Roll-A-Way Beverage Carts

• Deli Racks

• Baskets

• Tape

ESTIMATED

SHIPPING

Doors 23”* 26”* 30”*

1 2’ 1-1/16” 2’ 3-3/4” 2’ 7-3/4”

2 4’ 3/4” 4’ 6-1/8” 5’ 2-1/8”

3 6’ 1/2” 6’ 8-9/16” 7’ 8-9/16”

4 8’ 3/16” 8’ 10-15/16” 10’ 2-15/16”

WEIGHTS

Size 3-Pane

2363 185 lbs.

2372 210 lbs.

2663 190 lbs.

2672 200 lbs.

3063 210 lbs.

3066 220 lbs.

3072 250 lbs.

3080 270 lbs.

*The above weights (in pounds)
are estimates only. They are on
a per opening basis which
includes doors, frames, shelves,
and shelving hardware. If you
need to estimate weight in
kilograms, simply divide the
weight in pounds by 2.2046.

5 9’ 11-15/16” 11’ 1-3/8” 12’ 9-3/8”

6 12’ 2-9/16” 13’ 6-11/16” 15’ 6-11/16”

7 14’ 2-5/16” 15’ 9-1/8” 18’ 1-1/8”

8 16’ 2” 17’ 11-1/2” 20’ 7-1/2”

9 18’ 1-3/4” 20’ 1-15/16” 23’ 1-15/16”

10 20’ 1-7/16” 22’ 4-5/16” 25’ 8-5/16”

11 22’ 4-1/8” 24’ 9-11/16” 28’ 5-11/16”

12 24’ 3-13/16” 27’ 1/16” 31’ 1/16”

13 26’ 3-9/16” 29’ 2-1/2” 33’ 6-1/2”

14 28’ 3-1/4” 31’ 4-7/8” 36’ 7/8”

15 30’ 3” 33’ 7-5/16” 38’ 7-5/16”

16 32’ 5-5/8” 36’ 5/8” 41’ 4-5/8”

17 34’ 5-3/8” 38’ 3-1/16” 43’ 11-1/16”

18 36’ 5-1/16” 40’ 5-7/16” 46’ 5-7/16”

19 38’ 4-13/16” 42’ 7-7/8” 48’ 11-7/8”
20 40’ 4-1/2” 44’ 10-1/4” 51’ 6-1/4”

Actual Net Opening Heights are 64-13/16", 73-3/4" and 81-3/4".
*Actual Door Widths are 23-1/4" , 25-15/16" and 29-15/16".
Actual Door Heights are 63-1/16", 72" and 80".

Cut Flange line ups available. Consult Factory for Net Openings.
