XM-3000 TriplePlay Multizone Satellite Audio Receiver 3

Thank You!

Thank you for choosing the world’s finest high-fidelity, 3-zon e satellite radio rec eiver. Antex Electronics’ TriplePlay™ uses the revolutionary XM® Satellite Radio technology.

Hardware and required basic monthly subscription sold separately. Premium Channels available at additional monthly cost. Installation costs and other fees and taxes, including a onetime activation fee may apply. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel block in g is available for XM radio receivers by calling 1-800-XMRADIO. Subscriptions subject to Customer Agreement available at xmradio. com. Only available in the 48 contiguous United States. XM® is a registered trademark of XM Satellite Radio Inc. ©2005 XM Satellite Radio Inc. All rights reserved. This unit requires a monthly subscription from XM Satellite Radio. To subscribe, contact XM on the Web at www.xmradio.com 1-800-967-2346).

Over 150 Channels

There’s a world beyond A M and FM. XM Satellite Radio. Over 150 channels of music, news, sports, comedy, talk, and entertainment. Coas t- to-coast coverage. Dig ita l quality sound. Commercial-free music channels.

XM-3000 TriplePlay lets you select from a var iety of commercialfree music channels, 24 hours a day, 7 days a week. Hear today's hits to R&B oldies to classical masterpieces, from authentic country and real bluegrass to cool jazz, hot Latin, reggae, rock, dance, new age and even kid's music. You can relive the music of your memories on the Decades channels which authentically recreate each era—the ‘40s through the ‘90s—from the sound up.

or by phone at 1-800-XM-R A DIO ( or

Pulse and The Weather Channel. Your kids will enjoy TriplePlay, too, with Radio Disn ey, wacky original c ontent, plus programming from partners like Sesame Workshop and the Sesame Street people.

Three Listening Zones

TriplePlay gives you the option to select progr a m m ing for three independent listening zon es and independently control th e operation of the receiver with in each of those zones. With TriplePlay, you ca n listen to the latest Top 10 in your living room, sports in the fa m ily room, and the latest brea king news around the world in your bedroom.

For the most up to date mu s ic a nd entertainment streams , go to

www.xmradio.com

.

Installing TriplePlay

Antex Electronics strongl y re commends that the XM-3000 TriplePlay unit and its antenna be installed by a professional installer. Brief instructions are presented here for reference purposes only.

Parts List

Before installing your XM-3000 TriplePlay, make s ure you have all the parts listed below :

• XM-3000 TriplePlay unit

• Antenna

• Remote control

• Power cord

• RCA audio cables (3)

• SMA to SMB RF Adapter

TriplePlay also gives you instant access to world-class news, sports and talk and entertainment from CNN, BBC World Service, CNBC, ABC News & Talk, Bloomberg News, ESPN, and FOX Sports, E! Entertain m ent, VH1, and Discovery , and 21 dedicated Channels of XM Instant Traffic & Weather powered by Traffic

4 Antex Electronics

Positioning the Antenna

Prior to mounting the antenna or finding a permanent home for your XM-3000 TriplePlay, you first want to validate the position of the antenna.

1. Power on TriplePlay to m ake sure the unit h a s pow er. You should see a startup screen with Antex and XM logos,

followed by the main dis play (similar to that shown Figure on page 6).

2. Power off TriplePlay, and then c onn ec t the audio cables, IR, and RS232 control interfaces to the other components in your audio system.

3. Align the Antenn a as f ollows:

For Indoor installation on a flat surface:

a) Set antenna on its base on a flat horizontal surface. b) Turn the base of the antenna so that the XM logo is

facing to the south if you are in the eastern half of the U.S. and to the south/southeast if you are in the western half.

c) Use the “Signal Strength” screen, as des c ribed on page

12, to optimize antenna tilt angle and position.

d) If necessary, experiment with different locations near a

south-facing window or outside.

For outdoor installation or indoor wall mounting:

The antenna can als o be a tta ched vertically to an external or internal wall if tha t is mor e convenient than pla c ing it on a horizontal surface.

a) Holding your antenna up, find a wall location that

ensures a strong signal. b) Attach antenna to the wall using four screws . c) Tilt the antenna fully back on th e ba se, place the

antenna base on the four screw heads with the antenna

pivot at the top, and pull down approximately 1/4 inch

until the base is firmly secured. Note that the XM logo

will be upside down when the antenna is properly

installed. d) Tilt the antenna awa y from the wall/base until the signal

strength is optimized. Your antenna comes with 20 feet of c a ble. If that is not

sufficient to locate the antenna wher e there is a strong XM signal, purchase a 50- foot cable extension kit. Up to two extensions can be u s ed together for up to 120 total feet of cable. Alternatively, custom lengths of 50 ohm RG58U may be used or extension kits available from third party sources.

4. Power on your soun d system and turn the amplifier to a low volume.

5. Power on TriplePlay a nd tune to channel 1, a fr ee pr eview channel. Press 0-0- 1 on the front panel NUMERIC buttons.

If the system is working, you will hear XM programming on this channel and can proceed to S tep 6.

If there is a problem with the antenna connection, the TriplePlay’s front panel display w ill r ea d “Check Antenn a .” If the antenna does not have a clear path to the satellites, the front panel display will read “No Signa l”. Reposition the antenna until you hear music playing.

6. Finish installing T r iplePlay. a) House TriplePlay in its permanent location. Follow the

instructions in the section, “Hous ing TriplePlay” below.

b) Activate the unit follow ing the “Activating TriplePlay”

instructions.

XM-3000 TriplePlay Multizone Satellite Audio Receiver 5

XM-3000 TriplePlay

Housing TriplePlay

House the TriplePlay unit in a component rac k or other suitable location that provides adequate ven tilation. The maximum

ambient temperature should never exceed 120 degrees Fahrenheit.

After mounting the a ntenna, connect the a udio cables (or optional TOSLINK), IR, and RS232 c ontrol interfaces to the other components in the sys tem. Turn the volume control of a mplifiers to a low level, then con nect the power cable to the T r iplePlay unit and power it on. A startup screen with An tex and XM logos will appear briefly, followed by the default dis pla y (see Figure on page 6).

Tune to channel 1, a free preview c hannel, by pressing 0-0-1 on the front panel NUM ERIC buttons. If the s ystem is working, you will hear XM programming a nd can proceed to activating the unit. If the front panel display reads “No Signal” or “Check Antenna,” reposition the antenna until you hear music playing.

Activating TriplePlay

After the channel 1 verification test, you must activate your XM3000 TriplePlay to access all XM channels. To do so you must first obtain the XM ID numbers of your unit; one I D for each of the three independent tuners (hereafter referred to as “zones”).

Follow the instru c tions below to obtain the XM ID numbers and activate your XM r adio service. An alternate m ethod if you are already familiar with operation of the unit is to tune each of th e three zones to channel 0.

1. Press and HOLD the POWER button for four (4) seconds to access the SETUP menu, as shown below.

XM-3000 TriplePlay SETUP

ADD OR SK IP

ADD OR SK IP PARENTAL CONTROL

PARENTAL CONTROL XM-3000 ID NUMBERS

XM-3000 ID NUMBERS SIGNAL STRENGTH

SIGNAL STRENGTH

RETURN

2. Press the CHANNE L down button to scroll to “XM -3000 ID NUMBERS,” an d then press the SELECT button. The XM ID NUMBERS screen, like th e one shown below, appears.

XM-3000 ID NUMBERS

ZONE 1: C6F24DM8

ZONE 1: C6F24DM8 ZONE 2: CVE54OVC

ZONE 2: CVE54OVC ZONE 3: 12B54O4T

ZONE 3: 12B54O4T

Press SEL to Return

3. Record the 8 character ID for each zone in the s pac e below, noting that letters I, O, S and F are not used and that the number zero has a lin e r unning diagonally through it.

ZONE 1 ID: _________________________ ZONE 2 ID: _________________________ ZONE 3 ID: _________________________

4. Press the SELECT button to return to the defau lt display.

5. Activate your XM r a dio s e r vice by calling XM at 1-800-XMRADIO (1-800-967-2346). A friendly listener care representative will a ssist you in activating your unit.

XM-3000 TriplePlay

XM3 V6. 10.109

6 Antex Electronics

Customers shou ld have their Radio ID ready; the Radio ID can be found by selecting channel 0 on the radio.

Operating TriplePlay

XM-3000 TriplePlay pr ovides intuitive contr ol of its various functions via its front panel buttons as shown in Figure 2 on the next page, the remote control, i ts hardwired IR, and the RS232 port (for local and remote operation). TriplePlay is essentially three completely independent XM satellite tuners—that is “zones”—each of which can be tuned independently so that different audio channels play in different rooms.

Within each zone you can:

• Change channels and music categories

• Punch in a channel number to tune to it directly

• Set and tune to preset chann els—10 in each zone.

You can also use the SETUP menu to block specific channels, as well as add and skip ch an nels . Instructions f or a ll these features are provided in this s ection.

Default Display

The default display, as shown below, provides information about the channel each zone is currently tuned to, including category name, channel number, channel name, artist name, and song title.

Highlighting indicates

which zone is selected

Zone 1

Nashville!

Nashville! George Strait

George Strait

011

Zone 2

067

Zone 3

020

Figure 1 Highlighting indicates which zone is selected.

Channel

number

George Strait I Hate Everything

I Hate Everything

The City CAT

The City CAT Missy

Missy

Missy Work It

Work It

Top 20 on 20

Top 20 on 20 Nelly

Nelly

Nelly My Place

My Place

Category name

Country

CountryCountry

Urban

UrbanUrban

Hits

Channel name

Channel name Artist name

Artist name Song title

Song title

Channel tuning

Channel tuning mode

mode

XM-3000 TriplePlay Multizone Satellite Audio Receiver 7

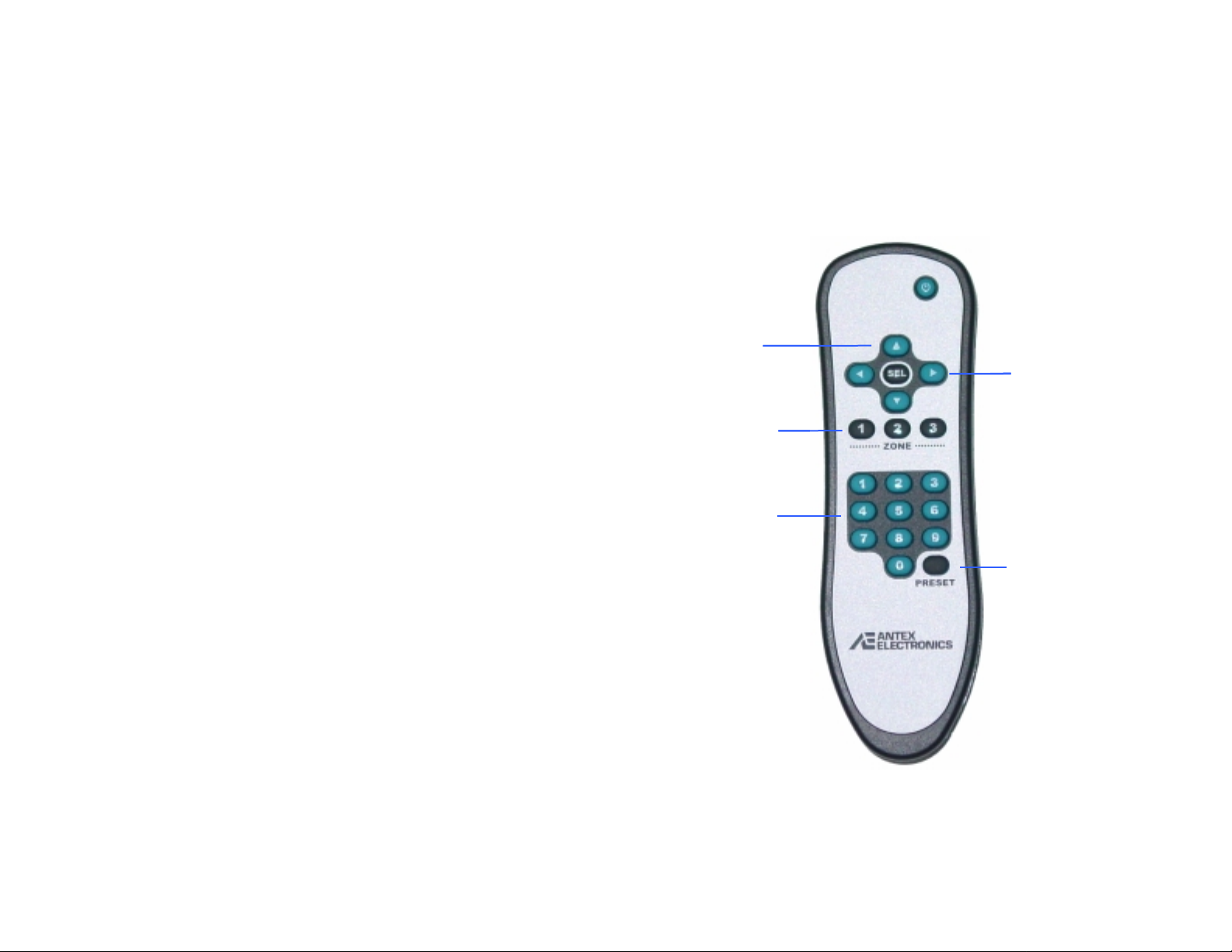

POWER

Press to

power the

unit on/off.

Hold to enter

the SETUP

menu.

CATEGORY

Tune to specific audio categories

such as Country, Rock, Hits,

Decades, Jazz, News, and more.

PRESET

Press before

selecting a NUMERIC

button to tune to a

preset channel.

Hold before selecting

a NUMERIC button to

set a preset channel.

Display

CHANNEL

Tune to

Tune to specific

specific

channels.

Display

Channel, category, artist and song

title information for each zone.

Displays configuration screens

when in the SETUP menu.

ZONE

Press to switch

Press to switch the display to

the display to another zone.

another zone.

SELECT

Completes/confirms operations. Press

Completes/confirms operations. Press SELECT after turning to a

SELECT after turning to a category/channel for the selection to

category/channel for the selection to take effect. Press SELECT only to

take effect. Press SELECT only to toggle in and out of “Category” mode.

toggle in and out of “Category” mode.

NUMERIC BUTTONS

Tune directly to specific channels

Tune directly to specific channels (punch in the channel number,

(punch in the channel number, then press SELECT) and to preset

then press SELECT) and to preset channels (10 per zone).

channels (10 per zone).

Figure 2 TriplePlay buttons and multi-zone display.

8 Antex Electronics

Powering On TriplePlay

With the unit and antenna properly installe d, and the unit activated, press and r elea se the POWER button to turn on the unit. The XM and Antex logos will appear for 2 s econds, followed by the default display. (If th e SETUP menu appears, you held the POWER button too lon g . Press the SELECT button to return to the default display).

When the unit is in Channel mode you can scroll through and select any channel in the entire XM lineup regar dless of what category the channel belongs to by pressing the CHAN Up/Down buttons on the front of the unit. Channel mode is the default mode at power up. The second mode supported is the Category mode. When you switch to Category mode the CHAN Up/Down buttons scroll throu gh only the channe ls within the currently selected category of music. This is particularly useful when, for example, you just want to listen to and scroll through news channels only.

Changing Zones

The ZONE button is used to select the zone in which you want to change categories or channels. Press the ZONE button to cycle through the three zones in sequence. A highlighted zone in the default display (for exampl e, zone 1 in Figure 1) is the one to which any channel and category changes are applied.

The zones corresponding to audio outputs 1, 2, and 3 are numbered from top to bottom. As shown in Figure 1, zone 1 is at the top of the display, z one 2 in the middle, and zone 3 at the bottom.

Changing Categories

The audio channels of the XM service are conveniently organized into categories such as Hits, Rock, News, Sports, etc. The category of each zone is displayed in the tit le box of each zone. Press the CATEGORY up/down buttons to tune to a different category, and then pr es s the SELECT button to confirm the category selection . Note that the category n a m e, channel name, artist name, and song title information in the display changes to reflect the new category.

Changing Tuning Mode

TriplePlay supports two modes of channel tuning: Channel mode (default) and Category mode. These modes affect the how the CHAN Up/Down buttons function on the unit or remote control.

To switch between the two tuning modes, press the SELECT button. By default the unit is in Channel mode. When you press the SELECT button, the unit changes to Categor y mode. Category mode is indicated on th e display by the abbreviation “CAT” on line 2 of the front panel display, as s hown in Figure 1 on page 6. Press SELECT again to return to Normal mode. Note that you must press the SELECT button in isolation to change the tuning mode. Do not press any other channel or category buttons before pressing SELECT.

Changing Channels

You can change music channels in either Channel or Category mode using any of the follow ing:

• Channel up/down to scroll through channels

• Numbered buttons to tu ne directly to a specific channel

• Preset button to tune to a pres et c hannel

Use the CHANNEL up/down buttons to scroll th rough the channels within a zone and/or category. S imply scroll to the channel you desire, and then press the SELECT button to confirm the channel selection. You will notice that the channel name, artist name, and song title information in the display changes to reflect the new channel. Note that you must pr es s the SELECT button within four seconds of choosing a new channel or the channel change does not take effect.

You can also tune to a specific channel directly simply by entering its channel number using the NUMERIC buttons.

XM-3000 TriplePlay Multizone Satellite Audio Receiver 9

• When you enter a three-digit channel number, such as 1-5-5, TriplePlay automatically changes to that channel.

• When you enter a two-digit ch annel number, such as 1-8, you must then press the SELECT button for the channel change to take effect. (If you enter the channel number as 0-1-8, TriplePlay will ma ke the change automatical ly.)

When preset channels have been set, you can access those presets simply by pressing th e PRESET button, then an appropriate numeric button. For example, if preset 0 were set to Rock, preset 1 to Hits, and preset 2 to News, you could jump to the News channel quickly by pressing “ P R ES ET-2.” To return to Channel mode, simply press the SELECT button once and navigate normally to any desired channel in the line up.

Setting and Recalling Presets

Each zone can have 10 channel presets (numbered 0 to 9). To assign a preset for the selected zone, first tune to a desired audio channel. Press and hold the P R ESET button for one second, followed by a numeric button. For example, if you want to set channel 44 to prese t 9, press and hold the PRESET button for one second, then press the numeric button “9.” Note that the title bar display changes to “PRESET” to let you know that TriplePlay is ready to assign a preset channel.

To recall a stored preset, press (but don’t hold) the PRESET button and then the des ir ed numeric button (0-9). On c e the desired preset has been entered the u s er must press the SELECT button once to retu r n to Channel mode operat ion.

Entering SETUP Mode

To enter the SETUP m ode, pr es s a nd hold the POWER button for four seconds. The menu shown in Figure 3 appears.

Note that in SETUP m ode, the CHANNEL up/down buttons are used to scroll though the menu options and th e SELECT button is used to confirm selections.

XM-3000 TriplePlay

XM-3000 TriplePlay SETUP

ADD OR SK IP

ADD OR SK IP PARENTAL CONTROL

PARENTAL CONTROL XM-3000 ID NUMBERS

XM-3000 ID NUMBERS SIGNAL STRENGTH

SIGNAL STRENGTH

RETURN

Figure 3 SETUP mode menu.

Blocking Channels

Using the Parental Control feature, you can block specific channels so that they can be accessed only with a pass code that you define. Parents find this feature useful for preventing their children access to specific content.

Configuring Options

TriplePlay's SETU P mode allows you to configu r e TriplePlay options (blocking, skipping, and adding channels) and obtain the unit’s XM ID numbers for activation.

To block a channel:

1. Press and hold the POWE R bu tton to enter SETUP mode.

2. Press the CHANNEL down button to highlight “PARENTAL CONTROL,” and then press the SELECT bu tton. A screen similar to that shown below appears.

10 Antex Electronics

ENTER PASSWORD

Press SEL to Accept

PRESET to Exit

“XXXX” will appear f or the password. You must se t a password (if this is the first time at this menu) or enter a previously set password to proceed. Be careful to use a familiar number. W r ite this number down for fu ture reference.

Pass code: _________________________

3. Enter 4 digits with the n ume r ic buttons or remote, a nd then press SELECT. (To ex it this menu without setting or entering the password and return to the previous menu, press the PRESET button.)

After you have entered the password successfully, the following menu will appea r. Note that you can c hange the password by repeating steps 1 through 3.

PARENTAL CONTROL

CHANGE PASSWORD

CHANGE PASSWORD BLOCK CHANNELS

BLOCK CHANNELS

RETURN

XXXX

XM-3000 TriplePlay

4. Scroll to highlight “BLOCK CHANNELS”, and then press the SELECT button. A menu similar to that shown below appears.

— Use the CHANNEL up/down buttons to scroll to the

channel you want to block.

— Use the CATEGORY left/r ight buttons to toggle the status

between blocked “BLKd” or u nblocked “NRML”.

5. Block (or unblock) as many channels as you choose. When finished, press th e S ELECT button to return to th e default display.

XM-3000 TriplePlay

PARENTAL CONTROL

ZONE 1

70 Real Jazz BLKd

Press SEL to Return

Press SEL to Return UP/DN to select Channe l

UP/DN to select Channe l LF/RT to ch an ge Sta tu s

LF/RT to ch an ge Sta tu s Zone to change Zone

Zone to change Zone

XM-3000 TriplePlay

Skipping Channels

In the course of using TriplePlay you may find that there are specific chann els you prefer not to listen to and would rather skip over. Using TriplePla y’s SKIP feature, you c an program the unit to skip over these c hannels when scr olling using the CHANNEL up/down buttons or remote control. (Note that you can still access the “ skipped” channels us ing the direct tune method.)

To configure a channel to be skipped when scrollin g:

1. Press and hold the POWE R bu tton to enter SETUP mode.

2. Press the CHANNEL down button to highlight “A DD O R SKIP,” and then press the SELECT button. A sc r een similar to that shown on the next page appears.

XM-3000 TriplePlay Multizone Satellite Audio Receiver 11

XM-3000 TriplePlay

— Use the CHANNEL up/down buttons to scroll to the

channel you want to skip (or add back a currently skipped channel).

— Use the CATEGORY left/r ight buttons to toggle the status

between skipped “SKPd” or not skipped “NRML”.

XM-3000 TriplePlay

ADD and SKIP

ZONE 1

70 Real Jazz SKPd

Press SEL to Return

Press SEL to Return UP/DN to select Channe l

UP/DN to select Channe l LF/RT to change Status

LF/RT to change Status Zone to change Zone

Zone to change Zone

3. Add and Skip as many channels as you prefer. When finished, press th e S ELECT button to return to th e default display.

Displaying XM ID Numbers

After initial activation it is unlikely that you will need to access the XM ID numbers again. If you do, please follow the instructions below.

XM-3000 ID NUMBERS

ZONE 1: C6F24DM8

ZONE 1: C6F24DM8 ZONE 2: CVE54OVC

ZONE 2: CVE54OVC ZONE 3: 12B54O4T

ZONE 3: 12B54O4T

Press SEL to Return

3. Press the SELECT button to return to the defau lt display.

Displaying Signal Strength

To assist in the ins ta lla tion of the unit, a n accurate measure of the received signal strength of both XM satellites and the Terrestrial signal may be displayed in bar graph form. To access this display, please follow the instructions below.

1. Press and hold the POWE R bu tton to enter SETUP mode.

2. Press the CHANNE L down button to highlight “Signal Strength,” an d then press the SELECT button. A screen similar to that shown below appears.

XM-3000 TriplePlay

XM3 V6. 10.10 9

XM-3000 TriplePlay

1. Press and hold the POWE R bu tton to enter SETUP mode.

2. Press the CHANNE L down button to highlight “XM ID NUMBERS,” and then press the SELECT button. A s c reen similar to that shown below appears.

SIGNAL STRENGTH

SAT1: EXCEL

SAT1: EXCEL SAT2: GOOD

SAT2: GOOD

SAT2: GOOD TER : NOSIG

TER : NOSIG

Press SEL to Return

12 Antex Electronics

3. The signal strength for each source is indicated a bar graph (a larger bar is better). In addition, a one word summary of the signal strength of each of the 3 sources appears to the right of the display. T he antenna should be positioned to simultaneously maximize all three signal sources to the best extent possible. Note that non-urban areas may have no Terrestrial signal and that both satellites requ ire an unobstructed southern sky view - SAT1 is stationed over the eastern United States, SAT2 is stationed over the western United States.

4. When finished, pres s the SELECT button to return to the default display.

Using the Remote Control

TriplePlay’s remote control provides iden tical functionality to the buttons on the front panel.

CATEGORY

CHANNEL

(UP/DOWN)

Tune to

Tune to specific

specific

channels.

ZONE

Press number to

select specific

zone.

NUMERIC

Tune directly to

specific channels

(punch in the

channel number,

then press SEL)

and to tune to

preset channels

(10 per zone).

CATEGORY

(LEFT/RIGHT)

Tune to

specific audio

Antex Electronics XM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
