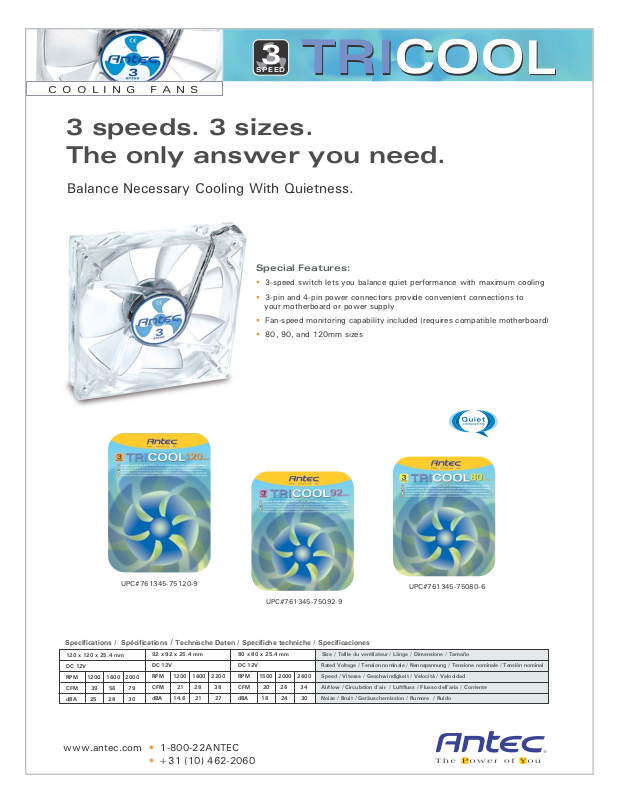

Antec TriCool 120, TriCool 80, TriCool 92 User Manual

3

SPEED

COOLING FANS

3 speeds. 3 sizes.
The only answer you need.

Balance Necessary Cooling With Quietness.

Special Features:

• 3-speed switch lets you balance quiet performance with maximum cooling

• 3-pin and 4-pin power connectors provide convenient connections to

your motherboard or power supply

• Fan-speed monitoring capability included (requires compatible motherboard)

• 80, 90, and 120mm sizes

TRICOOL

TRICOOL

UPC#761345-75120-9

UPC#761345-75092-9

Specifications / Spécifications / Technische Daten / Specifiche techniche / Specificaciones

120 x 120 x 25.4 mm

DC 12V

RPM 1200 1600 2000

CFM

39 56 79

dBA 25 28 30

www.antec.com • 1-800-22ANTEC

• [phone]

92 x 92 x 25.4 mm

DC 12V

RPM 1200 1600 2200

CFM

21 28 38

dBA 14.6 21 27

80 x 80 x 25.4 mm Size / Tallie du ventilateur / Länge / Dimensione / Tamaño

DC 12V Rated Voltage / Tension nominale / Nennspannung / Tensione nominale / Tensión nominal

RPM 1500 2000 2600 Speed / Vitesse / Geschwindigkeit / Velocità / Velocidad

CFM 20 26 34

dBA 18 24 30

Airflow / Circulation d'air / Luftfluss / Flusso dell'aria / Corriente

Noise / Bruit / Geräuschemission / Rumore / Ruido

UPC#761345-75080-6
