Antai Pitched Roof Solution Installation Manual
Always be your solar support
www.antaisolar
.com
ANTAI Installation Manual
Pitched Roof Solution
(Solar mounting system)
Pitched roof mount installation manual – Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 1
CONTENTS
General Introduction………………………………………………………………………………………………………………………2
Technical Specification………………………………………………………………………………………………………………… 3
Safety and Installer Responsibilities…………………………………………………………………………………………4

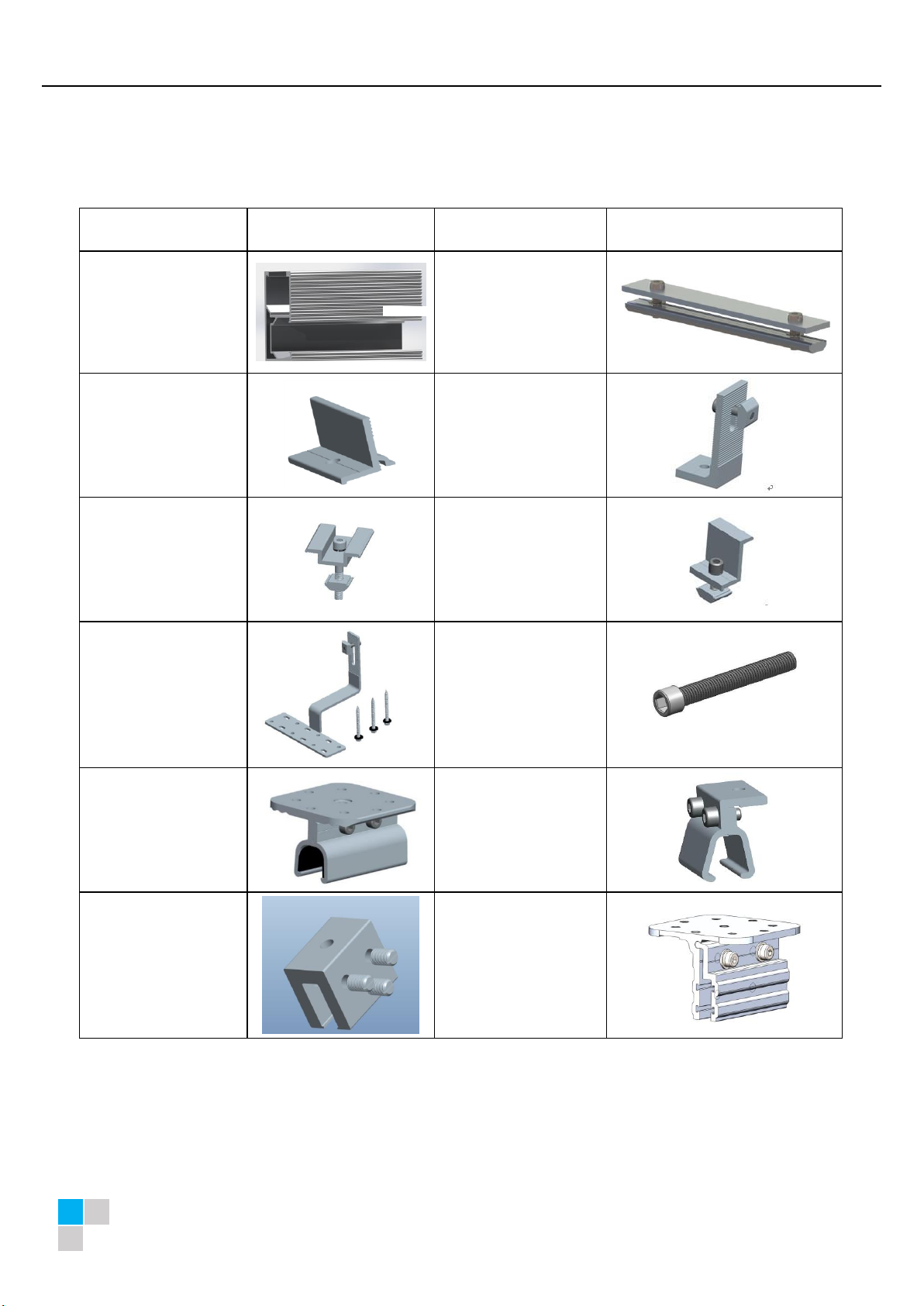

Components List……………………………………………………………………………………………………………………………5
Before Installing……………………………………………………………………………………………………………………………6
Receipt of Goods……………………………………………………………………………………………………………………………6

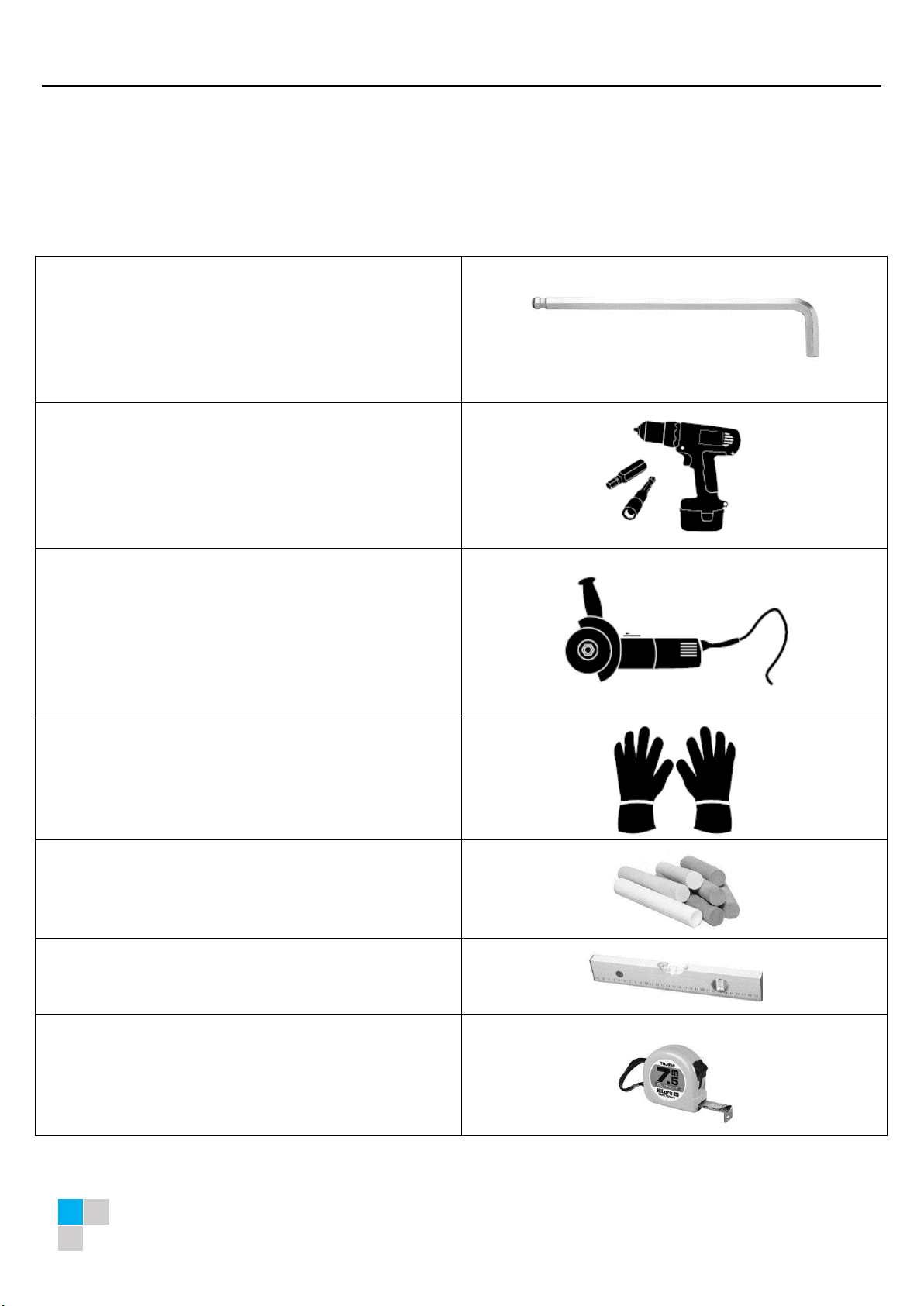

Tools Required for Installation………………………………………………………………………………………………………6
Installation Planning……………………………………………………………………………………………………………………7
Determining Wind Terrain Category……………………………………………………………………………………………7
Determining Wind Region………………………………………………………………………………………………………………8
Planning the Module Area………………………………………………………………………………………………………………9
Determine the Height of The Installation Site……………………………………………………………………………10
Verify Acceptable Rail End Overhang…………………………………………………………………………………………10
Verify Acceptable Rail End Overhang…………………………………………………………………………………………..10
Determine Roof Slope……………………………………………………………………………………………………………………10
Determine the Maximum Rail Support Spacing…………………………………………………………………………..10

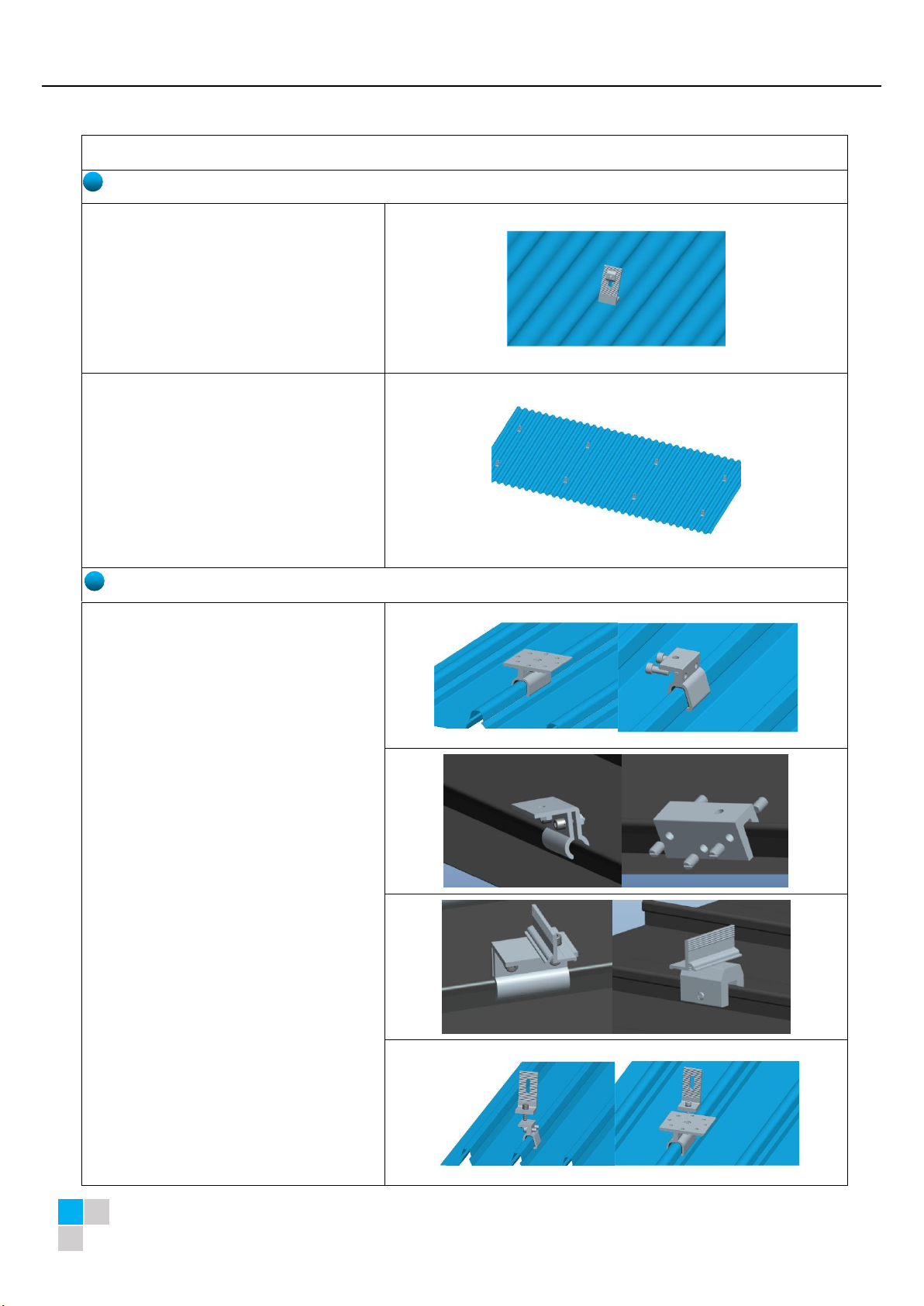

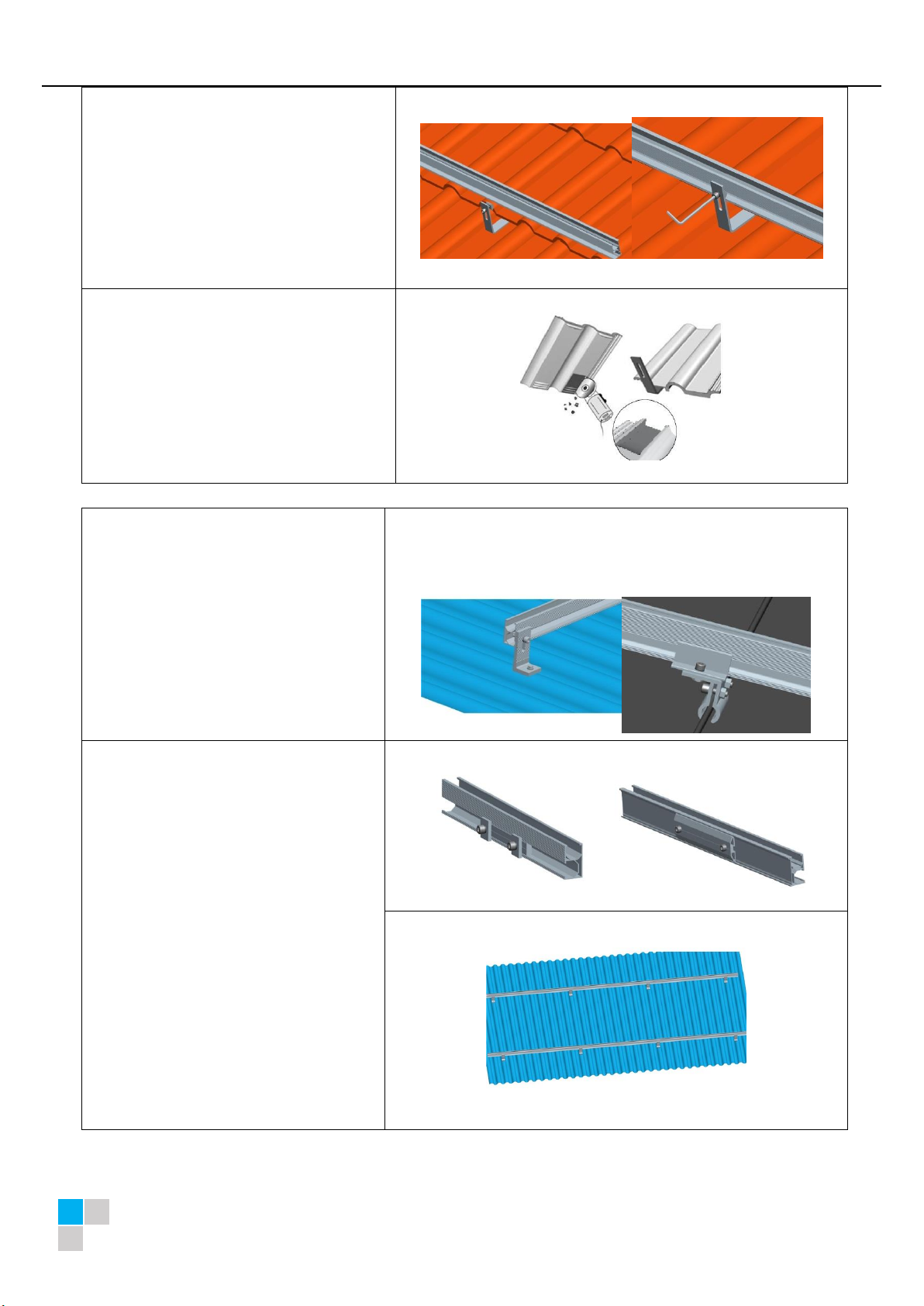

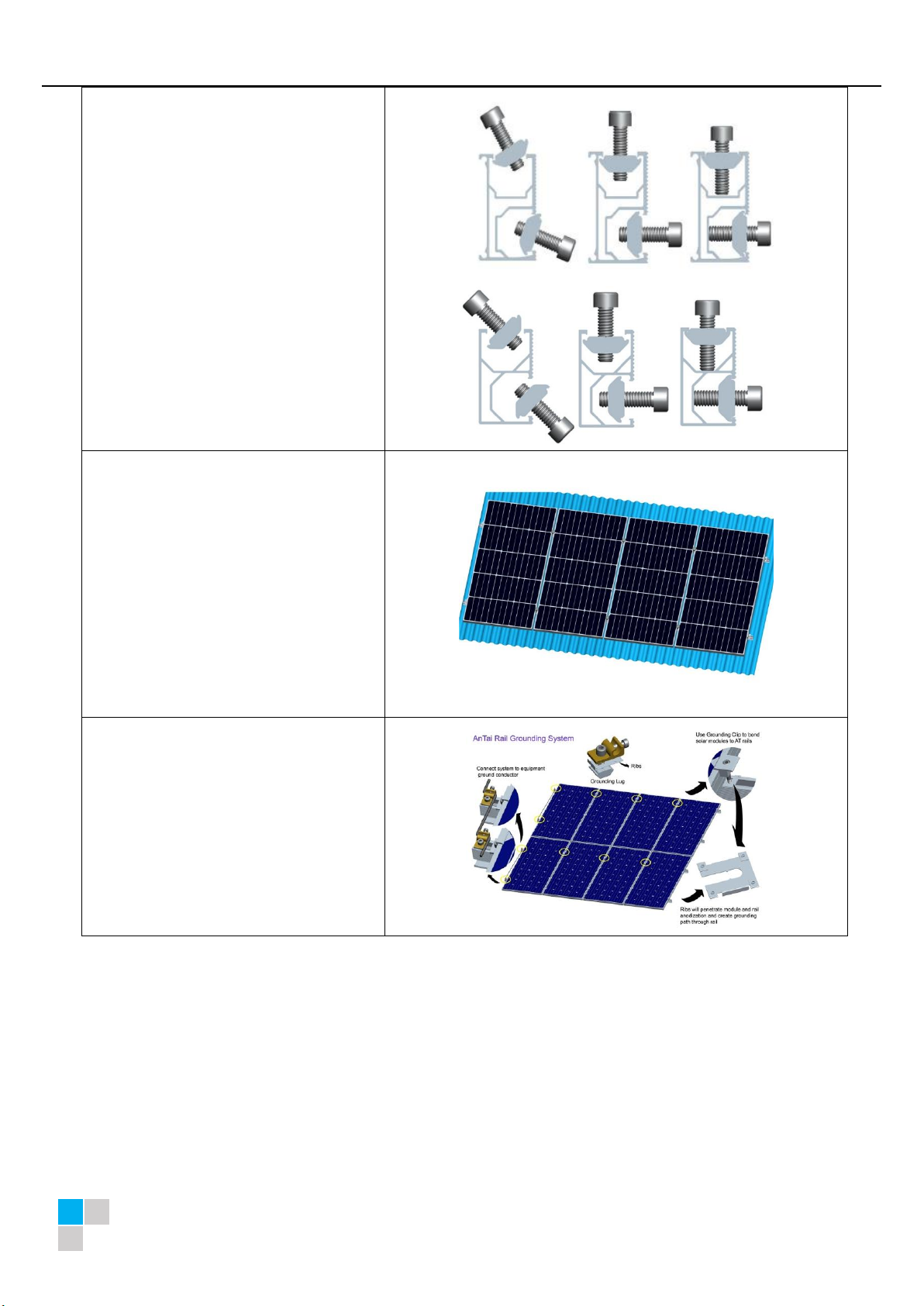

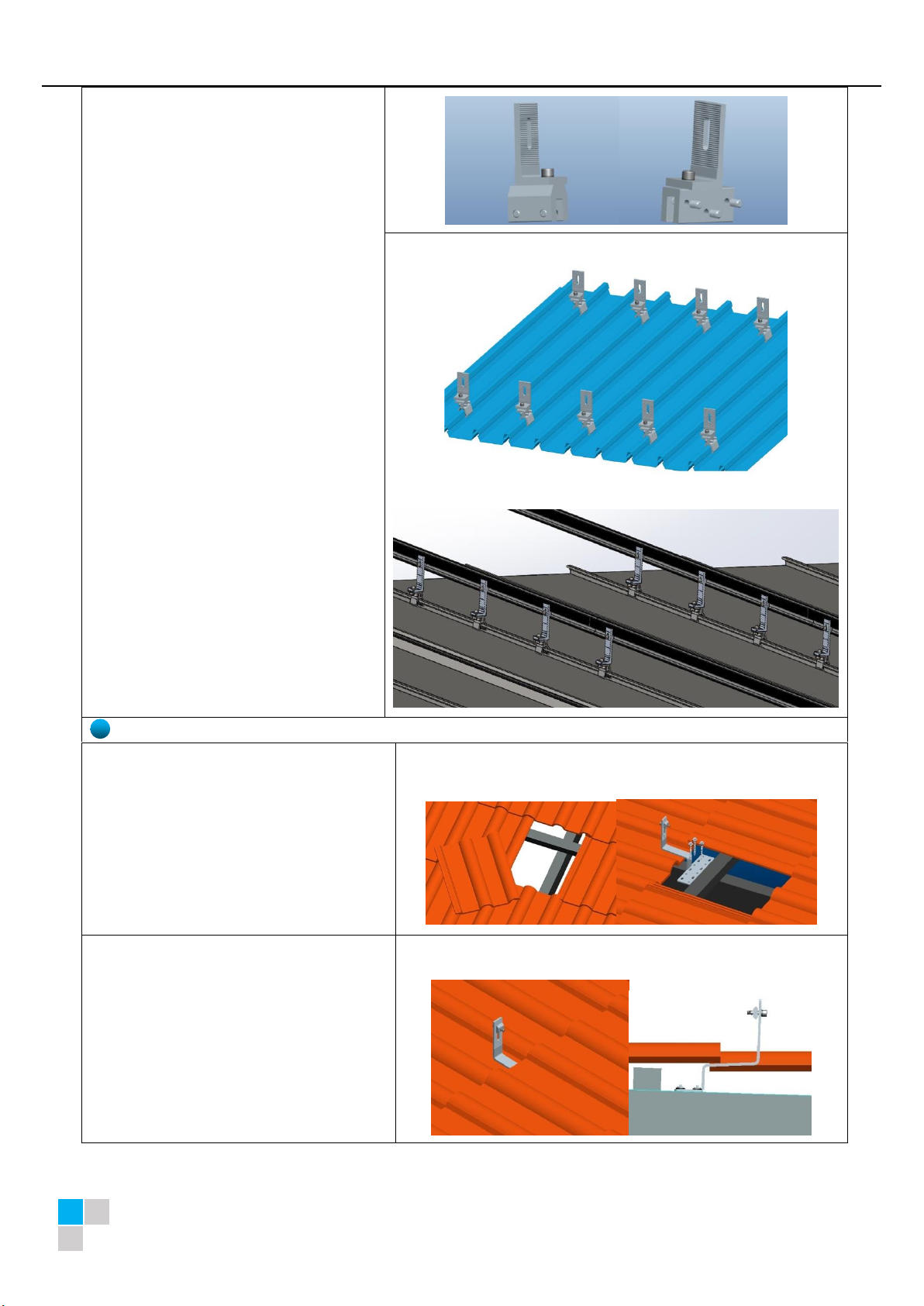

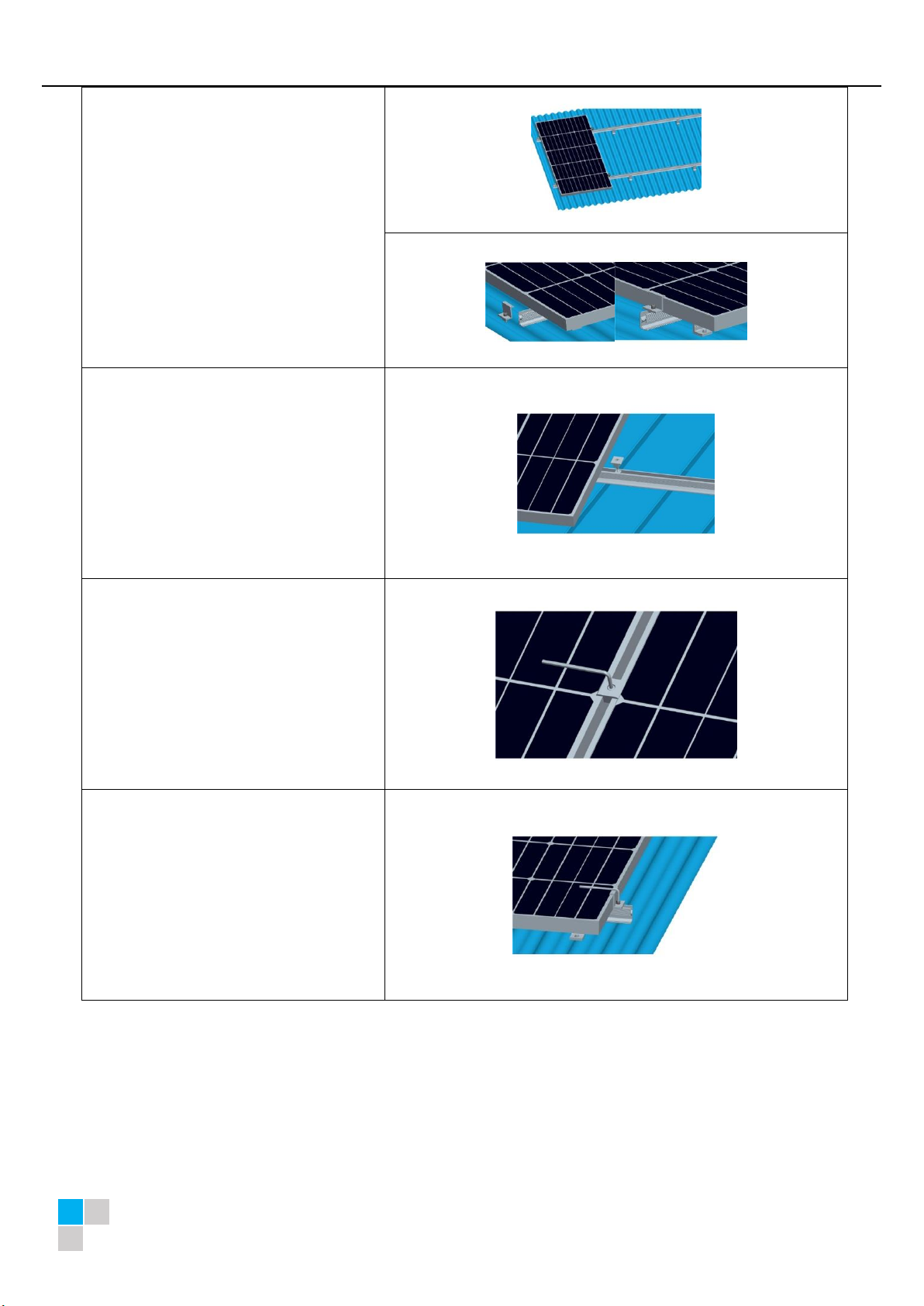

Installation Instruction………………………………………………………………………………………………………………..10
Warranty………………………………………………………………………………………………………………………………………….15
Maintenance and Cleaning…………………………………………………………………………………………………………..18
References……………………………………………………………………………………………………………………………………….18
Contact Details……………………………………………………………………………………………………………………………….18
Appendixes………………………………………………………………………………………………………………………………………18
Pitched roof mount installation manual – Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 2
GENERAL INTRODUCTION
ANTAISOLAR Roof Mounted solutions, accommodating a wide range of modules, are suitable for most
types of roofs. With innovative ANTAISOLAR Rail and T module, ANTAISOLAR Roof Mount enables
significantly faster, easier installations, which have been developed into one of the most versatile
mounting solutions in the world, delivering time and cost-effective experience to solar system
installers.
Rail II Rail III
Rail IV
Easy to be installed
ANTAISOLAR features series of highly engineered new innovative product, designed with experienced
engineers to the speed of installation.
ANTAISOLAR pitched roof solar mounting system is backed by a 10-year warranty and is compliant
with AS/NZS1170.2.2011(R2016)
Benefits of ANTAISOLAR/ANTAI Pitched Roof Mounting System
● Easy Installation
● Diversified Application
● High Accuracy
● Choice Quality
● Engineered to highest standards
● Maximum Lifespan
● Guaranteed durability
Pitched roof mount installation manual – Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 3
TECHNICAL SPECIFICATIONS
Applications
⚫ Commercial and residential buildings
⚫ Marine applications and remote areas
Features
⚫ Anodized 6005-T6 aluminum extrusion
⚫ Innovated designed of the Tilt-in modules, which can be pre-assembly with the clamp, make the
installation easy and quick.
⚫ Suitable for difference conditions and the most solar panels at present market.
⚫ Significantly higher strength-to-weight ratio than other framing products, providing improved
efficiency due to greater frame spans, inherent corrosion resistance resulting in low ongoing
maintenance and an extended product life.
⚫ Complies with Australian/New Zealand Standard on Wind Actions, AS/NZS1170.2.2011(R2016)
⚫ 10 years limited warranty backed up by parent company Antai Aluminum
Material
Material
Tensile strength
Tensile
Yield
6005 T6 aluminum
extruded
≥260Mpa
≥225Mpa
Stainless steel 304
625.55Mpa
263.8Mpa
Stainless steel A2-70
700MPa
450Mpa
Installation condition
Roof slope
Up to 60°
Building height
Up to 20m
Mounting structure
Timber/ steel
Roof types
Tile/Tin/Klip-Lok® roof
System angle
Flush with roof
Note: If the condition is beyond the table list, please contact us to confirm
