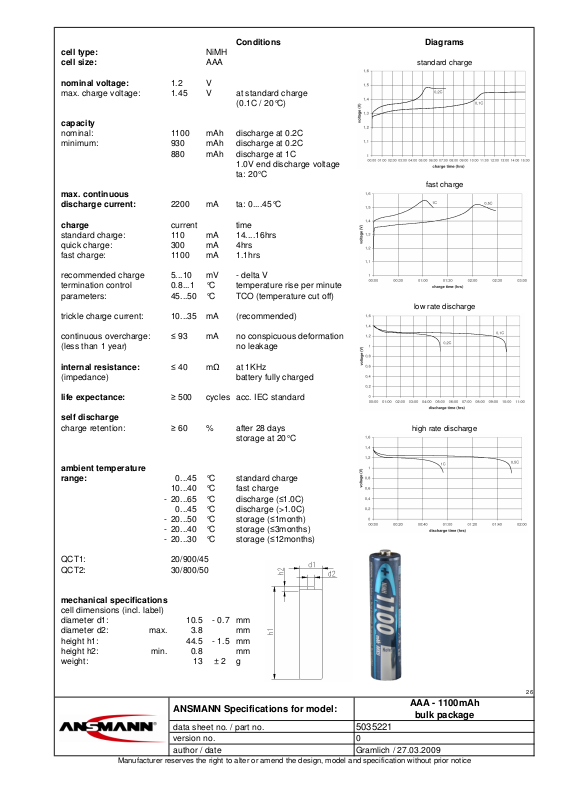

Page 1
Conditions
cell type:
NiMH
cell size:
AAA
nominal voltage:
1.2
V
max. charge voltage:
1.45Vat standard charge
(0.1C / 20°C)
capacity
nominal:
1100
mAh
discharge at 0.2C
minimum:
930
mAh
discharge at 0.2C
880
mAh
discharge at 1C
1.0V end discharge voltage
ta: 20°C
max. continuous
discharge current:
2200
mA
ta: 0....45°C
charge
current
time
standard charge:
110mA14....16hrs
quick charge:
300mA4hrs
fast charge:
1100
mA
1.1hrs
recommended charge
5...10
mV
- delta V
termination control
0.8...1
°C
temperature rise per minute
parameters:
45...50
°C
TCO (temperature cut off)
trickle charge current:
10...35
mA
(recommended)
continuous overcharge:
≤ 93mAno conspicuous deformation
(less than 1 year)
no leakage
internal resistance:
≤ 40mΩ
at 1KHz
(impedance)
battery fully charged
life expectance:
≥ 500
cycles
acc. IEC standard
self discharge
charge retention:
≥ 60%after 28 days
storage at 20°C
ambient temperature
range:
0...45
°C
standard charge
10...40
°C
fast charge
-
20...65
°C
discharge (
≤1.0C)
0...45
°C
discharge (>1.0C)
-
20...50
°C
storage (
≤1month)
-
20...40
°C
storage (
≤3months)
-
20...30
°C
storage (
≤12months)
QCT1:
20/900/45
QCT2:
30/800/50
mechanical specifications
cell dimensions (incl. label)
diameter d1:
10.5
- 0.7
mm
diameter d2:
max.
3.8
mm
height h1:
44.5
- 1.5
mm
height h2:
min.
0.8
mm
weight:
13
± 2
g
AAA - 1100mAh
Diagrams
standard charge
fast charge
low rate discharge
high rate discharge
26
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
data sheet no. / part no.
version no.
author / date
bulk package
5035221
0
Gramlich / 27.03.2009
