Conditions
cell type:
NiMH
cell size:
E-block
nominal voltage:
8.4
V
max. charge voltage:
10.5Vat standard charge
(0.1C / 20°C)
capacity
nominal:
300
mAh
discharge at 0.2C
minimum:
270
mAh
discharge at 0.2C
240
mAh
discharge at 1C
7.0V end discharge voltage
ta: 20°C
max. continuous
discharge current:
400mAta: 0....45°C
charge
current
time
standard charge:
30mA14....16hrs
quick charge:
85mA4hrs
fast charge:
300mA1.1hrs
recommended charge
15....35
mV
- delta V
termination control
120%of nominal input
parameters:
by timer cut off
trickle charge current:
2...15
mA
(recommended)
continuous overcharge:
≤ 30mAno conspicuous deformation
(less than 1 year)
no leakage
internal resistance:
≤ 0.8
Ω
at 1KHz
(impedance)
battery fully charged
life expectance:
≥ 500
cycles
acc. IEC standard
self discharge
charge retention:
≥ 85%after 6 months storage
(at
≤ 20°C ambient)
≥ 80%after 12 months storage
initial capacity:
≥200
mAh
within 30 days after delivery
discharge at 0.2C
ambient temperature
range:
0...45
°C
standard charge
10...40
°C
fast charge
0...45
°C
discharge (
≥1C)
-
20...65
°C
discharge (<1C)
-
20...50
°C
storage (
≤3months)
-
20...40
°C
storage (
≤6months)
-
20...30
°C
storage (
≤24months)
QCT1:
20/260/750
QCT2:
30/240/800
mechanical specifications
cell dimensions (incl. label)
Length L1:
26.5
- 2.0
mm
Length L2:
17.5
- 2.0
mm
Length L3:
12.7
± 0.25
mm
height h1:
48.5
- 1.0
mm
weight:
45
± 4
g
blister card dimensions:
123
x 85
mm
blister card weight (incl. battery):
53
g
Diagrams
standard charge
9V-E-block 300mAh low self discharge
fast charge
low rate discharge
high rate discharge
27

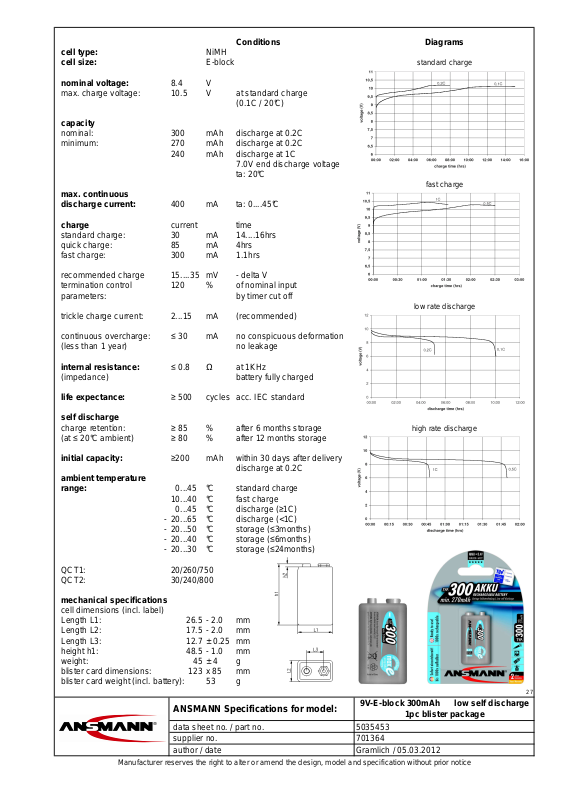

ANSMANN Specifications for model:
data sheet no. / part no.
supplier no.
author / date
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
1pc blister package
5035453
701364
Gramlich / 05.03.2012
