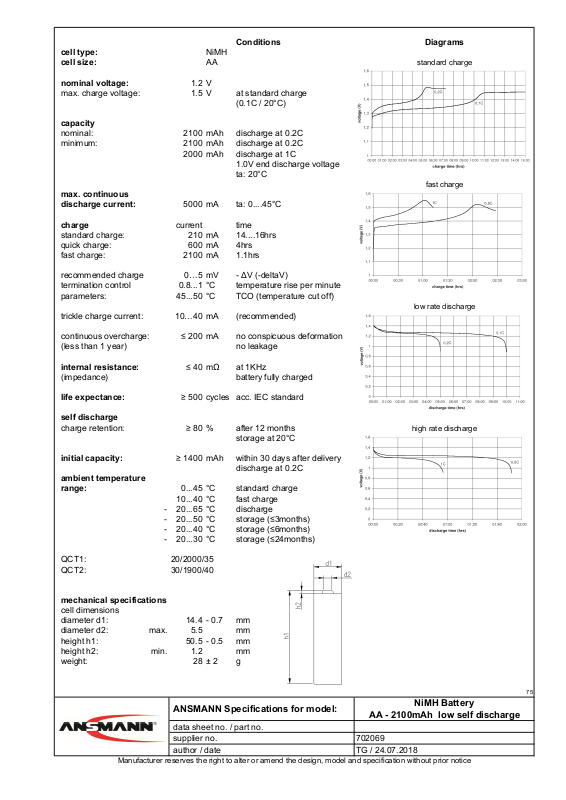

Conditions
cell type:
NiMH
cell size:
AA
nominal voltage:
1.2
V
max. charge voltage:
1.5Vat standard charge
(0.1C / 20°C)
capacity
nominal:
2100
mAh
discharge at 0.2C
minimum:
2100
mAh
discharge at 0.2C
2000
mAh
discharge at 1C
1.0V end discharge voltage
ta: 20°C
max. continuous
discharge current:
5000
mA
ta: 0....45°C
charge
current
time
standard charge:
210mA14....16hrs
quick charge:
600mA4hrs
fast charge:
2100
mA
1.1hrs
recommended charge
0…5mV- ΔV (-deltaV)
termination control
0.8...1
°C
temperature rise per minute
parameters:
45...50
°C
TCO (temperature cut off)
trickle charge current:
10…40
mA
(recommended)
continuous overcharge:
≤ 200
mA
no conspicuous deformation
(less than 1 year)
no leakage
internal resistance:
≤ 40mΩ
at 1KHz
(impedance)
battery fully charged
life expectance:
≥ 500
cycles
acc. IEC standard
self discharge
charge retention:
≥ 80%after 12 months
storage at 20°C
initial capacity:
≥ 1400
mAh
within 30 days after delivery
discharge at 0.2C
ambient temperature
range:
0...45
°C
standard charge
10...40
°C
fast charge
-
20...65
°C
discharge
-
20...50
°C
storage (
≤3months)
-
20...40
°C
storage (
≤6months)
-
20...30
°C
storage (
≤24months)
QCT1:
20/2000/35
QCT2:
30/1900/40
mechanical specifications
cell dimensions
diameter d1:
14.4
- 0.7
mm
diameter d2:
max.
5.5
mm
height h1:
50.5
- 0.5
mm
height h2:
min.
1.2
mm
weight:
28
± 2
g

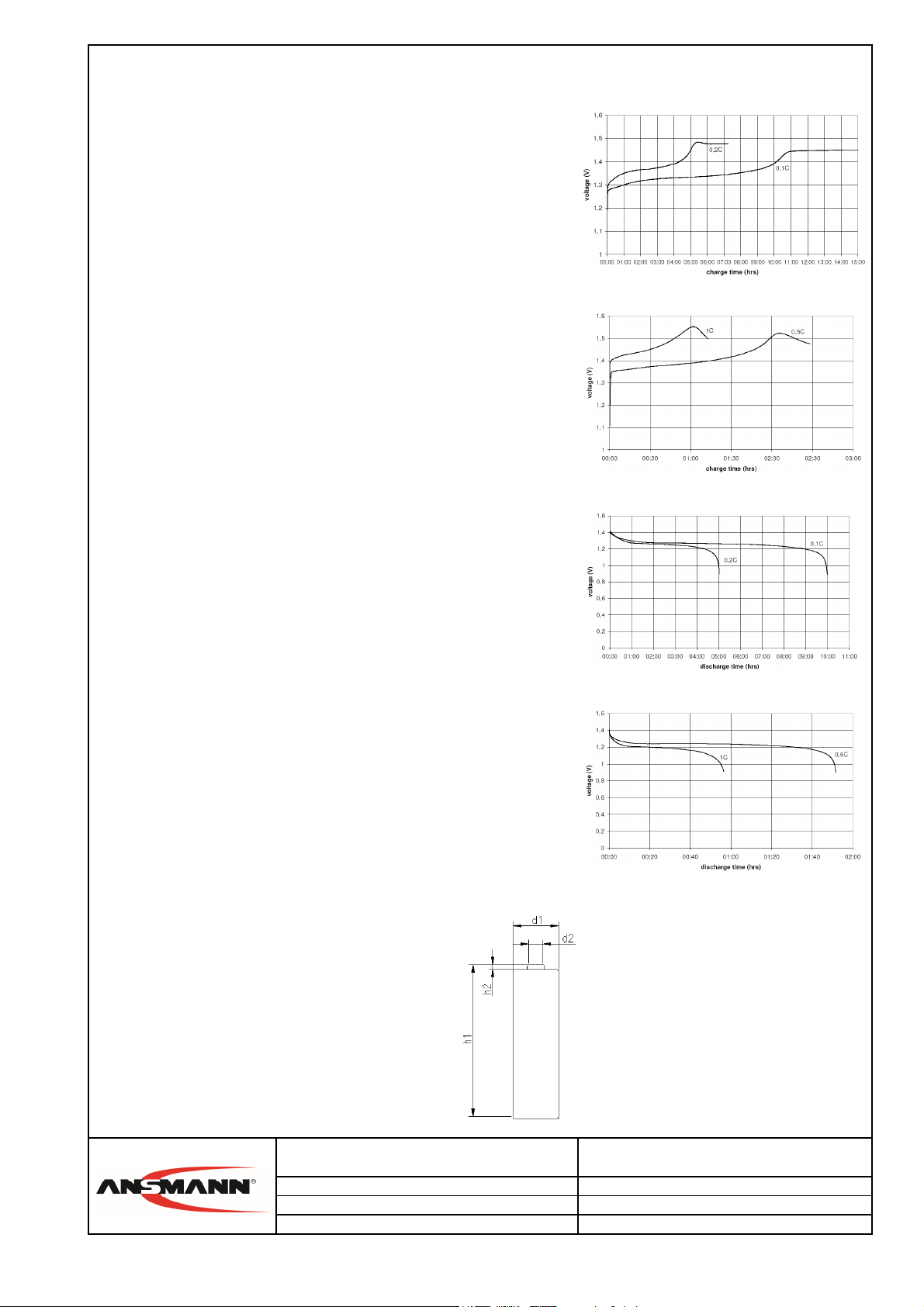

Diagrams
standard charge
NiMH Battery
fast charge
low rate discharge
high rate discharge
75
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice
ANSMANN Specifications for model:
data sheet no. / part no.
supplier no.
author / date
AA - 2100mAh low self discharge
702069
TG / 24.07.2018
