Ansen Electronics R087GT User Manual

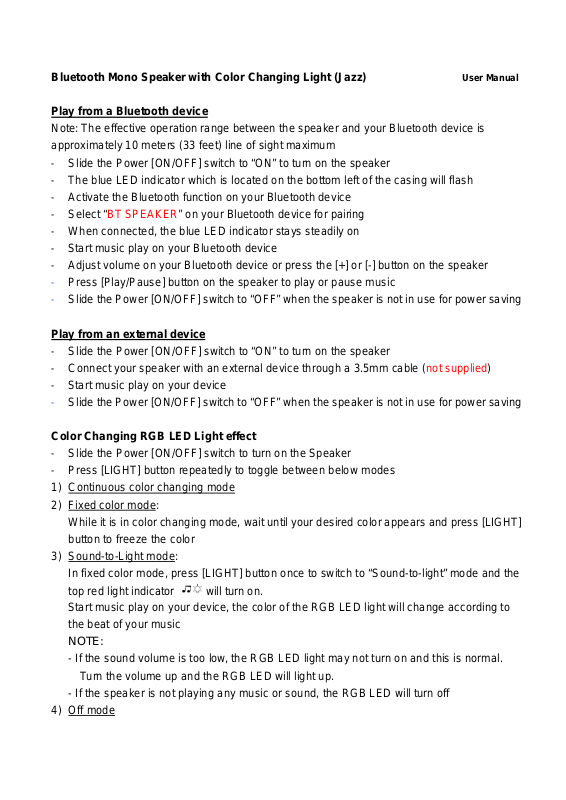

Bluetooth Mono Speaker with Color Changing Light (Jazz) User Manual

Play from a Bluetooth device

Note: The effective operation range between the speaker and your Bluetooth device is
approximately 10 meters (33 feet) line of sight maximum

- Slide the Power [ON/OFF] switch to “ON” to turn on the speaker

- The blue LED indicator which is located on the bottom left of the casing will flash

- Activate the Bluetooth function on your Bluetooth device

- Select “BT SPEAKER” on your Bluetooth device for pairing

- When connected, the blue LED indicator stays steadily on

- Start music play on your Bluetooth device

- Adjust volume on your Bluetooth device or press the [+] or [-] button on the speaker

- Press [Play/Pause] button on the speaker to play or pause music

- Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving

Play from an external device

- Slide the Power [ON/OFF] switch to “ON” to turn on the speaker

- Connect your speaker with an external device through a 3.5mm cable (not supplied)

- Start music play on your device

- Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving

Color Changing RGB LED Light effect

- Slide the Power [ON/OFF] switch to turn on the Speaker

- Press [LIGHT] button repeatedly to toggle between below modes

1) Continuous color changing mode

2) Fixed color mode:
While it is in color changing mode, wait until your desired color appears and press [LIGHT]
button to freeze the color

3) Sound-to-Light mode
In fixed color mode, press [LIGHT] button once to switch to “Sound-to-light” mode and the
top red light indicator will turn on.
Start music play on your device, the color of the RGB LED light will change according to
the beat of your music

NOTE:

:

- If the sound volume is too low, the RGB LED light may not turn on and this is normal.

Turn the volume up and the RGB LED will light up.

- If the speaker is not playing any music or sound, the RGB LED will turn off

4) Off mode

Power Supply

The speaker operates on built-in rechargeable battery

To recharge the built-in battery, connect micro USB socket with PC through supplied USB
cable
Charging: Red LED indicator turns on
Fully Charged: Red LED turns green when it is fully charged
Low battery level: RED LED indicator flashes
NOTE: Red/Green LED indicator is located on the bottom left of the speaker

Specification

Rated output power: 1.6W RMS
DC Power input: USB: 5V, 500mA
Bluetooth specification: V3.0 + EDR
Supported Bluetooth Profiles: AVRCP, A2DP
Range: maximum 10 meters (33 feet) line of sight
Working temperature: 0C – 50C

Troubleshooting

No power:

- Recharge your speaker

No sound:

- Adjust volume on your Bluetooth device or the speaker

- Make sure that your Bluetooth device is connected with the speaker and they are within

the effective operation range

No RGB LED light:

- Recharge your speaker

- You may be in the color LED “OFF” mode. Press the [LIGHT] button to toggle the different

color light mode according to the manual

- If you are in the “Sound-to-Light” mode, try increase the volume level of your music until
the color light appears

Cautions:

1) Due to the used enclosure material, the device shall only be connected to a USB Interface
of version 2.0 or higher. The connection to so called power USB is prohibited

2) Caution Risk of explosion if battery is replaced by an incorrect type.
