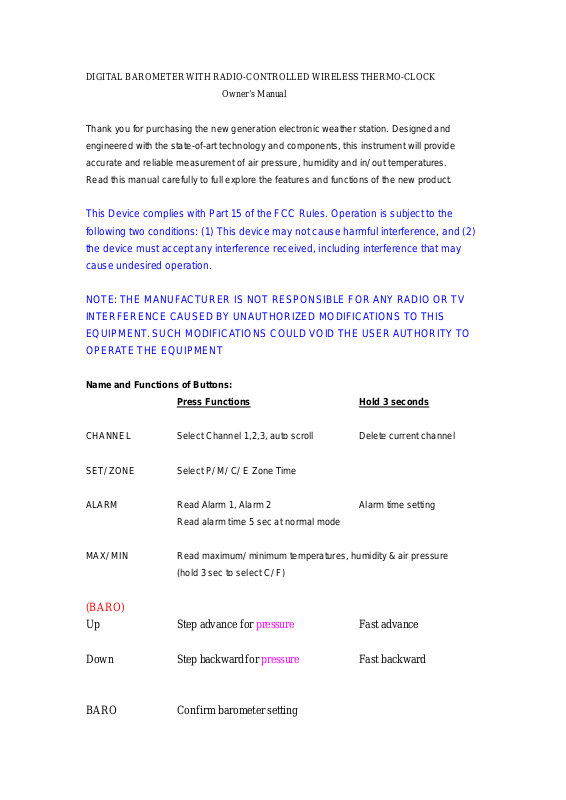

DIGITAL BAROMETER WITH RADIO-CONTROLL ED WIRELESS THERMO-CLOCK
Owner’s Manual
Thank you for purchasing the new generation electronic weather station. Designed and
engineered with the state-of-art technology and components, this instrument will provide
accurate and reliable measurement of air pressure, humidity and in/ out temperatures.
Read this manual carefully to full explore the features and functions of the new product.
This Device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
the device must accept any interference received, including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO
OPERATE THE EQUIPMENT
Name and Functions of Buttons:
Press Functions
CHANNEL Select Channel 1,2,3, auto scroll Delete current channel
Hold 3 seconds
SET/ ZONE Select P/ M/ C/ E Zone Time
ALARM Read Alarm 1, Alarm 2 Alarm time setting
Read alarm time 5 sec at normal mode
MAX/ MIN Read maximum/ minimum temperatures, humidity & air pressure
(hold 3 sec to select C/ F)
(BARO)
Up Step advance for pressure Fast advance
Down Step backward for pressure Fast backward
BARO Confirm barometer setting
Page 2
+ 1 step forward (for clock) Fast advance
Alarm 1, 2 on/off
- 1 step backward (for clock) Fast backward
RCC Sync
SNOOZE Trigger snooze alarm & extended backlight
BA TTERY INSTALLATION
Home Receiver
Lift off the battery cover at the back, install 2 pcs AA batteries according to the
polarity indicated, close the battery cover.
Remote Sensor
Lift off the bracket stand, loose the 4 screws with a small scre wdriver, insert 2 pcs AAA
batteries according to the polarity indicated. Replace the cover and tighten the 4 screws.
SETTING UP THE BAROMETER
When power up, The unit will display reference SEA LEVEL PRESSURE (SLP) 29.91inHg or
1013 hPa.
To adjust correct pressure according to your location:
Press + , - to adjust the value according to the existing sea level pressure, then press +, - to
select mb and inHg. Press BARO to confirm and exit. In normal mode, hold BARO key 3
seconds to repeat this setting.
SETTING UP THE WIRELESS THERMOMETER:
:
:
z For the first installation, always insert batteries to the home unit and then the remote
sensor. Set Channel 1 for the first remote sensor. Set channel 2 and channel 3 for the
nd
2
and 3rd sensor.
z Press the Tx button on the back of remote sensor to verify the RF reception.
z If more than 1 sensor is connected, press “CH” to select Ch1, Ch2, Ch3 and Auto Ch
Scrolling.
Page 3
RADIO-CONTROLLED CLOCK
The unit will start synchronizing the clock after the 1
st
channel of the RF thermometer is
registered. At normal mode, hold “ – “ button 3 seconds for force synchronization.
The antenna icon will appear during synchronization, if the icon disappear afterwards, radio
time signal is not available at the moment. Try other locations later. Place the unit away
from source of interference such as mobile phones, appliances, TV etc.
Antenna icon will appear fix on screen if the radio time reception is successful.
The Four TIME ZONES in USA
At normal mode, press SET/ ZONE to select one of the 4 Time Zones in USA:
PST - Pacific T ime
MST - Mountain Time
CST - Central Time
EST - Eastern T ime
C/ F SELECTION
Hold Min/ Max for 3 seconds
HOME TIME & WORLD (ZONE) TIME
Press “SET/ ZONE “ button to select display home time and world time. (world time available
only if a zone value is entered in clock setting)
MOON PHASE
Moon phase will be displayed automatically according to current calendar.
WEATHER FORECAST
The unit predicts weather condition of the next 12 – 24 hours based on the change of
atmospheric pressure. The coverage area is around 30 – 50 km. The weather forecast is
based on atmospheric pressure change and is about 70-80% correct. As weather conditions
cannot be 100% correctly forecasted, we cannot be responsible for any loss caused by an
incorrect forecast.
Weather Forecast:
SUNNY SLIGHTLY CLOUDY CLOUDY RAINY STORMY
Page 4
Pressure Tendency:
Rising Steady Falling
CLOCK & CALENDAR SETTING
Hold “SET/ ZONE “ button for 3 seconds to enter clock set. Using “ + , - “ to adjust and
“ SET/ ZONE ” to confirm, the following values can be set in sequence: Year > Month > Date
> Hr > Min > 12/ 24 > DST on/ off
At normal mode, press SET/ ZONE to select the 4 Time Zones in USA:
PST - Pacific T ime
MST - Mountain Time
CST - Central Time
EST - Eastern T ime
ALARM SETTING
Hold “ALARM“ for 3 seconds. Press “ +, - “ to select AL 1 or AL 2 and press “ALARM” to
confirm. Press “ +, - “ to enter the desired Hr/ Min values and press “ALARM“ to confirm
setting.
To view alarm time 1 and 2, repeat press “ALARM” button at normal mode. Alarm time 1 or 2
will display for 5 seconds and resume to normal clock thereafter.
To turn Alarm 1, 2 on and off, repeat press “ + “ button at normal mode.
SNOOZE/ LIGHT
Press SNOOZE/ LIGHT to trigger snooze alarm. To stop alarm for one day, press ALARM
key but not “SNOOZE” key. At normal mode, press SNOOZE/ LIGHT for an extended
backlight.
MAX / MIN MEMORY
Press the ”MAX/ MIN“ to view the maximum values (In/ Out Temp and Humidity, Air Pressure)
for 5 seconds, press again to view the minimum memory. To clear the memory record, hold
Max/ Min button while the respective values are displaying on screen. Air Pressure record
will not be cleared manually, it will be cleared automatically every 12 hours.
Temperature & Humidity Trend Indica tor: The icons will indicate Rising, Steady, Falling if
the temperature or humidity change is more than 1 degree within an hour.
Page 5
LOW BA TTE RY INDICATION
Low battery indication is available for the home unit itself and all of the 3 remote channels.
Replace the batteries and follow the setup procedure as mentioned in this instruction manual.
BA TERY DISPOSAL
Replace only with the same or equivalent type recommended by the manufacturer.
Please disposal of old, defective batteries in an environmentally friendly manner in
accordance with the relevant legislation.
SPECIFICATIONS
Range of temperature measurement:
Indoor unit : 0 C to + 50 C (32 F to +122 F)
Indoor Humidity : 20% - 99% RH
Remote sensor : -20 C to +60 C (-4 F to +140 F)
Barometer : 850 to 1050 mb/hPa
Channel : max. 3 remote sensors
Transmission : up to 30M (100 ft.) open area, RF434 MHz
Resolution : 0.1 degree for temperature, 1% for humidity, 1 hPa mb for pressure
Clock : Radio-Controlled, Qua rtz b ack-up
Batteries : AA x 2 pcs for main unit, AAA x 2 pcs for remote sensor
