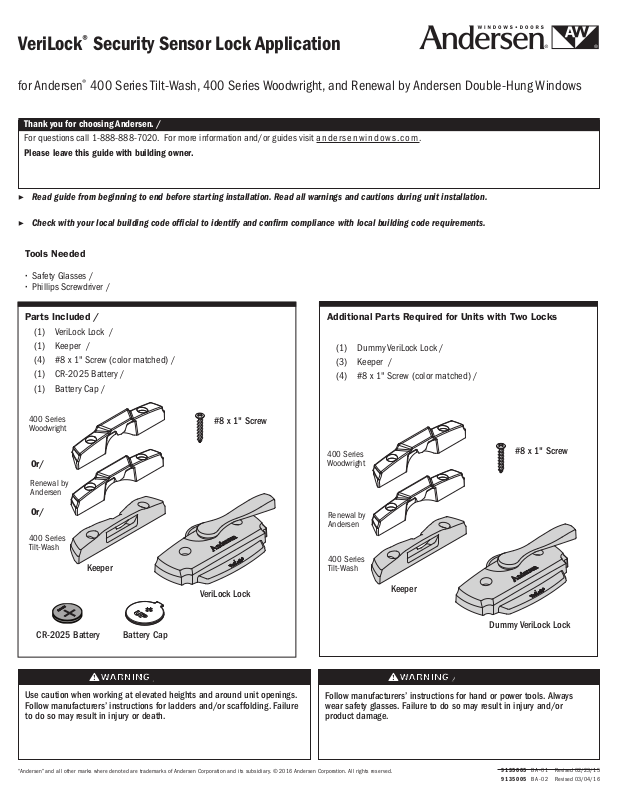

VeriLock® Security Sensor Lock Application

for Andersen® 400 Series Tilt-Wash, 400 Series Woodwright, and Renewal by Andersen Double-Hung Windows

Thank you for choosing Andersen. / Gracias por elegir Andersen.

For questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.

Please leave this guide with building owner.

Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.

Deje esta guía con el dueño de la construcción.

▶ Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation.

Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad.

▶ Check with your local building code ofcial to identify and conrm compliance with local building code requirements.

Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.

Tools Needed

Herramientas Necesarias

∙ Safety Glasses /Lentes de seguridad ∙ Phillips Screwdriver /Destornillador Phillips

Parts Included / Partes Incluidas

(1) VeriLock Lock / VeriLock Cerrojo (1) Keeper / Keeper

(4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)

(1) CR-2025 Battery / CR-2025 Battery

(1) Battery Cap / Battery Cap

400 Series Woodwright

#8 x 1" Screw

Tornillo No. 8 x 1"

Or/ Or

Renewal by Andersen

Or/ Or

400 Series Tilt-Wash

Keeper

Pestillo

VeriLock Lock

Additional Parts Required for Units with Two Locks

(1) Dummy VeriLock Lock / Dummy VeriLock Lock (3) Keeper / Keeper (4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)

400 Series Woodwright

Renewal by Andersen

400 Series Tilt-Wash

Keeper

#8 x 1" Screw

Tornillo No. 8 x 1"

Pestillo

CR-2025 Battery

Use caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.

Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.

Battery Cap

Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.

Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.

Dummy VeriLock Lock

9135005 BA-01 Revised 02/23/15

9135005 BA -0 2 Revised 03/04/16

Batteries carry the risk of re, explosion and burns. Do not recharge, disassemble, heat above 212 degrees F (100 degrees C) or incinerate. Dispose of used batteries promptly and properly. Keep away from children.

Les piles représentent un risque d’incendie, d’explosion et de brûlures. Ne pas recharger, démonter, chauffer à une température excédant 100degrés C (212degrésF) ou incinérer. Éliminer les piles rapidement et de manière appropriée. Garder à l’écart des enfants.

Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.

Batteries are small parts and, if swallowed, could pose a choking hazard to young children.

Las baterías son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.

Magnets are small parts and, if swallowed, could pose a choking hazard to young children.

Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.

Interior

Battery

(bottom view)

Insert battery into VeriLock lock (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly. Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.

9135005

Battery Cap

VeriLock Lock

Indicator Light

(top view)

Interior

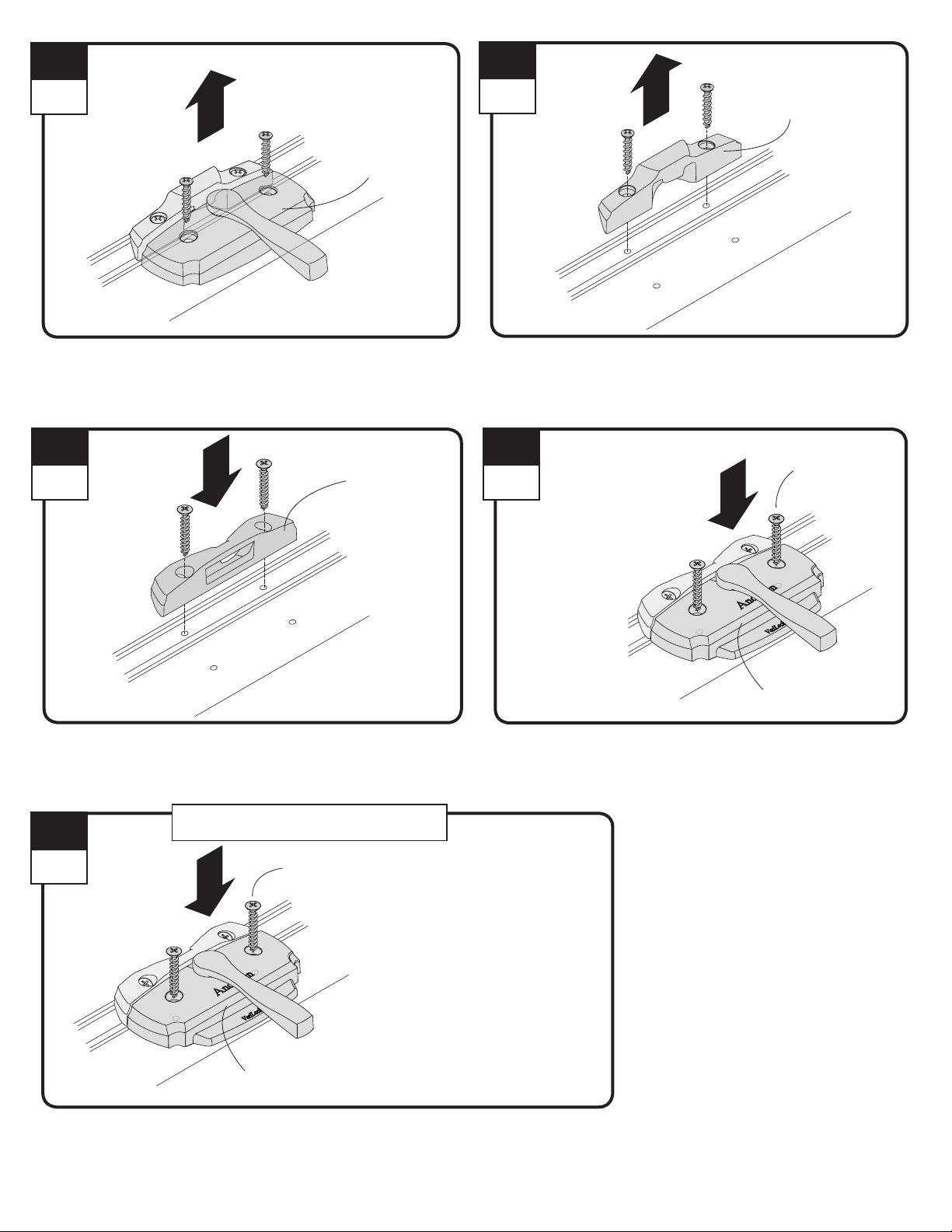

Remove existing lock(s).

Interior

#8 x 1" Screw

Tornillo No. 8 x 1"

Lock

Keeper

400 Series Tilt-Wash Double-Hung shown.

Interior

Remove existing keeper(s).

Interior

NOTE: VeriLock lock can be installed on the right or left side of units with two locks.

Keeper

#8 x 1" Screw

Tornillo No. 8 x 1"

VeriLock Lock

Position new keeper(s) over existing holes and fasten using #8 x 1" color matched screws provided. Do not over tighten.

Interior

Position dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws

For Units with Two Locks Only

#8 x 1" Screw

Tornillo No. 8 x 1"

Dummy VeriLock Lock

Position VeriLock lock over existing holes and fasten using #8 x 1"

color matched screws provided. Do not over tighten.

Position VeriLock lock over existing holes and fasten using #8 x 1"

color matched screws provided. Do not over tighten.

provided. Do not over tighten.

Position dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws

provided. Do not over tighten.

9135005

Interior

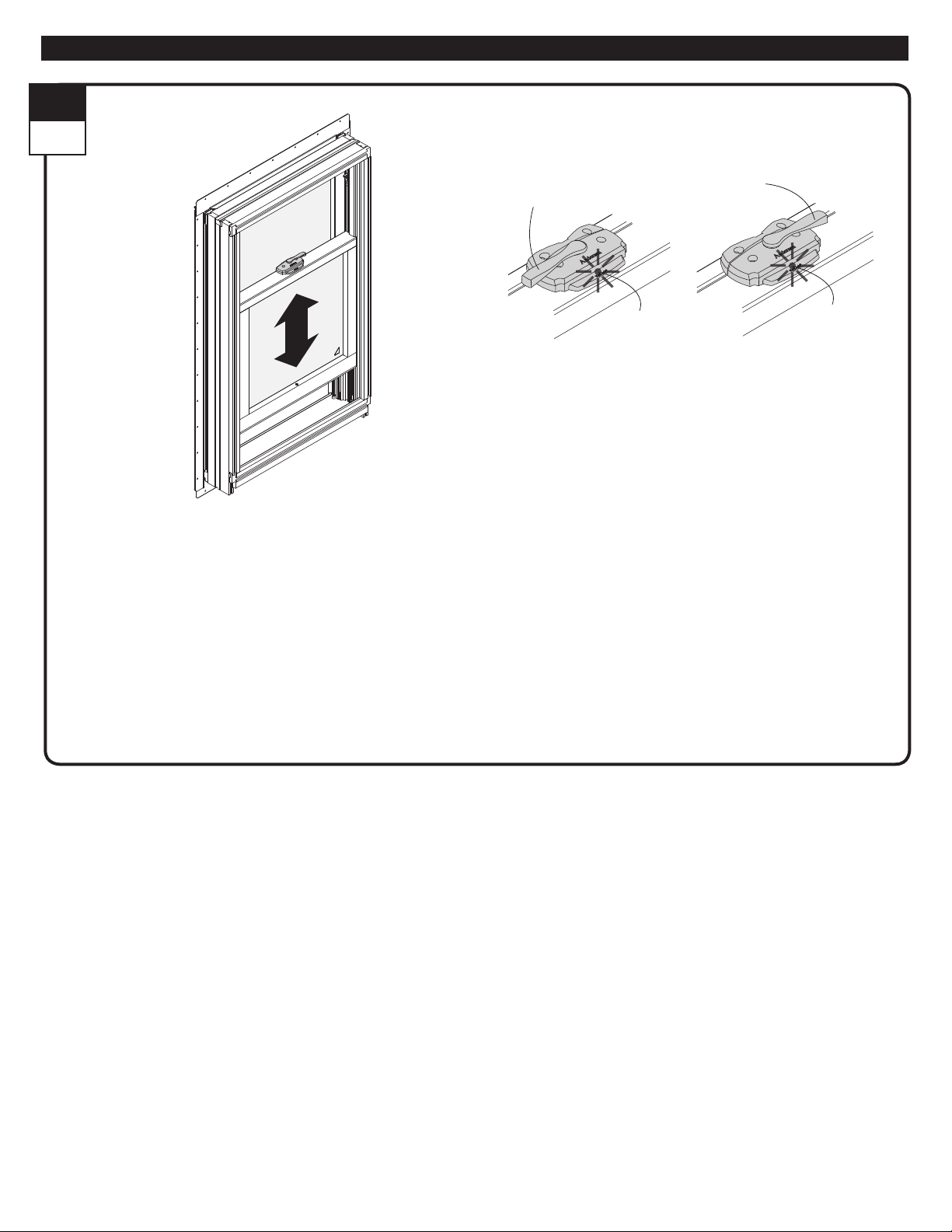

Verify VeriLock Sensor Function / Verify VeriLock Sensor Function

Locked

Indicator Light

1. Raise lower sash. Indicator light will illuminate for one (1) second.

2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second.

3. Lock window. Indicator light will illuminate for one (1) second.

4. Unlock window. Indicator light will illuminate for one (1) second.

Unlocked

Indicator Light

1. Raise lower sash. Indicator light will illuminate for one (1) second.

2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second.

3. Lock window. Indicator light will illuminate for one (1) second.

4. Unlock window. Indicator light will illuminate for one (1) second.

Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application.

▶ Procedure is complete.

Procedure is complete.

Refer to monitoring system of your choice for sensor enrollment.

For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock® user guide.

9135005

Regulatory Statements / Normas reglamentarias

Federal Communications Commission (FCC) Part 15 Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation.

Industry Canada (IC) RSS Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) I'appareil ne doit pas produire de brouillage; (2) I'utilisateur de I'appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d'en compromettre le fonctionnement.

Changes or modiﬁcations not expressly approved by Andersen may void the user's authority to operate the equipment.
