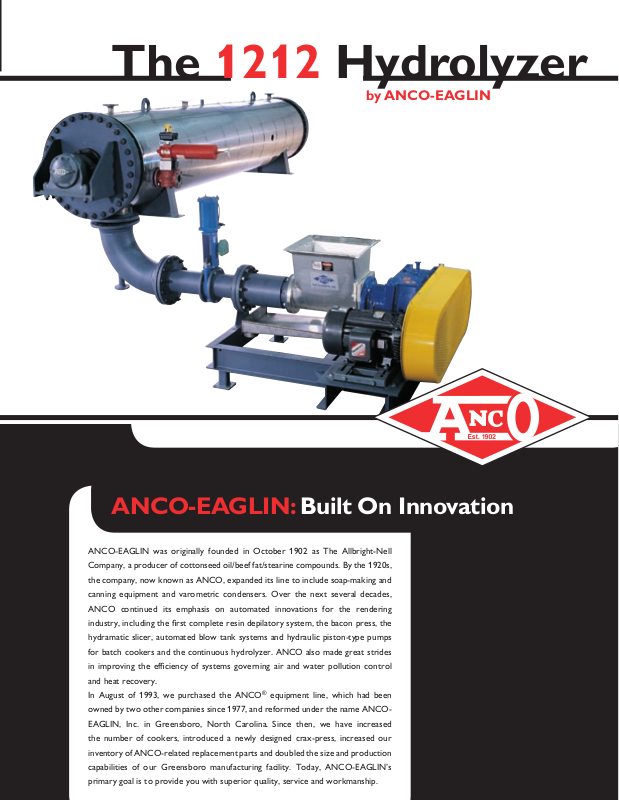

Page 1
The 1212 Hydrolyzer
by ANCO-EAGLIN
ANCO-EAGLIN: Built On Innovation
ANCO-EAGLIN was originally founded in October 1902 as The Allbright-Nell
Company, a producer of cottonseed oil/beef fat/stearine compounds. By the 1920s,
the company, now known as ANCO, expanded its line to include soap-making and
canning equipment and varometric condensers. Over the next several decades,
ANCO continued its emphasis on automated innovations for the rendering
industry, including the rst complete resin depilatory system, the bacon press, the
hydramatic slicer, automated blow tank systems and hydraulic piston-type pumps
for batch cookers and the continuous hydrolyzer. ANCO also made great strides
in improving the efciency of systems governing air and water pollution control
and heat recovery.
In August of 1993, we purchased the ANCO® equipment line, which had been
owned by two other companies since 1977, and reformed under the name ANCO-
EAGLIN, Inc. in Greensboro, North Carolina. Since then, we have increased
the number of cookers, introduced a newly designed crax-press, increased our
inventory of ANCO-related replacement parts and doubled the size and production
capabilities of our Greensboro manufacturing facility. Today, ANCO-EAGLIN’s
primary goal is to provide you with superior quality, service and workmanship.
Page 2
The 1212 Hydrolyzer
The History of the Hydrolyzer
ANCO originated continuous hydrolyzer technology and was
the rst company to patent the process. The rst continuous
hydrolyzer was installed at Southern Rendering in Little Rock,
Arkansas, in the mid-1960s. Today, ANCO Continuous
Hydrolyzers are a preferred choice of rendering customers
throughout the world. With slight modi cations,
the ANCO Continuous Hydrolyzer can also
be used for waste sterilization and corn-stalk processing.
ANCO 1212
Continuous Hydrolyzer
ANCO-EAGLIN has continued to innovate its 1212 Hydrolyzer, adding
components designed to offer a variety of new and improved features:
Processes chicken and turkey feathers and hog and beef hair
•
Consumes one pound of steam for every three pounds of raw material
•
Discharges feather moisture content in the 59±% range
•
Raises product quality and protein digestibility due to the rapid heating
•
and short resonance time inside the vessel
Available in several production sizes ranging from 3,000 to more than
•
30,000 pounds per hour
Pressure Vessel
Consists of a heavy wall inner shell constructed from
•
stainless steel
Produces higher ASME pressure ratings (125 psig. inner
•
shell; 150 psig. jacket pressure with EC and CRN certi cations)
Features an energy-ef cient insulation jacket consisting of
•
high R-value wrapping covered by a stainless-steel sheet
Generates substantial savings in steam use with minimal
•
heat loss
ANCO-EAGLIN, Inc. 120 North Chimney Rock Road • Greensboro, North Carolina 27409
336-855-7800 • FAX 336-855-7831 • E-mail: ANCOEAGLIN@AOL.COM • WWW.ANCOEAGLIN.COM
Page 3
Touch Screen Control Panel
ANCO can provide additional PLC integration and optional, stateof-the-art Touch Screen technology:
Easily integrates with all major brands of PLC’s including
•
Allen-Bradley, Modicon and many others
Features an Ethernet connection which allows the manager or key
•
personnel to monitor the system via an IP web address
New Agitation Paddles
Contain no welds, which helps reduce weld-fractures
•
Incorporates stainless-steel paddle shafts, which provides
•
greater durability than hollow, welded-shaft designs
New Infeed Gearbox
Upgraded to handle double the thrust-carrying load
•
Increases torque by 50%
•
Now available with an optional oil ltration system
•
for use in certain plant environments
New Feeder System
Available in top and bottom charging positions*
•
Various oor level arrangements — makes installation
•
simpler and faster
Newly designed plug formation tube and bottom charging
•
— assures consistent feeding with less steam leakage and
product blow back
* See position diagrams on back panel
Spare Parts
Original ANCO stock parts are essential to maintaining
operational peak performance. ANCO-EAGLIN is committed
to providing our customers with the highest quality equipment
and services. Our new Greensboro, North Carolina manufacturing
facility stocks more than a half-million dollars in replacement
parts for related ANCO® equipment.
Page 4
1212
Feeder Positions
Infeed at
bottom position
Feeder
position 1
Feeder
position 2
Feeder
position 3
1212 Continuous Hydrolyzer Specications
Capacity H L1 L2 W Weight Horsepower
Model
1212-05 5,000/2,268 10/3.0 12/3.7 20/6.1 7/2.1 18,000/8,165 40/15
PPH/KGPH FT/M FT/M FT/M FT/M LBS/KGS Feeder/Agitator
1212-10 10,000/4,536 10/3.0 16/4.9 24/7.3 7/2.1 22,000/12,700 50/15
1212-15 15,000/6,804 10/3.0 16/4.9 25/7.6 8/2.5 28,000/12,700 60/20
1212-30 30,000/13,608 12/3.7 20/6.1 30/9.1 9/2.7 39,000 125/30
ANCO-EAGLIN, Inc.
120 North Chimney Rock Road • Greensboro, North Carolina 27409
