现场准备手册

Site Preparation Manual

1.0 版本

Version 1.0

2005 年七月

July 2005 DS952-0-00-1020

Page 2

TX7+现场准备手册 TX7+ Site Preparation Manual

空白页

Blank Page

Page 3

TX7+现场准备手册 TX7+ Site Preparation Manual

目录 TABLE OF CONTENTS

1. 简介 INTRODUCTION....................................................................................................................5

2. 现场选择指南 SITE SELECTION GUIDELINES.....................................................................5

3. 地基要求 FOUNDATION REQUIREMENTS.................. ..........................................................6

4. TX7+的置放 PLACEMENT OF THE TX7+........................................... .....................................6

5. 所需占地面积 FLOOR SPACE REQUIRED................................................................................7

6. 机床从木托板上卸下 MACHINE REMOVAL FROM WOODEN SLED.............................9

6.1 震动显示器 SHOCK INDICATORS............................ ......................................................................9

6.2 卸除步骤 REMOVAL PROCEDURE............................................... ............................ ............................ ..10

7. 机床校平点 MACHINE LEVELING POINTS..........................................................................12

8. 外接设备 EXTERNAL SERVICES...............................................................................................13

8.1 冷却设备 COOLANT SERVICES ............................................................................................................13

8.2 灭火系统 FIRE SYSTEM ............................................................................................................. ...........14

8.3 油雾分离系统 MIST EXTRACTION SYSTEM............................................ ............................ ................16

9. 供气系统 AIR SYSTEM........................................ ......................................................... ..................17

10. TX7+机床电源要求 TX7+ MACHINE POWER REQUIREMENTS.................................19

现场就绪确认 SITE READINESS CONFIRMATION......................................................................21

Page 4

TX7+现场准备手册 TX7+ Site Preparation Manual

空白页

Blank Page

Page 5

TX7+现场准备手册 TX7+ Site Preparation Manual

HANDLING AND INSTALLATION OF THE TX7+

TX7+的搬运和安装

1. 简介 Introduction

我们向尊贵的客户提供此现场准备指南以确保您能迅速安装完毕 ANCA 的 TX7+机床并在最短的时间内开始生产。

These site preparation guidelines are provided to our valued customers, in order to ensure that the installation of your ANCA TX7+ is accomplished promptly, and is ready for production withi n the shortest time frame.

2. 现场选择指南 Site Selection Guidelines

在安装期间，须检查以下各方面以确保高精确度和性能。

At installation, the following points should be checked in order to ensure high accuracy and performance.

安装现场应尽量远离任何振动源，如冲压/压制设备，或者刨床类机床。

The installation site should be far as possible away from any sources of vibration, i.e. stamping/press equipment, or planar type machine tools.

应避免与高频发电机，放电机或电焊机连在同一配电板，这样引起的干扰有可能导致计算机数控系统产生故障。

Attaching high-frequency power generators, electric discharge machines or electrical welding machines to the same power board should be avoided, this should be avoided as interference may cause the CNC to malfunction.

理想的操作环境要求周围环境的温度为 20°C (68°F)，湿度在 40% 到 75%之间。

The ideal operating environment calls for an ambient temperature of 20°C (68°F) with humidity between 40% and 75%.

和所有高精度磨床一样，热膨胀会影响 TX7+的精确度。为了保持静态下的磨削精度并优化性能，TX7+应安装于不易受气流影响的区域。厂区不一定需要安装空调系统，但建议周围环境的温度应在 17°C (62.5°F) 到 25°C (77°F)之间。12 小时内的温差应小于 2 °C。这样可以将磨床的热膨胀减小到最低程度。

As with all precision grinding machines the accuracy of the TX7+ can be affected by thermal expansion. In order to maintain static grinding accuracy and optimum performance, the TX7+ should be installed in an area, which is not largely affected by airflow. Air conditioning of the factory area is not essential, but an ambient temperature between 17°C

Page 6

TX7+现场准备手册 TX7+ Site Preparation Manual

(62.5°F) and 25°C (77°F) is recommended. The temperature should be maintained consistently between +/- 2 °C deviation over a 12-hour period. This will minimize thermal expansion on the grinder.

当周围环境的温度超过 30°C 时，应考虑使用冷却液冷却装置，为达到较高的精确度，冷却液的温度应与周围环境的温度保持一致。

A chiller unit for the coolant should be considered where ambient temperatures exceed 30°C, for greater accuracy the coolant temperature should be maintained at ambient temperature.

3. 地基要求 Foundati on Requirements

TX7+应安装于坚固平坦的钢筋混凝土地面，厚度应超过 150 毫米（6 英寸）。

The TX7+ should be mounted on a flat solid foundation of reinforced concrete of at least 150mm (6”) in thickness.

地基处应与地面其他区域隔离。

The foundation should be separate from the rest of the floor.

4. TX7+的置放 Placement of the TX7+

TX7+抵达时，应固定于一托板上。托板尺寸为长 2900 毫米，宽 2300 毫米。机床和托板的最大高度约为 2700 毫米。总重量（机床＋托板＋附件）约为 7500 公斤。木质托板和 TX7+只可使用叉车从前方（即 B 面）进行升降。请参考图 0。

The TX7+ will arrive fixed to a wooden sled. The size of the sled is 2900mm (length) x 2300mm (width). The maximum height of the M/C and the sled is approximately 2700mm. The total weight ( M/C + sled + accessories) is approximately 7500kg. The wooden sled+TX7+ should only be lifted from the FRONT = SIDE “B” only by using a forklift truck. Please refer Fig. 0.

TX7+机床只可从 A 面进行升降。机床底部设有一对叉车口，用于升降。两叉式口之间的距离为 770 毫米（30 英寸），槽口的宽度为 225 毫米（9 英寸）。

The TX7+ machine itself should be lifted from the SIDE “A” only. A pair of forklift channels is built into the base of the machine for lifting. Distance between forklift channels on the grinder is 770mm (30") and the channel width is 225mm (9").

Page 7

TX7+现场准备手册 TX7+ Site Preparation Manual

警告 WARNING

如果 TX7+机床从其他位置升降，底座有可能受损并且其校准状态有可能受影响。

If the TX7+ is lifted from any other point, the base is likely to be damaged and alignment possibly affected.

如果 TX7+机床未按规定方式升降，则 ANCA 公司不会为损伤或未校准状态承担任何责任。

ANCA will not accept any responsibility for damage or misalignment if the TX7+ is not lifted as described.

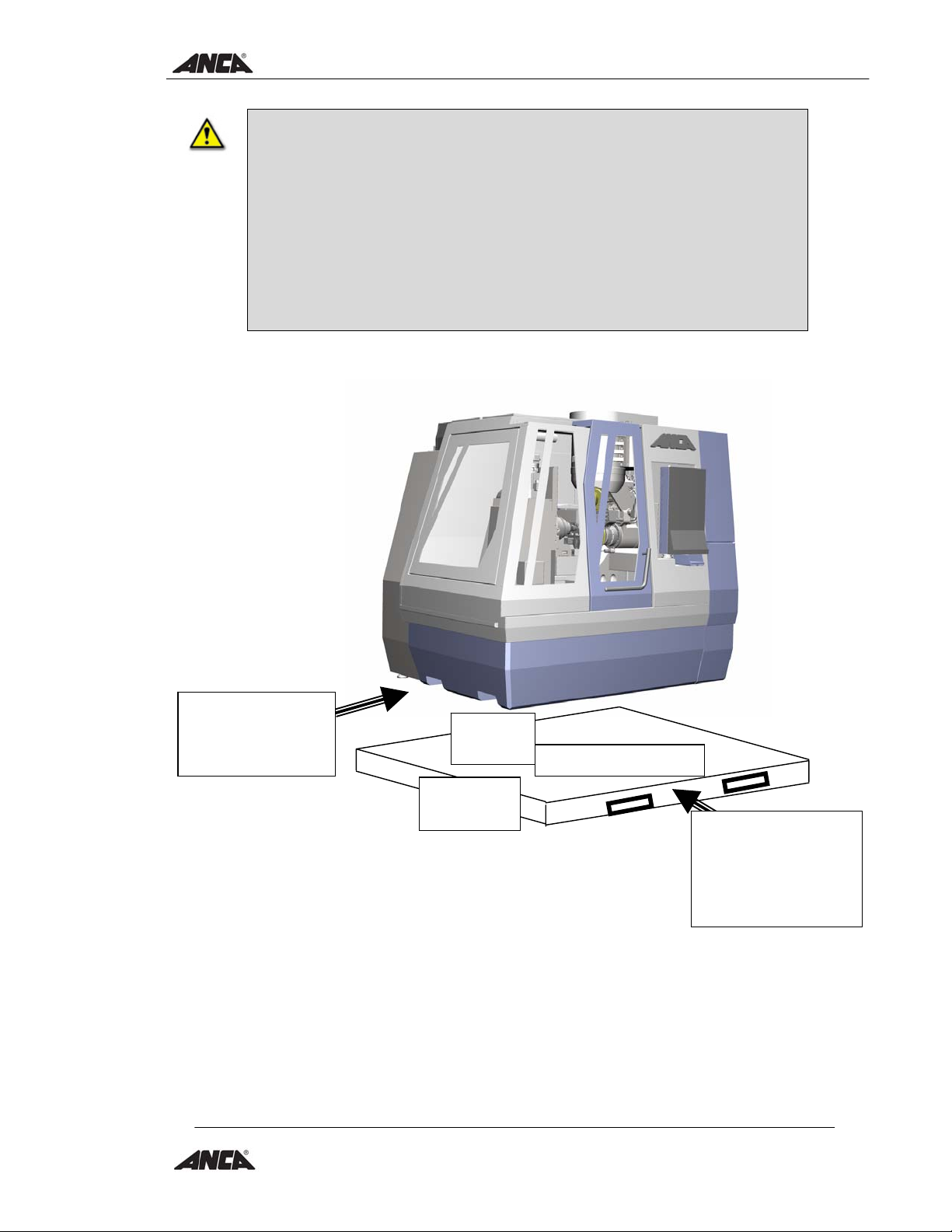

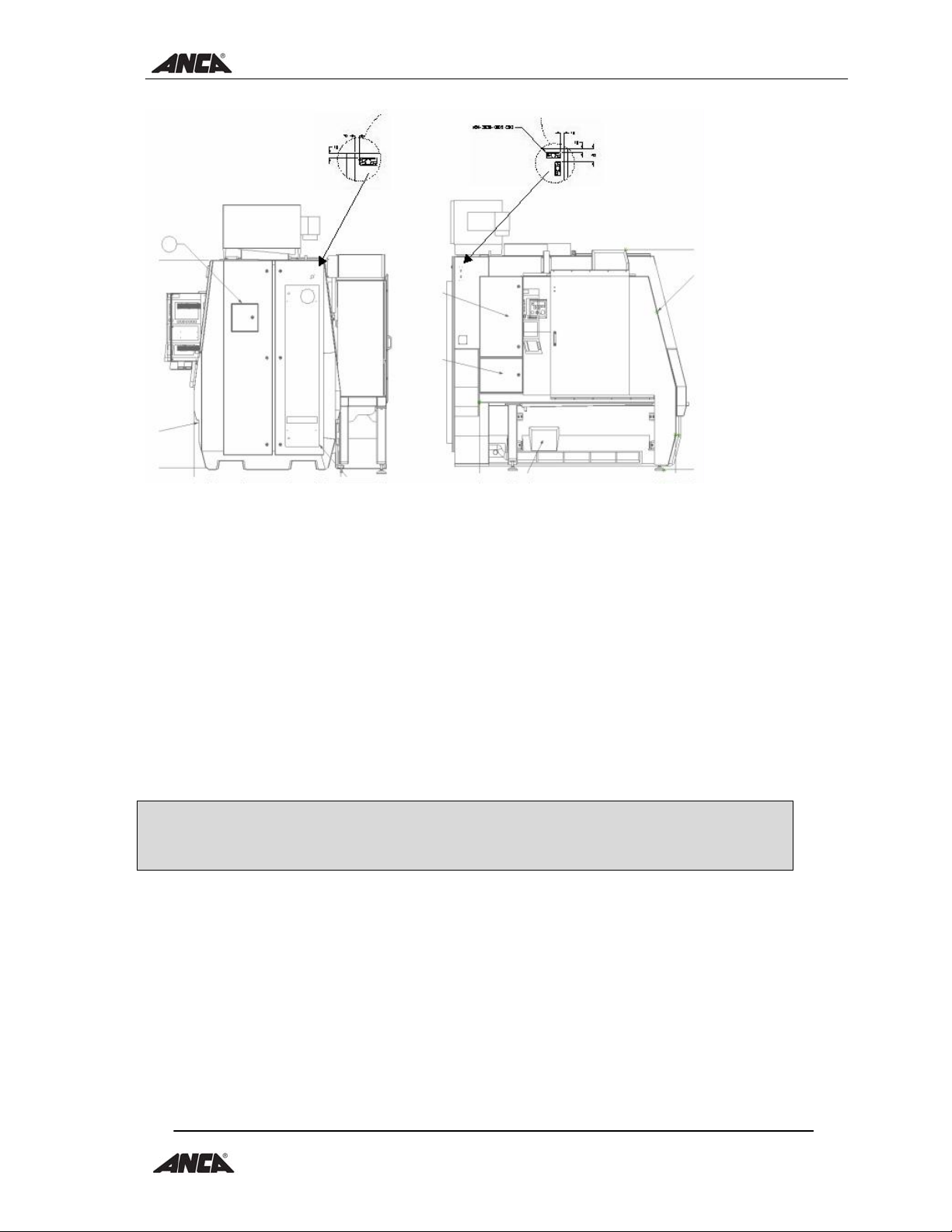

A 面机床升降 SIDE “A” M/C Lifting

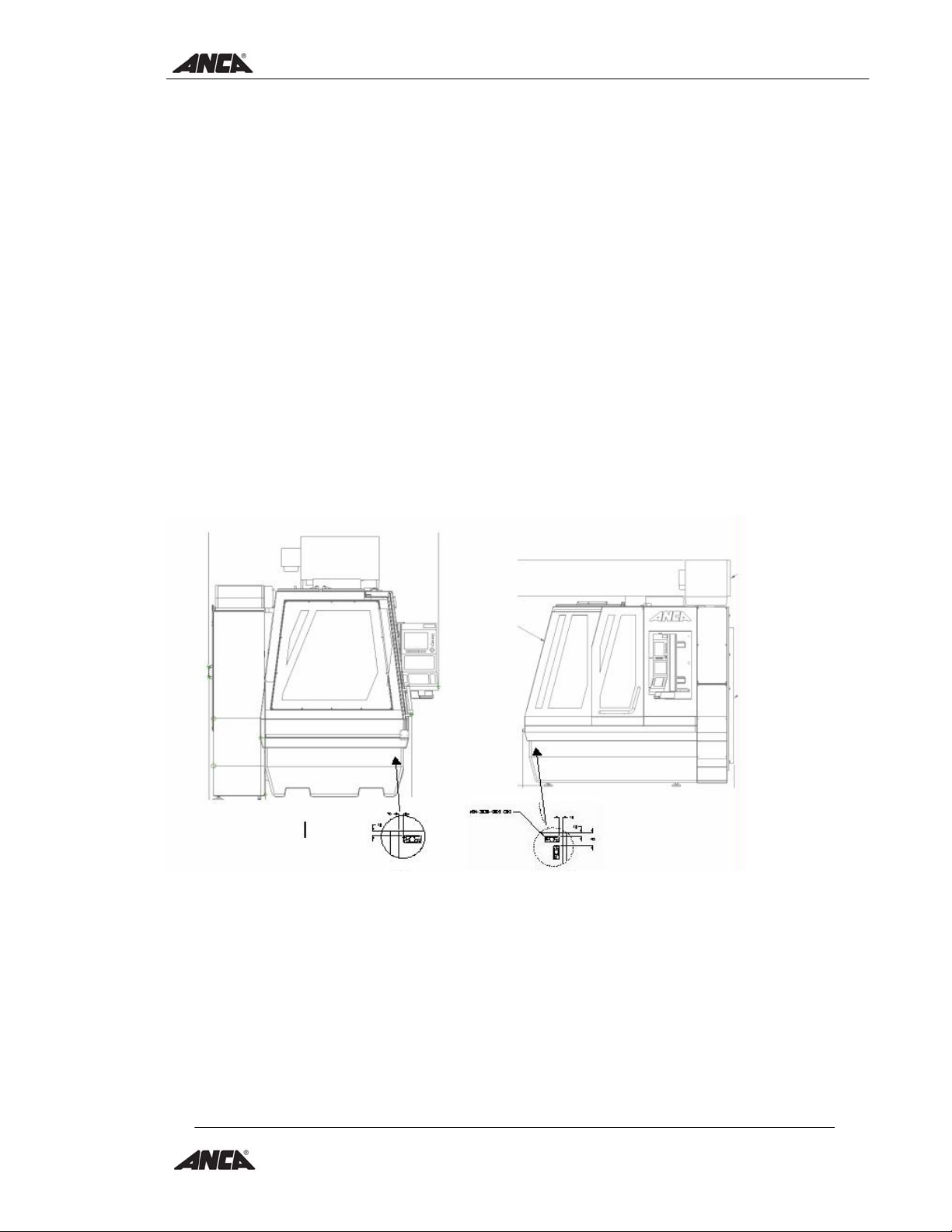

Figure 0. Machine Lifting

参考图 0，机床升降

2900mm 2900 毫米

Wooden Sled 木质托板

2300mm 2300 毫米

SIDE “B” Wooden Sled Lifting B 面木质托板升降

5. 所需占地面积 Floor Space Required

当放置 TX7+时，必须预留足够空间，以便当操作门打开时，可安全从各个面进行操作。

When locating the TX7+, sufficient room must be allowed to allow safe access to all sides of the TX7+ when the access doors are open.

Page 8

TX7+现场准备手册 TX7+ Site Preparation Manual

一般而言，需为机床＋上料机＋附件＋标准冷却液过滤系统预留最小为 3600 x 3600 毫米的空间。

In general, prepare minimum 3600 x 3600mm space for machine+loader+accessories+standard coolant filter system.

下图（图 1）显示了 TX7+的地面尺寸，所有尺寸都以毫米标识。

Below (Fig. 1) is a diagram of the floor size of the TX7+, with all dimensions expressed in mm.

如需附加外接的选购冷却系统，请与 ANCA 分公司联系有关细节。

For an external coolant system (optional), please contact your ANCA branch for details.

ANCA

标准冷却液过滤系

统

ANCA

Standard

Coolant

Filter

System

3600

上料机

OADER

TX7+

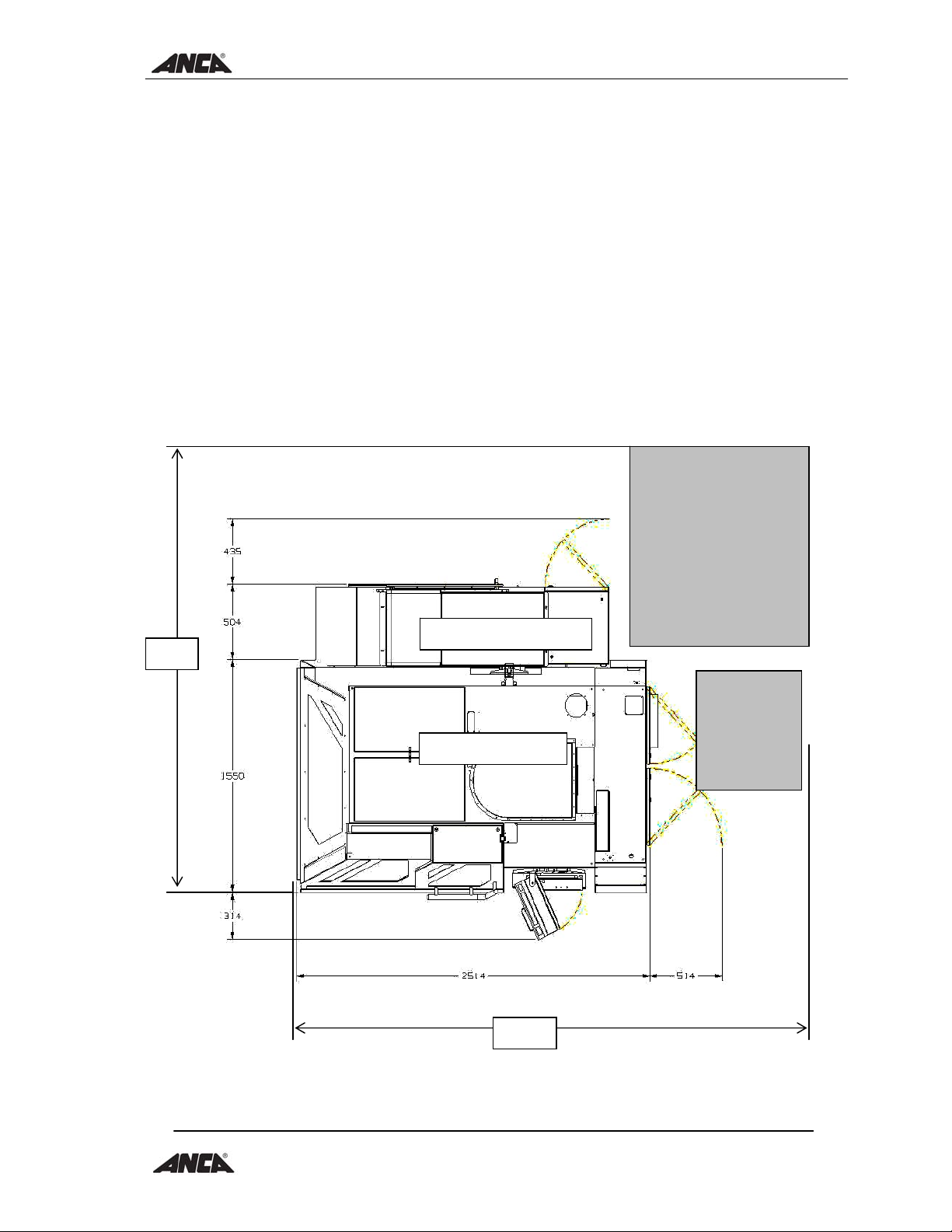

图 1，TX7+的平面图

Figure 1. Floor plan of TX7+

3600

如有需要，机床变压器

M/C Transformer if required

Page 9

TX7+现场准备手册 TX7+ Site Preparation Manual

6. 机床从木托板上卸下 Mach ine Removal from Wooden Sled

6.1 震动显示器 Shock Indicators

ANCA 公司一贯尽力将机床以最佳状态运输至客户。TX7+磨床配有震动指示器，在正常情况下显示为红色，但机床一旦在运输中受到震动或经使用之后，震动指示器就会显示为蓝色，警告机床可能已不在校准状态。如震动指示器显示为蓝色，请立刻通知 ANCA 公司。下图显示了机床上震动指示器的位置。

Every effort is taken to ensure that the machine is delivered to the customer in first class condition. The TX7+ includes shock indicators, these are red under normal circumstances, but if the machine should be subject to a shock during transport, or use, this turns blue. This gives warning that the machine may be out of alignment. Please notify ANCA immediately if any of the indicators have turned blue! The diagrams below show the positioning of the shock indicators on the machine.

Page 10

TX7+现场准备手册 TX7+ Site Preparation Manual

6.2 卸除步骤 Removal Procedure

第一步 Step 1. 小心将从机床上切除包装袋。

Remove the Seet Bag from the machine by carefully cutting it off.

第二步 Step 2. 检查震动指示器的颜色。在正常情况下显示为红色，但 TX7+如在运输中掉落或受损，震动指示器就会显示为蓝色。

Check the color of the ‘Shock’ indicators. Normally, they are RED. If your TX7+ has been dropped or damaged during transportation, the indicators will turn BLUE.

如震动指示器显示为蓝色，请立刻通知 ANCA 公司。

Please notify ANCA immediately if any of the indicators have turned BLUE!

第三步 Step 3. 将 TX7+从托板上卸除下来，需将连接机床至托板的校平螺栓旋开。这些螺栓分别位于主托板轨道顶部凸缘下方的七个位置。需使用一只 24 毫米的套筒板旋开螺栓。

To separate the TX7+ from the sled, unscrew the leveling bolts attaching the machine to the sled. These bolts are found in 7 places under the top flange of the main sled rails. A 24mm socket is necessary to remove these bolts.

Page 11

TX7+现场准备手册 TX7+ Site Preparation Manual

第四步 Step 4. 分别卸除附于托板上的所有附件。

Remove any accessories attached separately to the sled.

使用机床的叉车升降口升降 TX7+。切勿此时将 TX7+放置于地面！

Lift the TX7+ with forklift utilising the M/C’s forklift channels. Do not put TX7+ on th e ground yet!

第五步 Step 5. 在将 TX7+放置于地面之前，在工具箱中取出七只防松螺母并将其置于七只校平螺栓上。

Before putting the TX7+ back onto the ground, find the 7 locknuts in the toolbox and put them on the 7 leveling bolts.

第六步 Step 6. 用防松螺母将螺栓旋紧（点 1 至 3 和 6，7，见图 2）直到

Screw leveling bolts back (point 1 to 3 and 6 & 7 see Figure 2) with locknuts until

点 1、2、3 从机床底座突出 30 毫米

Points 1, 2 & 3 protrude 30 mm from the M/C base

点 6、7 从上料机底座突出 20 毫米

Points 6 & 7 protrude 20mm from the loader base

第七步 Step 7. 用防松螺母在点 1 处（底座中部，操作员左手端）将螺栓旋紧，TX7+右手边前后部点 2、3 处的防松螺母松开。

Tighten the bolt with the lock nut in point 1 (middle of the base, left hand end from operator), leave the locknuts for points 2 and 3 on the right hand front and rear of the TX7+ loose.

第八步 Step 8. 在工具箱中取出七块 TX7+底垫并将其置放于点 1、2 和 3。然后仔细将 TX7+置放于地面。

Prepare 7 TX7+ floor pads (in the toolbox) and locate 3 floor pads under points 1,2 and 3. Then carefully put the TX7+ onto the ground.

此时上料机固定器（6

、7）不能触碰地面，测试 TX7+轴之后方可安装。

At this stage the loader stabilisers (6 & 7) should not be touching the ground and will be set after testing the TX7+ axes.

Page 12

TX7+现场准备手册 TX7+ Site Preparation Manual

7. 机床校平点 Machine Leveling Points

ANCA 工作人员将在安装时校平 TX7+。

ANCA personnel will level the TX7+ during installation.

上料机

LOADER

点 4 和 5，只在机床运输时

使用

Points 4 & 5 Only for M/C Transport

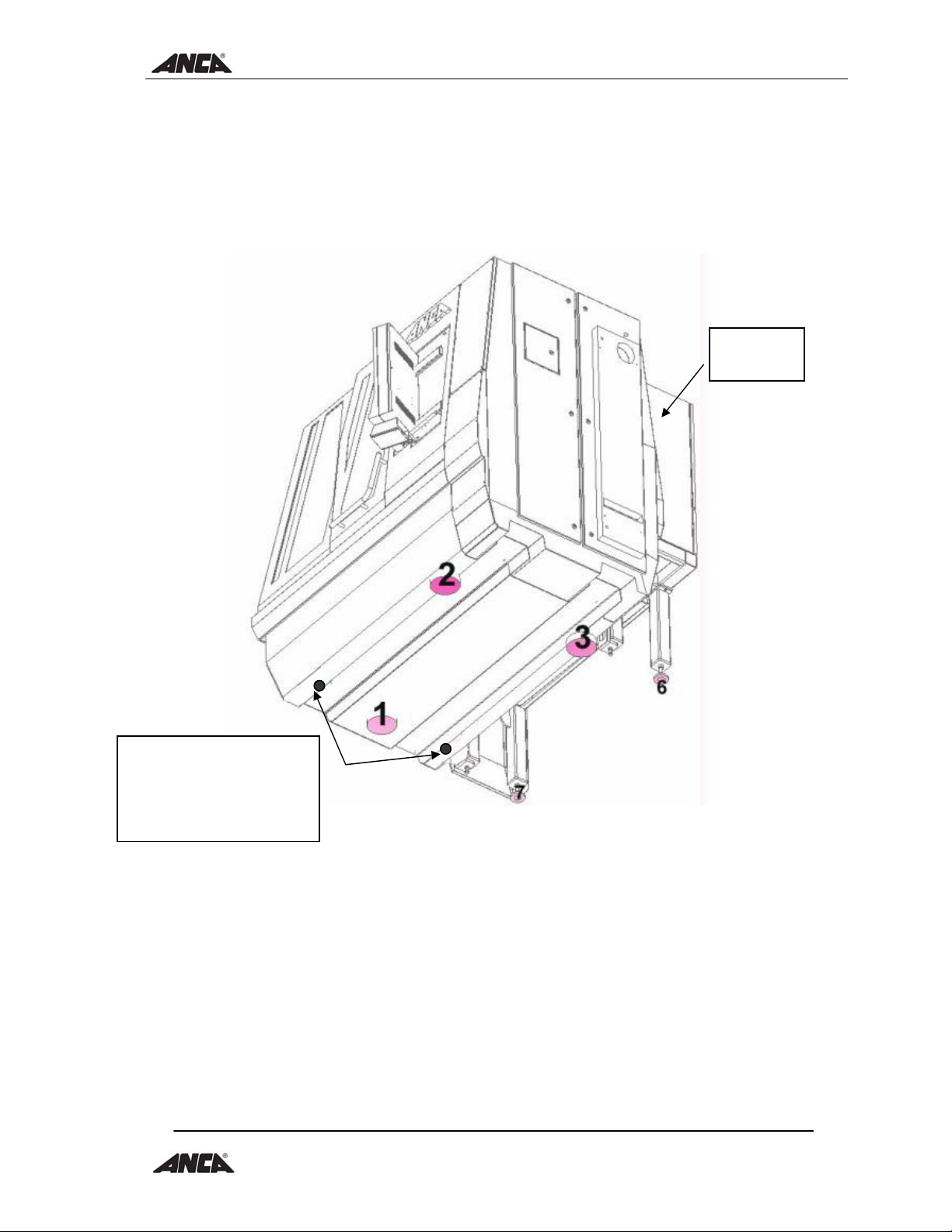

图 2，校平点

Figure 2. Leveling Points

Page 13

TX7+现场准备手册 TX7+ Site Preparation Manual

(6”)

8. 外接设备 Extern al services

8.1 冷却设备 Coolant Services

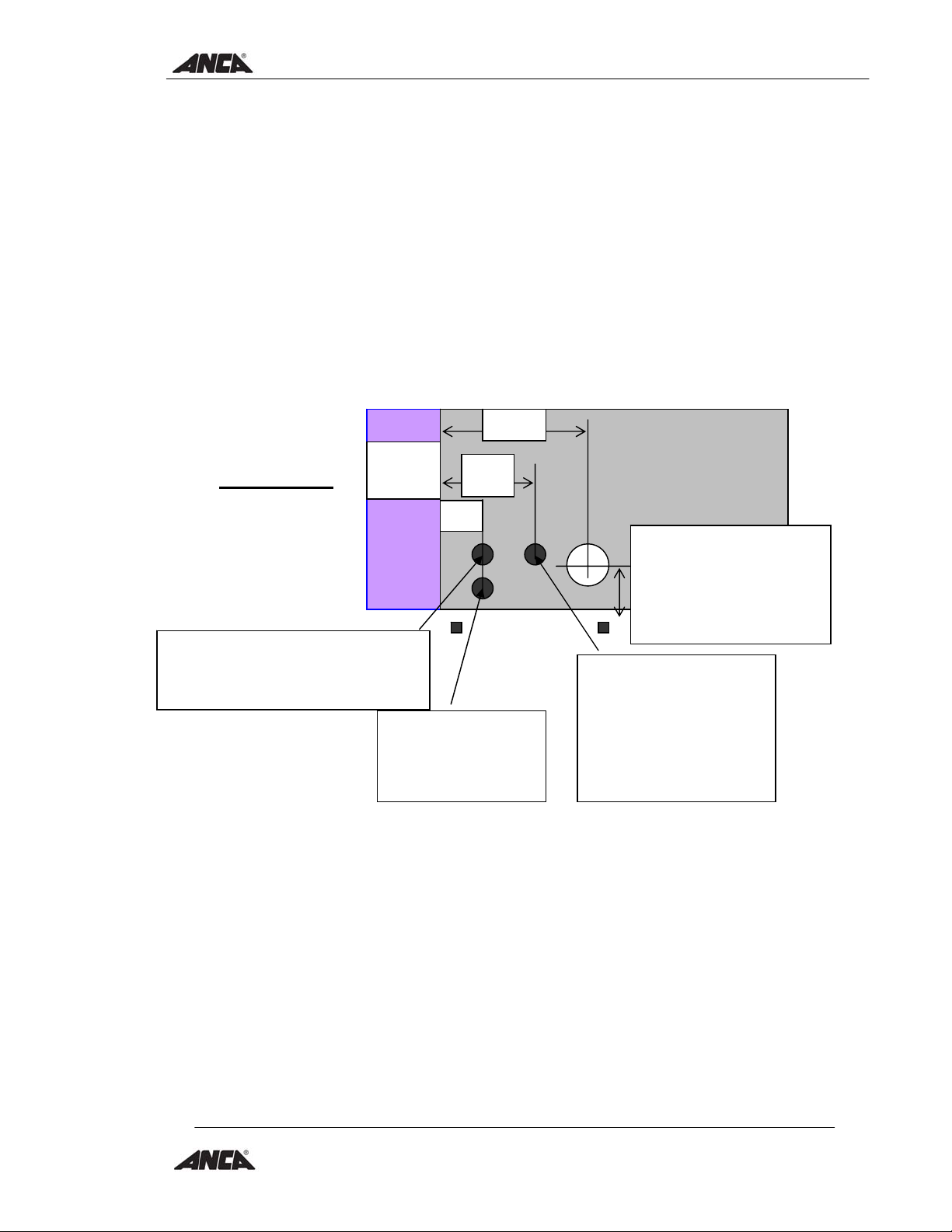

TX7+磨床设有三个冷却液入口和一个冷却液输出斜槽。三个冷却液入口位于冷却液输出口（站立于机床前方时）的左手方（请参考下图）。

The TX7+ has three coolant inlets and one coolant output chute. These three coolant inlets are located on the LH side of the machine coolant outlet as observed when standing in front of the loader (please refer the drawing below).

后视图

REAR VIEW

电器箱 Elect. Cabine

主轴和修整器冷却液入口装置为一的标准管螺纹

For headstock/dresser coolant inlet, male ¾” BSP

itting provided

3/4

英寸

冷却液喷射清洁器（备选）

For coolant jet cleaner (optional) ¾”

冷却液通过位于机床左手方（站立于上料机前方时）的一外圆为 165.1 毫米（6 英寸）的圆形冷却液出口法兰输出。冷却液出口中心高度为自地面起 310 毫米。

The coolant flows out through a circular 165.1mm (6”) OD coolant outlet flange and located at the LH side of the machine as observed

when standing in front of the loader. The centre of the coolant outlet is approximately 310mm from the floor.

标准 ANCA 系统或其他外部系统都是通过 XTB20（界面终端块）连线的。 The standard ANCA system or other external systems are wired via

XTB20 (Interface Terminal Block).

3/4

英寸

430

585

冷却管出口离地高度大约为

165.1

毫米（6英寸）外圆

冷却液出口法兰输出

Coolant outlet = Approx. 310mm from the floor,

165.1mm

主冷却管入口（输入砂轮）

为一

1/4

英寸的标准管螺纹

Main coolant inlet (feeds to the wheel) Male 1 ¼” BSP fitting provided

OD flange

Page 14

TX7+现场准备手册 TX7+ Site Preparation Manual

标准 ANCA 冷却系统的干线电压由机床供应。控制信号和电源电压都是通过电器箱一侧的一 16 路 HTS 插头供电的。

The mains voltage for the standard ANCA coolant system is supplied by the machine. Control signals and supply voltage are supplied via a 16way HTS plug located on the side of the electrical cabinet.

其他外接冷却系统需要一个单独的电源供应。

A separate power drop is required for other external systems.

控制信号需要通过位于电器箱一侧的密封管连线。（备有预先冲压好的孔。）

Control signal will need to be wired via glands which can be mounted on the side of the electrical cabinet (pre-punched holes are available).

如果您选择了除 ANCA 标准系统以外的其他系统，请向您所在的 ANCA 分公司代表咨询。客户必须安排整合非 ANCA 标准的系统。对于由其他生产商供应的设备， ANCA 概不承担任何责任。

If you select a system other than ANCA Standard System, please consult your ANCA Branch representative. The integration of nonstandard ANCA system has to be arranged by the customer. ANCA will not be responsible for the equipment supplied by other manufacturers.

有关 XEXTN 结构，请参考电力图 952-0-02-7000 表 20。

Please refer to electrical drawing 952-0-02-7000 SHT20 for XEXTN layout.

有关 ANCA 冷却管电力线路的信息，请参考 952-0-00-8100 表 157。

For ANCA cooljet electrical connections please refer to 952-0-00-8100 SHT157.

8.2 灭火系统 Fire System

当使用油基冷却液，尤其是在进行无人班次的操作时，强烈建议使用自动灭火系统。

An automatic fire extinguishing system is highly recommended when using oil based coolants and especially in unmanned shift operation.

双重火警装置与紧急停止功能相互锁定。

Dual chain alarm interlocked with Emergency Stop on Fire alarm.

机床可向 ANCA TX7+标准灭火系统提供电力（110伏特交流电单相 2 安培）。

Power (110VAC single phase at 2 AMPS) is available from the machine for the ANCA TX7+ Standard fire systems.

如果您选择了除 ANCA 标准系统以外的其他系统，请向您的 ANCA 分公司代表咨询。客户必须安排整合非 ANCA 标准的系统。对于由其他生产商供应的设备， ANCA 概不承担任何责任。

Page 15

TX7+现场准备手册 TX7+ Site Preparation Manual

请参考电力图 952-0-00-9300 表 170, 952-0-00-8100 表 15 和表 40。 Please refer to electrical drawings 952-0-00-9300 SHT170, 952-0-008100 SHT15 & SHT40.

备选 ANCA 供应系统 Optional ANCA supplied systems 二氧化碳(CO2)灭火系统是一种利用固定喷嘴媒介配电网的工程系统。系统能够通过转移支持燃烧的含氧空气以应对 A,B,C 险级的火灾。

The Carbon Dioxide (CO2) Fire Suppression System is an engineered system utilizing a fixed nozzle agent distribution network. The system will extinguish fires in Class A, B and C hazards by displacing the air containing oxygen, which supports combustion.

系统可以通过自动系统操作的侦察和控制设备启动，并且在需要的状况下可以进行

本地和远程的人工操作。

The system can be triggered by detection and control equipment for automatic system operation as well as provides local and remote manual operation if needed.

适用标准：Applicable standards:

• UL 清单所列 EX-2968 UL listed EX-2968;

• USCG 批准，批准号为 162.038/7/0 USCG approved under Approval No. 162.038/7/0;

• 达到 pf NFPA 标准 12 的要求“二氧化碳灭火系统” Meets requirements pf NFPA Standard 12 “Carbon Dioxide

Extinguishing Systems”;

• 由工厂共同研究公司批准 Approved by Factory Mutual Resear ch Corp.

• AUTOPULSE 控制系统达到 NFPA 70 和 NFPA 72 的要求

AUTOPULSE Control System meets requirements of NFPA 70 and NFPA 72.

热探测器自动探测到火苗后，二氧化碳灭火系统随即自动启动。热探测器是通过一

灵活的钢管连接到火灾探测控制面板上的。

The Carbon Dioxide system shall be automatically operated upon detection of a fire by the thermal detector. The thermal detector is connected to the Fire Detection Control Panel via a flexible steel conduit.

系统也可通过一位于操作门附近的由人工控制杆控制的启动器进行人工操作。 Manual operation of the system is possible via a manual lever operated

actuator, which is located near the operator door.

Page 16

TX7+现场准备手册 TX7+ Site Preparation Manual

8.3 油雾分离系统 Mist Extraction System

可使用油雾过滤分离系统来分离机床内冷却液产生的油雾。设有一圆形 150 毫米（6 英寸）外圆法兰面即用于此目的。一个单独的电源供应用于此装置。

Coolant mist within the machine can be drawn out using a filter mist extraction system. A 150mm (6”) OD circular flange is provided for this purpose. A separate power drop provides the power for this unit.

ANCA TX7+ 标准油雾分离器可使用机床电源（110 伏特交流电单相 1 安培）。

Power (110VAC single phase at 1 AMP) is available from the machine for the ANCA TX7+ Standard mist extractor.

有关 XTB20 结构，请参考 TX7+电力图 952-0-00-9200 表 161 和 952-0-00-8100 表 15。

Please refer to electrical drawings 952-0-00-9200 SHT161 & 952-0-008100 SHT15 for XTB20 layout.

Page 17

TX7+现场准备手册 TX7+ Site Preparation Manual

9. 供气系统 Air System

磨床和上料机需要 6 巴（88 PSI）以上的供气。该压缩空气用于净化主轴，操纵弹出式托架，气动触发器和气喷，自动砂轮转换器，上料机门和夹臂装置。入口装置为一 3/8 英寸的倒钩。机床的空气入口设有一关闭阀门。

A minimum 6 BAR (87 PSI) air supply is required for the grinder and loader. The air is used to air purge the spindle, manipulate the pop-up steady, pneumatic actuator and air blast, automatic wheel changer, loader door and grip pers. The inlet fitting is a 3/8” Barb, a shutoff valve is provided at the air inlet to the machine.

压缩空气质量 Compressed Air Quality 所有 ANCA 磨床刀具都设有一 5 微米的过滤调节器，此过滤调节器含有自动排水功能。除了磨床的气喷系统外，还同时使用了一只可将空气质量过滤至 0.01 微米的接合过滤器。此过滤器亦含有自动排水装置。

Every ANCA machine tool is equipped with a 5 micron filter/regulator which incorporates an automatic drain feature. A coalescing filter, that filters the air quality to 0.01 micron, is also used in conjunction with the air purging services on the machine tool. This filter also has an automatic drain facility.

传输到两过滤调节器的压缩空气必须达到以下标准：

It is a pre-requisite that the compressed air, delivered to both the filter regulators, complies with the following criteria:

空气质量 Air Quality : ISO 8573-1 第四级 ISO 8573-1 Class 4 最低压力 Minimum pressure : 6 巴(87 psi) 6 bar (87 PSI)

空气中不能含有液体污染物质（不能含有油质或水）。

Air must contain no gross liquid contaminants (no flow of oil or water).

此文件中有关耗气量的数据采用以下格式。已列出稳定状态下的耗气率（以每分钟立方英尺为单位），以及预期耗气峰值。耗气峰值通常在夹头气喷清洁时产生。耗气峰值在以下方面进行了详细的说明：

The figures quoted in this document for air consumption use the following format. A steady state air consumption rate (in cubic feet per minute ‘CFM’) is given, along with expected consumption ‘spikes’. These air consumption spik es are usually due to air blasting of the collet. The spikes are specified in terms of:

• 数量（以每分钟立方英尺单位））Magnitude (CFM)

• 预期持续时间（最长预计持续时间，以秒为单位）Expected duration

(maximum expected duration in seconds)

Page 18

TX7+现场准备手册 TX7+ Site Preparation Manual

• 预期频率（每小时预计最多耗气峰值次数）Expected frequency (maximum expected spikes per hour)

这样购有我们机床的客户就可以确保其供气系统达到我们机床的需求。

This will allow a customer purchasing one of our machines to ensure their air system can meet the demands of our machines.

注意所列出的数据是压力峰值状态的平均数值，也就是说压力峰值状态围绕规定数据上下波动的最大值。此规定数据是由测量周期序列内每一阶段的实际流量后除以总周期时间。

Note that the stated figures are the average for pressure spike conditions. ie the maximum during a pressure spike condition may exceed or drop below the stated figure. This figure stated is calculated from measuring actual flow for each stage of a cycle sequence then dividing by the total cycle time.

客户可将流动率乘以预计周期频率以确认供气要求。耗气高峰的预计频率已列明。

Customers can confirm pneumatic supply requirement by multiplying the flow rates by the predicted cycle frequency. Expected frequency for each spike is given.

已列出稳定状态下的耗气率（只在机床空气清洁时）每分钟 11 立方英尺 Steady State Consumption (Machine Air Purges Only): 11 CFM

耗气峰值 Possible Air Consumption Spikes:

• 上料周期间（夹头气喷清洁时） During Tool Loading Cycle (with Collet Air Blast)

平均峰值 Spike Average : 每分钟 5 立方英尺+5 CFM 峰值平均持续时间 Spike Average duration : 8 秒 8 seconds 平均预期频率 Average expected frequency : 每小时 20 次 20 per

hour

• 砂轮转换周期间（砂轮杆气喷清洁时）During Wheel Changing Cycle (with Wheel Arbors Air Blast)

平均峰值 Spike Average : 每分钟 10 立方英尺+10 CFM 峰值平均持续时间 Spike Average duration : 6 秒 6 seconds 平均预期频率 Average expected frequency : 每小时 40 次 40 per

hour

警告 WARNING!

如未达到最低要求，将可能导致无效质保。如有不明之处，请联系您的本地压缩空气经销商。

Failure to meet minimum requirements may void warranty. If unsure, please contact your local compressed air dealer.

Page 19

TX7+现场准备手册 TX7+ Site Preparation Manual

10. TX7+机床电源要求 TX7+ Machine Power Requirements

ANCA 磨床电力电缆的运行和终止应由客户方完成。

It is the customer’s responsibility to run and terminate the power cable to the ANCA grinder.

TX7+要求三相电力和接地。应从右手边的电器箱顶部进入主隔离器。电器箱顶部入口处设有一顶盖。

The TX7+ requires 3-phase power and earth. Access to the mains isolator is from the top of the electrical cabinet on the right hand side. There is a cover plate for access in the top of the electrical cabinet.

三相电力供应必须互相平衡，并且必须达到以下要求。电力供应可按照以下所列：

The 3-phase supply must be equally balanced and must not deviate from the requirements below. The power supply can be of the following voltages:

200 伏 (72 安培), 220伏(65 安培), 380 伏(40 安培), 415 伏 (35 安培), 440 伏(33 安培), 460 伏(31 安培), 480 伏(30 安培)

200V ( 72 Amps), 220V (65 Amps), 380V (40 Amps), 415V (35 Amps), 440V (33 Amps), 460V (31 Amps), 480V (30 Amps)

以上电压的最低电力要求如下：

The minimum power requirement of the above voltages is as follows:

• 25 千伏安（包括磨床和上料机）25KVA (includes grinder and loader)

• 电流＝25000 / (线电压 x 1.732) Current = 25000 / (Line voltage x

1.732)

• 最大电压波动 +/- 5% Maximum voltage fluctuation : +/- 5%

• 最大相间波动 5%Maximum line to line fluctuation : 5%

• 频率 50－60 赫兹 +/- 5%Frequency 50 – 60 Hz : +/- 5%

如果供电不能在以上误差范围内保持恒定，则必须安装变压器和/或功率调节器。

If the supply does not remain constant to the above tolerances a transformer and/or a power conditioner must be installed.

注意 1NOTE 1: 切勿将机床主电力与任何产生噪音的设备（如电焊机等）的电力源相连接。

Do not connect this machine's main power to any power source that is shared by noise generating equipment. (Welders etc.)

Page 20

TX7+现场准备手册 TX7+ Site Preparation Manual

注意 2NOTE 2: TX7+必须以铜接地棒接地，而不适宜使用金属电力导管。

The TX7+ must be earthed to the internal brass earth bar; metal electrical conduit is not considered good earthing practice for the TX7+.

注意 3 NOTE 3: 电器箱后顶端右手方设有一金属板, 使电力从顶端进入。

A metal plate is provided in the rear back right hand side of the electrical cabinet for top entry of electrical power.

Page 21

TX7+现场准备手册 TX7+ Site Preparation Manual

现场就绪确认 SITE READINESS CONFIRMATION

恭喜您购买了 ANCA 磨床！

Congratulations on purchasing your ANCA machine!

请拨冗填写以下表格以便我们能顺利有效地完成机床安装。

Please take a few moments to complete this form as it will enables us to carry out the machine installation smoothly and more effectively.

请将此表格在安装工作 10 天之前传真给有关 ANCA 的分公司。

Please fax this form back to relevant ANCA Branch at least 10 days prior to your machine installation.

1. 最终核对清单 FINAL CHECK LIST 请忽略由 ANCA 公司提供的项目是如果不是，何时

Please disregard item that ANCA are supplying YES if not,WHEN

电源要求 - 机床

POWER REQUIREMENTS - Machine

- 冷却系统（包括制冷器）

- coolant system(incl. chiller)

- 油雾收集器 mist collector

- 灭火器 fire extinguisher

- 冷却液已备好 Coolant prepared

- 刀具夹持已备好 Tool holding prepared

2. 计划安装机床日期 / / （日/月/年） PROPOSED DATE OF MACHINE INSTALLATION / /

Day/Month/Year

3. 客户信息（ANCA 项目负责人） CUSTOMER DETAILS ( Responsible for ANCA Project )

姓名 Name ____________ 电子邮件 email ___________________

下班后联系电话

4. ANCA 工作人员的食宿安排（推荐）

姓名 Name ________________________________

电话 Phone number _____________________________________

传真 Fax number _____________________________________

地址 Address _____________________________________

/手机 AH / Mobile_____________________________

ACCOMMODATION for ANCA Personnel ( Suggested recommendation )

电话 Phone number ________________________________ 传真 Fax number ______________________________ __ 地址 Address ________________________________

Page 22

TX7+现场准备手册 TX7+ Site Preparation Manual

5. 您的评论 YOUR COMMENTS

_________________ __________________ ___________________

签名正体日期（日/月/年）

Signature Print Name Date

day/month/year
