Analog Devices ADSP-21062LCS-160, ADSP-21062LAB-160, ADSP-21062KS-160, ADSP-21062KS-133, ADSP-21062KB-160 Datasheet

...

REV. C

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

ADSP-2106x SHARC

DSP Microcomputer Family

ADSP-21062/ADSP-21062L

IEEE JTAG Standard 1149.1 Test Access Port and

On-Chip Emulation 240-Lead Thermally Enhanced MQFP Package 225-Ball Plastic Ball Grid Array (PBGA) 32-Bit Single-Precision and 40-Bit Extended-Precision

IEEE Floating-Point Data Formats or 32-Bit Fixed-

Point Data Format

Parallel Computations

Single-Cycle Multiply and ALU Operations in Parallel with

Dual Memory Read/Writes and Instruction Fetch Multiply with Add and Subtract for Accelerated FFT

Butterfly Computation

2 Mbit On-Chip SRAM

Dual-Ported for Independent Access by Core Processor

and DMA

Off-Chip Memory Interfacing

4 Gigawords Addressable Programmable Wait State Generation, Page-Mode

DRAM Support

SUMMARY High Performance Signal Processor for Communica-

tions, Graphics and Imaging Applications

Super Harvard Architecture

Four Independent Buses for Dual Data Fetch, Instruction Fetch and Nonintrusive I/O

32-Bit IEEE Floating-Point Computation Units—

Multiplier, ALU, and Shifter

Dual-Ported On-Chip SRAM and Integrated I/O

Peripherals—A Complete System-On-A-Chip

Integrated Multiprocessing Features

KEY FEATURES 40 MIPS, 25 ns Instruction Rate, Single-Cycle Instruction

Execution 120 MFLOPS Peak, 80 MFLOPS Sustained Performance Dual Data Address Generators with Modulo and Bit-

Reverse Addressing Efficient Program Sequencing with Zero-Overhead

Looping: Single-Cycle Loop Setup

SHARC is a registered trademark of Analog Devices, Inc.

SERIAL PORTS

(2)

LINK PORTS

(6)

IOP

REGISTERS

(

MEMORY MAPPED)

CONTROL, STATUS &

DATA BUFFERS

I/O PROCESSOR

TIMER

INSTRUCTION

CACHE

32 x 48-BIT

ADDR DATA

DATA

ADDR

ADDR DATA ADDR

TWO INDEPENDENT

DUAL-PORTED BLOCKS

PROCESSOR PORT I/O PORT

BLOCK 0

BLOCK 1

JTAG

TEST &

EMULATION

HOST PORT

ADDR BUS

MUX

IOA 17

IOD 48

MULTIPROCESSOR

INTERFACE

DUAL-PORTED SRAM

EXTERNAL

PORT

DATA BUS

MUX

24PM ADDRESS BUS

DM ADDRESS BUS

PM DATA BUS

DM DATA BUS

BUS

CONNECT

(PX)

DATA

FILE

16 x 40-BIT

BARREL SHIFTER

ALU

MULTIPLIER

DAG1

8 x 4 x 32

40/32

CORE PROCESSOR

DMA

CONTROLLER

PROGRAM

SEQUENCER

DAG2

8 x 4 x 24

Figure 1. ADSP-21062/ADSP-21062L Block Diagram

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781/329-4700 World Wide Web Site: http://www.analog.com Fax: 781/326-8703 © Analog Devices, Inc., 2000

–2–

ADSP-21062/ADSP-21062L

REV. C

DMA Controller

10 DMA Channels for Transfers Between ADSP-21062

Internal Memory and External Memory, External Peripherals, Host Processor, Serial Ports, or Link Ports

Background DMA Transfers at 40 MHz, in Parallel with

Full-Speed Processor Execution

Host Processor Interface to 16- and 32-Bit Microprocessors

Host Can Directly Read/Write ADSP-21062 Internal

Memory

Multiprocessing

Glueless Connection for Scalable DSP Multiprocessing

Architecture

Distributed On-Chip Bus Arbitration for Parallel Bus

Connect of Up to Six ADSP-21062s Plus Host

Six Link Ports for Point-to-Point Connectivity and Array

Multiprocessing 240 Mbytes/s Transfer Rate Over Parallel Bus 240 Mbytes/s Transfer Rate Over Link Ports

Serial Ports

Two 40 Mbit/s Synchronous Serial Ports with Com-

panding Hardware Independent Transmit and Receive Functions

TABLE OF CONTENTS

GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . 3

ADSP-21000 FAMILY CORE ARCHITECTURE . . . . . . . 4

ADSP-21062/ADSP-21062L FEATURES . . . . . . . . . . . . . . 4

DEVELOPMENT TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PIN FUNCTION DESCRIPTIONS . . . . . . . . . . . . . . . . . . 8

TARGET BOARD CONNECTOR FOR EZ-ICE

PROBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

RECOMMENDED OPERATING CONDITIONS . . . . . . 13

ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . 13

TIMING SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . 17

Memory Read—Bus Master . . . . . . . . . . . . . . . . . . . . . . . 20

Memory Write—Bus Master . . . . . . . . . . . . . . . . . . . . . . 21

Synchronous Read/Write—Bus Master . . . . . . . . . . . . . . 22

Synchronous Read/Write—Bus Slave . . . . . . . . . . . . . . . . 24

Multiprocessor Bus Request and Host Bus Request . . . . . 26

Asynchronous Read/Write—Host to ADSP-21062 . . . . . . 28

Three-State Timing—Bus Master, Bus Slave,

HBR, SBTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DMA Handshake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Link Ports: 1 × CLK Speed Operation . . . . . . . . . . . . . . 33

Link Ports: 2 × CLK Speed Operation . . . . . . . . . . . . . . 34

Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

JTAG Test Access Port and Emulation . . . . . . . . . . . . . . . 39

OUTPUT DRIVE CURRENTS . . . . . . . . . . . . . . . . . . . . . 40

POWER DISSIPATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

TEST CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

ENVIRONMENTAL CONDITIONS . . . . . . . . . . . . . . . . 43

225 Ball Plastic Ball Grid Array (PBGA)

Package Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . 44

225 Ball Plastic Ball Grid Array (PBGA)

Package Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

PACKAGE DIMENSIONS,

225-Ball PBGA

. . . . . . . . . . . 46

240-LEAD METRIC MQFP PIN CONFIGURATIONS . . 47 PACKAGE DIMENSIONS,

240-Lead Metric MQFP

. . . 48

ORDERING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figures

Figure 1. ADSP-21062/ADSP-21062L Block Diagram . . . . 1

Figure 2. ADSP-21062 System . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 3. Shared Memory Multiprocessing System . . . . . . . . 6

Figure 4. ADSP-21062/ADSP-21062L Memory Map . . . . . 7

Figure 5. Target Board Connector For ADSP-2106x

EZ-ICE Emulator (Jumpers in Place) . . . . . . . . . . . . . . . 11

Figure 6. JTAG Scan Path Connections for Multiple

ADSP-2106x Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 7. JTAG Clocktree for Multiple ADSP-2106x

Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

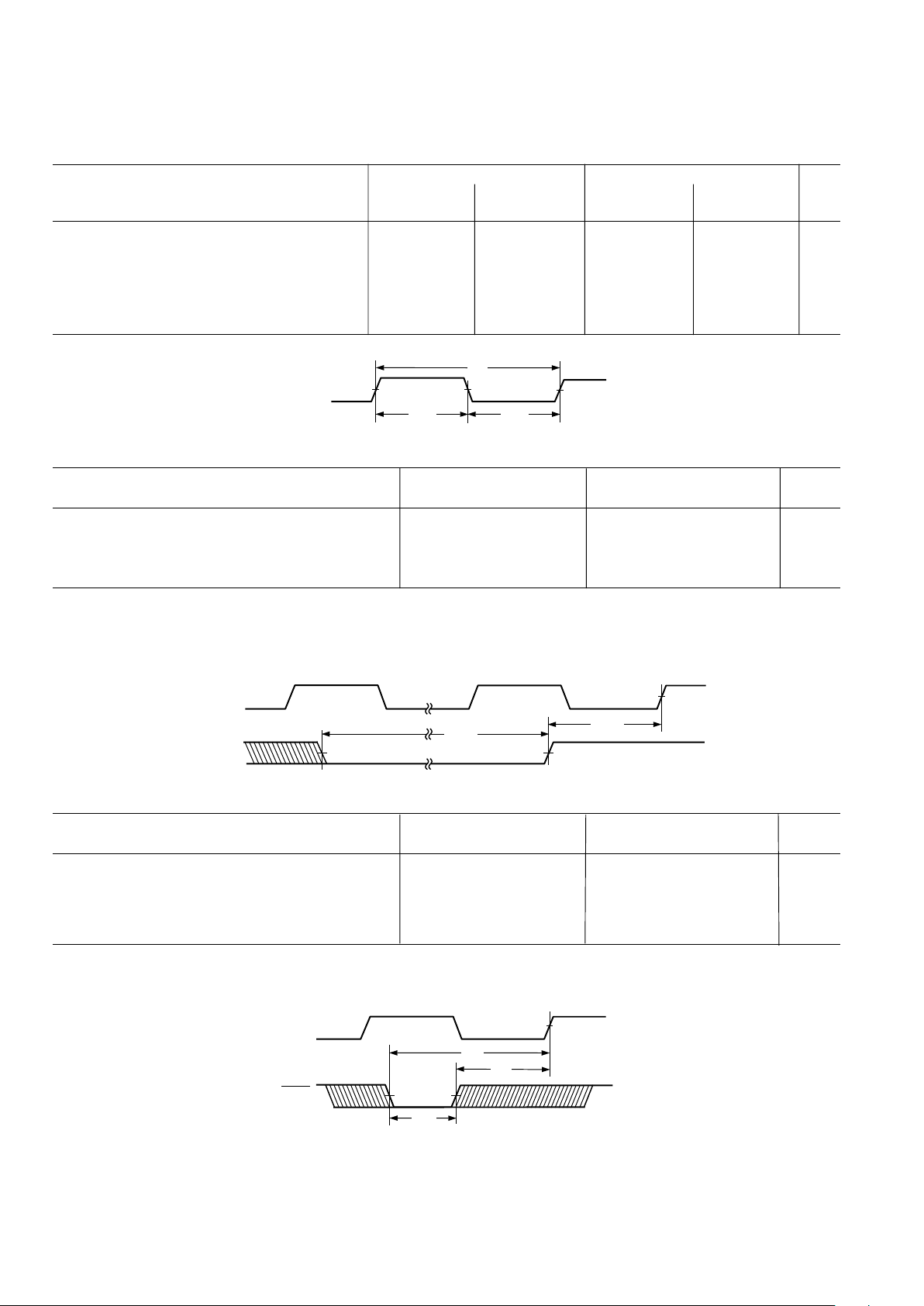

Figure 8. Clock Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 9. Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 10. Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 11. Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 12. Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

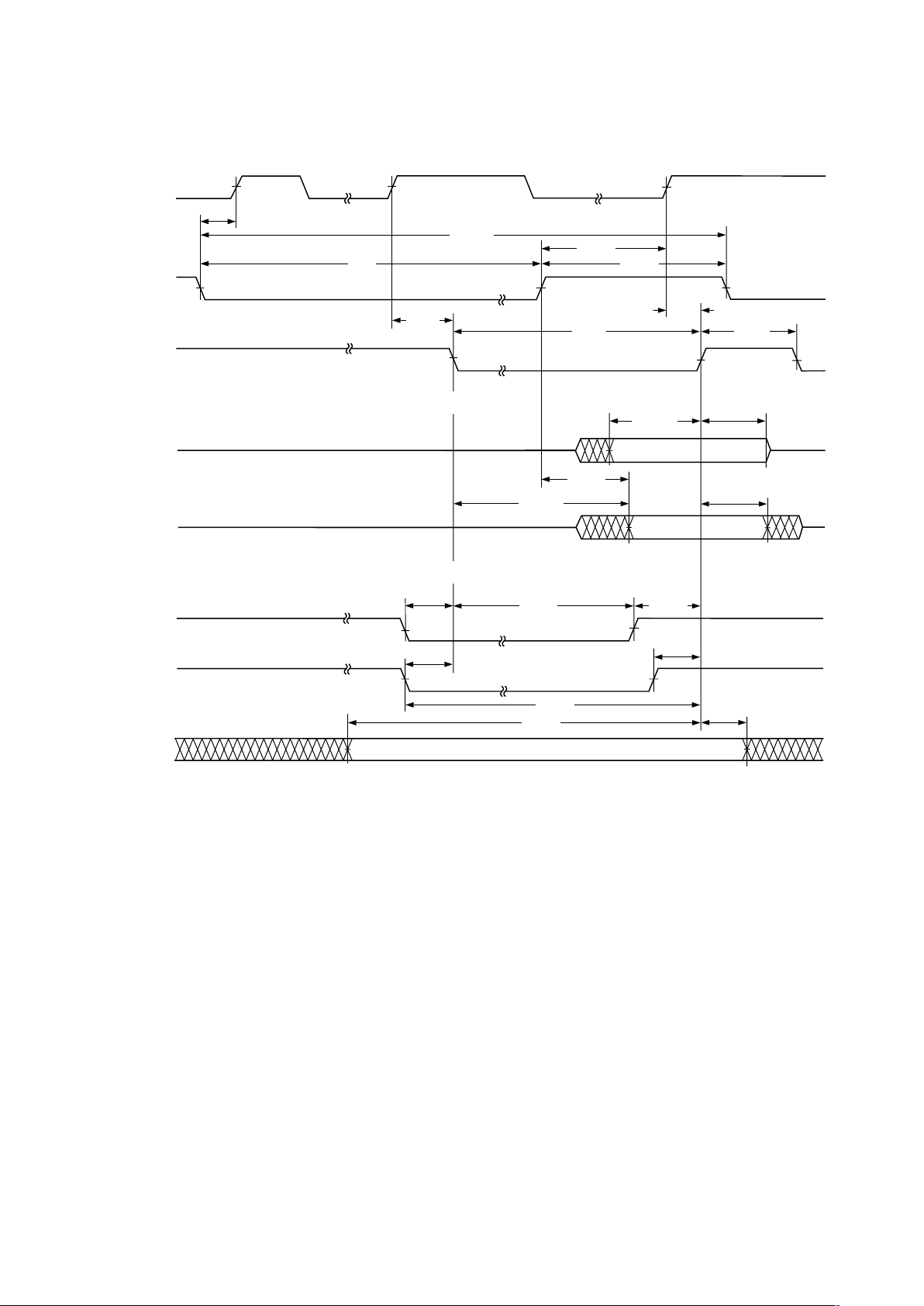

Figure 13. Memory Read—Bus Master . . . . . . . . . . . . . . . . 20

Figure 14. Memory Write—Bus Master . . . . . . . . . . . . . . . 21

Figure 15. Synchronous Read/Write—Bus Master . . . . . . . 23

Figure 16. Synchronous Read/Write—Bus Slave . . . . . . . . . 25

Figure 17. Multiprocessor Bus Request and Host Bus

Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 18a. Synchronous REDY Timing . . . . . . . . . . . . . . 28

Figure 18b. Asynchronous Read/Write—Host to

ADSP-21062 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 19a. Three-State Timing (Bus Transition Cycle,

SBTS Assertion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 19b. Three-State Timing (Host Transition Cycle) . . 30

Figure 20. DMA Handshake Timing . . . . . . . . . . . . . . . . . 32

Figure 21. Link Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Figure 22. Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 23. External Late Frame Sync . . . . . . . . . . . . . . . . . 38

Figure 24. IEEE 11499.1 JTAG Test Access Port . . . . . . . 39

Figure 25. Output Enable/Disable . . . . . . . . . . . . . . . . . . . 41

Figure 26. Equivalent Device Loading for AC Measurements

(Includes All Fixtures) . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Figure 27. Voltage Reference Levels for AC Measurements

(Except Output Enable/Disable) . . . . . . . . . . . . . . . . . . . 41

Figure 28. ADSP-21062 Typical Drive Currents

= 5 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 29. Typical Output Rise Time (10%–90% V

)

vs. Load Capacitance (V

= 5 V) . . . . . . . . . . . . . . . . . . 42

Figure 30. Typical Output Rise Time (0.8 V–2.0 V) vs. Load

Capacitance (V

= 5 V) . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 31. Typical Output Delay or Hold vs. Load Capacitance

(at Maximum Case Temperature) (V

= 5 V) . . . . . . . . 42

Figure 32. ADSP-21062 Typical Drive Currents

= 3.3 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 33. Typical Output Rise Time (10%–90% V

)

vs. Load Capacitance (V

= 3.3 V) . . . . . . . . . . . . . . . . 42

Figure 34. Typical Output Rise Time (0.8 V–2.0 V) vs. Load

Capacitance (V

= 3.3 V) . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 35. Typical Output Delay or Hold vs. Load Capacitance

(at Maximum Case Temperature) (V

= 3.3 V) . . . . . . . 43

EZ-ICE is a registered trademark of Analog Devices, Inc.

ADSP-21062/ADSP-21062L

–3–

REV. C

including a 2 Mbit SRAM memory (4 Mbit on the ADSP-21060), host processor interface, DMA controller, serial ports and link port and parallel bus connectivity for glueless DSP multiprocessing.

Figure 1 shows a block diagram of the ADSP-21062, illustrating the following architectural features:

Computation Units (ALU, Multiplier and Shifter) with a

Shared Data Register File Data Address Generators (DAG1, DAG2) Program Sequencer with Instruction Cache Interval Timer On-Chip SRAM External Port for Interfacing to Off-Chip Memory and

Peripherals Host Port and Multiprocessor Interface DMA Controller Serial Ports and Link Ports JTAG Test Access Port

Figure 2 shows a typical single-processor system. A multiprocessing system is shown in Figure 3.

Table I. ADSP-21062/ADSP-21062L Benchmarks (@ 40 MHz)

1024-Pt. Complex FFT 0.46 ms 18,221 cycles

(Radix 4, with Digit Reverse)

FIR Filter (per Tap) 25 ns 1 cycle

IIR Filter (per Biquad) 100 ns 4 cycles

Divide (y/x) 150 ns 6 cycles Inverse Square Root (1/√x) 225 ns 9 cycles

DMA Transfer Rate 240 Mbytes/s

GENERAL NOTE

This data sheet represents production released specifications for the ADSP-21062 (5 V) and ADSP-21062L (3.3 V) processors, for both 33 MHz and 40 MHz speed grades. The product name “ADSP-21062” is used throughout this data sheet to represent all devices, except where expressly noted.

GENERAL DESCRIPTION

The ADSP-21062 SHARC—Super Harvard Architecture Computer—is a signal processing microcomputer that offers new capabilities and levels of performance. The ADSP-21062 SHARCs are 32-bit processors optimized for high performance DSP applications. The ADSP-21062 builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dualported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus.

Fabricated in a high speed, low power CMOS process, the ADSP-21062 has a 25 ns instruction cycle time and operates at 40 MIPS. With its on-chip instruction cache, the processor can execute every instruction in a single cycle. Table I shows performance benchmarks for the ADSP-21062.

The ADSP-21062 SHARC

represents a new standard of integration for signal computers, combining a high performance floating-point DSP core with integrated, on-chip system features

–4–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21000 FAMILY CORE ARCHITECTURE

The ADSP-21062 includes the following architectural features of the ADSP-21000 family core. The ADSP-21062 processors are code- and function-compatible with the ADSP-21020.

Independent, Parallel Computation Units

The arithmetic/logic unit (ALU), multiplier and shifter all perform single-cycle instructions. The three units are arranged in parallel, maximizing computational throughput. Single multifunction instructions execute parallel ALU and multiplier operations. These computation units support IEEE 32-bit singleprecision floating-point, extended precision 40-bit floatingpoint, and 32-bit fixed-point data formats.

RESET

JTAG

ADSP-2106x

BMS

ADDR

31-0

DATA

47-0

CONTROL

ADDRESS

DATA

ADDR

DATA

BOOT

EPROM

(OPTIONAL)

ADDR

ACK

MEMORY

AND

PERIPHERALS

(OPTIONAL)

OE WE

DATA

DMA DEVICE

(OPTIONAL)

DATA

ADDR

DATA

HOST

PROCESSOR

INTERFACE

(OPTIONAL)

1x CLOCK

LINK

DEVICES

(6 MAXIMUM)

(OPTIONAL)

SERIAL DEVICE

(OPTIONAL)

CS HBR HBG

REDY

PAGE

ADRCLK

ACK

SBTS

1-6

DMAR1-2

DMAG1-2

SERIAL DEVICE

(OPTIONAL)

CLKIN EBOOT LBOOT

IRQ

2-0

FLAG

3-0

TIMEXP

LxCLK LxACK LxDAT

3-0

TCLK0 RCLK0 TFS0 RSF0 DT0 DR0

TCLK1 RCLK1 TFS1 RFS1 DT1 DR1

RPBA ID

2-0

3-0

CPA

Figure 2. ADSP-21062 System

Data Register File

A general purpose data register file is used for transferring data between the computation units and the data buses, and for storing intermediate results. This 10-port, 32-register (16 primary, 16 secondary) register file, combined with the ADSP21000 Harvard architecture, allows unconstrained data flow between computation units and internal memory.

Single-Cycle Fetch of Instruction and Two Operands

The ADSP-21062 features an enhanced Harvard architecture in which the data memory (DM) bus transfers data and the program memory (PM) bus transfers both instructions and data (see Figure 1). With its separate program and data memory buses and on-chip instruction cache, the processor can simultaneously fetch two operands and an instruction (from the cache), all in a single cycle.

Instruction Cache

The ADSP-21062 includes an on-chip instruction cache that enables three-bus operation for fetching an instruction and two data values. The cache is selective—only the instructions whose fetches conflict with PM bus data accesses are cached. This allows full-speed execution of core, looped operations such as digital filter multiply-accumulates and FFT butterfly processing.

Data Address Generators with Hardware Circular Buffers

The ADSP-21062’s two data address generators (DAGs) implement circular data buffers in hardware. Circular buffers allow efficient programming of delay lines and other data structures required in digital signal processing, and are commonly used in digital filters and Fourier transforms. The two DAGs of the ADSP-21062 contain sufficient registers to allow the creation of up to 32 circular buffers (16 primary register sets, 16 secondary). The DAGs automatically handle address pointer wraparound, reducing overhead, increasing performance and simplifying implementation. Circular buffers can start and end at any memory location.

Flexible Instruction Set

The 48-bit instruction word accommodates a variety of parallel operations, for concise programming. For example, the ADSP21062 can conditionally execute a multiply, an add, a subtract and a branch, all in a single instruction.

ADSP-21062/ADSP-21062L FEATURES

Augmenting the ADSP-21000 family core, the ADSP-21062 adds the following architectural features:

Dual-Ported On-Chip Memory

The ADSP-21062 contains two megabits of on-chip SRAM, organized as two blocks of 1 Mbits each, which can be configured for different combinations of code and data storage. Each memory block is dual-ported for single-cycle, independent accesses by the core processor and I/O processor or DMA controller. The dual-ported memory and separate on-chip buses allow two data transfers from the core and one from I/O, all in a single cycle.

On the ADSP-21062, the memory can be configured as a maximum of 64K words of 32-bit data, 128K words of 16-bit data, 40K words of 48-bit instructions (or 40-bit data), or combinations of different word sizes up to two megabits. All of the memory can be accessed as 16-bit, 32-bit or 48-bit words.

A 16-bit floating-point storage format is supported, which effectively doubles the amount of data that may be stored on-chip. Conversion between the 32-bit floating-point and 16-bit floatingpoint formats is done in a single instruction.

While each memory block can store combinations of code and data, accesses are most efficient when one block stores data, using the DM bus for transfers, and the other block stores instructions and data, using the PM bus for transfers. Using the DM bus and PM bus in this way, with one dedicated to each memory block, assures single-cycle execution with two data transfers. In this case, the instruction must be available in the cache. Single-cycle execution is also maintained when one of the data operands is transferred to or from off-chip, via the ADSP21062’s external port.

ADSP-21062/ADSP-21062L

–5–

REV. C

include interrupt generation upon completion of DMA transfers and DMA chaining for automatic linked DMA transfers.

Serial Ports

The ADSP-21062 features two synchronous serial ports that provide an inexpensive interface to a wide variety of digital and mixed-signal peripheral devices. The serial ports can operate at the full clock rate of the processor, providing each with a maximum data rate of 40 Mbit/s. Independent transmit and receive functions provide greater flexibility for serial communications. Serial port data can be automatically transferred to and from on-chip memory via DMA. Each of the serial ports offers TDM multichannel mode.

The serial ports can operate with little-endian or big-endian transmission formats, with word lengths selectable from 3 bits to 32 bits. They offer selectable synchronization and transmit modes as well as optional µ-law or A-law companding. Serial port clocks and frame syncs can be internally or externally generated.

Multiprocessing

The ADSP-21062 offers powerful features tailored to multiprocessor DSP systems. The unified address space (see Figure 4) allows direct interprocessor accesses of each ADSP21062’s internal memory. Distributed bus arbitration logic is included on-chip for simple, glueless connection of systems containing up to six ADSP-21062s and a host processor. Master processor changeover incurs only one cycle of overhead. Bus arbitration is selectable as either fixed or rotating priority. Bus lock allows indivisible read-modify-write sequences for semaphores. A vector interrupt is provided for interprocessor commands. Maximum throughput for interprocessor data transfer is 240 Mbytes/s over the link ports or external port. Broadcast writes allow simultaneous transmission of data to all ADSP-21062s and can be used to implement reflective semaphores.

Link Ports

The ADSP-21062 features six 4-bit link ports that provide additional I/O capabilities. The link ports can be clocked twice per cycle, allowing each to transfer eight bits of data per cycle. Link port I/O is especially useful for point-to-point interprocessor communication in multiprocessing systems.

The link ports can operate independently and simultaneously, with a maximum data throughput of 240 Mbytes/s. Link port data is packed into 32- or 48-bit words, and can be directly read by the core processor or DMA-transferred to on-chip memory.

Each link port has its own double-buffered input and output registers. Clock/acknowledge handshaking controls link port transfers. Transfers are programmable as either transmit or receive.

Program Booting

The internal memory of the ADSP-21062 can be booted at system power-up from either an 8-bit EPROM, a host processor, or through one of the link ports. Selection of the boot source is controlled by the BMS (Boot Memory Select), EBOOT (EPROM Boot), and LBOOT (Link/Host Boot) pins. 32-bit and 16-bit host processors can be used for booting.

Off-Chip Memory and Peripherals Interface

The ADSP-21062’s external port provides the processor’s interface to off-chip memory and peripherals. The 4-gigaword offchip address space is included in the ADSP-21062’s unified address space. The separate on-chip buses—for PM addresses, PM data, DM addresses, DM data, I/O addresses and I/O data—are multiplexed at the external port to create an external system bus with a single 32-bit address bus and a single 48-bit (or 32-bit) data bus.

Addressing of external memory devices is facilitated by on-chip decoding of high-order address lines to generate memory bank select signals. Separate control lines are also generated for simplified addressing of page-mode DRAM. The ADSP-21062 provides programmable memory wait states and external memory acknowledge controls to allow interfacing to DRAM and peripherals with variable access, hold and disable time requirements.

Host Processor Interface

The ADSP-21062’s host interface allows easy connection to standard microprocessor buses, both 16-bit and 32-bit, with little additional hardware required. Asynchronous transfers at speeds up to the full clock rate of the processor are supported. The host interface is accessed through the ADSP-21062’s external port and is memory-mapped into the unified address space. Four channels of DMA are available for the host interface; code and data transfers are accomplished with low software overhead.

The host processor requests the ADSP-21062’s external bus with the host bus request (HBR), host bus grant (HBG), and ready (REDY) signals. The host can directly read and write the internal memory of the ADSP-21062, and can access the DMA channel setup and mailbox registers. Vector interrupt support is provided for efficient execution of host commands.

DMA Controller

The ADSP-21062’s on-chip DMA controller allows zerooverhead data transfers without processor intervention. The DMA controller operates independently and invisibly to the processor core, allowing DMA operations to occur while the core is simultaneously executing its program instructions.

DMA transfers can occur between the ADSP-21062’s internal memory and either external memory, external peripherals or a host processor. DMA transfers can also occur between the ADSP-21062’s internal memory and its serial ports or link ports. DMA transfers between external memory and external peripheral devices are another option. External bus packing to 16-, 32-, or 48-bit words is performed during DMA transfers.

Ten channels of DMA are available on the ADSP-21062—two via the link ports, four via the serial ports, and four via the processor’s external port (for either host processor, other ADSP-21062s, memory or I/O transfers). Four additional link port DMA channels are shared with serial port 1 and the external port. Programs can be downloaded to the ADSP21062 using DMA transfers. Asynchronous off-chip peripherals can control two DMA channels using DMA Request/ Grant lines (DMAR1-2, DMAG1-2 ). Other DMA features

–6–

ADSP-21062/ADSP-21062L

REV. C

ADDR

31-0

DATA

47-0

CONTROL

ADSP-2106x #1

CONTROL

ADSP-2106x #2

ADDR

31-0

DATA

47-0

CONTROL

ADSP-2106x #3

011

2-0

RPBA

CLKIN

ADSP-2106x #6 ADSP-2106x #5 ADSP-2106x #4

CONTROL

ADDRESS

DATA

CLOCK

ADDR

DATA

HOST

PROCESSOR

INTERFACE

(OPTIONAL)

GLOBAL MEMORY

AND

PERIPHERALS

(OPTIONAL)

BOOT

EPROM

(OPTIONAL)

ADDR

31-0

DATA

47-0

010

2-0

RPBA

CLKIN

2-0

RPBA

CLKIN

001

CONTROL

ADDRESS

DATA

RESET

RESETRESET

RESET

CPA

1-2

, BR

4-6

CPA

BR1, BR

3-6

CPA

2-6

ACK

3-0

BMS

PAGE

SBTS

ADRCLK

CS HBR HBG

REDY

ADDR

DATA

ADDR

DATA

OE WE

ACK

Figure 3. Shared Memory Multiprocessing System

ADSP-21062/ADSP-21062L

–7–

REV. C

IOP REGISTERS

NORMAL WORD ADDRESSING

0x0000 0000

0x0002 0000

0x0004 0000

0x0008 0000

0x0010 0000

0x0018 0000

0x0020 0000

0x0028 0000

0x0030 0000

0x0038 0000

INTERNAL

MEMORY

SPACE

0x003F FFFF

SHORT WORD ADDRESSING

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=010

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=001

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=011

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=100

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=101

INTERNAL MEMORY SPACE

OF ADSP-2106x

WITH ID=110

BROADCAST WRITE

TO ALL

ADSP-2106xs

MULTIPROCESSOR

MEMORY SPACE

NORMAL WORD ADDRESSING: 32-BIT DATA WORDS 48-BIT INSTRUCTION WORDS

SHORT WORD ADDRESSING: 16-BIT DATA WORDS

BANK 0

0x0040 0000

0xFFFF FFFF

BANK 1

BANK 2

DRAM

(OPTIONAL)

BANK 3

NONBANKED

BANK SIZE IS SELECTED BY MSIZE BIT FIELD OF SYSCON REGISTER.

EXTERNAL

MEMORY

SPACE

Figure 4. ADSP-21062/ADSP-21062L Memory Map

CBug and SHARCPAC are trademarks of Analog Devices, Inc. EZ-LAB is a registered trademark of Analog Devices, Inc.

DEVELOPMENT TOOLS

The ADSP-21062 is supported with a complete set of software and hardware development tools, including an EZ-ICE

In-

Circuit Emulator, EZ-LAB

development board, EZ-KIT, and development software. The EZ-LAB contains an evaluation board with an ADSP-21062 (5 V) processor and provides a serial connection to your PC. The SHARC

EZ-KIT combines the ADSP21000 Family Development Software for the PC and the EZ-LAB

ADSP-21062’s Development Board in one package. The EZ-KIT contains in addition to the EZ-LAB development board, an optimizing compiler, assembler, instruction level simulator, run-time libraries, diagnostic utilities and a complete set of example programs.

The same EZ-ICE hardware can be used for the ADSP-21060/ ADSP-21061, to fully emulate the ADSP-21062, with the exception of displaying and modifying the two new SPORTS registers. The emulator will not display these two registers, but your code can use them.

Analog Devices’ ADSP-21000 Family Development Software includes an easy to use Assembler based on an algebraic syntax, an Assembly Library/Librarian, a Linker, an Instruction-level Simulator, an ANSI C optimizing Compiler, the CBug™ C Source-Level Debugger, and a C Runtime Library including DSP and mathematical functions. The Optimizing Compiler includes Numerical C extensions based on the work of the ANSI Numerical C Extensions Group. Numerical C provides extensions to the C language for array selection, vector math operations, complex data types, circular pointers, and variably

dimensioned arrays. The ADSP-21000 Family Development Software is available for both the PC and Sun platforms.

The ADSP-21062 EZ-ICE

Emulator uses the IEEE 1149.1 JTAG test access port of the ADSP-21062 processor to monitor and control the target board processor during emulation. The EZ-ICE

provides full-speed emulation, allowing inspection and modification of memory, registers, and processor stacks. Nonintrusive in-circuit emulation is assured by the use of the processor’s JTAG interface—the emulator does not affect target system loading or timing.

Further details and ordering information are available in the

ADSP-21000 Family Hardware & Software Development Tools

data sheet (ADDS-210xx-TOOLS). This data sheet can be requested from any Analog Devices sales office, distributor or the Literature Center.

In addition to the software and hardware development tools available from Analog Devices, third parties provide a wide range of tools supporting the SHARC processor family. Hardware tools include SHARC

PC plug-in cards, multiprocessor

SHARC

VME boards, and daughter card modules with multiple SHARCs and additional memory. These modules are based on the SHARCPAC™

module specification. Third party software tools include an Ada compiler, DSP libraries, operating systems, and block diagram design tools.

ADDITIONAL INFORMATION

This data sheet provides a general overview of the ADSP-21062 architecture and functionality. For detailed information on the ADSP-21000 Family core architecture and instruction set, refer to the ADSP-21062 SHARC

User’s Manual, Second Edition.

–8–

ADSP-21062/ADSP-21062L

REV. C

PIN FUNCTION DESCRIPTIONS

ADSP-21062 pin definitions are listed below. All pins are identical on the ADSP-21062 and ADSP-21062L. Inputs identified as synchronous (S) must meet timing requirements with respect to CLKIN (or with respect to TCK for TMS, TDI). Inputs identified as asynchronous (A) can be asserted asynchronously to CLKIN (or to TCK for TRST).

Unused inputs should be tied or pulled to VDD or GND, except for ADDR

31-0

, DATA

47-0

, FLAG

3-0

, SW, and inputs that

have internal pull-up or pull-down resistors (CPA, ACK, DTx,

DRx, TCLKx, RCLKx, LxDAT3-0, LxCLK, LxACK, TMS and TDI)—these pins can be left floating. These pins have a logic-level hold circuit that prevents the input from floating internally.

A = Asynchronous G = Ground I = Input O = Output P = Power Supply S = Synchronous (A/D) = Active Drive (O/D) = Open Drain T = Three-State (when SBTS is asserted, or when the ADSP-21062 is a bus slave)

Pin Type Function

ADDR

31-0

I/O/T External Bus Address. The ADSP-21062 outputs addresses for external memory and peripherals on

these pins. In a multiprocessor system the bus master outputs addresses for read/writes of the internal memory or IOP registers of other ADSP-21062s. The ADSP-21062 inputs addresses when a host processor or multiprocessing bus master is reading or writing its internal memory or IOP registers.

DATA

47-0

I/O/T External Bus Data. The ADSP-21062 inputs and outputs data and instructions on these pins. 32-bit

single-precision floating-point data and 32-bit fixed-point data is transferred over bits 47–16 of the bus. 40-bit extended-precision floating-point data is transferred over bits 47–8 of the bus. 16-bit short word data is transferred over bits 31–16 of the bus. In PROM boot mode, 8-bit data is transferred over bits 23–16. Pull-up resistors on unused DATA pins are not necessary.

3-0

O/T Memory Select Lines. These lines are asserted (low) as chip selects for the corresponding banks of

external memory. Memory bank size must be defined in the ADSP-21062’s system control register (SYSCON). The MS

3-0

lines are decoded memory address lines that change at the same time as the

other address lines. When no external memory access is occurring the MS

3-0

lines are inactive; they are

active however when a conditional memory access instruction is executed, whether or not the condition is true. MS

can be used with the PAGE signal to implement a bank of DRAM memory (Bank 0).

In a multiprocessing system the MS

3-0

lines are output by the bus master.

RD I/O/T Memory Read Strobe. This pin is asserted (low) when the ADSP-21062 reads from external

memory devices or from the internal memory of other ADSP-21062s. External devices (including other ADSP-21062s) must assert RD to read from the ADSP-21062’s internal memory. In a multiprocessing system RD is output by the bus master and is input by all other ADSP-21062s.

WR I/O/T Memory Write Strobe. This pin is asserted (low) when the ADSP-21062 writes to external memory

devices or to the internal memory of other ADSP-21062s. External devices must assert WR to write to the ADSP-21062’s internal memory. In a multiprocessing system WR is output by the bus master and is input by all other ADSP-21062s.

PAGE O/T DRAM Page Boundary. The ADSP-21062 asserts this pin to signal that an external DRAM page

boundary has been crossed. DRAM page size must be defined in the ADSP-21062’s memory control register (WAIT). DRAM can only be implemented in external memory Bank 0; the PAGE signal can only be activated for Bank 0 accesses. In a multiprocessing system PAGE is output by the bus master.

ADRCLK O/T Clock Output Reference. In a multiprocessing system ADRCLK is output by the bus master.

SW I/O/T Synchronous Write Select. This signal is used to interface the ADSP-21062 to synchronous

memory devices (including other ADSP-21062s). The ADSP-21062 asserts SW (low) to provide an early indication of an impending write cycle, which can be aborted if WR is not later asserted (e.g., in a conditional write instruction). In a multiprocessing system, SW is output by the bus master and is input by all other ADSP-21062s to determine if the multiprocessor memory access is a read or write. SW is asserted at the same time as the address output. A host processor using synchronous writes must assert this pin when writing to the ADSP-21062(s).

ACK I/O/S Memory Acknowledge. External devices can deassert ACK (low) to add wait states to an external

memory access. ACK is used by I/O devices, memory controllers, or other peripherals to hold off completion of an external memory access. The ADSP-21062 deasserts ACK as an output to add wait states to a synchronous access of its internal memory. In a multiprocessing system, a slave ADSP21062 deasserts the bus master’s ACK input to add wait state(s) to an access of its internal memory. The bus master has a keeper latch on its ACK pin that maintains the input at the level to which it was last driven.

ADSP-21062/ADSP-21062L

–9–

REV. C

Pin Type Function

SBTS I/S Suspend Bus Three-State. External devices can assert SBTS (low) to place the external bus address,

data, selects and strobes in a high impedance state for the following cycle. If the ADSP-21062 attempts to access external memory while SBTS is asserted, the processor will halt and the memory access will not be completed until SBTS is deasserted. SBTS should only be used to recover from host processor/ADSP-21062 deadlock, or used with a DRAM controller.

IRQ

2-0

I/A Interrupt Request Lines. May be either edge-triggered or level-sensitive.

FLAG

3-0

I/O/A Flag Pins. Each is configured via control bits as either an input or output. As an input, they can be

tested as a condition. As an output, they can be used to signal external peripherals.

TIMEXP O Timer Expired. Asserted for four cycles when the timer is enabled and TCOUNT decrements to

zero.

HBR I/A Host Bus Request. This pin must be asserted by a host processor to request control of the

ADSP-21062’s external bus. When HBR is asserted in a multiprocessing system, the ADSP-21062 that is bus master will relinquish the bus and assert HBG. To relinquish the bus, the ADSP-21062 places the address, data, select and strobe lines in a high impedance state. HBR has priority over all ADSP-21062 bus requests (BR

6-1

) in a multiprocessing system.

HBG I/O Host Bus Grant. Acknowledges an HBR bus request, indicating that the host processor may take

control of the external bus. HBG is asserted (held low) by the ADSP-21062 until HBR is released. In a multiprocessing system, HBG is output by the ADSP-21062 bus master and is monitored by all others.

CS I/A Chip Select. Asserted by host processor to select the ADSP-21062.

REDY (O/D) O Host Bus Acknowledge. The ADSP-21062 deasserts REDY (low) to add wait states to an asynchro-

nous access of its internal memory or IOP registers by a host. This pin is an open drain output (O/D) by default; it can be programmed in the ADREDY bit of the SYSCON register to be active drive (A/D). REDY will only be output if the CS and HBR inputs are asserted.

DMAR1 I/A DMA Request 1 (DMA Channel 7).

DMAR2 I/A DMA Request 2 (DMA Channel 8).

DMAG1 O/T DMA Grant 1 (DMA Channel 7).

DMAG2 O/T DMA Grant 2 (DMA Channel 8).

6-1

I/O/S Multiprocessing Bus Requests. Used by multiprocessing ADSP-21062s to arbitrate for bus master-

ship. An ADSP-21062 only drives its own BRx line (corresponding to the value of its ID

2-0

inputs) and

monitors all others. In a multiprocessor system with less than six ADSP-21062s, the unused BRx pins should be pulled high; the processor’s own BRx line must not be pulled high or low because it is an output.

2-0

I Multiprocessing ID. Determines which multiprocessing bus request (BR1 – BR6) is used by ADSP-

21062. ID = 001 corresponds to BR1, ID = 010 corresponds to BR2, etc. ID = 000 in single-processor systems. These lines are a system configuration selection which should be hardwired or changed at reset only.

RPBA I/S Rotating Priority Bus Arbitration Select. When RPBA is high, rotating priority for multiprocessor

bus arbitration is selected. When RPBA is low, fixed priority is selected. This signal is a system configuration selection which must be set to the same value on every ADSP-21062. If the value of RPBA is changed during system operation, it must be changed in the same CLKIN cycle on every ADSP-21062.

CPA (O/D) I/O Core Priority Access. Asserting its CPA pin allows the core processor of an ADSP-21062 bus slave

to interrupt background DMA transfers and gain access to the external bus. CPA is an open drain output that is connected to all ADSP-21062s in the system. The CPA pin has an internal 5 kΩ pull-up resistor. If core access priority is not required in a system, the CPA pin should be left unconnected.

DTx O Data Transmit (Serial Ports 0, 1). Each DT pin has a 50 kΩ internal pull-up resistor. DRx I Data Receive (Serial Ports 0, 1). Each DR pin has a 50 kΩ internal pull-up resistor. TCLKx I/O Transmit Clock (Serial Ports 0, 1). Each TCLK pin has a 50 kΩ internal pull-up resistor. RCLKx I/O Receive Clock (Serial Ports 0, 1). Each RCLK pin has a 50 kΩ internal pull-up resistor.

–10–

ADSP-21062/ADSP-21062L

REV. C

Pin Type Function

TFSx I/O Transmit Frame Sync (Serial Ports 0, 1).

RFSx I/O Receive Frame Sync (Serial Ports 0, 1).

LxDAT

3-0

I/O Link Port Data (Link Ports 0–5). Each LxDAT pin has a 50 kΩ internal pull-down resistor that is

enabled or disabled by the LPDRD bit of the LCOM register.

LxCLK I/O Link Port Clock (Link Ports 0–5). Each LxCLK pin has a 50 kΩ internal pull-down resistor that is

enabled or disabled by the LPDRD bit of the LCOM register.

LxACK I/O Link Port Acknowledge (Link Ports 0–5). Each LxACK pin has a 50 kΩ internal pull-down resistor

that is enabled or disabled by the LPDRD bit of the LCOM register.

EBOOT I EPROM Boot Select. When EBOOT is high, the ADSP-21062 is configured for booting from an 8-

bit EPROM. When EBOOT is low, the LBOOT and BMS inputs determine booting mode. See table below. This signal is a system configuration selection that should be hardwired.

LBOOT I Link Boot. When LBOOT is high, the ADSP-21062 is configured for link port booting. When

LBOOT is low, the ADSP-21062 is configured for host processor booting or no booting. See table below. This signal is a system configuration selection that should be hardwired.

BMS I/O/T* Boot Memory Select. Output: Used as chip select for boot EPROM devices (when EBOOT = 1,

LBOOT = 0). In a multiprocessor system, BMS is output by the bus master. Input: When low, indicates that no booting will occur and that ADSP-21062 will begin executing instructions from external memory. See table below. This input is a system configuration selection that should be hardwired.

*Three-statable only in EPROM boot mode (when BMS is an output).

EBOOT LBOOT BMS Booting Mode

1 0 Output EPROM (Connect BMS to EPROM chip select.) 0 0 1 (Input) Host Processor 0 1 1 (Input) Link Port 0 0 0 (Input) No Booting. Processor executes from external memory. 0 1 0 (Input) Reserved 1 1 x (Input) Reserved

CLKIN I Clock In. External clock input to the ADSP-21062. The instruction cycle rate is equal to CLKIN.

CLKIN may not be halted, changed, or operated below the minimum specified frequency.

RESET I/A Processor Reset. Resets the ADSP-21062 to a known state and begins program execution at the

program memory location specified by the hardware reset vector address. This input must be asserted (low) at power-up.

TCK I Test Clock (JTAG). Provides an asynchronous clock for JTAG boundary scan. TMS I/S Test Mode Select (JTAG). Used to control the test state machine. TMS has a 20 kΩ internal pull-up

resistor.

TDI I/S Test Data Input (JTAG). Provides serial data for the boundary scan logic. TDI has a 20 kΩ internal

pull-up resistor.

TDO O Test Data Output (JTAG). Serial scan output of the boundary scan path.

TRST I/A Test Reset (JTAG). Resets the test state machine. TRST must be asserted (pulsed low) after power-

up or held low for proper operation of the ADSP-21062. TRST has a 20 kΩ internal pull-up resistor.

EMU O Emulation Status. Must be connected to the ADSP-21062 EZ-ICE

target board connector only.

ICSA O Reserved, leave unconnected.

VDD P Power Supply; nominally +5.0 V dc for 5 V devices or +3.3 V dc for 3.3 V devices. (30 pins)

GND G Power Supply Return. (30 pins)

NC Do Not Connect. Reserved pins which must be left open and unconnected.

ADSP-21062/ADSP-21062L

–11–

REV. C

The 14-pin, 2-row pin strip header is keyed at the Pin 3 location — Pin 3 must be removed from the header. The pins must be

0.025 inch square and at least 0.20 inch in length. Pin spacing should be 0.1 × 0.1 inches. Pin strip headers are available from vendors such as 3M, McKenzie, and Samtec.

The BTMS, BTCK, BTRST, and BTDI signals are provided so that the test access port can also be used for board-level testing. When the connector is not being used for emulation, place jumpers between the BXXX pins and the XXX pins as shown in Figure 5. If you are not going to use the test access port for board testing, tie BTRST to GND and tie or pull up BTCK to VDD. The TRST pin must be asserted after power-up (through BTRST on the connector) or held low for proper operation of the ADSP-2106x. None of the BXXX pins (Pins 5, 7, 9, 11) are connected on the EZ-ICE probe.

The JTAG signals are terminated on the EZ-ICE probe as follows:

Signal Termination

TMS Driven through 22 Ω Resistor (16 mA Driver) TCK Driven at 10 MHz through 22 Ω Resistor (16 mA

Driver)

TRST* Active Low Driven through 22 Ω Resistor (16 mA

Driver) (Pulled Up by On-Chip 20 kΩ Resistor)

TDI Driven by 22 Ω Resistor (16 mA Driver) TDO One TTL Load, Split Termination (160/220) CLKIN One TTL Load, Split Termination (160/220) EMU Active Low 4.7 kΩ Pull-Up Resistor, One TTL Load

(Open-Drain Output from the DSP)

*TRST is driven low until the EZ-ICE probe is turned on by the emulator at

software start-up. After software start-up, TRST is driven high.

TARGET BOARD CONNECTOR FOR EZ-ICE PROBE

The ADSP-2106x EZ-ICE Emulator uses the IEEE 1149.1 JTAG test access port of the ADSP-2106x to monitor and control the target board processor during emulation. The EZICE probe requires the ADSP-2106x’s CLKIN, TMS, TCK, TRST, TDI, TDO, EMU, and GND signals be made accessible on the target system via a 14-pin connector (a 2 row × 7 pin strip header) such as that shown in Figure 5. The EZ-ICE probe plugs directly onto this connector for chip-on-board emulation. You must add this connector to your target board design if you intend to use the ADSP-2106x EZ-ICE. The total trace length between the EZ-ICE connector and the furthest device sharing the EZ-ICE JTAG pin should be limited to 15 inches maximum for guaranteed operation. This length restriction must include EZ-ICE JTAG signals that are routed to one or more ADSP-2106x devices, or a combination of ADSP2106x devices and other JTAG devices on the chain.

TOP VIEW

13 14

11 12

910

EMU

CLKIN (OPTIONAL)

TMS

TCK

TRST

TDI

TDO

GND

KEY (NO PIN)

BTMS

BTCK

BTRST

BTDI

GND

Figure 5. Target Board Connector For ADSP-2106x EZ-ICE Emulator (Jumpers in Place)

EMU

TRST

EMU

TRST

ADSP-2106x

JTAG

DEVICE

(OPTIONAL)

ADSP-2106x

TDI

EZ-ICE

JTAG

CONNECTOR

OTHER

JTAG

CONTROLLER

OPTIONAL

TCK

TMS

EMU

TMS

TCK

TDO

CLKIN

TRST

TCK

TMS

TCK

TMS

TDI

TDO

TDI

TDO TDO

TDI

TRST

EMU

Figure 6. JTAG Scan Path Connections for Multiple ADSP-2106x Systems

–12–

ADSP-21062/ADSP-21062L

REV. C

SYSTEM CLKIN

EMU

5k⍀

TDI TDO

5k⍀

TDI

EMU

TMS

TCK

TDO

TRST

CLKIN

*OPEN DRAIN DRIVER OR EQUIVALENT, i.e.,

TDI TDO

TDI TDO TDI TDO

TDI TDO

Figure 7. JTAG Clocktree for Multiple ADSP-2106x Systems

Figure 6 shows JTAG scan path connections for systems that contain multiple ADSP-2106x processors.

Connecting CLKIN to Pin 4 of the EZ-ICE header is optional. The emulator only uses CLKIN when directed to perform operations such as starting, stopping, and single-stepping multiple ADSP-2106xs in a synchronous manner. If you do not need these operations to occur synchronously on the multiple processors, simply tie Pin 4 of the EZ-ICE header to ground.

If synchronous multiprocessor operations are needed and CLKIN is connected, clock skew between the multiple ADSP21062 processors and the CLKIN pin on the EZ-ICE header must be minimal. If the skew is too large, synchronous operations may be off by one or more cycles between processors. For synchronous multiprocessor operation TCK, TMS, CLKIN and

EMU should be treated as critical signals in terms of skew, and should be laid out as short as possible on your board. If TCK, TMS, and CLKIN are driving a large number of ADSP21062s (more than eight) in your system, then treat them as a “clock tree” using multiple drivers to minimize skew. (See Figure 7 “JTAG Clock Tree” and “Clock Distribution” in the “High Frequency Design Considerations” section of the ADSP- 2106x User’s Manual, Second Edition.)

If synchronous multiprocessor operations are not needed (i.e., CLKIN is not connected), just use appropriate parallel termination on TCK and TMS. TDI, TDO, EMU and TRST are not critical signals in terms of skew.

For complete information on the SHARC EZ-ICE, see the

ADSP-21000 Family JTAG EZ-ICE User's Guide and Reference.

ADSP-21062–SPECIFICATIONS

RECOMMENDED OPERATING CONDITIONS (5 V)

A Grade C Grade K Grade

Parameter Test Conditions Min Max Min Max Min Max Units

Supply Voltage 4.75 5.25 4.75 5.25 4.75 5.25 V

CASE

Case Operating Temperature –40 +85 –40 +100 0 +85 °C

IH1

High Level Input Voltage

@ VDD = max 2.0 VDD + 0.5 2.0 VDD + 0.5 2.0 VDD + 0.5 V

IH2

High Level Input Voltage

@ VDD = max 2.2 VDD + 0.5 2.2 VDD + 0.5 2.2 VDD + 0.5 V

Low Level Input Voltage

1, 2

@ VDD = min –0.5 0.8 –0.5 0.8 –0.5 0.8 V

NOTES

Applies to input and bidirectional pins: DATA

47-0

, ADDR

31-0

, RD, WR, SW, ACK, SBTS, IRQ

2-0

, FLAG

3-0

, HBG, CS, DMAR1, DMAR2, BR

6-1

, ID

2-0

, RPBA,

CPA, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, EBOOT, LBOOT, BMS, TMS, TDI, TCK, HBR, DR0, DR1, TCLK0, TCLK1, RCLK0, RCLK 1.

Applies to input pins: CLKIN, RESET, TRST.

ELECTRICAL CHARACTERISTICS (5 V)

Parameter Test Conditions Min Max Units

High Level Output Voltage

@ VDD = min, IOH = –2.0 mA

4.1 V

Low Level Output Voltage

@ VDD = min, IOL = 4.0 mA

0.4 V

High Level Input Current

3, 4

@ VDD = max, VIN = V

max 10 µA

Low Level Input Current

@ VDD = max, VIN = 0 V 10 µA

ILP

Low Level Input Current

@ VDD = max, VIN = 0 V 150 µA

OZH

Three-State Leakage Current

5, 6, 7, 8

@ VDD = max, VIN = V

max 10 µA

OZL

Three-State Leakage Current

5, 9

@ VDD = max, VIN = 0 V 10 µA

OZHP

Three-State Leakage Current

@ VDD = max, VIN = V

max 350 µA

OZLC

Three-State Leakage Current

@ VDD = max, VIN = 0 V 1.5 mA

OZLA

Three-State Leakage Current

@ VDD = max, VIN = 1.5 V 350 µA

OZLAR

Three-State Leakage Current

@ VDD = max, VIN = 0 V 4.2 mA

OZLS

Three-State Leakage Current

@ VDD = max, VIN = 0 V 150 µA

Input Capacitance

11, 12

fIN = 1 MHz, T

CASE

= 25°C, VIN = 2.5 V 4.7 pF

NOTES

Applies to output and bidirectional pins: DATA

47-0

, ADDR

31-0

, MS

3-0

, RD, WR, PAGE, ADRCLK, SW, ACK, FLAG

3-0

, TIMEXP, HBG, REDY, DMAG1,

DMAG2, BR

6-1

, CPA, DT0, DT1, TCLK0, TCLK1, RCLK0, RCLK1, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, BMS, TDO, EMU, ICSA.

See “Output Drive Currents” for typical drive current capabilities.

Applies to input pins: ACK SBTS, IRQ

2-0

, HBR, CS, DMAR1, DMAR2, ID

2-0

, RPBA, EBOOT, LBOOT, CLKIN, RESET, TCK.

Applies to input pins with internal pull-ups: DR0, DR1, TRST, TMS, TDI.

Applies to three-statable pins: DATA

47-0

, ADDR

31-0

, MS

3-0

, RD, WR, PAGE, ADRCLK, SW, ACK, FLAG

3-0

, REDY, HBG, DMAG1, DMAG2, BMS, BR

6–1

TFSX, RFSX, TDO, EMU. (Note that ACK is pulled up internally with 2 kΩ during reset in a multiprocessor system, when ID

2-0

= 001 and another ADSP-21062 is

not requesting bus mastership.)

Applies to three-statable pins with internal pull-ups: DT0, DT1, TCLK0, TCLK1, RCLK0, RCLK1.

Applies to CPA pin.

Applies to ACK pin when pulled up. (Note that ACK is pulled up internally with 2 kΩ during reset in a multiprocessor system, when ID

2-0

= 001 and another

ADSP-21062L is not requesting bus mastership).

Applies to three-statable pins with internal pull-downs: LxDAT

3-0

, LxCLK, LxACK.

Applies to ACK pin when keeper latch enabled.

Applies to all signal pins.

Guaranteed but not tested.

Specifications subject to change without notice.

ADSP-21062/ADSP-21062L

REV. C

–13–

–14–

ADSP-21062/ADSP-21062L

REV. C

POWER DISSIPATION ADSP-21062 (5 V)

These specifications apply to the internal power portion of VDD only. See the Power Dissipation section of this data sheet for calculation of external supply current and total supply current. For a complete discussion of the code used to measure power dissipation, see the technical note “SHARC Power Dissipation Measurements.”

Specifications are based on the following operating scenarios:

Operation Peak Activity (I

DDINPEAK

) High Activity (I

DDINHIGH

) Low Activity (I

DDINLOW

)

Instruction Type Multifunction Multifunction Single Function

Instruction Fetch Cache Internal Memory Internal Memory

Core Memory Access 2 per Cycle (DM and PM) 1 per Cycle (DM) None

Internal Memory DMA 1 per Cycle 1 per 2 Cycles 1 per 2 Cycles

To estimate power consumption for a specific application, use the following equation where % is the amount of time your program spends in that state:

%PEAK × I

DDINPEAK

+ %HIGH × I

DDINHIGH

+ %LOW × I

DDINLOW

+ %IDLE × I

DDIDLE

= power consumption

Parameter Test Conditions Max Units

DDINPEAK

Supply Current (Internal)

tCK = 30 ns, VDD = max 745 mA t

= 25 ns, VDD = max 850 mA

DDINHIGH

Supply Current (Internal)

tCK = 30 ns, VDD = max 575 mA t

= 25 ns, VDD = max 670 mA

DDINLOW

Supply Current (Internal)

tCK = 30 ns, VDD = max 340 mA t

= 25 ns, VDD = max 390 mA

DDIDLE

Supply Current (Idle)

VDD = max 200 mA

NOTES

The test program used to measure I

DDINPEAK

represents worst case processor operation and is not sustainable under normal application conditions. Actual internal

power measurements made using typical applications are less than specified.

DDINHIGH

is a composite average based on a range of high activity code. I

DDINLOW

is a composite average based on a range of low activity code.

Idle denotes ADSP-21062L state during execution of IDLE instruction.

ADSP-21062L–SPECIFICATIONS

RECOMMENDED OPERATING CONDITIONS (3.3 V)

A Grade C Grade K Grade

Parameter Test Conditions Min Max Min Max Min Max Units

Supply Voltage 3.15 3.45 3.15 3.45 3.15 3.45 V

CASE

Case Operating Temperature –40 +85 –40 +100 0 +85 °C

IH1

High Level Input Voltage

@ VDD = max 2.0 VDD + 0.5 2.0 VDD + 0.5 2.0 VDD + 0.5 V

IH2

High Level Input Voltage

@ VDD = max 2.2 VDD + 0.5 2.2 VDD + 0.5 2.2 VDD + 0.5 V

Low Level Input Voltage

1, 2

@ VDD = min –0.5 0.8 –0.5 0.8 –0.5 0.8 V

NOTES

Applies to input and bidirectional pins: DATA

47-0

, ADDR

31-0

, RD, WR, SW, ACK, SBTS, IRQ

2-0

, FLAG

3-0

, HBG, CS, DMAR1, DMAR2 , BR

6-1

, ID

2-0

, RPBA,

CPA, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, EBOOT, LBOOT, BMS, TMS, TDI, TCK, HBR, DR0, DR1, TCLK0, TCLK1, RCLK0, RCLK1.

Applies to input pins: CLKIN, RESET, TRST.

ELECTRICAL CHARACTERISTICS (3.3 V)

Parameter Test Conditions Min Max Units

High Level Output Voltage

@ VDD = min, IOH = –2.0 mA

2.4 V

Low Level Output Voltage

@ VDD = min, IOL = 4.0 mA

0.4 V

High Level Input Current

3, 4

@ VDD = max, VIN = V

max 10 µA

Low Level Input Current

@ VDD = max, VIN = 0 V 10 µA

ILP

Low Level Input Current

@ VDD = max, VIN = 0 V 150 µA

OZH

Three-State Leakage Current

5, 6, 7, 8

@ VDD = max, VIN = V

max 10 µA

OZL

Three-State Leakage Current

5, 9

@ VDD = max, VIN = 0 V 10 µA

OZHP

Three-State Leakage Current

@ VDD = max, VIN = V

max 350 µA

OZLC

Three-State Leakage Current

@ VDD = max, VIN = 0 V 1.5 mA

OZLA

Three-State Leakage Current

@ VDD = max, VIN = 1.5 V 350 µA

OZLAR

Three-State Leakage Current

@ VDD = max, VIN = 0 V 4.2 mA

OZLS

Three-State Leakage Current

@ VDD = max, VIN = 0 V 150 µA

Input Capacitance

11, 12

fIN = 1 MHz, T

CASE

= 25°C, VIN = 2.5 V 4.7 pF

NOTES

Applies to output and bidirectional pins: DATA

47-0

, ADDR

31-0

, MS

3-0

, RD, WR, PAGE, ADRCLK, SW, ACK, FLAG

3-0

, TIMEXP, HBG, REDY, DMAG1,

DMAG2, BR

6-1

, CPA, DT0, DT1, TCLK0, TCLK1, RCLK0, RCLK1, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, BMS, TDO, EMU, ICSA.

See “Output Drive Currents” for typical drive current capabilities.

Applies to input pins: ACK SBTS, IRQ

2-0

, HBR, CS, DMAR1, DMAR2 , ID

2-0

, RPBA, EBOOT, LBOOT, CLKIN, RESET, TCK.

Applies to input pins with internal pull-ups: DR0, DR1, TRST , TMS, TDI.

Applies to three-statable pins: DATA

47-0

, ADDR

31-0

, MS

3-0

, RD, WR, PAGE, ADRCLK, SW, ACK, FLAG

3-0

, REDY, HBG, DMAG1, DMAG2, BMS, BR

6–1

TFSX, RFSX, TDO, EMU. (Note that ACK is pulled up internally with 2 kΩ during reset in a multiprocessor system, when ID

2-0

= 001 and another ADSP-21062 is

not requesting bus mastership.)

Applies to three-statable pins with internal pull-ups: DT0, DT1, TCLK0, TCLK1, RCLK0, RCLK1.

Applies to CPA pin.

Applies to ACK pin when pulled up. (Note that ACK is pulled up internally with 2 kΩ during reset in a multiprocessor system, when ID

2-0

= 001 and another

ADSP-21062L is not requesting bus mastership).

Applies to three-statable pins with internal pull-downs: LxDAT

3-0

, LxCLK, LxACK.

Applies to ACK pin when keeper latch enabled.

Applies to all signal pins.

Guaranteed but not tested.

Specifications subject to change without notice.

ADSP-21062/ADSP-21062L

–15–

REV. C

–16–

ADSP-21062/ADSP-21062L

REV. C

POWER DISSIPATION ADSP-21062L (3.3 V)

Specifications are based on the following operating scenarios:

Operation Peak Activity (I

DDINPEAK

) High Activity (I

DDINHIGH

) Low Activity (I

DDINLOW

)

Instruction Type Multifunction Multifunction Single Function

Instruction Fetch Cache Internal Memory Internal Memory

Core Memory Access 2 per Cycle (DM and PM) 1 per Cycle (DM) None

Internal Memory DMA 1 per Cycle 1 per 2 Cycles 1 per 2 Cycles

To estimate power consumption for a specific application, use the following equation where % is the amount of time your program spends in that state:

%PEAK × I

DDINPEAK

+ %HIGH × I

DDINHIGH

+ %LOW × I

DDINLOW

+ %IDLE × I

DDIDLE

= power consumption

Parameter Test Conditions Max Units

DDINPEAK

Supply Current (Internal)

tCK = 30 ns, VDD = max 540 mA t

= 25 ns, VDD = max 600 mA

DDINHIGH

Supply Current (Internal)

tCK = 30 ns, VDD = max 425 mA t

= 25 ns, VDD = max 475 mA

DDINLOW

Supply Current (Internal)

tCK = 30 ns, VDD = max 250 mA t

= 25 ns, VDD = max 275 mA

DDIDLE

Supply Current (Idle)

VDD = max 180 mA

NOTES

The test program used to measure I

DDINPEAK

represents worst case processor operation and is not sustainable under normal application conditions. Actual internal

power measurements made using typical applications are less than specified.

DDINHIGH

is a composite average based on a range of high activity code. I

DDINLOW

is a composite average based on a range of low activity code.

Idle denotes ADSP-21062L state during execution of IDLE instruction.

ADSP-21062/ADSP-21062L

–17–

REV. C

ESD SENSITIVITY

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the ADSP-21062 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

TIMING SPECIFICATIONS

GENERAL NOTES

Two speed grades of the ADSP-21062 will be offered, 40 MHz and 33.3 MHz. The specifications shown are based on a CLKIN frequency of 40 MHz (t

= 25 ns). The DT derating allows specifications at other CLKIN frequencies (within the min–max range of the t

specification; see Clock Input below). DT is the difference between the actual CLKIN period and a CLKIN period of 25 ns:

DT = t

– 25 ns

Use the exact timing information given. Do not attempt to derive parameters from the addition or subtraction of others. While addition or subtraction would yield meaningful results for an individual device, the values given in this data sheet reflect statistical variations and worst cases. Consequently, you cannot meaningfully add parameters to derive longer times.

For voltage reference levels, see Figure 27 under Test Conditions.

Switching Characteristics specify how the processor changes its signals. You have no control over this timing—circuitry external to the processor must be designed for compatibility with these signal characteristics. Switching characteristics tell you what the processor will do in a given circumstance. You can also use switching characteristics to ensure that any timing requirement of a device connected to the processor (such as memory) is satisfied.

Timing Requirements apply to signals that are controlled by circuitry external to the processor, such as the data input for a read operation. Timing requirements guarantee that the processor operates correctly with other devices.

(O/D) = Open Drain (A/D) = Active Drive

ABSOLUTE MAXIMUM RATINGS (5 V DEVICE)*

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V

Input Voltage . . . . . . . . . . . . . . . . . . . . –0.5 V to V

+ 0.5 V

Output Voltage Swing . . . . . . . . . . . . . –0.5 V to V

+ 0.5 V

Load Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 pF

Junction Temperature Under Bias . . . . . . . . . . . . . . . . 130°C

Storage Temperature Range . . . . . . . . . . . . –65°C to +150°C

Lead Temperature (5 seconds) . . . . . . . . . . . . . . . . . +280°C

*Stresses greater than those listed above may cause permanent damage to the

device. These are stress ratings only; functional operation of the device at these or any other conditions greater than those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ABSOLUTE MAXIMUM RATINGS (3.3 V DEVICE)*

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +4.6 V

Input Voltage . . . . . . . . . . . . . . . . . . . . –0.5 V to V

+ 0.5 V

Output Voltage Swing . . . . . . . . . . . . . –0.5 V to V

+ 0.5 V

Load Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 pF

Junction Temperature Under Bias . . . . . . . . . . . . . . . . 130°C

Storage Temperature Range . . . . . . . . . . . . –65°C to +150°C

Lead Temperature (5 seconds) . . . . . . . . . . . . . . . . . +280°C

*Stresses greater than those listed above may cause permanent damage to the

WARNING!

ESD SENSITIVE DEVICE

–18–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

40 MHz 33 MHz 40 MHz 33 MHz

Parameter Min Max Min Max Min Max Min Max Units

Clock Input

Timing Requirements:

CLKIN Period 25 100 30 100 25 100 30 100 ns

CKL

CLKIN Width Low 7 7 8.75 8.75 ns

CKH

CLKIN Width High 5555ns

CKRF

CLKIN Rise/Fall (0.4 V–2.0 V) 3 3 3 3 ns

CLKIN

CKH

CKL

Figure 8. Clock Input

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Reset

Timing Requirements:

WRST

RESET Pulsewidth Low

SRST

RESET Setup Before CLKIN High

14 + DT/2 t

NOTES

Applies after the power-up sequence is complete. At power-up, the processor’s internal phase-locked loop requires no more than 2000 CLKIN cycles while RESET is low, assuming stable VDD and CLKIN (not including start-up time of external clock oscillator).

Only required if multiple ADSP-21062s must come out of reset synchronous to CLKIN with program counters (PC) equal (i.e., for a SIMD system). Not required for multiple ADSP-21062s communicating over the shared bus (through the external port), because the bus arbitration logic synchronizes itself automatically after reset.

CLKIN

RESET

WRST

SRST

Figure 9. Reset

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Interrupts

Timing Requirements:

SIR

IRQ2-0 Setup Before CLKIN High

18 + 3DT/4 18 + 3DT/4 ns

HIR

IRQ2-0 Hold Before CLKIN High

12 + 3DT/4 12 + 3DT/4 ns

IPW

IRQ2-0 Pulsewidth

2 + t

NOTES

Only required for IRQx recognition in the following cycle.

Applies only if t

SIR

and t

HIR

requirements are not met.

CLKIN

IRQ2-0

IPW

SIR

HIR

Figure 10. Interrupts

ADSP-21062/ADSP-21062L

–19–

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timer

Switching Characteristic:

DTEX

CLKIN High to TIMEXP 15 15 ns

CLKIN

DTEX

TIMEXP

Figure 11. Timer

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Flags

Timing Requirements:

SFI

FLAG3-0

Setup Before CLKIN High

8 + 5DT/16 8 + 5DT/16 ns

HFI

FLAG3-0

Hold After CLKIN High

0 – 5DT/16 0 – 5DT/16 ns

DWRFI

FLAG3-0

Delay After RD/WR Low

5 + 7DT/16 5 + 7DT/16 ns

HFIWR

FLAG3-0

Hold After RD/WR Deasserted100 ns

Switching Characteristics:

DFO

FLAG3-0

OUT

Delay After CLKIN High 16 16 ns

HFO

FLAG3-0

OUT

Hold After CLKIN High 4 4 ns

DFOE

CLKIN High to FLAG3-0

OUT

Enable 3 3 ns

DFOD

CLKIN High to FLAG3-0

OUT

Disable 14 14 ns

NOTE

Flag inputs meeting these setup and hold times will affect conditional instructions in the following instruction cycle.

CLKIN

FLAG3-0

OUT

FLAG OUTPUT

DFO

HFO

DFO

DFOD

DFOE

CLKIN

RD, WR

FLAG INPUT

SFI

HFI

HFIWR

DWRFI

FLAG3-0

Figure 12. Flags

–20–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

DAD

Address, Selects Delay to Data Valid

1, 4

18 + DT + W 18 + DT + W ns

DRLD

RD Low to Data Valid

12 + 5DT/8 + W 12 + 5DT/8 + W ns

HDA

Data Hold from Address, Selects

0.5 0.5 ns

HDRH

Data Hold from RD High

2.0 2.0 ns

DAAK

ACK Delay from Address, Selects

3, 4

14 + 7DT/8 + W 14 + 7DT/8 + W ns

DSAK

ACK Delay from RD Low

8 + DT/2 + W 8 + DT/2 + W ns

Switching Characteristics:

DRHA

Address, Selects Hold After RD High 0 + H 0 + H ns

DARL

Address, Selects to RD Low

2 + 3DT/8 2 + 3DT/8 ns

RD Pulsewidth 12.5 + 5DT/8 + W 12.5 + 5DT/8 + W ns

RWR

RD High to WR, RD, DMAGx Low 8 + 3DT/8 + HI 8 + 3DT/8 + HI ns

SADADC

Address, Selects Setup Before ADRCLK High

0 + DT/4 0 + DT/4 ns

W = (number of wait states specified in WAIT register) × t

CK.

HI = tCK (if an address hold cycle or bus idle cycle occurs, as specified in WAIT register; otherwise HI = 0). H = tCK (if an address hold cycle occurs as specified in WAIT register; otherwise H = 0).

NOTES

Data Delay/Setup: User must meet t

DAD

or t

DRLD

or synchronous spec t

SSDATI

Data Hold: User must meet t

HDA

or t

HDRH

or synchronous spec t

HSDATI

. See System Hold Time Calculation under Test Conditions for the calculation of hold times

given capacitive and dc loads.

ACK Delay/Setup: User must meet t

DAAK

or t

DSAK

or synchronous specification t

SACKC

for deassertion of ACK (Low), all three specifications must be met for asser-

tion of ACK (High).

The falling edge of MSx, SW, BMS is referenced.

WR, DMAG

ACK

DATA

ADDRESS

MSx, SW

BMS

DARL

DAD

SADADC

DAAK

HDRH

HDA

RWR

DRLD

ADRCLK

(OUT)

DRHA

DSAK

Figure 13. Memory Read—Bus Master

Memory Read—Bus Master

Use these specifications for asynchronous interfacing to memories (and memory-mapped peripherals) without reference to CLKIN. These specifications apply when the ADSP-21062 is the bus master accessing external memory space. These switching

characteristics also apply for bus master synchronous read/write timing (see Synchronous Read/Write – Bus Master below). If these timing requirements are met, the synchronous read/write timing can be ignored (and vice versa).

ADSP-21062/ADSP-21062L

–21–

REV. C

Memory Write—Bus Master

characteristics also apply for bus master synchronous read/write timing (see Synchronous Read/Write–Bus Master). If these timing requirements are met, the synchronous read/write timing can be ignored (and vice versa).

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

DAAK

ACK Delay from Address, Selects

1, 2

14 + 7DT/8 + W 14 + 7DT/8 + W ns

DSAK

ACK Delay from WR Low

8 + DT/2 + W 8 + DT/2 + W ns

Switching Characteristics:

DAWH

Address, Selects to WR Deasserted

17 + 15DT/16 + W 17 + 15DT/16 + W ns

DAWL

Address, Selects to WR Low

3 + 3DT/8 3 + 3DT/8 ns

WR Pulsewidth 12 + 9DT/16 + W 12 + 9DT/16 + W ns

DDWH

Data Setup Before WR High 7 + DT/2 + W 7 + DT/2 + W ns

DWHA

Address Hold After WR Deasserted 0.5 + DT/16 + H 0.5 + DT/16 + H ns

DATRWH

Data Disable After WR Deasserted

1 + DT/16 + H 6 + DT/16 + H 1 + DT/16 + H 6 + DT/16 + H ns

WWR

WR High to WR, RD, DMAGx Low 8 + 7DT/16 + H 8 + 7DT/16 + H ns

DDWR

Data Disable Before WR or RD Low 5 + 3DT/8 + I 5 + 3DT/8 + I ns

WDE

WR Low to Data Enabled –1 + DT/16 –1 + DT/16 ns

SADADC

Address, Selects to ADRCLK High20 + DT/4 0 + DT/4

W = (number of wait states specified in WAIT register) × tCK. H = tCK (if an address hold cycle occurs, as specified in WAIT register; otherwise H = 0). I = tCK (if a bus idle cycle occurs, as specified in WAIT register; otherwise I = 0).

NOTES

ACK Delay/Setup: User must meet t

DAAK

or t

DSAK

or synchronous specification t

SACKC

for deassertion of ACK (Low), all three specifications must be met for asser-

tion of ACK (High).

The falling edge of MSx, SW, BMS is referenced.

See System Hold Time Calculation under Test Conditions for calculation of hold times given capacitive and dc loads.

RD , DMAG

ACK

DATA

ADDRESS

MSx , SW

BMS

DAWL

SADADC

DAAK

WWR

WDE

ADRCLK

(OUT)

DDWR

DATRWH

DWHA

DDWH

DAWH

DSAK

Figure 14. Memory Write—Bus Master

–22–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

SSDATI

Data Setup Before CLKIN 3 + DT/8 3 + DT/8 ns

HSDATI

Data Hold After CLKIN 3.5 – DT/8 3.5 – DT/8 ns

DAAK

ACK Delay After Address, MSx, SW, BMS

1, 2

14 + 7 DT/8 + W 14 + 7 DT/8 + W ns

SACKC

ACK Setup Before CLKIN

6.5 + DT/4 6.5 + DT/4 ns

HACK

ACK Hold After CLKIN –1 – DT/4 –1 – DT/4 ns

Switching Characteristics:

DADRO

Address, MSx, BMS, SW Delay After CLKIN

7 – DT/8 7 – DT/8 ns

HADRO

Address, MSx, BMS, SW Hold After CLKIN –1 – DT/8 –1 – DT/8 ns

DPGC

PAGE Delay After CLKIN 9 + DT/8 16 + DT/8 9 + DT/8 16 + DT/8 ns

DRDO

RD High Delay After CLKIN –2 – DT/8 4 – DT/8 –2 – DT/8 4 – DT/8 ns

DWRO

WR High Delay After CLKIN –3 – 3DT/16 4 – 3DT/16 –3 – 3DT/16 4 – 3DT/16 ns

DRWL

RD/WR Low Delay After CLKIN 8 + DT/4 12.5 + DT/4 8 + DT/4 12.5 + DT/4 ns

SDDATO

Data Delay After CLKIN 19 + 5DT/16 19 + 5DT/16 ns

DATTR

Data Disable After CLKIN

0 – DT/8 7 – DT/8 0 – DT/8 7 – DT/8 ns

DADCCK

ADRCLK Delay After CLKIN 4 + DT/8 10 + DT/8 4 + DT/8 10 + DT/8 ns

ADRCK

ADRCLK Period t

ADRCKH

ADRCLK Width High (tCK/2 – 2) (tCK/2 – 2) ns

ADRCKL

ADRCLK Width Low (tCK/2 – 2) (tCK/2 – 2) ns

W = (number of Wait states specified in WAIT register) × tCK.

NOTES

The falling edge of MSx, SW, BMS is referenced.

ACK Delay/Setup: User must meet t

DAAK

or t

DSAK

or synchronous specification t

SACKC

for deassertion of ACK (Low), all three specifications must be met for assertion

of ACK (High).

See System Hold Time Calculation under Test Conditions for calculation of hold times given capacitive and dc loads.

Synchronous Read/Write—Bus Master

Use these specifications for interfacing to external memory systems that require CLKIN—relative timing or for accessing a slave ADSP-21062 (in multiprocessor memory space). These synchronous switching characteristics are also valid during asynchronous memory reads and writes (see Memory Read—Bus Master and Memory Write—Bus Master).

When accessing a slave ADSP-21062, these switching characteristics must meet the slave’s timing requirements for synchronous read/writes (see Synchronous Read/Write—Bus Slave). The slave ADSP-21062 must also meet these (bus master) timing requirements for data and acknowledge setup and hold times.

ADSP-21062/ADSP-21062L

–23–

REV. C

CLKIN

ADRCLK

ADDRESS

MSx, SW

ACK

(IN)

PAGE

DATA (OUT)

DADCCK

ADRCK

ADRCKL

HADRO

DAAK

DPGC

DRWL

SACKC

HACK

HSDATI

SSDATI

DRDO

DWRO

DATTR

SDDATO

DRWL

DATA

(IN)

DADRO

ADRCKH

WRITE CYCLE

READ CYCLE

Figure 15. Synchronous Read/Write—Bus Master

–24–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

SADRI

Address, SW Setup Before CLKIN 15 + DT/2 15 + DT/2 ns

HADRI

Address, SW Hold Before CLKIN 5 + DT/2 5 + DT/2 ns

SRWLI

RD/WR Low Setup Before CLKIN19.5 + 5DT/16 9.5 + 5DT/16 ns

HRWLI

RD/WR Low Hold After CLKIN –4 – 5DT/16 8 + 7DT/16 –4 – 5DT/16 8 + 7DT/16 ns

RWHPI

RD/WR Pulse High 3 3 ns

SDATWH

Data Setup Before WR High 5 5 ns

HDATWH

Data Hold After WR High 1 1 ns

Switching Characteristics:

SDDATO

Data Delay After CLKIN 19 + 5DT/16 19 + 5DT/16 ns

DATTR

Data Disable After CLKIN

0 – DT/8 7 – DT/8 0 – DT/8 7 – DT/8 ns

DACKAD

ACK Delay After Address, SW

99ns

ACKTR

ACK Disable After CLKIN

–1 – DT/8 6 – DT/8 –1 – DT/8 6 – DT/8 ns

NOTES

SRWLI

(min) = 9.5 + 5DT/16 when Multiprocessor Memory Space Wait State (MMSWS bit in WAIT register) is disabled; when MMSWS is enabled, t

SRWLI

(min)

= 4 + DT/8.

See System Hold Time Calculation under Test Conditions for calculation of hold times given capacitive and dc loads.

DACKAD

is true only if the address and SW inputs have setup times (before CLKIN) greater than 10 + DT/8 and less than 19 + 3DT/4. If the address and SW inputs have

setup times greater than 19 + 3DT/4, then ACK is valid 14 + DT/4 (max) after CLKIN. A slave that sees an address with an M field match will respond with ACK regardless of the state of MMSWS or strobes. A slave will three-state ACK every cycle with t

ACKTR

Synchronous Read/Write—Bus Slave

Use these specifications for ADSP-21062 bus master accesses of a slave’s IOP registers or internal memory (in multiprocessor

memory space). The bus master must meet these (bus slave) timing requirements.

ADSP-21062/ADSP-21062L

–25–

REV. C

CLKIN

ADDRESS

ACK

DATA

(OUT)

WRITE ACCESS

SADRI

HADRI

DACKAD

ACKTR

RWHPI

HRWLI

SRWLI

SDDATO

DATTR

SRWLI

HRWLI

RWHPI

HDATWH

SDATWH

DATA

(IN)

READ ACCESS

Figure 16. Synchronous Read/Write—Bus Slave

–26–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

HBGRCSV

HBG Low to RD/WR/CS Valid

20 + 5DT/4 20 + 5DT/4 ns

SHBRI

HBR Setup Before CLKIN

20 + 3DT/4 20 + 3DT/4 ns

HHBRI

HBR Hold Before CLKIN

14 + 3DT/4 14 + 3DT/4 ns

SHBGI

HBG Setup Before CLKIN 13 + DT/2 13 + DT/2 ns

HHBGI

HBG Hold Before CLKIN High 6 + DT/2 6 + DT/2 ns

SBRI

BRx, CPA Setup Before CLKIN

13 + DT/2 13 + DT/2 ns

HBRI

BRx, CPA Hold Before CLKIN High 6 + DT/2 6 + DT/2 ns

SRPBAI

RPBA Setup Before CLKIN 21 + 3DT/4 21 + 3DT/4 ns

HRPBAI

RPBA Hold Before CLKIN 12 + 3DT/4 12 + 3DT/4 ns

Switching Characteristics:

DHBGO

HBG Delay After CLKIN 7 – DT/8 7 – DT/8 ns

HHBGO

HBG Hold After CLKIN –2 – DT/8 –2 – DT/8 ns

DBRO

BRx Delay After CLKIN 7 – DT/8 7 – DT/8 ns

HBRO

BRx Hold After CLKIN –2 – DT/8 –2 – DT/8 ns

DCPAO

CPA Low Delay After CLKIN 8 – DT/8 8 – DT/8 ns

TRCPA

CPA Disable After CLKIN –2 – DT/8 4.5 – DT/8 –2 – DT/8 4.5 – DT/8 ns

DRDYCS

REDY (O/D) or (A/D) Low from CS and HBR Low

8.5 8.75 ns

TRDYHG

REDY (O/D) Disable or REDY (A/D) High from HBG

44 + 23DT/16 44 + 23DT/16 ns

ARDYTR

REDY (A/D) Disable from CS or HBR High

10 10 ns

NOTES

For first asynchronous access after HBR and CS asserted, ADDR

31-0

must be a non-MMS value 1/2 tCK before RD or WR goes low or by t

HBGRCSV

after HBG goes

low. This is easily accomplished by driving an upper address signal high when HBG is asserted. See the “Host Processor Control of the ADSP-21062” section in the ADSP-21062 SHARC User’s Manual, Second Edition.

Only required for recognition in the current cycle.

CPA assertion must meet the setup to CLKIN; deassertion does not need to meet the setup to CLKIN.

(O/D) = open drain, (A/D) = active drive.

Multiprocessor Bus Request and Host Bus Request

Use these specifications for passing of bus mastership between multiprocessing ADSP-21062s (BRx) or a host processor (HBR, HBG).

ADSP-21062/ADSP-21062L

–27–

REV. C

CLKIN

HBR

HBG

(OUT)

BRx

(OUT)

HBG (IN)

BRx (IN)

REDY (O/D)

HBG (OUT)

REDY (A/D)

RPBA

CPA (OUT)

(O/D)

CPA (IN) (O/D)

SHBGI

SBRI

HHBGI

HBRI

HBGRCSV

O/D = OPEN DRAIN, A/D = ACTIVE DRIVE

DRDYCS

TRDYHG

SHBRI

HHBRI

HHBGO

DHBGO

HBRO

DBRO

DCPAO

TRCPA

ARDYTR

SRPBAI

HRPBAI

HBR

AND

Figure 17. Multiprocessor Bus Request and Host Bus Request

–28–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Read Cycle

Timing Requirements:

SADRDL

Address Setup/CS Low Before RD Low

00 ns

HADRDH

Address Hold/CS Hold Low After RD 00 ns

WRWH

RD/WR High Width 6 6 ns

DRDHRDY

RD High Delay After REDY (O/D) Disable 0 0 ns

DRDHRDY

RD High Delay After REDY (A/D) Disable 0 0 ns

Switching Characteristics:

SDATRDY

Data Valid Before REDY Disable from Low 2 2 ns

DRDYRDL

REDY (O/D) or (A/D) Low Delay After RD Low 10 10 ns

RDYPRD

REDY (O/D) or (A/D) Low Pulse Width for Read 45 + 21DT/16 45 + 21DT/16 ns

HDARWH

Data Disable After RD High 2 8 2 8 ns

Write Cycle

Timing Requirements:

SCSWRL

CS Low Setup Before WR low 0 0 ns

HCSWRH

CS Low Hold After WR high 0 0 ns

SADWRH

Address Setup Before WR High 5 5 ns

HADWRH

Address Hold After WR High 2 2 ns

WWRL

WR Low Width 7 7 ns

WRWH

RD/WR High Width 6 6 ns

DWRHRDY

WR High Delay After REDY (O/D) or (A/D) Disable 0 0 ns

SDATWH

Data Setup Before WR High 5 5 ns

HDATWH

Data Hold After WR High 1 1 ns

Switching Characteristics:

DRDYWRL

REDY (O/D) or (A/D) Low Delay After WR/CS Low 10 10 ns

RDYPWR

REDY (O/D) or (A/D) Low Pulse Width for Write 15 + 7DT/16 15 + 7DT/16 ns

SRDYCK

REDY (O/D) or (A/D) Disable to CLKIN 1 + 7DT/16 8 + 7DT/16 1 + 7DT/16 8 + 7DT/16 ns

NOTE

Not required if RD and address are valid t

HBGRCSV

after HBG goes low. For first access after HBR asserted, ADDR

31-0

must be a non-MMS value 1/2 t

CLK

before RD

or WR goes low or by t

HBGRCSV

after HBG goes low. This is easily accomplished by driving an upper address signal high when HBG is asserted. See the “Host Proces-

sor Control of the ADSP-21062” section in the ADSP-21062 SHARC User’s Manual, Second Edition.

CLKIN

REDY (O/D)

O/D = OPEN DRAIN, A/D = ACTIVE DRIVE

SRDYCK

REDY (A/D)

Figure 18a. Synchronous REDY Timing

Asynchronous Read/Write—Host to ADSP-21062

Use these specifications for asynchronous host processor accesses of an ADSP-21062, after the host has asserted CS and HBR (low). After HBG is returned by the ADSP-21062, the host can

drive the RD and WR pins to access the ADSP-21062’s internal memory or IOP registers. HBR and HBG are assumed low for this timing.

ADSP-21062/ADSP-21062L

–29–

REV. C

SADRDL

REDY (O/D)

DRDYRDL

WRWH

HADRDH

HDARWH

RDYPRD

DRDHRDY

SDATRDY

READ CYCLE

ADDRESS/CS

DATA (OUT)

REDY (A/D)

O/D = OPEN DRAIN, A/D = ACTIVE DRIVE

SDATWH

HDATWH

WWRL

REDY (O/D)

DRDYWRL

WRWH

HADWRH

RDYPWR

DWRHRDY

WRITE CYCLE

SADWRH

DATA (IN)

ADDRESS

REDY (A/D)

SCSWRL

HCSWRH

Figure 18b. Asynchronous Read/Write—Host to ADSP-21062

–30–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

STSCK

SBTS Setup Before CLKIN 12 + DT/2 12 + DT/2 ns

HTSCK

SBTS Hold Before CLKIN 6 + DT/2 6 + DT/2 ns

Switching Characteristics:

MIENA

Address/Select Enable After CLKIN –1 – DT/8 –1.25 – DT/8 ns

MIENS

Strobes Enable After CLKIN

–1.5 – DT/8 –1.5 – DT/8 ns

MIENHG

HBG Enable After CLKIN –1.5 – DT/8 –1.5 – DT/8 ns

MITRA

Address/Select Disable After CLKIN 0 – DT/4 0 – DT/4 ns

MITRS

Strobes Disable After CLKIN

1.5 – DT/4 1.5 – DT/4 ns

MITRHG

HBG Disable After CLKIN 2.0 – DT/4 2.0 – DT/4 ns

DATEN

Data Enable After CLKIN

9 + 5DT/16 9 + 5DT/16 ns

DATTR

Data Disable After CLKIN

0 – DT/8 7 – DT/8 –0.5 – DT/8 7 – DT/8 ns

ACKEN

ACK Enable After CLKIN

7.5 + DT/4 7.5 + DT/4 ns

ACKTR

ACK Disable After CLKIN

–1 – DT/8 6 – DT/8 –1 – DT/8 6 – DT/8 ns

ADCEN

ADRCLK Enable After CLKIN –2 – DT/8 –2 – DT/8 ns

ADCTR

ADRCLK Disable After CLKIN 8 – DT/4 8 – DT/4 ns

MTRHBG

Memory Interface Disable Before HBG Low

0 + DT/8 0 + DT/8 ns

MENHBG

Memory Interface Enable After HBG High

19 + DT 19 + DT ns

NOTES

Strobes = RD, WR, SW, PAGE, DMAG.

In addition to bus master transition cycles, these specs also apply to bus master and bus slave synchronous read/write.

Memory Interface = Address, RD, WR, MSx, SW, PAGE, DMAGx, BMS (in EPROM boot mode).

Three-State Timing—Bus Master, Bus Slave, HBR, SBTS

These specifications show how the memory interface is disabled (stops driving) or enabled (resumes driving) relative to CLKIN

CLKIN

SBTS

ACK

MITRA, tMITRS, tMITRHG

STSCK

HTSCK

DATTR

DATEN

ACKTR

ACKEN

ADCTR

ADCEN

ADRCLK

DATA

MIENA, tMIENS, tMIENHG

MEMORY

INTERFACE

Figure 19a. Three-State Timing (Bus Transition Cycle,

SBTS

Assertion)

MEMORY

INTERFACE

MENHBG

MTRHBG

HBG

MEMORY INTERFACE = ADDRESS, RD, WR, MSx, SW, PAGE, DMAGx. BMS (IN EPROM BOOT MODE)

Figure 19b. Three-State Timing (Host Transition Cycle)

and the SBTS pin. This timing is applicable to bus master transition cycles (BTC) and host transition cycles (HTC) as well as the SBTS pin.

ADSP-21062/ADSP-21062L

–31–

REV. C

transfer is controlled by ADDR31-0, RD, WR, MS

3-0

, and ACK

(not DMAG). For Paced Master mode, the Memory Read–Bus Master, Memory Write–Bus Master, and Synchronous Read/ Write–Bus Master timing specifications for ADDR

31-0

, RD, WR,

3-0

, SW, PAGE, DATA47-0, and ACK also apply.

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

SDRLC

DMARx Low Setup Before CLKIN155ns

SDRHC

DMARx High Setup Before CLKIN155ns

WDR

DMARx Width Low (Nonsynchronous) 6 6 ns

SDATDGL

Data Setup After DMAGx Low

10 + 5DT/8 10 + 5DT/8 ns

HDATIDG

Data Hold After DMAGx High 2 2 ns

DATDRH

Data Valid After DMARx High

16 + 7DT/8 16 + 7DT/8 ns

DMARLL

DMARx Low Edge to Low Edge 23 + 7DT/8 23 + 7DT/8 ns

DMARH

DMARx Width High 6 6 ns

Switching Characteristics:

DDGL

DMAGx Low Delay After CLKIN 9 + DT/4 15 + DT/4 9 + DT/4 15 + DT/4 ns

WDGH

DMAGx High Width 6 + 3DT/8 6 + 3DT/8 ns

WDGL

DMAGx Low Width 12 + 5DT/8 12 + 5DT/8 ns

HDGC

DMAGx High Delay After CLKIN –2 – DT/8 6 – DT/8 –2 – DT/8 6 – DT/8 ns

VDATDGH

Data Valid Before DMAGx High

8 + 9DT/16 8 + 9DT/16 ns

DATRDGH

Data Disable After DMAGx High

0707ns

DGWRL

WR Low Before DMAGx Low –0.25 2 –0.25 2 ns

DGWRH

DMAGx Low Before WR High 10 + 5DT/8 + W 10 + 5DT/8 + W ns

DGWRR

WR High Before DMAGx High 1 + DT/16 3 + DT/16 1 + DT/16 3 + DT/16 ns

DGRDL

RD Low Before DMAGx Low 0 2 0 2 ns

DRDGH

RD Low Before DMAGx High 11 + 9DT/16 + W 11 + 9DT/16 + W ns

DGRDR

RD High Before DMAGx High0303ns

DGWR

DMAGx High to WR, RD, DMAGx Low 5 + 3DT/8 + HI 5 + 3DT/8 + HI ns

DADGH

Address/Select Valid to DMAGx High 17 + DT 17 + DT ns

DDGHA

Address/Select Hold after DMAGx High –0.5 –1 ns

W = (number of wait states specified in WAIT register) × tCK. HI = tCK (if an address hold cycle or bus idle cycle occurs, as specified in WAIT register; otherwise HI = 0).

NOTES

Only required for recognition in the current cycle.

SDATDGL

is the data setup requirement if DMARx is not being used to hold off completion of a write. Otherwise, if DMARx low holds off completion of the write, the

data can be driven t

DATDRH

after DMARx is brought high.

VDATDGH

is valid if DMARx is not being used to hold off completion of a read. If DMARx is used to prolong the read, then t

VDATDGH

= 8 + 9DT/16 + (n × tCK) where

n equals the number of extra cycles that the access is prolonged.

See System Hold Time Calculation under Test Conditions for calculation of hold times given capacitive and dc loads.

DMA Handshake

These specifications describe the three DMA handshake modes. In all three modes DMAR is used to initiate transfers. For handshake mode, DMAG controls the latching or enabling of data externally. For external handshake mode, the data transfer is controlled by the ADDR

31-0

, RD, WR, SW, PAGE, MS

3-0

ACK, and DMAG signals. For Paced Master mode, the data

–32–

ADSP-21062/ADSP-21062L

REV. C

CLKIN

SDRLC

DMARx

DATA (FROM

ADSP-2106x TO

EXTERNAL DRIVE)

DATA (FROM

EXTERNAL DRIVE

TO ADSP-2106x)

WDR

SDRHC

DMARH

DMARLL

HDGC

WDGH

DDGL

WDGL

DMAGx

VDATDGH

DATDRH

DATRDGH

HDATIDG

DGWRL

DGWRH

DGWRR

DGRDL

DRDGH

DGRDR

SDATDGL

MEMORY READ – BUS MASTER, MEMORY WRITE – BUS MASTER, AND SYNCHRONOUS READ/WRITE – BUS MASTER

TIMING SPECIFICATIONS FOR ADDR

31-0

, RD, WR, SW, MS

3-0

AND ACK ALSO APPLY HERE.

(EXTERNAL DEVICE

TO EXTERNAL

MEMORY)

(EXTERNAL

MEMORY TO

EXTERNAL DEVICE)

TRANSFERS BETWEEN ADSP-2106x INTERNAL MEMORY AND EXTERNAL DEVICE

TRANSFERS BETWEEN EXTERNAL DEVICE AND EXTERNAL MEMORY* (EXTERNAL HANDSHAKE MODE)

DDGHA

ADDRESS

MSx, SW

DADGH

Figure 20. DMA Handshake Timing

ADSP-21062/ADSP-21062L

–33–

REV. C

Link Ports: 1 ⴛ CLK Speed Operation

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Receive

Timing Requirements:

SLDCL

Data Setup Before LCLK Low 3 3 ns

HLDCL

Data Hold After LCLK Low 3 3 ns

LCLKIW

LCLK Period (1 × Operation) t

LCLKRWL

LCLK Width Low 6 6 ns

LCLKRWH

LCLK Width High 5 5 ns

Switching Characteristics:

DLAHC

LACK High Delay After CLKIN High 18 + DT/2 28.5 + DT/2 18 + DT/2 28.5 + DT/2 ns

DLALC

LACK Low Delay After LCLK High

–3 13 –3 13 ns

ENDLK

LACK Enable from CLKIN 5 + DT/2 5 + DT/2 ns

TDLK

LACK Disable from CLKIN 20 + DT/2 20 + DT/2 ns

Transmit

Timing Requirements:

SLACH

LACK Setup Before LCLK High 18 18 ns

HLACH

LACK Hold After LCLK High –7 –7 ns

Switching Characteristics:

DLCLK

LCLK Delay After CLKIN (1 × operation) 15.5 15.5 ns

DLDCH

Data Delay After LCLK High 2.5 2.5 ns

HLDCH

Data Hold After LCLK High –3 –3 ns

LCLKTWL

LCLK Width Low (tCK/2) – 1 (tCK/2) + 1.25 (tCK/2) – 1 (tCK/2) + 1.5 ns

LCLKTWH

LCLK Width High (tCK/2) – 1.25 (tCK/2) + 1 (tCK/2) – 1.5 (tCK/2) + 1 ns

DLACLK

LCLK Low Delay After LACK High (tCK/2) + 8.75 (3 × tCK/2) + 17 (tCK/2) + 8 (3 × tCK/2) + 17 ns

ENDLK

LDAT, LCLK Enable After CLKIN 5 + DT/2 5 + DT/2 ns

TDLK

LDAT, LCLK Disable After CLKIN 20 + DT/2 20 + DT/2 ns

Link Port Service Request Interrupts: 1 × and 2 × Speed Operations

Timing Requirements:

SLCK

LACK/LCLK Setup Before CLKIN Low210 10 ns

HLCK

LACK/LCLK Hold After CLKIN Low222ns

NOTES

LACK will go low with t

DLALC

relative to rising edge of LCLK after first nibble is received. LACK will not go low if the receiver’s link buffer is not about to fill.

Only required for interrupt recognition in the current cycle.

–34–

ADSP-21062/ADSP-21062L

REV. C

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Receive

Timing Requirements:

SLDCL

Data Setup Before LCLK Low 2.5 2.25 ns

HLDCL

Data Hold After LCLK Low 2.25 2.25 ns

LCLKIW

LCLK Period (2 × Operation) tCK/2 tCK/2 ns

LCLKRWL

LCLK Width Low 4.5 5.25 ns

LCLKRWH

LCLK Width High 4 4 ns

Switching Characteristics:

DLAHC

LACK High Delay After CLKIN High 18 + DT/2 28.5 + DT/2 18 + DT/2 29.5 + DT/2 ns

DLALC

LACK Low Delay After LCLK High1616 616 ns

Transmit

Timing Requirements:

SLACH

LACK Setup Before LCLK High 19 19 ns

HLACH

LACK Hold After LCLK High –6.75 –6.5 ns

Switching Characteristics:

DLCLK

LCLK Delay After CLKIN 8 8 ns

DLDCH

Data Delay After LCLK High 2.25 2.25 ns

HLDCH

Data Hold After LCLK High –2.0 –2.25 ns

LCLKTWL

LCLK Width Low (tCK/4) – 1 (tCK/4) + 1.25 (tCK/4) – 1 (tCK/4) + 1.5 ns

LCLKTWH

LCLK Width High (tCK/4) – 1.25 (tCK/4) + 1 (tCK/4) – 1.5 (tCK/4) + 1 ns

DLACLK

LCLK Low Delay After LACK High (tCK/4) + 9 (3 × tCK/4) + 16.5 (tCK/4) + 9 (3 × tCK/4) + 16.5 ns

NOTE

LACK will go low with t

DLALC

relative to rising edge of LCLK after first nibble is received. LACK will not go low if the receiver’s link buffer is not about to fill.

Link Ports: 2 ⴛ CLK Speed Operation

Calculation of link receiver data setup and hold relative to link clock is required to determine the maximum allowable skew that can be introduced in the transmission path between LDATA and LCLK. Setup skew is the maximum delay that can be introduced in LDATA relative to LCLK, (setup skew = t

LCLKTWH

min – t

DLDCH

– t

SLDCL

). Hold skew is the maximum delay that can be introduced in LCLK relative to LDATA, (hold skew = t

LCLKTWL

min – t

HLDCH

– t

HLDCL

). Calculations made directly

from 2 × speed specifications will result in unrealistically small skew times because they include multiple tester guardbands. The setup and hold skew times shown below are calculated to include only one tester guardband.

ADSP-21062 Setup Skew = 1.84 ns max ADSP-21062 Hold Skew = 2.78 ns max

ADSP-21062L Setup Skew = 2.10 ns max ADSP-21062L Hold Skew = 1.87 ns max

ADSP-21062/ADSP-21062L

–35–

REV. C

CLKIN

LCLK

LDAT(3:0)

LACK

LCLK 1x

LCLK 2x

CLKIN

LDAT(3:0)

LACK (IN)

LCLK 1x

LCLK 2x

LDAT(3:0)

LACK (OUT)

THE

SLACH

REQUIREMENT APPLIES TO THE RISING EDGE OF LCLK ONLY FOR THE FIRST NIBBLE TRANSMITTED.

CLKIN

TRANSMIT

DLDCH

HLDCH

DLCLK

LCLKTWH

LCLKTWL

SLACH

HLACH

DLACLK

SLDCL

HLDCL

LCLKRWH

DLAHC

DLALC

LINK PORT ENABLE OR THREE-STATE TAKES EFFECT TWO CYCLES AFTER A WRITE TO A LINK PORT CONTROL REGISTER.

ENDLK

TDLK

RECEIVE

LINK PORT ENABLE/THREE-STATE DELAY FROM INSTRUCTION

LCLKRWL

LCLKIW

CLKIN

SLCK

HLCK

LINK PORT INTERRUPT SETUP TIME

LCLK

LACK

LAST NIBBLE

TRANSMITTED

FIRST NIBBLE TRANSMITTED

LCLK INACTIVE

(HIGH)

OUT

Figure 21. Link Ports

–36–

ADSP-21062/ADSP-21062L

REV. C

Serial Ports

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

External Clock

Timing Requirements:

SFSE

TFS/RFS Setup Before TCLK/RCLK13.5 3.5 ns

HFSE

TFS/RFS Hold After TCLK/RCLK

1, 2

44ns

SDRE

Receive Data Setup Before RCLK

1.5 1.5 ns

HDRE

Receive Data Hold After RCLK

44ns

SCLKW

TCLK/RCLK Width 9 9 ns

SCLK

TCLK/RCLK Period t

Internal Clock

Timing Requirements:

SFSI

TFS Setup Before TCLK1; RFS Setup Before RCLK

88ns

HFSI

TFS/RFS Hold After TCLK/RCLK

1, 2

11ns

SDRI

Receive Data Setup Before RCLK

33ns

HDRI

Receive Data Hold After RCLK

33ns

External or Internal Clock

Switching Characteristics:

DFSE

RFS Delay After RCLK (Internally Generated RFS)

13 13 ns

HOFSE

RFS Hold After RCLK (Internally Generated RFS)

33ns

External Clock

Switching Characteristics:

DFSE

TFS Delay After TCLK (Internally Generated TFS)

13 13 ns

HOFSE

TFS Hold After TCLK (Internally Generated TFS)

33ns

DDTE

Transmit Data Delay After TCLK

16 16 ns

HDTE

Transmit Data Hold After TCLK

55ns

Internal Clock

Switching Characteristics:

DFSI

TFS Delay After TCLK (Internally Generated TFS)

4.5 4.5 ns

HOFSI

TFS Hold After TCLK (Internally Generated TFS)

–1.5 –1.5 ns

DDTI

Transmit Data Delay After TCLK

7.5 7.5 ns

HDTI

Transmit Data Hold After TCLK

00ns

SCLKIW

TCLK/RCLK Width (t

SCLK

/2) – 2.5 (t

SCLK

/2) + 2.5 (t

SCLK

/2) – 2.5 (t

SCLK

/2) + 2.5 ns

Enable and Three-State

Switching Characteristics:

DDTEN

Data Enable from External TCLK

4.25 4 ns

DDTTE

Data Disable from External TCLK

10.5 16 ns

DDTIN

Data Enable from Internal TCLK

00ns

DDTTI

Data Disable from Internal TCLK

3 7.5 ns

DCLK

TCLK/RCLK Delay from CLKIN 22 + 3DT/8 22 + 3DT/8 ns

DPTR

SPORT Disable After CLKIN 17 17 ns

Gated SCLK with External TFS (Mesh Multiprocessing)

Timing Requirements:

STFSCK

TFS Setup Before CLKIN 5 5 ns

HTFSCK

TFS Hold After CLKIN tCK/2 tCK/2 ns

External Late Frame Sync

Switching Characteristics:

DDTLFSE

Data Delay from Late External TFS or External RFS with MCE = 1, MFD = 0

12.75 12.75 ns

DDTENFS

Data Enable from late FS or MCE = 1, MFD = 0

3.5 3.5 ns

To determine whether communication is possible between two devices at clock speed n, the following specifications must be confirmed: 1) frame sync delay and frame sync setup and hold, 2) data delay and data setup and hold, and 3) SCLK width.

ADSP-21062/ADSP-21062L

–37–

REV. C

NOTES

Referenced to sample edge.

RFS hold after RCK when MCE = 1, MFD = 0 is 0 ns minimum from drive edge. TFS hold after TCK for late external TFS is 0 ns minimum from drive edge.

Referenced to drive edge.

Applies only to gated serial clock mode used for serial port system I/O in mesh multiprocessing systems.

MCE = 1, TFS enable and TFS valid follow t

DDTLFSE

and t

DDTENFS

DDTTE

DDTEN

DDTTI

DDTIN

DRIVE

EDGE

DRIVE

EDGE

DRIVE EDGE

DRIVE

EDGE

TCLK / RCLK

TCLK (INT)

TCLK / RCLK

TCLK (EXT)

SDRI

RCLK

RFS

DRIVE

EDGE

SAMPLE

EDGE

HDRI

SFSI

HFSI

DFSE

HOFSE

SCLKIW

DATA RECEIVE– INTERNAL CLOCK

SDRE

DATA RECEIVE– EXTERNAL CLOCK

RCLK

RFS

DRIVE EDGE

SAMPLE

EDGE

HDRE

SFSE

HFSE

DFSE

SCLKW

HOFSE

NOTE: EITHER THE RISING EDGE OR FALLING EDGE OF RCLK, TCLK CAN BE USED AS THE ACTIVE SAMPLING EDGE.

DDTI

HDTI

TCLK

TFS

DRIVE

EDGE

SAMPLE

EDGE

SFSI

HFSI

SCLKIW

DFSI

HOFSI

DATA TRANSMIT– INTERNAL CLOCK

DDTE

HDTE

TCLK

TFS

DRIVE EDGE

SAMPLE

EDGE

SFSE

HFSE

DFSE

SCLKW

HOFSE

DATA TRANSMIT– EXTERNAL CLOCK

CLKIN

SPORT ENABLE AND THREE-STATE LATENCY IS TWO CYCLES

DPTR

SPORT DISABLE DELAY

FROM INSTRUCTION

DCLK

LOW TO HIGH ONLY

TCLK (INT)

RCLK (INT)

TCLK, RCLK

TFS, RFS, DT

CLKIN

TFS (EXT)

HTFSCK

STFSCK

NOTE: APPLIES ONLY TO GATED SERIAL CLOCK MODE WITH EXTERNAL TFS, AS USED IN THE SERIAL PORT SYSTEM I/O FOR MESH MULTIPROCESSING.

NOTE: EITHER THE RISING EDGE OR FALLING EDGE OF RCLK, TCLK CAN BE USED AS THE ACTIVE SAMPLING EDGE.

Figure 22. Serial Ports

–38–

ADSP-21062/ADSP-21062L

REV. C

HOFSE/I

SFSE/I

(SEE NOTE 2 ON PREVIOUS PAGE)

DRIVE SAMPLE DRIVE

DDTE/I

DDTENFS

DDTLFSE

HDTE/I

EXTERNAL RFS with MCE = 1, MFD = 0

1ST BIT 2ND BIT

RCLK

RFS

TCLK

HOFSE/I

SFSE/I

TFS

DRIVE SAMPLE

DRIVE

DDTE/I

DDTENFS

DDTLFSE

HDTE/I

LATE EXTERNAL TFS

1ST BIT 2ND BIT

(SEE NOTE 2 ON PREVIOUS PAGE)

Figure 23. External Late Frame Sync

ADSP-21062/ADSP-21062L

–39–

REV. C

JTAG Test Access Port and Emulation

ADSP-21062 ADSP-21062L

Parameter Min Max Min Max Units

Timing Requirements:

TCK

TCK Period t

STAP

TDI, TMS Setup Before TCK High 5 5 ns

HTAP

TDI, TMS Hold After TCK High 6 6 ns

SSYS

System Inputs Setup Before TCK Low177ns

HSYS

System Inputs Hold After TCK Low

18 18.5 ns

TRSTW

TRST Pulsewidth 4t

Switching Characteristics:

DTDO

TDO Delay from TCK Low 13 13 ns

DSYS

System Outputs Delay After TCK Low

18.5 18.5 ns

NOTES

System Inputs = DATA

47-0

, ADDR

31-0

, RD, WR, ACK, SBTS, SW, HBR, HBG, CS, DMAR1, DMAR2, BR

6-1

, ID

2-0

, RPBA, IRQ

2-0

, FLAG

3-0

, DR0, DR1,

TCLK0, TCLK1, RCLK0, RCLK1, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, EBOOT, LBOOT, BMS, CLKIN, RESET.

System Outputs = DATA

47-0

, ADDR

31-0

, MS

3-0

, RD, WR, ACK, PAGE, ADRCLK, SW, HBG, REDY, DMAG1, DMAG2, BR

6-1

, CPA, FLAG

3-0

, TIMEXP, DT0,

DT1, TCLK0, TCLK1, RCLK0, RCLK1, TFS0, TFS1, RFS0, RFS1, LxDAT

3-0

, LxCLK, LxACK, BMS.

TCK

STAP

TCK

HTAP

DTDO

SSYS

HSYS

DSYS

TMS

TDI

TDO

SYSTEM

INPUTS

SYSTEM

OUTPUTS

Figure 24. IEEE 11499.1 JTAG Test Access Port

–40–

ADSP-21062/ADSP-21062L

REV. C

OUTPUT DRIVE CURRENTS

Figure 28 shows typical I-V characteristics for the output drivers of the ADSP-21062. The curves represent the current drive capability of the output drivers as a function of output voltage.

POWER DISSIPATION

Total power dissipation has two components, one due to internal circuitry and one due to the switching of external output drivers. Internal power dissipation is dependent on the instruction execution sequence and the data operands involved. Internal power dissipation is calculated in the following way:

INT

= I

DDIN

× V

The external component of total power dissipation is caused by the switching of output pins. Its magnitude depends on:

– the number of output pins that switch during each cycle (O) – the maximum frequency at which they can switch (f) – their load capacitance (C) – their voltage swing (V

)

and is calculated by:

EXT

= O × C × V

× f

The load capacitance should include the processor’s package capacitance (C

). The switching frequency includes driving the load high and then back low. Address and data pins can drive high and low at a maximum rate of 1/(2t

). The write strobe

can switch every cycle at a frequency of 1/t

. Select pins switch

at 1/(2t

), but selects can switch on each cycle.

Example:

Estimate P

EXT

with the following assumptions:

–A system with one bank of external data memory RAM (32-bit) –Four 128K

8 RAM chips are used, each with a load of 10 pF

–External data memory writes occur every other cycle, a rate

of 1/(4t

), with 50% of the pins switching

–The instruction cycle rate is 40 MHz (t

= 25 ns).

The P

EXT

equation is calculated for each class of pins that can

drive:

Table II. External Power Calculations (5 V Device)

Pin # of % Type Pins Switching ⴛ C ⴛ f ⴛ V

= P

EXT

Address 15 50 × 44.7 pF × 10 MHz × 25 V = 0.084 W

MS0 10 × 44.7 pF × 10 MHz × 25 V = 0.000 W WR 1– × 44.7 pF × 20 MHz × 25 V = 0.022 W

Data 32 50 × 14.7 pF × 10 MHz × 25 V = 0.059 W ADDRCLK 1 – × 4.7 pF × 20 MHz × 25 V = 0.002 W

EXT

= 0.167 W

Table III. External Power Calculations (3.3 V Device)

Pin # of % Type Pins Switching ⴛ C ⴛ f ⴛ V

= P

EXT

Address 15 50 × 44.7 pF × 10 MHz × 10.9 V = 0.037 W

MS0 10 × 44.7 pF × 10 MHz × 10.9 V = 0.000 W WR 1– × 44.7 pF × 20 MHz × 10.9 V = 0.010 W

Data 32 50 × 14.7 pF × 10 MHz × 10.9 V = 0.026 W ADDRCLK 1 – × 4.7 pF × 20 MHz × 10.9 V = 0.001 W

EXT

= 0.074 W

A typical power consumption can now be calculated for these conditions by adding a typical internal power dissipation:

TOTAL

= P

EXT

+ (I

DDIN2

× 5.0 V )

Note that the conditions causing a worst-case P

EXT

are different

from those causing a worst-case P

INT

. Maximum P

INT

cannot occur while 100% of the output pins are switching from all ones to all zeros. Note also that it is not common for an application to have 100% or even 50% of the outputs switching simultaneously.

TEST CONDITIONS Output Disable Time

Output pins are considered to be disabled when they stop driving, go into a high impedance state, and start to decay from their output high or low voltage. The time for the voltage on the bus to decay by ∆V is dependent on the capacitive load, C

and

the load current, I

. This decay time can be approximated by

the following equation:

DECAY

∆V

The output disable time t

DIS

is the difference between t

MEASURED

and t

DECAY

as shown in Figure 25. The time t

MEASURED

is the

interval from when the reference signal switches to when the output voltage decays ∆V from the measured output high or output low voltage. t

DECAY

is calculated with test loads CL and

, and with ∆V equal to 0.5 V.

Output Enable Time

Output pins are considered to be enabled when they have made a transition from a high impedance state to when they start driving. The output enable time t

ENA

is the interval from when a reference signal reaches a high or low voltage level to when the output has reached a specified high or low trip point, as shown in the Output Enable/Disable diagram (Figure 25). If multiple pins (such as the data bus) are enabled, the measurement value is that of the first pin to start driving.

ADSP-21062/ADSP-21062L

–41–

REV. C

Example System Hold Time Calculation

To determine the data output hold time in a particular system, first calculate t

DECAY

using the equation given above. Choose ∆V

to be the difference between the ADSP-21062’s output voltage and the input threshold for the device requiring the hold time. A typical ∆V will be 0.4 V. C

is the total bus capacitance (per

data line), and I

is the total leakage or three-state current (per

data line). The hold time will be t

DECAY

plus the minimum

disable time (i.e., t

DATRWH

for the write cycle).

REFERENCE

SIGNAL

DIS

OUTPUT STARTS

DRIVING

OH (MEASURED)

– ⌬V

OL (MEASURED)

+ ⌬V

MEASURED

OH (MEASURED)

OL (MEASURED)

2.0V

1.0V

OH (MEASURED)

OL (MEASURED)

HIGH-IMPEDANCE STATE. TEST CONDITIONS CAUSE THIS VOLTAGE TO BE APPROXIMATELY 1.5V

OUTPUT STOPS

DRIVING

ENA

DECAY

Figure 25. Output Enable/Disable

+1.5V

50pF

OUTPUT

Figure 26. Equivalent Device Loading for AC Measurements (Includes All Fixtures)

Capacitive Loading

Output delays and holds are based on standard capacitive loads: 50 pF on all pins (see Figure 26). The delay and hold specifications given should be derated by a factor of 1.5 ns/50 pF for loads other than the nominal value of 50 pF. Figures 29–30, 33–34 show how output rise time varies with capacitance. Figures 31, 35 show graphically how output delays and holds vary with load capacitance. (Note that this graph or derating does not apply to output disable delays; see the previous section Output Disable Time under Test Conditions.) The graphs of Figures 29, 30 and 31 may not be linear outside the ranges shown.

INPUT OR

OUTPUT

1.5V

Figure 27. Voltage Reference Levels for AC Measurements (Except Output Enable/Disable)

–42–

ADSP-21062/ADSP-21062L

REV. C

SOURCE VOLTAGE – V

100

–75

–150

0 5.25

SOURCE CURRENT – mA

0.75 1.50 2.25 3.00 3.75 4.50

–50

–100

–125

–25

–175

–200

4.75V, +85°C

5.0V, +25°C

5.25V, –40°C

4.75V, +85°C

5.0V, +25°C

5.25V, –40ⴗC

Figure 28. ADSP-21062 Typical Drive Currents (VDD = 5 V)

LOAD CAPACITANCE – pF

16.0

8.0

0 20020 40 60 80 100 120 140 160 180

14.0

12.0

4.0

2.0

10.0

6.0

FALL TIME

RISE TIME

RISE AND FALL TIMES – ns

(0.5V – 4.5V, 10% – 90%)

Y = 0.005X + 3.7

Y = 0.0031X + 1.1

Figure 29. Typical Output Rise Time (10%–90% VDD) vs. Load Capacitance (V

= 5 V)

3.5

RISE AND FALL TIMES – ns (0.8V – 2.0V)

3.0

2.5

2.0

1.5

1.0

0.5

LOAD CAPACITANCE – pF

0 20020 40 60 80 100 120 140 160 180

FALL TIME

RISE TIME

Y = 0.009X + 1.1

Y = 0.005X + 0.6

Figure 30. Typical Output Rise Time (0.8 V–2.0 V) vs. Load Capacitance (V

= 5 V)

LOAD CAPACITANCE – pF

OUTPUT DELAY OR HOLD – ns

–1

25 20050 75 100 125 150 175

NOMINAL

Y = 0.03X –1.45

Figure 31. Typical Output Delay or Hold vs. Load Capacitance (at Maximum Case Temperature) (V

= 5 V)

SOURCE VOLTAGE – V

120

–20

–80

3.5

SOURCE CURRENT – mA

0.5 1 1.5 2 2.5 3

100

–40

–60

–100

–120

3.0V, +85°C

3.3V, +25°C

3.6V, –40°C

3.3V, +25°C

3.0V, +85ⴗC V

Figure 32. ADSP-21062 Typical Drive Currents (VDD = 3.3 V)

LOAD CAPACITANCE – pF

20 40 60 80 100 120

Y = 0.0796X + 1.17

Y = 0.0467X + 0.55

RISE TIME

FALL TIME

140 160 180 200

RISE AND FALL TIMES – ns (10% – 90%)

Figure 33. Typical Output Rise Time (10%–90% VDD) vs. Load Capacitance (V

= 3.3 V)

ADSP-21062/ADSP-21062L

–43–

REV. C

ENVIRONMENTAL CONDITIONS Thermal Characteristics

The ADSP-21062 is available in 240-lead thermally enhanced MQFP and 225-lead plastic ball grid array packages. The top surface of the thermally enhanced MQFP contains a copper slug from which most of the die heat is dissipated. The slug is flush with the top surface of the package. Note that the copper slug is internally connected to GND through the device substrate.

Both packages are specified for a case temperature (T

CASE

). To

ensure that the T

CASE

is not exceeded, a heatsink and/or an air flow source may be used. A heatsink should be attached with a thermal adhesive.

CASE = TAMB +

( PD ×

)

CASE

= Case temperature (measured on top surface of package)

PD = Power dissipation in W (this value depends upon the

specific application; a method for calculating PD is shown under Power Dissipation).

= Value from table below.

240 MQFP

␪JC = 0.3ⴗC/W Airflow (Linear Ft./Min.) 0 100 200 400 600

θCA (°C/W) 10 9 8 7 6

NOTES This represents thermal resistance at total power of 5 W. With air flow, no variance is seen in θCA with power.

θCA at 0 LFM varies with power: at 2W, θCA = 14°C/W, at 3W θCA = 11°C/W.

225 PBGA

␪JC = 1.7ⴗC/W Airflow (Linear Ft./Min.) 0 200 400

θCA (°C/W) 20.7 15.3 12.9

NOTE No variance is seen in θCA with power.

LOAD CAPACITANCE – pF

0020 40 60 80 100 120

Y = 0.0391X + 0.36

Y = 0.0305X + 0.24

RISE TIME

FALL TIME

140 160 180 200

RISE AND FALL TIMES – ns (0.8V – 2.0V)

Figure 34. Typical Output Rise Time (0.8 V–2.0 V) vs. Load Capacitance (V

= 3.3 V)

LOAD CAPACITANCE – pF

OUTPUT DELAY OR HOLD – ns

–1

25 20050 75 100 125 150 175

NOMINAL

Y = 0.0329X –1.65

Figure 35. Typical Output Delay or Hold vs. Load Capacitance (at Maximum Case Temperature) (V

= 3.3 V)

–44–

ADSP-21062/ADSP-21062L

REV. C

225-Ball Plastic Ball Grid Array (PBGA) Package Descriptions

Ball # Name Ball # Name Ball # Name Ball # Name Ball # Name

A01 BMS D01 ADDR25 G01 ADDR14 K01 ADDR6 N01 EMU A02 ADDR30 D02 ADDR26 G02 ADDR15 K02 ADDR5 N02 TDO A03 DMAR2 D03 MS2 G03 ADDR16 K03 ADDR3 N03 IRQ0 A04 DT1 D04 ADDR29 G04 ADDR19 K04 ADDR0 N04 IRQ1 A05 RCLK1 D05 DMAR1 G05 GND K05 ICSA N05 ID2 A06 TCLK0 D06 TFS1 G06 VDD K06 GND N06 L5DAT1 A07 RCLK0 D07 CPA G07 VDD K07 VDD N07 L4CLK A08 ADRCLK D08 HBG G08 VDD K08 VDD N08 L3CLK A09 CS D09 DMAG2 G09 VDD K09 VDD N09 L3DAT3 A10 CLKIN D10 BR5 G10 VDD K10 GND N10 L2DAT0 A11 PAGE D11 BR1 G11 GND K11 GND N11 L1ACK A12 BR3 D12 DATA40 G12 DATA22 K12 DATA8 N12 L1DAT3 A13 DATA47 D13 DATA37 G13 DATA25 K13 DATA11 N13 L0DAT3 A14 DATA44 D14 DATA35 G14 DATA24 K14 DATA13 N14 DATA1 A15 DATA42 D15 DATA34 G15 DATA23 K15 DATA14 N15 DATA3

B01 MS0 E01 ADDR21 H01 ADDR12 L01 ADDR2 P01 TRST B02 SW E02 ADDR22 H02 ADDR11 L02 ADDR1 P02 TMS B03 ADDR31 E03 ADDR24 H03 ADDR13 LA03 FLAG0 P03 EBOOT B04 HBR E04 ADDR27 H04 ADDR10 L04 FLAG3 P04 ID0 B05 DR1 E05 GND H05 GND L05 RPBA P05 L5CLK B06 DT0 E06 GND H06 VDD L06 GND P06 L5DAT3 B07 DR0 E07 GND H07 VDD L07 GND P07 L4DAT0 B08 REDY E08 GND H08 VDD L08 GND P08 L4DAT3 B09 RD E09 GND H09 VDD L09 GND P09 L3DAT2 B10 ACK E10 GND H10 VDD L10 GND P10 L2CLK B11 BR6 E11 NC H11 GND L11 NC P11 L2DAT2 B12 BR2 E12 DATA33 H12 DATA18 L12 DATA4 P12 L1DAT0 B13 DATA45 E13 DATA30 H13 DATA19 L13 DATA7 P13 L0ACK B14 DATA43 E14 DATA32 H14 DATA21 L14 DATA9 P14 L0DAT1 B15 DATA39 E15 DATA31 H15 DATA20 L15 DATA10 P15 DATA0

C01 MS3 F01 ADDR17 J01 ADDR9 M01 FLAG1 R01 TCK C02 MS1 F02 ADDR18 J02 ADDR8 M02 FLAG2 R02 IRQ2 C03 ADDR28 F03 ADDR20 J03 ADDR7 M03 TIMEXP R03 RESET C04 SBTS F04 ADDR23 J04 ADDR4 M04 TDI R04 ID1 C05 TCLK1 F05 GND J05 GND M05 LBOOT R05 L5DAT0 C06 RFS1 F06 GND J06 VDD M06 L5ACK R06 L4ACK C07 TFS0 F07 VDD J07 VDD M07 L5DAT2 R07 L4DAT1 C08 RFS0 F08 VDD J08 VDD M08 L4DAT2 R08 L3ACK C09 WR F09 VDD J09 VDD M09 L3DAT0 R09 L3DAT1 C10 DMAG1 F10 GND J10 VDD M10 L2DAT3 R10 L2ACK C11 BR4 F11 GND J11 GND M11 L1DAT1 R11 L2DAT1 C12 DATA46 F12 DATA29 J12 DATA12 M12 L0DAT0 R12 L1CLK C13 DATA41 F13 DATA26 J13 DATA15 M13 DATA2 R13 L1DAT2 C14 DATA38 F14 DATA28 J14 DATA16 M14 DATA5 R14 L0CLK C15 DATA36 F15 DATA27 J15 DATA17 M15 DATA6 R15 L0DAT2

ADSP-21062/ADSP-21062L

–45–

REV. C

225-Ball Plastic Ball Grid Array (PBGA) Package Pinout

151413121110987654321

ADRCLK

BMS

ADDR30

DMAR2

DT1

RCLK1TCLK0RCLK0

CLKINPAGE

BR3

DATA47DATA44DATA42

MS0

ADDR31

HBR

DR1DT0DR0REDY

ACK

BR6BR2

DATA45DATA43DATA39

MS3

MS1

ADDR28

SBTS

TCLK1RFS1TFS0RFS0

WRDMAG1BR4

DATA46DATA41DATA38DATA36

ADDR25ADDR26

MS2

ADDR29

DMAR1

TFS1

CPA

HBGDMAG2BR5BR1

DATA40DATA37DATA35DATA34

ADDR21ADDR22ADDR24ADDR27GNDGNDGNDGNDGNDGNDNCDATA33DATA30DATA32DATA31

ADDR17ADDR18ADDR20ADDR23GNDGNDVDDVDDVDDGNDGNDDATA29DATA26DATA28DATA27

ADDR14ADDR15ADDR16ADDR19GNDVDDVDDVDDVDDVDDGNDDATA22DATA25DATA24DATA23

ADDR12ADDR11ADDR13ADDR10GNDVDDVDDVDDVDDVDDGNDDATA18DATA19DATA21DATA20

ADDR9ADDR8ADDR7ADDR4GNDVDDVDDVDDVDDVDDGNDDATA12DATA15DATA16DATA17

ADDR6ADDR5ADDR3ADDR0ICSAGNDVDDVDDVDDGNDGNDDATA8DATA11DATA13DATA14

ADDR2ADDR1FLAG0FLAG3RPBAGNDGNDGNDGNDGNDNCDATA4DATA7DATA9DATA10

FLAG1FLAG2TIMEXPTDILBOOTL5ACKL5DAT2L4DAT2L3DAT0L2DAT3L1DAT1L0DAT0DATA2DATA5DATA6

EMU

TDO

IRQ0IRQ1

ID2L5DAT1L4CLKL3CLKL3DAT3L2DAT0L1ACKL1DAT3L0DAT3DATA1DATA3

TRST

TMSEBOOTID0L5CLKL5DAT3L4DAT0L4DAT3L3DAT2L2CLKL2DAT2L1DAT0L0ACKL0DAT1DATA0

TCK

IRQ2RESET

ID1L5DAT0L4ACKL4DAT1L3ACKL0DAT2 L0CLK L1DAT2 L1CLK L2DAT1 L2ACK L3DAT1

–46–

ADSP-21062/ADSP-21062L

REV. C

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

225-Ball PBGA

1234567891011121415 13

0.050

(1.27)

BSC

0.700

(17.78)

BSC

0.050 (1.27) BSC

0.700 (17.78) BSC

0.913 (23.20)

0.906 (23.00)

0.898 (22.80)

0.913 (23.20)

0.906 (23.00)

0.898 (22.80)

0.791 (20.10)

0.787 (20.00)

0.783 (19.90)

0.791 (20.10)

0.787 (20.00)

0.783 (19.90)

TOP VIEW

0.101 (2.57)

0.091 (2.32)

0.081 (2.06)

DETAIL A

SEATING

PLANE

0.051 (1.30)

0.047 (1.20)

0.043 (1.10)

0.006 (0.15) MAX

0.026 (0.65)

0.024 (0.61)

0.022 (0.57)

DETAIL A

0.035 (0.90)

0.030 (0.75)

0.024 (0.60)

BALL DIAMETER

NOTES

1.THE ACTUAL POSITION OF THE BALL ARRAY IS WITHIN 0.12 (0.30) OF ITS IDEAL POSITION RELATIVE TO THE EDGE OF THE PACKAGE.

2.THE ACTUAL POSITION OF ANY BALL IS WITHIN 0.004 (0.10) OF ITS IDEAL POSITION RELATIVE TO THE ARRAY OF BALLS.

ADSP-21062/ADSP-21062L

–47–

REV. C

240-LEAD METRIC MQFP PIN CONFIGURATIONS

240

61 120

121

180

181

TOP VIEW

HEAT SLUG

GND

THE 240-LEAD PACKAGE CONTAINS A COPPER HEAT SLUG FLUSH WITH ITS TOP SURFACE. THE SLUG IS EITHER CONNECTED TO GROUND OR FLOATING.

Pin Pin No. Name

1 TDI 2 TRST 3 VDD 4 TDO 5 TIMEXP 6 EMU 7 ICSA 8 FLAG3 9 FLAG2 10 FLAG1 11 FLAG0 12 GND 13 ADDR0 14 ADDR1 15 VDD 16 ADDR2 17 ADDR3 18 ADDR4 19 GND 20 ADDR5 21 ADDR6 22 ADDR7 23 VDD 24 ADDR8 25 ADDR9 26 ADDR10 27 GND 28 ADDR11 29 ADDR12 30 ADDR13 31 VDD 32 ADDR14 33 ADDR15 34 GND 35 ADDR16 36 ADDR17 37 ADDR18 38 VDD 39 VDD 40 ADDR19

Pin Pin No. Name

121 DATA41 122 DATA40 123 DATA39 124 VDD 125 DATA38 126 DATA37 127 DATA36 128 GND 129 NC 130 DATA35 131 DATA34 132 DATA33 133 VDD 134 VDD 135 GND 136 DATA32 137 DATA31 138 DATA30 139 GND 140 DATA29 141 DATA28 142 DATA27 143 VDD 144 VDD 145 DATA26 146 DATA25 147 DATA24 148 GND 149 DATA23 150 DATA22 151 DATA21 152 VDD 153 DATA20 154 DATA19 155 DATA18 156 GND 157 DATA17 158 DATA16 159 DATA15 160 VDD

Pin Pin No. Name

81 TCLK0 82 TFS0 83 DR0 84 RCLK0 85 RFS0 86 VDD 87 VDD 88 GND 89 ADRCLK 90 REDY 91 HBG 92 CS 93 RD 94 WR 95 GND 96 VDD 97 GND 98 CLKIN 99 ACK 100 DMAG2 101 DMAG1 102 PAGE 103 VDD 104 BR6 105 BR5 106 BR4 107 BR3 108 BR2 109 BR1 110 GND 111 VDD 112 GND 113 DATA47 114 DATA46 115 DATA45 116 VDD 117 DATA44 118 DATA43 119 DATA42 120 GND

Pin Pin No. Name

201 L2DAT0 202 L2CLK 203 L2ACK 204 NC 205 VDD 206 L3DAT3 207 L3DAT2 208 L3DAT1 209 L3DAT0 210 L3CLK 211 L3ACK 212 GND 213 L4DAT3 214 L4DAT2 215 L4DAT1 216 L4DAT0 217 L4CLK 218 L4ACK 219 VDD 220 GND 221 VDD 222 L5DAT3 223 L5DAT2 224 L5DAT1 225 L5DAT0 226 L5CLK 227 L5ACK 228 GND 229 ID2 230 ID1 231 ID0 232 LBOOT 233 RPBA 234 RESET 235 EBOOT 236 IRQ2 237 IRQ1 238 IRQ0 239 TCK 240 TMS

Pin Pin No. Name

161 DATA14 162 DATA13 163 DATA12 164 GND 165 DATA11 166 DATA10 167 DATA9 168 VDD 169 DATA8 170 DATA7 171 DATA6 172 GND 173 DATA5 174 DATA4 175 DATA3 176 VDD 177 DATA2 178 DATA1 179 DATA0 180 GND 181 GND 182 L0DAT3 183 L0DAT2 184 L0DAT1 185 L0DAT0 186 L0CLK 187 L0ACK 188 VDD 189 L1DAT3 190 L1DAT2 191 L1DAT1 192 L1DAT0 193 L1CLK 194 L1ACK 195 GND 196 GND 197 VDD 198 L2DAT3 199 L2DAT2 200 L2DAT1

Pin Pin No. Name

41 ADDR20 42 ADDR21 43 GND 44 ADDR22 45 ADDR23 46 ADDR24 47 VDD 48 GND 49 VDD 50 ADDR25 51 ADDR26 52 ADDR27 53 GND 54 MS3 55 MS2 56 MS1 57 MS0 58 SW 59 BMS 60 ADDR28 61 GND 62 VDD 63 VDD 64 ADDR29 65 ADDR30 66 ADDR31 67 GND 68 SBTS 69 DMAR2 70 DMAR1 71 HBR 72 DT1 73 TCLK1 74 TFS1 75 DR1 76 RCLK1 77 RFS1 78 GND 79 CPA 80 DT0

–48–

ADSP-21062/ADSP-21062L

REV. C

ORDERING GUIDE

Case Instruction On-Chip Operating Package

Part Number Temperature Range Rate SRAM Voltage Options

ADSP-21062KS-133 0°C to +85°C 33 MHz 2 Mbit 5 V MQFP ADSP-21062KS-160 0°C to +85°C 40 MHz 2 Mbit 5 V MQFP ADSP-21062KB-160 0°C to +85°C 40 MHz 2 Mbit 5 V PBGA ADSP-21062CS-160 –40°C to +100°C 40 MHz 2 Mbit 5 V MQFP ADSP-21062LKS-133 0°C to +85°C 33 MHz 2 Mbit 3.3 V MQFP ADSP-21062LKS-160 0°C to +85°C 40 MHz 2 Mbit 3.3 V MQFP ADSP-21062LKB-160 0°C to +85°C 40 MHz 2 Mbit 3.3 V PBGA ADSP-21062LAB-160 –40°C to +85°C 40 MHz 2 Mbit 3.3 V PBGA ADSP-21062LCS-160 –40°C to +100°C 40 MHz 2 Mbit 3.3 V MQFP

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

240-Lead Metric MQFP

181

180

121

12061

GND

HEAT SLUG

240 LEAD METRIC MQFP TOP VIEW (PINS DOWN)

INCHES (MILLIMETERS)

240

1.372 (34.85)

1.362 (34.60) TYP SQ

1.352 (34.35)

1.264 (32.10)

1.260 (32.00) TYP SQ

1.256 (31.90)

1.161 (29.50) BSC SQ

THE THERMALLY ENHANCED MQFP PACKAGE CONTAINS A COPPER HEAT SLUG FLUSH WITH ITS TOP SURFACE; THE SLUG IS EITHER CONNECTED TO GROUND OR FLOATING. THE HEAT SLUG DIAMETER IS 24.1 (0.949) mm.

SEATING

PLANE

0.161 (4.10) MAX

0.030 (0.75)

0.024 (0.60) TYP

0.020 (0.50)

0.003 (0.08) MAX

0.010 (0.25)

MIN

0.011 (0.27)

0.009 (0.22) TYP

0.007 (0.17)

LEAD PITCH

0.01969 (0.50) TYP

LEAD WIDTH

0.138 (3.50)

0.134 (3.40) TYP

0.130 (3.30)

NOTE: THE ACTUAL POSITION OF EACH LEAD IS WITHIN (0.08)

0.0032 FROM ITS IDEAL POSITION WHEN MEASURED IN THE LATERAL DIRECTION. CENTER FIGURES ARE TYPICAL UNLESS OTHERWISE NOTED.

PRINTED IN U.S.A.

C3078c–2.5–5/00 (rev. C) 00174

Analog Devices ADSP-21062LCS-160, ADSP-21062LAB-160, ADSP-21062KS-160, ADSP-21062KS-133, ADSP-21062KB-160 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
