Single-Phase Active and Apparent

FEATURES

High accuracy; supports IEC 61036/60687, IEC62053-21, and

IEC62053-22

On-chip digital integrator enables direct interface-to-current

sensors with di/dt output

A PGA in the current channel allows direct interface to

shunts and current transformers

Active and apparent energy, sampled waveform, and current

and voltage rms

Less than 0.1% error in active energy measurement over a

dynamic range of 1000 to 1 at 25°C Positive-only energy accumulation mode available On-chip user programmable threshold for line voltage surge

and SAG and PSU supervisory Digital calibration for power, phase, and input offset On-chip temperature sensor (±3°C typical) SPI®-compatible serial interface Pulse output with programmable frequency Interrupt request pin (

Reference 2.4 V with external overdrive capability Single 5 V supply, low power (25 mW typical)

GENERAL DESCRIPTION

The ADE77631 features proprietary ADCs and fixed function DSP for high accuracy over large variations in environmental conditions and time. The ADE7763 incorporates two secondorder, 16-bit Σ-∆ ADCs, a digital integrator (on Ch1), reference circuitry, a temperature sensor, and all the signal processing

) and status register

IRQ

PGA V1P V1N

V2P V2N

TEMP

SENSOR

PGA

2.4V

REFERENCE

AVDD

FUNCTIONAL BLOCK DIAGRAM

RESET

INTEGRATOR

HPF1

LPF1



ADC

PHCAL[5:0]

Ω

MULTIPLIER

IRMSOS[11:0]

VRMSOS[11:0]

Energy Metering IC

ADE7763

required to perform active and apparent energy measurements, line-voltage period measurements, and rms calculation on the voltage and current channels. The selectable on-chip digital integrator provides direct interface to di/dt current sensors such as Rogowski coils, eliminating the need for an external analog integrator and resulting in excellent long-term stability and precise phase matching between the current and the voltage channels.

The ADE7763 provides a serial interface to read data and a pulse output frequency (CF) that is proportional to the active power. Various system calibration features such as channel offset correction, phase calibration, and power calibration ensure high accuracy. The part also detects short duration, low or high voltage variations.

The positive-only accumulation mode gives the option to accumulate energy only when positive power is detected. An internal no-load threshold ensures that the part does not exhibit any creep when there is no load. The zero-crossing output (ZX) produces a pulse that is synchronized to the zero-crossing point of the line voltage. This signal is used internally in the line cycle active and apparent energy accumulation modes, which enables faster calibration.

The interrupt status register indicates the nature of the interrupt, and the interrupt enable register controls which event produces an output on the

The ADE7763 is available in a 20-lead SSOP package.

DVDD DGND

APOS[15:0]

VADIV[7:0]

WGAIN[11:0]

VAGAIN[11:0]

REGISTERS AND

SERIAL INTERFACE

LPF2

pin, an open-drain, active low logic output.

IRQ

ADE7763

CFNUM[11:0]

% %

DFC

CFDEN[11:0]

WDIV[7:0]

SAG

AGND

U.S. Patents 5,745,323; 5,760,617; 5,862,069; 5,872,469; others pending.

Rev. A

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners.

IN/OUT

CLKIN

CLKOUT

Figure 1.

DIN DOUT SCLKREF

CS IRQ

04481-A-001

ADE7763

www.BDTIC.com/ADI

TABLE OF CONTENTS

Specifications..................................................................................... 3

Energy-to-Frequency Conversion............................................ 28

Timing Characteristics..................................................................... 5

Absolute Maximum Ratings............................................................ 6

ESD Caution.................................................................................. 6

Te r mi n ol o g y ...................................................................................... 7

Pin Configuration and Function Descriptions............................. 8

Typical Performance Characteristics........................................... 10

Theory of Operation ...................................................................... 13

Analog Inputs.............................................................................. 13

di/dt Current Sensor and Digital Integrator........................... 14

Zero-Crossing Detection........................................................... 15

Period Measurement.................................................................. 16

Power Supply Monitor ...............................................................16

Line Voltage Sag Detection....................................................... 17

Peak Detection ............................................................................17

Interrupts..................................................................................... 18

Line Cycle Energy Accumulation Mode ................................. 30

Positive-Only Accumulation Mode......................................... 30

No-Load Threshold.................................................................... 30

Apparent Power Calculation ..................................................... 31

Apparent Energy Calculation ................................................... 32

Line Apparent Energy Accumulation...................................... 33

Energies Scaling.......................................................................... 34

Calibrating an Energy Meter .................................................... 34

CLKIN Frequency...................................................................... 43

Suspending Functionality.......................................................... 44

Checksum Register..................................................................... 44

Serial Interface............................................................................ 44

Registers........................................................................................... 47

Communication Register.......................................................... 50

Temperature Measurement ....................................................... 19

Analog-to-Digital Conversion.................................................. 19

Channel 1 ADC .......................................................................... 20

Channel 2 ADC .......................................................................... 22

Phase Compensation.................................................................. 24

Active Power Calculation .......................................................... 25

Energy Calculation..................................................................... 26

Power Offset Calibration ...........................................................28

REVISION HISTORY

10/04—Data Sheet Changed from Rev. 0 to Rev. A

Changes to Period Measurement Section ..................................16

Changes to Temperature Measurement Section........................19

Change to Energy-to-Frequency Conversion Section..............28

Update to Figure 61 .......................................................................29

Mode Register (0x09)................................................................. 50

Interrupt Status Register (0x0B), Reset Interrupt Status

CH1OS Register (0x0D)............................................................ 53

Outline Dimensions ....................................................................... 54

Ordering Guide .......................................................................... 54

Change to Apparent Energy Calculation Section .....................32

Change to Description of AEHF and VAEHF Bits ...................52

4/04—Revision 0: Initial Version

Rev. A | Page 2 of 56

ADE7763

www.BDTIC.com/ADI

SPECIFICATIONS

AVDD = DVDD = 5 V ± 5%, AGND = DGND = 0 V, on-chip reference, CLKIN = 3.579545 MHz XTAL, T

Table 1. Specifications

Parameter Spec Unit Test Conditions/Comments

ENERGY MEASUREMENT ACCURACY

Active Power Measurement Error CLKIN = 3.579545 MHz

Channel 1 Range = 0.5 V Full Scale Channel 2 = 300 mV rms/60 Hz, gain = 2

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1 Gain = 2 0.1 % typ Over a dynamic range 1000 to 1 Gain = 4 0.1 % typ Over a dynamic range 1000 to 1 Gain = 8 0.1 % typ Over a dynamic range 1000 to 1

Channel 1 Range = 0.25 V Full Scale

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1 Gain = 2 0.1 % typ Over a dynamic range 1000 to 1 Gain = 4 0.1 % typ Over a dynamic range 1000 to 1 Gain = 8 0.2 % typ Over a dynamic range 1000 to 1

Channel 1 Range = 0.125 V Full Scale

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1 Gain = 2 0.1 % typ Over a dynamic range 1000 to 1 Gain = 4 0.2 % typ Over a dynamic range 1000 to 1

Gain = 8 0.2 % typ Over a dynamic range 1000 to 1 Active Power Measurement Bandwidth 14 kHz Phase Error 1 between Channels ±0.05 max Line frequency = 45 Hz to 65 Hz, HPF on AC Power Supply Rejection

Output Frequency Variation (CF) 0.2 % typ Channel 1 = 20 mV rms, gain = 16, range = 0.5 V

Channel 2 = 300 mV rms/60 Hz, gain = 1

DC Power Supply Rejection

Output Frequency Variation (CF) ±0.3 % typ Channel 1 = 20 mV rms/60 Hz, gain = 16, range = 0.5 V

Channel 2 = 300 mV rms/60 Hz, gain = 1

IRMS Measurement Error 0.5 % typ Over a dynamic range 100 to 1 IRMS Measurement Bandwidth 14 kHz VRMS Measurement Error 0.5 % typ Over a dynamic range 20 to 1 VRMS Measurement Bandwidth 140 Hz

ANALOG INPUTS

Maximum Signal Levels ±0.5 V max V1P, V1N, V2N, and V2P to AGND Input Impedance (dc) 390 k min Bandwidth 14 kHz CLKIN/256, CLKIN = 3.579545 MHz Gain Error

Offset Error 1 ±32 mV max Gain 1

1, 3

Channel 1

Range = 0.5 V Full Scale ±4 % typ V1 = 0.5 V dc

Range = 0.25 V Full Scale ±4 % typ V1 = 0.25 V dc

Range = 0.125 V Full Scale ±4 % typ V1 = 0.125 V dc

Channel 2 ±4 % typ V2 = 0.5 V dc

Channel 1 ±13 mV max Gain 16

±32 mV max Gain 1

Channel 2 ±13 mV max Gain 16

1, 2

AVDD = DVDD = 5 V + 175 mV rms/120 Hz

AVDD = DVDD = 5 V ± 250 mV dc

See the Analog Inputs section

External 2.5 V reference, gain = 1 on Channels 1 and 2

MIN

to T

= –40°C to +85°C.

MAX

Rev. A | Page 3 of 56

ADE7763

www.BDTIC.com/ADI

Parameter Spec Unit Test Conditions/Comments

WAVEFORM SAMPLING Sampling CLKIN/128, 3.579545 MHz/128 = 27.9 kSPS

Channel 1 See the Channel 1 Sampling section

Signal-to-Noise Plus Distortion 62 dB typ 150 mV rms/60 Hz, range = 0.5 V, gain = 2 Bandwidth (–3 dB) 14 kHz CLKIN = 3.579545 MHz

Channel 2 See the Channel 2 Sampling section

Signal-to-Noise Plus Distortion 60 dB typ 150 mV rms/60 Hz, gain = 2 Bandwidth (–3 dB) 140 Hz CLKIN = 3.579545 MHz

REFERENCE INPUT

REF

2.2 V min 2.4 V – 8% Input Capacitance 10 pF max

ON-CHIP REFERENCE Nominal 2.4 V at REF

Reference Error ±200 mV max Current Source 10 µA max Output Impedance 3.4 kΩ min Temperature Coefficient 30 ppm/°C typ

CLKIN All specifications CLKIN of 3.579545 MHz

Input Clock Frequency 4 MHz max 1 MHz min LOGIC INPUTS

RESET, DIN, SCLK, CLKIN, and CS

Input High Voltage, V

Input Low Voltage, V

Input Current, I

Input Capacitance, C LOGIC OUTPUTS

SAG and IRQ

Output High Voltage, V

Output Low Voltage, V

ZX and DOUT

Output High Voltage, V

Output Low Voltage, V

Output High Voltage, V

Output Low Voltage, V POWER SUPPLY For specified performance

AVDD 4.75 V min 5 V – 5%

5.25 V max 5 V + 5%

DVDD 4.75 V min 5 V – 5%

5.25 V max 5 V + 5%

AIDD 3 mA max Typically 2.0 mA

DIDD 4 mA max Typically 3.0 mA

_______________________ __________________________________ _

See the Terminology section for explanation of specifications.

See the plots in the Typical Performance Characteristics section.

See the Analog Inputs section.

Input Voltage Range 2.6 V max 2.4 V + 8%

IN/OUT

INH

INL

2.4 V min DVDD = 5 V ± 10%

0.8 V max DVDD = 5 V ± 10% ±3 µA max Typically 10 nA, VIN = 0 V to DVDD 10 pF max

Open-drain outputs, 10 kΩ pull-up resistor

4 V min I

0.4 V max I

4 V min I

0.4 V max I

4 V min I 1 V max I

200 µA

SOURCE

= 0.8 mA

SINK

SOURCE

= 0.8 mA

SINK

SOURCE

= 7 mA

SINK

= 5 mA

IN/OUT

OUTPU

Figure 2. Load Circuit for Timing Specifications

50pF

1.6mA

Rev. A | Page 4 of 56

+2.1V

04481-A-002

ADE7763

www.BDTIC.com/ADI

TIMING CHARACTERISTICS

AVDD = DVDD = 5 V ± 5%, AGND = DGND = 0 V, on-chip reference, CLKIN = 3.579545 MHz XTAL, T

Table 2. Timing Characteristics

1, 2

Parameter Spec Unit Test Conditions/Comments

Write Timing

50 ns min

falling edge to first SCLK falling edge.

CS 50 ns min SCLK logic high pulse width. 50 ns min SCLK logic low pulse width. 10 ns min Valid data setup time before falling edge of SCLK. 5 ns min Data hold time after SCLK falling edge. 400 ns min Minimum time between the end of data byte transfers. 50 ns min Minimum time between byte transfers during a serial write. 100 ns min)

hold time after SCLK falling edge.

Read Timing

4 µs min

Minimum time between read command (i.e., a write to

communication register) and data read.

50 ns min Minimum time between data byte transfers during a multibyte read. 30 ns min

Data access time after SCLK rising edge following a write to the

communication register.

100 ns max Bus relinquish time after falling edge of SCLK.

10 ns min

________________________________________________

Sample tested during initial release and after any redesign or process change that could affect this parameter. All input signals are specified with tr = tf = 5 ns (10% to

90%) and timed from a voltage level of 1.6 V.

See Figure 3, Figure 4, and the Serial Interface section.

Minimum time between read command and data read for all registers except waveform register, which is t9 = 500 ns min.

Measured with the load circuit in Figure 2 and defined as the time required for the output to cross 0.8 V or 2.4 V.

Derived from the measured time taken by the data outputs to change 0.5 V when loaded with the circuit in Figure 2. The measured number is then extrapolated back

to remove the effects of charging or discharging the 50 pF capacitor. This means that the time quoted in the timing characteristics is the true bus relinquish time of the part and is independent of the bus loading.

SCLK

DIN

100 ns max

A4A5 A3

Bus relinquish time after rising edge of CS

DB7

DB0

MIN

to T

= −40°C to +85°C.

MAX

DB7

DB0

COMMAND BYTE

Figure 3. Serial Write Timing

SCLK

DIN

DOUT

A4A5 A3

COMMAND BYTE

Figure 4. Serial Read Timing

Rev. A | Page 5 of 56

MOST SIGNIFICANT BYTE

DB7

MOST SIGNIFICANT BYTE

DB0

LEAST SIGNIFICANT BYTE

04481-A-003

DB0DB7

04481-A-004

ADE7763

www.BDTIC.com/ADI

ABSOLUTE MAXIMUM RATINGS

TA = 25°C, unless otherwise noted.

Table 3.

Parameter Rating

AVDD to AGND –0.3 V to +7 V DVDD to DGND –0.3 V to +7 V DVDD to AVDD –0.3 V to +0.3 V Analog Input Voltage to AGND

V1P, V1N, V2P, and V2N Reference Input Voltage to AGND –0.3 V to AVDD + 0.3 V Digital Input Voltage to DGND –0.3 V to DVDD + 0.3 V Digital Output Voltage to DGND –0.3 V to DVDD + 0.3 V Operating Temperature Range

Industrial –40°C to +85°C Storage Temperature Range –65°C to +150°C Junction Temperature 150°C 20-Lead SSOP, Power Dissipation 450 mW

θJA Thermal Impedance 112°C/W

Lead Temperature, Soldering

Vapor Phase (60 s) 215°C Infrared (15 s) 220°C

–6 V to +6 V

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

Rev. A | Page 6 of 56

ADE7763

www.BDTIC.com/ADI

TERMINOLOGY

Measurement Error

The error associated with the energy measurement made by the ADE7763 is defined by the following formula:

Percent Error =

⎛ ⎜ ⎜ ⎝

Phase Error between Channels

The digital integrator and the high-pass filter (HPF) in Channel 1 have a nonideal phase response. To offset this phase response and equalize the phase response between channels, two phasecorrection networks are placed in Channel 1: one for the digital integrator and the other for the HPF. The phase correction networks correct the phase response of the corresponding component and ensure a phase match between Channel 1 (current) and Channel 2 (voltage) to within ±0.1° over a range of 45 Hz to 65 Hz with the digital integrator off. With the digital integrator on, the phase is corrected to within ±0.4° over a range of 45 Hz to 65 Hz.

Power Supply Rejection

This quantifies the ADE7763 measurement error as a percentage of the reading when the power supplies are varied. For the ac PSR measurement, a reading at nominal supplies (5 V) is taken. A second reading is obtained with the same input signal levels

−

EnergyTrue

⎞

EnergyTrueADE7763RegisterEnergy

⎟

× 100%

⎟ ⎠

when an ac (175 mV rms/120 Hz) signal is introduced to the supplies. Any error introduced by this ac signal is expressed as a percentage of the reading—see the Measurement Error definition.

For the dc PSR measurement, a reading at nominal supplies (5 V) is taken. A second reading is obtained with the same input signal levels when the supplies are varied ±5%. Any error introduced is again expressed as a percentage of the reading.

ADC Offset Error

The dc offset associated with the analog inputs to the ADCs. It means that with the analog inputs connected to AGND, the ADCs still see a dc analog input signal. The magnitude of the offset depends on the gain and input range selection—see the Typical Performance Characteristics section. However, when HPF1 is switched on, the offset is removed from Channel 1 (current) and the power calculation is not affected by this offset. The offsets can be removed by performing an offset calibration— see the Analog Inputs section.

Gain Error

The difference between the measured ADC output code (minus the offset) and the ideal output code—see the Channel 1 ADC and Channel 2 ADC sections. It is measured for each of the input ranges on Channel 1 (0.5 V, 0.25 V, and 0.125 V). The difference is expressed as a percentage of the ideal code.

Rev. A | Page 7 of 56

ADE7763

www.BDTIC.com/ADI

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

Table 4. Pin Function Descriptions

Pin No. Mnemonic Description

RESET

Reset Pin for the ADE7763. A logic low on this pin holds the ADCs and digital circuitry (including the serial interface) in a reset condition.

2 DVDD

Digital Power Supply. This pin provides the supply voltage for the digital circuitry. The supply voltage should be maintained at 5 V ± 5% for specified operation. This pin should be decoupled to DGND with a 10 µF capacitor in parallel with a ceramic 100 nF capacitor.

3 AVDD

Analog Power Supply. This pin provides the supply voltage for the analog circuitry. The supply should be maintained at 5 V ± 5% for specified operation. Minimize power supply ripple and noise at this pin by using proper decoupling. The typical performance graphs show the power supply rejection performance. This pin should be decoupled to AGND with a 10 µF capacitor in parallel with a ceramic 100 nF capacitor.

4, 5 V1P, V1N

Analog Inputs for Channel 1. This channel is intended for use with a di/dt current transducer, i.e., a Rogowski coil or another current sensor such as a shunt or current transformer (CT). These inputs are fully differential voltage inputs with maximum differential input signal levels of ±0.5 V, ±0.25 V, and ±0.125 V, depending on the full-scale selection—see the Analog Inputs section. Channel 1 also has a PGA with gain selections of 1, 2, 4, 8, or 16. The maximum signal level at these pins with respect to AGND is ±0.5 V. Both inputs have internal ESD protection circuitry and can sustain an overvoltage of ±6 V without risk of permanent damage.

6, 7 V2N, V2P

Analog Inputs for Channel 2. This channel is intended for use with the voltage transducer. These inputs are fully differential voltage inputs with a maximum differential signal level of ±0.5 V. Channel 2 also has a PGA with gain selections of 1, 2, 4, 8, or 16. The maximum signal level at these pins with respect to AGND is ±0.5 V. Both inputs have internal ESD protection circuitry and can sustain an overvoltage of ±6 V without risk of permanent damage.

8 AGND

Analog Ground Reference. This pin provides the ground reference for the analog circuitry, i.e., ADCs and reference. This pin should be tied to the analog ground plane or to the quietest ground reference in the system. Use this quiet ground reference for all analog circuitry, such as antialiasing filters and current and voltage transducers. To minimize ground noise around the ADE7763, connect the quiet ground plane to the digital ground plane at only one point. It is acceptable to place the entire device on the analog ground plane.

9 REF

IN/OUT

Access to the On-Chip Voltage Reference. The on-chip reference has a nominal value of 2.4 V ± 8% and a typical temperature coefficient of 30 ppm/°C. An external reference source can also be connected at this pin. In either case, this pin should be decoupled to AGND with a 1 µF ceramic capacitor.

10 DGND

Digital Ground Reference. This pin provides the ground reference for the digital circuitry, i.e., multiplier, filters, and digital-to-frequency converter. Because the digital return currents in the ADE7763 are small, it is acceptable to connect this pin to the analog ground plane of the system. However, high bus capacitance on the DOUT pin could result in noisy digital current, which could affect performance.

11 CF

Calibration Frequency Logic Output. The CF logic output gives active power information. This output is intended to be used for operational and calibration purposes. The full-scale output frequency can be adjusted by writing to the CFDEN and CFNUM registers—see the Energy-to-Frequency Conversion section.

12 ZX

Voltage Waveform (Channel 2) Zero-Crossing Output. This output toggles logic high and logic low at the zero crossing of the differential signal on Channel 2—see the Zero-Crossing Detection section.

SAG

This open-drain logic output goes active low when either no zero crossings are detected or a low voltage threshold (Channel 2) is crossed for a specified duration—see the Line Voltage Sag Detection section.

IRQ

Interrupt Request Output. This is an active low, open-drain logic output. Maskable interrupts include active energy register rollover, active energy register at half level, and arrivals of new waveform samples—see the Interrupts section.

REF

RESET

DVDD AVDD

V1P V1N V2N V2P

AGND

IN/OUT

DGND

1 2 3 4

ADE7763

TOP VIEW

(Not to Scale)

7 8 9

20 19 18 17 16 15 14 13 12 11

DIN DOUT SCLK CS CLKOUT CLKIN IRQ SAG ZX CF

04481-A-005

Figure 5. Pin Configuration (SSOP Package)

Rev. A | Page 8 of 56

ADE7763

www.BDTIC.com/ADI

Pin No. Mnemonic Description

15 CLKIN

16 CLKOUT

18 SCLK

19 DOUT

20 DIN

Master Clock for ADCs and Digital Signal Proc Alternatively, a parallel resonant AT crystal can be connected across CLKIN and CLKOUT to provide a clock source for the ADE7763. The clock frequency for specified operation is 3.579545 MHz. Ceramic load capacitors between 22 pF and 33 pF should be used with the gate oscillator circuit. Refer to the crystal manufacturer’s data sheet for load capacitance requirements.

A crystal can be connected across this pin and CLKIN, as described for Pin 15, to the ADE7763. The CLKOUT pin can drive one CMOS load when either an external clock is supplied at CLKIN or a crystal is being used.

Chip Select. Part of the 4-wire SPI serial interface. This active low logic input allows the ADE7763 to share the serial bus with several other devices—see the Serial Interface section.

Serial Clock Input for the Synchronous Seria clock—see the Serial Interface section. The SCLK has a Schmitt-trigger input for use with a clock source that has a slow edge transition time, such as an opto-isolator output.

Data Output for the Serial Interface. Data is shifted out at output is normally in a high impedance state, unless it is driving data onto the serial data bus—see the Serial Interface section.

Data Input for the Serial Interface. Data is shifted in at this pin upon the falling edge of SCLK—see the Serial Interface section.

essing. An external clock can be provided at this logic input.

provide a clock source for

l Interface. All serial data transfers are synchronized to this

this pin upon the rising edge of SCLK. This logic

Rev. A | Page 9 of 56

ADE7763

www.BDTIC.com/ADI

TYPICAL PERFORMANCE CHARACTERISTICS

0.4

0.3

0.2

0.1

–0.1

–0.2

ERROR (%)

–0.3

–0.4 –0.5 –0.6

0.1

+85°C, PF = 0.5

1 10 100

FULL-SCALE CURRENT (%)

Figure 6. Active Energy Error as a Percentage of Reading (Gain = 1)

over Power Factor with Internal Reference and Integrator Off

1.0

0.8

GAIN = 8 INTEGRATOR OFF INTERNAL REFERENCE

0.6

0.4

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

0.1 101 100

+85°C, PF = 1

+25°C, PF = 1

–40°C, PF = 1

FULL-SCALE CURRENT (%)

Figure 7. Active Energy as a Percentage of Reading (Gain = 8)

over Temperature with Internal Reference and Integrator Off

1.0

0.8

GAIN = 8 INTEGRATOR OFF INTERNAL REFERENCE

0.6

0.4

0.2

+25°C, PF = 1

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

0.1 101 100

+85°C, PF = 0.5

+25°C, PF = 0.5

–40°C, PF = 0.5

FULL-SCALE CURRENT (%)

Figure 8. Active Energy Error as a Percentage of Reading (Gain = 8)

over Power Factor with Internal Reference and Integrator Off

GAIN = 1 INTEGRATOR OFF INTERNAL REFERENCE

+25°C, PF = 1

+25°C, PF = 0.5

–40°C, PF = 0.5

04481-A-006

04481-A-007

04481-A-008

1.0

0.8

GAIN = 8 INTEGRATOR OFF EXTERNAL REFERENCE

0.6

0.4

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

+25°C, PF = 1

0.1 101 100 FULL-SCALE CURRENT (%)

–40°C, PF = 1

+85°C, PF = 1

Figure 9. Active Energy Error as a Percentage of Reading (Gain = 8)

over Temperature with External Reference and Integrator Off

1.0

0.8

GAIN = 8 INTEGRATOR OFF EXTERNAL REFERENCE

0.6

0.4

+25°C, PF = 0.5

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

0.1 101 100

+25°C, PF = 1

+85°C, PF = 0.5

FULL-SCALE CURRENT (%)

–40°C, PF = 0.5

Figure 10. Active Energy Error as a Percentage of Reading (Gain = 8)

over Power Factor with External Reference and Integrator Off

0.5

0.4

0.3

0.2

0.1

–0.1

ERROR (%)

–0.2

–0.3

–0.4

–0.5

0.1 101 100

5.25V

5.00V

4.75V

FULL-SCALE CURRENT (%)

GAIN = 8 INTEGRATOR OFF INTERNAL REFERENCE

Figure 11. Active Energy Error as a Percentage of Reading (Gain = 8)

over Power Supply with Internal Reference and Integrator Off

04481-A-009

04481-A-010

04481-A-080

Rev. A | Page 10 of 56

ADE7763

www.BDTIC.com/ADI

1.2

1.0

0.8

0.6

0.4

0.2

ERROR (%)

–0.2

–0.4

–0.6

45 47 49 51 53 55 57 59 61 63 65

PF = 0.5

PF = 1

FREQUENCY (Hz)

GAIN = 8 INTEGRATOR OFF INTERNAL REFERENCE

Figure 12. Active Energy Error as a Percentage of Reading (Gain = 8)

over Frequency with Internal Reference and Integrator Off

1.0

0.8

0.6

0.4

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

0.1 101 100

PF = 1

PF = 0.5

FULL-SCALE CURRENT (%)

GAIN = 8 INTEGRATOR OFF INTERNAL REFERENCE

Figure 13. IRMS Error as a Percentage of Reading (Gain = 8)

with Internal Reference and Integrator Off

0.5

0.4

0.3

0.2

0.1

–0.1

ERROR (%)

–0.2

–0.3

–0.4

–0.5

1 10 100

FULL-SCALE VOLTAGE (%)

GAIN = 1 EXTERNAL REFERENCE

Figure 14. VRMS Error as a Percentage of Reading (G ain = 1)

with External Reference

04481-A-012

04481-A-013

04481-A-020

1.0

0.8

GAIN = 8 INTEGRATOR ON INTERNAL REFERENCE

0.6

0.4

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

+25°C, PF = 0.5

0.1 101 100 FULL-SCALE CURRENT (%)

+85°C, PF = 0.5

+25°C, PF = 1

–40°C, PF = 0.5

Figure 15. Active Energy Error as a Percentage of Reading (Gain = 8)

over Power Factor with Internal Reference and Integrator On

1.0

0.8

GAIN = 8 INTEGRATOR ON INTERNAL REFERENCE

0.6

0.4

0.2

–0.2

ERROR (%)

–0.4

–0.6

–0.8

–1.0

0.1 101 100 FULL-SCALE CURRENT (%)

+85°C, PF = 1

+25°C, PF = 1

–40°C, PF = 1

Figure 16. Active Energy Error as a Percentage of Reading (Gain = 8)

over Temperature with External Reference and Integrator On

3.0

2.5

2.0

1.5

1.0

0.5

ERROR (%)

–0.5

–1.0

–1.5

–2.0

45 47 49 51 53 55 57 59 61 63 65

PF = 0.5

PF = 1

FREQUENCY (Hz)

GAIN = 8 INTEGRATOR ON INTERNAL REFERENCE

Figure 17. Active Energy Error as a Percentage of Reading (Gain = 8)

over Frequency with Internal Reference and Integrator On

04481-A-016

04481-A-015

04481-A-017

Rev. A | Page 11 of 56

ADE7763

www.BDTIC.com/ADI

0.5

0.4

0.3

5.25V

0.2

0.1

–0.1

ERROR (%)

–0.2

5.00V

4.75V –0.3

–0.4

–0.5

0.1 101 100 FULL-SCALE CURRENT (%)

Figure 18. Active Energy Error as a Percentage of Reading (Gain = 8)

over Power Supply with Internal Reference and Integrator On

0.5

0.4

0.3

0.2

0.1

PF = 0.5

–0.1

ERROR (%)

PF = 1 –0.2

–0.3

–0.4

–0.5

0.1 101 100 FULL-SCALE CURRENT (%)

Figure 19. IRMS Error as a Percentage of Reading (Gain = 8)

with Internal Reference and Integrator On

GAIN = 8 INTEGRATOR ON INTERNAL REFERENCE

HITS

–15 –10 –5 0 5 10 15 20

04481-A-081

CH1 OFFSET (0p5V_1X) (mV)

04481-A-021

Figure 20. Channel 1 Offset (Gain = 1)

04481-A-019

100nF 100nF

AVDD DVDD

V1P

V1N

V2N

V2P

REF

ADE7763

CLKOUT

IN/OUT

AGND DGND

RESET

DIN DOUT SCLK

CLKIN

IRQ

SAG

ZX CF

TOSPI BUS (USED ONLY FOR CALIBRATION)

22pF

PS2501-1

22pF

TO FREQUENCY COUNTER

04481-A-023

3.58MHz

NOT CONNECTED

di/dt CURRENT SENSOR

110V

CHANNEL 1 GAIN = 8 CHANNEL 2 GAIN = 1

10µF

100Ω 1kΩ

33nF 33nF

100Ω 1kΩ 33nF

1kΩ

600kΩ

1kΩ

10µF

100nF 100nF

AVDD DVDD

V1P

33nF

V1N

ADE7763

V2N

V2P

REF

IN/OUT

AGND DGND

33nF

100nF

RESET

DIN DOUT SCLK

CLKOUT

CLKIN

IRQ

SAG

ZX CF

10µF

TOSPI BUS (USEDONLYFOR CALIBRATION)

22pF

PS2501-1

22pF

TO FREQUENCY COUNTER

3.58MHz

NOT CONNECTED

04481-A-022

Rev. A | Page 12 of 56

110V

10µF1µF

CURRENT TRANSFORMER

CT TURN RATIO = 1800:1 CHANNEL 2 GAIN = 1

GAIN 1 (CH1)

10µF

1 8

1kΩ

600kΩ

1kΩ

1kΩ 33nF 1kΩ 33nF

33nF

100nF

10Ω

1.21Ω

33nF

Figure 22. Test Circuit for Performance Curves with Integrator Off

ADE7763

www.BDTIC.com/ADI

THEORY OF OPERATION

ANALOG INPUTS

The ADE7763 has two fully differential voltage input channels. The maximum differential input voltage for input pairs V1P/V1N and V2P/V2N is ±0.5 V. In addition, the maximum signal level on analog inputs for V1P/V1N and V2P/V2N is ±0.5 V with respect to AGND.

Each analog input channel has a programmable gain amplifier (PGA) with possible gain selections of 1, 2, 4, 8, and 16. The gain selections are made by writing to the gain register—see Figure 24. Bits 0 to 2 select the gain for the PGA in Channel 1; the gain selection for the PGA in Channel 2 is made via Bits 5 to 7. Figure 23 shows how a gain selection for Channel 1 is made using the gain register.

76 5 4 32 1 0 00 0 0 00 0 0

V1P

V1N

76 5 4 32 1 0 00 0 0 00 0 0

CH1OS[7:0] BITS 0 to 5: SIGN MAGNITUDE CODED OFFSET CORRECTION BIT 6: NOT USED BIT 7: DIGITAL INTEGRATOR (ON = 1, OFF = 0; DEFAULT OFF)

In addition to the PGA, Channel 1 also has a full-scale input range selection for the ADC. The ADC analog input range selection is also made using the gain register—see Figure 24. As previously mentioned, the maximum differential input voltage is 0.5 V. However, by using Bits 3 and 4 in the gain register, the maximum ADC input voltage can be set to 0.5 V, 0.25 V, or

0.125 V. This is achieved by adjusting the ADC reference—see the Reference Circuit section. Table 5 summarizes the maximum differential input signal level on Channel 1 for the various ADC range and gain selections.

GAIN[7:0]

GAIN (K) SELECTION

K × V

OFFSET ADJUST (±50mV)

Figure 23. PGA in Channel 1

04481-A-024

Table 5. Maximum Input Signal Levels for Channel 1

Max Signal Channel 1

0.5 V 0.25 V 0.125 V

ADC Input Range Selection

0.5 V Gain = 1 − −

0.25 V Gain = 2 Gain = 1 −

0.125 V Gain = 4 Gain = 2 Gain = 1

0.0625 V Gain = 8 Gain = 4 Gain = 2

0.0313 V Gain = 16 Gain = 8 Gain = 4

0.0156 V − Gain = 16 Gain = 8

0.00781 V − − Gain = 16

CHANNEL 1 AND CHANNEL 2 PGA CONTROL

PGA 2 GAIN SELECT

000 = 001 =

010 =

011 = 100 =

*REGISTER CONTENTS

7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0

SHOW POWER-ON DEFAULTS

GAIN REGISTER*

ADDR: 0x0A

PGA 1 GAIN SELECT

000 = 001 =

010 =

011 = 100 =

CHANNEL 1 FULL-SCALE SELECT 00 = 0.5V 01 = 0.25V 10 = 0.125V

Figure 24. Analog Gain Register

It is also possible to adjust offset errors on Channel 1 and Channel 2 by writing to the offset correction registers (CH1OS and CH2OS, respectively). These registers allow channel offsets in the range ±20 mV to ±50 mV (depending on the gain setting) to be removed. Note that it is not necessary to perform an offset correction in an energy measurement application if HPF in Channel 1 is switched on. Figure 25 shows the effect of offsets on the real power calculation. As seen from Figure 25, an offset on Channel 1 and Channel 2 contributes a dc component after multiplication. Because this dc component is extracted by LPF2 to generate the active (real) power information, the offsets contribute an error to the active power calculation. This problem is easily avoided by enabling HPF in Channel 1. By removing the offset from at least one channel, no error component is generated at dc by the multiplication. Error terms at cos(

ωt) are

removed by LPF2 and by integration of the active power signal in the active energy register (AENERGY[23:0])—see the Energy Calculation section.

04481-A-025

Rev. A | Page 13 of 56

ADE7763

www.BDTIC.com/ADI

DC COMPONENT (INCLUDING ERROR TERM) IS EXTRACTED BY THE LPF FOR REAL

× I

V × I

Figure 25. Effect of Channel Offsets on the Real Power Calculation

The contents of the offset correction registers are 6-bit, sign and magnitude coded. The weight of the LSB depends on the gain setting, i.e., 1, 2, 4, 8, or 16. Table 6 shows the correctable offset span for each of the gain settings and the LSB weight (mV) for the offset correction registers. The maximum value that can be written to the offset correction registers is ±31d—see Figure 26. Figure 26 shows the relationship between the offset correction register contents and the offset (mV) on the analog inputs for a gain of 1. To perform an offset adjustment, connect the analog inputs to AGND; there should be no signal on either Channel 1 or Channel 2. A read from Channel 1 or Channel 2 using the waveform register indicates the offset in the channel. This offset can be canceled by writing an equal and opposite offset value to the Channel 1 offset register, or an equal value to the Channel 2 offset register. The offset correction can be confirmed by performing another read. Note that when adjusting the offset of Channel 1, the digital integrator and the HPF should be disabled.

Table 6. Offset Correction Range—Channels 1 and 2

Gain Correctable Span LSB Size

1 ±50 mV 1.61 mV/LSB 2 ±37 mV 1.19 mV/LSB 4 ±30 mV 0.97 mV/LSB 8 ±26 mV 0.84 mV/LSB 16 ±24 mV 0.77 mV/LSB

POWER CALCULATION

× V

× I

2ωω

FREQUENCY (RAD/S)

CH1OS[5:0]

04481-A-026

The current and voltage rms offsets can be adjusted with the IRMSOS and VRMSOS registers—see the Channel 1 RMS Offset Compensation and Channel 2 RMS Offset Compensation sections.

di/dt CURRENT SENSOR AND DIGITAL INTEGRATOR

A di/dt sensor detects changes in magnetic field caused by ac current. Figure 27 shows the principle of a di/dt current sensor.

MAGNETIC FIELD CREATED BY CURRENT (DIRECTLY PROPORTIONAL TO CURRENT)

+ EMF (ELECTROMOTIVE FORCE) – INDUCED BY CHANGES IN

MAGNETIC FLUX DENSITY (di/dt)

Figure 27. Principle of a di/dt Current Sensor

The flux density of a magnetic field induced by a current is directly proportional to the magnitude of the current. Changes in the magnetic flux density passing through a conductor loop generate an electromotive force (EMF) between the two ends of the loop. The EMF is a voltage signal that is proportional to the di/dt of the current. The voltage output from the di/dt current sensor is determined by the mutual inductance between the current-carrying conductor and the di/dt sensor. The current signal must be recovered from the di/dt signal before it can be used. An integrator is therefore necessary to restore the signal to its original form. The ADE7763 has a built-in digital integrator to recover the current signal from the di/dt sensor. The digital integrator on Channel 1 is switched off by default when the ADE7763 is powered up. Setting the MSB of CH1OS register turns on the integrator. Figure 28, Figure 29, Figure 30, and Figure 31 show the magnitude and phase response of the digital integrator.

04481-A-028

SIGN + 5 BITS

+50mV

OFFSET ADJUST

SIGN + 5 BITS

04481-A-027

–50mV

0x1F

0x00

0x3F

01,1111b

0mV

11,1111b

Figure 26. Channel 1 Offset Correction Range (Gain = 1)

Rev. A | Page 14 of 56

–10

–20

GAIN (dB)

–30

–40

–50

FREQUENCY (Hz)

04481-A-029

Figure 28. Combined Gain Response of the

Digital Integrator and Phase Compensator

ADE7763

×1,×2,×

www.BDTIC.com/ADI

–88.0

–88.5

–89.0

–89.5

PHASE (Degrees)

–90.0

Note that the integrator has a –20 dB/dec attenuation and approximately a –90° phase shift. When combined with a di/dt sensor, the resulting magnitude and phase response should be a flat gain over the frequency band of interest. The di/dt sensor has a 20 dB/dec gain. It also generates significant high frequency noise, necessitating a more effective antialiasing filter to avoid noise due to aliasing—see the Antialias Filter section.

When the digital integrator is switched off, the ADE7763 can be used directly with a conventional current sensor such as a current transformer (CT) or with a low resistance current shunt.

–90.5

FREQUENCY (Hz)

Figure 29. Combined Phase Response of the Digital Integrator and Phase Compensator

–1.0

–1.5 –2.0

–2.5 –3.0

–3.5

GAIN (dB)

–4.0 –4.5

–5.0

–5.5

–6.0

40 7045

50 55 60 65

FREQUENCY (Hz)

Figure 30. Combined Gain Response of the

Digital Integrator and Phase Compensator (40 Hz to 70 Hz)

–89.70

–89.75

–89.80

–89.85

–89.90

–89.95

PHASE (Degrees)

–90.00

–90.05

–90.10

40 45 7050 55 60 65

FREQUENCY (Hz)

Figure 31. Combined Phase Response of the

Digital Integrator and Phase Compensator (40 Hz to 70 Hz)

ZERO-CROSSING DETECTION

04481-A-030

04481-A-031

04481-A-032

The ADE7763 has a zero-crossing detection circuit on Channel 2. This zero crossing is used to produce an external zero-crossing signal (ZX), which is used in the calibration mode (see the Calibrating an Energy Meter section). This signal is also used to initiate a temperature measurement (see the Temperature Measurement section).

Figure 32 shows how the zero-crossing signal is generated from the output of LPF1.

2.32° @ 60Hz

REFERENCE

ADC 2

LPF1

= 140Hz

–

3dB

LPF1

–63%TO +63% FS

CROSSING

ZERO

TO MULTIPLIER

04481-A-033

×8,×

V2P

V2N

1.0

0.93

{GAIN[7:5]}

PGA2

Figure 32. Zero-Crossing Detection on Channel 2

The ZX signal goes logic high upon a positive-going zero crossing and logic low upon a negative-going zero crossing on Channel 2. The ZX signal is generated from the output of LPF1. LPF1 has a single pole at 140 Hz (@ CLKIN = 3.579545 MHz). As a result, there is a phase lag between the analog input signal V2 and the output of LPF1. The phase response of this filter is shown in the Channel 2 Sampling section. The phase lag response of LPF1 results in a time delay of approximately 1.14 ms (@ 60 Hz) between the zero crossing on the analog inputs of Channel 2 and the rising or falling edge of ZX.

Rev. A | Page 15 of 56

ADE7763

www.BDTIC.com/ADI

Zero-crossing detection also drives the ZX flag in the interrupt status register. An active low in the

corresponding bit in the interrupt enable register is set to Logic 1.

The flag in the interrupt status register and the set to their default values when reset (RSTSTATUS) is read in

the interrupt status register.

Zero-Crossing Timeout

Zero-crossing detection has an associated timeout register, ZXTOUT. This unsigned, 12-bit register is decremented (1 LSB) every 128/CLKIN seconds. The register is reset to its userprogrammed, full-scale value when a zero crossing on Channel 2 is detected. The default power-on value in this register is 0xFFF. If the internal register decrements to 0 before a zero crossing is detected and the DISSAG bit in the mode register is Logic 0, the

pin will go active low. The absence of a zero crossing is

SAG also indicated on the

pin if the ZXTO enable bit in the

IRQ

interrupt enable register is set to Logic 1. Irrespective of the enable bit setting, the ZXTO flag in the interrupt status register is always set when the internal ZXTOUT register is decremented to 0—see the Interrupts section.

The ZXOUT register, Address 0x1D, can be written to and read from by the user—see the Serial Interface section. The resolution of the register is 128/CLKIN seconds per LSB; therefore, the maximum delay for an interrupt is 0.15 seconds (128/CLKIN × 2

Figure 33 shows the zero-crossing timeout detection when the line voltage stays at a fixed dc level for more than CLKIN/128 × ZXTOUT seconds.

12-BIT INTERNAL

ZXTOUT

output appears if the

IRQ

output are

PERIOD MEASUREMENT

The ADE7763 provides the period measurement of the line. The PERIOD register is an unsigned, 16-bit register that is updated every period and always has an MSB of zero.

When CLKIN = 3.579545 MHz, the resolution of this register is

2.2 ms/LSB, which represents 0.013% when the line frequency is 60 Hz. When the line frequency is 60 Hz, the value of the period register is approximately 7457d. The length of the register enables the measurement of line frequencies as low as 13.9 Hz.

The period register is stable at ±1 LSB when the line is established and the measurement does not change. This filter is associated with a settling time of 1.8 seconds before the measurement is stable. See the Calibrating an Energy Meter section for more on the period register.

POWER SUPPLY MONITOR

The ADE7763 contains an on-chip power supply monitor. The analog supply (AVDD) is continuously monitored. If the supply is less than 4 V ± 5%, the ADE7763 will go into an inactive state and no energy will accumulate. This is useful to ensure correct device operation during power-up and power-down stages. In addition, built-in hysteresis and filtering help prevent false triggering due to noisy supplies.

5V 4V

ADE7763

POWER-ON

INACTIVE

STATE

INACTIVE ACTIVE INACTIVE

TIME

CHANNEL 2

ZXTO

DETECTION

BIT

Figure 33. Zero-Crossing Timeout Detection

04481-A-034

Rev. A | Page 16 of 56

SAG

Figure 34. On-Chip Power Supply Monitor

As seen in Figure 34, the trigger level is nominally set at 4 V. The tolerance on this trigger level is about ±5%. The

SAG

can also be used as a power supply monitor input to the MCU. The

pin goes logic low when the ADE7763 is in its inactive

SAG

state. The power supply and decoupling for the part should be such that the ripple at AVDD does not exceed 5 V ± 5%, as specified for normal operation.

04481-A-035

ADE7763

www.BDTIC.com/ADI

LINE VOLTAGE SAG DETECTION

In addition to detecting the loss of the line voltage when there are no zero crossings on the voltage channel, the ADE7763 can also be programmed to detect when the absolute value of the line voltage drops below a peak value for a specified number of line cycles. This condition is illustrated in Figure 35.

FULL SCALE

SAGLVL[7:0]

CHANNEL 2

PEAK DETECTION

The ADE7763 can also be programmed to detect when the absolute value of the voltage or current channel exceeds a specified peak value. Figure 36 illustrates the behavior of the peak detection for the voltage channel.

Both Channel 1 and Channel 2 are monitored at the same time.

VPKLVL[7:0]

SAG RESET HIGH WHEN CHANNEL 2 EXCEEDS SAGLVL[7:0]

SAGCYC[7:0] = 0x04

SAG

3 LINE CYCLES

Figure 35. Sag Detection

In Figure 35 the line voltage falls below a threshold that has been set in the sag level register (SAGLVL[7:0]) for three line cycles. The quantities 0 and 1 are not valid for the SAGCYC register, and the contents represent one more than the desired number of full line cycles. For example, if the DISSAG bit in the mode register is Logic 0 and the sag cycle register (SAGCYC[7:0]) contains 0x04, the

pin goes active low at

SAG the end of the third line cycle for which the line voltage (Channel 2 signal) falls below the threshold. As is the case when zero crossings are no longer detected, the sag event is also recorded by setting the SAG flag in the interrupt status register.

If the SAG enable bit is set to Logic 1, the go active low—see the Interrupts section. The

logic output will

IRQ

pin goes

SAG

logic high again when the absolute value of the signal on Channel 2 exceeds the level set in the sag level register. This is shown in Figure 35 when the

pin goes high again during the fifth line

SAG

cycle from the time when the signal on Channel 2 first dropped below the threshold level.

Sag Level Set

The contents of the sag level register (1 byte) are compared to the absolute value of the most significant byte output from LPF1 after it is shifted left by one bit. For example, the nominal maximum code from LPF1 with a full-scale signal on Channel 2 is 0x2518—see the Channel 2 Sampling section. Shifting one bit left gives 0x4A30. Therefore, writing 0x4A to the SAG level register puts the sag detection level at full scale. Writing 0x00 or 0x01 puts the sag detection level at 0. The SAG level register is compared to the most significant byte of a waveform sample after the shift left, and detection occurs when the contents of the sag level register are greater.

PKV RESET LOW WHEN RSTSTATUS REGISTER IS READ

PKV INTERRUPT

FLAG (BIT 8 OF

STATUS REGISTER)

04481-A-036

READ RSTSTATUS

Figure 36. Peak Level Detection

04481-A-037

Figure 36 shows a line voltage exceeding a threshold that has been set in the voltage peak register (VPKLVL[7:0]). The voltage peak event is recorded by setting the PKV flag in the interrupt status register. If the PKV enable bit is set to Logic 1 in the interrupt mask register, the

logic output will go active

IRQ

low. Similarly, the current peak event is recorded by setting the PKI flag in the interrupt status register—see the Interrupts section.

Peak Level Set

The contents of the VPKLVL and IPKLVL registers are compared to the absolute value of Channel 1 and Channel 2, respectively, after they are multiplied by 2. For example, the nominal maximum code from the Channel 1 ADC with a fullscale signal is 0x2851EC—see the Channel 1 Sampling section. Multiplying by 2 gives 0x50A3D8. Therefore, writing 0x50 to the IPKLVL register, for example, puts the Channel 1 peak detection level at full scale and sets the current peak detection to its least sensitive value. Writing 0x00 puts the Channel 1 detection level at 0. Peak level detection is done by comparing the contents of the IPKLVL register to the incoming Channel 1 sample. The

pin indicates that the peak level is exceeded if

IRQ

the PKI or PKV bits are set in the interrupt enable register (IRQEN [15:0]) at Address 0x0A.

Peak Level Record

The ADE7763 records the maximum absolute value reached by Channel 1 and Channel 2 in two different registers—IPEAK and VPEAK, respectively. VPEAK and IPEAK are 24-bit, unsigned registers. These registers are updated each time the absolute value of the waveform sample from the corresponding channel is above the value stored in the VPEAK or IPEAK register. The contents of the VPEAK register correspond to two

Rev. A | Page 17 of 56

ADE7763

www.BDTIC.com/ADI

times the maximum absolute value observed on the Channel 2 input. The contents of IPEAK represent the maximum absolute value observed on the Channel 1 input. Reading the RSTVPEAK and RSTIPEAK registers clears their respective contents after the read operation.

INTERRUPTS

Interrupts are managed through the interrupt status register (STATUS[15:0]) and the interrupt enable register (IRQEN[15:0]). When an interrupt event occurs, the corresponding flag in the status register is set to Logic 1—see the Interrupt Status Register section. If the enable bit for this interrupt in the interrupt enable register is Logic 1, the

logic output will go active low. The flag bits in the status register are set irrespective of the state of the enable bits.

To determine the source of the interrupt, the system master (MCU) should perform a read from the status register with reset (RSTSTATUS[15:0]). This is achieved by carrying out a read from Address 0Ch. The

output goes logic high after

IRQ

the completion of the interrupt status register read command— see the Interrupt Timing section. When carrying out a read with reset, the ADE7763 is designed to ensure that no interrupt events are missed. If an interrupt event occurs as the status register is being read, the event will not be lost and the

logic output will be guaranteed to go high for the duration of the interrupt status register data transfer before going logic low again to indicate the pending interrupt. See the next section for a more detailed description.

IRQ

Using Interrupts with an MCU

Figure 38 shows a timing diagram with a suggested implementation of ADE7763 interrupt management using an MCU. At time t

, the

more interrupt events have occurred. Tie the

line goes active low, indicating that one or

IRQ

logic output to

IRQ

a negative edge-triggered external interrupt on the MCU. Configure the MCU to start executing its interrupt service routine (ISR) when a negative edge is detected on the

IRQ

line.

After entering the ISR, disable all interrupts by using the global interrupt enable bit. At this point, the MCU

IRQ

external

interrupt flag can be cleared to capture interrupt events that occur during the current ISR. When the MCU interrupt flag is cleared, a read from the status register with reset is carried out. This causes the

line to reset to logic high (t2)—see the

IRQ

Interrupt Timing section. The status register contents are used to determine the source of the interrupt(s) and, therefore, the appropriate action to be taken. If a subsequent interrupt event occurs during the ISR, that event will be recorded by the MCU external interrupt flag being set again (t

). Upon the completion

of the ISR, the global interrupt mask is cleared (same instruction cycle) and the external interrupt flag causes the MCU to jump to its ISR again. This ensures that the MCU does not miss any external interrupts.

MCU INTERRUPT

FLAG SET

MCU

PROGRAM

SEQUENCE

SCLK

DIN

DOUT

IRQ

GLOBAL

INTERRUPT

MASK SET

000 00101

READ STATUS REGISTER COMMAND

JUMP

ISR

CLEAR MCU INTERRUPT

FLAG

READ

STATUS WITH

RESET (0x05)

Figure 37. Interrupt Management

Figure 38. Interrupt Timing

Rev. A | Page 18 of 56

ISR ACTION

(BASED ON STATUS CONTENTS)

DB7 DB7DB0

STATUS REGISTER CONTENTS

ISR RETURN

GLOBAL INTERRUPT

MASK RESET

DB0

JUMP

TO ISR

04481-A-038

04481-A-039

ADE7763

www.BDTIC.com/ADI

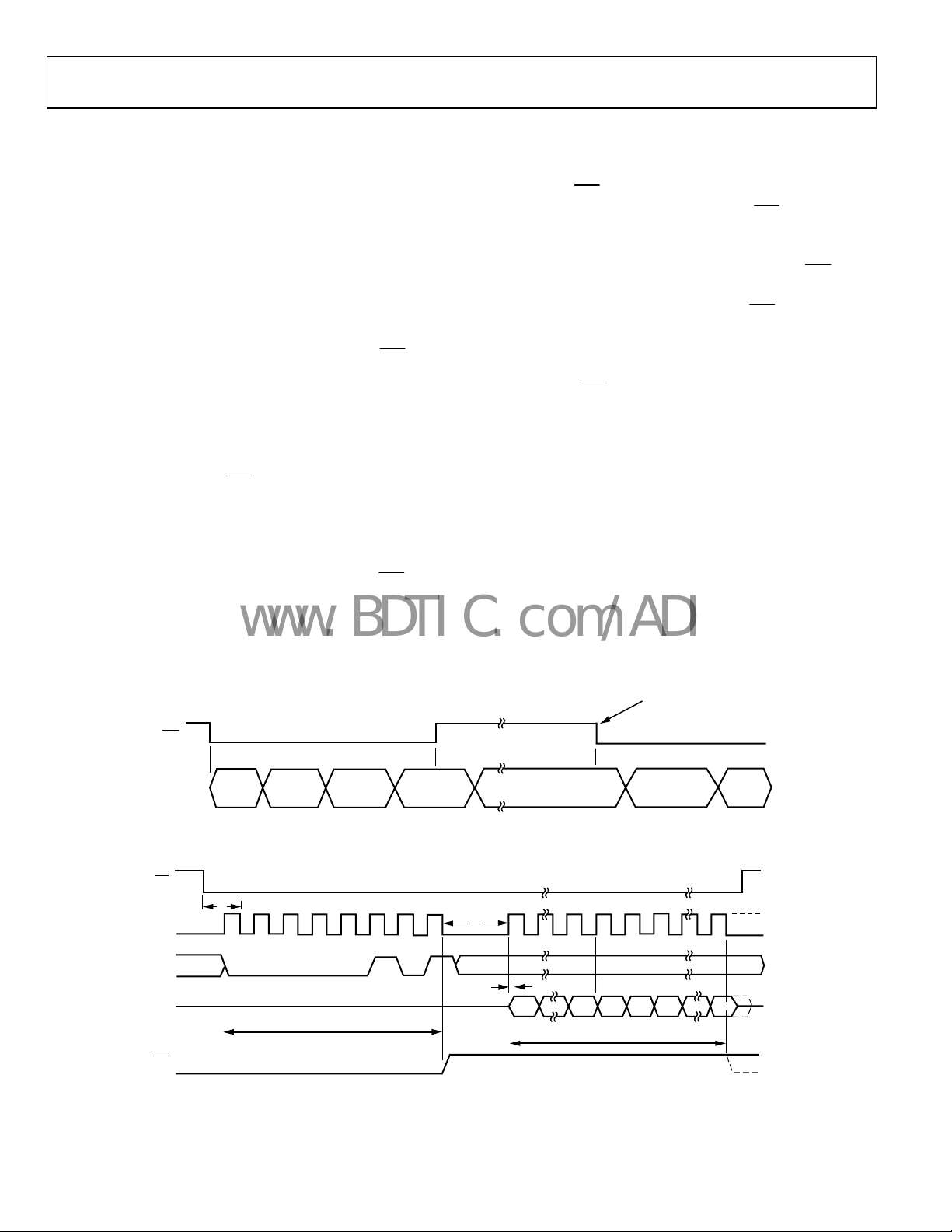

Interrupt Timing

Review the Serial Interface section before reading this section. As previously described, when the

output goes low, the

IRQ

MCU ISR will read the interrupt status register to determine the source of the interrupt. When reading the status register contents, the

output is set high upon the last falling edge of

IRQ SCLK of the first byte transfer (read interrupt status register command). The

output is held high until the last bit of the

IRQ next 15-bit transfer is shifted out (interrupt status register contents)—see Figure 37. If an interrupt is pending at this time,

the IRQ

output will go low again. If no interrupt is pending, the

IRQ

output will stay high.

TEMPERATURE MEASUREMENT

There is an on-chip temperature sensor. A temperature measurement can be made by setting Bit 5 in the mode register. When Bit 5 is set logic high in the mode register, the ADE7763 initiates a temperature measurement of the next zero crossing. When the zero crossing on Channel 2 is detected, the voltage output from the temperature sensing circuit is connected to ADC1 (Channel 1) for digitizing. The resulting code is processed and placed in the temperature register (TEMP[7:0]) approximately 26 µs later (24 CLKIN/4 cycles). If enabled in the interrupt enable register (Bit 5), the

output will go active

IRQ

low when the temperature conversion is finished.

The contents of the temperature register are signed (twos complement) with a resolution of approximately 1.5 LSB/°C. The temperature register produces a code of 0x00 when the ambient temperature is approximately −25°C. The temperature measurement is uncalibrated in the ADE7763 and might have an offset tolerance as high as ±25°C.

ANALOG-TO-DIGITAL CONVERSION

The analog-to-digital conversion is carried out using two second-order Figure 39 shows a first-order comprises two parts: the pass filter.

ANALOG

LOW-PASS FILTE

Σ-∆ ADCs. For simplicity, the block diagram in

Σ-∆ ADC. The converter

Σ-∆ modulator and the digital low-

MCLK/4

INTEGRATOR

–

REF

LATCHED COMPARATOR

–

DIGITAL

LOW-PASS

FILTER

stream. The DAC output is subtracted from the input signal. If the loop gain is high enough, the average value of the DAC output (and therefore the bit stream) will approach that of the input signal level. For any given input value in a single sampling interval, the data from the 1-bit ADC is virtually meaningless. Only when a large number of samples are averaged can a meaningful result be obtained. This averaging is carried out in the second part of the ADC, the digital low-pass filter. By averaging a large number of bits from the modulator, the lowpass filter can produce 24-bit data-words that are proportional to the input signal level.

The

Σ-∆ converter uses two techniques to achieve high resolution

from what is essentially a 1-bit conversion technique. The first is oversampling. Oversampling means that the signal is sampled at a rate (frequency) that is many times higher than the bandwidth of interest. For example, the sampling rate in the ADE7763 is CLKIN/4 (894 kHz) and the band of interest is 40 Hz to 2 kHz. Oversampling has the effect of spreading the quantization noise (noise due to sampling) over a wider bandwidth. With the noise spread more thinly over a wider bandwidth, the quantization noise in the band of interest decreases—see Figure 40. However, oversampling alone is not efficient enough to improve the signal-to-noise ratio (SNR) in the band of interest. For example, an oversampling ratio of 4 is required just to increase the SNR by 6 dB (1 bit). To keep the oversampling ratio at a reasonable level, it is possible to shape the quantization noise so that the majority of the noise lies at higher frequencies. In the

Σ-∆

modulator, the noise is shaped by the integrator, which has a high-pass-type response for the quantization noise. The result is that most of the noise is at higher frequencies, where it can be removed by the digital low-pass filter. This noise shaping is shown in Figure 40.

ANTIALIAS

SIGNAL

NOISE

FILTER (RC)

DIGITAL

FILTER

4470 8942

FREQUENCY (kHz)

HIGH RESOLUTION

OUTPUT FROM DIGITAL

LPF

SHAPED

NOISE

SAMPLING

FREQUENCY

.....10100101.....

1-BIT DAC

Figure 39. First-Order

-∆ ADC

04481-A-040

A Σ-∆ modulator converts the input signal into a continuous serial stream of 1s and 0s at a rate determined by the sampling clock. In the ADE7763, the sampling clock is equal to CLKIN/4. The 1-bit DAC in the feedback loop is driven by the serial data

Rev. A | Page 19 of 56

4470 8942

FREQUENCY (kHz)

Figure 40. Noise Reduction due to Oversampling and

Noise Shaping in the Analog Modulator

04481-A-041

ADE7763

www.BDTIC.com/ADI

Antialias Filter

Figure 39 also shows an analog low-pass filter (RC) on the input to the modulator. This filter prevents aliasing, which is an artifact of all sampled systems. Aliasing means that frequency components in the input signal to the ADC that are higher than half the sampling rate of the ADC appear in the sampled signal at a frequency below half the sampling rate. Figure 41 illustrates the effect. Frequency components (shown as arrows) above half the sampling frequency (also known as the Nyquist frequency, i.e., 447 kHz) are imaged or folded back down below 447 kHz. This happens with all ADCs, regardless of the architecture. In the example shown, only frequencies near the sampling frequency, i.e., 894 kHz, move into the band of interest for metering, i.e., 40 Hz to 2 kHz. This allows the use of a very simple LPF (low-pass filter) to attenuate high frequency (near 900 kHz) noise, and it prevents distortion in the band of interest. For conventional current sensors, a simple RC filter (single-pole LPF) with a corner frequency of 10 kHz produces an attenuation of approximately 40 dB at 894 kHz—see Figure 41. The 20 dB per decade attenuation is usually sufficient to eliminate the effects of aliasing for conventional current sensors; however, for a di/dt sensor such as a Rogowski coil, the sensor has a 20 dB per decade gain. This neutralizes the –20 dB per decade attenuation produced by one simple LPF. Therefore, when using a di/dt sensor, care should be taken to offset the 20 dB per decade gain. One simple approach is to cascade two RC filters to produce the –40 dB per decade attenuation.

ALIASING EFFECTS

Reference Circuit

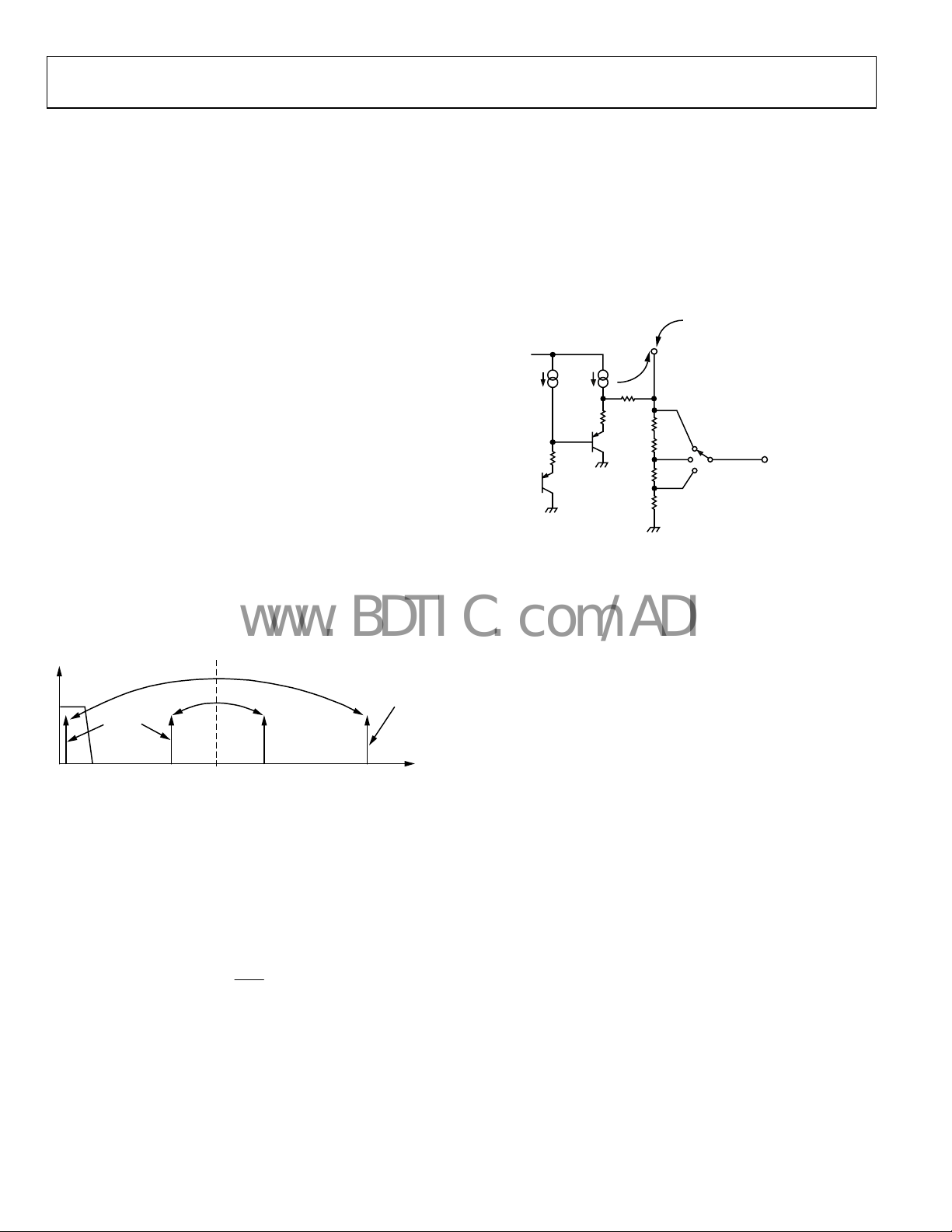

Figure 42 shows a simplified version of the reference output circuitry. The nominal reference voltage at the REF

IN/OUT

pin is

2.42 V. This is the reference voltage used for the ADCs. However, Channel 1 has three input range options that are selected by dividing down the reference value used for the ADC in Channel 1. The reference value used for Channel 1 is divided down to ½ and ¼ of the nominal value by using an internal resistor divider, as shown in Figure 42.

OUTPUT

REF

2.42V

IN/OUT

IMPEDANCE 6kΩ

REFERENCE INPUT TO ADC CHANNEL 1 (RANGE SELECT)

2.42V, 1.21V, 0.6V

04481-A-043

The REF

MAXIMUM

LOAD = 10µA

60µAPTAT

IN/OUT

1.7kΩ

2.5V

12.5kΩ

Figure 42. Reference Circuit Output

pin can be overdriven by an external source such as a 2.5 V reference. Note that the nominal reference value supplied to the ADCs is now 2.5 V, not 2.42 V, which increases the nominal analog input signal range by 2.5/2.42 × 100% = 3% or from 0.5 V to 0.5165 V.

SAMPLING


FREQUENCIES

0 2 447 894

Figure 41. ADC and Signal Processing in Channel 1 Outline Dimensions

FREQUENCY (kHz)

FREQUENCY

ADC Transfer Function

The following expression relates the output of the LPF in the

Σ-∆ ADC to the analog input signal level. Both ADCs in the

ADE7763 are designed to produce the same output code for the same input signal level.

( ) 3.0492 262,144

Code ADCV=××

OUT

(1)

Therefore, with a full-scale signal on the input of 0.5 V and an internal reference of 2.42 V, the ADC output code is nominally 165,151, or 0x2851F. The maximum code from the ADC is ±262,144; this is equivalent to an input signal level of ±0.794 V. However, for specified performance, do not exceed the 0.5 V full-scale input signal level.

The voltage of the ADE7763 reference drifts slightly with changes in temperature—see Table 1 for the temperature coefficient specification (in ppm/°C). The value of the temperature drift varies from part to part. Because the reference is used for the ADCs in both Channels 1 and 2, any x% drift in the reference

04481-A-042

results in 2x% deviation in the meter accuracy. The reference drift that results from a temperature change is usually very small, typically much smaller than the drift of other components on a meter. However, if guaranteed temperature performance is needed, use an external voltage reference. Alternatively, the meter can be calibrated at multiple temperatures. Real-time compensation can be achieved easily by using the on-chip temperature sensor.

CHANNEL 1 ADC

Figure 43 shows the ADC and signal processing chain for Channel 1. In waveform sampling mode, the ADC outputs a signed, twos complement, 24-bit data-word at a maximum of

27.9 kSPS (CLKIN/128). With the specified full-scale analog input signal of 0.5 V (or 0.25 V or 0.125 V—see the Analog Inputs section), the ADC produces an output code that is approximately between 0x28 51EC (+2,642,412d) and 0xD7 AE14 (–2,642,412d)—see Figure 43.

Rev. A | Page 20 of 56

ADE7763

www.BDTIC.com/ADI

0.5V, 0.25V,

0.125V, 62.5mV,

31.3mV, 15.6mV,

2.42V, 1.21V, 0.6V

×1, ×2, ×4, ×8, ×16

{GAIN[2:0]}

V1P

PGA1

V1N

ANALOG INPUT RANGE

*WHEN DIGITAL INTEGRATOR IS ENABLED, FULL-SCALE OUTPUT DATA IS ATTENUATED

DEPENDING ON THE SIGNAL FREQUENCY BECAUSE THE INTEGRATOR HAS A –20dB/DECADE FREQUENCY RESPONSE. WHEN DISABLED, THE OUTPUT IS NOT ATTENUATED FURTHER.

0x28 51EC

0x0 0000

0xD 7AE4

REFERENCE

ADC 1

ADC OUTPUT WORD RANGE

{GAIN[4:3]}

Figure 43. ADC and Signal Processing in Channel 1

Channel 1 Sampling

The waveform samples may be routed to the waveform register (MODE[14:13] = 1, 0) for the system master (MCU) to read. In waveform sampling mode, set the WSMP bit (Bit 3) in the interrupt enable register to Logic 1. The active and apparent power as well as the energy calculation remain uninterrupted during waveform sampling.

In waveform sampling mode, choose one of four output sample rates using Bits 11 and 12 of the mode register (WAVSEL 1, 0). The output sample rate can be 27.9 kSPS, 14 kSPS, 7 kSPS, or

3.5 kSPS—see the Mode Register (0X09) section. The interrupt request output,

, signals a new sample availability by going

IRQ

active low. The timing is shown in Figure 44. The 24-bit waveform samples are transferred from the ADE7763 one byte (eight bits) at a time, with the most significant byte shifted out first. The 24-bit data-word is right justified—see the Serial Interface section. The interrupt request output

stays low until the

IRQ

interrupt routine reads the reset status register—see the Interrupts section.

IRQ

SCLK

READ FROM WAVEFORM

DIN

DOUT

0 0 01 HEX

SIGN

CHANNEL 1 DATA

(24 BITS)

Figure 44. Waveform Sampling Channel 1

HPF

0x28 51EC

0x00 0000

0xD 7AE4

04481-A-045

CURRENT RMS (IRMS) CALCULATION

DIGITAL

INTEGRATOR*

CHANNEL 1 (CURRENT WAVEFORM) DATA RANGE

WAVEFORM SAMPLE REGISTER

ACTIVE AND REACTIVE POWER CALCULATION

CHANNEL 1

50Hz

0x1E F73C

0x00 0000

0xEI 08C4

60Hz

0x19 CE08

0x00 0000

0xE6 31F8

(CURRENT WAVEFORM) DATA RANGE AFTER INTEGRATOR (50Hz)

CHANNEL 1 (CURRENT WAVEFORM) DATA RANGE AFTER INTEGRATOR (60Hz)

Channel 1 RMS Calculation

The root mean square (rms) value of a continuous signal V(t) is defined as

VRMS =

∫

(2)

dttV

)(

For time sampling signals, the rms calculation involves squaring the signal, taking the average, and obtaining the square root:

VRMS =

∑

(3)

)(

The ADE7763 simultaneously calculates the rms values for Channel 1 and Channel 2 in different registers. Figure 45 shows the detail of the signal processing chain for the rms calculation on Channel 1. The Channel 1 rms value is processed from the samples used in the Channel 1 waveform sampling mode. The Channel 1 rms value is stored in an unsigned, 24-bit register (IRMS). One LSB of the Channel 1 rms register is equivalent to 1 LSB of a Channel 1 waveform sample. The update rate of the Channel 1 rms measurement is CLKIN/4.

04481-A-044

Rev. A | Page 21 of 56

ADE7763

www.BDTIC.com/ADI

CURRENT SIGNAL (i(t))

0x28 51EC

0x00

0xD7 AE14

CHANNEL 1

24 24

Figure 45. Channel 1 RMS Signal Processing

With the specified full-scale analog input signal of 0.5 V, the ADC produces an output code that is approximately ±2,642,412d— see the Channel 1 ADC section. The equivalent rms value of a full-scale ac signal is 1,868,467d (0x1C82B3). The current rms measurement provided in the ADE7763 is accurate to within 1% for signal input between full scale and full scale/100. Converting the register value to its equivalent in amps must be done externally in the microprocessor using an amps/LSB constant. To minimize noise, synchronize the reading of the rms register with the zero crossing of the voltage input and take the average of a number of readings.

Channel 1 RMS Offset Compensation

The ADE7763 incorporates a Channel 1 rms offset compensation register (IRMSOS). This is a 12-bit, signed register that can be used to remove offset in the Channel 1 rms calculation. An offset might exist in the rms calculation due to input noises that are integrated in the dc component of V

(t). The offset calibration allows the content of the IRMS register to be maintained at 0 when no input is present on Channel 1.

One LSB of the Channel 1 rms offset is equivalent to 32,768 LSB of the square of the Channel 1 rms register. Assuming that the maximum value from the Channel 1 rms calculation is 1,868,467d with full-scale ac inputs, then 1 LSB of the Channel 1 rms offset represents 0.46% of the measurement error at –60 dB down of full scale.

×+ IRMSOSIRMS

(4)

32768

where

IRMS =

IRMS

is the rms measurement without offset correction.

IRMSOS[11:0]

26225

sgn 2272172162

LPF3HPF1

IRMS(t)

0x1C 82B3

0x00

IRMS

04481-A-046

not the same as it is for Channel 1. The Channel 2 waveform sample is a 16-bit word and sign extended to 24 bits. For normal operation, the differential voltage signal between V2P and V2N should not exceed 0.5 V. With maximum voltage input (±0.5 V at PGA gain of 1), the output from the ADC swings between 0x2852 and 0xD7AE (±10,322d). However, before being passed to the waveform register, the ADC output is passed through a single-pole, low-pass filter with a cutoff frequency of 140 Hz. The plots in Figure 46 show the magnitude and phase response of this filter.

–10

–20

–30

–40

–50

PHASE (Degrees)

–60

–70

–80

–90

50Hz, –0.52dB

50Hz, –19.7°

60Hz, –23.2°

FREQUENCY (Hz)

Figure 46. Magnitude and Phase Response of LPF1

60Hz, –0.73dB

The LPF1 has the effect of attenuating the signal. For example, if the line frequency is 60 Hz, the signal at the output of LPF1 will be attenuated by about 8%.

–2

–4

–6

–8

–10

GAIN (dB)

–12

–14

–16

–18

04481-A-047

To measure the offset of the rms measurement, two data points are needed from nonzero input values, for example, the base current, I

, and I

/100. The offset can be calculated from these

max

measurements.

CHANNEL 2 ADC

Channel 2 Sampling

In Channel 2 waveform sampling mode (MODE[14:13] = 1, 1 and WSMP = 1), the ADC output code scaling for Channel 2 is

Rev. A | Page 22 of 56

H(f)| =

⎛ ⎜

⎜ ⎝

= 0.919 = −0.73 db (5)

⎞

Hz60

⎟ ⎟

Hz140

⎠

Note LPF1 does not affect the active power calculation. The signal processing chain in Channel 2 is illustrated in Figure 47.

ADE7763

www.BDTIC.com/ADI

ANALOG INPUT RANGE

0.5V, 0.25V, 0.125V,

62.5mV, 31.25mV

CHANNEL 2

×1, ×2, ×4, ×8, ×16

V2P

V2N

{GAIN[7:5]}

PGA2

Figure 47. ADC and Signal Processing in Channel 2

VOLTAGE SIGNAL (V(t))

0x2518

0x0

0xDAE8

Figure 48. Channel 2 RMS Signal Processing

REFERENCE

ADC 2

Channel 2 has only one analog input range (0.5 V differential). Like Channel 1, Channel 2 has a PGA with gain selections of 1, 2, 4, 8, and 16. For energy measurement, the output of the ADC is passed directly to the multiplier and is not filtered. An HPF is not required to remove any dc offset; it is only required that the offset is removed from one channel to eliminate errors caused by offsets in the power calculation. In waveform sampling mode, one of four output sample rates can be chosen by using Bits 11 and 12 of the mode register. The available output sample rates are 27.9 kSPS, 14 kSPS, 7 kSPS, or 3.5 kSPS—see the Mode Register (0X09) section. The interrupt request output

IRQ

indicates that a sample is available by going active low. The timing is the same as that for Channel 1, as shown in Figure 44.

Channel 2 RMS Calculation

Figure 48 shows the details of the signal processing chain for the rms calculation on Channel 2. The Channel 2 rms value is processed from the samples used in the Channel 2 waveform sampling mode. The rms value is slightly attenuated due to LPF1. The Channel 2 rms value is stored in the unsigned, 24-bit VRMS register. The update rate of the Channel 2 rms measurement is CLKIN/4.

With the specified full-scale ac analog input signal of 0.5 V, the output from LPF1 swings between 0x2518 and 0xDAE8 at 60 Hz—see the Channel 2 ADC section. The equivalent rms value of this full-scale ac signal is approximately 1,561,400 (0x17 D338) in the VRMS register. The voltage rms measurement provided in the ADE7763 is accurate to within ±0.5% for signal input between full scale and full scale/20. The conversion from the register value to volts must be done externally in the

2.42V

0xDAE8 0xD7AE

0x2852 0x2581

0x0000

LPF3LPF1

ACTIVE ANDREACTIVE ENERGYCALCULATION

VRMS CA LCUL ATIO N AND WAVEFORM SAMPLING (PEAK/SAG/Z X)

VRMS[23:0]

0x17D338

0x00

04481-A-048

04481-A-049

LPF OUTPUT

WORD RANGE

LPF1

VRMOS[11:0]

sgn 2822212

microprocessor using a volts/LSB constant. Because the low-pass filter used for calculating the rms value is imperfect, there is some ripple noise from 2ω term present in the rms measurement. To minimize the effect of noise in the reading, synchronize the rms reading with the zero crossings of the voltage input.

Channel 2 RMS Offset Compensation

The ADE7763 incorporates a Channel 2 rms offset compensation register (VRMSOS). This is a 12-bit, signed register that can be used to remove offset in the Channel 2 rms calculation. An offset could exist in the rms calculation due to input noises and dc offset in the input samples. The offset calibration allows the contents of the VRMS register to be maintained at 0 when no voltage is applied. One LSB of the Channel 2 rms offset is equivalent to 1 LSB of the rms register. Assuming that the maximum value of the Channel 2 rms calculation is 1,561,400d with full-scale ac inputs, then 1 LSB of the Channel 2 rms offset represents 0.064% of measurement error at –60 dB down of full scale.

VRMS = VRMS

where

VRMS

+ VRMSOS (6)

is the rms measurement without offset

correction.

The voltage rms offset compensation should be done by testing the rms results at two nonzero input levels. One measurement can be done close to full scale and the other at approximately full scale/10. The voltage offset compensation can be derived from these measurements. If the voltage rms offset register does not have enough range, the CH2OS register can also be used.

Rev. A | Page 23 of 56

ADE7763

www.BDTIC.com/ADI

PHASE COMPENSATION

When the HPF is disabled, the phase error between Channel 1 and Channel 2 is 0 from dc to 3.5 kHz. When HPF is enabled, Channel 1 has the phase response illustrated in Figure 50 and Figure 51. Figure 52 shows the magnitude response of the filter. As seen from the plots, the phase response is almost 0 from 45 Hz to 1 kHz, which is all that is required in typical energy measurement applications. However, despite being internally phase-compensated, the ADE7763 must work with transducers, which could have inherent phase errors. For example, a phase error of 0.1° to 0.3° is not uncommon for a current transformer (CT). Phase errors can vary from part to part and must be corrected in order to perform accurate power calculations. The errors associated with phase mismatch are particularly noticeable at low power factors. The ADE7763 provides a means of digitally calibrating these small phase errors by allowing a short time delay or time advance to be introduced into the signal processing chain to compensate for these errors. Because the compensation is in time, this technique should only be used for small phase errors in the range of 0.1° to 0.5°. Correcting large phase errors using a time shift technique can introduce significant phase errors at higher harmonics.

The phase calibration register (PHCAL[5:0]) is a twos complement, signed, single-byte register that has values ranging from 0x21 (–31d) to 0x1F (+31d).

The register is centered at 0Dh, so that writing 0Dh to the register produces 0 delay. By changing the PHCAL register, the time delay in the Channel 2 signal path can change from –102.12 µs to +39.96 µs (CLKIN = 3.579545 MHz). One LSB is equivalent to 2.22 µs (CLKIN/8) time delay or advance. A line frequency of 60 Hz gives a phase resolution of 0.048° at the fundamental (i.e., 360° × 2.22 µs × 60 Hz). Figure 49 illustrates how the phase compensation is used to remove a 0.1° phase lead in Channel 1 due to the external transducer. To cancel the lead (0.1°) in Channel 1, a phase lead must also be introduced into Channel 2. The resolution of the phase adjustment allows the introduction of a phase lead in increments of 0.048°. The phase lead is achieved by introducing a time advance in Channel 2. A time advance of 4.44 µs is made by writing −2 (0x0B) to the time delay block, thus reducing the amount of time delay by 4.44 µs, or equivalently, a phase lead of approximately 0.1° at line frequency of 60 Hz. 0x0B represents –2 because the register is centered with 0 at 0Dh.

V1P

V1N

V2P

V2N

0.9

0.8

0.7

0.6

0.5

0.4

0.3

PHASE (Degrees)

0.2

0.1

–0.1

0.20

0.18

0.16

0.14

0.12

0.10

0.08

PHASE (Degrees)

0.06

0.04

0.02

HPF

PGA1

PGA2

ADC 1

ADC 2

0.1°

60Hz

DELAY BLOCK

2.22µs/LSB

PHCAL[5:0]

–102.12µs TO +39.96µs

Figure 49. Phase Calibration

FREQUENCY (Hz)

Figure 50. Combined Phase Response of HPF and

Phase Compensation (10 Hz to 1 kHz)

45 50 55 60 65 70

FREQUENCY (Hz)

Figure 51. Combined Phase Response of HPF and

Phase Compensation (40 Hz to 70 Hz)

LPF2

CHANNEL 2 DELAY REDUCED BY 4.44µs (0.1°LEAD AT 60Hz) 0x0B IN PHCAL [5.0]

110100

60Hz

04481-A-050

04481-A-051

04481-A-052

Rev. A | Page 24 of 56

ADE7763

www.BDTIC.com/ADI

0.4

0.3

0.2

0.1

0.0

ERROR (%)

–0.1

–0.2

The instantaneous power signal

p(t) is generated by multiplying

the current and voltage signals. The dc component of the instantaneous power signal is then extracted by LPF2 (low-pass filter) to obtain the active power information. This process is illustrated in Figure 53.

0x19 999A

INSTANTANEOUS POWER SIGNAL

p(t) = v

i-v×i×cos(2ωt)

ACTIVEREAL POWER SIGNA L= v

–0.3

–0.4

54 56 58 60 62 64 66

FREQUENCY (Hz)

Figure 52. Combined Gain Response of HPF and Phase Compensation

ACTIVE POWER CALCULATION

Power is defined as the rate of energy flow from the source to the load. It is defined as the product of the voltage and current waveforms. The resulting waveform is called the instantaneous power signal and is equal to the rate of energy flow at any given time. The unit of power is the watt or joules/s. Equation 9 gives an expression for the instantaneous power signal in an ac system.

)sin(ω2)( tVtv ×= (7)

)sin(ω2)( tIti ×=

(8)

where:

V is the rms voltage. I is the rms current.

)()()( titvtp ×=

)2cos()( tVIVItp ω−=

(9)

0xC CCCD

04481-A-053

0x0 0000

CURRENT

×i×

i(t) = 2

sin(ωt)

VOLTAGE v(t) = 2

×v×

sin(ωt)

Figure 53. Active Power Calculation

04481-A-054

Because LPF2 does not have an ideal “brick wall” frequency response (see Figure 54), the active power signal has some ripple due to the instantaneous power signal. This ripple is sinusoidal and has a frequency equal to twice the line frequency. Because the ripple is sinusoidal in nature, it is removed when the active power signal is integrated to calculate energy—see the Energy Calculation section.

–4

–8

The average power over an integral number of line cycles (n) is given by the expression in Equation 10.

)(

∫

(10)

VIdttp

where:

T is the line cycle period. P is the active or real power.

Note that the active power is equal to the dc component of the instantaneous power signal

p(t) in Equation 8, i.e., VI. This is

the relationship used to calculate active power in the ADE7763.

Rev. A | Page 25 of 56

–12

–16

–20

–24

3 10 30 100

FREQUENCY (Hz)

Figure 54. Frequency Response of LPF2

04481-A-055

ADE7763

www.BDTIC.com/ADI

CURRENT

CHANNEL

VOLTAGE CHANNEL

OUTPUT LPF2

ACTIVEPOWER

LPF2

SIGNAL

CLKIN

APOS[15:0]

TIME (nT)

WGAIN[11:0]

WAVEFORM

VALUES

Figure 55. Active Energy Calculation

Figure 55 shows the signal processing chain for the active power calculation. The active power is calculated by low-pass filtering the instantaneous power signal. Note that when reading the waveform samples from the output of LPF2, the gain of the active energy can be adjusted by using the multiplier and watt gain register (WGAIN[11:0]). The gain is adjusted by writing a twos complement 12-bit word to the watt gain register. Equation 11 shows how the gain adjustment is related to the contents of the watt gain register:

⎛ ⎜

⎜ ⎝

PowerActiveWGAINOutput

⎧

⎨ ⎩

WGAIN

+×=

⎞

⎫

⎟

(11)

⎬

⎟

⎭

⎠

For example, when 0x7FF is written to the watt gain register, the

power output is scaled up by 50%. 0x7FF = 2047d, 2047/2

= 0.5. Similarly, 0x800 = –2048d (signed twos complement) and power output is scaled by –50%. Each LSB scales the power output by 0.0244%. Figure 56 shows the maximum code (hexadecimal) output range for the active power signal (LPF2). Note that the output range changes depending on the contents of the watt gain register. The minimum output range is given when the watt gain register contents are equal to 0x800, and the maximum range is given by writing 0x7FF to the watt gain register. This can be used to calibrate the active power (or energy) calculation.

WDIV[7:0]

UPPER 24 BITSARE

AENERGY[23:0]

23 0

48 0

OUTPUTS FROM THE LPF2ARE ACCUMULATED (INTEGRATED) IN THEINTERNAL ACTIVE ENERGYREGISTER

0x1 3333

0xCCCD

0x6666

0x0 0000

0xF 999A

0xF 3333

ACTIVE POWER OUTPUT

0xE CCCD

Figure 56. Active Power Calculation Output Range

ACCESSIBLETHROUGH AENERGY[23:0] REGIST ER

0x000 0x7FF 0x800

{WGAIN[11:0]}

ACTIVE POWER

CALIBRATION RANGE

04481-A-056

POSITIVE POWER

NEGATIVE POWER

04481-A-057

ENERGY CALCULATION

As stated earlier, power is defined as the rate of energy flow. This relationship is expressed mathematically in Equation 12.

P =

where:

P is power. E is energy.

Conversely, energy is given as the integral of power.

(12)

Rev. A | Page 26 of 56

= PdtE

(13)

∫

ADE7763

www.BDTIC.com/ADI

HPF

CURRENT SIGNAL – i(t)

MULTIPLIER

VOLTAGESIGNAL– v(t)

INSTANTANEOUS POWER SIGNAL – p(t)

0x19 999A

0x00 0000

Figure 57. Active Power Signal Processing

LPF2

sgn 252-62-72

The ADE7763 achieves the integration of the active power signal by continuously accumulating the active power signal in an internal unreadable 49-bit energy register. The active energy register (AENERGY[23:0]) represents the upper 24 bits of this internal register. This discrete time accumulation or summation is equivalent to integration in continuous time. Equation 14 expresses this relationship.

∞

() ( )

p t dt Lim p nT T

== ×

∫

⎧⎫ ⎨

∑

→

⎩

(14)

⎬ ⎭

where:

n is the discrete time sample number. T is the sample period.

The discrete time sample period (

T) for the accumulation

register is 1.1 µs (4/CLKIN). In addition to calculating the energy, this integration removes any sinusoidal components that might be in the active power signal.

APOS[15:0]

FOR WAVEF0RM

-8

WGAIN[11:0]

0x1 9999

FOR WAVEFORM ACCUMULATION

0xC CCCD

SAMPLING

04481-A-058

the WSMP bit (Bit 3) in the interrupt enable register to 1. Like Channel 1 and Channel 2 waveform sampling modes, the waveform data is available at sample rates of 27.9 kSPS, 14 kSPS, 7 kSPS, or 3.5 kSPS—see Figure 44.

Figure 58 shows this energy accumulation for full-scale signals (sinusoidal) on the analog inputs. The three curves illustrate the minimum time for the energy register to roll over when the active power gain register contents are 0x7FF, 0x000, and 0x800. The watt gain register is used to carry out power calibration. As shown, the fastest integration time occurs when the watt gain register is set to maximum full scale, i.e., 0x7FF.

AENERGY[23:0]

0x7F FFFF

0x3F FFFF

0x00 0000

6.248

12.5

WGAIN = 0x7FF WGAIN = 0x000 WGAIN = 0x800

TIME (minutes)

Figure 57 shows this discrete time integration, or accumulation. The active power signal in the waveform register is continuously added to the internal active energy register. This addition is a signed addition; therefore, negative energy is subtracted from the active energy contents. The exception to this is when POAM is selected in the MODE[15:0] register, in which case only positive energy contributes to the active energy accumulation— see the Positive-Only Accumulation Mode section.

The output of the multiplier is divided by WDIV. If the value in the WDIV register is equal to 0, then the internal active energy register is divided by 1. WDIV is an 8-bit, unsigned register. After dividing by WDIV, the active energy is accumulated in a 49-bit internal energy accumulation register. The upper 24 bits of this register are accessible through a read to the active energy register (AENERGY[23:0]). A read to the RAENERGY register returns the content of the AENERGY register, and the upper 24 bits of the internal register are cleared. As shown in Figure 57, the active power signal is accumulated in an internal 49-bit, signed register. The active power signal can be read from the waveform register by setting MODE[14:13] = 0, 0 and setting

Rev. A | Page 27 of 56

0x40 0000

0x80 0000

Figure 58. Energy Register Rollover Time for Full-Scale Power

(Minimum and Maximum Power Gain)

04481-A-059

Note that the energy register contents roll over to full-scale negative (0x80 0000) and continue increasing in value when the power or energy flow is positive—see Figure 58. Conversely, if the power was negative, the energy register would underflow to full-scale positive (0x7F FFFF) and continue decreasing in value.

By using the interrupt enable register, the ADE7763 can be configured to issue an interrupt (

) when the active energy

IRQ

ADE7763

www.BDTIC.com/ADI

Integration Time under Steady Load

As mentioned in the last section, the discrete time sample period (

T) for the accumulation register is 1.1 µs (4/CLKIN).

With full-scale sinusoidal signals on the analog inputs and the WGAIN register set to 0x000, the average word value from each LPF2 is 0xC CCCD—see Figure 53. The maximum positive value that can be stored in the internal 49-bit register before it overflows is 2

, or 0xFFFF FFFF FFFF. The integration time

under these conditions with WDIV = 0 is calculated as follows:

Time = min26.6s8.375s12.1

FFFF FFFF 0xFFFF

CCCD 0xC

==µ× (15)

When WDIV is set to a value other than 0, the integration time varies, as shown in Equation 16.

Time = Time

× WDIV (16)

WDIV = 0

POWER OFFSET CALIBRATION

The ADE7763 incorporates an active power offset register (APOS[15:0]). This is a signed, twos complement, 16-bit register that can be used to remove offsets in the active power calculation—see Figure 57. An offset could exist in the power calculation due to crosstalk between channels on the PCB or in the IC itself. The offset calibration allows the contents of the active power register to be maintained at 0 when no power is being consumed.

The 256 LSBs (APOS = 0x0100) written to the active power offset register are equivalent to 1 LSB in the waveform sample register. Assuming the average value output from LPF2 is 0xC CCCD (838,861d) when inputs on Channels 1 and 2 are both at full scale. At −60 dB down on Channel 1 (1/1000 of the Channel 1 full-scale input), the average word value output from LPF2 is 838.861 (838,861/1,000). One LSB in the LPF2 output has a measurement error of 1/838.861 × 100% = 0.119% of the average value. The active power offset register has a resolution equal to 1/256 LSB of the waveform register; therefore, the power offset correction resolution is 0.00047%/LSB (0.119%/256) at –60 dB.

ENERGY-TO-FREQUENCY CONVERSION

The ADE7763 provides energy-to-frequency conversion for calibration purposes. After initial calibration at manufacturing, the manufacturer or end customer often verifies the energy meter calibration. One convenient way to verify the meter calibration is for the manufacturer to provide an output frequency, which is proportional to the energy or active power under steady load conditions. This output frequency can provide a simple, singlewire, optically isolated interface to external calibration equipment. Figure 59 illustrates the energy-to-frequency conversion.

CFNUM[11:0]

11 0

DFC

AENERGY[48:0]

Figure 59. Energy-to-Frequency Conversion

11 0

CFDEN[11:0]

04481-A-060

A digital-to-frequency converter (DFC) is used to generate the CF pulsed output. The DFC generates a pulse each time 1 LSB in the active energy register is accumulated. An output pulse is generated when (CFDEN + 1)/(CFNUM + 1) number of pulses are generated at the DFC output. Under steady load conditions, the output frequency is proportional to the active power.

The maximum output frequency, with ac input signals at full scale, CFNUM = 0x00, and CFDEN = 0x00, is approximately 23 kHz.

There are two unsigned, 12-bit registers, CFNUM[11:0] and CFDEN[11:0], that can be used to set the CF frequency to a wide range of values. These frequency-scaling registers are 12-bit registers that can scale the output frequency by 1/2

step of 1/2

to 1 with a

If the value 0 is written to any of these registers, the value 1 will be applied to the register. The ratio (CFNUM + 1)/(CFDEN + 1) should be smaller than 1 to ensure proper operation. If the ratio of the registers (CFNUM + 1)/(CFDEN + 1) is greater than 1, the register values will be adjusted to a ratio (CFNUM + 1)/ (CFDEN + 1) of 1. For example, if the output frequency is

1.562 kHz while the contents of CFDEN are 0 (0x000), then the output frequency can be set to 6.1 Hz by writing 0xFF to the CFDEN register.

When CFNUM and CFDEN are both set to one, the CF pulse width is fixed at 16 CLKIN/4 clock cycles, approximately 18 µs with a CLKIN of 3.579545 MHz. If the CF pulse output is longer than 180 ms for an active energy frequency of less than 5.56 Hz, the pulse width is fixed at 90 ms. Otherwise, the pulse width is 50% of the duty cycle.

The output frequency has a slight ripple at a frequency equal to twice the line frequency. This is due to imperfect filtering of the instantaneous power signal to generate the active power signal— see the Active Power Calculation section. Equation 8 gives an expression for the instantaneous power signal. This is filtered by LPF2, which has a magnitude response given by Equation 17.

fH+=

)(

(17)

9.8

Rev. A | Page 28 of 56

ADE7763

www.BDTIC.com/ADI

The active power signal (output of LPF2) can be rewritten as

⎡ ⎢ ⎢

)(

VItp

−=

fL is the line frequency, for example, 60 Hz.

where

⎢ ⎢

⎛

⎢

⎜ ⎝

⎢

⎣

⎤ ⎥ ⎥

)4cos(

⎥

⎞

⎥

⎟

9.8

⎠

⎥

⎦

(18)

From Equation 13,

⎡ ⎢

)(

VIttE

−=

⎢ ⎢ ⎢ ⎢

⎣

⎢

⎛

⎜

⎝

⎤ ⎥ ⎥

)4sin(

⎥

⎞

⎥

⎟

9.8

⎠

⎥

⎦

(19)

contribute to the energy calculation over time. However, the ripple might be observed in the frequency output, especially at higher output frequencies. The ripple becomes larger as a percentage of the frequency at larger loads and higher output frequencies. This occurs because the integration or averaging time in the energy-to-frequency conversion process is shorter at higher output frequencies. Consequently, some of the sinusoidal ripple in the energy signal is observable in the frequency output. Choosing a lower output frequency at CF for calibration can significantly reduce the ripple. Also, averaging the output frequency by using a longer gate time for the counter achieves the same results.

E(t)

Vlt

Note that in Equation 19 there is a small ripple in the energy calculation due to a sin(2ωt) component. This is shown graphically in Figure 60. The active energy calculation is represented by the dashed, straight line and is equal to V × I × t. The sinusoidal ripple in the active energy calculation is also shown. Because the average value of a sinusoid is 0, the ripple does not

WGAIN[11:0]

OUTPUT

FROM

LPF2

FROM

CHANNEL 2

ADC

LPF1

ZERO CROSSING

DETECTION

Figure 61. Energy Calculation Line Cycle Energy Accumulation Mode

WDIV[7:0]APOS[15:0]

CALIBRATION

LINECYC[15:0]

CONTROL

–

Figure 60. Output Frequency Ripple

48 0

23 0

LAENERGY[23:0]

4×π×f

(1+2×fL/8.9Hz)

ACCUMULATE ACTIVE ENERGY IN INTERNAL REGISTER AND UPDATE THE LAENERGY REGISTER AT THE END OF LINECYC LINE CYCLES

sin(4×π×f

×t)

04481-0-061

04481-A-062

Rev. A | Page 29 of 56

ADE7763

www.BDTIC.com/ADI

LINE CYCLE ENERGY ACCUMULATION MODE

In line cycle energy accumulation mode, the energy accumulation of the ADE7763 can be synchronized to the Channel 2 zero crossing so that active energy accumulates over an integral number of half line cycles. The advantage of summing the active energy over an integral number of line cycles is that the sinusoidal component in the active energy is reduced to 0. This eliminates ripple in the energy calculation. Energy is calculated more accurately and in a shorter time because the integration period is shortened. By using the line cycle energy accumulation mode, the energy calibration can be greatly simplified, and the time required to calibrate the meter can be significantly reduced. The ADE7763 is placed in line cycle energy accumulation mode by setting Bit 7 (CYCMODE) in the mode register. In line cycle energy accumulation mode, the ADE7763 accumulates the active power signal in the LAENERGY register (Address 0x04) for an integral number of line cycles, as shown in Figure 61. The number of half line cycles is specified in the LINECYC register (Address 0x1C). The ADE7763 can accumulate active power for up to 65,535 half line cycles. Because the active power is integrated on an integral number of line cycles, the CYCEND flag in the interrupt status register is set (Bit 2) at the end of a line cycle energy accumulation cycle. If the CYCEND enable bit in the interrupt enable register is enabled, the

will go active low. Therefore, the

line can also be used to

IRQ signal the completion of the line cycle energy accumulation. Another calibration cycle can start as long as the CYCMODE

bit in the mode register is set.

output also

IRQ

Note that in this mode, the 16-bit LINECYC register can hold a maximum value of 65,535. In other words, the line energy accumulation mode can be used to accumulate active energy for a maximum duration of 65,535 half line cycles. At 60 Hz line frequency, this translates to a total duration of 65,535/ 120 Hz = 546 seconds.

POSITIVE-ONLY ACCUMULATION MODE

In positive-only accumulation mode, the energy accumulation is only done for positive power, ignoring any occurrence of negative power above or below the no-load threshold, as shown in Figure 62. The CF pulse also reflects this accumulation method when in this mode. Positive-only accumulation mode is activated by setting the MSB of the mode register (MODE[15]). The default setting for this mode is off. Transitions in the direction of power flow, going from negative to positive or positive to negative, set the

and PNEG bits are set in the interrupt enable register. The corresponding PPOS and PNEG bits in the interrupt status register show which transition has occurred—see the register descriptions in Table 9.

CTIVE ENERG

pin to active low if the PPOS

IRQ

From Equations 13 and 18,

⎛ ⎜

⎝

⎫ ⎪

nTnT

⎪

⎬

⎪

⎞ ⎟

⎪

9.8

⎪

⎠

⎭

∫∫

(20)

dttf

)2cos(

⎧ ⎪ ⎪

⎪

)(

dtVItE

−=

⎨

⎪

⎪ ⎪

⎩

where:

n is an integer. T is the line cycle period.

Since the sinusoidal component is integrated over an integral number of line cycles, its value is always 0. Therefore,

(21)

+=nTVIdtE

∫

tVInT=

()

(22)

NO-LOAD

THRESHOLD

ACTIVE POWER

NO-LOAD

THRESHOLD

IRQ

PPOS PNEGPNEG

INTERRUPT STATUS REGISTERS

Figure 62. Energy Accumulation in Positive-Only Accumulation Mode

PNEGPPOSPPOS

04481-A-063

NO-LOAD THRESHOLD

The ADE7763 includes a no-load threshold feature on the active energy that eliminates any creep effects in the meter. This is accomplished because energy does not accumulate if the multiplier output is below the no-load threshold. This threshold is 0.001% of the full-scale output frequency of the multiplier. Compare this value to the IEC1036 specification, which states that the meter must start up with a load equal to or less than

. This standard translates to 0.0167% of the full-scale

0.4% I

output frequency of the multiplier.

Rev. A | Page 30 of 56

ADE7763

www.BDTIC.com/ADI

APPARENT POWER CALCULATION

The apparent power is the maximum power that can be delivered to a load. V current delivered to the load; the apparent power (AP) is defined as V

rms

× I the apparent power generally represents the phase shift due to nonresistive loads. For single-phase applications, θ represents the angle between the voltage and the current signals—see Figure 63. Equation 24 gives an expression of the instantaneous power signal in an ac system with a phase shift.

REACTIVE

POWER

() 2 sin( )

vt V t

() 2 sin( )

it I t

rms

and I

rms

. The angle θ between the active power and

rms

Figure 63. Power Triangle

rms

)()()( titvtp ×=

are the effective voltage and

rms

APPARENT POWER

ACTIVE POWER

04481-A-064

(23)

The gain of the apparent energy can be adjusted by using the multiplier and VAGAIN register (VAGAIN[11:0]). The gain is adjusted by writing a twos complement, 12-bit word to the VAGAIN register. Equation 25 shows how the gain adjustment is related to the contents of the VAGAIN register.

⎛ ⎜

⎜ ⎝

PowerApparentINOutputVAGA

⎧

+×=

⎨ ⎩

VAGAIN

⎞

⎫

⎟

(25)

⎬

⎟

⎭

⎠

For example, when 0x7FF is written to the VAGAIN register, the power output is scaled up by 50%. 0x7FF = 2047d, 2047/2

= 0.5. Similarly, 0x800 = –2047d (signed, twos complement) and power output is scaled by –50%. Each LSB represents 0.0244% of the power output. The apparent power is calculated with the current and voltage rms values obtained in the rms blocks of the ADE7763. Figure 65 shows the maximum code (hexadecimal) output range of the apparent power signal. Note that the output range changes depending on the contents of the apparent power gain registers. The minimum output range is given when the apparent power gain register content is equal to 0x800; the maximum range is given by writing 0x7FF to the apparent power gain register. This can be used to calibrate the apparent power (or energy) calculation in the ADE7763.

APPARENT POWER 100%FS

APPARENT POWER 150% FS

APPARENT POWER 50% FS

)2cos()cos()(

θωθ

+−= tIVIVtp

(24)

The apparent power is defined as

rmsrmsrmsrms

× I

rms

. This expression is

rms

independent from the phase angle between the current and the voltage.

Figure 64 illustrates the signal processing in each phase for the calculation of the apparent power in the ADE7763.

RMS

CURRENT RMS SIGNAL – i(t)

0x1C 82B3

0x00

RMS

VOLTAGERMSSIGNAL– v(t)

0x17 D338

0x00

Figure 64. Apparent Power Signal Processing

MULTIPLIER

VAGAIN

APPARENT POWER

SIGNAL(P)

0xA D055

0x10 3880

0xA D055 0x5 682B

0x0 0000

Figure 65. Apparent Power Calculation Output Range

0x000 0x7FF 0x800

{VAGAIN[11:0]}

APPARENT POWER

CALIBRATION RANGE,

VOLTAGE AND CURRENT

CHANNEL INPUTS: 0.5V/GAIN

04481-A-066

Apparent Power Offset Calibration

Each rms measurement includes an offset compensation register to calibrate and eliminate the dc component in the rms value—see the Channel 1 RMS Calculation and Channel 2 RMS Calculation sections. The Channel 1 and Channel 2 rms values are then multiplied together in the apparent power signal

04481-A-065

processing. Because no additional offsets are created in the multiplication of the rms values, there is no specific offset compensation in the apparent power signal processing. The offset compensation of the apparent power measurement is done by calibrating each individual rms measurement.

Rev. A | Page 31 of 56

ADE7763

www.BDTIC.com/ADI

APPARENT ENERGY CALCULATION

The apparent energy is given as the integral of the apparent power.

= dttPowerApparentEnergyApparent )(

∫

The ADE7763 achieves the integration of the apparent power signal by continuously accumulating the apparent power signal in an internal 49-bit register. The apparent energy register (VAENERGY[23:0]) represents the upper 24 bits of this internal register. This discrete time accumulation or summation is equivalent to integration in continuous time. Equation 29 expresses this relationship.

∞

⎧

⎪ ⎨

∑

⎪

=→0

⎩

where:

n is the discrete number of time samples. T is the time sample period.

The discrete time sample period (

T) for the accumulation

Figure 66 shows this discrete time integration or accumulation. The apparent power signal is continuously added to the internal register. This addition is a signed addition, even if the apparent energy always remains positive in theory.

The 49 bits of the internal register are divided by VADIV. If the value in the VADIV register is 0, then the internal active energy register is divided by 1. VADIV is an 8-bit, unsigned register. The upper 24 bits are then written in the 24-bit apparent energy register (VAENERGY[23:0]). RVAENERGY register (24 bits long) is provided to read the apparent energy. This register is reset to 0 after a read operation.

Figure 67 shows this apparent energy accumulation for fullscale signals (sinusoidal) on the analog inputs. The three curves illustrate the minimum time for the energy register to roll over when the VAGAIN registers content is equal to 0x7FF, 0x000, and 0x800. The VAGAIN register is used to carry out an apparent power calibration. As shown in the figure, the fastest integration time occurs when the VAGAIN register is set to maximum full scale, i.e., 0x7FF.

(26)

⎫

⎪

(27)

)(

TnTPowerApparentLimEnergyApparent

×=

⎬ ⎪

⎭

VAENERGY[23:0]

23 0

48 0

VADIV

APPARENT POWER

VAENERGY[23:0]

xFF FFFF

0x80 0000

0x40 0000

0x20 0000

0x00 0000

Figure 67. Energy Register Rollover Time for Full-Scale Power

48 0

ACTIVEPOWER

SIGNAL= P

TIME (nT)

Figure 66. Apparent Energy Calculation

6.26 12.52 18.78 25.04

(Maximum and Minimum Power Gain)

APPARENT POWER IS ACCUMULATED(INTEGRATED) IN THEAPPARENT ENER GYREGISTER

VAGAIN = 0x7FF VAGAIN = 0x000 VAGAIN = 0x800

TIME

(minutes)

04481-A-067

Note that the apparent energy register is unsigned—see Figure

67. By using the interrupt enable register, the ADE7763 can be configured to issue an interrupt (

) when the apparent energy

IRQ

register is more than half full or when an overflow occurs. The half full interrupt for the unsigned apparent energy register is based on 24 bits, as opposed to 23 bits for the signed active energy register.

04481-A-068

Rev. A | Page 32 of 56

ADE7763

www.BDTIC.com/ADI

Integration Times under Steady Load

As mentioned in the last section, the discrete time sample period (

T) for the accumulation register is 1.1 µs (4/CLKIN).

With full-scale sinusoidal signals on the analog inputs and the VAGAIN register set to 0x000, the average word value from the apparent power stage is 0xA D055. The maximum value that can be stored in the apparent energy register before it overflows

or 0xFF FFFF. The average word value is added to the

is 2 internal register, which can store 2

or 0xFFFF FFFF FFFF before it overflows. Therefore, the integration time under these conditions with VADIV = 0 is calculated as follows:

FFFF FFFF 0xFFFF

0xAD055

min52.128882.1

==µ×= ssTime (28)

When VA DI V is set to a value other than 0, the integration time varies, as shown in Equation 29.

Time = Ti me

× VA DI V (29)

WDIV = 0

LINE APPARENT ENERGY ACCUMULATION

The ADE7763 is designed with a special apparent energy accumulation mode, which simplifies the calibration process. By using the on-chip zero-crossing detection, the ADE7763 accumulates the apparent power signal in the LVAENERGY

register for an integral number of half cycles, as shown in Figure 68. The line apparent energy accumulation mode is always active.

The number of half line cycles is specified in the LINECYC register, which is an unsigned, 16-bit register. The ADE7763 can accumulate apparent power for up to 65,535 combined half cycles. Because the apparent power is integrated on the same integral number of line cycles as the line active energy register, these two values can be easily compared. The active and apparent energies are calculated more accurately because of this precise timing control. At the end of an energy calibration cycle, the CYCEND flag in the interrupt status register is set. If the CYCEND mask bit in the interrupt mask register is enabled, the

output also will go active low. Thus, the

IRQ

line can also

IRQ

be used to signal the end of a calibration.

The line apparent energy accumulation uses the same signal path as the apparent energy accumulation. The LSB size of these two registers is equivalent.

48 0

23 0

LVAENERGY[23:0]

LVAENERGY REGISTER IS UPDATED EVERY LINECYC ZERO CROSSINGS WITH THE TOTAL APPARENT ENERGY DURING THAT DURATION

04481-A-069

FROM

CHANNEL 2

ADC

LPF1

APPARENT

POWER

ZERO-CROSSING

DETECTION

VADIV[7:0]

CALIBRATION

CONTROL

LINECYC[15:0]

Figure 68. Apparent Energy Calibration

Rev. A | Page 33 of 56

ADE7763

www.BDTIC.com/ADI

ENERGIES SCALING

The ADE7763 provides measurements of active and apparent energies. These measurements do not have the same scaling and therefore cannot be compared directly to each other.

Table 7. Energies Scaling

PF = 1 PF = 0.707 PF = 0

Integrator on at 50 Hz

Active Wh Wh × 0.707 0 Apparent Wh × 0.848 Wh × 0.848 Wh × 0.848

Integrator off at 50 Hz

Active Wh Wh × 0.707 0 Apparent Wh × 0.848 Wh × 0.848 Wh × 0.848

Integrator on at 60 Hz

Active Wh Wh × 0.707 0 Apparent Wh × 0.827 Wh × 0.827 Wh × 0.827

Integrator off at 60 Hz

Active Wh Wh × 0.707 0 Apparent Wh × 0.827 Wh × 0.827 Wh × 0.827

CALIBRATING AN ENERGY METER

The ADE7763 provides gain and offset compensation for active and apparent energy calibration. Its phase compensation corrects phase error in active and apparent energy. If a shunt is used, offset and phase calibration may not be required. A reference meter or an accurate source can be used to calibrate the ADE7763.

When using a reference meter, the ADE7763 calibration output frequency, CF, is adjusted to match the frequency output of the reference meter. A pulse output is only provided for the active energy measurement in the ADE7763. If a reference meter is

used to calibrate the VA, then additional code must be written in a microprocessor to produce a pulsed output for this quantity. Otherwise, VA calibration requires an accurate source.

The ADE7763 provides a line cycle accumulation mode for calibration using an accurate source. In this method, the active energy accumulation rate is adjusted to produce a desired CF frequency. The benefit of using this mode is that the effect of the ripple noise on the active energy is eliminated. Up to 65,535 half line cycles can be accumulated, therefore providing a stable energy value to average. The accumulation time is calculated from the line cycle period, measured by the period register, and the number of half line cycles in the accumulation, fixed by the LINECYC register.

Current and voltage rms offset calibration removes apparent energy offset. A gain calibration is also provided for apparent energy. Figure 70 shows an optimized calibration flow for active energy, rms, and apparent energy.

Active and apparent energy gain calibrations can take place concurrently, with a read of the accumulated apparent energy register following that of the accumulated active energy register.

Figure 69 shows the calibration flow for the active energy portion of the ADE7763.

WATT GAIN CALIBRATION WATT OFFSET CALIBRATION PHASE CALIBRATION

Figure 69. Active Energy Calibration

04481-A-083

WATT/VA GAIN CALIBRATION

RMS CALIBRATION PHASE CALIBRATION

Figure 70. Apparent and Active Energy Calibration

Rev. A | Page 34 of 56

WATT OFFSET CALIBRATION

04481-A-084

ADE7763

www.BDTIC.com/ADI

Watt Gain

The first step of calibrating the gain is to define the line voltage, the base current, and the maximum current for the meter. A meter constant, such as 3200 imp/kWh or 3.2 imp/Wh, needs to be determined for CF. Note that the line voltage and the maximum current scale to half of their respective analog input ranges in this example.

The expected CF in Hz is

(Hz) =

expected

LoadantMeterConst

s/h3600

)W()imp/Wh(

(30)

)cos(

ϕ×

where:

is the angle between I and V.

)(ϕ

cos is the power factor.

The ratio of active energy LSBs per CF pulse is adjusted using the CFNUM, CFDEN, and WDIV registers.

)1(

expected

LAENERGY

onTimeAccumulati

CFNUM

××

WDIV

(s) +

CFDEN

(31)

)1(

The relationship between watt-hours accumulated and the quantity read from AENERGY can be determined from the amount of active energy accumulated over time with a given load:

)((W)

LSB

LAENERGY

sTimeonAccumulatiLoad

s/h3600

(32)

where Accumulation Time can be determined from the value in the line period and the number of half line cycles fixed in the LINECYC register.

Accumulation time(s) =

)(sPeriodLineLINECYC

(33)

The line period can be determined from the period register:

The WGAIN register is used to finely calibrate each meter. Calibrating the WGAIN register changes both CF and AENERGY for a given load condition.

AENERGY

(Hz) = CF

expected

= AENERGY

expected

nominal

CFNUM

CFDEN

⎛

⎜ ⎝

)1(

⎛

⎜ ⎝

+×

⎞

(36)

⎟ ⎠

WGAIN

⎞ ⎟ ⎠

WGAIN

(37)

When calibrating with a reference meter, WGAIN is adjusted until CF matches the reference meter pulse output. If an accurate source is used to calibrate, WGAIN will be modified until the active energy accumulation rate yields the expected CF pulse rate.

The steps of designing and calibrating the active energy portion of a meter with either a reference meter or an accurate source are outlined in the following examples. The specifications for this example are

Meter Constant: MeterConstant(imp/Wh) = 3.2 Base Current: I Maximum Current: I Line Voltage: V Line Frequency: f

= 10 A

= 60 A

MAX

= 220 V

nominal

= 50 Hz

The first step in calibration with either a reference meter or an accurate source is to calculate the CF denominator, CFDEN. This is done by comparing the expected CF pulse output to the nominal CF output with the default CFDEN = 0x3F and CFNUM = 0x3F when the base current is applied.

The expected CF output for this meter with the base current applied is 1.9556 Hz using Equation 30.

IB(expected)

(Hz) =

V220A10imp/Wh200.3

××

s/h3600

=ϕ×

Hz9556.1)cos(

Line Period(s) = PERIOD ×

CLKIN

(34)

The AENERGY Wh/LSB ratio can also be expressed in terms of the meter constant:

LSB

CFNUM

CFDEN

)1(

(imp/Wh)

antMeterConst

WDIV

(35)

In a meter design, WDIV, CFNUM, and CFDEN should be kept constant across all meters to ensure that the Wh/LSB constant is maintained. Leaving WDIV at its default value of 0 ensures maximum resolution. The WDIV register is not included in the CF signal chain, so it does not affect the frequency pulse output.

Rev. A | Page 35 of 56

Alternatively, CF

can be measured from a reference meter

expected

pulse output.

expected

(Hz) = CF

ref

(38)

The maximum CF frequency measured without any frequency division and with ac inputs at full scale is 23 kHz. For this example, the nominal CF with the test current, I

, applied is

958 Hz. In this example the line voltage and maximum current scale half of their respective analog input ranges. The line voltage and maximum current should not be fixed at the maximum analog inputs to account for occurrences such as spikes on the line.

ADE7763

www.BDTIC.com/ADI

(Hz) =

nominal

(Hz) = Hz958

IB(nominal)

kHz23

kHz23 =×××

The nominal CF on a sample set of meters should be measured using the default CFDEN, CFNUM, and WDIV to ensure that the best CFDEN is chosen for the design.

With the CFNUM register set to 0, CFDEN is calculated to be 489 for the example meter:

⎛

nominalIB

CFDEN =

⎜

INT (40)

⎜

expectedIB

⎝

958

INT

⎛ ⎜ ⎝

⎞ ⎟

9556.1

⎠

This value for CFDEN should be loaded into each meter before calibration. The WGAIN register can then be used to finely calibrate the CF output. The following sections explain how to calibrate a meter based on ADE7763 when using a reference meter or an accurate source.

Calibrating Watt Gain Using a Reference Meter Example

The CFDEN and CFNUM values for the design should be written to their respective registers before beginning the calibration steps shown in Figure 71. When using a reference meter, the percent error in CF is measured by comparing the CF output of the ADE7763 meter with the pulse output of the reference meter, using the same test conditions for both meters. Equation 41 defines the percent error with respect to the pulse outputs of both meters (using the base current, I

%ERROR

CF(IB)

−

CFCF

CALCULATE CFDEN VALUE FOR DESIGN

WRITE CFDEN VALUE TO CFDEN REGISTER

Figure 71. Calibrating Watt Gain Using a Reference Meter

ADDR. 0x15 = CFDEN

SET I

= Ib, V

TEST

MEASURE THE % ERROR BETWEEN

THE CF OUTPUT AND THE

REFERENCE METER OUTPUT

CALCULATE WGAIN. SEE EQUATION 42.

WRITE WGAIN VALUE TO THE WGAIN

TEST

×××

⎞

)(

⎟

−

⎟

)(

⎠

)(

IBref

)(

IBref

= V

NOM

(39)

MAX

489)1490(1

=−=−

100

(41)

, PF = 1

04481-A-085

For this example:

Meter Constant: MeterConstant(imp/Wh) = 3.2 CF Numerator: CFNUM = 0 CF Denominator: CFDEN = 489 %ERROR Measured at Base Current: %ERROR

= −3.07%

CF(IB)

One LSB change in WGAIN changes the active energy registers and CF by 0.0244%. WGAIN is a signed, twos complement register and can correct up to a 50% error. Assuming a −3.07% error, WGAIN is 126:

WGAIN = INT

⎛ ⎜

⎜ ⎝

−

⎛ ⎜ ⎝

−

ERROR

−

%07.3

%0244.0

⎞

)( IBCF

⎟

(42)

⎟

%0244.0

⎠

⎞

126

⎟ ⎠

When CF is calibrated, the AENERGY register has the same Wh/LSB constant from meter to meter if the meter constant, WDIV, and the CFNUM/CFDEN ratio remain the same. The Wh/LSB ratio for this meter is 6.378 × 10

−4

using Equation 35

with WDIV at the default value.

)1(

(imp/Wh)

antMeterConst

WDIV

LSB

CFNUM

CFDEN

LSB

imp/Wh200.3

2.3490

−

10378.6

×=

)1490(

Calibrating Watt Gain Using an Accurate Source Example

The CFDEN value calculated using Equation 40 should be written to the CFDEN register before beginning calibration and zero should be written to the CFNUM register. Enable the line accumulation mode and the line accumulation interrupt. Then, write the number of half line cycles for the energy accumulation to the LINECYC register to set the accumulation time. Reset the interrupt status register and wait for the line cycle accumulation interrupt. The first line cycle accumulation results might not use the accumulation time set by the LINECYC register and, therefore, should be discarded. After resetting the interrupt status register, the following line cycle readings will be valid. When LINECYC half line cycles have elapsed, the

IRQ

pin goes

active low and the nominal LAENERGY with the test current applied can be read. This LAENERGY value is compared to the expected LAENERGY value to determine the WGAIN value. If apparent energy gain calibration is performed at the same time, LVAENERGY can be read directly after LAENERGY. Both registers should be read before the next interrupt is issued on

pin. Figure 72 details steps to calibrate the watt gain

the

IRQ

using an accurate source.

Rev. A | Page 36 of 56

ADE7763

www.BDTIC.com/ADI

CALCULATE CFDEN VALUE FOR DESIGN

WRITE CFDEN VALUE TO CFDEN REGISTER

ADDR. 0x15 = CFDEN

SET I

= Ib, V

TEST

= V

NOM

, PF = 1

LAENERGY

⎛ ⎜

⎜

INT

⎜ ⎜

⎜ ⎝

IB(expected)

expectedIB

CFNUM

CFDEN

⎞ ⎟

)(

WDIV

(s)

TimeonAccumulatiCF

⎟

(44)

⎟ ⎟

⎟ ⎠

SET HALF LINE CYCLES FOR ACCUMULATION

IN LINECYC REGISTER ADDR. 0x1C

SET MODE FOR LINE CYCLE

ACCUMULATION ADDR. 0x09 = 0x0080

ENABLE LINE CYCLE ACCUMULATION

INTERRUPT ADDR. 0x0A = 0x04

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

INTERRUPT?

YES

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

INTERRUPT?

YES

READ LINE ACCUMULATION ENERGY

ADDR. 0x04

where CF

(Hz) is calculated from Equation 30,

IB(expected)

accumulation time is calculated from Equation 33, and the line period is determined from the period register according to Equation 34.

For this example:

Meter Constant: MeterConstant(imp/Wh) = 3.2 Test Cu rr e nt: I Line Voltage: V Line Frequency: f Half Line Cycles: LINECYC

= 10 A

= 220 V

nominal

= 50 Hz

= 2000

CF Numerator: CFNUM = 0 CF Denominator: CFDEN = 489 Energy Reading at Base Current: LAENERGY

IB (nominal)

= 17174

Period Register Reading: PERIOD = 8959 Clock Frequency: CLKIN = 3.579545 MHz

is calculated to be 1.9556 Hz according to Equation 30.

expected

LAENERGY

IB(expected)

is calculated to be 19186 using Equation 44.

expected

(Hz) =

××

A10V220imp/Wh200.3

s/h3600

= 1.9556 Hz

)cos(

ϕ×

CALCULATE WGAIN. SEE EQUATION 43.

WRITE WGAIN VALUE TO THE WGAIN

Figure 72. Calibrating Watt Gain Using an Accurate Source

04481-A-086

Equation 43 describes the relationship between the expected LAENERGY value and the LAENERGY measured in the test condition:

WGAIN = INT

LAENERGY

⎜

LAENERGY

⎝

)(

expectedIB

−

)(

nominalIB

⎛

The nominal LAENERGY reading, LAENERGY

⎞

⎟

× ⎟ ⎠

IB(nominal)

⎞ ⎟

(43)

⎟ ⎠

, is the LAENERGY reading with the test current applied. The expected LAENERGY reading is calculated from the following equation:

Rev. A | Page 37 of 56

LAENERGY INT

⎛ ⎜

⎜ ⎜ ⎜

⎜ ⎝

LAENERGY

INT

IB(expected)

⎞

/82/

×××

××××

WDIV

expectedIB

)(

CFNUM

CFDEN

IB(expected)

⎛ ⎜

⎜ ⎜ ⎜ ⎝

19186)4.19186(

1489

⎟

CLKINPERIODLINECYCCF

⎟ ⎟ ⎟

⎟ ⎠

⎞ ⎟

)10579545.3/(889592/20009556.1

⎟

⎟ ⎟ ⎠

ADE7763

www.BDTIC.com/ADI

WGAIN is calculated to be 480 using Equation 43.

SET I

TEST

= I

MIN

, V

= V

NOM

, PF = 1

TEST

WGAIN = INT

⎛

⎜

⎜ ⎝

⎝

19186

−

17174

⎞

48021

⎟

⎟ ⎠

⎠

Note that WGAIN is a signed, twos complement register.

WDIV and CFNUM set to 0, LAENERGY can be

With expressed as

LAENERGY

expectedIB

IB(expected)

)(

×××× CFDENCLKINPERIODLINECYCCFINT

The calculated Wh/LSB ratio for the active energy register, using Equation 35 is 6.378 × 10

−4

LSB

imp/Wh200.3

−

10378.6

×=

)1489(

Watt Offset

Offset calibration allows outstanding performance over a wide dynamic range, for example, 1000:1. To do this calibration two measurements are needed at unity power factor, one at I

and

the other at the lowest current to be corrected. Either calibration frequency or line cycle accumulation measurements can be used to determine the energy offset. Gain calibration should be performed prior to offset calibration.

Offset calibration is performed by determining the active energy error rate. After determining the active energy error rate, calculate the value to write to the APOS register to correct the offset.

MEASURE THE % ERROR BETWEEN THE

CF OUTPUT AND THE REFERENCE METER

OUTPUT, AND THE LOAD IN WATTS

CALCULATE APOS. SEE EQUATION 45.

WRITE APOS VALUE TO THE APOS

))1(/82/(

Figure 73. Calibrating Watt Offset Using a Reference Meter

For this example:

Meter Constant: Minimum Current: Load at Minimum Current: CF Error at Minimum Current: % CF Numerator: CF Denominator: C Clock Frequency: C

Using Equation 45 ,

APOS is −522 for this example.

CF Absolute Error = CF

CF Absolute Error

ERROR

CF(IMIN)

) × W

CF Absolute Error =

%3.1

⎛

⎞

⎜

⎟

100

⎝

⎠

200.3

6.9 3600

MeterConstant(imp/Wh) = 3.2 I

= 40 mA

MIN

= 9.6 W

IMIN

ERROR

CF(IMIN)

CFNUM = 0

DEN = 489 KIN = 3.579545 MHz

− CF

IMIN(expected)

(imp/Wh)antMeterConst

3600

Hz000110933.0

IMIN(nominal)

IMIN

=××

04481-A-087

= 1.3%

(46)

(47)

2×

(45)

APOS = −

RateErrorAENERGY

CLKIN

The AENERGY registers update at a rate of CLKIN/4. The twos complement APOS register provides a fine adjustment to the active power calculation. It represents a fixed amount of power offset to be adjusted every CLKIN/4. The 8 LSBs of the APOS register are fractional such that one LSB of APOS represents 1/256 of the least significant bit of the internal active energy register. Therefore, one LSB of the APOS register represents 2

−33

of the AENERGY[23:0] active energy register.

See the following sections for steps to determine the active energy error rate for both line accumulation and reference meter calibration options.

Calibrating Watt Offset Using a Reference Meter Example

Figure 73 shows the steps involved in calibrating watt offset with a reference meter.

Rev. A | Page 38 of 56

Then,

AENERGY Error Rate (LSB/s) =

CF Absolute Error ×

CFDEN

CFNUM

(48)

11+

AENERGY Error Rate (LSB/s) =

0.000110933 ×

490

05436.0

Using Equation 45, APOS is −522.

205436.0

APOS = −

10579545.3

522

−=

APOS can be represented as follows with CFNUM and WDIV set at 0:

APOS =

(imp/Wh)

CLKI

antMeterConst

3600

CFDEN

2)1(

)(% ×+×××

WERROR

IMIN

−

IMINCF35)(

ADE7763

www.BDTIC.com/ADI

Calibrating Watt Offset with an Accurate Source Example

Figure 74 is the flowchart for watt offset calibration with an accurate source.

SET I

= I

, V

= V

TEST

MIN

TEST

SET HALF LINE CYCLES FOR ACCUMULATION

IN LINECYC REGISTER ADDR. 0x1C

SET MODE FOR LINE CYCLE

ACCUMULATION ADDR. 0x09 = 0x0080

NOM

, PF = 1

Number of Half Line Cycles used at Minimum Current: LINECYC

(IMIN)

= 35700 Active Energy Reading at Minimum Current: LAENERGY

at I

The LAENERGY

LAENERGY

⎛

MIN

⎜

INT

⎜

⎝

expected

IMIN(expected)

LAENERGY

is 1255 using Equation 49.

MIN

expectedIB

IMIN(nominal)

××

)(

= 1395

LINECYCI

LINECYC

MIN

⎞ ⎟

⎟ ⎠

(49)

ENABLE LINE CYCLE ACCUMULATION

INTERRUPT ADDR. 0x0A = 0x04

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

04481-A-088

INTERRUPT?

YES

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

INTERRUPT?

YES

READ LINE ACCUMULATION ENERGY

CALCULATE APOS. SEE EQUATION 45.

WRITE APOS VALUE TO THE APOS

Figure 74. Calibrating Watt Offset with an Accurate Source

ADDR. 0x04

For this example:

Meter Constant: MeterConstant(imp/Wh) = 3.2 Line Voltage: V Line Frequency: f

= 220 V

nominal

= 50 Hz

CF Numerator: CFNUM = 0 CF Denominator: CFDEN = 489 Base Current: I

= 10 A

Half Line Cycles Used at Base Current: LINECYC

= 2000

(IB)

Period Register Reading: PERIOD = 8959 Clock Frequency: CLKIN = 3.579545 MHz Expected LAENERGY Register Value at Base Current (from the Watt Gain section): LAENERGY Minimum Current: I

= 40 mA

MIN

IB(expected)

= 19186

LAENERGY

04.0

⎛

INT

⎜

⎝

IMIN(expected)

19186

××

35700

2000

⎞

INT

⎟ ⎠

1370)80.1369(

where:

LAENERGY

is the expected LAENERGY reading at Ib

IB(expected)

from the watt gain calibration.

LINECYC

accumulated over when measuring at I

is the number of half line cycles that energy is

IMIN

MIN

More line cycles could be required at the minimum current to minimize the effect of quantization error on the offset calibration. For example, if a test current of 40 mA results in an active energy accumulation of 113 after 2000 half line cycles, one LSB variation in this reading represents a 0.8% error. This measurement does not provide enough resolution to calibrate a <1% offset error. However, if the active energy is accumulated over 37,500 half line cycles, one LSB variation results in 0.05% error, reducing the quantization error.

APOS is −672 using Equations 55 and 49.

LAENERGY Absolute Error = LAENERGY

IMIN(nominal)

− LAENERGY

IMIN(expected)

LAENERGY Absolute Error = 1395 − 1370 = 25 (50)

AENERGY Error Rate (LSB/s) =

ErrorAbsoluteLAENERGY

LINECYC

CLKIN

82/

PERIOD

(51)

AENERGY Error Rate (LSB/s) =

89598

CLKIN

10579545.3

069948771.0

RateErrorAENERGY

2069948771.0 672

−=

10579545.3

2×

APOS = −

2/35700

Rev. A | Page 39 of 56

ADE7763

www.BDTIC.com/ADI

Phase Calibration

The PHCAL register is provided to remove small phase errors. The ADE7763 co time delay or advance on the voltage channel input. Phase leads up to 1.84° and phase lags up to 0.72° at 50 Hz can be corrected. The error is determined by measuring the active energy at I two power factors, PF = 1 and PF = 0.5 inductive.

Some CTs may introduce large phase errors that are beyond the range of the phase calibration register. In this case, coarse phase compensation has to be done externally with an analog filter.

mpensates for phase error by inserting a small

and

Calibrating Phase Using a Reference Meter Example

A power factor of 0.5 inductive can be assumed if the output rate of the reference meter is half of its PF r

pulse

= 1 ate.

Then, the percent error between CF and the pulse output o

r cathe reference mete n be used to perform the preceding

calculations.

SET I

= Ib, V

TEST

MEASURE THE % ERROR BETWEEN

THE CF OUTPUT AND THE

REFERENCE METER OUTPUT

TEST

= V

NOM

, PF = 0.5

The phase error can be obtained from either CF or LAENERGY measurements:

Error =

5.0,

PFIB

LAENERGY

LAENERGYLAENERGY −

)(

expectedIB

)(

expectedIB

(52)

If watt gain and offset calibration have been performed, there should be 0% error in CF at unity power factor, and then

Error = %ERROR

CF(IB,PF = 0.5)

/100 (53)

The phase error is

⎞

⎛

Error

⎟

Phase Error (°) = −Arcsin

⎜ ⎜ ⎝

(54)

⎟

⎠

The relationship between phase error and the PHCAL phase correction register is

PHCAL = INT

⎛

ErrorPhase

⎜ ⎝

()

PERIOD

⎞

0x0D (55)

⎟

°×°360

⎠

The expression for PHCAL can be simplified using the assumption that at small x

Arcsin(x) ≈ x

The delay introduce

Delay = (PHC CLKIN (56)

The delay associated with the PHCAL register i PHCAL − 0x0D is po iv ut represen quantity is negati . T re no time delay i

The phase correction is in the opposite dire

d in the voltage channel by PHCAL is

AL − 0x0D) × 8/

s a time delay if

sit e, b ts a time advance if this

ve he is f PHCAL = 0x0D.

ction of the

phase error.

Phase Correction (°) = − (PHCAL − 0x0D

)

PER

°×360

IOD

(57)

CALCULATE PHCAL. SEE EQUATION 55.

WRITE PHCAL VALUE TO THE PHCAL

Figure 75. Calibrating Phase Using a Reference Meter

04481-A-089

For this example:

CF %ERROR at PF = 0.5 Inductive: %ERROR

CF(IB,PF = 0.5)

= 0.215%

PERIOD Register Reading: PERIOD = 8959

Then PHCAL is 11 using Equations 57 through 59:

Error = 0.215%/100 = 0.00215

Phase Error (°) = −Arcsin

⎛

PHCAL = INT

07.0

⎜ ⎝

×°−

⎛ ⎜

⎜ ⎝

8959

360

⎞

00215.0 3

⎠

⎞

+0x0D = −2 + 13 = 11

⎟

⎠

°−=⎟⎟

07.0

PHCAL can be expressed as follows:

PHCAL =

INT

⎛ ⎜ ⎜

Arcsin

−

⎛ ⎜

⎜

ERROR

100%

⎞

⎟

⎟ ⎠⎝

PERIOD

⎞ ⎟

+ (58)

0x0D

⎟ ⎠⎝

Note that PHCAL is a signed, twos complement register.

Setting the PHCAL register to 11 provides a phase correction of 0.08° t

o correct the phase lead:

Phase Correction (°) = −

Phase Corr

PHCAL

PERIOD

°×−360

°=

)0x0D(

360

×− 08.0

)0x0D11( ection (°) = −

8960

Rev. A | Page 40 of 56

ADE7763

−

www.BDTIC.com/ADI

ith an Accurate Source Example Calibrating Phase w

With an accurate source, line cycle accumulation is a good method of calibrating phase error. The value of LAENERGY must be obtained at two power factors, PF = 1 and PF = 0.5 inductive.

SET I

= Ib, V

TEST

SET HALF LINE CYCLES FOR ACCUMULATION

IN LINECYC REGISTER ADDR. 0x1C

SET MODE FOR LINE CYCLE

ACCUMULATION ADDR. 0x09 = 0x0080

ENABLE LINE CYCLE ACCUMULATION

INTERRUPT ADDR. 0x0A = 0x04

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

TEST

= V

NOM

, PF = 0.5

The error using Equation 52 is

191869613

0021.0

Error =

Phase Er

19186

⎛ ⎜

⎜ ⎝

⎞

0021.0 3

⎠

ror (°) = −Arcsin

°−=⎟⎟

07.0

Using Equation 55, PHCAL is 11.

PHCAL = INT

⎛ ⎜ ⎝

8959

⎞

×°−

07.0 =+−=+

360

⎟

⎠

111320x0D

Note that PHCAL is a signed, twos complement register.

The phase lead is corrected by 0.08 degrees when the PHCAL register is set to 11:

n (°) = −Phase Correctio

PHCAL

)0x0D(

°×−360

PERIOD

-090

04481-A

INTERRUPT?

YES

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

INTERRUPT?

YES

READ LINE ACCUMULATION ENERGY

CALCULATE PHCAL. SEE EQUATION 55.

WRITE PHCAL VALUE TO THE PHCAL

Figure 76. Calibrating Phase with an Accurate Source

ADDR. 0x04

For this example:

Meter Constant: MeterConstant(imp/Wh) = 3.2 Line Voltage: V Line Frequency: f = 50 Hz

nominal

= 220 V

CF Numerator: CFNUM = 0 CF Denomina Base Current: I

Line Cycles Used at Base Current:

Half LINECYC

PERI D Register: PERIOD = 8959

tor: CFDEN = 489

= 10 A

= 2000

Expected Line Accumulation at Unity Power Factor (from Watt

Gain ection): LAENERGY

Acti Energy Reading at PF = 0.5 inductive: LAENERGY

IB(expected)

IB, PF = 0.5

= 19186

= 9613

Phase Correction (°) = −

360

×− 08.0

)0x0D11(

8960

°=

VRMS and IRMS Calibration

VRMS and IRMS are calculated by squaring the input in a digital multiplier.

××ω= tVVt

)2cos()sin(V2)sin(V2)( ttv

ω−=ω

(59)

quare of the rm ed from v (t) by a low-p

The s s value is extract filter t of the output o s

. The square roo f this low-pass filter give

ass

the rms value. An offset correction is provided to cancel noise and offset contributions from the inpu

Ther oise from the 2ω term because the low-pass

e is ripple n

filter does not completely attenuate the signal. This noise can be min by synchronizing the rms register readi

imized ngs with the

zero crossing of the voltage signal. The configured to indicate the zero crossing of the voltage sign

output can be

IRQ

al.

This flowchart demonstrates how VRMS and IRMS readings are synchronized to the zero crossi

ngs of the voltage input.

Rev. A | Page 41 of 56

ADE7763

www.BDTIC.com/ADI

SET INTERRUPT ENABLE FOR ZERO

CROSSING ADDR. 0x0A = 0x0010

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

INTERRUPT?

YES

READ VRMS OR IRMS

ADDR. 0x17; 0x16

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. 0x0C

Figure 77. Synchronizing VRMS and IRMS Readings with Zero Crossings

04481-A-091

Voltage rms compensation is done after the square root.

VRMS = VRMS0 + VRMSOS (60)

where:

VRMS0 is the rms measurement without offset correction. VRMS is linear from full-scale to full-scale/20.

To calibrate the offset, two VRMS measurements are required, for example, at V

nominal

and V

nominal

/10. V

is set at half of the

nominal

full-scale analog input range so that the smallest linear VRMS reading is at V

nominal

/10.

IRMSOS =

whe and IRMS

re IRMS

correction for input I

App

arent Energy

32768

are rms regis r values without offset

IRMSI

×−

−

and I2, respectively.

IRMSI

(63)

Apparent energy gain calibration is provided for both meter-tometer gain adjustment and for settin

g the VAh/LSB constant.

VAENERGY =

⎛

⎜ ⎝

VAGAIN

+××

⎞

(64)

⎟

⎠

tion. It

VAENERGY

initial

VADIV

VA DI V is similar to the CFDEN for the watt-hour calibra

should be the same across all meters and determines the VAh/LSB constant. VAG AI N is

arent energy gain calibrat ore

App ion should be performed bef

offset correction to make ur

rms the most efficient use of the c rent

used to calibrate individual meters.

test points. Apparent energy gain and watt gain compensation

ire testing at I

requ s and watt offset correction equire

, while rm r

a lower test current. Apparent energy gain calibration can be done simultaneously with the wa using line cycle accumulation. In this case, LAENERGY and LVA E N E RG Y , the

line cycle accumulation apparent energy

tt-hour gain calibration

registers, are both read following the line cycle accumulation interrupt. Figure 78 shows a flowchart for calibrating active and appa

rent energy simultaneously.

VRMSOS =

where VRMS

and VRMS2 are rms register values without offset

correction for input V

221

−

and V2, respectively.

(61)

VRMSVVRMSV

×−×

If the range of the 12-bit, twos complement VRMSOS register is not enough, use the voltage channel offset register, CH2OS, to correct the VRMS offset.

Current rms compensation is performed before the square root:

IRMS

= IRMS02 + 32768 × IRMSOS (62)

where IRMS0 is the rms measurement witho The current rms c lc tio is linear fro

a ula n m full scale to full

ut offset correction.

scale/100.

To calibrate this offset, two IRMS measuremen for example, at I

and I

MAX

/50. I

is set h

MAX

analog input range so that the smallest linear IRM I

/50.

MAX

ts are required,

at alf of the full-scale

S reading is at

VAG A IN = INT

LVA E N E RG Y

⎛ ⎜

⎜

INT

⎜ ⎜ ⎝

VAh

LSB

IB(expected)

constant

LVAENERGY

⎛

⎜

⎜ ⎜

⎜

LVAENERGY

⎝

nominal

expectedIB

nominalIB

s/h3600

⎞

)(

⎟

− ⎟

)(

⎠

⎛

(6⎠6)

The accumulation time is determined from Equation 33, and the line period can be determined from the period register according to Equation 34. The VA h represented by the VAENERGY register is

VA h = VAENERGY × VAh /LSB constant (67)

The VA h/ L SB constant can be verified using this equation:

VAh

LSB

constant

LVAENERGY

stimeonAccumulati

)(

3600

⎞

⎟

(65

)

⎟ ⎠

⎞ ⎟

⎟

)(

stimeonAccumulati

⎟ ⎟

(68)

Rev. A | Page 42 of 56

ADE7763

www.BDTIC.com/ADI

CALCULATE CFDEN VALUE FOR DESIGN

WRITE CFDEN VALUE TO CFDEN REGISTER

SET HALF LINE CYCLES FOR ACCUMULATION

ENABLE LINE CYCLE ACCUMULATION

ADDR. 0x15 = CFDEN

SET I

= Ib, V

TEST

IN LINECYC REGISTER ADDR. 0x1C

SET MODE FOR LINE CYCLE

ACCUMULATION ADDR. 0x09 = 0x0080

INTERRUPT ADDR. 0x0A = 0x04

RESET THE INTERRUPT STATUS

READ REGISTER ADDR. = 0x0C

RESET THE INTERRUPT STA

READ REGIS

= V

TEST

INTERRUPT?

YES

TER ADDR. = 0x0C

INTERRUPT?

NOM

, PF = 1

TUS

YES

READ LINE A

APPARENT ENERGY: ADDR. 0x07

CALCULATE WGAIN. SEE EQUATION 43.

CALCULATE VAGAIN. SEE EQUATION 65. WRITE VGAIN VALUE TO ADDR. 0x1A

CCUMULATION ENERGY

ACTIVE ENERGY: ADDR. 0x04

Figure 78. Active/Apparent

CLKIN FREQUENCY

In th ADE7763 are sh

is data sheet, the characteristics of the own when CLKIN frequency equals 3.579545 MHz. However, the ADE7763 is designed to have the same accuracy at any CLKIN frequency within the specified range. If the CLKIN frequen not 3.57954

5 MHz, various timing and filter characteristics will need to be redefined with the new CLKIN frequency. For example, the cutoff frequencies of all digital filters, such as LPF1, LPF2, or HPF1, shift in proportion to the change in CLKIN fr

equency according to the following equation:

FrequencyNew

FrequencyOriginal ×=

FrequencyCLKIN

579545.3

The change in CLKIN frequency does not affect the timing characteristics of the serial interface because the data transfer is

cy is

(69)

MHz

WRITE WGAIN VALUE TO ADDR. 0x12

04481-A-092

Gain Calibration

synchronized with the serial clock signal (SCLK). How important to observe th

sfer—see the timing characteristics in Tab sts

tran le 2. Table 8 li

e read/write timing of the serial data

various timing changes that are affected by CLKIN frequenc

ever, it is

Table 8. Frequency Dependencies of the ADE7763 Parameters

Parameter CLKIN Dependency

Nyquist Frequency for CH 1, CH 2 ADCs CLKIN/8 PHCAL Resolution (seconds per LSB) 4/CLKIN Active Energy Register Update Rate (Hz) CLKIN/4 Waveform Sampling Rate (per second) WAVSEL 1,0 = 0 0 CLKIN/128 0 1 CLKIN/256 1 0 CLKIN/512 1 1 CLKIN/1024 Maximum ZXTOUT Period 524,288/CLKIN

Rev. A | Page 43 of 56

ADE7763

www.BDTIC.com/ADI

SUSPENDING FUNCTIONALITY

The analog and the digital circuit can be suspended separately. The analog portion can be suspended by setting the ASUSPEND bit (Bit 4) of the mode register to logic high—see the Mode Register (0x09) section. In suspend mode, all waveform samples from the ADCs are set to 0s. The digital circuitry can be halted by stopping the CLKIN input and maintaining a logic high or low on the CLKIN pin. The ADE7763 can be reactivated by restoring the CLKIN input and setting the ASUSPEND bit to logic low.

CHECKSUM REGISTER

The ADE7763 has a checksum register (CHECKSUM[5:0]) to ensure that the data bits received in the last serial read operation are not corrupted. The 6-bit checksum register is reset before the first bit (MSB of the register to be read) is put on the DOUT pin. During a serial read operation, when each data bit becomes available upon the rising edge of SCLK, the bit is added to the checksum register. At the end of the serial read operation, the content of the checksum register is equal to the sum of all ones previously read in the register. Using the checksum register, the user can determine if an error has occurred during the last read operation. Note that a read to the checksum register also generates a checksum of the checksum register itself.

DOUT

Figure 79. Checksum Register for Serial Interface Read

SERIAL INTERFACE

All ADE7763 functionality is accessible via several on-chip registers—see Figure 80. The contents of these registers can be updated or read using the on-chip serial interface. After poweron or toggling the

ADE7763 is placed in communication mode. In co tion mode, the ADE7763 expects a write to its communication register. The data written determines whether the next data transfer operation is a read or a write and which register is accessed. Therefore, all data transfer operations with the ADE7763, whether a read or a write, must begin with a write to the communication register.

CONTENT OF REGISTER (n-bytes)

RESET

CHECKSUM REGISTER ADDR: 0x3E

pin low and a falling edge on CS, the

to the communication register

04481-A-070

mmunica-

COMMUNICATION

DIN

DOUT

Figure 80. Addressing ADE7763 Registers via the Communication Register

OUT

ADDRESS

DECODE

04481-A-071

The communication register is an 8-bit-wide register. The MSB determines whether the next data transfer operation is a read or a write. The 6 LSBs contain the address of the register to be accessed—see the Communication Register section for a more detailed description.

Figure 81 and Figure 82 show the data transfer sequences for a read and write operation, respectively. Upon completion of a data transfer (read or write), the ADE7763 again enters the communication mode. A data transfer is complete when the LSB of the ADE7763 register being addressed (for a write or a read) is transferred to or from the ADE7763.

SCLK

COMMUNICATION REGISTER WRITE

DIN

DOUT

Figure 81. Reading Data from the ADE7763 via the Serial Inter face

SCLK

COMMUNICATION REGISTER WRITE

DIN

ADDRESS00

MULTIBYTE

ADDRESS01

Figure 82. Writing Data to the ADE7763 via the Serial Interface

MULTIBYTE READ DATA

READ DATA

04481-A-072

A-

04481- 073

Rev. A | Page 44 of 56

ADE7763

www.BDTIC.com/ADI

ade up of four signals: The serial interface of the ADE7763 is m

SCLK, DIN, DOUT, and

. The serial clock for a data transfer

CS is applied at the SCLK logic input. This logic input has a Schmitttrigger input structure that allows slow rising and falling clo

ck edges to be used. All data transfer operations are synchronized to the serial clock. Data is shifted into the ADE7763 at the DIN logic input upon the falling edge of SCLK. Data is shifted out o the ADE7763 at the DOUT logic output upon a rising edge o SCLK. The

logic input is the chip-select input. This input is

used when multiple devices share the serial bus. A falling edge upon

also resets the serial in

CS into communication mode. T for the entire data transfer operation. Bringing

terface and places the ADE7763

input should be driven low

high during a

data transfer operation aborts the transfer and places the serial bus in a high impedance state. The

logic input can be tied

low if the ADE7763 is the only device on the serial bus. However, with

tied low, all initiated data transfer operations must be

fully completed, i.e., the LSB of each register must be transferred because there is no other way to bring the ADE7763 into communication mode without resetting the entire device using

RESET

ADE7763 Serial Write Operation

The serial write sequence takes place as follows. With the ADE7763 in communication mode (i.e., the

input logic low),

first a write to the communication register occurs. The MSB of this byte transfer is a 1, indicating that the data transfer operation is a write. The LSBs of this byte contain the address of

the register to be written to. The ADE7763 starts shifting in the register data upon the next falling edge of SCLK. All remaining bits of register data are shifted in upon the falling edge of subsequent SCLK pulses—see Figure 83. As explained earlier, the data write is initiated by a write to the communication register followed by the data. During a data write operation, data is transferred to all on-chip registers one byte at a time. After a byte is transferred into the serial port, there is a finite time before it is transferred to one of the ADE7763 on-chip registers. Although another byte transfer to the serial port can start while the previous byte is being transferred to an on-chip register, this second byte transfer should not finish until at least 4 µs after the end of the previous byte transfer. This functionality is expressed in the timing specification t

rite operation is aborted during a byte transfer (

—see Figure 83. I wf a

is brought

high), then that byte cannot be written to the destination register.

Destination registers can be up to 3 bytes wide—see Table 9, Table 10, Table 11, Table 12, and Table 13. Therefore the first byte shifted into the serial port at DIN is transferred to the MSB (most significant byte) o f the destination register. If, for example, the addressed register is 12 bits wide, a 2-byte data transfer must take place. Because the data is always assumed to be right justified, in this case the 4 MSBs of the first byte would be ignored and the 4 LSBs of the first byte written to the ADE776 would be the 4 MSBs of the 12-bit word. Figure 84 illustrates this example.

SCLK

DIN

SCLK

DIN X X X X DB11 DB10 DB9 DB8 DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

COMMAND BYTE

A4A5 A3

MOST SIGNIFICANT BYTE LEAST SIGNIFICANT BYTE

Figure 83. Serial

Figure 84. 12-Bit Serial Write Operation

Interface Write Timing

DB7

MOST SIGNIFICANT BYTE

DB0

DB7

LEAST SIGNIFICANT BYTE

DB0

04481-A-074

04481-A-075

Rev. A | Page 45 of 56

ADE7763

www.BDTIC.com/ADI

Serial Read Operation

During a data read operation from the ADE7763, data is shifted out at the DOUT logic output upon the rising edge of SCLK. As is the case with the data write operation, a write to the communication register must precede a data read.

logic output enters a high impedance state upon the falling edge of the last SCLK pulse. The read operation can be aborted by bringing the

logic input high before the data transfer is

complete. The DOUT output enters a high impedance state upon the rising edge of

With the ADE7763 in communication mode (

logic low),

CS first an 8-bit write to the communication register occurs. The MSB of this byte transfer is a 0, indicating that the next data transfer operation is a read. The LSBs of this byte contain the address of the register that is to be read. The ADE7763 starts shifting data out of the register upon the next rising edge of SCLK—see Figure 85. At this point, the DOUT logic output leaves its high impedance state and starts driving the data bus. All remaining bits of register data are shifted out upon subsequent SCLK rising edges. The serial interface also enters communication mode as soon as the read is complete. Then, the DOUT

SCLK

DIN

DOUT

A4A5 A3

COMMAND BYTE

Figure 85. Serial Interface Read Timing

When an ADE7763 register is addressed for a read operation, the entire contents of that register are transferred to the serial port. This allows the ADE7763 to modify its on-chip register

without the risk of corrupting data during a multibyte transfer.

Note that when a read operation follows a write operation, the read command (i.e., write to communication register) should not happen for at least 4 µs after the end of the write operation. If the read command is sent within 4 µs of the write operation, the last byte of the write operation could be lost. This timing

constraint is given as timing specification t

DB7

MOST SIGNIFICANT BYTE

DB0

DB7

LEAST SIGNIFICANT BYTE

DB0

04481-A-076

Rev. A | Page 46 of 56

ADE7763

www.BDTIC.com/ADI

REGISTERS

Table 9. Summary of Registers by Address

Address Name R/W No. Bits Default Type

0x01 WAVEFORM R 24 0x0 S

0x02 AENERGY R 24 0x0 S

0x03 RAENERGY R 24 0x0 S

0x04 LAENERGY R 24 0x0 S

0x05 VAENERGY R 24 0x0 U

0x06 RVAENERGY R 24 0x0 U

0x07 LVAENERGY R 24 0x0 U

0x08 RESERVED 0x09 MODE R/W 16 0x000C U

0x0A IRQEN R/W 16 0x40 U

0x0B STATUS R 16 0x0

0x0C RSTSTATUS R 16 0x0 U

0x0D CH1OS R/W 8 0x00 S

0x0E CH2OS R/W 8 0x0 S

0x0F GAIN R/W 8 0x0 U

0x10 PHCAL R/W 6 0x0D S

0x11 APOS R/W 16 0x0 S

Descr

iption

orm Register. This read-only register contains the sampled

Wavef

orm data from either Channel

wavef 1, Chann signal.

The data source and the length of the waveform registers are

selecte

d by Bits 14 and 13 in the

ing and Channel 2 Sampling sections.

Sampl Active

Energy Register. Active power is accumulated (integrated) over

time in

this 24-bit, read-only register—see the En

section. Same a

s the active energy register, except that the register is reset to 0

ing a read

Line A

ccumulation Active Energy Register. The instantaneous active

ower

numbe

r of half line cycles.

Appar ulated over time in

ent Energy Register. Apparent power is accum

this read-only re Same as the VAENERGY register, except that the register is reset to 0

following a read operation. Line Accumulation Apparent Energy Register. The instantaneous real

power is accumulated in this read-only register over the LINECYC number of half line cycles.

Mode Register. This is a 16-bit register through which most of the ADE7763’s functionality is accessed. Signal sample rates, filter enabling, and calibration modes are selected by writing to this register. The contents can be read at any time—see the Mode Register (0X09) section.

Interrupt Enable Register. ADE7763 interrupts can be deactivated at any time by setting the corresponding bit in this 16-bit enable register to Logic 0. The status register continues to detect an interrupt event even if disabled; however, the IRQ section.

Interrupt Status information regarding the source of ADE7763 interrupts—see the Interrupts section.

Same as the interrupt status register, except that the register contents are reset to 0 (all flags cleared) after a read operation.

Channel 1 Offset Adjust. Bit 6 is not used. Writing to Bits 0 to 5 allows offsets on Channel 1 to be removed—see the Analog Inputs and CH1OS Register sections. Writing Logic 1 to the MSB of this register enables the digital integrator on Channel 1; writing Logic 0 disables the integrator. The default value of this bit is 0.

Channel 2 Offset Adjust. Bits 6 and 7 are not used. Writing to Bits 0 to 5 of this register allows offsets on Channel 2 to be removed—see the Analog Inputs section. Note that the CH2OS register is inverted. To apply a positive offset, a negative number is written to this register.

PGA Gain Adjust. This 8-bit register is used to adjust the gain selection for the PGA in Channels 1 and 2—see the Analog Inputs section.

Phase Calibration Register. The phase relationship between Channel 1 and 2 can be adjusted by writing to this 6-bit register. The valid content of this twos complement register is between 0x1D to 0x21. At the line frequency of 60 Hz, this ranges from –2.06° to +0.7°—see the Phase Compensation section.

Active Power Offset Correction. This 16-bit register allows small offsets in the active power calculation to be removed—see the Active Power Calculation section.

operation.

accumulated in this read-only register over the LINECYC

gister.

mode register—see the Channel 1

output is not activated—see the Interru ts p

bit read-only register that contains

el 2, or the active power

ergy Calculation

Rev. A | Page 47 of 56

ADE7763

www.BDTIC.com/ADI

R/W No. Bits Default Type1Description Address Name

0x12 WGAIN R/W 12 0x0 S

0x13 WDIV R/W 8 0x0 U

0x14 CFNUM R/W 12 0x3F U

0x15 CFDEN R/W 12 0x3F U

0x16 IRMS R 24 0x0 U Channel 1 RMS Value (Current Channel). 0x17 VRMS R 24 0x0 U Channel 2 RMS Value (Voltage Channel). 0x18 IRMSOS R/W 12 0x0 S ction Register. Channel 1 RMS Offset Corre 0x19 VRMSOS R/W 12 0x0 S Channel 2 RMS Offset Correction Register. 0x1A VAGAIN R/W 12 0x0 S

0x1B VADIV R/W

0x1C LINECYC R/W xFFFF U

0x1D ZXTOUT R/W 12 0xFFF U

0x1E SAGCYC R/W 8 0xFF U

0x1F SAGLVL R/W 8 0x0 U

0x20 IPKLVL R/W 8 0xFF U

0x21 VPKLVL R/W 8 0xFF U

0x22 IPEAK R 24 0x0 U

0x23 RSTIPEAK R 24 0x0 U

0x24 VPEAK R 24 0x0 U

0x25 RSTVPEAK R 24 0x0 U

0x26 TEMP R 8 0x0 S

8 0x0 U

16 0

Power Gain Adjust. This is a 12-bit register. Calibrate the active power calculation by writing to this register. The calibration range is ±50% of

ll-scale active power. The resolution of the gain adjust is the nominal fu

0.0244%/LSB —see the Calibrating an Energy Meter section. Active Energy Divider Register. The internal active energy register is

divided by register.

on the CF pin by writing to this 12-bit read/write register—see the Energy-to-Frequency Conversi

CF Frequ frequency on the CF pin by writing to this 12-bit read/write register—se the Energy-to-Frequency Co

Apparent Gain Register. Calibrate the apparent power calculation by writing to this register. The cali scale real power. The resolut

Apparent Energy Divider Register. The internal is divided by the value of this register before being stored in the VAENERGY register.

Line Cycle Energy Accumulation Mode register is used during line cycle energy accumulation mode to s number of half line cycles for en Energy Accumulation Mode section.

Zero-Crossing Timeout. If no zero cros within the time specified in this 12-bit register, the interrupt request lin (IRQ

Sag Line Cycle Register. This 8-bit register specifies the number of conse before th section.

Sag Voltage Level. An 8-bit write to this register determines at what signal level o remain low for the number of cycles specified in the SAGCYC register before the SAG section.

Channel 1 Peak Level Threshold (Current Channel). This register sets the level of current the PKI flag in the status register is set.

Channel 2 Peak Level Threshold (Voltage Chann level of voltage peak detection. If the Channel 2 input exceeds this level, the PKV flag in the status register is set.

Channel 1 Peak Register. The maximum input value of the current channel, since the last read of the register is stored in this register.

Same as Channel 1 peak register, except that the register contents are reset to 0 after a read.

Channel 2 Peak Register. The maximum input value of the voltage channe

reset to 0 after a read. Temperature Register. This is an 8-bit register that contains the r

the latest temperature conversion—see the Temperature Measurement section.

the value of this register before being stored in the AENER

on section.

ency Divider Denominator Register. Adjust the output

nversion section.

bration range is 50% of the nominal

ion of the gain adjust is 0.02444%/LSB.

Line-Cycle Register. This 16-bit

ergy accumulation—see the Line Cycle

sings are detected on Channel 2

) will be activated—see the Zero-Crossing Detection section.

cutive line cycles below SAGLVL that is required on Channel 2

e SAG output is activated—see the Line Voltage Sag Detection

n Chan

nel 2 the SAG

pin is activated—see the Line Voltage Sag Detection

peak detection. If the Channel 1 input exceeds this level,

l, since the last read of the register is stored in this register.

pin becomes active. The signal must

just the output frequency CF Frequency Divider Numerator Register. Ad

apparent energy regist

et the

el). This register sets the

esult of

full-

peak

e Same as Channel 2 peak register, except that the register contents ar

Rev. A | Page 48 of 56

ADE7763

www.BDTIC.com/ADI

Address Name R/W No. Bits Default Type1Description

0x27 PERIOD R 16 0x0 U

0x28– 0x3C

0x3D TMODE R/W 8 – U Test Mode Register. 0x3E CHKSUM R 6 0x0 U

0x3F DIEREV R 8 – U

Type decoder: U = unsigned, S = signed by twos complement method, and S* = signed by sign magnitude method.

Reserved.

Period of the Channel 2 (Voltage Channel) Input Estimated by Ze Crossing Processing. The MSB of this register is always zero.

Checksum Register. This 6-bit, read-only register the ones

Die Revision Register. This 8-bit, read-only register contains the revision number of the silicon.

in the previous reads—see the Serial Read Operation section.

is equal to the sum of all

ro-

Rev. A | Page 49 of 56

ADE7763

www.BDTIC.com/ADI

REGISTER DESCRIPTIONS

All ADE7763 functionality is accessed via on-chip registers. Each r ister and

ansf ring the regis data. full descr tion of the se l int col is given in the Serial Interface section.

then tr er ter A ip ria erface proto

MU N R T

COM NICATIO EGIS ER

omm egis is an bit, write regist at con

The c unication r ter 8- -only er th trols the serial data transfer between the ADE7763 and the host processor. All data transfer operations must begin with a write to t

r det wheth the n t operation is a read o write

registe ermines er ex r a and which register is being accessed. Table 10 outlines the bi designations for the communication register.

DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0 W/R 0 A5 A4 A3 A2 A1 A0

Table 10. Communication Register

Bit Location

0 to 5 A0 to A5

6 RESERVED This bit is unused and should be set to 0. 7 W/R

Bit Mnemonic Description

The 6 LSBs of the communication register specify the register for the data transfer operation. Table 9 lists the address of each on-chip register.

When this bit is a Logic 1, the data transfer operation immediately following the write to the communication register is interpreted as a write to the ADE7763. When this bit is a Logic 0, the data transfer operation immediately following the write to the communication register is interpreted as a read operation.

egister is accessed by first writing to the communication reg

he communication register. The data written to the communication

MODE REGISTER (0x09)

The ADE7763 functionality is configured by writing to the mode register. Table 11 describes the functionality of each bit in the register.

Table 11.

Bit Location

0 DISHPF 0 HPF (high-pass filter) in Channel 1 is disabled when this bit is set. 1 DISLPF2 0 LPF (low-pass filter) after the multiplier (LPF2) is disabled when this bit is set. 2 DISCF 1 Frequency output CF is disabled when this bit is set. 3 DISSAG 1 Line voltage sag detection is disabled when this bit is set. 4 ASUSPEND 0

5 TEMPSEL 0

6 SWRST 0

7 CYCMODE 0 Setting this bit to Logic 1 places the chip in line cycle energy accumulation mode. 8 DISCH1 0 ADC 1 (Channel 1) inputs are internally shorted together. 9 DISCH2 0 ADC 2 (Channel 2) inputs are internally shorted together. 10 SWAP 0

12, 11 DTRT1, 0 00

Bit Mnemonic

Default Value Description

By setting this bit to Logic 1, both A/D converters can be turned off. During normal operation, this bit should be left at Logic 0. All digital functionality can be stopped by suspending the clock signal at CLKIN pin.

Temperature conversion starts when this bit is set to 1. This bit is automatically reset to 0 after the temperature conversion.

Software Chip Reset. A data transfer should not take place to the ADE7763 for at least 18 µs after a software reset.

By setting this bit to Logic 1, the analog inputs V2P and V2N are connected to ADC 1 and the analog inputs V1P and V1N are connected to ADC 2.

Use these bits to select the waveform register update rate.

DTRT1 DTRT0 Update Rate

0 0 27.9 kSPS (CLKIN/128) 0 1 14 kSPS (CLKIN/256) 1 0 7 kSPS (CLKIN/512) 1 1 3.5 kSPS (CLKIN/1024)

Rev. A | Page 50 of 56

ADE7763

)

www.BDTIC.com/ADI

Bit Location

14, 13 WAVSEL1, 0 00

15 POAM 0 Writing Logic 1 to this bit allows only positive power to accumulate. The default value of this bit is 0.

(WAVEFORM SELECTION FOR SAMPLE MODE)

(SHORT THE ANALOG INPUTS ON

(SHORT THE ANALOG INPUTS ON CHANNEL 1

Bit Mnemonic

(POSITIVE ONLY ACCUMULATION)

(WAVEFORM SAMPLES O

00 = 01 = 14.4k

10 = 7.2k

11 = 3.6kS

(SWAP CH1 AND CH2 ADCs)

Default Value

01 = RESERVED

UT DATA RATE)

UTP

SPS (CLKIN/128)

27.9k SPS (CLKIN/256) SPS (CLKIN/512)

PS (CLKIN/1024)

POAM

WAV

SEL

00 = LPF2

10 = CH1 11 = CH2

DTRT

SWAP

DISCH2

CHANNEL 2

DISCH1

Description

Use these bits to select the source of the sampled data for the waveform register.

WAVSEL1, 0 Length Source

0 0 24 bits, active power signal (output of LPF2) 0 1 Reserved 1 0 24 bits, Channel 1 1 1 24 bits, Channel 2

15 14 13 1 10 9 8 5 4 3 2

00000000 0011

12 1 7 6 1 0

00 00

ADDR: 0x09

DISHPF (DISABLE HPF1 IN CHANNEL 1)

DISLPF2 (DISABLE LPF2 AFTER MULTIPLIER)

DISCF (DISABLE FREQUENCY OUTPUT CF)

DISSAG (DISABLE SAG OUTPUT)

ASUSPEND (SUSPEND CH1 AND CH2 ADCs)

TEMPSEL (START TEMPERATURE SENSING)

SWRST (SOFTWARE CHIP RESET)

CYCMODE (LINE CYCLE ENERGY ACCUMUL

ATION MODE)

NOTE: REGISTER CONTENTS SHOW POWER-ON DEFAULTS

04481-A-077

Figure 86. Mode Register

Rev. A | Page 51 of 56

ADE7763

)

www.BDTIC.com/ADI

INTERRU RESET IN INTER T ENABLE EGI x0A)

The status register is used by the MCU to source of a upt requ corresponding flag in the interrupt status gister is set to logic hig f the enable bi g is Logic 1 in the interrupt enable register,

the register to determine the source of the int upt.

able 12.

Bit Location

0 AEHF Indicates that an interrupt occurred because the active energy register, AENERGY, is more than half full. 1 SAG Indicates that an interrupt was caused by a sag on the line voltage. 2 CYCEND

3 WSMP Indicates that new data is present in the waveform register. 4 ZX This status bit reflects the status of the ZX logic ouput—see the Zero-Crossing Detection section. 5 TEMP Indicates that a temperature conversion result is available in the temperature register. 6 RESET

7 AEOF Indicates that the active energy register has overflowed. 8 PKV Indicates that the waveform sample from Channel 2 has exceeded the VPKLVL value. 9 PKI Indicates that the waveform sample from Channel 1 has exceeded the IPKLVL value. 10 VAEHF Indicates that an interrupt occurred because the apparent energy register, VAENERGY, is more than half full. 11 VAEOF Indicates that the apparent energy register has overflowed. 12 ZXTO

13 PPOS Indicates that the power has gone from negative to positive. 14 PNEG Indicates that the power has gone from positive to negative. 15 RESERVED Reserved.

P R (0

T STATUS

T TA EGI ,

ERRUPT S

EGISTER

TUS R

x0B),

STER (0x0C)

RUP R STER (0

determine the n interr est ( re h. I t for this fla

logic output will go active low. W the MCU services th terrupt, it mu read from the interrupt status

IRQ

hen e in st first carry out a err

Interrupt Flag

Description

Indicates the end of energy accumulation over an integral number of half line cycles, as defined by the content of the LINECYC register—see the Line Cycle Energy Accumulation Mode section.

Indicates the end of a reset for software and hardware resets. The corresponding enable bit has no function in the interrupt enable register, i.e., this status bit is set at the end of a reset, but cannot be enabled to cause an interrupt.

Indicates that an interrupt was caused by a missing zero crossing on the line voltage for a specified number of line cycles—see the Zero-Crossing Timeout section.

RESERVED

(POWER POSITIVE TO NEGATIVE)

(POWER NEGATIVE TO POSITIVE)

(ZERO-CROSSING TIMEOUT)

(VAENERGY OVERFLOW)

(VAENERGY IS HALF FULL)

(CHANNEL 1 SAMPLE ABOVE IPKLVL)

(CHANNEL 2 SAMPLE ABOVE VPKLVL

PNEG

PPOS

ZXTO

VAEOF

VAEHF

PKI

PKV

15 14 13 12 11 10

00000 00000000000

Figure 87. Interrupt Status/Interrupt Enable Register

897 4562301

). When an interrupt event occurs, the

IRQ

ADDR: 0x0A, 0x0B, 0x0C

AEHF (ACTIVE ENERGY HALF FULL)

SAG (SAG ONLINE VOLTAGE)

CYCEND (END OF LINECYC HALF LINE CYCLES)

WSMP (WAVEFORM SAMPLES DATA READY)

ZX (ZERO CROSSING)

TEMP (TEMPERATURE DATA READY)

RESET (END OF SOFTWARE/HARDWARE RESET)

AEOF (ACTIVE ENERGY REGISTER OVERFLOW)

04481-A-079

Rev. A | Page 52 of 56

ADE7763

www.BDTIC.com/ADI

CH1OS REGISTER (0x0D)

The CH1OS register is an 8-bit, read/write enabled registe Channel 1, and Bits 0 to 5 indicate the amount of

offset correction in Channel 1. Table 13 summarizes the function of this register.

Table 13. CH1OS Register

Bit Location

0 to 5 OFFSET

6 Not Used t used. This bit is no 7 INTEGRATOR

Bit Mnemonic Description

The 6 LSBs of the CH1OS register control the amount of dc offset correction in the Channel 1 ADC. The 6-bit offset correction is sign and magnitude coded. Bits 0 to 4 indicate the magnitude of the offset correction. Bit 5 shows the sign of the offset correction. A 0 in Bit 5 means the offset correction is positive, and a 1 indicates the offset correction is negative.

this bit. This bit is set to 0 by default.

DIGITAL INTEGRATOR SELECTION

1 = ENABLE

0 = DISABLE

NOT USED

r. The MSB of this register is used to switch the digital integrator on and off in

76543210

00000000

Figure 88. Channel 1 Offset Register

ADDR: 0x0D

SIGN AND MAGNITUDE CODED OFFSET CORRECTION BITS

04481-A-078

tting This bit is used to activate the digital integrator on Channel 1. The digital integrator is switched on by se

Rev. A | Page 53 of 56

ADE7763

www.BDTIC.com/ADI

S OUTLINE DIMENSION

7.50

7.20

6.90

20 11

5.60

5.30

8.20

5.00

0.25

0.09

SEATING PLANE

7.80

7.40

PIN 1

0.05 MIN COPLANARITY

0.10

2.00 MAX

0.65

BSC

COMPLIANT TO JEDEC STANDARDS MO-150AE

1.85

1.75

1.65

0.38

0.22

Figure 89. 20-Lead Shrink Small Outline Package [SSOP]

(RS-20)

Dimensions shown in millimeters

8° 4° 0°

0.95

0.75

0.55

ORDERING GUIDE

Model Temperature Range Package Description Package Option

ADE7763ARS −40°C to +85°C 20-Lead SSOP RS-20 ADE7763ARSRL −40°C to +85°C 20-Lead SSOP RS-20 EVAL-ADE7763EB Evaluation Board

Rev. A | Page 54 of 56

ADE7763

www.BDTIC.com/ADI

NOTES

Rev. A | Page 55 of 56

ADE7763

www.BDTIC.com/ADI

NOTES

D04481–0–10/04(A)

Rev. A | Page 56 of 56

ANALOG DEVICES ADE7763 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

GENERAL DESCRIPTION

FUNCTIONAL BLOCK DIAGRAM

SPECIFICATIONS

TIMING CHARACTERISTICS

ABSOLUTE MAXIMUM RATINGS

ESD CAUTION

TERMINOLOGY

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

TYPICAL PERFORMANCE CHARACTERISTICS

THEORY OF OPERATION

ANALOG INPUTS

di/dt CURRENT SENSOR AND DIGITAL INTEGRATOR

ZERO-CROSSING DETECTION

Zero-Crossing Timeout

PERIOD MEASUREMENT

POWER SUPPLY MONITOR

LINE VOLTAGE SAG DETECTION

PEAK DETECTION

Sag Level Set

Peak Level Set

Peak Level Record

INTERRUPTS

Using Interrupts with an MCU

Interrupt Timing

TEMPERATURE MEASUREMENT

ANALOG-TO-DIGITAL CONVERSION

Antialias Filter

Reference Circuit

ADC Transfer Function

CHANNEL 1 ADC

Channel 1 Sampling

Channel 1 RMS Calculation

Channel 1 RMS Offset Compensation

CHANNEL 2 ADC

Channel 2 Sampling

Channel 2 RMS Calculation

Channel 2 RMS Offset Compensation

PHASE COMPENSATION

ACTIVE POWER CALCULATION

ENERGY CALCULATION

Integration Time under Steady Load

POWER OFFSET CALIBRATION

ENERGY-TO-FREQUENCY CONVERSION

LINE CYCLE ENERGY ACCUMULATION MODE

POSITIVE-ONLY ACCUMULATION MODE

NO-LOAD THRESHOLD

APPARENT POWER CALCULATION

Apparent Power Offset Calibration

APPARENT ENERGY CALCULATION

Integration Times under Steady Load

LINE APPARENT ENERGY ACCUMULATION

ENERGIES SCALING

CALIBRATING AN ENERGY METER

Watt Gain

Calibrating Watt Gain Using a Reference Meter Example

Calibrating Watt Gain Using an Accurate Source Example

Watt Offset

Calibrating Watt Offset Using a Reference Meter Example

Calibrating Watt Offset with an Accurate Source Example

Phase Calibration

Calibrating Phase Using a Reference Meter Example

VRMS and IRMS Calibration

CLKIN FREQUENCY

SUSPENDING FUNCTIONALITY

CHECKSUM REGISTER

SERIAL INTERFACE

ADE7763 Serial Write Operation

Serial Read Operation

REGISTERS

REGISTER DESCRIPTIONS

MODE REGISTER (0x09)

CH1OS REGISTER (0x0D)

ORDERING GUIDE
