ANALOG DEVICES AD9643 Service Manual

14-Bit, 170 MSPS/210 MSPS/250 MSPS, 1.8 V

V

A

V

Dual Analog-to-Digital Converter (

Data Sheet

FEATURES

SNR = 70.6 dBFS at 185 MHz AIN and 250 MSPS
SFDR = 85 dBc at 185 MHz AIN and 250 MSPS

−151.6 dBFS/Hz input noise at 185 MHz, −1 dBFS AIN and
250 MSPS

Total power consumption: 785 mW at 250 MSPS

1.8 V supply voltages

LVDS (ANSI-644 levels) outputs
Integer 1-to-8 input clock divider (625 MHz maximum input)
Sample rates of up to 250 MSPS
IF sampling frequencies of up to 400 MHz
Internal ADC voltage reference
Flexible analog input range

1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal)
ADC clock duty cycle stabilizer
95 dB channel isolation/crosstalk
Serial port control
Energy saving power-down modes
User-configurable, built-in self-test (BIST) capability

APPLICATIONS

Communications
Diversity radio systems
Multimode digital receivers (3G)

TD-SCDMA, WiMax, WCDMA, CDMA2000, GSM, EDGE, LTE
I/Q demodulation systems
Smart antenna systems
General-purpose software radios
Ultrasound equipment
Broadband data applications

GENERAL DESCRIPTION

The AD9643 is a dual, 14-bit analog-to-digital converter (ADC)
with sampling speeds of up to 250 MSPS. The AD9643 is designed
to support communications applications, where low cost, small
size, wide bandwidth, and versatility are desired.

The dual ADC cores feature a multistage, differential pipelined
architecture with integrated output error correction logic. Each
ADC features wide bandwidth inputs supporting a variety of
user-selectable input ranges. An integrated voltage reference
eases design considerations. A duty cycle stabilizer is provided
to compensate for variations in the ADC clock duty cycle,
allowing the converters to maintain excellent performance.

The ADC output data is routed directly to the two external
14-bit LVDS output ports and formatted as either interleaved or
channel multiplexed.

Flexible power-down options allow significant power savings,
when desired.

ADC)

AD9643

FUNCTIONAL BLOCK DIAGRAM

DD AGND DRVDD

VIN+A

VIN–A

VCM

IN+B

VIN–B

NOTES

1. THE D0± TO D13± PI NS REPRESENT BOTH THE CHANNE L A

AD9643

REFERENCE

SCLK SDIO CSB CLK+ CLK– SYNC

AND CHANNEL B LVDS OUTPUT DATA.

Programming for setup and control are accomplished using a
3-wire SPI-compatible serial interface.

The AD9643 is available in a 64-lead LFCSP and is specified over
the industrial temperature range of −40°C to +85°C. This
product is protected by a U.S. patent.

PRODUCT HIGHLIGHTS

1. Integrated dual, 14-bit, 170 MSPS/210 MSPS/250 MSPS ADCs.

2. Operation from a single 1.8 V supply and a separate digital

output driver supply accommodating LVDS outputs.

3. Proprietary differential input maintains excellent SNR

performance for input frequencies of up to 400 MHz.

4. SYNC input allows synchronization of multiple devices.

5. 3-pin, 1.8 V SPI port for register programming and register

readback.

6. Pin compatibility with the AD9613, allowing a simple

migration down from 14 bits to 12 bits. This part is also pin
compatible with the AD6649 and the AD6643.

PIPELINE

14-BIT

ADC

PIPELINE

14-BIT

ADC

SERIAL PORT

14

PARALLEL

14

Figure 1.

DDR LVDS

AND

DRIVERS

1TO 8

CLOCK

DIVIDER

D0±

D13±

DCO±

OR±

OEB

PDWN

.
.
.
.
.

09636-001

Rev. B

Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] ©2011 Analog Devices, Inc. All rights reserved.

AD9643 Data Sheet

TABLE OF CONTENTS

Features.............................................................................................. 1

Applications....................................................................................... 1

Functional Block Diagram .............................................................. 1

General Description ......................................................................... 1

Product Highlights ........................................................................... 1

Revision History ............................................................................... 2

Specifications..................................................................................... 3

ADC DC Specifications ............................................................... 3

ADC AC Specifications ............................................................... 4

Digital Specifications ................................................................... 6

Switching Specifications.............................................................. 8

Timing Specifications .................................................................. 9

Absolute Maximum Ratings.......................................................... 11

Thermal Characteristics ............................................................11

ESD Caution................................................................................ 11

Pin Configurations and Function Descriptions ......................... 12

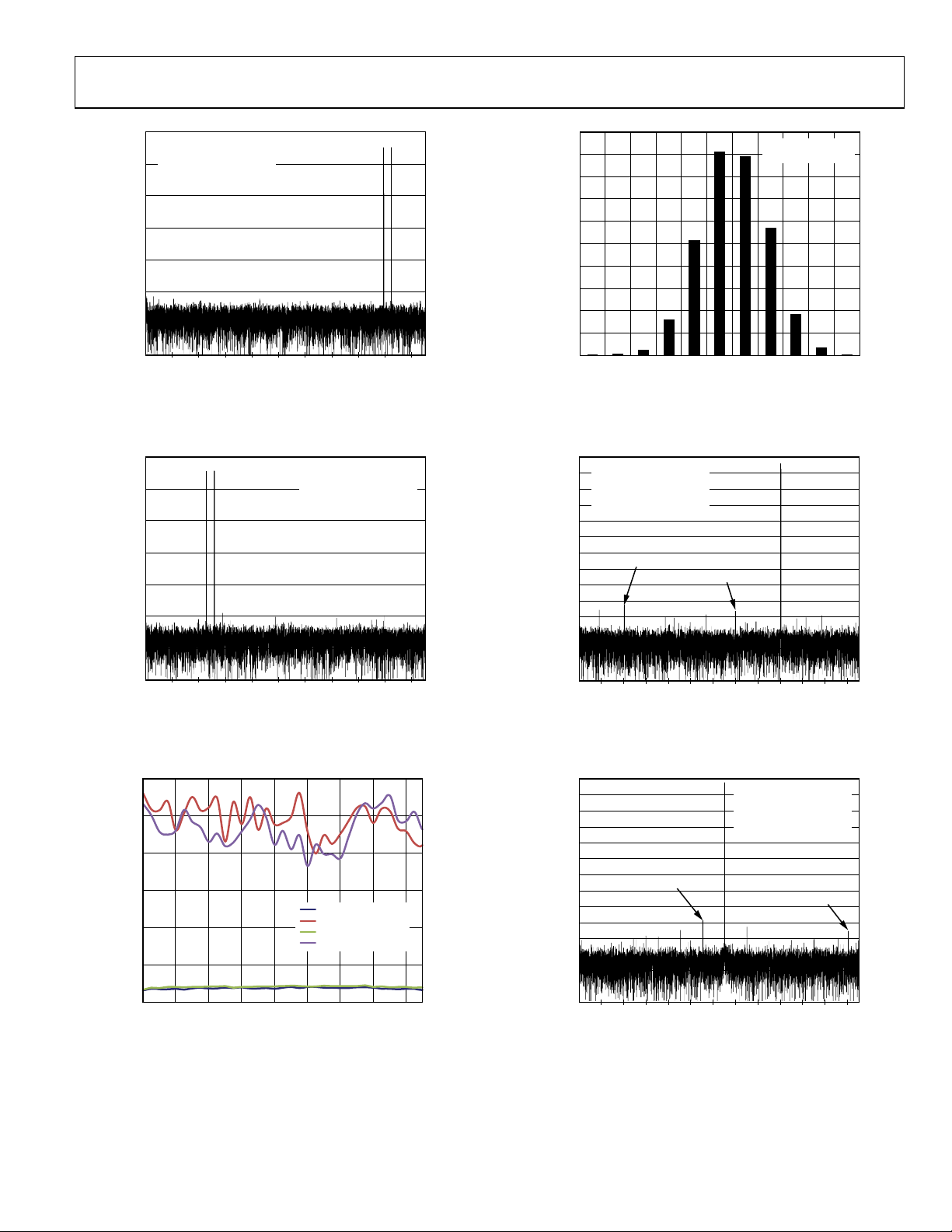

Typical Performance Characteristics ........................................... 16

Equivalent Circuits......................................................................... 22

Theory of Operation ...................................................................... 23

ADC Architecture ......................................................................23

Analog Input Considerations ................................................... 23

Voltage Reference....................................................................... 25

Clock Input Considerations...................................................... 25

Power Dissipation and Standby Mode .................................... 26

Digital Outputs........................................................................... 27

ADC Overrange (OR)................................................................ 27

Channel/Chip Synchronization.................................................... 28

Serial Port Interface (SPI).............................................................. 29

Configuration Using the SPI..................................................... 29

Hardware Interface..................................................................... 29

SPI Accessible Features.............................................................. 30

Memory Map .................................................................................. 31

Reading the Memory Map Register Table............................... 31

Memory Map Register Table..................................................... 32

Memory Map Register Description ......................................... 34

Applications Information.............................................................. 35

Design Guidelines ...................................................................... 35

Outline Dimensions....................................................................... 36

Ordering Guide .......................................................................... 36

REVISION HISTORY

9/11—Rev. A to Rev. B

Changes to Table 1............................................................................ 3

Changes to Table 2, .......................................................................... 4

Changes to Table 3............................................................................ 6

Changes to Table 4............................................................................ 8

Changes to Table 8.......................................................................... 12

Changes to Table 9.......................................................................... 14

Changes to Typical Performance Characterisitics Section........ 16

Added ADC Overrange (OR) Section ......................................... 27

Changes to Channel/Chip Synchronization Section ................. 28

Changes to Reading the Memory Map Register Table

Section.............................................................................................. 31

Changes to Table 14........................................................................ 32

Changes to Memory Map Resgister Description Section ......... 34

5/11—Rev. 0 to Rev. A

Changes to Table 2, Worst Other (Harmonic or Spur)

Max Values......................................................................................... 4

4/11—Revision 0: Initial Version

Rev. B | Page 2 of 36

Data Sheet AD9643

SPECIFICATIONS

ADC DC SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, maximum sample rate, VIN = −1.0 dBFS differential input, 1.75 V p-p full-scale input range,
duty cycle stabilizer (DCS) enabled, unless otherwise noted.

Table 1.

AD9643-170 AD9643-210 AD9643-250

Parameter Temperature

Min Typ Max Min Typ Max Min Typ Max Unit

RESOLUTION Full 14 14 14 Bits
ACCURACY

No Missing Codes Full Guaranteed Guaranteed Guaranteed
Offset Error Full ±10 ±10 ±10 mV
Gain Error Full +2/−6 +3/−5 ±4 %FSR
Differential Nonlinearity (DNL) Full ±0.75 ±0.75 ±0.75 LSB
25°C ±0.25 ±0.25 ±0.25 LSB
Integral Nonlinearity (INL)1 Full ±1.8 ±2 ±3.5 LSB
25°C ±1.5 ±1.5 ±1.5 LSB

MATCHING CHARACTERISTIC

Offset Error Full ±13 ±13 ±13 mV
Gain Error Full ±2.5/

+3.5

−2/

−2.5/

+3.5

+3.5

TEMPERATURE DRIFT

Offset Error Full ±5 ±5 ±5 ppm/°C
Gain Error Full ±70 ±80 ±100 ppm/°C

INPUT REFERRED NOISE

VREF = 1.0 V 25°C 1.33 1.33 1.33 LSB rms

ANALOG INPUT

Input Span Full 1.75 1.75 1.75 V p-p
Input Capacitance2 Full 2.5 2.5 2.5 pF
Input Resistance3 Full 20 20 20 kΩ
Input Common-Mode Voltage Full 0.9 0.9 0.9 V

POWER SUPPLIES

Supply Voltage

AVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V

DRVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V

Supply Current

1

I

Full 196 250 217 265 256 275 mA

AVDD

1

I

Full 145 160 160 185 180 210 mA

DRVDD

POWER CONSUMPTION

Sine Wave Input (DRVDD = 1.8 V) Full 614 680 785 mW
Standby Power4 Full 90 90 90 mW
Power-Down Power Full 10 10 10 mW

1

Measured with a low input frequency, full-scale sine wave.

2

Input capacitance refers to the effective capacitance between one differential input pin and its complement.

3

Input resistance refers to the effective resistance between one differential input pin and its complement.

4

Standby power is measured with a dc input and the CLK pin inactive (that is, set to AVDD or AGND).

%FSR

Rev. B | Page 3 of 36

AD9643 Data Sheet

ADC AC SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, maximum sample rate, VIN = −1.0 dBFS differential input, 1.75 V p-p full-scale input range, unless
otherwise noted.

Table 2.

AD9643-170 AD9643-210 AD9643-250
Parameter1 Temperature Min Typ Max Min Typ Max Min Typ Max Unit

SIGNAL-TO-NOISE-RATIO (SNR)

fIN = 30 MHz 25°C 72.2 72.2 72.0 dBFS
fIN = 90 MHz 25°C 72.0 72.0 71.7 dBFS

fIN = 140 MHz

fIN = 185 MHz

fIN = 220 MHz 25°C 71.1 70.9 70.5 dBFS

SIGNAL-TO-NOISE AND DISTORTION

(SINAD)
fIN = 30 MHz 25°C 71.2 71.2 71.0 dBFS
fIN = 90 MHz 25°C 71.0 71.0 70.7 dBFS
Full 70.4 69.9 dBFS
fIN = 140 MHz 25°C 70.8 70.6 70.4 dBFS

fIN = 185 MHz

fIN = 220 MHz 25°C 70.1 69.9 69.5 dBFS

EFFECTIVE NUMBER OF BITS (ENOB)

fIN = 30 MHz 25°C 11.5 11.5 11.5 Bits
fIN = 90 MHz 25°C 11.5 11.5 11.5 Bits
fIN = 140 MHz 25°C 11.5 11.5 11.4 Bits

fIN = 185 MHz
fIN = 220 MHz 25°C 11.4 11.3 11.3 Bits

WORST SECOND OR THIRD HARMONIC

fIN = 30 MHz 25°C −95 −90 −90 dBc
fIN = 90 MHz 25°C −92 −90 −88 dBc
Full −78 −80 dBc
fIN = 140 MHz 25°C −88 −88 −86 dBc
fIN = 185 MHz 25°C −83 −87 −85 dBc
Full −80 dBc
fIN = 220 MHz 25°C −83 −85 −85 dBc

SPURIOUS-FREE DYNAMIC RANGE

(SFDR)
fIN = 30 MHz 25°C 95 90 90 dBc
fIN = 90 MHz 25°C 92 90 88 dBc
Full 78 80 dBc
fIN = 140 MHz 25°C 88 88 86 dBc
fIN = 185 MHz 25°C 83 87 85 dBc
Full 80 dBc
fIN = 220 MHz 25°C 83 85 85 dBc

WORST OTHER (HARMONIC OR SPUR)

fIN = 30 MHz 25°C −98 −95 −94 dBc
fIN = 90 MHz 25°C −97 −95 −93 dBc
Full −78 −80 dBc
fIN = 140 MHz 25°C −97 −93 −92 dBc
fIN = 185 MHz 25°C −96 −92 −92 dBc
Full −80 dBc
fIN = 220 MHz 25°C −94 −90 −88 dBc

TWO-TONE SFDR

fIN = 184.12 MHz (−7 dBFS ), 187.12

MHz (−7 dBFS )

Full 70.4 69.9 dBFS

25°C 71.8 71.6 71.4 dBFS

25°C 71.4 71.2 70.9 dBFS

Full 68.8 dBFS

25°C 70.4 70.2 69.9 dBFS

Full 67.5 dBFS

25°C 11.4 11.4 11.3 Bits

25°C 88 88 88 dBc

Rev. B | Page 4 of 36

Data Sheet AD9643

AD9643-170 AD9643-210 AD9643-250
Parameter1 Temperature Min Typ Max Min Typ Max Min Typ Max Unit

CROSSTALK2 Full 95 95 95 dB
FULL POWER BANDWIDTH3 25°C 400 400 400 MHz
NOISE BANDWIDTH4 25°C 1000 1000 1000 MHz

1

See the AN-835 Application Note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions.

2

Crosstalk is measured at 100 MHz with −1.0 dBFS on one channel and no input on the alternate channel.

3

Full power bandwidth is the bandwidth of operation in which proper ADC performance can be achieved.

4

Noise bandwidth is the −3 dB bandwidth for the ADC inputs across which noise can enter the ADC and is not attenuated internally.

Rev. B | Page 5 of 36

AD9643 Data Sheet

DIGITAL SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, maximum sample rate, VIN = −1.0 dBFS differential input, 1.75 V p-p full-scale input range, DCS
enabled, unless otherwise noted.

Table 3.

Parameter Te mp Min Typ Max Unit
DIFFERENTIAL CLOCK INPUTS (CLK+, CLK−)

Logic Compliance
Internal Common-Mode Bias
Differential Input Voltage
Input Voltage Range
Input Common-Mode Range
High Level Input Current Full −10 +22 µA
Low Level Input Current Full −22 −10 µA
Input Capacitance Full
Input Resistance Full 8 10 12 kΩ

SYNC INPUT

Logic Compliance CMOS/LVDS
Internal Bias Full 0.9 V
Input Voltage Range Full AGND AVDD V
High Level Input Voltage Full 1.2 AVDD V
Low Level Input Voltage Full AGND 0.6 V
High Level Input Current Full −5 +5 µA
Low Level Input Current Full −5 +5 µA
Input Capacitance Full 1 pF
Input Resistance Full 12 16 20 kΩ

LOGIC INPUT (CSB)1

High Level Input Voltage Full 1.22 2.1 V
Low Level Input Voltage Full 0 0.6 V
High Level Input Current Full −5 +5 µA
Low Level Input Current Full −80 −45 µA
Input Resistance Full 26 kΩ
Input Capacitance Full 2 pF

LOGIC INPUT (SCLK)2

High Level Input Voltage Full 1.22 2.1 V
Low Level Input Voltage Full 0 0.6 V
High Level Input Current Full 45 70 µA
Low Level Input Current Full −5 +5 µA
Input Resistance Full 26 kΩ
Input Capacitance Full 2 pF

LOGIC INPUTS (SDIO)1

High Level Input Voltage Full 1.22 2.1 V
Low Level Input Voltage Full 0 0.6 V
High Level Input Current Full 45 70 µA
Low Level Input Current Full −5 +5 µA
Input Resistance Full 26 kΩ
Input Capacitance Full 5 pF

LOGIC INPUTS (OEB, PDWN)2

High Level Input Voltage Full 1.22 2.1 V
Low Level Input Voltage Full 0 0.6 V
High Level Input Current Full 45 70 µA
Low Level Input Current Full −5 +5 µA
Input Resistance Full 26 kΩ
Input Capacitance Full 5 pF

CMOS/LVDS/LVPECL
Full 0.9 V
Full 0.3 3.6 V p-p
Full AGND AVDD V
Full 0.9 1.4 V

4

pF

Rev. B | Page 6 of 36

Data Sheet AD9643

Parameter Te mp Min Typ Max Unit
DIGITAL OUTPUTS

LVDS Data and OR Outputs

Differential Output Voltage (VOD), ANSI Mode Full 250 350 450 mV
Output Offset Voltage (VOS),

ANSI Mode
Differential Output Voltage (VOD), Reduced Swing Mode Full 150 200 280 mV
Output Offset Voltage (VOS),

Reduced Swing Mode

1

Pull-up.

2

Pull-down.

Full 1.15 1.22 1.35 V

Full 1.15 1.22 1.35 V

Rev. B | Page 7 of 36

AD9643 Data Sheet

SWITCHING SPECIFICATIONS

Table 4.

AD9643-170 AD9643-210 AD9643-250
Parameter Temp Min Typ Max Min Typ Max Min Typ Max Unit

CLOCK INPUT PARAMETERS

Input Clock Rate Full 625 625 625 MHz
Conversion Rate1 Full 40 170 40 210 40 250 MSPS
CLK Period—Divide-by-1 Mode (t
CLK Pulse Width High (tCH)

Divide-by-1 Mode, DCS Enabled Full 2.61 2.9 3.19 2.16 2.4 2.64 1.8 2.0 2.2 ns
Divide-by-1 Mode, DCS Disabled Full 2.76 2.9 3.05 2.28 2.4 2.52 1.9 2.0 2.1 ns
Divide-by-2 Mode Through

Divide-by-8 Mode
Aperture Delay (tA) Full 1.0 1.0 1.0 ns
Aperture Uncertainty (Jitter, tJ) Full 0.1 0.1 0.1 ps rms

DATA OUTPUT PARAMETERS

LVDS Mode

Data Propagation Delay (tPD) Full
DCO Propagation Delay (t
DCO-to-Data Skew (t

SKEW

Pipeline Delay (Latency) Full 10 10 10 Cycles
Aperture Delay (tA) Full 1.0 1.0 1.0 ns
Aperture Uncertainty (Jitter, tJ) Full 0.1 0.1 0.1 ps rms
Wake-Up Time (from Standby) Full 10 10 10 µs
Wake-Up Time (from Power-Down) Full 250 250 250 µs
Out-of-Range Recovery Time Full 3 3 3 Cycles

1

Conversion rate is the clock rate after the divider.

) Full 5.8 4.8 4 ns

CLK

Full 0.8

) Full

DCO

4.8 4.8 4.8 ns

5.5 5.5 5.5 ns

0.8

0.8

ns

) Full 0.3 0.7 1.1 0.3 0.7 1.1 0.3 0.7 1.1 ns

Rev. B | Page 8 of 36

Data Sheet AD9643

TIMING SPECIFICATIONS

Table 5.

Parameter Conditions Min Typ Max Unit

SYNC TIMING REQUIREMENTS

t

SYNC to the rising edge of CLK setup time 0.3 ns

SSYNC

t

SYNC to the rising edge of CLK hold time 0.4 ns

HSYNC

SPI TIMING REQUIREMENTS

tDS Setup time between the data and the rising edge of SCLK 2 ns
tDH Hold time between the data and the rising edge of SCLK 2 ns
t

Period of the SCLK 40 ns

CLK

tS Setup time between CSB and SCLK 2 ns
tH Hold time between CSB and SCLK 2 ns
t

Minimum period that SCLK should be in a logic high state 10 ns

HIGH

t

Minimum period that SCLK should be in a logic low state 10 ns

LOW

t

EN_SDIO

t

DIS_SDIO

Time required for the SDIO pin to switch from an input to an output
relative to the SCLK falling edge

Time required for the SDIO pin to switch from an output to an input
relative to the SCLK rising edge

10 ns

10 ns

Rev. B | Page 9 of 36

AD9643 Data Sheet

Timing Diagrams

t

A

t

t

N

DCO

PD

t

CLK

CH A

N – 10

CH A

N – 10

t

SKEW

N + 1

CH B

N – 10

CH B

N – 10

CH A
N – 9

CH A
N – 9

N + 2

CH B
N – 9

CH B
N – 9

CH A
N – 8

CH A
N – 8

N + 3

CH B
N – 8

CH B
N – 8

CH A
N – 7

CH A
N – 7

N + 4

CH B
N – 7

CH B
N – 7

CH A
N – 6

CH A
N – 6

N + 5

PARALLEL INTERLEAVED

CHANNEL A AND

CHANNEL B

VIN

CLK+

CLK–

DCO–

DCO+

D0±

(LSB)

D13±

(MSB)

N – 1

t

CH

.
.
.

CHANNEL MUL TIPL EXED

(EVEN/O DD) MO DE

CHANNEL A

CHANNEL MUL TIPL EXED

(EVEN/O DD) MO DE

CHANNEL B

D0±/D1±

(LSB)

D12±/D13±

(MSB)

D0±/D1±

(LSB)

D12±/D13±

(MSB)

CH A0

CH A1

CH A0

CH A1

CH A0

CH A1

CH A0

CH A1

N – 10

N – 10

CH B0
N – 10

N – 10

N – 10

CH A13

N – 10

CH B1
N – 10

CH B13

N – 10

.
.
.

CH A12

.
.
.

CH B12

N – 9

CH A12

N – 9

CH B0

N – 9

CH B12

N – 9

N – 9

CH A13

N – 9

CH B1

N – 9

CH B13

N – 9

N – 8

CH A12

N – 8

CH B0

N – 8

CH B12

N – 8

N – 8

CH A13

N – 8

CH B1

N – 8

CH B13

N – 8

N – 7

CH A12

N – 7

CH B0

N – 7

CH B12

N – 7

CH A13

CH B13

N – 7

N – 7

CH B1

N – 7

N – 7

CH A0

N – 6

CH A12

N – 6

CH B0

N – 6

CH B12

N – 6

09636-002

Figure 2. LVDS Modes for Data Output Timing

CLK+

SYNC

t

SSYNC

t

HSYNC

09636-003

Figure 3. SYNC Timing Inputs

Rev. B | Page 10 of 36

Data Sheet AD9643

ABSOLUTE MAXIMUM RATINGS

Table 6.

Parameter Rating

Electrical

AVDD to AGND −0.3 V to +2.0 V
DRVDD to AGND −0.3 V to +2.0 V
VIN+A/VIN+B, VIN−A/VIN−B to AGND −0.3 V to AVDD + 0.2 V
CLK+, CLK− to AGND −0.3 V to AVDD + 0.2 V
SYNC to AGND −0.3 V to AVDD + 0.2 V
VCM to AGND −0.3 V to AVDD + 0.2 V
CSB to AGND −0.3 V to DRVDD + 0.3 V
SCLK to AGND −0.3 V to DRVDD + 0.3 V
SDIO to AGND −0.3 V to DRVDD + 0.3 V
OEB to AGND −0.3 V to DRVDD + 0.3 V
PDWN to AGND −0.3 V to DRVDD + 0.3 V
OR+/OR− to AGND −0.3 V to DRVDD + 0.3 V

D0−/D0+ Through D13−/D13+

−0.3 V to DRVDD + 0.3 V

to AGND

DCO+/DCO− to AGND −0.3 V to DRVDD + 0.3 V

Environmental

Operating Temperature Range

−40°C to +85°C

(Ambient)

Maximum Junction Temperature

150°C

Under Bias

Storage Temperature Range

−65°C to +125°C

(Ambient)

Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.

THERMAL CHARACTERISTICS

The exposed paddle must be soldered to the ground plane for
the LFCSP package. This increases the reliability of the solder
joints, maximizing the thermal capability of the package.

Table 7. Thermal Resistance

Airflow
Veloc ity

Packa ge Type

64-Lead LFCSP

9 mm × 9 mm
(CP-64-4)

1

Per JEDEC 51-7, plus JEDEC 25-5 2S2P test board.

2

Per JEDEC JESD51-2 (still air) or JEDEC JESD51-6 (moving air).

3

Per MIL-Std 883, Method 1012.1.

4

Per JEDEC JESD51-8 (still air).

(m/sec) θ

0 26.8 1.14 10.4 °C/W

1.0 21.6 °C/W

2.0 20.2 °C/W

1, 2

JA

1, 3

θ

JC

1, 4

θ

Unit

JB

Typical θJA is specified for a 4-layer PCB with a solid ground
plane. As shown in Ta b le 7 , airflow increases heat dissipation,
which reduces θ

. In addition, metal in direct contact with the

JA

package leads from metal traces, through holes, ground, and
power planes, reduces the θ

.

JA

ESD CAUTION

Rev. B | Page 11 of 36

AD9643 Data Sheet

A

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

AVDD

AVDD

AVDD

VIN–A

VIN+

49

PDWN

48
47

OEB

46

CSB
SCLK

45

SDIO

44
43

OR+
OR–

42

D13+ (MSB)

41
40

D13– (MSB)
D12+

39

D12–

38
37

DRVDD
D11+

36

D11–

35
34

D10+
D10–

33

PIN 1

INDICATOR

CLK+

CLK–

SYNC

DNC
DNC
DNC

DNC
(LSB) D0–
(LSB) D0+

DRVDD

D1–
D1+
D2–
D2+
D3–
D3+

AVDD

AVDD

VIN+B

VIN–B

AVDD

AVDD

DNC

VCM

DNC

DNC

646362616059585756555453525150

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

AD9643

PARALLEL LVDS

TOP VIEW

(Not to Scale)

AVDD

171819202122232425262728293031

D4–

D5–

D6–

D4+

D5+

NOTES

1. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PIN.

2. THE EXPOSED THERMAL PADDLE ON T HE BOTTO M OF THE
PACKAGE PROVI DES THE ANALO G GROUND FO R THE PART.
THIS EXPO SED PADDLE MUST BE CONNECTED T O GROUND
FOR PROPER OPERATION.

DRVDD

D7–

D6+

D7+

DCO–

DCO+

32

D8–

D9–

D8+

D9+

DRVDD

09636-004

Figure 4. LFCSP Interleaved Parallel LVDS Pin Configuration (Top View)

Table 8. Pin Function Descriptions for Interleaved Parallel LVDS Mode

Pin No. Mnemonic Type Description

ADC Power Supplies

10, 19, 28, 37 DRVDD Supply Digital Output Driver Supply (1.8 V Nominal).
49, 50, 53, 54, 59, 60, 63, 64 AVDD Supply Analog Power Supply (1.8 V Nominal).
4, 5, 6, 7, 55, 56, 58 DNC Do Not Connect. Do not connect to this pin.
0

AGND,
Exposed Paddle

Ground

Analog Ground. The exposed thermal paddle on the bottom of the
package provides the analog ground for the part. This exposed
paddle must be connected to ground for proper operation.

ADC Analog

51 VIN+A Input Differential Analog Input Pin (+) for Channel A.
52 VIN−A Input Differential Analog Input Pin (−) for Channel A.
62 VIN+B Input Differential Analog Input Pin (+) for Channel B.
61 VIN−B Input Differential Analog Input Pin (−) for Channel B.
57 VCM Output

Common-Mode Level Bias Output for Analog Inputs. This pin

should be decoupled to ground using a 0.1 F capacitor.
1 CLK+ Input ADC Clock Input—True.
2 CLK− Input ADC Clock Input—Complement.

Digital Input

3 SYNC Input Digital Synchronization Pin. Slave mode only.

Digital Outputs

9 D0+ (LSB) Output Channel A/Channel B LVDS Output Data 0—True.
8 D0− (LSB) Output Channel A/Channel B LVDS Output Data 0—Complement.
12 D1+ Output Channel A/Channel B LVDS Output Data 1—True.
11 D1− Output Channel A/Channel B LVDS Output Data 1—Complement.
14 D2+ Output Channel A/Channel B LVDS Output Data 2—True.
13 D2− Output Channel A/Channel B LVDS Output Data 2—Complement.
16 D3+ Output Channel A/Channel B LVDS Output Data 3—True.
15 D3− Output Channel A/Channel B LVDS Output Data 3—Complement.
18 D4+ Output Channel A/Channel B LVDS Output Data 4—True.

Rev. B | Page 12 of 36

Data Sheet AD9643

Pin No. Mnemonic Type Description

17 D4− Output Channel A/Channel B LVDS Output Data 4—Complement.
21 D5+ Output Channel A/Channel B LVDS Output Data 5—True.
20 D5− Output Channel A/Channel B LVDS Output Data 5—Complement.
23 D6+ Output Channel A/Channel B LVDS Output Data 6—True.
22 D6− Output Channel A/Channel B LVDS Output Data 6—Complement.
27 D7+ Output Channel A/Channel B LVDS Output Data 7—True.
26 D7− Output Channel A/Channel B LVDS Output Data 7—Complement.
30 D8+ Output Channel A/Channel B LVDS Output Data 8—True.
29 D8− Output Channel A/Channel B LVDS Output Data 8—Complement.
32 D9+ Output Channel A/Channel B LVDS Output Data 9—True.
31 D9− Output Channel A/Channel B LVDS Output Data 9—Complement.
34 D10+ Output Channel A/Channel B LVDS Output Data 10—True.
33 D10− Output Channel A/Channel B LVDS Output Data 10—Complement.
36 D11+ Output Channel A/Channel B LVDS Output Data 11—True.
35 D11− Output Channel A/Channel B LVDS Output Data 11—Complement.
39 D12+ Output Channel A/Channel B LVDS Output Data 12—True.
38 D12− Output Channel A/Channel B LVDS Output Data 12—Complement.
41 D13+ (MSB) Output Channel A/Channel B LVDS Output Data 13—True.
40 D13− (MSB) Output Channel A/Channel B LVDS Output Data 13—Complement.
43 OR+ Output Channel A/Channel B LVDS Overrange—True.
42 OR− Output Channel A/Channel B LVDS Overrange—Complement.
25 DCO+ Output Channel A/Channel B LVDS Data Clock Output—True.
24 DCO− Output Channel A/Channel B LVDS Data Clock Output—Complement.

SPI Control

45 SCLK Input SPI Serial Clock.
44 SDIO Input/Output SPI Serial Data I/O.
46 CSB Input SPI Chip Select (Active Low).

Output Enable Bar and Power­Down

47 OEB Input/Output Output Enable Bar Input (Active Low).

48 PDWN Input/Output

Power-Down Input (Active High). The operation of this pin
depends on the SPI mode and can be configured as power-down
or standby (see Table 14 ).

Rev. B | Page 13 of 36

AD9643 Data Sheet

A

AVDD

AVDD

VIN+B

VIN–B

AVDD

AVDD

DNC

VCM

DNC

DNC

AVDD

AVDD

VIN–A

VIN+

AVDD

AVDD

49

PDWN

48
47

OEB

46

CSB
SCLK

45

SDIO

44
43

OR+
OR–

42

A D12+/D13+ (MSB)

41
40

A D12–/D13– (MSB)
A D10+/D11+

39

A D10–/D11–

38
37

DRVDD
A D8+/D9+

36

A D8–/D9–

35
34

A D6+/D7+
A D6–/D7–

33

PIN 1

INDICATOR

CLK+

CLK–

SYNC

DNC
DNC
DNC

(LSB) B D0–/D1–

(LSB) B D0+/D1+

DNC

DRVDD
B D2–/D3–
B D2+/D3+
B D4–/D5–
B D4+/D5+
B D6–/D7–
B D6+/D7+

646362616059585756555453525150

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

AD9643

CHANNEL

MULTIPLEXED

(EVEN/ODD)

LVDS

TOP VIEW

(Not to Scale)

171819202122232425262728293031

DCO–

B D10+/D11+

DCO+

(LSB) A D0–/D1–

(MSB) B D12–/D13–

(LSB) A D0+/D1+

(MSB) B D12+/D13+

DRVDD

B D8–/D9–

B D8+/D9+

B D10–/D11–

NOTES

1. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PIN.

2. THE EXPO SED THERMAL PADDLE ON THE BOTTO M OF THE
PACKAGE PROVI DES THE ANALOG GROUND FO R THE PART.
THIS EXPO SED PADDLE MUST BE CONNECTED T O GROUND FOR
PROPER OPERATION.

32

DRVDD

A D2–/D3–

A D4–/D5–

A D2+/D3+

A D4+/D5+

09636-005

Figure 5. LFCSP Channel Multiplexed (Even/Odd) LVDS Pin Configuration (Top View)

Table 9. Pin Function Descriptions for Channel Multiplexed (Even/Odd) LVDS Mode

Pin No. Mnemonic Type Description

ADC Power Supplies

10, 19, 28, 37 DRVDD Supply Digital Output Driver Supply (1.8 V Nominal).
49, 50, 53, 54, 59, 60, 63, 64 AVDD Supply Analog Power Supply (1.8 V Nominal).
4, 5 DNC Do Not Connect. Do not connect to this pin.
0

AGND,
Exposed Paddle

Ground

Analog Ground. The exposed thermal paddle on the bottom of
the package provides the analog ground for the part. This
exposed paddle must be connected to ground for proper
operation.

ADC Analog

51 VIN+A Input Differential Analog Input Pin (+) for Channel A.
52 VIN−A Input Differential Analog Input Pin (−) for Channel A.
62 VIN+B Input Differential Analog Input Pin (+) for Channel B.
61 VIN−B Input Differential Analog Input Pin (−) for Channel B.
55 DNC Do Not Connect. Do not connect to this pin.
56 DNC Do Not Connect. Do not connect to this pin.
58 DNC Do Not Connect. Do not connect to this pin.
57 VCM Output

Common-Mode Level Bias Output for Analog Inputs. This pin

should be decoupled to ground using a 0.1 F capacitor.
1 CLK+ Input ADC Clock Input—True.
2 CLK− Input ADC Clock Input—Complement.

Digital Input

3 SYNC Input Digital Synchronization Pin. Slave mode only.

Rev. B | Page 14 of 36

Data Sheet AD9643

Pin No. Mnemonic Type Description

Digital Outputs

7 ORB+ Output

6 ORB− Output

8 B D0−/D1− (LSB) Output Channel B LVDS Output Data 0/Data 1—Complement.
9 B D0+/D1+ (LSB) Output Channel B LVDS Output Data 0/Data 1—True.
11 B D2−/D3− Output Channel B LVDS Output Data 2/Data 3—Complement.
12 B D2+/D3+ Output Channel B LVDS Output Data 2/Data 3—True.
13 B D4−/D5− Output Channel B LVDS Output Data 4/Data 5—Complement.
14 B D4+/D5+ Output Channel B LVDS Output Data 4/Data 5—True.
15 B D6−/D7− Output Channel B LVDS Output Data 6/Data 7—Complement.
16 B D6+/D7+ Output Channel B LVDS Output Data 6/Data 7—True.
17 B D8−/D9− Output Channel B LVDS Output Data 8/Data 9—Complement.
18 B D8+/D9+ Output Channel B LVDS Output Data 8/Data 9—True.
20 B D10−/D11− Output Channel B LVDS Output Data 10/Data 11—Complement.
21 B D10+/D11+ Output Channel B LVDS Output Data 10/Data 11—True.
22 B D12−/D13− (MSB) Output Channel B LVDS Output Data 12/Data 13—Complement.
23 B D12+/D13+ (MSB) Output Channel B LVDS Output Data 12/Data 13—True.
26 A D0−/D1− (LSB) Output Channel A LVDS Output Data 0/Data 1—Complement.
27 A D0+/D1+ (LSB) Output Channel A LVDS Output Data 0/Data 1—True.
29 A D2−/D3− Output Channel A LVDS Output Data 2/Data 3—Complement.
30 A D2+/D3+ Output Channel A LVDS Output Data 2/Data 3—True.
31 A D4−/D5− Output Channel A LVDS Output Data 4/Data 5—Complement.
32 A D4+/D5+ Output Channel A LVDS Output Data 4/Data 5—True.
33 A D6−/D7− Output Channel A LVDS Output Data 6/Data 7—Complement.
34 A D6+/D7+ Output Channel A LVDS Output Data 6/Data 7—True.
35 A D8−/D9− Output Channel A LVDS Output Data 8/Data 9—Complement.
36 A D8+/D9+ Output Channel A LVDS Output Data 8/Data 9—True.
38 A D10−/D11− Output Channel A LVDS Output Data 10/Data 11—Complement.
39 A D10+/D11+ Output Channel A LVDS Output Data 10/Data 11—True.
40 A D12−/D13− (MSB) Output Channel A LVDS Output Data 12/Data 13—Complement.
41 A D12+/D13+ (MSB) Output Channel A LVDS Output Data 12/Data 13—True.
43 ORA+ Output

42 ORA− Output

25 DCO+ Output Channel A/Channel B LVDS Data Clock Output—True.
24 DCO− Output

SPI Control

45 SCLK Input SPI Serial Clock.
44 SDIO Input/Output SPI Serial Data Input/Output.
46 CSB Input SPI Chip Select (Active Low).

Output Enable Bar and Power­Down

47 OEB Input Output Enable Bar Input (Active Low).

48 PDWN Input

Channel B LVDS Overrange Output—True. The overrange
indication is valid on the rising edge of the DCO.

Channel B LVDS Overrange Output—Complement. The
overrange indication is valid on the rising edge of the DCO.

Channel A LVDS Overrange Output—True. The overrange
indication is valid on the rising edge of the DCO.

Channel A LVDS Overrange Output—Complement. The
overrange indication is valid on the rising edge of the DCO.

Channel A/Channel B LVDS Data Clock Output—
Complement.

Power-Down Input (Active High). The operation of this pin
depends on the SPI mode and can be configured as power­down or standby (see Table 1 4 ).

Rev. B | Page 15 of 36

AD9643 Data Sheet

TYPICAL PERFORMANCE CHARACTERISTICS

AVDD = 1.8 V, DRVDD = 1.8 V, sample rate = maximum sample rate per speed grade, DCS enabled, 1.75 V p-p differential input, VIN =

−1.0 dBFS, 32k sample,
T

= 25°C, unless otherwise noted.

A

0

170MSPS

90.1MHz @ –1dBFS

–20

SNR = 70.8dB (71. 8dBFS)
SFDR = 88dBc

–40

–60

–80

AMPLITUDE (dBFS)

–100

–120

THIRD HARMONICSECOND HARMONIC

120

100

80

60

40

SNR/SFDR (dBc AND dBFS)

20

SFDR (dBFS)

SNR (dBFS)

SFDR (dBc)

SNR (dBc)

–140

100 20304050607080

FREQUENCY (MHz)

Figure 6. AD9643-170 Single-Tone FFT with f

AMPLITUDE (dBFS)

–20

–40

–60

–80

–100

–120

–140

0

SECOND HARMONIC

100 20304050607080

FREQUENCY (MHz)

170MSPS

185.1MHz @ –1dBF S
SNR = 69.8dB (70. 8dBFS)
SFDR = 85dBc

THIRD HARMONIC

Figure 7. AD9643-170 Single-Tone FFT with f

AMPLITUDE (dBFS)

–20

–40

–60

–80

–100

–120

–140

0

10020304050607080

FREQUENCY (MHz)

170MSPS

305.1MHz @ –1dBF S
SNR = 68.3dB (69. 3dBFS)
SFDR = 79dBc

THIRD HARMONIC

Figure 8. AD9643-170 Single-Tone FFT with f

= 90.1 MHz

IN

= 185.1 MHz

IN

SECOND HARMONIC

= 305.1 MHz

IN

0

09636-013

INPUT AMPLITUDE (dBFS)

Figure 9. AD9643-170 Single-Tone SNR/SFDR vs. Input Amplitude (A

= 90.1 MHz

f

IN

100

95

90

85

80

75

70

SNR/SFDR (dBc AND d BFS)

65

60

09636-014

SFDR (dBc)

SNR (dBFS)

FREQUENCY (MHz)

Figure 10. AD9643-170 Single-Tone SNR/SFDR vs. Input Frequency (f

0

–20

SFDR (dBc)

–40

IMD3 (dBc)

–60

–80

SFDR/IMD3 (dBc AND dBFS)

–100

–120

09636-015

SFDR (dBFS)

IMD3 (dBFS)

INPUT AMPLITUDE (dBF S)

Figure 11. AD9643-170 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

= 89.12, f

f

IN1

= 92.12 MHz, fS = 170 MSPS

IN2

–10–20–30–40–50–60–70–80–90–100 0

09636-016

) with

IN

330 360 3903002702402101801501209060

09636-017

)

IN

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

09636-018

) with

IN

Rev. B | Page 16 of 36

Data Sheet AD9643

0

–20

SFDR (dBc)

–40

–60

–80

SFDR/IMD3 (dBc AND dBFS)

–100

–120

IMD3 (dBc)

SFDR (dBFS)

IMD3 (dBFS)

INPUT AMPLITUDE (dBF S)

Figure 12. AD9643-170 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

f

0

170MSPS

89.12MHz @ –7dBF S

–20

92.12MHz @ –7dBF S
SFDR = 89dBc (96d BFS)

–40

–60

–80

AMPLITUDE ( dBFS)

–100

= 184.12, f

IN1

= 187.12 MHz, fS = 170 MSPS

IN2

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

) with

IN

100

95

90

85

SFDR, CHANNEL B

80

SNR/SFDR (dBc AND d BFS)

75

70

09636-019

SAMPLE RATE (MSPS)

Figure 15. AD9643-170 Single-Tone SNR/SFDR vs. Sample Rate (f

with f

IN

6000

5000

4000

3000

2000

NUMBER OF HIT S

SNR, CHANNEL B
SFDR, CHANNEL A
SNR, CHANNEL A

= 90.1 MHz

130 140 150 160120110100908070605040 170

1.34LSB rms
16,379 TOT AL HITS

09636-022

)

S

–120

–140

10020304050607080

FREQUENCY (MHz )

Figure 13. AD9643-170 Two-Tone FFT with f

= 170 MSPS

f

S

0

–20

–40

–60

–80

AMPLITUDE ( dBFS)

–100

–120

–140

10020304050607080

FREQUENCY (MHz )

Figure 14. AD9643-170 Two-Tone FFT with f

= 170 MSPS

f

S

= 89.12, f

IN1

170MSPS

184.12MHz @ –7dBF S

187.12MHz @ –7dBF S
SFDR = 84dBc (91d BFS)

= 184.12, f

IN1

= 92.12 MHz,

IN2

= 187.12 MHz,

IN2

1000

0

09636-020

OUTPUT CODE

N + 2 N + 3 N + 4 N + 5N + 1NN – 1N – 2N – 3N – 4N – 5

09636-023

Figure 16. AD9643-170 Grounded Input Histogram

0

210MSPS

90.1MHz @ –1dBFS

–20

SNR = 70.6dB (71. 6dBFS)
SFDR = 88dBc

–40

–60

–80

AMPLITUDE (dBFS)

–100

–120

–140

09636-021

Figure 17. AD9643-210 Single-Tone FFT with f

SECOND HARMONIC

THIRD HARMONIC

10020304050607080

FREQUENCY (Hz)

90 100

= 90.1 MHz

IN

09636-024

Rev. B | Page 17 of 36

AD9643 Data Sheet

100

95

90

85

80

75

70

SNR/SFDR (dBc AND d BFS)

65

SFDR (dBc)

SNR (dBFS)

AMPLITUDE (dBFS)

–20

–40

–60

–80

–100

–120

0

SECOND HARMONIC

210MSPS

185.1MHz @ –1dBF S
SNR = 70.3dB (71. 3dBFS)
SFDR = 86dBc

THIRD HARMONIC

–140

100 2030 4050607080

FREQUENCY (MHz )

Figure 18. AD9643-210 Single-Tone FFT with f

0

210MSPS

305.1MHz @ –1dBFS

–20

SNR = 67.3dB (68. 3dBFS)
SFDR = 75dBc

–40

THIRD HARMONIC

FREQUENCY (MHz)

AMPLITUDE (dBFS)

–60

–80

–100

–120

–140

SECOND HARMONIC

10020304050607080

Figure 19. AD9643-210 Single-Tone FFT with f

120

100

80

60

40

SNR/SFDR (dBc AND dBFS)

20

SFDR (dBFS)

SNR (dBFS)

SFDR (dBc)

SNR (dBc)

90 100

= 185.1 MHz

IN

90 100

= 305.1 MHz

IN

60

09636-025

FREQUENCY (MHz)

Figure 21. AD9643-210 Single-Tone SNR/SFDR vs. Input Frequency (f

0

–20

–40

–60

–80

SFDR/IMD3 (dBc AND dBFS)

–100

–120

09636-026

SFDR (dBc)

IMD3 (dBc)

SFDR (dBFS)

IMD3 (dBFS)

INPUT AMPLITUDE (dBF S)

Figure 22. AD9643-210 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

SFDR/IMD3 (dBc AND dBFS)

–20

–40

–60

–80

–100

= 89.12, f

with f

IN1

0

IMD3 (dBc)

= 92.12 MHz, fS = 210 MSPS

IN2

SFDR (dBc)

SFDR (dBFS)

330 360 3903002702402101801501209060

09636-028

)

IN

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

09636-029

)

IN

0

INPUT AMPLITUDE (dBFS)

–10–20–30–40–50–60–70–80–90–100 0

Figure 20. AD9643-210 Single-Tone SNR/SFDR vs. Input Amplitude (A

with f

= 90.1 MHz

IN

09636-027

)

IN

Rev. B | Page 18 of 36

–120

IMD3 (dBFS )

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

INPUT AMPLITUDE (dBF S)

Figure 23. AD9643-210 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

with f

= 184.12, f

IN1

= 187.12 MHz, fS = 210 MSPS

IN2

09636-030

)

IN

Data Sheet AD9643

0

210MSPS

89.12MHz @ –7dBF S

–20

92.12MHz @ –7dBF S
SFDR = 88dBc (95d BFS)

–40

–60

–80

AMPLITUDE (dBFS)

–100

–120

–140

10020304050607080

FREQUENCY (MHz )

Figure 24. AD9643-210 Two-Tone FFT with f

f

= 210 MSPS

S

0

–20

–40

–60

–80

AMPLITUDE (dBFS)

–100

90 100

= 89.12, f

IN1

210MSPS

184.12MHz @ –7dBF S

187.12MHz @ –7dBF S
SFDR = 88dBc (95dBFS)

= 92.12 MHz,

IN2

5000

4500

4000

3500

3000

2500

2000

NUMBER OF HIT S

1500

1000

500

0

09636-031

OUTPUT CODE

1.44LSB rms
16,378 TOT AL HITS

N + 2 N + 3 N + 4 N + 5N + 1NN – 1N – 2N – 3N – 4N – 5

09636-034

Figure 27. AD9643-210 Grounded Input Histogram

0

250MSPS

90.1MHz @ –1dBFS

–20

SNR = 70.6dB (71. 6dBFS)
SFDR = 88dBc

–40

–60

THIRD HARMONIC

SECOND HARMONIC

AMPLITUDE (dBFS)

–80

–100

–120

–140

10020304050607080

Figure 25. AD9643-210 Two-Tone FFT with f

100

95

90

85

80

SNR/SFDR (dBc AND d BFS)

75

70

FREQUENCY (MHz )

= 184.12, f

= 210 MSPS

f

S

SAMPLE RATE (MSPS)

IN1

SNR, CHANNEL B
SFDR, CHANNE L B
SNR, CHANNEL A
SFDR, CHANNE L A

140 160120100806040 180 200

IN2

Figure 26. AD9643-210 Single-Tone SNR/SFDR vs. Sample Rate (f

with f

= 90.1 MHz

IN

90 100

09636-032

= 187.12 MHz,

09636-033

)

S

–120

–140

100 2030405060708090100110120

FREQUENCY (MHz)

Figure 28. AD9643-250 Single-Tone FFT with f

AMPLITUDE (dBFS)

0

–20

–40

–60

–80

–100

–120

–140

THIRD HARMONIC

100 2030405060 708090100110120

FREQUENCY (MHz)

250MSPS

185.1MHz @ –1dBFS
SNR = 70.6dB (71.6d BFS)
SFDR = 85dBc

Figure 29. AD9643-250 Single-Tone FFT with f

= 90.1 MHz

IN

SECOND HARMONIC

= 185.1 MHz

IN

09636-035

09636-036

Rev. B | Page 19 of 36

AD9643 Data Sheet

AMPLITUDE (dBFS)

0

–20

–40

–60

–80

–100

–120

–140

100 2030405060 708090100110120

FREQUENCY (MHz)

250MSPS

305.1MHz @ –1dBF S
SNR = 68.6dB (71. 6dBFS)
SFDR = 83dBc

THIRD HARMONIC

Figure 30. AD9643-250 Single-Tone FFT with f

SECOND HARMONIC

= 305.1 MHz

IN

09636-037

0

–20

SFDR (dBc)

–40

–60

–80

SFDR/IMD3 (dBc AND dBFS)

–100

–120

IMD3 (dBc)

SFDR (dBFS)

IMD3 (d BFS)

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

INPUT AMPLITUDE (dBF S)

Figure 33. AD9643-250 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

with f

= 89.12, f

IN1

= 92.12 MHz, fS = 250 MSPS

IN2

09636-040

)

IN

120

100

80

60

40

SNR/SFDR (dBc AND d BFS)

20

0

SFDR (dBFS)

SNR (dBFS)

SFDR (dBc)

SNR (dBc)

–10–20–30–40–50–60–70–80–90–100 0

INPUT AMPLI TUDE (dBFS )

Figure 31. AD9643-250 Single-Tone SNR/SFDR vs. Input Amplitude (A

= 185.1 MHz

with f

IN

100

95

90

85

80

75

70

SNR/SFDR (dBc AND d BFS)

65

SFDR (dBc)

SNR (dBFS)

0

–20

SFDR (dBc)

–40

–60

–80

SFDR/IMD3 (dBc AND dBFS)

–100

–120

09636-038

)

IN

Figure 34. AD9643-250 Two-Tone SFDR/IMD3 vs. Input Amplitude (A

with f

0

250MSPS

89.12MHz @ –7dBF S

–20

92.12MHz @ –7dBF S
SFDR = 87dBc (94d BFS)

–40

–60

–80

AMPLITUDE (dBFS)

–100

–120

IMD3 (dBc)

SFDR (dBFS)

IMD3 (d BFS)

INPUT AMPLITUDE (dBF S)

= 184.12, f

IN1

= 187.12 MHz, fS = 250 MSPS

IN2

–7.0–21.0–32.5–44.0–55.5–67.0–78.5–90.0

09636-041

)

IN

60

FREQUENCY (MHz)

240 2 602202001801601401201008060

Figure 32. AD9643-250 Single-Tone SNR/SFDR vs. Input Frequency (f

09636-039

)

IN

Rev. B | Page 20 of 36

–140

100 20 30 40 50 60 70 80 90 100 110 120

FREQUENCY (MHz )

Figure 35. AD9643-250 Two-Tone FFT with f

f

= 250 MSPS

S

= 89.12, f

IN1

= 92.12 MHz,

IN2

09636-042

Data Sheet AD9643

0

250MSPS

184.12MHz @ –7dBF S

–20

187.12MHz @ –7dBF S
SFDR = 87dBc (94d BFS)

–40

–60

–80

AMPLITUDE (dBFS)

–100

–120

–140

100 20 30 40 50 60 70 80 90 100 110 120

FREQUENCY (MHz )

Figure 36. AD9643-250 Two-Tone FFT with f

f

= 250 MSPS

S

100

95

90

= 184.12, f

IN1

= 187.12 MHz,

IN2

5000

4500

4000

3500

3000

2500

2000

NUMBER OF HIT S

1500

1000

500

0

09636-043

OUTPUT CODE

1.33LSB rms
16,378 TOT AL HITS

N + 2 N + 3 N + 4 N + 5N + 1NN – 1N – 2N – 3N – 4N – 5

09636-045

Figure 38. AD9643-250 Grounded Input Histogram

85

SNR, CHANNEL B

80

SNR/SFDR (dBc AND d BFS)

75

70

SAMPLE RATE (MSPS)

SFDR, CHANNE L B
SNR, CHANNEL A
SFDR, CHANNE L A

Figure 37. AD9643-250 Single-Tone SNR/SFDR vs. Sample Rate (f

with f

= 90.1 MHz

IN

220200180160140120100806040 240

09636-044

)

S

Rev. B | Page 21 of 36

AD9643 Data Sheet

V

C

R

V

A

S

A

A

EQUIVALENT CIRCUITS

AVDD

IN

Figure 39. Equivalent Analog Input Circuit

AVDD

AVDD AVDD

LK+

0.9V

15kΩ 15kΩ

CLK, PDW N,

OR OEB

09636-006

Figure 43. Equivalent SCLK, PDWN, or OEB Input Circuit

VDD

CSB

OR

CLK–

OEB

26kΩ

26kΩ

350Ω

350Ω

09636-010

Figure 40. Equivalent Clock lnput Circuit

D

DD

V–

DATAOUT+

V+

D

V+

TAOUT–

V–

Figure 41. Equivalent LVDS Output Circuit

DRVDD

SDIO

350Ω

26kΩ

09636-007

09636-011

Figure 44. Equivalent CSB Input Circuit

VDD AVDD

SYNC

16kΩ

0.9V

09636-063

0.9V

9636-012

Figure 45. Equivalent SYNC Input Circuit

09636-009

Figure 42. Equivalent SDIO Circuit

Rev. B | Page 22 of 36

Data Sheet AD9643

V

V

THEORY OF OPERATION

The AD9643 has two analog input channels and two digital
output channels. The intermediate frequency (IF) signal passes
through several stages before appearing at the output port(s).

The dual ADC design can be used for diversity reception of signals,
where the ADCs operate identically on the same carrier but from
two separate antennae. The ADCs can also be operated with
independent analog inputs. The user can sample frequencies
from dc to 300 MHz using appropriate low-pass or band-pass
filtering at the ADC inputs with little loss in ADC performance.
Operation to 400 MHz analog input is permitted but occurs at
the expense of increased ADC noise and distortion.

Synchronization capability is provided to allow synchronized
timing between multiple devices.

Programming and control of the AD9643 are accomplished
using a 3-pin, SPI-compatible serial interface.

ADC ARCHITECTURE

The AD9643 architecture consists of a dual front-end sample­and-hold circuit, followed by a pipelined switched-capacitor
ADC. The quantized outputs from each stage are combined into
a final 14-bit result in the digital correction logic. The pipelined
architecture permits the first stage to operate on a new input
sample and the remaining stages to operate on the preceding
samples. Sampling occurs on the rising edge of the clock.

Each stage of the pipeline, excluding the last, consists of a low
resolution flash ADC connected to a switched-capacitor digital­to-analog converter (DAC) and an interstage residue amplifier
(MDAC). The MDAC magnifies the difference between the recon­structed DAC output and the flash input for the next stage in
the pipeline. One bit of redundancy is used in each stage to
facilitate digital correction of flash errors. The last stage simply
consists of a flash ADC.

The input stage of each channel contains a differential sampling
circuit that can be ac- or dc-coupled in differential or single­ended modes. The output staging block aligns the data, corrects
errors, and passes the data to the output buffers. The output buffers
are powered from a separate supply, allowing digital output noise to
be separated from the analog core. During power-down, the
output buffers go into a high impedance state.

ANALOG INPUT CONSIDERATIONS

The analog input to the AD9643 is a differential switched­capacitor circuit that has been designed for optimum performance
while processing a differential input signal.

The clock signal alternatively switches the input between sample
mode and hold mode (see the configuration shown in Figure 46).
When the input is switched into sample mode, the signal source
must be capable of charging the sampling capacitors and settling
within 1/2 clock cycle.

A small resistor in series with each input can help reduce the
peak transient current required from the output stage of the
driving source. A shunt capacitor can be placed across the
inputs to provide dynamic charging currents. This passive
network creates a low-pass filter at the ADC input; therefore,
the precise values are dependent on the application.

In intermediate frequency (IF) undersampling applications, the
shunt capacitors should be reduced. In combination with the
driving source impedance, the shunt capacitors limit the input
bandwidth. Refer to the AN-742 Application Note, Frequency
Domain Response of Switched-Capacitor ADCs; the AN-827

Application Note, A Resonant Approach to Interfacing Amplifiers to

Switched-Capacitor ADCs; and the Analog Dialogue article,
“Transformer-Coupled Front-End for Wideband A/D Converters,”
for more information on this subject.

BIAS

IN+

IN–

S

C

S

C

PAR1

C

PAR1

C

PAR2

H

C

S

C

PAR2

S

Figure 46. Switched-Capacitor Input

BIAS

S

C

FB

S

C

S

FB

S

09636-050

For best dynamic performance, the source impedances driving
VIN+ and VIN− should be matched, and the inputs should be
differentially balanced.

Input Common Mode

The analog inputs of the AD9643 are not internally dc biased.
In ac-coupled applications, the user must provide this bias
externally. Setting the device so that V

= 0.5 × AVDD (or

CM

0.9 V) is recommended for optimum performance. An on-board
common-mode voltage reference is included in the design and is
available from the VCM pin. Using the VCM output to set the
input common mode is recommended. Optimum performance
is achieved when the common-mode voltage of the analog input
is set by the VCM pin voltage (typically 0.5 × AVDD). The
VCM pin must be decoupled to ground by a 0.1 µF capacitor, as
described in the Applications Information section. This
decoupling capacitor should be placed close to the pin to
minimize the series resistance and inductance between the part
and this capacitor.

Differential Input Configurations

Optimum performance is achieved while driving the AD9643
in a differential input configuration. For baseband applications,
the AD8138, ADA4937-2, ADA4938-2, and ADA4930-2

Rev. B | Page 23 of 36

AD9643 Data Sheet

V

F

2

p

differential drivers provide excellent performance and a flexible
interface to the ADC.

The output common-mode voltage of the ADA4930-2 is easily
set with the VCM pin of the AD9643 (see Figure 47), and the
driver can be configured in a Sallen-Key filter topology to
provide band-limiting of the input signal.

15pF

200Ω

76.8Ω

IN

0.1µF

90Ω

ADA4930-2

120Ω

200Ω

33Ω

33Ω

33Ω

5pF

15pF

15Ω

15Ω

VIN–

VIN+

AVDD

ADC

VCM

0.1µF

Figure 47. Differential Input Configuration Using the ADA4930-2

For baseband applications where SNR is a key parameter,
differential transformer coupling is the recommended input
configuration. An example is shown in Figure 48. To bias the
analog input, the VCM voltage can be connected to the center
tap of the secondary winding of the transformer.

C2

R3

R2

VIN+

ADC

R2

VIN–

VCM

2V p-p

49.9Ω

R1

C1

R1

09636-051

the recommended input configuration (see Figure 50). In this
configuration, the input is ac-coupled and the VCM voltage is
provided to each input through a 33 Ω resistor. These resistors
compensate for losses in the input baluns to provide a 50 Ω
impedance to the driver.

In the double balun and transformer configurations, the value of
the input capacitors and resistors is dependent on the input fre­quency and source impedance. Based on these parameters, the
value of the input resistors and capacitors may need to be adjusted
or some components may need to be removed. Tab l e 1 0 displays
recommended values to set the RC network for different input
frequency ranges. However, these values are dependent on the
input signal and bandwidth and should be used only as a
starting guide. Note that the values given in Tab l e 1 0 are for each
R1, R2, C2, and R3 component shown in Figure 48 and Figure 50.

Table 10. Example RC Network

Frequency
Range
(MHz)

0 to 100 33 8.2 0 15 49.9
100 to 300 15 3.9 0 8.2 49.9

R1
Series
(Ω)

C1
Differential
(pF)

R2
Series
(Ω)

C2
Shunt
(pF)

R3
Shunt
(Ω)

An alternative to using a transformer-coupled input at frequencies
in the second Nyquist zone is to use an amplifier with variable
gain. The AD8375 or AD8376 digital variable gain amplifier
(DVGAs) provides good performance for driving the AD9643.
Figure 49 shows an example of the AD8376 driving the AD9643
through a band-pass antialiasing filter.

220nH

180nH1000p

0.1µF

R3

C2

33Ω

0.1µF

Figure 48. Differential Transformer-Coupled Configuration

The signal characteristics must be considered when selecting
a transformer. Most RF transformers saturate at frequencies
below a few megahertz. Excessive signal power can also cause
core saturation, which leads to distortion.

At input frequencies in the second Nyquist zone and above, the
noise performance of most amplifiers is not adequate to achieve
the true SNR performance of the AD9643. For applications where
SNR is a key parameter, differential double balun coupling is

V p-

0.1µF

S

SP

A

Figure 50. Differential Double Balun Input Configuration

0.1µF

P

0.1µF

1µH

1µH

VPOS

1nF

1000pF

5.1pF

301Ω

180nH

09636-052

AD8376

NOTES

1. ALL INDUCTORS ARE COI LCRAFT
EXCEPTIO N OF THE 1µH CHOKE INDUCTORS (CO IL CRAFT 0603LS ).

2. FILTER VALUES SHOWN ARE FOR A 20MHz BANDWI DTH FILTER
CENTERED AT 140MHz.

165Ω

15pF

3.9pF

220nH

®

0603CS COMPONENT S WITH T HE

165Ω

VCM

1nF

68nH

AD9643

2.5kΩ║2pF

09636-054

Figure 49. Differential Input Configuration Using the AD8376

C2

R3

33Ω

33Ω

0.1µF

R1

C1

R1R2R2

C2

VIN+

ADC

VIN–

R3

33Ω

VCM

0.1µF

09636-053

Rev. B | Page 24 of 36

Data Sheet AD9643

K

K

VOLTAGE REFERENCE

A stable and accurate voltage reference is built into the AD9643.
The full-scale input range can be adjusted by varying the
reference voltage via SPI. The input span of the ADC tracks
reference voltage changes linearly.

CLOCK INPUT CONSIDERATIONS

For optimum performance, the AD9643 sample clock inputs,
CLK+ and CLK−, should be clocked with a differential signal.
The signal is typically ac-coupled into the CLK+ and CLK− pins
via a transformer or via capacitors. These pins are biased internally
(see Figure 51) and require no external bias. If the inputs are
floated, the CLK− pin is pulled low to prevent spurious clocking.

AVDD

CLOC

INPUT

390pF

Figure 53. Balun-Coupled Differential Clock (Up to 625 MHz)

If a low jitter clock source is not available, another option is to
ac-couple a differential PECL signal to the sample clock input
pins as shown in Figure 54. The AD9510, AD9511, AD9512,

AD9513, AD9514, AD9515, AD9516, AD9517, AD9518, AD9520,
AD9522, AD9523, AD9524, and ADCLK905/ADCLK907/
ADCLK925 clock drivers offer excellent jitter performance.

25Ω

25Ω

390pF

390pF

SCHOTTKY

DIODES:

HSMS2822

CLK+

CLK–

ADC

09637-057

0.9V

CLK+

CLK–

4pF4pF

9636-055

Figure 51. Simplified Equivalent Clock Input Circuit

Clock Input Options

The AD9643 has a very flexible clock input structure. Clock
input can be a CMOS, LVDS, LVPECL, or sine wave signal.
Regardless of the type of signal being used, clock source jitter
is of the most concern, as described in the Jitter Considerations
section.

Figure 52 and Figure 53 show two preferable methods for
clocking the AD9643 (at clock rates of up to 625 MHz). A low
jitter clock source is converted from a single-ended signal to a
differential signal using an RF balun or RF transformer.

The RF balun configuration is recommended for clock frequencies
between 125 MHz and 625 MHz, and the RF transformer is recom­mended for clock frequencies from 10 MHz to 200 MHz. The
back-to-back Schottky diodes across the transformer secondary
limit clock excursions into the AD9643 to approximately 0.8 V p-p
differential. This limit helps prevent the large voltage swings of
the clock from feeding through to other portions of the AD9643
while preserving the fast rise and fall times of the signal, which
are critical to low jitter performance.

XFMR

®

390pF390pF

390pF

SCHOTT KY

DIODES:

HSMS2822

ADC

CLK+

CLK–

Mini-Circuits

ADT1-1WT, 1:1Z

CLOC

INPUT

50Ω

100Ω

Figure 52. Transformer-Coupled Differential Clock (Up to 200 MHz)

CLOCK

INPUT

CLOCK

INPUT

0.1µF

0.1µF

50kΩ 50kΩ

AD95xx

PECL DRIVER

0.1µF

100Ω

0.1µF

240Ω240Ω

CLK+

CLK–

ADC

09636-058

Figure 54. Differential PECL Sample Clock (Up to 625 MHz)

A third option is to ac-couple a differential LVDS signal to the
sample clock input pins, as shown in Figure 55. The AD9510,
AD9511, AD9512, AD9513, AD9514, AD9515, AD9516, AD9517,
AD9518, AD9520, AD9522, AD9523, and AD9524 clock drivers
offer excellent jitter performance.

CLOCK

INPUT

CLOCK

INPUT

50kΩ 50kΩ

0.1µF

0.1µF

AD95xx

LVDS DRIVER

Figure 55. Differential LVDS Sample Clock (Up to 625 MHz)

0.1µF

100Ω

0.1µF

CLK+

CLK–

ADC

09636-059

Input Clock Divider

The AD9643 contains an input clock divider with the ability to
divide the input clock by integer values between 1 and 8. The
duty cycle stabilizer (DCS) is enabled by default on power-up.

The AD9643 clock divider can be synchronized using the external
SYNC input. Bit 1 and Bit 2 of Register 0x3A allow the clock
divider to be resynchronized on every SYNC signal or only on
the first SYNC signal after the register is written. A valid SYNC
causes the clock divider to reset to its initial state. This synchro­nization feature allows multiple parts to have their clock dividers
aligned to guarantee simultaneous input sampling.

9636-056

Rev. B | Page 25 of 36

AD9643 Data Sheet

Clock Duty Cycle

Typical high speed ADCs use both clock edges to generate a
variety of internal timing signals and, as a result, may be sensitive to
clock duty cycle. Commonly, a ±5% tolerance is required on the
clock duty cycle to maintain dynamic performance characteristics.

The AD9643 contains a duty cycle stabilizer (DCS) that retimes
the nonsampling (falling) edge, providing an internal clock
signal with a nominal 50% duty cycle. This allows the user to
provide a wide range of clock input duty cycles without affecting
the performance of the AD9643.

Jitter on the rising edge of the input clock is still of paramount
concern and is not reduced by the duty cycle stabilizer. The duty
cycle control loop does not function for clock rates less than
40 MHz nominally. The loop has a time constant associated
with it that must be considered when the clock rate can change
dynamically. A wait time of 1.5 µs to 5 µs is required after a
dynamic clock frequency increase or decrease before the DCS
loop is relocked to the input signal. During the time period that
the loop is not locked, the DCS loop is bypassed, and internal
device timing is dependent on the duty cycle of the input clock
signal. In such applications, it may be appropriate to disable the
duty cycle stabilizer. In all other applications, enabling the DCS
circuit is recommended to maximize ac performance.

Jitter Considerations

High speed, high resolution ADCs are sensitive to the quality of
the clock input. The degradation in SNR at a given input
frequency (f

SNR

) due to jitter (tJ) can be calculated by

IN

= −10 log[(2π × fIN × t

HF

)2 + 10 ]

JRMS

)10/(LFSNR−

In the equation, the rms aperture jitter represents the root­mean-square of all jitter sources, which include the clock input,
the analog input signal, and the ADC aperture jitter specification.
IF undersampling applications are particularly sensitive to jitter,
as shown in Figure 56.

80

75

70

65

SNR (dBc)

60

0.05ps

0.2ps

0.5ps
1ps

55

1.5ps
MEASURED

50

1 10 100 1000

Figure 56. AD9643-250 SNR vs. Input Frequency and Jitter

INPUT FREQUENCY (MHz)

09636-060

The clock input should be treated as an analog signal in cases
where aperture jitter may affect the dynamic range of the AD9643.

Power supplies for clock drivers should be separated from the
ADC output driver supplies to avoid modulating the clock signal
with digital noise. Low jitter, crystal controlled oscillators make
the best clock sources. If the clock is generated from another type
of source (by gating, dividing, or another method), it should be
retimed by the original clock at the last step.

Refer to the AN-501 Application Note, Aperture Uncertainty and

ADC System Performance, and the AN-756 Application Note,
Sampled Systems and the Effects of Clock Phase Noise and Jitter, for

more information about jitter performance as it relates to ADCs.

POWER DISSIPATION AND STANDBY MODE

As shown in Figure 57, the power dissipated by the AD9643 is
proportional to its sample rate. The data in Figure 57 was taken
using the same operating conditions as those used for the Typ ic al
Performance Characteristics section.

0.8

0.7

0.6

0.5

0.4

0.3

TOTAL POWER (W)

0.2

0.1

0

40 60 80 100 120 140 160 180 200 220 240

Figure 57. AD9643-250 Power and Current vs. Sample Rate

TOTAL POWER

I

AVDD

I

DRVDD

ENCODE FREQUE NCY (MSPS)

By asserting PDWN (either through the SPI port or by asserting
the PDWN pin high), the AD9643 is placed in power-down
mode. In this state, the ADC typically dissipates 10 mW. During
power-down, the output drivers are placed in a high impedance
state. Asserting the PDWN pin low returns the AD9643 to its
normal operating mode. Note that PDWN is referenced to the
digital output driver supply (DRVDD) and should not exceed
that supply voltage.

Low power dissipation in power-down mode is achieved by
shutting down the reference, reference buffer, biasing networks,
and clock. Internal capacitors are discharged when entering
power-down mode and then must be recharged when returning
to normal operation. As a result, wake-up time is related to the
time spent in power-down mode, and shorter power-down
cycles result in proportionally shorter wake-up times.

When using the SPI port interface, the user can place the ADC
in power-down mode or standby mode. Standby mode allows
the user to keep the internal reference circuitry powered when
faster wake-up times are required. See the Memory Map Register
Description section and the AN-877 Application Note, Inter facing
to High Speed ADCs via SPI, for additional details.

0.5

0.4

0.3

0.2

0.1

0

SUPPLY CURRENT (A)

09636-061

Rev. B | Page 26 of 36

Data Sheet AD9643

DIGITAL OUTPUTS

The AD9643 output drivers can be configured for either ANSI
LVDS or reduced drive LVDS using a 1.8 V DRVDD supply.

As detailed in the AN-877 Application Note, Interfacing to High
Speed ADCs via SPI, the data format can be selected for offset
binary, twos complement, or gray code when using the SPI
control.

Digital Output Enable Function (OEB)

The AD9643 has a flexible three-state ability for the digital
output pins. The three-state mode is enabled using the OEB pin
or through the SPI interface. If the OEB pin is low, the output
data drivers are enabled. If the OEB pin is high, the output data
drivers are placed in a high impedance state. This OEB function
is not intended for rapid access to the data bus. Note that OEB
is referenced to the digital output driver supply (DRVDD) and
should not exceed that supply voltage.

When using the SPI interface, the data outputs of each channel
can be independently three-stated by using the output enable
bar bit (Bit 4) in Register 0x14. Because the output data is
interleaved, if only one of the two channels is disabled, the output
data of the remaining channel is repeated in both the rising and
falling output clock cycles.

Timing

The AD9643 provides latched data with a pipeline delay of 10 input
sample clock cycles. Data outputs are available one propagation
delay (t

The length of the output data lines and loads placed on them
should be minimized to reduce transients within the AD9643.
These transients can degrade converter dynamic performance.

The lowest typical conversion rate of the AD9643 is 40 MSPS. At
clock rates below 40 MSPS, dynamic performance may degrade.

) after the rising edge of the clock signal.

PD

Data Clock Output (DCO)

The AD9643 also provides data clock output (DCO) intended
for capturing the data in an external register. Figure 2 shows a
graphical timing diagram of the AD9643 output modes.

ADC OVERRANGE (OR)

The ADC overrange indicator is asserted when an overrange is
detected on the input of the ADC. The overrange condition is
determined at the output of the ADC pipeline and, therefore, is
subject to a latency of 10 ADC clocks. An overrange at the input is
indicated by this bit, 10 clock cycles after it occurs.

Table 11. Output Data Format

VIN+ − VIN−,

Input (V)

VIN+ − VIN− <–0.875 00 0000 0000 0000 10 0000 0000 0000 1
VIN+ − VIN− –0.875 00 0000 0000 0000 10 0000 0000 0000 0
VIN+ − VIN− 0 10 0000 0000 0000 00 0000 0000 0000 0
VIN+ − VIN− +0.875 11 1111 1111 1111 01 1111 1111 1111 0
VIN+ − VIN− >+0.875 11 1111 1111 1111 01 1111 1111 1111 1

Input Span = 1.75 V p-p (V) Offset Binary Output Mode Twos Complement Mode (Default) OR

Rev. B | Page 27 of 36

AD9643 Data Sheet

CHANNEL/CHIP SYNCHRONIZATION

The AD9643 has a SYNC input that allows the user flexible
synchronization options for synchronizing the internal blocks.
The SYNC feature is useful for guaranteeing synchronized
operation across multiple ADCs. The input clock divider can be
synchronized using the SYNC input. The divider can be enabled
to synchronize on a single occurrence of the SYNC signal or on
every occurrence by setting the appropriate bits in Register 0x3A.

The SYNC input is internally synchronized to the sample clock.
However, to ensure that there is no timing uncertainty between
multiple parts, the SYNC input signal should be synchronized
to the input clock signal. The SYNC input should be driven
using a single-ended CMOS type signal.

Rev. B | Page 28 of 36

Data Sheet AD9643

SERIAL PORT INTERFACE (SPI)

The AD9643 serial port interface (SPI) allows the user to configure
the converter for specific functions or operations through a
structured register space provided inside the ADC. The SPI
gives the user added flexibility and customization, depending on
the application. Addresses are accessed via the serial port and
can be written to or read from via the port. Memory is organized
into bytes that can be further divided into fields. These fields are
documented in the Memory Map section. For detailed operational
information, see the AN-877 Application Note, Inter facing to
High Speed ADCs via SPI.

CONFIGURATION USING THE SPI

Three pins define the SPI of this ADC: the SCLK pin, the SDIO
pin, and the CSB pin (see Tab l e 1 2 ). The SCLK (serial clock) pin is
used to synchronize the read and write data presented from/to the
ADC. The SDIO (serial data input/output) pin is a dual-purpose
pin that allows data to be sent and read from the internal ADC
memory map registers. The CSB (chip select bar) pin is an active
low control that enables or disables the read and write cycles.

Table 12. Serial Port Interface Pins

Pin Function

Serial Clock. The serial shift clock input, which is used to

SCLK

synchronize serial interface reads and writes.
Serial Data Input/Output. A dual-purpose pin that

SDIO

typically serves as an input or an output, depending on
the instruction being sent and the relative position in the
timing frame.

Chip Select Bar. An active low control that gates the read

CSB

and write cycles.

The falling edge of CSB, in conjunction with the rising edge of
SCLK, determines the start of the framing. An example of the
serial timing and its definitions can be found in Figure 58 and
Tabl e 5 .

Other modes involving the CSB are available. The CSB can be
held low indefinitely, which permanently enables the device;
this is called streaming. The CSB can stall high between bytes
to allow for additional external timing. When CSB is tied high,
SPI functions are placed in a high impedance mode. This mode
turns on any SPI pin secondary functions.

During an instruction phase, a 16-bit instruction is transmitted.
Data follows the instruction phase, and its length is determined
by the W0 and the W1 bits.

All data is composed of 8-bit words. The first bit of each individual
byte of serial data indicates whether a read or write command is
issued. This allows the serial data input/output (SDIO) pin to
change direction from an input to an output.

In addition to word length, the instruction phase determines
whether the serial frame is a read or write operation, allowing
the serial port to be used both to program the chip and to read
the contents of the on-chip memory. If the instruction is a readback
operation, performing a readback causes the serial data input/
output (SDIO) pin to change direction from an input to an output
at the appropriate point in the serial frame.

Data can be sent in MSB first mode or in LSB first mode. MSB
first is the default on power-up and can be changed via the SPI
port configuration register. For more information about this
and other features, see the
to High Speed ADCs via SPI.

AN-877 Application Note, Interfacing

HARDWARE INTERFACE

The pins described in Ta b l e 12 comprise the physical interface
between the user programming device and the serial port of the
AD9643. The SCLK pin and the CSB pin function as inputs
when using the SPI interface. The SDIO pin is bidirectional,
functioning as an input during write phases and as an output
during readback.

The SPI interface is flexible enough to be controlled by either
FPGAs or microcontrollers. One method for SPI configuration
is described in detail in the AN-812 Application Note, Micro-
controller-Based Serial Port Interface (SPI) Boot Circuit.

The SPI port should not be active during periods when the full
dynamic performance of the converter is required. Because the
SCLK signal, the CSB signal, and the SDIO signal are typically
asynchronous to the ADC clock, noise from these signals can
degrade converter performance. If the on-board SPI bus is used for
other devices, it may be necessary to provide buffers between
this bus and the AD9643 to prevent these signals from transi­tioning at the converter inputs during critical sampling periods.

Rev. B | Page 29 of 36

AD9643 Data Sheet

SPI ACCESSIBLE FEATURES

Tabl e 1 3 provides a brief description of the general features that
are accessible via the SPI. These features are described in detail
in the AN-877 Application Note, Interfacing to High Speed ADCs
via SPI. The AD9643 part-specific features are described in the
Memory Map Register Description section.

Table 13. Features Accessible Using the SPI

Feature Name Description

Mode Allows the user to set either power-down mode or standby mode
Clock Allows the user to access the DCS via the SPI
Offset Allows the user to digitally adjust the converter offset
Test I/O Allows the user to set test modes to have known data on output bits
Output Mode Allows the user to set up outputs
Output Phase Allows the user to set the output clock polarity
Output Delay Allows the user to vary the DCO delay
VREF Allows the user to set the reference voltage

CSB

SCLK

SDIO

DON’T CARE

t

t

DS

t

S

R/W W1 W0 A12 A11 A10 A9 A8 A7

t

DH

HIGH

t

LOW

t

CLK

Figure 58. Serial Port Interface Timing Diagram

D5 D4 D3 D2 D1 D0

t

H

DON’T CARE

DON’T CAREDON’T CARE

09636-062

Rev. B | Page 30 of 36

Data Sheet AD9643

MEMORY MAP

READING THE MEMORY MAP REGISTER TABLE

Each row in the memory map register table has eight bit locations.
The memory map is roughly divided into three sections: the chip
configuration registers (Address 0x00 to Address 0x02); the
channel index and transfer registers (Address 0x05 and
Address 0xFF); and the ADC functions registers, including setup,
control, and test (Address 0x08 to Address 0x3A).

The memory map register table (see Tab l e 1 4 ) documents the
default hexadecimal value for each hexadecimal address shown.
The column with the heading Bit 7 (MSB) is the start of the
default hexadecimal value given. For example, Address 0x14,
the output mode register, has a hexadecimal default value of
0x05. This means that Bit 0 = 1 and Bit 2 = 1, and the remaining
bits are 0s. This setting is the default output format value, which
is twos complement. For more information on this function and
others, see the AN-877 Application Note, Interfacing to High
Speed ADCs via SPI. This document details the functions
controlled by Register 0x00 to Register 0x25. The remaining
registers, Register 0x3A, is documented in the Memory Map
Register Description section.

Open and Reserved Locations

All address and bit locations that are not included in Tab l e 1 4
are not currently supported for this device. Unused bits of a
valid address location should be written with 0s. Writing to these
locations is required only when part of an address location is
open (for example, Address 0x18). If the entire address location
is open (for example, Address 0x13), this address location should
not be written.

Default Values

After the AD9643 is reset, critical registers are loaded with
default values. The default values for the registers are given in
the memory map register table, Tab l e 1 4 .

Logic Levels

An explanation of logic level terminology follows:

• “Bit is set” is synonymous with “bit is set to Logic 1” or

“writing Logic 1 for the bit.”

• “Clear a bit” is synonymous with “bit is set to Logic 0” or

“writing Logic 0 for the bit.”

Transfer Register Map

Address 0x08 to Address 0x20 and Address 0x3A are shadowed.
Writes to these addresses do not affect part operation until a
transfer command is issued by writing 0x01 to Address 0xFF,
setting the transfer bit. This allows these registers to be updated
internally and simultaneously when the transfer bit is set. The
internal update takes place when the transfer bit is set, and then
the bit autoclears.

Channel-Specific Registers

Some channel setup functions, such as the signal monitor
thresholds, can be programmed to a different value for each
channel. In these cases, channel address locations are internally
duplicated for each channel. These registers and bits are designated
in Tabl e 14 as local. These local registers and bits can be accessed
by setting the appropriate Channel A or Channel B bits in
Register 0x05. If both bits are set, the subsequent write affects
the registers of both channels. In a read cycle, only Channel A
or Channel B should be set to read one of the two registers. If
both bits are set during an SPI read cycle, the part returns the
value for Channel A. Registers and bits designated as global in
Tabl e 1 4 affect the entire part and the channel features for which
independent settings are not allowed between channels. The
settings in Register 0x05 do not affect the global registers and bits.

Rev. B | Page 31 of 36

AD9643 Data Sheet

MEMORY MAP REGISTER TABLE

All address and bit locations that are not included in Tab l e 1 4 are not currently supported for this device.

Table 14. Memory Map Registers

Addr
(Hex)

Chip Configuration Registers
0x00

0x01

0x02

Channel Index and Transfer Registers
0x05

0xFF

ADC Functions
0x08

0x09

0x0B

Register
Name

SPI port
configuration
(global)1

Chip ID
(global)

Chip grade
(global)

Channel index
(global)

Transfer
(global)

Power modes
(local)

Global clock
(global)

Clock divide
(global)

Bit 7
(MSB)

0 LSB first Soft reset 1 1 Soft reset LSB first 0 0x18

Open Open

Open Open Open Open Open Open

Open Open Open Open Open Open Open Transfer 0x00

Open Open

Open Open Open Open Open Open Open

Open Open Input clock divider phase adjust

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

8-bit chip ID[7:0]
(AD9643 = 0x82)

(default)

Speed grade ID
00 = 250 MSPS

01 = 210 MSPS
11 = 170 MSPS

External
power­down pin
function
(local)

0 = power­down
1 = standby

000 = no delay
001 = 1 input clock cycle
010 = 2 input clock cycles
011 = 3 input clock cycles
100 = 4 input clock cycles
101 = 5 input clock cycles
110 = 6 input clock cycles
111 = 7 input clock cycles

Open Open Open

Rev. B | Page 32 of 36

Open Open Open Open

ADC B
(default)

Internal power-down mode
(local)

00 = normal operation
01 = full power-down
10 = standby
11 = reserved

Clock divide ratio

000 = divide by 1
001 = divide by 2
010 = divide by 3
011 = divide by 4
100 = divide by 5
101 = divide by 6
110 = divide by 7
111 = divide by 8

Bit 0
(LSB)

ADC A
(default)

Duty cycle
stabilizer
(default)

Default
Value
(Hex)

0x82 Read only.

0x03

0x00

0x01

0x00

Default
Notes/
Comments

The nibbles
are mirrored
so that LSB
first mode
or MSB first
mode
registers
correctly,
regardless
of shift
mode.

Speed
grade ID
used to
differentiate
devices;
read only.

Bits are
set to
determine
which
device on
the chip
receives
the next
write
command;
applies to
local
registers
only.

Synchro­nously
transfers
data from
the master
shift register
to the slave.

Determines
various
generic
modes of
chip
operation.

Clock
divide
values
other than
000 auto­matically
cause the
duty cycle
stabilizer to
become
active.

Data Sheet AD9643

Addr

Register

(Hex)

Name

0x0D

Test mode
(local)

0x0E

BIST enable
(local)

0x10

Offset adjust
(local)

0x14 Output mode Open Open Open

0x15

Output Adjust
(Global)

0x16

Clock phase
control
(global)

Bit 7
(MSB)

User test
mode
control

0 = con­tinuous/
repeat
pattern
1 = single
pattern,
then 0s

Open Open Open Open Open

Open Open

Open Open Open Open LVDS output drive current adjust

Invert
DCO clock

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

Open

Open

Reset PN
long ge n

Even/odd
mode
output
enable

0 =
disabled
1 =
enabled

0x17

0x18

0x19

0x1A

0x1B

0x1C

DCO output
delay
(global)

Input Span
select
(global)

User Test
Pattern 1 LSB
(global)

User Test
Pattern 1 MSB
(global)

User Test
Pattern 2 LSB
(global)

User Test
Pattern 2 MSB
(global)

Enable
DCO
clock
delay

Open Open Open Full-scale input voltage selection

Open Open DCO clock delay

Default
Bit 0
(LSB)

Reset PN
short gen

Offset adjust in LSBs from +31 to −32

(twos complement format)

Output
enable bar
(local)

Open Open Open Open Open 0x00

User Test Pattern 1[7:0] 0x00

User Test Pattern 1[15:8] 0x00

User Test Pattern 2[7:0] 0x00

User Test Pattern 2[15:8] 0x00

Open

0000 = 3.72 mA output drive current
0001 = 3.5 mA output drive current (default)
0010 = 3.30 mA output drive current
0011 = 2.96 mA output drive current
0100 = 2.82 mA output drive current
0101 = 2.57 mA output drive current
0110 = 2.27 mA output drive current
0111 = 2.0 mA output drive current (reduced range)
1000 to 1111 = reserved

Output test mode
0000 = off (default)
0001 = midscale short

0010 = positive FS
0011 = negative FS
0100 = alternating checkerboard
0101 = PN long sequence
0110 = PN short sequence
0111 = one/zero word toggle
1000 = user test mode
1001 to 1110 = unused
1111 = ramp output

Reset BIST
sequence

Output
invert (local)

1 = normal
(default)
0 = inverted

[delay = (3100 ps × register value/31 +100)]

00000 = 100 ps
00001 = 200 ps
00010 = 300 ps
…
11110 = 3100 ps
11111 = 3200 ps

01111 = 2.087 V p-p
…
00001 = 1.772 V p-p
00000 = 1.75 V p-p (default)
11111 = 1.727 V p-p
…
10000 = 1.383 V p-p

Open BIST enable 0x00

Output format
00 = offset binary

01 = twos complement
(default)
10 = gray code
11 = reserved
(local)

Value

(Hex)

0x00

0x00

0x05

0x01

0x00

0x00

Default
Notes/
Comments

When this
register is
set, the test
data is
placed on
the output
pins in
place of
normal data.

Configures
the outputs
and the
format of
the data.

Full-scale
input
adjustment
in 0.022 V
steps.

Rev. B | Page 33 of 36

AD9643 Data Sheet

Addr
(Hex)

0x1D

0x1E

0x1F

0x20

0x24

0x25

0x3A

1

Register
Name

User Test
Pattern 3 LSB
(global)

User Test
Pattern 3 MSB
(global)

User Test
Pattern 4 LSB
(global)

User Test
Pattern 4 MSB
(global)

BIST signature
LSB (local)

BIST signature
MSB (local)

Sync control
(global)

The channel index register at Address 0x05 should be set to 0x03 (default) when writing to Address 0x00.

Bit 7
(MSB)

Open Open Open Open Open

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

User Test Pattern 3[7:0] 0x00

User Test Pattern 3[15:8] 0x00

User Test Pattern 4[7:0] 0x00

User Test Pattern 4[15:8] 0x00

BIST signature[7:0] 0x00 Read only.

BIST signature[15:8] 0x00 Read only.

Clock
divider
next sync
only

MEMORY MAP REGISTER DESCRIPTION

For more information on functions controlled in Register 0x00
to Register 0x25, see the AN-877 Application Note, Interfacing
to High Speed ADCs via SPI.

Sync Control (Register 0x3A)

Bits[7:3]—Reserved

Bit 2—Clock Divider Next Sync Only

If the master sync buffer enable bit (Address 0x3A, Bit 0) and
the clock divider sync enable bit (Address 0x3A, Bit 1) are high,
Bit 2 allows the clock divider to sync to the first sync pulse that

Bit 1—Clock Divider Sync Enable

Bit 1 gates the sync pulse to the clock divider. The sync signal is
enabled when Bit 1 is high and Bit 0 is high. This is continuous
sync mode.

Bit 0—Master Sync Buffer Enable

Bit 0 must be set high to enable any of the sync functions. If the
sync capability is not used, this bit should remain low to
conserve power.

it receives and to ignore the rest. The clock divider sync enable
bit (Address 0x3A, Bit 1) resets after it syncs.

Clock
divider
sync
enable

Bit 0
(LSB)

Master sync
buffer enable

Default
Value
(Hex)

0x00

Default
Notes/
Comments

Rev. B | Page 34 of 36

Data Sheet AD9643

APPLICATIONS INFORMATION

DESIGN GUIDELINES

Before starting system level design and layout of the AD9643,
it is recommended that the designer become familiar with these
guidelines, which discuss the special circuit connections and
layout requirements needed for certain pins.

Power and Ground Recommendations

When connecting power to the AD9643, it is recommended
that two separate 1.8 V supplies be used: one supply should be
used for analog (AVDD), and a separate supply should be used
for the digital outputs (DRVDD). The designer can employ
several different decoupling capacitors to cover both high and
low frequencies. These capacitors should be located close to the
point of entry at the PC board level and close to the pins of the
part with minimal trace length.

A single PCB ground plane should be sufficient when using the
AD9643. With proper decoupling and smart partitioning of the
PCB analog, digital, and clock sections, optimum performance
is easily achieved.

Exposed Paddle Thermal Heat Slug Recommendations

It is mandatory that the exposed paddle on the underside of the
ADC be connected to analog ground (AGND) to achieve the
best electrical and thermal performance. A continuous, exposed
(no solder mask) copper plane on the PCB should mate to the
AD9643 exposed paddle, Pin 0.

The copper plane should have several vias to achieve the lowest
possible resistive thermal path for heat dissipation to flow through
the bottom of the PCB. These vias should be filled or plugged with
nonconductive epoxy.

To maximize the coverage and adhesion between the ADC
and the PCB, a silkscreen should be overlaid to partition the
continuous plane on the PCB into several uniform sections.
This provides several tie points between the ADC and the PCB
during the reflow process. Using one continuous plane with no
partitions guarantees only one tie point between the ADC and
the PCB. See the evaluation board for a PCB layout example.
For detailed information about the packaging and PCB layout
of chip scale packages, refer to the AN-772 Application Note, A

Design and Manufacturing Guide for the Lead Frame Chip Scale
Package (LFCSP).

VCM

The VCM pin should be decoupled to ground with a 0.1 F
capacitor, as shown in Figure 48. For optimal channel-to-channel
isolation, a 33 Ω resistor should be included between the AD9643
VCM pin and the Channel A analog input network connection,
as well as between the AD9643 VCM pin and the Channel B
analog input network connection.

SPI Port

The SPI port should not be active during periods when the full
dynamic performance of the converter is required. Because the
SCLK, CSB, and SDIO signals are typically asynchronous to the
ADC clock, noise from these signals can degrade converter
performance. If the on-board SPI bus is used for other devices,
it may be necessary to provide buffers between this bus and the
AD9643 to keep these signals from transitioning at the converter
input pins during critical sampling periods.

Rev. B | Page 35 of 36

AD9643 Data Sheet

OUTLINE DIMENSIONS

49

48

0.60 MAX

EXPOSED PAD

(BOTTOM VIEW)

PIN 1

64

INDICATOR

1

6.35

6.20 SQ

6.05

PIN 1

INDICATOR

9.00

BSC SQ

TOP VIE W

8.75

BSC SQ

0.60

MAX

0.50

BSC

1.00

0.85

0.80

SEATING

PLANE

12° MAX

0.50

0.40

0.30

0.80 MAX

0.65 TYP

0.30

0.23

0.18

COMPLIANT TO JEDEC STANDARDS MO-220-VMMD-4

0.05 MAX

0.02 NOM

0.20 REF

33

32

7.50
REF

16

17

FOR PROPER CO NNECTION O F
THE EXPOSED PAD, REFER TO
THE PIN CONF IGURATIO N AND
FUNCTION DESCRI PTIONS
SECTION OF THIS DATA SHEET.

0.25 MIN

091707-C

Figure 59. 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

9 mm × 9 mm Body, Very Thin Quad

(CP-64-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model1 Temperature Range Package Description Package Option

AD9643BCPZ-170 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643BCPZ-210 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643BCPZ-250 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643BCPZRL7-170 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643BCPZRL7-210 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643BCPZRL7-250 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-64-4
AD9643-170EBZ −40°C to +85°C Evaluation Board with AD9643-170
AD9643-210EBZ −40°C to +85°C Evaluation Board with AD9643-210
AD9643-250EBZ −40°C to +85°C Evaluation Board with AD9643-250

1

Z = RoHS Compliant Part.

©2011 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D09636-0-9/11(B)

Rev. B | Page 36 of 36
