Hardware Reference Guide

NI-x100 Series

NetLinx® Integrated Controllers

(NI-2100, NI-3100, NI-4100)

NetLinx Integrated Controllers

Last Revised: 1/9/2009

AMX Limited Warranty and Disclaimer

AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase from AMX, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components that are warranted for a period of one (1) year.

• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.

• AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX Lighting products are under warranty. AMX does guarantee the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality cannot be guaranteed due to the random combinations of dimmers, lamps and ballasts or transformers.

• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.

• AMX Software is warranted for a period of ninety (90) days.

• Batteries and incandescent lamps are not covered under the warranty.

This warranty extends only to products purchased directly from AMX or an Authorized AMX Dealer.

All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number.

AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY.

Table of Contents

Introduction ........................................................................................................1

NI-2100 Specifications .............................................................................................. 2

NI-3100 Specifications .............................................................................................. 5

NI-4100 Specifications .............................................................................................. 8

Related Documents................................................................................................. 11

Installation and Upgrading ...............................................................................13

Installing NetLinx Control Cards (NI-4100 Only) ..................................................... 13

Setting the NetLinx Control Card Addresses (NI-4100 Only).................................. 14

Device:Port:System (D:P:S)............................................................................................ 14

Removing NetLinx Control Cards (NI-4100 Only) ................................................... 15

Compact Flash Upgrades........................................................................................ 15

Accessing The Internal Components On An Integrated Controller ............................... 15

Installation of Compact Flash Upgrades........................................................................ 16

Closing and Securing the Outer Housing ...................................................................... 17

Installing Into An Equipment Rack .......................................................................... 17

Connections and Wiring ...................................................................................19

Setting the Configuration DIP Switch (for the Program Port) ................................. 19

Baud Rate Settings........................................................................................................ 19

Program Run Disable (PRD) Mode................................................................................. 19

Working With the Configuration DIP Switch ................................................................. 20

Setting the CardFrame DIP Switch (NI-4100 Only) ................................................. 20

Program Port Connections and Wiring ................................................................... 20

Modes and Front Panel LED Blink Patterns ............................................................ 21

Port Assignments and Functionality........................................................................ 21

AXlink Port and LED ............................................................................................... 22

Wiring Guidelines ................................................................................................... 22

Wiring length guidelines ............................................................................................... 22

Preparing Captive Wires ............................................................................................... 23

Wiring a Power Connection........................................................................................... 23

Using the 4-Pin Mini-Phoenix Connector For Data and Power ...................................... 23

Using the 4-pin Mini-Phoenix Connector For Data With External Power ...................... 24

DB9 Device Port: Connections and Wiring ............................................................. 24

ICSNet Port: Connections and Wiring..................................................................... 25

ICSHub OUT Port: Connections and Wiring ............................................................ 26

Relay Port: Connections and Wiring ....................................................................... 26

Relay Connections ......................................................................................................... 26

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Table of Contents

Input/Output (I/O) Port: Connections and Wiring ................................................... 27

IR/Serial Port: Connections and Wiring................................................................... 28

NetLinx Control Card Slot Connector (NI-4100 only).............................................. 28

Ethernet/RJ-45 Port: Connections and Wiring ........................................................ 29

Ethernet LEDs .............................................................................................................. 29

Ethernet Ports Used By the Integrated Controller ........................................................ 30

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

The X100-Series of NetLinx Integrated Master Controllers can both be programmed to control RS-232/422/485, Relay, IR/Serial, and Input/Output devices through the use of both the NetLinx programming language and the NetLinx Studio application version 2.x. Another key feature of this products is the ability to easily access the configuration switches without having to remove a cover plate.

NetLinx Integrated Master Controller Features

NI-2100 (FG2105-04)

NI-2100 Kit (FG2105-14)

NI-3100 (FG2105-05)

NI-3100 Kit (FG2105-15)

NI-4100 (FG2105-06)

Introduction

• 1 RS-232 Program port

• 3 RS-232/RS-422/RS-485 ports

• 4 IR/Serial Output ports

• 4 Digital Input/Output ports

•4 Relays

• In addition to the options listed above, this Kit includes a pre-installed ICSNet daughter card (FG2105-10)

• 1 RS-232 Program port

• 7 RS-232/RS-422/RS-485 ports

• 8 IR/Serial Output ports

• 8 Digital Input/Output ports

•8 Relays

• In addition to the options listed above, this Kit includes a pre-installed ICSNet daughter card (FG2105-10)

• Support for up to 4 NetLinx control cards (such as NXC-COM2, NXC-IRS4, etc.)

• 1 ICSNet Hub port (part of the included pre-installed ICSNet card)

• 1 RS-232 Program port

• 2 ICSNet ports (part of the included pre-installed ICSNet card)

• 7 RS-232/RS-422/RS-485 ports

• 8 IR/Serial Output ports

• 8 Digital Input/Output ports

•8 Relays

References within this manual to NI X100-Series Controllers are used to describe the NI-2100/3100/4100 Integrated Controllers. When there is an overlap of information with other related NI Controllers, an X will be used to refer to both sets of units. As an example, if a feature is shared by both the NI-4000 and the NI-4100 Controller, the term NI-4x00 Series is used.

These NI Controllers are shipped with Duet firmware and can not be downgraded to earlier Non-Duet firmware (< build 300).

These NI Controllers are Duet-compatible and can be upgraded via firmware. Duet is a dual-interpreter firmware platform from AMX which combines the proven reliability and power of NetLinx with the extensive capabilities of the Java a system that includes the NI-900 and other third party devices by standardizing device and function definitions, defaulting touch panel button assignments, and controlling feedback methods. Dynamic Device Discovery makes integration even easier by automatically identifying and communicating with devices which support this new beaconing technology.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

2 MicroEdition (J2ME) platform. Duet simplifies the programming of

Introduction

These NI Controllers use a combination lithium battery and clock crystal package called a Timekeeper. Only one Timeke eper unit is installed within a given NI controller. The battery can be expected to have up to 3 years of usable life under very adverse conditions. Actual life is appreciably longer under normal operating conditions.

 This calculation is based on storing the unit without power in 50° C (120° F) temperature until

battery levels are no longer acceptable.

 The part number for a replacement battery is 57-0032.

NI-2100 Specifications

The NI-2100 (FIG. 1) provides support for 3 RS-232/RS-422/RS-485 Ports, 4 IR/Serial Output ports, 4 Digital Input/Output ports, and 4 Relays. The NI-2100 can be upgraded to provide 1 ICSHub and 2 ICSNet ports by either installing the optional ICSNet daughter card (FG2105-10) or purchasing this upgrade as an included feature of the NI-2100 Kit (FG2105-14).

FIG. 1 NI-2100 NetLinx Integrated Controller (front view)

RS-232/422/485 TX/RX LEDs (red/yellow)

Link/Active-Status-Output-Input

LINK/ACT

INPUT

OUTPUT

STATUS

TX RX

RX1TX TXRX

RS - 232 / 422 / 485

143

RELAYS

Front

ICSNet cover plate

Relays

(Port 4)

RS-232/422/485 (Ports 1-3)

PORT 3 PORT 2

PORT 1

IR/Serial (Ports 5-8)

Rear

I/O (Port 9)

Program

port

FIG. 2 NI-2100 front and rear panel connectors and components

Relay LEDs (red)

IR/Serial LEDs (red)

1234 231

IR / SERIAL

RS - 232 / 422 / 485

(Ports 1-3)

Function

RX-

RX+

RXD

RTS

TXD

CTS

TX+

TX-

GND

DIP switch

ID Pushbutton

I / O

I/O LEDs (yellow)

Ethernet

ETHERNET

10 / 100

L/A

AXlink LED (green)

AXlink port

SPD

PWR

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-2100 Specifications

Dimensions (HWD): • 3.47" x 17.00" x 3.47" (8.81 cm x 43.18 cm x 8.82 cm)

• 2 rack units high

Power Requirement: 700 mA @ 12 VDC

Memory: • 64 MB SDRAM

• 1 MB Non-volatile (NV) SRAM

Compact Flash: 128 MB or more - Upgradeable (see Other AMX Equipment)

Note: AMX may increase Flash size at any time in response to market availability (refer to product’s online catalog page for current Compact Flash size provided).

Weight: 4.50 lbs (2.04 kg)

Enclosure: Metal with black matte finish

Certifications: FCC Part 15 Class B, CE, and IEC 60950

Front Panel LEDs:

• LINK/ACT: Green LED blinks when the Ethernet cables are connected and terminated correctly. Also blinks when receiving Ethernet data packets.

• Status: Green LED blinks to indicate that the system is programmed and communi-

• Output: Red LED blinks when the Controller transmits data, sets channels On and

• Input: Yellow LED blinks when the Controller receives data from button pushes,

• RS-232/422/485: 3 sets of red and yellow LEDs light to indicate that DB9 Ports 1 - 3 are trans-

• Relay: 4 red LEDs light to indicate the relay channels 1 - 4 are active (closed).

• IR/Serial: 4 red LEDs light to indicate the IR/Serial channels 1 - 4 are

• I/O: 4 yellow LEDs light when the I/O channels 1 - 4 are active. The LED for each

Rear Panel Components:

• RS-232/422/485 (Ports 1 - 3): 3 RS-232/422/485 control ports using DB9 (male) connectors with XON/

• ICSNet: 2 RJ-45 connectors for ICSNet interface (provided by optional

• ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller (pro-

• Relay (Port 4): • Four-channel single-pole single-throw relay ports

• Digital I/O (Port 9): 4-channel binary I/O port for contact closure with each input being capable of

cating properly.

Off, sends data strings, etc.

strings, commands, channel levels, etc.

mitting or receiving RS-232, 422, or 485 data.

These LEDs reflect the state of the relay on Port 4.

transmitting control data on Ports 5 - 8. LED indictor for each IR port remains lit for the length of time that IR/Serial data is being generated.

I/O port reflects the state of that particular port.

XOFF (transmit on/transmit off), CTS/RTS (clear to send/ready to send), and 300-115,200 baud.

ICSNet daughter card).

vided by optional ICSNet daughter card).

• Each relay is independently controlled.

• Supports up to 4 independent external relay devices

• Channel range = 1-4

• Each relay can switch up to 24 VDC or 28 VAC @ 1 A

8-pin 3.5 mm mini-Phoenix (female) connector provides relay termination

voltage sensing. Input format is software selectable with interactive power sensing for IR ports.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-2100 Specifications (Cont.)

Rear Panel Components (Cont.):

•IR/Serial (Ports 5 - 8):

• Program Port: RS-232 DB9 connector (male) can be connected to a DB9 port on a PC. This

• Configuration DIPSwitch: Sets the communication parameters for the Program port (see Baud Rate

• ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.

• Ethernet Port: RJ-45 connector provides TCP/IP communication. This is an Auto MDI/MDI-

• AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to

• Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

Included Accessories: • 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)

Other AMX Equipment: • 2-pin 3.5 mm mini-Phoenix male connector (41-5026)

4 IR/Serial control ports support high-frequency carriers of up to 1.142 MHz with each output being capable of two electrical formats: IR or Serial.

• 4 IR/Serial data signals can be generated simultaneously.

• IR ports support data mode (at limited baud rates and wiring distances).

connector can be used with serial and NetLinx programming commands, as well as other DB9 capable devices, to both upload/download information from the NetLinx Studio program.

Settings).

X enabled port, which allows you to use either straight-through or crossover Ethernet cables.

The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information:

• SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10 Mbps.

• L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly, and blinks when receiving Ethernet data packets.

external control devices. Green AXlink LED indicates the state of the AXlink port.

• 4-pin 3.5 mm mini-Phoenix (female) AXlink connector (41-5047)

• 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063)

• 8-pin 3.5 mm mini-Phoenix female Relay connector (41-5083)

• Installation Kit (KA2105-01):

- 8-pin Relay Common Strip

- 4 rack mount screws

- 4 washers

• 2 CC-NIRC NetLinx IR Emitter Cables (FG10-000-11)

• 2 removable rack ears (62-2105-07)

• CSB Cable Support Bracket (FG517)

• CC-COM Programming Port Cable (FG10-727)

• CC-NSER IR/Serial cable (FG10-007-10)

• ICSNet daughter card (FG2105-10)

• NCK, NetLinx Connector Kit (FG2902)

• STS, Serial To Screw Terminal (FG959)

• Upgrade Compact Flash (factory programmed with firmware):

NXA-CF2NI256M - 256 MB compact flash card (FG2116-47)

NXA-CF2NI512M - 512 MB compact flash card (FG2116-48)

NXA-CF2NI1G - 1 GB compact flash card (FG2116-49)

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-3100 Specifications

The NI-3100 (FIG. 3) provides support for 7 RS-232/RS-422/RS-485 Ports, 8 IR/Serial Output ports, 8 Digital Input/Output ports, and 8 Relays.

The NI-3100 can be upgraded to provide one ICSHub and two ICSNet ports by either installing the optional ICSNet daughter card (FG2105-10) or purchasing this upgrade as an included feature of the NI3100 Kit (FG2105-15).

FIG. 3 NI-3100 NetLinx Integrated Controller (front view)

Link/Active-Status-Output-Input

LINK/ACT

STATUS

Front

Rear

IR/Serial (Ports 9-16)

Relays

I/O (Port 17)

(Port 8)

RS-232/422/485 TX/RX LEDs (red/yellow)

TX RX

TXRX2TXRX4RXTX5RX6TX

RS - 232 / 422 / 485

INPUT

OUTPUT

RXTX

RS-232/422/485 (Ports 1-7)

Program

port

Relay LEDs (red)

3812

43576

RELAYS

4567 1823645

IR / SERIAL

ICSNet cover plate

DIP switch

ID Pushbutton

IR/Serial LEDs (red)

I / O

I/O LEDs (yellow)

Ethernet

Function

RX+

RTS

CTS

TX-

1 2 3 4 5

RS - 232 / 422 / 485

(Ports 1-7)

Function

RXRXD TXD TX+ GND

AXlink LED (green)

AXlink port

PWR

FIG. 4 NI-3100 front and rear panel connectors and components

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-3100 Specifications

Dimensions (HWD): • 3.47" x 17.00" x 3.47" (8.81 cm x 43.18 cm x 8.82 cm)

• 2 rack units high

Power Requirement: 900 mA @ 12 VDC

Memory: • 64 MB SDRAM

• 1 MB Non-volatile (NV) SRAM

Compact Flash: 128 MB or more

• AMX may increase Flash size at any time in response to market availability

• Upgradeable - see Other AMX Equipment

Weight: 4.55 lbs (2.06 kg)

Enclosure: Metal with black matte finish

Certifications: FCC Part 15 Class B, CE, and IEC 60950

Front Panel LEDs:

• LINK/ACT: Green LED blinks when the Ethernet cables are connected and terminated correctly. Also blinks when receiving Ethernet data packets.

• Status: Green LED blinks to indicate that the system is programmed and communicating properly.

• Output: Red LED blinks when the Controller transmits data, sets channels On and Off, sends data strings, etc.

• Input: Yellow LED blinks when the Controller receives data from button pushes, strings, commands, channel levels, etc.

• RS-232/422/485: 7 sets of red and yellow LEDs light to indicate that DB9 Ports 1 - 7 are transmitting or receiving RS-232, 422, or 485 data.

• Relay: • Eight-channel single-pole single-throw relay ports

• Each relay is independently controlled.

• Supports up to 8 independent external relay devices

• Channel range = 1-8

• Each relay can switch up to 24 VDC or 28 VAC @ 1 A

Two 8-pin 3.5 mm mini-Phoenix (female) connectors provide relay termination

• IR/Serial: 8 red LEDs light to indicate the IR/Serial channels 1 - 8 are transmitting control data on Ports 9 - 16. LED indictor for each IR port remains lit for the length of time that IR/Serial data is being generated.

• I/O: 8 yellow LEDs light when the rear I/O channels 1 - 8 are active. The LED for each I/O port reflects the state of that particular port.

Rear Panel Components:

• RS-232/422/485 (Ports 1 - 7): 7 RS-232/422/485 control ports using DB9 (male) connectors with XON/ XOFF (transmit on/transmit off), CTS/RTS (clear to send/ready to send), and 300-115,200 baud.

• ICSNet: 2 RJ-45 connectors for ICSNet interface (provided by optional ICSNet daughter card).

• ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller (provided by optional ICSNet daughter card).

• Relay (Port 8): 8-channel single-pole single throw relay ports with each relay being independently controlled and supporting up to 8 independent external relay devices.

• Digital I/O (Port 17): 8-channel binary I/O port for contact closure with each input being capable of voltage sensing. Input format is software selectable with interactive power sensing for IR ports.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-3100 Specifications (Cont.)

Rear Panel Components (Cont.):

• IR/Serial (Ports 9 - 16): 8 IR/Serial control ports support high-frequency carriers of up to 1.142 MHz with each output being capable of two electrical formats: IR or Serial.

• 8 IR/Serial data signals can be generated simultaneously.

• IR ports support data mode (at limited baud rates and wiring distances).

• Program Port: RS-232 DB9 connector (male) can be connected to a DB9 port on a PC. This connector can be used with serial and NetLinx programming commands, as well as other DB9 capable devices, to both upload/download information from the NetLinx Studio program.

• Configuration DIP

Switch:

• ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.

• Ethernet Port: RJ-45 connector provides TCP/IP communication. This is an Auto MDI/MDI-X

• AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to

• Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

Included Accessories: • 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)

Other AMX Equipment: • 2-pin 3.5 mm mini-Phoenix male connector (41-5026)

Sets the communication parameters for the Program port (see Baud Rate Settings).

enabled port, which allows you to use either straight-through or crossover Ethernet cables.

The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information:

• SPD (speed) - Yellow LED lights On when the connection speed is 100

Mbps and turns Off when the speed is 10 Mbps.

• L/A (link/activity) - Green LED lights On when the Ethernet cables are

connected and terminated correctly, and blinks when receiving Ethernet data packets.

external control devices. Green AXlink LED indicates the state of the AXlink port.

• 4-pin 3.5 mm mini-Phoenix (female) AXlink connector (41-5047)

• 10-pin 3.5 mm mini-Phoenix (female) I/O connector (41-5107)

• Installation Kit (KA2105-01):

- 8-pin Relay Common Strip

- 4 rack mount screws

- 4 washers

• 2 8-pin 3.5 mm mini-Phoenix female Relay connectors (41-5083)

• 2 CC-NIRC NetLinx IR Emitter Cables (FG10-000-11)

• 2 removable rack ears (62-2105-07)

• CSB Cable Support Bracket (FG517)

• CC-NSER IR/Serial cables (FG10-007-10)

• ICSNet daughter card (FG2105-10)

• NCK, NetLinx Connector Kit (FG2902)

• STS, Serial To Screw Terminal (FG959)

• Upgrade Compact Flash (factory programmed with firmware):

NXA-CF2NI256M - 256 MB compact flash card (FG2116-47)

NXA-CF2NI512M - 512 MB compact flash card (FG2116-48)

NXA-CF2NI1G - 1 GB compact flash card (FG2116-49)

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-4100 Specifications

The NI-4100 (FIG. 5) is geared toward those advanced control and automation requirements associated with most complex commercial and residential installations. The NI-4100 provides support for up to 4 NetLinx control cards (such as NXC-COM2, NXC-IRS4, etc.), 7 RS-232/RS-422/RS-485 Ports, 8 IR/Serial Output ports, 8 Digital Input/Output ports, and 8 Relays.

The NI-4100’s on-board Master also provides the ability to update installed control card firmware.

FIG. 5 NI-4100 NetLinx Integrated Controller (front view)

RS-232/422/485 TX/RX LEDs (red/yellow)

Link/Active-Status-Output-Input

Relay LEDs (red)

IR/Serial LEDs (red)

2 3

546

RXTXRX TXRX

RXTX

432658712 7

RELAYS

Front

STATUS

LINK/ACT

INPUT

OUTPUT

RXTX1TXTX RX RX

RS - 232 / 422 / 485

NetLinx Card slots (1 - 4)

RS-232/422/485 (Ports 1-7)

Rear

IR/Serial

(Ports 9-16)

CardFrame DIP

Relays

(Port 8)

Slot 1-4 connectors

I/O

(Port 17)

switch

FIG. 6 NI-4100 front and rear panel connectors and components

34 65821

IR / SERIAL

DIP

RS - 232 / 422 / 485

switch

Function

RX-

RXD

TXD

TX+

GND

Program port

ID Pushbutton

I / O

ICSNet (2)

ICSHub Out

(Ports 1-7)

Function

RX+

RTS

CTS

TX-

543678

I/O LEDs (yellow)

AXlink LED (green)

AXlink port

Ethernet

PWR

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-4100 Specifications

Dimensions (HWD): • 5.21" x 17.00" x 9.60" (13.23 cm x 43.18 cm x 24.27 cm)

• 3 rack units high

Power Requirement: • 900 mA @ 12 VDC

Memory: • 64 MB SDRAM

• 1 MB Non-volatile (NV) SRAM

Compact Flash: 128 MB or more

• AMX may increase Flash size at any time in response to market availability

• Upgradeable - see Other AMX Equipment

Weight: 9.15 lbs (4.15 kg)

Enclosure: Metal with black matte finish

Certifications: FCC Part 15 Class B, CE, and IEC 60950

Front Panel LEDs/Slots:

• LINK/ACT: Green LED blinks when the Ethernet cables are connected and terminated correctly. Also blinks when receiving Ethernet data packets.

• Status: Green LED blinks to indicate that the system is programmed and communicating properly.

• Output: Red LED blinks when the Controller transmits data, sets channels On and Off, sends data strings, etc.

• Input: Yellow LED blinks when the Controller receives data from button pushes, strings, commands, channel levels, etc.

• RS-232/422/485: 7 sets of red and yellow LEDs light to indicate that DB9 Ports 1 - 7 are

• Relay: 8 red LEDs light to indicate the relay channels 1 - 8 are active (closed).

• IR/Serial: 8 red LEDs light to indicate the IR/Serial channels 1 - 8 are

• I/O: 8 yellow LEDs light when the rear I/O channels 1 - 8 are active. The LED

• NetLinx Control Card Slots 1 - 4: Accepts up to 4 compatible NetLinx Cards: such as the NXC-COM2, NXC-

Rear Panel Components:

• RS-232/422/485 (Ports 1 - 7): 7 RS-232/422/485 control ports using DB9 (male) connectors with XON/

• ICSNet: 2 RJ-45 connectors for ICSNet interface (provided by optional

• ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller (pro-

• Relay (Port 8): • Eight-channel single-pole single throw relay ports

• Digital I/O (Port 17): 8-channel binary I/O port for contact closure with each input being capable

• IR/Serial (Ports 9 - 16): 8 IR/Serial control ports support high-frequency carriers of up to 1.142

transmitting or receiving RS-232, 422, or 485 data.

These LEDs reflect the state of the relay on Port 8.

transmitting control data on Ports 9 - 16. LED indictor for each IR port remains lit for the length of time that IR/Serial data is being generated.

for each I/O port reflects the state of that particular port.

I/O10, etc.

XOFF (transmit on/transmit off), CTS/RTS (clear to send/ready to send), and 300-115,200 baud.

ICSNet daughter card).

vided by optional ICSNet daughter card).

• Each relay is independently controlled.

• Supports up to 8 independent external relay devices

• Channel range = 1-8

• Each relay can switch up to 24 VDC or 28 VAC @ 1 A

Two 8-pin 3.5 mm mini-Phoenix (female) connectors provide relay termination

of voltage sensing. Input format is software selectable with interactive power sensing for IR ports.

MHz with each output being capable of two electrical formats: IR or Serial.

• 8 IR/Serial data signals can be generated simultaneously.

• IR ports support data mode (at limited baud rates and wiring distances).

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

NI-4100 Specifications (Cont.)

Rear Panel Components (Cont.):

• Configuration DIPSwitch: Sets the communication parameters for the Program port (see Baud Rate Settings).

• ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.

• Ethernet Port: RJ-45 connector provides TCP/IP communication. This is an Auto MDI/ MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables.

The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information:

• SPD (speed) - Yellow LED lights On when the connection speed is 100

Mbps and turns Off when the speed is 10 Mbps.

• L/A (link/activity) - Green LED lights On when the Ethernet cables are

connected and terminated correctly, and blinks when receiving Ethernet data packets.

• AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external control devices. Green AXlink LED indicates the state of the AXlink port.

• Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

• CardFrame #DIP Switch: Sets the starting address for the Control Cards in the CardFrame. (Factory

default CardFrame DIP switch value = 0). The Control Card address range is 1-3064.

• Control Card Connectors (1-4): 20-pin (male) connectors that connect the Control Cards and external equipment to the CardFrame.

Included Accessories: • 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)

• 4-pin 3.5 mm mini-Phoenix (female) AXlink connector (41-5047)

• 10-pin 3.5 mm mini-Phoenix (female) I/O connector (41-5107)

• Installation Kit (KA2105-01):

- 8-pin Relay Common Strip

- 4 rack mount screws

- 4 washers

• 2 8-pin 3.5 mm mini-Phoenix (female) Relay connectors

(41-5083)

• 2 CC-NIRC NetLinx IR Emitter Cables (FG10-000-11)

• 2 removable rack ears (62-2105-07)

Other AMX Equipment: • 2-pin 3.5 mm mini-Phoenix male connector (41-5026)

• CSB Cable Support Bracket (FG517)

• CC-NSER IR/Serial cables (FG10-007-10)

• NCK, NetLinx Connector Kit (FG2902)

• STS, Serial To Screw Terminal (FG959)

• Upgrade Compact Flash (factory programmed with firmware):

NXA-CF2NI256M - 256 MB compact flash card (FG2116-47)

NXA-CF2NI512M - 512 MB compact flash card (FG2116-48)

NXA-CF2NI1G - 1 GB compact flash card (FG2116-49)

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Introduction

Installation and Upgrading

Installing NetLinx Control Cards (NI-4100 Only)

NetLinx Cards can be installed into the front card slots. The cards mount horizontally through the card slot openings on the front of the enclosure.

1. Discharge the static electricity from your body, by touching a grounded object.

2. Remove the three screws by turning them in a counter-clockwise direction and then remove the

faceplate (FIG. 7).

Thumbscrews

Installation and Upgrading

NXC Card Slot faceplate

FIG. 7 NI-4100 front faceplate

3. Align the edges of the card with the internal guide slots and gently slide the card all the way into the

slot (FIG. 8).

Card slots

Internal Guide

Sample

NXC cards

FIG. 8 Sample NXC cards inserted into an NI-4100 unit

slots

4. Carefully apply a small amount of force to insert the cards into their respective connectors. If the

cards have LEDs on them, those LEDs will initiate a lighting sequence to indicate they are receiving power and are communicating with the Controller.

5. Re-align the faceplate and secure it to the chassis by inserting the three screws by turning them in a

clockwise direction and securing the front plate to the Integrated Controller.

6. Install all rear connectors and apply power.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Installation and Upgrading

If the cards do not appear in the NetLinx Studio’s Workspace window for the selected Master System number: give the system time to detect the inserted cards (and refresh the system) and/or cycle power to the unit.

Setting the NetLinx Control Card Addresses (NI-4100 Only)

For example:

1. Set the CardFrame Number DIP switch based on the information listed in the table below.

 The 8-position CardFrame Number DIP switch (located on the rear of the NI-4100) sets the

starting address (the device number in the D:P:S specification) for the Control Cards installed in the CardFrame. The address range is 1-3064.

 The factory default CardFrame DIP switch value = 0 (all CardFrame DIP switches in the OFF

position).

 The formula for setting the starting address is:

(DIP switch address x 12) + Card slot Number (1-12) = Card address

 DIP switch setting, 00010101: (0 + 0 + 0 + 96 + 0 + 384 + 1536) + SLOT #(ex:1) = 2017.

 A card in slot number 1 would be device address 2017.

Position 12345 6 7 8

Value 12 24 48 96 192 384 768 1536

ON position

2. Cycle power to the unit for approximately 5 seconds. This allows the unit to read the new device

number settings.

Device:Port:System (D:P:S)

A device is any hardware component that can be connected to an AXlink or ICSNet bus. Each device must be assigned a unique number to locate that device on the bus. The NetLinx programming language allows numbers in the range 1-32,767 for ICSNet (255 for AXlink).

Only the Device value can be set through the DIP switch settings mentioned above.

NetLinx requires a Device:Port:System (D:P:S) specification. This D:P:S triplet can be expressed as a series of constants, variables separated by colons, or a DEV structure. For example:

STRUCTURE DEV

{

INTEGER Number // Device number

INTEGER Port // Port on device

INTEGER System // System the device belongs to

}

The D:P:S notation is used to explicitly represent a device number, port and system. For example, 128:1:0 represents the first port on device 128 on this system.

If a device is declared in a NetLinx program with just the Device number (System and Port are omitted), the NetLinx Compiler assumes it has a Port number of 1 and a System number of 0. However, you should convert all existing device declarations using the D:P:S (Device:Port:System) notation. This enables certain NetLinx specific debugging features and can help pinpoint other possibly obscure errors.

Here's the syntax:

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Installation and Upgrading

NUMBER:PORT:SYSTEM

where:

NUMBER: 16-bit integer represents the device number

PORT: 16-bit integer represents the port number (in the range 1 through the number of

SYSTEM: 16-bit integer represents the system number (0 = this system)

ports on the Controller or device)

Removing NetLinx Control Cards (NI-4100 Only)

To install NetLinx Control Card:

1. Discharge any static electricity from your body, by touching a grounded object and unplug all

connectors (if any) from the unit.

2. Remove the three faceplate screws by turning them in a counter-clockwise direction.

3. Remove the faceplate from the front plate (FIG. 7 on page 13).

4. Gently grasp the rear edge of the control card and gently pull it out from the unit (along the internal

guide slots).

5. Re-secure the faceplate by inserting the three faceplate screws by turning them in a clockwise

direction and securing the front plate to the Integrated Controller.

6. Re-apply power and other connections as necessary.

Compact Flash Upgrades

The NetLinx Integrated Controllers are shipped with a default 32 MB Compact Flash module.

It is recommended that ANY MEMORY UPGRADE should be done prior to any installation. Refer to the following accessing and installation sections for more

information.

The Compact Flash card is factory programmed with specific Controller firmware. These cards can be ordered from AMX in several different upgrade sizes (see the following table):

Optional Compact Flash Upgrades

Product Name Description

NXA-CFNI64M 64 MB compact flash card (FG2116-31)

NXA-CFNI128M 128 MB compact flash card (FG2116-32)

NXA-CFNI256M 256 MB compact flash card (FG2116-33)

NXA-CFNI512M 512 MB compact flash card (FG2116-34)

NXA-CFNI1G 1 GB compact flash card (FG2116-35)

Accessing The Internal Components On An Integrated Controller

Carefully detach all connectors from the rear of the unit.

2. Remove the chassis housing screws from both the sides and top of the Controller, as shown in

FIG. 9 by using a grounded screwdriver turning in a counter-clockwise rotation.

 The NI-2100 and NI-3100 have six screws on top and three on each side.

 The NI-4100 has six screws on top and four on each side.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Installation and Upgrading

Mounting

Brackets

Chassis housing screws (top)

- 6 on top

- sides vary per model

Compact Flash

insert location

Chassis housing screws (side)

- 4 on each side of the NI-4100

- 3 on each side of the NI-3100/2100

NXC Card Slot

faceplate

FIG. 9 Location of the Compact Flash within a sample Integrated Controller

NXC Card Slots

3. Carefully pull-up and remove the housing up and away from the Controller to expose the internal

circuit board (FIG. 9).

4. Refer to the followingInstallation of Compact Flash Upgradesfor detailed replacement information.

Installation of Compact Flash Upgrades

Discharge any static electricity from your body by touching a grounded metal object.

2. Locate the 32 MB Compact Flash card on the main board. For more detailed information on

component locations, refer to FIG. 9.

3. Insert the tip of a grounded flathead screwdriver into one of the Card Removal Grooves (located on

either side of the card), and gently pry the card out of the slot. Repeat this process on the opposite card removal groove. This alternating action causes the card to "wiggle" away from the on-board connector pins.

4. Slip your finger into the opening between the connector pins and the card, and push the card out to

remove it.

5. Remove the upgrade card from it’s anti-static bag.

6. Insert the upgrade card into the connector opening with the arrow facing towards the pins, then push

it in firmly until the contact pins are completely inside the flash card and securely attached to the connector (FIG. 10).

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Installation and Upgrading

Under-side groove

located below

Insert with arrow

facing towards

the connector pins

FIG. 10 Removing the Compact Flash card

Card Removal Grooves

7. To complete the upgrade process, close and re-secure the Integrated Controller enclosure using the

procedures outlined in the following section.

Any new internal card upgrade is detected by the Controller only after power is cycled.

Closing and Securing the Outer Housing

Once the card has been replaced, close and re-secure the outer housing:

1. Align the cover back over the unit and gently slide-down the chassis until the openings are aligned

over their respective openings along both the sides and top of the unit.

2. Insert and secure the chassis housing screws back into their respective locations, as shown in FIG. 9

by using a grounded screwdriver.

3. Re-install all connectors and apply power to the unit.

Installing Into An Equipment Rack

Use the rack-mounting brackets (supplied) for equipment rack installations.

Remove the mounting brackets for flat surface installations.

Before completing the install process, it is recommended that you complete any firmware upgrade of the NetLinx Control Cards. This upgrade involves physically cycling power to the unit and can become cumbersome if the unit is already installed into a rack. Refer to the NI Series NetLinx Integrated Controllers WebConsole & Programming Guide (available online at www.amx.com) for detailed instructions.

1. Discharge the static electricity from your body by touching a grounded object.

2. Position and install the mounting brackets, as shown in FIG. 11, using the screws supplied with the

unit. The mounting brackets can be rotated to accommodate your mounting needs.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Installation and Upgrading

FIG. 11 Mounting Integrated Controller into an equipment rack

Install screws

Bracket

Rack Mounting Holes

3. Thread the cables through the opening in the equipment rack. Allow for enough slack in the cables

to accommodate for movement during the installation process.

4. Reconnect all cables to their appropriate source/terminal locations. Refer to theConnections and

Wiring section on page 19 for more detailed wiring and connection information.

 Verify that the terminal end of the power cable is not connected to the a power supply before

plugging in the 2-pin power connector.

To prevent repetition of the installation, test the incoming wiring by connecting the Controller’s connectors to their terminal locations and applying power. Verify that the unit is receiving power and functioning properly. Disconnect the terminal end of the power cable from the connected 12 VDC-compliant power supply.

5. Slide the unit into the rack until the attachment holes, along both sides, align to their corresponding

locations on the mounting brackets, as shown in FIG. 11.

6. Secure the AC-RK to the rack by using the four #10-32 screws (80-0186) and four #10 washers

(80-0342) supplied in the kit.

7. Apply power to the unit to complete the installation.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Setting the Configuration DIP Switch (for the Program Port)

Prior to installing the Controller, use the Configuration DIP switch to set the baud rate used by the Program port for communication. The Configuration DIP switch is located on the front of the Integrated Controllers.

Baud Rate Settings

Before programming the on-board Master, make sure the baud rate you set matches the communication parameters set on both your PC’s COM port and those set through your NetLinx Studio v 2.4.

By default, the baud rate is set to 38,400 (bps).

Baud Rate Settings on the Configuration DIP Switch

Baud Rate Position 5 Position 6 Position 7 Position 8

9600 bps OFF ON OFF ON

38,400 bps (default) OFF ON ON ON

Connections and Wiring

57,600 bps ON OFF OFF OFF

115,200 bps ON ON ON ON

Note the orientation of the Configuration DIP Switch and the ON position label. DIP switches 2,3, and 4 must remain in the OFF position at all times.

Program Run Disable (PRD) Mode

You can also use the Program port’s Configuration DIP switch to set the on-board Master to Program Run Disable (PRD) mode according to the settings listed in the table below.

PRD Mode Settings

PRD Mode Position 1

Normal mode (default) OFF

PRD Mode ON

The PRD mode prevents the NetLinx program stored in the on-board Master from running when you power up the Integrated Controller. This mode should only be used when you suspect the resident NetLinx program is causing inadvertent communication and/or control problems.

If necessary, place the on-board Master in PRD mode and use the NetLinx Studio v 2.4 program to resolve the communication and/or control problems with the resident NetLinx program. Then download the new NetLinx program and try again.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Think of the PRD Mode (On) equating to a PC’s SAFE Mode setting. This mode allows a user to continue powering a unit, update the firmware, and download a new program while circumventing any problems with a currently downloaded program. Power must be cycled to the unit after activating/deactivating this mode on the Program Port DIP switch #1.

Working With the Configuration DIP Switch

2. Set DIP switch positions according to the information listed in theBaud Rate Settings on the

3. Reconnect the 12 VDC-compliant power supply to the 2-pin 3.5 mm mini-Phoenix PWR connector.

Setting the CardFrame DIP Switch (NI-4100 Only)

Refer to the Setting the NetLinx Control Card Addresses (NI-4100 Only) section on page 14 for a detailed explanation on this process.

Program Port Connections and Wiring

The Integrated Controllers are equipped with a Program port located on the front of the unit. Use an RS232 programming cable to establish a connection between this Program port to your PC's COM port. This connection provides communication with the NetLinx Integrated Controller. Then you can download NetLinx programs to this on-board Master using the NetLinx Studio v 2.4 software program. Refer to the NetLinx Studio instruction manual for programming instructions. The following table shows the rear panel Program Port connector (male), pinouts, and signals.

Disconnect the power supply from the 2-pin PWR (green) connector on the rear of the NetLinx Integrated Controller.

Configuration DIP Switch andPRD Mode Settings tables.

Program Port, Pinouts, and Signals

Program Port Connector Pin Signal

2RX

3TX

5 4 3 2 1

Male

9 8

7 6

5GND

7RTS

8CTS

When wiring the 422/485 connections, do NOT use pre-made 9-wire cable or connect the wire in the cable to any connection that will not be used by the DB9 serial port. Only use wiring that connects the needed pins.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Modes and Front Panel LED Blink Patterns

The following table lists the modes and blink patterns for the front panel LEDs associated with each mode. These patterns are not evident until after the unit is powered.

Modes and LED Blink Patterns

LEDs and Blink Patterns

STATUS

Mode Description

OS Start Starting the operating system (OS). On On On

Boot On-board Master is booting. On Off On

Contacting DHCP server

Unknown DHCP server

Downloading Boot firmware

No program running There is no program loaded, or the

Normal On-board Master is functioning normally. 1 blink per second Indicates

On-board Master is contacting a DHCP server for IP configuration information.

On-board Master could not find the DHCP server.

Downloading Boot firmware to the Master’s on-board flash memory.

Do not cycle power during this process!

program is disabled.

(green)

On Off Fast Blink

Fast Blink Off Off

Fast Blink Fast Blink Fast Blink

On Normal Normal

OUTPUT (red)

activity

INPUT (yellow)

Indicates activity

Port Assignments and Functionality

The Port Assignments are as follows:

NI-2100 Port Assignments NI-3100/4100 Port Assignments

Port ICSP Por t # Port ICSP Port #

Serial Port #1 1

Serial Port #2 2

Serial Port #3 3

Relays Ports (1-4) 4

IR/Serial Port #1 5

IR/Serial Port #2 6

IR/Serial Port #3 7

IR/Serial Port #4 8

I/O Port 9

Serial Port #1 1

Serial Port #2 2

Serial Port #3 3

Serial Port #4 4

Serial Port #5 5

Serial Port #6 6

Serial Port #7 7

Relays Ports (1-8) 8

IR Serial Port #1 9

IR Serial Port #2 10

IR Serial Port #3 11

IR Serial Port #4 12

IR Serial Port #5 13

IR Serial Port #6 14

IR Serial Port #7 15

IR Serial Port #8 16

I/O Port 17

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

AXlink Port and LED

All NI units have an AXlink port and adjacent status LED (FIG. 12). This port allows the NI to support AMX Legacy AXlink devices such as G3 touch panels (ex: CP4/A) and PosiTrack Pilot devices. A green LED shows AXlink data activity. When the AXlink port is operating normally, blink patterns include:

FIG. 12 AXlink connector and LED

The AXlink port can be used to supply power to downstream AXlink-compatible devices as long as both the power required is LESS THAN 2 Amps total and the external power supply feeding the NI unit has the necessary power capability.

 Off - No power, or the controller is not functioning properly

 1 blink per second - Normal operation.

 3 blinks per second - AXlink bus error. Check all AXlink bus connections.

Wiring Guidelines

The Integrated Controllers use a 12 VDC-compliant power supply to provide power through the rear 2pin 3.5 mm mini-Phoenix PWR connector. Use the power requirements referenced in the product’s Specifications table to determine the power draw.

The incoming PWR and GND cable from the power supply must be connected to the corresponding locations within the PWR connector.

This unit should only have one source of incoming power.

Using more than one source of power to the Controller can result in damage to the internal components and a possible burn out.

Apply power to the unit only after installation is complete.

Wiring length guidelines

Refer to the following tables for the wiring length information used with the different types of NetLinx Integrated Controllers:

Wiring Guidelines - NI-2100 (@ 700 mA)

Wire size Maximum wiring length

18 AWG 154.83 feet (47.19 meters)

20 AWG 98.30 feet (29.96 meters)

22 AWG 63.40 feet (19.32 meters)

24 AWG 38.68 feet (11.79 meters)

Wiring Guidelines - NI-3100 & NI-4100 (@ 900) mA

Wire size Maximum wiring length

18 AWG 120.41 feet (39.70 meters)

20 AWG 76.45 feet (23.30 meters)

22 AWG 49.36 feet (15.04meters)

24 AWG 30.08 feet (9.17 meters)

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Preparing Captive Wires

You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.

Never pre-tin wires for compression-type connections.

1. Strip 0.25 inch (6.35 mm) of insulation off all wires.

2. Insert each wire into the appropriate opening on the connector (according to the wiring diagrams

and connector types described in this section).

3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively doing

so may strip the threads and damage the connector.

Wiring a Power Connection

To use the 2-pin 3.5 mm mini-Phoenix connector with a 12 VDC-compliant power supply, the incoming PWR and GND cables from the external source must be connected to their corresponding locations on connector (FIG. 13).

1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm mini-Phoenix cable. Match

the wiring locations of the +/- on both the power supply and the terminal connector.

2. Tighten the clamp to secure the two wires. Do not tighten the screws excessively; doing so may strip

the threads and damage the connector.

3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the external 12 VDC-compliant power

supply.

PWR +

GND -

To the Integrated Controller

FIG. 13 2-pin mini-Phoenix connector wiring diagram (direct power)

Power Supply

Using the 4-Pin Mini-Phoenix Connector For Data and Power

Connect the 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector to an external NetLinx device as shown in FIG. 14.

To the Integrated Controller’s

AXlink/PWR connector

Top view

GND -

FIG. 14 Mini-Phoenix connector wiring diagram (direct data and power)

AXP/TX

PWR +

AXM/RX

To the external AXlink device

Top view

GND -

AXP/TX

AXM/RX

PWR +

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Using the 4-pin Mini-Phoenix Connector For Data With External Power

To use the 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector for data communication and power transfer, the incoming PWR and GND cable from the 12 VDC-compliant power supply must be connected to the AXlink cable connector going to the Integrated Controller. FIG. 15 shows the wiring diagram. Always use a local power supply to power the Integrated Controller unit.

To the Integrated Controller’s

AXlink/PWR connector

Top view

GND -

AXM/RX

AXP/TX

FIG. 15 4-pin mini-Phoenix connector wiring diagram (using external power source)

PWR (+)

GND (-)

Local +12 VDC power supply (coming from an external power supply)

To the external AXlink device

Top view

GND -

AXP/TX

AXM/RX

When you connect an external power supply, do not connect the wire from the PWR terminal (coming from the external device) to the PWR terminal on the Phoenix connector attached to the Controller unit. Make sure to connect only the AXM, AXP, and GND wires to the Controller’s Phoenix connector when using an external power supply.

Make sure to connect only the GND wire on the AXlink/PWR connector when using a separate 12 VDC power supply. Do not connect the PWR wire to the AXlink connector’s PWR (+) opening.

DB9 Device Port: Connections and Wiring

FIG. 16 shows the connector pinouts for the rear RS-232/RS-422/RS-485 (DB9) Device Ports.

These ports support most standard RS-232 communication protocols for data transmission. This figure gives a visual representation of the wiring specifications for the RS-232/422/485 Device connectors. Refer to the rear of the unit for more detailed connector pinout information.

DB9 Serial Port pinouts (male connector)

5 4 3

2 1

Male

FIG. 16 RS-232/422/485 DB9 (male) connector pinouts for the rear Device Ports

9 8

7 6

RS-232

Pin 2: RX signal Pin 3: TX signal Pin 5: GND Pin 7: RTS Pin 8: CTS

RS-422

Pin 1: RX Pin 4: TX + Pin 5: GND Pin 6: RX +

Pin 9: TX -

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

RS-485

Pin 1: A (strap to 9) Pin 4: B (strap to 6) Pin 5: GND Pin 6: B (strap to 4) Pin 9: A (strap to 1)

Connections and Wiring

The table below provides information about the connector pins, signal types, and signal functions. This table’s wiring specifications are applicable to the rear RS-232/422/485 Device Port connectors on the:

 NI-2100 (Ports 1-3)

 NI-4100/NI-3100 (Ports 1-7)

RS-232/422/485 Device Port Wiring Specifications

Pin Signal Function RS-232 RS-422 RS-485

1 RX- Receive data XX (strap to pin 9)

2 RXD Receive data X

3 TXD Transmit data X

4 TX+ Transmit data XX (strap to pin 6)

5 GND Signal ground XX

6 RX+ Receive data XX (strap to pin 4)

7 RTS Request to send X

8 CTS Clear to send X

9 TX- Transmit data XX (strap to pin 1)

ICSNet Port: Connections and Wiring

The NI Controller must be equipped with the available ICSNet connectors for this functionality to be active. The following tables show the signal and pinouts/pairing information:

ICSNet RJ-45 Signals

Pin Signal-Master Signal-Device

1 TX + RX +

2 TX - RX -

3N/A N/A

4GND GND

5N/A N/A

6N/A N/A

7 RX + TX +

8 RX - TX -

RJ-45 Pinout Information (EIA/TIA 568 B)

Pin Wire Color Polarity Function

1 Orange/White + Transmit

2 Orange - Transmit

3 Green/White - Mic

4 Blue - Ground

5 White/Blue + 12 VDC

6 Green + Mic

7 White/Brown + Receive

8 Brown - Receive

TIA 568B

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Unlike the ICSNet ports, the ICSHub connections require a specific polarity. The IN/OUT configuration, on the hub ports, was implemented to use the same cables as ICSNet, but these ports need TX and RX crossed. You must connect an OUT to an IN, or an IN to an OUT port. This is done simply to keep the polarity straight. The Hub bus is still a bus. All Hub connections are bi-directional.

ICSHub OUT Port: Connections and Wiring

The NI Controller must be equipped with the available ICSNet connectors for this functionality to be active. The following table describes the pinout/signal information for the ICSHub OUT port located on the rear panel of the Integrated Controller.

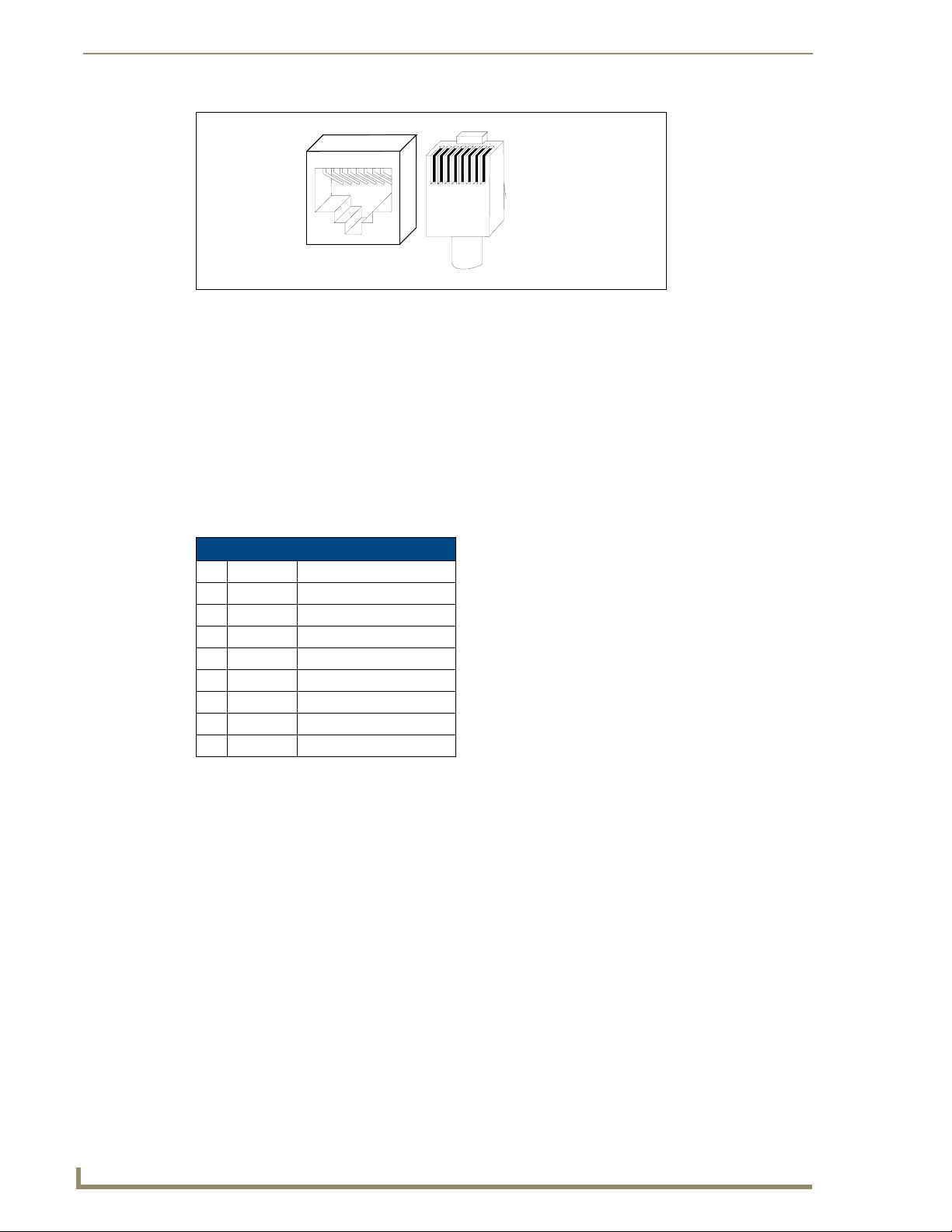

1 2 3 4 5 6 7 8

(female) (male)

RJ-45 connector - pin configurations

ICSHub OUT Pinouts and Signals

Pin Signal Color

1 RX + orange-white

2 RX - orange

3 ------ ------

4 ------ ------

5 ------ ------

6 ------ ------

7 TX + brown-white

8TX - brown

Relay Port: Connections and Wiring

You can connect up to 8 independent external relay devices on both the NI-4100 and NI-3100 units (4 on the NI-2100) to the Relay connectors on the Integrated Controller.

 Connectors labeled A are for common; B are for output.

 Each relay is isolated and normally open.

 A metal commoning strip is supplied with each Integrated Controller to connect multiple

relays.

Relay Connections

Use A for common and B for output (FIG. 17). Each relay is isolated and normally open. A metal connector strip is also provided to common multiple relays.

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

NI-2100 relay connector

configuration (Port 4)

FIG. 17 RELAY connector (male)

NI-4100/NI-3100 relay connector

configuration (Port 8)

Input/Output (I/O) Port: Connections and Wiring

The I/O port responds to either switch closures, voltage level (high/low) changes, or it can be used for logic-level outputs.

NI-2100 I/O connector

configuration (Port 9)

FIG. 18 INPUT/OUTPUT (I/O) connector (male)

 A contact closure between the GND and an I/O port is detected as a Push.

 When used for voltage inputs, the I/O port detects a low signal (0 - 1.5 VDC) as a Push, and a

high signal (3.5 - 5 VDC) as a Release (this IO port uses 5V logic but can handle up to 12V without harm).

 When used for outputs, the I/O port acts as a switch to GND and is rated for 200mA

@ 12 VDC.

 The NI-2100 can use up to 4 I/O ports

 The NI-3100 and NI-4100 can use up to 8 I/O ports

 The PWR pin provides +12 VDC @ 200 mA and is designed as a power output for the PCS

Power Current Sensors, VSS2 Video Sync Sensors (or equivalent).

 The GND connector is a common ground and is shared by all I/O ports. A common ground is

shared with I/O ports 1 - 8 (NI-3100/NI-4100) or with I/O ports 1 - 3 (NI-2100).

NI-4100/NI-3100 I/O connector

configuration (Port 17)

I/O Port Wiring Specifications NI-4100 and NI-3100

Pin Signal Function Pin Signal Function

1 GND Signal GND 1 GND Signal GND

2 I/O 1 Input/Output 2 I/O 1 Input/Output

3 I/O 2 Input/Output 3 I/O 2 Input/Output

4 I/O 3 Input/Output 4 I/O 3 Input/Output

5 I/O 4 Input/Output 5 I/O 4 Input/Output

6 I/O 5 Input/Output 6 12 VDC PWR

7 I/O 6 Input/Output

8 I/O 7 Input/Output

9 I/O 8 Input/Output

10 12 VDC PWR

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

I/O Port Wiring Specifications NI-2100

Connections and Wiring

IR/Serial Port: Connections and Wiring

You can connect up to eight IR- or Serial-controllable devices to the IR/Serial connectors on the rear of the NI-4100 and NI-3100 and up to four on the NI-2100 (FIG. 19).

These connectors accept an IR Emitter (CC-NIRC) that mounts onto the device's IR window, or a miniplug (CC-NSER) that connects to the device's control jack. You can also connect a data 0 - 5 VDC device.

These units come with two CC-NIRC IR Emitters (FG10-000-11).

NI-2100 IR/Serial connector

configuration (Port 5-8)

FIG. 19 IR/SERIAL (male)

NI-4100/NI-3100 IR/Serial connector

configuration (Port 9-16)

The IR/Serial connector wiring specifications are listed in the following table.

IR/Serial Connector Wiring Specifications (per Port)

Number of IR connections

1 9 5 GND (-)

2 10 6 GND (-)

3 11 7 GND (-)

4 12 8 GND (-)

5 13 N/A GND (-)

6 14 N/A GND (-)

7 15 N/A GND (-)

8 16 N/A GND (-)

NI-4100/3100 Port #

NI-2100 Port #

Signal Function

Signal GND

Signal 1 (+)

Signal 2 (+)

Signal 3 (+)

Signal 4 (+)

Signal 5 (+)

Signal 6 (+)

Signal 7 (+)

Signal 8 (+)

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

Signal GND

IR/Serial data

12 3 456 7 8

NetLinx Control Card Slot Connector (NI-4100 only)

FIG. 20 shows the 20-pin (male) connector that provides connection to the NetLinx Control Cards.

SLOT 1

1820 19 151716 610

FIG. 20

NetLinx Control Card 20-pin connector

987

111312

432114

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

Ethernet/RJ-45 Port: Connections and Wiring

NI-x100 Controllers feature an Auto MDI/MDI-X Ethernet port. This provides the option of using either a standard (straight through), or a crossover Ethernet cable to communicate with a PC - both cable types will work.

The following table lists the pinouts, signals, and pairing for the Ethernet connector.

Ethernet RJ-45 Pinouts and Signals

Pin Signals Connections Pairing Color

1 TX + 1 --------- 1 1 --------- 2 Orange-White

2 TX - 2 --------- 2 Orange

3 RX + 3 --------- 3 3 --------- 6 Green-White

4 no connection 4 --------- 4 Blue

5 no connection 5 --------- 5 Blue-White

6 RX - 6 --------- 6 Green

7 no connection 7 --------- 7 Brown-White

8 no connection 8 --------- 8 Brown

FIG. 21 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.

FIG. 21

RJ-45 wiring diagram

Ethernet LEDs

L/A - Link/Activity LED

lights (green) when the

Ethernet cables are

connected and terminated

FIG. 22 Ethernet LEDs

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

correctly.

SPD - Speed LED lights (yellow) when the connection speed is 100 Mbps and turns Off when speed is 10 Mbps.

Connections and Wiring

Ethernet Ports Used By the Integrated Controller

Ethernet Port Descriptions

Port type Description Standard Port #

FTP The on-board Master has a built-in FTP server. 21/20 (TCP)

SSH The SSH port functions using the same interface as Telnet but over a

Telnet The NetLinx Telnet server provides a mechanism to configure and

HTTP The Master has a built-in web server that complies with the HTTP 1.0

HTTPS/SSL This port is used by a web browser to securely communicate between the

ICSP Peer-to-peer protocol used for both Master-to-Master and Master-to-

integration! Solutions

secure shell where it uses SSL as a mechanism to configure and diagnose a NetLinx system.

This port value is used for secure Telnet communication.

Note: SSH version 2 is only supported.

diagnose a NetLinx system.

For maximum flexibility, the Master can be configured to utilize a different port than 23, or disable Telnet completely from either Telnet or the Program Port located on the rear of the Master itself. Once disabled, the only way to enable Telnet again is from the Master’s Program port.

specification and supports all of the required features of HTTP v1.1.

This port is used for unsecure HTTP Internet communication between the web browser’s UI and the target Master.

web server UI and the target Master. This port is also used to simultaneously encrypt this data using the SSL certificate information on the Master as a key.

device communications.

For maximum flexibility, the Master can be configured to utilize a different port than 1319, or disable ICSP over Ethernet completely from either Telnet or the Program Port located on the rear of the Master itself.

This type of communication is used by the various AMX product for communication amongst themselves.

This feature on the Master uses, by default, port 10500 for the XML based communication protocol. This port is connected to by the client web browser’s JVM when integration! Solutions control pages are retrieved from the on-board Master’s web server.

For maximum flexibility, the on-board Master can be configured to utilize a different port than 10500 or to disable integration! Solutions completely.

22 (TCP)

23 (TCP)

80 (TCP)

443 (TCP)

1319 (UDP/TCP)

10500 (TCP)

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

Connections and Wiring

NI-2100, NI-3100, NI-4100 Hardware Reference Guide

It’s Your World - Take Control™

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com

1/2009

AMX NI-3100, NI-2100, NI-4100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

NI-2100 Specifications

NI-3100 Specifications

NI-4100 Specifications

Related Documents

Installation and Upgrading

Installing NetLinx Control Cards (NI-4100 Only)

Setting the NetLinx Control Card Addresses (NI-4100 Only)

Device:Port:System (D:P:S)

Removing NetLinx Control Cards (NI-4100 Only)

Compact Flash Upgrades

Accessing The Internal Components On An Integrated Controller

Installation of Compact Flash Upgrades

Closing and Securing the Outer Housing

Installing Into An Equipment Rack

Connections and Wiring

Setting the Configuration DIP Switch (for the Program Port)

Baud Rate Settings

Program Run Disable (PRD) Mode

Working With the Configuration DIP Switch

Setting the CardFrame DIP Switch (NI-4100 Only)

Program Port Connections and Wiring

Modes and Front Panel LED Blink Patterns

Port Assignments and Functionality

AXlink Port and LED

Wiring Guidelines

Wiring length guidelines

Preparing Captive Wires

Wiring a Power Connection

Using the 4-Pin Mini-Phoenix Connector For Data and Power

Using the 4-pin Mini-Phoenix Connector For Data With External Power

DB9 Device Port: Connections and Wiring

ICSNet Port: Connections and Wiring

ICSHub OUT Port: Connections and Wiring

Relay Port: Connections and Wiring

Relay Connections

Input/Output (I/O) Port: Connections and Wiring

IR/Serial Port: Connections and Wiring

NetLinx Control Card Slot Connector (NI-4100 only)

Ethernet/RJ-45 Port: Connections and Wiring

Ethernet LEDs

Ethernet Ports Used By the Integrated Controller
