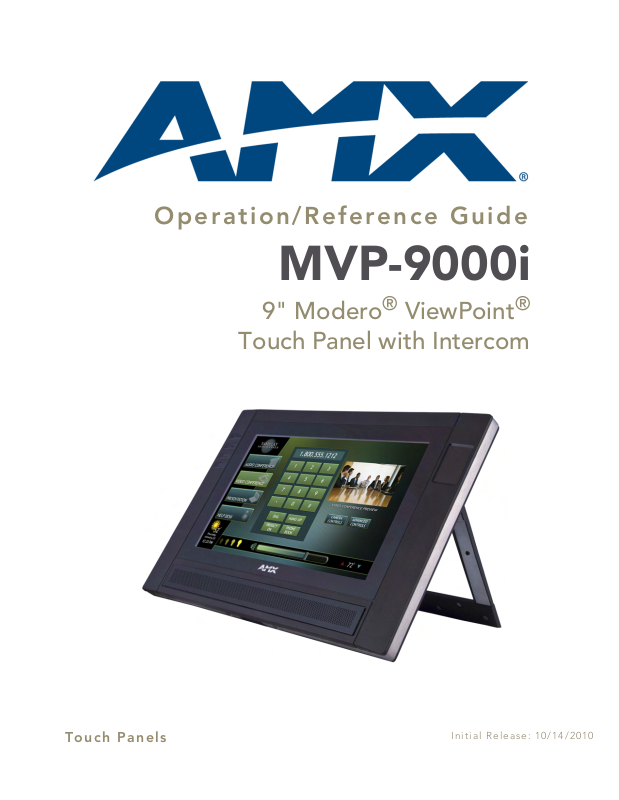

AMX MVP9 Final User's Manual
Operation/Reference Guide
MVP-9000i
9" Modero® ViewPoint
®
Touch Panel with Intercom
Touch Panels
Initial Release: 10/14/2010
AMX Limited Warranty and Disclaimer
This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which
include AMX Dealers, Distributors, VIP’s or other AMX authorized entity.
AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of
purchase, with the following exceptions:
• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components are warranted for a period of one (1) year.
• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.
• AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long
as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combinations of dimmers, lamps and ballasts or transformers.
• AMX software is warranted for a period of ninety (90) days.
• Batteries and incandescent lamps are not covered under the warranty.
• AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in
materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the
date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited
Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it
within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The
life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty
applies to products in their original installation only. If a product is moved to a different inst allation, the Limited Lifetime Warranty
will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX
RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After
the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will
be refused. AMX is not responsible for products returned without a valid RMA number.
AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost
savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Authorized Partner for a third party.
This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or
improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earthquake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts,
sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including
negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by
any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the
possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not
apply. This Limited Warranty gives the owner specific legal
The owner is advised to consult applicable state laws for full determination of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT
MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED
BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRANTIES, PRICES, AND POLICIES WITHOUT NOTICE.
rights. The owner may also have other rights that vary from state to state.
AMX Software License and Warranty Agreement
• LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this
License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the
AMX Software. The AMX Software consists of generally available programming and development software, product documentation, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on
the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement. AMX Dealer, Distributor, VIP or other AMX authorized
entity shall not, and shall not permit any other person to, disclose, display, loan, publish, transfer (whether by sale, assignment,
exchange, gift, operation of law or otherwise), license, sublicense, copy, or otherwise disseminate the AMX Software. Licensee
may not reverse engineer, decompile, or disassemble the AMX Software.
• ACKNOWLEDGEMENT. You hereby acknowledge that you are an authorized AMX dealer, distributor, VIP or other AMX authorized entity in good standing and have the right to enter into and be bound by the terms of this Agreement.
• INTELLECTUAL PROPERTY. The AMX Software is owned by AMX and is protected by United States copyright laws, patent
laws, international treaty provisions, and/or state of Texas trade secret laws. Licensee may make copies of the AMX Software
solely for backup or archival purposes. Licensee may not copy the written materials accompanying the AMX Software.
• TERMINATION. AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON UPON WRITTEN NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or
destroy all originals and copies of the AMX Software to AMX and certify in writing that all originals and copies have been
returned or destroyed.
• PRE-RELEASE CODE. Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRERELEASE CODE and such code may not be at the level of performance, compatibility and functionality of the GA code. The
PRE-RELEASE CODE may not operate correctly and may be substantially modified prior to final release or certain features may
not be generally released. AMX is not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS
PROVIDED "AS IS" WITH NO WARRANTIES.
• LIMITED WARRANTY. AMX warrants that the AMX Software (other than pre-release code) will perform substantially in accordance with the accompanying written materials for a period of ninety (90) days from the date of receipt. AMX DISCLAIMS ALL
OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE AMX SOFTWARE. THIS LIMITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX SOFTWARE,
including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day
Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.
• LICENSEE REMEDIES. AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX in accordance with AMX's current return policy.
This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication. Any replacement AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer.
Outside the United States, these remedies may not available. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO
EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES
FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE, EVEN IF AMX HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO LICENSEE.
• U.S. GOVERNMENT RESTRICTED RIGHTS. The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or
disclosure by the Government is subject to restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and
Computer Software clause at DFARS 252.227-7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software
Restricte
• SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL. The United States
Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site may
be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other country to which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially
Designated Nationals or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or
exporting of any software or technical data from this site to any jurisdiction prohibited by the United States Export Laws.
This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of
the State of Texas, and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concerning this Agreement, or to contact AMX for any reason, please write: AMX License and Warranty Department, 3000 Research
Drive, Richardson, TX 75082.
d Rights at 48 CFR 52.227-19, as applicable.
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received; including interference
that may cause undesired operation.
Modifications to this product, unless expressly approved by AMX, could void the user’s authority to operate the
equipment.
Federal Communications Commission (FCC)
Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
This product has been evaluated and found to comply with the limits established by the FCC, Industry Canada and
other international standards for radio frequency exposure when used as described in this manual. The use of
accessories not described may not ensure compliance with these limits.
Indoor Use
This device is intended for indoor use only. WiFi operation in the 5150-5250 MHz range is only for indoor usage to
reduce potential for harmful interference to co-channel mobile satellite systems.
1
MVP-9000i Modero® Wireless Touch Panel with Intercom
Table of Contents
Introduction ........................................................................................................1
Overview .................................................................................................................. 1
Common Application....................................................................................................... 1
Features .......................................................................................................................... 1
Memory .................................................................................................................... 4
Connector Locations ................................................................................................. 4
Basic Operation ........................................................................................................ 4
Powering on the MVP-9000i ..................................................................................... 5
Intercom Microphone ............................................................................................... 5
Stylus ........................................................................................................................ 5
Kick Stand................................................................................................................. 5
Audio/Video Capabilities .......................................................................................... 5
Power Management.................................................................................................. 5
Cleaning the Touch Overlay and Case ...................................................................... 5
Picture View.............................................................................................................. 6
Preview Mode and Normal Mode ................................................................................... 7
Picture View Send Command .......................................................................................... 8
Accessories .........................................................................................................9
Table Docking Station............................................................................................... 9
Powering the MVP-TDS-9.............................................................................................. 10
Recharging .................................................................................................................... 11
Using the USB ports ...................................................................................................... 11
Cleaning the MVP-TDS-9 ............................................................................................... 11
Wall Docking Station .............................................................................................. 12
Unlocking the Touch Panel ..................................................................................... 13
Recharging.............................................................................................................. 14
Installing the MVP-WDS-9....................................................................................... 15
Installing the Wall Docking Station and Plastic Back Box .............................................. 15
Installing the Optional Metal Rough-In Box ............................................................ 18
Pre-Wall Installation of the CB-MVP-WDS9 ................................................................... 18
Other MVP-WDS-9 installations .................................................................................... 19
Configuring Communication ............................................................................. 21
Overview ................................................................................................................ 21
IR Communication................................................................................................... 22
Modero Setup and System Settings ....................................................................... 22
Accessing the Setup and Protected Setup Pages.......................................................... 22
2
MVP-9000i Modero® Wireless Touch Panel with Intercom
Setting the Panel’s Device Number............................................................................... 23
Wireless Settings - Wireless Access Overview ........................................................ 24
DHCP............................................................................................................................. 24
Configuring Wireless Network Access .................................................................... 24
Step 1: Configure the Device’s WiFi Settings ......................................................... 24
Wireless communication using a DHCP Address ........................................................... 24
Wireless Communication Using a Static IP Address....................................................... 25
Using the Site Survey Tool ............................................................................................ 26
Step 2: Configure the Card’s Wireless Security Settings ........................................ 29
Configuring the Device’s Wireless Card for Unsecured Access To a WEP ..................... 29
Automatically Setting SSID............................................................................................ 30
Manually Setting SSID ................................................................................................... 30
Configuring Multiple Wireless Touch Panels To Communicate To a Target WAP.......... 31
Step 3: Choose a Master Connection Mode ........................................................... 31
Ethernet Over USB ................................................................................................. 32
Touch Panel Setup......................................................................................................... 32
Configure a Virtual NetLinx Master using NetLinx Studio............................................. 35
Ethernet ........................................................................................................................ 37
Master Connection to a Virtual Master via Ethernet ..................................................... 38
Using G4 Web Control to Interact with a G4 Panel ................................................ 40
Using the NetLinx Master To Control the G4 Panel................................................ 41
Setup Pages ......................................................................................................45
Overview ................................................................................................................ 45
Accessing the Setup pages ..................................................................................... 45
Landscape and Portrait Mode Setup Pages ............................................................ 45
Status Page............................................................................................................. 46
Navigation Buttons........................................................................................................ 47
Display Page ........................................................................................................... 48
Audio Page ............................................................................................................. 49
WAV files - Supported Sample Rates ............................................................................ 50
Power Management Page....................................................................................... 51
Date/Time Page ...................................................................................................... 53
Panel Information Page........................................................................................... 55
Panel Information Page - Info ........................................................................................ 55
Panel Information Page - Config.................................................................................... 56
Panel Information Page - File ........................................................................................ 57
Panel Information Page - Project ................................................................................... 58
Protected Setup Pages .....................................................................................59
System & Panel Options page ................................................................................ 61
3
MVP-9000i Modero® Wireless Touch Panel with Intercom
Function Show Example ................................................................................................ 62
Security Settings ........................................................................................................... 62
System Settings Page ............................................................................................. 64
System Settings - Master .............................................................................................. 64
System Settings - Wired ................................................................................................ 65
System Settings - WiFi .................................................................................................. 66
Security Modes ....................................................................................................... 69
Open ............................................................................................................................. 69
WEP .............................................................................................................................. 70
WPA-PSK....................................................................................................................... 72
EAP Security & Server Certificates - Overview ....................................................... 74
EAP-LEAP ...................................................................................................................... 75
EAP-FAST ...................................................................................................................... 77
EAP-PEAP...................................................................................................................... 79
EAP-TTLS....................................................................................................................... 81
EAP-TLS......................................................................................................................... 83
Client Certificate Configuration .................................................................................... 85
System Settings - USB ................................................................................................... 86
Calibrate Page ........................................................................................................ 87
G4 Web Control Settings Page............................................................................... 88
Passwords ............................................................................................................... 90
Panel Logs Page ..................................................................................................... 92
Cache Settings Page ............................................................................................... 93
Panel Statistics Page............................................................................................... 95
Panel Statistics - ICSP .................................................................................................... 95
Panel Statistics - Blinks Tab ........................................................................................... 96
Panel Statistics - IP Tab ................................................................................................. 97
Panel Statistics - Wireless Tab ....................................................................................... 97
Connection Utility Page ................................................................................................ 98
SIP Settings Page.................................................................................................... 99
Upgrading Firmware ......................................................................................101
Overview .............................................................................................................. 101
Upgrading Firmware via USB stick........................................................................ 101
Upgrading Firmware Via NetLinx Studio .............................................................. 102
Step 3: Confirm and Upgrade the firmware via the USB port ..................................... 103
A Special Note for Network Interface Connections .............................................. 106
Programming ..................................................................................................109
Overview .............................................................................................................. 109
Animated Transitions ............................................................................................ 109
4
MVP-9000i Modero® Wireless Touch Panel with Intercom
^AFP 110
Touch Gesture Recognition................................................................................... 111
Gesture Velocity.......................................................................................................... 111
Gesture Prioritization .................................................................................................. 111
Gesture VNC/Mouse Support...................................................................................... 112
Gesture Custom Event ................................................................................................ 112
Enabling or Disabling the Gesture Custom Event ....................................................... 112
^GCE 112
.............................................................................................................................. 112
Page Commands ................................................................................................... 113
@APG ...................................................................................................................................... 113
@CPG ...................................................................................................................................... 113
@DPG ...................................................................................................................................... 113
@PDR ...................................................................................................................................... 113
@PHE ...................................................................................................................................... 113
@PHP ...................................................................................................................................... 114
@PHT ...................................................................................................................................... 114
@PPA ...................................................................................................................................... 114
@PPF ....................................................................................................................................... 114
@PPG ...................................................................................................................................... 115
@PPK ...................................................................................................................................... 115
@PPM ...................................................................................................................................... 115
@PPN ...................................................................................................................................... 115
@PPT ....................................................................................................................................... 116
@PPX ...................................................................................................................................... 116
@PSE ....................................................................................................................................... 116
@PSP ....................................................................................................................................... 116
@PST ....................................................................................................................................... 116
PAGE ...................................................................................................................................... 116
PPOF ....................................................................................................................................... 117
PPOG ...................................................................................................................................... 117
PPON ...................................................................................................................................... 117
Programming Numbers......................................................................................... 118
RGB Triplets and Names For Basic 88 Colors ............................................................. 118
Font Styles And Id Numbers ....................................................................................... 120
Border Styles And Programming Numbers ................................................................. 120
"^" Button Commands ......................................................................................... 122
^ANI ....................................................................................................................................... 122
^APF ....................................................................................................................................... 122
^BAT ....................................................................................................................................... 123
^BAU ...................................................................................................................................... 123
^BCB ....................................................................................................................................... 123
^BCF ....................................................................................................................................... 124
^BCT ....................................................................................................................................... 124
^BDO ...................................................................................................................................... 124
^BFB ....................................................................................................................................... 125
5
MVP-9000i Modero® Wireless Touch Panel with Intercom
^BIM ........................................................................................................................................125
^BLN .......................................................................................................................................125
^BMC ......................................................................................................................................126
^BMF .......................................................................................................................................127
^BMI ........................................................................................................................................128
^BML .......................................................................................................................................128
^BMP ...................................................................................................................................... 129
^BNC .......................................................................................................................................129
^BNN ......................................................................................................................................129
^BNT .......................................................................................................................................129
^BOP .......................................................................................................................................129
^BOR .......................................................................................................................................130
^BOS .......................................................................................................................................130
^BPP ........................................................................................................................................130
^BRD .......................................................................................................................................130
^BSF ........................................................................................................................................131
^BSM .......................................................................................................................................131
^BSO .......................................................................................................................................131
^BVL ........................................................................................................................................131
^BVN .......................................................................................................................................131
^BVP .......................................................................................................................................132
^BVT .......................................................................................................................................132
^BWW ..................................................................................................................................... 132
^CPF ........................................................................................................................................132
^DLD .......................................................................................................................................132
^DPF .......................................................................................................................................133
^ENA .......................................................................................................................................133
^FON ......................................................................................................................................133
^GDI ........................................................................................................................................134
^GIV ........................................................................................................................................134
^GLH .......................................................................................................................................134
^GLL ........................................................................................................................................134
^GRD .......................................................................................................................................134
^GRU .......................................................................................................................................135
^GSC .......................................................................................................................................135
^GSN .......................................................................................................................................135
^ICO ........................................................................................................................................135
^IRM ........................................................................................................................................136
^JSB ........................................................................................................................................136
^JSI .........................................................................................................................................136
^JST ........................................................................................................................................137
^MBT .......................................................................................................................................137
^MDC ......................................................................................................................................137
^PIC .........................................................................................................................................137
^SHO .......................................................................................................................................137
^TEC ........................................................................................................................................138
^TEF ........................................................................................................................................138
^TXT ........................................................................................................................................138
^UNI ........................................................................................................................................139
^WLD ......................................................................................................................................139
6
MVP-9000i Modero® Wireless Touch Panel with Intercom
Miscellaneous MVP Strings.......................................................................................... 140
undock <master> .................................................................................................................... 140
dock ........................................................................................................................................ 140
MVP Panel Lock Passcode Commands ........................................................................ 140
^LPC ....................................................................................................................................... 140
^LPR ....................................................................................................................................... 140
^LPS ........................................................................................................................................ 140
Text Effects Names............................................................................................... 141
Button Query Commands ..................................................................................... 141
?BCB ....................................................................................................................................... 142
?BCF ....................................................................................................................................... 143
?BCT ....................................................................................................................................... 143
?BMP ...................................................................................................................................... 144
?BOP ....................................................................................................................................... 144
?BRD ....................................................................................................................................... 145
?BWW ..................................................................................................................................... 145
?FON ...................................................................................................................................... 146
?ICO ........................................................................................................................................ 146
?JSB ........................................................................................................................................ 147
?JSI ......................................................................................................................................... 147
?JST ........................................................................................................................................ 148
?TEC ........................................................................................................................................ 148
?TEF ........................................................................................................................................ 149
?TXT ........................................................................................................................................ 149
Panel Runtime Operations .................................................................................... 150
ABEEP ..................................................................................................................................... 150
ADBEEP .................................................................................................................................. 150
@AKB ...................................................................................................................................... 150
AKEYB .................................................................................................................................... 150
AKEYP ..................................................................................................................................... 150
AKEYR ..................................................................................................................................... 150
@AKP ...................................................................................................................................... 151
@AKR ...................................................................................................................................... 151
BEEP ....................................................................................................................................... 151
BRIT ........................................................................................................................................ 151
@BRT ....................................................................................................................................... 151
DBEEP ..................................................................................................................................... 151
@EKP ...................................................................................................................................... 151
PKEYP ..................................................................................................................................... 152
@PKP ...................................................................................................................................... 152
SETUP ..................................................................................................................................... 152
SHUTDOWN ........................................................................................................................... 152
SLEEP ...................................................................................................................................... 152
@SOU ...................................................................................................................................... 152
@TKP ....................................................................................................................................... 153
TPAGEON ............................................................................................................................... 153
TPAGEOFF .............................................................................................................................. 153
@VKB ...................................................................................................................................... 153
7
MVP-9000i Modero® Wireless Touch Panel with Intercom
WAKE ......................................................................................................................................153
Input Commands................................................................................................... 154
^CAL .......................................................................................................................................154
^KPS ........................................................................................................................................154
^VKS .......................................................................................................................................154
Embedded codes.................................................................................................. 155
Panel Setup Commands ........................................................................................ 156
@PWD .....................................................................................................................................156
^PWD ......................................................................................................................................156
Dynamic Image Commands................................................................................... 157
^BBR .......................................................................................................................................157
^RAF .......................................................................................................................................157
^RFR ........................................................................................................................................157
^RAF, ^RMF - Embedded Codes ................................................................................ 158
^RMF .......................................................................................................................................158
^RSR ........................................................................................................................................158
Escape Sequences ....................................................................................................... 159
$DV .........................................................................................................................................159
$SY ..........................................................................................................................................159
$IP ...........................................................................................................................................159
$HN .........................................................................................................................................159
$MC .........................................................................................................................................159
$ID ...........................................................................................................................................159
$PX ..........................................................................................................................................159
$PY ..........................................................................................................................................159
$ST ..........................................................................................................................................159
$AC .........................................................................................................................................159
$AP ..........................................................................................................................................159
$CC .........................................................................................................................................159
$CP ..........................................................................................................................................159
$LC ..........................................................................................................................................159
$LP ..........................................................................................................................................159
$BX ..........................................................................................................................................159
$BY ..........................................................................................................................................159
$BN .........................................................................................................................................159
Intercom Commands............................................................................................. 160
^MODEL? ................................................................................................................................ 160
^ICS- ........................................................................................................................................160
^ICE' ........................................................................................................................................160
^ICM-TALK .............................................................................................................................. 161
^ICM-LISTEN ........................................................................................................................... 161
^ICM-MICLEVEL ......................................................................................................................161
^ICM-MUTEMIC ......................................................................................................................161
^ICM-SPEAKERLEVEL ............................................................................................................. 161
SIP Commands ...................................................................................................... 162
^PHN-AUTOANSWER .............................................................................................................162
^PHN-CALL ............................................................................................................................. 162
8
MVP-9000i Modero® Wireless Touch Panel with Intercom
^PHN-INCOMING ................................................................................................................... 162
^PHN-LINESTATE ................................................................................................................... 162
^PHN-MSGWAITING .............................................................................................................. 162
^PHN-ANSWER ...................................................................................................................... 163
^PHN-AUTOANSWER ............................................................................................................. 163
?PHN-AUTOANSWER ............................................................................................................. 163
^PHN-CALL ............................................................................................................................. 163
^PHN-PRIVACY ....................................................................................................................... 163
^PHN-REDIAL ......................................................................................................................... 163
^PHN-TRANSFERRED ............................................................................................................. 163
^PHN-DTMF ........................................................................................................................... 164
^PHN-HANGUP ...................................................................................................................... 164
^PHN-HOLD ........................................................................................................................... 164
?PHN-LINESTATE .................................................................................................................... 164
^PHN-PRIVACY ....................................................................................................................... 164
?PHN-PRIVACY ....................................................................................................................... 164
^PHN-REDIAL ......................................................................................................................... 164
^PHN-TRANSFER .................................................................................................................... 164
^PHN-SETUP-DOMAIN ........................................................................................................... 165
^PHN-SETUP-ENABLE ............................................................................................................ 165
^PHN-SETUP-PASSWORD ...................................................................................................... 165
^PHN-SETUP-PORT ................................................................................................................. 165
^PHN-SETUP-PROXYADDR .................................................................................................... 165
^PHN-SETUP-STUNADDR ....................................................................................................... 165
^PHN-SETUP-USERNAME ....................................................................................................... 165
Battery Life and Replacement ........................................................................167
Overview .............................................................................................................. 167
IMPORTANT NOTES! ............................................................................................ 167
Power Management.............................................................................................. 168
Proper Battery Maintenance................................................................................. 168
Battery Replacement ............................................................................................ 169
READ THESE INSTRUCTIONS FIRST!........................................................................... 169
Replacing the Battery ........................................................................................... 169
Remove the Old Battery.............................................................................................. 171
Install the New Battery................................................................................................ 171
Reconnecting the Battery To The Device .................................................................... 171
Appendix A: Text Formatting .........................................................................173
Text Formatting Codes for Bargraphs/Joysticks................................................... 173
Text Area Input Masking....................................................................................... 174
Input mask character types ......................................................................................... 174
Input Mask Ranges ...................................................................................................... 175
Input mask next field characters.................................................................................. 175
Input mask operations................................................................................................. 175
Input mask literals ....................................................................................................... 175
9
MVP-9000i Modero® Wireless Touch Panel with Intercom
Input mask output examples ....................................................................................... 176
URL Resources ...................................................................................................... 176
Special Escape Sequences........................................................................................... 176
Appendix B: Wireless Technology ..................................................................179
Overview of Wireless Technology......................................................................... 179
Terminology.......................................................................................................... 180
802.1x ......................................................................................................................... 180
AES ............................................................................................................................. 180
CERTIFICATES (CA) ..................................................................................................... 180
MIC.............................................................................................................................. 180
TKIP............................................................................................................................. 180
WEP ............................................................................................................................ 180
WPA ............................................................................................................................ 180
WPA2 .......................................................................................................................... 181
EAP Authentication............................................................................................... 182
EAP Characteristics ..................................................................................................... 182
EAP Communication Overview.................................................................................... 183
Configuring Modero Firmware via the USB Port .................................................. 184
Step 1: Configure The Panel For a USB Connection Type ........................................... 184
Step 2: Prepare NetLinx Studio For Communication Via the USB Port ....................... 184
AMX Certificate Upload Utility ............................................................................. 185
Uploading a Certificate File .................................................................................. 185
Appendix C: Troubleshooting ........................................................................187
Overview .............................................................................................................. 187
Panel Doesn’t Respond To Touches ............................................................................ 187
Battery Will Not Hold Or Take A Charge .................................................................... 187
MVP-9000i Isn’t Appearing In The Online Tree Tab .................................................... 188
MVP Can’t Obtain a DHCP Address ............................................................................ 188
My WAP Doesn’t Seem To Be Working....................................................................... 188
NetLinx Studio Only Detects One Of My Connected Masters .................................... 188
Can’t Connect To a NetLinx Master ............................................................................ 188
Only One Modero Panel In My System Shows Up....................................................... 188
Panel Behaves Strangely After Downloading A Panel File Or Firmware ..................... 189
10
MVP-9000i Modero® Wireless Touch Panel with Intercom
1
MVP-9000i Modero® Wireless Touch Panel with Intercom
Introduction
Touch screenMicrophone
Speaker grille
Status LED
Overview
The MVP-9000i redefines touch panel control offering both wireless and wired functionality, new user
interface capabilities like gestures and animated page transitions, a stunning 9" widescreen 24-bit color
display, full digital duplex VoIP telephone or intercom interface and built-in 802.11a/b/g WiFi card with
antenna diversity. The MVP-9000i switches seamlessly to wireless mode when removed from either the MVPTDS-9 T able Docking Station or the MVP-WDS-9 Wall Docking Station. Transfer touch panel pages, upgrade
the firmware or display photo files using the USB or micro-SD card slot. Available in black (FG5967-01) and
white (FG5967-02), the MVP-9000i also features a capacitive touch directional pad, 4 progr ammable buttons,
and over 1 GB of usable flash memory. The MVP-9000i also supports 5 hours of continuous use to three days
of standby time.
Introduction
FIG. 1 MVP-9000i-GB touch panel
Common Application
The MVP-9000i is ideal for a wide variety of residential and commercial control and automation applications
where flexibility of docked with wired Ethernet or undocked with 802.11a/b/g functionality is desired. This is
an option for extremely noisy wireless environments such as multiple dwelling units, as well as applications
that require telephone/intercom functionality.
Features
Ultra-light, compact and thin form factor
Available in your choice of black or white
Capacitive touch buttons provide simple (up/down) or sophisticated control (up/down, right/left,
select)
VoIP Intercom and SIP Telephone (requires AMX SIP Gateway) Ready
802.11a/b/g WiFi for two-way network communications
Wireless communications remain secure using WEP, WPA, WPA2, EAP-TLS, EAP-TTLS and
PEAP network security standards
Enhanced usability with microphone and speakers
Versatile placement options, including an integrated kickstand and the optional MVP-TDS-9 Table
Docking Station and MVP-WDS-9 Wall Docking Station
Introduction
2
MVP-9000i Modero® Wireless Touch Panel with Intercom
Kickstand
Mini-USB port
DC power jack
MicroSD memory
card slot
Docking Station
interface connector
Stylus
Speaker
Capacitive touch
Capacitive touch
buttons (4)
directional pad
The MVP-9000i comes with an integrated rear “kickstand”, allowing it to be used and displayed away from a
Docking Station (FIG. 2). It also comes with a pre-installed 802.11a/b/g wireless card.
FIG. 2 MVP-9000i side view (with kickstand)
MVP-9000i Specifications
Models Available: • MVP-9000i-GB (Black - FG5967-01)
• MVP-9000i-GW (White - FG5967-02)
Dimensions: • 7.62” x 10.98” x 1.06" (19.35 cm x 27.89 cm x 2.69 cm)
Weight: • 3.60 lbs (1.63 kg)
Enclosure: MVP-9000i-GB: Black plastic with brushed metal retaining ring.
MVP-9000i-GW: White plastic with brushed metal retaining ring.
Memory: • 2GB internal microSD (1.1GB accessible to user)
Power Requirements
(Without Charging):
Power Requirements (While
Charging):
Minimum Power Supply
Required:
Power Modes: • ON: All necessary modules are powered up and device remains online with
Battery Duration: • On (continuous use): 5 hours; Standby: 3 days
• Constant current draw: 1.1 A @ 12 VDC
• Startup current draw: 1.2 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures.
Panel while charging battery:
• Constant current draw: 2.0 A @ 12VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures.
• PS3.0 Power Supply (FG423-30) (included)
• PS-POE-AT Hi gh Power PoE Injector (FG423-81) through the Table Docking
Station and Wall Docking Station
the NetLinx Master.
• Sleep: Only the backlight will be turned off after the user selectable time of
inactivity has elapsed. Panel resumes the ON mode immediately after being
touched.
• STANDBY: Power to all components other than the touch screen is turned off
after the user selectable time of inactivity has elapsed. Device will turn back
on by touching the screen. Re-acquiring a WAP connection may require up
to 25 seconds.
• SHUTDOWN: Power to all peripherals and components is turned off. The
system remains in this mode until it is restarted.
• 10 hours of normal use, in a combination of On, Sleep, Standby, and
Shutdown.
• 3 days of standby use
Introduction
3
MVP-9000i Modero® Wireless Touch Panel with Intercom
MVP-9000i Specifications (Cont.)
Panel LCD Parameters: • Screen resolution: 800 x 480 pixels (HV) @ 60 Hz refresh rate
• Aspect ratio: 16 x 9
• Brightness (luminance): 400 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 900:1 max.
• Display colors: 16.7M colors (24-bit color depth)
• Dot/pixel pitch: 0.246 mm
• Panel type: TFT Color Active-Matrix (IPS technology)
• Viewing angles:
Vertical: + 85° (up from center) and - 85° (down from center)
Horizontal: + 85° (left from center) and - 85° (right from center)
External Components
Stylus Slot: Slot where the included stylus is stored, located on the left side of the device.
MicroSD Card Slot: Slot for insertion of standard MicroSD memory cards.
Mini-USB Connector: 5-pin Mini-USB connector used for audio output to USB headphones,
programming, firmware updates, and touch panel file transfer between the PC
and the target panel.
Note: When connecting the panel to PC using a CC-USB (or compatible)
cable, be sure to power the panel On before attempting to connect the USB
cable from the PC to the mini-USB port on the panel.
DC power port: 2.5 mm port to power the panel away from a Docking Station.
Microphone: For use with the intercom feature and for calls using SIP.
• Frequency: 20 to 160,000 Hz
• S/N Ratio: More than 58 dB
Speaker: • 4 Ohm
• 2 Watts 300Hz cutoff frequency
Audio Standards: • G.711 sound standard
• 75dB SPL@1m
IR Emitters: Transmit IR (transmit only) over 20 feet (6.10 m) from the panel.
• IR emitters on G4 panels share the device address number of the panel.
• Transmits AMX fixed frequencies at 38KHz and 455KHz and third-party
user-programmable frequencies from 20KHz to 1.5MHz
Certifications: • FCC Class B
•CE
•IC
• VCCI
•C-Tick
Operating/Storage
Environment
Included Accessories: • MVP-9000i Installation Guide (93-5967-01)
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 5% - 85% RH
• Storage Temperature: -10° C (-14° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• PS3.0 Power Supply (FG423-30)
• Stylus (pre-installed onto the left side of the unit)
Introduction
4
MVP-9000i Modero® Wireless Touch Panel with Intercom
MVP-9000i Specifications (Cont.)
Other AMX Equipment: • MVP-TDS-9-GB Black Table Docking Station (FG5967-10)
• MVP-TDS-9-GW White Table Docking Station (FG5967-11)
• MVP-WDS-9-GB Black Wall Docking Station (FG5967-12)
• MVP-WDS-9-GW White Wall Docking Station (FG5967-13)
• CC-MINIUSB Mini USB to PC Cable Adapter (FG5967-20)
• MicroSD card - 2GB (FG2116-80)
• MicroSD card - 4GB (FG2116-81)
• MVP-BP-9 Replacement Battery Pack (FG5967-21)
• PS-POE-AT High Power PoE Injector (FG423-81)
• MVP-STYLUS-52-XX Replacement Stylus, pack of 3 (Black: FG5966-21;
White: FG5966-22)
This device complies with FCC Part 15 and Industry Canada RSS 210 subject to the
following conditions:
1. This device must not cause harmful interference and
2. This device must accept all interference, including interference that interferes with
the operation of this device.
Memory
The MVP-9000i comes with 2GB internal MicroSD memory,1.1GB of which is accessible to the user. This
memory may not be upgraded.
Connector Locations
With the unit facing you, the mini-USB port (for programming and downloading firmware and the DC power
port are located on the lower left side of the device (FIG. 2). The connector for the Table Docking Station
(please refer to the Table Docking Station section on page 9) is located on the bottom of the device.
Although firmware upgrades can be conducted over a wireless Ethernet connection,
transferring firmware KIT files over a wired LAN, USB data stick, or USB flash card is
recommended, and only when the panel is connected to a power supply. If battery
power is below 30 percent, and the touch panel is not connected to a power supply,
the download will not be completed.
In addition to its speaker, the MVP-9000i also utilizes its mini-USB port as a connector for standard
headphones or headsets. These headphones must use a mini-USB plug or adaptor in order to utilize this
feature.
While standard input/output headsets may be used in lieu of headphones, the
headset may only be used for output. While you may receive sound from the headset,
its microphone will not function. Always use the MVP-9000i’s microphone for
receiving sound.
Basic Operation
The MVP-9000i is operated using its integral touchscreen, as well as the capacitiv e touc h buttons on the left
and the directional pad on the right side of the device (F IG. 1). If the device has gone into its Sleep or Standby
Modes, a touch of the touchscreen or of any of the buttons will reactivate it.
The MVP-9000i device’s power use allows up to 72 hours of use between rechargings of its internal battery,
but its battery charge lasts up to one monthif the device goes into Shutdown Mode during that time. The de vice
may be placed in its charging cradle at any time and operated within its cradle, making a wired Ethernet
connection in the process.
Any wired connection intended for the device will be reconnected within approximately twenty seconds after
the device is placed in a Table Docking Station or Wall Docking Station. Depending upon preselected settings,
the device may be set to go into On Mode as soon as it is placed in the Docking Station.
Introduction
5
MVP-9000i Modero® Wireless Touch Panel with Intercom
Powering on the MVP-9000i
The MVP-9000i may be powered on by touching and holding the touchscreen. If the device was in Sleep
Mode, it will automatically turn on when put into a Table or Wall Docking Station.
Intercom Microphone
The MVP-9000i contains a built-in microphone above the upper lefthand corner of the touch screen for video
and audio conferencing capabilities. This microphone is concealed by the casing.
Stylus
The MVP-9000i comes with a unique touchscreen stylus that slides into a storage groove on the left side of the
device when not in use. Replacement styluses may be ordered in a 3-pack (black, FG5966-21; white, FG5966-
22) from www.amx.com.
Kick Stand
Since the MVP-9000i device is designed to be a unit used away from its docking station, it has an extendable
“kickstand” on the back of the unit (FIG. 2). This may be opened by physically lifting the free end of the kick
stand away from the device. The device may then be propped up on a flat surface and accessed in a normal
fashion.
Audio/Video Capabilities
The MVP-9000i has the capability of displaying multiple JPEG and PNG files at one time. The device also
supports streaming motion JPEG video (of the sort used by many IP and Web cameras), as well as MP3 and
WAV audio files.
Power Management
The MVP-9000i utilizes a dual voltage external power supply. It may be recharged through the supplied PS3.0
Power Supply (FG423-30), as well as through the MVP-TDS-9 Table Docking Station (FG5967-1X) or the
MVP-WDS-9 W all Docking Station (FG5967-1X). For more information, see the Accessories section on
page 9 for details.
Although the MVP-9000i unit is equipped with a mini-USB port, the device cannot be
powered through the USB port. The port is only used for uploading firmware.
When not in active use, the MVP-9000i conserves battery life between chargings. Pressing the touch screen
will return the device to its On Mode. For more information on the battery, see the Battery Life and
Replacement section on page 167.
Cleaning the Touch Overlay and Case
Always use a clean cotton cloth and a spray bottle containing water or any standard ammonia-free glass
cleaner can be used to clean the touch screen. Do NOT use alcohol-based cleaners, as alcohol-based cleaners
can damage the device’s touch screen overlay.
Do not directly spray the device: instead, spray the cloth to clean the touch screen overlay.
Do NOT use an abrasive of any type to clean the MVP-9000i, as this may permanently damage or
remove the device’s finish.
Introduction
6
MVP-9000i Modero® Wireless Touch Panel with Intercom
Picture View
Picture Vie w is a ne w feature deb uting with the MVP-9000i. Inserting a microSD memory card into the slot on
the left side of the device, or connecting a USB drive via the mini-USB port (FIG. 2), allows the MVP-9000i to
access JPEG images on that card and display them on the touchscreen (FIG. 3). Individual images may be
accessed at any time, or the entire collection may be displayed for predetermined times. Picture View may be
stopped at any time by removing the memory card or USB drive, and the MVP-9000i will return to its default
display page.
FIG. 3 Picture View display
To start Picture View:
1. Connect a USB drive to the device or insert a microSD memory card into the microSD memory ca rd slot.
Picture View will automatically recognize all available images on the drive or memory card and start
displaying them on the touchscreen.
Introduction
7
MVP-9000i Modero® Wireless Touch Panel with Intercom
First image
saved
Stop
Pause/
Last image
saved
Counter
Resume
Random/
A-Z
Timer
2. When the images begin to display, touch any place on the touchscreen to open the configuration popup
menu (FIG. 4). If no selection is made, this menu will remain in place for 15 seconds and then disappear .
It may be accessed again by touching anywhere on the touchscreen.
FIG. 4 Picture View configuration popup menu
3. On the leftmost red button, select between Rand (images display at random) and A-Z (images display in
alphabetical order based on the name of the file).
4. The four blue buttons allow scrolling through saved images and the rate of display:
The First Image Saved button returns the display to the fi rst image uploaded by Page Vie w.
The Stop button stops Page View and returns to the default panel page.
The Pause/Resume button allows the display to stop on one particular image. Press it again to
resume the display procession.
The Last Image Saved button returns the display to the last image uploaded by Page View. If the
MPVP-9000i has not accessed all of the images available on a USB dri ve or memory card, Page
View will display the last one uploaded to date.
5. On the rightmost red button, select the number of seconds a selected image will be displayed in Picture
View. This may be selected between 5, 10, 15, 30, and 60 seconds.
6. The counter beneath the buttons displays the number of images currently uploaded by the MVP-9000i
versus the number detected on the USB drive or microSD card.
Preview Mode and Normal Mode
Picture View has two modes: Preview Mode and Normal Mode. Preview Mode allows the user to configure
Picture View. Once an SD card or a USB drive containing images is inserted into the panel, the images will
begin to display. Touching any place on the display will result in the configuration popup to slide from the
bottom of the display.
Picture View goes into its Normal Mode when the MVP-9000i goes into idle timeout while connected to a
USB drive or memory card. Normal Mode displays images until the touchscreen or capacitive touch buttons
are touched, or some other wakeup event is detected. When the device goes back into timeout, Normal Mode
will return to displaying images until the USB drive or memory card are removed from the device.
Introduction
8
MVP-9000i Modero® Wireless Touch Panel with Intercom
Picture View Send Command
Picture Vie w may be enabled or disabled with the ^PIC Send Command. F or more information, please refer to
the ^PIC section on page 137.
All images must be in JPEG format. PNG and other image formats cannot be viewed
through Picture View.
9
MVP-9000i Modero® Wireless Touch Panel with Intercom
Accessories
Docking Station cradle
Release button
Table Docking Station
The Power-over -Ethernet MVP-TDS-9 Table Docking Station (FIG. 5) charges the MVP-9000i and provides a
wired Ethernet connection when the panel is docked. The MVP-TDS-9's sleek design allows the panel to slide
into perfect placement in the docking station and includes password protection support for panel removal.
When the MVP-9000i is placed into the PoE docking station, it automatically switches from wireless to wired
Ethernet communication. The Docking Station is available in either black (MVP-TDS-9-GB, FG5967-10) or
white (MVP-TDS-9-GW, FG5967-11).
Accessories
FIG. 5 MVP-TDS-9-GB Table Docking Station - Front
MVP-TDS-9 Specifications
Dimensions (HWD): • 6.25” x 11.50” x 5.50” (15.88cm x 29.21cm x 13.97cm)
Weight: • 1.25 lbs (.57 kg)
Power
Requirements:
Startup Power
Requirements:
Front Components: • Docking Station cradle: for supporting the device while connected or charging.
Rear Components: • 2 USB ports on the left side of the device, for firmware or file download to a docked
Operating/Storage
Environments:
Included
Accessories
Other AMX
Equipment:
• 3.0 W (Class II listed power supplemented), supplied via the PS-POE-AT High-Power
PoE Injector.
• Cradle and panel (not charging): 16 W
• Cradle and panel (charging): 23 W
• Ejection: 23 W
• Release button: before removing the MVP touch panel, press this button to switch the
panel from a wired to a wireless Ethernet connection to its network.
• 12-pin charging connector on bottom of device cradle.
touch panel. These ports may also be used for using a keyboard and/or mouse with the
touch panel.
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• MVP-TDS-9 Table Docking Station Installation Guide (93-5967-10)
• PS-POE-AT High Power PoE Injector (FG423-81)
• Ethernet cable - black (ECA5967-22BL) (for MVP-TDS-9-GB)
• Ethernet cable - white (ECA5967-22WH) (for MVP-TDS-9-GW)
• MVP-9000i Modero Viewpoint Widescreen Touch Panel with Intercom - Black
(FG5967-01)
• MVP-9000i Modero Viewpoint Widescreen Touch Panel with Intercom - White
(FG5967-02)
Accessories
10
MVP-9000i Modero® Wireless Touch Panel with Intercom
To input port on
the MVP-TDS-9
To Ethernet cable connected
to PS-POE-AT
Powering the MVP-TDS-9
The MVP-TDS-9 uses the PS-POE-AT High-Power PoE Injector (FG423-81) to provide direct power for the
MVP panel via a standard Ethernet connection, both for standard function and for char ging its internal battery.
This also allows a wired Ethernet connection for the panel, and the panel may be used normally while docked
in the MVP-TDS-9 without the need for a wireless connection.
Use only the RJ45 plug on the included Ethernet cable with the MVP-TDS-9. Other
RJ45 plugs will not fit in the device’s jack, and attempting to use another plug may
damage the jack. If necessary, the cable may be spliced and shortened for special
installations.
For both Ethernet connection and for power for the MVP-9000i, the MVP-TDS-9 uses a special Ethernet cable
(FIG. 6) in order to connect to the PS-POE-AT .
FIG. 6 MVP-TDS-9 cable
To connect the MVP-TDS-9 to the PS-POE-AT via the special Ethernet cable:
1. Connect the terminal end of the cable to the PWR connector on the bottom of the MVP-TDS-9.
2. T o pre vent wear on the po wer supply cord and assure that the de vice’s base is in full contact with the table
surface, press the cord into the locking groove running across the bottom of the device (FIG. 7).
3. The other end of the included Ethernet cable has an input port, intended for a standard RJ45 jack. Use a
standard Ethernet cable to connect the Ethernet/PoE port to the PS-POE-AT plugging the other end of the
Ethernet cable into the Data & Power Out RJ45 port on the PS-POE-AT. Make sure that the PS-POE-AT’s
power cable is connected to the device and to an available power source, and that the incoming Ethernet
cable accessing the Data In RJ45 jack is connected to the desired network.
4. Place the touch panel in the Docking Station cradle, guidin g it into place with the locking groove s on each
side of the cradle (FIG. 7). When fully seated, the touch panel’s Docking Station connector should be in
contact with the Docking Station’s charger pins.
Accessories
11
MVP-9000i Modero® Wireless Touch Panel with Intercom
Charger pins
Docking Station cradle
Locking groove
USB ports (2)
Recharging
T o rechar ge the MVP-9000i, slide the device into the T able Docking Station cr adle bottom-f irst and make sure
the device is fully seated in the Docking Station. The ch ar ger pins in the bottom of the cradle (FIG. 7) must be
in contact with the connector on the bottom of the MVP-9000i for it to start recharging. The MVP panel will
stop recharging automatically once the battery has achieved its maximum charge.
FIG. 7 MVP-TDS-9-GW Table Docking Station - Rear
Using the USB ports
The MVP-TDS-9 has two USB ports on the left of th e device behind the Docking Station cradle (FIG. 7).
These ports may be used for transferring files to the MVP-9000i, as well as ports for USB-powered
accessories.
Cleaning the MVP-TDS-9
You should clean the MVP-TDS-9 T a ble Docking Station after each day’s use to maintain the device’s
appearance. Always use a clean cotton cloth and a spray bottle containing water or a non-ammonia-based
cleaner, as alcohol-based cleaners can damage the device. Do not directly spray the device: instead, spray the
cloth to prevent moisture from collecting on the char ger pins. Do NOT use an abrasive of any type to clean the
Table Docking Station, as this may permanently damage or remove the device’s finish.
Accessories
12
MVP-9000i Modero® Wireless Touch Panel with Intercom
Security Release button
MVP-9000i
MVP-WDS-9
Wall Docking Station
While charging the MVP-9000i, the Power-over-Ethernet MVP-WDS-9 Wall/Flush Mount Docking Station
provides fast, reliable wired Ethernet communication to the touch panel. In addition, the MVP-WDS-9
employs a unique, anti-theft locking mechanism to keep the touch panel safe and secure. With a push of a
button, the panel glides forward for simple removal and transport. The Wall Docking Station is available in
either white (FG5967-13) or black (FG5967-12).
FIG. 8 MVP-WDS-9-GB Wall Docking Station - Front
The features of the MVP-WDS-9 include:
Full charging of a docked MVP-9000i in approximately 5 hours
Touch panel password feature for security
Integrated docking alignment guides for easy docking.
MVP-WDS-9 Specifications
Dimensions (HWD): • 9.75" x 12.50" x 2.13" (24.77cm x 31.75cm x 5.40cm)
Note: Always use the cutout/installation dimensions for the MVP-WDS-9 when
installing this unit into various surfaces. This SP engineering drawing is available
online at www.amx.com.
Power Requirements: • 3.0 W (Class II listed power supplemented), supplied via the PS-POE-AT High-
Power PoE Injector.
Startup Power
Requirements
Weight: • Without back box: 1.50 lbs (0.68 kg)
Front Panel
Components:
• Cradle and panel (not charging): 16 W
• Cradle and panel (charging): 23 W
• Ejection: 23 W
• With back box: 2.40 lbs (1.09 kg)
• Securing Magnets: Secures MVP touch panel during ejection.
• Security Latch: Adds the primary layer of security when mounting an MVP touch
panel. When the device is inserted, this latch grabs onto the rear of the touch panel
and secures it to prevent it from inadvertently being removed.
• Interface Connector: A set of contacts that connect to the underside MVP connector
strip. This connection provides both communication and power between the touch
panel and the MVP-WDS-9.
• Support Cradle: This retractable mechanism supports a resting MVP panel and
allows a user to either insert or remove a connected MVP panel.
• Security Release pushbutton: Located on the front of the unit, this pushbutton
toggles an on-screen security keypad if security is enabled.
- Entering the correct release code allows the MVP-WDS-9 to release the touch
panel from the security latch.
Accessories
13
MVP-9000i Modero® Wireless Touch Panel with Intercom
MVP-9000i
Wall Docking Station
Security Release button
MVP-WDS-9 Specifications (Cont.)
Operating/Storage
Environments:
Included Accessories • MVP-WDS-9 Wall Docking Station Installation Guide (93-5967-12)
Other AMX Equipment: • MVP-9000i-GB Modero Wireless Touch Panel, Black (FG5967-01)
• Operating Temperature: 0° C to 40° C
• (32° F to 104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C to 60° C (-4° F to 140° F)
• Storage Humidity: 5% - 85% RH
• Snap-On Ferrite (04-0007)
• MVP-WDS-9 Wall Docking Station Template (68-5967-01)
• PS-POE-AT High Power PoE Injector (FG423-81)
• MVP-9000i-GW Modero Wireless Touch Panel, White (FG5967-02)
• MVP-TDS-9-GB Black Table Docking Station (FG5967-10)
• MVP-TDS-9-GW White Table Docking Station (FG5967-11)
• CB-MVP-WDS9 Rough-In Box (FG038-13)
The MVP-9000i touch panel remains locked in the MVP-WDS-9 until unlocked by the user . This may be done
by entering an appropriate password (please refer to the Passwords section on page 90 for more information),
or by pressing the Security Release button on the front of the device in emergencies. The station ejects the
device top first. The device uses two neodymium rare-earth magnets to keep the MVP-9000i from falling out
of its cradle when the touch panel is angled forward.
MVP-WDS-9-GB Wall Docking Station - Side view
FIG. 9
Unlocking the Touch Panel
Once placed within the W all Docking Station, the MVP-9000i remains secured until the user unlocks it. A tensecond lag between the touch panel being placed in the W all Docking Station and the security feature enabling
allows the user to remov e the touch panel if it is accidentally put into the device. To release the touch panel
from the Wall Docking Station:
1. Press the Security Release button (see FIG. 9).
2. A password keypad will pop up on the MVP-9000i screen. Enter a passw ord in the password k eypad and
press Enter.
3. Wait for the Wall Docking Station to pivot the touch panel away from the wall (FIG. 10).
4. The device will remain in the ejected position until the MVP-9000i is removed. Wait until the device’s
ejection door has completely withdrawn before re-installing the MVP-9000i.
Unique passwords may be entered for up to four unique users as well as the
administrator. For more information on setting passwords, please refer to the
Passwords section on page 90.
Accessories
14
MVP-9000i Modero® Wireless Touch Panel with Intercom
MVP-9000i
MVP-WDS-9
MVP-9000i
MVP-WDS-9
FIG. 10 Ejected position for the MVP-9000i
Recharging
To recharge the MVP-9000i:
1. Slide the device into the Wall Docking Station cradle bottom-first an d make sure the de vice is fully seated
in the Docking Station (FIG. 11).
FIG. 11 Inserting the MVP-9000i into the MVP-WDS-9
2. Press the top of the MVP-9000i back until it clicks. The touch panel is now locked into the Docking
Station, and the station will automatically charge the device’s battery. (Please refer to the Power
Management Page section on page 51 to check on the battery charge status.)
3. To release the touch panel, unlock the touch panel and wait for the Wall Docking Station to pivot the
touch panel away from the wall (FIG. 10).
Accessories
15
MVP-9000i Modero® Wireless Touch Panel with Intercom
8.25"
(212.7mm
5.56"
(141.29mm)
5.56"
(141.29mm)
8.25"
12.06"
(30.64 cm)
12.06"
(30.64 cm)
8.69"
(22.07 cm)
8.69"
(22.07 cm)
Installing the MVP-WDS-9
Since the W all Docking Station is intended to be affixed to a wall or other permanent structure, care must be
taken to ensure its proper installation to prevent potential damage to the MVP-9000i placed within.
Other than wall installation tools, the only tool required for this installation is a #2
Phillips screwdriver.
Installing the Wall Docking Station and Plastic Back Box
The Plastic Back Box has two pairs of knockouts at the top of the box and four (4) lockdo wn wings attached to
the box with Phillips-head screws. For ease of installation, the interior of the box contains an “UP” arrow
pointing to the knockouts.
The optional CB-MVP-WDS9 Metal Rough-In Box is not required for installation of
the supplied Plastic Back Box, but it offers an extra level of support.
To install the Plastic Back Box:
1. Cut a hole into the wall or surface intended to hold the back box. The back box is sized 12 1/16 inches
(30.64 cm) long and 8 11/16 inches (22.07 cm) high, so the hole should be at least 1/4” (6.4mm) smaller
in each dimension (FIG. 12). Use the included MVP-WDS-9 Wall Docking Station Template (68-5967-
01) as an aid for hole placement and measurement.
FIG. 12 Recommended cutout for the MVP-WDS-9 plastic back box
Make sure to measure the size of the intended hole before starting to cut it. Cutting
the hole slightly smaller than the dimensions to allow for adjustments is highly
recommended.
2. Select the knockout to be removed from the top of the box. The box has two knockouts, at the top left and
the top right.
To assist with wiring, and to avoid mechanical stresses on the wire and the
mechanism of the Wall Docking Station, the top left knockout, when viewing the
device from the rear, is preferred for use for Ethernet installation. Use the top right
knockout for USB cable connection.
