AMX MT-1002 Specifications

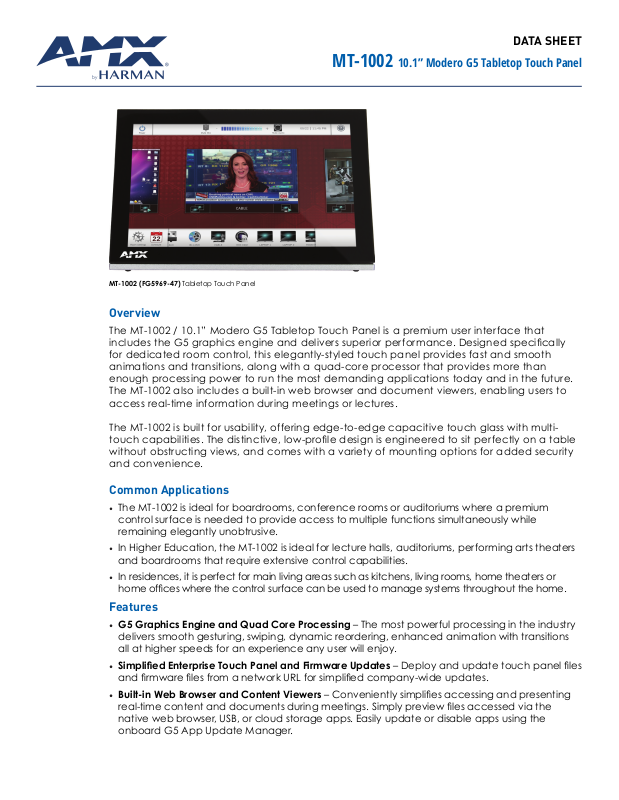

DATA SHEET

MT-1002 10.1” Modero G5 Tabletop Touch Panel

MT-1002 (FG5969-47) Tabletop Touch Panel

Overview

The MT-1002 / 10.1” Modero G5 Tabletop Touch Panel is a premium user interface that

includes the G5 graphics engine and delivers superior performance. Designed specically
for dedicated room control, this elegantly-styled touch panel provides fast and smooth

animations and transitions, along with a quad-core processor that provides more than

enough processing power to run the most demanding applications today and in the future.

The MT-1002 also includes a built-in web browser and document viewers, enabling users to
access real-time information during meetings or lectures.

The MT-1002 is built for usability, offering edge-to-edge capacitive touch glass with multi­touch capabilities. The distinctive, low-prole design is engineered to sit perfectly on a table
without obstructing views, and comes with a variety of mounting options for added security

and convenience.

Common Applications

• The MT-1002 is ideal for boardrooms, conference rooms or auditoriums where a premium

control surface is needed to provide access to multiple functions simultaneously while
remaining elegantly unobtrusive.

• In Higher Education, the MT-1002 is ideal for lecture halls, auditoriums, performing arts theaters

and boardrooms that require extensive control capabilities.

• In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or

home ofces where the control surface can be used to manage systems throughout the home.

Features

• G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry

delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions
all at higher speeds for an experience any user will enjoy.

• Simplied Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel les

and rmware les from a network URL for simplied company-wide updates.

• Built-in Web Browser and Content Viewers – Conveniently simplies accessing and presenting

real-time content and documents during meetings. Simply preview les accessed via the
native web browser, USB, or cloud storage apps. Easily update or disable apps using the
onboard G5 App Update Manager.

• Adjustable Security Modes – With the ability to select from high security or custom modes,

administrators can customize the panel’s security levels for access, networking and

communication.

• Enhanced User Experience – Modero Series features intuitive UI functionality including:

gesturing, swiping, dynamic reordering and enhanced animation capabilities.

• View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by

a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data

sources) enabling the user to scroll or search to make a selection. Demos are available in the
UI Resource Center.

Specifications

TOUCH SCREEN DISPLAY

Display Type TFT Active Matrix Color LCD

Display Size (WH) 9.9” x 6.7” (252 mm x 170 mm), 12.0” (304 mm)

diagonal

Viewable Area (WH) 8.5” x 5.3” (217mm x 136mm), 10.1” (257mm)

diagonal

Resolution (WH) 1280x800

Aspect Ratio (WH) 16:9

Brightness 400 cd/m2

Contrast Ratio 700:1

Color Depth 16.7M colors

Illumination LED

Touch Overlay Projected capacitive, multi-touch support, 3

simultaneous max

Viewing Angle Vertical ± 89°, Horizontal ± 89°

MEMORY

SDRAM 2 GB

Flash 16 GB

Maximum Project Size 12 GB ash, available for apps and touch

panel les

COMMUNICATIONS

Ethernet 10/100 Auto MDI-X port, RJ-45 connector.

Supported IP and IP-Based Protocols: UCP, TCP,
ICMP, ICSP, IGMP, DHCP, SSH, FTP, DNS, RFB (for

VNC), HTTP

USB USB host 2.0, Type A ports (1 with limited physical

access requiring right angle connection): Firmware
upgrade, touch panel le transfer, document and

image viewing, HID peripherals

Bluetooth Mouse/Keyboard: HID Prole v1.1 (requires external

USB-BT adapter)

MT-1002 | 2

VIDEO

Supported Video Codecs MPEG-2-TS: MPEG-2 Main Prole @High Level up to

720p at 25 fps (decode only)
MPEG-2-TS: H.264 High Prole @Layer 4, AAC-LC up
to 720p at 25 fps (encode/decode)
MJPEG up to 720p at 25 fps (decode only)

Supported Video Transport Streams MPEG-TS for MPEG-2 and H.264; HTTP for MJPEG

Max Number of Active Video Streams Two decode plus one encode

AUDIO

Speakers 4 ohm, 2 Watt, 300 Hz cutoff frequency

Supported Audio Codecs MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
AAC-LC (8 kHz, 96 kHz)
G.711 with μLaw (VoIP encode/decode at 8kHz)

File Formats WAV, MP3 (as part of touch panel le only - no USB

storage)

GRAPHICS ENGINE

AMX G5 G5 enhanced feature set supporting multi-touch

and gestures, scrolling, transitions, applications ­See TPD5 Operations Guide for more information

EMBEDDED APPLICATIONS

Viewer Applications PDF, JPEG, BMP, PNG, TIFF, GIF, PowerPoint, .doc,

.docx, .xls, .xlsx, .ppt, .pptx

Remote Management VNC Server

Video Conferencing Skype

CONNECTIONS

Ethernet 10/100 Auto MDI-X port, RJ-45 connector through

cable extension

USB (1) USB host 2.0, Type A ports

Power PoE (Power over Ethernet), 802.3af, class 3

ENVIRONMENTAL

Temperature (Operating) 32° F to 104° F (0° C to 40° C)

Temperature (Storage) 4° F to 140° F (-20° C to 60° C)

Humidity (Operating) 20% to 85% RH

Humidity (Storage) 5% to 85% RH

Power (“Heat”) Dissipation On: 44.2 BTU/hr

Standby: 19.8 BTU/hr

MT-1002 | 3

GENERAL

Dimensions (HWD) 6.3” x 10” x 3.81” (160mm x 255mm x 97mm)

Weight 3.1 lbs (1.41 Kg)

Power Consumption Full-On: 12.95 W maximum

Standby: 5.8 W
Shutdown: 1 W

Start-Up Inrush Current Not applicable due to PoE standard

External Power Supply Required Optimal performance requires use of one of the

following AMX PoE power supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant

(FG423-83)

• NXA-ENET8-POE+, Gigabit PoE Ethernet Switch

(FG2178-64)

Regulatory Compliance UL 60950-1

FCC Part 15 Class B
C-Tick CISPR 22 Class B
CE EN 55022 Class B and EN 55024
CB Scheme IEC 60950-1

IC
IEC/EN-60950

RoHS/WEEE compliant

Included Accessories • MXA-USB-C, USB Port Cover Kit, Modero X/S Series

Touch Panel (FG5968-18)

• HPG-10, 3/4” Mini-Grommet (FG570-01)

• MXA-CLK, Modero X/S Series Cleaning Kit

(FG5968-16)

Optional Accessories MOUNT

• MSA-STMK-10, Secure Table Mount Kit, for Modero

10” Tabletop Touch Panel (FG2265-16)

VIDEO

• MXA-MPL, Modero X/S Series Multi Preview Live

(FG5968-10)

MT-1002 | 4

For more detailed pictorial drawings please visit: https://www.amx.com/en-US/products/mt-1002

MT-1002

(Isometric View)

MT-1002

(Top View)

10”

(255.11)

MT-1002

(Isometric View)

6.22”

(158.14)

LAST REVISED: 10/09/2018

MT-1002

(Front View)

MT-1002

(Right View)

4.11” (104.38)

MT-1002

(Bottom View)
