DATA SHEET
7” Modero
MSD-701-L2 (FG2265-32)
®
S Series Wall Mount Touch Panel
Overview
The MSD-701 / 7" Modero S Series Wall Mount Touch Panel is a versatile, yet
affordable control surface that is equally suited for scheduling or room control.
With a generous selection of mounting options, the MSD-701 can be placed on any
flat surface (including glass) inside or outside a conference room or classroom, and
the built-in room availability bar shows green or red depending on if the room is
currently booked. Key features include a brilliant 24-color depth, PoE connectivity,
video streaming, and VoIP support – all at an economical price point.
Common Applications
The MSD-701 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling
panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
The MSD-701 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a
large conference room or classroom.
© 2016 AMX. All rights reserved.
Features
Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and
brilliant 24-bit color depth
Elegant Room Availability Bar with 180° Visibility – Easily glance down the hall to see if meeting spaces are
occupied
Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S
wall touch panel to any smooth surface
Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and
delivers responsive performance
Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility
for consistent style on any budget
Specifications
TOUCH SCREEN DISPLAY
Display Type
TFT Active Matrix Color LCD with Fringe Field Switching
(FFS) - Wide Viewing Angle Technology
Display Size (WH)
7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm)
diagonal
Viewable Area (WH)
6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm)
diagonal
Resolution (WH)
1024x600
Aspect Ratio (WH)
16:9
Brightness
400 cd/m2
Contrast Ratio
800:1
Color Depth
16.7M colors
Illumination
LED
Touch Overlay
Resistive
Viewing Angle
89°/89°/89°/89° (Up/Down/Left/Right)
MEMORY
SDRAM
512 MB
Flash
4 GB
Maximum Project Size
2.4 GB flash available to user
COMMUNICATIONS
ETHERNET
10/100 port, RJ-45 connector. Supported IP and IPBased Protocols: UCP, TCP, ICMP, ICSP, IGMP,DHCP,
Telnet, FTP, DNS, RFB (for VNC), HTTP
USB
(1) USB host 2.0, Type A port: firmware upgrade,
touch panel file transfer, JPEG image viewer, HID
peripherals
Bluetooth®
Mouse/Keyboard: HID Profile v1.1, requires MXA-BT,
Bluetooth USB Adapter for Modero X/S Series Touch
Panels (FG5968-19) and MXA-HST, Bluetooth Handset
for Modero X/S Touch Panels (FG5968-17)
VIDEO
Supported Video Codecs
MPEG-2-TS: MPEG-2 Main Profile @ High Level up to
720p at 25 fps (decode)
MPEG-2-TS: H.264 High Profile@Layer 4, AAC-LC up to
720p at 25 fps (decode)
MJPEG up to 720p at 25 fps (decode only)
Supported Video Transport Streams
MPEG-TS for MPEG-2 and H.264; HTTP for MJPEG
Max Number of Active Video Streams
One decode
AUDIO
Microphone
-42 dB ± 3 dB sensitivity FET microphone
Speakers
4 ohm, 1.5 Watt, 500 Hz cutoff frequency
Supported Audio Codecs
MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16
kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
AAC-LC (8 kHz, 96 kHz)
G.711 with μLaw (VoIP encode/decode at 8 kHz)
MSD-701 | 2
File Formats
WAV, MP3 (as part of touch panel file only - no USB
storage)
Intercom
Full Duplex VoIP, SIP v2.0
GRAPHICS ENGINE
AMX G4
AMX's exclusive, powerful G4 graphics engine – the
driving force behind the advanced graphics and image
processing capability on a variety of AMX Touch Panels
and other devices (see TPD4 Operations Guide for
more information)
EMBEDDED APPLICATIONS
Remote Management
VNC Server, G4 Web Control
Panel-to-Panel Conferencing
Receives audio and video and returns audio for panelto-panel communication
Audio Conferencing
Audio (full duplex intercom)
FRONT PANEL COMPONENTS
Sleep Button
Sleep button to activate sleep mode and powering off.
Also provides access to setup pages (can be disabled)
Programmable Red/Green LEDs
Programmable red/green LED in the front, left and
right sides of the panel, LEDs are beautifully recessed
and nearly invisible when not lit
CONNECTIONS
Ethernet
10/100 port, RJ-45 connector
USB
(1) USB host 2.0, type A port
Power
PoE (Power over Ethernet), 802.3af, class 0
ENVIRONMENTAL
Temperature (Operating)
32° F to 104° F (0° C to 40° C)
Temperature (Storage)
4° F to 140° F (‐20° C to 60° C)
Humidity (Operating)
20% to 85% RH
Humidity (Storage)
5% to 85% RH
Power (“Heat”) Dissipation
On: 22.2 BTU/hr
Standby: 14.3 BTU/hr
GENERAL
Dimensions (HWD)
4 7/8” x 7 3/8” x 2 1/4” (123.9 mm x 187.5 mm x 58
mm), with back box
Weight
1.05 lbs (.680 Kg), with back box
0.8 lbs (.363 Kg), without back box
Power Consumption
Full-On: 11 W (max)
Typical: 7.5 W
Standby: 4.5 W
Shutdown: 0.7 W
Start-Up Inrush Current
Not applicable due to PoE standard
External Power Supply Required
Optimal performance requires use of one of the
following AMX PoE power supplies (not included):
•PS-POE-AF-TC, PoE Injector, 802.3AF Compliant
(FG423-83)
•NXA-ENET8-2POE, Gigabit PoE Ethernet Switch
(FG2178-63)
MSD-701 | 3
Regulatory Compliance
FCC Part 15 Class B
CE EN 55022
CE EN 55024
CE EN 60950-1
IEC 60950-1
IC CISPR 22 Class B
C-Tick CISPR 22 Class B
UL 60950-1
VCCI CISPR 22 Class B
RoHS
WEEE
Optional Accessories
• MXA-MP, Modero X/S Series Multi Preview (FG5968-
20)
• MXA-MPL, Modero X/S Series Multi Preview Live
(FG5968-10)
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant
(FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch
(FG2178-63)
• MXA-BT, Bluetooth USB Adapter for Modero X/S
Series Touch Panels (FG5968-19)
• MXA-HST, Bluetooth Handset for Modero X/S Touch
Panels (FG5968-17)
• CB-MXSA-07, Rough-In Box and Cover Plate for
Modero X/S Series Touch Panel, 7" (FG2265-18)
• MSA-MMK-07, Multi Mount Kit, for use with MSD701 (FG2265-12)
• MSA-MMK2-07, Multi Mount Kit, for use with MSD701-L2, RMBK-701 (FG2265-22)
• MSA-RMK-07, Rack Mount Kit for Modero S Series
Touch Panel, 7" (FG2265-15)
• MSA-AMK-07, Any Mount Kit, for use with MSD-701
(FG2265-25)
• MSA-AMK2-07, Any Mount Kit, for use with MSD701-L2, RMBK-701 (FG2265-35)
• MXA-CLK, Modero X/S Series Screen Cleaning Kit
(FG5968-16)
• MXA-USB-C, USB Port Covers for the Modero X/S
Series Touch Panels (FG5968-18)

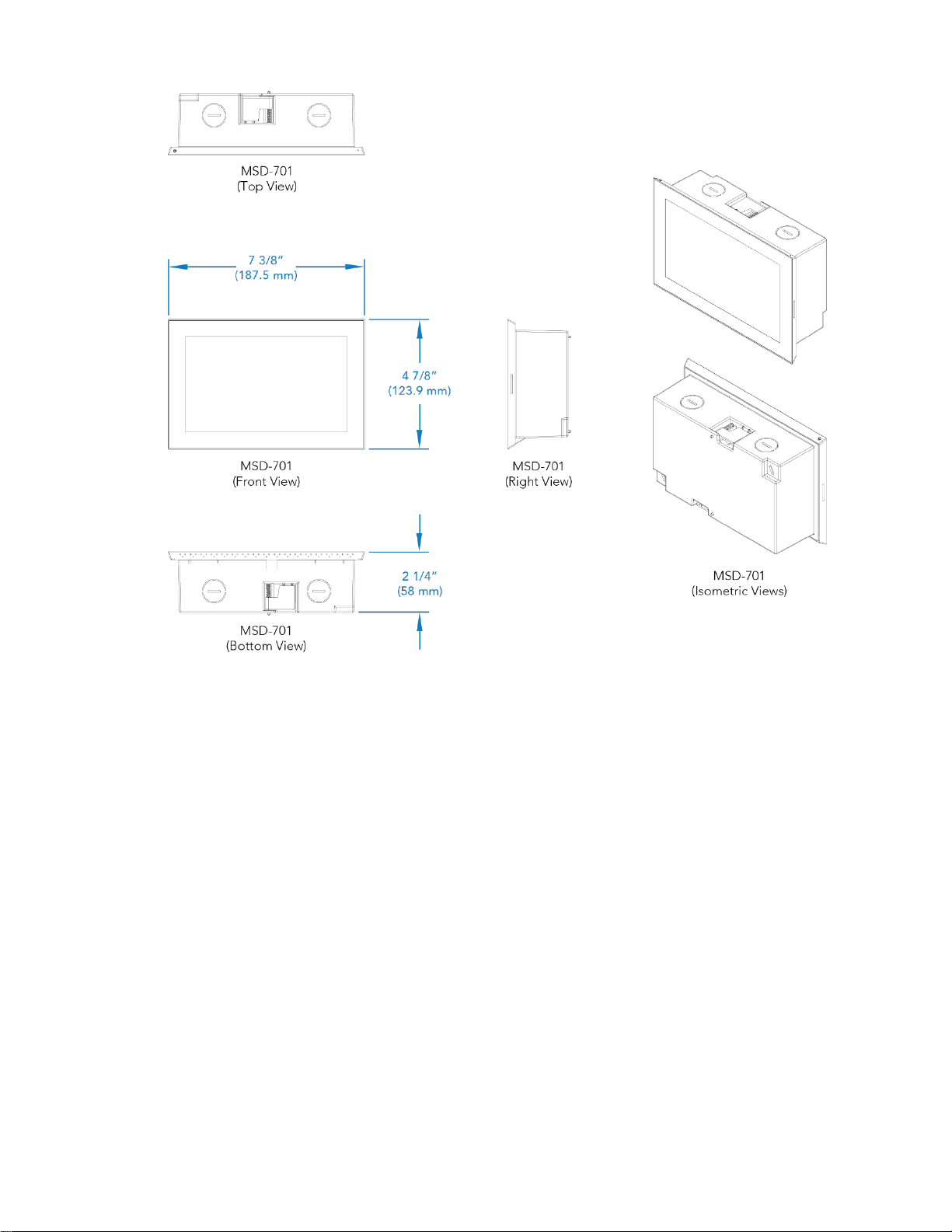

For a more detailed PDF or DXF pictorial drawing please visit: http://www.amx.com/products/MSD-701.asp
MSD-701 | 4
